3660SUITE Floorplan

Arctic Wolf Fifth Wheels

Super sized mid-bunk with overhead loft! Interior highlights include a deluxe tri-fold sofa, plush theatre seats with heat-light-massage, stylish free-standing table with four seats, panoramic rear window for a view of the lake, farm style sink, and 6’4” tall slide rooms, electric fireplace, two spare sleeping/storage areas, washer/dryer prep and a king bed. Some exterior refinements include, 15,000 BTU A/C, double basement storage, outside fridge/freezer combo and one-touch auto leveling.

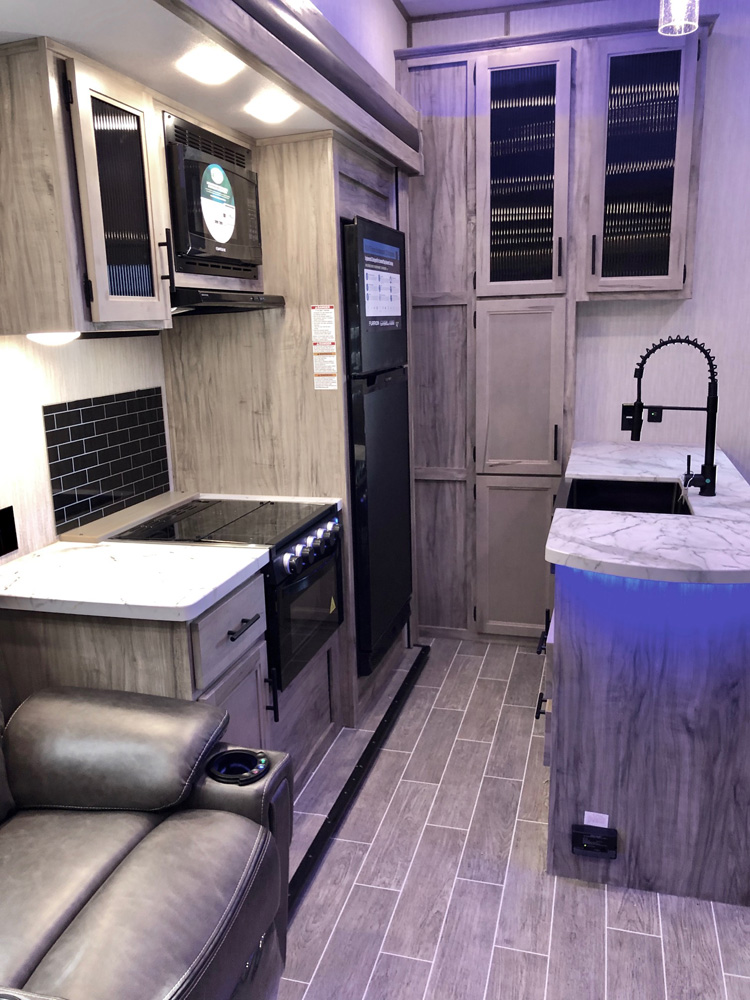

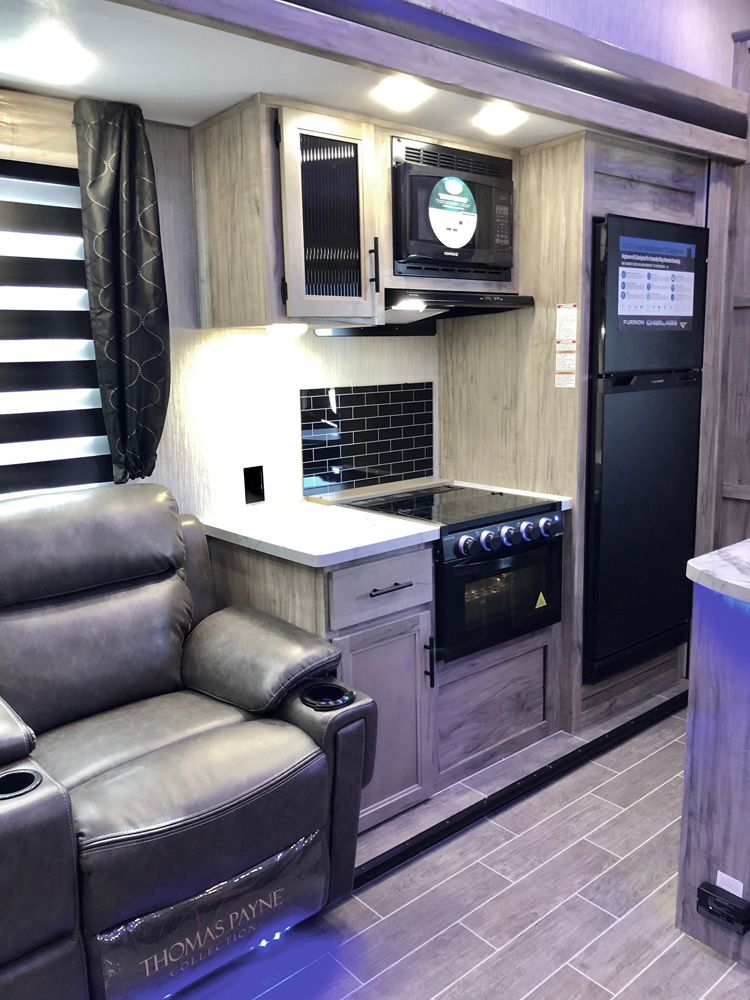

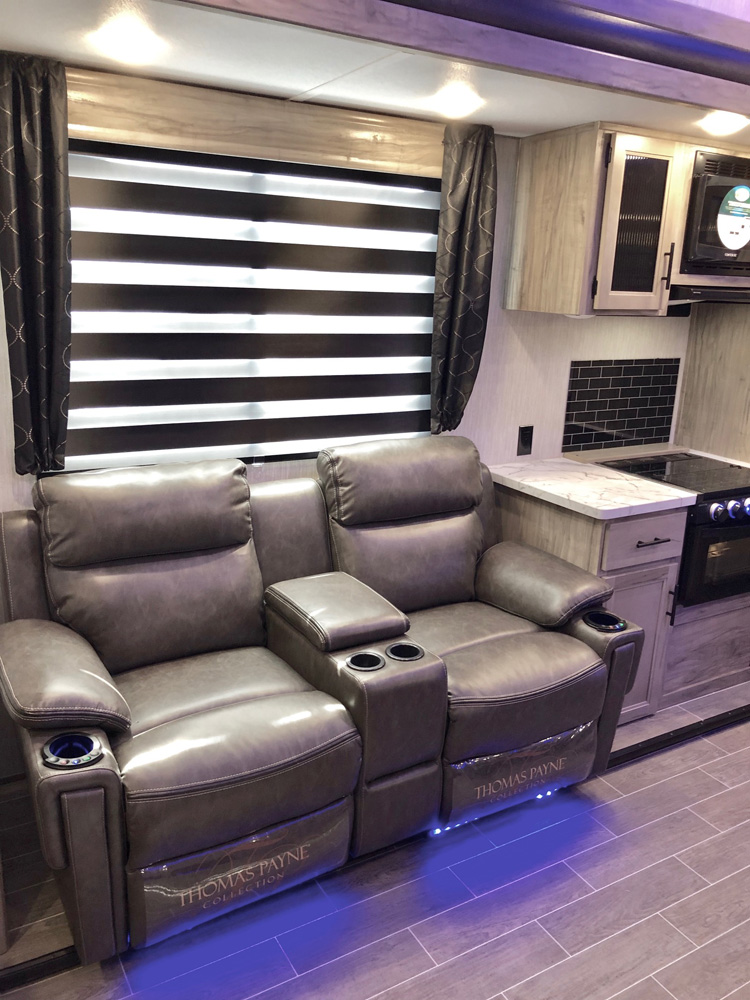

The 3660SUITE has 4 slide outs, three on the off-door side and one on the door side. There is a 20 foot awning on the door side that begins at the front of the slide out and is over the removable and adjustable step and open pass-through storage. Interior layout from front to back: 5th wheel upper deck includes a front bedroom with king bed slide out and side-aisle bathroom; lower level includes a bunkhouse with off-door side side out containing a tri-fold sofa with flip up bunk; kitchen off-door side slide out with two seat home theater seating, cook top stove, microwave and 12 Volt residential refrigerator; door side slide out with fireplace, TV prep and table with two fixed and two folding chairs; tri-fold sofa on back wall.
Enlarge

Specifications

Hitch Weight:
1,655 lb.
GVWR:
13,655 lb.
UVW
10,828 lb.
CCC
2,827 lb.
Exterior Length:
43' 7"
Exterior Height:
13' 1"
Exterior Width:
96"
Fresh Water:
49.00 gal.
Gray Water:
70.00 gal.
Black Water:
35.00 gal.
Awning Size:
20'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
