3770SUITE Floorplan

Arctic Wolf Fifth Wheels

3770SUITE has two slide outs on the off-door side, one on the door side, and two entry doors. There is a 12 foot awning and 15 foot awning on the door side along with an outside kitchen near the rear and pass through storage. Interior layout from front to back: front bedroom with off-door side king bed slideout and side aisle bathroom; mid kitchen with kitchen island, ceiling fan, off-door side slide out containing home theater seating with removable tables; door side slide out containing 12 Volt residential refrigerator microwave stove top and overhead cabinet; angled entertainment center with TV prep and fireplace below; half bath with second entry door; bunkhouse in rear.
Enlarge
Super sized, 2nd master with overhead loft! Interior highlights include plush theatre seats with heat-light-massage, oversized kitchen island, farm-style sink, two kitchen pantries, 6’4” tall slide rooms, electric fireplace, half bath, washer/dryer prep and a king bed. Some exterior refinements include, 2nd entry,15,000 BTU A/C, Cherokee “Step Above” entry step(s), double basement storage, one-touch auto level, and a full outside kitchen with fridge/freezer, working sink and cabinet storage!

Specifications

Hitch Weight:
2,260 lb.
GVWR:
14,260 lb.
UVW
10,893 lb.
CCC
3,367 lb.
Exterior Length:
43' 6"
Exterior Height:
13' 2"
Exterior Width:
96"
Fresh Water:
49.00 gal.
Gray Water:
70.00 gal.
Black Water:
70.00 gal.
Awning Size:
12' & 15'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.



360 Tour



Video Tour



Features & Options

  • 12V, High Efficiency, 10 Cubic Foot Residential Refrigerator with Travel Lock
  • Blackout" Kitchen Appliance Package
  • Total Control" Wireless Operation of Auto Leveling, Multiple Light Zones, Awning, Monitor Panel and All Slides
  • Zebra Shades" (Light Filtering with Blackout Capability) In Main Living Area
  • Rear Observation Camera with Bluetooth Connectivity and Operation
  • 6'4" Slide Room Height (Main Level Floor Slides) with Oversized Panoramic Windows
  • Automatic Leveling and Stabilization System with Hitch Memory and Dual Control Accessibility (via App and Control Panel)
  • Commercial Grade Spring Spout Kitchen Faucet with Pull-out Sprayer
  • Cherokee Exclusive Exterior Step(s) with Oversized Landing, 600LB. Capacity, Quick Release and Kick Plate
  • On Demand Tankless Hot Water Heater
  • On The Go™  Rear Ladder Prep
  • Quick Clean Waste Tank Sprayer
  • Residential, Oversized Farm Style Kitchen Sink with Flush Mount Cover
  • 100% Safety Glass Entry Door with Dark Tint, Friction Hinge, Viewing Window and Shade Prep
  • Seamless Counter Tops Throughout
  • Slam Latch Compartment Doors with "Safety Stay" Magnet Technology
  • Tire Pressure Safety Sensors
  • Dual Port USB Charging Stations (Multiple Locations in Living, Kitchen, Bed and Bunk Area)
  • Pet Friendly "Clean Sweep" Floor Design (No Heat Vents)
  • Best in Class Size, high Efficiency Furnace (35,000 BTU’s)
  • Armored Underbelly Tank Enclosure and Forced Air Heat to All Holding Tanks
  • High Capacity Electric Fireplace (5200 BTU’s) with Multiple Heat and Fan Settings (comes with remote)
  • High Circulation Interior Ceiling Fan
  • Insulator Series (Non-Conductive Material) Wood Roof and Floor Superstructure
  • Oversized Bathroom Attic Fan for Increased Air Flow
  • Thermo-Control Reflective Safety Glass Windows
  • Seamless PVC Roofing Membrane with Heat Reflectivity
  • 50AMP Electrical Service and Marine Style Detachable Power Cord
  • Supersized, Central Air Conditioning Unit (15,000 BTU) with Quick Cool Air Dump Feature
  • Upgraded 2” Thick Laminated Exterior Walls with Block Foam Insulation
  • 60”X80” Residential Queen-Sized Mattress (Non-Bed Slide Models)
  • 72”X80” Residential King-Sized Mattress (Bed Slide Models)
  • Individual Reading Lights at Bed
  • Night Stand Drawers (Non-Bed Slide Models)
  • Full Walk Around space in Bedroom
  • Oversized Front Bedroom Closet with Built In's and Sliding Doors (Bed Slide Models)
  • Full Under Bed Storage with Strut Lift Assist
  • Pleated Shades in Bedroom and Bunkroom
  • Oversized Bedroom Dresser with Shoe Nook (Bed Slide Models)
  • Super-Stor" Bedroom Closet with Full Depth Hanging Space and Built In's (Includes Washer/Dryer Prep for Bed Slide Models)
  • Bedroom TV Prep
  • Full Lino Bedroom Floor Covering
  • Nautilus Style Shower with Retractable Splash Proof Door
  • Shower Skylight
  • Porcelain Stool with Water Jet Assist and Foot Flush
  • Oversized Lav Sink, Countertop, Base Cabinet and Medicine Cabinet
  • Motion Sensing Night Light in Bathroom
  • Space Saver Sliding Door in Bathroom
  • Full Bath Linen with Toiletry Shelf (Non-Bed Slide Models)
  • Motion Sensing Safety Light at Hall Steps
  • Smart Monitor Panel with Smart Phone Bluetooth Connectivity
  • Pots and Pans Drawer Under Oven
  • Large Pantry
  • “Blackout” Kitchen Appliance and Hardware Package
  • EZ-Clean Deluxe Kitchen Backsplash

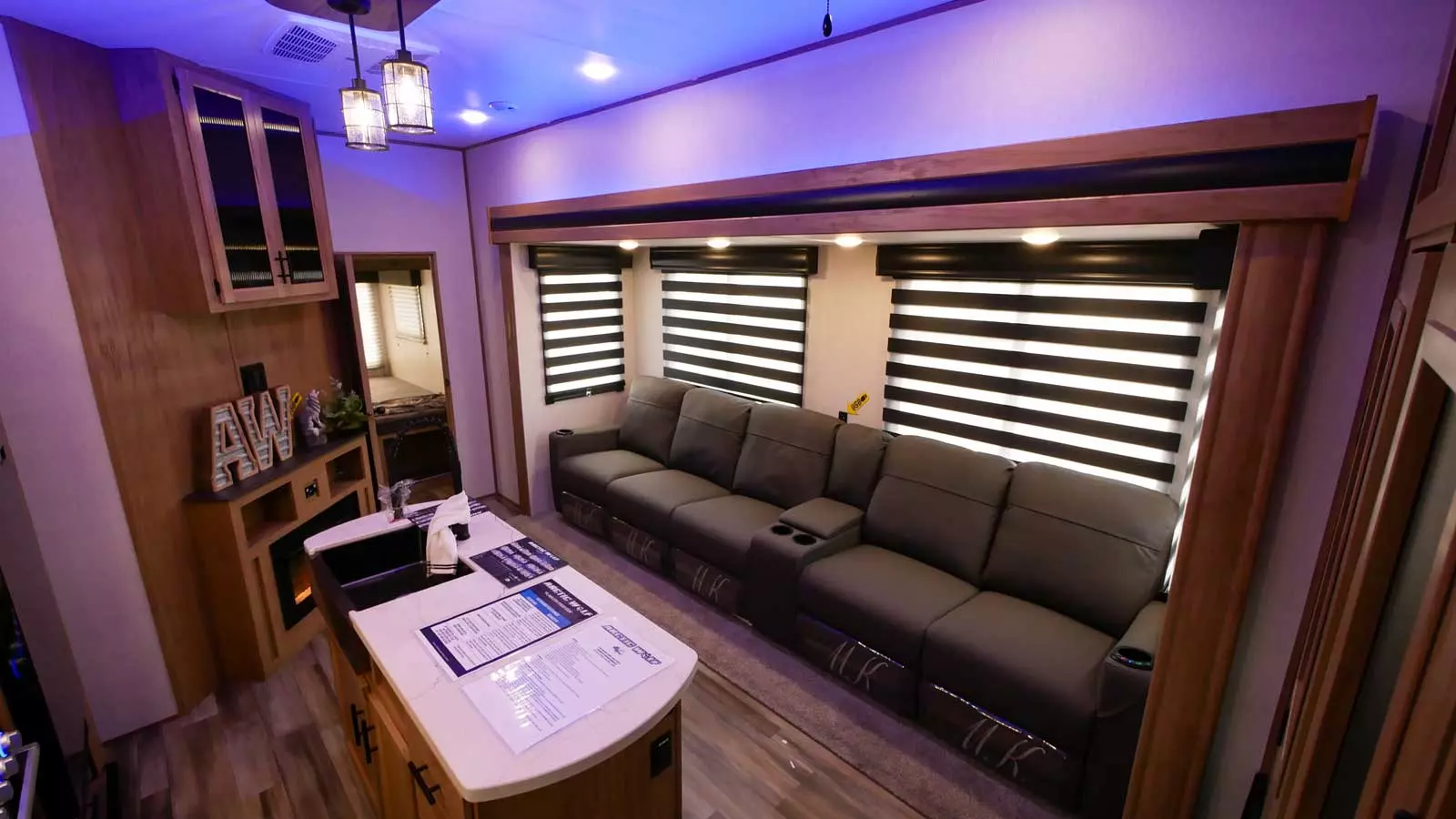

  • “Home Spa” Theatre Seat with Heat, Massage and Ambient Lighting (Where Applicable)
  • Deluxe Tri-Fold Sofa Sleeper (Where Applicable)
  • (2) Fixed and (2) Foldable Free Standing Dinette Chairs with Seat Storage (Where Applicable)
  • Booth Dinette with Pots and Pans Drawers (Where Applicable)
  • Dual Zone Bluetooth Stereo Module
  • Outside Kitchen (Excludes 291RL)
  • 30,000 BTU’s of Air Conditioning Power (Bed Slide Models)
  • Prepped for 2nd Air Conditioner (Non-Bed Slide Models)
  • Aluminum Rims
  • “ToughBend” Rigid Skirt Metal Design
  • Outside TV Prep in Pass Thru
  • Leash Latch Pet Safety Technology
  • Motion Sensing Lights in Pass Thru

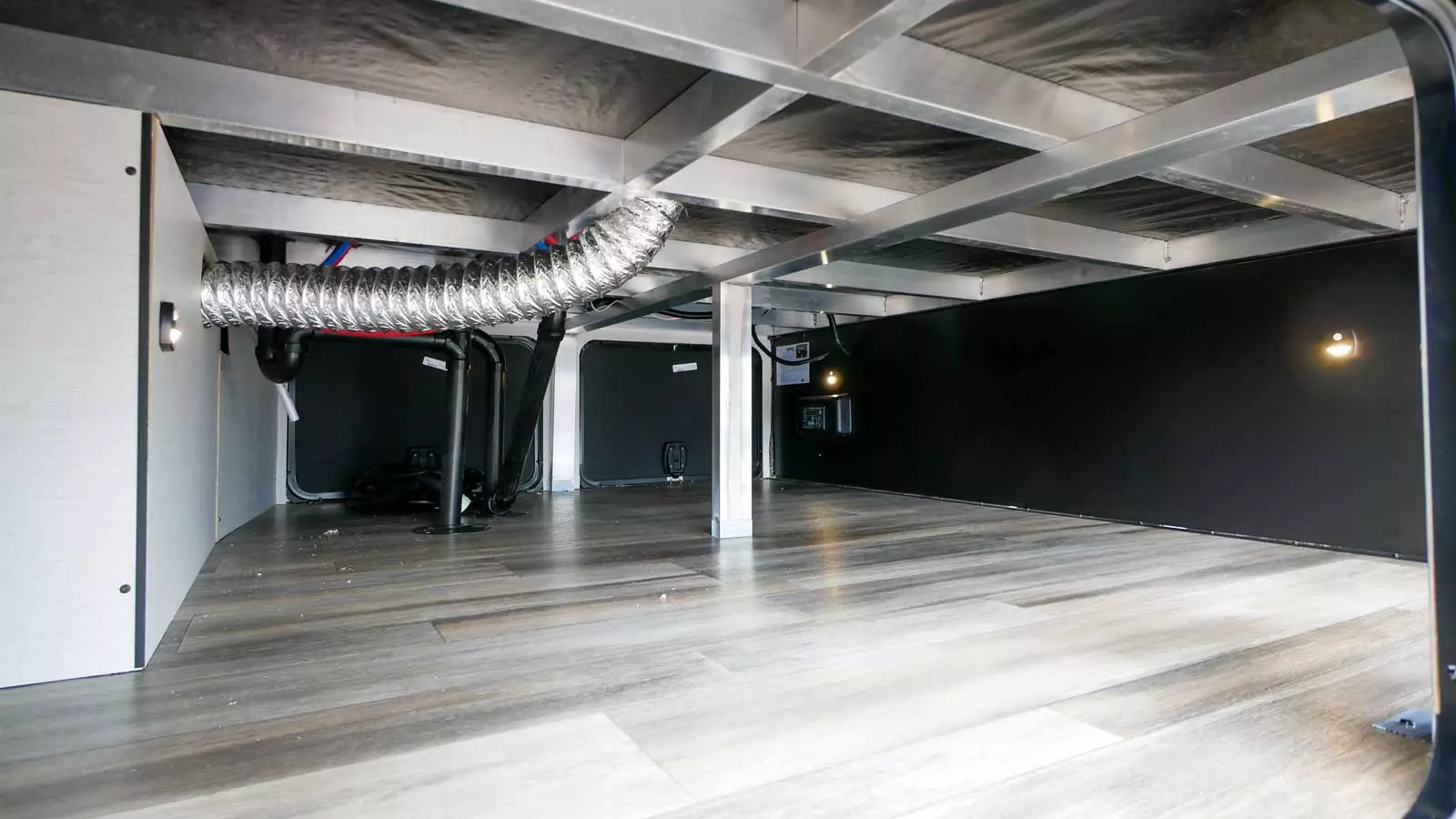

  • “SuperStor” Dual Cavern Basement Storage Compartment (Bed Slide Models)
  • Convenience Light at Utility Center
  • Large Exterior Folding Entry Assist Grab Handle (All Entries)
  • 5/8” Tongue and Groove Plywood Floor Decking
  • 1x Engineered Wood “SuperTruss” Roof Structure with 3/8? Decking
  • Bumper Mount Swing Arm Grill Prep (N/A 3910)
  • LED Interior/Exterior Lighting Package
  • Outside Shower with Hot and Cold Water
  • 2nd Supersized Air Conditioning Unit (15,000 BTU) with Immediate Quick Cool Dump Feature (STD SUITE Models)
  • Arctic Wolf Swing Arm Bumper Mount Grill (N/A 3910)
  • Large Residential Size LED TV
  • Rear Storage Travel Rack (N/A 3910)
  • Juice Pack - 50W, 100W Roof Mount Solar Panel (Expandable to 500W), Series 27 Battery, Battery Box, Battery Discount, Volt Meter and 30 AMP Solar Charger  (MANDATORY)
  • Juice Pack Expansion Kit (100W Panel)


Model Gallery
