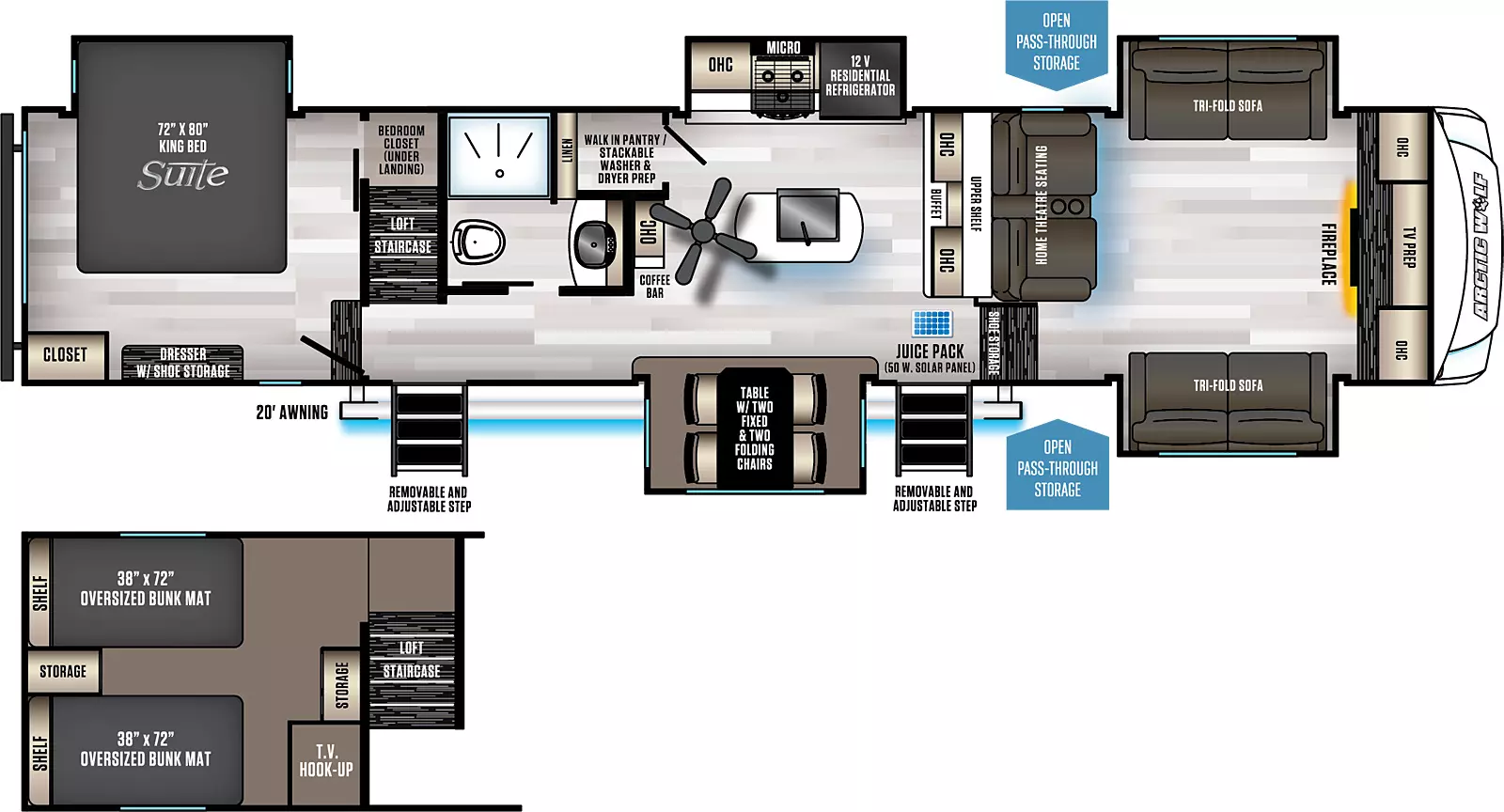

3990SUITE Floorplan

Arctic Wolf Fifth Wheels

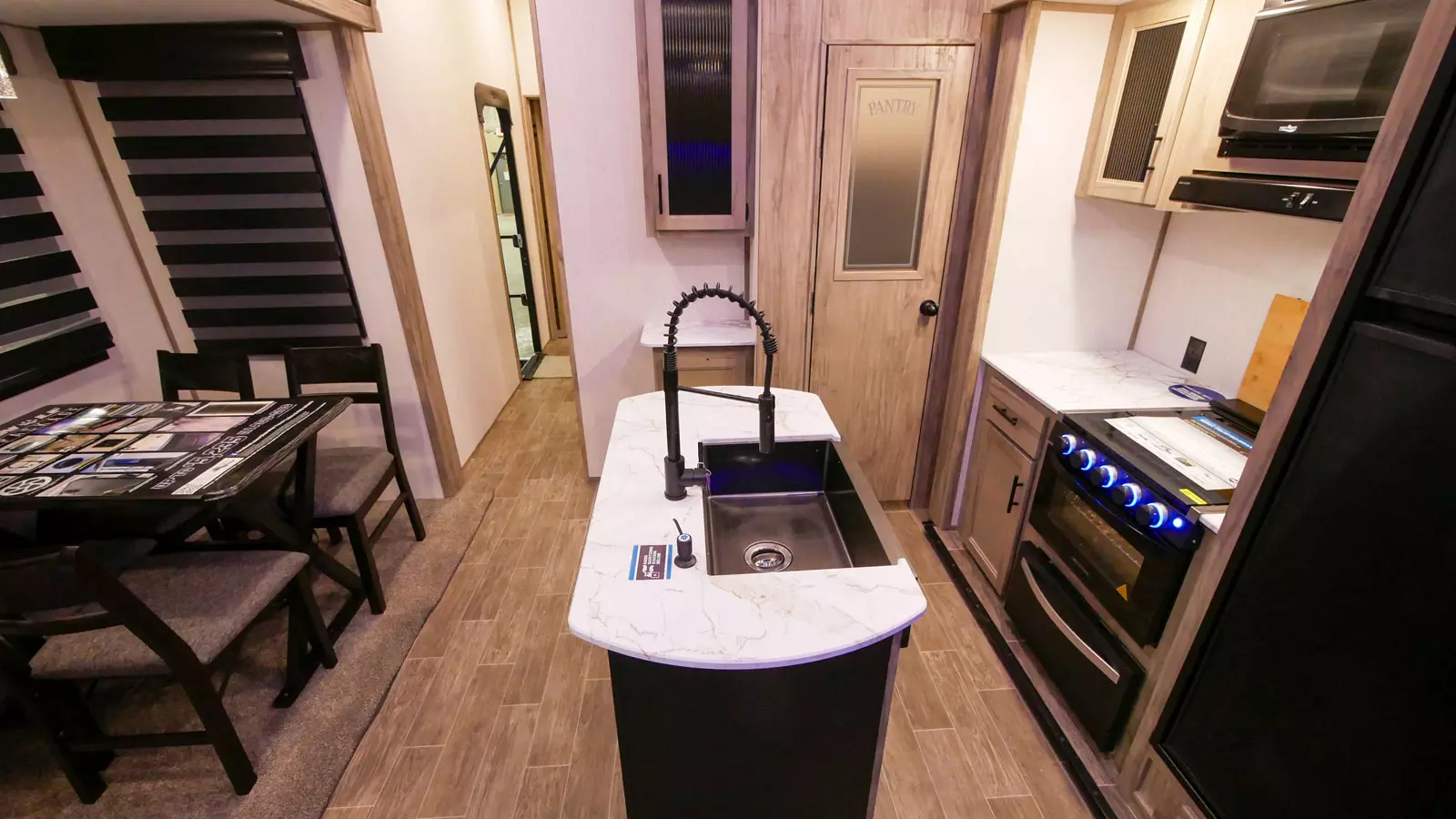

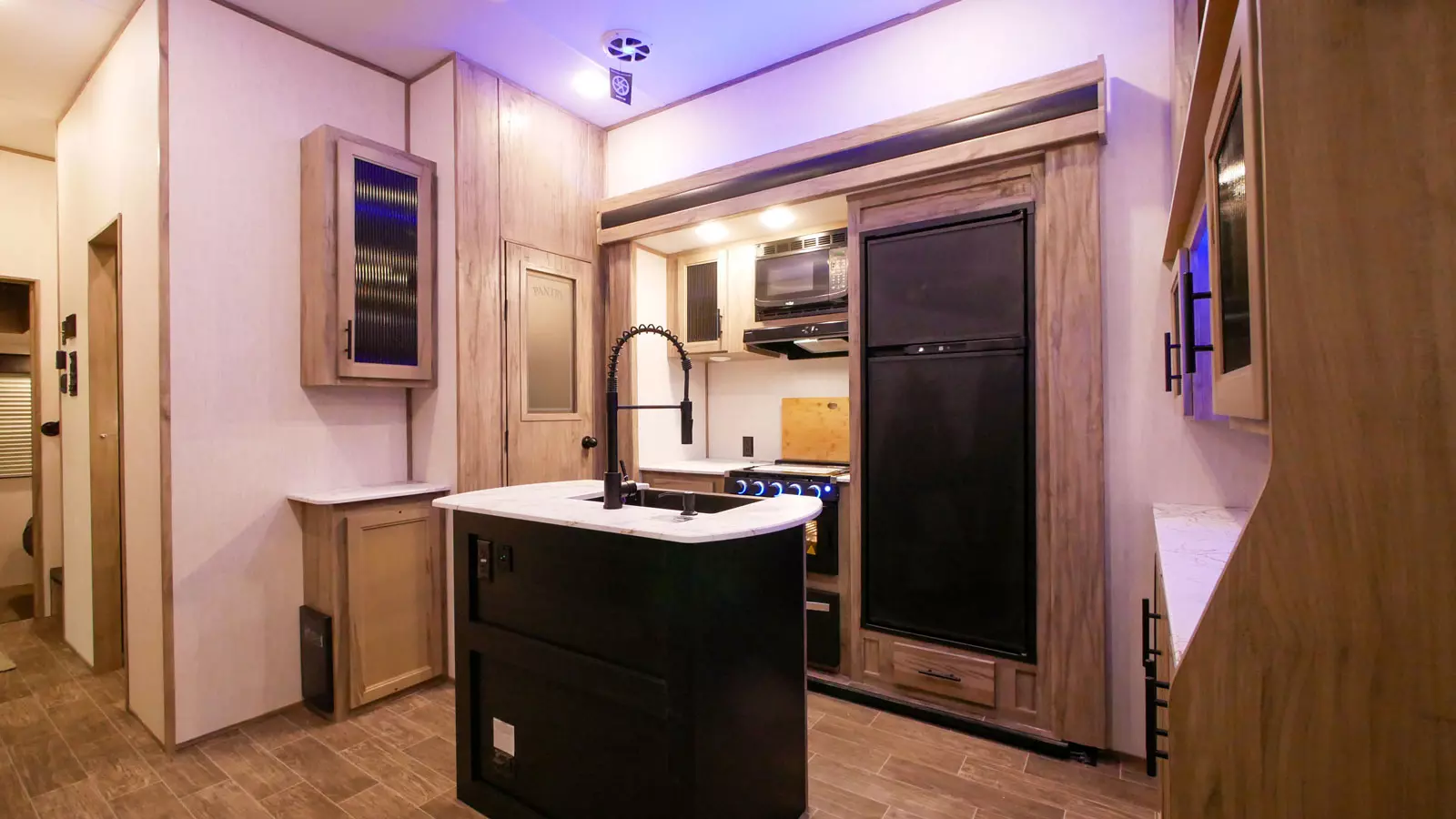

3990SUITE has 5 slide outs, three on the off-door side and two on the door side. There are two entry doors on the door side under an awning along with open pass through storage. The interior layout from front to back: front living room with 2 tri-fold sofa slide outs across from each other; mid kitchen with kitchen island off-door side kitchen slide out; door side slide out with table that has two fixed and two folding chairs; side aisle bathroom; and rear bedroom with king bed slide out. There is a loft staircase that takes you above the rear bedroom and includes two 38 x 72 inch oversized bunk mats along with storage, shelves and TV hookup.
Enlarge

Specifications

Hitch Weight:
2,080 lb.
GVWR:
14,080 lb.
UVW
11,688 lb.
CCC
2,392 lb.
Exterior Length:
43' 2"
Exterior Height:
13' 1"
Exterior Width:
96"
Fresh Water:
49.00 gal.
Gray Water:
70.00 gal.
Black Water:
35.00 gal.
Awning Size:
20'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
