Flagstaff Classic Fifth Wheels

PROVIDING THE COMFORTS OF HOME WHILE ON THE ROAD. Flagstaff takes pride in ensuring that each floor plan is able to suit the needs of your active family. Quality craftsmanship and attention to detail have been put into our Classic fifth wheels which gives you the flexibility you won’t find in comparable products. Our fully equipped kitchens with modern conveniences and spacious bedrooms featuring residential king bed slideouts will make you feel like you never left home.

We RV - Rockwood Link TreeCare Camps, fighting cancer and making memories

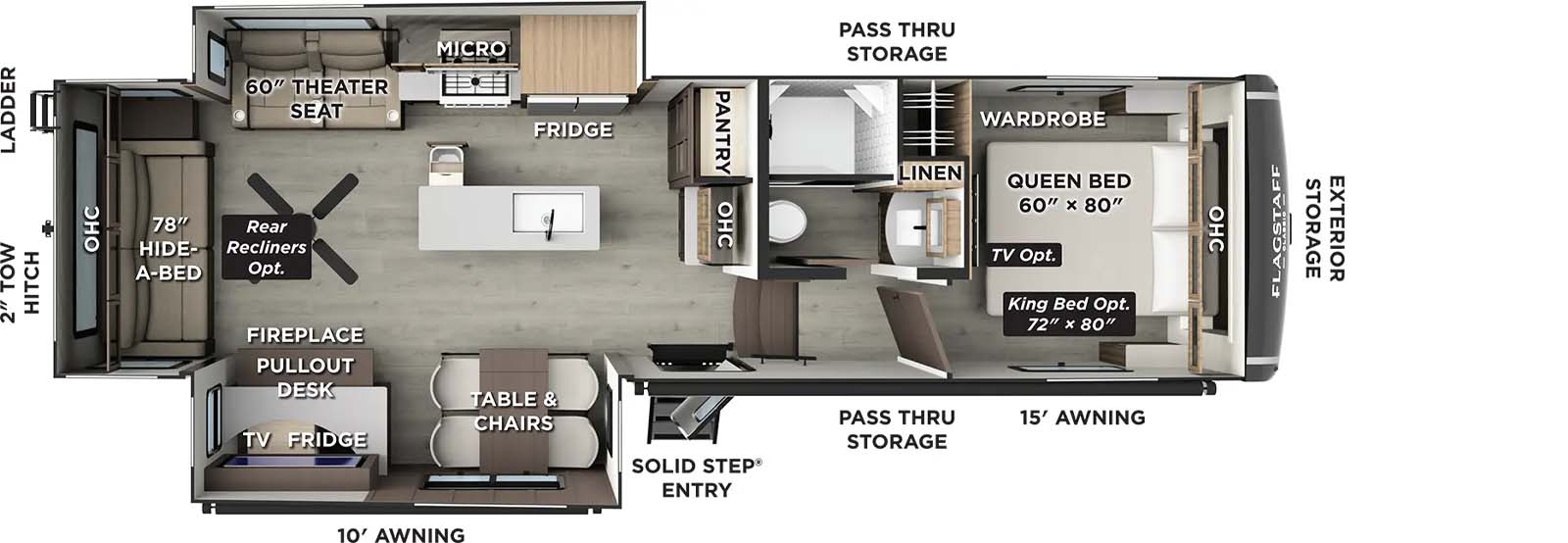

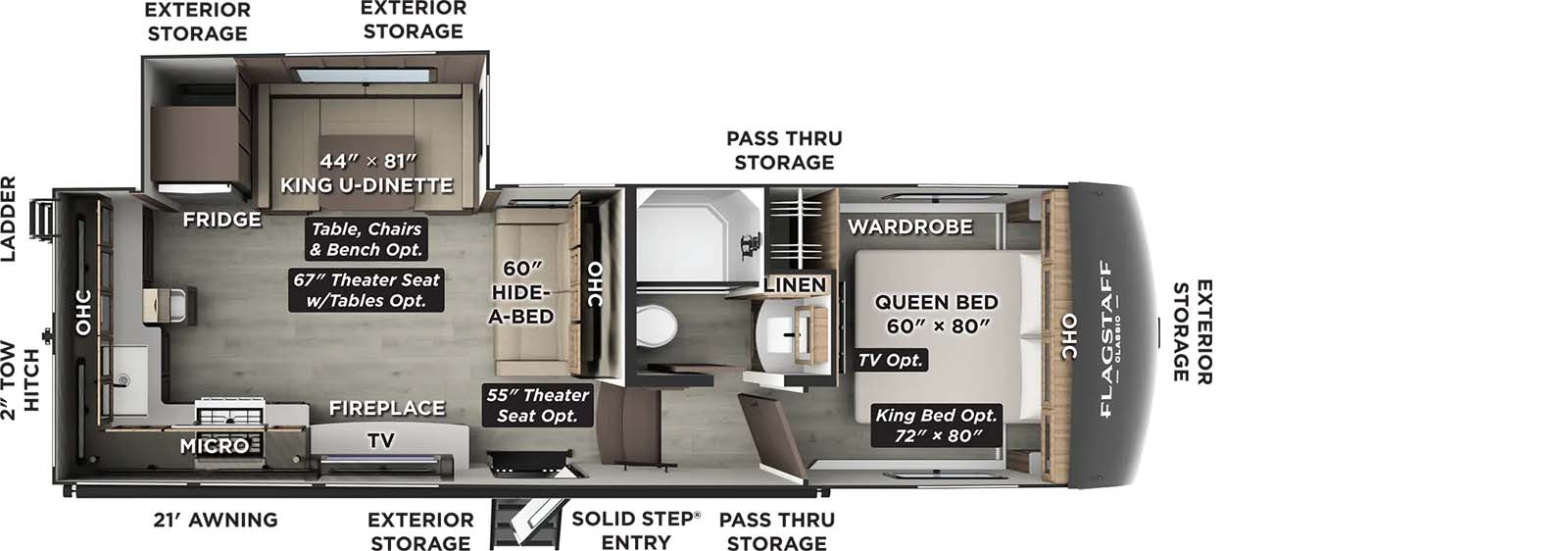

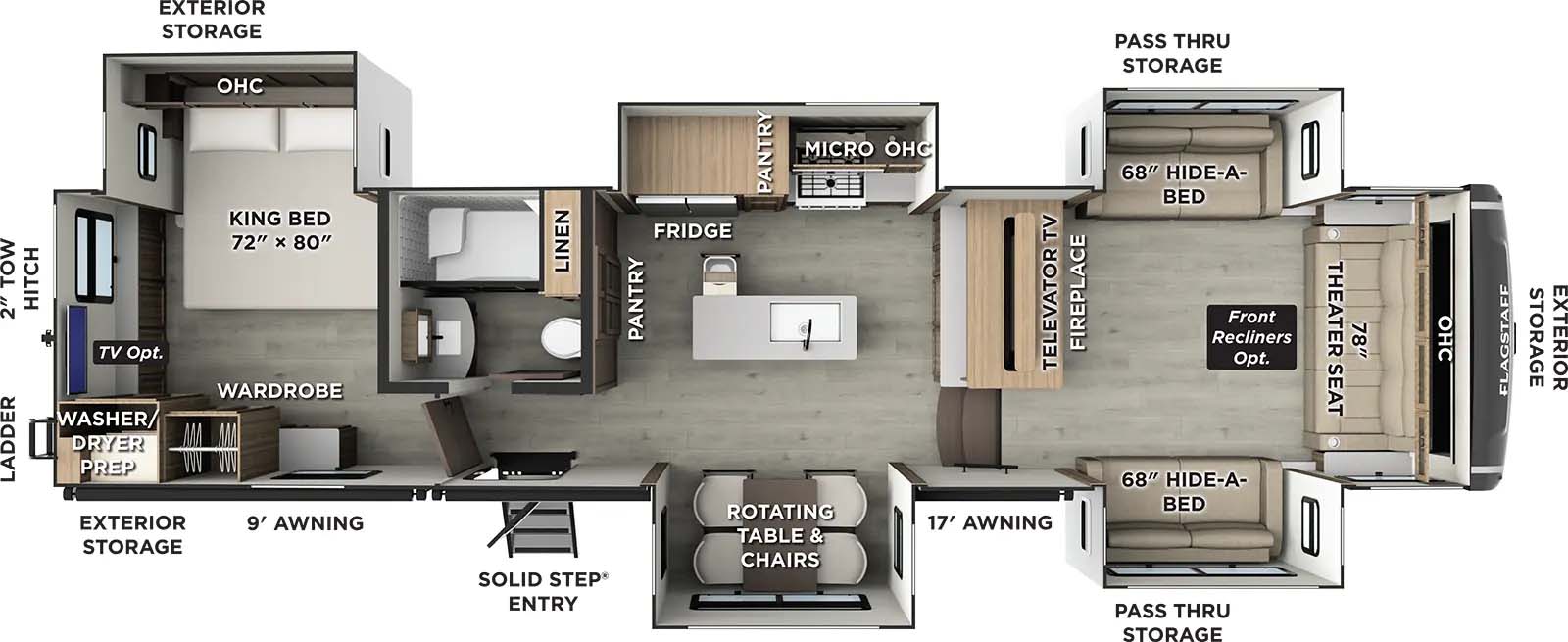

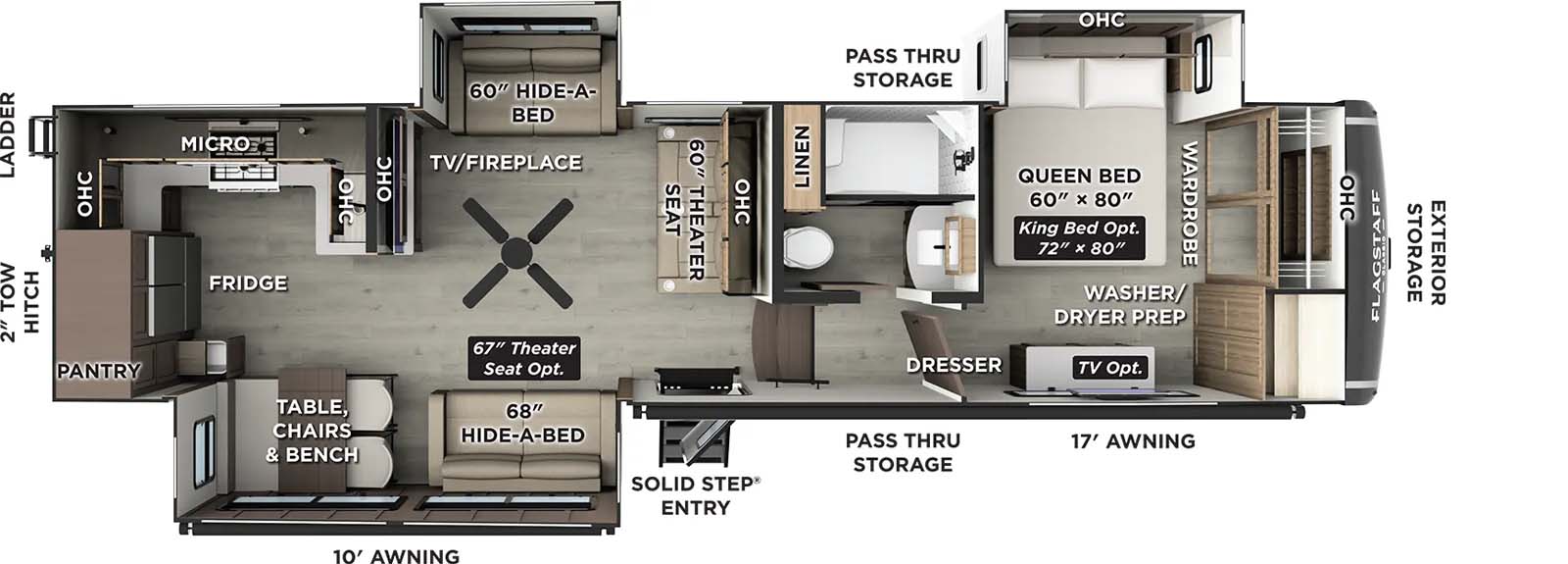

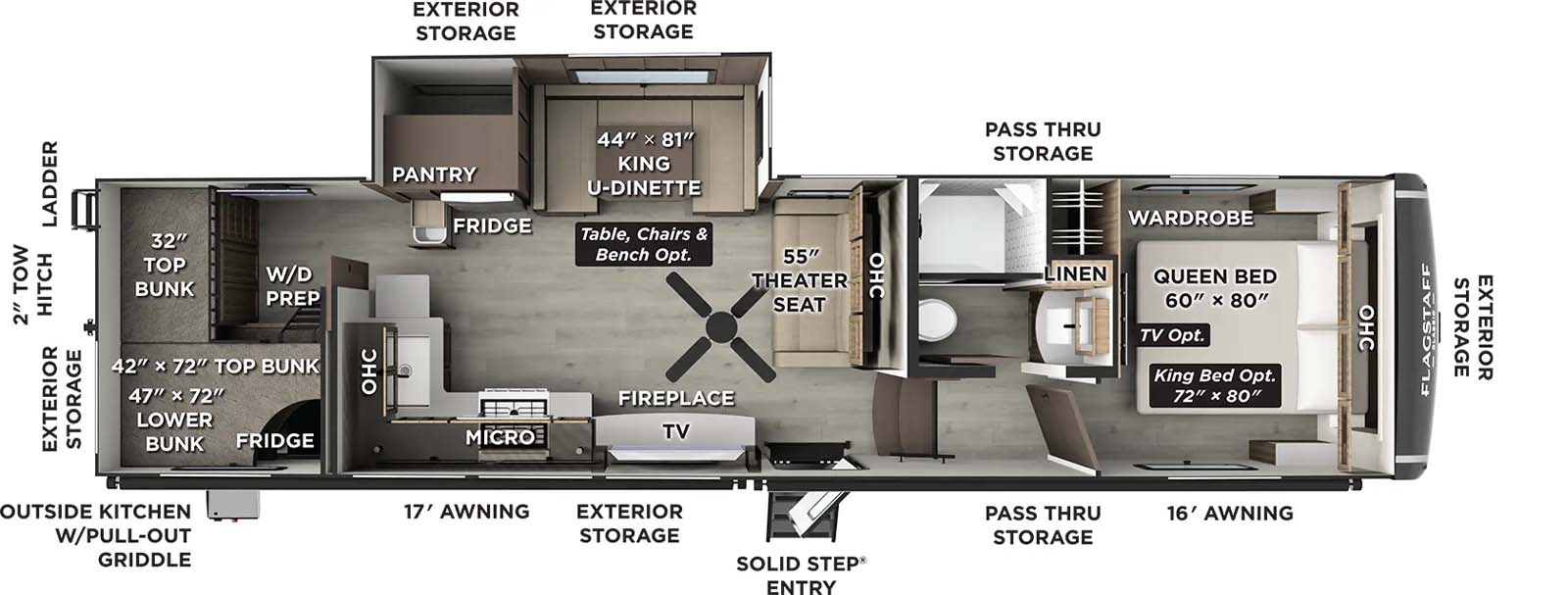

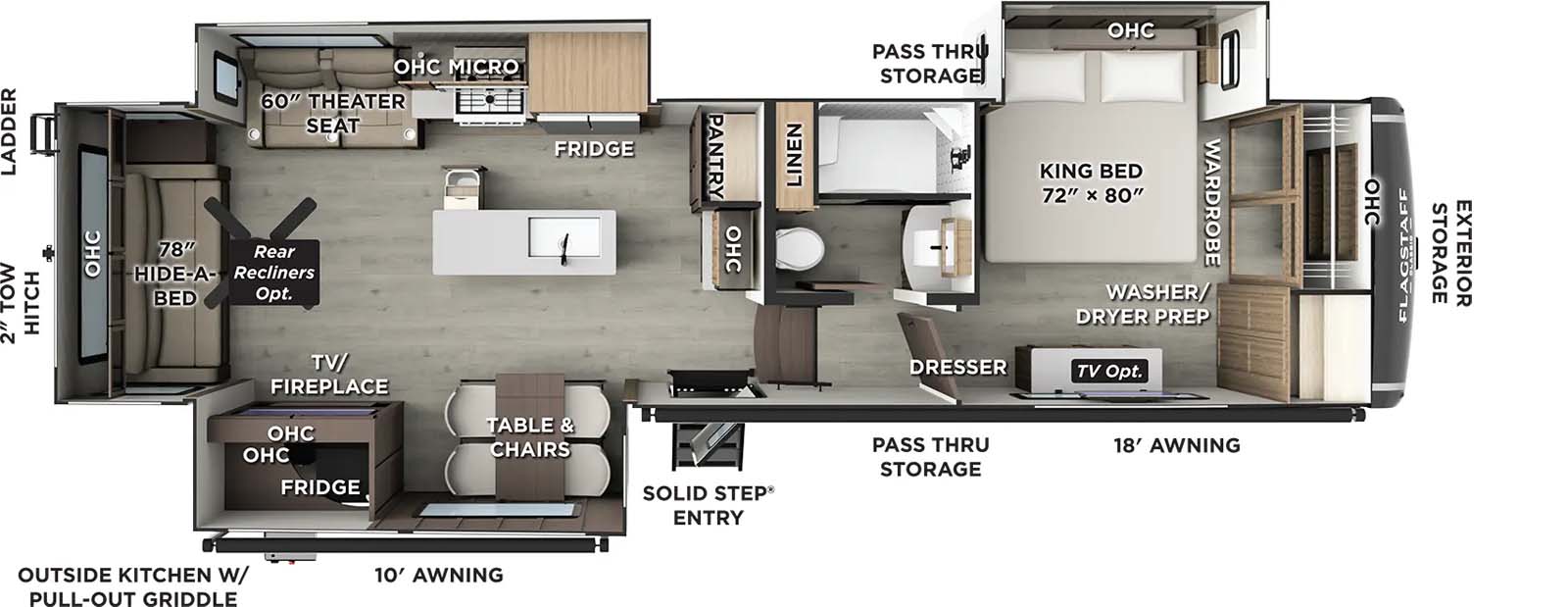

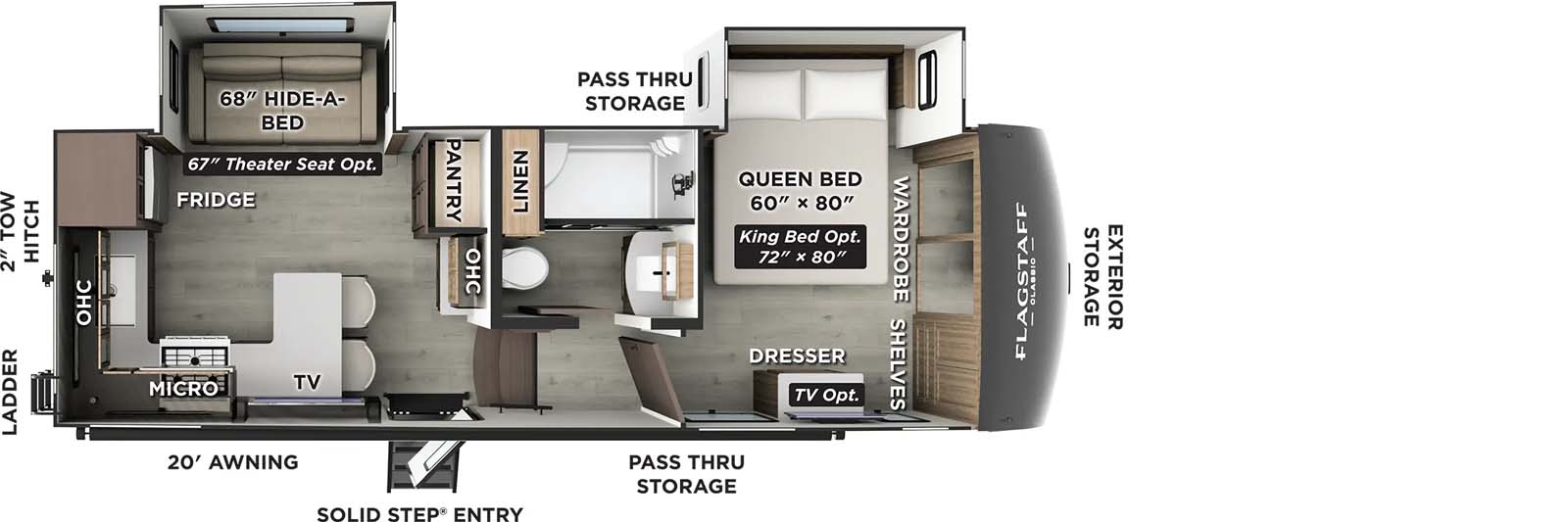

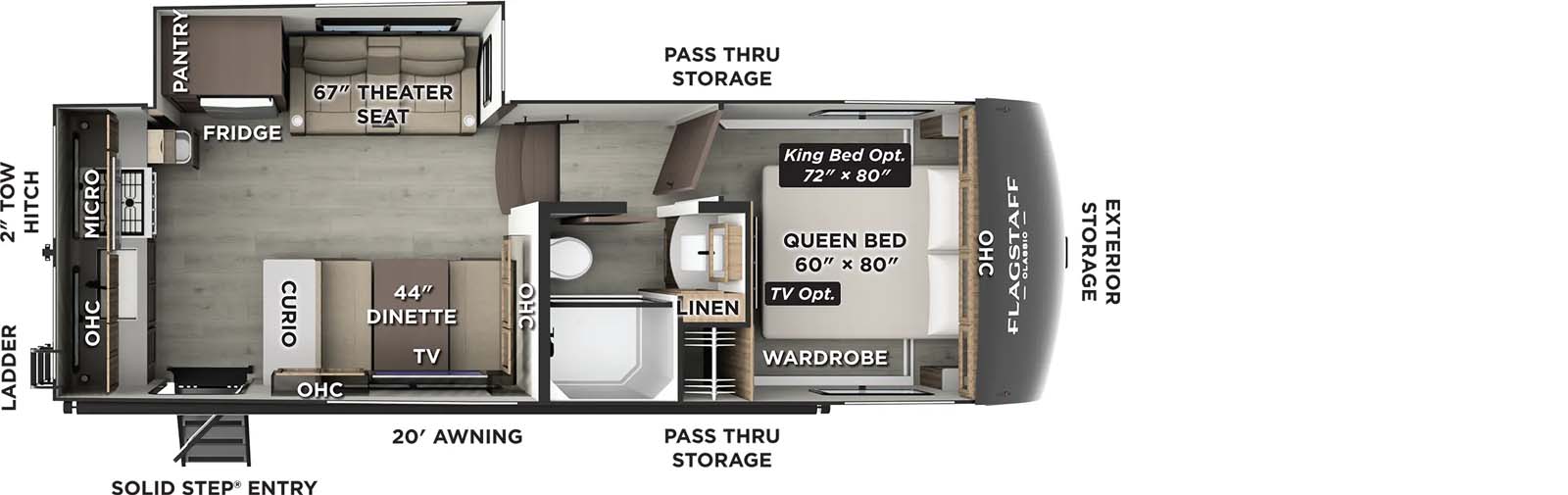

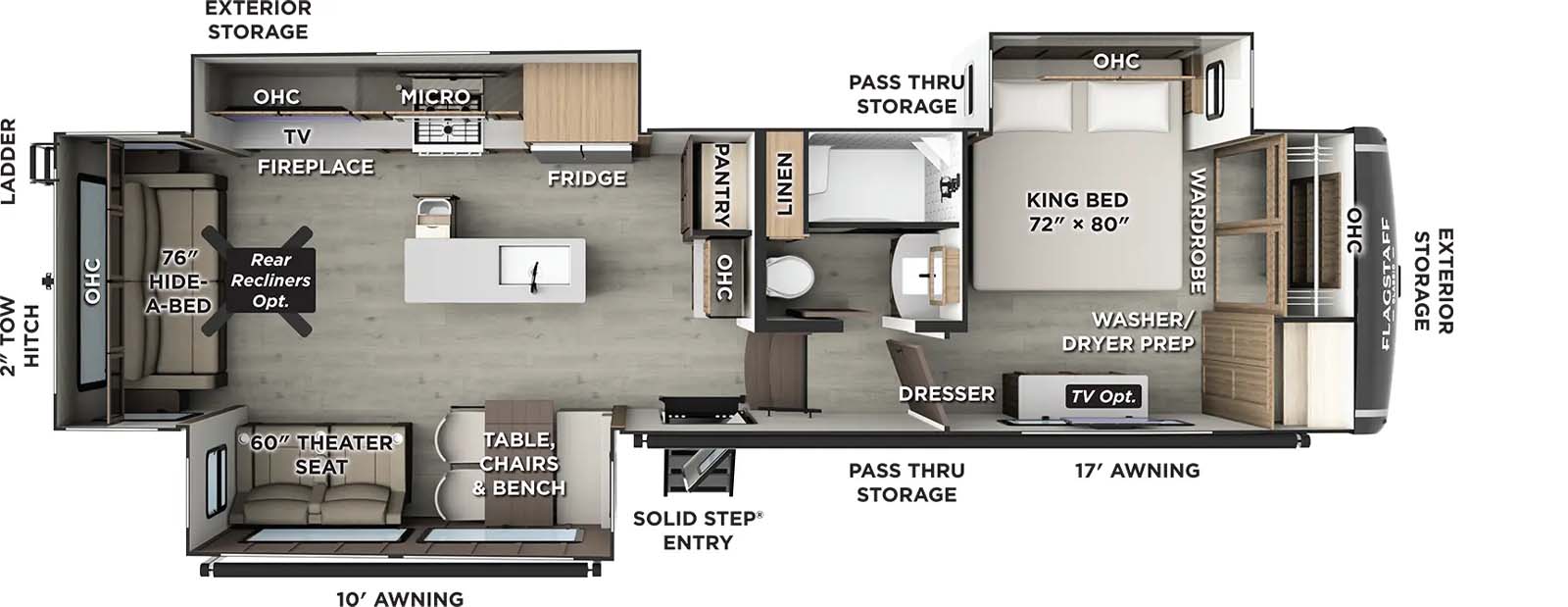

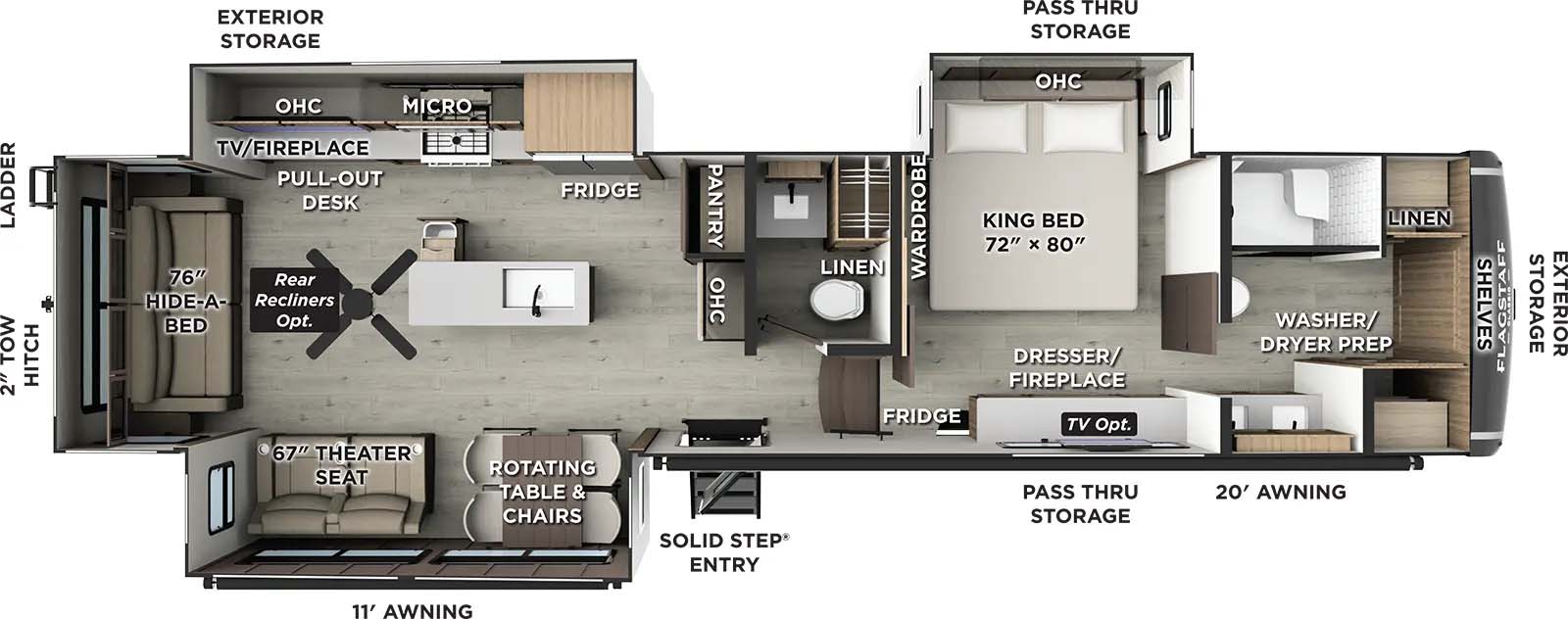

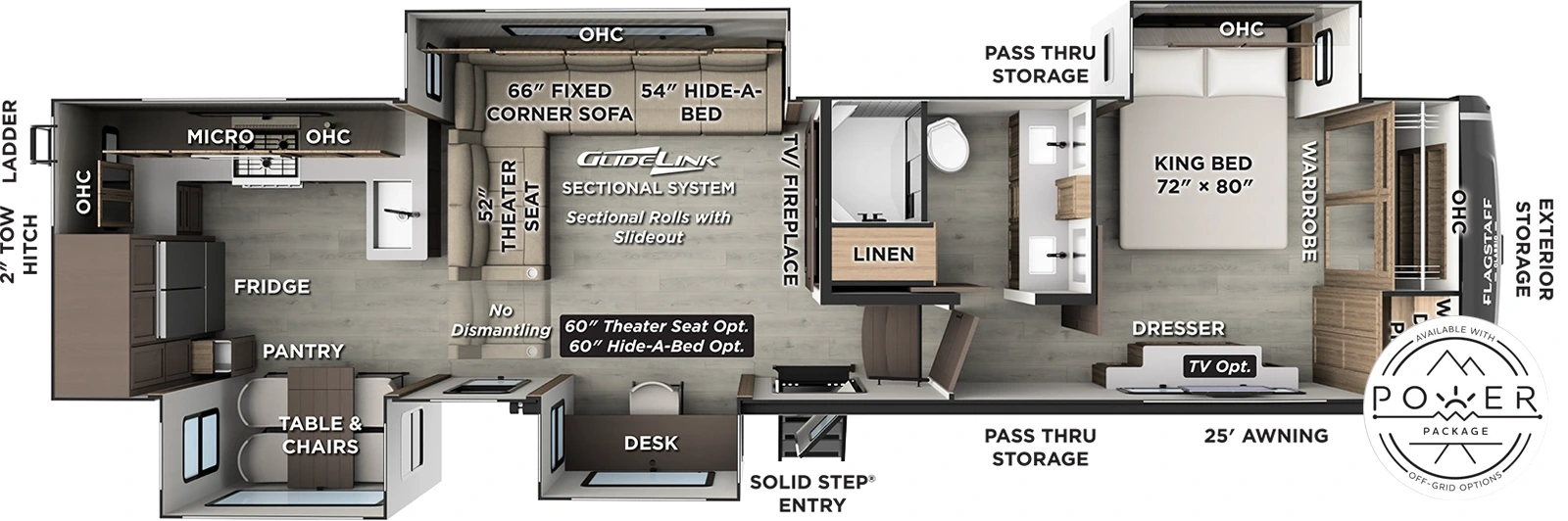

Floorplans

Print

Classic Fifth Wheels
Dealer Stock Only


Specifications

Print

Floorplan: 8529CSB : Classic Fifth Wheels 8529RKSB : Classic Fifth Wheels 8529RLBS : Classic Fifth Wheels 8529IKSB - DSO : Dealer Stock Only 8529RLS - DSO : Dealer Stock Only
Hitch Weight:1,699 lb.1,820 lb.1,575 lb.1,555 lb.1,520 lb.
UVW:10,686 lb.10,519 lb.10,209 lb.9,940 lb.9,998 lb.
CCC:1,813 lb.1,701 lb.1,766 lb.2,015 lb.1,922 lb.
Exterior Length:37' 0"37' 0"36' 2"36' 0"37' 2"
Exterior Height:13' 2"13' 2"13' 2"13' 2"13' 2"
Exterior Width:96"96"95"96"96"
Fresh Water:54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.
Gray Water:80.00 gal.90.00 gal.80.00 gal.90.00 gal.90.00 gal.
Black Water:50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.
Awning Size:10' & 11'10' & 13'10' & 12'6"8' & 13'21'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

* Due to the current environment, our features and options are subject to change due to material availability.

  • Laminated White OR Champagne Color Fiberglass Sidewalls
  • High Gloss Front Cap
  • Larger 76” Entry Doors
  • Tinted Frameless Windows
  • Shielded Power Awning w/ Adjustable Rain Dump and LED Light Strip
  • 360 Siphon Black Water Venting
  • Outside Speakers
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Roof & Ground Solar Panel Prep (All Models)
  • Rear Ladder
  • Black Tank Flush
  • Strut Assist Fold-Out Steps
  • Friction Hinge 30” Primary Entrance Door
  • Lighted Entry Step
  • Large Folding Grab Handles
  • Outside Griddle w/ LP Hookup and Work Table
  • Outside Shower
  • Front Outside Storage
  • Outside Antifreeze Inlet for Convenient Winterizing
  • Slam Latches on Most Exterior Storage Doors & Magnetic Storage Door Latches
  • Two Enclosed 30lb LP Gas Bottles w/ Storage Door Access
  • Nautilus Water Management System
  • 2” Accessory Hitch Receiver
  • Keyed Alike Locks
  • Electric Auto Leveling System
  • 5/8” Plywood Tongue and Groove Subfloor
  • Aluminum Bed and Dinette Bases
  • Enclosed Underbelly
  • Thermostatically Controlled Heated Holding Tanks
  • Radiant Foil Insulated Underbelly, Front Cap & Slide-out Floors
  • 6 Sided Fully Aluminum Framed (Floor, Walls, & Roof)
  • Insulation Factors R-7 Side Wall, R-12 Floor and R-14 Roof
  • Radius Roof With Vaulted Interior Ceilings
  • One Piece Seamless Roofing Membrane
  • Surface Coated Steel I-Beam Frame
  • LCI *Turning Point Pin Box Hitch
  • Torsion Axle, Rubber-Ryde Suspension w/ Easy Lube Axles & Never Adjust Brakes
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Undermounted Spare Tire
  • Polished Alloy Wheels
  • Nitrogen Filled 16" E-Rated Goodyear Endurance Tires
  • Tire Pressure Monitoring System with Monitor
  • Newport Ash Cabinetry
  • Autumn Wood Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges & Upgraded Hardware with Soft Closing Drawer Slides
  • 35,000 BTU Floor Ducted Furnace
  • 50 Amp Service with 2nd A/C prep
  • Carbon Monoxide Detector
  • 12 Volt Power Plug With USB Charging Port
  • Battery Disconnect Switch
  • 55 Amp Converter With Charger
  • Flush Mount Ceiling LED 12 Volt Interior Lighting w/ Multiple Switches
  • Water-Pur Filtration System
  • Water Heater By-Pass Kit
  • Maxxair® Ventilation Fan and Vent Cover
  • 13,500 BTU Ducted A/C
  • 6 Gallon Quick Recovery Auto Ignition Gas/Electric Water Heater
  • One Control We RV App Control for Lights/Awnings/Slides
  • Fireplace
  • Deluxe Tri-Fold Sofa
  • Theatre Seating w/ Adjustable Lumbar Support & USB Ports
  • Ceiling fan
  • 76" Slide Out Height in Living/Kitchen
  • LED TV With Upgraded Speaker System and Subwoofer
  • Multi Zone Stereo w/ DVD/CD/AM&FM & Bluetooth
  • Hybrid Carpet In Most Living Room Slides
  • Day Night Roller Shades
  • Optional TV
  • Washer/Dryer Prep
  • Carpetless Main Bedroom Floor
  • Under Bed Storage
  • Designer Headboard & Bedding
  • Individual Reading Lights
  • Two Bed Side Power Outlets
  • 72 x 80 King Beds (Std. on 8529CSB & 8529RKSB OPT. on 8529RLBS)
  • Three Burner High Output Gas Range with Flush Mount Glass Top Cover
  • Trash Can in Kitchen (Select floor plans)
  • Microwave Oven
  • Recessed Cooktop and 21" Oven w/ Flush Mount Cover
  • Hidden Hinge Cabinet Doors
  • Residential Full Extension Metal Drawer Guides with Soft Close
  • Solid Surface Kitchen Countertops
  • Designer Kitchen Backsplash
  • Flush Mount Stainless Steel Sinks With “High Rise” Pull-Down Faucet
  • Residential Refrigerator w/ Inverter (Std. 8529CSB & 8529RLSB)
  • 11 cubic foot 12V Refrigerator w/ Inverter and Roof Solar Panel (Available only on 8529RKSB)
  • Bathroom Skylight
  • Porcelain Residential Style Bowl Foot Flush Toilet
  • Maxxair® Ventilation Fan and Vent Cover
  • ShowerMiser Water Saver System
  • Upgraded Residential Faucet
  • Toothbrush Holder, Soap Dish, Towel Ring
  • Residential Solid Surface Kitchen Countertops
  • Electric Auto Leveling System
  • Shielded Awning Cover
  • Day/Night Roller Shades
  • High Gloss Fiberglass Exterior
  • Soft-Closing Drawer Guides
  • Central Step Vacuum
  • Sound Bar
  • King Bed Slides
  • 15,000 BTU Ducted Roof Air
  • 2nd Roof A/C w/ Chill Chaser Heat Strip in Bedroom
  • Bedroom TV
  • King Bed Mattress (8529RLBS)
  • 18 Cubic Foot Gas/Electric Refrigerator (Available on 8529CSB, 8529RLBS)
  • Extra Maxxair® Ventilation and Vent Cover
  • Flip Down Rear Storage Deck (250 lbs. Max Load)
  • Slide Toppers
  • ThermoPane Window Upgrade
  • Washer & Dryer
  • Free Standing Table and Chairs

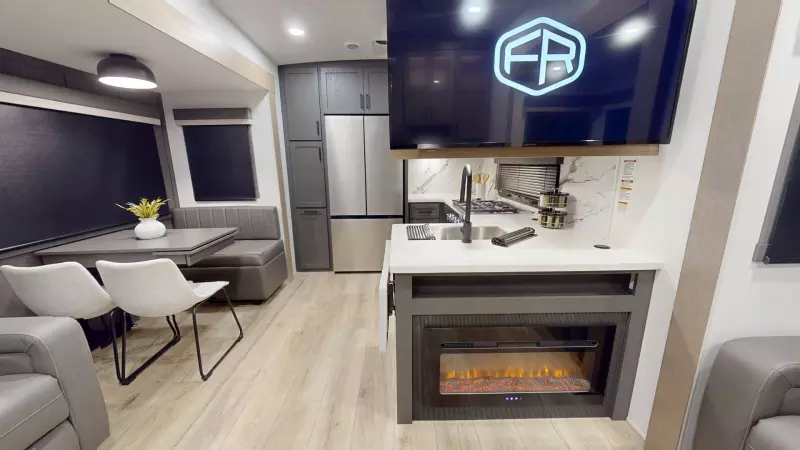

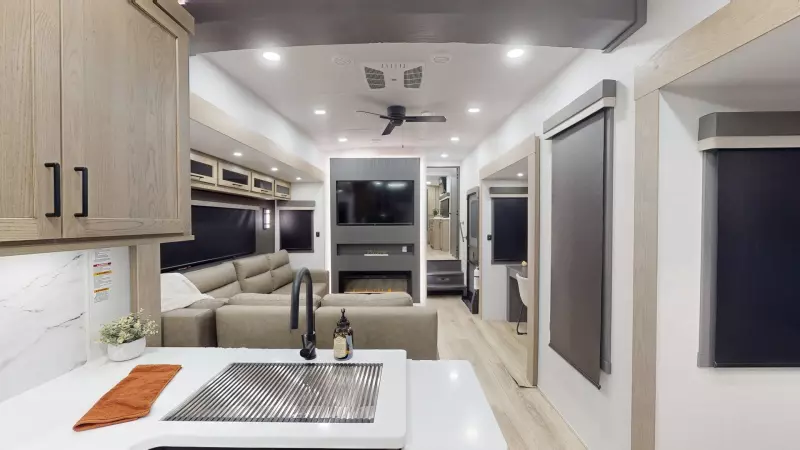

Virtual Tours

  • 826MBR
    826MBR Main Room
  • 8529CSB
    8529CSB Main Room
  • 8529IKSB - DSO
    8529IKSB - DSO Main Room
  • 8529RKSB
    8529RKSB Main Room
  • 8529RLS - DSO
    8529RLS - DSO Main Room
