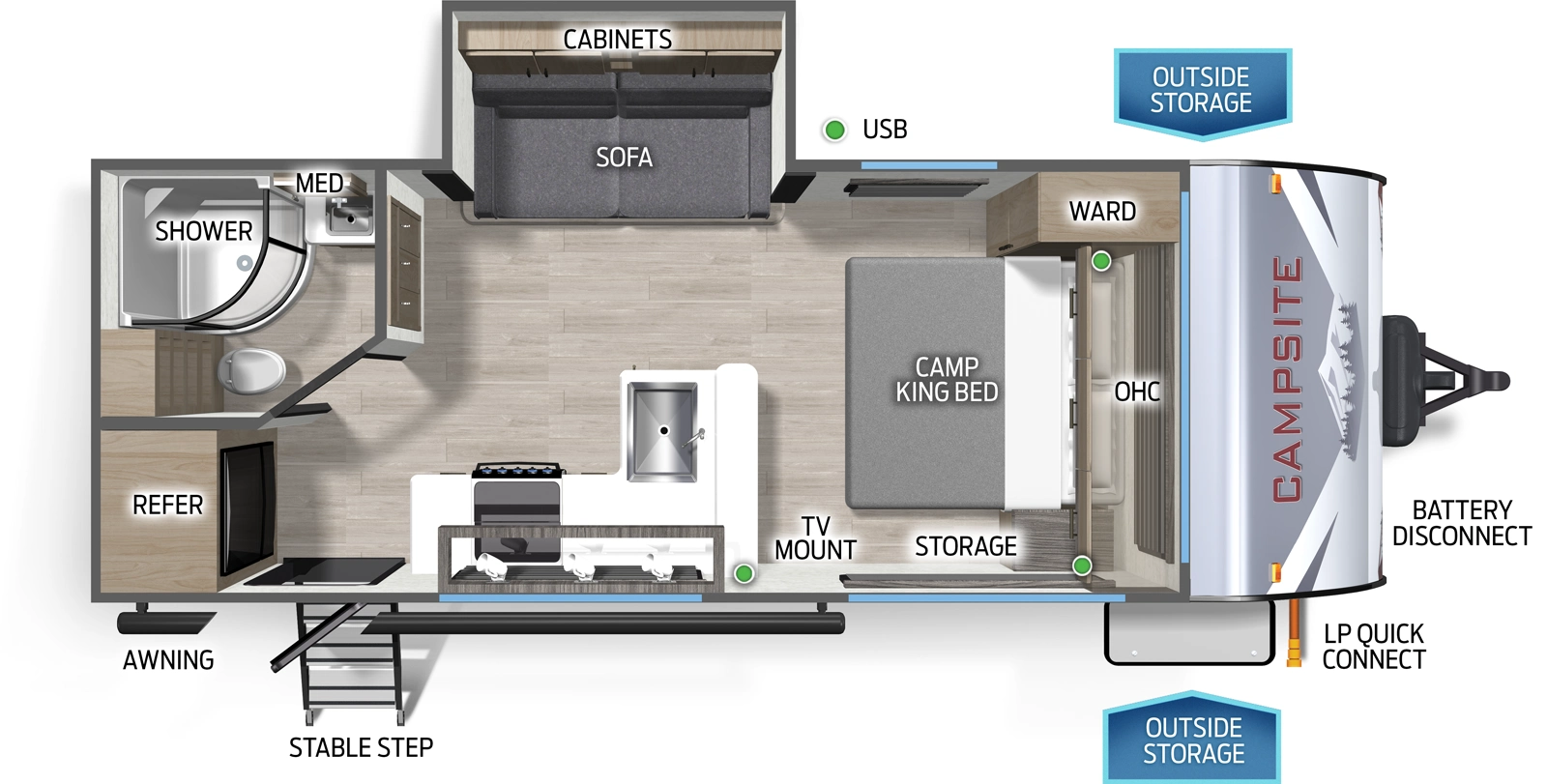

Campsite 19KB Floorplan

Nimble, lightweight, and perfect for couples who want to leave a small footprint, the Campsite Ultra 19KB is one of Campsite’s smallest campers yet feels cozy and capable. The 19KB is one to see for yourself. The classic front bedroom, rear bath floorplan is just right for two hitting the road.

Hitch Weight
600 lb.
GVWR
7,600 lb.
UVW
5,158 lb.
CCC
2,442 lb.
Exterior Length
22' 4"
Exterior Height
10' 7"
Exterior Width
96"
Fresh Water
52 gal.
Gray Water
38 gal.
Black Water
28 gal.
Awning Size
TBD

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • EXTERIOR STANDARD FEATURES

    • Titan View Front Window
    • Power Tongue Jack
    • Power Stabilizer Jacks
    • LP Grill Quick Connect
    • Campsite Exterior Kitchen (Where Applicable)
    • Slam Latch Baggage Doors
    • Mega Pass Thru Storage
    • Diamond Plate on Front
    • X9 Chassis Upgrade
    • 2” Rear Accessory Hitch
    • Aluminum Rims
    • Stable Steps
    • Large Folding Grab Assist Handle
    • G-Glass Friction Hinge Entry Door
    • Solar Reflective 4K Square Windows
    • Back Up Camera
    • 100-Watt Solar Package
    • Spare Tire
    • Ultra-Ride Shock Suspension System
    • Exterior Dump Station Light with Tank Flush
    • Outside Shower
    • Power Awning with LED Lights
    • Outdoor TV Mount with Speakers
    • 1 Piece PVC Roof (with Lifetime Warranty)
    • Laminated Wall Construction with Block Foam Insulation
    • Timber Strong Ultra Core Engineered Superstructure Roof and Floor
    • 30-amp Detachable Power Shore Cord (19KB, 21DF)

  • INTERIOR STANDARD FEATURES

    • Most Storage in its Class
    • Biggest Windows in its Class
    • Shower Tub with Surround
    • Level Up Brushed Nickel Handheld Shower Head
    • Large Bath Sink
    • Skylight in Shower
    • Medicine Cabinet
    • Foot Flush Toilet
    • Solid Surface Kitchen Counter-tops
    • Bar Top Counter-top (Where Applicable)
    • Air Fryer
    • 10 cu. ft. 12V French Door Refrigerator
    • 15,000 BTU A/C
    • Bluetooth A/C with Dehumidifier
    • On-demand Tankless Water Heater
    • Built to Fit Storage Bins (Where Applicable)
    • Entertainment Center with Hidden Pantry (Where Applicable)
    • Extra Thick Cascade Edge Sofa
    • Trash Can Storage
    • Shoe Storage
    • Interior Speakers
    • Bluetooth Radio
    • USB-C Package
    • Fireplace
    • Complete System Water Filtration System
    • Pull Out Drawer Under Booth Dinette
    • Pull-Out Drawer under Bunk (Where Applicable)
    • Bedside Inverter Outlet
    • Reading Lights
    • Extra Tall Wardrobe
    • Wardrobe Storage
    • Camp King Bed
    • Extra Bedroom Wardrobe Storage
    • Bunk Storage
