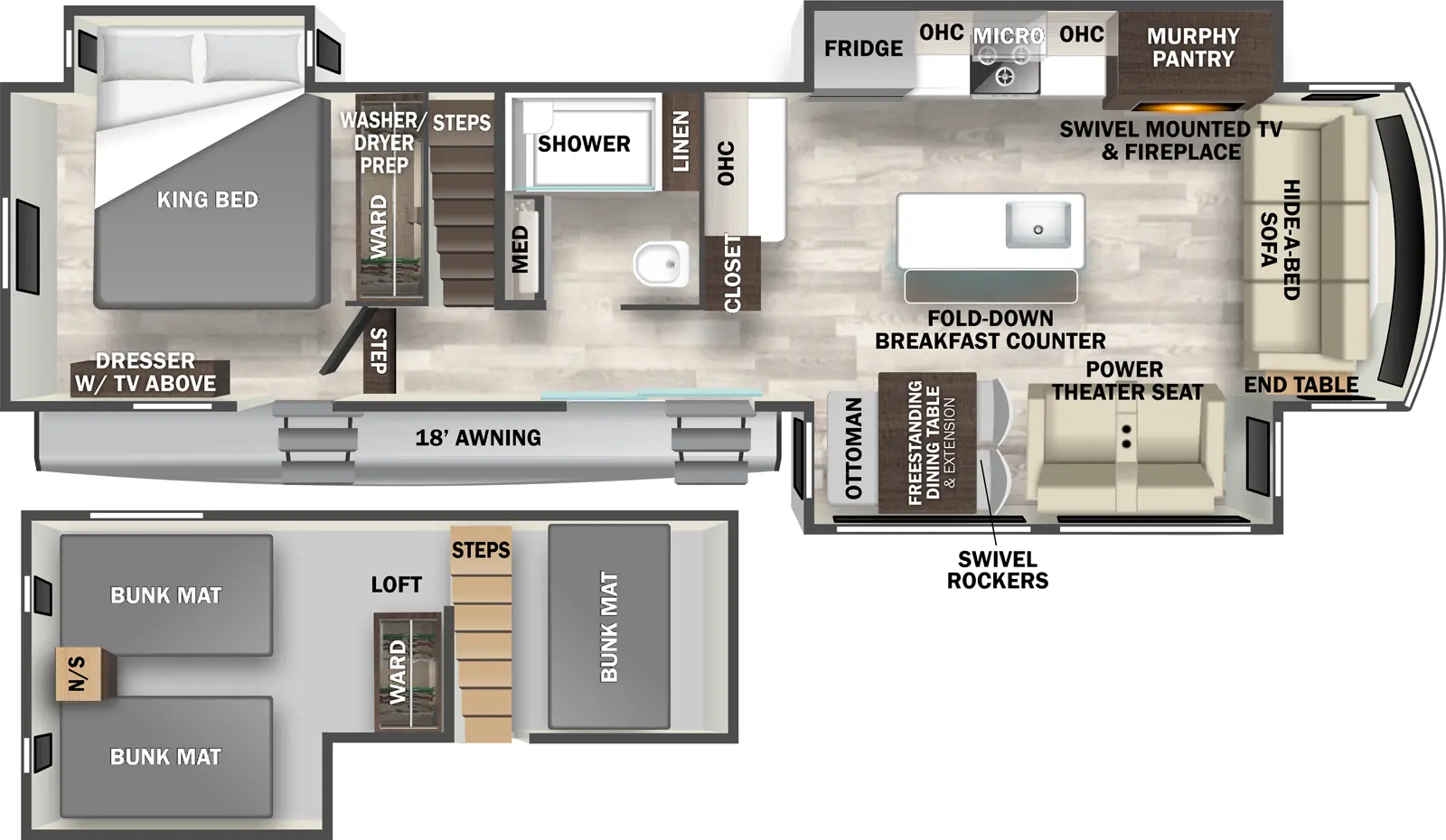

Cedar Creek 40CDL Floorplan

The 40CDL Cottage is an innovative bunkhouse with an upper loft that provides sleeping for three plus storage!. The rear king bedroom has its own entry/exit door for added privacy, and includes a closet with washer/dryer prep, wardrobe, and dresser with TV. The bathroom gives you a residential shower with built-in seat, skylight, and linen cabinet. The large island kitchen provides plenty of counter space and includes residential appliances and a bonus pantry.

Hitch Weight
1,696 lb.
GVWR
13,696 lb.
UVW
11,775 lb.
CCC
1,921 lb.
Exterior Length
40' 6"
Exterior Height
12' 10"
Exterior Width
101"
Fresh Water
75 gal.
Gray Water
82 gal.
Black Water
41 gal.
Awning Size
18'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Standard Features

    • 101” Wide Body Frame
    • “True” Gelcoat Exterior (The Best of the Best in Exteriors) (N/A FW)
    • Cedar Creek’s Famous All Aluminum Superstructure on 16” Centers or less
    • 3M® Bonded Sidewalls—Resilient, they grow stronger with age. They also have outstanding resistance to UV, heat, cold, moisture, oils, gasoline, and highway chemicals, which creates a bond that cannot delaminate with time.
    • (2) 6000# Axles / FW (3) #6000# Axles
    • 4’ x 6’ ABS, Ribbed, Removable Underbelly Panels
    • AlphaPly TPO Roof Membrane with Lifetime Warranty - 40% Thicker
    • Wired for a 3rd AC
    • 12 Volt Heating Pads on All Black, Grey, & Fresh Water Tanks
    • Electric Awning with LED Night Lights (N/A FW)
    • Dual Pane Patio Door (N/A FW)
    • Individual Shut Off Valves - Kitchen and Bathroom
    • New Waterproof, Bug Proof Vixenite Slide Room floor panels
    • 2 Coleman MACH 8 Plus 15,000 BTU Air Conditioners
    • 20 Gallon Electric Hot Water Heater with Bypass Kit
    • One Year of ™ RV Roadside Assistance
    • Free Membership to Forest River Owners Group F.R.O.G.

  • Electronics

    • 50” Smart Television w/Swing Arm (N/A FW)
    • 32” Smart Television in the BR
    • 12v. Bluetooth Stereo Speaker
    • (2) Exterior Satellite & Cable Hook-Ups to Bedroom and LR
    • New CradlePoint Wifi/5G Antenna and Day 1 Connectivity
    • Pre-Wired for Satellite to the Roof

  • Kitchen

    • 18 cu. Ft., Glass Front, 12v. Refrigerator with Icemaker
    • 3 Burner Gas Oven with Pull Out Pan Drawer
    • Flush Floor Slides in Kitchen and Living Area
    • Residential Kitchen Island with Solid Surface Counter with Flush Mount, Stainless Steel, Work Station Sink
    • Breakfast Flip-Up Countertop in Island (N/A FW)
    • Cordless Sweeper
    • Murphy Pantry (N/A FW)
    • Residential Dovetail, Self-Closing Drawers, and Hidden Hinge Cabinet Doors
    • Stainless Steel, 30" Over the Range Microwave
    • Under Island Pullout Caddy & Baking Tray Storage (N/A FW)
    • Cutting Board Drawer with Cut-out Trash funnel (N/A FW)
    • Power Fan with Rain Sensor Override in Kitchen
    • Vinyl Floor Covering
    • Dining table with (2) chairs, Storage Ottoman, Table Extension, and Hidden Silverware Drawer (N/A FW)
    • Walnut / Two Tone Wooden Cabinets and Fascias (N/A FW)

  • Living Room

    • Day / Night Roller Shades (N/A FW)
    • Power Theater Seating with USB charging ports (N/A FW)
    • Luxury Hide-a-Bed Sofa (N/A FW)

  • Bathroom

    • 48” x 30” One Piece, Fiberglass Shower with glass doors, and Upgraded Shower Head
    • Large Bath Vanity with Solid Surface Countertop (Where Applicable) (N/A FW)
    • Large Vessel Sink, Bath Vanity (Where Applicable)
    • 18" High Porcelain Toilet with Top Circular Flush System
    • Create-A-Breeze Circulation Fan
    • Extra Storage for Linens
    • LED Night Lighting under the Vanity

  • Bedroom

    • Residential Style Headboard with Luxurious Bedding Décor
    • Individual Reading Lighting above the Bed
    • USB Ports
    • Standard 72 x 80 King Bed
    • Flip-Up Dresser Top with Hidden Storage
    • Black-Out Night Shades (BR Only) (N/A FW)
    • Extra wide Valances that can accommodate C-pap machines
    • Prepped for an Optional Washer and Dryer (N/A FW)
    • 12v Motion lighting in the Closet

  • Options

    • 12’ Power Awning on Dining Slide (N/A FW)
    • Slide-Out Awning Toppers
    • 3rd AC with Power Management System
    • Cadet Wall Mounted Heater with Circulation Fan
    • Carpet in BR Only (N/A FW)
    • Fisher / Paykel Dishwasher Drawer in the Island (N/A 41FWC, FW)
    • Dual Pane Frameless, Tinted Windows (N/A FW)
    • Heat Pump on Main Air Conditioner
    • King, Roof Mounted Satellite – My Dish RV Flexible Programming including local channels
    • 30” Convection Microwave
    • Splendide Washer / Dryer (N/A FW)
    • Upgraded Luxury King Bed
    • Upgraded Luxury Queen Bed
