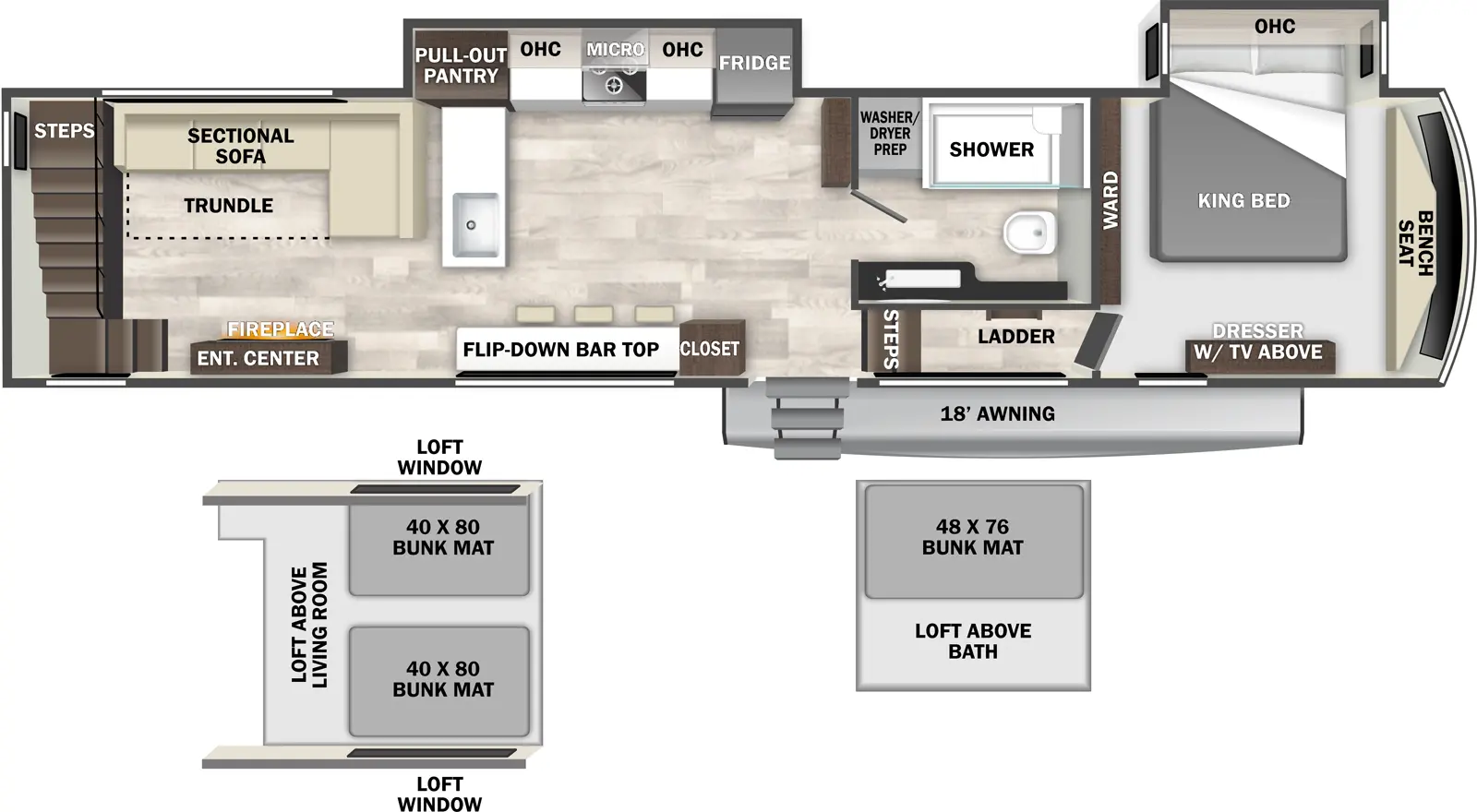

Cedar Creek 41FWC Floorplan

Cedar Creek has introduced a groundbreaking fifth-wheel Cottage designed to redefine destination living. This model optimizes space with custom-built cabinetry and a large chaise lounge with a trundle bed, ensuring comfort and practicality. The Cottage also boasts two loft areas, offering additional sleeping quarters for larger groups. The 38" entrance door and slide-free door side allow for easy integration with a 40' deck, offering a seamless indoor-outdoor camping experience.

Hitch Weight
2,820 lb.
GVWR
20,820 lb.
UVW
14,314 lb.
CCC
6,506 lb.
Exterior Length
42' 6"
Exterior Height
TBD
Exterior Width
101"
Fresh Water
75 gal.
Gray Water
123 gal.
Black Water
41 gal.
Awning Size
18'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • EXTERIOR

    • 101” Wide Body Frame
    • “True” Gelcoat Exterior (The Best of the Best in Exteriors)
    • Cedar Creek’s Famous All Aluminum Superstructure on 16” Centers or less
    • 3M® Bonded Sidewalls—Resilient, they grow stronger with age. They also have outstanding resistance to UV, heat, cold, moisture, oils, gasoline, and highway chemicals, which creates a bond that cannot delaminate with time.
    • (2) 6000# Axles / FW (3) #6000# Axles
    • 4’ x 6’ ABS, Ribbed, Removable Underbelly Panels
    • AlphaPly TPO Roof Membrane with Lifetime Warranty - 40% Thicker
    • Wired for a 3rd AC
    • 12 Volt Heating Pads on All Black, Grey, & Fresh Water Tanks
    • Detachable Entry Steps
    • Electric Awning with LED Night Lights (Option on 41FWC)
    • Individual Shut Off Valves - Kitchen and Bathroom
    • New Waterproof, Bug Proof Vixenite Slide Room floor panels
    • 2 Coleman MACH 8 Plus 15,000 BTU Air Conditioners
    • 20 Gallon Electric Hot Water Heater with Bypass Kit
    • One Year of ™ RV Roadside Assistance
    • Free Membership to Forest River Owners Group F.R.O.G.

  • KITCHEN / LIVING ROOM

    • 18 cu. Ft., Glass Front, 12v. Refrigerator with Icemaker
    • 3 Burner Gas Oven with Pull Out Pan Drawer
    • Flush Floor Slides in Kitchen and Living Area
    • Residential Kitchen Island with Solid Surface Counter with Flush Mount, Stainless Steel, Work Station Sink
    • Cordless Sweeper
    • Residential Dovetail, Self-Closing Drawers, and Hidden Hinge Cabinet Doors
    • Stainless Steel, 30” Over the Range Microwave
    • Power Fan with Rain Sensor Override in Kitchen
    • Vinyl Floor Covering
    • Power Theater Seating with USB charging ports
    • Luxury Hide-a-Bed Sofa

  • BATHROOM / BEDROOM

    • 48” x 30” One Piece, Fiberglass Shower with glass doors, and Upgraded Shower Head
    • Large Bath Vanity with Solid Surface Countertop (Where Applicable)
    • Large Vessel Sink, Bath Vanity (Where Applicable)
    • 18” High Porcelain Toilet with Top Circular Flush System
    • Create-A-Breeze Circulation Fan
    • Extra Storage for Linens
    • LED Night Lighting under the Vanity
    • Residential Style Headboard with Luxurious Bedding Décor
    • Individual Reading Lighting above the Bed
    • USB Ports
    • Standard 72 x 80 King Bed
    • Flip-Up Dresser Top with Hidden Storage
    • Extra wide Valances that can accommodate C-pap machines in Bedroom
    • Prepped for an Optional Washer and Dryer
    • 12v Motion lighting in the Closet

  • ELECTRONICS

    • 32” Smart Television in the BR
    • 12v. Bluetooth Stereo Speaker
    • (2) Exterior Satellite & Cable Hook-Ups to Bedroom and LR
    • New Cradle Point Wifi/5G Antenna and Day 1 Connectivity
    • Pre-Wired for Satellite to the Roof

  • AVAILABLE OPTIONS

    • 12’ Power Awning on Dining Slide
    • Slide-Out Awning Toppers
    • Cadet Wall Mounted Heater with Circulation Fan
    • Heat Pump on Main Air Conditioner
    • Splendide Washer / Dryer (Standard in FW)
    • Upgraded Luxury King Bed
    • 3 Sets of Stabilizer Jacks (FW Only)
