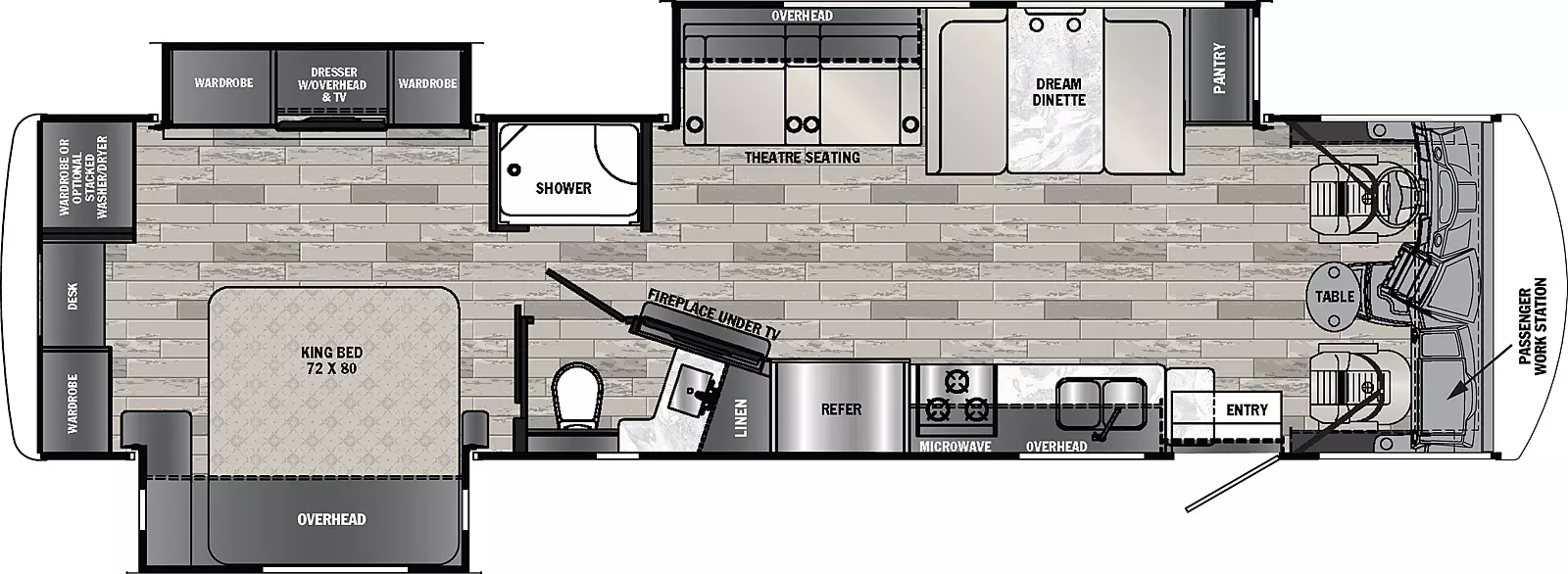

Georgetown 34M5 Floorplan

The Georgetown 34M5 opposing bedroom slide floorplan provides an abundance of room with a king bed, 4 wardrobe closets (1 prepped washer/dryer opt), desk, dresser, & TV. A kitchen with 18 cu.ft. refrigerator, 3-burner cooktop, double bowl sink, oven, convection microwave, TV & fireplace across from 2-power theater seats (heat, massage) & booth dinette. Mid-ship is a ½ bath with full shower across from it. The cab has swivel captain seats, table, & power front overhead bunk.

Wheelbase
242"
GVWR
22,000 lb.
GCWR
26,000 lb.
GAWR Front
8,000 lb.
GAWR Rear
15,000 lb.
Fuel Capacity
80 gal.
LP Tank Capacity
103 lb.
Exterior Length
37' 11"
Exterior Height
12' 9"
Exterior Width
100"
Fresh Water
82 gal.
Gray Water
52 gal.
Black Water
52 gal.
Awning Size
18'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Standards

    • Chrome Package: Chrome Headlight Bezels, Chrome Fog light Bezels, Chrome Mirrors
    • Remote/Heated Exterior Mirrors
    • Frameless Windows
    • One Piece Fiberglass Rear Cap
    • 82" Interior Ceiling Height
    • Ducted A/C Vents
    • Ducted Furnace Vents
    • 30" Wide Entry Door
    • 3 Tread Electric Step
    • Rubber Entry Grab Handle
    • Rotocast Storage Compartments w/ Drains
    • LED Lights in External Storage Bays
    • Pass Thru Storage
    • Flush Floor Construction Throughout
    • Residential One Piece Vinyl Flooring Throughout
    • Outside Entertainment Center 40" LED TV w/ Radio and External Speakers
    • 2" Fiberglass Side Slam Latch Baggage Doors
    • Encased Power Patio Awning w/LED Light
    • Slide out Room Awning(s)
    • Smoke Alarm
    • Carbon Monoxide & LP Detector
    • Egress Window
    • Fire Extinguisher
    • Winegard 360 Plus
    • Satellite Prep
    • Solar Panel w/ Controller
    • WIFI / 4G LTE Prep
    • Slim Rack Slide System on Slides
    • Locking Fuel Fill Door
    • Hydraulic 4-point Leveling System
    • 5,000 lb. Tow Hitch w/7-way Plug
    • Color Side and Rear Camera Package
    • 40" x 82" P2K Euro Loft Power Overhead Bunk
    • Partial Paint
    • Optional Full Body Paint
    • Optional Dual Pane Windows

  • Construction

    • MORryde 1 1/2" Steel Truss Upfit
    • One Piece Fiberglass Roof
    • Crowned Roof
    • One Piece Fiberglass Front Cap
    • Automotive Bonded Panoramic Windshield
    • Front Cockpit Steel Structure System
    • Flush Floor Construction Throughout
    • Rotocast Storage Compartments w/ Drains
    • 2" Aluminum Framed Vacuum Bonded Gel Coated Sidewalls
    • Aluminum Framed Vacuum Bonded Floors
    • Vacuum Bonded Ceilings w Aluminum Trusses
    • Steel Firewall
    • Aluminum Wrapped Openings
    • EGS Steel Backers - Select Locations
    • High Density Block Foam Insulation

  • Cockpit

    • Custom Cockpit ABS Dash w/USB's and 12Volt
    • Low Profile Engine Cover
    • Power Driver’s Seat
    • Swivel Driver's and Passenger Chairs
    • Thermal Foil Cockpit Conversation Table
    • Adjustable 3 Point Seat Belts
    • Power Front Sun Shade
    • Manual Cockpit Side Sun Shades
    • Deluxe Driver and Passenger Seating w built in headrests
    • Cup Holders
    • Angled Center Council
    • Sony 10" Entertainment System w/AM/FM/Bluetooth/USB/ Apple Car Play / Android Auto
    • Passenger Side Workstation
    • Cell Phone / Tablet Holder
    • Diamond Plate Rubber Floor Covering
    • 110 Volt Outlet Passenger Side
    • Tilt and Telescoping Steering Wheel
    • Cruise Control
    • Emergency Start Switch
    • Wood Grain Dash Inlay
    • Hydraulic Jack Control

  • Galley

    • Solid Surface Kitchen Countertops
    • Brush Nickel Designer Faucet w/ Pull out Spray Wand
    • Under Mount Stainless Steel Double Bowl Kitchen Sink
    • Solid Surface Kitchen Sink Covers
    • Recessed 3 Burner LP Cooktop with Glass Cover
    • Stainless Steel Microwave
    • Decorative Tile Backsplash
    • Stainless Steel 18 Cubic Foot 3 Door Residential Refrigerator
    • Stainless Steel 18 Cubic Inches LP Oven
    • Full Extension Soft Close Drawer Guides
    • Raised Panel Solid Wood Cabinet Doors
    • 110 GFCI Outlet(s)
    • Manual Night Shade over Kitchen Window
    • Decorative Kitchen Window Valance
    • Kitchen Pantry w/ Pull Out Drawers
    • Maxx Fan
    • Pull Out Cutting Board

  • Living / Dining

    • Solid Surface Dream Dinette Table Top
    • Storage Under Dinette Booth
    • Wrap Around Dinette Seat Cushion's
    • 2 Seat Belts in Dinette/ Couch/ Theater Seats
    • Thomas Payne Power Theater Seats w/ USBs, Recline, Adjustable Head Rests, Heat, Massage, and Lumbar (Standard 34H5, 34M5; Optional 36B5)
    • Decorative Window Valance
    • Night Shades Throughout
    • Day Shades Throughout
    • 40" LED Main TV w/ Sound Bar
    • 5K BTU Fireplace (31L5, 34H5, 34M5 Only)
    • Over Head Cabinets above Theater Seats / Couch/ Sofa w/ USB's and LED Puck Lighting

  • Bathroom

    • Thermal Foil Surface Counter Tops
    • Porcelain Toilet w/ foot flush
    • Exhaust Fan
    • Clear Glass Shower Door
    • Under Mount Stainless Steel Sink
    • Medicine Cabinet

  • Bedroom

    • 32" LED Bedroom TV w/Flip Up
    • Washer Dryer / Prep
    • Stackable Washer Dryer (Optional 34M5 Only)
    • King Bed (72" x 80")
    • Designer Bedspread w/ Accent Pillows
    • 7" Coil Mattress
    • Thermal Foil Night Stands w/USB's and 110 Outlets
    • CPAP Prep

  • Mechanical

    • 50 AMP Service
    • Auto Transfer Switch
    • 6,000 Watt Yamaha Generator
    • 2 House Batteries
    • Fire Fly Operation System w/ Mobile App
    • Auto Generator Start Voltage / HVAC
    • 2,000 Watt Pure Sine Inverter
    • Progressive Dynamics Converter
    • LED Lighting Throughout
    • GE 15K Front A/C w/ Heat Pump
    • GE 15K Rear A/C w Heat Pump (34H5, 34M5, 36B5 Only)
    • 35,000 BTU Furnace
    • Artic Package w/ Heat Tape in Wet Bay
    • Forced Air Heat for Holding Tanks
    • 6 Gallon Hot Water Heater (2 on 36B5)
    • House Battery Disconnect Switch
    • 24.5 Gallon LP Tank
    • External LP Quick Connect
    • BlackTank Flush
    • Water Filtration System
    • Outside Shower
