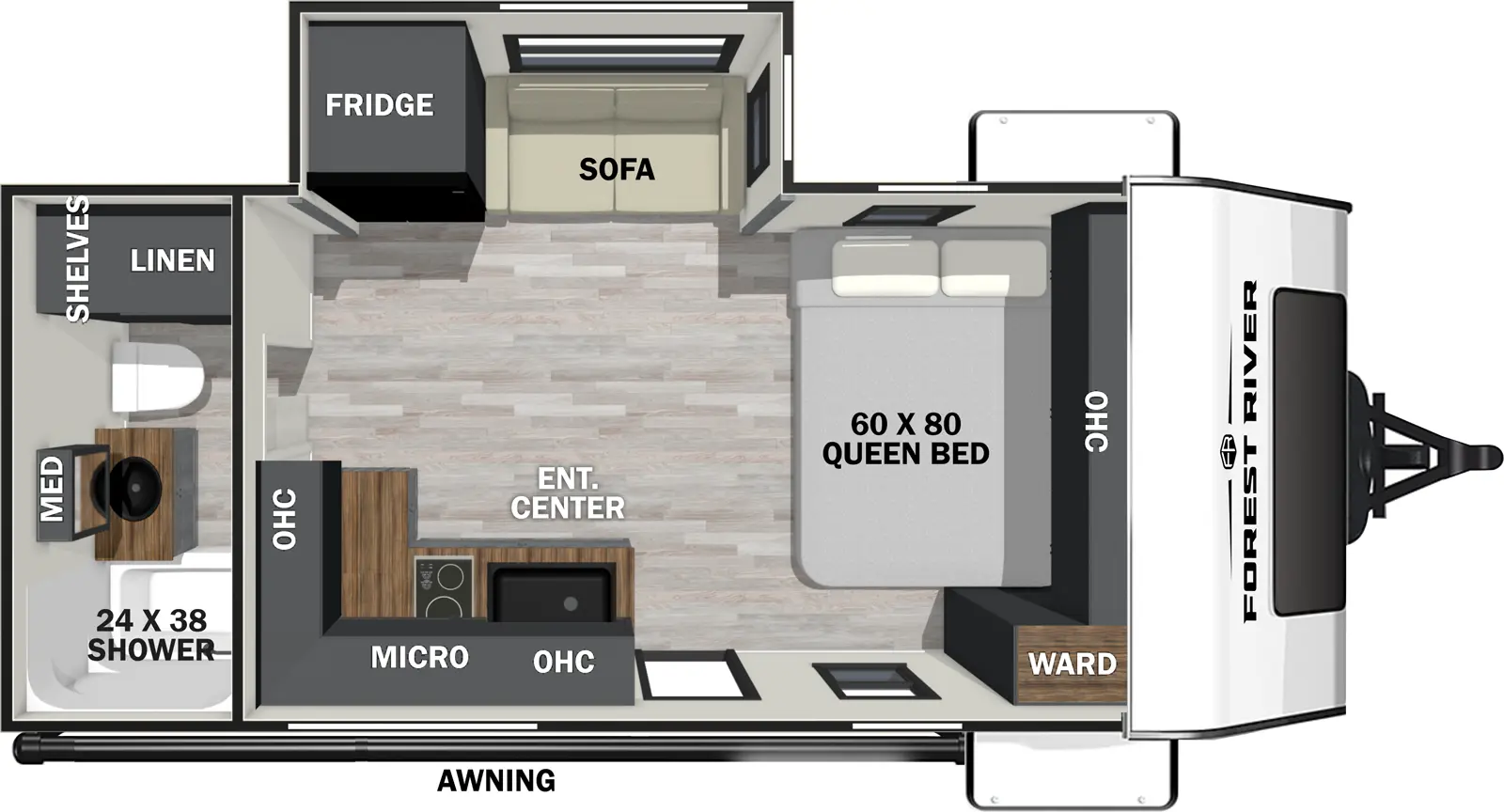

Ibex 16MKS Floorplan

16MKS
Hitch Weight
525 lb.
GVWR
4,925 lb.
UVW
4,013 lb.
CCC
912 lb.
Exterior Length
20' 6"
Exterior Height
11' 3"
Exterior Width
96"
Fresh Water
40 gal.
Gray Water
40 gal.
Black Water
30 gal.
Awning Size
TBD
16MKS Beast Mode
Hitch Weight
525 lb.
GVWR
4,925 lb.
UVW
4,013 lb.
CCC
912 lb.
Exterior Length
20' 6"
Exterior Height
11' 3"
Exterior Width
96"
Fresh Water
40 gal.
Gray Water
40 gal.
Black Water
30 gal.
Awning Size
TBD

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • XLT Package (Mandatory)

    • Laminated Wall w/ Aluminum Construction and Azdel Composite Substrate
    • Pass Thru Lighting
    • Fully Enclosed Underbelly w/ Radiant Foil for Added Insulation
    • Cold Weather Package: 12V Heated Tank Pads and Forced Air
    • TPMS System w/Wireless Display
    • Battery Disconnect
    • 15,000 BTU Air Conditioner
    • Central Vacuum System w/ Hose Kits
    • Flexidine Dinette Leg Mechanism (Where applicable)
    • XLT Queen Bed
    • XLT 2" Receiver for Exterior Storage Solutions
    • XLT Rugged Tire & Wheel Package (Spare Tire Included)
    • XLT All-In-One: Microwave & Air Fryer
    • Aqua-Flow Kitchen Sink (where applicable)
    • Kitchen utilization (Where Applicable)
    • XLT Solar Package: 200W Panel, 30A Charge Controller, 2000W Inverter Prep
    • XLT Solid Surface Entry Steps
    • XLT Furniture System: Innovative Jackknife Sofa Design & Theater Seating (Where Applicable)
    • XLT Manual Stabilizer Jack Impact Bit
    • Klipsch Nashville Speaker

  • Beast Mode Package (Optional)

    • Beast Mode Independent Suspension
    • 400W Solar (Two 200W Panels)
    • 30A Charge Controller
    • 2000W Inverter
    • 16MKS Beast Mode UVW (4,278 lb.)
