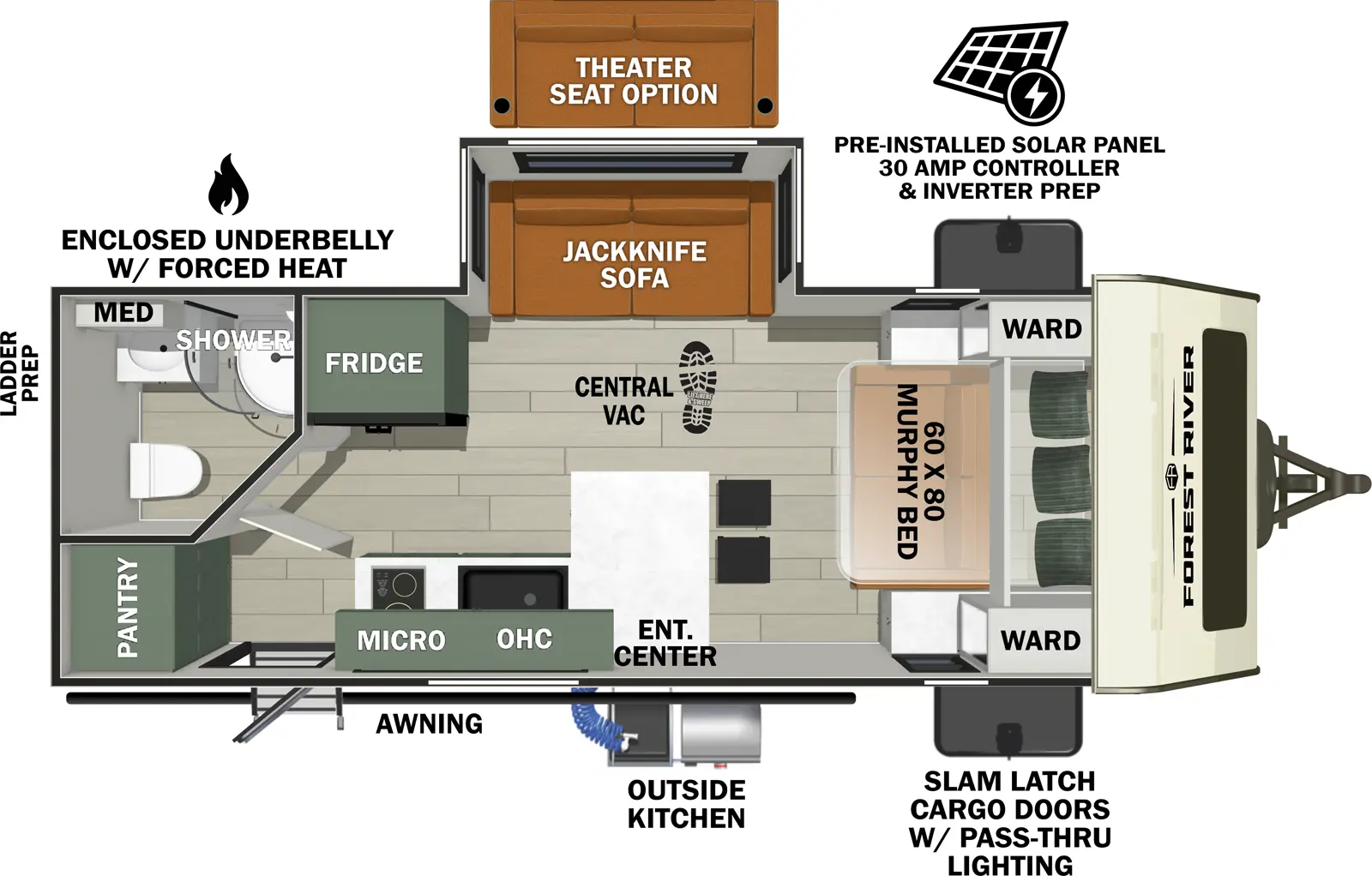

No Boundaries NB19.6 Floorplan
![](/rvs/ImageHandler/275697/2025_2025 NoBo 19_6 copy.webp)
- Hitch Weight
- 590 lb.
- GVWR
- 6,084 lb.
- UVW
- 4,584 lb.
- CCC
- 1,500 lb.
- Exterior Length
- 24' 8"
- Exterior Height
- 10' 6"
- Exterior Width
- 88"
- Fresh Water
- 30 gal.
- Gray Water
- 30 gal.
- Black Water
- 30 gal.
- Awning Size
- 16'
Specifications Definitions
GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.
GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
Note: Specifications are subject to change without notice.
-
NoBo 18, 19, 20 Series Packages
- <strong>C-Series Package (Required)</strong>
- Laminated Wall w/ Aluminum Construction & Azdel Composite Substrate
- Pass Thru Lighting
- Fully Enclosed Underbelly w/ Radiant Foil for Added Insulation
- Cold Weather Package: 12V Heated Tank Pads & Forced Air
- TPMS w/ Wireless Display
- Battery Disconnect
- 15K Air Conditioner
- Central Vacuum System & Hose Kit
- C-Series Versatile Dinette Leg Mechanism (Where Applicable)
- C-Series Queen Bed
- C-Series 2" Receiver for Exterior Storage Solutions (Where Applicable)
- C-Series Rugged Tire & Wheel Package (Spare Tire Included)
- C-Series All In One: Microwave & Airfryer
- C-Series Multifunctional Sink for Maximum Kitchen Utilization (Where Applicable)
- C-Series Solar Package: 200W Panel, 30A Charge Controller, 2000W Inverter Prep
- C-Series Solid Surface Entry Steps
- C-Series Furniture System - Innovative Jacknife Sofa Design & Theater Seating (Where Applicable)
- C-Series Manual Stabilizer Jack Impact Bit
- C-Series Bluetooth Speaker
- C-Series Outdoor Kitchen
- C-Series Fiberglass Front Cap
-
NoBo 18, 19, 20 Series Options
- Theater Seat In Place of Jack Knife Sofa (19.6 & 19.4 Only)
- <strong>Beast Mode Package</strong>
- Beast Mode Independent Suspension
- Additional 200W Panel (Two 200W Panels Total)
- 2000W Inverter
- 19.6 Beast Mode UVW (4,984 lb.)
