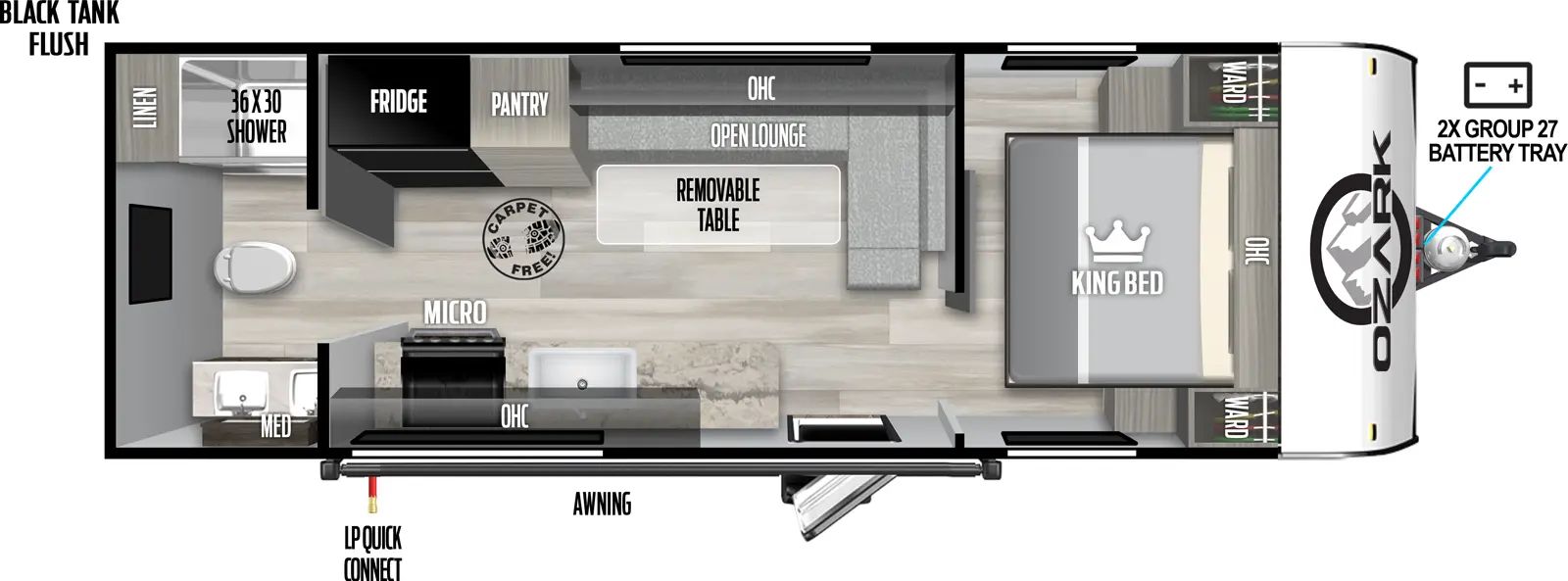

Ozark 2300RB Floorplan

2300RB
Hitch Weight
590 lb.
GVWR
7,590 lb.
UVW
5,134 lb.
CCC
2,456 lb.
Exterior Length
28' 7"
Exterior Height
TBD
Exterior Width
96"
Fresh Water
54 gal.
Gray Water
40 gal.
Black Water
40 gal.
Awning Size
12'
2300RB Ascent
Hitch Weight
590 lb.
GVWR
7,590 lb.
UVW
5,134 lb.
CCC
2,456 lb.
Exterior Length
28' 7"
Exterior Height
TBD
Exterior Width
96"
Fresh Water
54 gal.
Gray Water
40 gal.
Black Water
40 gal.
Awning Size
12'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • TRAVEL TRAILER FEATURES AND OPTIONS (TANDEM AXLE AND TOY HAULER)

    • <strong>ORIGINS PACKAGE (ALUMINUM EXTERIOR)</strong>
    • Flat Exterior Metal with ToughCoat Textured Seal
    • Solar Wired and Prepped
    • Manual Front Tongue Jack
    • Manual Scissor Stabilizer Jacks
    • Exterior Stored Fold Out Entry Steps
    • Prepped for Bluetooth Stereo Speaker w/ Holder
    • AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements + Thermofoil lnsulative Lining for Heat Capture and Deflection
    • Large shower pan with built in shower surround and curtain
    • <strong>ASCENT PACKAGE (FIBERGLASS EXTERIOR)</strong>
    • Smooth Fiberglass Exterior Walls
    • Extended Power Package: Roof Mounted 200W Solar Panel, and 30 Amp Controller
    • Power Front Tongue Jack
    • Quick Drop Stabilizer Jacks (Tandem Axle Only)
    • Fold Down Solid Step at Main Entry
    • JBL Stereo Package
    • AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements + Thermofoil lnsulative Lining for Heat Capture and Deflection + 12V Heated Tank Pads on all Holding Tanks
    • <strong>Construction Advantages:</strong>
    • 5/8" Tongue & Groove Plywood Floor Decking
    • 35 Mil TPO Roof Membrane
    • Powder Coated I-Beam Frame w/ Camber for Stiffer Structural Support
    • Nitrogen Filled Tires
    • 2" Wall Construction, 16" (or less) on Center
    • Fiberglass Insulation Throughout
    • Aerodynamic Front Profile for Easy Towing
    • .040 Smooth Aluminum Front Profile for Added Rigidity
    • Diamond Plate Rock Guard on Front for Protection
    • Color Coded Water Lines
    • Seamless Holding Tanks
    • (2) 20 lb. Propane Tanks for Extended Camping
    • <strong>Interior Standard Features:</strong>
    • 4 - 6 Tablet Compatible USB Ports in Bedroom, Bunks, Living Areas
    • Fully Independent Air Conditioning Ductwork for Focused Cooling When Needed (Floorplan Dependent)
    • Large Shower Pans for Adults (No Bathtubs)
    • 30 Amp or 50 Amp Service w/ Auto Detect Converter (Works with Multiple Battery Types)
    • 20K BTU Furnace Ducted Through Walls and Cabinets, No Floor Ducting
    • <strong>Kitchen Standard Features:</strong>
    • Kitchen Storage - Nearly 50% More Cabinetry Than Others Thanks to Space Saving Appliances and Clever Designs
    • 3-in-1 Cooker w/ Convection Oven, Microwave, 3 Burner Gas Cooktop
    • 12V Refrigerator
    • Residential High Rise Kitchen Faucet and Deep Stainless Steel Kitchen Sink with Sink Cover/Cutting Board
    • Slim Range Vent Hood over Cooktop (Varies by Model)
    • Seamless Countertops
    • <strong>Exterior Standard Features:</strong>
    • Oversized Entrance Doors - 30" Wide Instead of 26" - 15% Larger Than Normal (Varies by Model)
    • Detachable Power Cord
    • Oversized Holding Tanks for Extended Camping
    • Dual Group 27 Battery Trays for Extended Camping Power
    • Battery Disconnect to Turn Entire Unit Off When Done Camping
    • Extra Large Baggage Doors for More Gear Storage
    • Backup Camera Ready - Just Plug and Play
    • Largest in Class Opening Panoramic Windows
    • 7-Way Plug and Chain Holder
    • <strong>Clear Choice Advantage Package: </strong>
    • Exterior LED Light Strip Under Awning
    • Backup Camera Prep
    • Solar Prep & LED Mushroom Lights
    • Full-Length Power Awning w/ Adjustable Legs
    • USB A and C High Speed Charging Outlets
    • Upgraded Appliance Package
    • Convection Microwave + 3 Burner Cooktop
    • EZ Entrance: Double Step + XL Folding Grab Assist Handle
    • Window Valance Package
    • Black Tank Flush
    • Deep Single Basin Kitchen Sink w/ High Rise Kitchen Faucet
    • Upgraded Hypoallergenic Mattress
    • Pressed Seamless Countertops
    • <strong>Convenience Package:</strong>
    • 36x24 Large Shower Pan (Varies by model)
    • 36x30 Large Shower Pan (Varies by model)
    • 60x74 Queen Bed (varies by model)
    • 66x80 King Bed (varies by model)
    • Foot Flush Toilet
    • TV Backer with Hookups
    • TV Antenna with Booster
    • 20,000 BTU Furnace (No vents in the floor)
    • Roof-Mounted AC
    • Spare Tire
    • Class Leading Window Package
    • Diamond Plated Rock Guard on Front
    • Baggage Door Catches
    • Upgraded Large Baggage Doors
    • Pleated Black Privacy Night Shades
    • Durable, One-piece Linoleum Flooring (Ease of cleaning)
    • Solid Wood Drawer Sides w/ Ball Bearing Guides
    • Nitrogen-Filled Radial Tires
    • Dedicated Cable TV Hookup on Exterior of Coach
    • 4" Sloped One-Piece Roof
    • Exterior Recept
    • 5/8" Tongue-n-Groove Plywood Flooring
    • Upgraded Detachable Power Cord
    • Monitor / Control Panel
    • High-Pressure Water Pump
    • Emergency Exit Windows
    • Safety Glass Windows
    • Fire Extinguisher
    • Carbon Monoxide Detector
    • LP Detector
    • Smoke Detector
    • GFI Protective Outlet
    • <strong>Premier Partner Package: (Limited Promotion Available)</strong>
    • Tinted Class-Leading Window Package
    • Black Glass 12v Refrigerator
    • NEW for 2024!  Underbelly AcessiBelly System for Climate and Debris Protection
