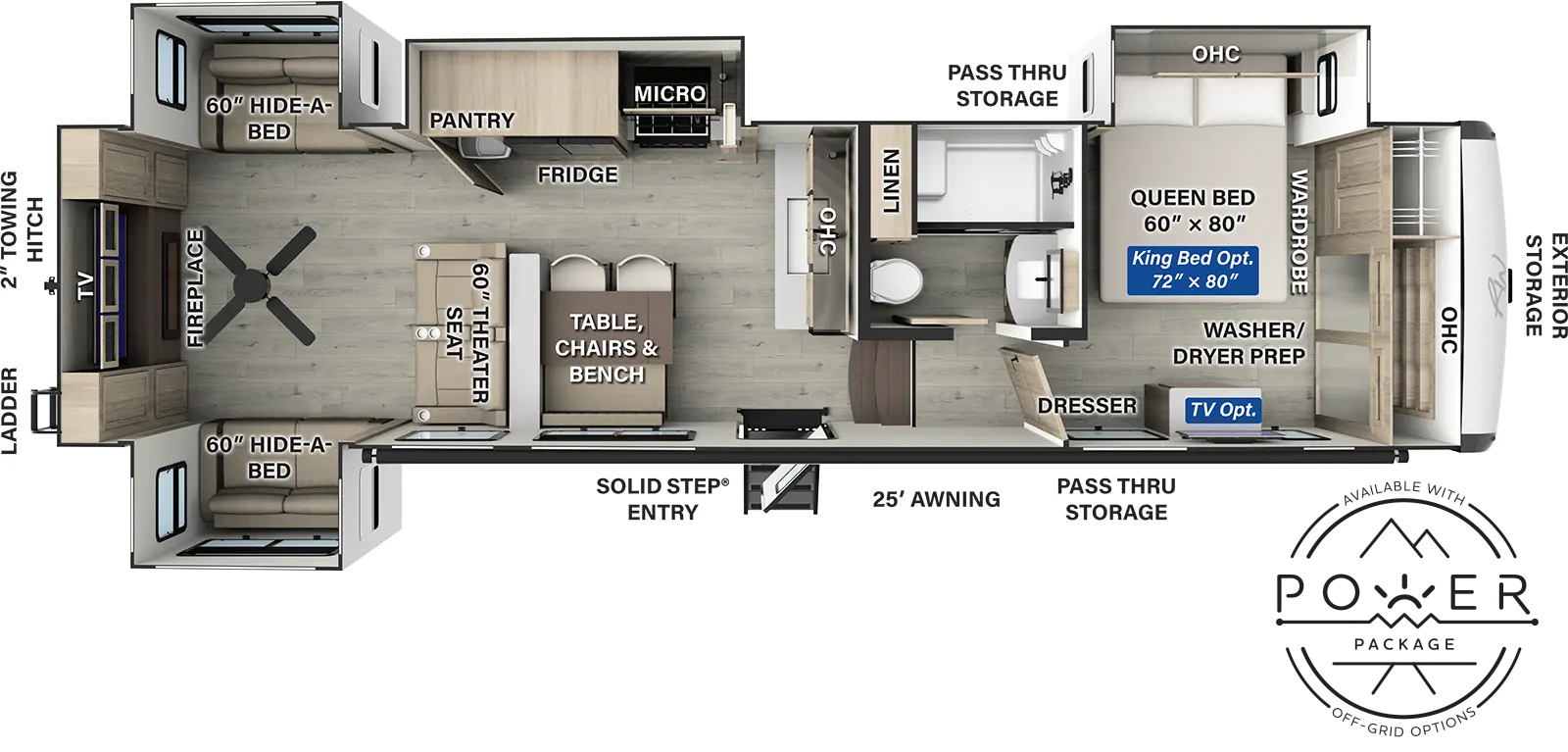

Rockwood R375RL Floorplan

This fifth wheel floor plan will be the focal point of every campground. It has four different seating configurations that can accommodate up to 10 people which makes this open air concept unit so group-friendly. Do you like booth seating? Do you like high top chair seating? This fifth wheel has both. This four slide, king bed option, 5th wheel will always service all your needs for every situation.

Hitch Weight
1,740 lb.
GVWR
12,140 lb.
UVW
10,379 lb.
CCC
1,761 lb.
Exterior Length
36' 10"
Exterior Height
13' 2"
Exterior Width
96"
Fresh Water
54 gal.
Gray Water
92 gal.
Black Water
53 gal.
Awning Size
25'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Exterior Features

    • Laminated Clay Fiberglass Sidewalls
    • High Gloss Front Cap
    • Larger 76" Entry Doors
    • Tinted Frameless Windows
    • 360 Siphon Black Water Venting
    • Ground Solar Panel Prep (All Models)
    • Rear Ladder
    • Black Tank Flush
    • Strut Assist Fold-Out Steps
    • Friction Hinge 30" Primary Entrance Door
    • Front Outside Storage
    • Outside Antifreeze Inlet for Convenient Winterizing
    • Slam Latches on Most Exterior Storage Doors & Magnetic Storage Door Latches
    • Two Enclosed 30 lb. LP Gas Bottles w/ Storage Door Access
    • Nautilus Water Management System w/Spray Hose
    • Keyed Alike Locks
    • Electric Auto Leveling System
    • 200W Roof Solar Panel
    • Power Awning w/ Adjustable Rain Dump and LED Light Strip
    • Towing Hitch (Standard on Models over 32')
    • AIR 360+ Omnidirectional Antenna / with WiFi Prep
    • MORryde fold up grab handle
    • Hot & Cold Water Port

  • Interior Features

    • Sedonwood Cabinetry
    • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges & Upgraded Hardware with Soft Closing Drawer Slides
    • 35,000 BTU Exterior Mounted Furnace
    • 50 Amp Service with 2nd A/C prep (Standard Second A/C with Heat on Models under 32')
    • Carbon Monoxide Detector
    • Battery Disconnect Switch
    • 55 Amp Converter With Charger
    • Recessed Springmount Residential-Style Ceiling Light, White Shell, Curved Lens, 4000K
    • Water-Pur Filtration System
    • Water Heater By-Pass Kit
    • Maxxair® Ventilation Fan and Vent Cover
    • 15,000 BTU Ducted A/C (Second A/C with Heat Standard on Models over 32')
    • 12 Gallon Quick Recovery Auto Ignition Gas/Electric Water Heater
    • One Control We RV App Control for Lights/Awnings/Slides/Water Heater/Water Pump

  • Living Area Features

    • Fireplace (On Select Models)
    • Deluxe Tri-Fold Sofa
    • Theatre Seating w/ Adjustable Lumbar Support & USB Ports (On Select Models)
    • Ceiling fan (Only on models over 32')
    • 76" Slide Out Height in Living/Kitchen
    • Lino In Slides
    • Night Roller Shades
    • Smart TV
    • Bluetooth & TV Audio Wall Plate with Ceiling and Exterior Speaker

  • Bedroom Features

    • Optional TV
    • Washer/Dryer Prep (On Select Models)
    • Carpetless Main Bedroom Floor
    • Under Bed Storage
    • Designer Headboard & Bedding
    • Individual Reading Lights
    • Two Bed Side Power Outlets

  • Construction Features

    • 5/8" Plywood Tongue and Groove Subfloor
    • Aluminum Bed and Dinette Bases
    • Enclosed Underbelly
    • Thermostatically Controlled Heated Holding Tanks
    • Radiant Foil Insulated Underbelly, Front Cap & Slide-out Floors
    • 6 Sided Fully Aluminum Framed (Floor, Walls, & Roof)
    • Insulation Factors R-7 Side Wall, R-12 Floor and R-14 Roof
    • Radius Roof With Vaulted Interior Ceilings
    • One Piece Seamless Roofing Membrane
    • Surface Coated Steel I-Beam Frame
    • Interior & Exterior Azdel Sidewall Construction

  • Towing Features

    • LCI *CURT ROTA FLEX Pin Box Hitch (Models over 32')
    • CURT Slipper Roller Sprung Axles with ABS Brakes
    • Rear Observation Camera Prep w/ Molded Mounting Plate
    • Undermounted Spare Tire
    • Black Wheels
    • Nitrogen Filled 16" E-Rated Goodyear Endurance Tires w/Balancing Beads
    • Tire Pressure Monitoring System with Monitor

  • Kitchen Features

    • Trash Can in Kitchen (Select floor plans)
    • Microwave Oven
    • Hidden Hinge Cabinet Doors
    • Residential-Style Full Extension Metal Drawer Guides with Soft Close
    • Solid Surface Kitchen Countertops
    • Designer Kitchen Backsplash
    • Flush Mount Stainless Steel Sinks With “High Rise” Pull-Down Faucet
    • 18 Cubic Foot 12V Refrigerator (On Select Models)
    • 11 cubic foot 12V Refrigerator (On Select Models)
    • Furrion 24" Chef Collection Built-In 3-Burner Gas Range

  • Bathroom Features

    • Bathroom Skylight
    • Porcelain Residential-Style Bowl Foot Flush Toilet
    • Maxxair® Ventilation Fan and Vent Cover
    • Upgraded Residential-Style Faucet

  • Options

    • 2nd Roof 15,000 BTU A/C with Chill Chaser Heat Strip & Digital Dual Control Thermostat (Standard Second A/C with Third A/C Option on Models over 32')
    • King Bed Mattress (On Select Models)
    • Extra Maxxair® Ventilation and Vent Cover
    • Slide Toppers
    • ThermoPane Window Upgrade
    • Washer & Dryer (On Select Models)
    • Optional Smart Bedroom TV
    • Power Package with 460AMP/HR Lithium Battery
    • Second 460AMP/HR Lithium Battery Installed with Power Package
    • Andover Sable Wood Cabinetry
