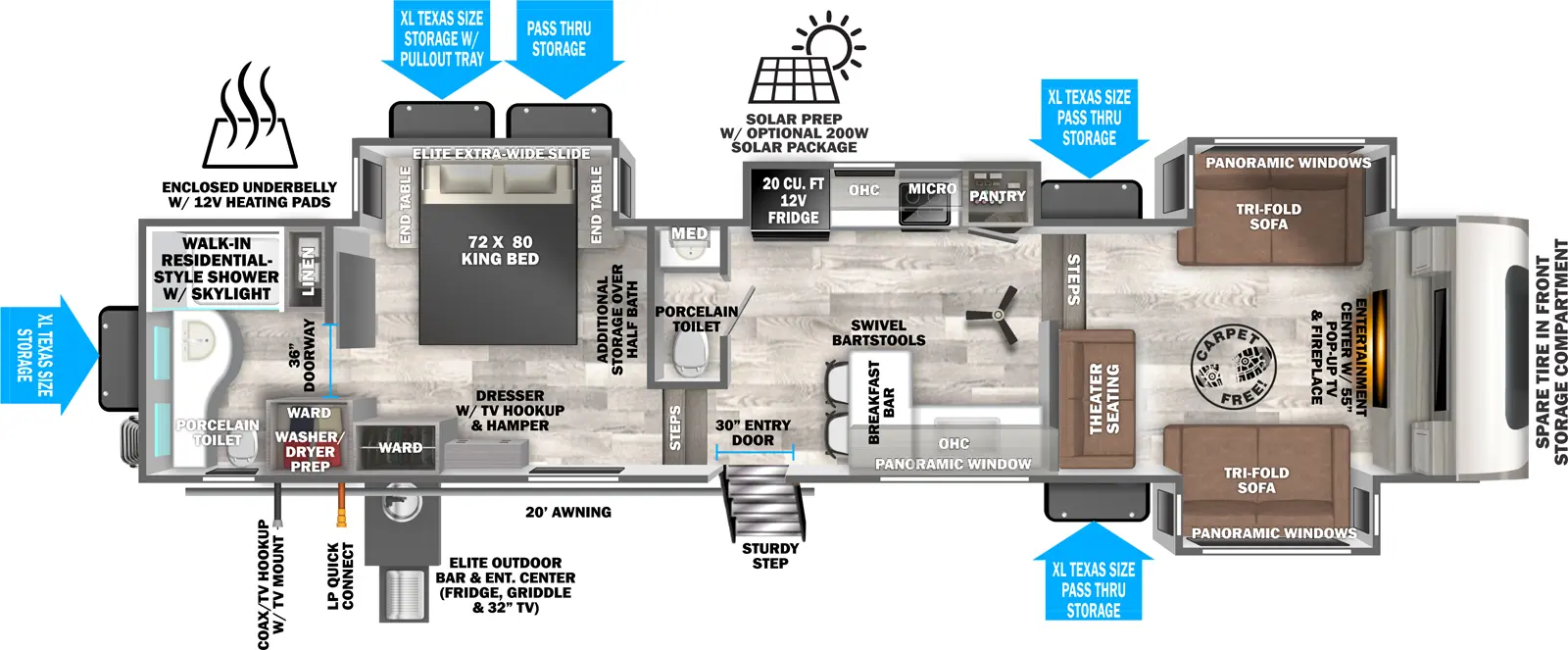

Hemisphere 36FL Floorplan

The 36FL takes the term "Elite" to a whole new level. This floorplan takes all of the great advantages of a front living fifth wheel and adds in TONS storage. It also sports the LARGEST outside kitchen of any front living model. This show-stopper of a floorplan also offers a bath & 1/2.

Hitch Weight
2,120 lb.
GVWR
15,500 lb.
UVW
12,624 lb.
CCC
2,876 lb.
Exterior Length
43' 9"
Exterior Height
13' 6"
Exterior Width
96"
Fresh Water
57 gal.
Gray Water
104 gal.
Black Water
70 gal.
Awning Size
20'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Elite Fifth Wheel Features & Options

    • <strong>STANDARD FEATURES</strong>
    • Full-Profile Wrap-Around Front Cap
    • Laminated “Aluma Frame” Sidewalls & Floor with Block Foam Insulation
    • Full Length Barrelled Ceilings Creating Additional Head Height & ~6'5" Upper Deck Head Room
    • Prepped for Roof-Mounted Solar Panel & Charge Controller
    • Wood Door Casings IPO Plastic Door Casings
    • 36" Glass Mirror Front Electric Fireplace
    • (4) Storage Bins Included Under Bed
    • Soft Close Hidden Hinges on Cabinet Doors
    • Porcelain Toilet
    • Extra Large Pass Thru Storage with Slam Latch Baggage Doors
    • Lippert On-The-Go Ladder Prep
    • Side-Mounted Heat Ducts (Not Including Upper Deck)
    • Power Stabilizer Jacks & Landing Gear
    • Stainless Steel, Single Bowl Undermount Sink w/ Roll Up Sink Cover
    • LP Quick Connect
    • Back Up Camera Prep
    • 7-Way “Rain Defense” Plug Holder
    • LED Awning, Front Cap, Marker & Tail Lights
    • Gold-Accented Faucets with Stainless Steel Sinks in all Bathrooms
    • Summer Wind Colored Horizontal Plank Linoleum Flooring
    • Temple Cherry Cabinetry with Matte Gold Hardware
    • <strong>ELEVATED VALUE PACKAGE (INCLUDED)</strong>
    • High-End Solid Surface Countertops
    • Square Windows w/ Built in Shades w/ Reflective Thermal-Foil Backing and Painted Hardwood Interior Trim
    • JBL Sound System (Head Unit, Interior Speakers & Exterior Speakers)
    • 60K BTU On-Demand Tankless Water Heater
    • RV Airflow Mechanism - Providing Minimum 25% Better Airflow
    • Maxxis Radial Tires w/ Black-Accented Aluminum Rims
    • <strong>EXPEDITION PACKAGE (INCLUDED)</strong>
    • 20 Cubic Foot Refrigerator (12V)
    • 72" x 80" King Bed in all Master Bedrooms
    • 1.7 CU/FT Over-Range 30" Convection Microwave
    • 15K BTU Quiet Cool A/C on a Race Track Duct System
    • 55" LED SMART TV
    • 30" Wide Main Entry Door with Window & Strut Assist Steps
    • 50 AMP Service with Washer/Dryer Prep
    • 24" 4-Burner “Turkey-Sized” Gas Range
    • Accesibelly Underbelly w/ 12V Tank Heaters on all Holding Tanks
    • In-Line Water Filteration System
