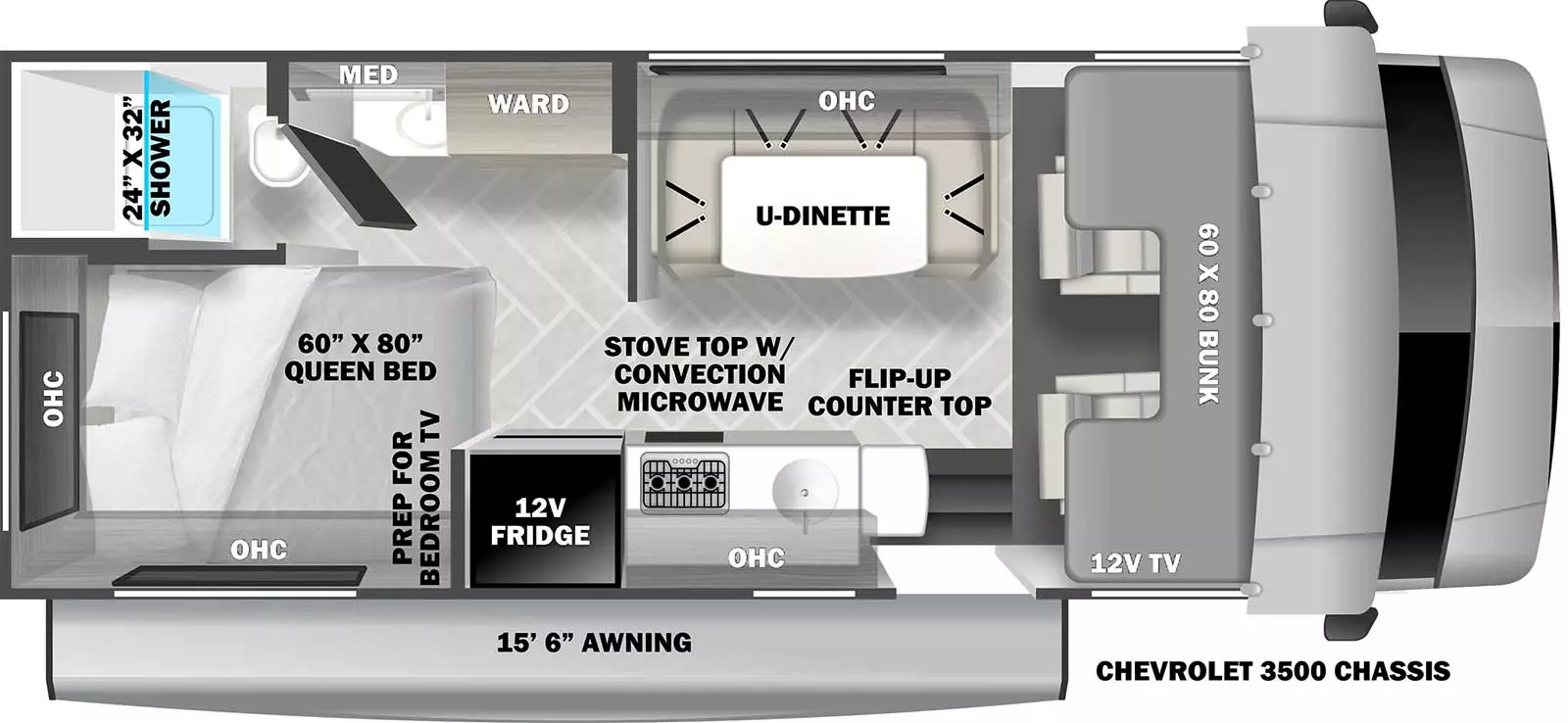

Sunseeker 2350LE Floorplan

The 2350LE is fully equipped for your next adventure! The rear of the unit contains the bedroom and bath, with a 60" x 80" queen bed and a 24" x 32" shower with molded surround. Skylights add to the natural light and allow for fresh air as well. The large U-shaped dinette is perfect for meals or family game night, while also providing a second sleeping surface. The kitchen features a 12V refrigerator, booth dinette, cooktop, convection microwave, and sink with a flip-up counter extension.

Wheelbase
159"
GVWR
12,300 lb.
GCWR
20,000 lb.
GAWR Front
4,600 lb.
GAWR Rear
9,600 lb.
Fuel Capacity
57 gal.
LP Tank Capacity
41 lb.
Exterior Length
25' 0"
Exterior Height
11' 3"
Exterior Width
101"
Fresh Water
44 gal.
Gray Water
39 gal.
Black Water
39 gal.
Awning Size
15' 6"

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • WARRANTY

    • 12 Months/12,000 mile basic limited warranty
    • Chassis warranty (see owners manual)

  • SYSTEMS

    • Battery disconnect
    • Water heater bypass
    • (1) Deep cycle coach battery
    • Optional (2) Deep cycle coach batteries
    • LED lighting
    • Easy Access battery in step-well
    • 30 Amp service with power cord
    • 60 Amp Progressive Dynamics converter
    • 6 Gallon DSI gas/electric water heater
    • 30,000 BTU furnace
    • Emergency start switch
    • Satellite/cable connection
    • 15,000 BTU ceiling ducted, ultra quiet roof air with heat pump (N/A w/dual AC option)
    • 4.5 KW Gas generator (Ford/Chevy only)
    • Heated, enclosed holding tanks and valves (N/A 2250SLE, 2550DSLE)
    • Arctic Package (12V tank heaters)
    • CO, LP and smoke detector
    • Winegard Air 360+ digital antenna
    • Side-mounted solar prep connection (N/A with roof-mounted solar)
    • Optional 190 Watt roof-mounted solar powered 12V charging system (IPO side-mounted charger prep)

  • EXTERIOR

    • 2” Aluminum framed laminated sidewalls
    • Superlite composite substrate
    • Gel Coat exterior fiberglass
    • Block foam insulation
    • Power patio awning with LED light strip
    • Fiberglass roof
    • One-piece fiberglass front cap
    • Roto-cast storage compartments
    • Aluminum running boards
    • Tinted sliding windows
    • 5,000 Lbs. hitch, 7-pin connector (Chevy/E350)
    • Integrated entry step
    • LP quick connect
    • Black tank flush
    • On-The-Go™ Ladder Bracket (most models)

  • CAB AREA

    • Power windows and door locks
    • Backup camera/side view cameras with 3-way monitor

  • KITCHEN

    • Recessed 3-burner range with flush glass cover
    • 1.3 Cu. ft. convection microwave
    • 10.7 Cu. ft. 12V refrigerator
    • Soft touch self-closing drawer guides
    • Cordless 12V charging plate

  • BATHROOM

    • Electric roof fan
    • Oxygen-infused shower head with flexible extension
    • Shower skylight

  • BEDROOM

    • Black-out roller shades

  • LIVING ROOM

    • Convertible dinette for additional sleeping capacity
    • Black out roller shades
    • 12V LED flat panel adjustable side TV
    • Child seat head tethers in dinette
    • Maxx Air multi-speed power fan with cover
