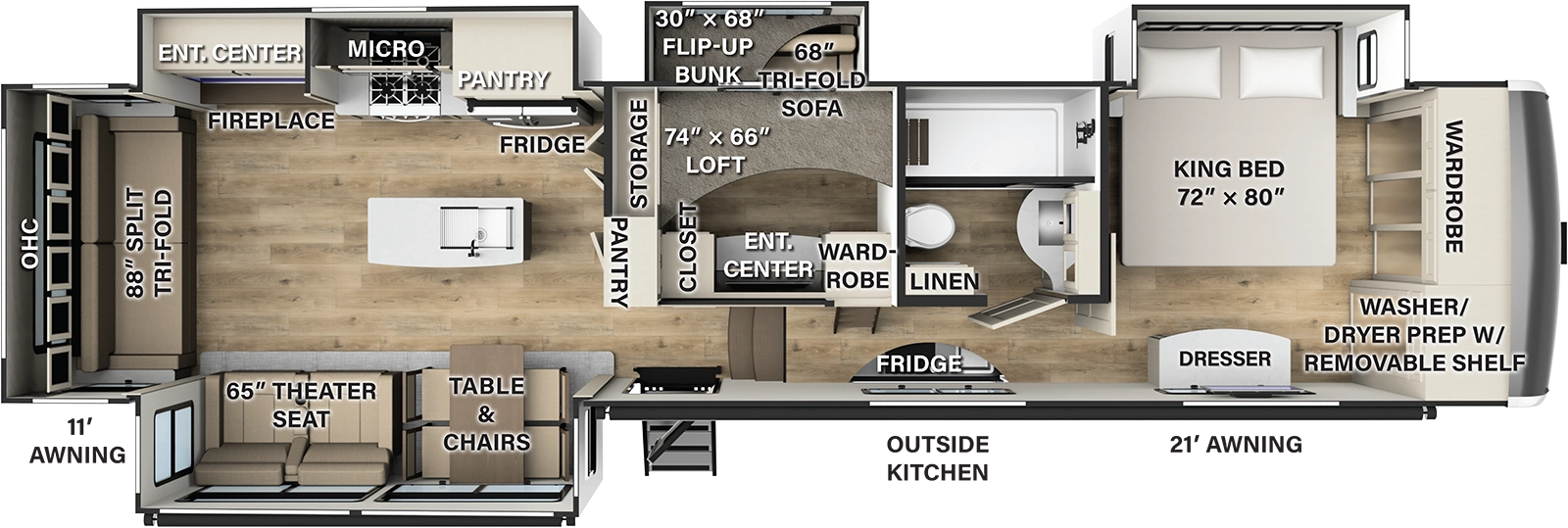

Flagstaff F379MB Floorplan

The F379MB is the perfect mid bunk floorplan whether camping as a family or having an office space away from home. The living room offers a full size 88” 50/50 split sleeper sofa along with power theater placed across from the 50” LED TV. The large kitchen provides residential appliances including 20 cu. ft. fridge with ice maker, 30” microwave and 4 burner Insignia cooktop with 24” oven.

Hitch Weight
2,100 lb.
GVWR
15,580 lb.
UVW
12,624 lb.
CCC
2,956 lb.
Exterior Length
41' 2"
Exterior Height
13' 6"
Exterior Width
101"
Fresh Water
75 gal.
Gray Water
79 gal.
Black Water
38 gal.
Awning Size
11' & 21'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Exterior Features

    • Large Frameless Tinted Windows Throughout
    • Slam Latches On All Storage Doors
    • Magnetic Compartment Door Holds
    • 2-Tone Aluminum Wheels
    • Painted Fiberglass Front Cap
    • Heated Utility Convenience Center
    • Black Tank Flush
    • Outside Sprayer
    • 2- 30 LB LP Tanks
    • Entry Door With Window And Screen Door
    • Battery DIsconnect
    • Metal Wrapped Power Awning w/LED Lighting
    • 7000 Lb Axles (All Models)
    • Crank Down Spare Tire
    • Tire Pressure Monitoring System

  • Interior Features

    • Soft Close Hidden-Hinge Reinforced Doors & Drawers W/Upgraded Hardware
    • Upgraded Crack/Mold/Mildew-Resistant Flooring
    • Upgrade True Solid Surface Countertops Bath/Kitchen
    • Residential Style Crown Molding Throughout Unit
    • Solid Wood Slide Fascia
    • Solid Wood Steps
    • Roller Day/Night Shades in Main Areas
    • LED Lights

  • Furniture

    • Power Theater Seating W/USB Charging & Storage
    • 88" 50/50 Split Sleeper Sofa (per model)

  • Bedroom Features

    • High End Bedspread & Pillows
    • C-pap Shelves (per model)
    • Bedroom Smart TV
    • Reading Lights with USB Charger

  • Options

    • Stackable Washer / Dryer
    • Dual Pane Windows
    • Full Body Paint
    • Slide Toppers
    • Generator Prep
    • 5.5 Onan Generator
    • Booth IPO Free Standing Table/Chairs (F379MB ONLY)
    • 12V 18 Cu Ft 3 Door Refrigerator w/Ice
    • 2ND 260W Solar Panel
    • 3rd Ducted A/C Installed IPO MaxxAir Vent

  • Construction Features

    • 101" Wide Body
    • All Welded Aluminum Frame Superstructure
    • Climate Controlled Drop Frame Storage
    • 5/8 Tongue-Groove Plywood Floor
    • Residential Style 5" Wood Radius Roof Truss
    • 6'11" Height Slides (Living Area)
    • Heat Ducts Out of Traffic Areas
    • Snap-In Ceiling Molding-No Staples Or Tape
    • 12V Heat Pads On All Holding Tanks
    • Fiberglass Insulated Floors & Roof
    • 2" Sidewall with Foam Insulation
    • High Gloss Fiberglass Vacuum Bonded Walls w/Dual Azdel
    • 16" Wheels W/Nitro Fill Tires
    • Rear View Camera Prep
    • Slide Topper Prep
    • Painted Fiberglass Front Cap
    • Mor/Ryde CRE3000 Suspension system

  • Kitchen Features

    • Trash Can W/Dedicated Storage (N/A F388, F384)
    • Rollaway Sink Covers
    • Residential Style Under Counter Storage
    • Residential Style Kitchen Backsplash
    • Additional Lighting Above Sink Area
    • Large Single Bowl Stainless Steel Sink
    • Single Lever Faucet W/Pull Out Sprayer

  • Bathroom Features

    • Solid Surface Counter Top
    • 3 Speed Power Vent
    • Porcelain Toilet
    • Shower Skylight
    • Large Signature Spa One Piece Shower Surround w/Fiberglass Base
    • Undermount Stainless Steel Sink

  • Appliances

    • 20 Cu Ft Residential Style 3 Door Refer w/Ice Maker
    • Insignia 24" Residential Style Oven (N/A F388)
    • 50" Smart TV w/Bluetooth Audio & Exterior Speakers
    • 12 Gal Water Heater W/Quick Recovery
    • Washer / Dryer Prep
    • Full System Water Purifier
    • 30" Residential Style Stainless Steel Microwave
    • 35,000 BTU Furnace
    • Omnidirectional Rooftop Antenna With 4G Lte/Wifi Prep
    • 50 Amp Converter w/Built-in Charge Wizard & Auto Lithium Detect
    • 5000 BTU Electric Fireplace

  • Comfort Package Forced options

    • Wall Mounted Free-Standing Dinette Table W/Extension
    • (2) Residential Style Dinette Chairs (option F375 & F376)
    • 2 Folding Chairs
    • Dishwasher Prep (N/A F388)
    • Large Kitchen Pantry (Select Models)
    • Stainless Steel Appliance Package Including Microwave, 4 Burner Range and 20 Cu Ft 3 Door Refer (N/A F388)
    • Upgraded Residential Style Hardware
    • MCD Day/Night Roller Shades In Main Areas
    • Hybrid Carpet
    • Pop-Up Recepts
    • 50" Smart TV w/Bluetooth Audio
    • Power Theater Seating w/USB Charge
    • 50/50 SPLIT SLEEPER SOFA
    • Ceiling Fan In Living Room
    • 5000 BTU Electric Fireplace (APPLIANCE FEATURE)
    • Large Signature Spa Walk-in One Piece Shower Surround w/Fiberglass Base
    • Undermount Bath Sink w/Solid Surface Tops
    • Porcelain Toilet
    • Washer / Dryer Prep
    • Aluminum Framed Bed Base With King Bed
    • Bedroom Smart TV
    • 3rd A/C Prep w/Kitchen Maxx Air Vent

  • Voyager Package Forced Options

    • 6 Point Hydraulic Leveling System
    • Mor/Ryde CRE/3000 Suspension
    • 7000 lb Axles with ABS Brake System
    • 2-tone Aluminum Wheels
    • E-rated Tires w/E-rated Spare
    • Mor/Ryde Upgraded Pinbox
    • High Gloss Fiberglass Vacuum Bonded Walls w/Dual Azdel Onboard
    • 2-tone Painted Front Cap
    • 12 Gal Water Heater
    • (2) Quietcool Serenity A/C's 15K BTUs
    • Heat Pump on Bedroom A/C
    • Power Cord Storage Reel
    • Frameless Windows
    • Battery Disconnect
    • 12V Heat Pads on Tanks
    • LED Awning Lights
    • Mor/Ryde Strut Assist Step Above Entry Steps
    • Syphon 360 Vent Covers
    • One Control Operating System
    • Wifi Booster w/4G LTE Capability Prep
    • LP Quick Connect
    • Back Up Camera Prep
    • Slide Topper Prep
    • 260W Solar Panel w/30AMP Controll w/1800W Inverter & dedicated recepts
    • Metal Wrapped Awning
