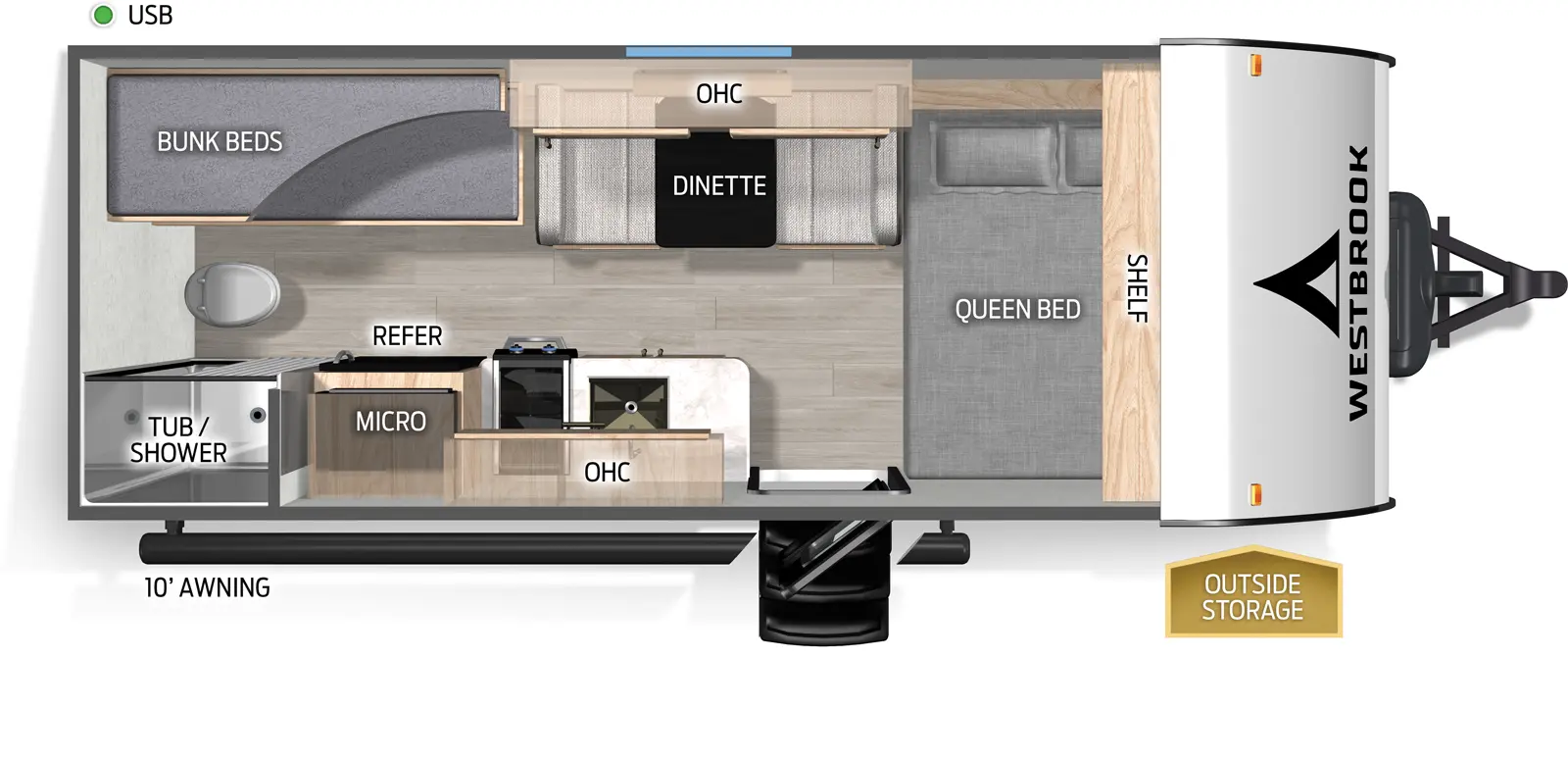

16CC Floorplan

Hitch Weight
505 lb.
GVWR
4,905 lb.
UVW
3,694 lb.
CCC
1,211 lb.
Exterior Length
20' 2"
Exterior Height
10' 4"
Exterior Width
96"
Fresh Water
42 gal.
Gray Water
34 gal.
Black Water
34 gal.
Awning Size
10'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.


  • Exterior Features

    • Smooth Aerodynamic High-Impact Aluminum Front Cap
    • Large Diamond Plate Rock Guard
    • Power Patio Awning with Integrated LED Lighting
    • Fully Walkable Roof
    • Tufflex PVC Roof Membrane w/Lifetime Limited Warranty
    • Solar Reflective Thermo-Controlled Tinted Safety Glass
    • 225/75R 15" Tires
    • Spare Tire w/Carrier Mounted(optional)
    • Doggie Leash Latch
    • LP Grill Quick Connect
    • Powder-Coated Rolled I-Beam Reliable Steel Chassis
    • Outside Storage Door w/Magnetic Safety Catch
    • Rear Scissor Stabilizer Jacks
    • Frame-Mounted Safety Chain & 7-Way Plug Storage
    • Steel Fold-Out Entry Step
    • 26"Radius Entry Door w/Screen Door and T-Style Hold Latch
    • Grab Handle at Entry Door
    • 20 lb. LP Bottle
    • Extended Rain Gutter Down Spouts
    • Upgraded Steel Rims w/EZ Lube Axle
    • Large Rear Steel Bumper
  • Interior Features

    • Flush Mount Stainless Steel Sink w/TuffCoat
    • High-Rise Kitchen Faucet
    • Faux Marble Seamless Kitchen Countertop
    • Bright Energy-Efficient LED Interior Lights
    • Seamless Carefree Congoleum Flooring
    • Plush Bunks with Teddy Bear Material
    • Dedicated Bedroom and Bunkroom Reading Lights
    • Under Bunk Storage
    • Deluxe Sleeper Dinette w/Dual Storage
    • USB-C Charge Ports
    • Multiple 110V Outlets
    • Massive Underbed Storage
    • Multiple Oversized Overhead Storage Cabinets
    • Pleated Nightshades
    • Tankless Water Heater Remote Controller
    • Foot-Flush Toilet
    • Hybrid Tub/Shower
    • 12V Bathroom Vent Fan
  • Appliances & Convenience Features

    • High Efficiency Roof Mount Air Conditioner
    • Detachable 30-Amp Electrical Cord
    • Flush Mount 2-Burner Range with Cover
    • Electric Microwave Oven
    • 12 Volt Refrigerator
    • Tankless Water Heater
    • Auto Ignition Furnace w/Wall Thermostat
    • 12V High-Capacity water Pump
    • 110V Convenience Outlet (door side)
    • Carbon Monoxide Detector
    • Emergency Exit Window
    • Fire Extinguisher
    • LP Gas Detector
    • Smoke Detector
