Vengeance Rogue SUT Travel Trailer and Fifth Wheel Toy Haulers

Rogue SUTs are a true toy hauler product. The 102” widebody design gives you maximum storage space for all your toys. Engineered with a stronger chassis and high capacity axles to be durable and functional at an affordable price, Rogue SUT trailers and 5th wheels are ready to go wherever you want!

Care Camps, fighting cancer and making memories

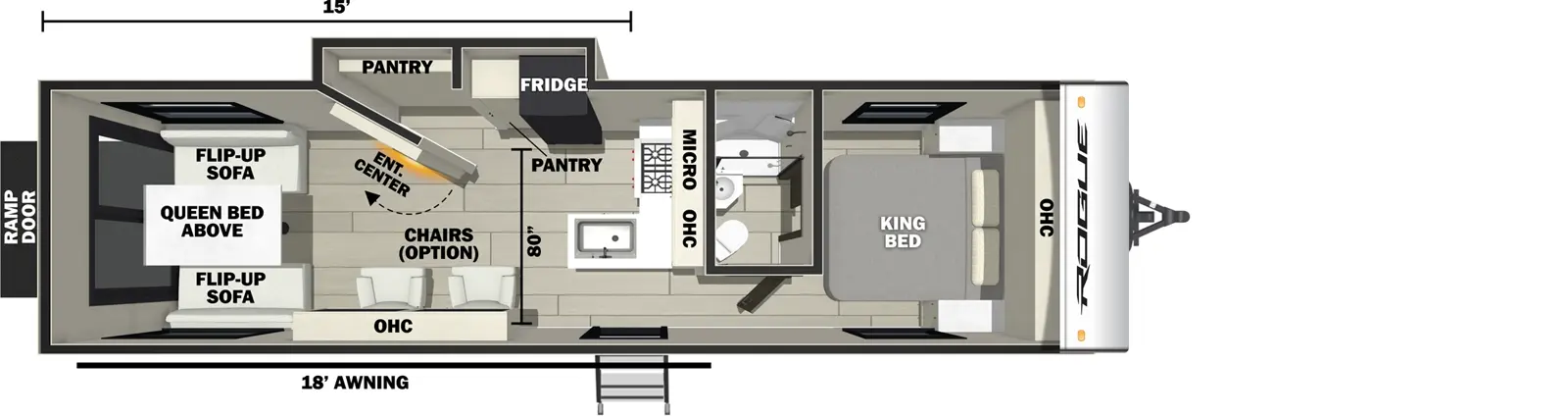

Floorplans

Print

Travel Trailer Toy Haulers
Fifth Wheel Toy Haulers


Specifications

Print

Floorplan: 23SUT : Travel Trailer Toy Haulers 327SUT : Fifth Wheel Toy Haulers
Hitch Weight:1,036 lb.2,795 lb.
GVWR:9,995 lb.16,795 lb.
UVW:5,498 lb.11,433 lb.
CCC:4,497 lb.5,362 lb.
Exterior Length:27' 2"39' 11"
Exterior Height:12' 1"13' 4"
Exterior Width:102"102"
Fresh Water:96.00 gal.96.00 gal.
Gray Water:38.00 gal.38.00 gal.
Black Water:38.00 gal.38.00 gal.
Awning Size:12'21'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Wide Body Construction
  • 30 Gal Fuel Station
  • Generator Ready
  • 100% LED Interior Lighting with Accents
  • 15,000 BTU Air Conditioner
  • Power Awning with LED Lights
  • Bluetooth Receiver with Indoor/Outdoor Speakers
  • Enclosed Heated Underbelly
  • Detachable Coil Spray Hose
  • Exterior TV Hookup
  • Foot Flush Toilet
  • Quick Clean Waste Tank Spray System
  • Black Glass Entry Door with Window and Shade Prep
  • LED Exterior Lighting
  • Outside Shower with Hot and Cold Water
  • Residential Black Stainless Steel Sink
  • Satellite Ready
  • Seamless PVC Roofing Membrane with Heat Reflectivity
  • Spare Tire
  • 12V High Efficiency 10.2 cu. Ft. Refrigerator
  • 12V Master Switch Battery Disconnect
  • 50AMP Service
  • 55AMP Convertible suitable for Standard RV or Lithium Batteries
  • Carbon Monoxide Detector
  • LED Rear Loading Lights
  • Two 20 lb. LP Tanks with Auto Changeover
  • Black rubber Diamond Plate Flooring in Separate Garage
  • Wide Body Construction
  • 100% LED Interior Lighting with Accents
  • 15,000 BTU Air Conditioner
  • Power Awning with LED Lights
  • Bluetooth Receiver with Indoor/Outdoor Speakers
  • Enclosed Heated Underbelly
  • Detachable Coil Spray Hose
  • Exterior TV Hookup
  • Foot Flush Toilet
  • Quick Clean Waste Tank Spray System
  • Black Glass Entry Door with Window and Shade Prep
  • LED Exterior Lighting
  • Outside Shower with Hot and Cold Water
  • Residential Black Stainless Steel Sink
  • Satellite Ready
  • Seamless PVC Roofing Membrane with Heat Reflectivity
  • Spare Tire
  • 12V High Efficiency 10.2 cu. Ft. Refrigerator
  • 12V Master Switch Battery Disconnect
  • 30AMP Service
  • 55AMP Convertible suitable for Standard RV or Lithium Batteries
  • Carbon Monoxide Detector
  • LED Rear Loading Lights
  • 1,000W Microwave
  • 3 Burner Cooktop with Oven
  • Glass Shower Doors (FW Only)
  • Rogue Stable Step
  • Seamless Countertops
  • Sink Cover
  • Ultracold 12V Heat Pads on All Tanks
  • Zebra Shades in Living Areas
  • Quick Set Bed System with Sofas
  • Onne Control Phone App for Lights, Awning, Etc.
  • Backup Camera Ready


Virtual Tours

  • 23SUT

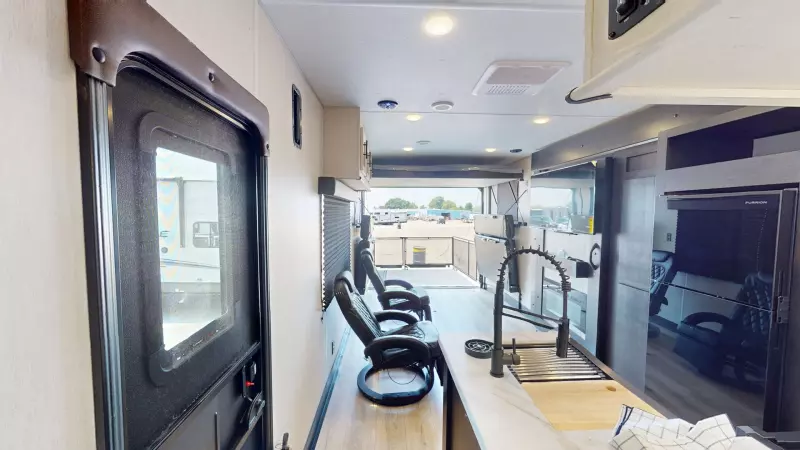

    23SUT Main Room


Literature
