271ML Floorplan

Wildcat Fifth Wheels

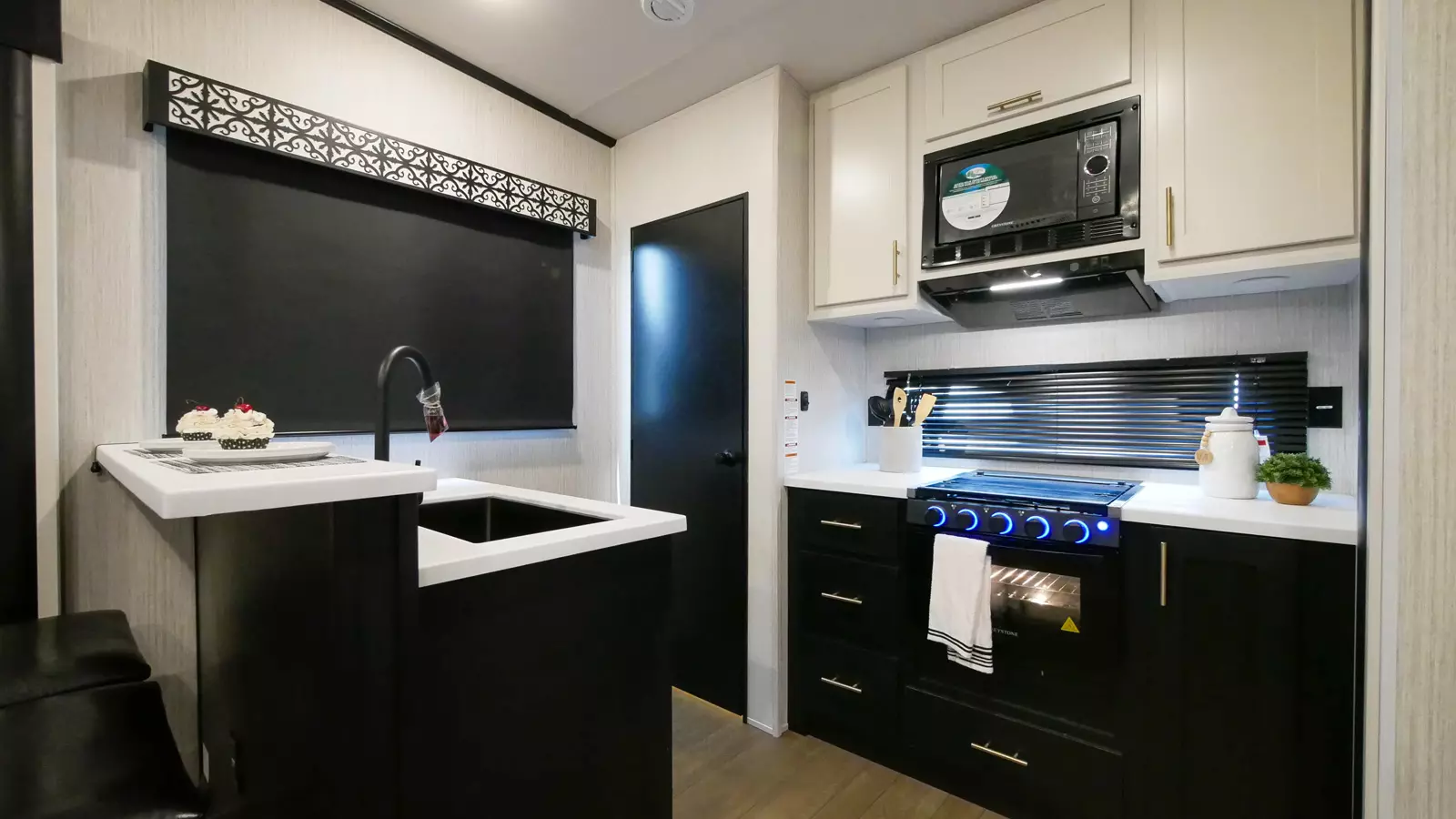

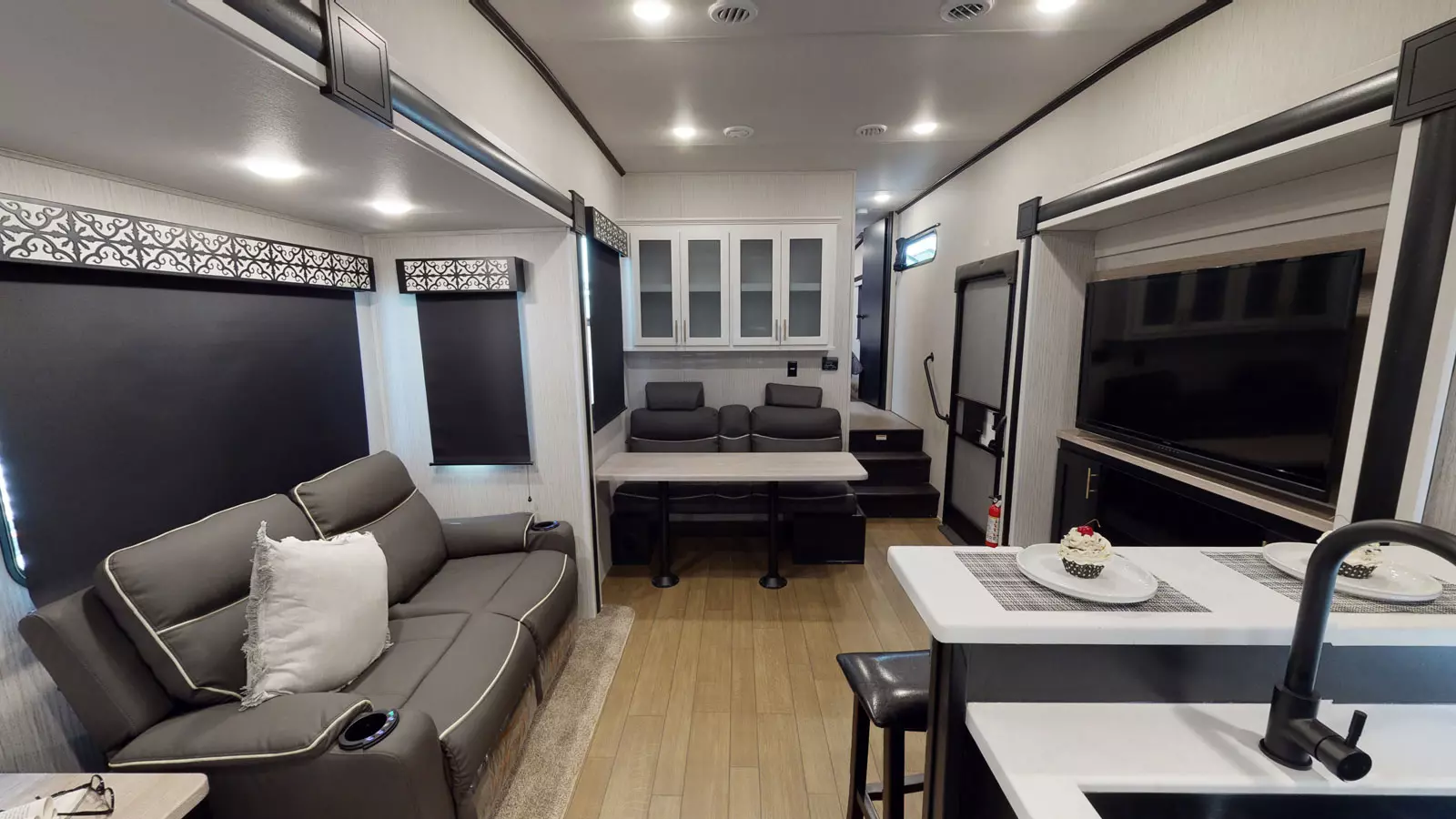

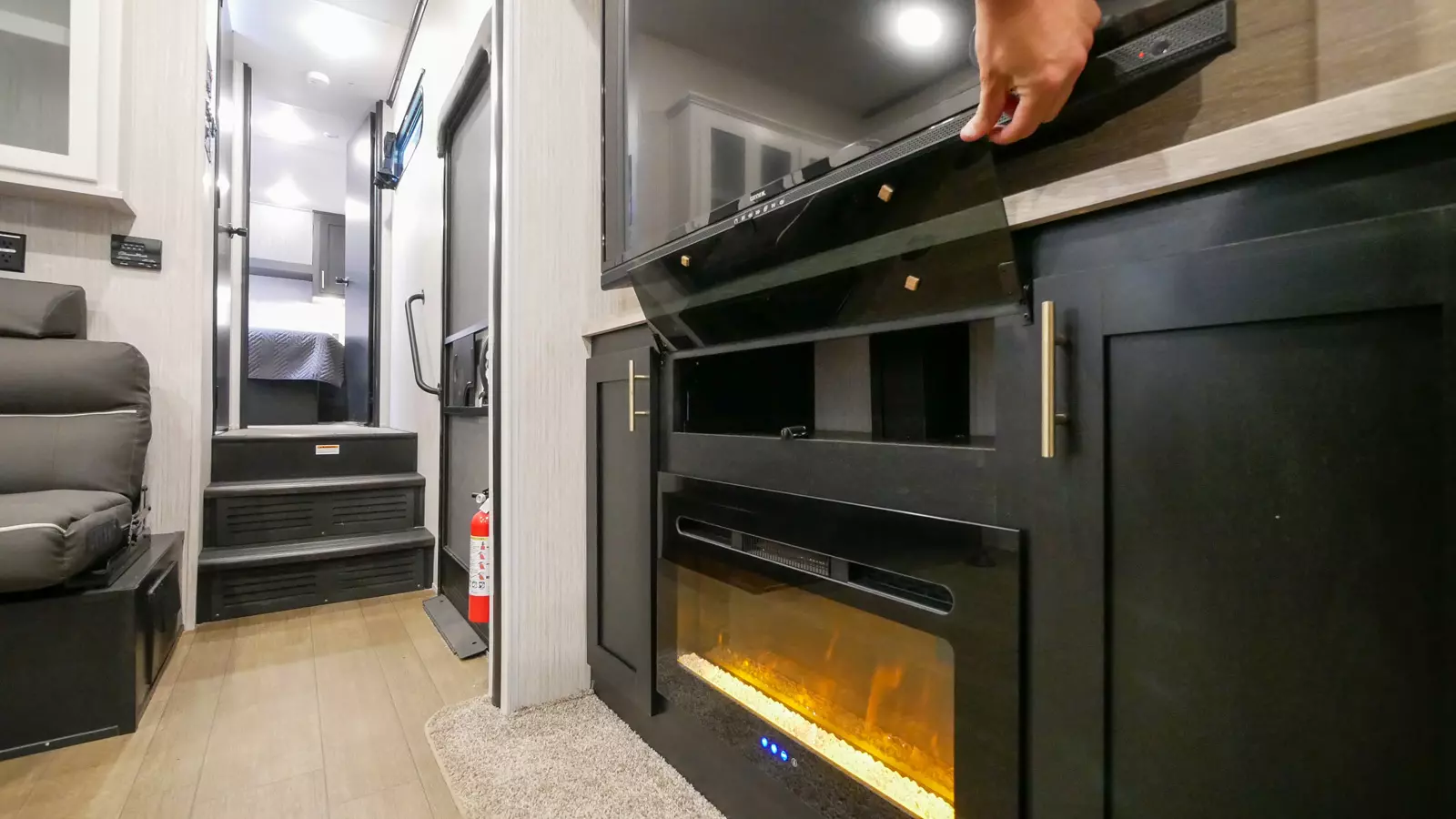

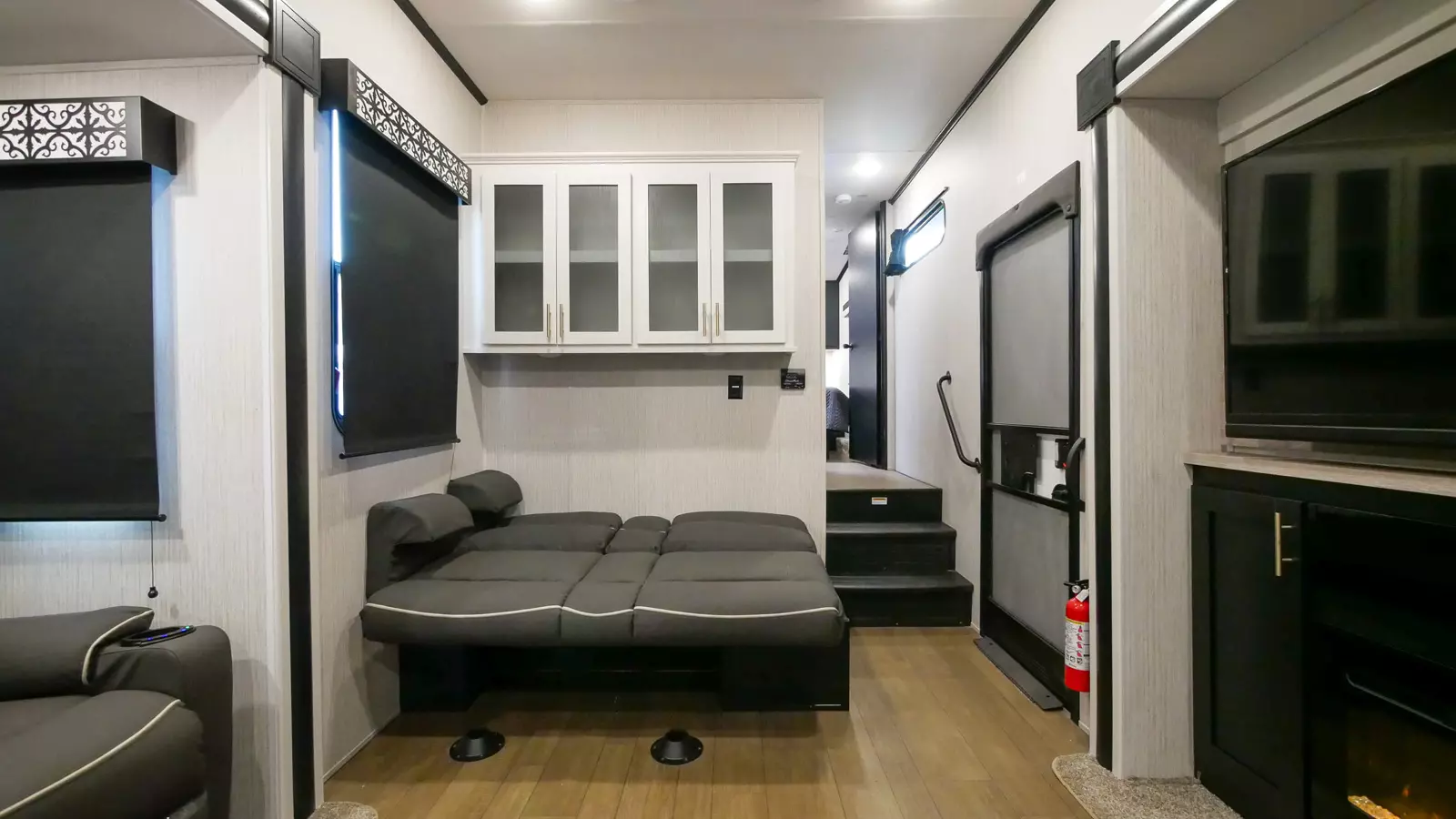

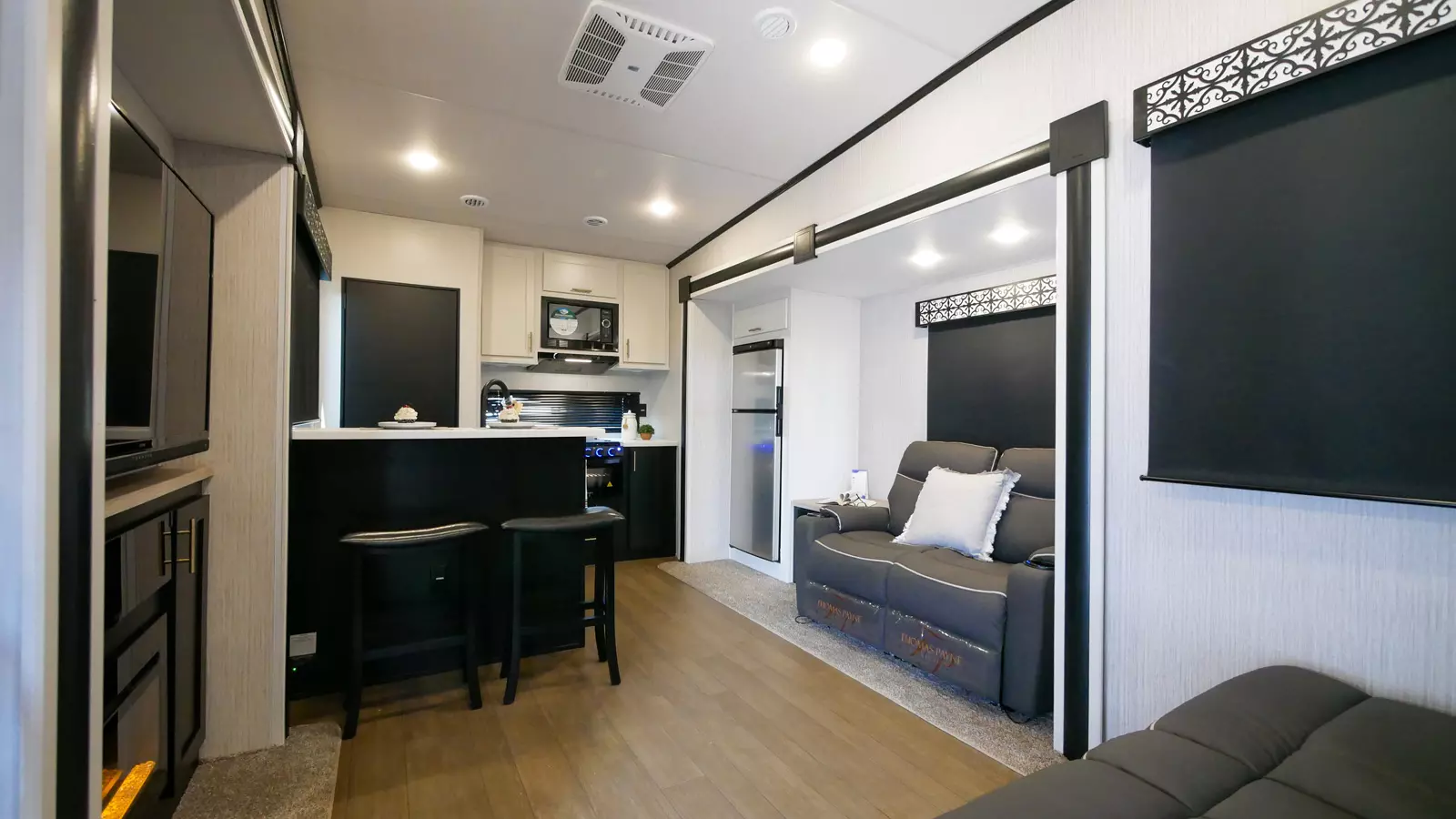

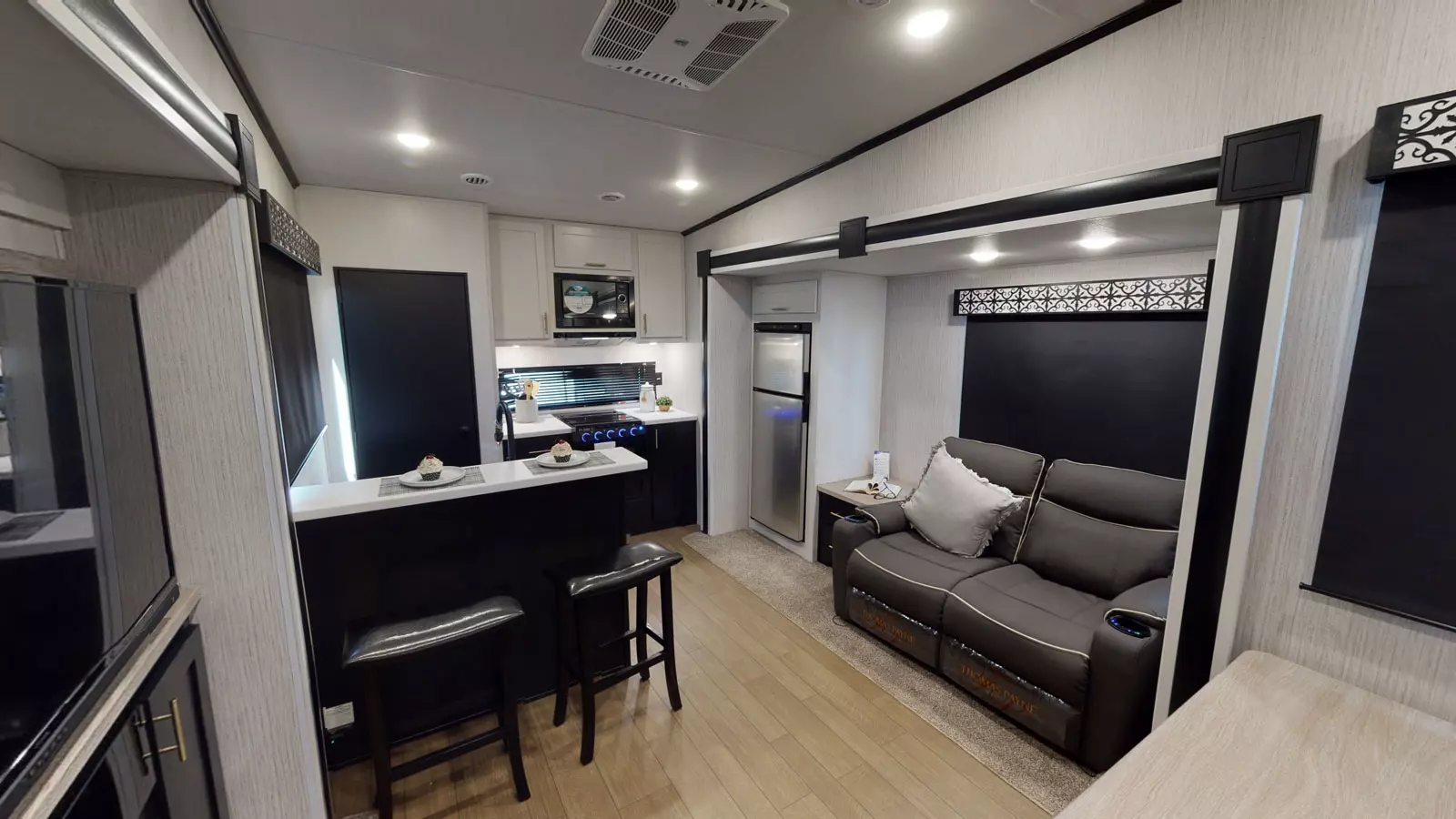

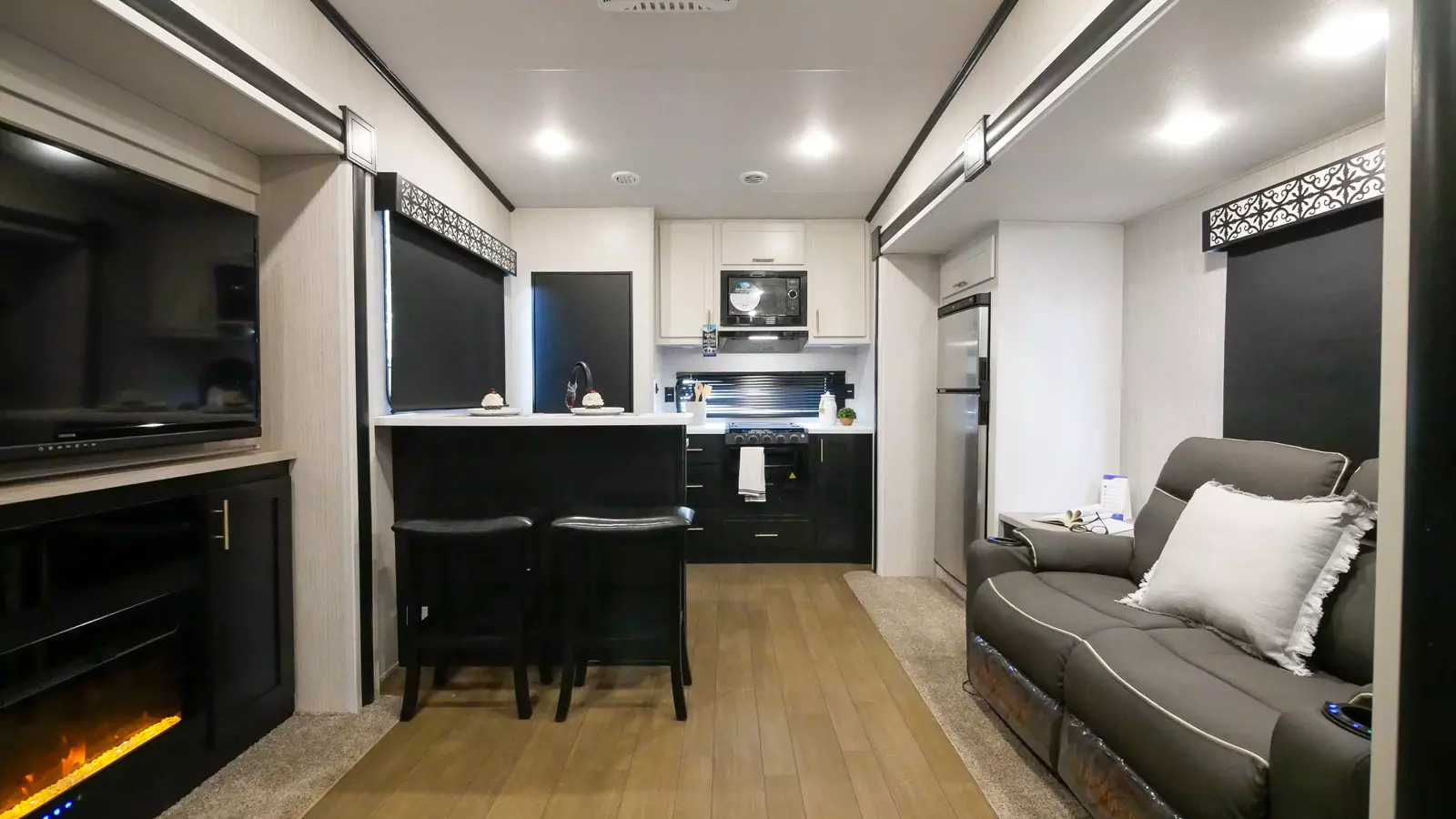

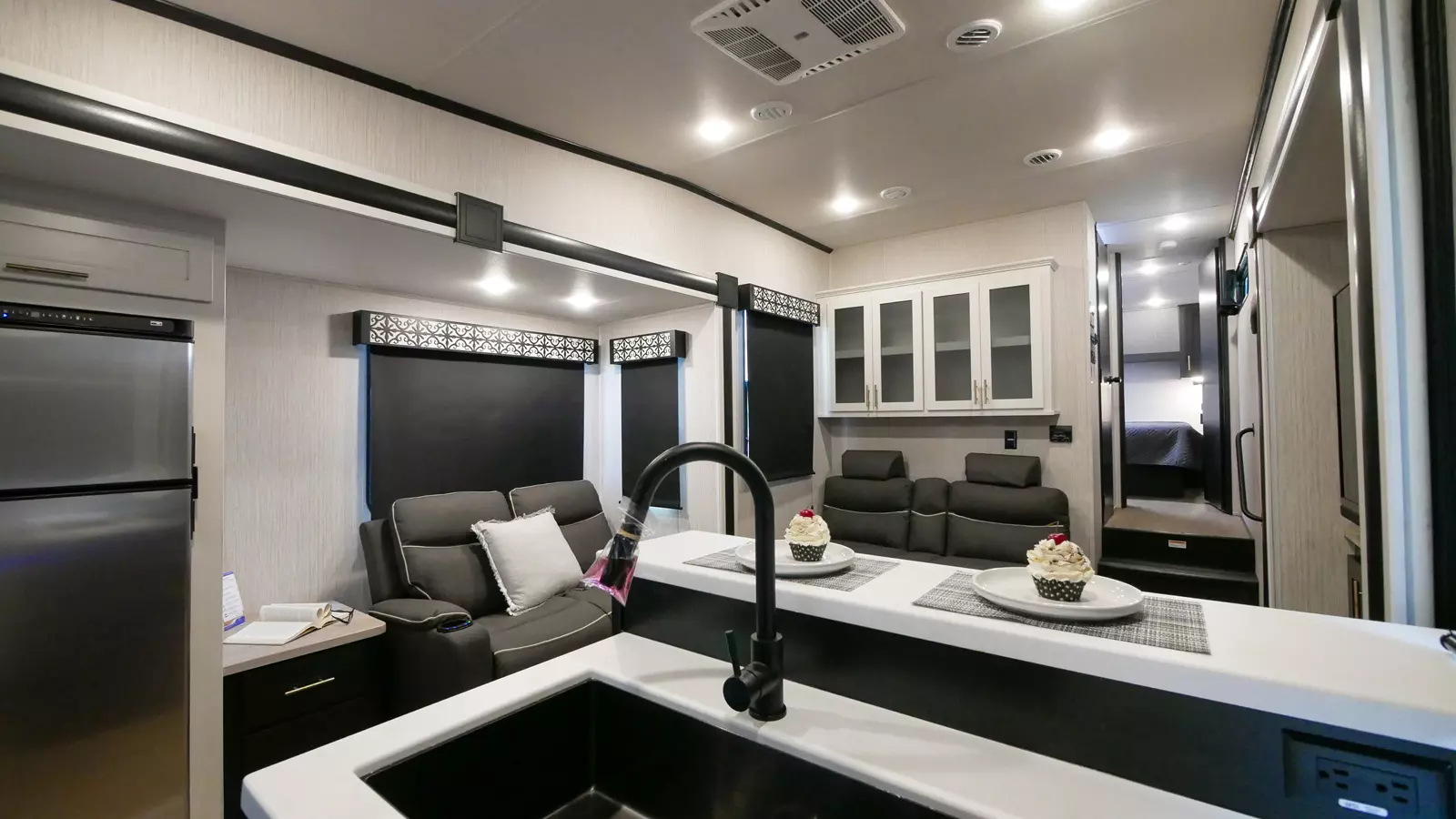

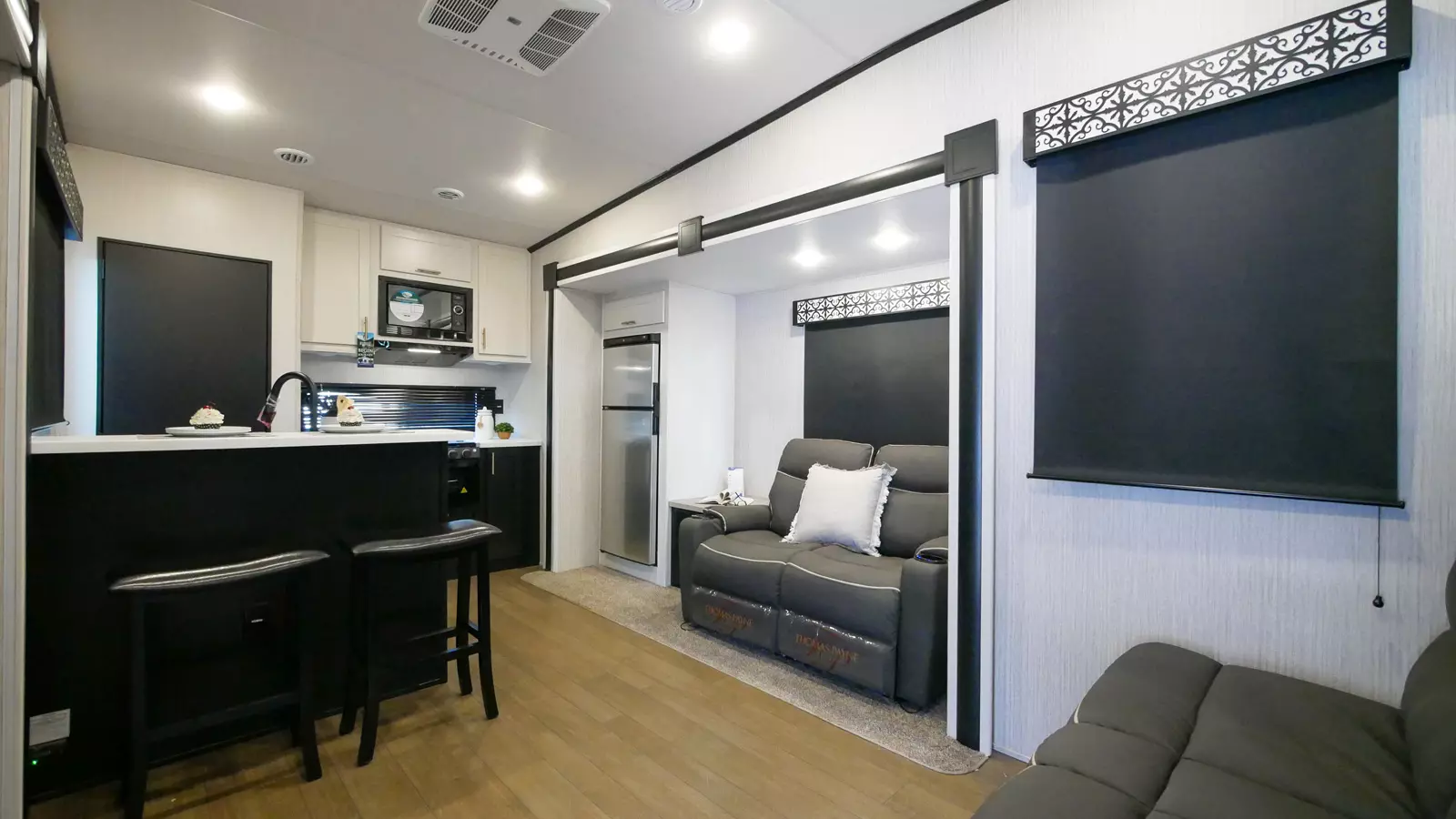

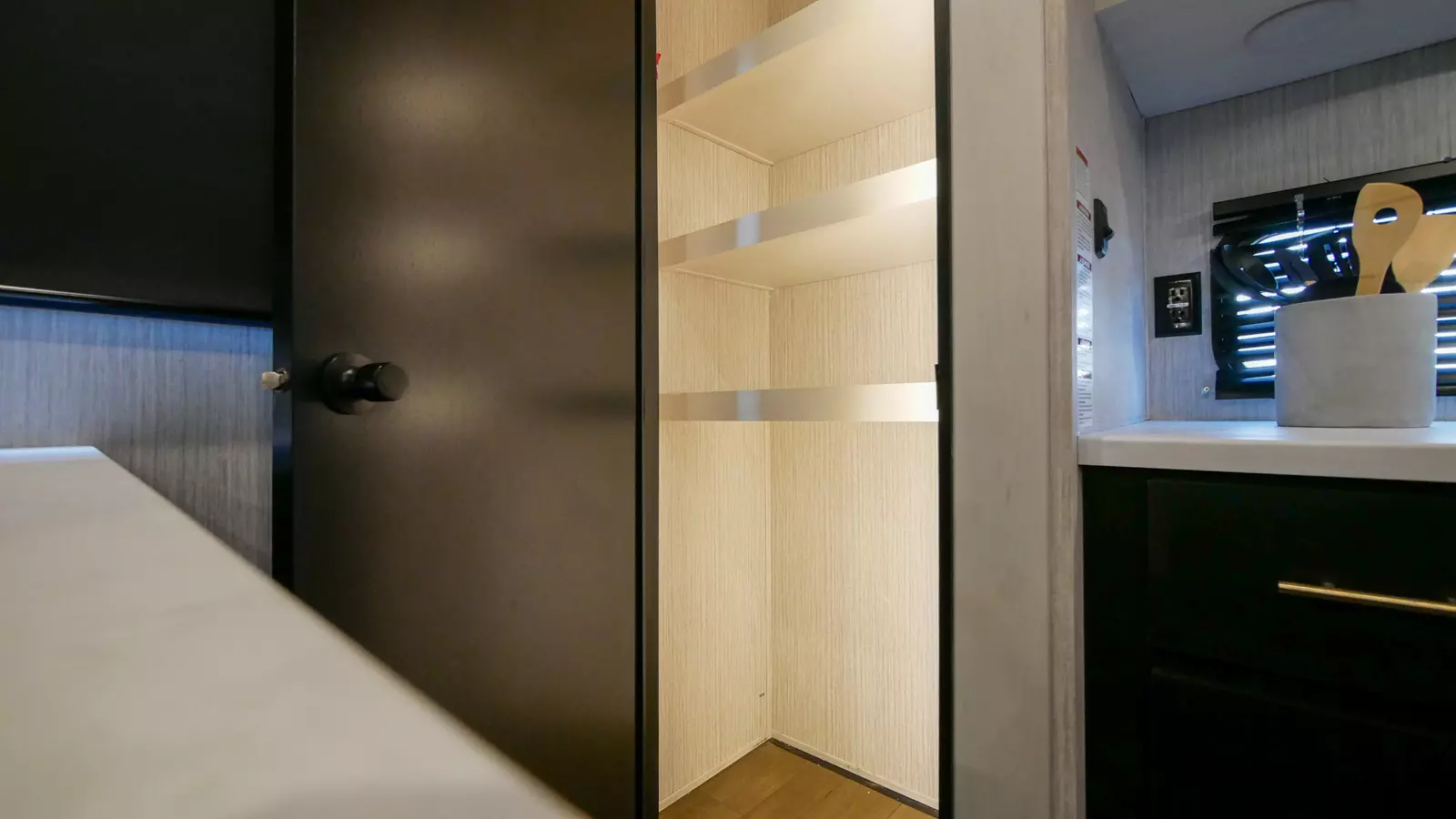

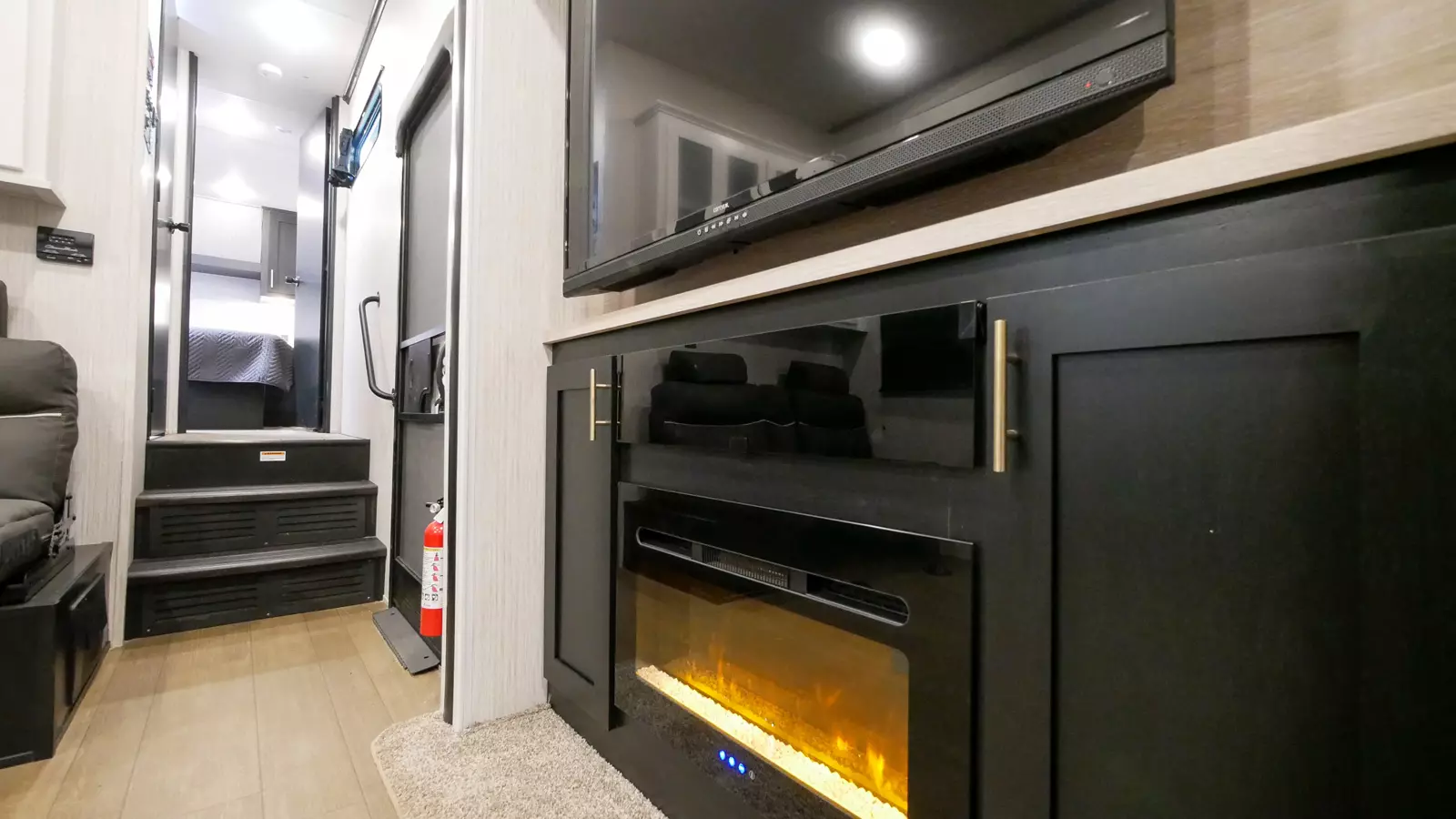

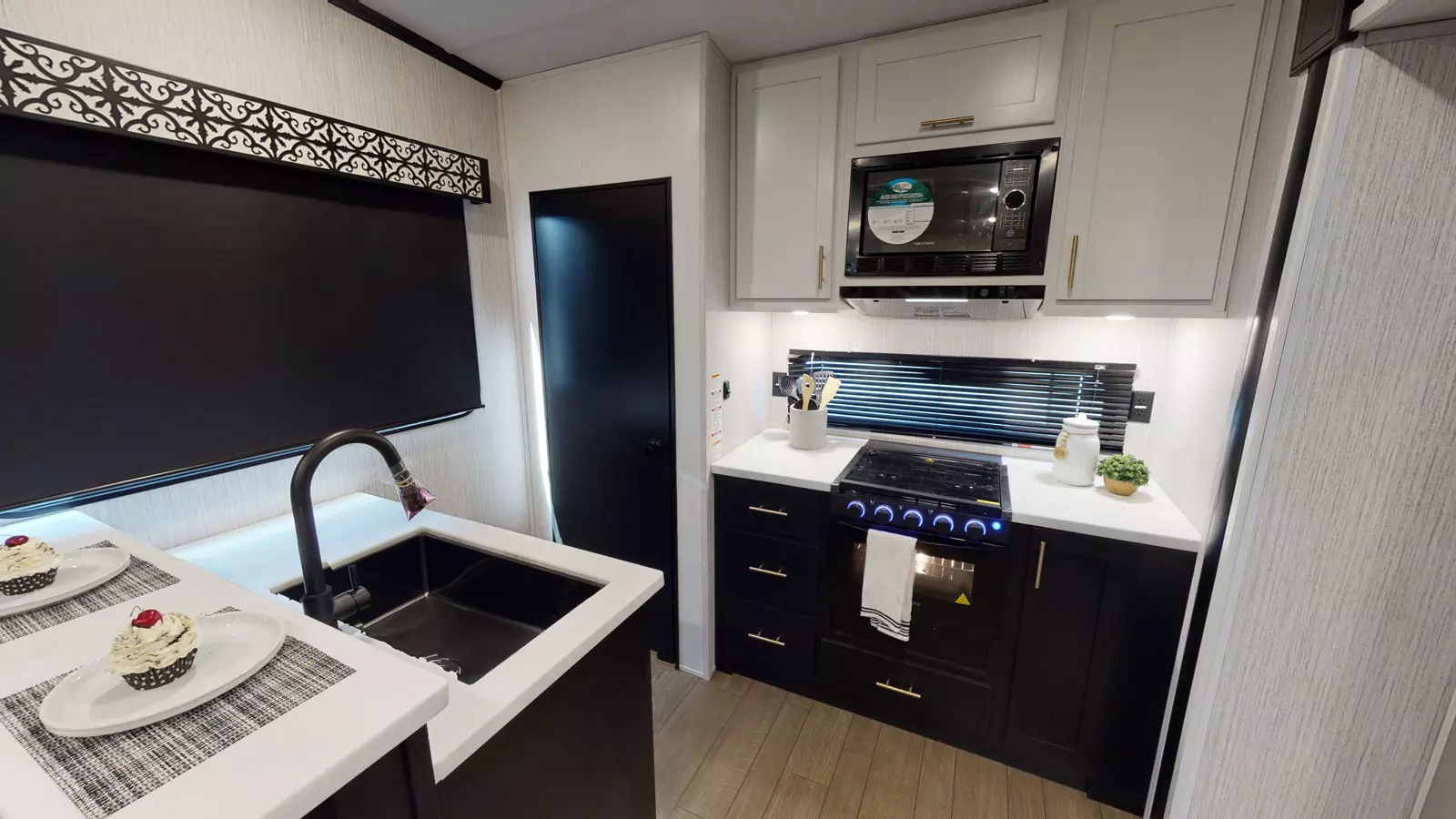

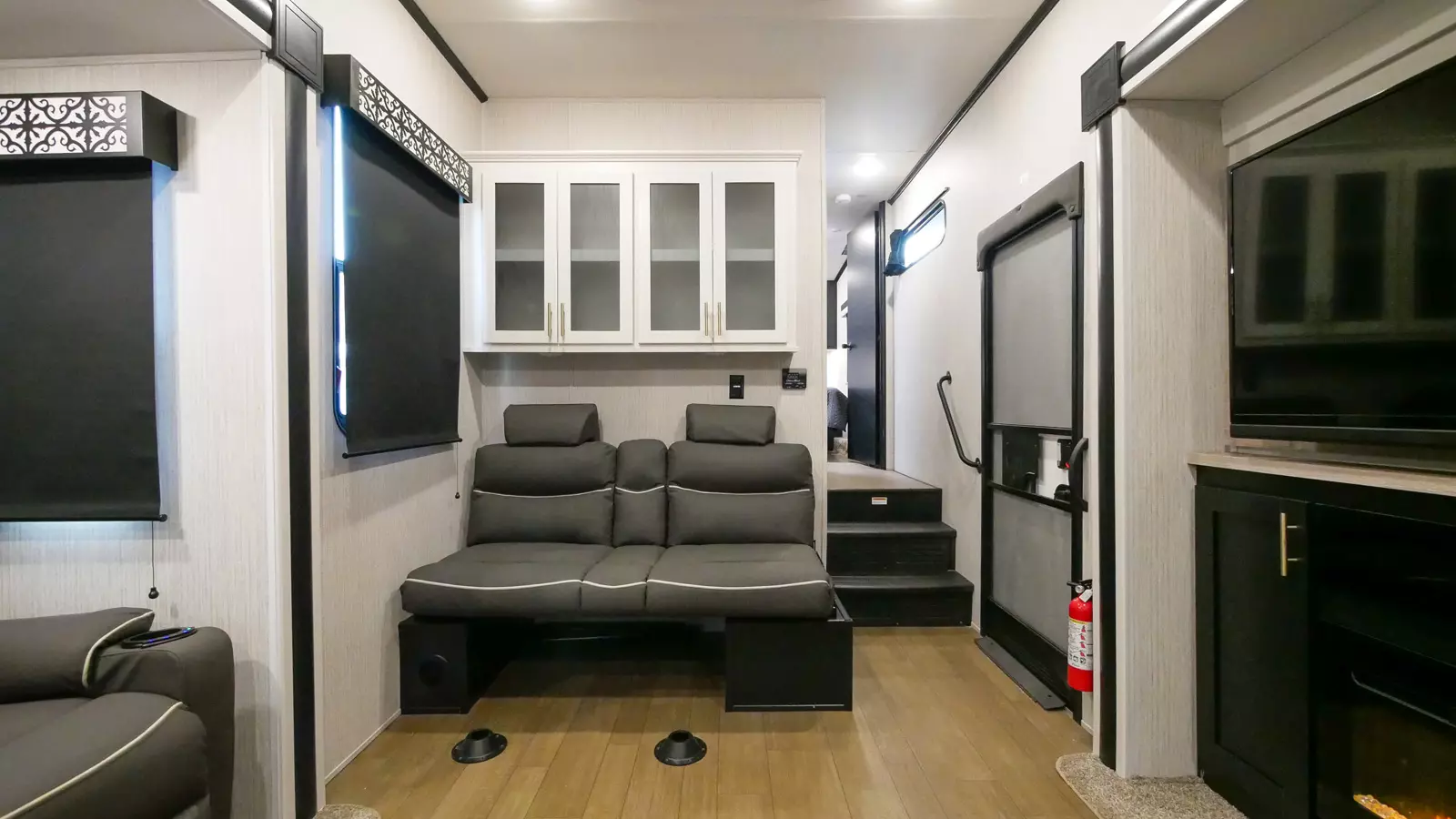

The Wildcat 271ML floorplan exterior sports a 20 foot electric power awning. It also features an outside kitchen on the door side. This floorplan has two slid eouts. Located toward the center of the RV, the entry door leads to a living area on the left and steps leading to a hallway on the right. In the living area on the off-door slide out, is a refrigerator to the left, an end table in the center and a 60” theater sofa to the right. The front of the living area has a tri-fold sofa with storage above. Directly to the left of the entrance door is a slide out that houses the outside kitchen as well as a 50 inch TV with storage and a fireplace below. The rear of the living area features a walk-in pantry and a stove and countertop with microwave and storage above. The front of the RV has a bathroom with a shower, toilet, sink, linen storage. The bedroom houses a front queen bed with nightstands and wardrobes on either side and storage above.
Enlarge

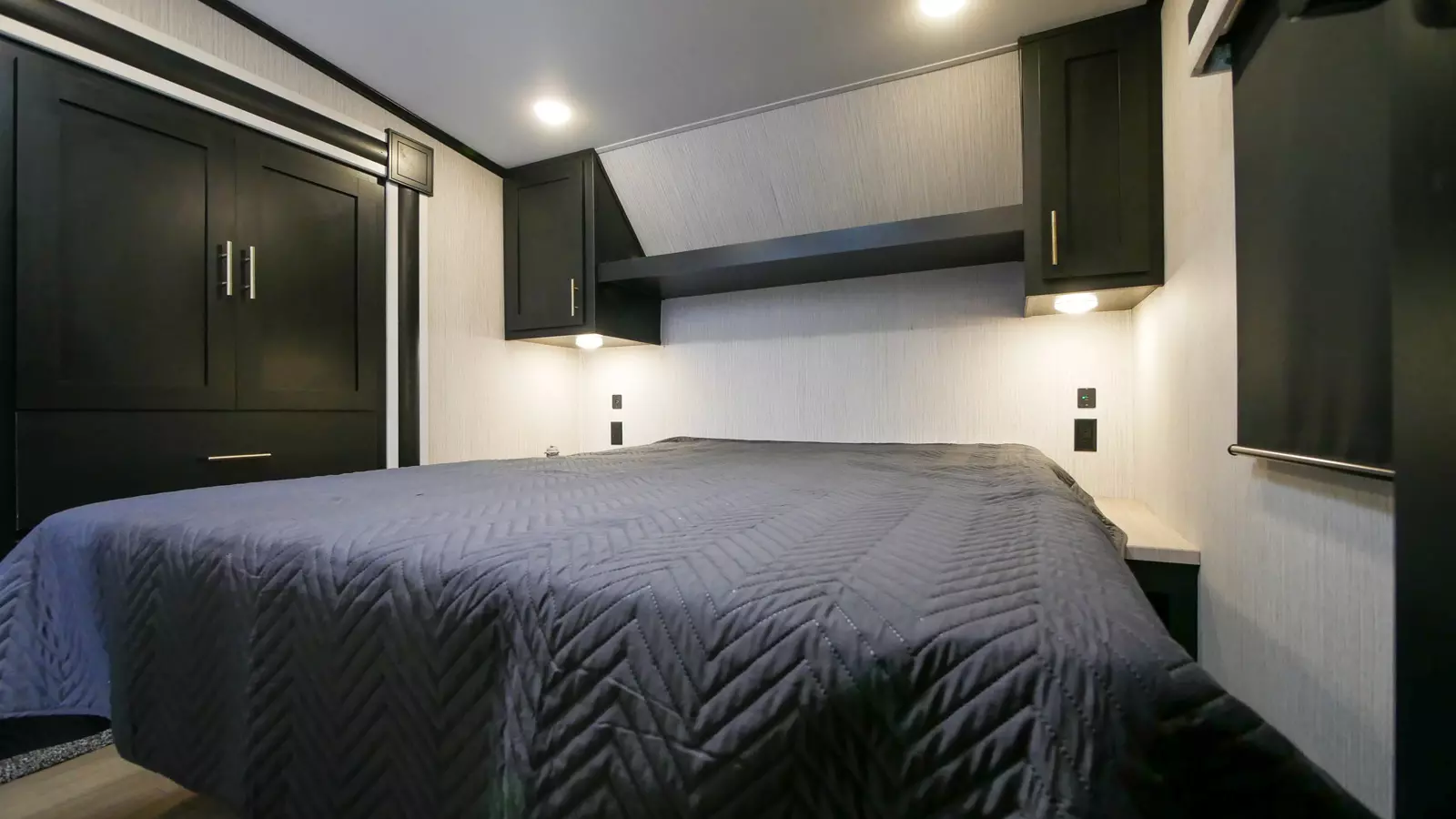

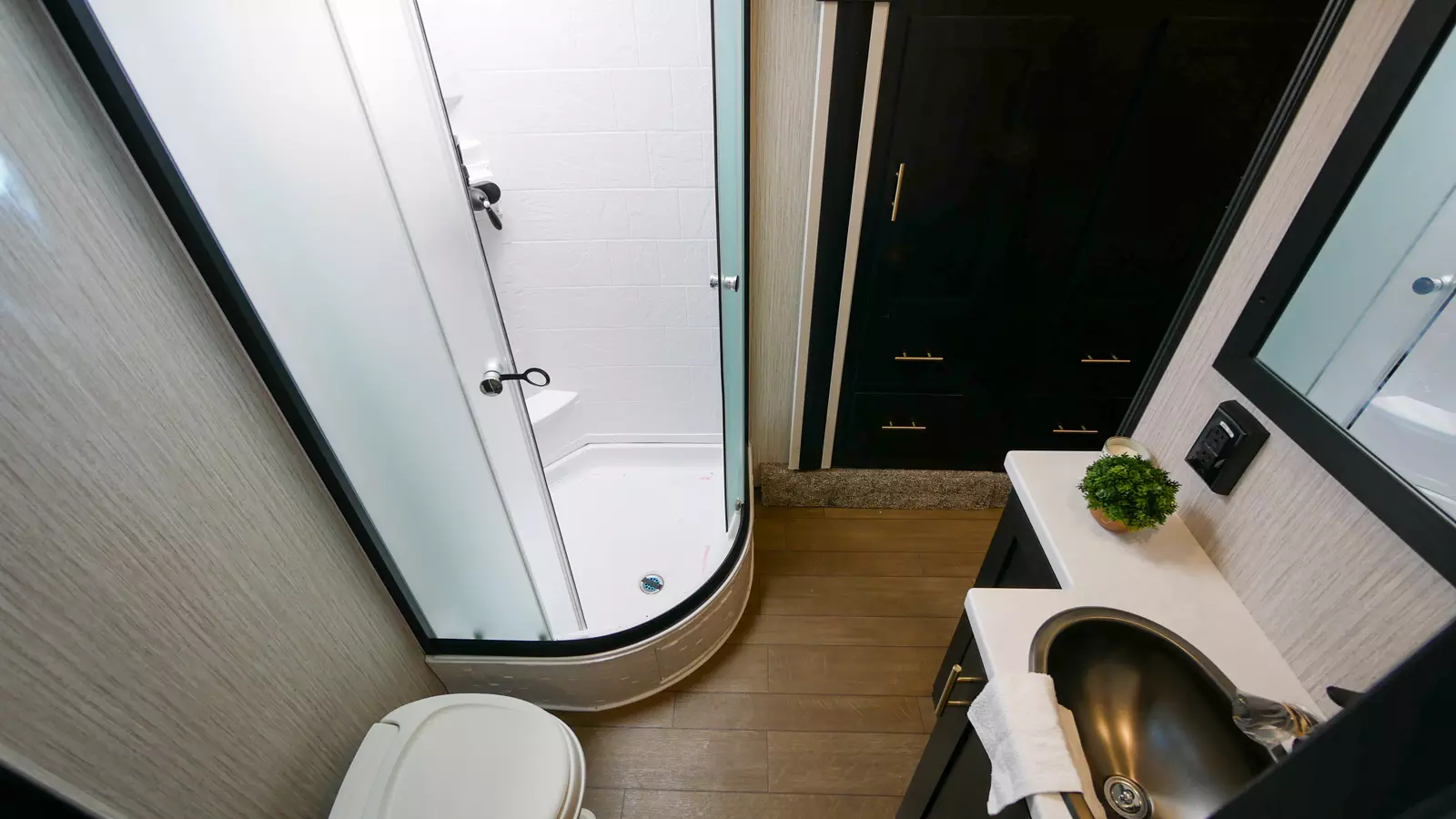

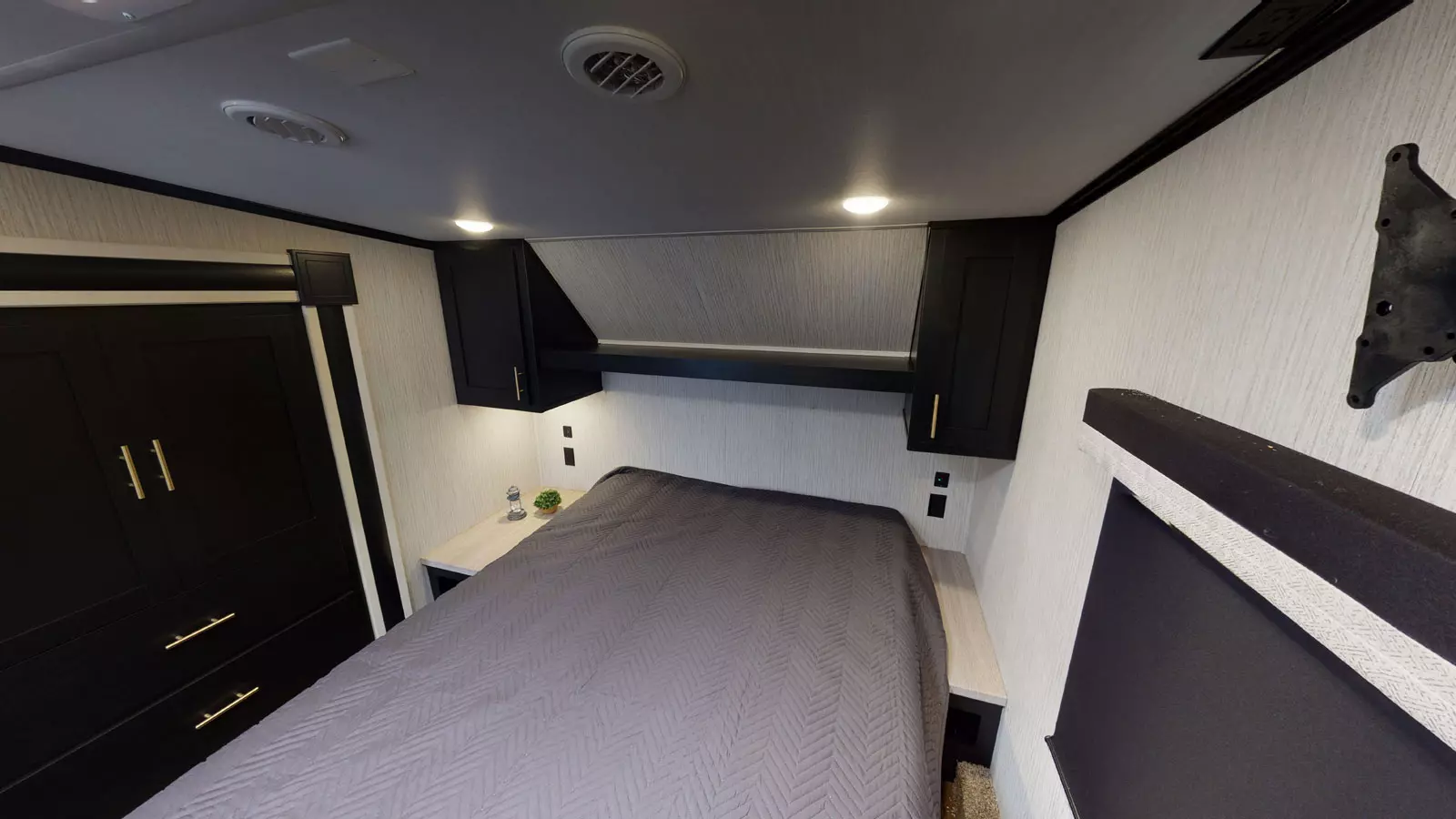

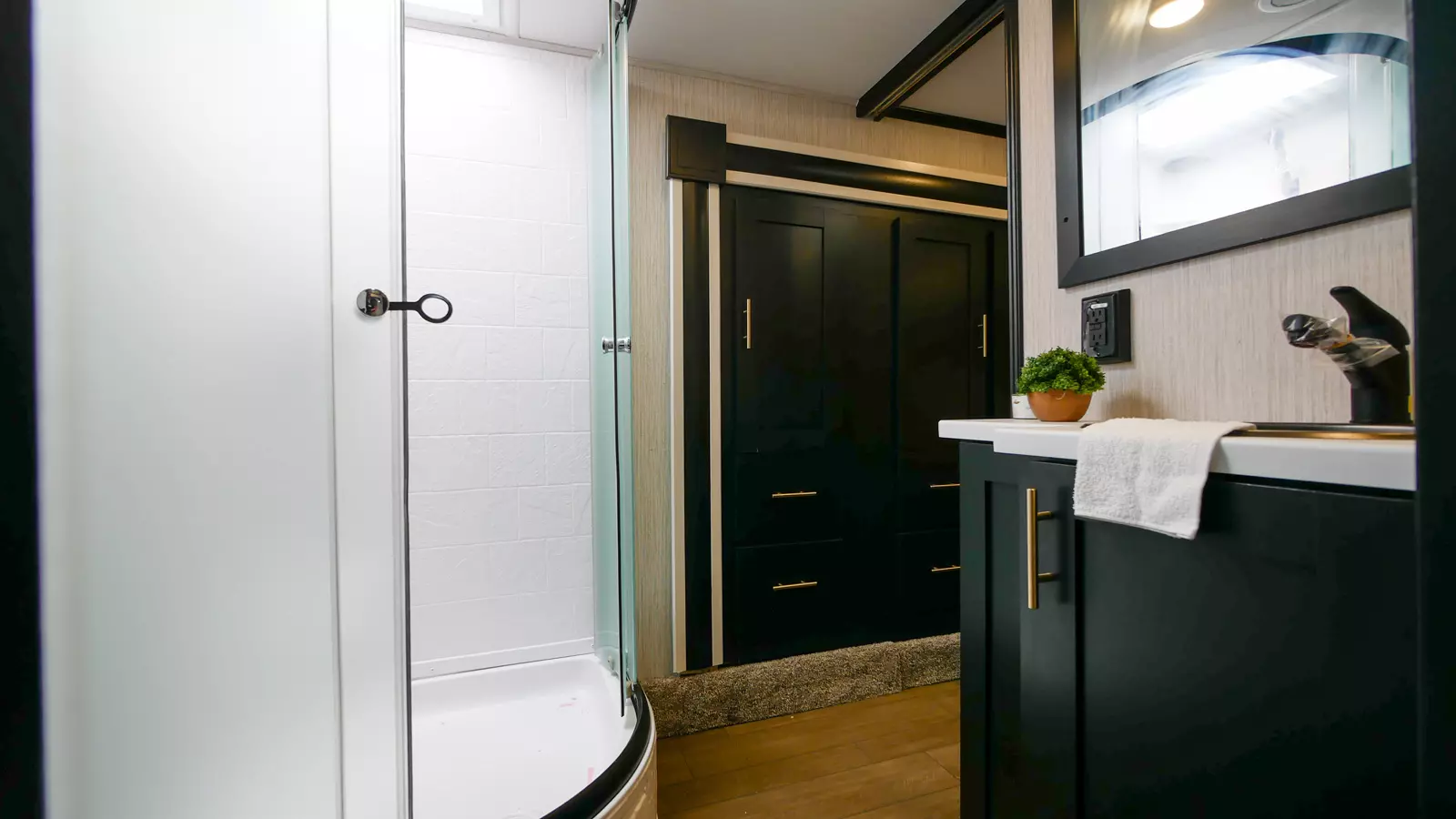

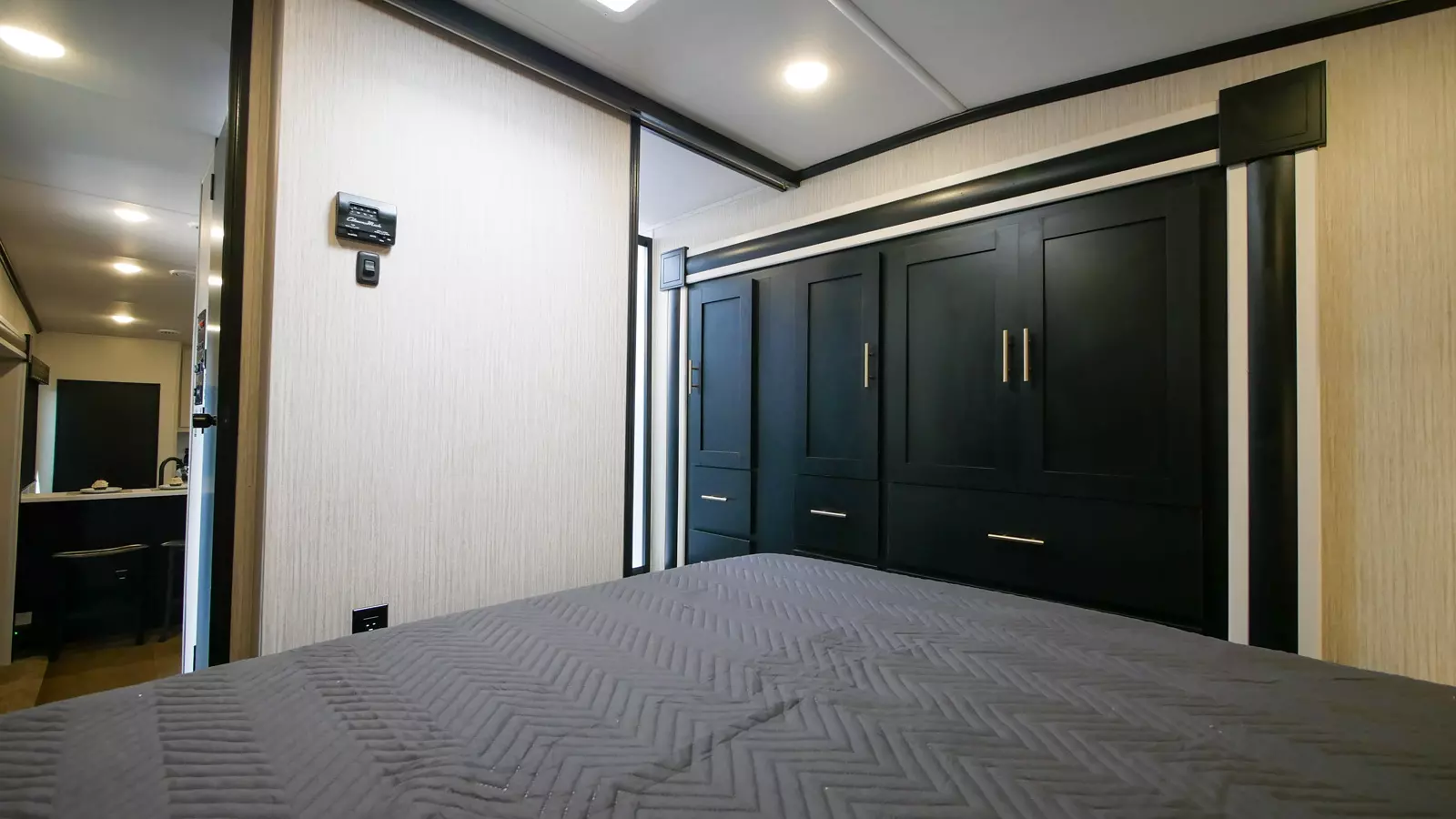

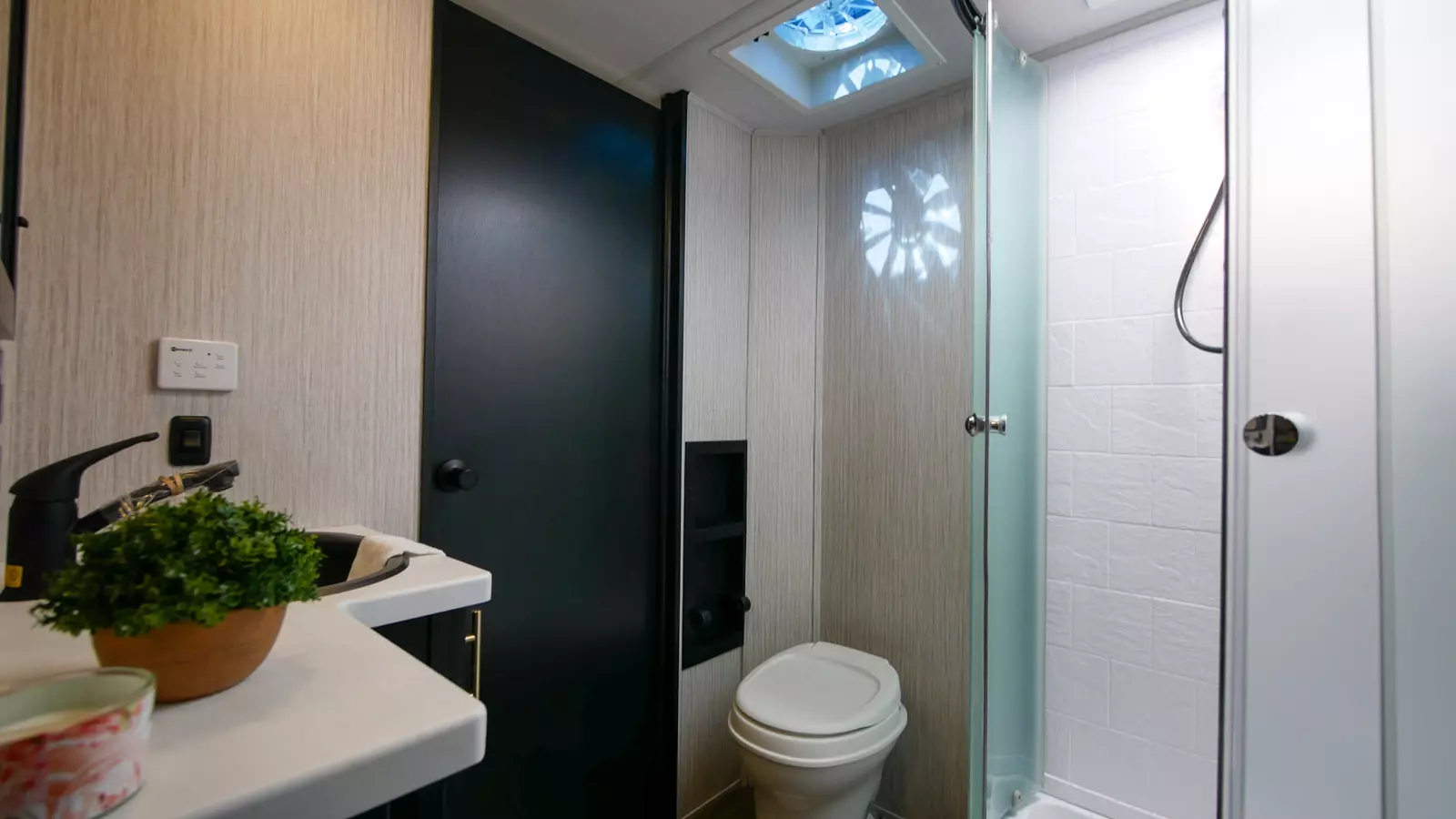

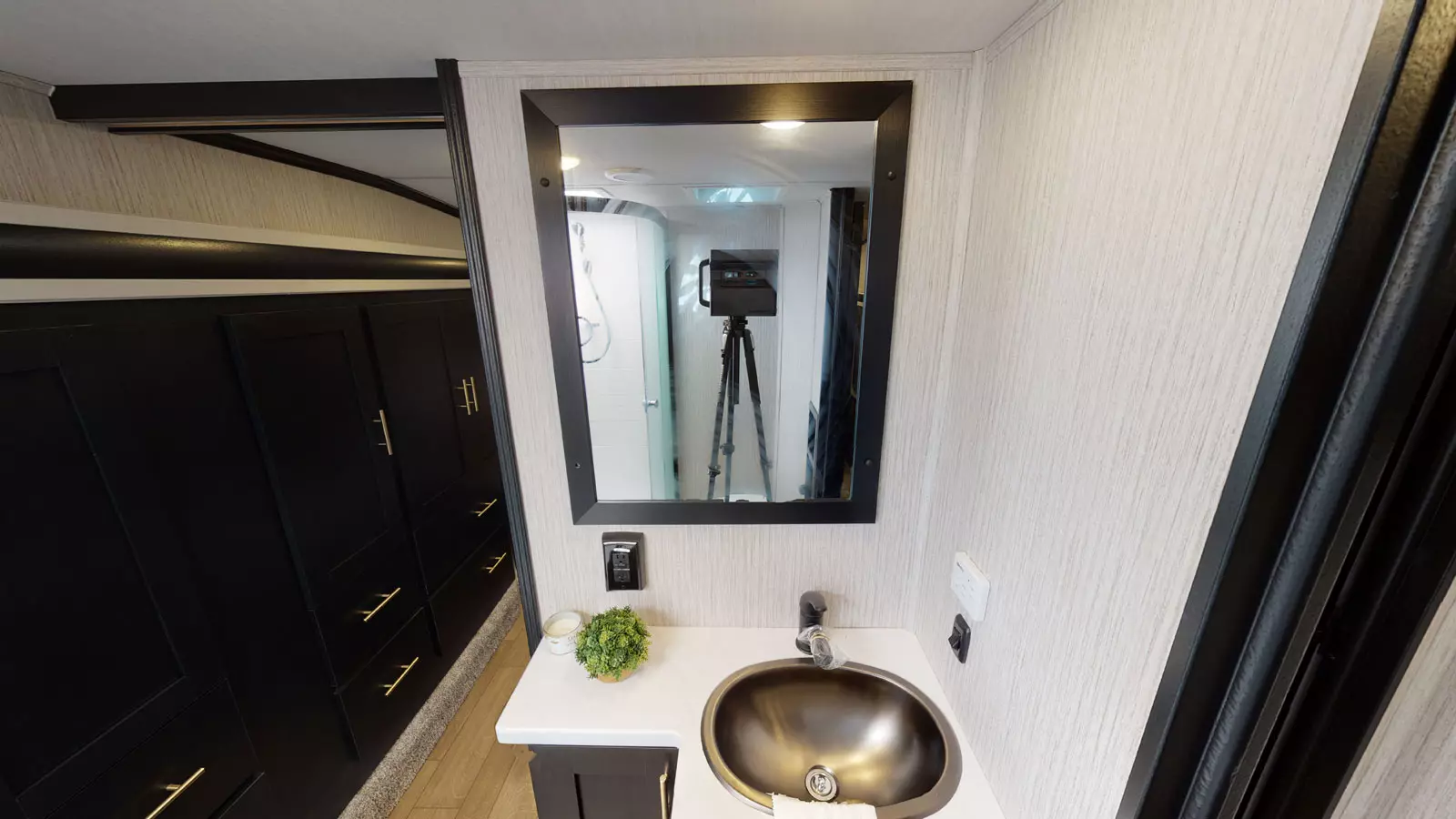

The 271ML is the perfect couple's coach, with a large front bedroom, central living room, and rear kitchen. The bedroom features a walkaround 60" x 80" queen bed, with wardrobe cabinets and night stands on either side. There is also a slideout with a large wardrobe for additional storage. The adjacent bathroom takes advantage of the bedroom slide with a bonus linen cabinet, along with its radius glass shower, sink with vanity, commode, and medicine cabinet.

Specifications

Hitch Weight:
1,475 lb.
UVW
8,884 lb.
CCC
2,791 lb.
Exterior Length:
32' 10"
Exterior Height:
13' 3"
Exterior Width:
96"
Fresh Water:
46.00 gal.
Gray Water:
66.00 gal.
Black Water:
36.00 gal.
Awning Size:
20'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.



360 Tour




Features & Options

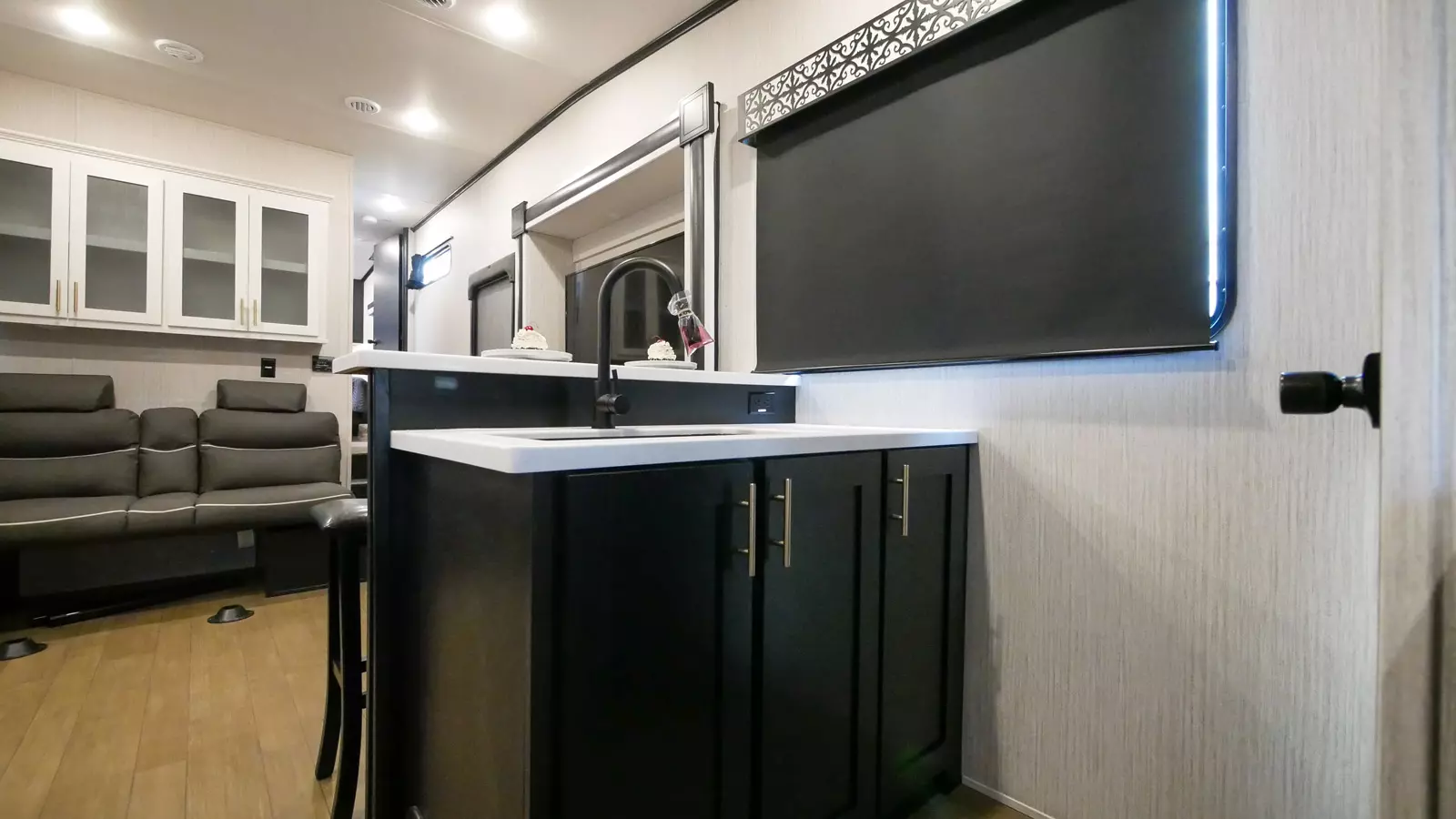

  • Large Stainless Steel Sink & Bullet Faucet
  • 2-In-1 Range & Oven
  • Roll-Up Sink Cover
  • 12V Stainless Steel Refrigerator
  • Soft-Closing, Anti-Slam Drawers
  • Hidden-Hinge Cabinet Doors
  • Rose Gold Door & Drawer Hardware
  • Extra Large Pots & Pans Drawer
  • Cutlery Drawer
  • Glass Range Cover
  • Residential Style Range Vent w/ Light & Fan
  • 60" x 80" Queen Bed (260RD, 263RL, 271ML, 302BH, 311RLWS)
  • 6'5" Head Clearance
  • Large Wardrobe Slide-Out (260RD, 263RL, 271ML, 302BH, 311RLWS)
  • C-Cat" Cpap, Cellphone, Nightstand Station
  • Large Under-Bed Storage
  • USB's & 110 Outlets on both sides of bed
  • Bedroom Roof Vent & Pre-Wired for 2nd AC (Ducted)
  • Reading Lights on both sides of bed
  • Pedal-Flush Toilet
  • Built-In TP Holder w/Storage
  • Power Vent Fan
  • Towel Hooks
  • Stainless Sink w/Storage below
  • 6'5" Head Clearance
  • FLOOR: 5/8" Tongue & Groove Plywood Floor
  • ROOF: Dicor Tufflex PVC Roof Membrane (Radius Edge)
  • SIDEWALLS: 2" Vacuum-Bonded, Welded Aluminum Sidewalls
  • Auto-Level: LCI Ground Control 3.0
  • LCI Solid Step Entry Steps (4-Step)
  • Extra-Wide 30" Entry Door
  • 2" Accessory Receiver
  • Winegard 360+ Prep (AM/FM/TV Antenna/4G & WIFI Extender)
  • Rear Observation Camera Prep
  • Roof Mount Solar Panel Prep
  • Exterior Speakers w/TV Hookup & Bracket
  • Battery Disconnect Switch
  • Hitch Light above Pin Box
  • Docking Station w/Outdoor Shower & Black Tank Flush
  • 1 Power Awning (260RD, 263RL, 271ML, 302BH)
  • Sectional Composite Underbelly Armor
  • E-Rated Tires w/Aluminum Rims
  • Thomas Payne Theater Seating (N/A 263RL, 302BH)
  • Sleeper Sofa (N/A 260RD)
  • LED HDTV w/Built-In Soundbar (HDMI/BT/FM/USB/Dual Zone)
  • Electric Fireplace w/Heat & Remote
  • 15,000 BTU Ducted AC

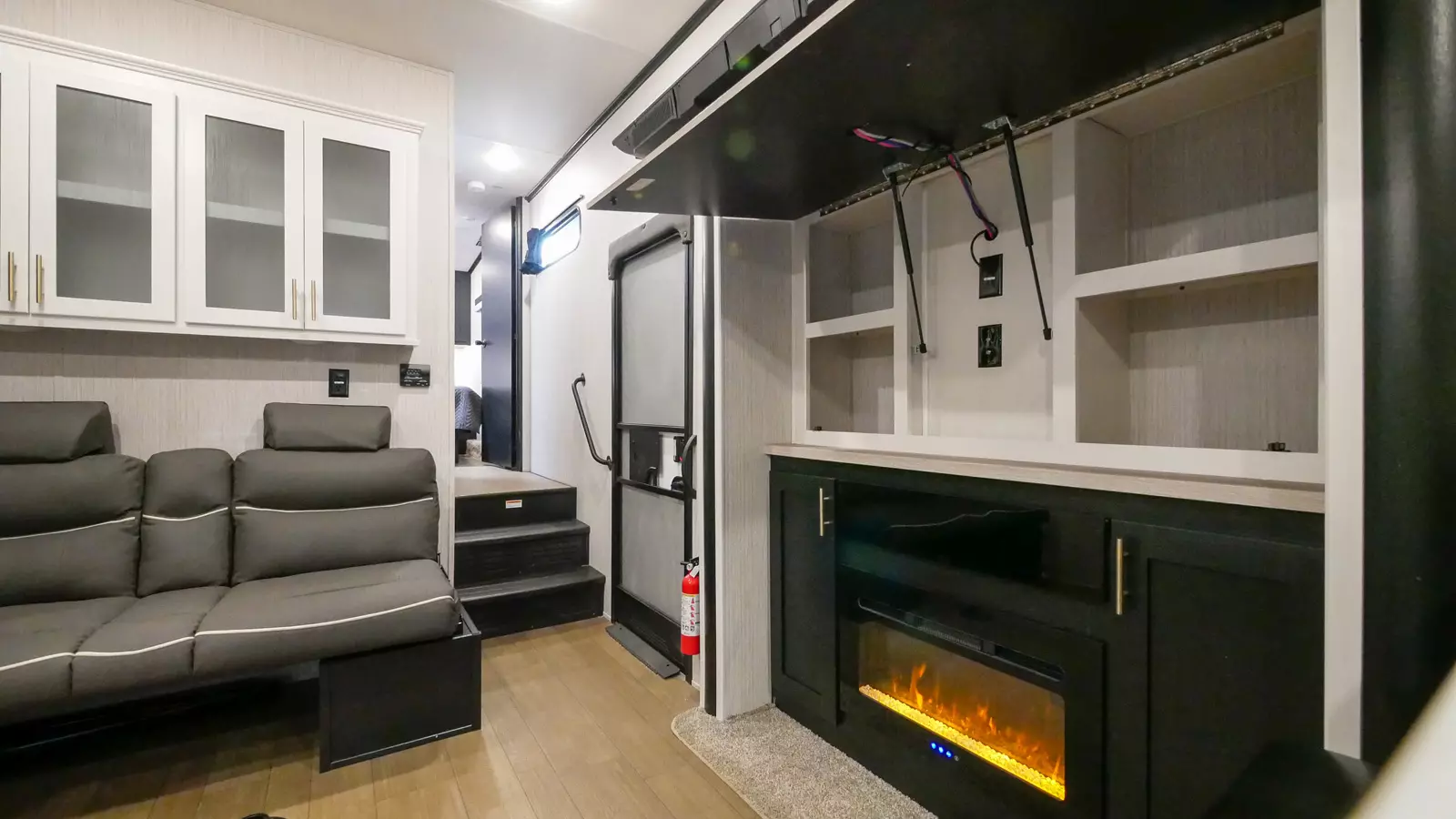

  • Mega Lift-Up TV Storage (271ML, 311RLWS, 333RLBS, 369MBL)
  • Black-Out Roller Shades
  • 12V Heat Pads w/Underbelly Ducted Heat
  • 35,000 BTU Furnace
  • 15,000 BTU AC (Prepped for 2nd Ducted AC)
  • 12,000 BTU Rapid Recovery 6 Gal Water Heater (G/E)
  • Exterior Ventilated Attic Vents for Breathable Roof
  • Full Pass Through Front Storage w/Forced Heat
  • 50 Amp Electric
  • Dual 30 LB LP Tanks
  • Electric Fireplace w/Heat & Remote
  • FLOOR: Residential & Thermofoil Insulation (ER 38)
  • ROOF: Residential & Thermofoil Insulation (ER 38)
  • SIDEWALLS: 2" High-Density Block Foam Insulation (ER 9)
  • 2nd Ducted A/C (15,000 BTU)
  • 8 Cu. Ft. G/E Refrigerator

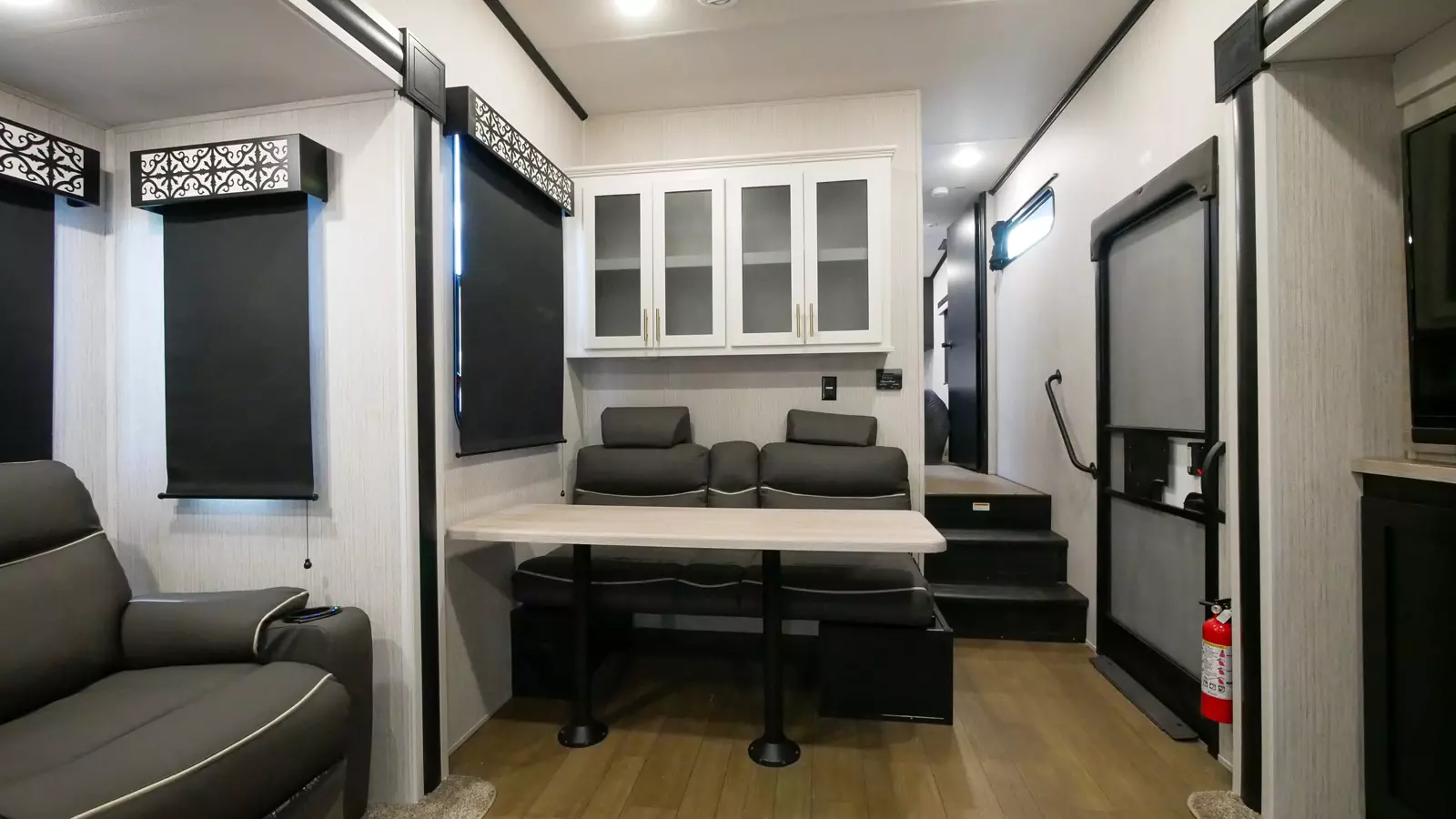

  • U-Shape Booth Dinette IPO Table & Chairs
