E19FDS Floorplan

Travel Trailers

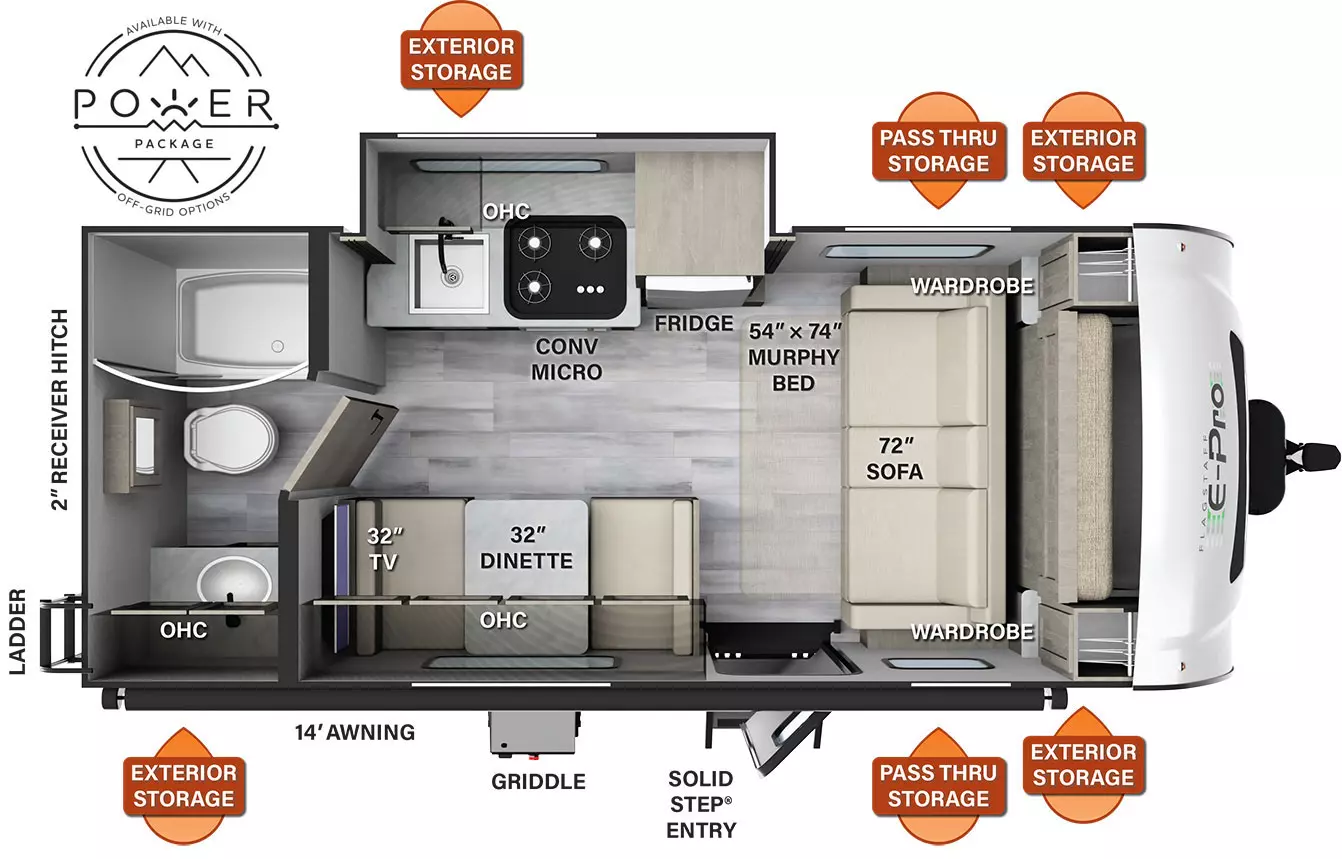

The E19FDS has 1 slide out one the off-door side and 1 entry door. Exterior features include exterior storage,  and a door side 14 foot awning. Interior layout from front to back: front bedroom with murphy bed/sofa; off-door side slide out containing kitchen countertop with microwave, refrigerator, overhead cabinet, cooktop stove and single basin sink; door side dinette with TV;  and full bathroom in the rear.
Enlarge

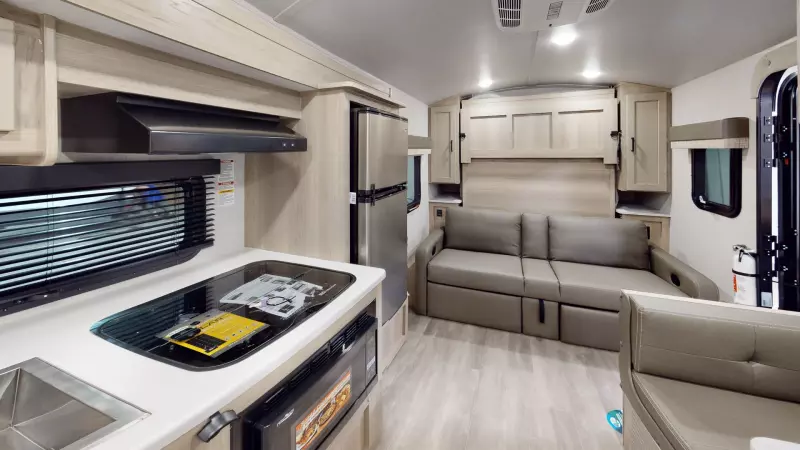

In this Flagstaff E-Pro 19FDS, you will find that the full-length bathroom and large shower in this model is the overwhelming highlight. The Murphy bed and kitchen slide in this 20’ travel trailer makes the living room in this unit so spacious. The door side dinette with a large window, gives this unit a “right at home” feel. This single axle trailer checks so many essential boxes.

Specifications

Hitch Weight:
452 lb.
UVW
3,360 lb.
CCC
1,092 lb.
Exterior Length:
20' 2"
Exterior Height:
9' 10"
Exterior Width:
92"
Fresh Water:
31.00 gal.
Gray Water:
27.00 gal.
Black Water:
27.00 gal.
Awning Size:
14'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.



360 Tour



Video Tour



Features & Options

  • 4 Frame Mounted Stabilizer Jacks (Only 2 on 12SRK)
  • Fold Out Entry Steps (N/A 12SRK)
  • Roof Ladder (N/A 12SRK, 19FBTH)
  • Magnetic Baggage Door Catches
  • Outside Shower
  • Front Windshield (N/A 12SRK, 15TB)
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Outside Griddle with LP Hookup
  • 2 - 20# LP Tanks
  • Ground Solar Prep
  • Outside Speaker (N/A 12SRK)
  • 200 Watt Roof Mount Solar Panel w/ 1000 Watt Inverter
  • Power Awning (N/A 12SRK)
  • Polished Alloy Wheels
  • Tinted Bonded Frameless Windows
  • Heated Holding Tanks (N/A 12SRK)
  • 2" Hitch Receiver
  • 13,500 Roof A/C
  • Roller Shades
  • 20,000 BTU Furnace
  • 12V Entertainment TV w/stereo
  • Aluminum Cage Dinette Bases & Beds
  • 6 Sided Aluminum Cage Construction
  • Vacuum Laminated Roof and Walls
  • 5/8" tongue and groove plywood flooring
  • Interior & Exterior Azdel Sidewall Construction
  • Torsion Axle, Rubber-Ryde Suspension
  • Tire Pressure Monitoring System
  • Pre Wired for Backup Camera
  • Spare Tire W/ Carrier
  • 15” Mud Rover Radial Tires and Lift Kit
  • Power Tongue Jack
  • 12V Refrigerator
  • Microwave
  • Recessed Cooktop W/ Flush Mount Cover (15TB, 16BH, 19FDS)
  • Convection Microwave (15TB, 16BH, 19FDS)
  • Maxxair® Ventilation Fan and Vent Cover (*In living room on 15TB)
  • Quick recovery Gas/Electric Water Heater
  • Shower Miser Water Saver
  • Black Tank Flush (N/A 15TB)
  • 360 Siphon Cap on Black Tank
  • Foot Flush Toilets
  • Pro Rac Mounting Bars w/ Removable Ladder
  • 2nd 200W Roof Solar Panel
  • Tongue Mount Bike Rack
  • Dexter Torsion Axles w/Aluminum Wheels
  • All In One Teton HD TV/WiFi/AM/FM Antenna (LTE Prep)
  • Shower Miser Water Saver
  • 190W Roof Mount Solar Panel
  • Bluetooth System Control Panel
  • Spare Tire
  • Hidden Hinge Cabinet Doors (N/A 12SRK)
  • Microwave Oven
  • 13,500 Btu Low Profile A/C
  • Sport Tire And Wheel Package
  • Key Alike Door & Compartment Locks
  • Roller Shades
  • Power Awning (Manual Thule 12SRK)
  • Frameless Windows
  • 1000W Inverter Power
  • Tire Pressure Monitoring System
  • Ladder
  • Power Tongue Jack
  • Gas Griddle
  • 20,000 BTU Furnace
  • 12 V Refrigerator
  • Heated Holding Tanks (N/A 12SRK)
  • Outside Speaker (N/A 12SRK)
  • 12V Entertainment TV w/stereo
  • 400AH Single Mastervolt Mli Lithium-Ion Battery w/ Safety Disconnect
  • 3kW (3000 Watts)/160A Inverter/Charger Mastervolt Combimaster
  • 3 - 200W Solar Panels (600 Watts) to Maintain/Charge Battery Bank
  • 11,000 BTU Coleman Mach Soft Start A/C
  • 2 Smart Remotes - Offering Monitoring and Control for the System
  • Side Solar Plug In Standard for Portable Solar Option
