Flagstaff E-Pro Travel Trailers

We have custom designed our trailers with the best in style and amenities while keeping your towing needs in mind. The Flagstaff E-Pro line of trailers are for those campers that have chosen to drive today’s more fuel efficient and smaller SUV’s. With floor plan weights within these vehicles towing capability, E-Pro is an exciting way to go camping using the vehicle you drive every day.

E-Pro is now offering more standards and options than anyone in its class. Standard on most models include a AM/FM stereo with Bluetooth and a USB port, a 12Volt TV with a built in DVD Player, a rear ladder, a WIFI Ranger booster with available WIFI connectivity, a roof mount solar panel with a 1000 Watt converter, a Shower Miser Water Saver, plus many more standard features. Options include a 13,500 BTU AC, a tongue mount bike rack, an off road package that includes a lift kit and 15” Mud Rover radial tires and other great features.

Azdel Onboard™ RV Composite Panels We RV - Rockwood Link TreeCare Camps, fighting cancer and making memories

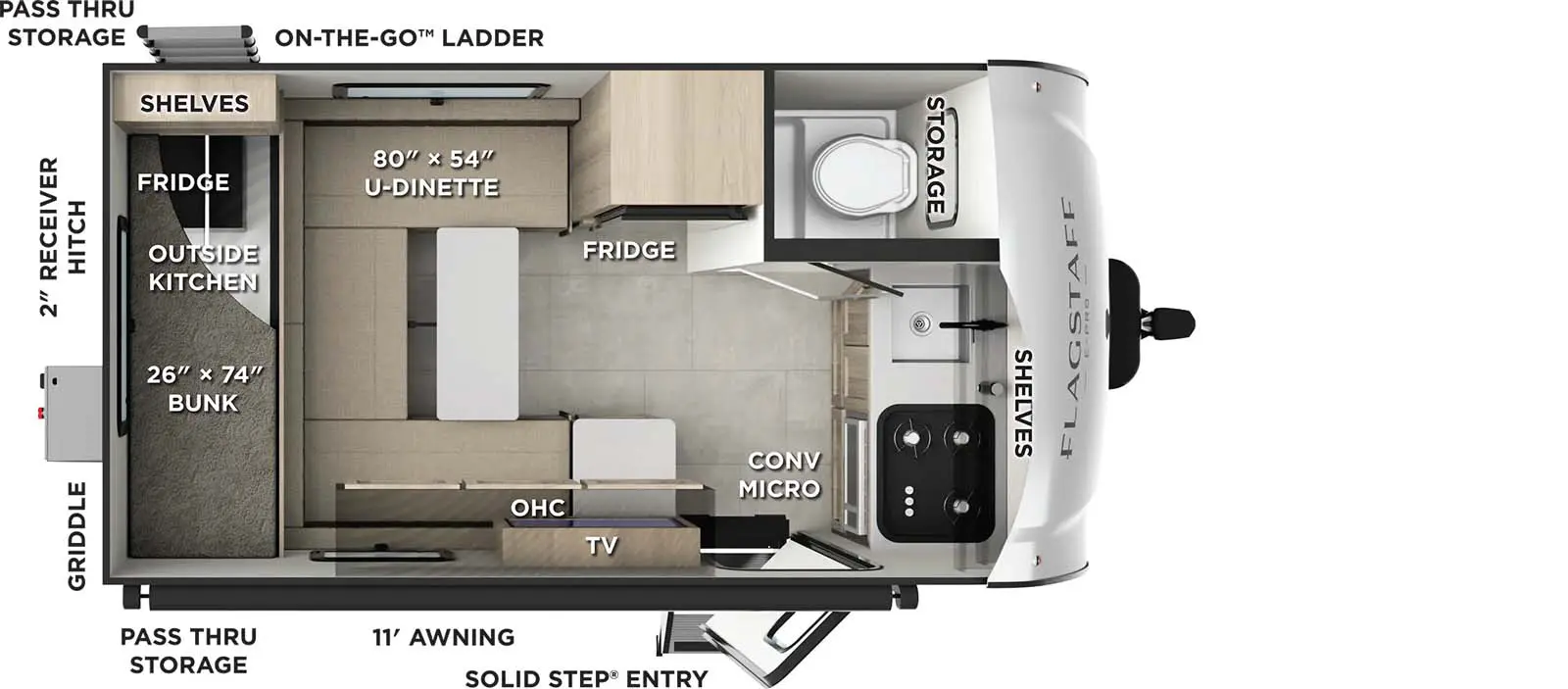

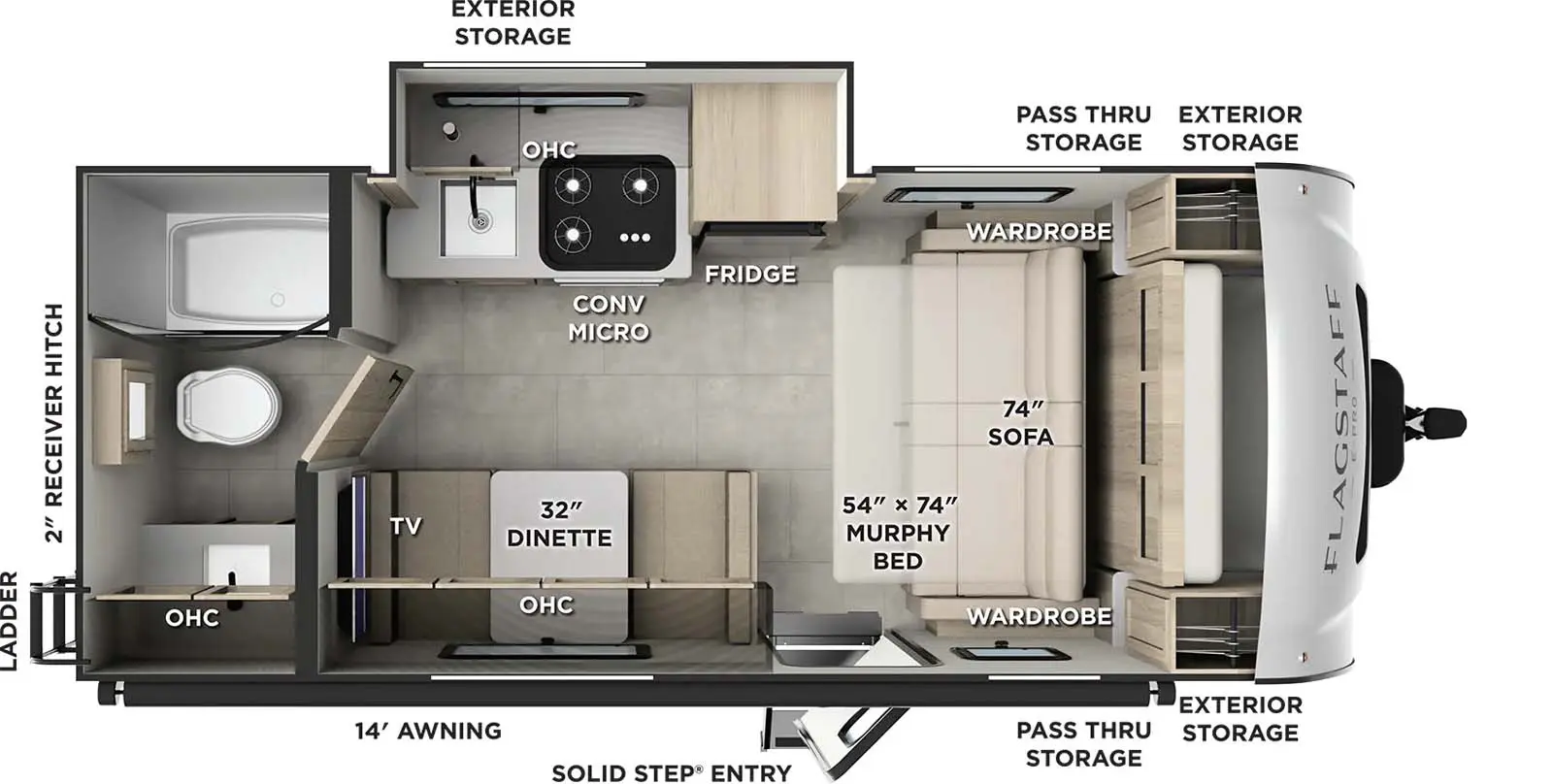

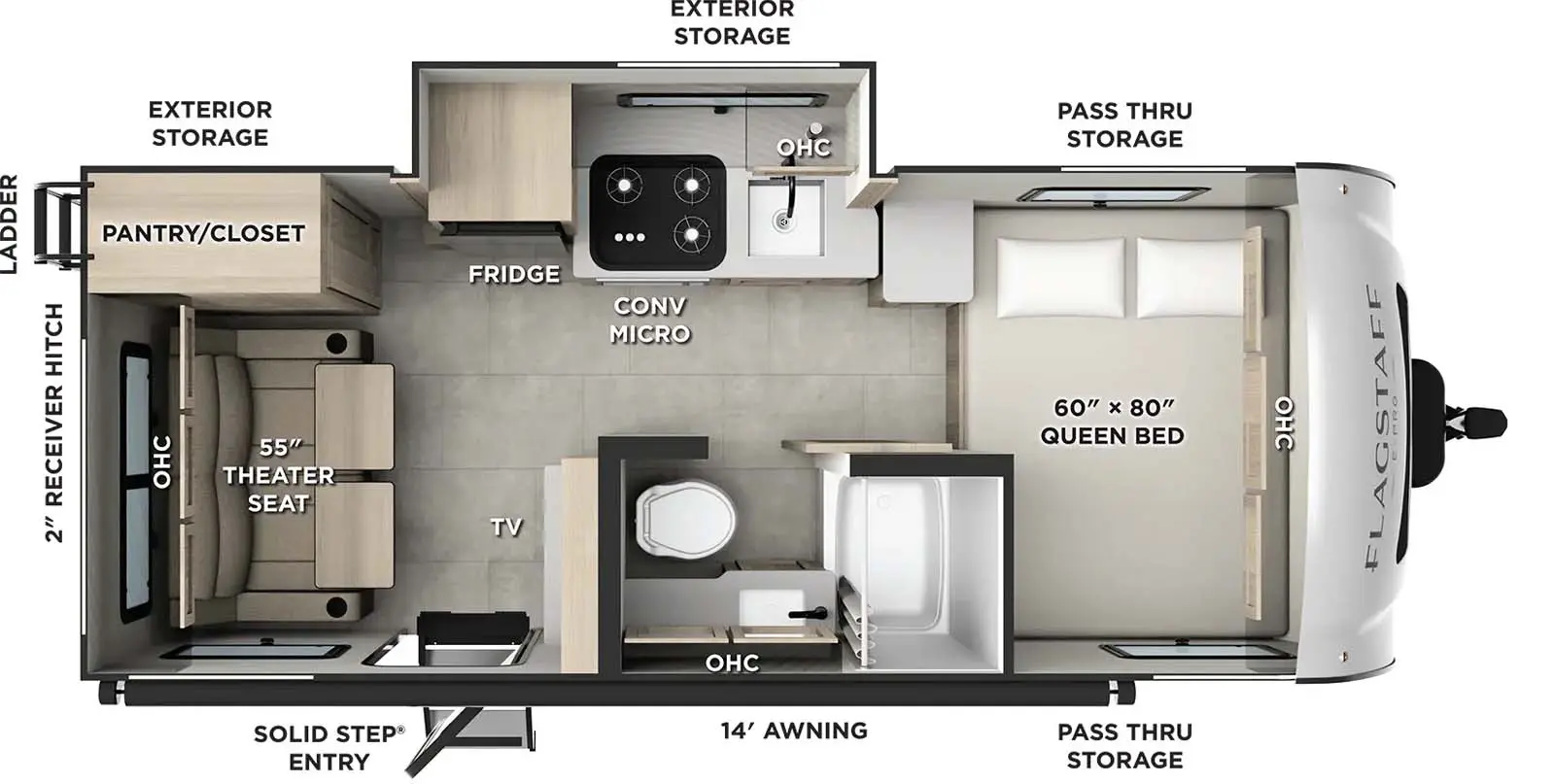

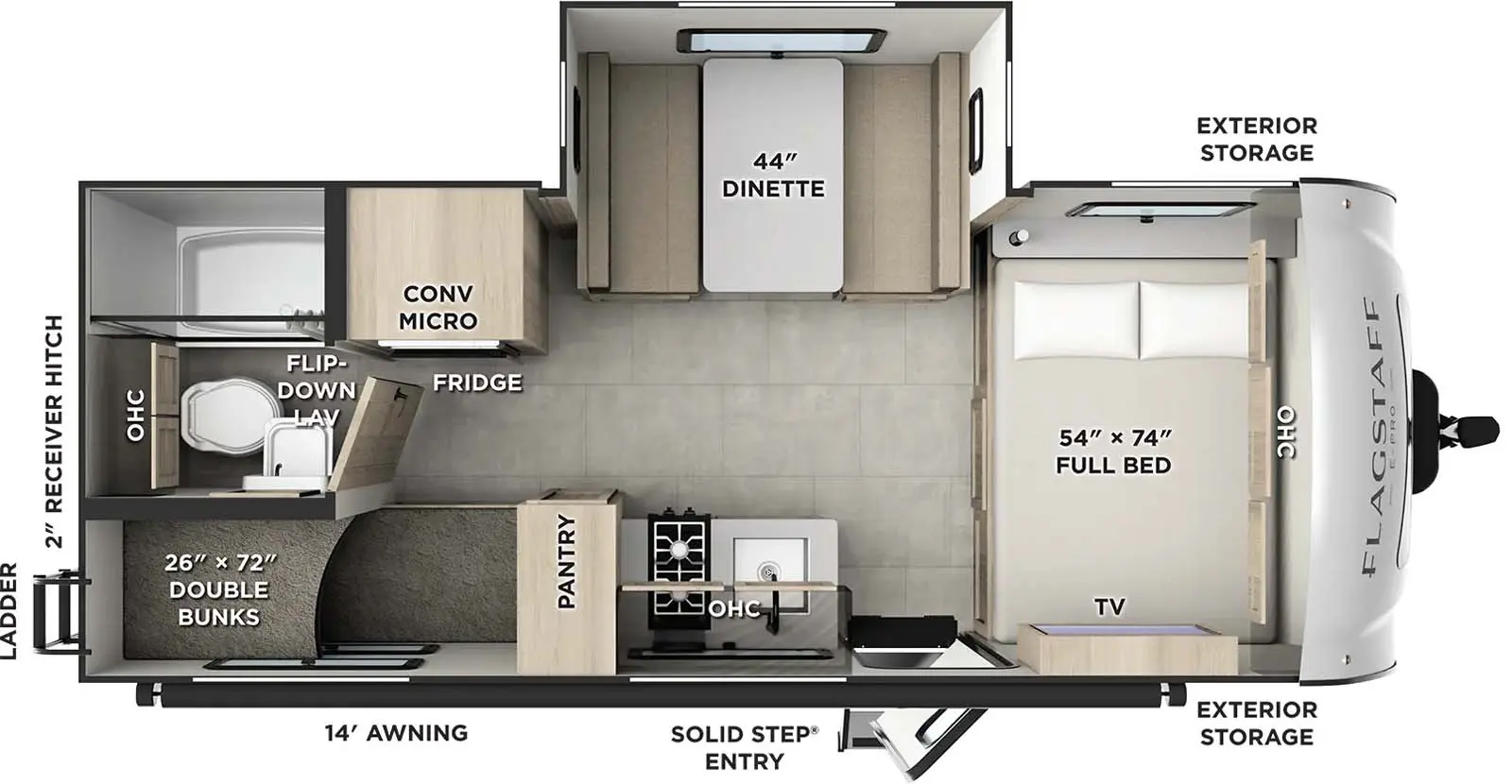

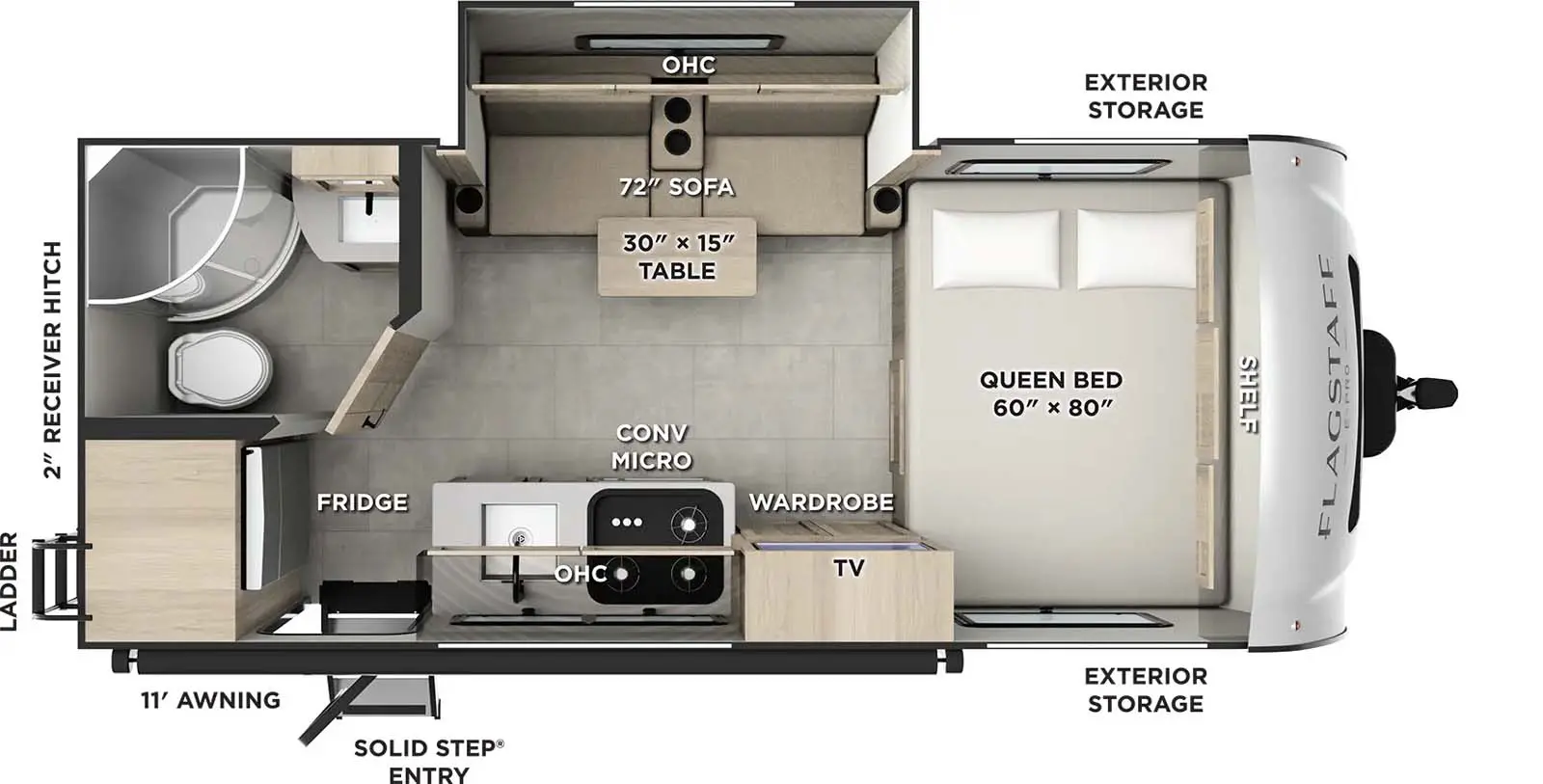

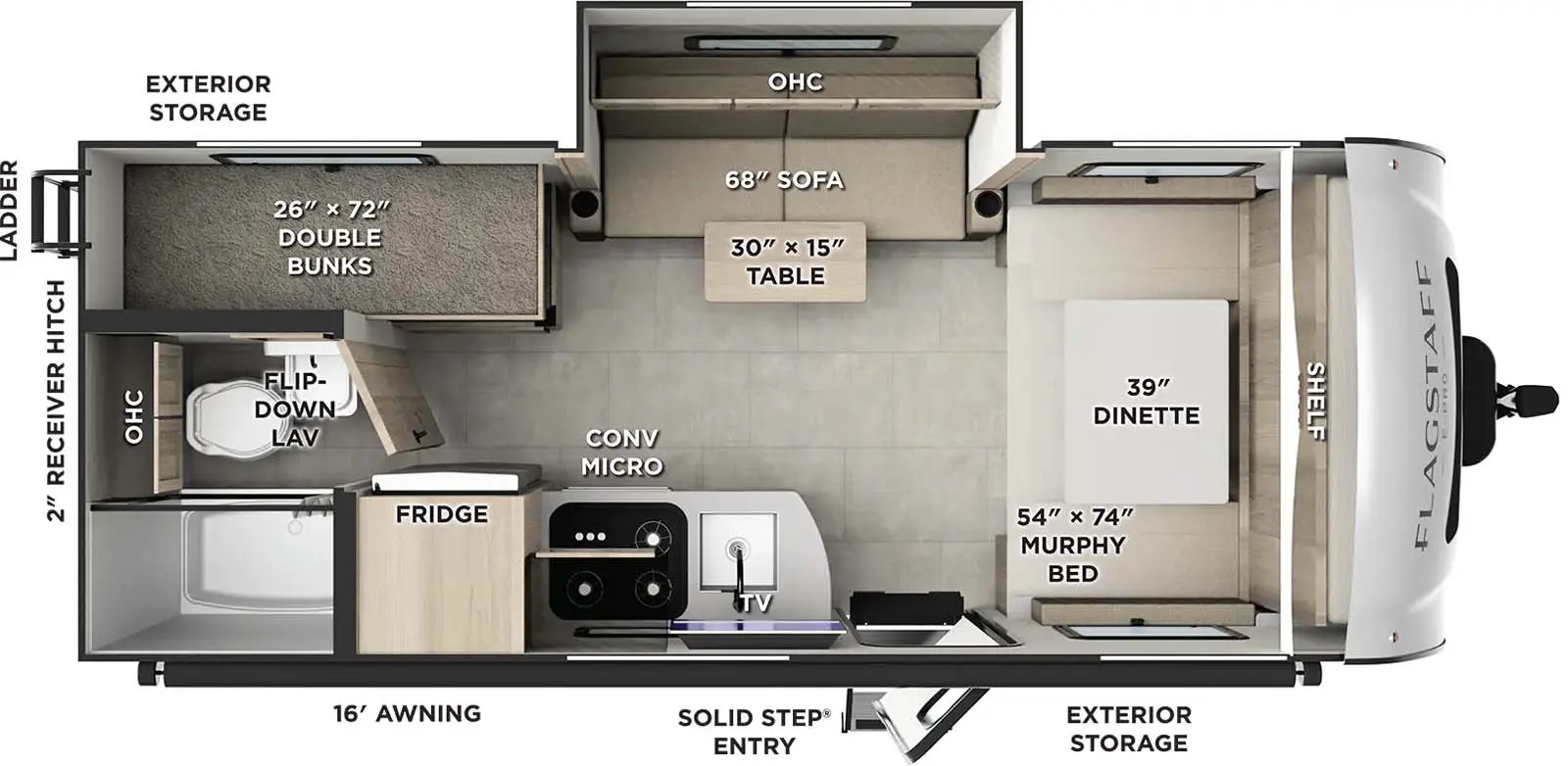

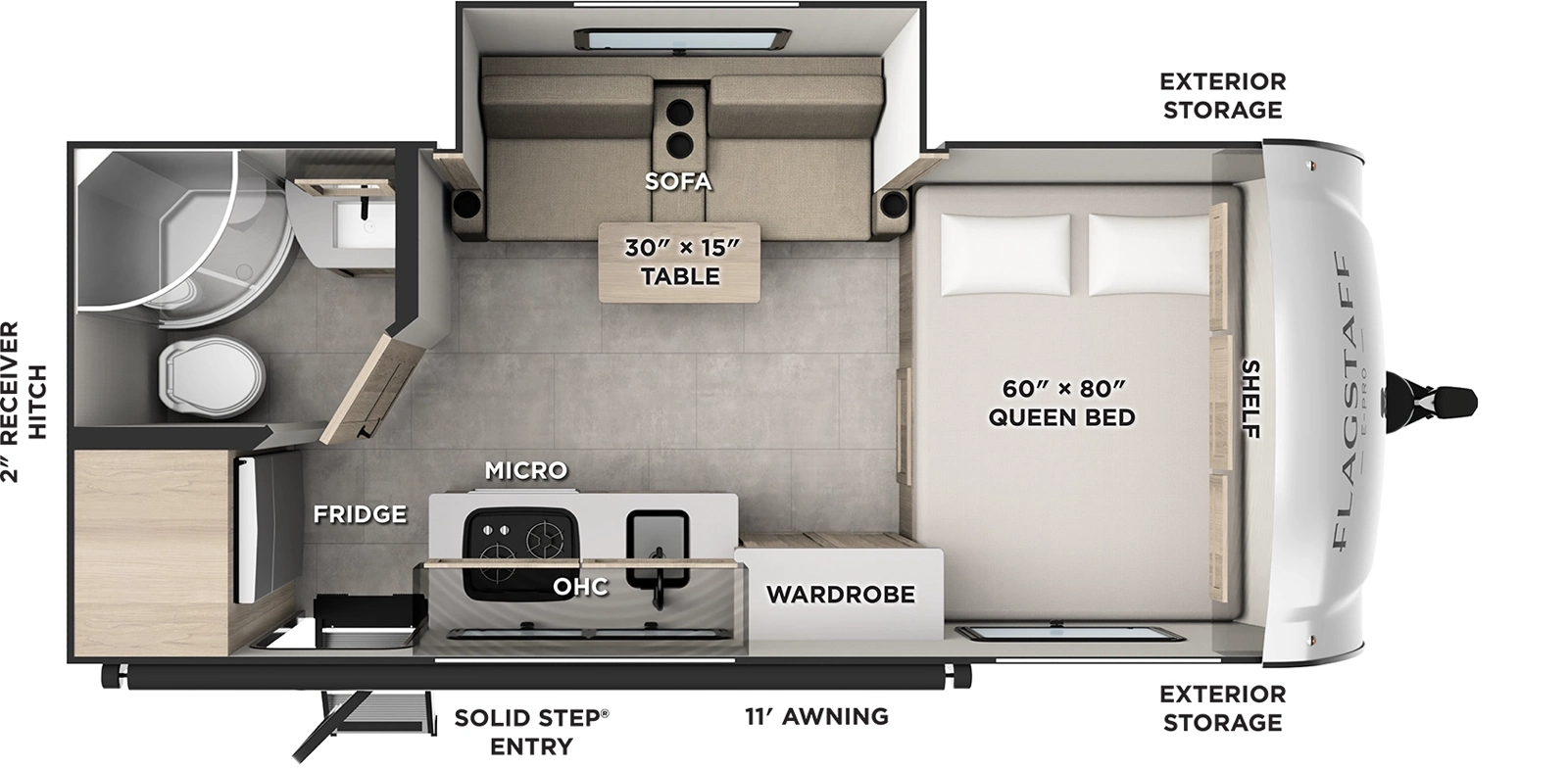

Floorplans

Print

Toy Haulers
Travel Trailers
Dealer Stock Only


Specifications

Print

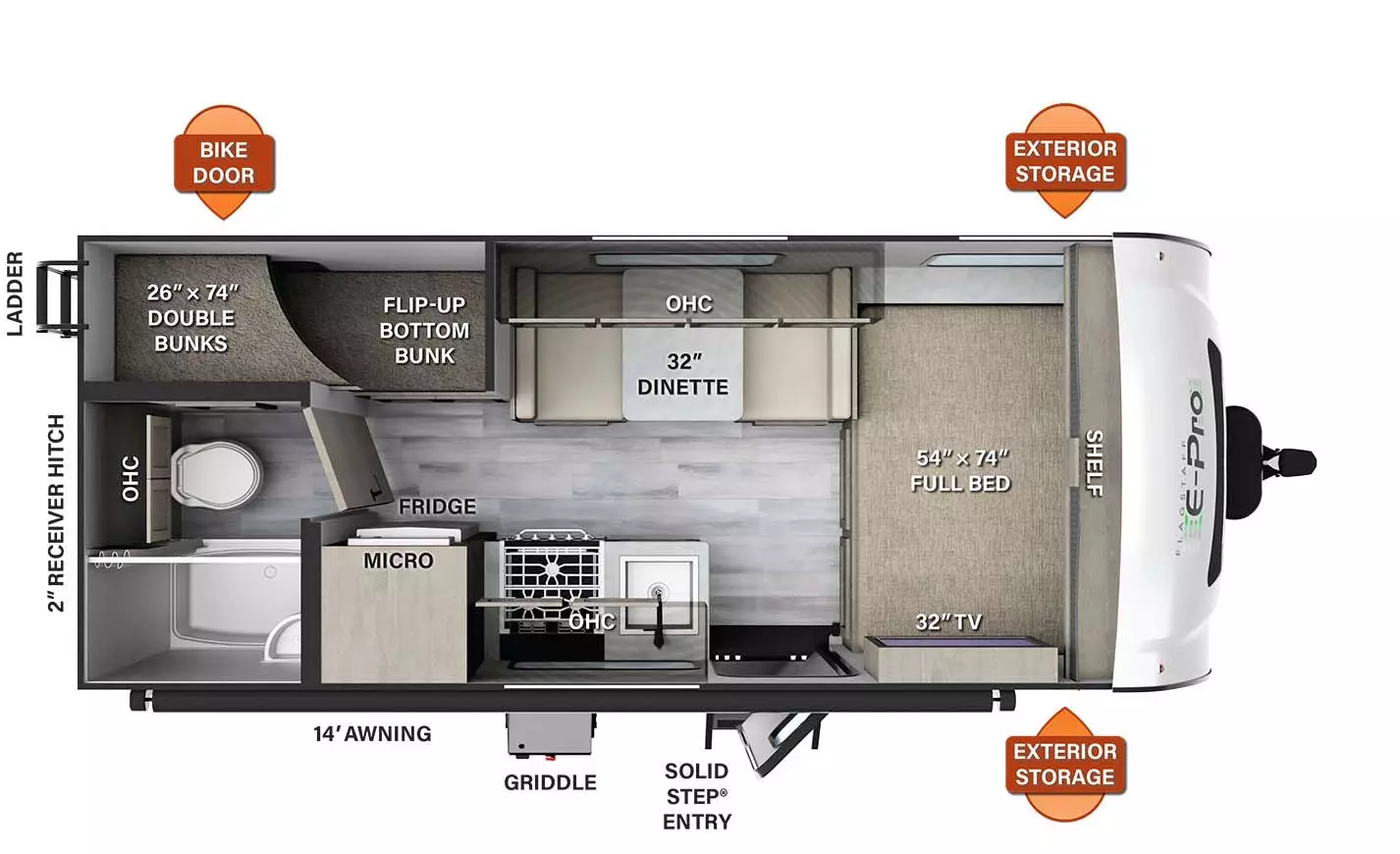

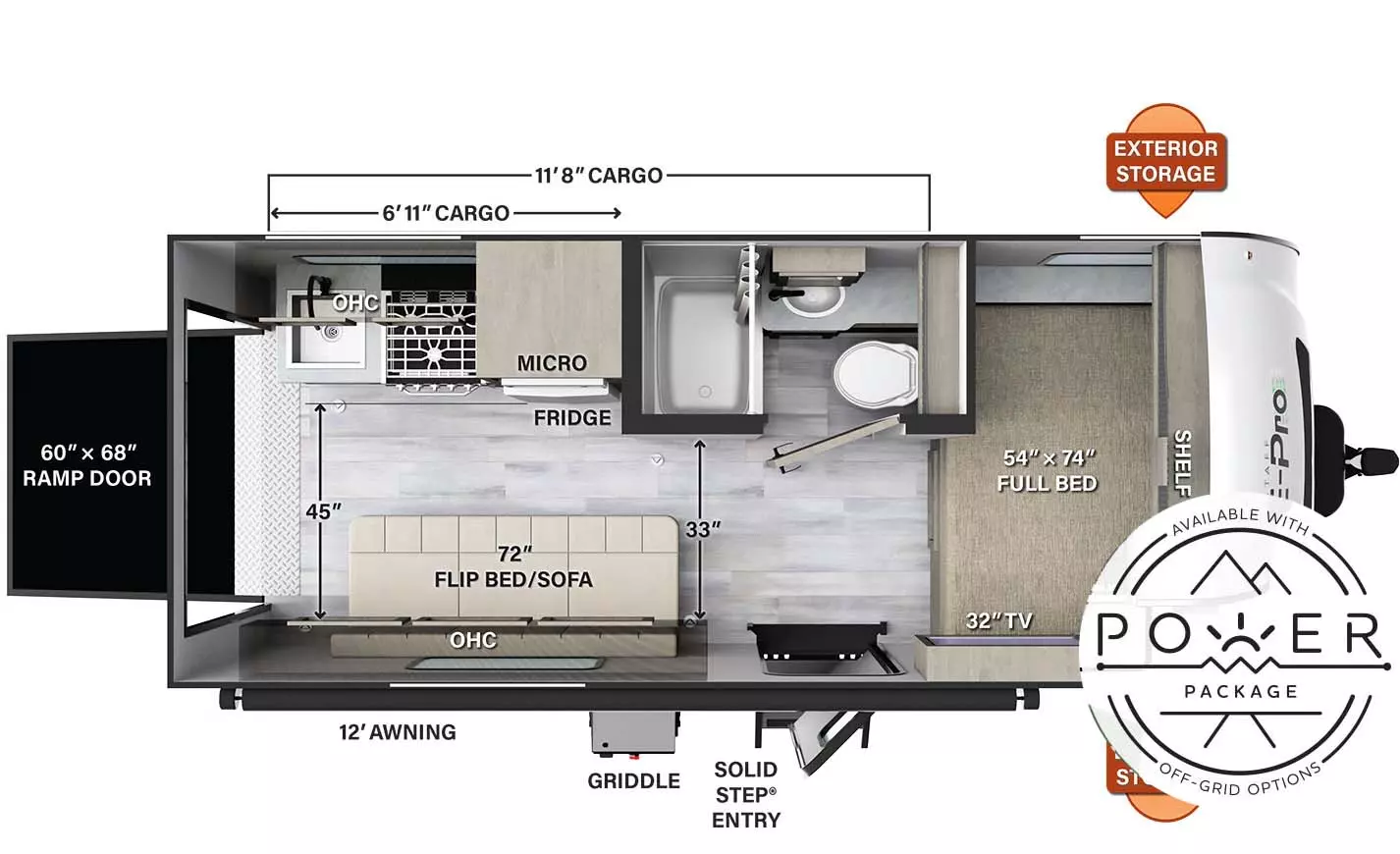

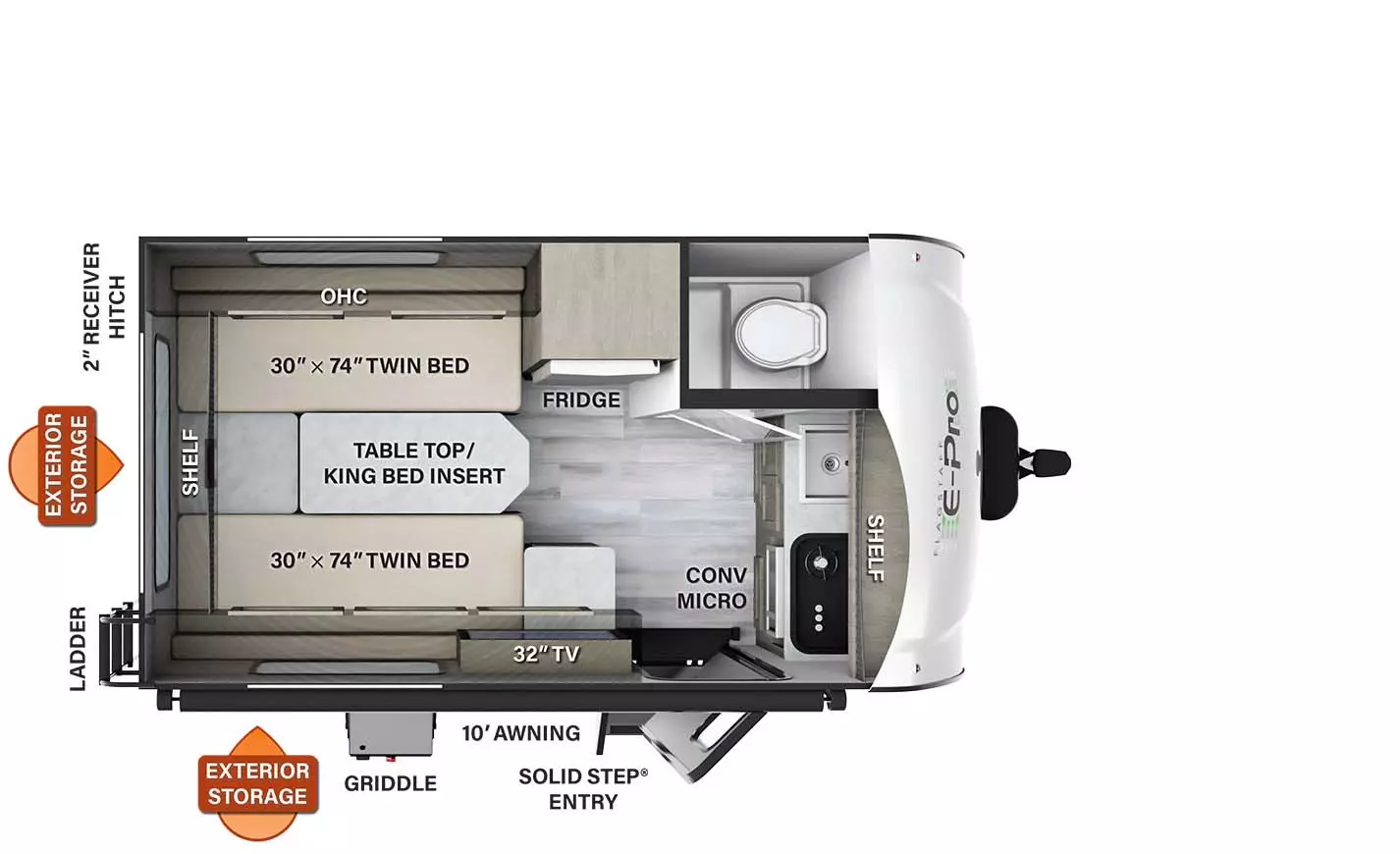

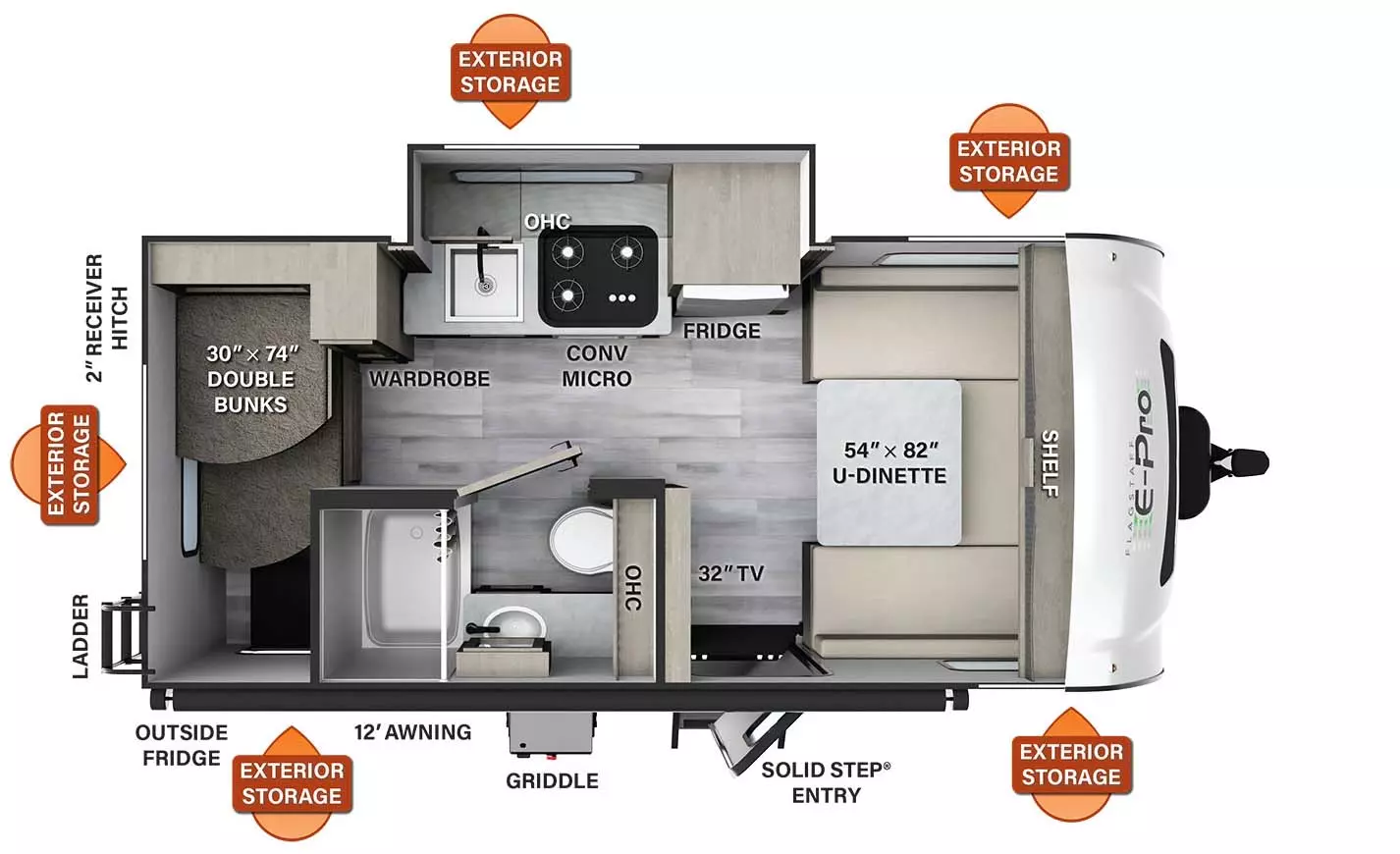

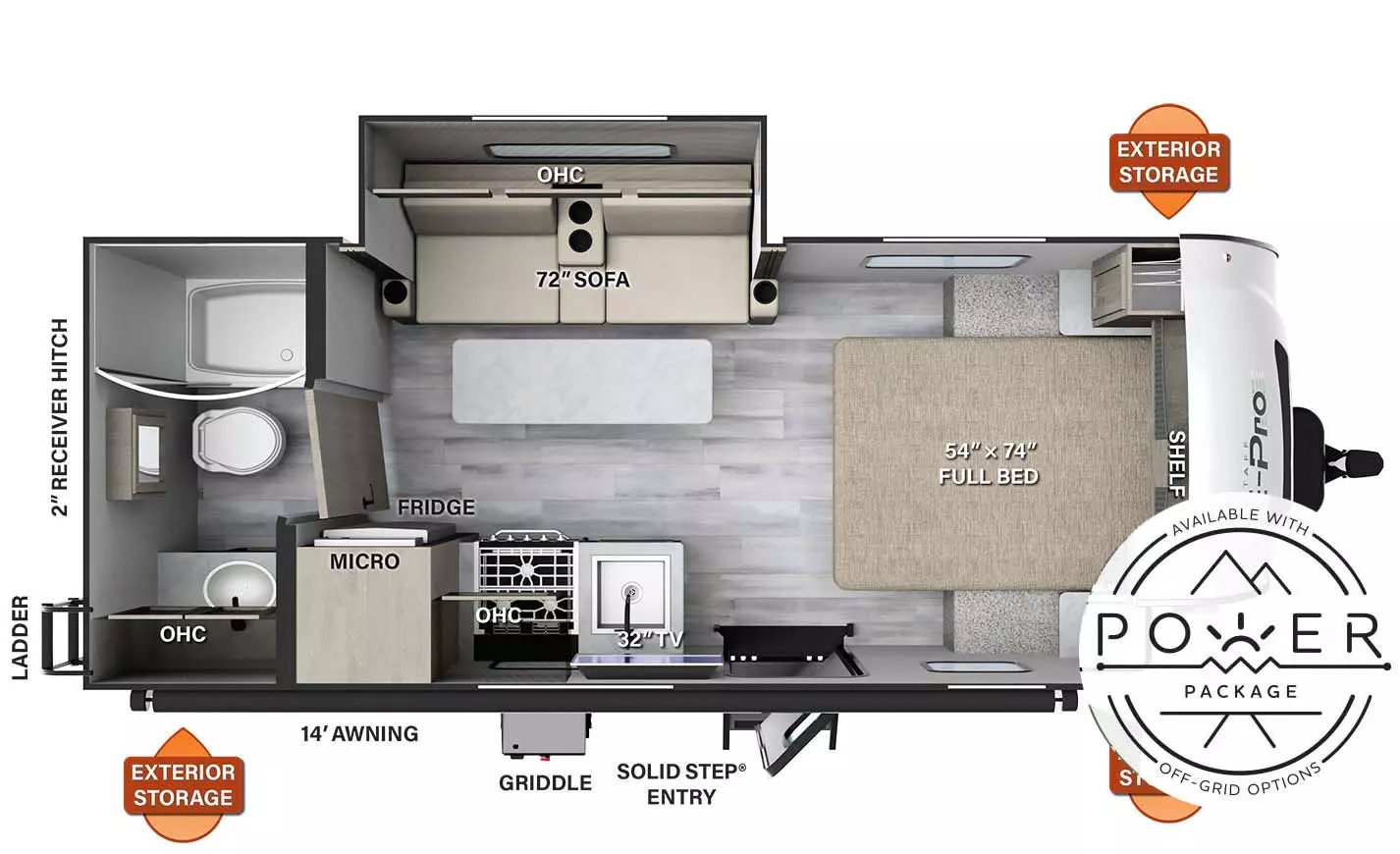

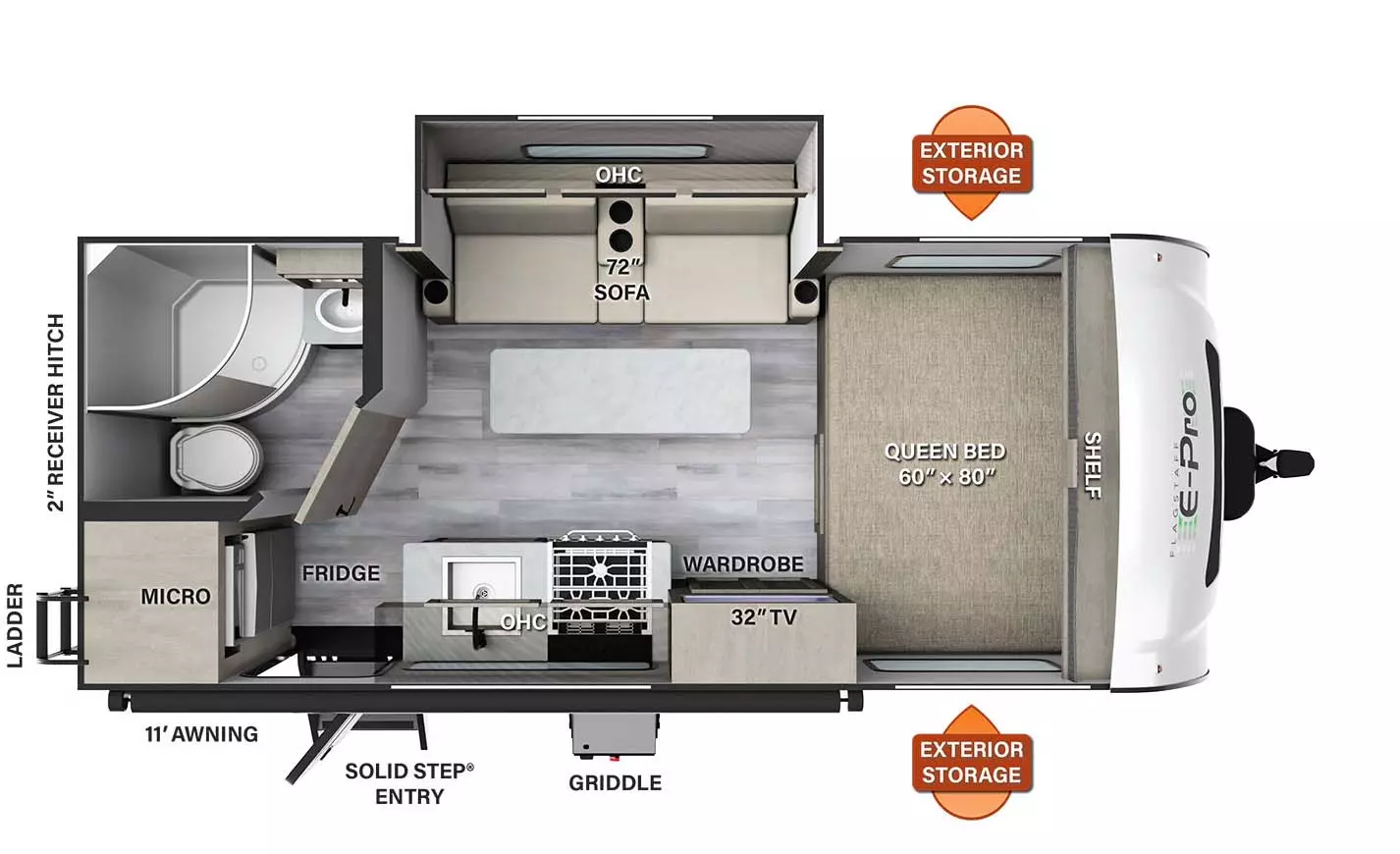

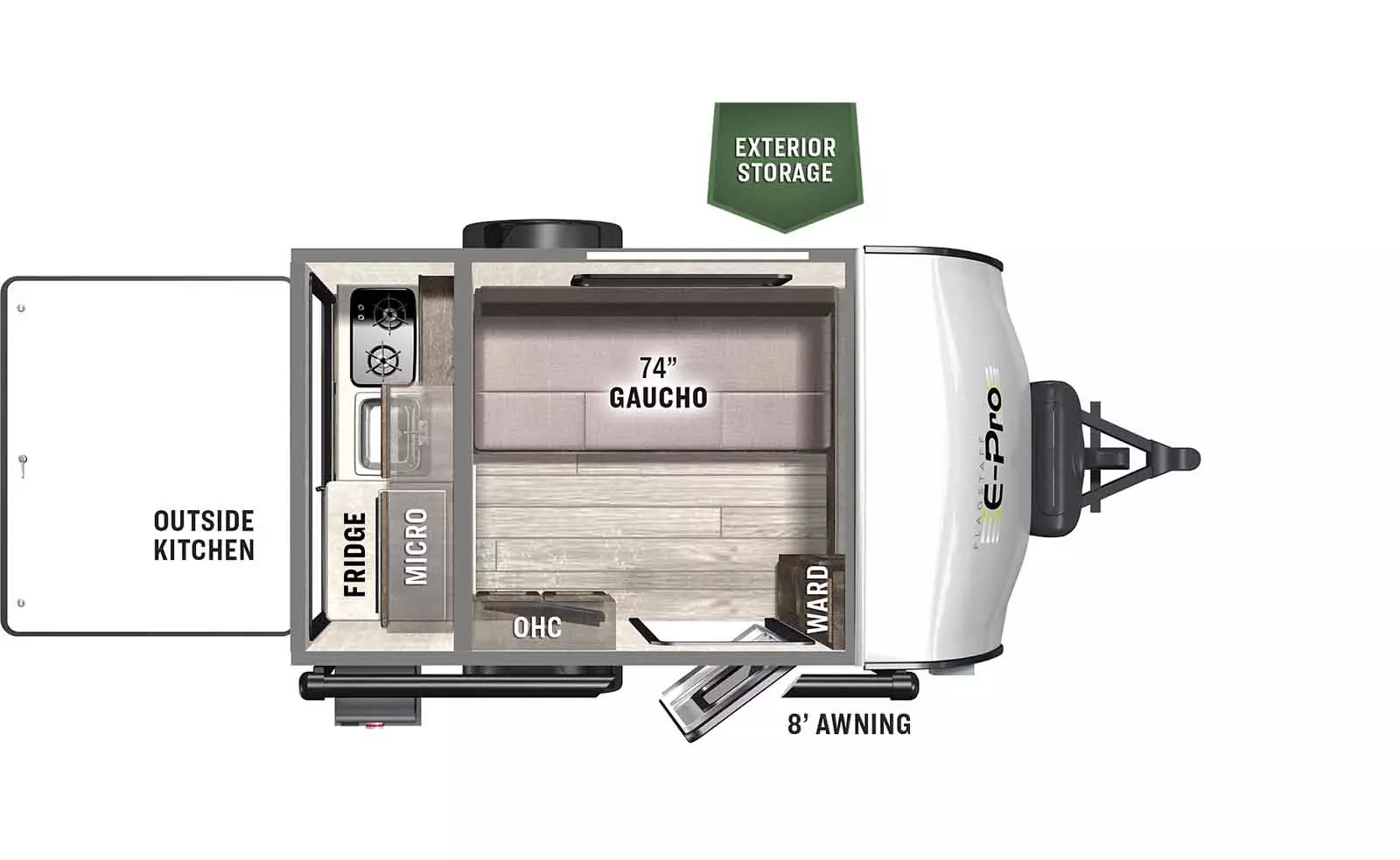

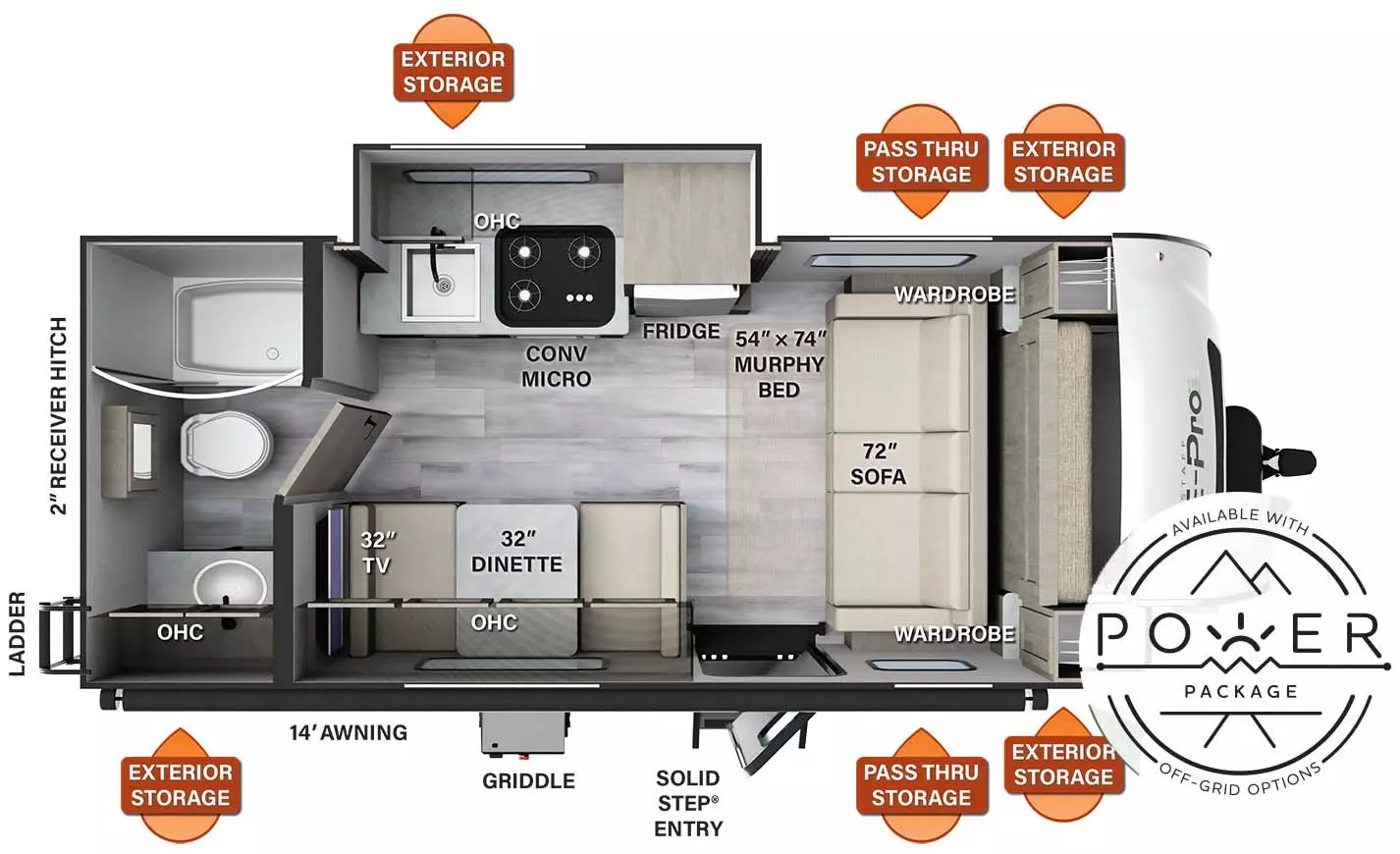

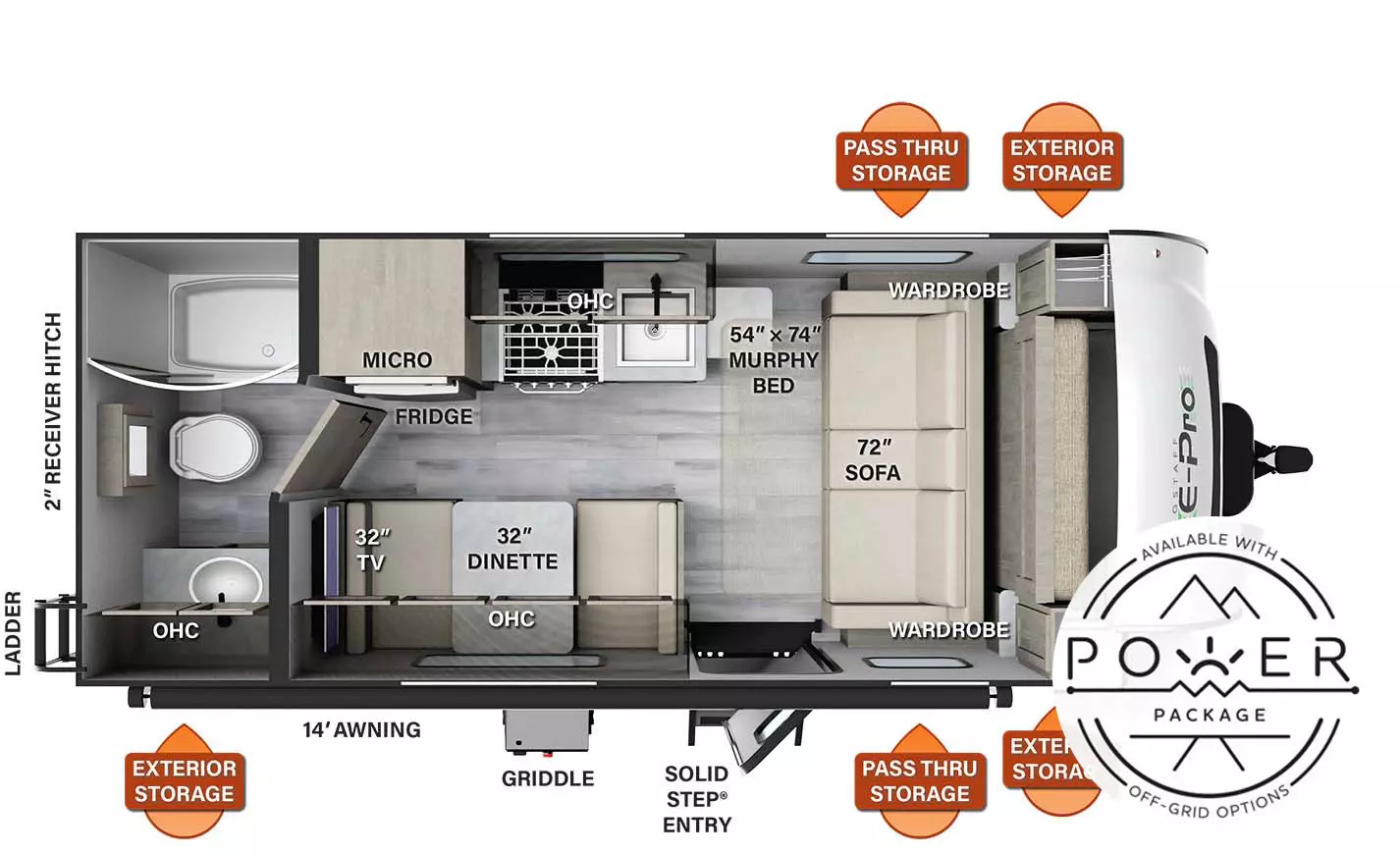

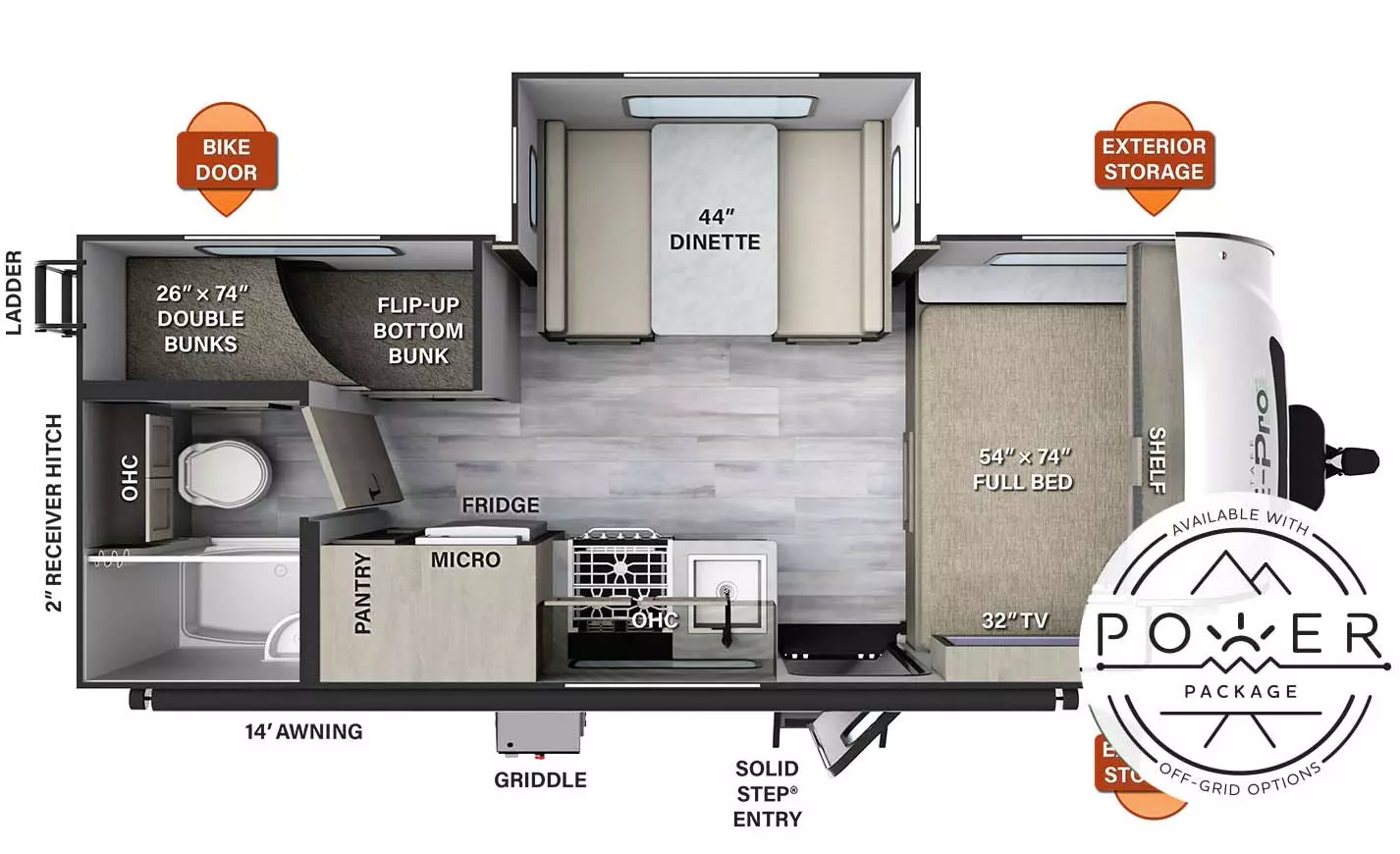

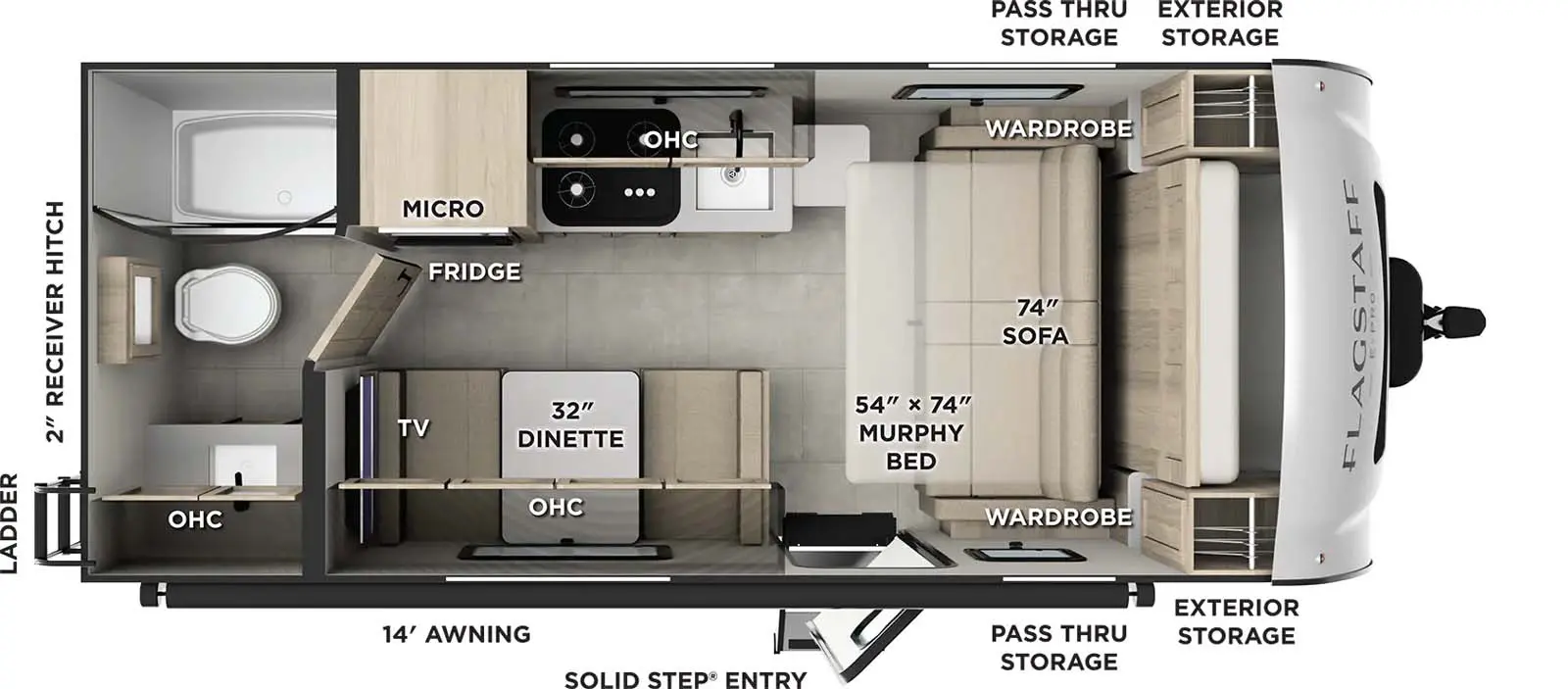

Floorplan: E19FBTH : Toy Haulers E12SRK : Travel Trailers E15TB : Travel Trailers E16BH : Travel Trailers E19BH : Travel Trailers E19FBS : Travel Trailers E19FD : Travel Trailers E19FDS : Travel Trailers E20BHS : Travel Trailers E20FBS : Travel Trailers E12RK - DSO : Dealer Stock Only E19RD - DSO : Dealer Stock Only E19TH - DSO : Dealer Stock Only
Hitch Weight:581 lb.258 lb.357 lb.486 lb.425 lb.479 lb.409 lb.452 lb.495 lb.400 lb.162 lb.436 lb.641 lb.
UVW:3,433 lb.1,763 lb.2,667 lb.3,280 lb.3,209 lb.3,375 lb.3,233 lb.3,360 lb.3,547 lb.3,442 lb.1,252 lb.3,271 lb.3,407 lb.
CCC:1,498 lb.1,135 lb.1,190 lb.706 lb.1,116 lb.1,004 lb.1,076 lb.992 lb.848 lb.858 lb.710 lb.1,065 lb.1,584 lb.
Exterior Length:20' 2"12' 3"15' 10"18' 6"20' 2"20' 2"20' 2"20' 2"21' 2"21' 2"11' 3"20' 2"20' 2"
Exterior Height:10' 0"7' 9"9' 10"9' 10"9' 10"9' 10"9' 10"9' 10"10' 0"10' 0"7' 9"9' 10"10' 0"
Exterior Width:92"88"92"92"92"92"92"92"92"92"80"92"92"
Fresh Water:31.00 gal.20.00 gal.31.00 gal.31.00 gal.31.00 gal.31.00 gal.31.00 gal.31.00 gal.31.00 gal.31.00 gal.20.00 gal.31.00 gal.31.00 gal.
Gray Water:16.00 gal.6.00 gal.12.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.6.00 gal.30.00 gal.16.00 gal.
Black Water:30.00 gal.0.00 gal.12.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.0.00 gal.30.00 gal.30.00 gal.
Awning Size:12'N/A10'12'13'11'13'14'14'14'N/A14'12'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

* Due to the current environment, our features and options are subject to change due to material availability.

  • 4 Frame Mounted Stabilizer Jacks (Only 2 on 12SRK)
  • Fold Out Entry Steps (N/A 12SRK)
  • Roof Ladder (N/A 12SRK, 19FBTH)
  • Magnetic Baggage Door Catches
  • Outside Shower
  • Front Windshield (N/A 12SRK, 15TB)
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Outside Griddle with LP Hookup
  • (2) 20# LP Tanks
  • Ground Solar Prep
  • Outside Speaker (N/A 12SRK)
  • 190 Watt Roof Mount Solar Panel w/ 1000 Watt Inverter
  • Power Awning (N/A 12SRK)
  • Polished Alloy Wheels
  • Tinted Bonded Frameless Windows
  • Heated Holding Tanks (N/A 12SRK)
  • Aluminum Cage Dinette Bases & Beds
  • 6 Sided Aluminum Cage Construction
  • Vacuum Laminated Roof and Walls
  • 5/8" Tongue and Groove Plywood Flooring
  • Interior & Exterior Azdel Construction
  • Torsion Axle, Rubber-Ryde Suspension
  • Tire Pressure Monitoring System
  • Pre Wired for Backup Camera (N/A 12SRK)
  • Spare Tire w/ Carrier
  • 15” Mud Rover Radial Tires and Lift Kit (Step extension on the 12SRK)
  • Power Tongue Jack
  • 13,500 Roof A/C
  • AM/FM Stereo w/ Bluetooth and USB
  • 12 Volt TV w/ DVD Player
  • Roller Shades
  • 20,000 BTU Furnace
  • Recessed Cooktop w/ Flush Mount Cover (N/A 12SRK )
  • 12V Refrigerator
  • Microwave
  • Maxxair® Ventilation Fan and Vent Cover (Opt 12SRK; Std all others, *In living room on 15TB)
  • Quick Recovery Gas/Electric Water Heater
  • Shower Miser Water Saver (N/A 12SRK)
  • Black Tank Flush (N/A 12SRK,15TB)
  • 360 Siphon Cap on Black Tank (N/A 12SRK)
  • Foot Flush Toilets (N/A 12SRK)
  • Dexter Torsion Axles w/Aluminum Wheels
  • All In One Teton HD TV/WiFi/AM/FM Antenna (LTE Prep)
  • Shower Miser Water Saver (N/A 12SRK)
  • 190W Roof Mount Solar Panel
  • Bluetooth System Control Panel
  • Spare Tire
  • Hidden Hinge Cabinet Doors (N/A 12SRK)
  • Microwave Oven
  • Stereo & DVD Player
  • 13,500 BTU Low Profile A/C
  • Sport Tire and Wheel Package
  • 12V TV w/ DVD Player
  • Key Alike Door & Compartment Locks
  • Roller Shades
  • Power Awning (Manual Thule 12SRK)
  • Frameless Windows
  • 1000W Inverter Power
  • Tire Pressure Monitoring System
  • Ladder
  • Power Tongue Jack
  • Gas Griddle
  • 20,000 BTU Furnace
  • 12 V Refrigerator
  • Heated Holding Tanks (N/A 12SRK)
  • Outside Speaker (NA 12SRK)
  • Gas Oven (19BH, 19FB, 19FBS, 19FD, 20BHS, 19FBTH, 20FBS)
  • Convection Microwave (N/A 12SRK)
  • Pro Rac Mounting Bars (Only 12SRK)
  • Pro Rac Mounting Bars w/ Removable Ladder (N/A 12SRK)
  • MORryde AirGlide Suspension (19FBTH Only)
  • 2nd 190W Roof Solar Panel
  • Tongue Mount Bike Rack
  • Maxxair® Ventilation Fan and Vent Cover (Opt 12SRK; Std all others)

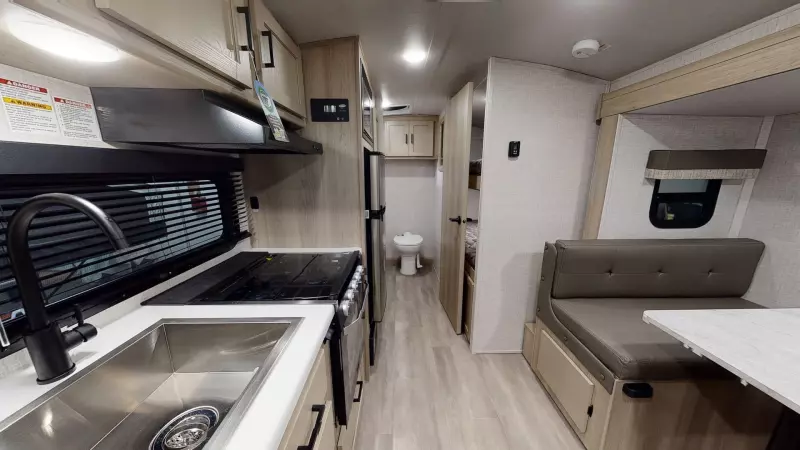

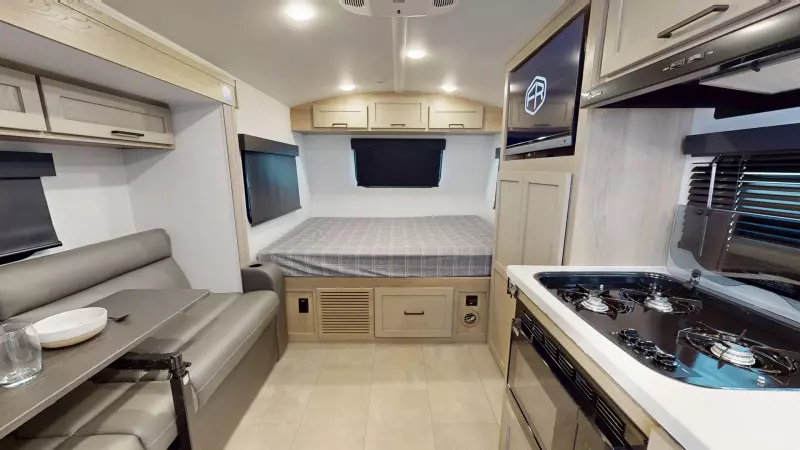

Virtual Tours
