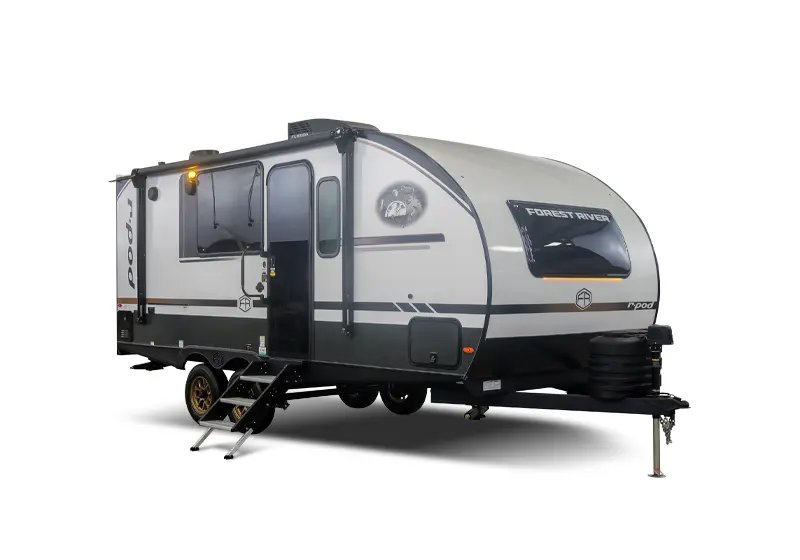

r•pod Hood River Edition Travel Trailers

The r•pod is the first of its kind to offer you affordable luxury at the lowest tow weight in its class. The r•pod is a perfect example of “form follows function,” with its unique shape and construction!


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications










to

to




Specifications

Print


Hitch Weight:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
242 lb.
2342 lb.
900 lb.
18' 4"
9' 10"
96"
36 gal.
30 gal.
30 gal.
Opt. (R-dome)
243 lb.
2338 lb.
905 lb.
18' 4"
9' 10"
96"
36 gal.
30 gal.
30 gal.
Opt. (R-dome)
280 lb.
2669 lb.
1111 lb.
20' 0"
9' 11"
96"
36 gal.
30 gal.
30 gal.
Opt. (R-dome or 8')
268 lb.
2603 lb.
1165 lb.
20' 0"
9' 11"
96"
36 gal.
30 gal.
30 gal.
Opt. (R-dome or 8')
292 lb.
2756 lb.
1036 lb.
20' 0"
9' 11"
96"
36 gal.
30 gal.
30 gal.
Opt. (R-dome or 10')
332 lb.
2662 lb.
1170 lb.
20' 0"
9' 11"
96"
36 gal.
30 gal.
30 gal.
Opt. (R-dome or 10')
281 lb.
2792 lb.
989 lb.
20' 4"
9' 11"
96"
36 gal.
30 gal.
30 gal.
Opt. (R-dome or 10')
336 lb.
2785 lb.
1051 lb.
20' 4"
9' 11"
96"
36 gal.
30 gal.
30 gal.
Opt. (R-dome or 10')
265 lb.
2626 lb.
1139 lb.
20' 4"
9' 11"
96"
36 gal.
30 gal.
30 gal.
Opt. (R-dome or 10')
340 lb.
3350 lb.
1390 lb.
22' 2"
9' 8"
96"
36 gal.
30 gal.
30 gal.
11’
357 lb.
3578 lb.
1179 lb.
22' 2"
9' 8"
96"
36 gal.
65 gal.
30 gal.
11'
245 lb.
2437 lb.
1308 lb.
18' 8"
9' 10"
96"
36 gal.
30 gal.
30 gal.
Opt. R-dome
385 lb.
2836 lb.
1049 lb.
20' 0"
9' 10"
96"
36 gal.
30 gal.
30 gal.
Opt. R-dome

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Powder coated steel frame
  • 2" coupler
  • Self-Adjusting Electric brakes
  • LED taillights
  • Independent torsion axle
  • Aluminum wheels
  • 235/75/R15 Off Road Tires
  • Spare tire
  • Nitrogen filled tires
  • Super-lube hubs
  • Stabilizer jacks (4)
  • Dual battery rack
  • Rotocast fresh water tank
  • Rotocast grey/black tank
  • 6 Gallon Gas/electric DSI hot water heater
  • Water heater by-pass system
  • 3-Way refrigerator - 3.7 cu ft
  • Two burner cook top
  • 20,000 BTU furnace
  • 12V demand water pump
  • Monitor panel
  • 55 amp converter w/ charger
  • Detachable power cord
  • Air conditioner ready
  • 3 speed MaxxAir® Fan
  • Thetford™ toilet
  • USB charging port
  • Breakaway switch
  • Fire extinguisher
  • LP detector
  • Smoke detector
  • CO detector
  • Safety chains
  • Dead-bolt door lock
  • Ground fault protected electrical circuit
  • Sidewalls R-7
  • Floor R-9
  • Roof R-9
  • R-Pod's ONLY authorized two place bike rack. (Optional)
  • 6' 6" Interior Height
  • Wet bath w/ integrated toilet & sink
  • Dry bath (Select Models)
  • Designer Carefree® flooring
  • Solid lumber core cabinet fronts assembled with screws
  • Grey shaker style cabinetry
  • Hardwood drawer fronts w/ full extension ball bearing drawer guides
  • Decorative window treatments
  • Shower Surround with Curtain
  • Mini blinds (where applicable)
  • Collapsible clothes hanger (where applicable)
  • Bathroom pocket organizers
  • Furrion AM/FM stereo with Bluetooth
  • Wood slideout fascia with corner blocks
  • 2-tone gelcoated fiberglass
  • Welded aluminum sidewalls and floor
  • Laminated sidewalls, floor and roof
  • Seamless fiberglass roof
  • Custom tinted safety glass windows
  • 20 lb LP tank with hard cover
  • Exterior 120V recept
  • License plate holder w/ light
  • Radius entrance and baggage doors
  • Folding assist handle
  • Double aluminum entry door step
  • Black tank flush
  • Rear spoiler w/ LED clearance lights
  • TV antenna
  • Black powder coated fender skirts with LED lights
  • Magnetic baggage door catches
  • Outside speakers
  • Schwintek™ slide out system
  • Window in entrance door
  • Outside Shower
  • Sewer Hose Carrier
  • Furrion Bluetooth Stereo w/Remote & App. Control
  • Pleated Night Shades
  • 4 Speed Maxxair® Fan
  • 3.7 cu. ft. 3-Way Refrigerator
  • 2-Burner Recessed Cook Top w/Flush Mount Glass Cover
  • Seamless Kitchen Countertops w/Under Mount Stainless Steel Sink
  • E-Z Glide Dinette Table
  • Front and Rear Stabilizer Jack
  • Spare Tire
  • Folding Assist Grab Handle
  • Black Tank Flush
  • Go Power Solar Charging Port
  • Independent Axle w/Ultra-Lube Hubs
  • Aluminum Rims
  • Friction Hinged Entrance Door
  • Magnetic Baggage Door Catches
  • Detachable Power Cord
  • LP Quick Disconnect
  • 15" Tires
  • Double Aluminum Steps
  • One piece seamless fiberglass roof
  • Aluminum Rims
  • 6' 6" interior height
  • Large 30-35 gallon holding tanks
  • 20,000 BTU furnace
  • 6 gallon Gas/Electric DSI hot water heater
  • Independent torsion axle
  • Grey shaker style cabinetry
  • LED interior lighting
  • Tinted safety glass windows
  • 3-speed MaxxAir® Fan
  • 3.7 cu ft refrigerator
  • LED taillights
  • Folding assist grab handle
  • Detachable power cord
  • Black tank flush
  • Four (4) scissor stabilizer jacks
  • 13.5K BTU air conditioner (95 lbs)
  • Convection Microwave Oven (51 lbs)
  • 24" LED Flat Screen TV (15 lbs)
  • R-Dome awning with screen room (20 lbs)
  • Thule Box awning (N/A RP171, RP172, RP177) (RP176, RP178, RP182G - 8', 39 lbs) (RP179, RP180, RP189, RP190 - 10', 51 lbs)
  • Bike carrier (2 bikes) (13 lbs)
  • Power tongue jack (24 lbs)
  • Hood River Edition (Advanced ground clearance, X-Treme 15" Off Road tires, aluminum rims and MaxxAir® vent cover) (West Coast production only)
  • Advanced Ground Clearance
  • X-treme 15" Off Road Tires
  • Aluminum Rims
  • MaxxAir Vent Cover

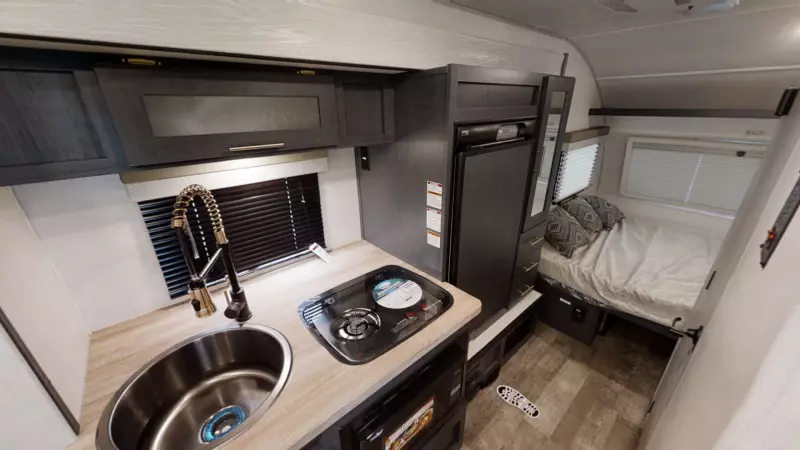

Virtual Tours

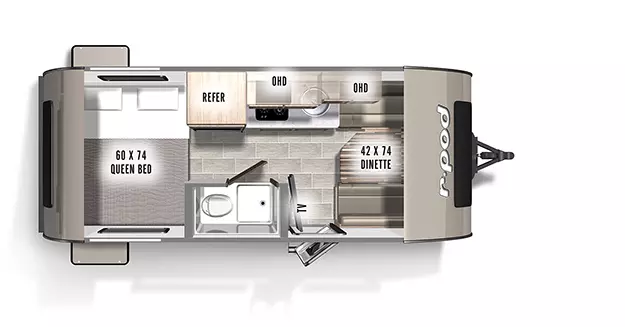

RP-171

RP-172

RP-176

RP-178

RP-179

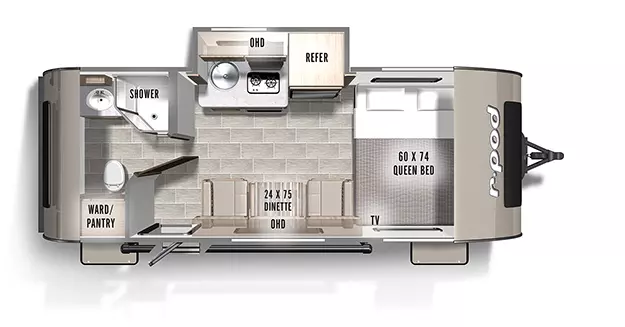

RP-180
