270RTK Floorplan

MAX Series: Toy Haulers and Versatile Cargo Travel Trailers

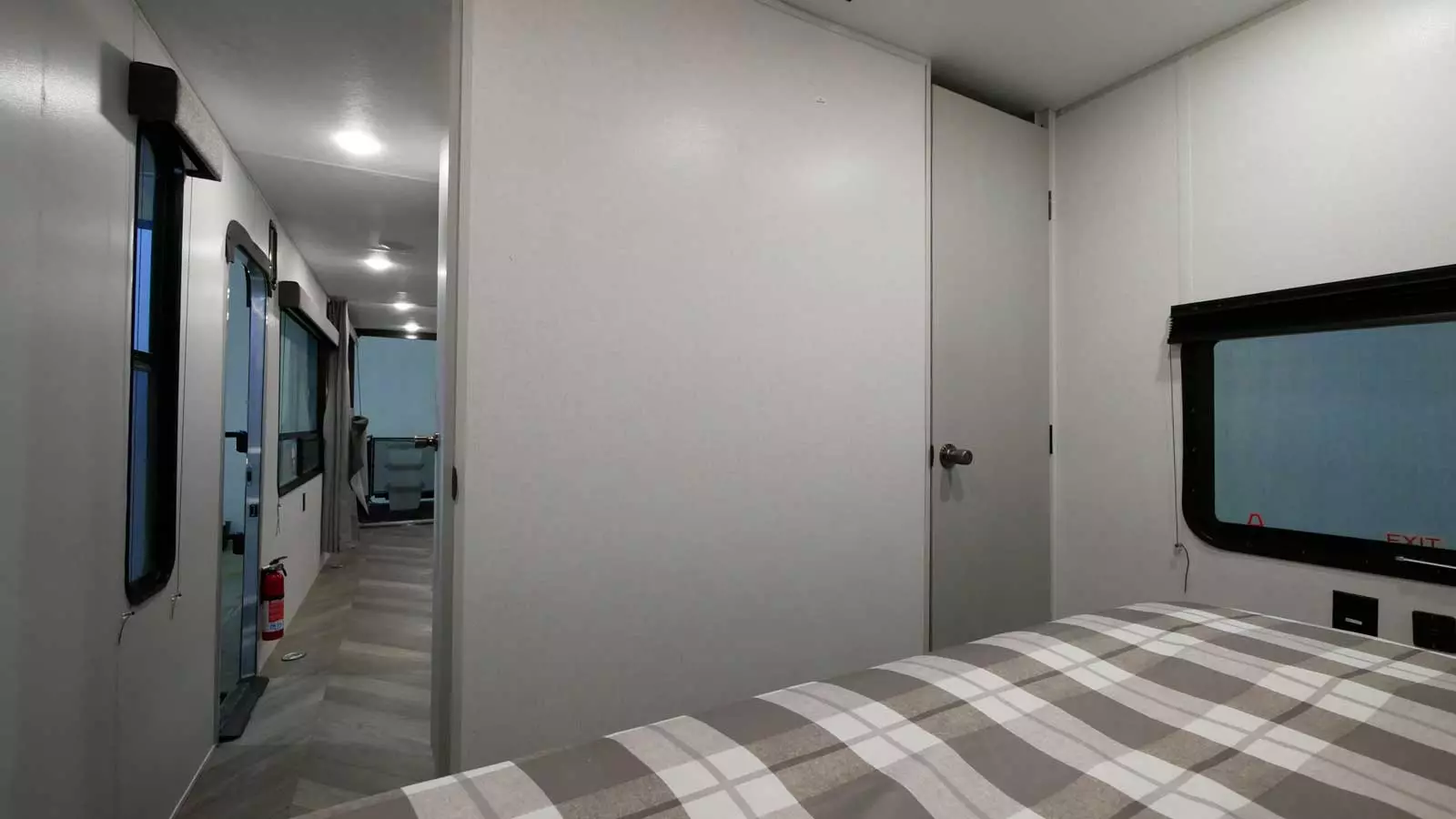

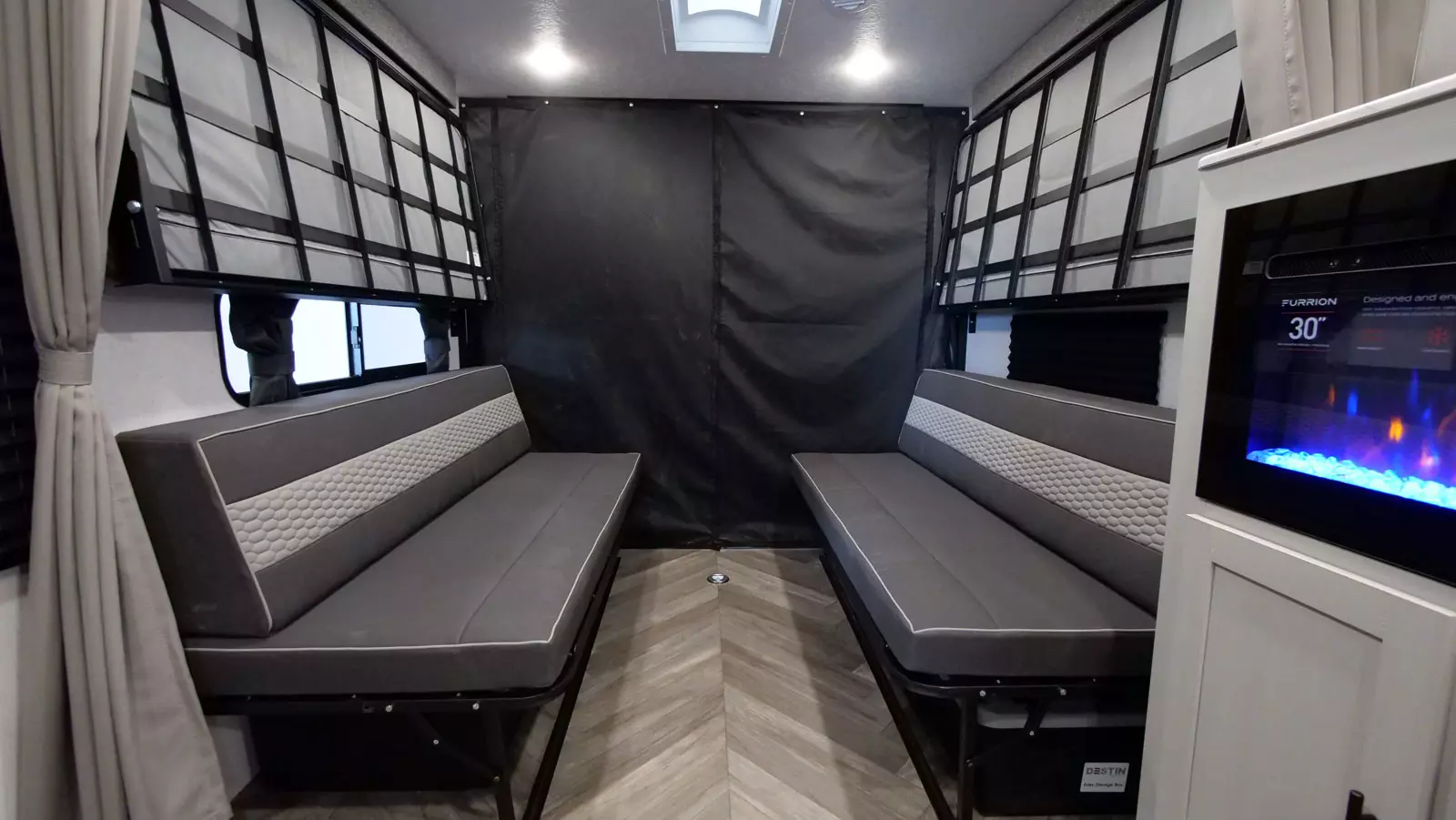

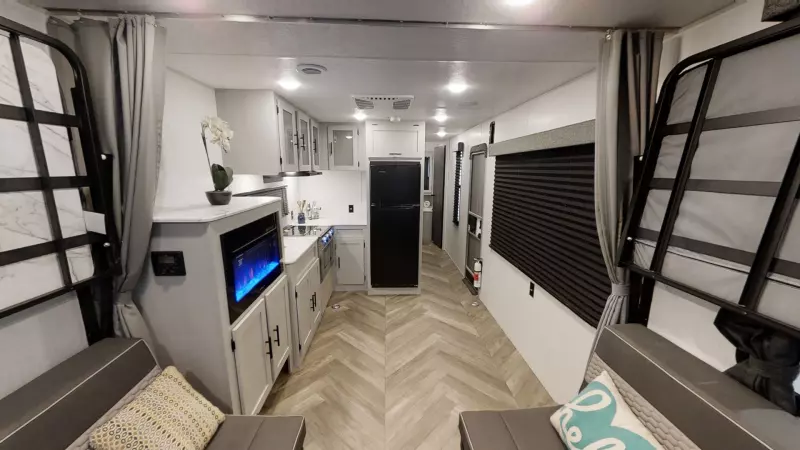

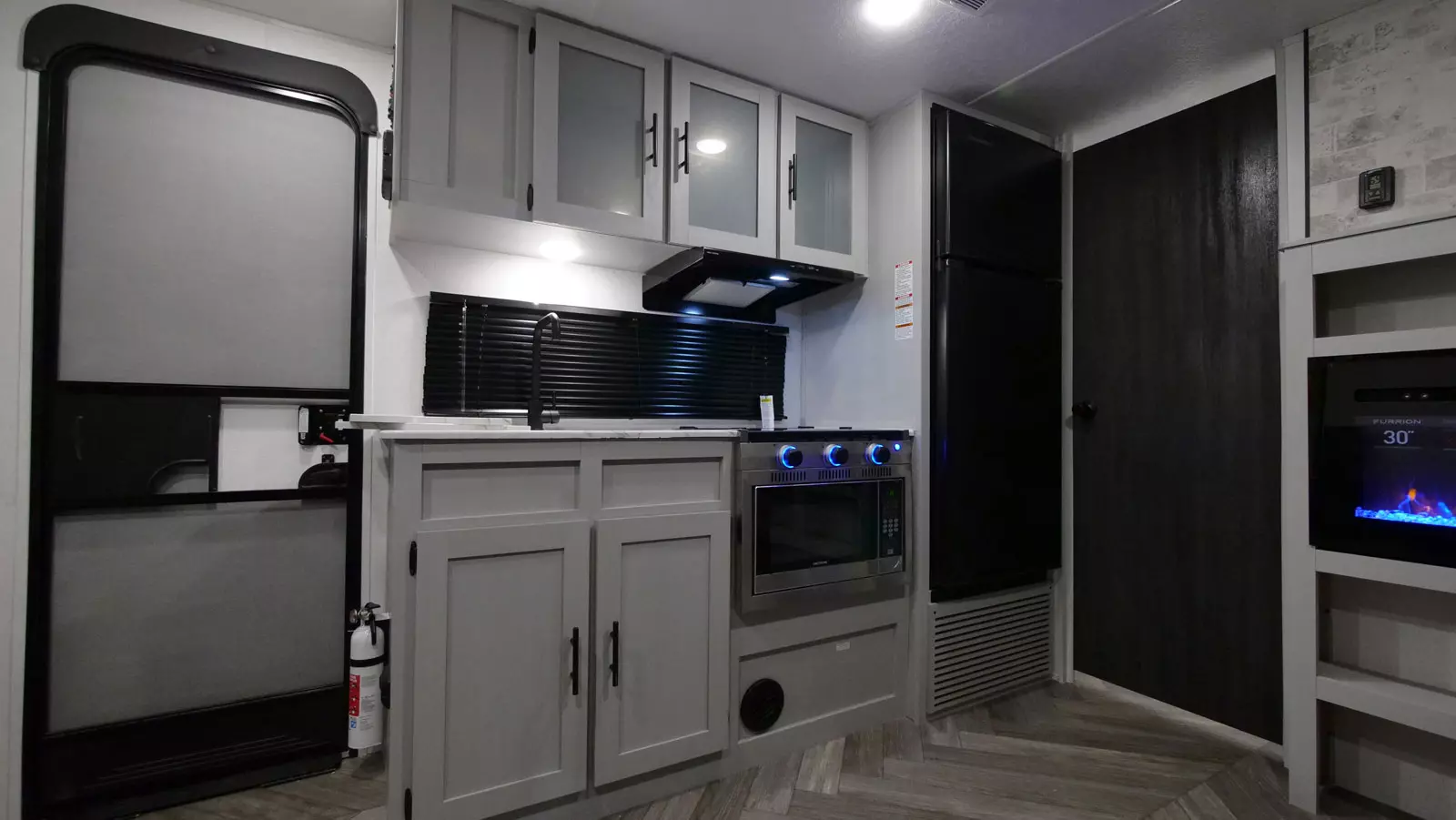

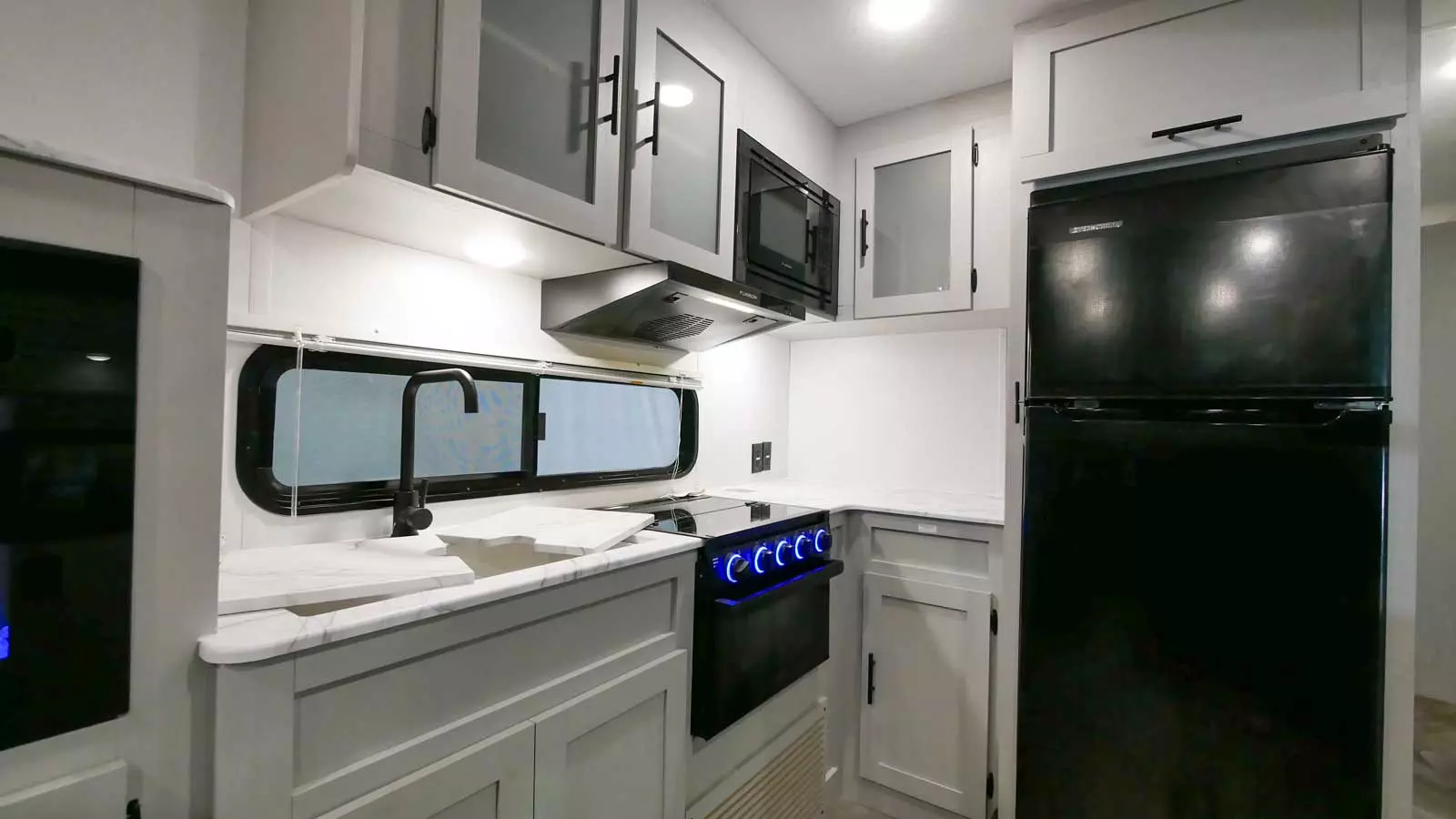

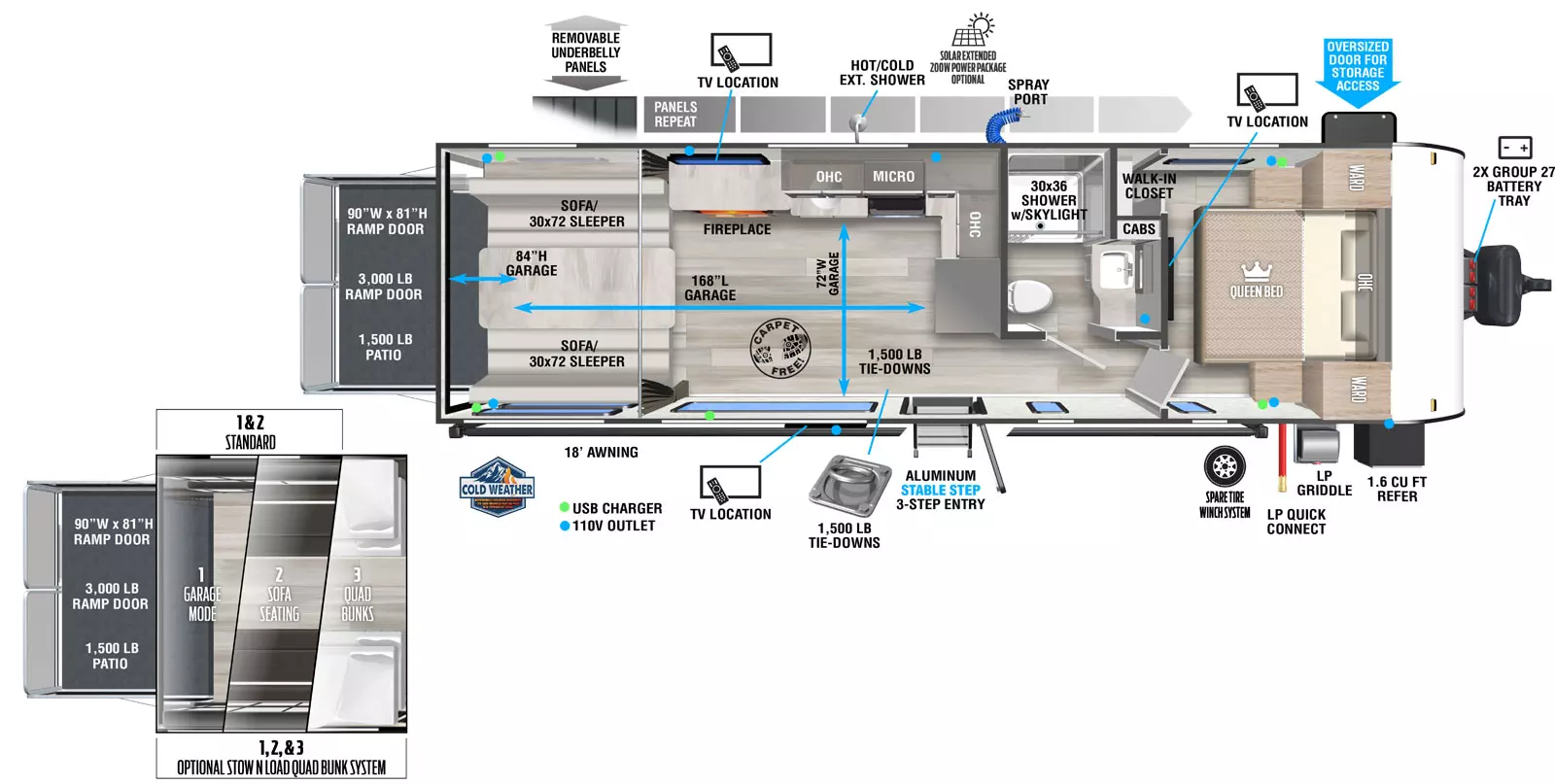

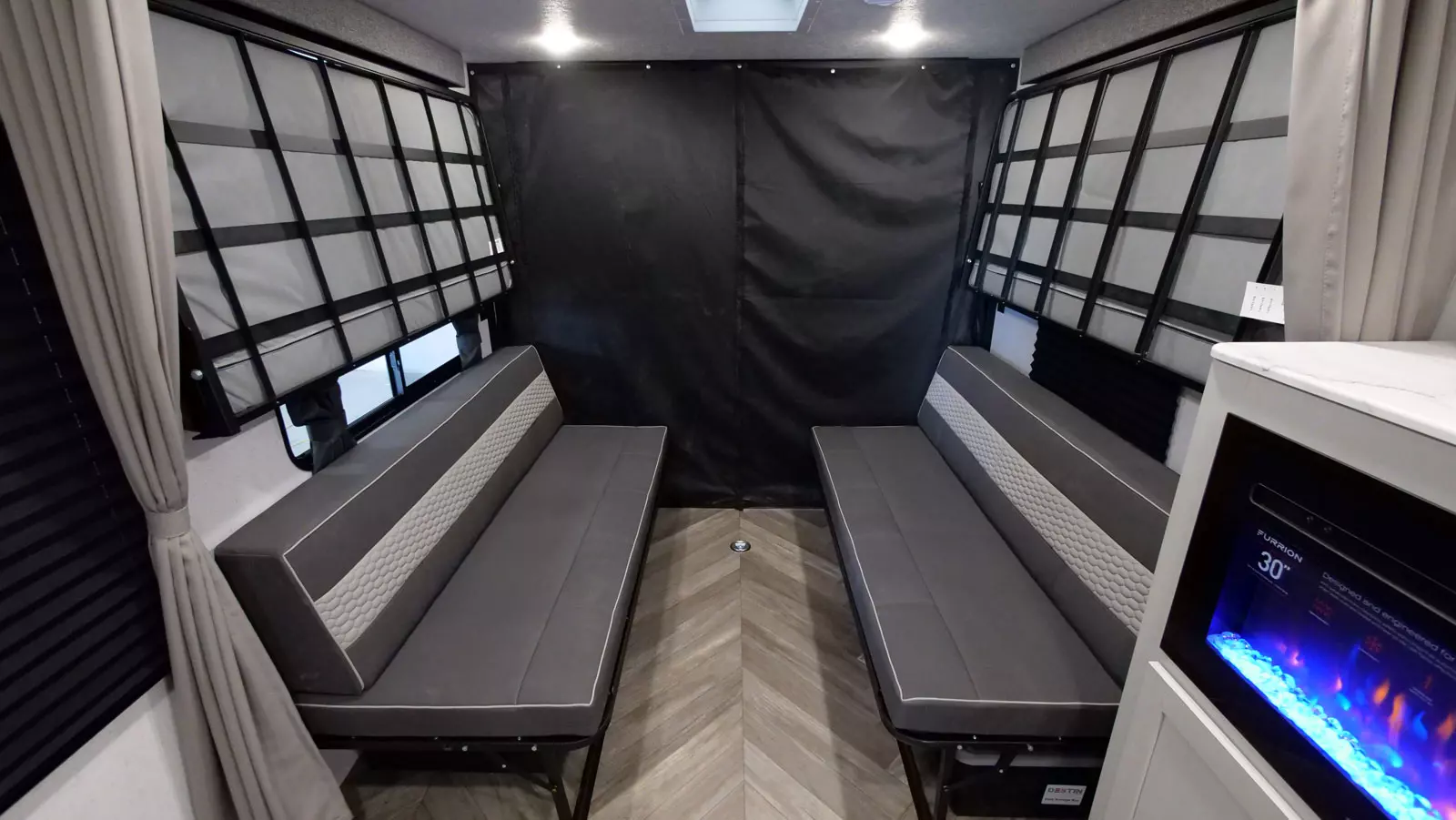

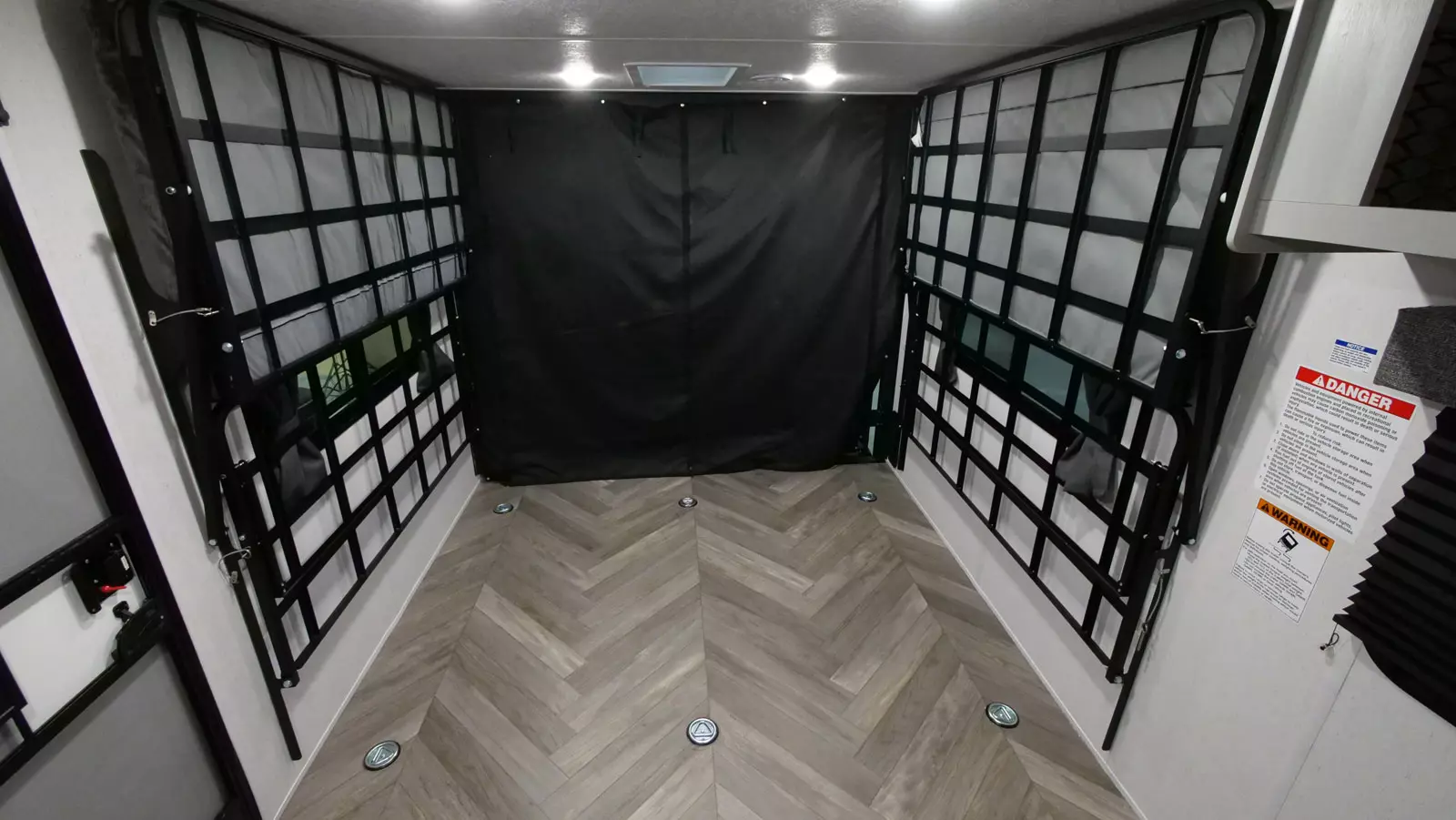

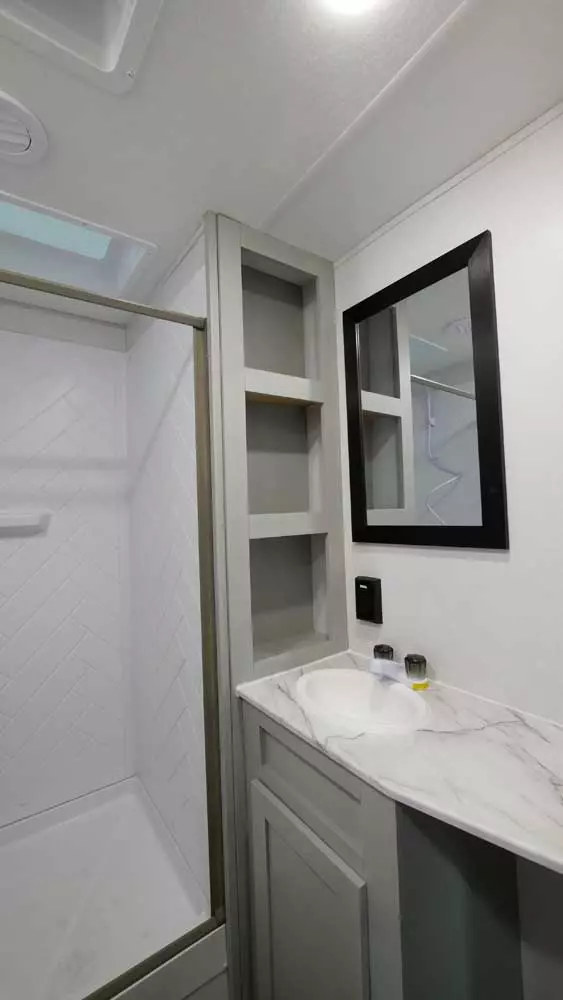

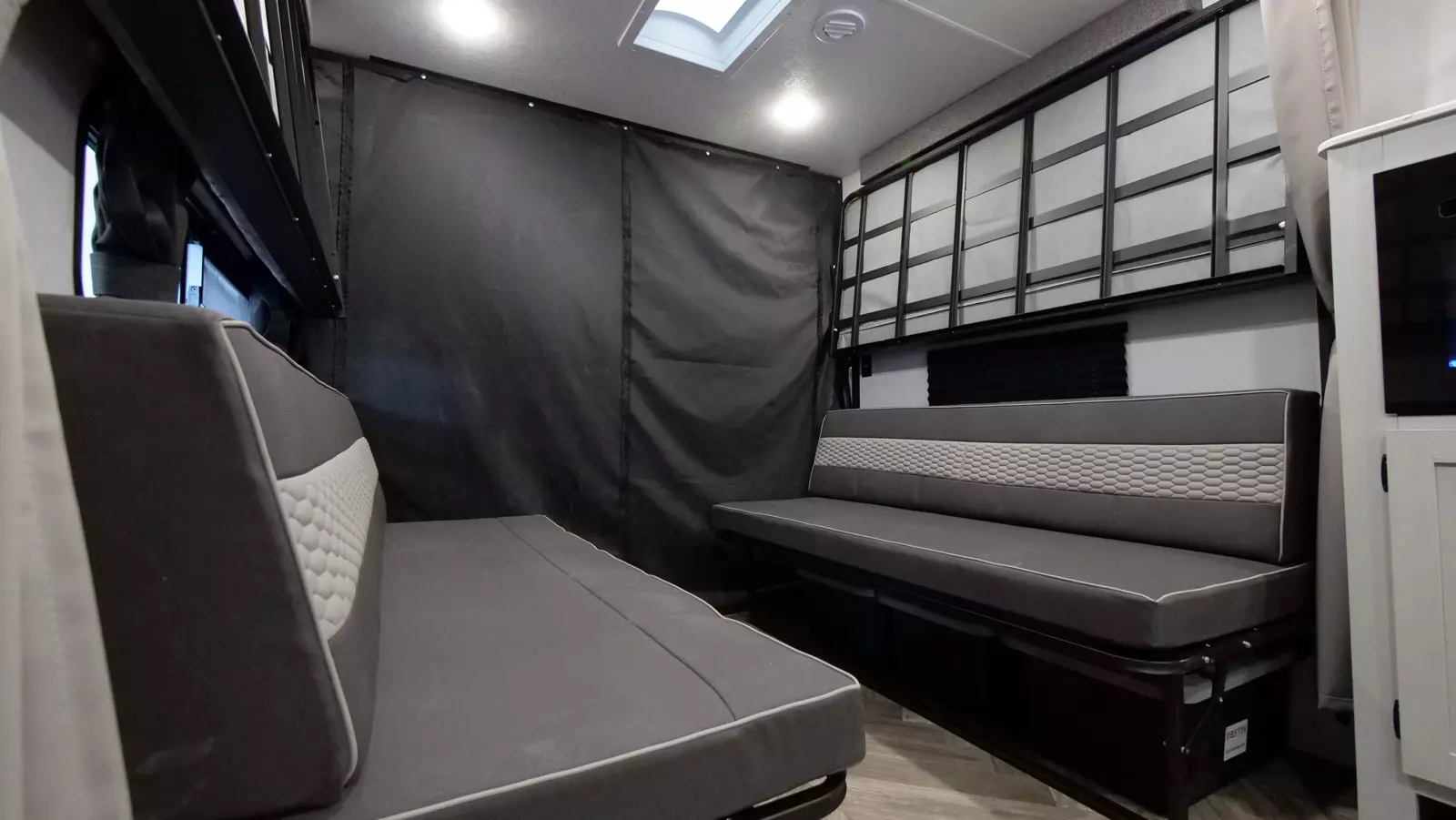

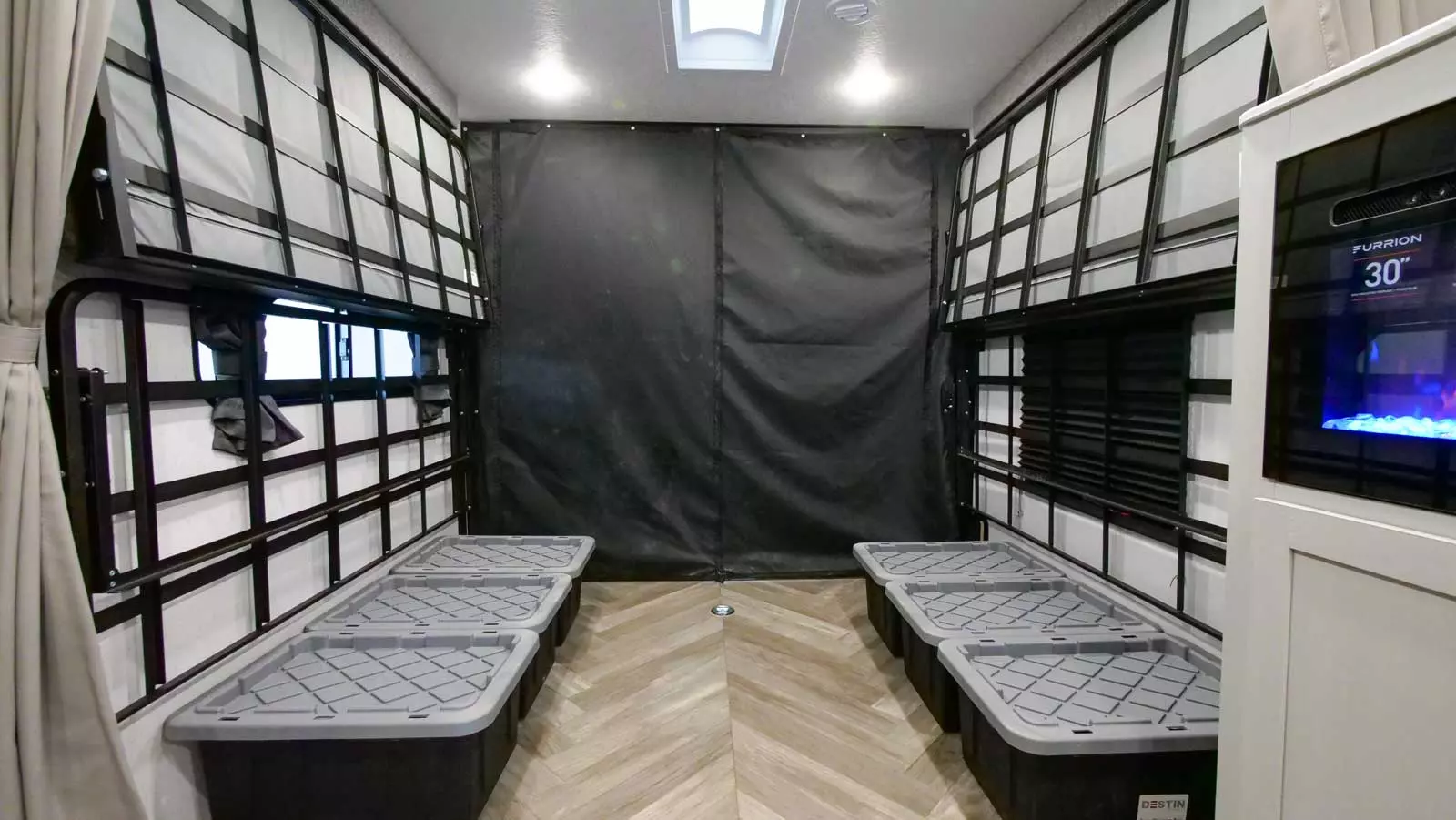

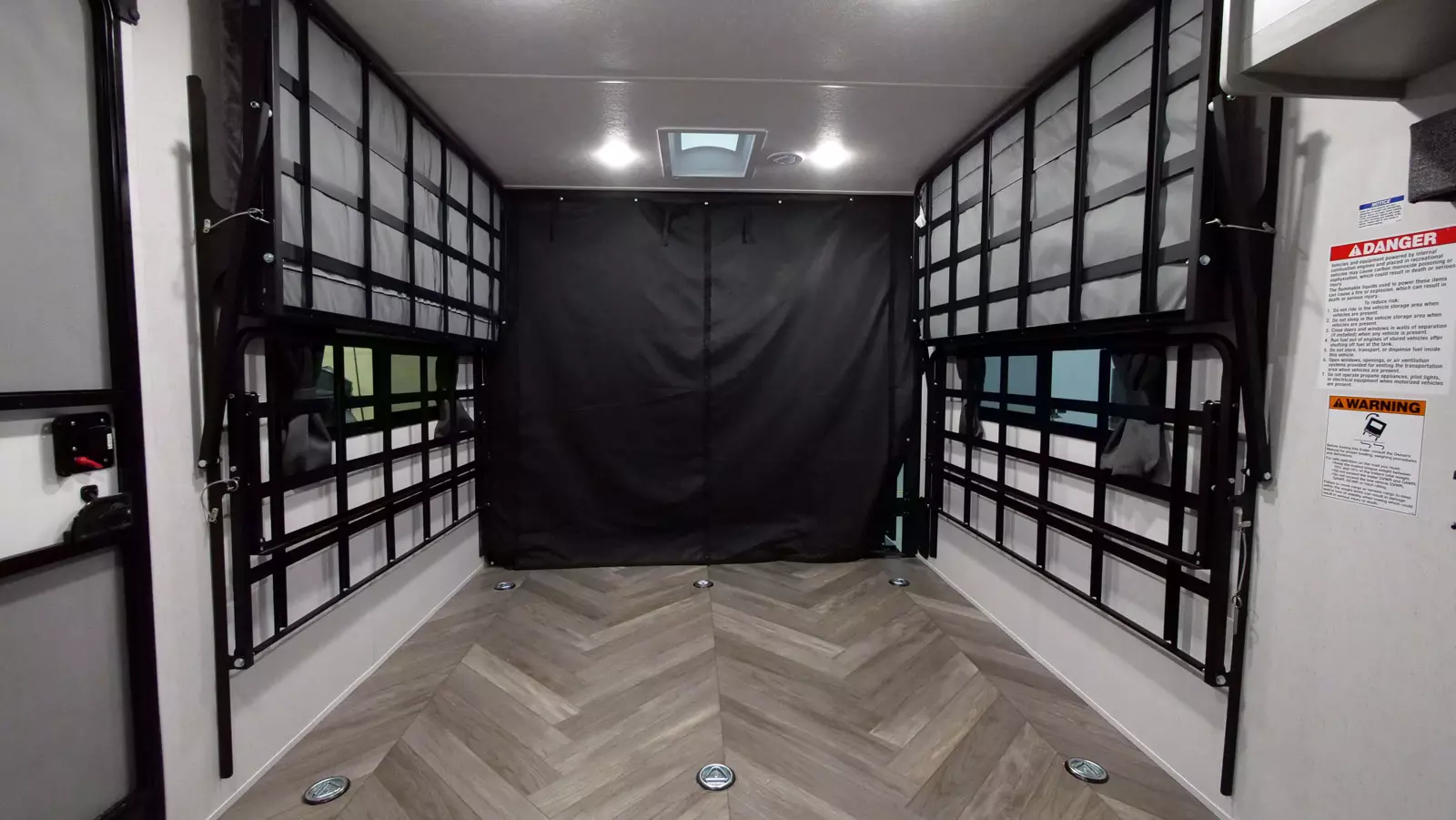

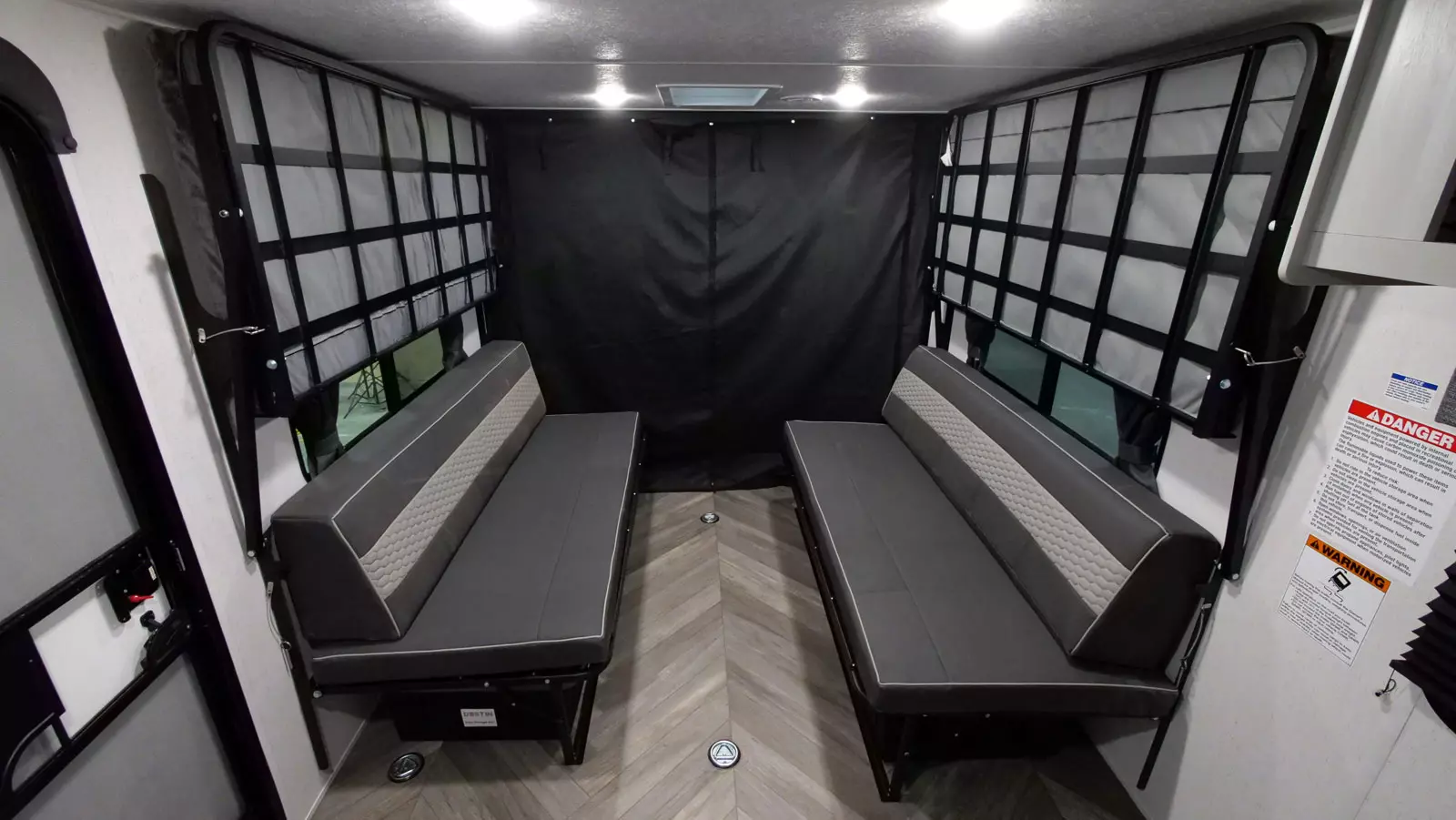

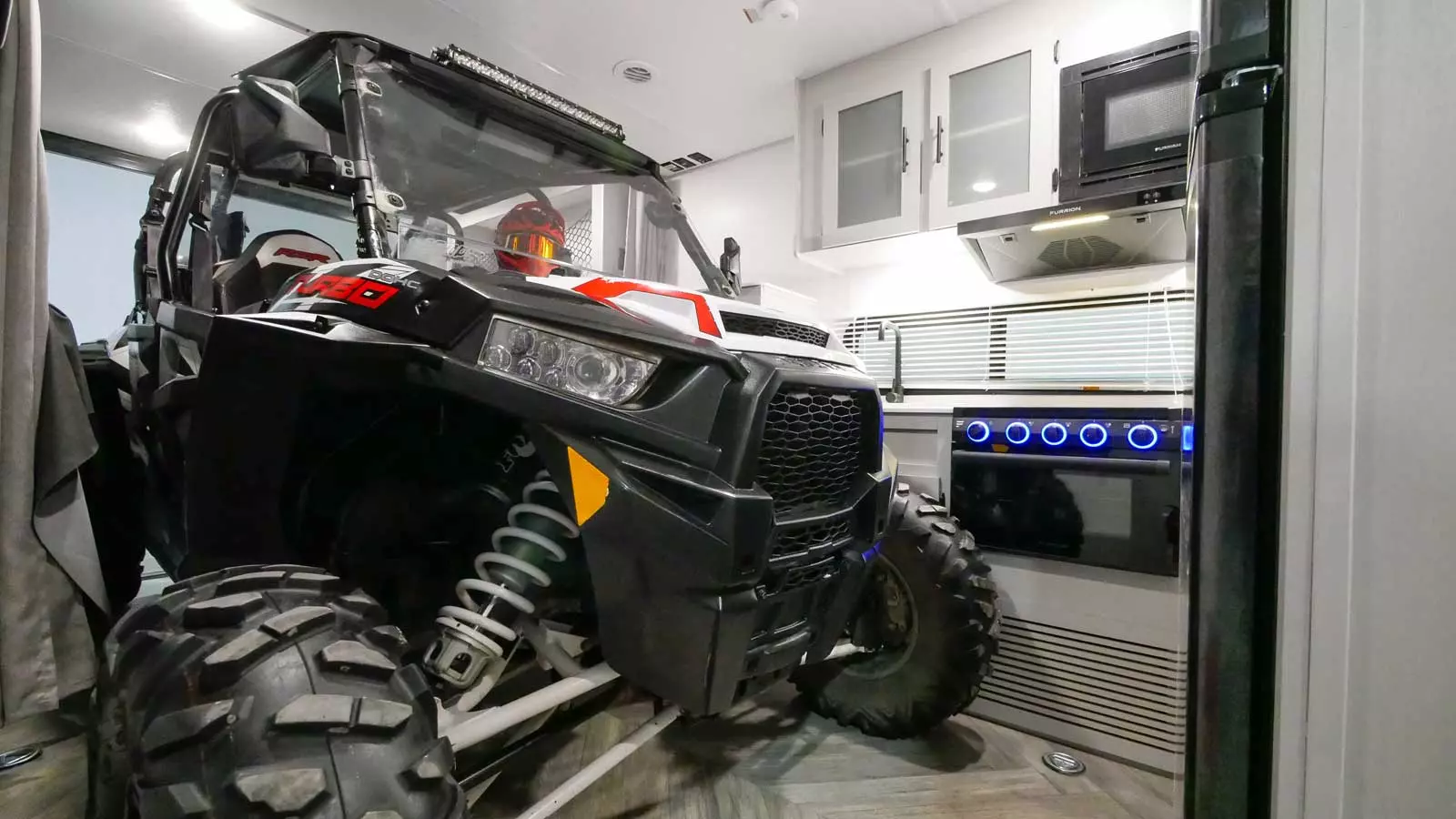

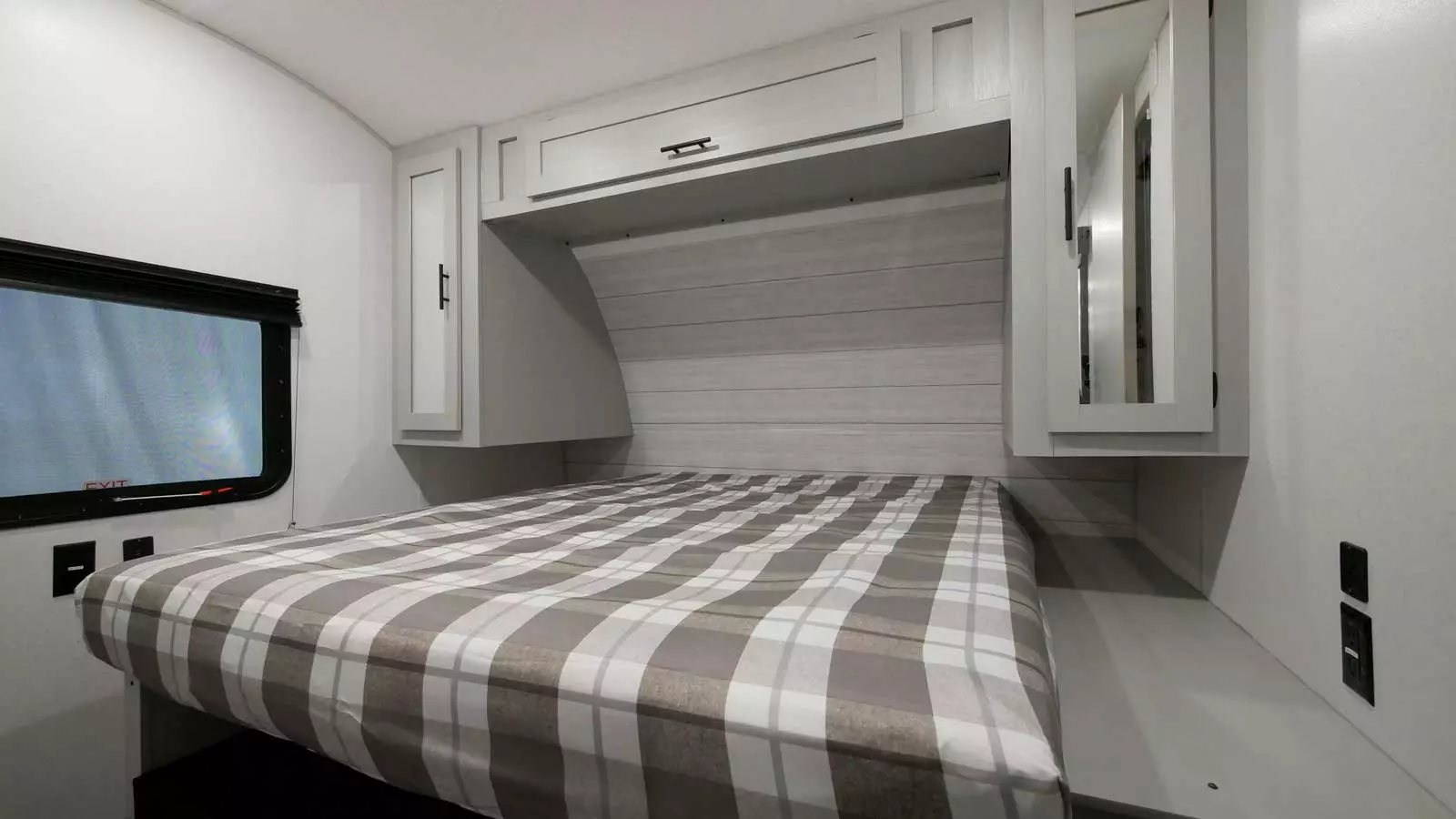

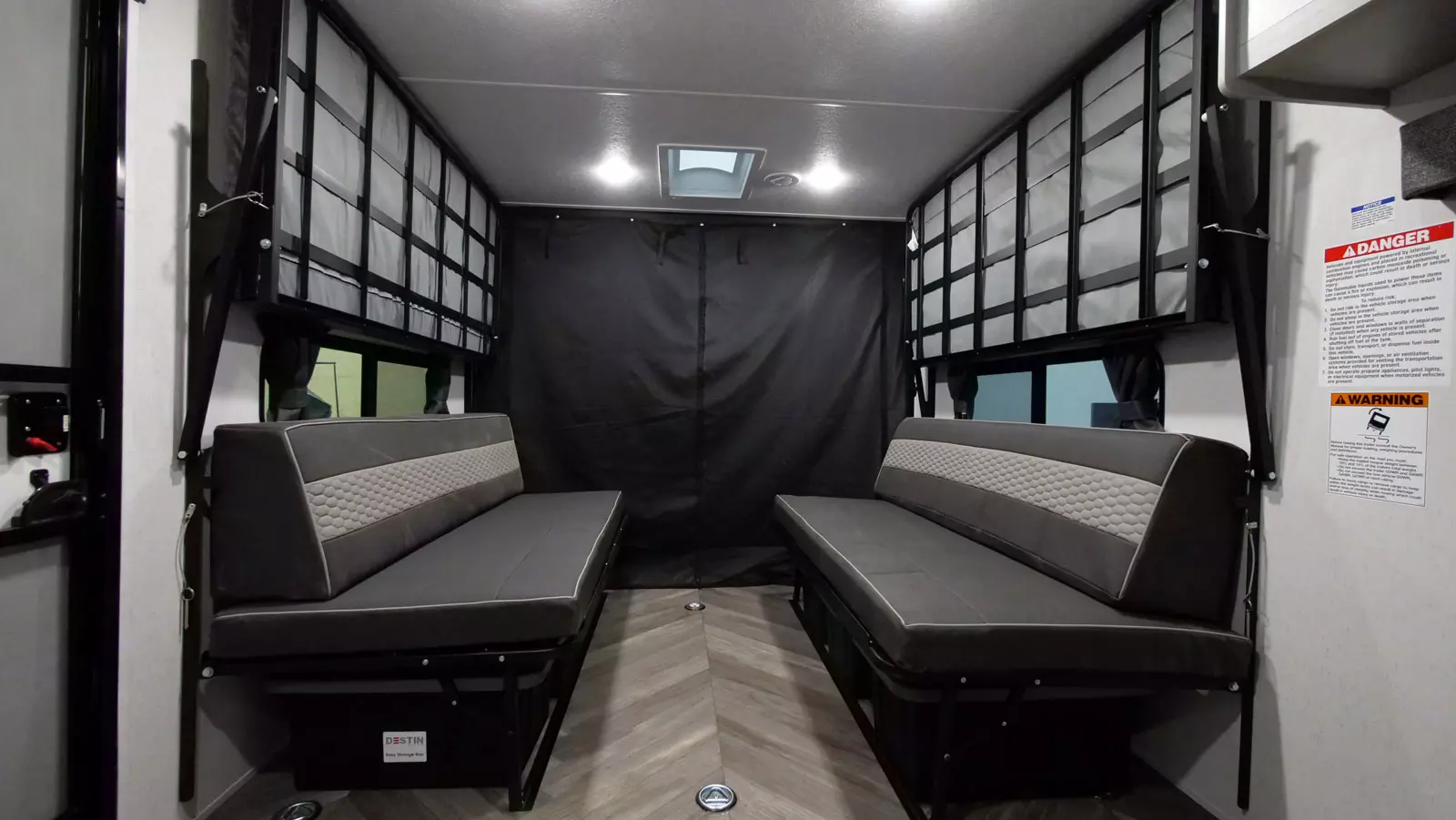

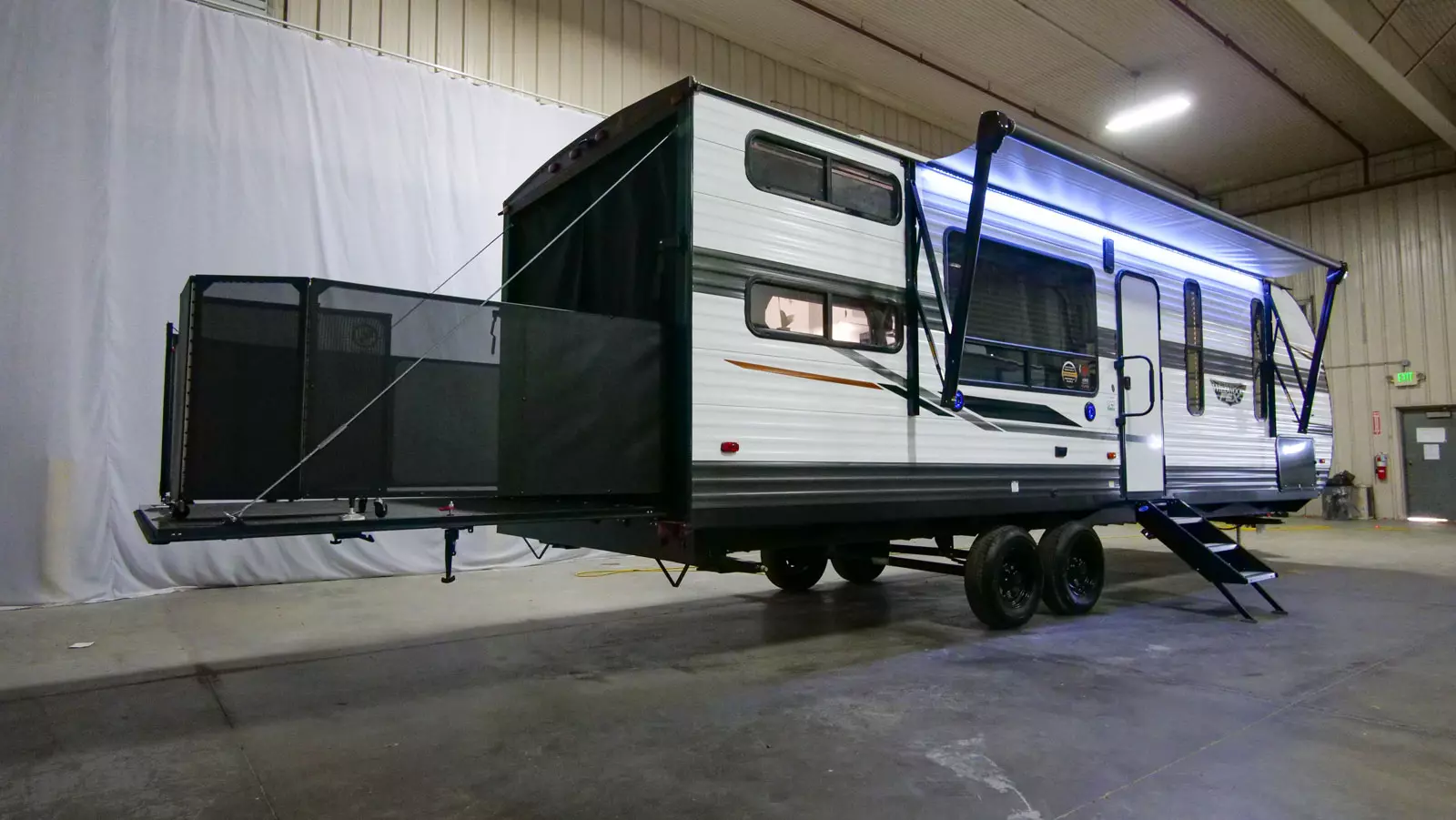

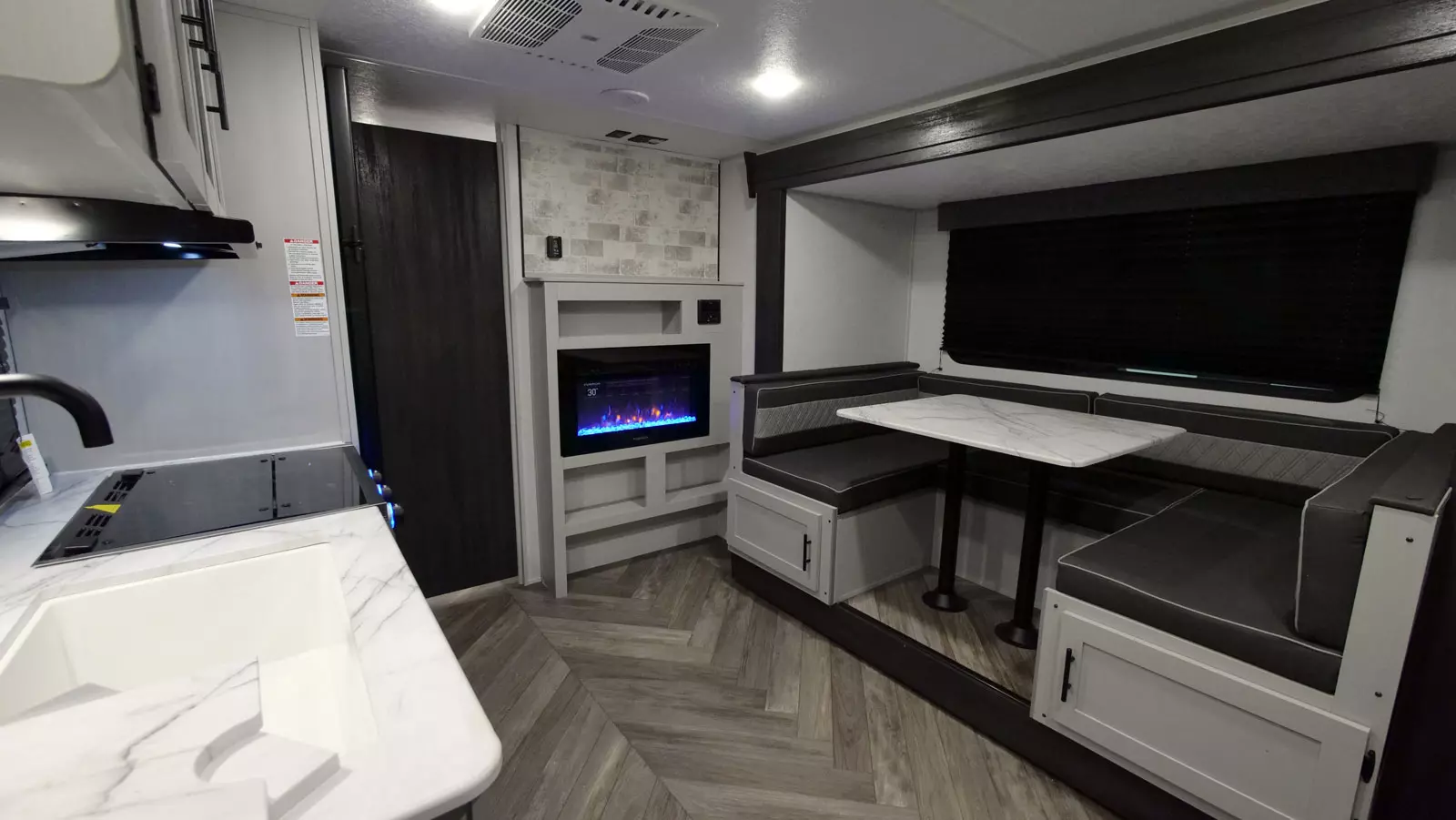

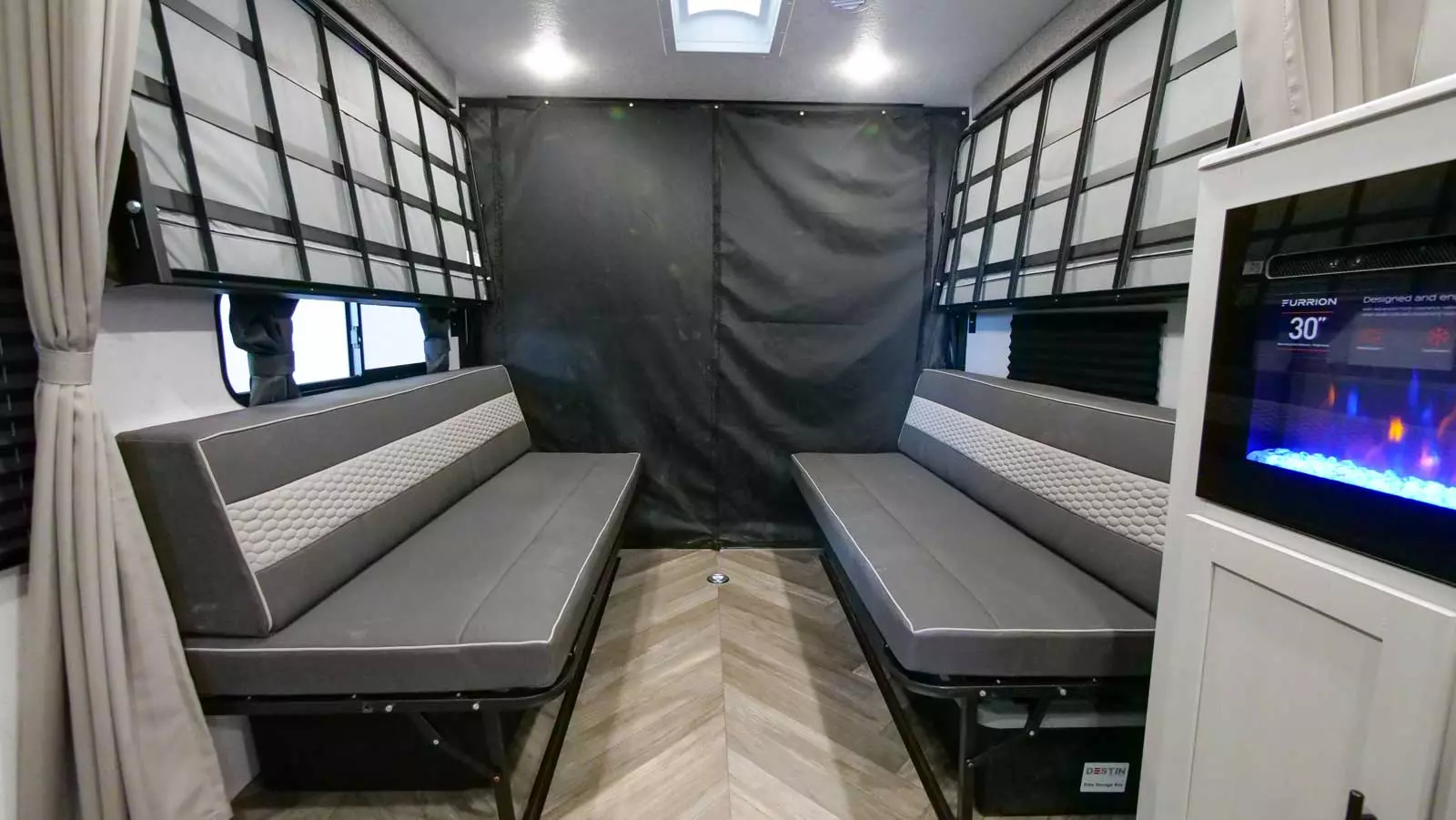

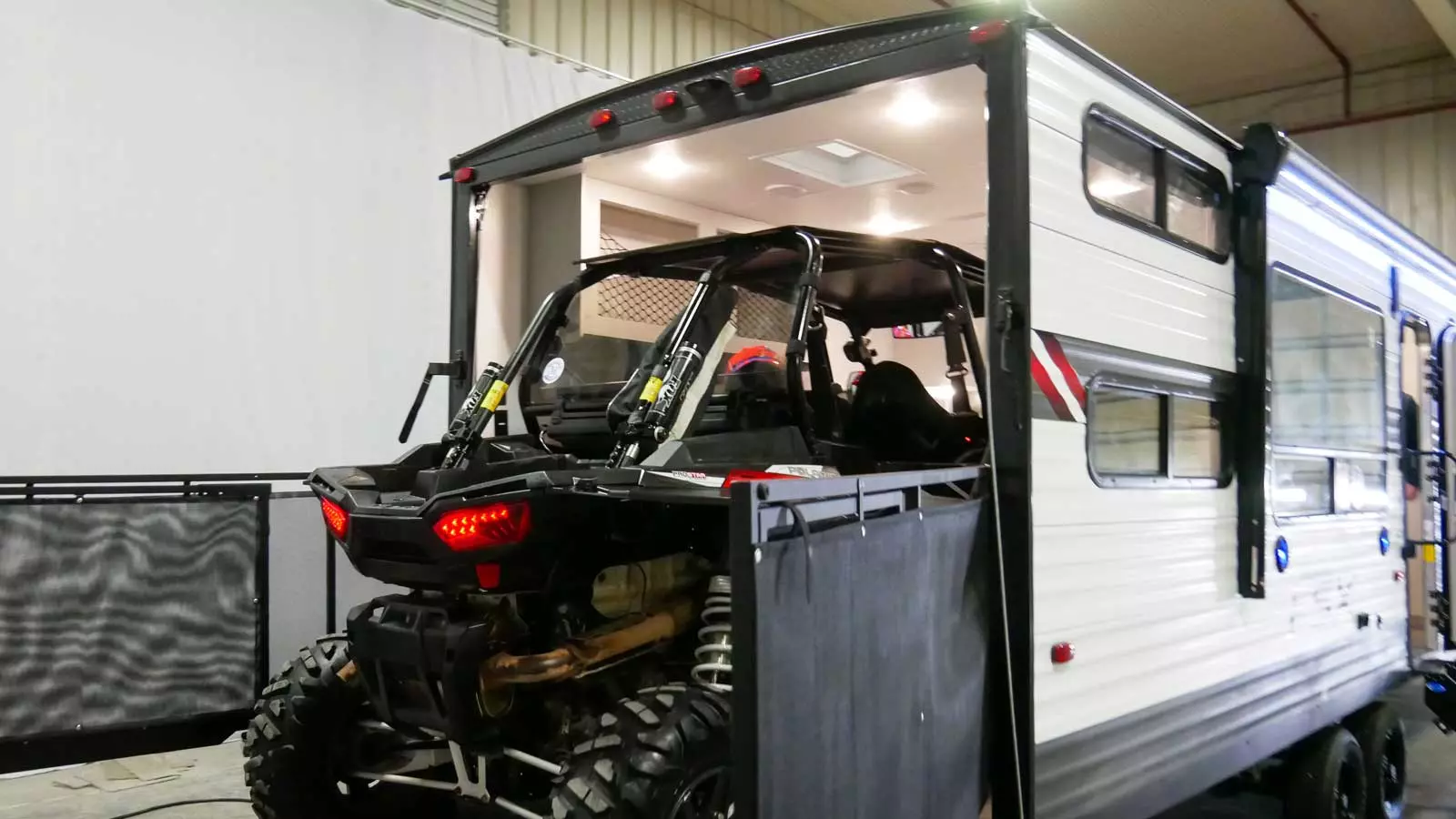

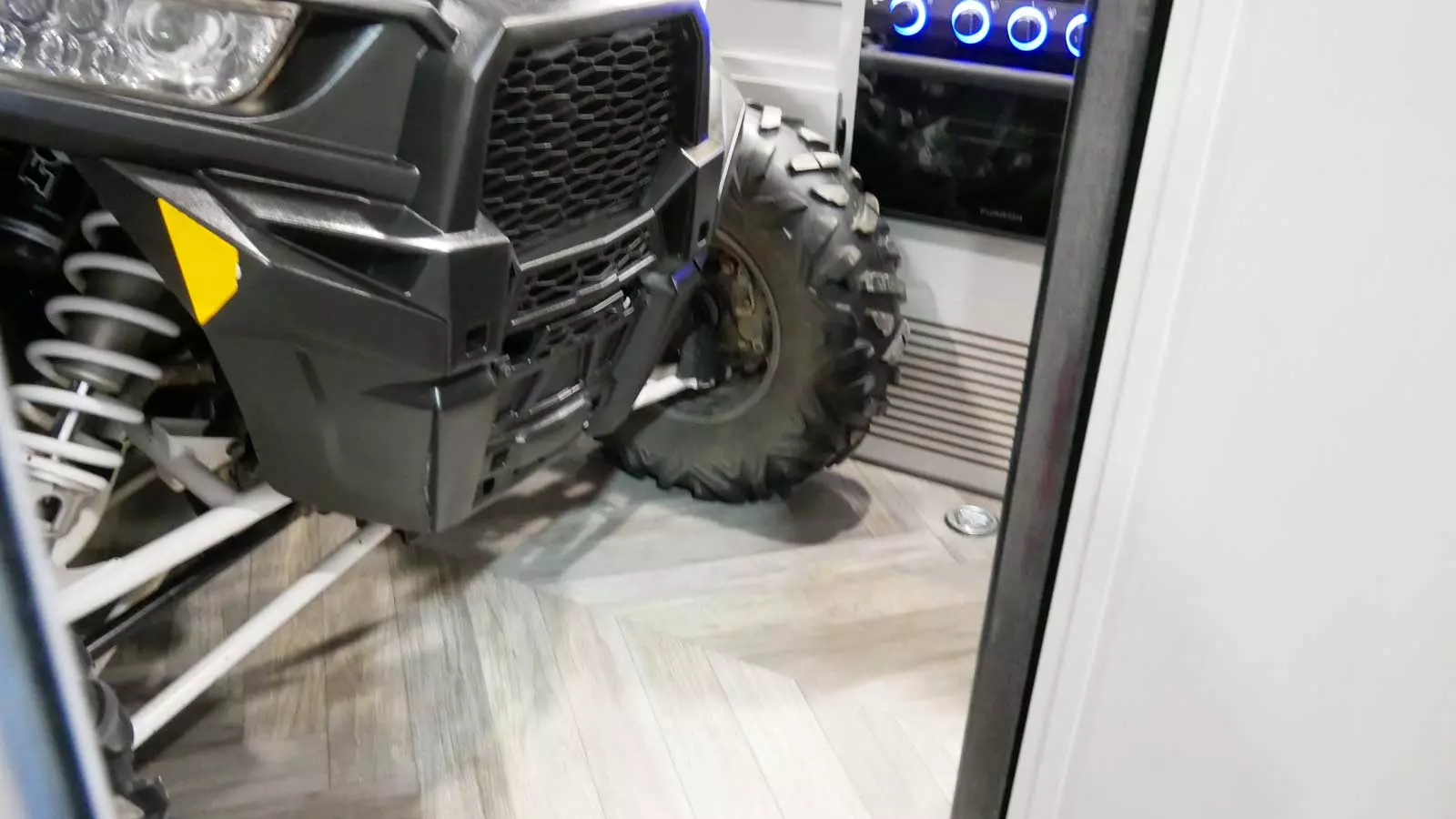

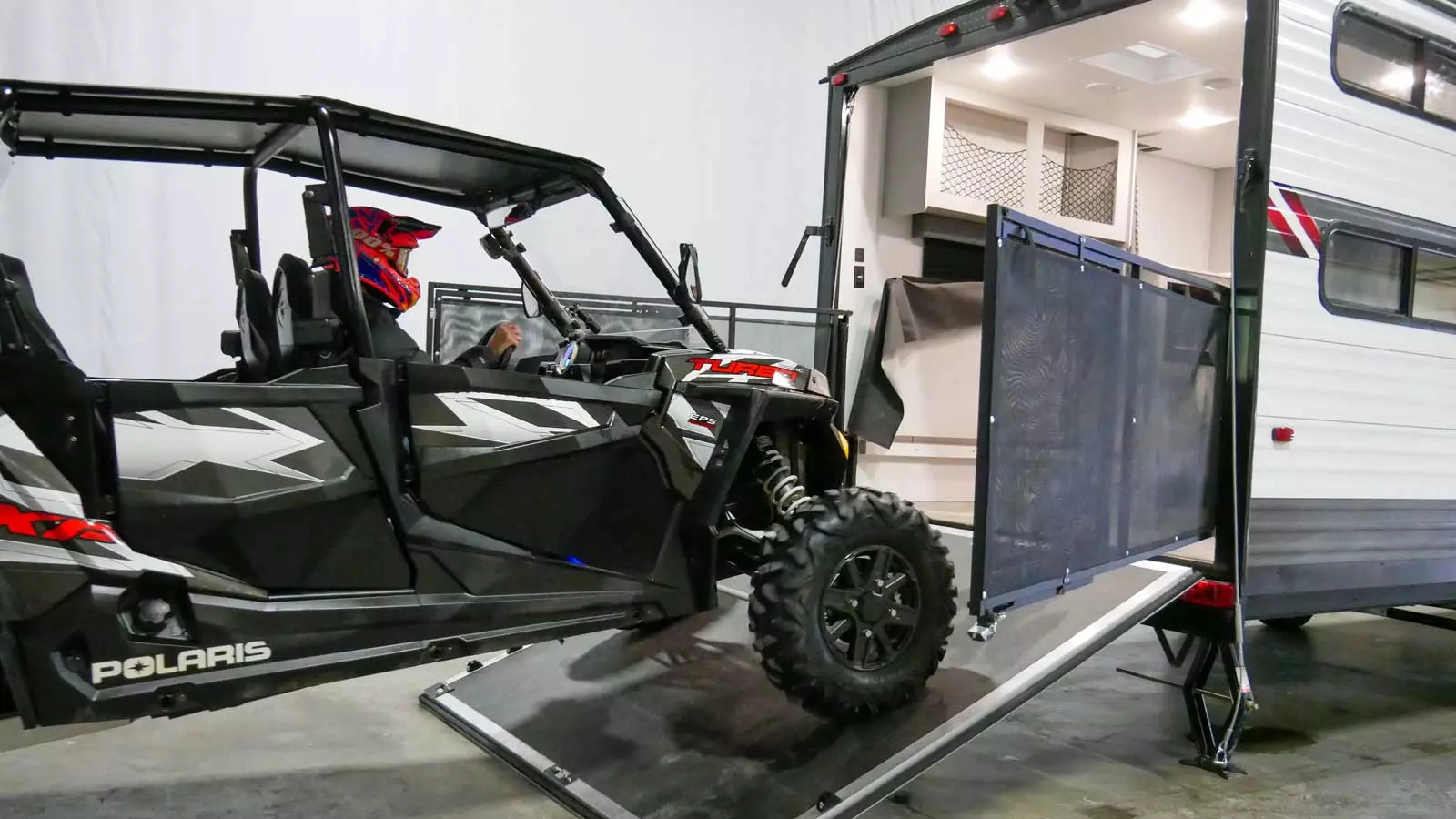

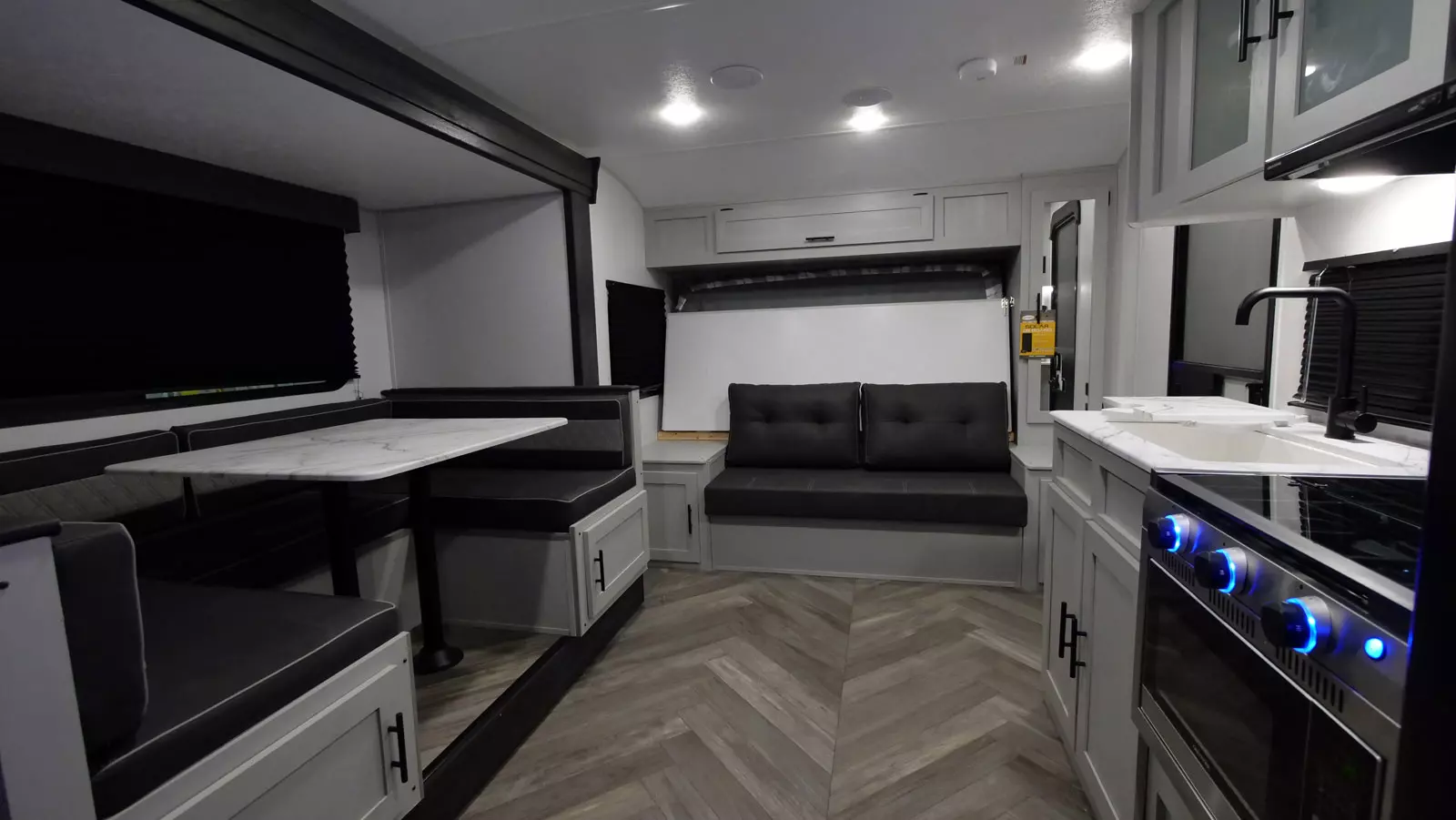

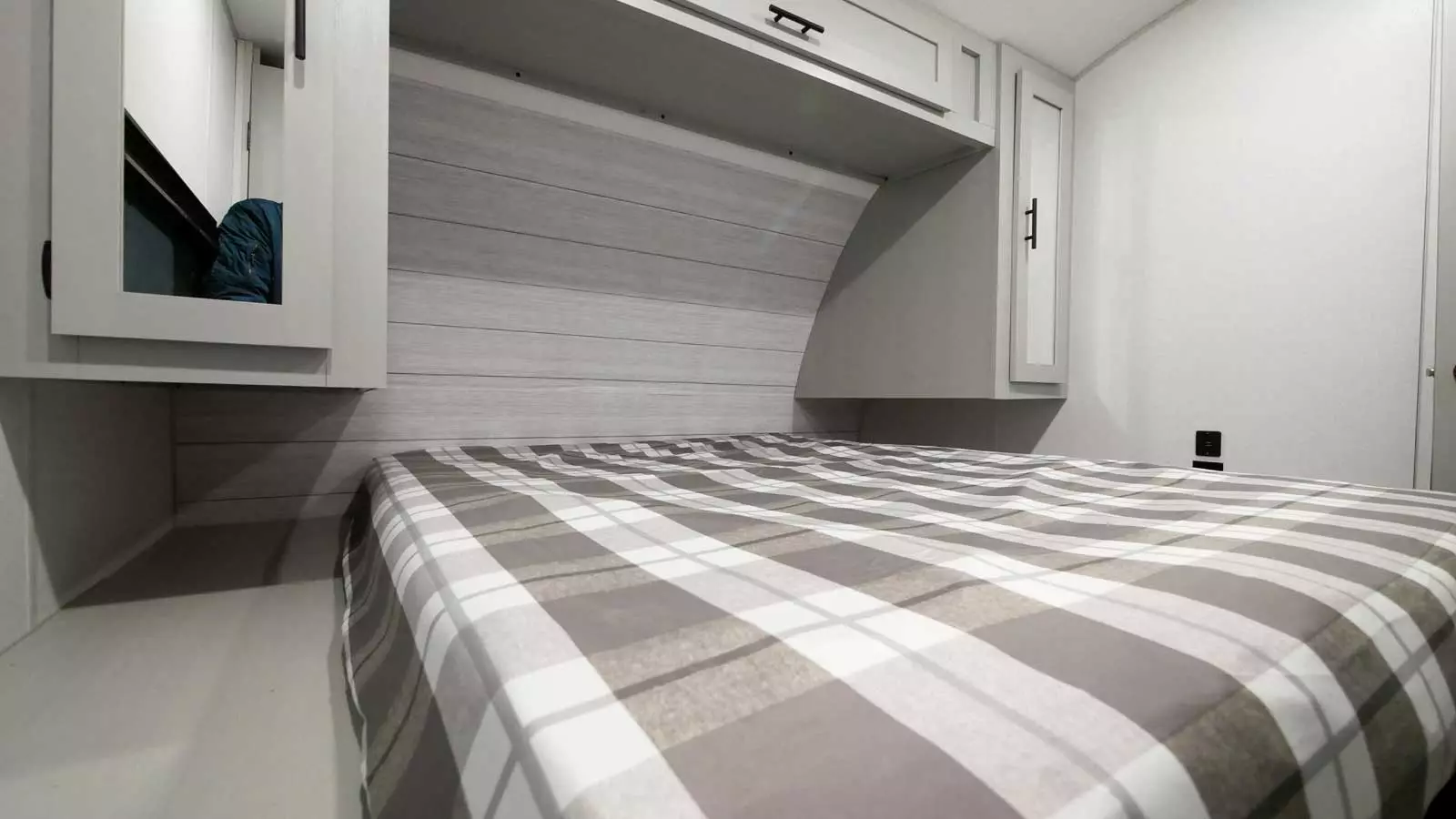

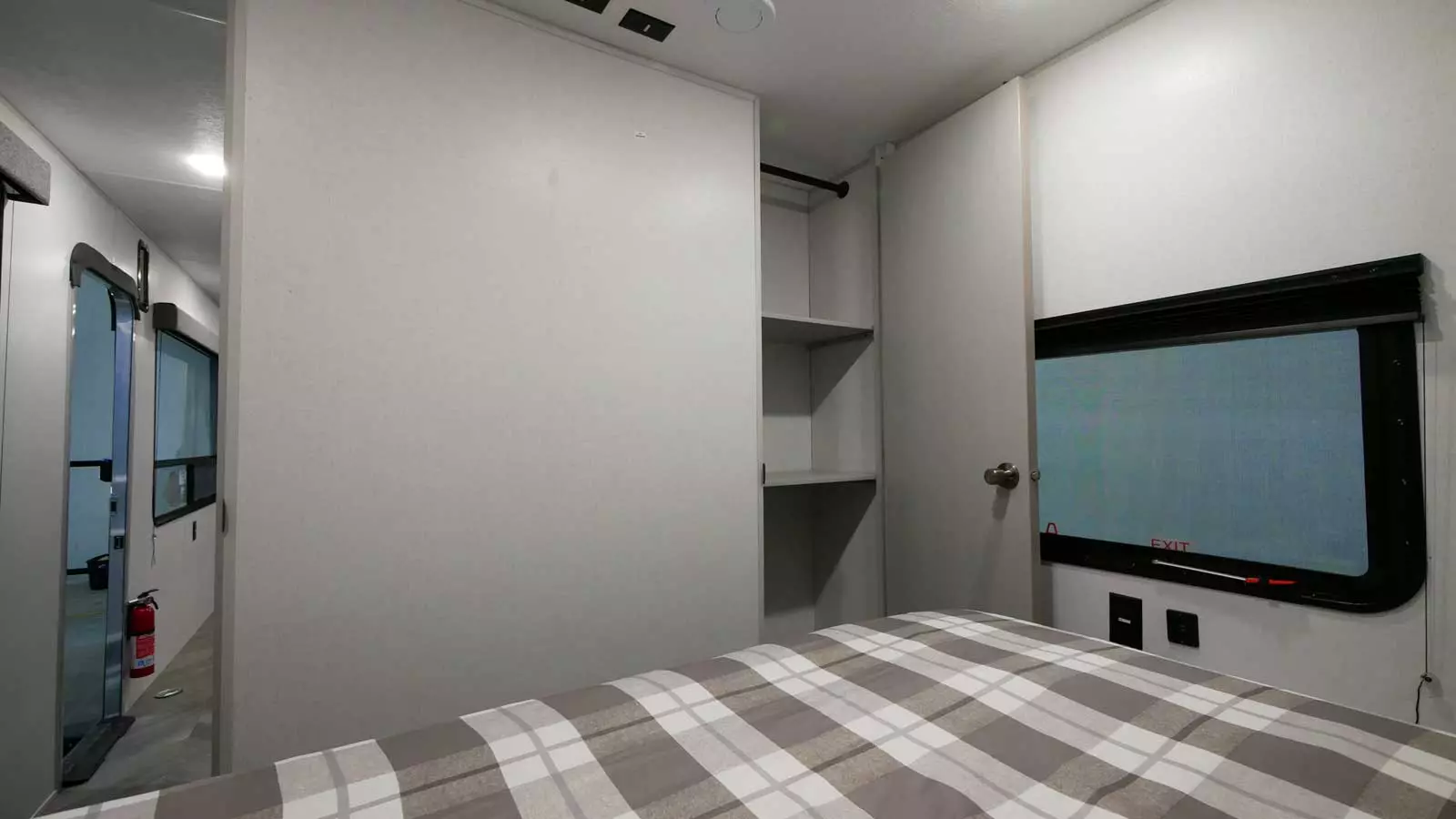

The 270RTK has zero slideouts and one entry. Exterior features removeable underbelly panels, optional solar extended 200W solar package, spray port, hot/cold exterior shower, spare tire winch system, storage, 18 foot awning, outside TV, aluminum stable step 3-step entry, LP quick connect, LP griddle, refrigerator, front 2X group 27 battery tray, and rear ramp door. Interior layout front to back: carpet-free RV; queen bed with overhead cabinet, wardrobes on each side, TV on wall at foot of bed, and walk-in closet; off-door side full bathroom with cabinet, and skylight in shower; door side entry; dual swinging 12V along inner wall with kitchen counter wrapping to off-door side with cooktop, sink, microwave and overhead cabinet, fireplace and TV; rear opposing sofa/sleepers with table. Garage dimensions: 84 inches garage height; 168 inches from ramp door to refrigerator, 72 inches from door side wall to kitchen counter; 1,500 lb. tie-downs; 3,000 lb 90 inch x 75 inch rear ramp door with 1,500 lb. patio capacity.


Hitch Weight:
1,051 lb.
5,877 lb.
3,974 lb.
Exterior Length:
32' 3"
Exterior Height:
11' 2"
Exterior Width:
Fresh Water:
54.00 gal.
Gray Water:
40.00 gal.
Black Water:
40.00 gal.
Awning Size:
GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.


360 Tour


Video Tour


Features & Options

Construction Advantages:
  • MAX 84" Interior Height for Toys of All Sizes
  • MAX 74" Wide in Tightest Areas for Toys of all Sizes
  • MAX Cargo Carry Capacity with 4,400 lb. Axles (26% larger than normal)
  • 96" Wide - Fits all the toys of a 102" WIDE BODY without added weight and size
  • 5/8” Tongue & Groove Plywood Floor Decking
  • SuperFlex One-Piece Roof
  • Powder Coated I-Beam Frame w/ Camber
  • Garage Chassis w/ Full Height Steel Floor Supports Every 24”
  • Nitrogen Filled Tires
  • 2” Wall Construction, 16” (or less) on Center
  • R-7 Fiberglass Insulation Throughout
  • 13 Ply Cross Micro-Laminated Header Beam Above Slide-Out
  • Triple Seal Slide-Out System
  • Aerodynamic front radius profile

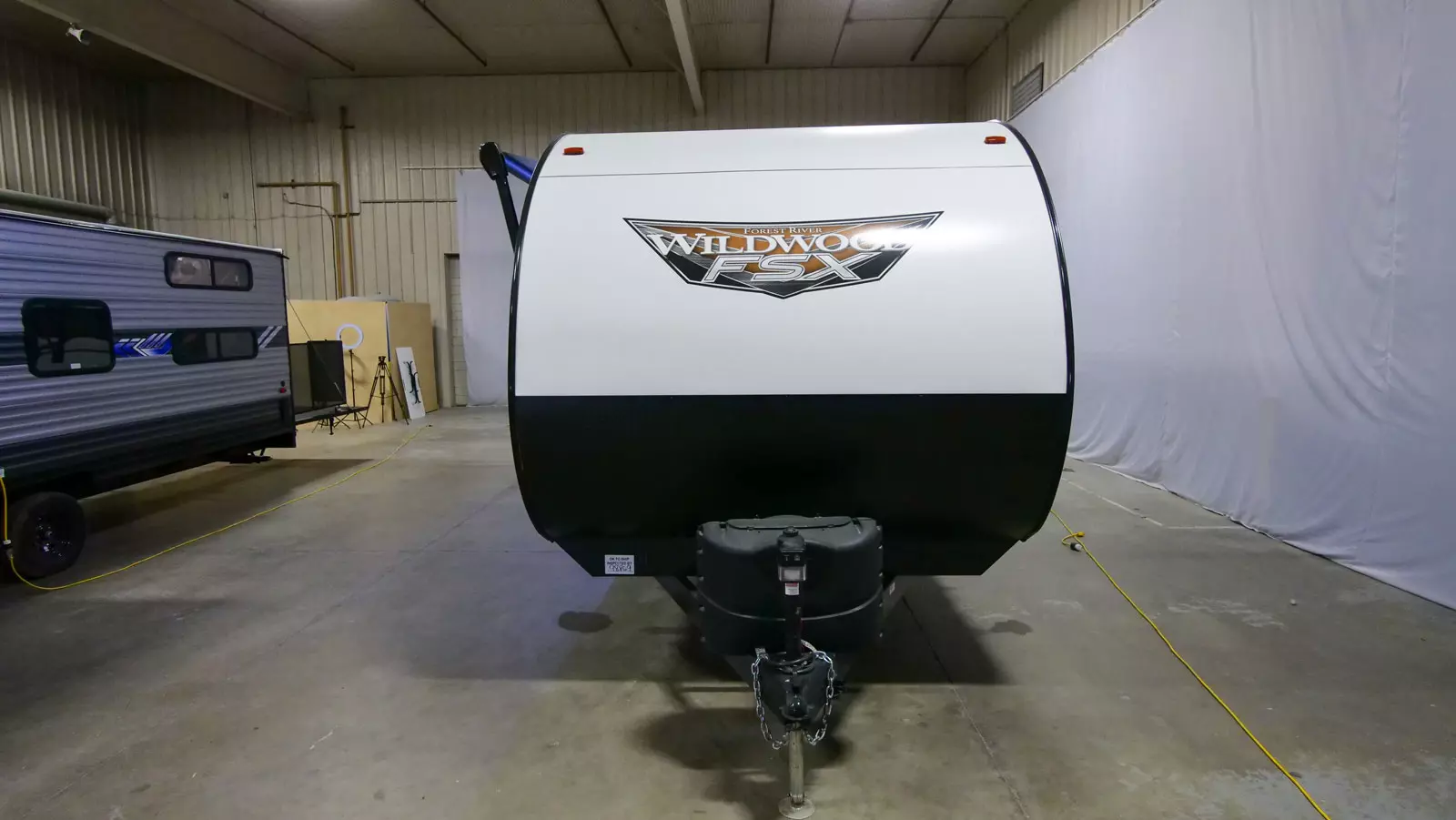

  • .040 Smooth Aluminum Front Cap
  • TUFFCOAT Scratch Resistant Exterior Paint
  • Diamond Plate Rock Guard on Front
Standard Features:
  • MAX Extended Power Package: Roof Mounted 190W Solar Panel, 30 Amp Controller, and Single Battery
  • MAX 15,000 BTU A/C IPO Standard 13,500 BTU

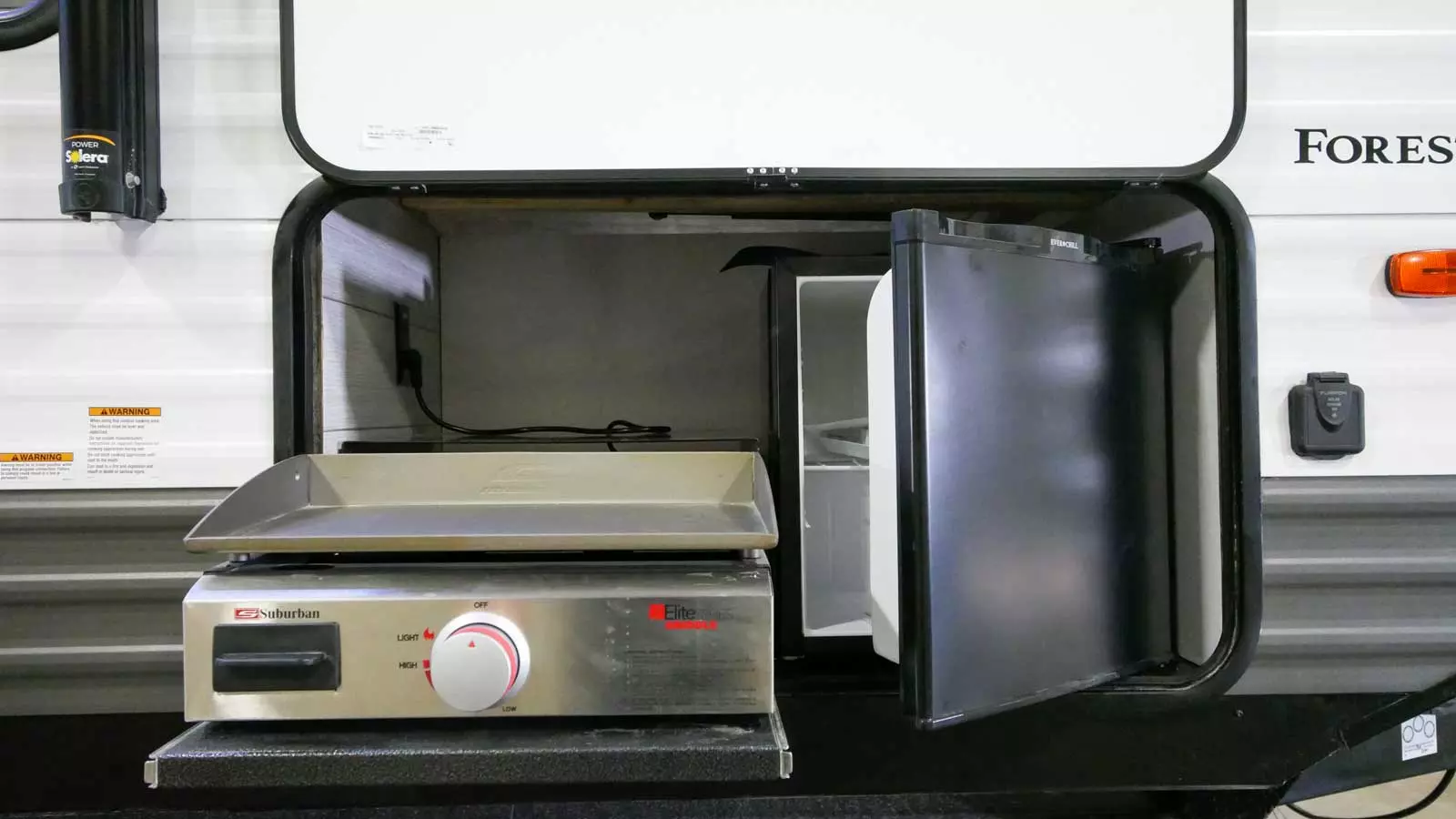

  • MAX Outside Kitchen w/ LP Griddle + Quick Connect, 1.6 CuFt Refrigerator
  • MAX Ramp Loading Convenience: Easy open patio kit for full ramp usage when loading toys
  • Dual Group 27 Battery Trays for Extended Camping
  • Exterior Speakers w/Blue LED Lights
  • Herringbone Pattern Luxury Extra Thick Vinyl Flooring
  • Shiplap Wall Board Above Bed
  • Largest in Class Opening Panoramic Windows

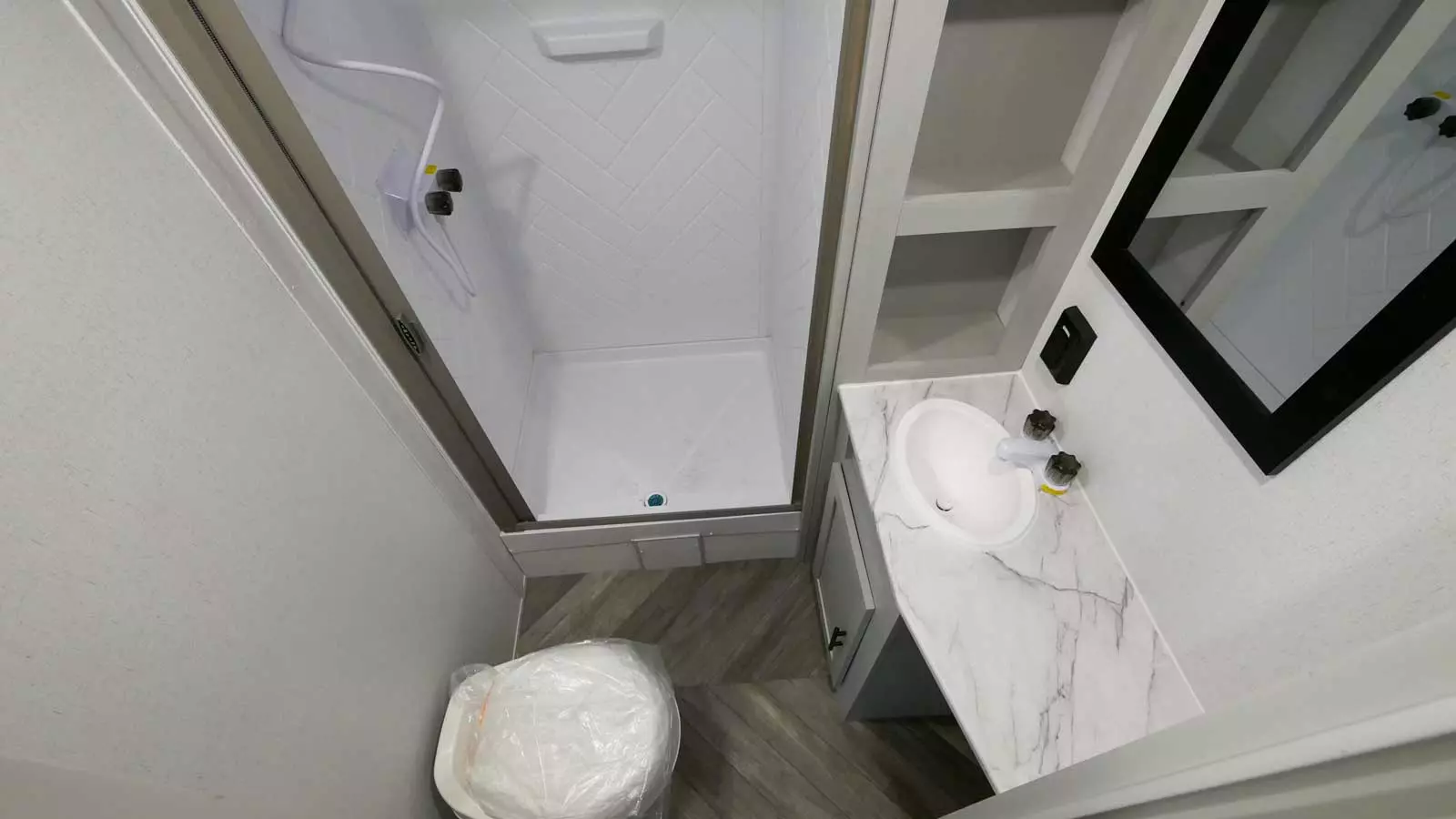

  • Large 36x24 Shower Pan
  • 44/30/30 F/G/B Holding Tanks
  • Fitted Sheet in Bedroom w/ Evergreen Mattress
  • 26" Entrance Doors

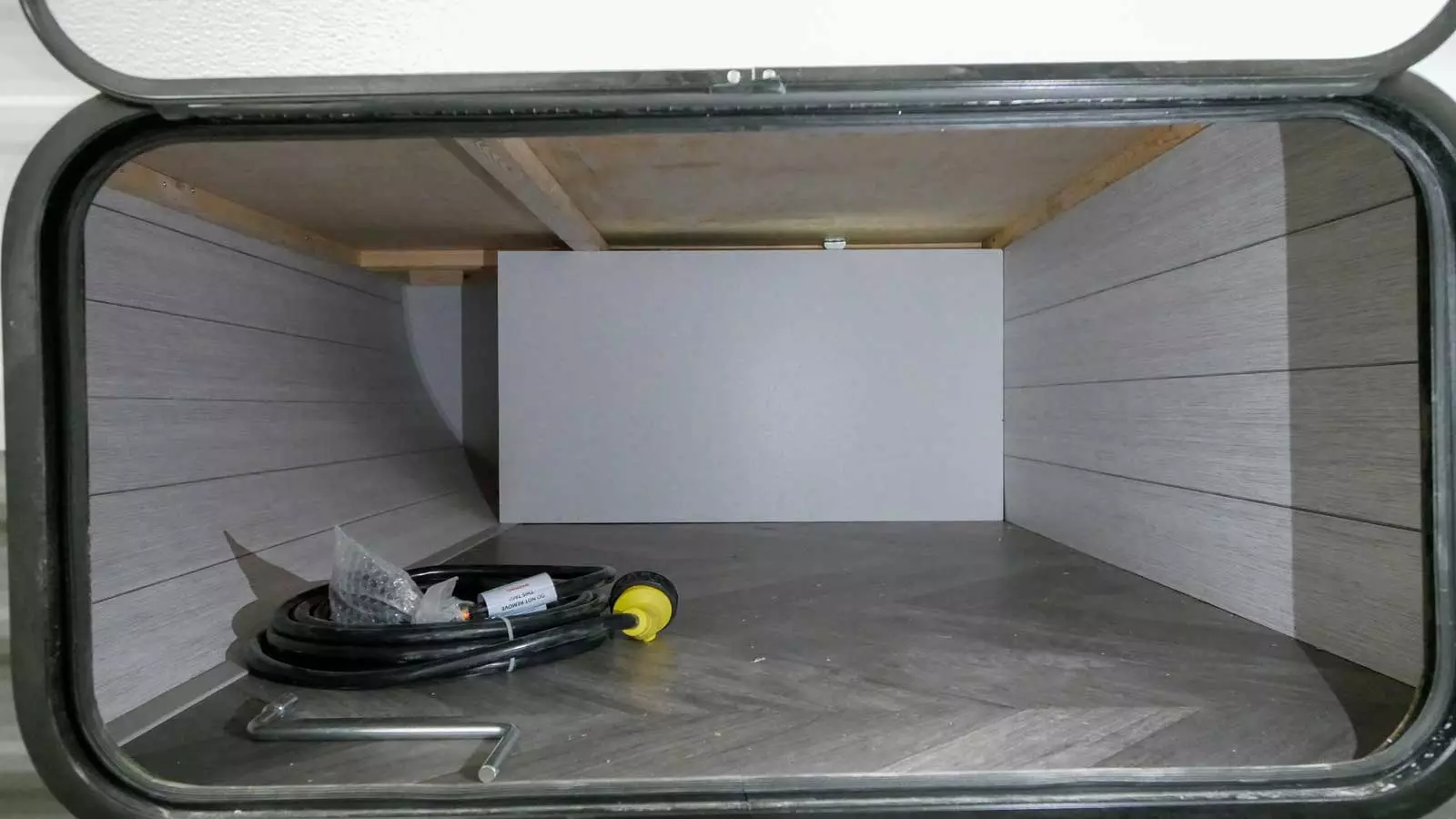

  • Large 32x16 Baggage Doors
  • 7-Way Plug and Chain Holder

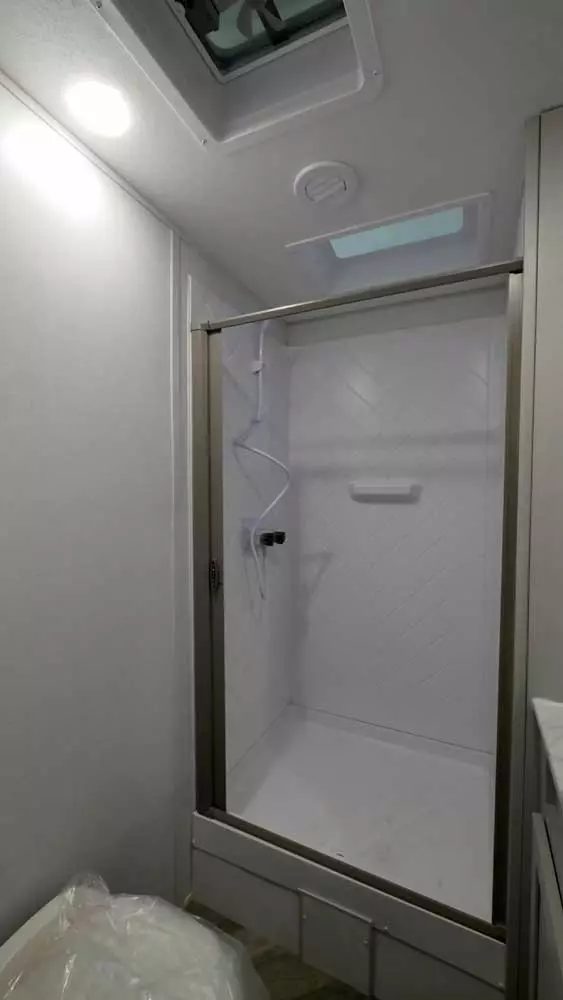

  • Shower Surround With Skylight
  • 4 - 6 Tablet Compatible USB Ports in Bedroom and Bunks
  • Large 32x16 Baggage Doors with Magnetic Catch for Exterior Storage
  • Residential High Rise Kitchen Faucet
  • Backup Camera Ready
  • 30 Amp Service with 15K BTU AC
  • 3 - TV Mounting Areas
  • Dedicated Cable TV Hookup on Exterior of Coach
  • Microwave
  • 6 Gal. Gas DSI Water Heater
  • 3 Burner Cook Top with Glass Cover
  • Mirrored Vanity
  • Omni Directional Digital TV Antenna
  • Water Heater By-Pass
  • 20K BTU Furnace Ducted Through Walls, No Floor Ducts
  • Solar Power Prep Kit on Camp Side
Best-In-Class Package:
  • AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements

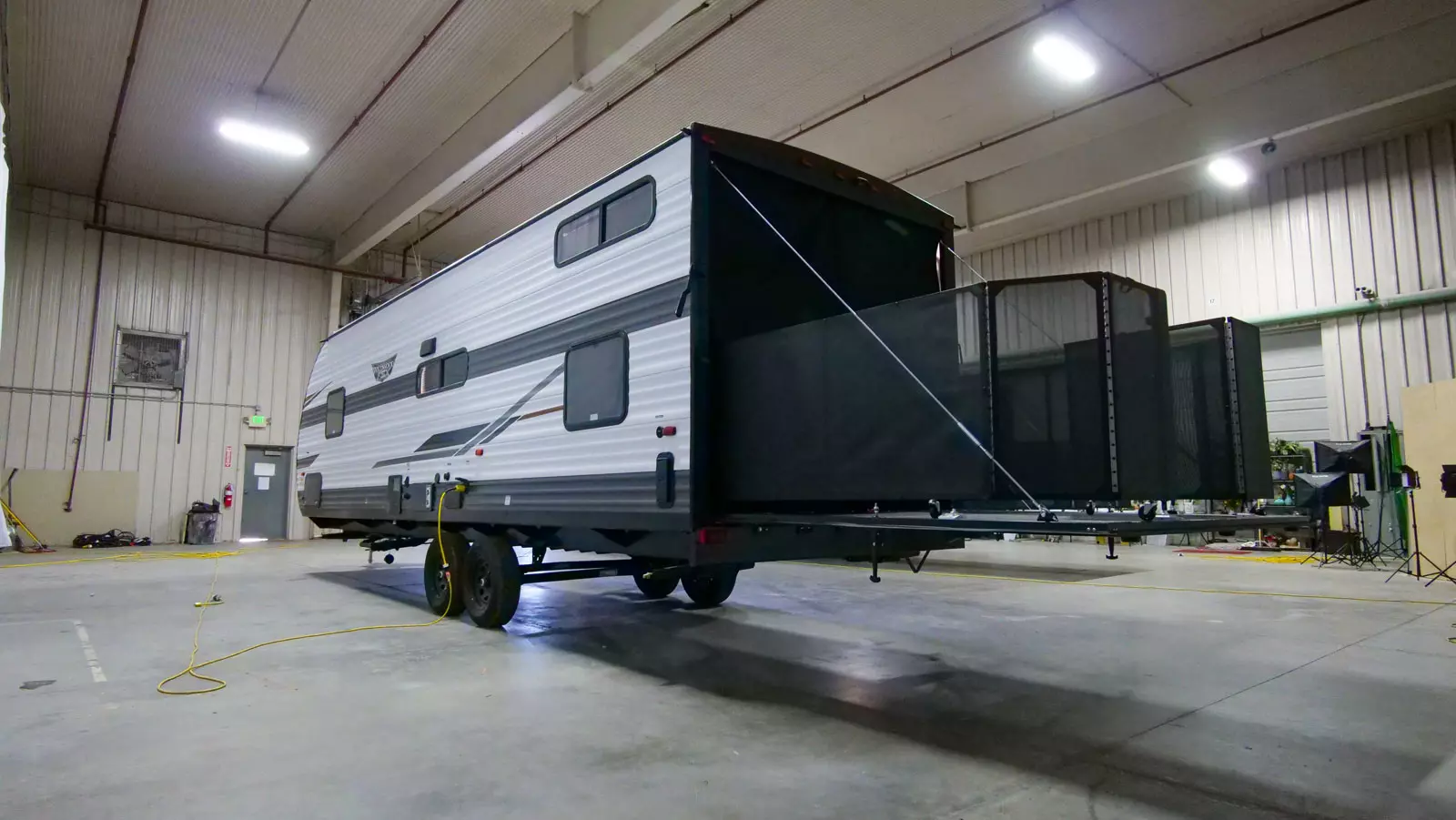

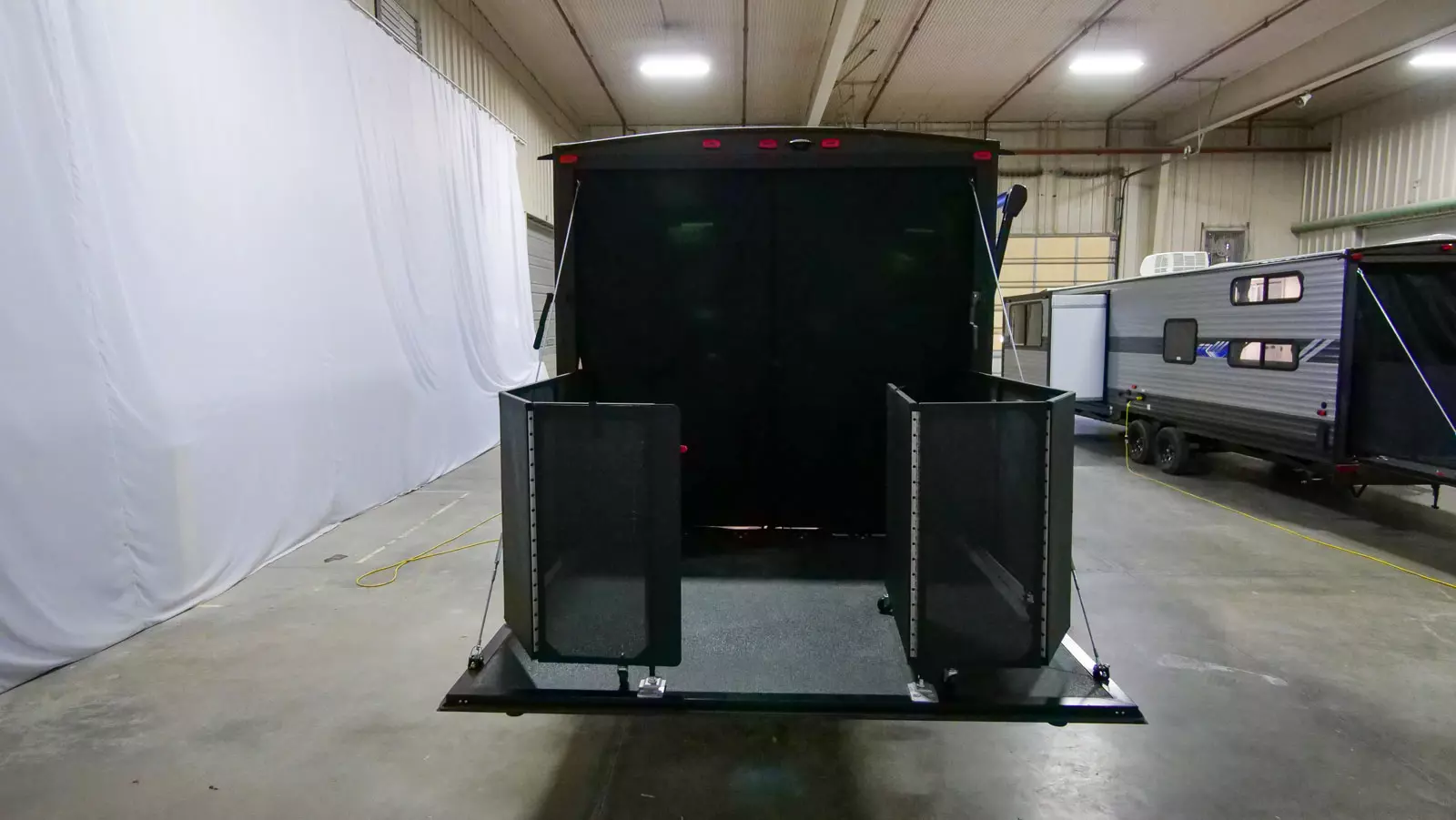

  • Patio Kit for Ramp Door with 1,500 lb. Capacity
  • Magnetic Screen Door for Patio Entrance
  • Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
  • Rear Table Converts to Super King Bed 67 X 93
  • Seamless Countertops (No T-Mold)
  • Outside Hot/Cold Shower
  • Green Package - Furrion Solar Prep & LED Mushroom Lights

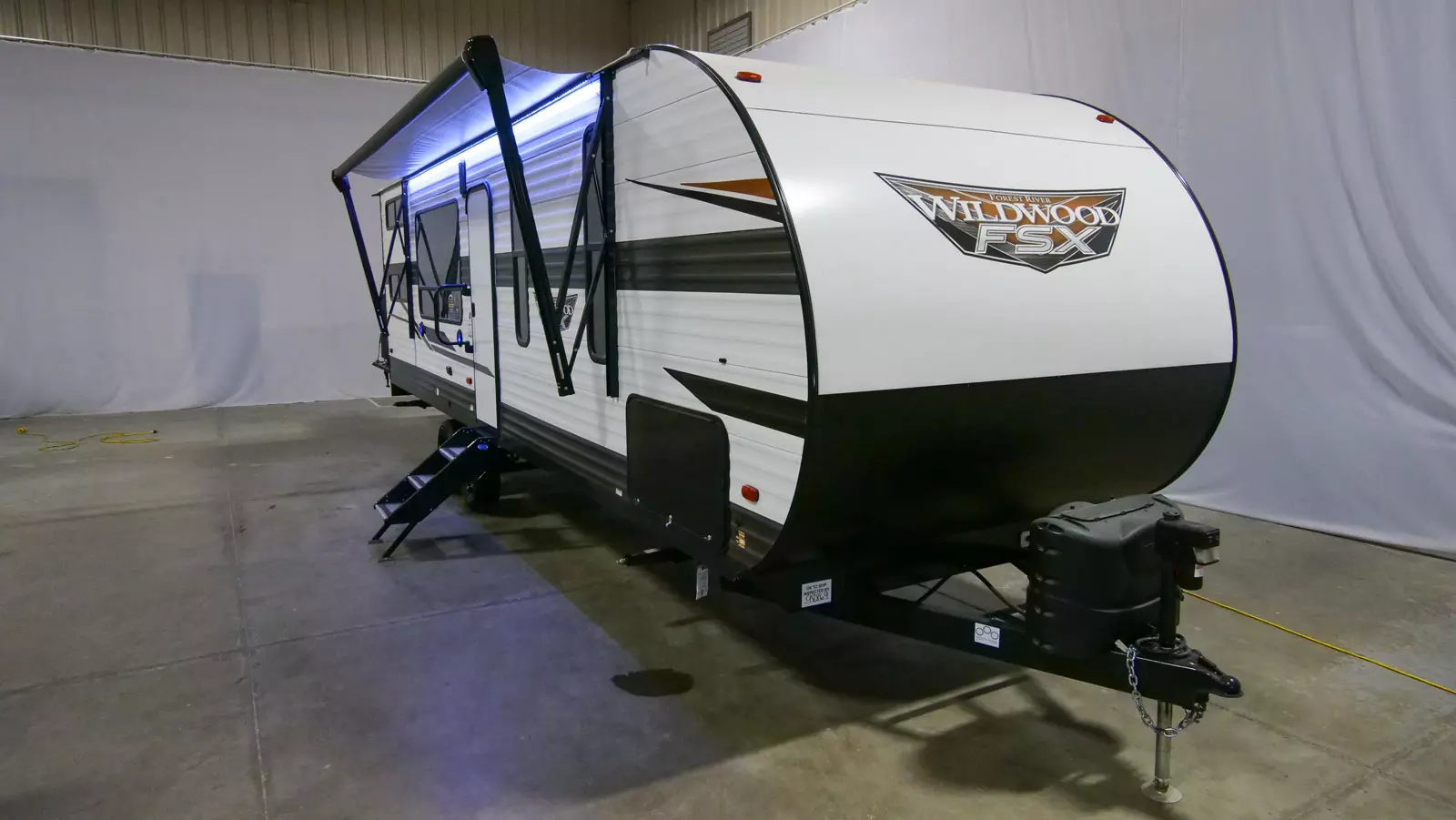

  • Power Awning with Adjustable Legs and LED Light Strip
  • Black Tank Flush
  • Upgraded Appliance Package
  • EZ Entrance - Friction Hinge Entrance Door, Double Step +
  • XL Folding Grab Assist Handle
  • SOLERA Slide Topper Prep

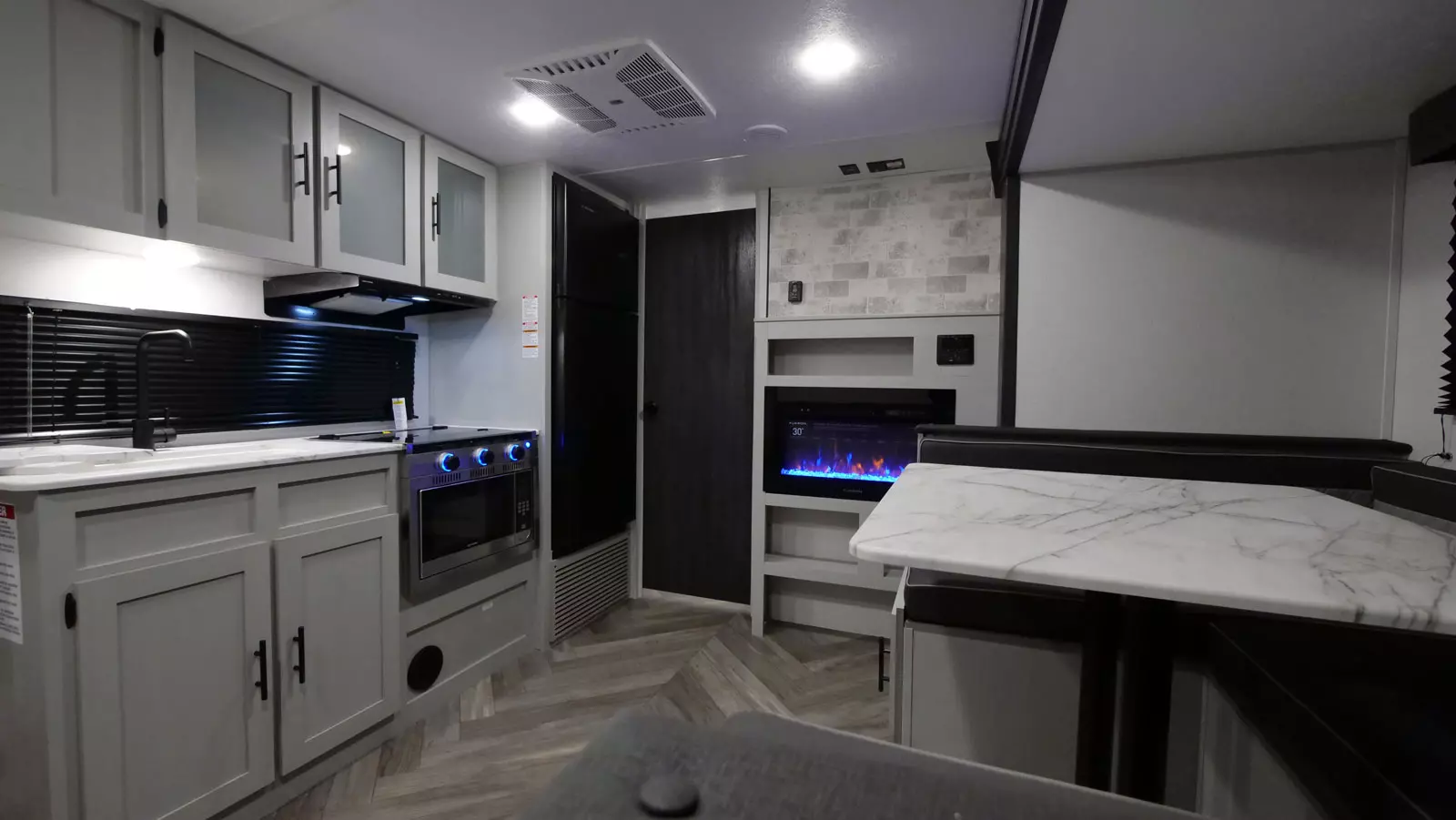

  • 30” Built-In Electric Fireplace and 5,000 BTU Heater
  • 5,000 lb. Stabilizer Jacks

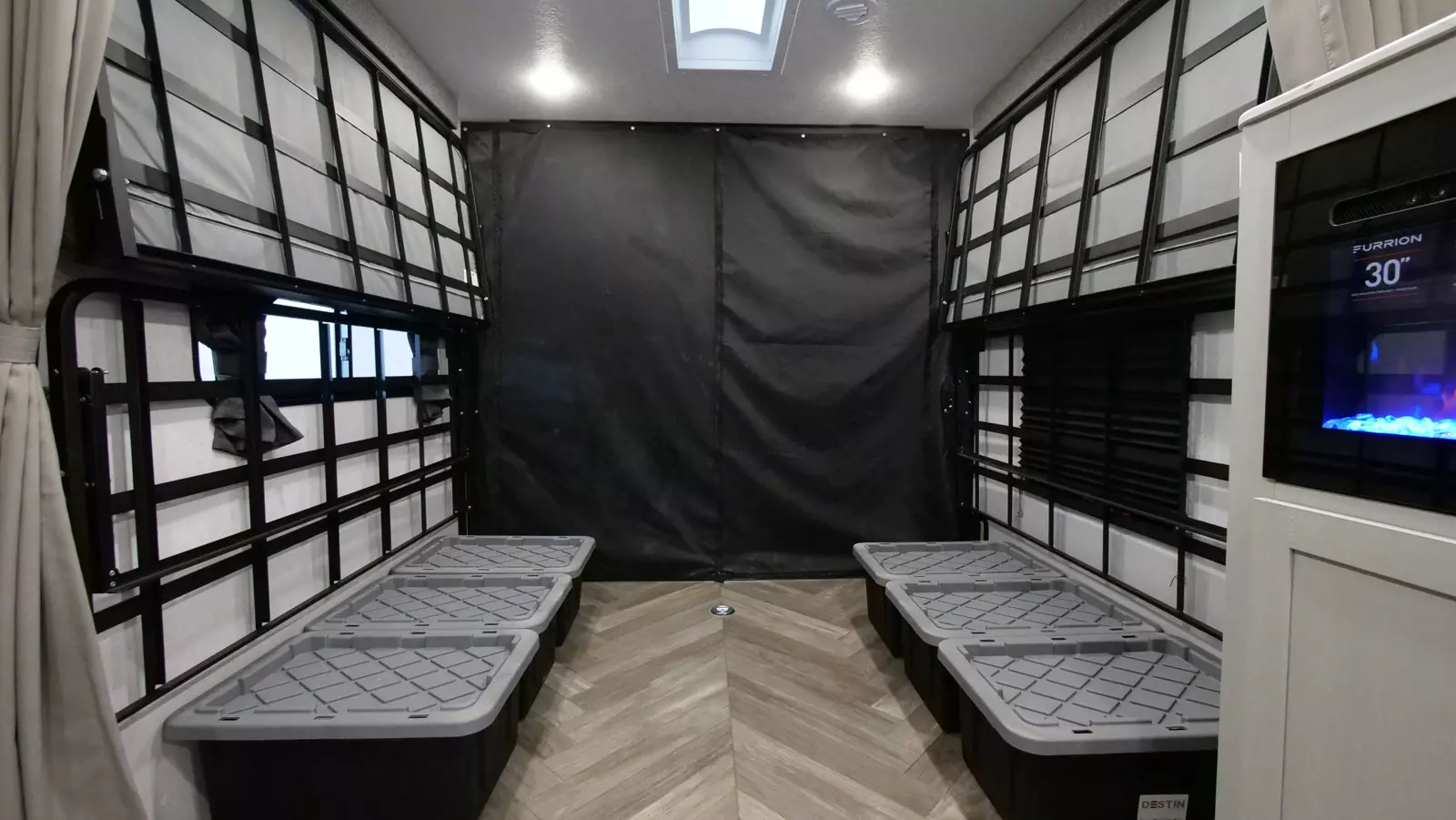

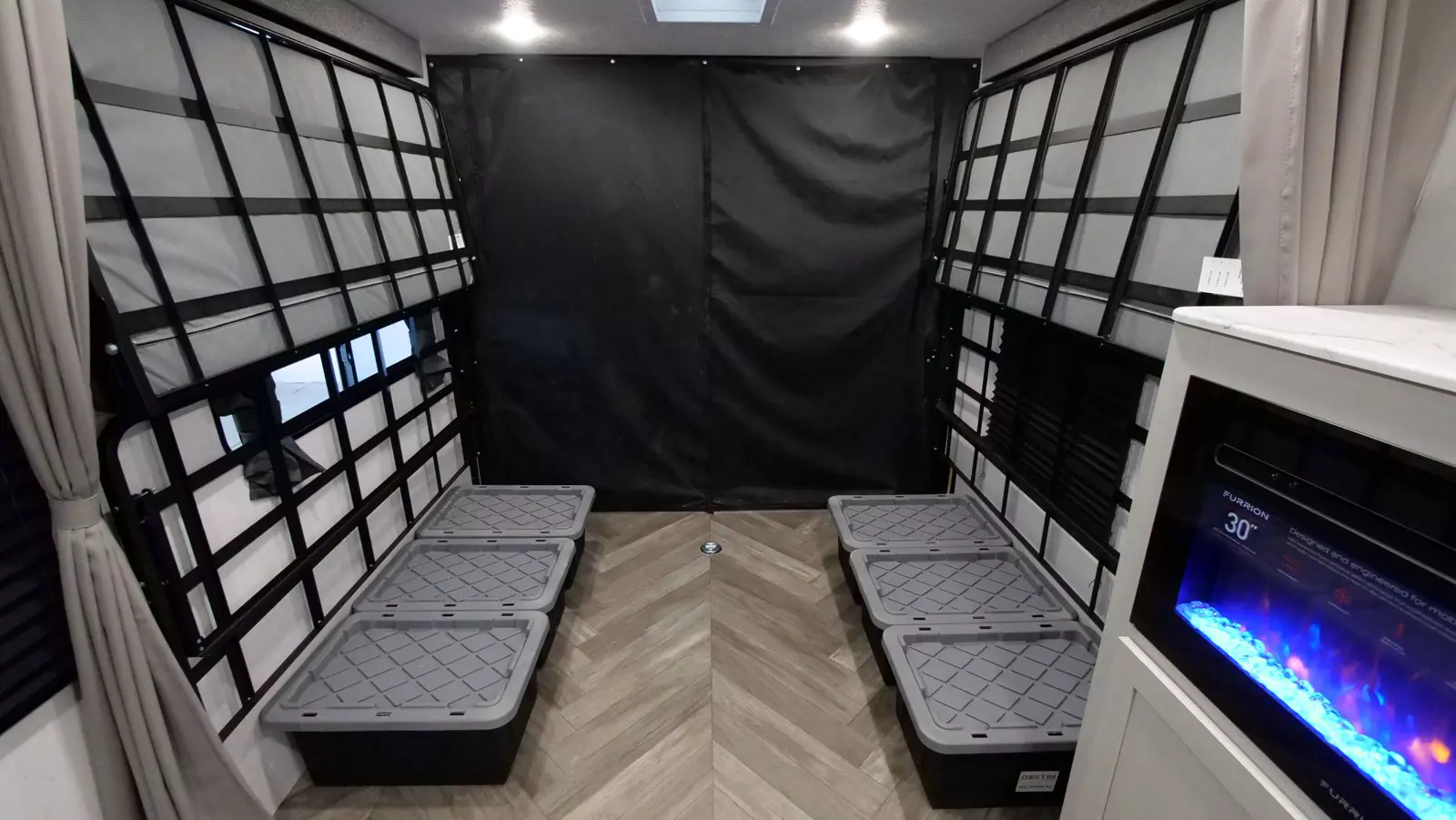

  • 6 X Stow N Go Storage Containers (14 CuFt) Under Sofas (3 per sofa, may vary by model)
  • Morryde Stable Step (Triple Step)
  • WiFi Prep
  • Platinum Package - Fiberglass Exterior with Chrome Wheel Caps and Lug Nuts

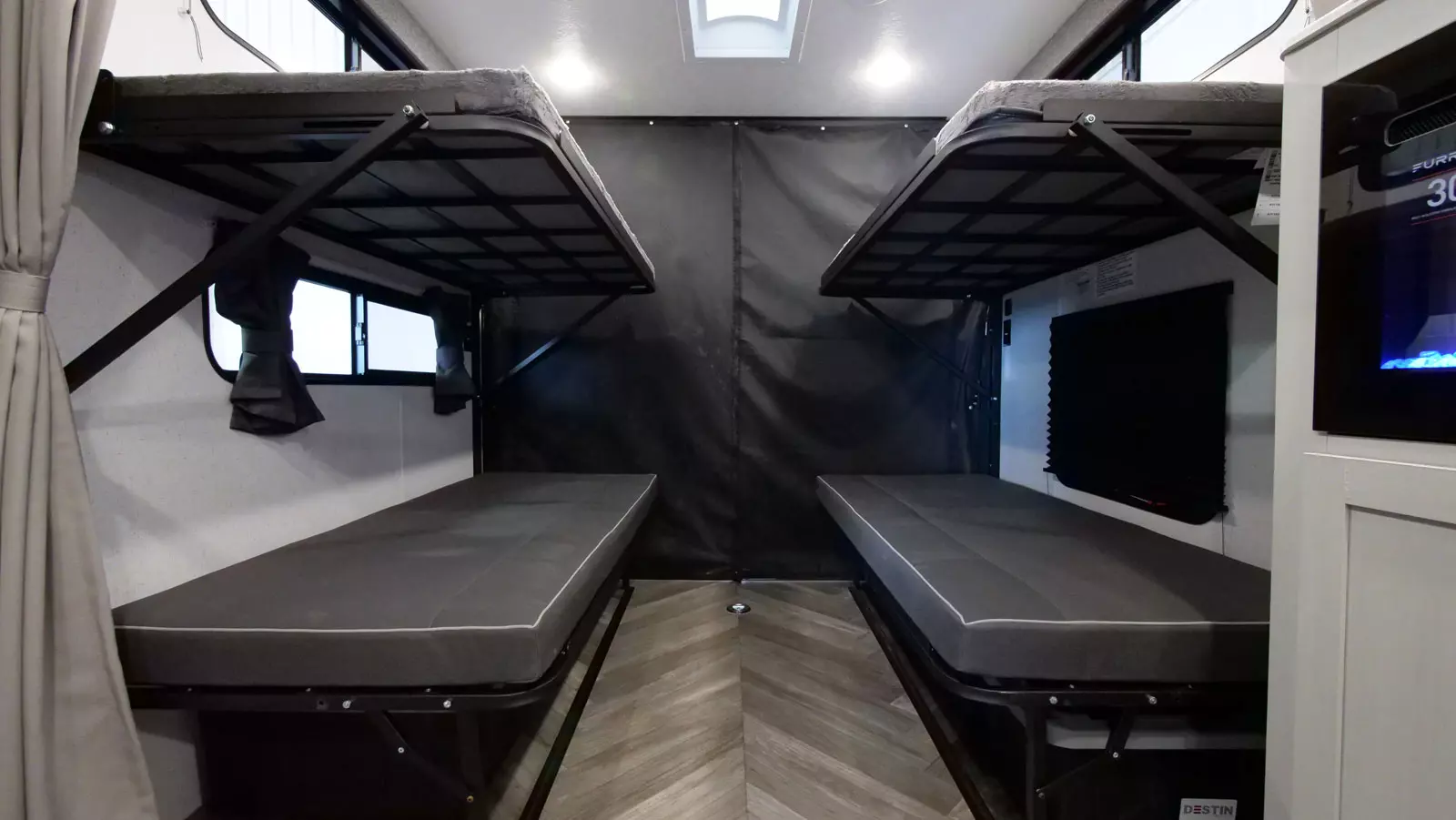

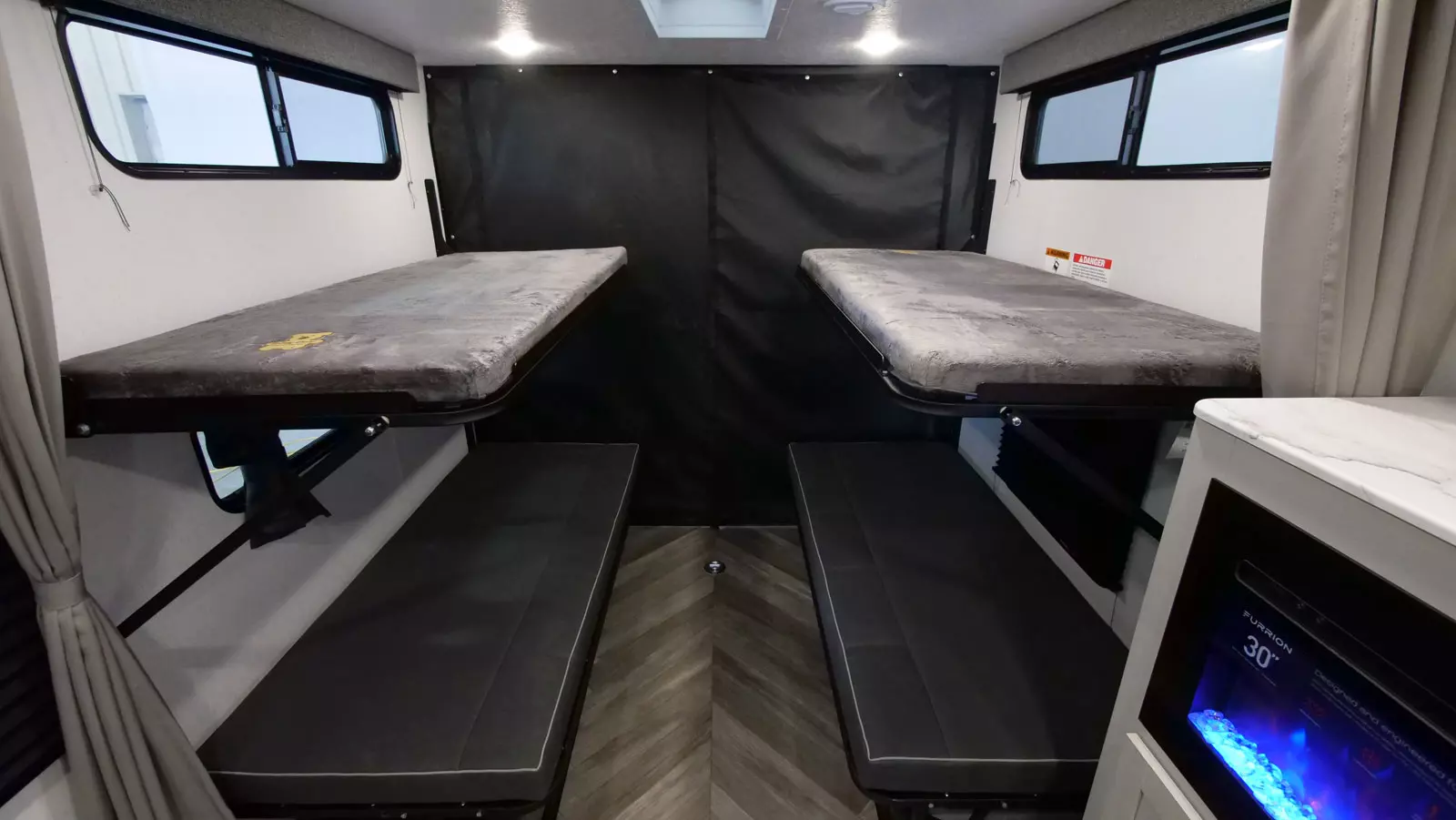

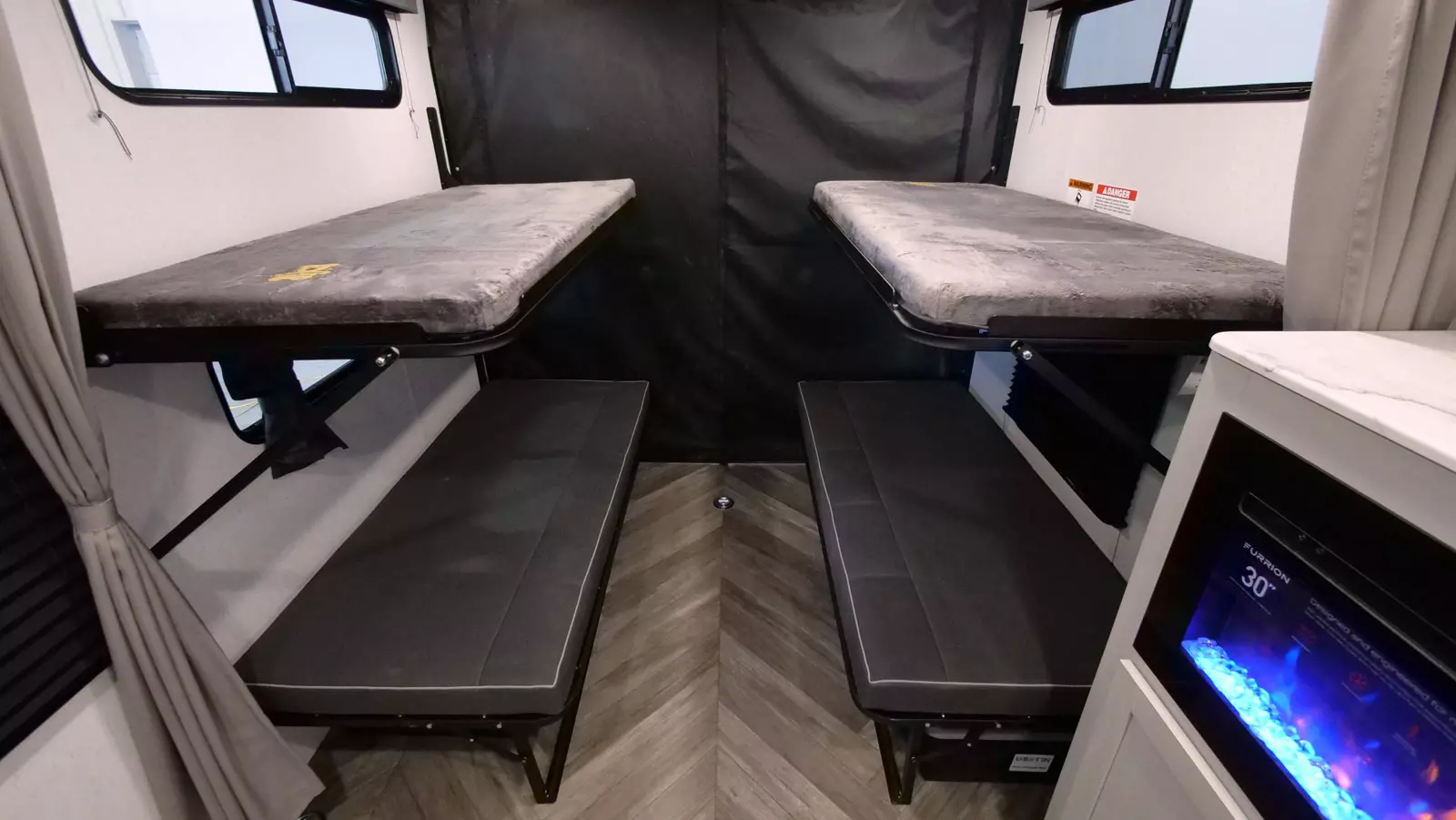

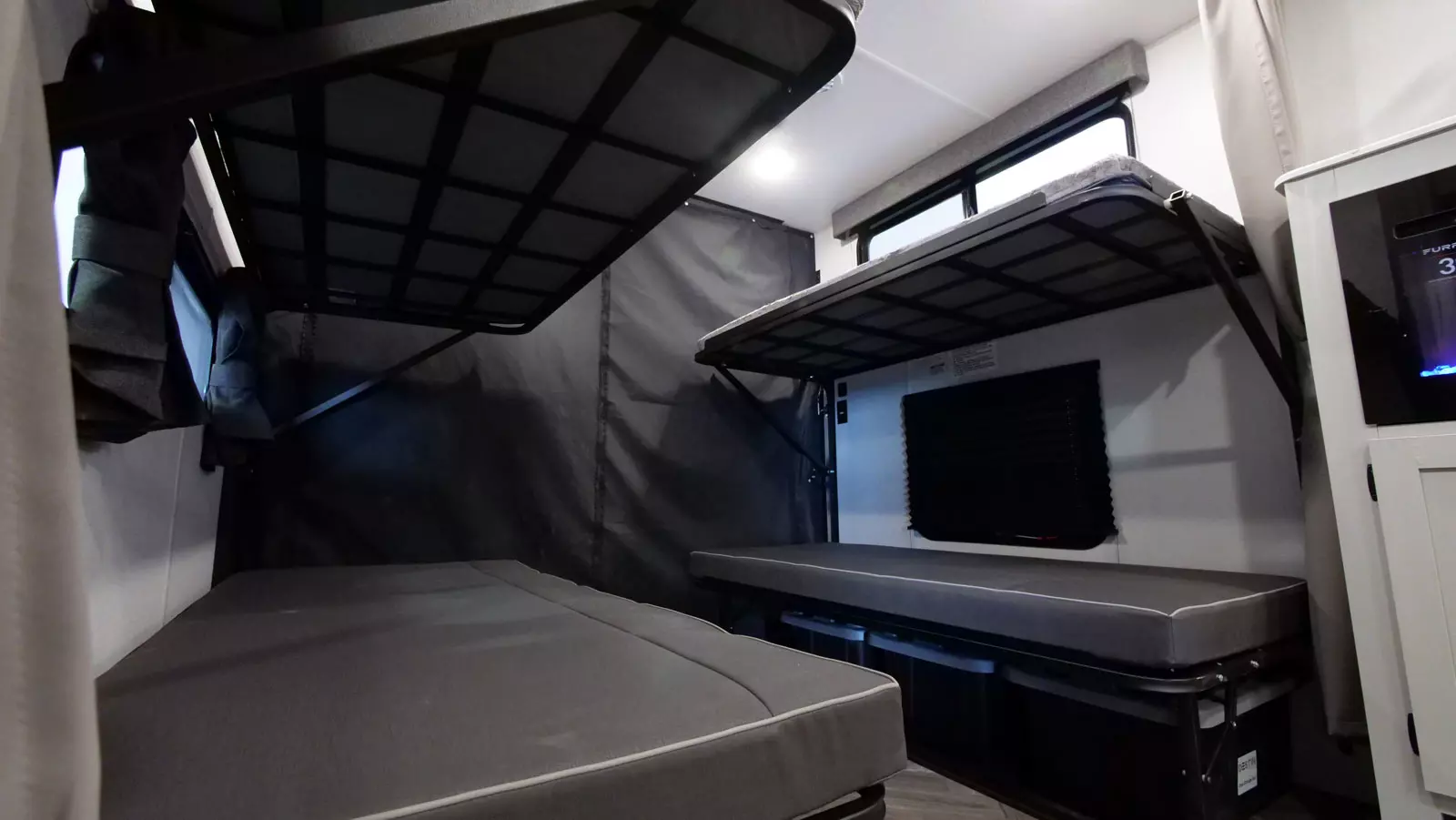

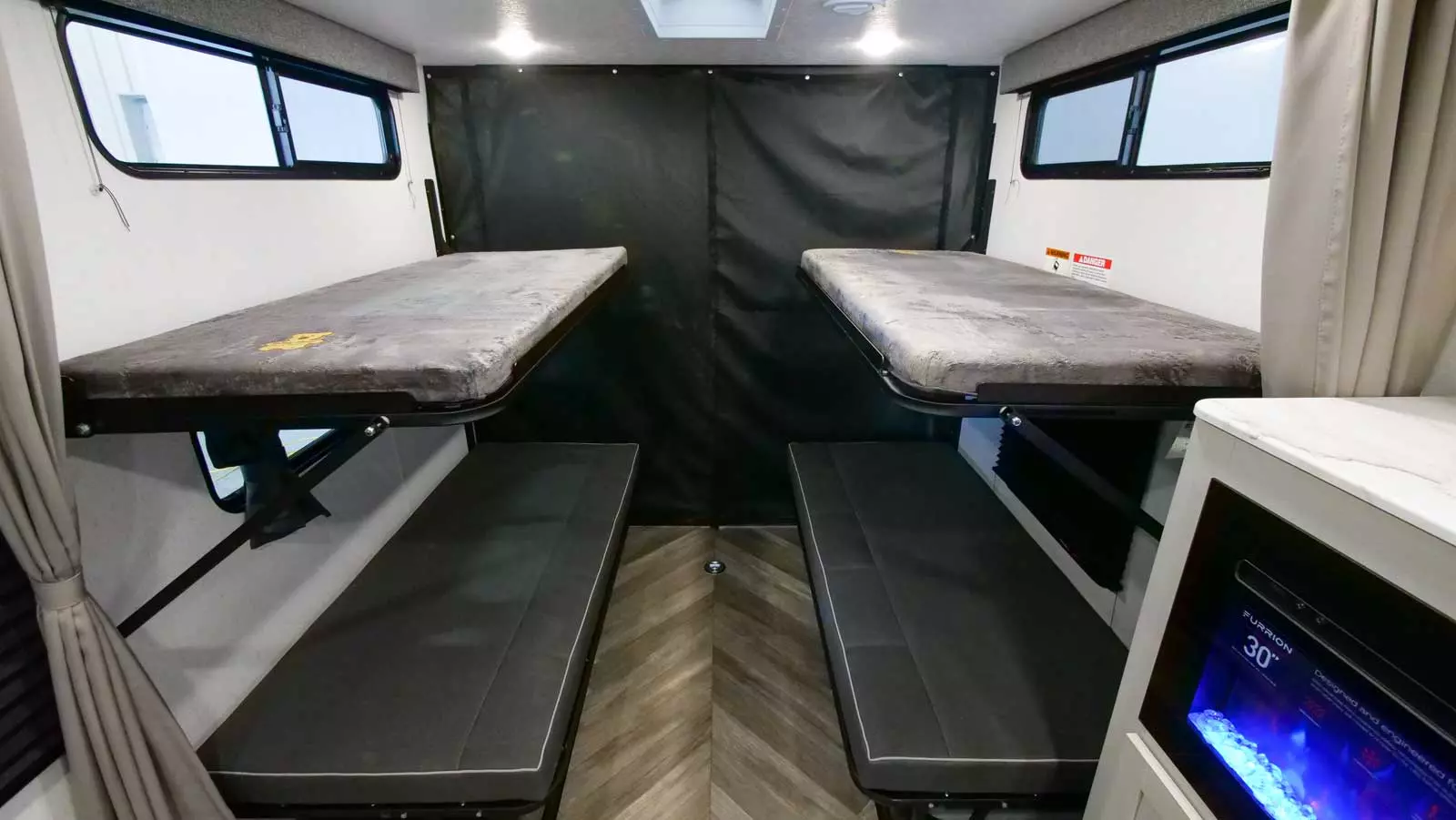

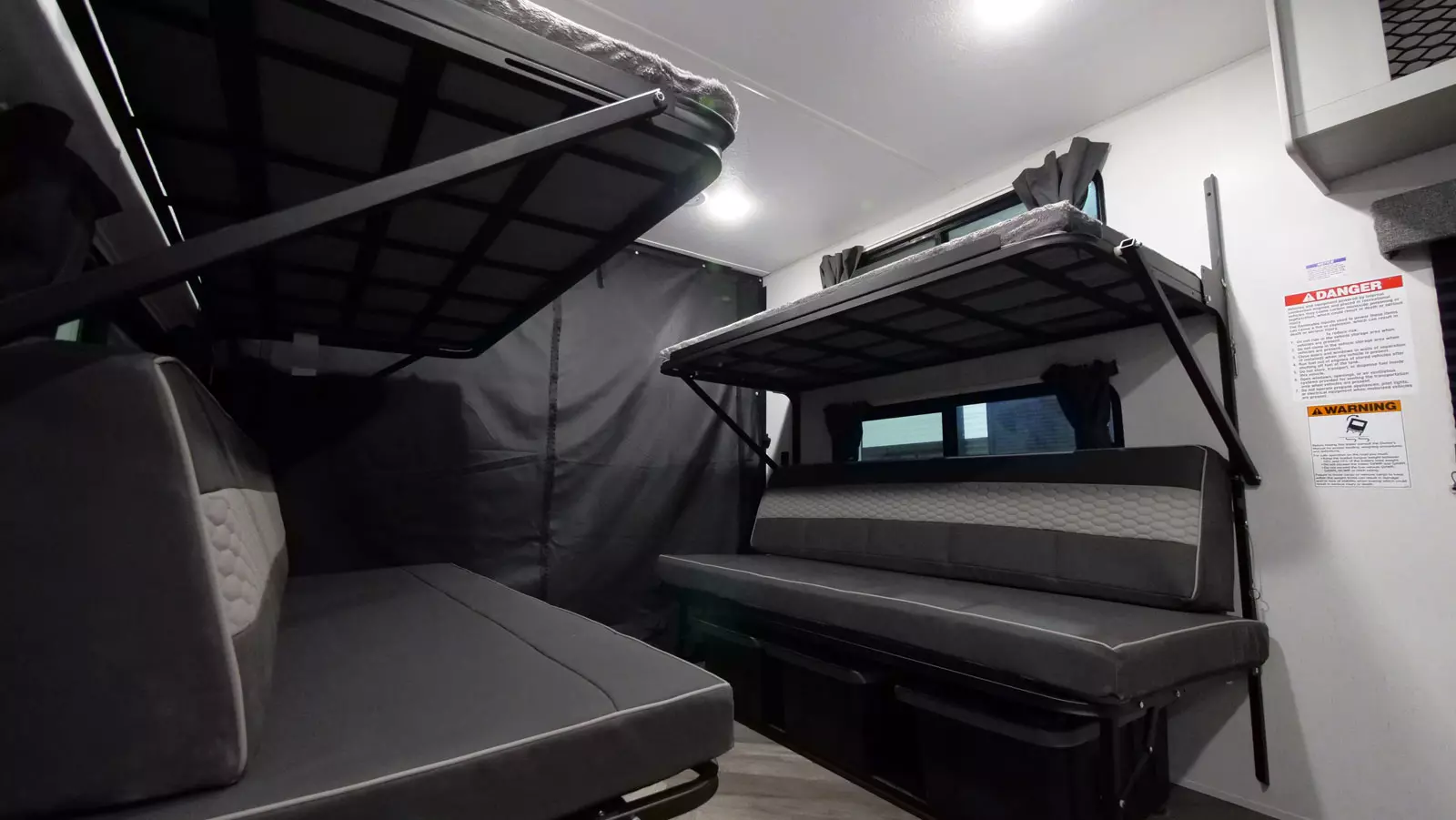

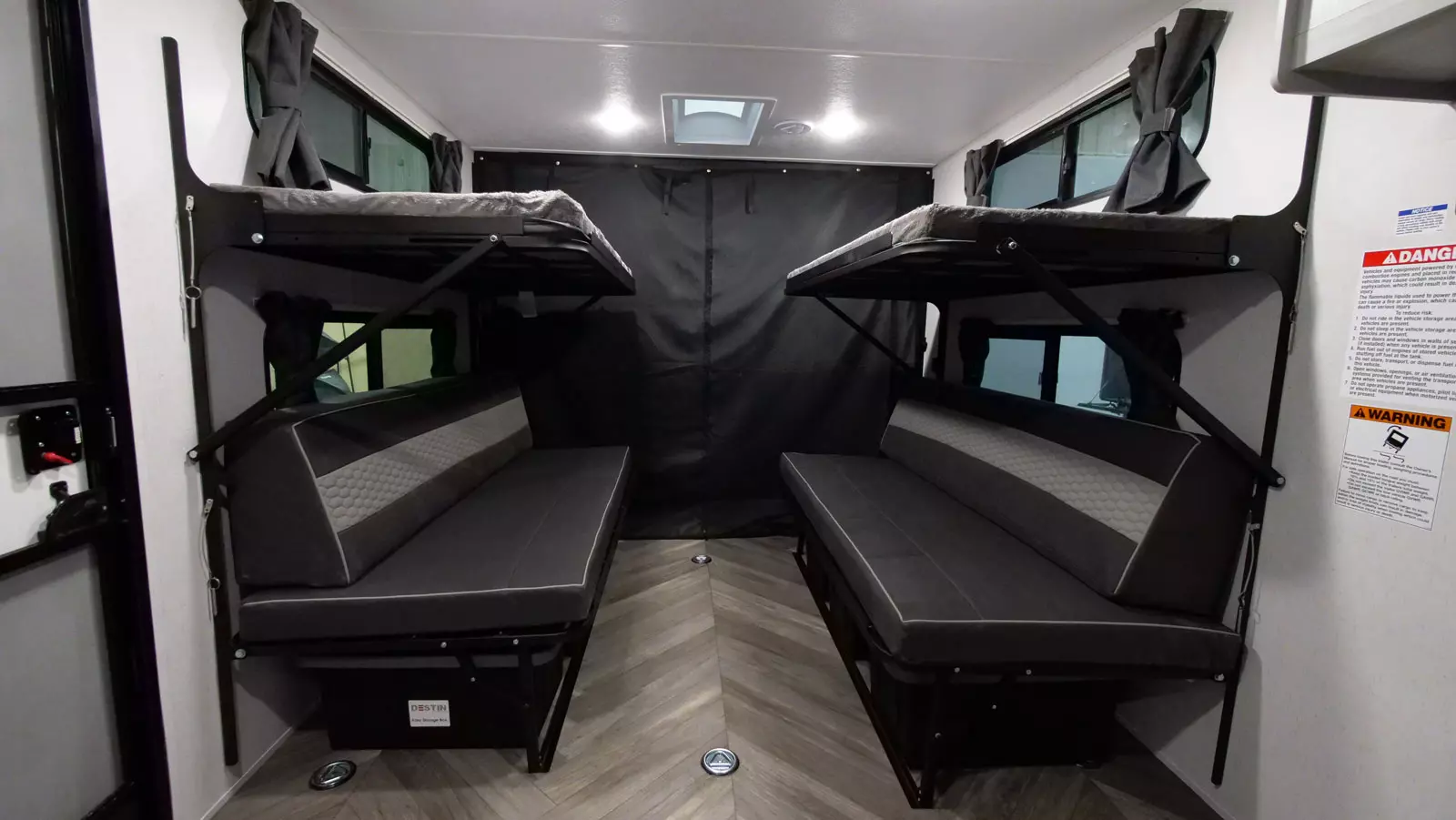

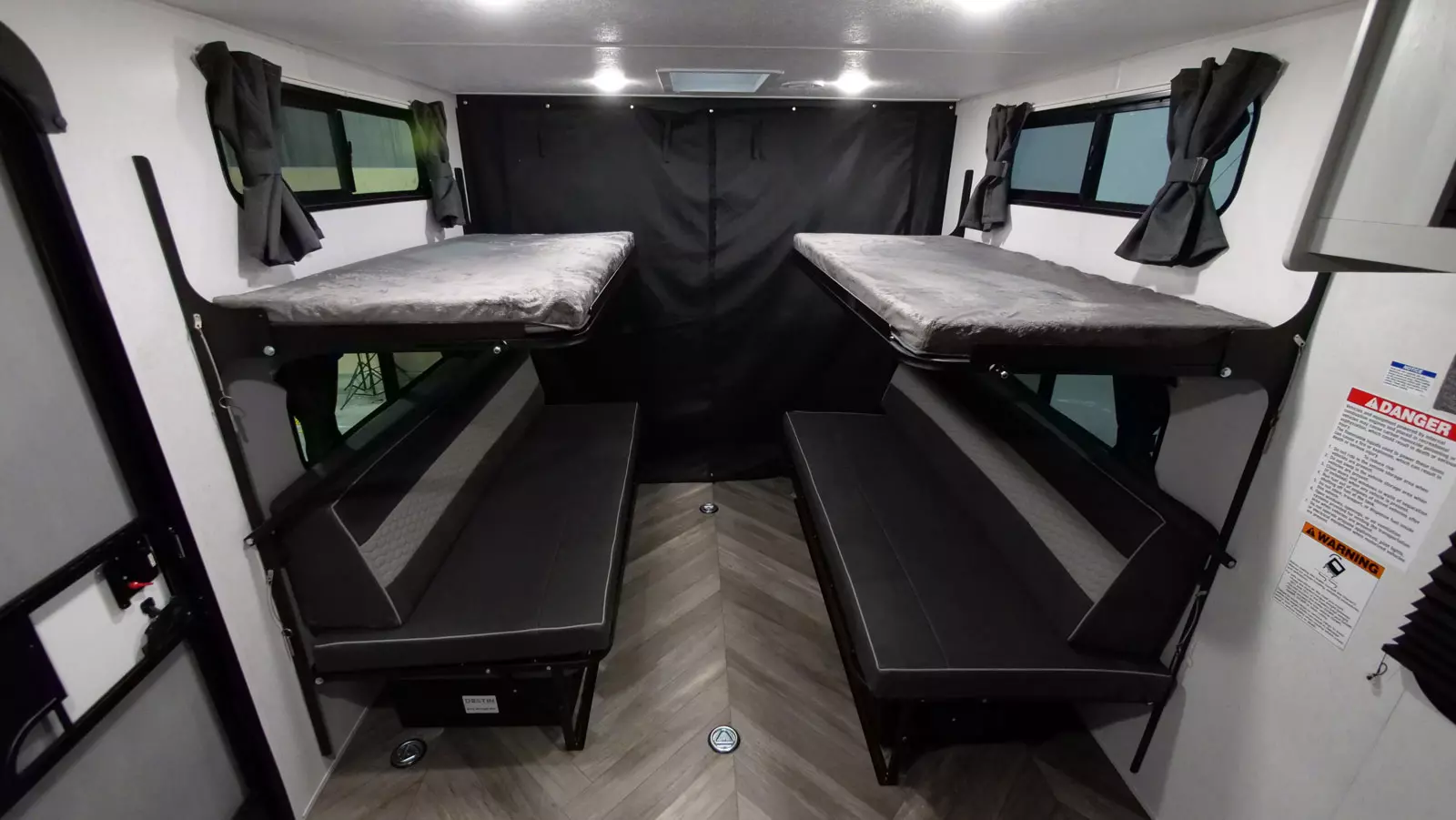

  • Morryde Bunk Above System for MAX Sleeping Capacity in Garage
