241QBXL Floorplan

Temporarily Unavailable

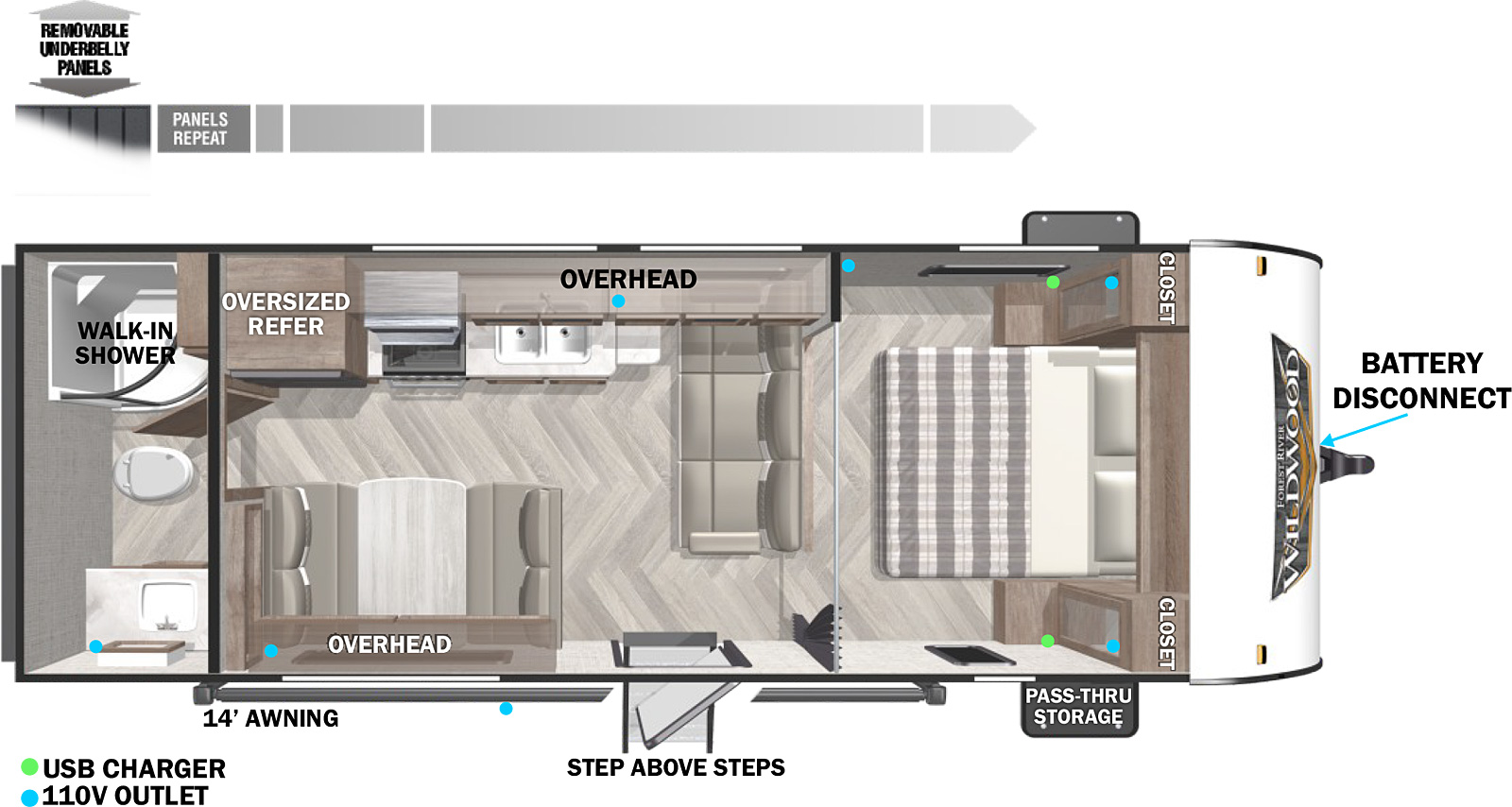

The 241QBXL is a no slide floorplan with no shortage of features. The outside features a 14 foot electric power awning. The front of the unit features a bedroom that can be closed off with a easily movable curtain. Next to the bed on both sides are closets that have CPAP storage. In the middle of the unit, there is a sofa directly in front of the entry and next to the kitchen. The dinette is on the camp side of the floorplan and it features storage below, overhead storage, and a camp side window. On the opposite side of the dinette is the kitchen. The kitchen features an oversized refrigerator, over, sink, and overhead storage. In the back of the floorplan is the bathroom with a radius shower, toilet, and sink with linen storage below.
The 241QBXL is a lightweight travel trailer with a spacious rear bath and front queen bed. The kitchen is well-appointed with modern appliances and an oversized 11 CU. FT. refrigerator, dinette, and LARGE cabinets. The trailer also features a huge campsite window!


Hitch Weight:
499 lb.
4,173 lb.
3,326 lb.
Exterior Length:
26' 7"
Exterior Height:
10' 1"
Exterior Width:
Fresh Water:
40.00 gal.
Gray Water:
40.00 gal.
Black Water:
30.00 gal.
Awning Size:
GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
