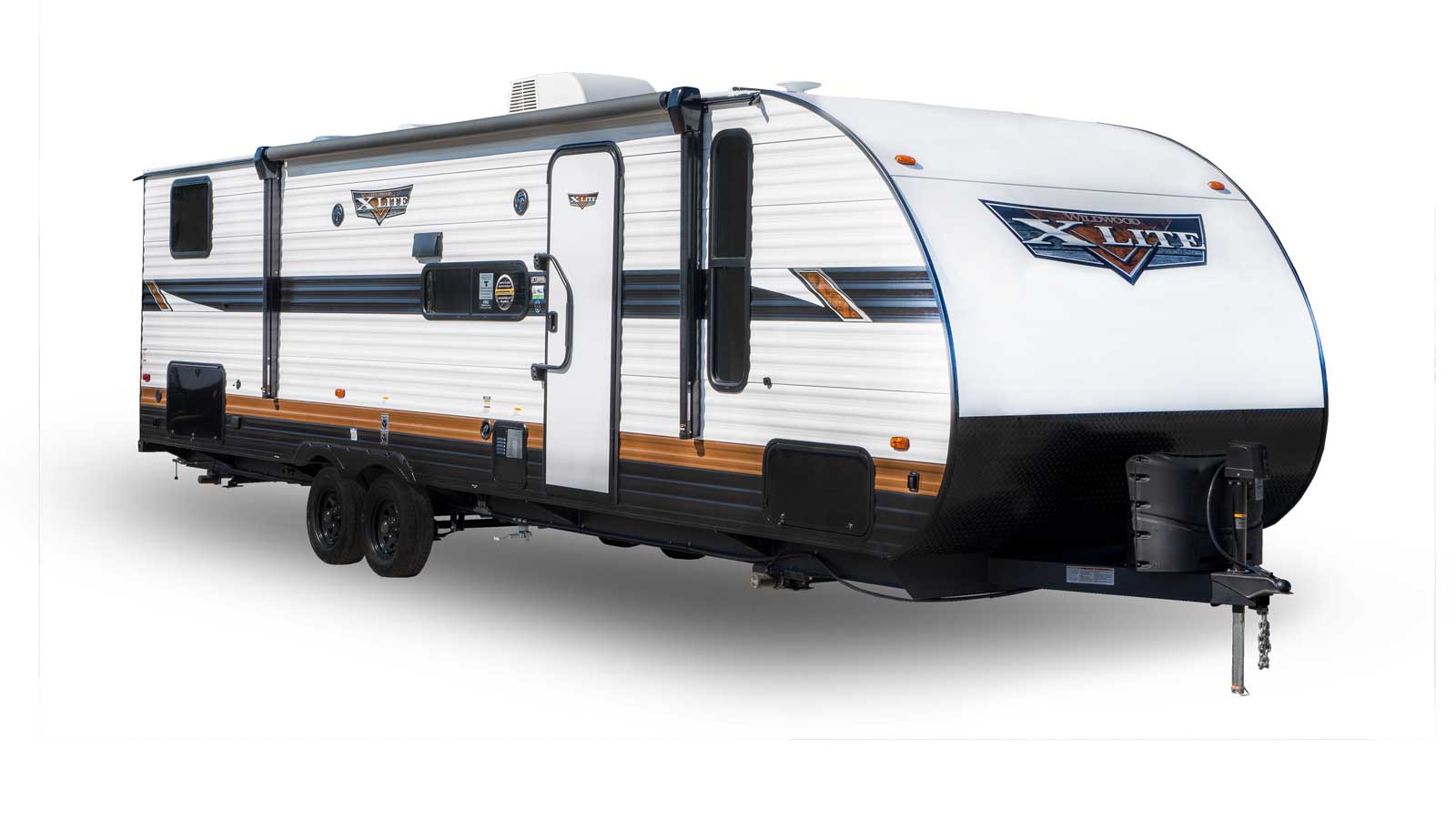

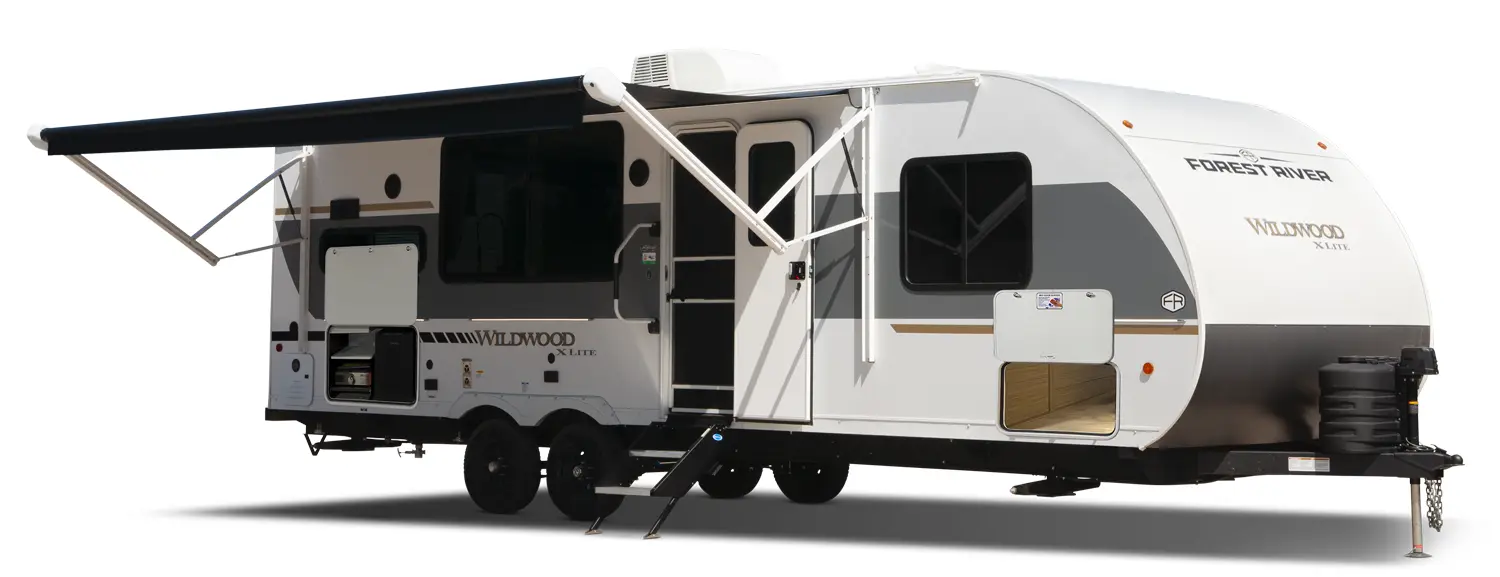

Wildwood X-Lite Travel Trailers

The quality you expect. The luxury you deserve. Every Wildwood X-Lite is filled with all the comforts of home to ensure a pleasant stay at your favorite camping destinations. Start camping, TODAY!

Care Camps, fighting cancer and making memories

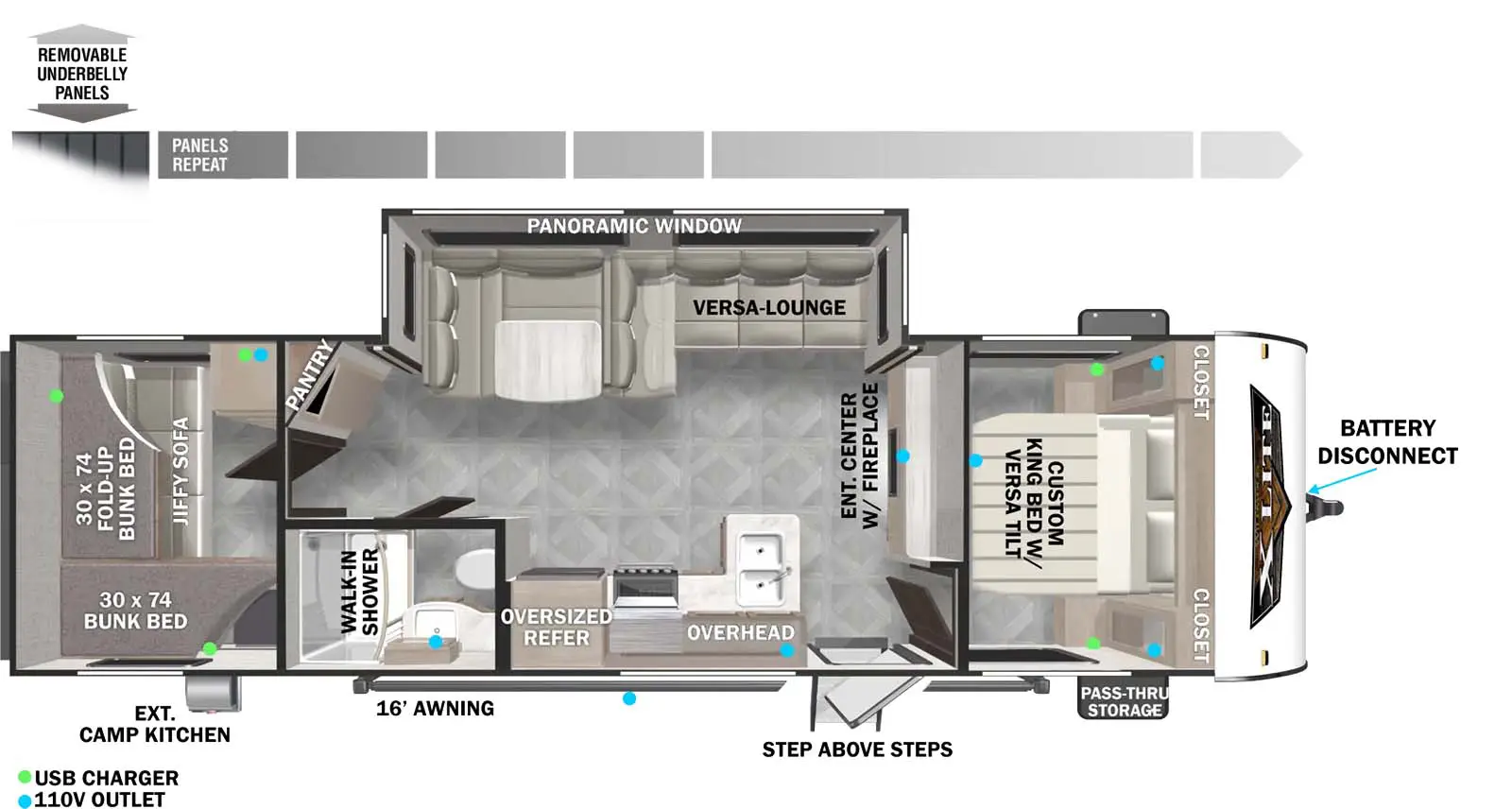

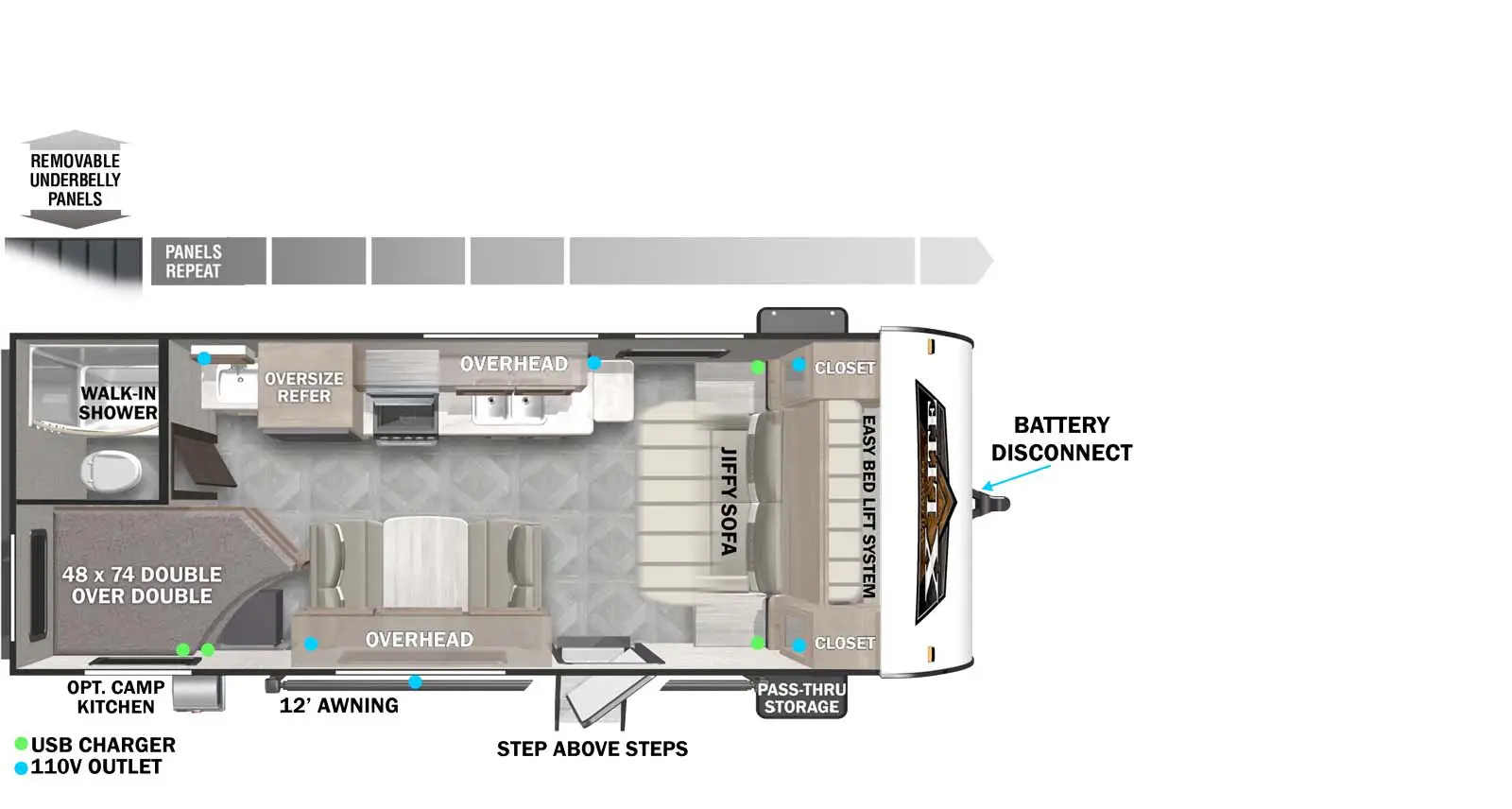

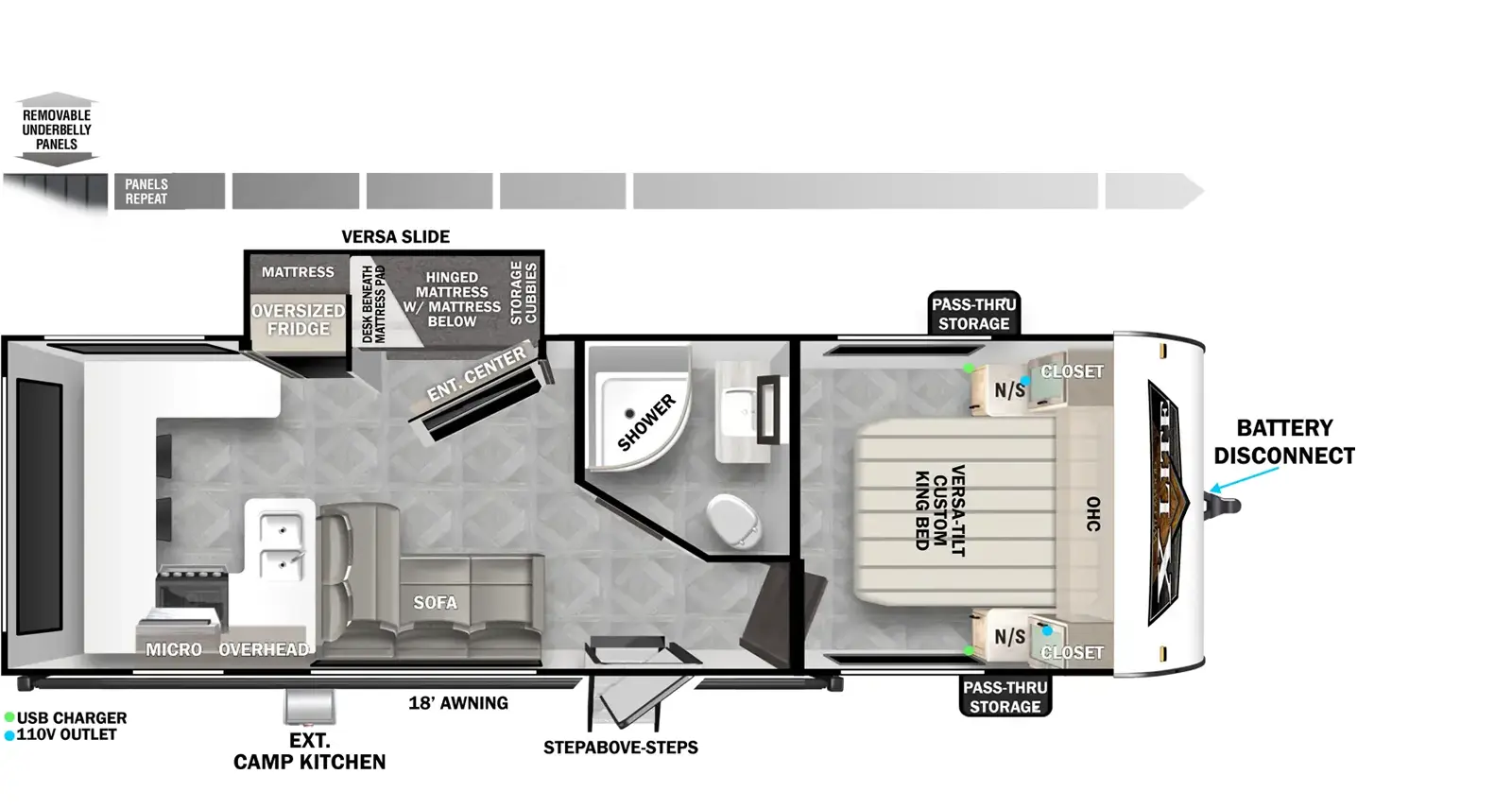

Floorplans

Print

X-Lite Travel Trailers
Temporarily Unavailable


Specifications

Print

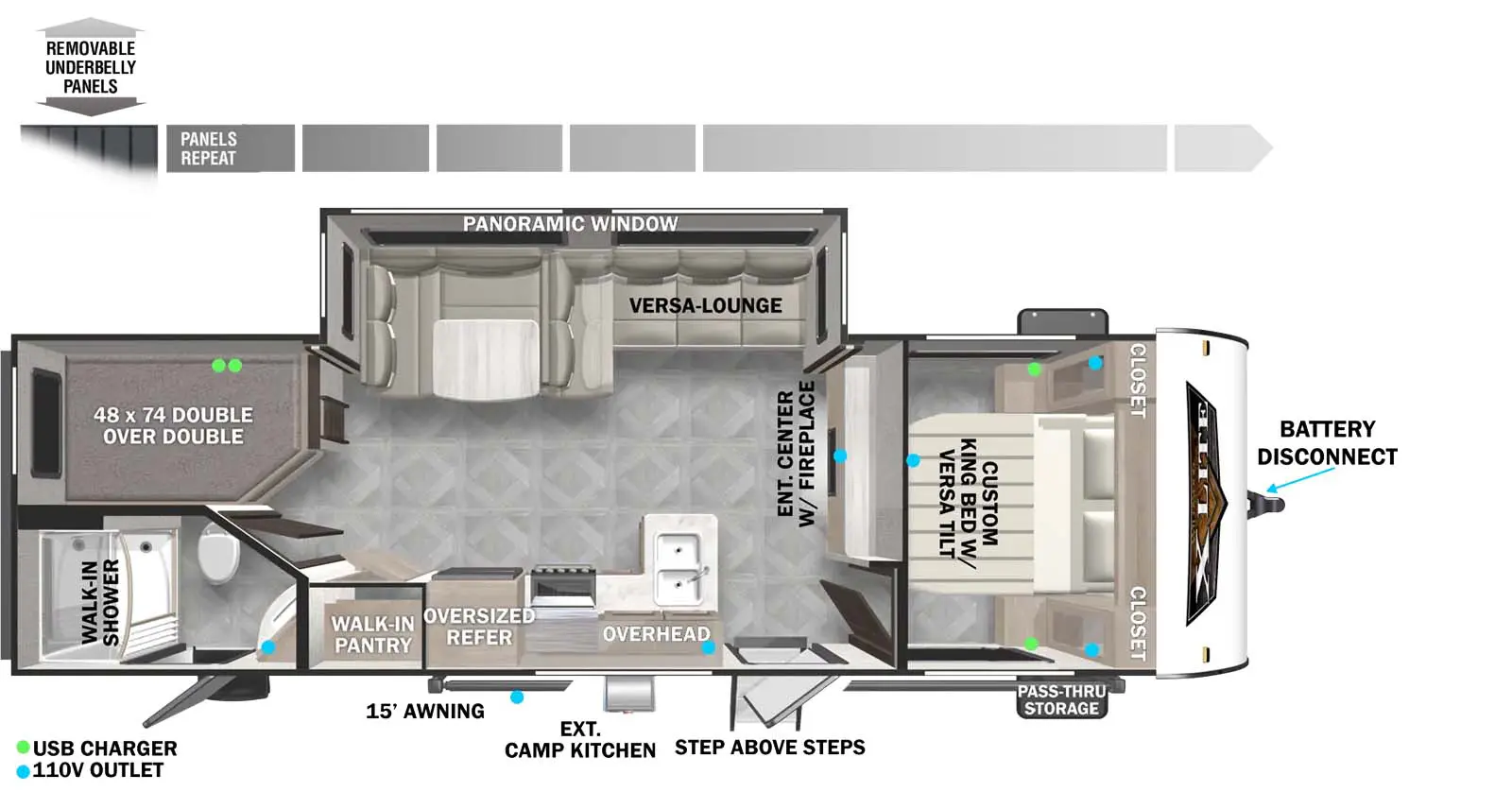

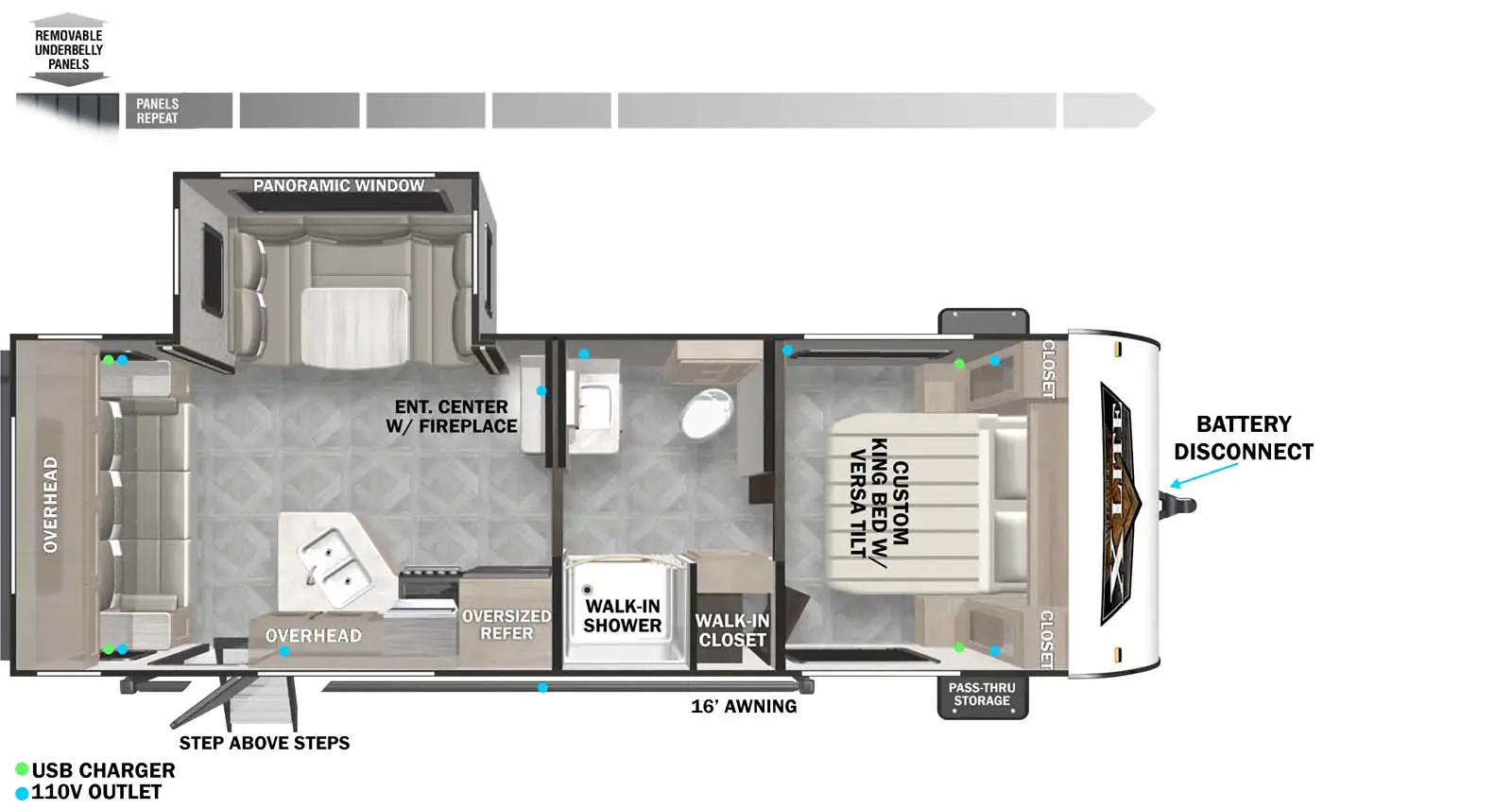

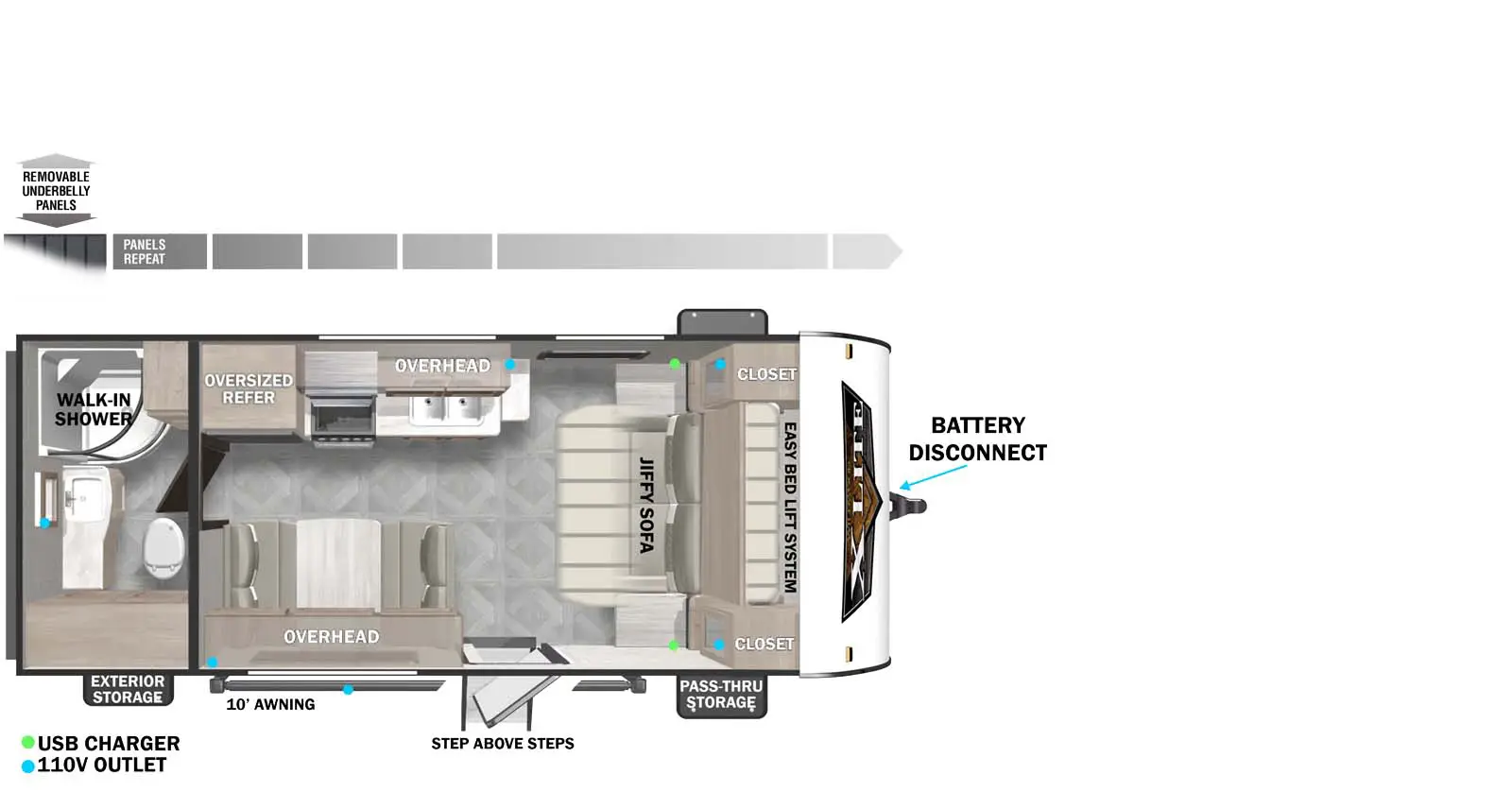

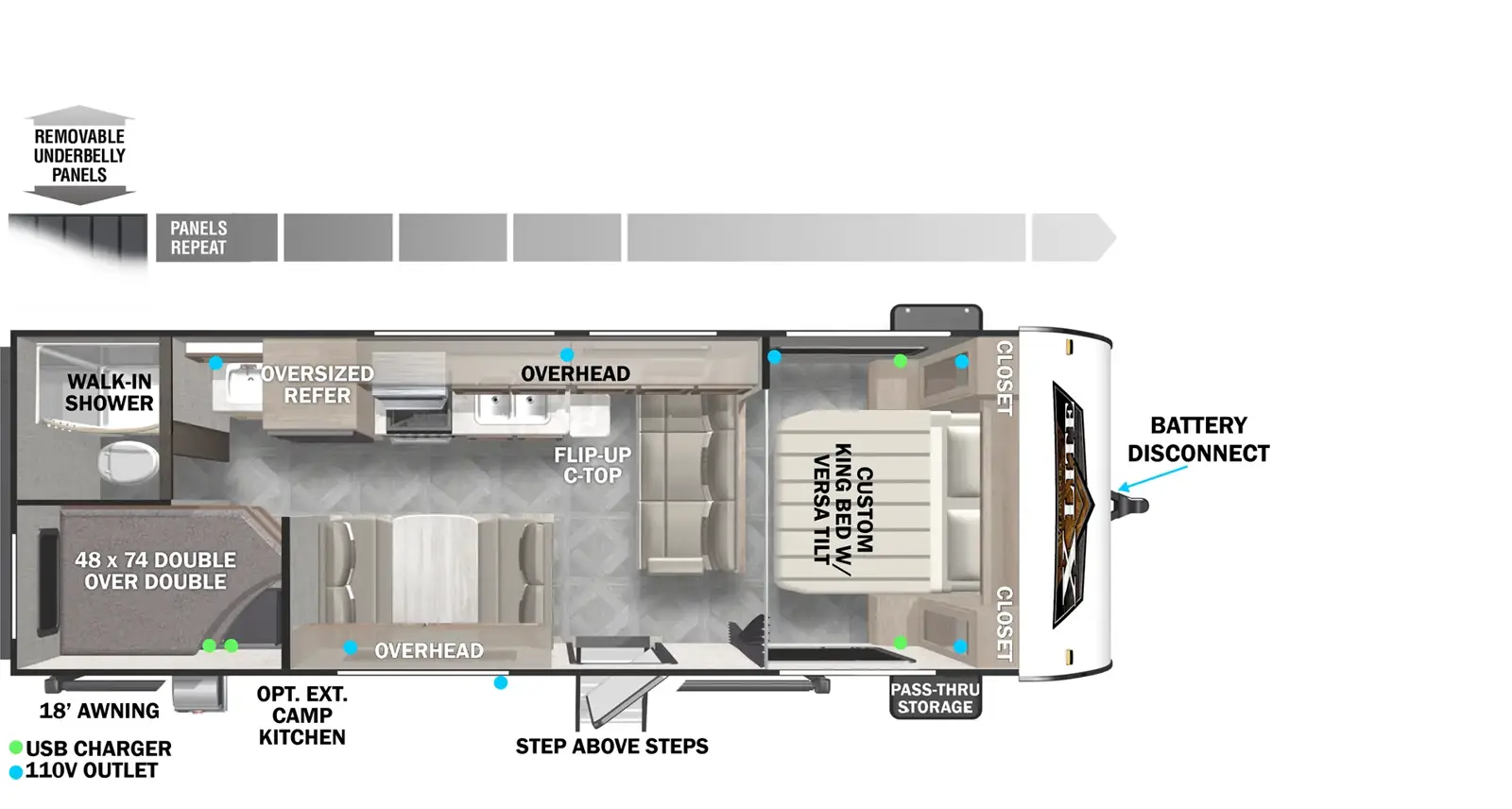

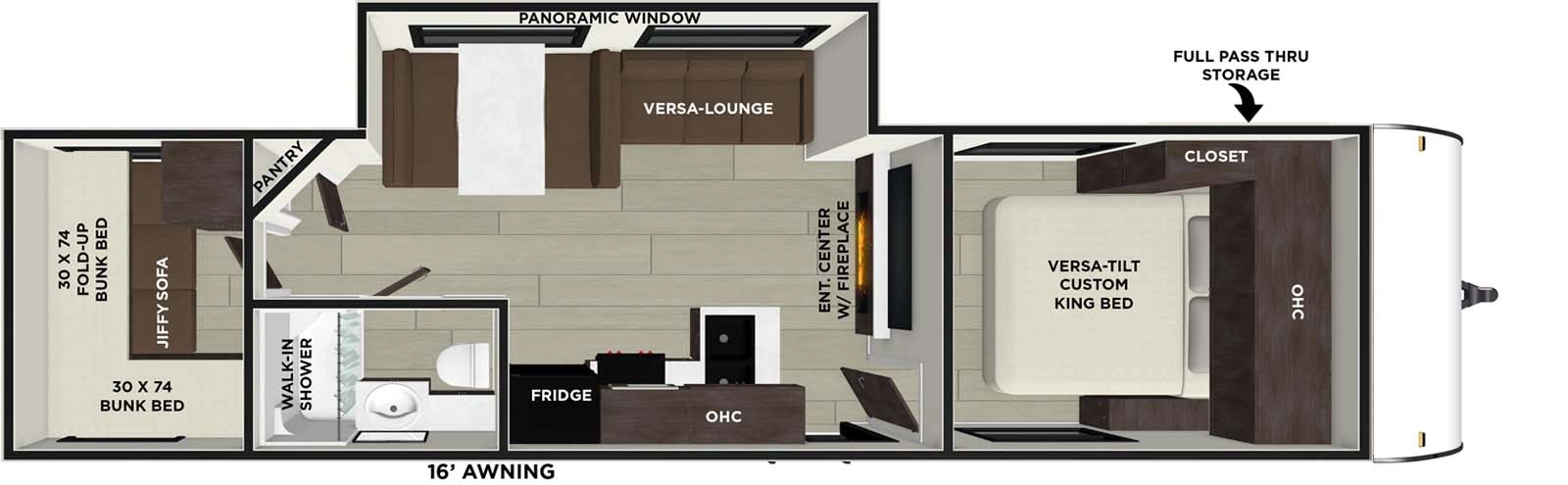

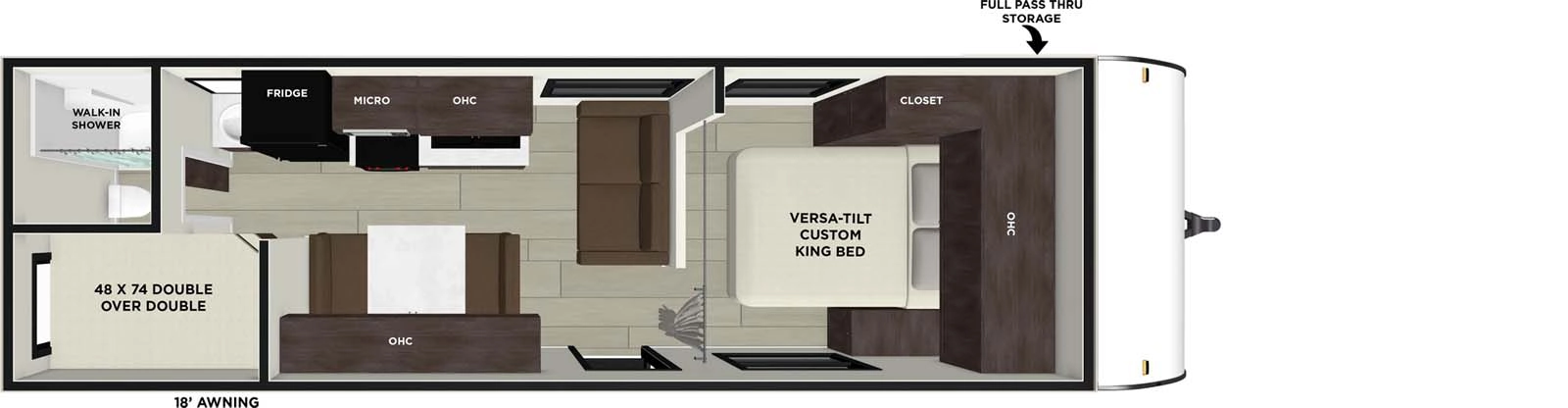

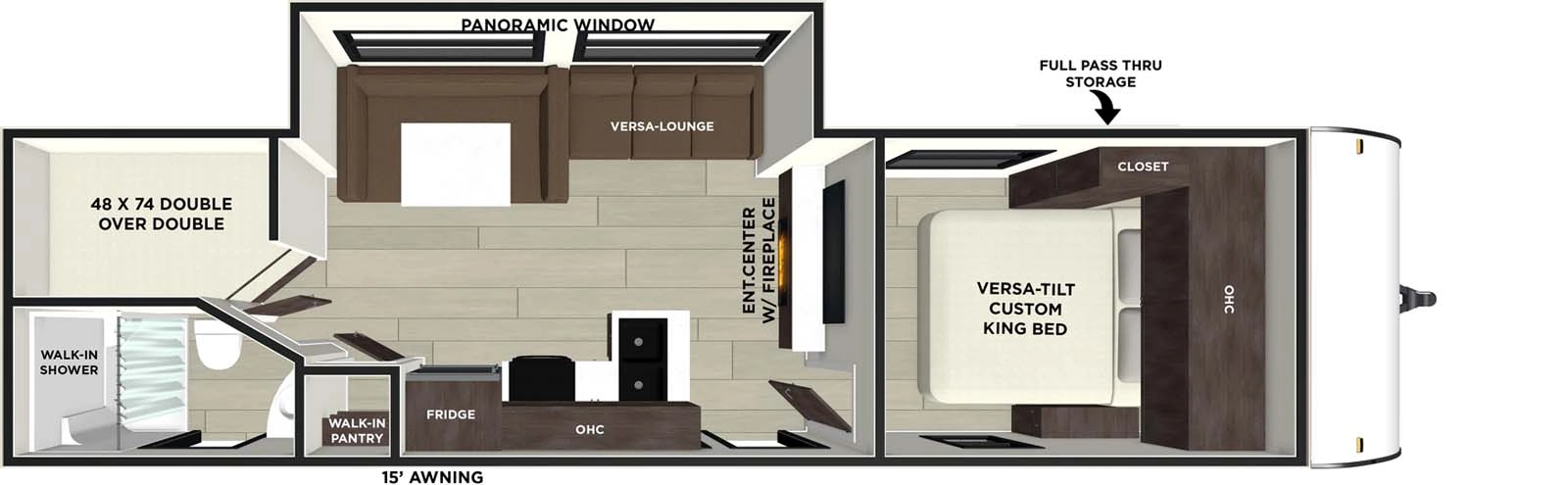

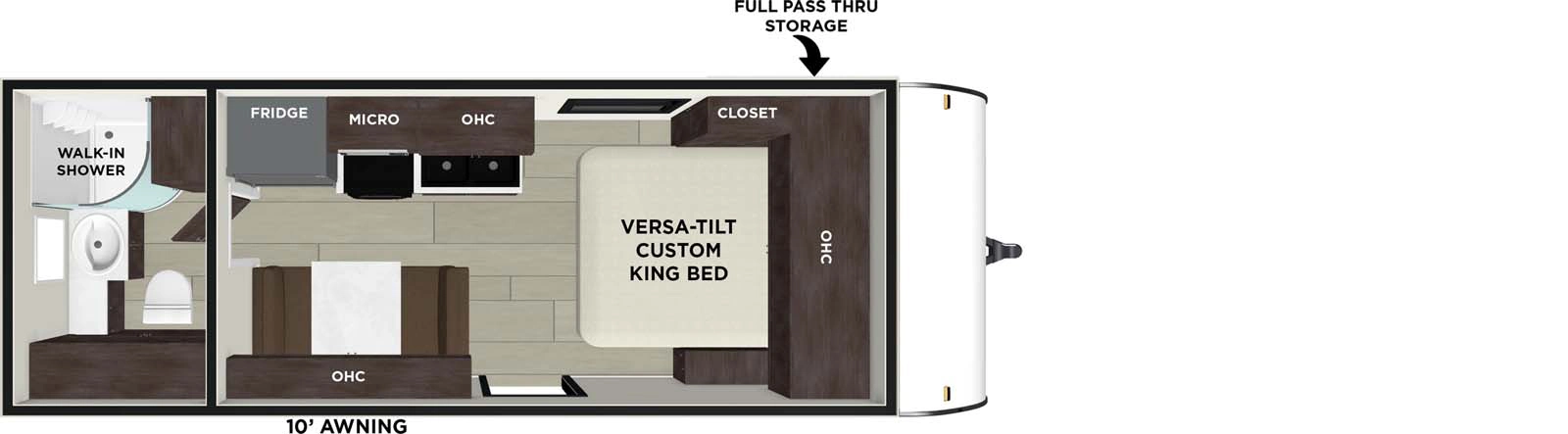

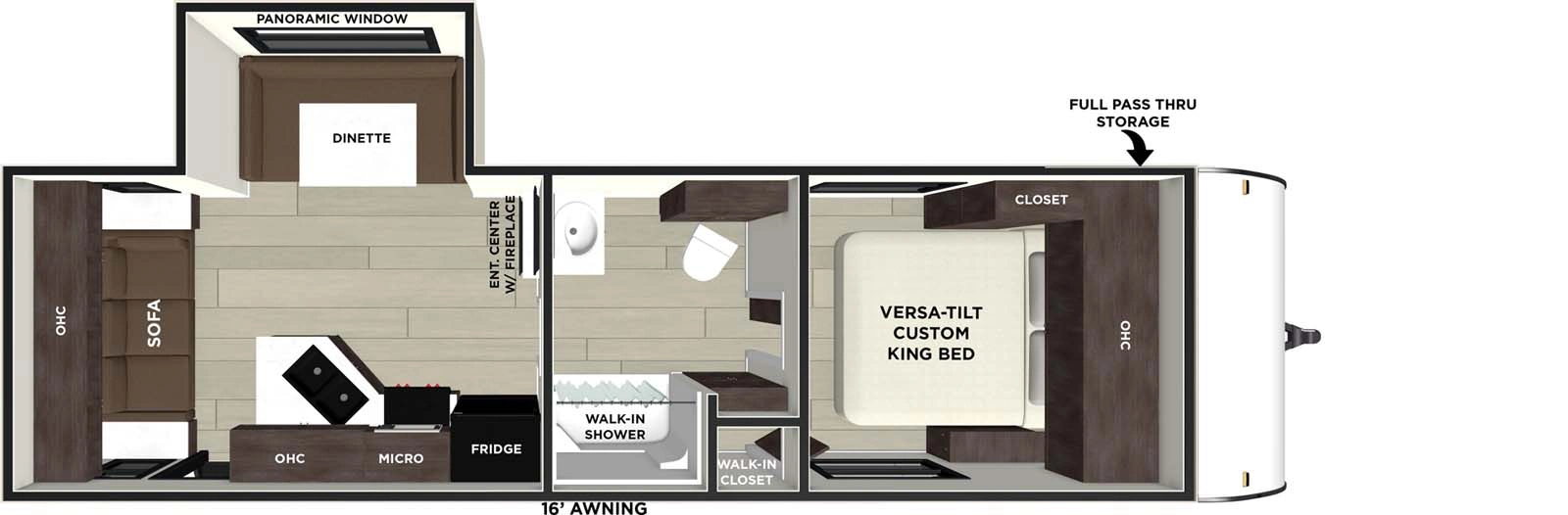

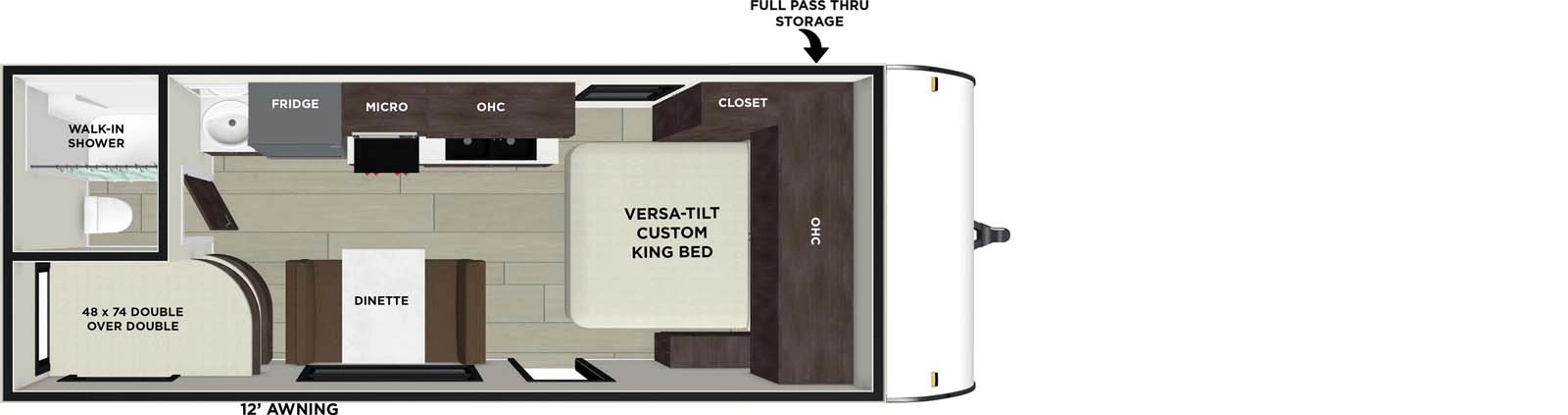

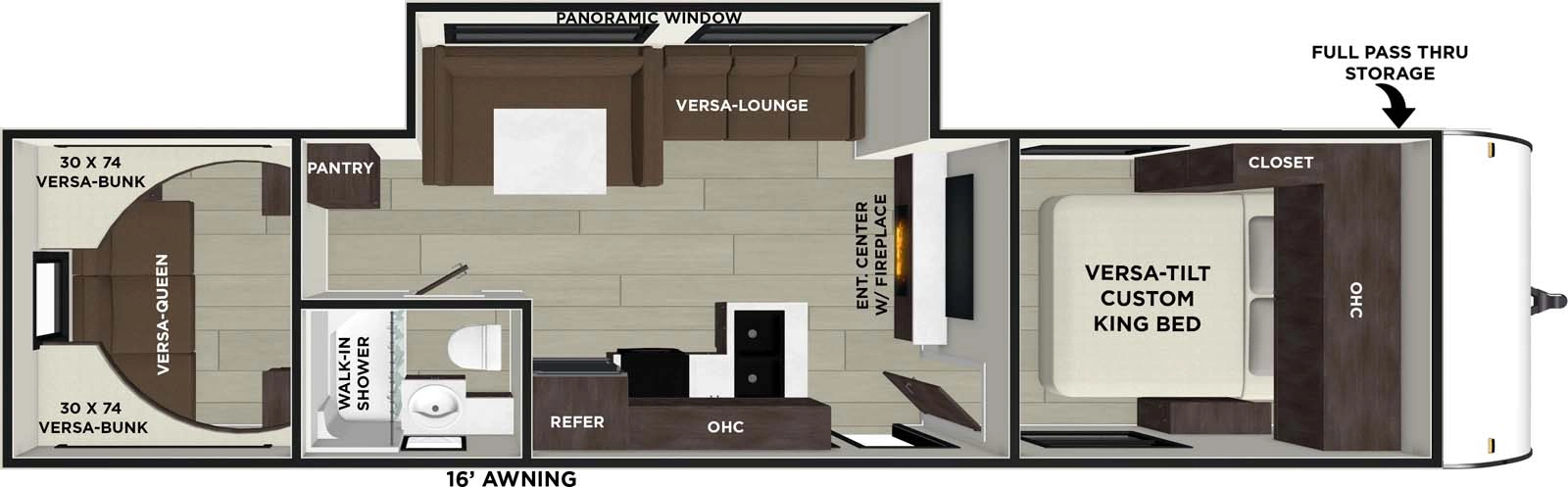

Floorplan: 171RBXL : X-Lite Travel Trailers 19DBXL : X-Lite Travel Trailers 240BHXL : X-Lite Travel Trailers 24RLXL : X-Lite Travel Trailers 261BHXL : X-Lite Travel Trailers 263BHXL : X-Lite Travel Trailers 273QBXL : X-Lite Travel Trailers 28VBXL : X-Lite Travel Trailers 241QBXL : Temporarily Unavailable 282QBXL : Temporarily Unavailable
Hitch Weight:521 lb.520 lb.570 lb.550 lb.450 lb.682 lb.752 lb.790 lb.499 lb.636 lb.
UVW:3,836 lb.4,483 lb.5,343 lb.5,063 lb.4,818 lb.5,854 lb.6,028 lb.6,208 lb.4,173 lb.6,193 lb.
CCC:3,685 lb.3,037 lb.2,227 lb.2,487 lb.2,632 lb.1,828 lb.1,724 lb.1,582 lb.3,326 lb.1,443 lb.
Exterior Length:22' 8"24' 8"28' 10"28' 11"28' 8"31' 9"33' 5"33' 2"26' 7"33' 2"
Exterior Height:10' 1"10' 1"10' 4"10' 5"10' 1"10' 4"10' 4"10' 4"10' 1"10' 4"
Exterior Width:96"96"96"96"96"96"96"96"96"96"
Fresh Water:40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.38.00 gal.38.00 gal.40.00 gal.40.00 gal.40.00 gal.
Gray Water:30.00 gal.28.00 gal.60.00 gal.30.00 gal.28.00 gal.60.00 gal.30.00 gal.28.00 gal.40.00 gal.28.00 gal.
Black Water:30.00 gal.30.00 gal.30.00 gal.40.00 gal.30.00 gal.30.00 gal.28.00 gal.28.00 gal.30.00 gal.28.00 gal.
Awning Size:10'12'18'16'18'15'16'16'14'16'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • 5/8” Tongue & Groove Plywood Floor Decking
  • SuperFlex Roof w/ 15 Year Manufacturer Defect Warranty
  • One-piece SuperFlex roof
  • Powder Coated I-Beam Frame
  • Cambered Chassis
  • Nitrogen Filled Tires
  • 2” Wall Construction, 16” (or less) on Center
  • 13 Ply Cross Micro-Laminated Beam Header Above Slide-Out
  • Triple Seal Slide-Out System
  • Aerodynamic Front Radius Profile
  • .040 Smooth Aluminum Front Cap
  • Exterior Speakers
  • Window Valance Package

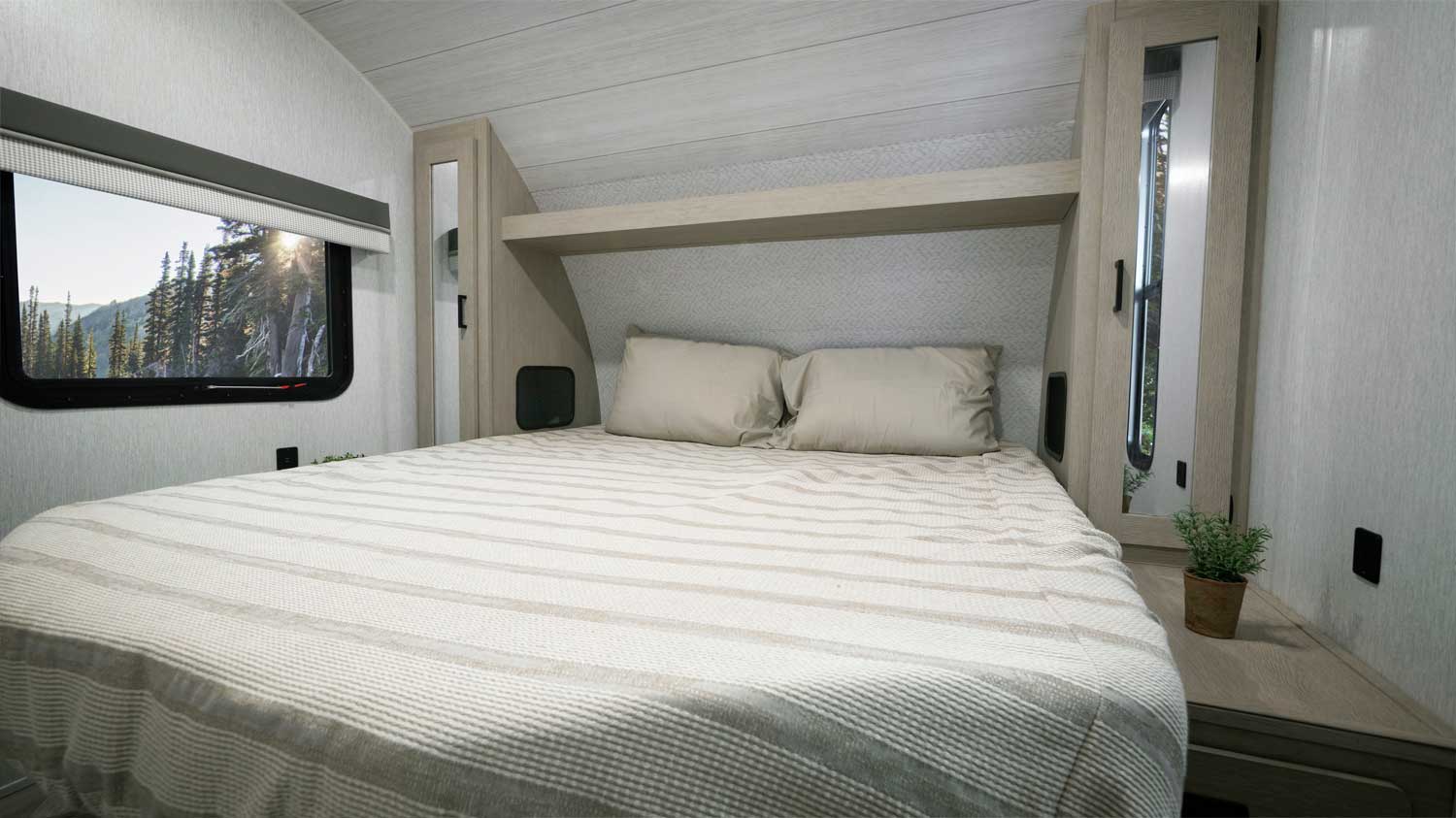

  • Fitted Sheet in Bedroom w/ Evergreen Mattress
  • Pillow Back Dinettes
  • Herringbone Pattern Luxury Vinyl Flooring
  • 12" x 48" Bedroom Window
  • 48" x 12" Kitchen Window
  • Huge 60" x 24" Door Side Window (Non-Slide Models)
  • 30" x 22" Egress Window Rear Wall on Double Over Double Bunk Models
  • Arcadia Series Soft Shower Door (Select Models)
  • 7-Way Plug Holder

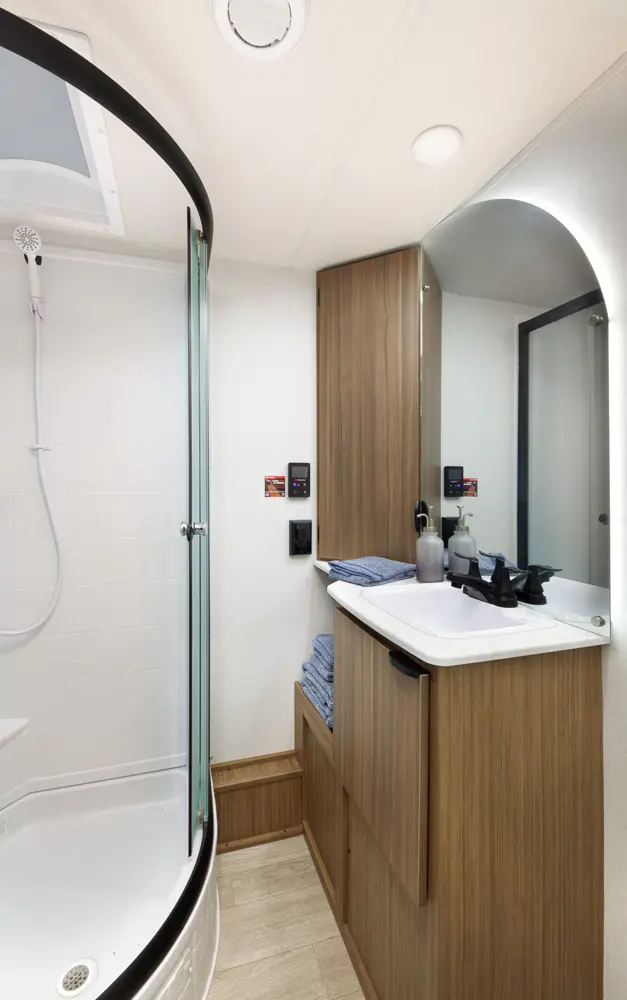

  • Shower w/ Surround (Size Varies by Model)
  • Range w/ Oven IPO Cook Top
  • Winterization Ready

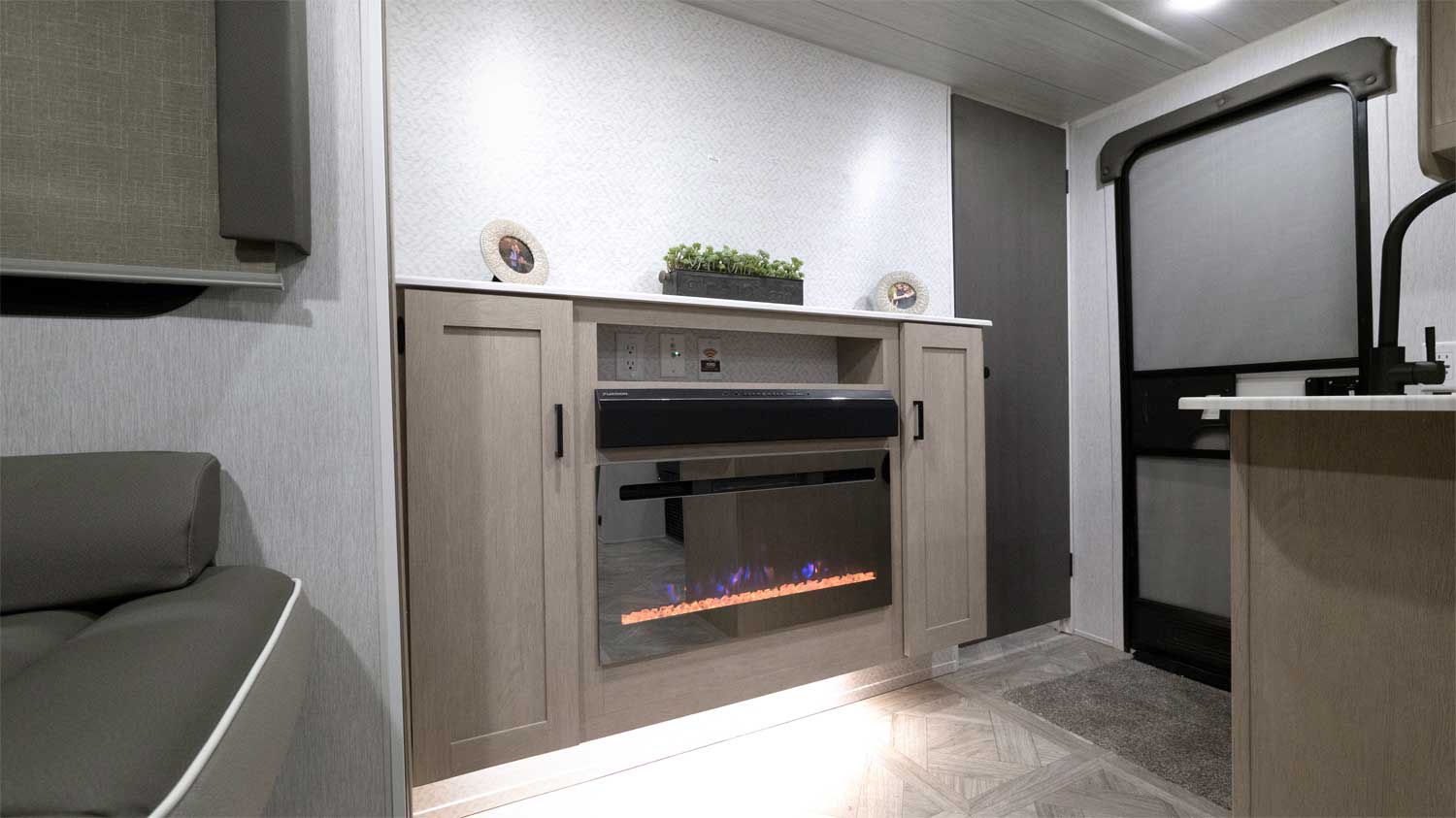

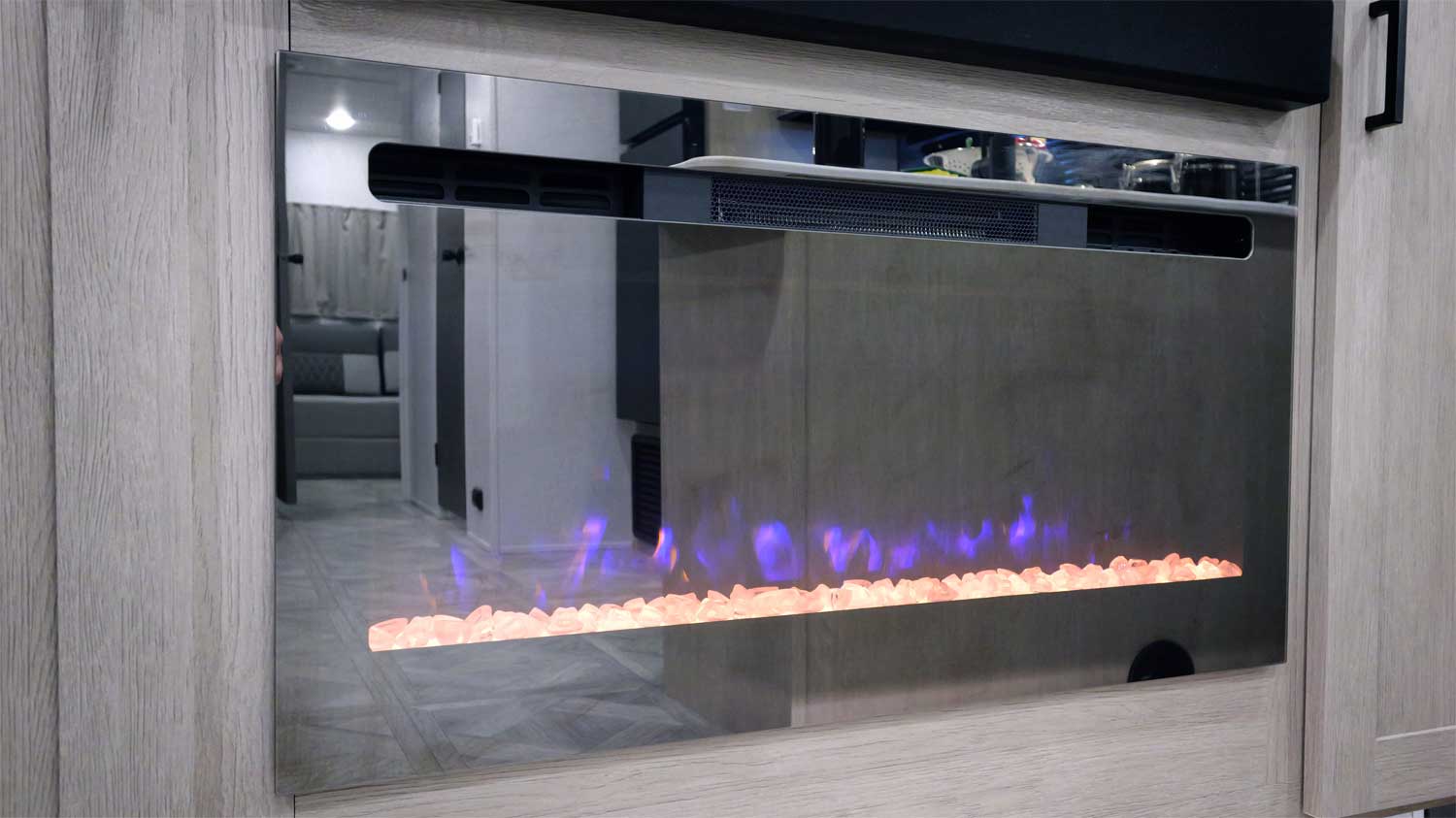

  • Residential Inspired Fireplace Set-Up (Per Model)
  • Tablet Compatible USB Ports in Bedroom and Bunks
  • Grey "Teddy Bear" Bunk Mattress
  • Standard Cable/Sat. Ready
  • Microwave
  • 6 Gal. Gas DSI
  • 3 Burner Cook Top
  • Pass Thru Storage
  • Diamond Plate Rock Guard
  • KING OmniGo HD Television Antenna Prepped for: KING WiFi Range Extender, KING LTE Cell Booster and KING Satellite Antennas
  • Slide-Out Awning Prep (Slide Models Only)
  • 30 Amp Service w/ 13.5K BTU A/C
  • Water Heater By-Pass
  • Central Switch Command Center
  • Bluetooth Stereo
  • Cable/Antenna Hookup on Door Side
  • Flush Mount Water Heater Cover
  • 11 Cu. Ft. Frost-Free Double Door Refrigerator (12-Volt)
  • Concrete Seal w/ Stretch Hex Backsplash (Kitchen)
  • No Carpet!
  • MORryde™ StepAbove Double Step (Main Door Only)
  • Accessibelly w/ Removeable Underbelly Panels
  • 30x20 Door Side Baggage Door w/ Smooth Fiberglass for Dry Erase Board Capability
  • Solar Package – Roof Mount Prep!
  • Upgraded Interior Main/Accent Wall Board Coloration
  • Upgraded Door Pulls (Replacing Bar Pull)
  • Slab Door on Bed Riser w/ Removable Netted Laundry Bag
  • LED Strip Lighting Under Entertainment Center

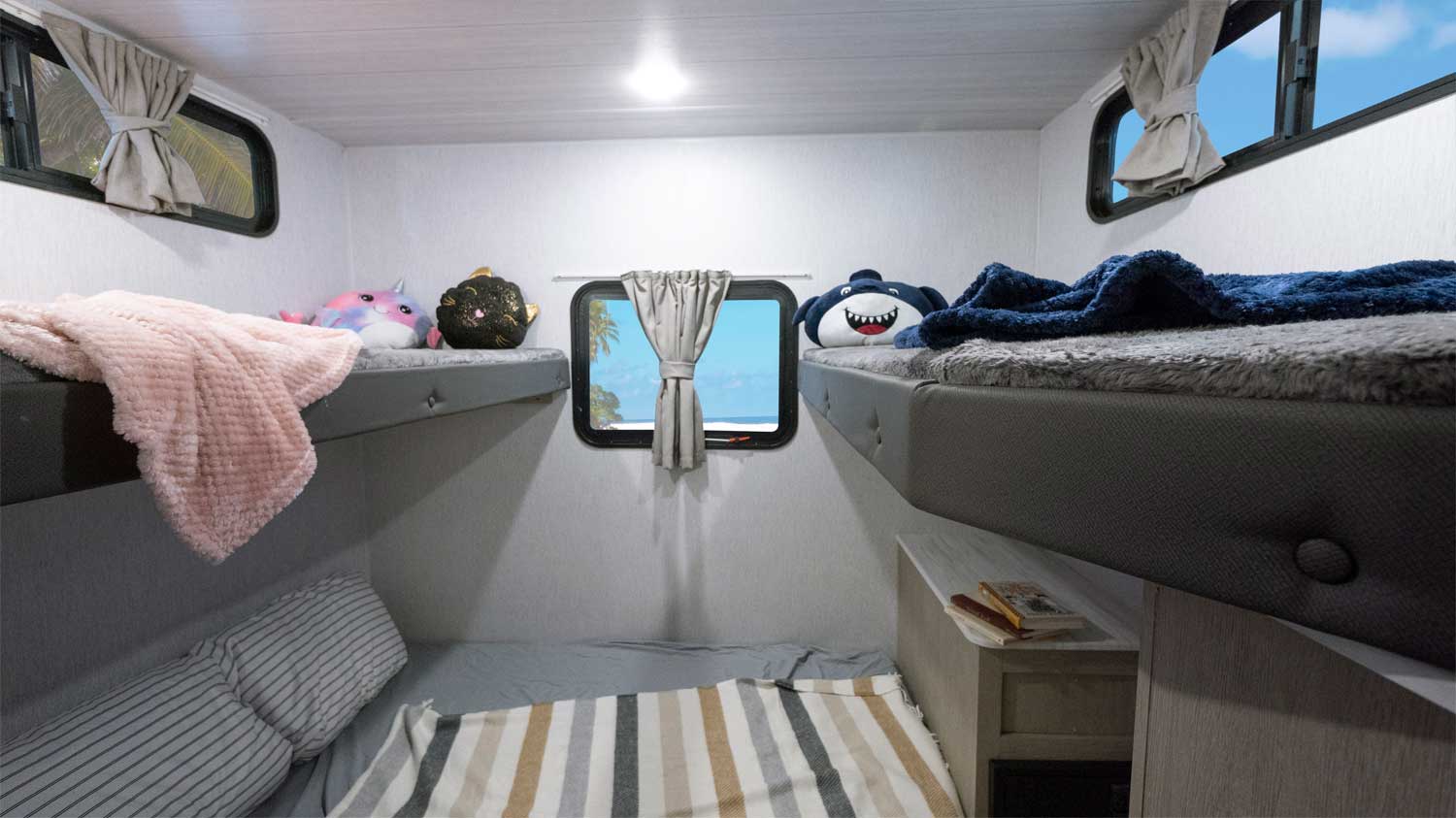

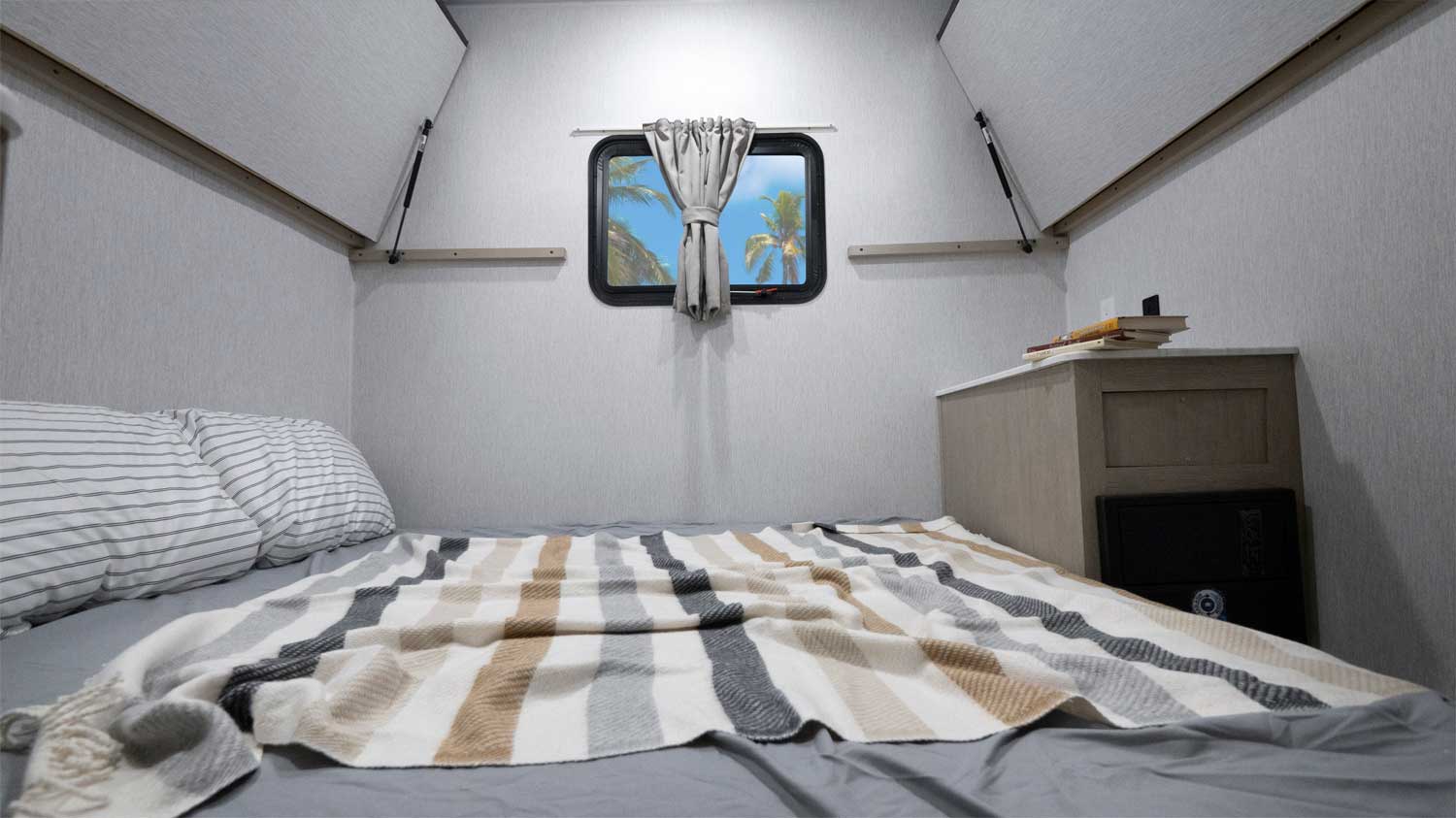

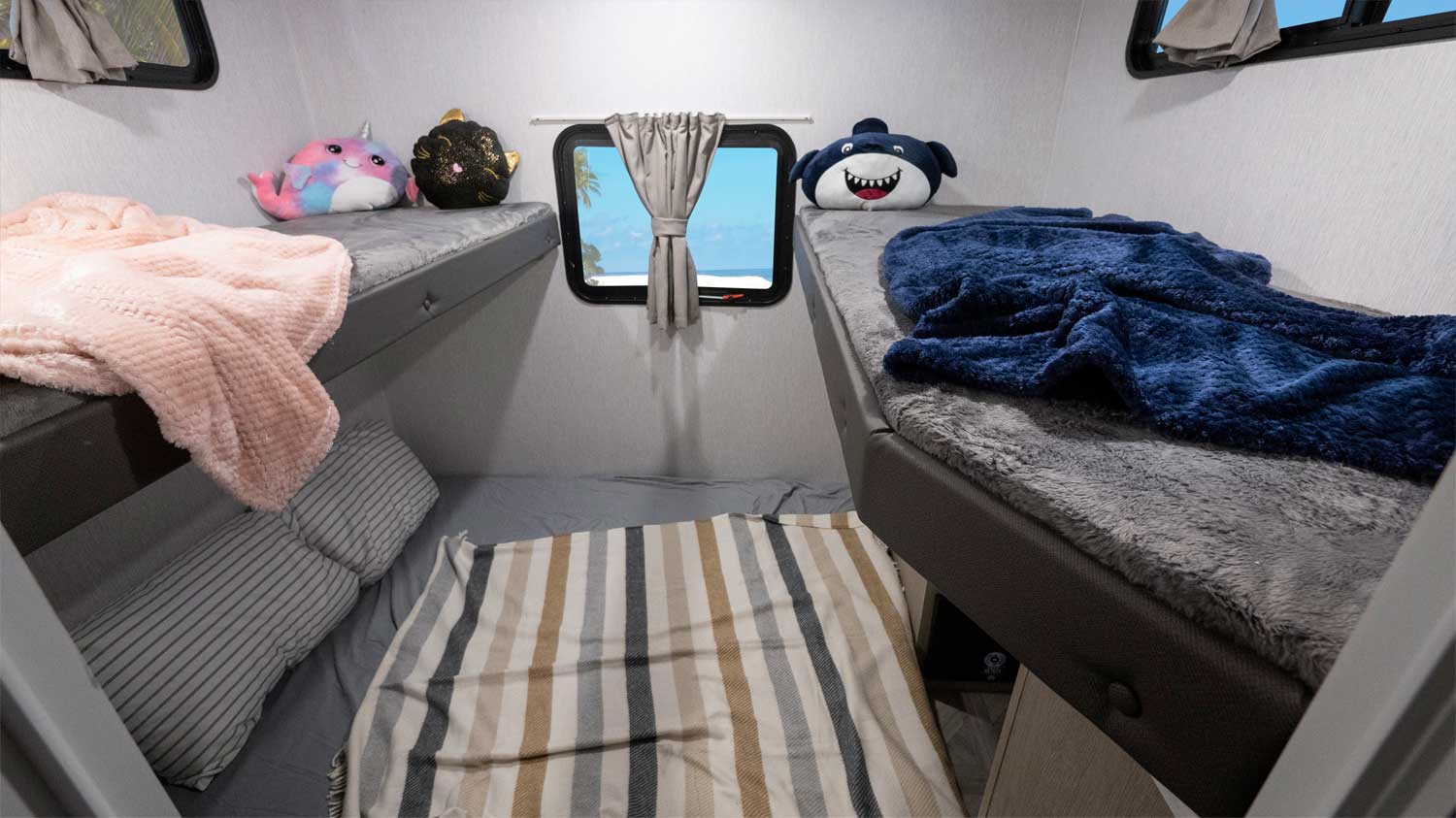

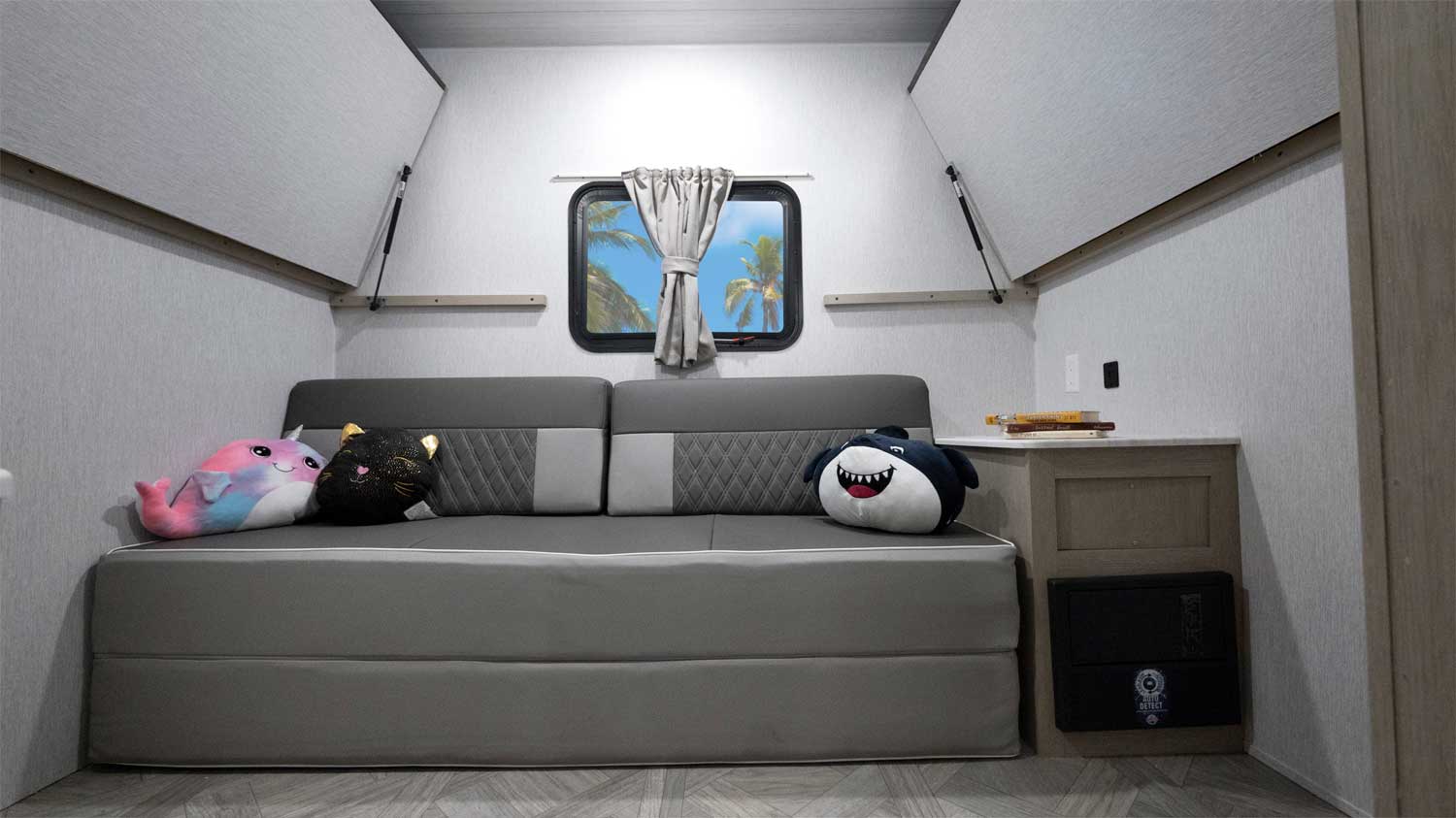

  • Chalk Board Bottom Side of Flip-Up Bunks (28VBXL)

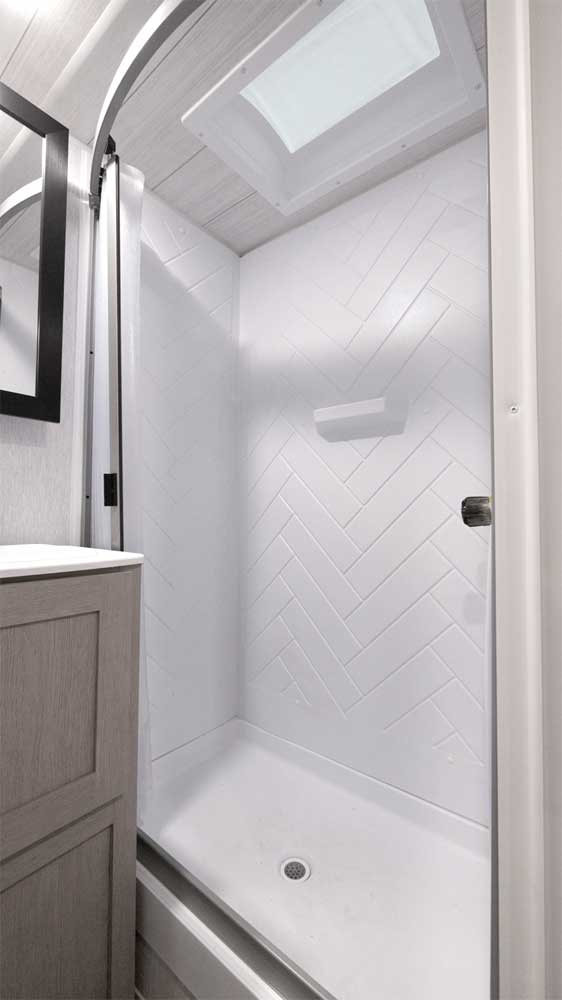

  • Skylight Over Shower
  • Ducted A/C (Slide-Out Models)

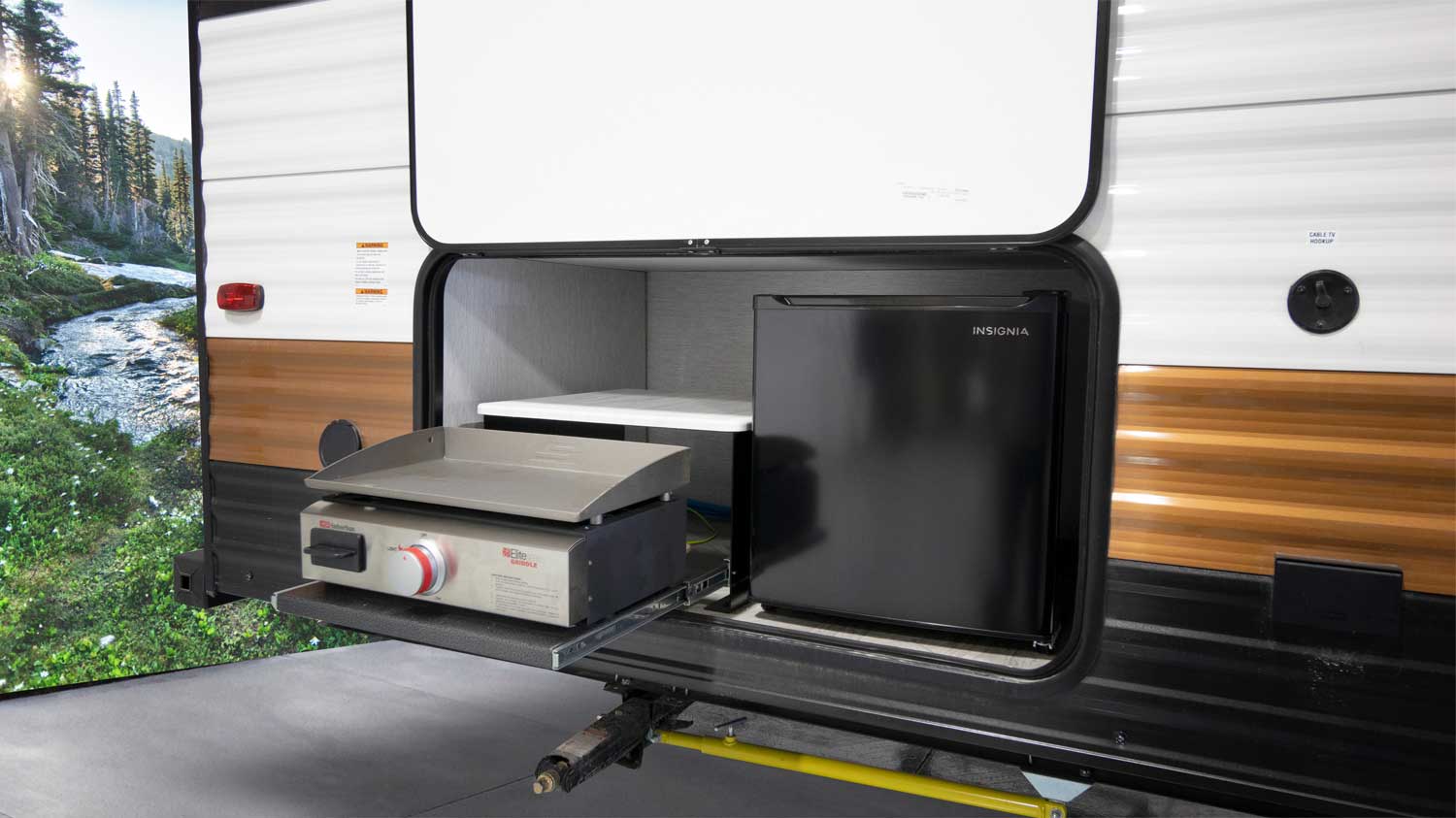

  • Exterior Camp Kitchen (Most Models)
  • Dimmer Light Switch for Living Area Main Lights
  • Upgraded Designer Furniture Package

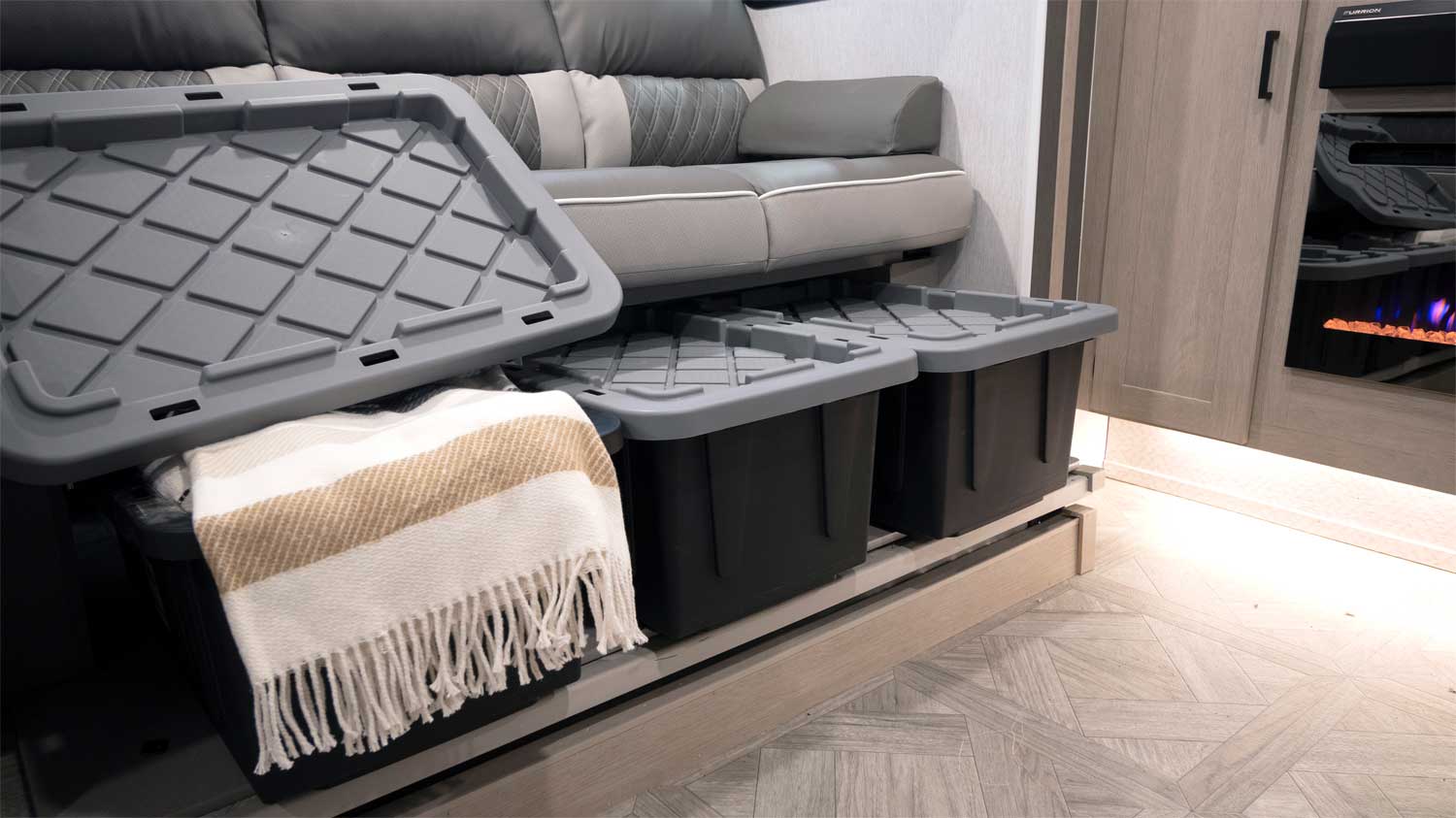

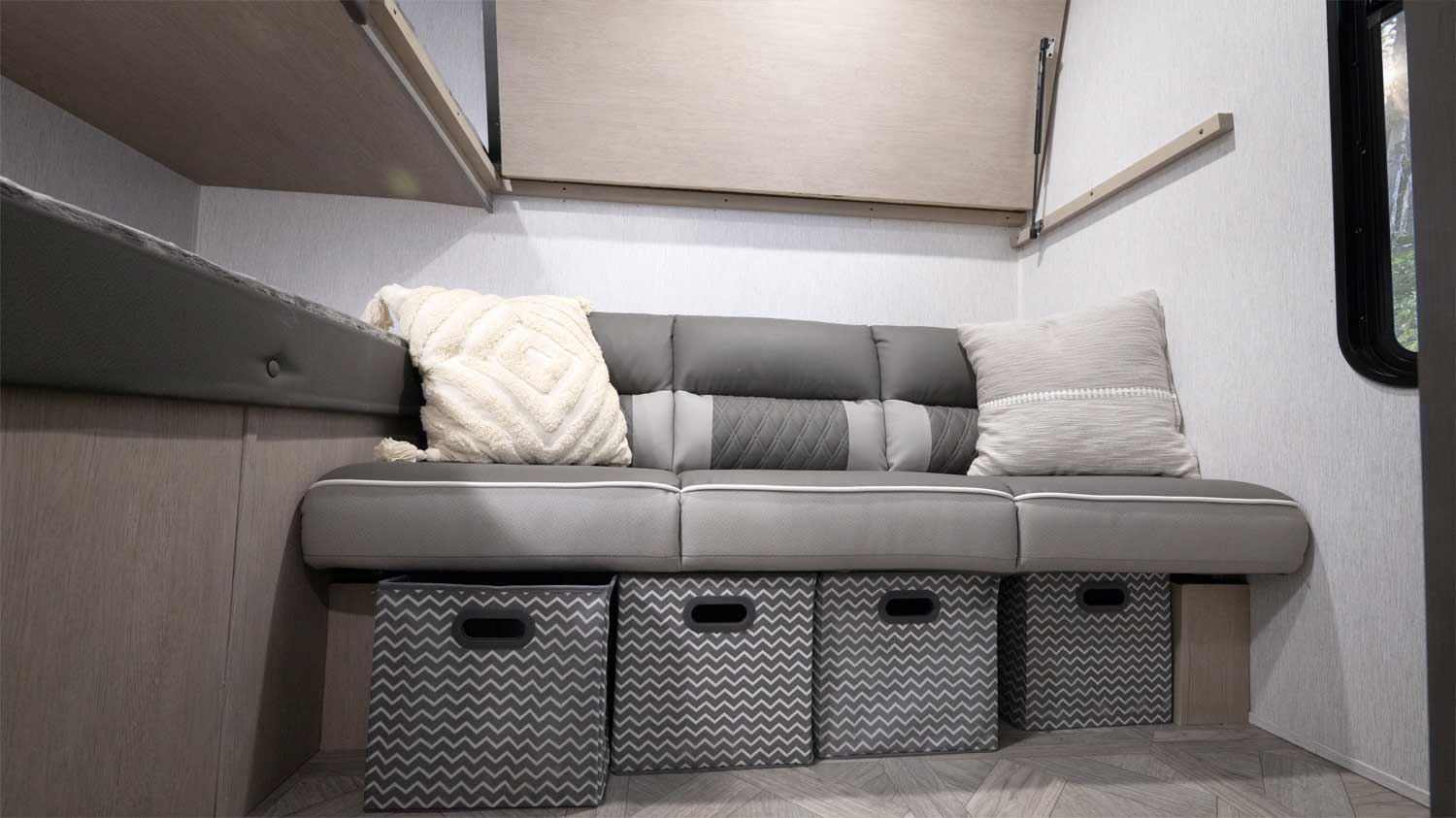

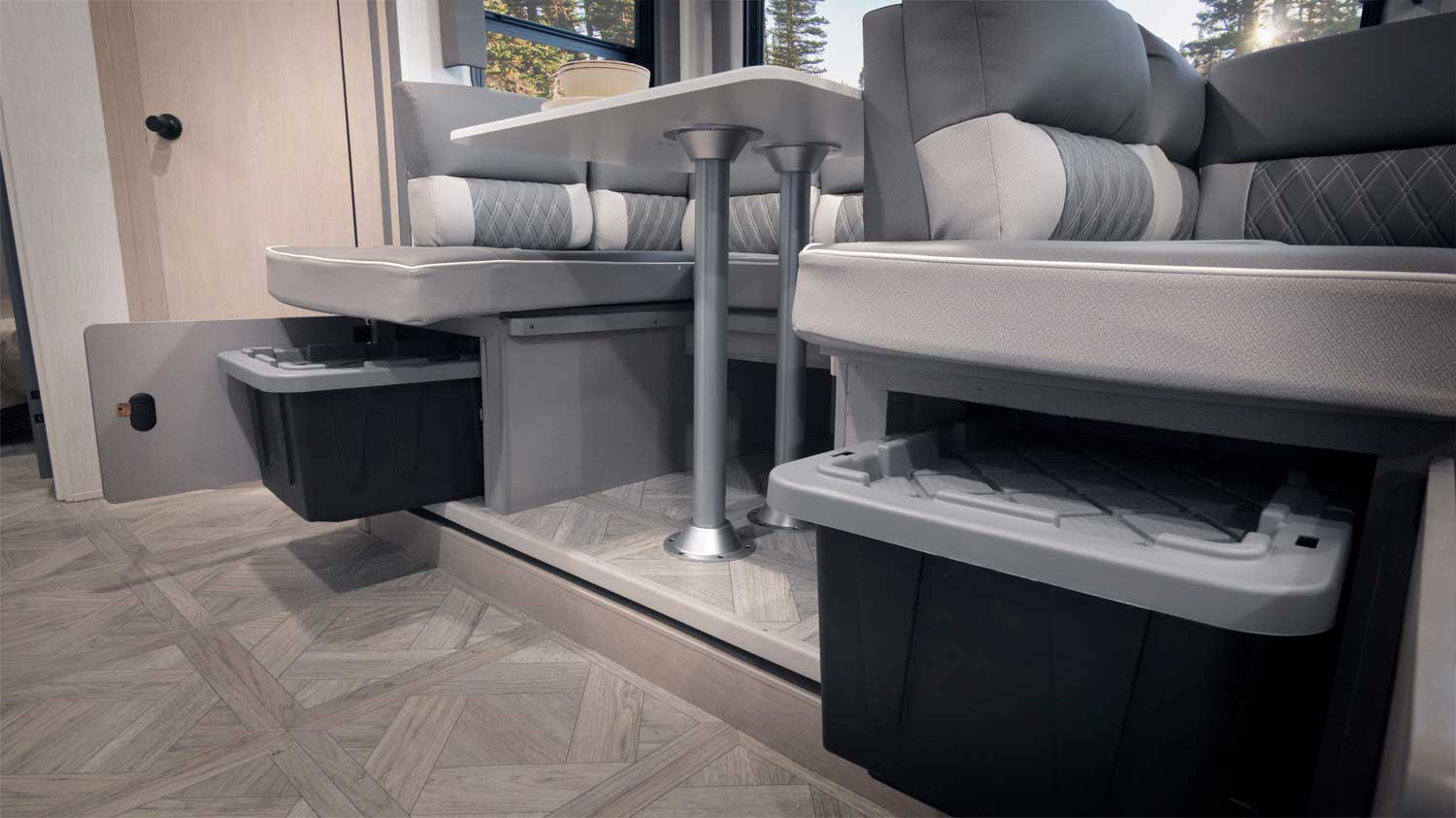

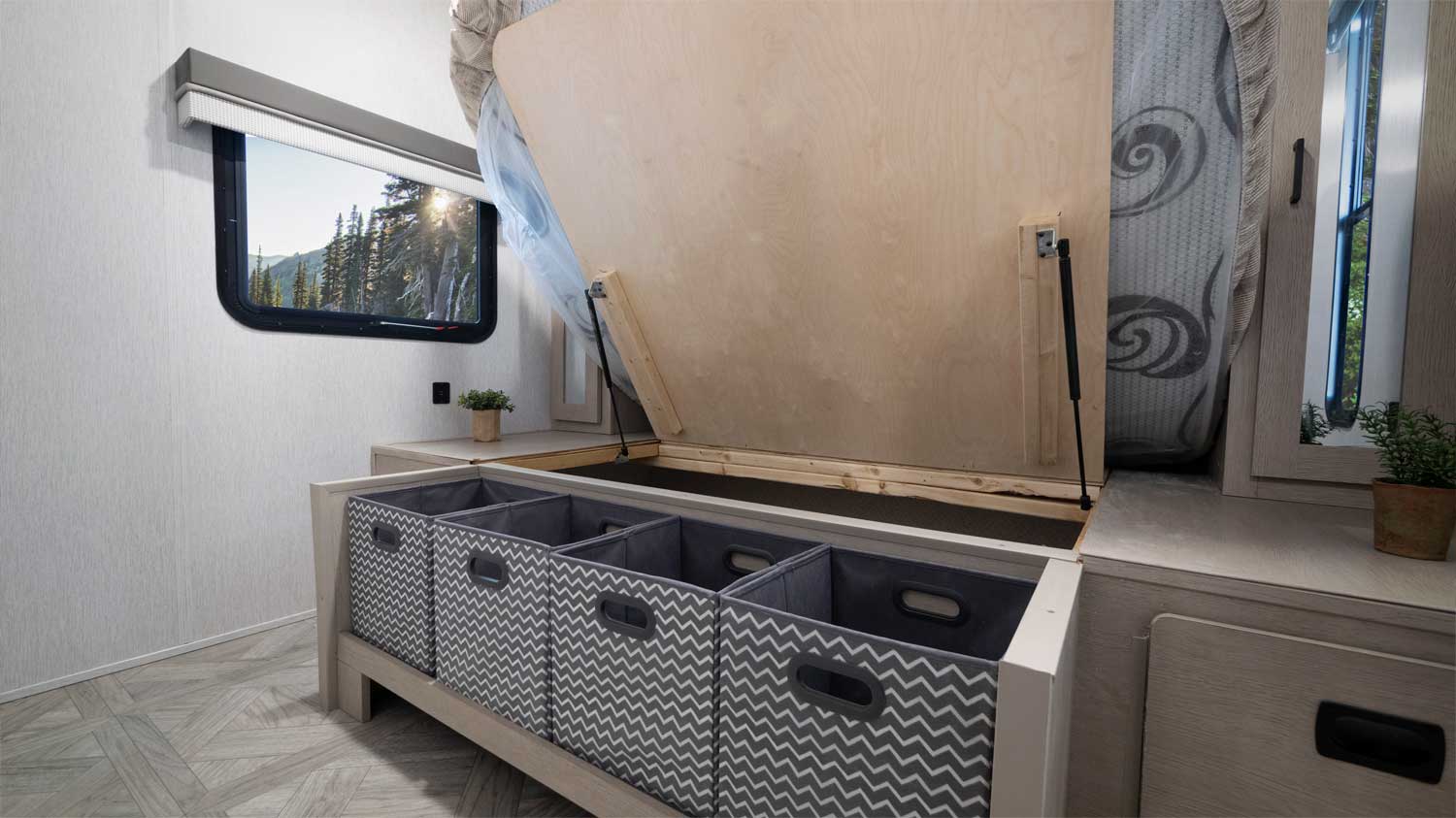

  • 20.3 Cu. Feet of Stow N Go Storage (Non-Slide Models 10.4 Cu. Feet)

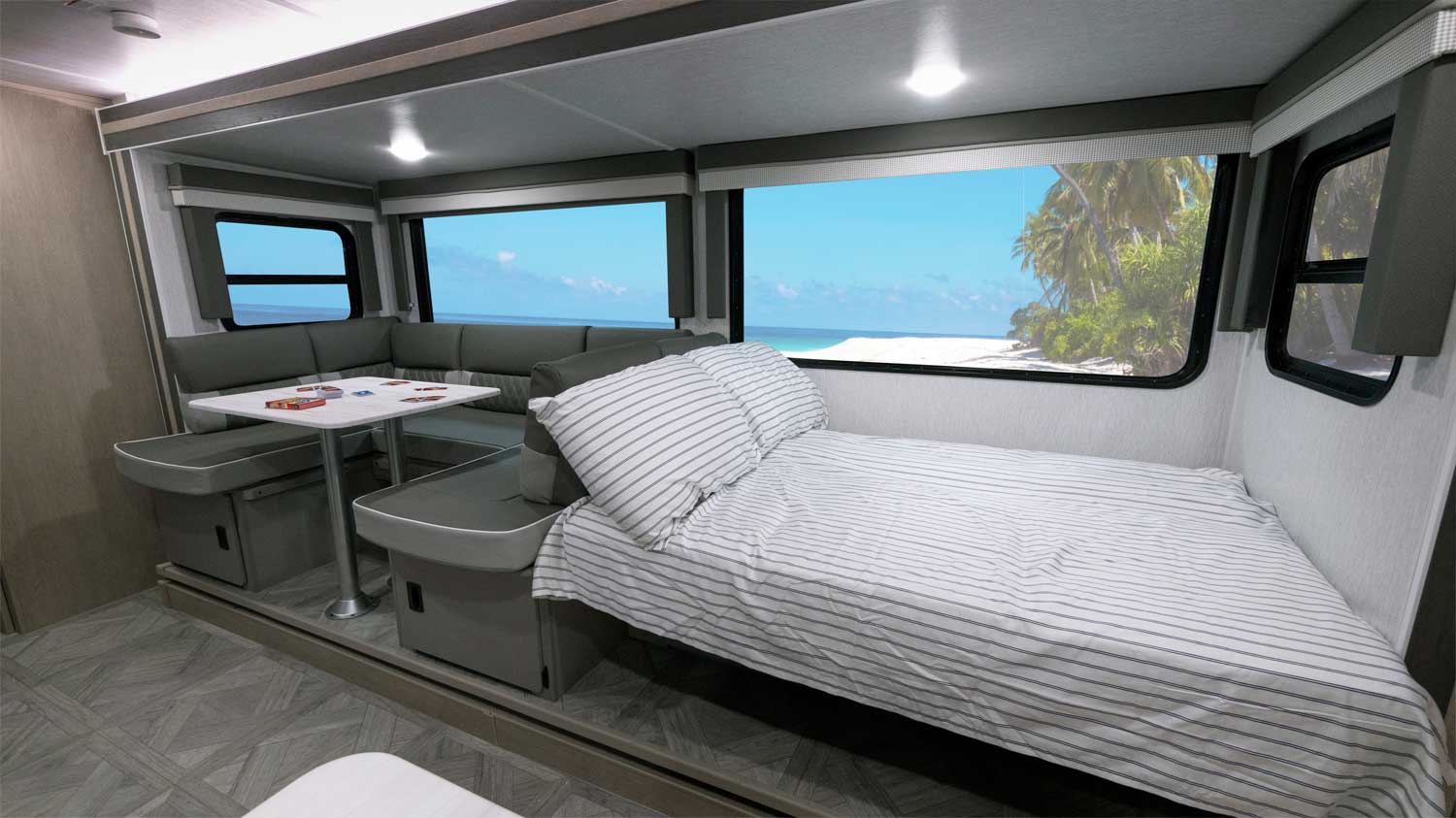

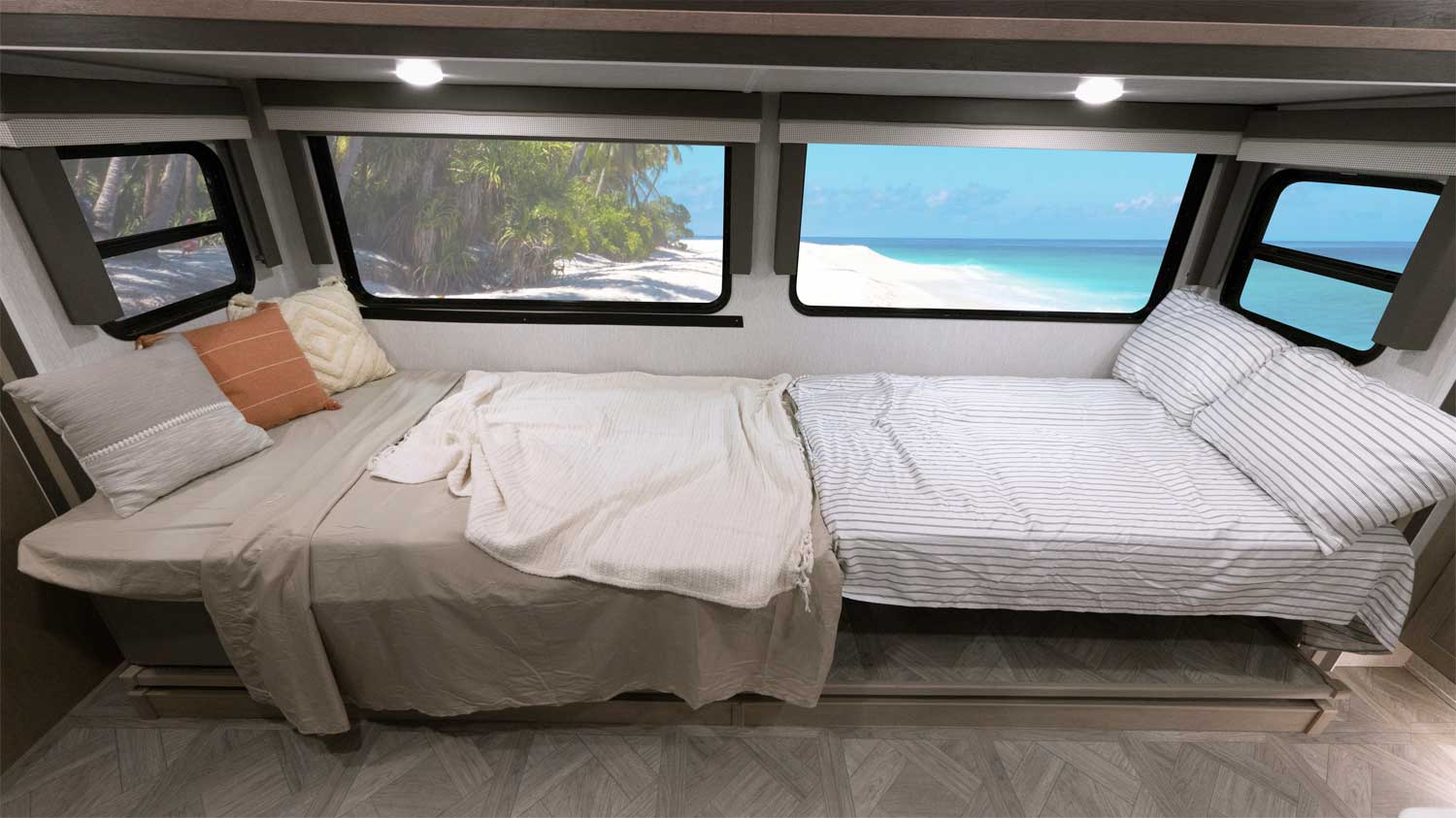

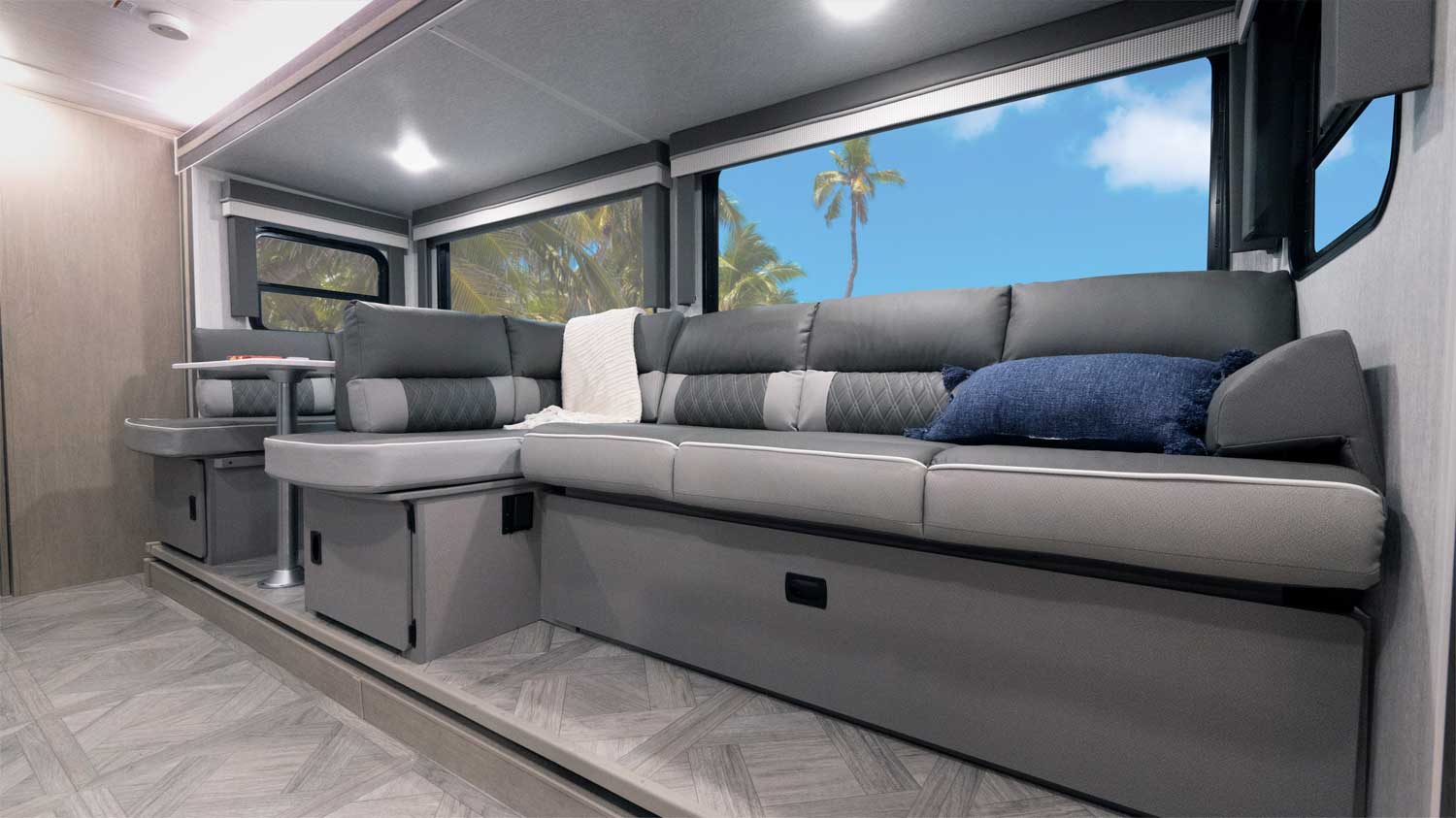

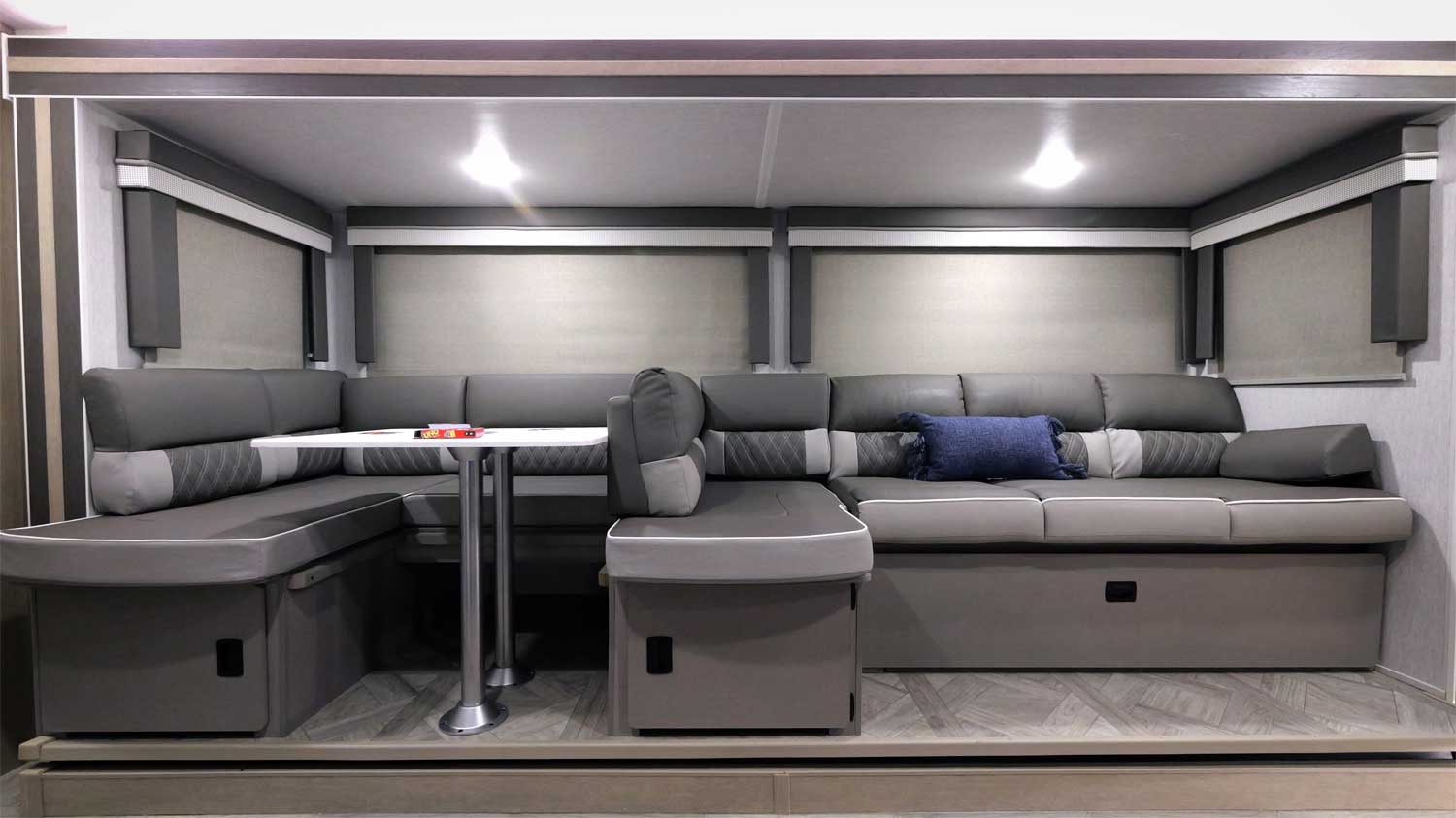

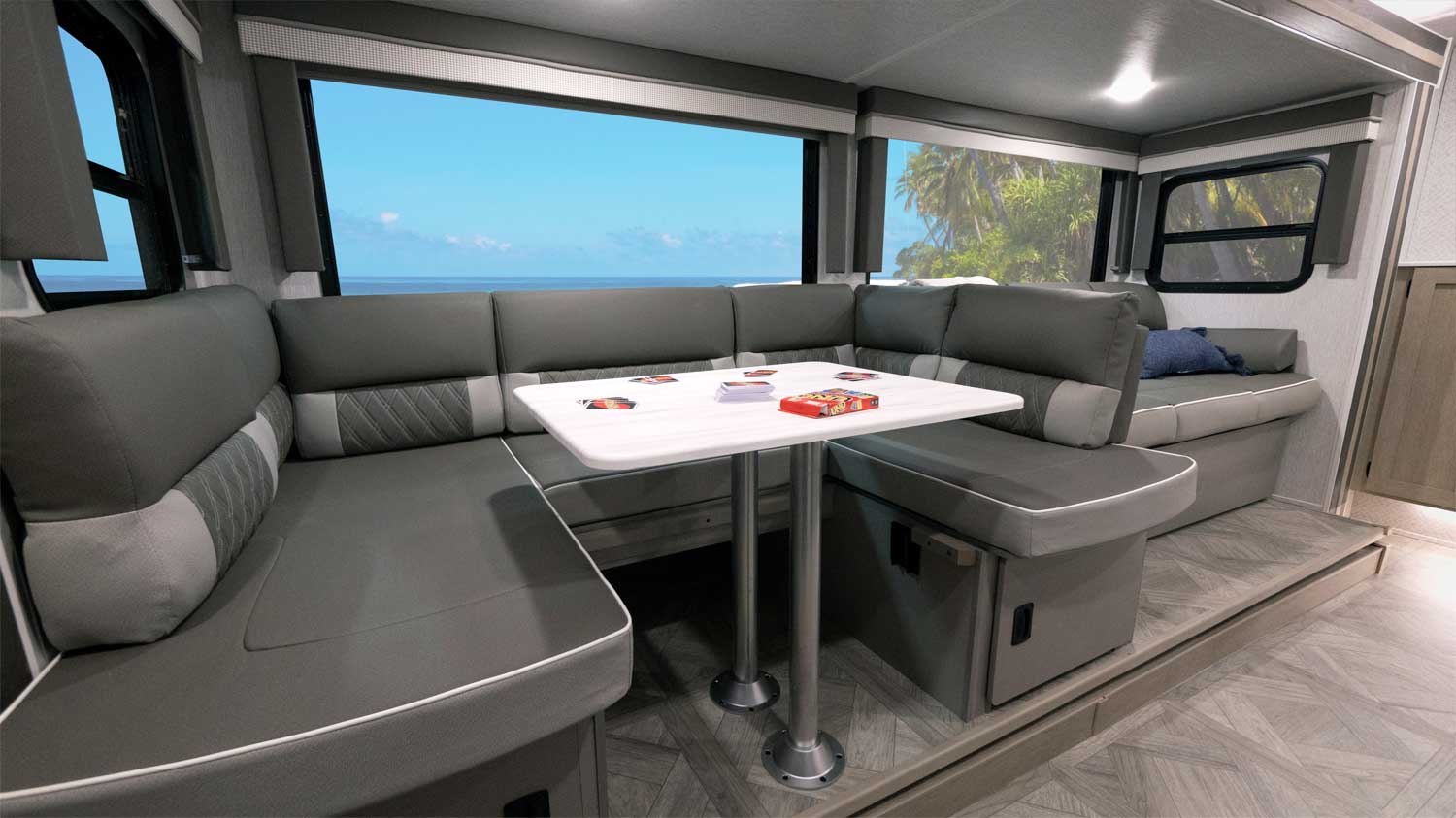

  • Versa Lounge (Select Models)
  • MORryde StepAbove Double Step (Main Door Only)

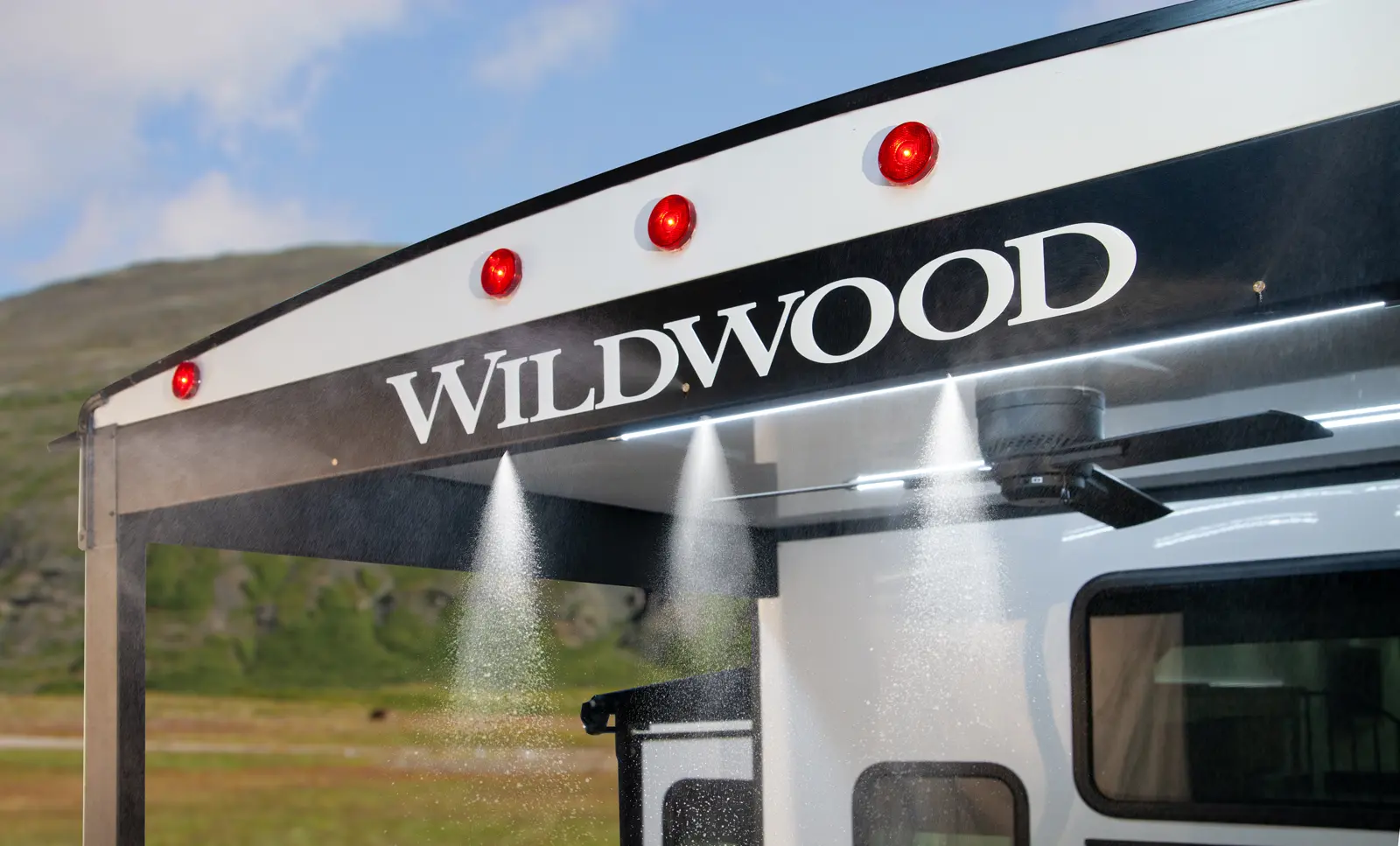

  • Exterior LED Light Strip Under Awning
  • Modern Cloth Roller Shades w/ AutoStop
  • Green Pkg: GoPower Roof Mount Solar Prep & LED Mushroom Lights
  • Power Awning w/ Adjustable Legs
  • True Stabilizer Jacks w/ JT StrongArms
  • Power Tongue Jack w/ LED Light
  • Stainless Steel Roll Up Sink Cover
  • Ext. Convenience Pkg: Friction Hinge & Baggage Door Magnets
  • Furrion Backup Camera Prep
  • Large Capacity 11 Cu. Ft. Frost-Free Refrigerator (12-Volt)
  • Slide-Out Awning Prep
  • Black Tank Flush
  • Seamless Countertops (No T-Mold)

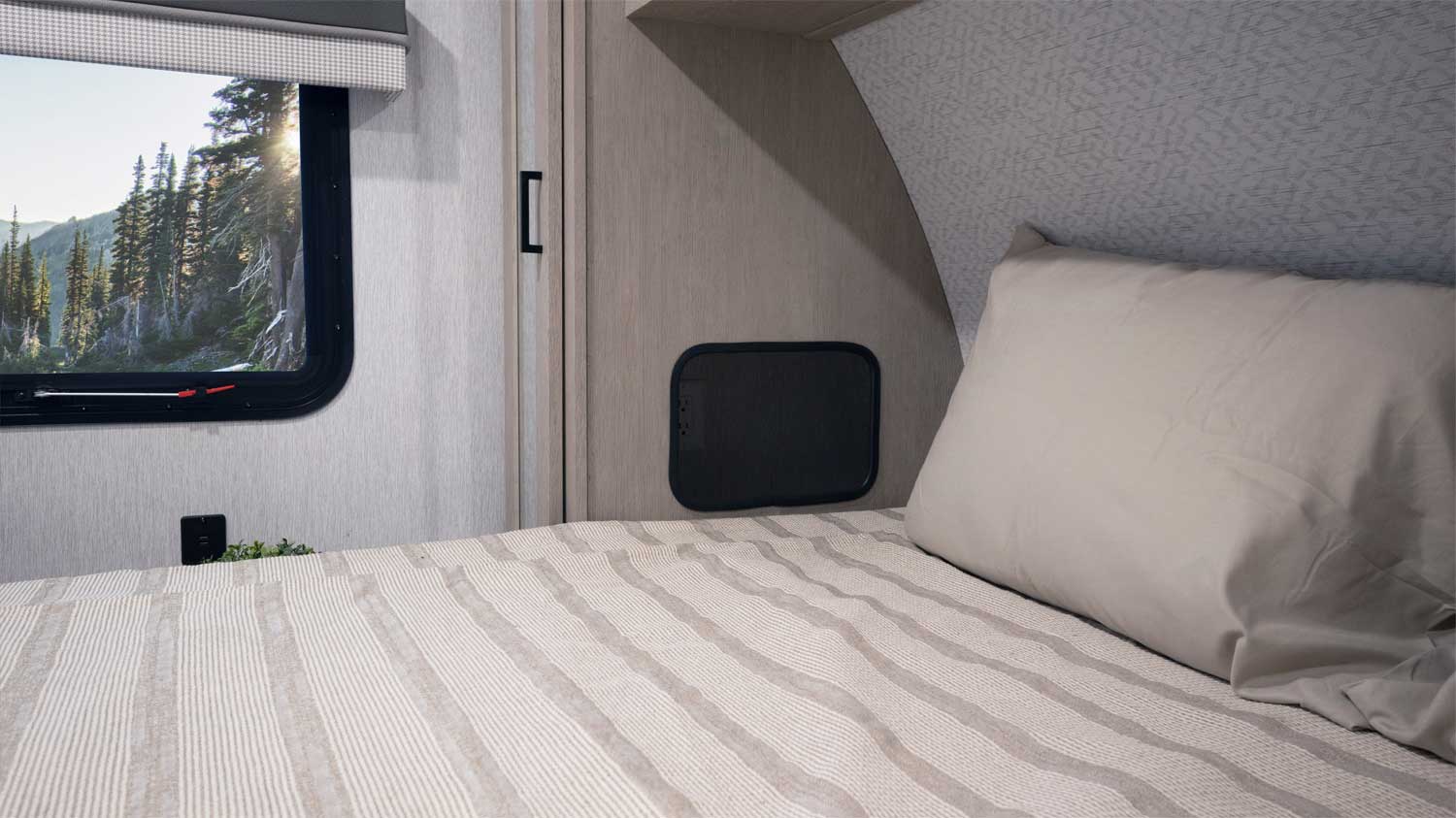

  • Designated CPAP Storage
  • Spare Tire & Carrier
  • Exterior Camp Kitchen (19DBXL & 261BHXL)
  • Ducted A/C (Non-Slide Models)

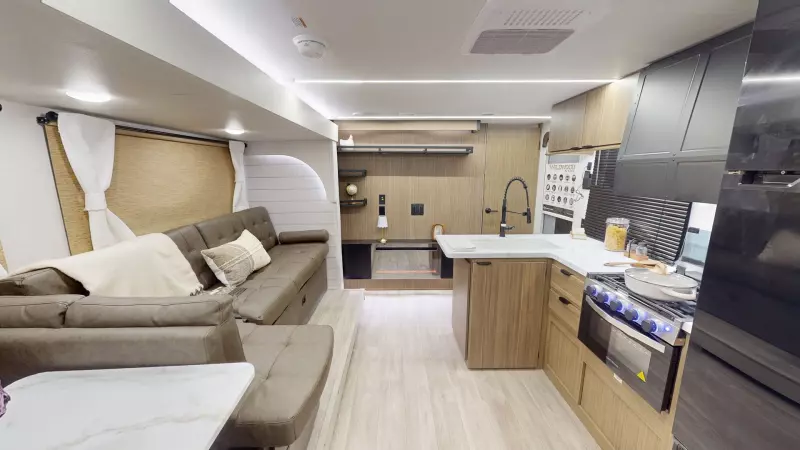

Virtual Tours

  • 171RBXL
    171RBXL Main Room
  • 19DBXL
    19DBXL Main Room

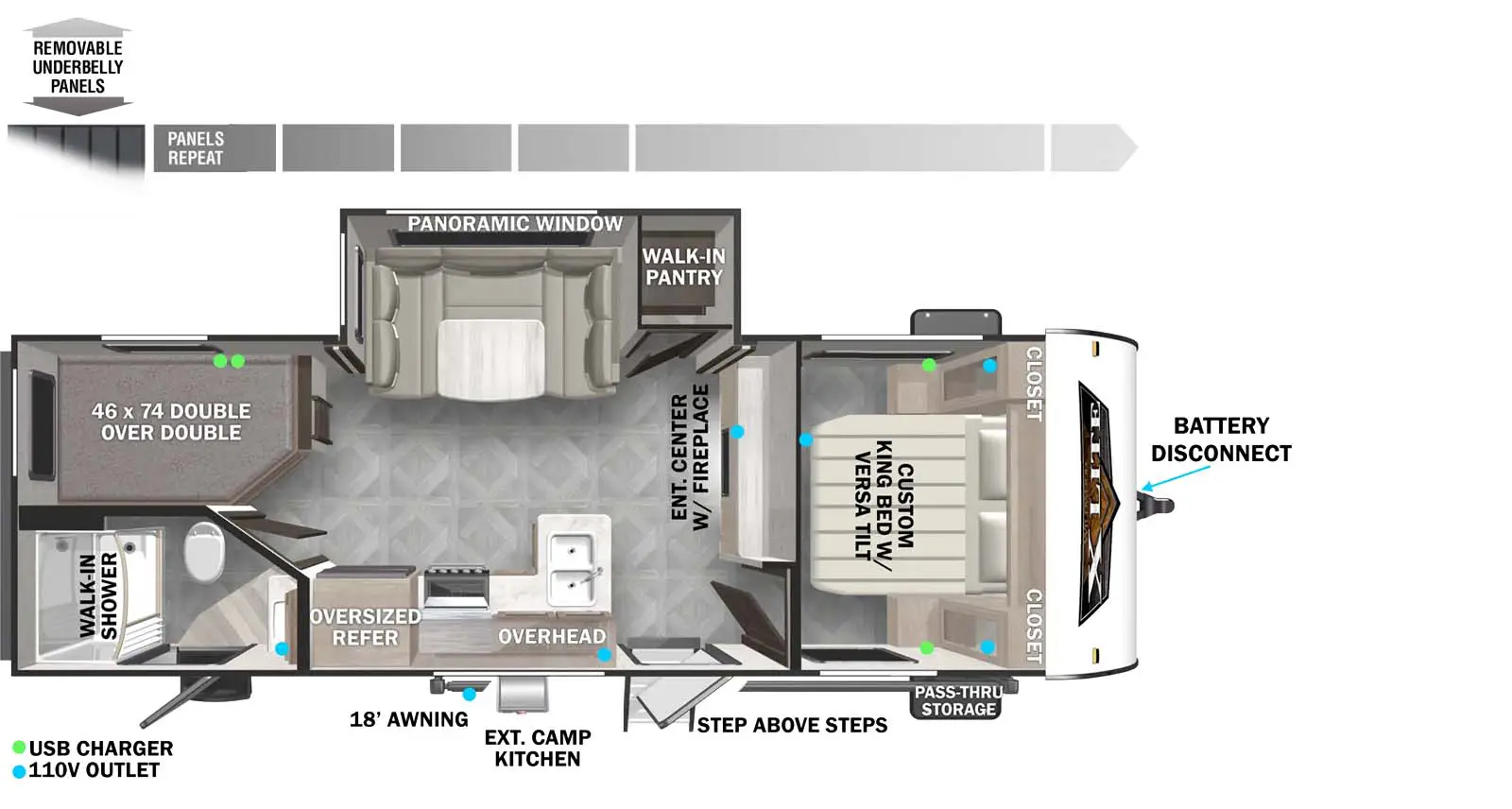

  • 240BHXL
    240BHXL Main Room
  • 241QBXL
    241QBXL Main Room
  • 24RLXL
    24RLXL Main Room
  • 261BHXL
    261BHXL Main Room
  • 263BHXL
    263BHXL Main Room

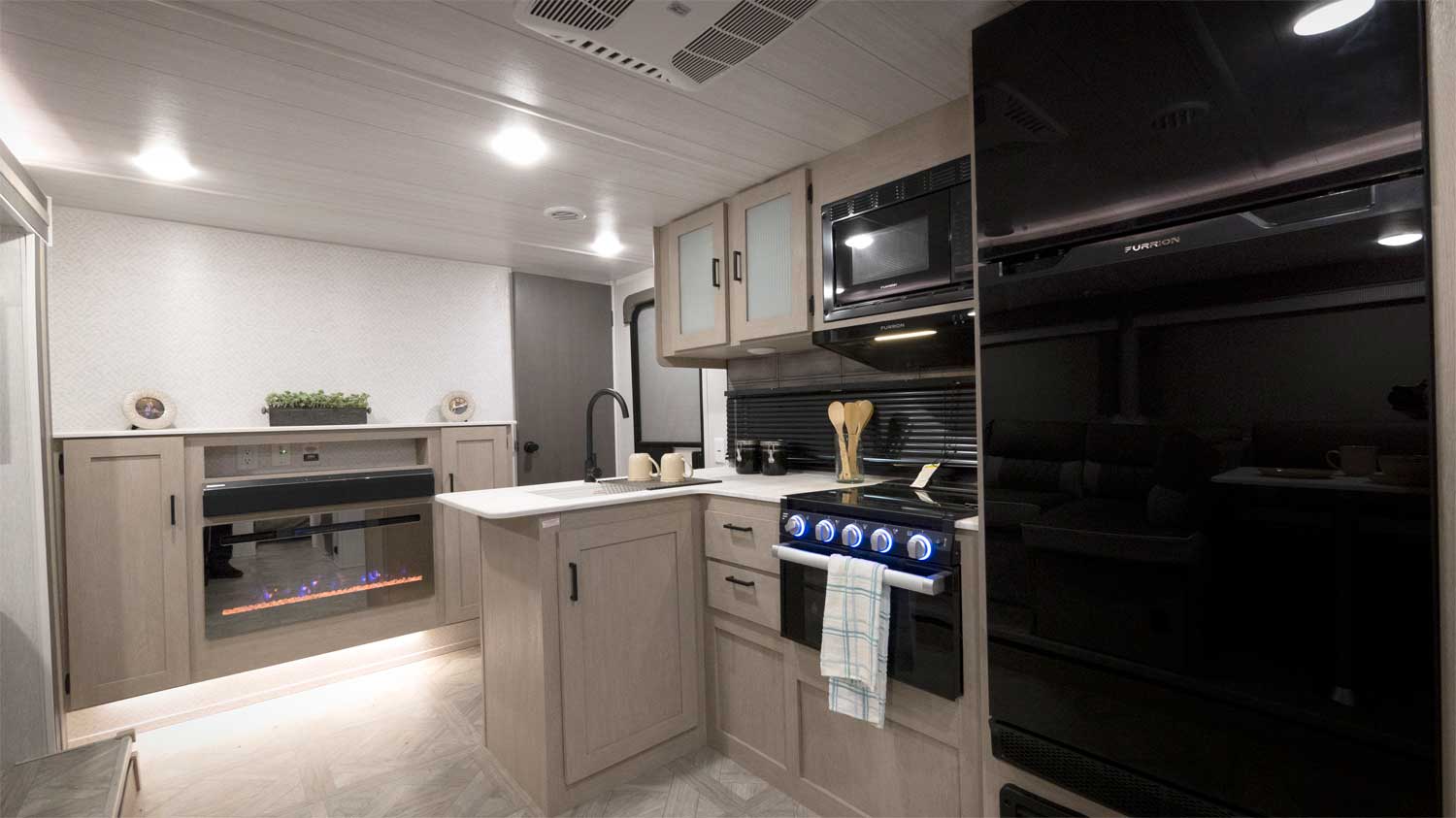

  • 273QBXL
    273QBXL Main Room
  • 282QBXL
    282QBXL Main Room

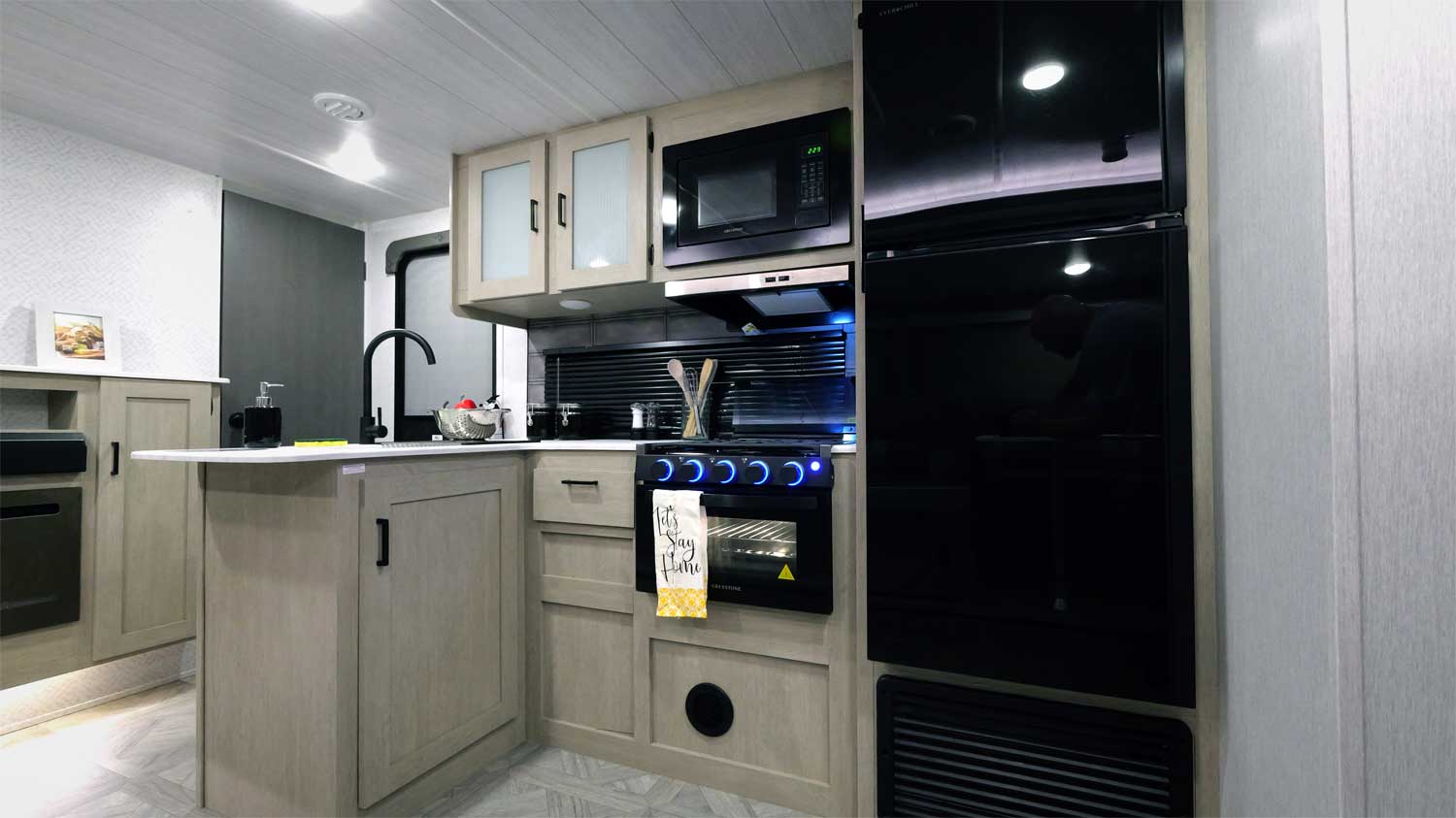

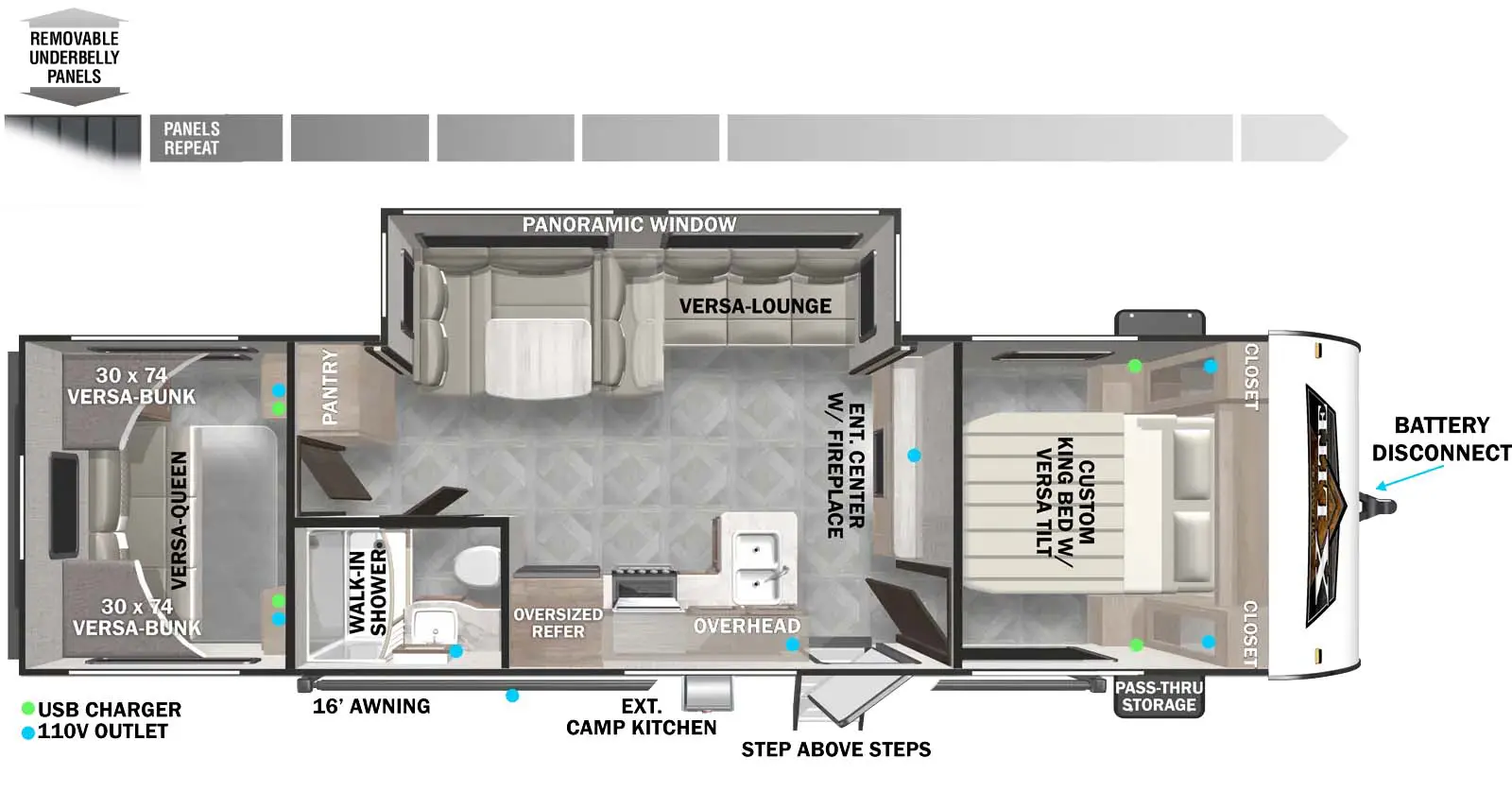

  • 28VBXL
    28VBXL Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
