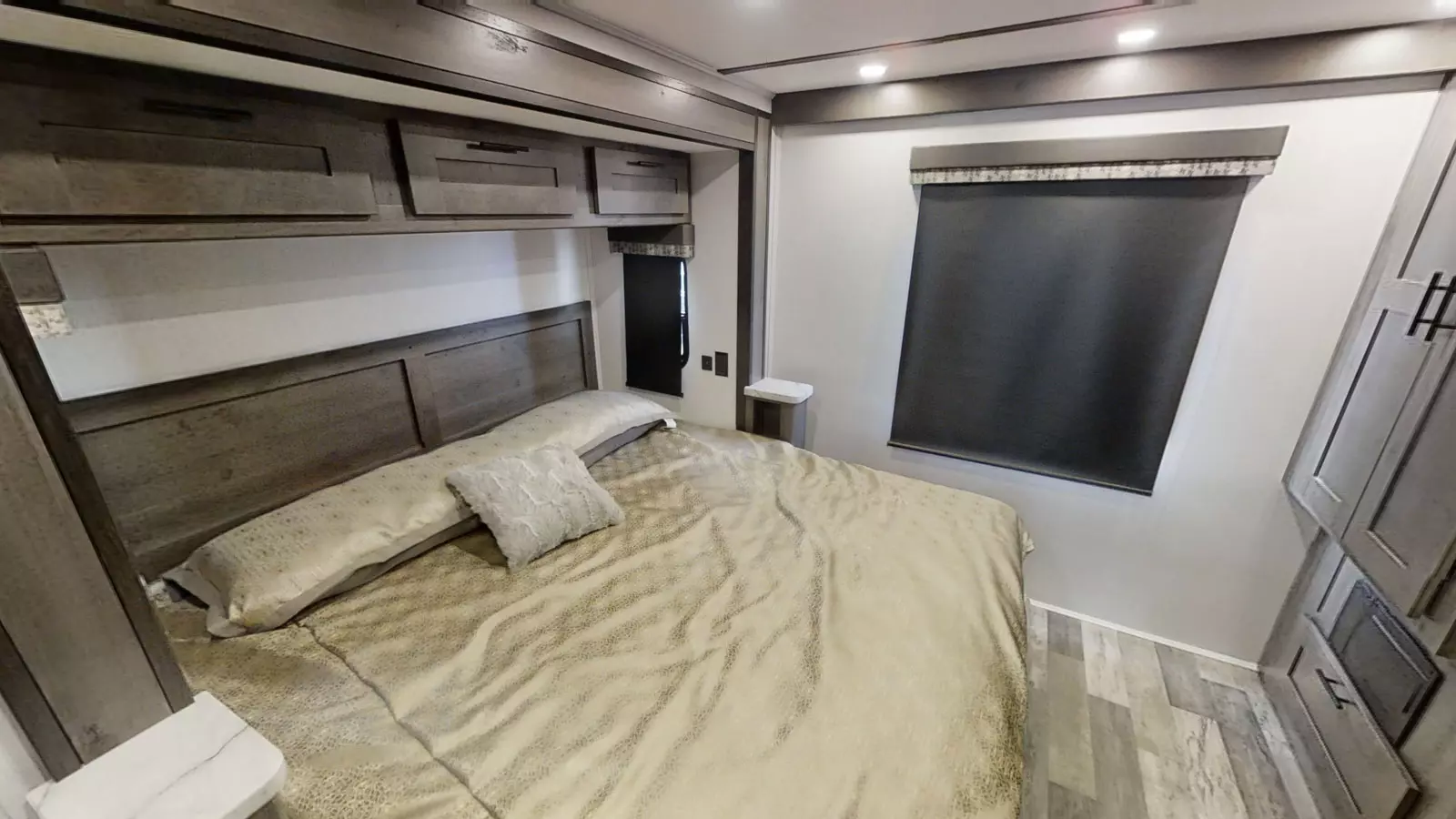

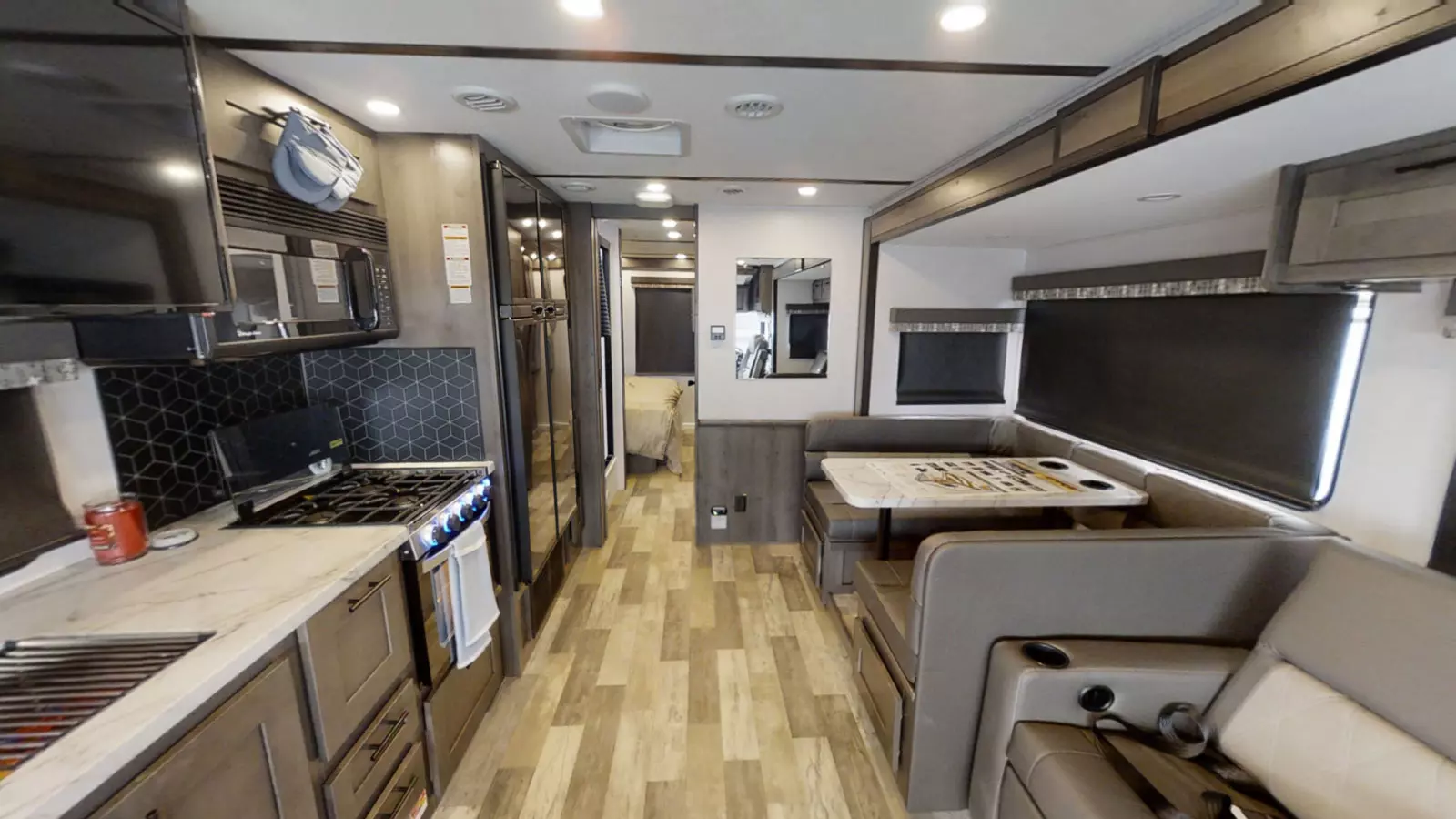

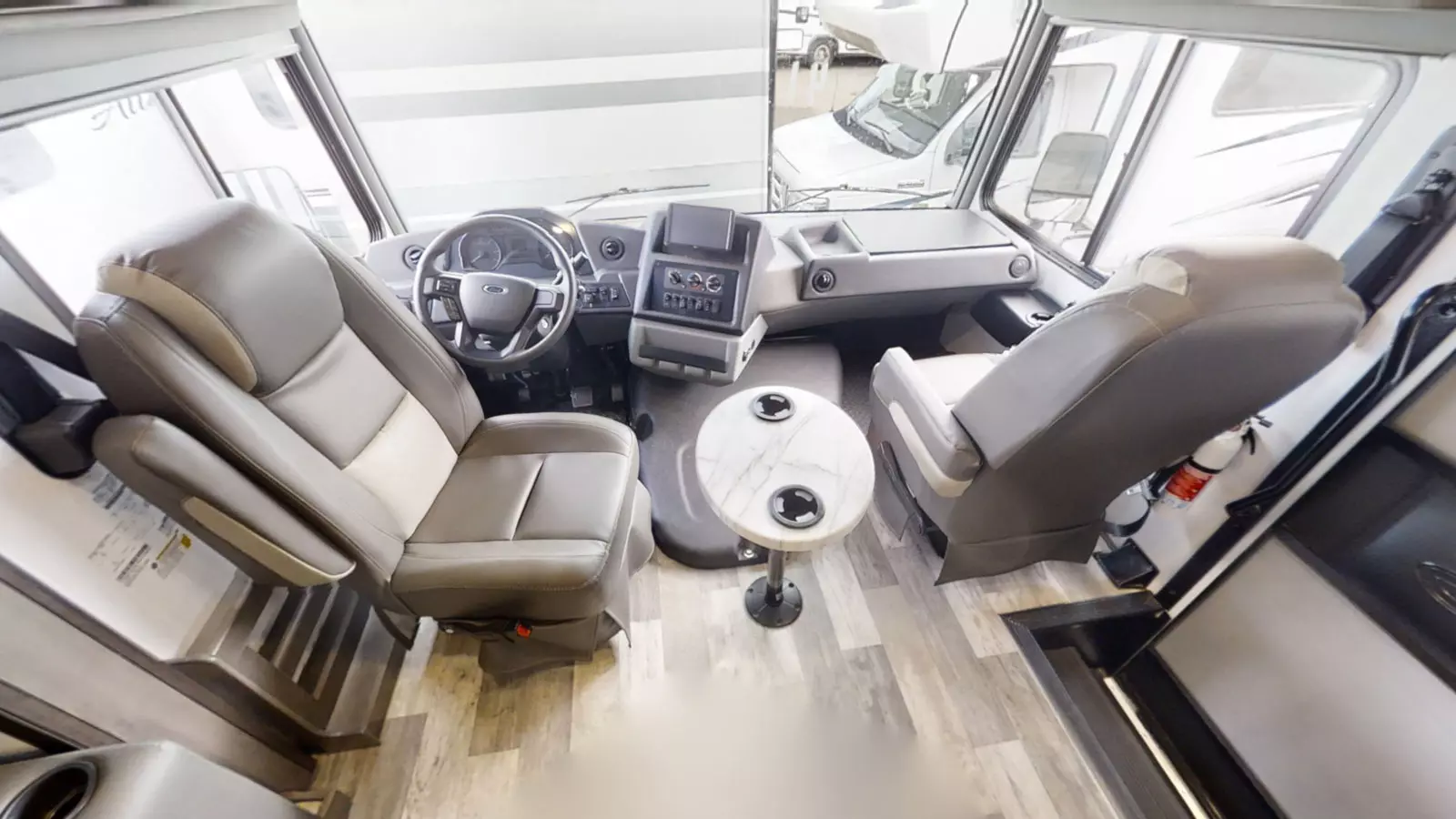

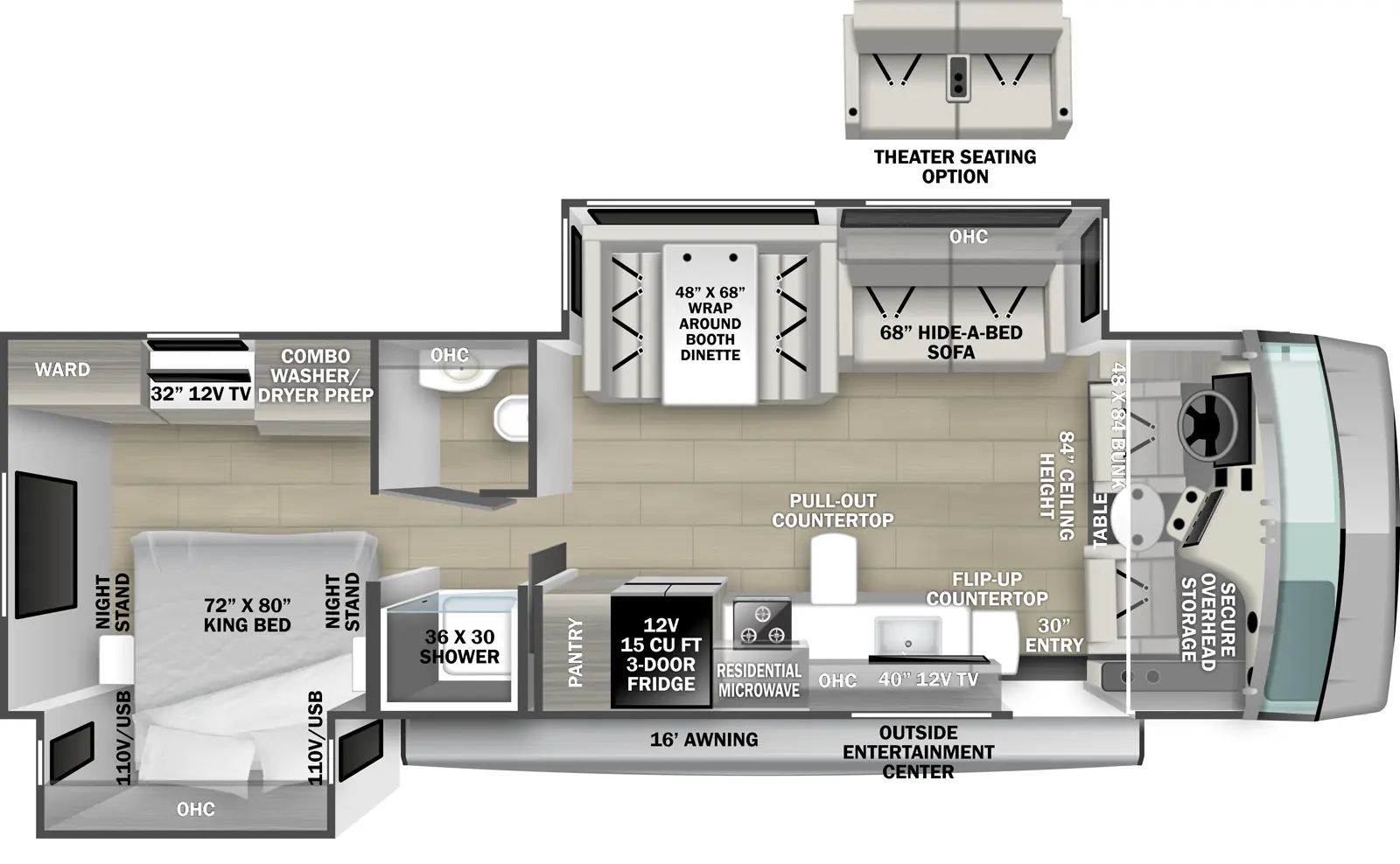

The 30DS has two slideouts and one entry. Exterior features a 16 foot awning, and outside entertainment center. Interior layout front to back: cockpit with secure overhead storage, bunk above, and table between the seats; 84" ceiling height; off-door side slideout with hide-a-bed sofa (optional theater seat), and wrap around booth dinette; door side entry, kitchen counter with extension, sink, overhead cabinet with 12V TV, residential microwave, cooktop, 12V 3-door refrigerator, and pantry; split full bathroom with off-door side toilet and sink, and door side shower; rear bedroom with door side king bed slideout with overhead cabinet, and nightstands with 110V outlet and USB port on each side, and off-door side wardrobe with 12V TV, and combo washer/dryer prep.

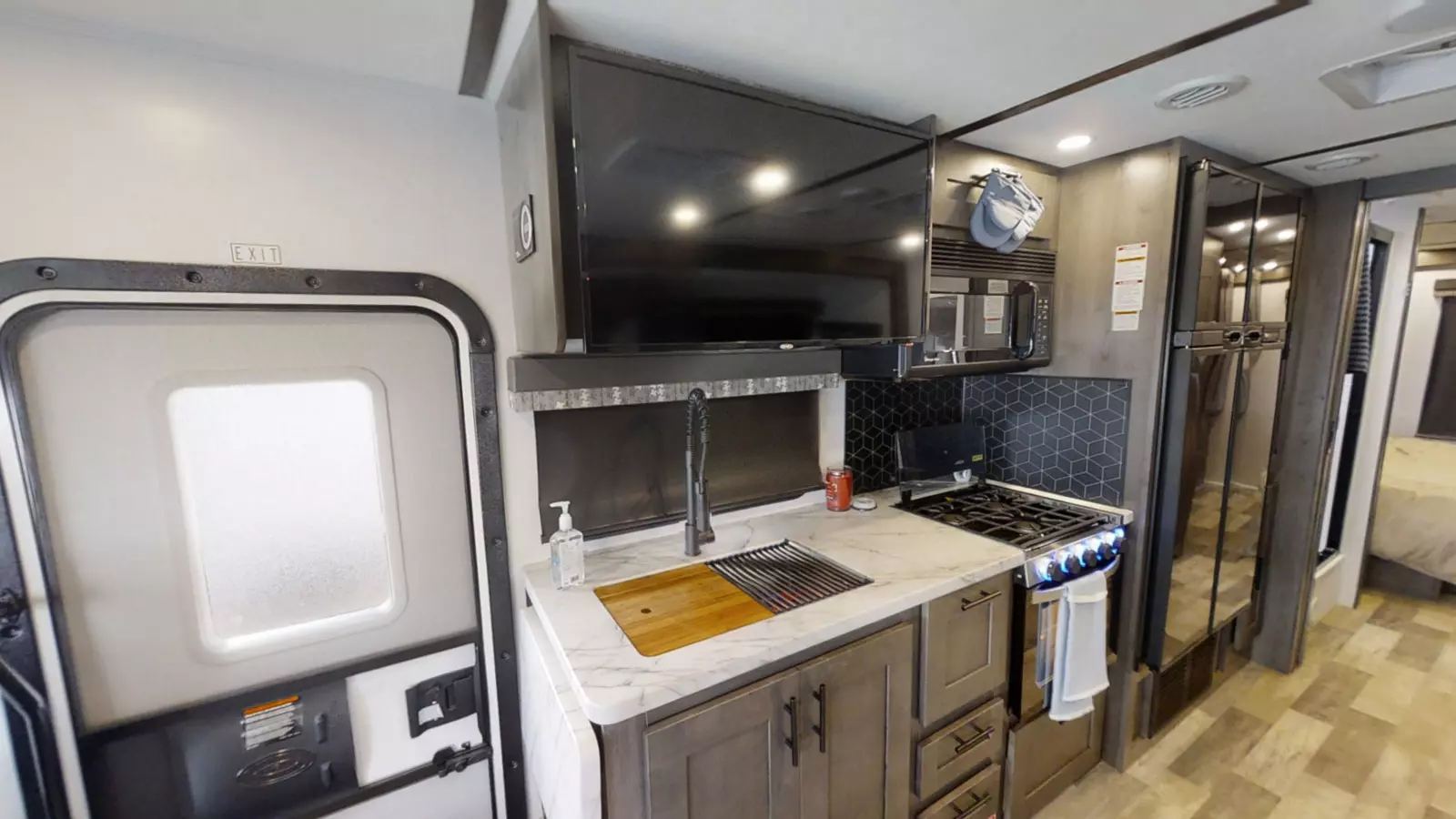

The FR3 30DS has everything you need to hit the road in comfort and style. Play a board game at the wrap-around booth dinette or relax on the hide-a-bed sofa. The kitchen comes equipped with a 12V 15 cu. ft. refrigerator, pantry, residential-style microwave, and two countertop extensions. Sleep like a king in the rear bedroom, which includes a king bed, TV, wardrobe, and washer/dryer prep. The split bathroom allows someone to take a shower while another freshens up in the sink and toilet room.

Wheelbase: 228"
GVWR: 20,500 lb.
GCWR: 26,000 lb.
GAWR Front: 7,000 lb.
GAWR Rear: 13,500 lb.
Fuel Capacity: 80 gal.

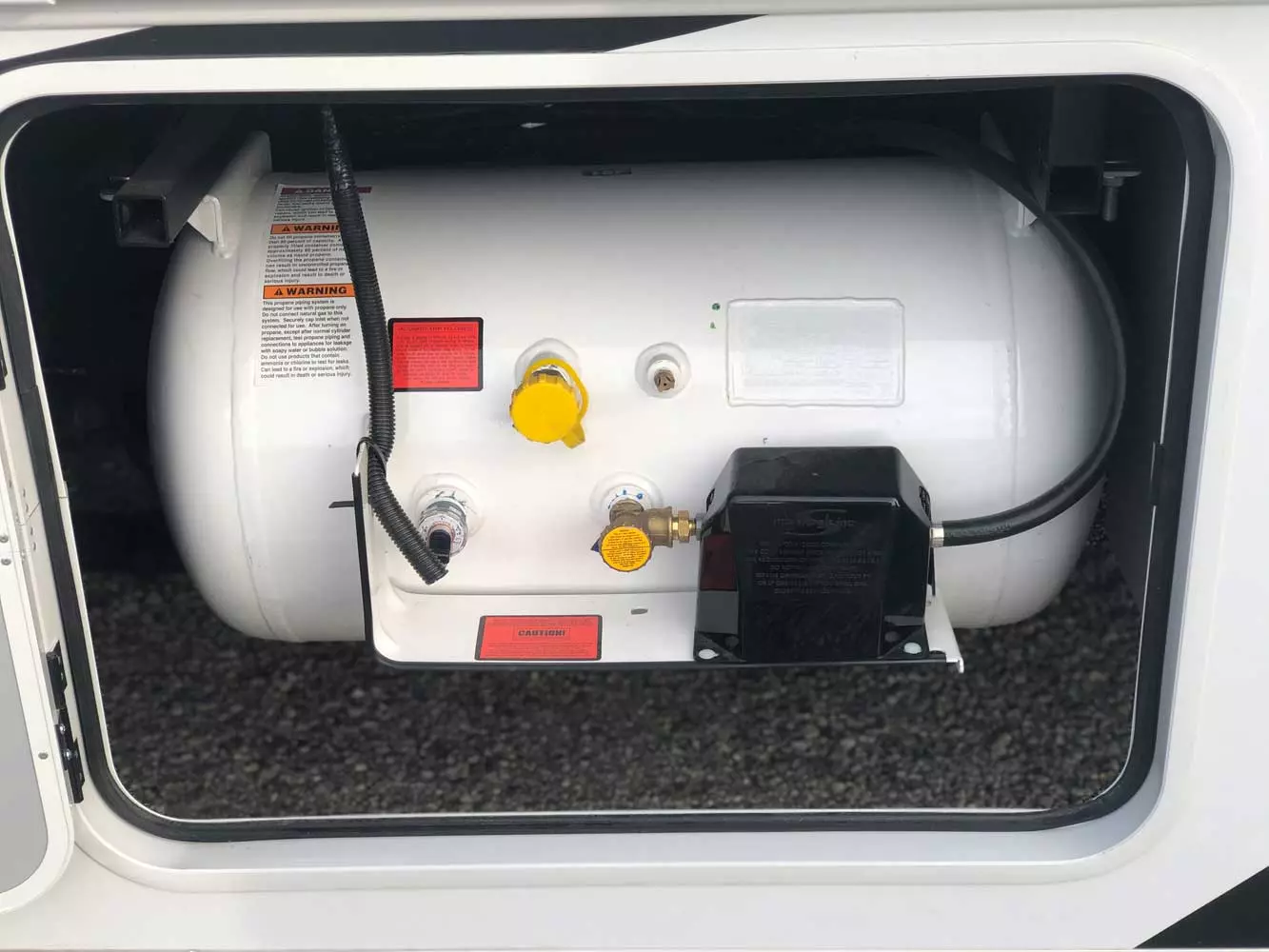

LP Tank Capacity: 103 lb.
Exterior Length: 31' 11"
Exterior Height: 12' 5"
Exterior Width: 101"
Interior Height: 82"
Fresh Water: 52 gal.
Gray Water: 42 gal.
Black Water: 42 gal.
Awning Size: 16'

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

30DS FR3 - Ford Chassis Features & Options

- 30DS - 115 cu. ft.
- Ford F53 Gas Class A Motor Home Chassis
- 7.3L 445 cu in V-8 6-Speed TorqueShift Transmission 335 HP & 468 lb.-ft.
- MORryde Chassis Conversion Upfit
- Power Front Sun/Privacy Shade
- Driver & Passenger Side Manual Pull Down Roller Shades
- Two Tone 5-Year Ultra Leather Driver/Passenger Seating w/Double Stitching
- Truck Bed Lined - Low Profile Cockpit Engine Cover
- Driver/Passenger LED Map Lights
- Driver/Passenger Speakers
- Fixed Cockpit Diamond Plate Rubber Floor Mats
- Adjustable 3 Point Seat Belts (Driver/Passenger)
- Removable Pedestal Cockpit Conversation Table w/ Cup Holders
- Passenger Side Flip Over Work Station
- Deep Passenger Side Glove Box
- Passenger Side 110 & 12v Outlets
- Driver & Passenger Side Molded Arm Rests w/ Cup Holder
- Sony 9.6" Dash Radio AM/FM/Bluetooth/Color Back Up Monitor/Apple CarPlay & Android Auto
- Center Switch Bank
- Phone & Tablet Holder
- Flush Access Panel (Top of Dash)
- Multi-Port USB / 12V Charging Station
- Vacuum Bonded Construction (Roof / Sidewalls / Floor)
- Power Gear SlimRack® Slideouts (Deep Slideouts Various Models)
- Pearl Grey Gel-Coat Sidewalls w/ Matte Black Graphic Package
- Pearl Grey Gel-Coated Fiberglass Front Cap w/ Auto Bonded Windshield & Lighted Logo
- Matte Black Side-Swing Front Grill w/Mesh Bug Shield
- Steel Firewall & A-Pillar Extension

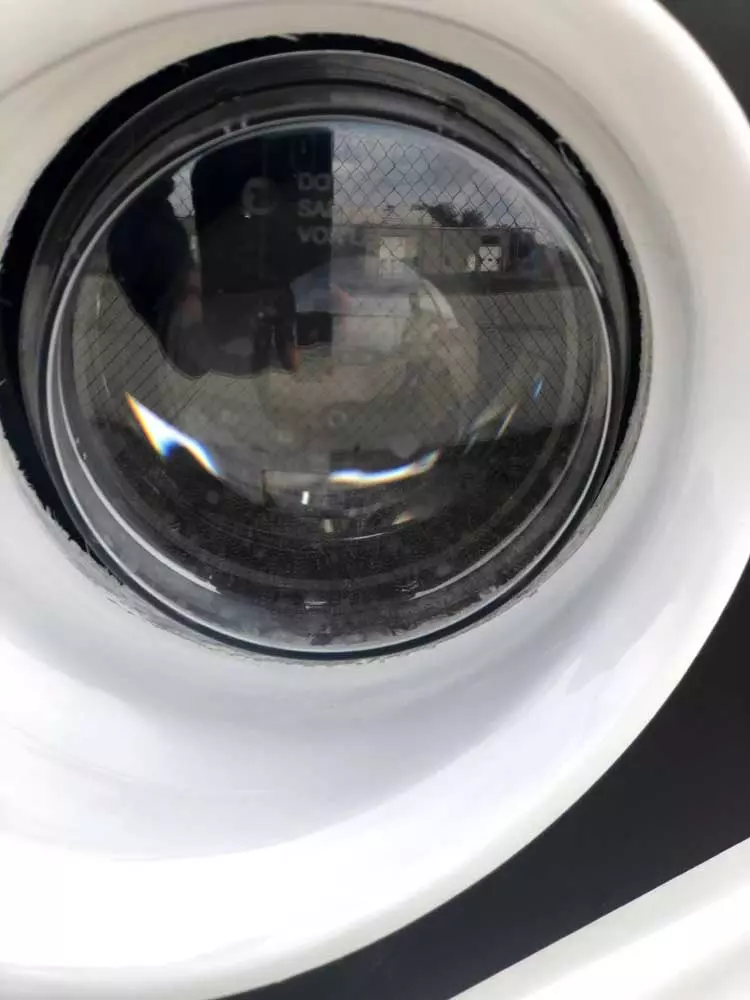

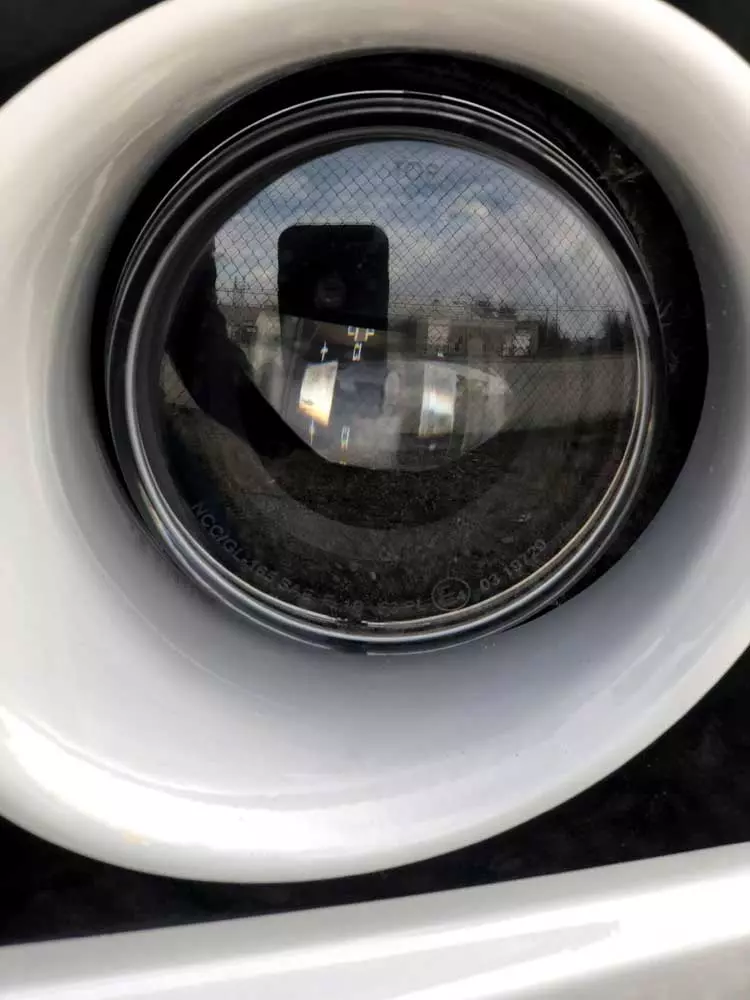

- Bi-LED Headlamps & Lower LED Fog Lights

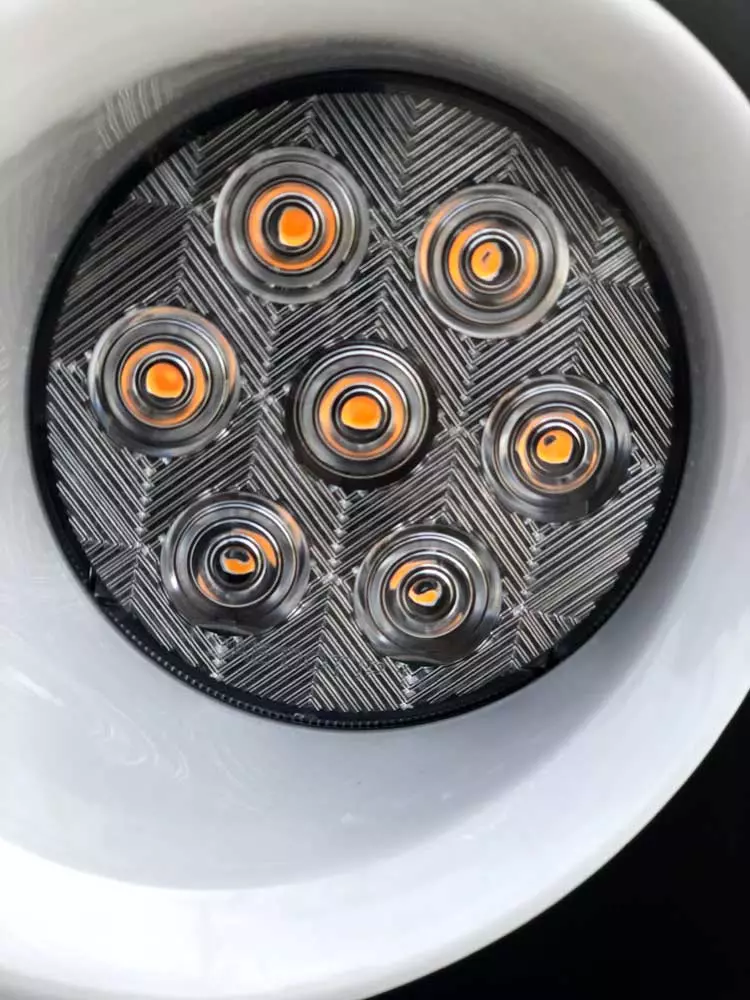

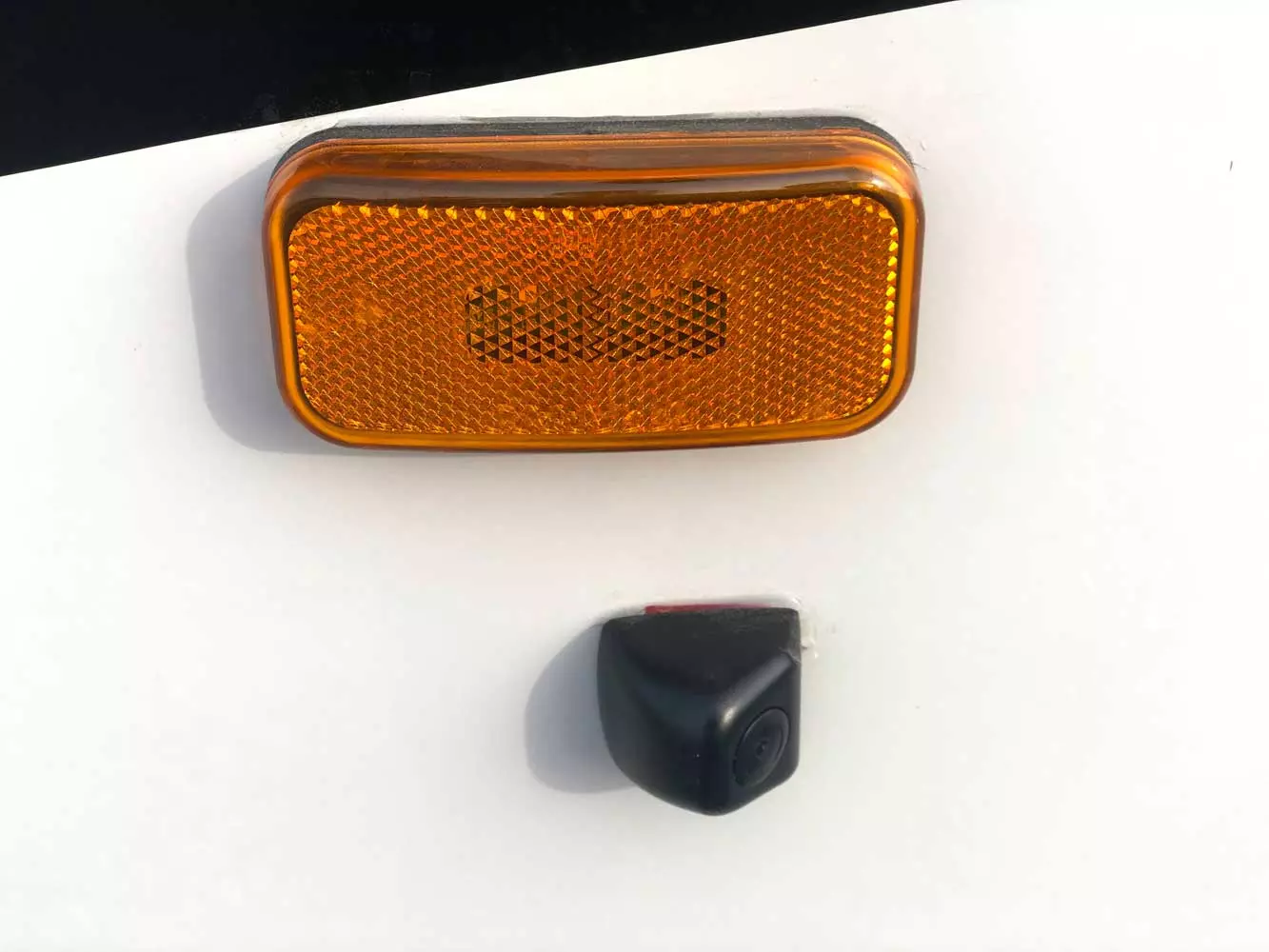

- LED Turn Signals, LED Marker Lights & LED Strip/Turn Light
- Front License Plate Landing w/ Mounting Bracket
- Power / Heated Exterior Mirrors
- Body Mounted Side & Rear view Camera Package
- One Piece Fiberglass Roof w/ Extended Rain Spouts

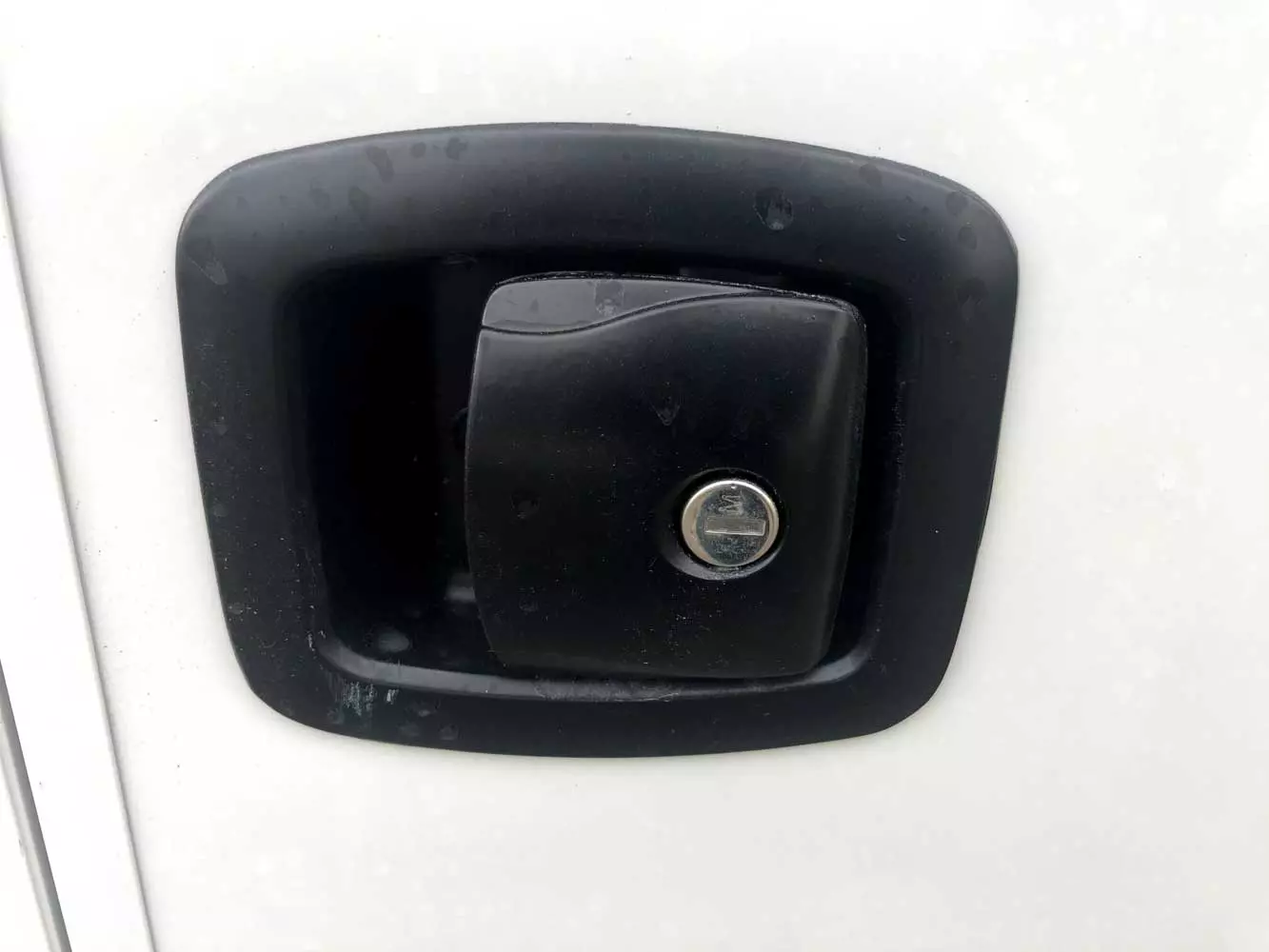

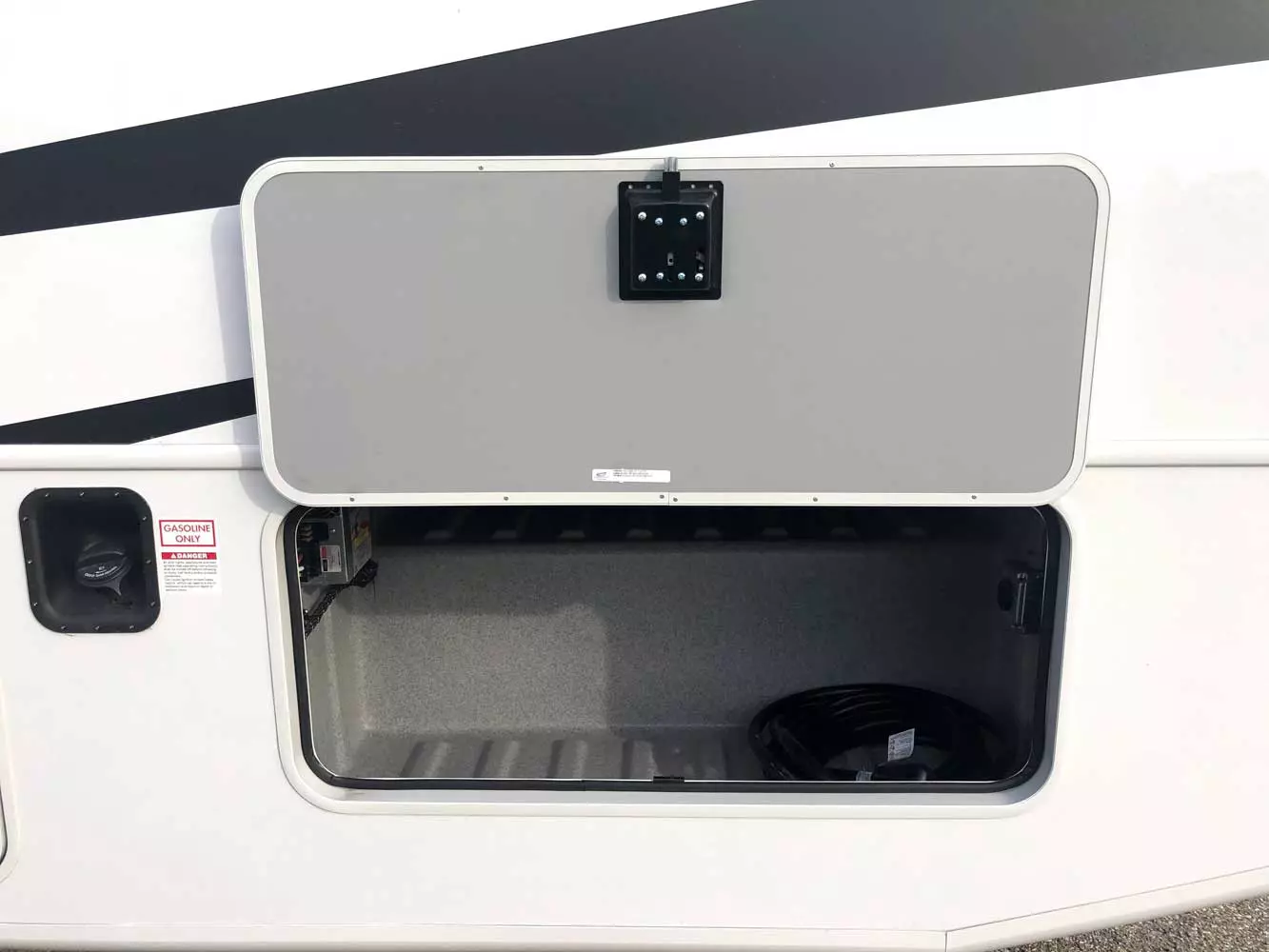

- Heavy Duty Slam Latch Storage Compartment Doors
- 30" Wide Entry Door w/ Deadbolt Lock & Screen Door
- Triple Electric Hideaway Entrance Steps
- Rubberized Entry Assist Handle
- Max Flow Slider Windows

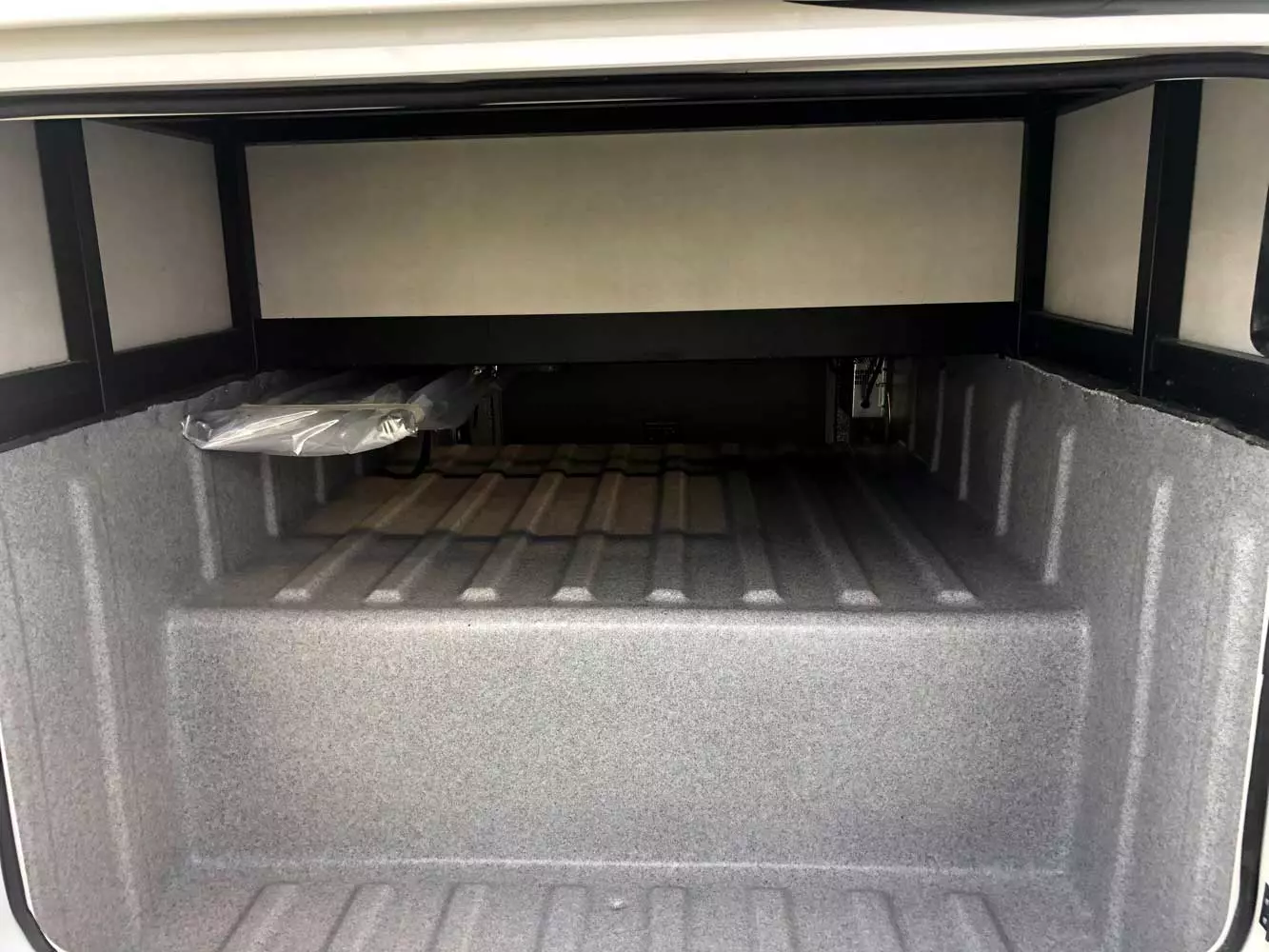

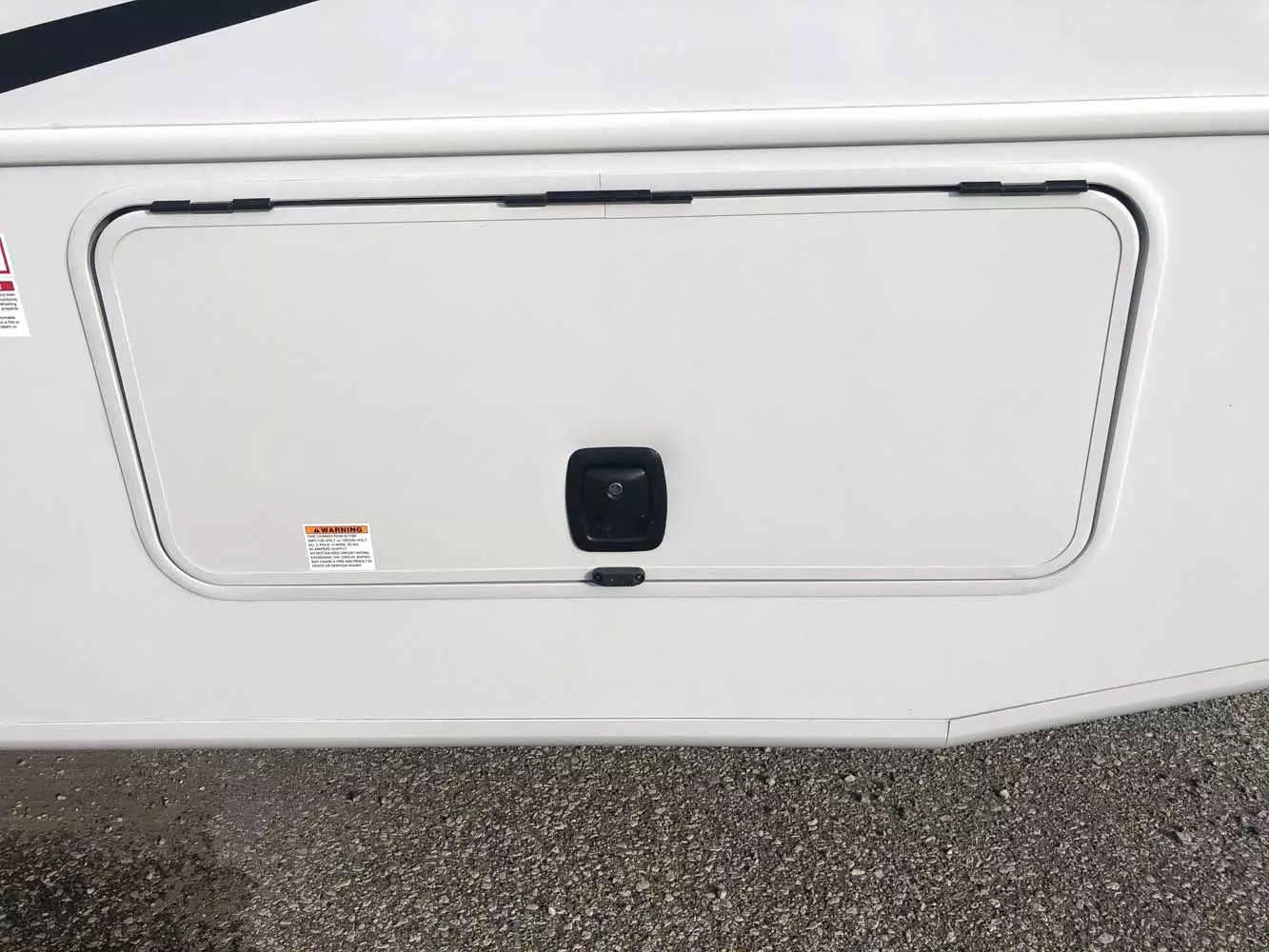

- SUPER STORAGE" Pass-through Rear Cargo Compartment

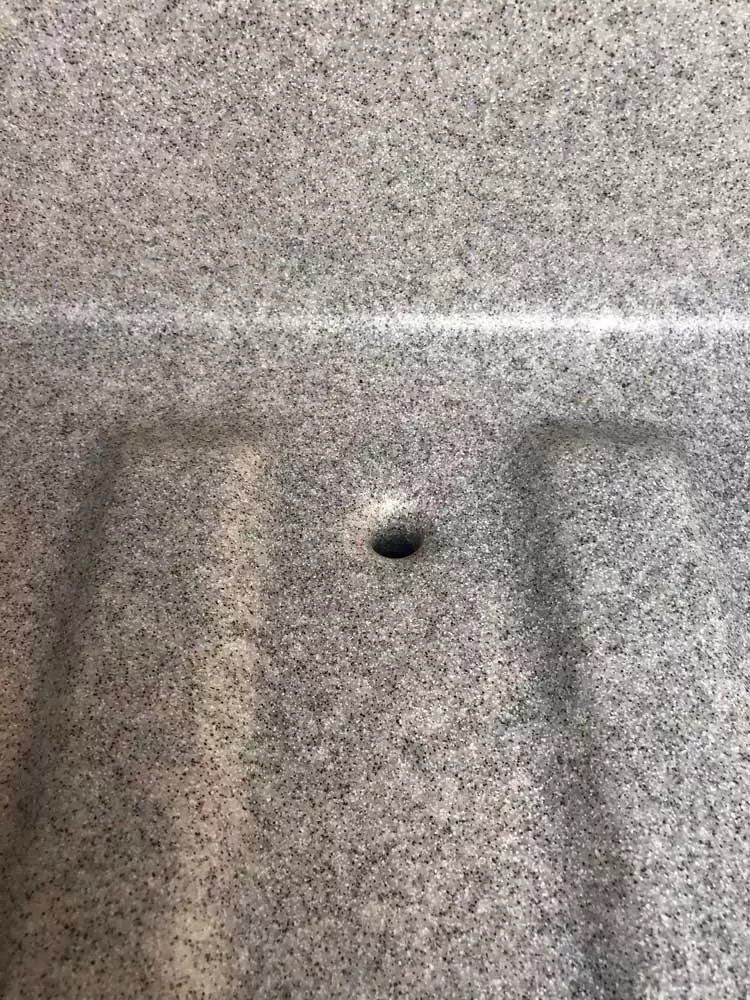

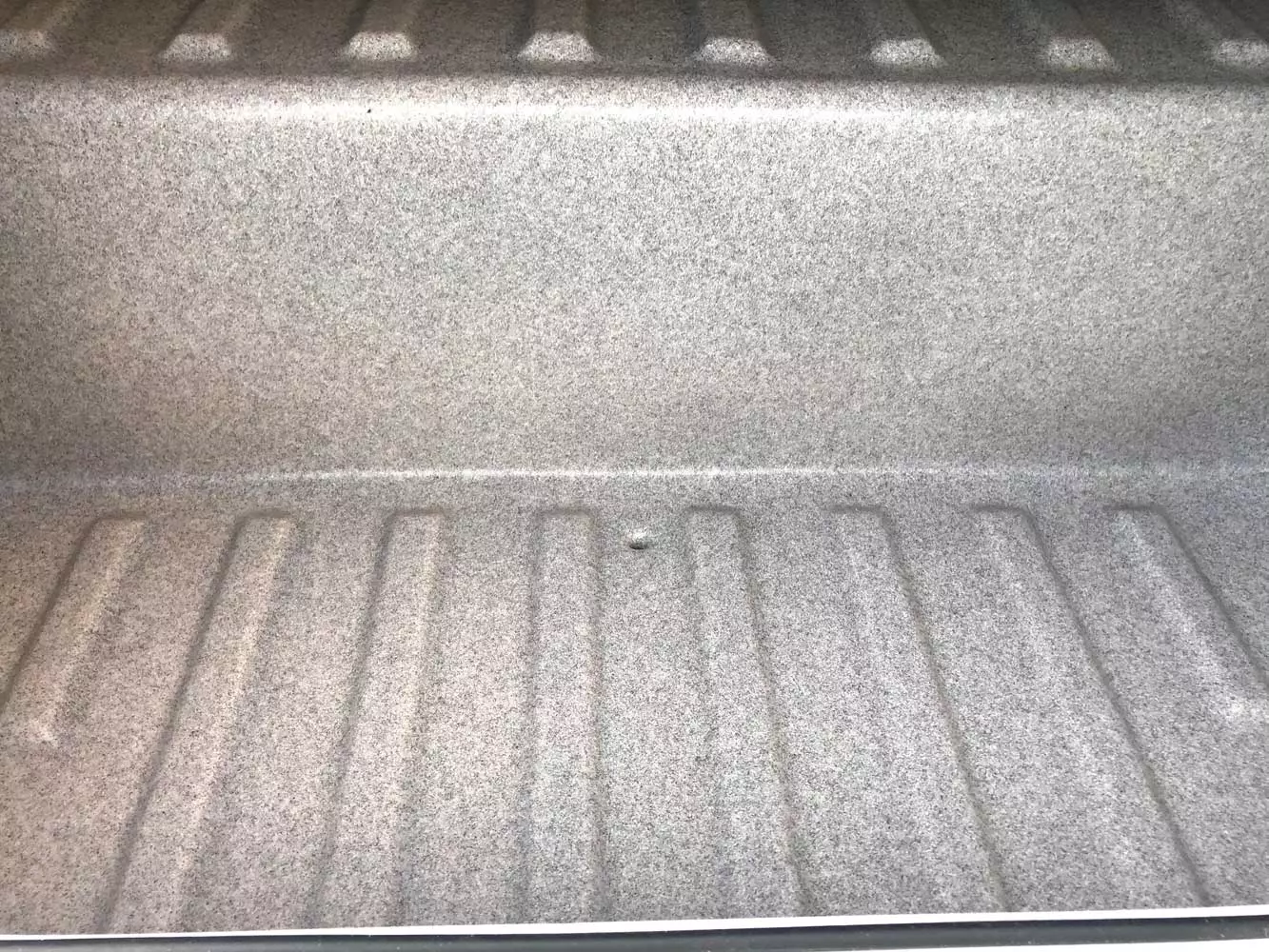

- Grey Rotocast Storage Boxes w/Drains
- Power Patio Awning w/LED Light
- Slideout Room Topper Awnings
- Outside Shower

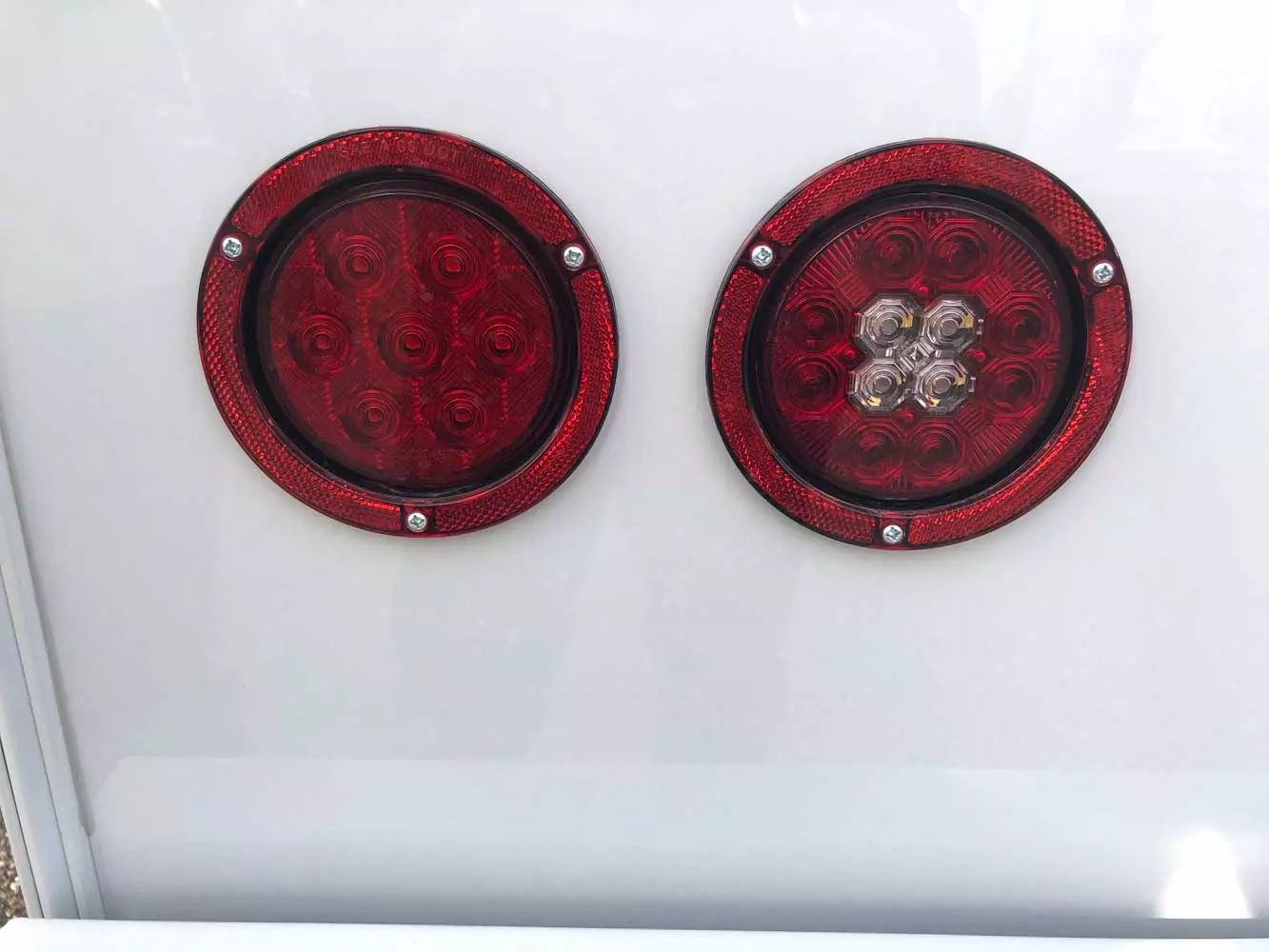

- Dual Rear LED Tail Lights
- Rear License Plate Bracket
- Powder Coated Steel Rear Bumper

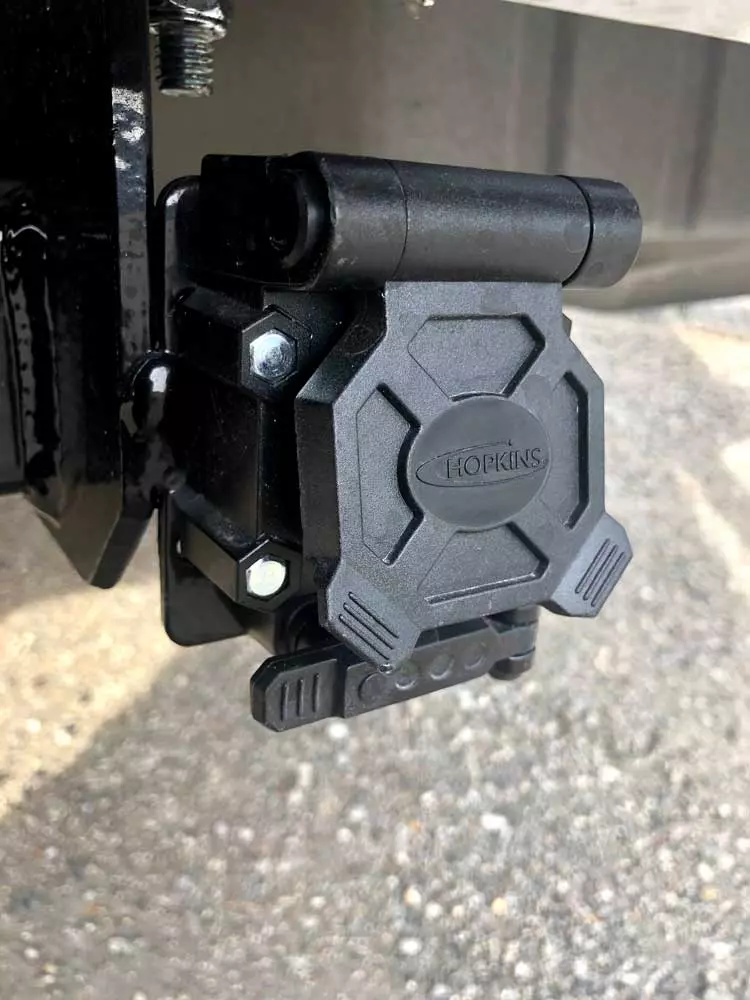

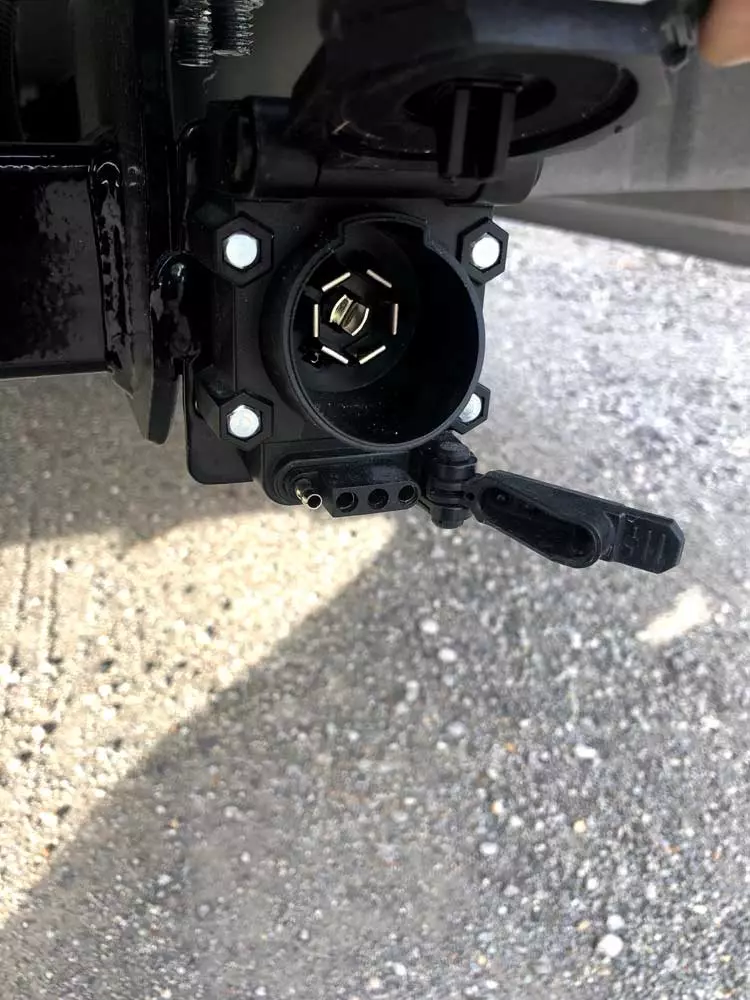

- 5,000 lb. Tow Hitch w/7-Way Plug (pre-wired for brake controller & charge line)

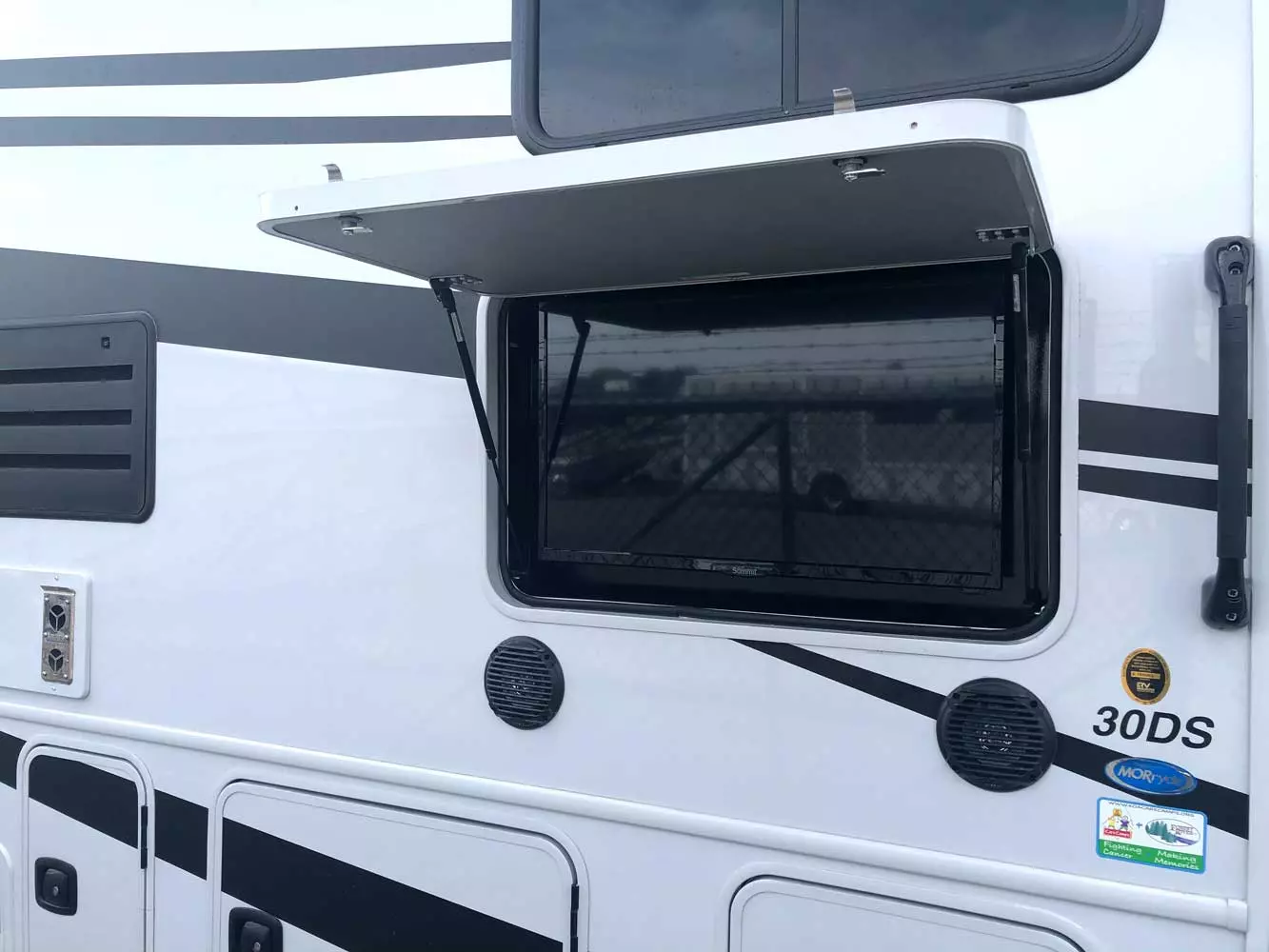

- Outside Entertainment Center w/TV & Marine-Grade Speakers

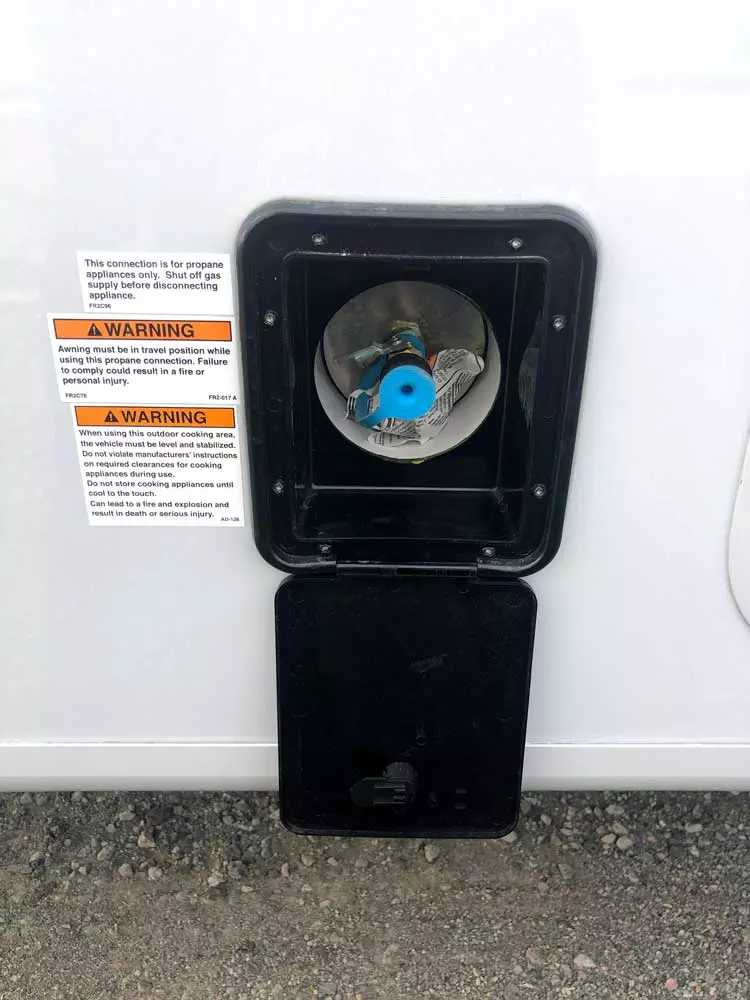

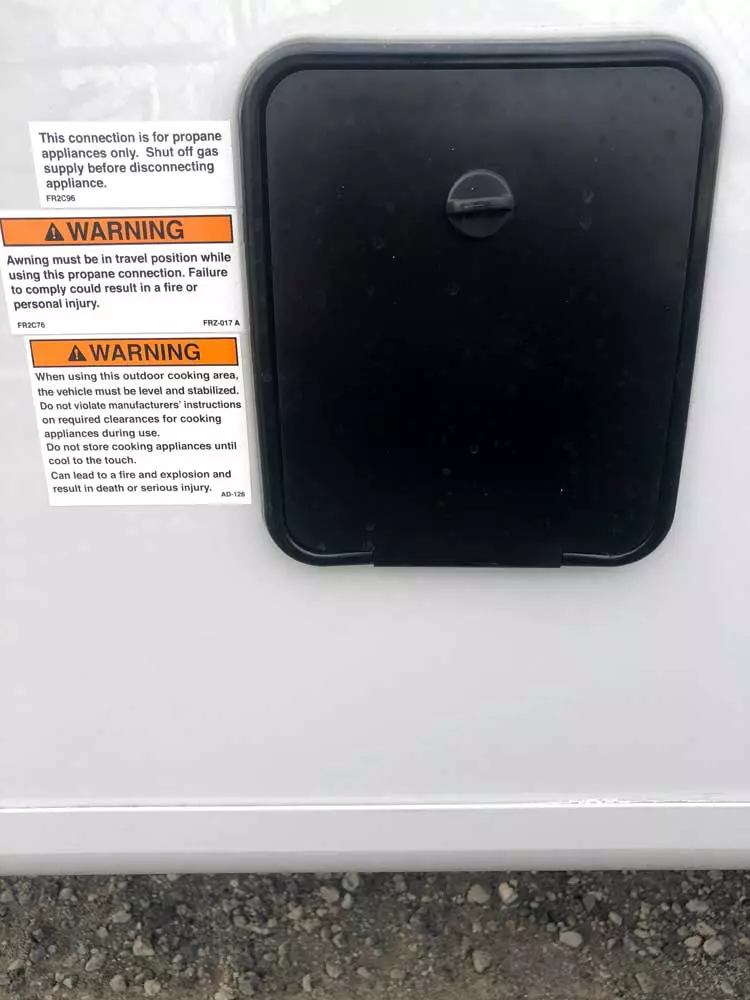

- Quick Connect Exterior LP Fitting
- Stainless Steel Wheel Liners w/ Valve Extenders
- 32” Exterior LED 12V TV
- Flush Floor Construction (no steps into cockpit)
- Interior Metal Entry Assist Handle
- Rubber Tread Entry Steps
- Power Fold-Away Overhead Bunk w/Ladder & Safety Net (350 lb. Weight Capacity)
- 84" Interior Ceilings
- LED Lighting Throughout (5000K Cool/Daylight White)(Dimmable in Living Area)

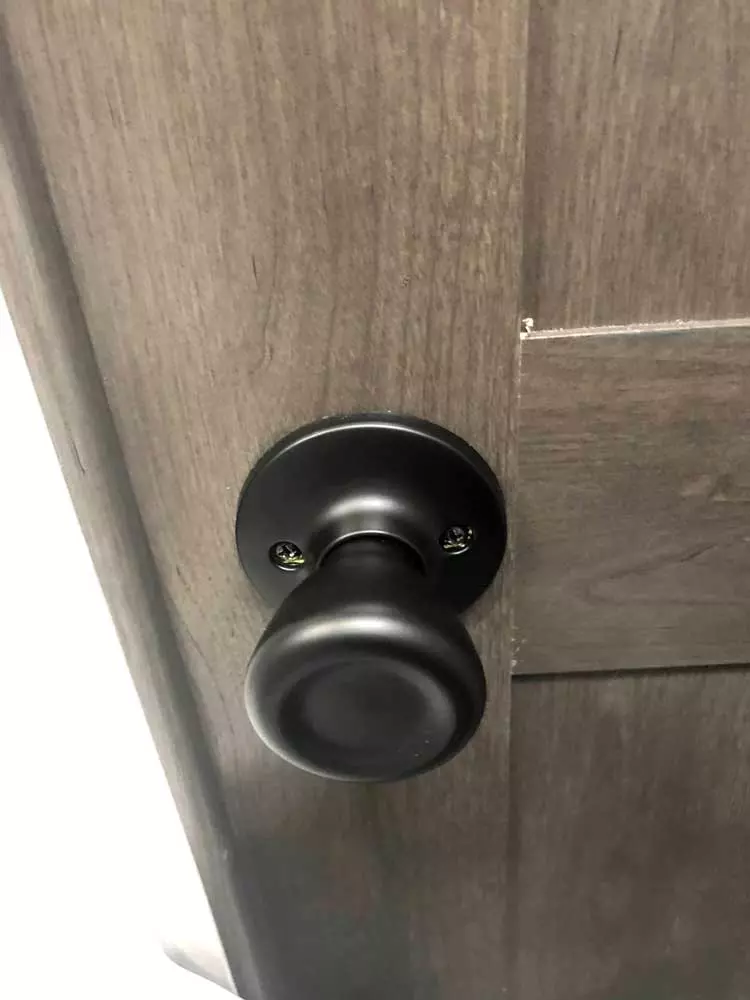

- Black Hardware, Appliances, Plumbing Fixtures, Glass Shower Door Frame
- IVC Residential Vinyl Flooring

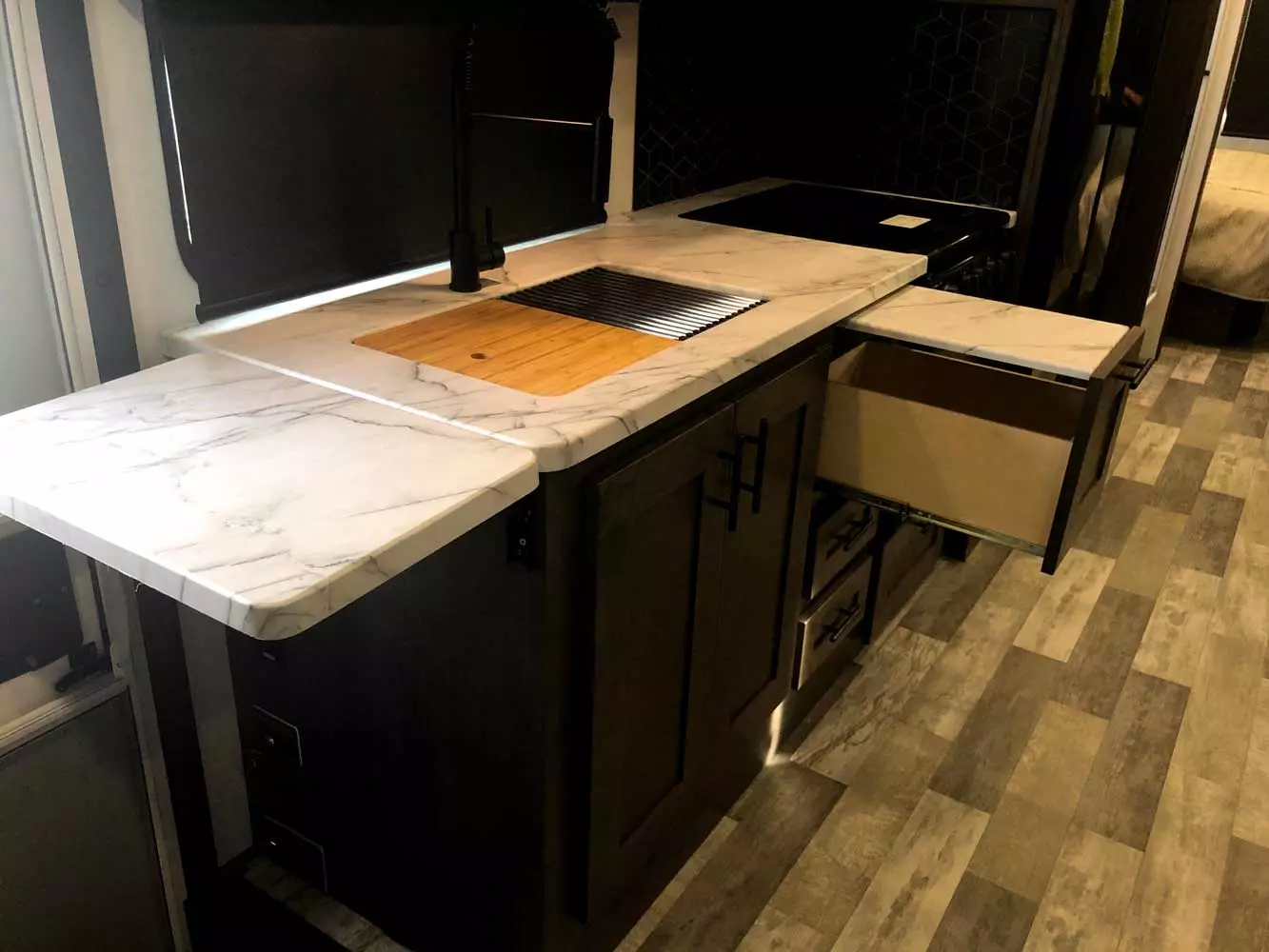

- Custom Countertops w/Flip-up & Pullout Countertop Extensions

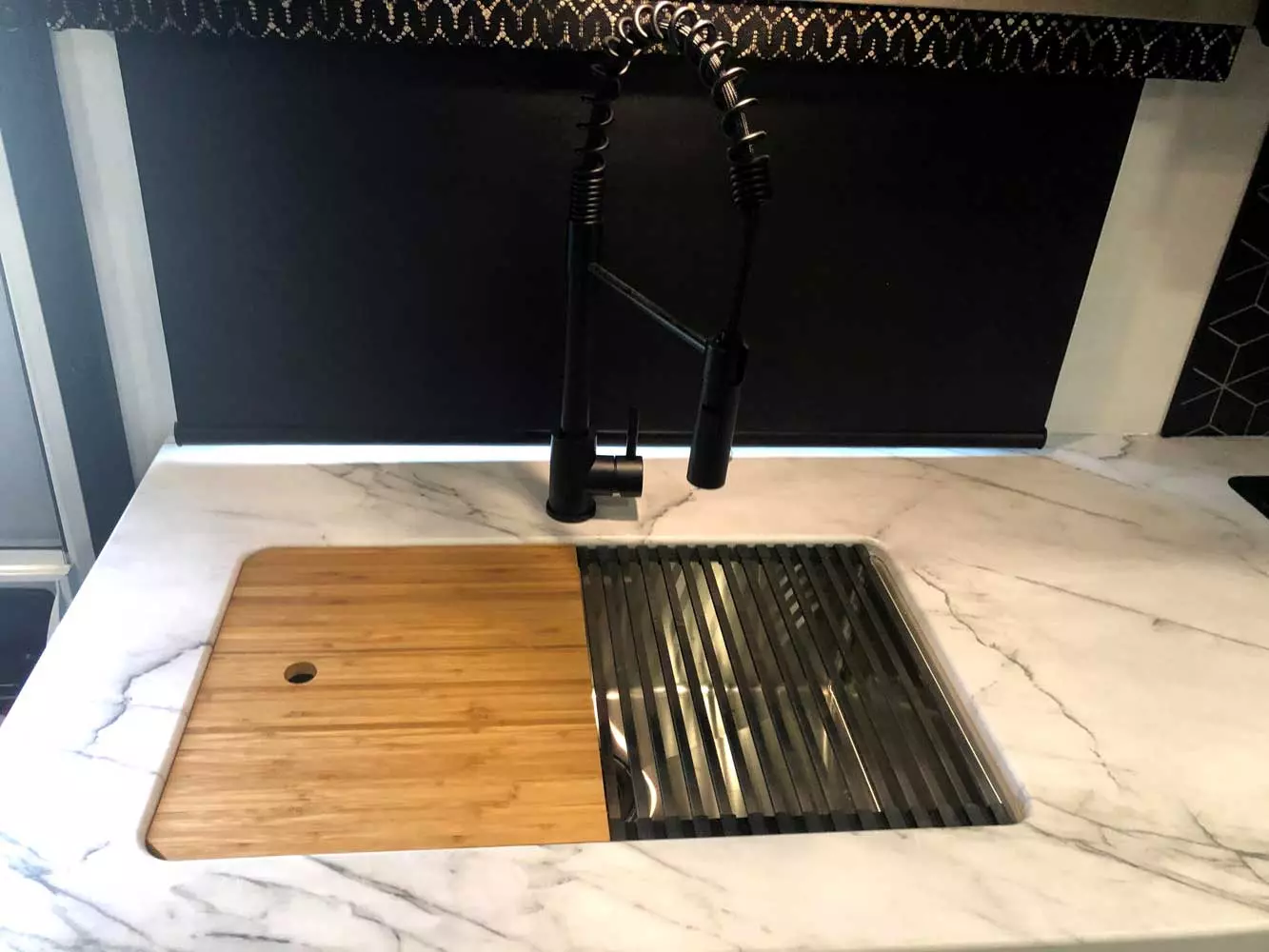

- Stainless Steel Kitchen Sink w/Bamboo Cutting Board & Roll Up Dryer
- Trash Can Storage Area Below Sink

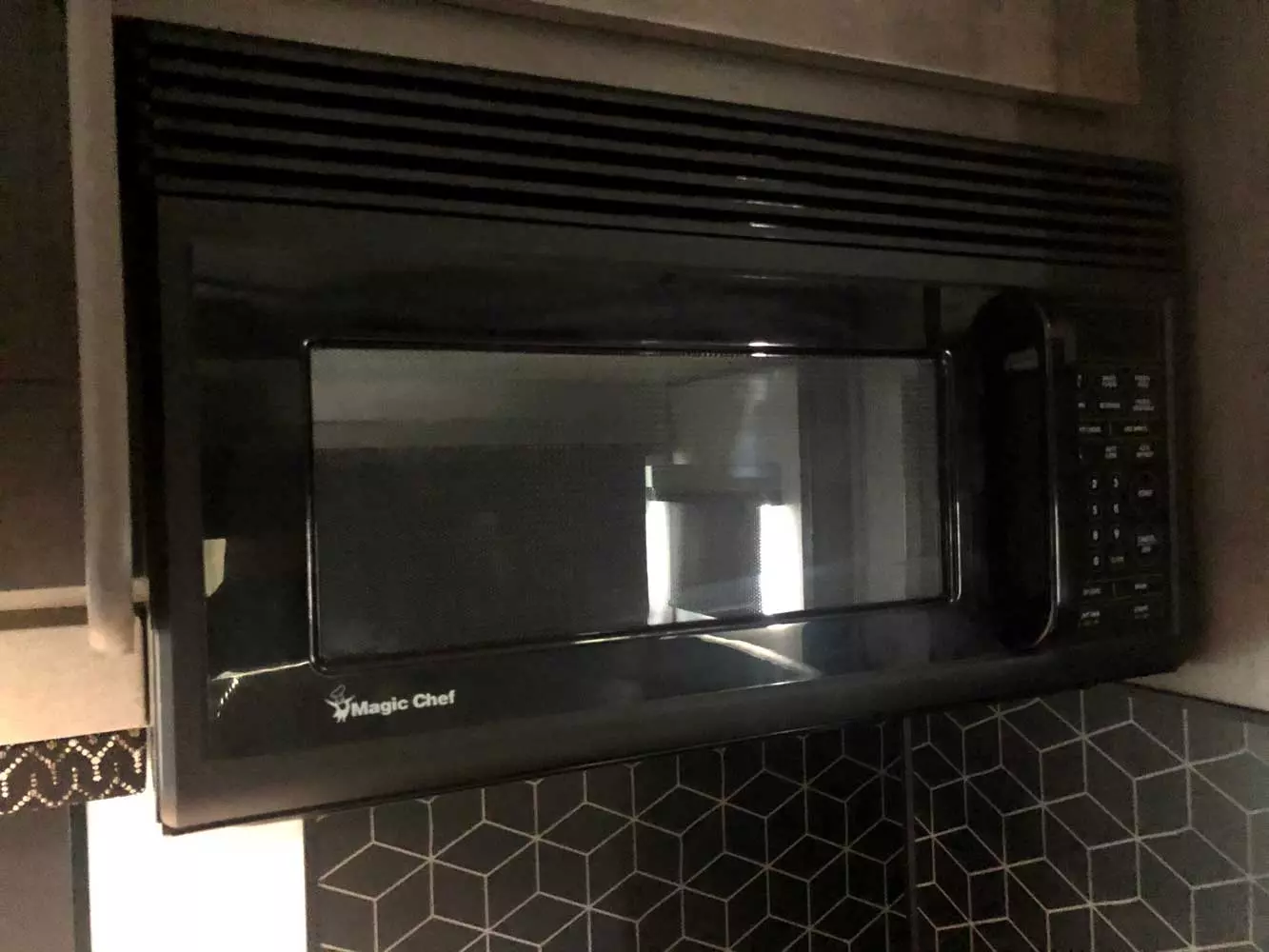

- 30" Residential OTR Microwave Oven

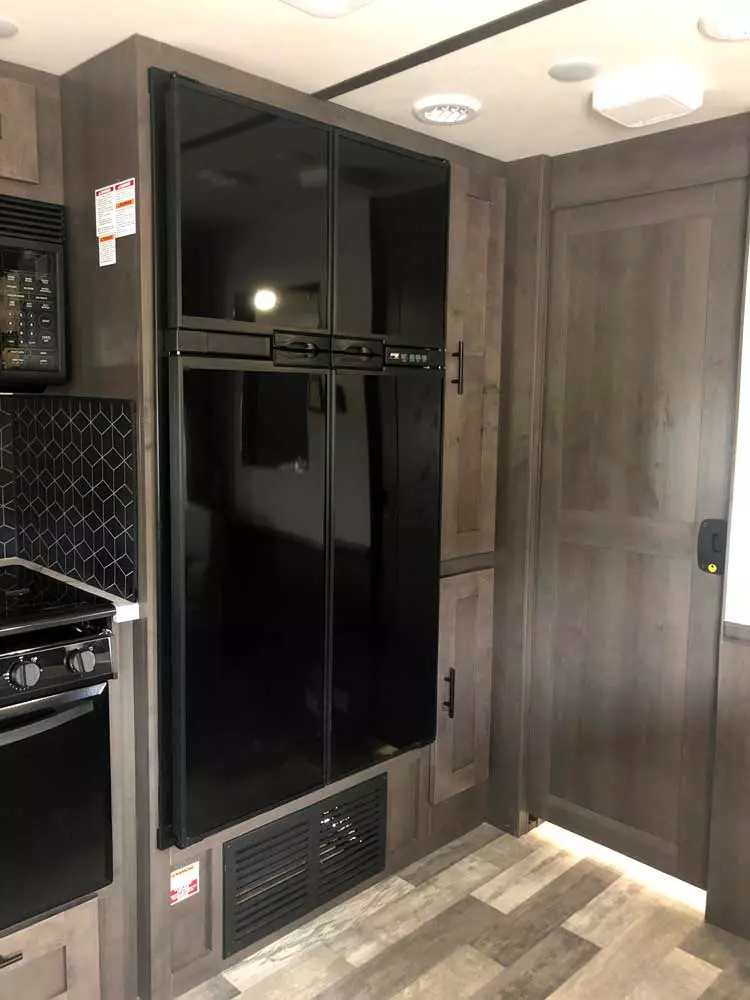

- Norcold Four Door 12 cu. ft. Gas/Electric RV Refrigerator

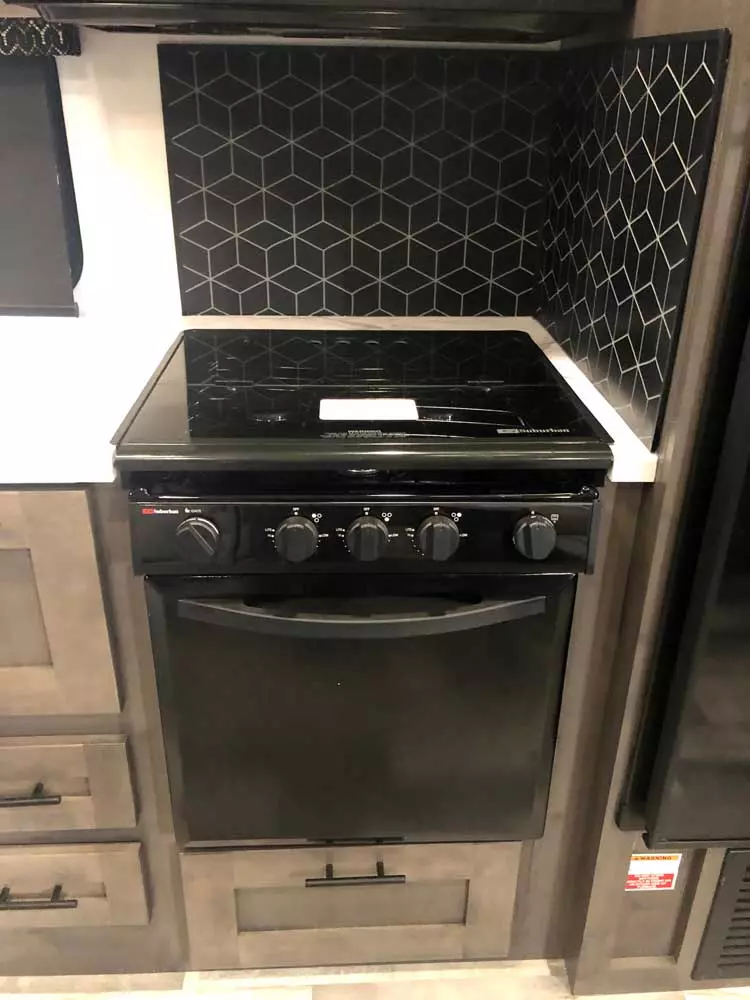

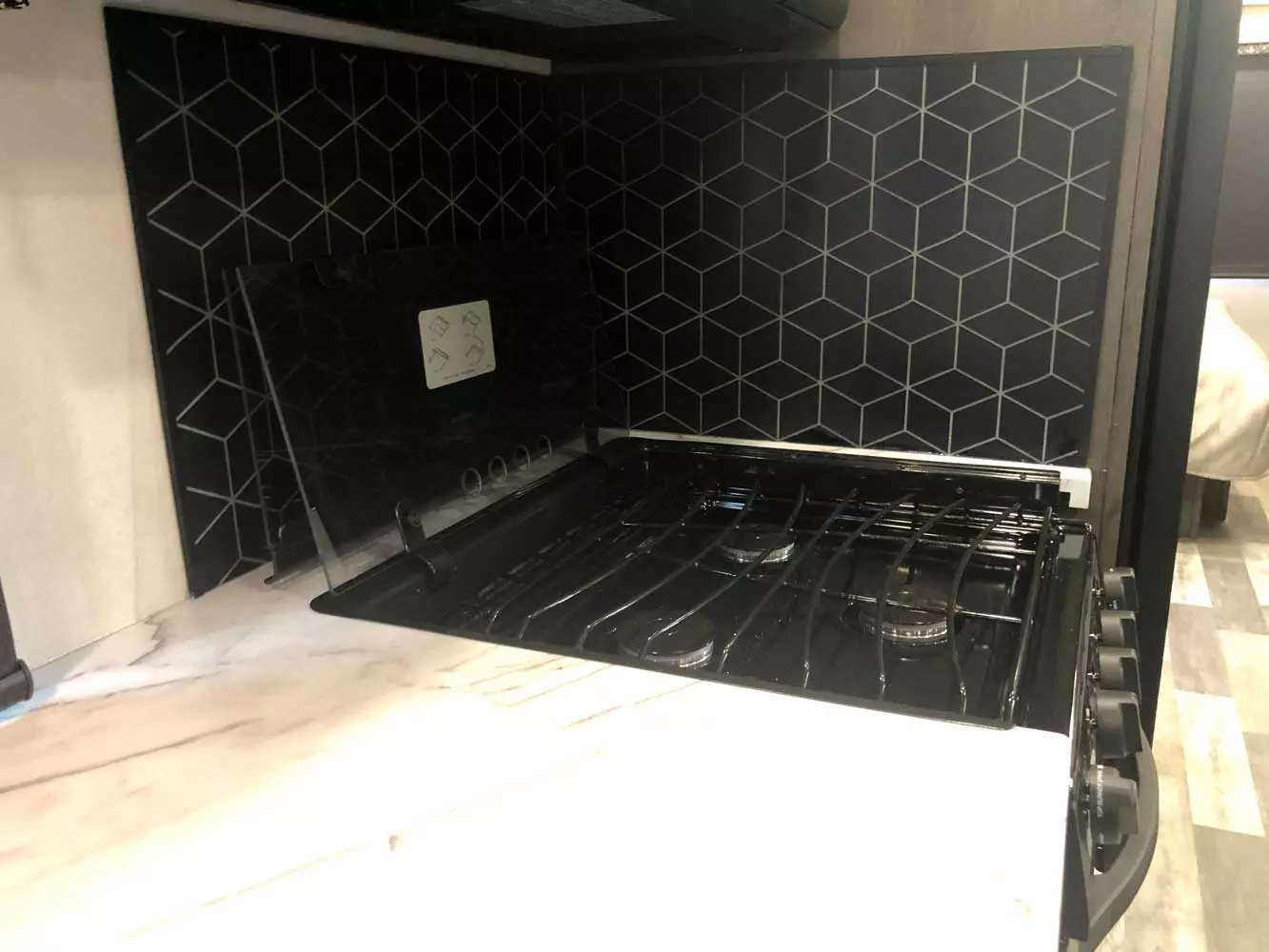

- 3-Burner Cooktop w/ 22" Oven, Flush Mount Glass Stove Cover
- Two Tone 5-Year Ultra Leather Sofa (Hide-a-Bed 30DS, Jack Knife 32DS)

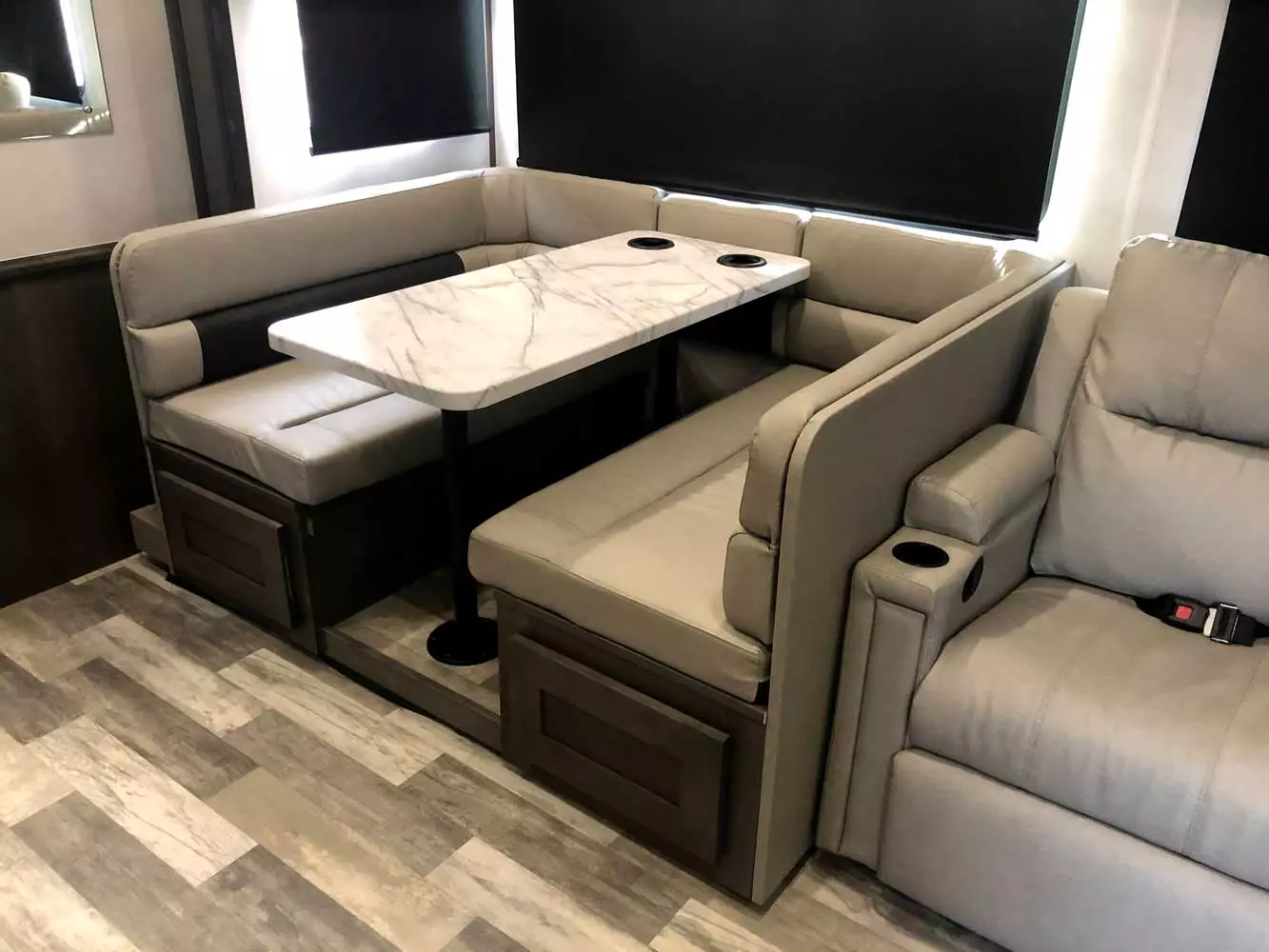

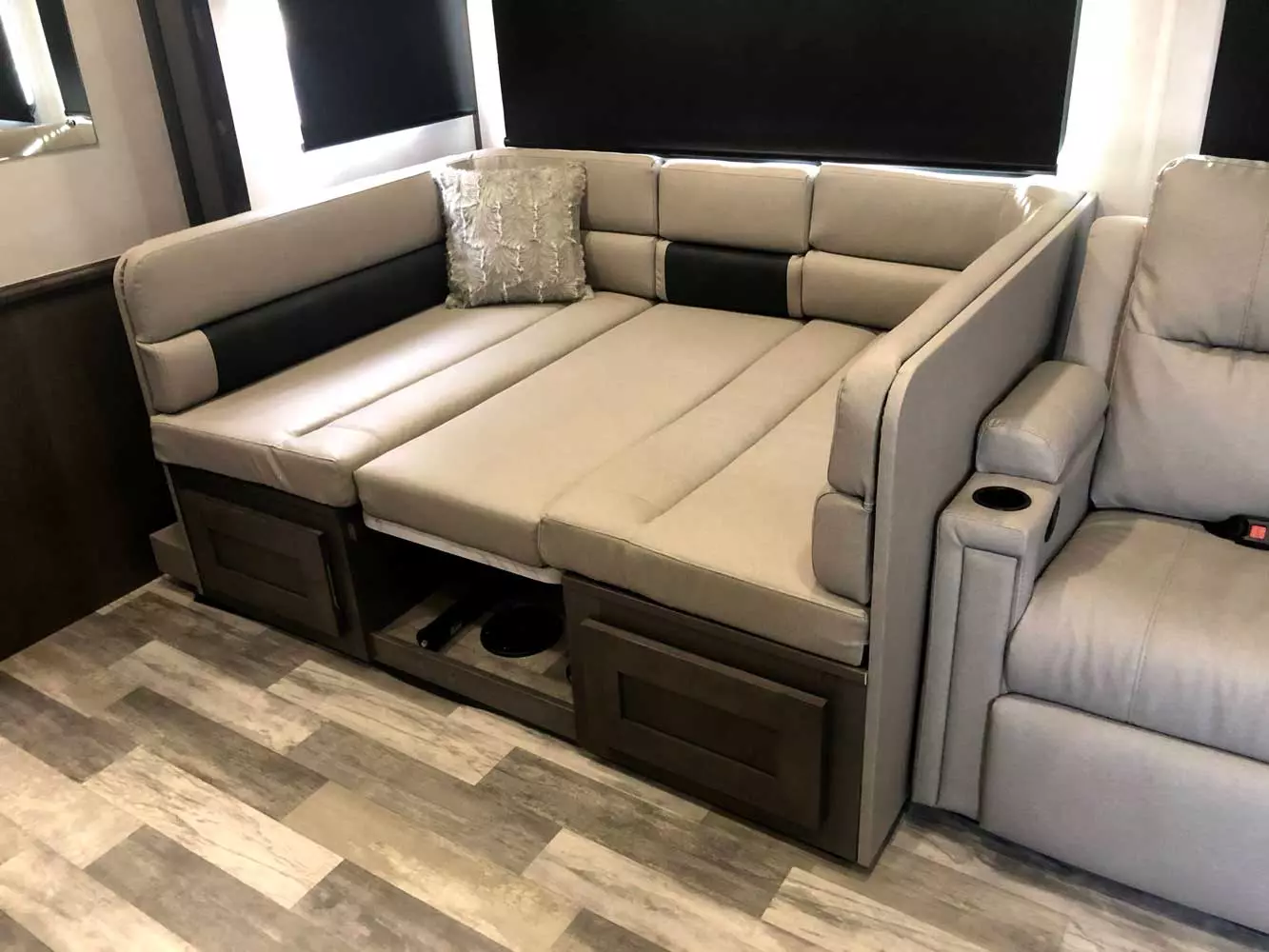

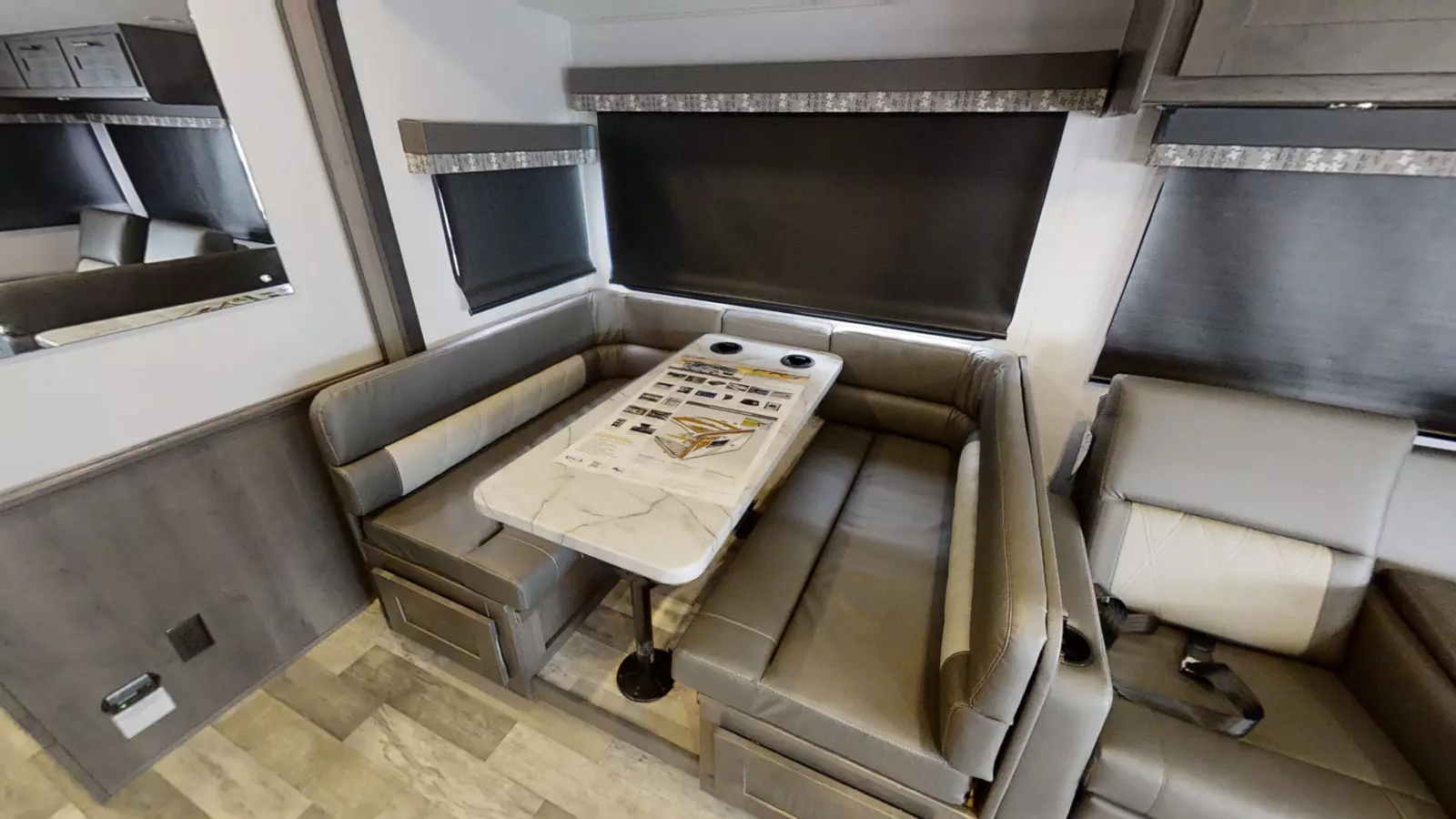

- Two Tone 5-Year Ultra Leather Wrap Around Dinette Booth w/ Cup Holders (Comfort Lounge)
- Dual Access Dinette Storage w/ Doors
- Heavy Duty Full Extension Ball Bearing Drawer Guides
- Black Roller Shades w/ Residential Window Treatments
- Kitchen Flip Up 40" LED 12V TV w/ Storage Area Behind (30DS)

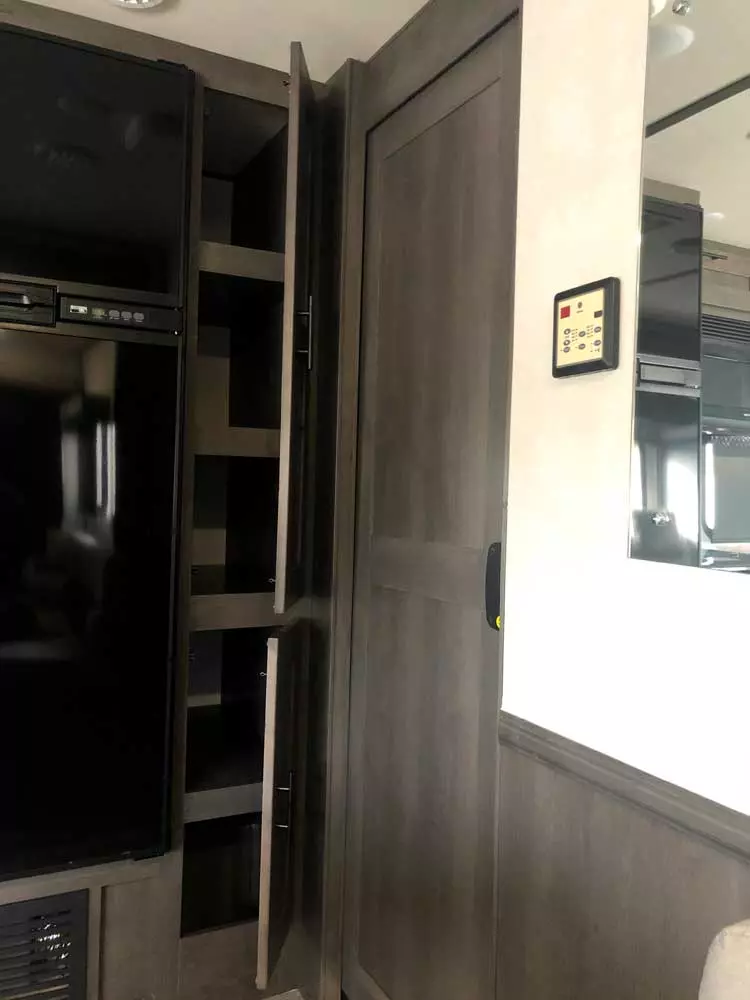

- Oversized Kitchen Pantries (All Models)

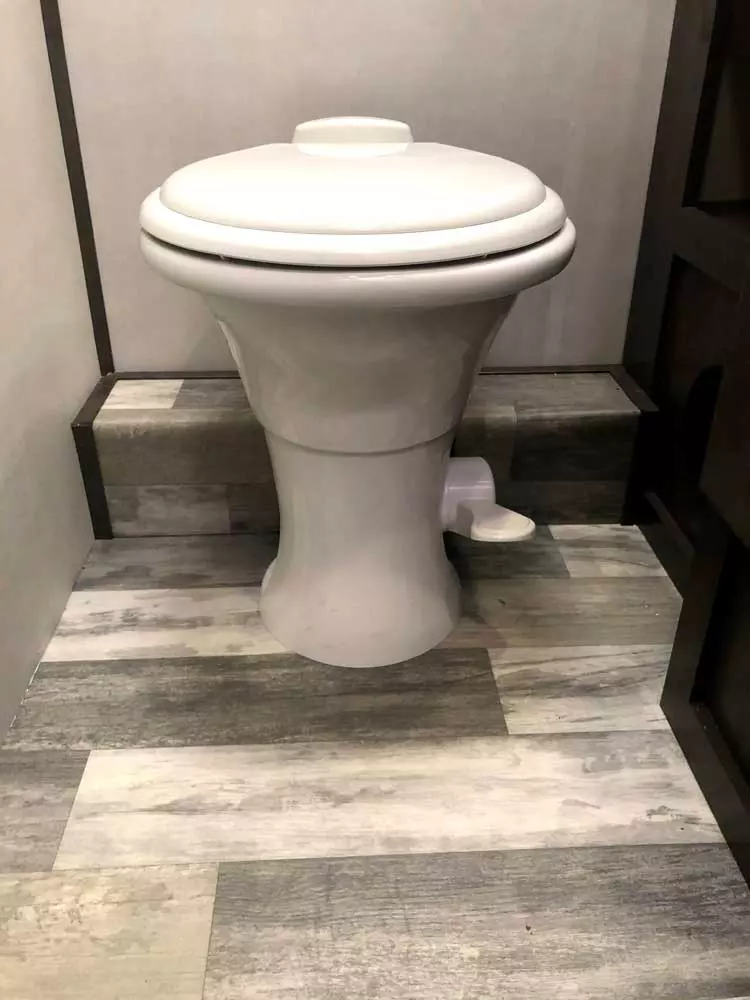

- Porcelain Toilet W/Foot Flush (34DS Macerator Stool Half Bath)

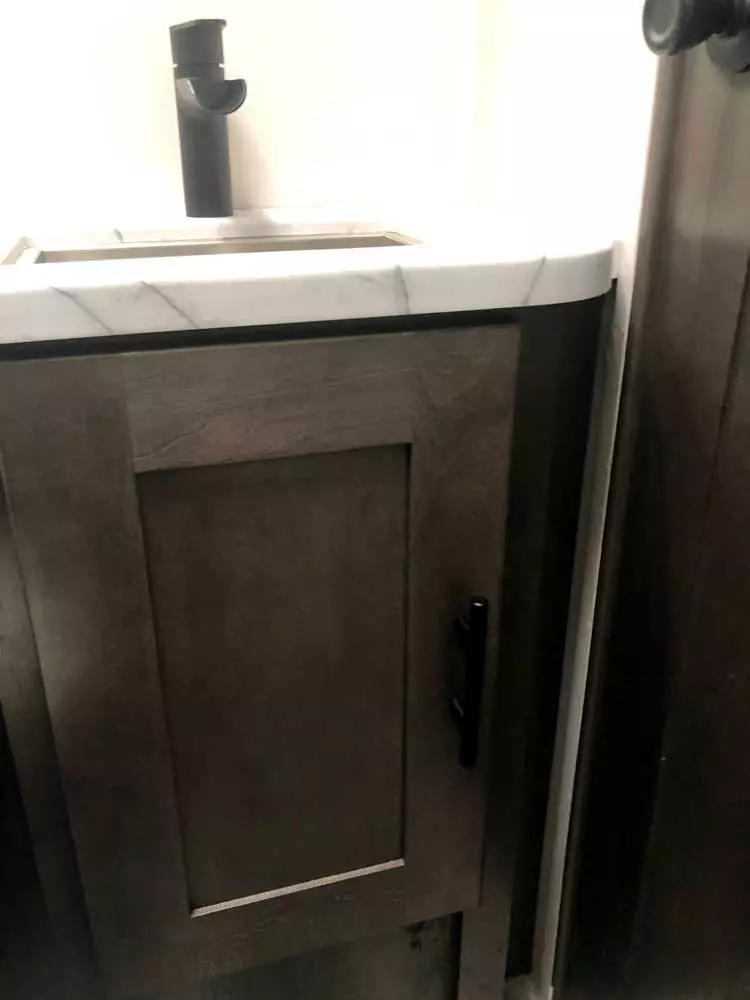

- Stainless Steel Under Mount Lavatory Sink
- 3 Piece Sliding Glass Shower Door
- 12V Power Vent Fan (Bathroom)

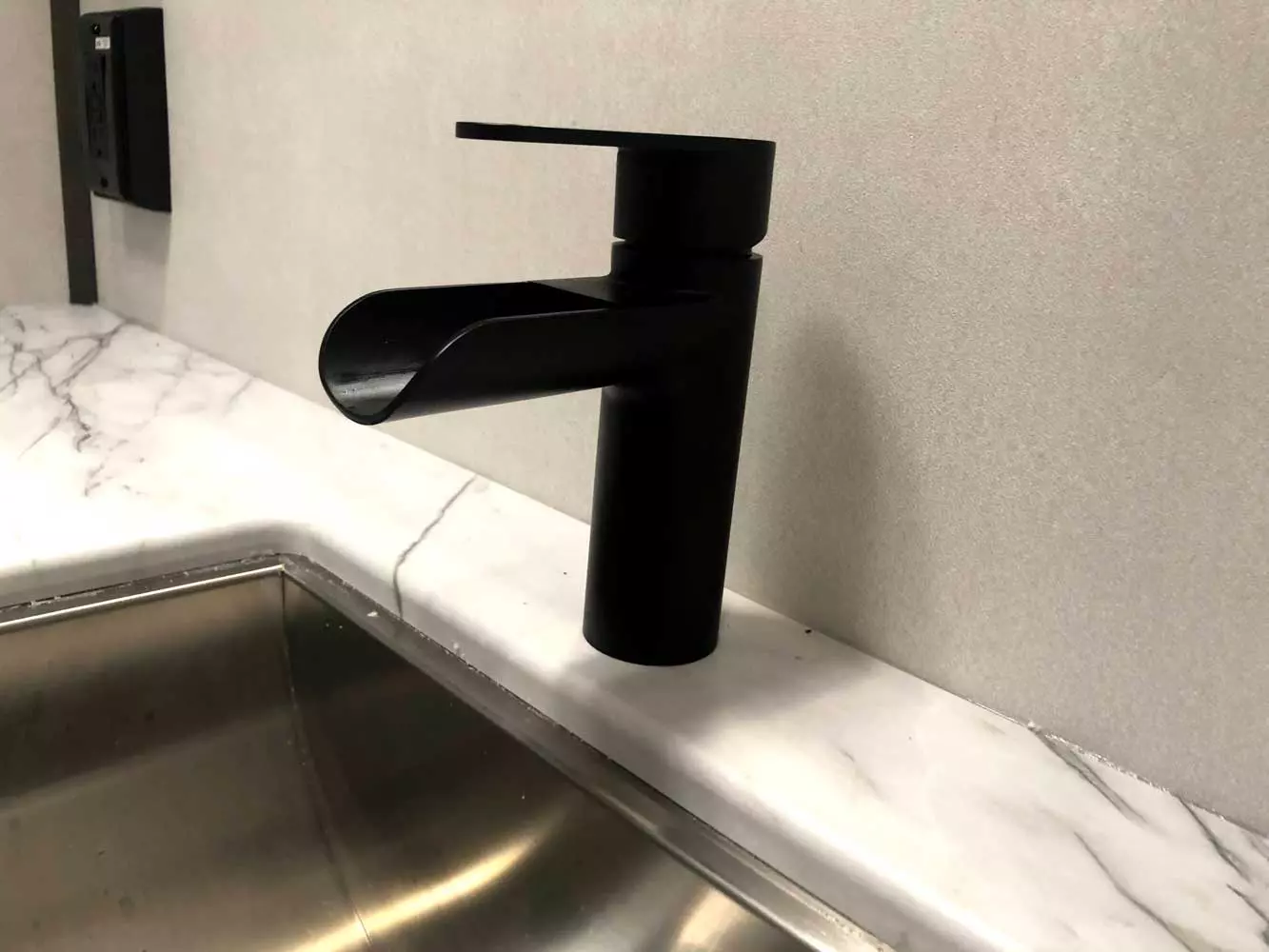

- Black Bathroom Trough Faucet
- Two Tone 5-Year Ultra Leather Jackknife Bunk Sofa w/ Filler Cushion & Cup Holders

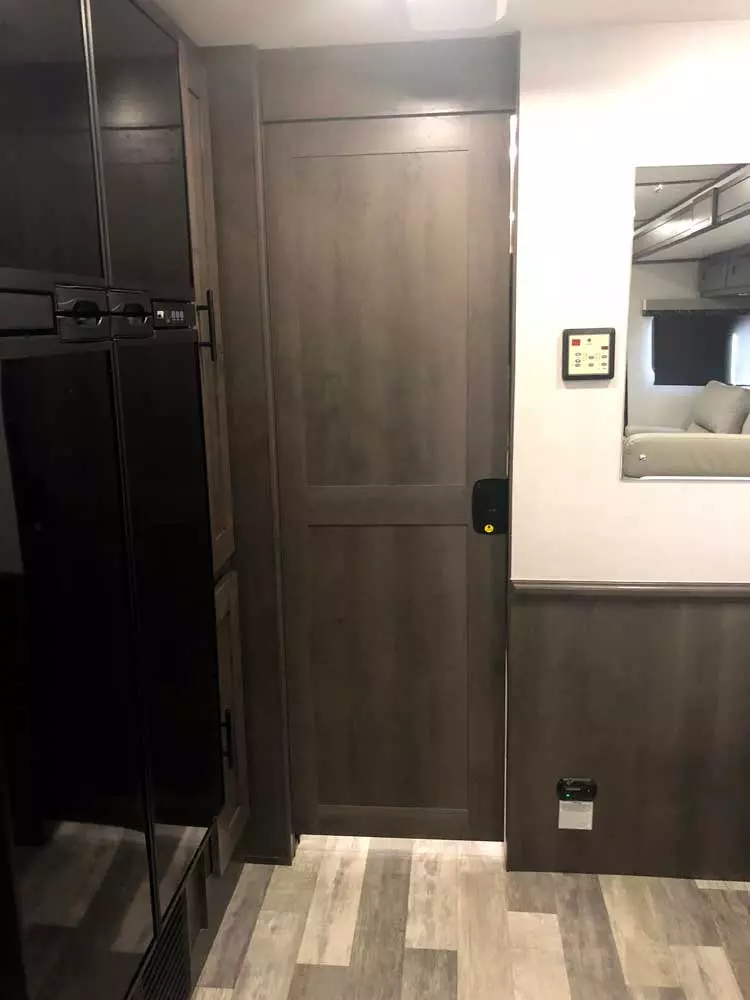

- Latching Privacy Pocket Doors
- 72" x 80" Residential King Bed

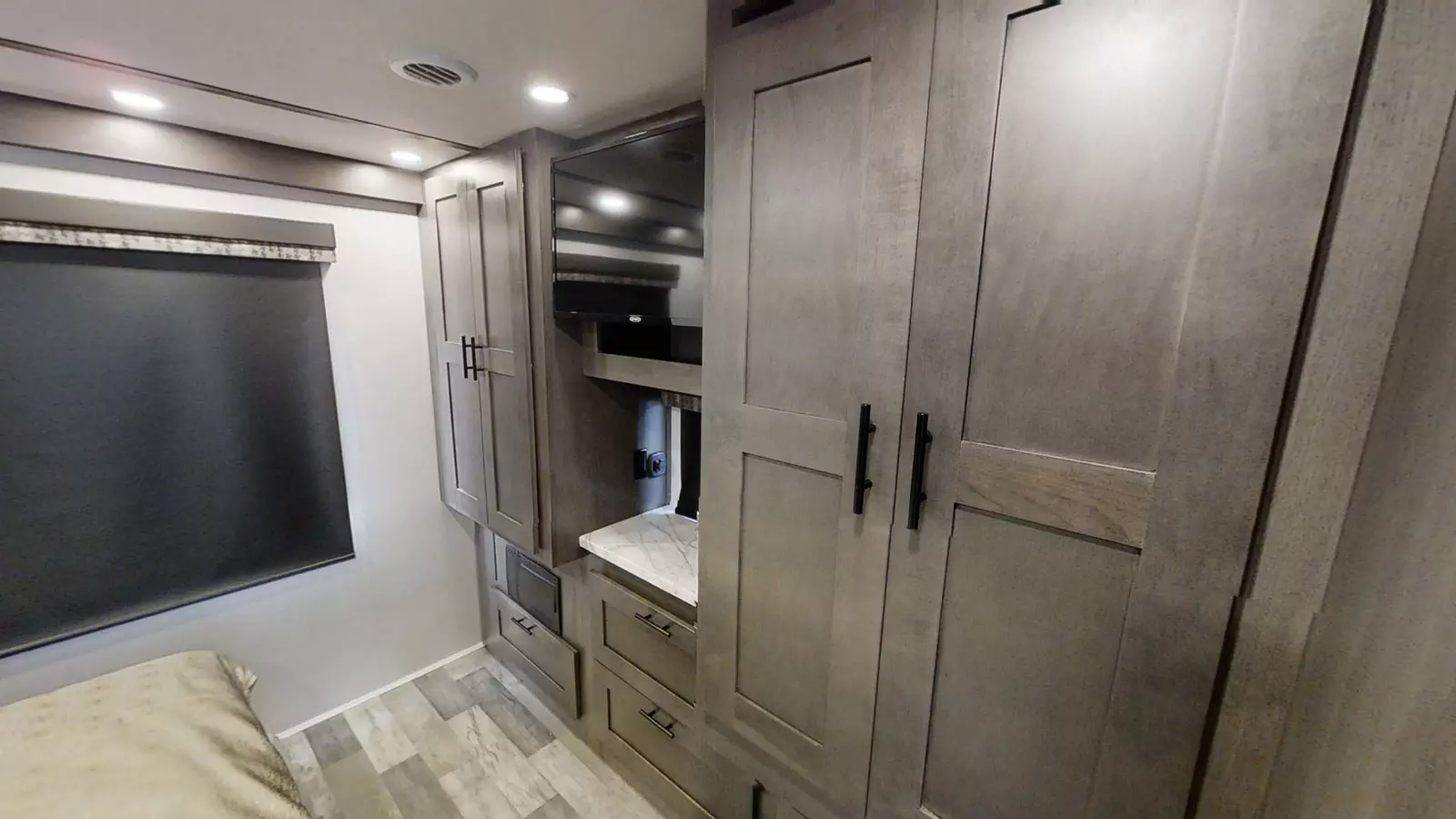

- Bedroom Wardrobe
- Night Stands w/ Charging Stations

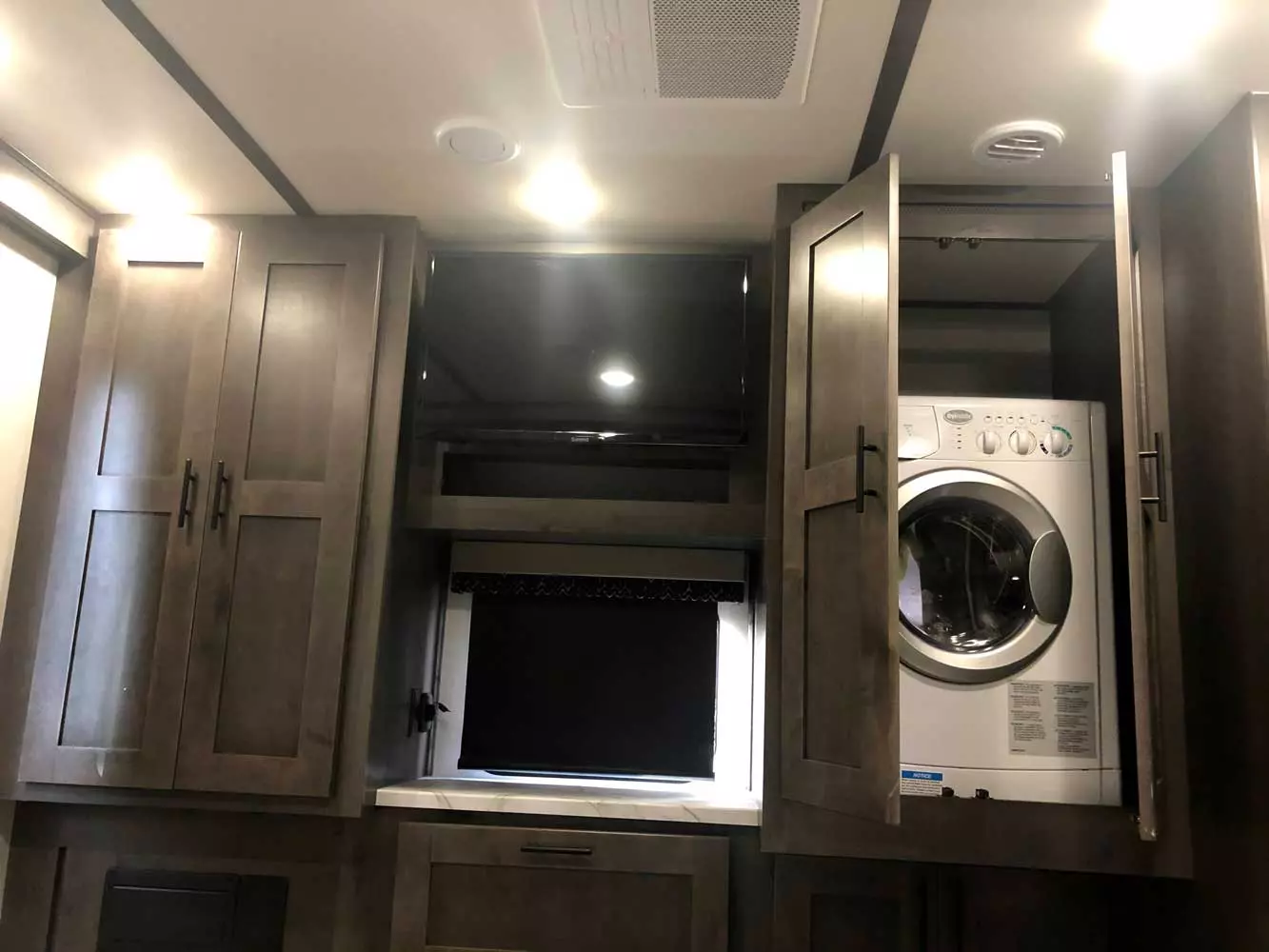

- Wash/Dryer Prep (N/A 32DS)
- 32" Flip Up LED 12V Bedroom TV w/ Storage Behind
- CPAP Prep Bedroom Overhead

- Hydraulic 4-Point Auto Leveling Jacks
- 5.5KW NPS Yamaha Generator w/PureSine Inverter Technology (Manual/Keyless Start)

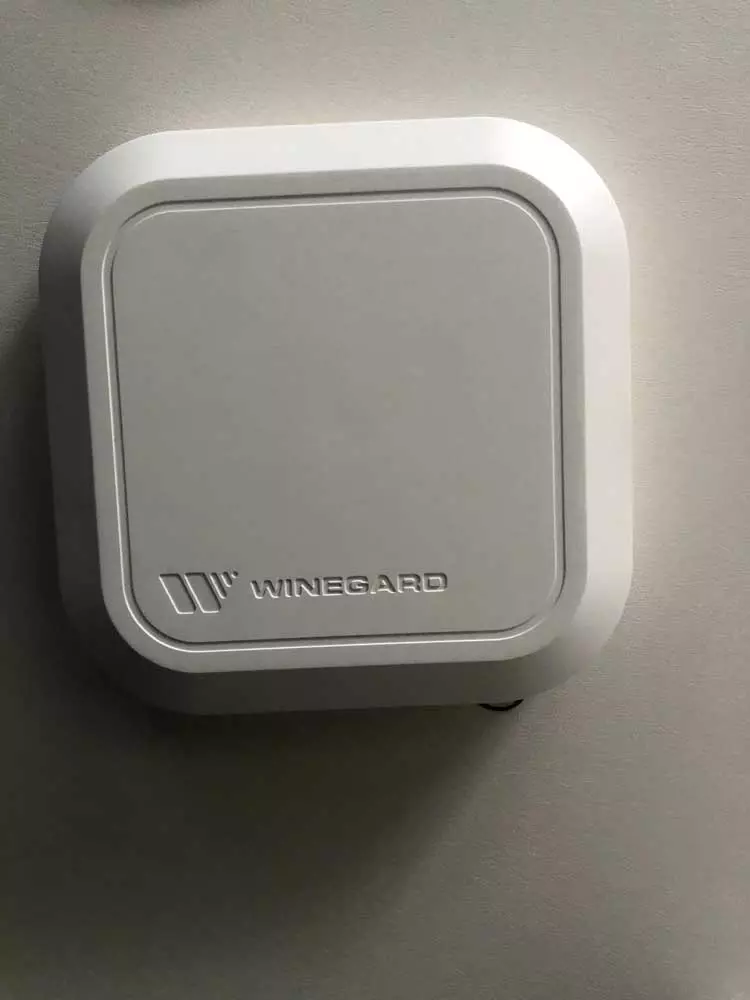

- Winegard 360+ HD TV & AM/FM Antenna w/ WiFi & LTE Controller

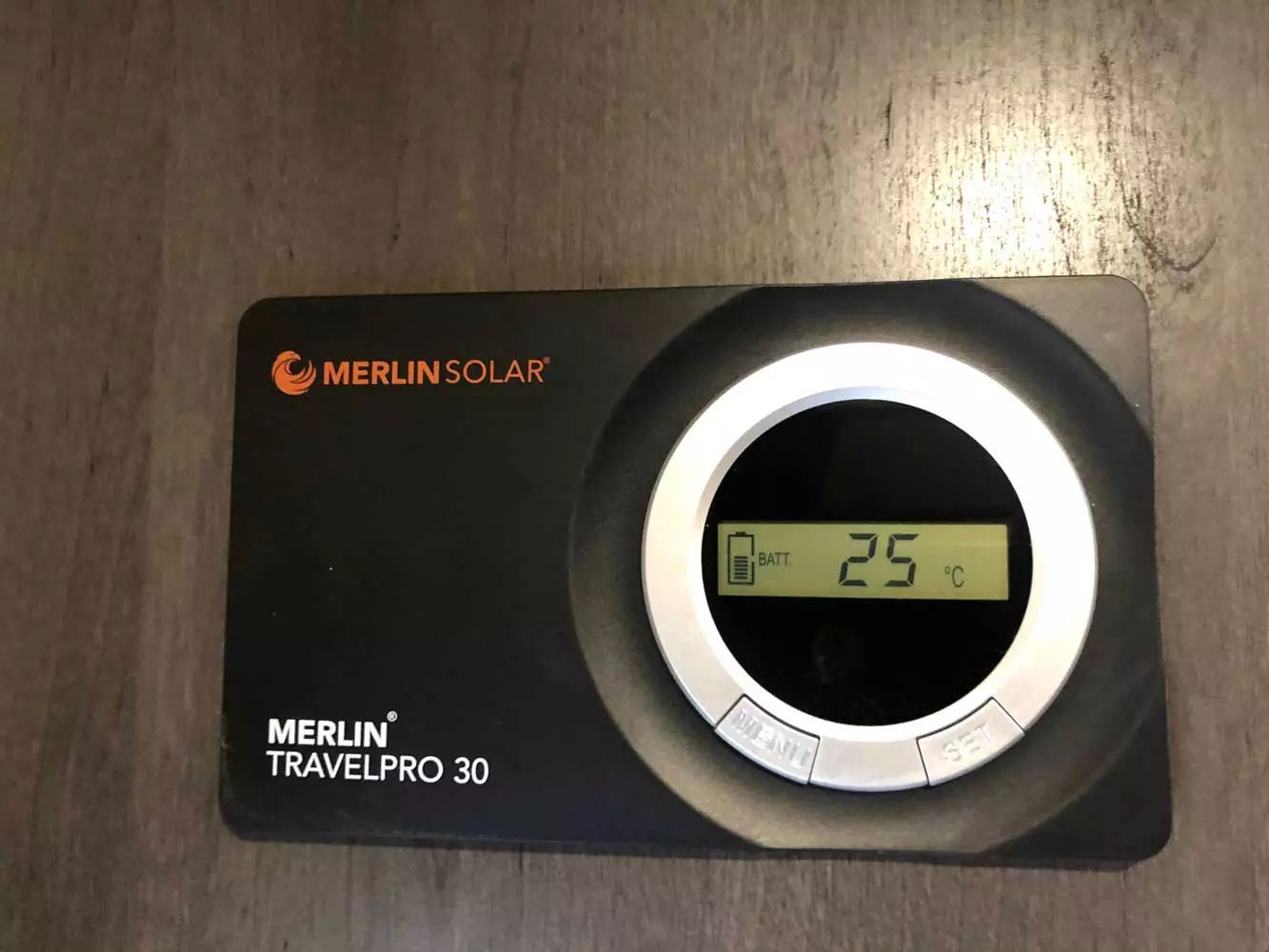

- Merlin Solar Controller (360W Capacity) w/115W Solar Flex Panel
- (2) High Output GE ducted roof A/Cs with dehumidifier (front A/C only)

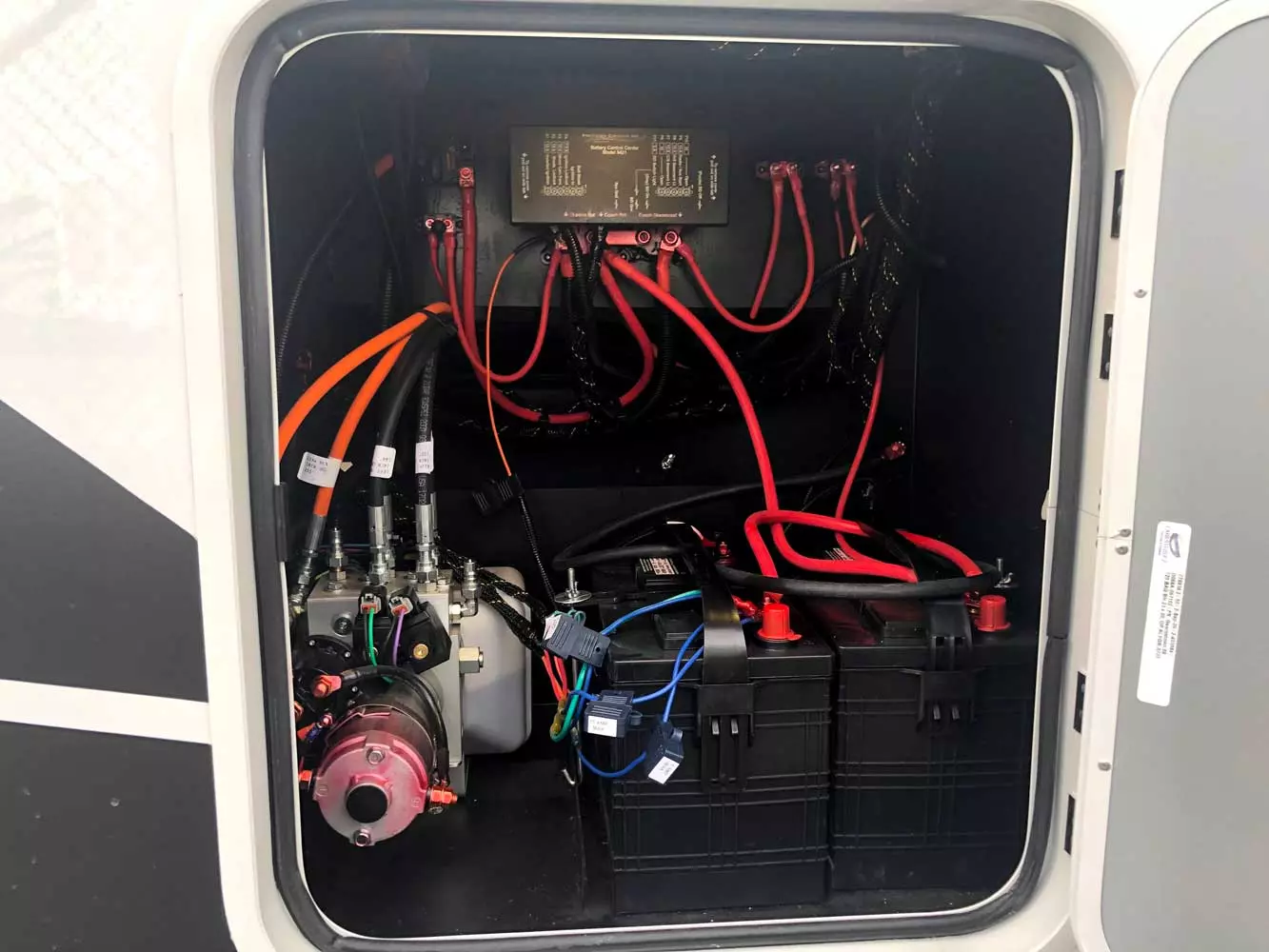

- (2) Deep Cycle House Batteries
- Battery Disconnect Switch
- Keyed Overhead Bunk Lockout Switch
- Emergency Start Switch
- 6 Gallon Gas/Electric Water Heater (16.2 GPH Quick Recovery)

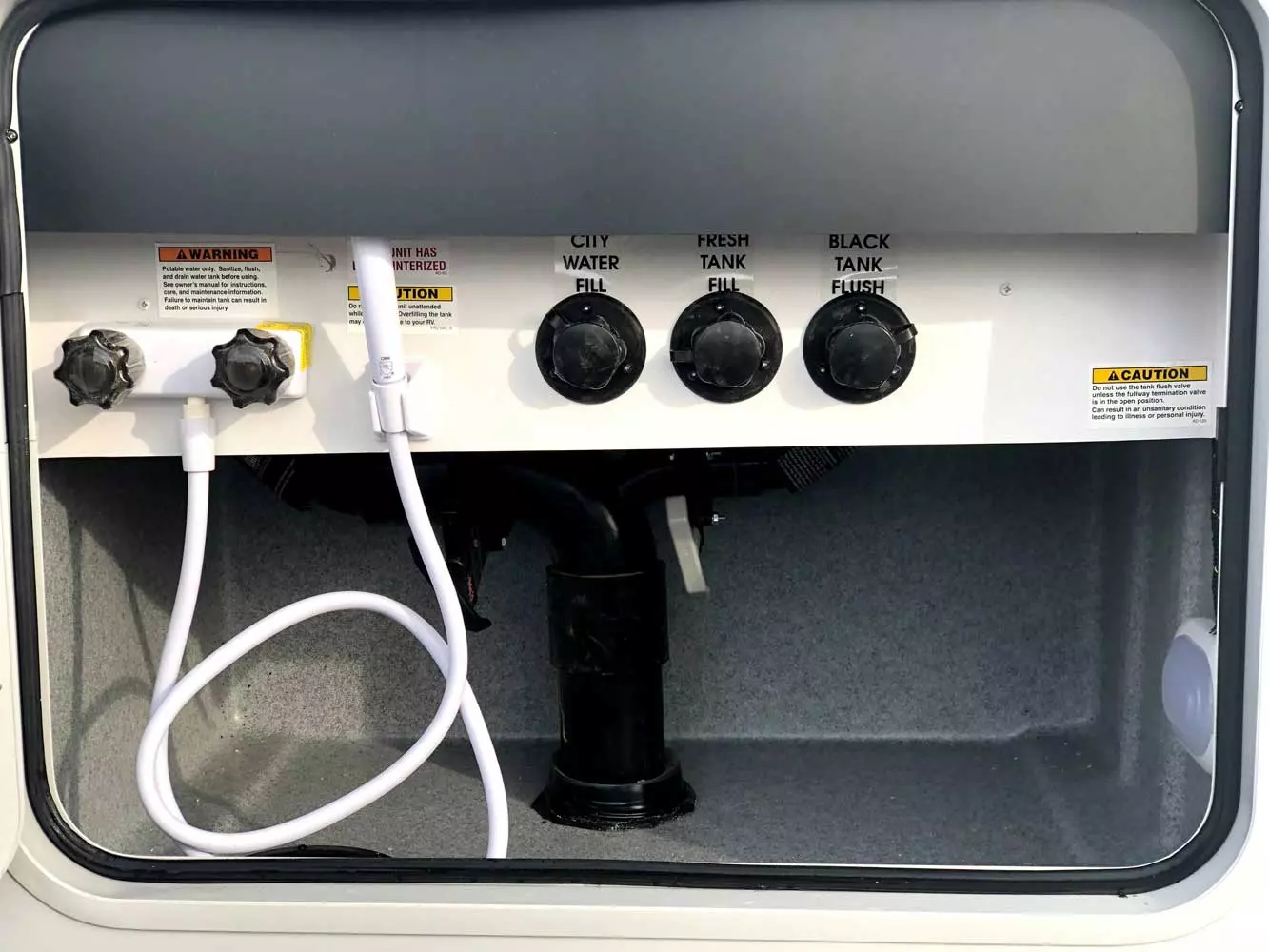

- Black Tank Flush
- 35,000 BTU Furnace

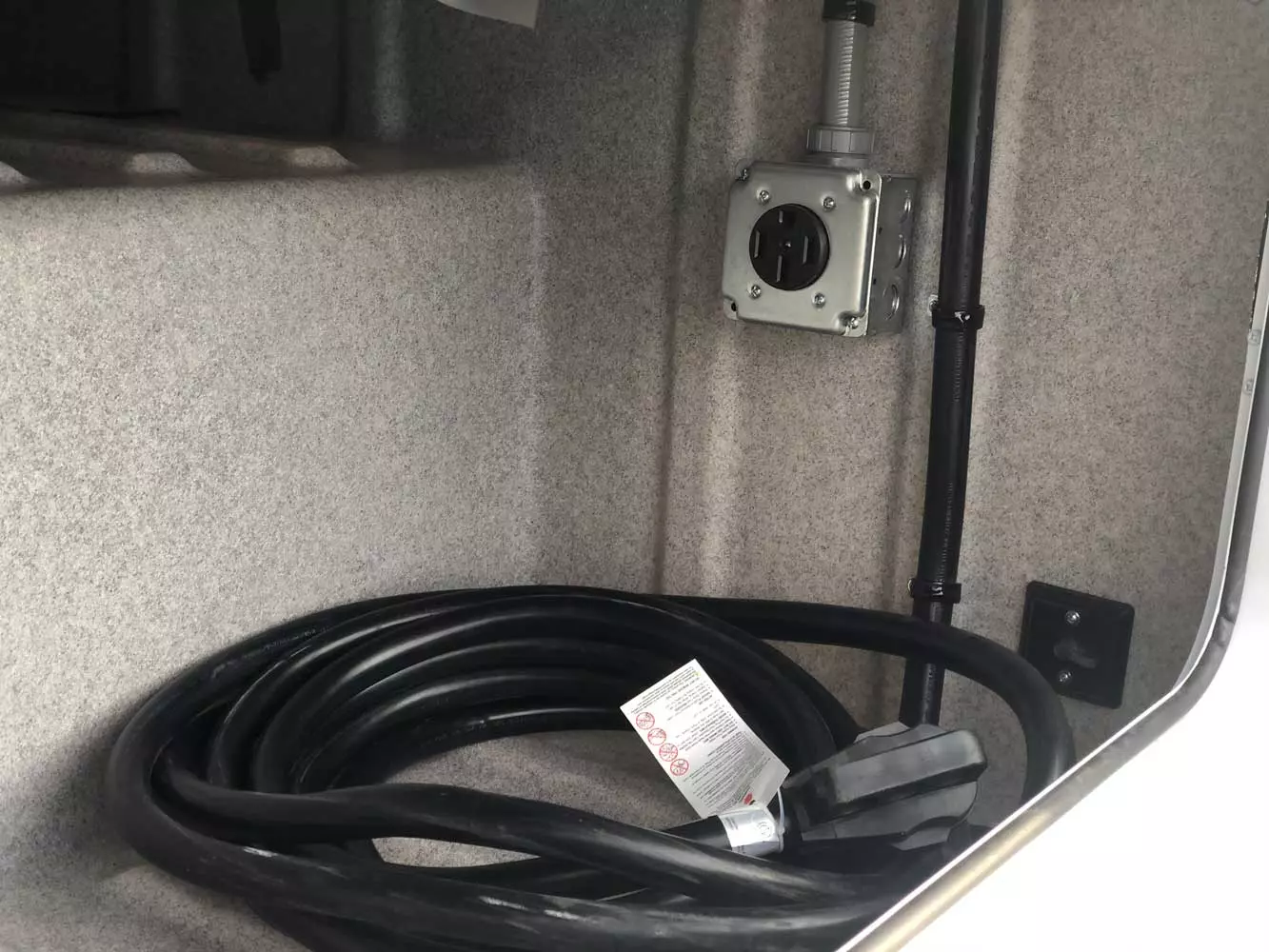

- 50 Amp Service

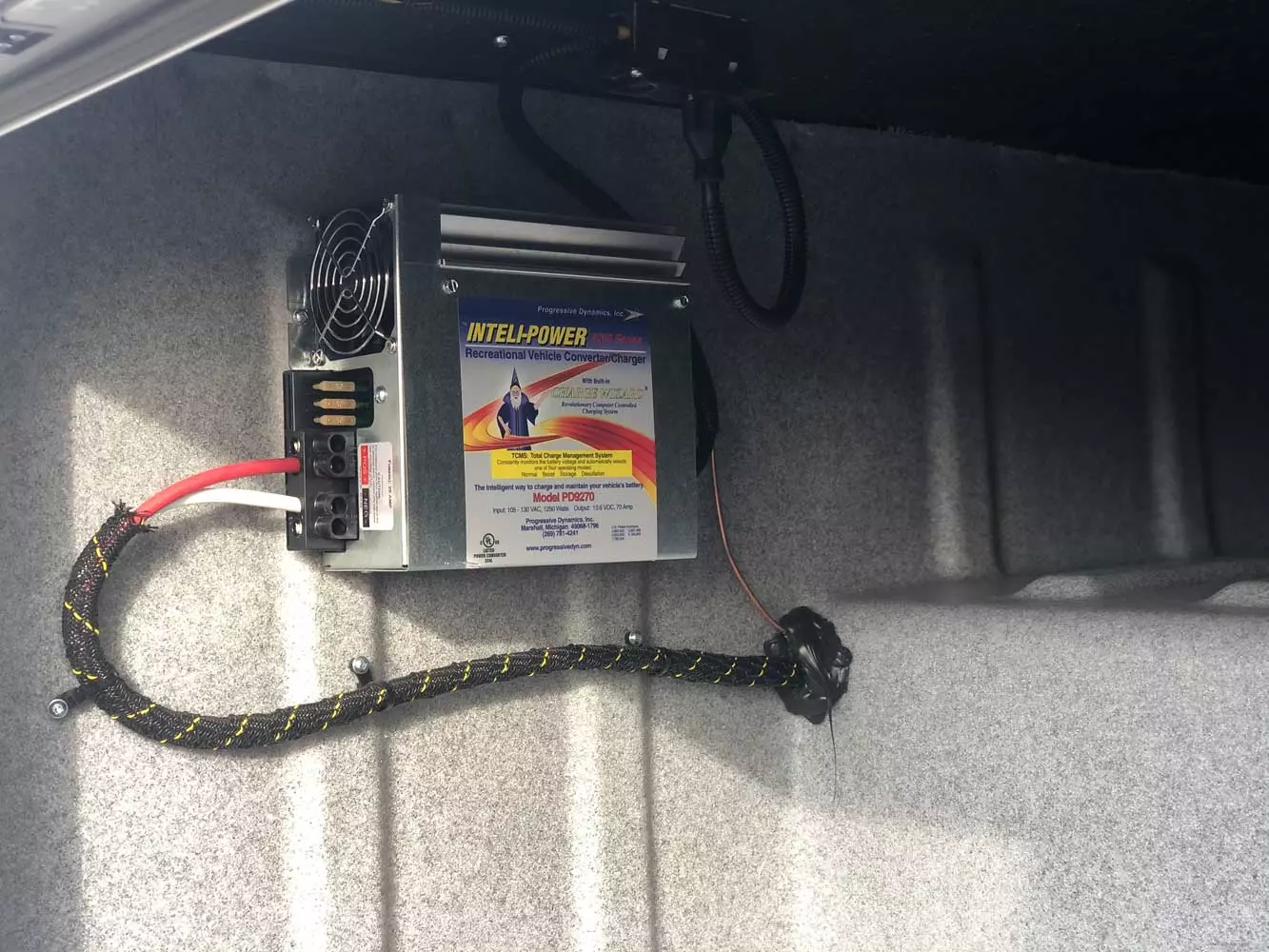

- 70 Amp Progressive Dynamics Power Converter w/ Charge Wizard
- USB Charging Stations
- 12V Maxx Air Power Roof Vent
- Carbon Monoxide & LP Detector
- Smoke Alarm
- Fire Extinguisher
- Forest River Command Center
- Tank Levels
- Battery Level Indicator
- LP Level Indicator
- Generator Hour Meter & Start-Stop
- Arctic Package (Heated Holding Tanks/Termination Valves)
- Water Pump Power Switch
- Water Heater LP Switch
- Slide-Out Controls
- Fossil Maple Cabinetry Standard
- Mink Interior
- Seaport Storm Interior

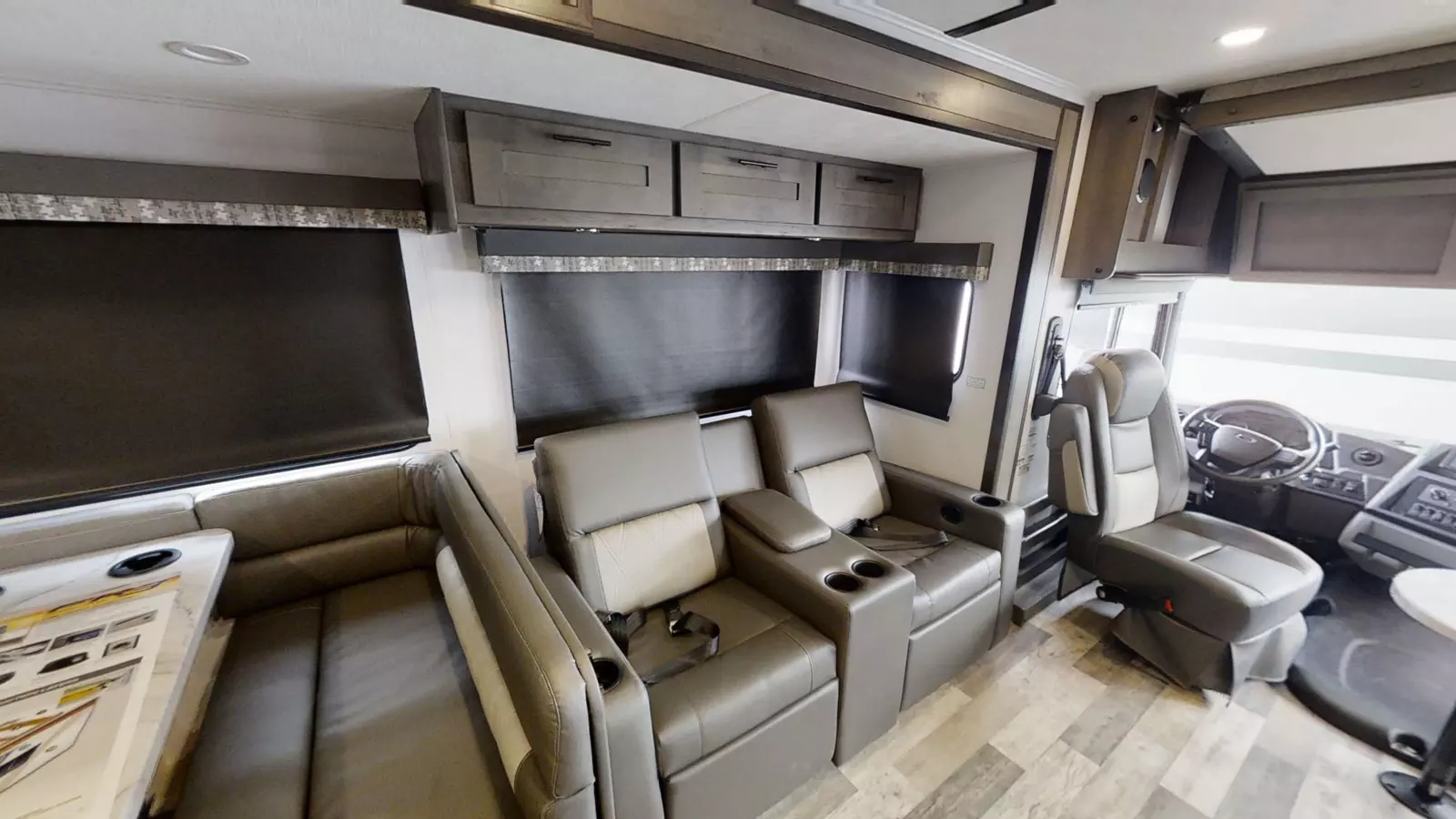

- Theatre Seating 30DS (in place of Hide-a-Bed)

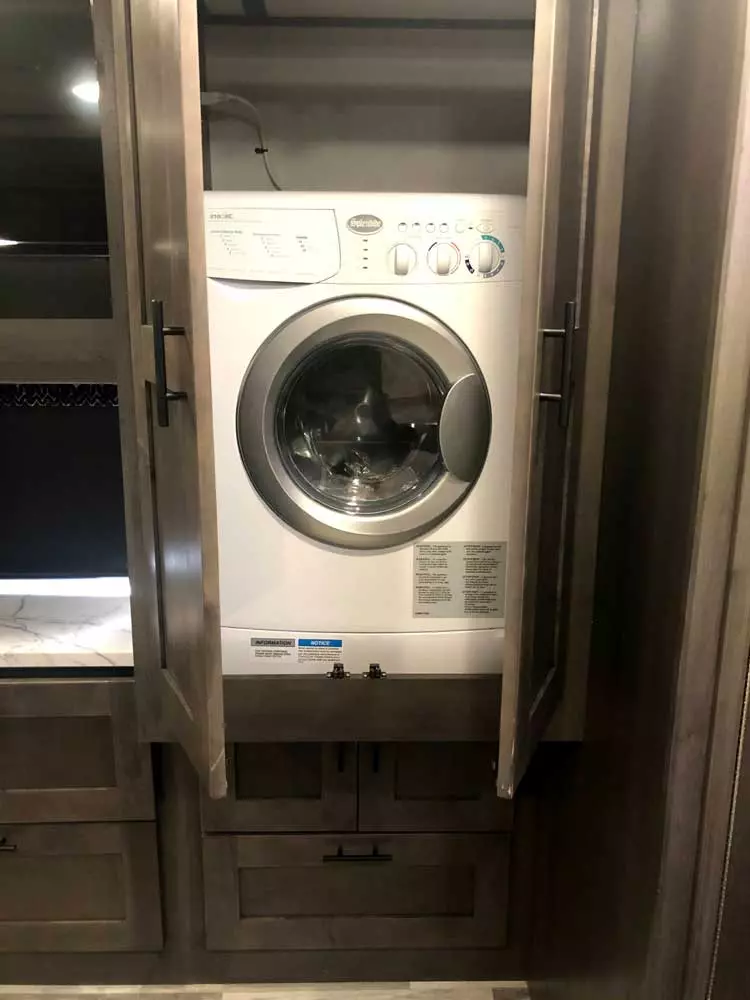

- Combo Washer/Dryer (N/A 32DS)
