Berkshire Diesel Class A Motorhomes

A living experience without equal is around every turn when traveling in a Berkshire Class A Motorhome. Sophisticated décor, sumptuous hardwoods and unsurpassed attention to detail are all Berkshire hallmarks.

Care Camps, fighting cancer and making memories

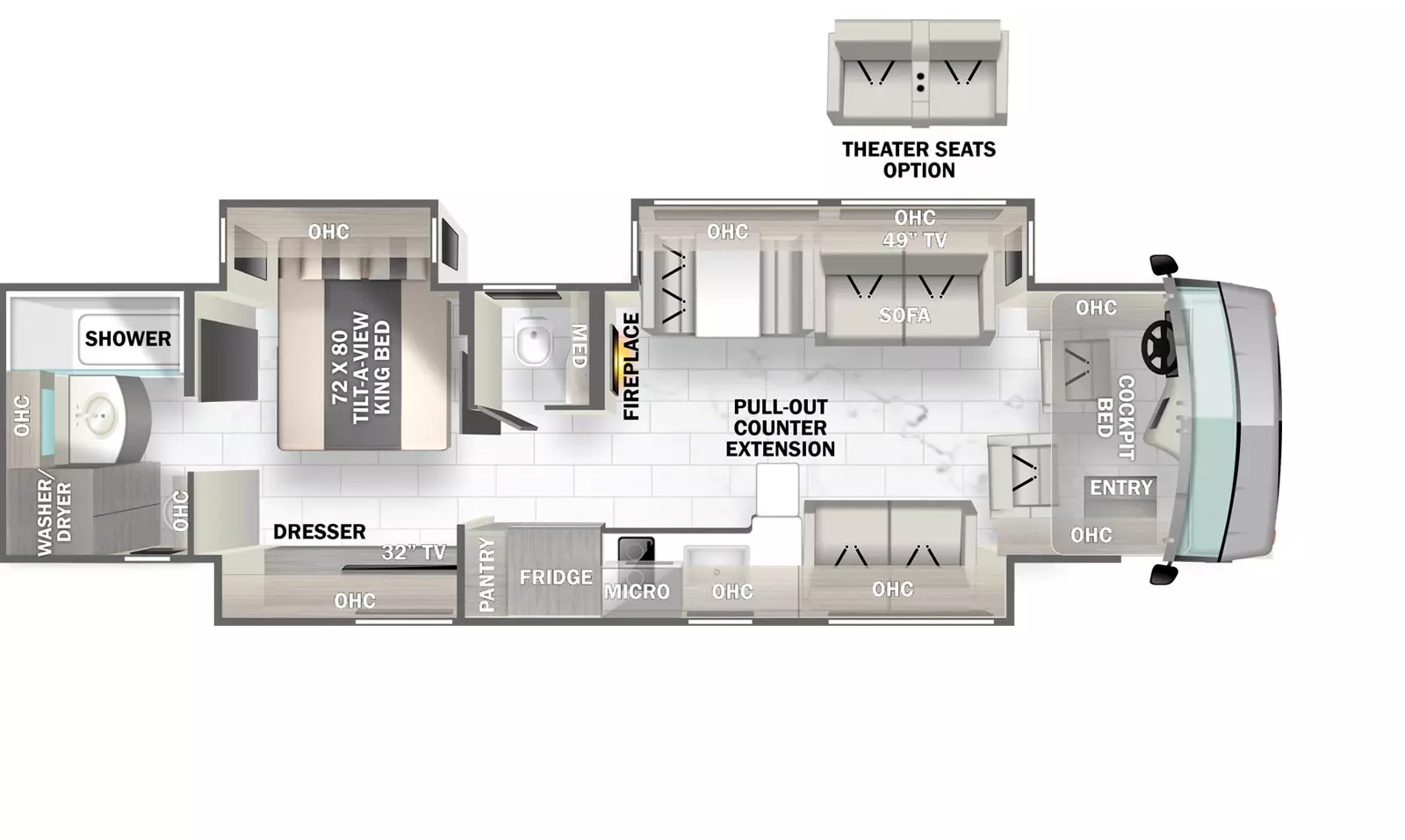

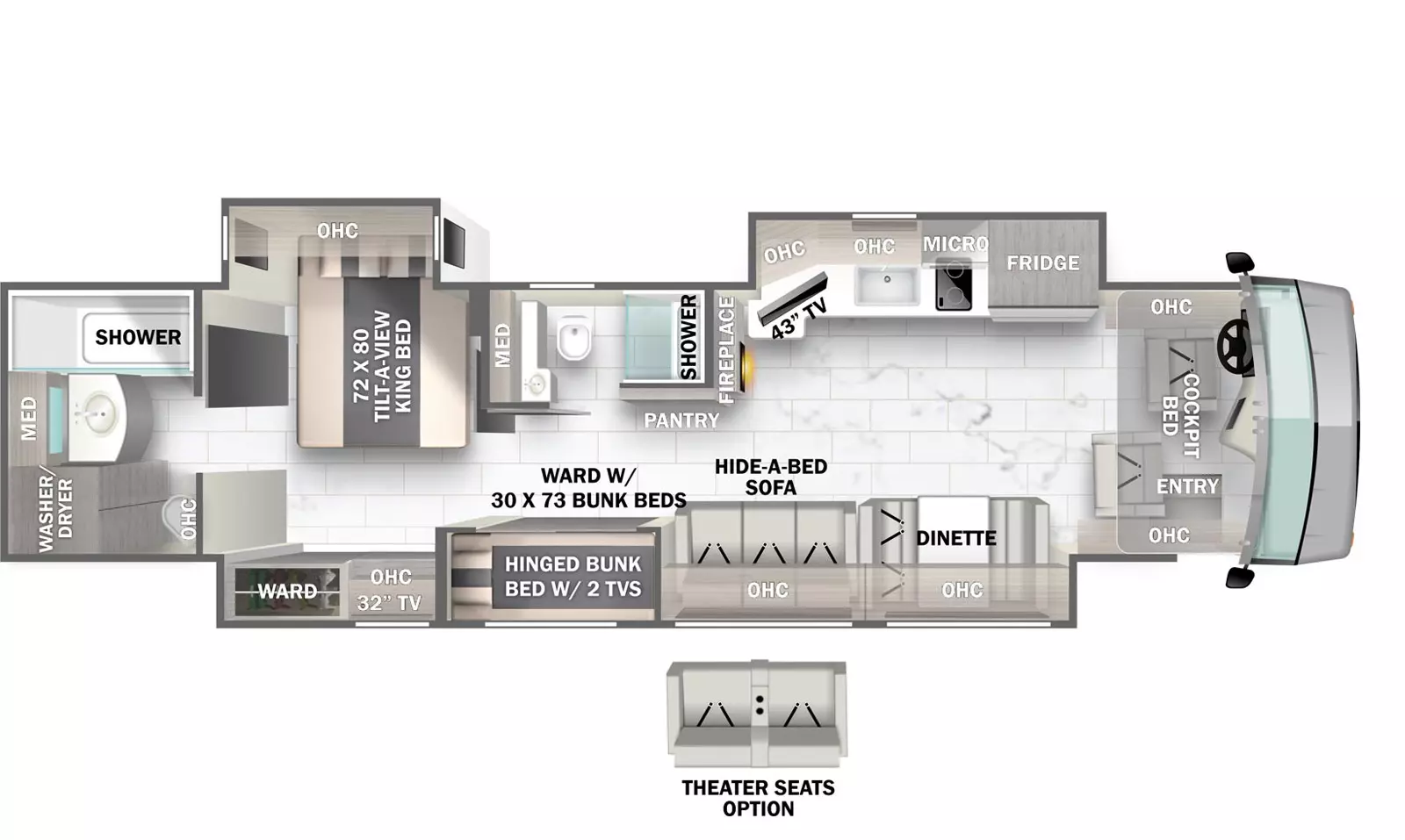

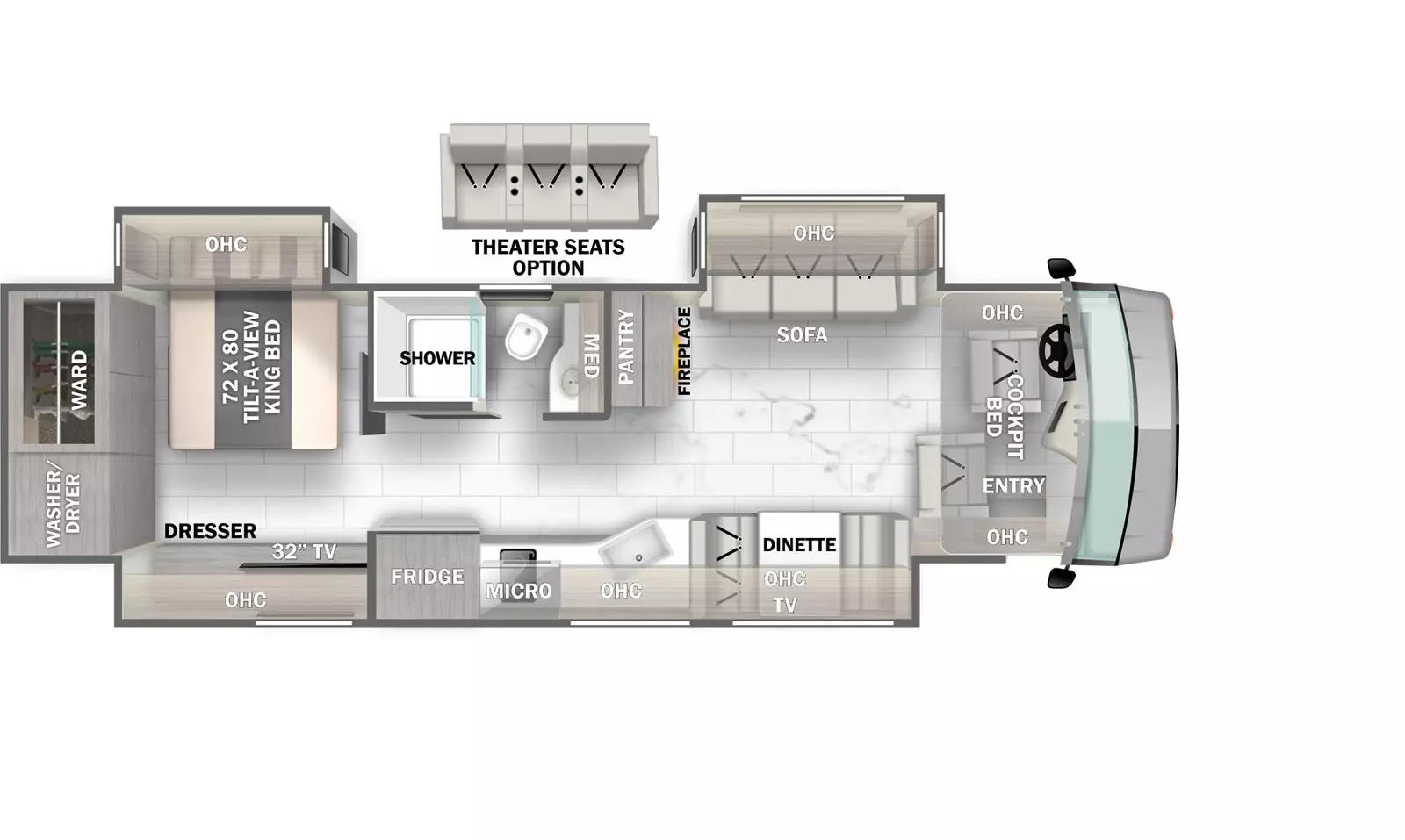

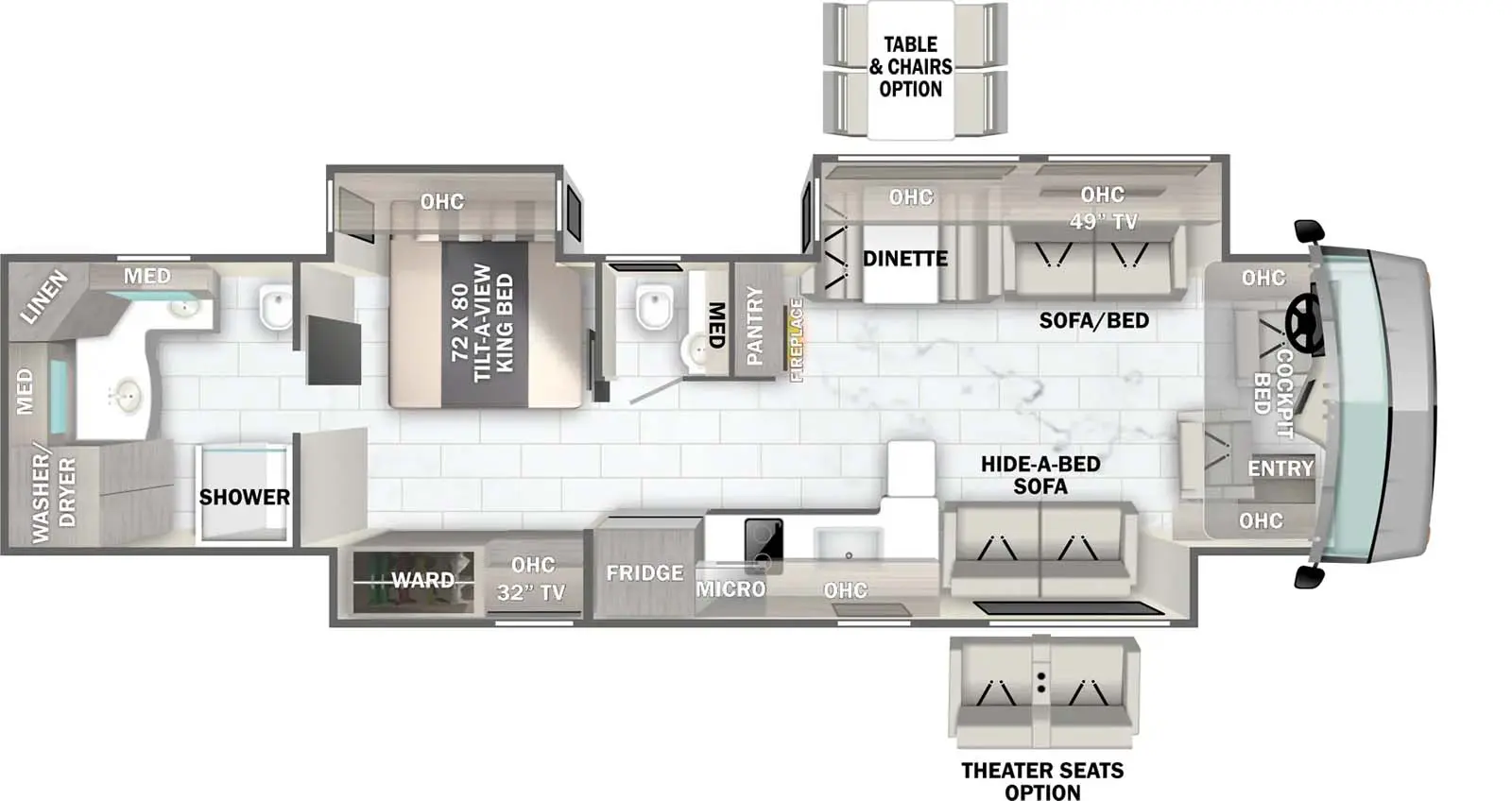

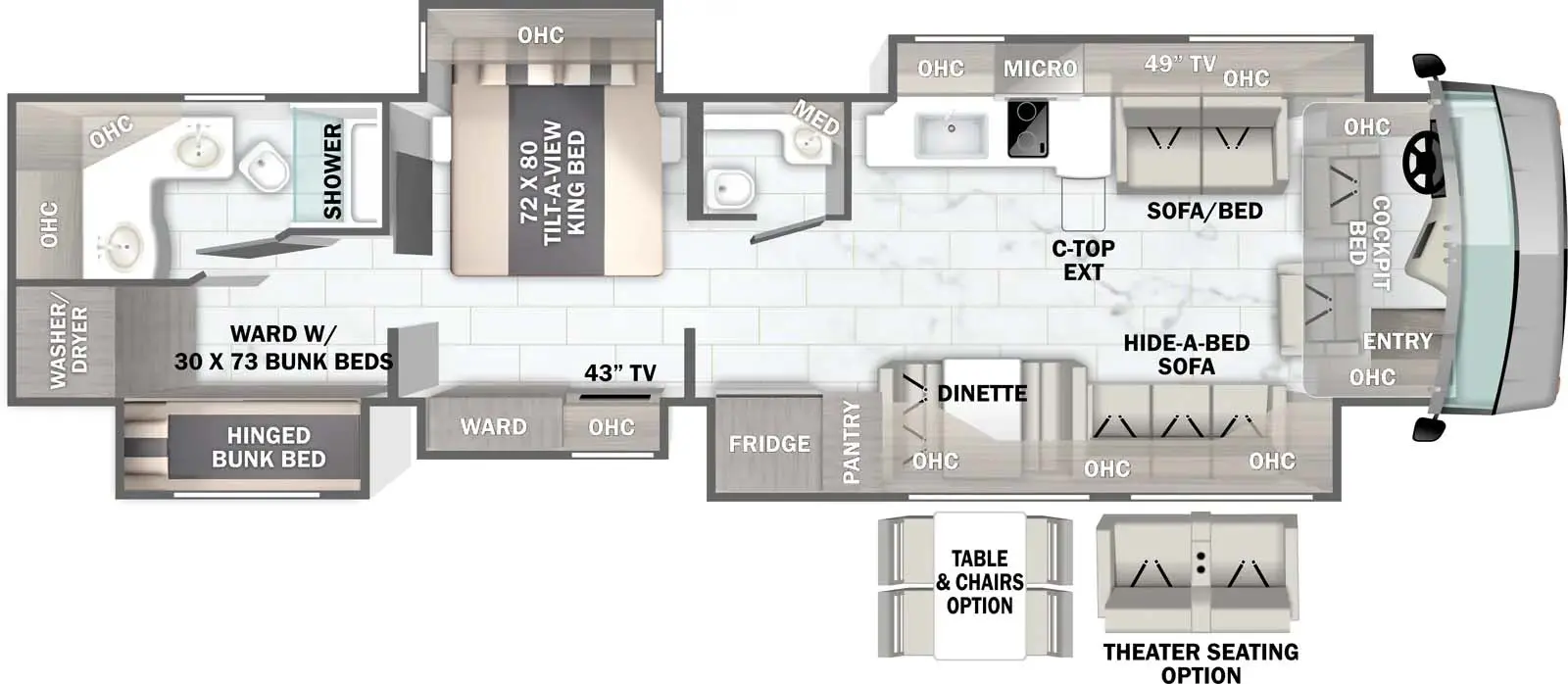

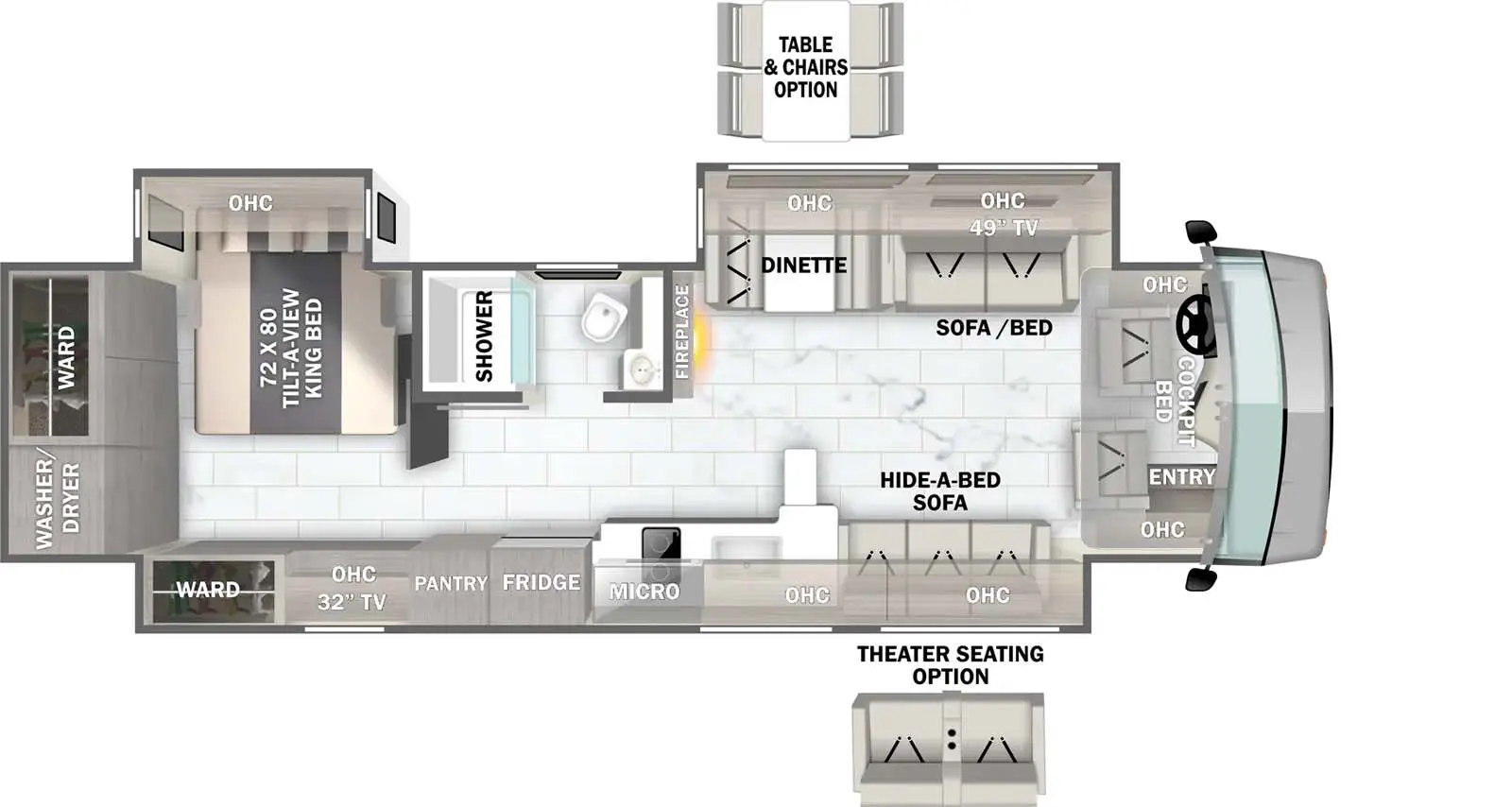

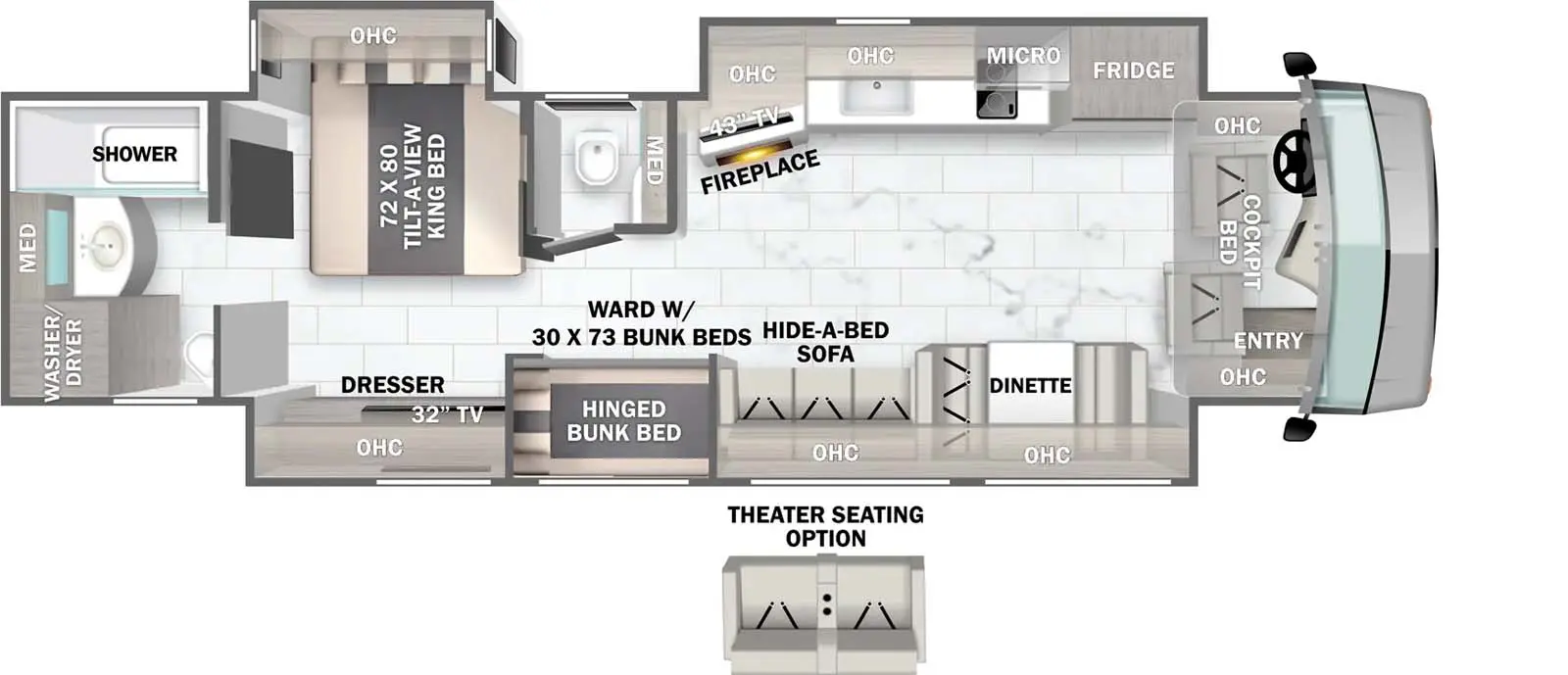

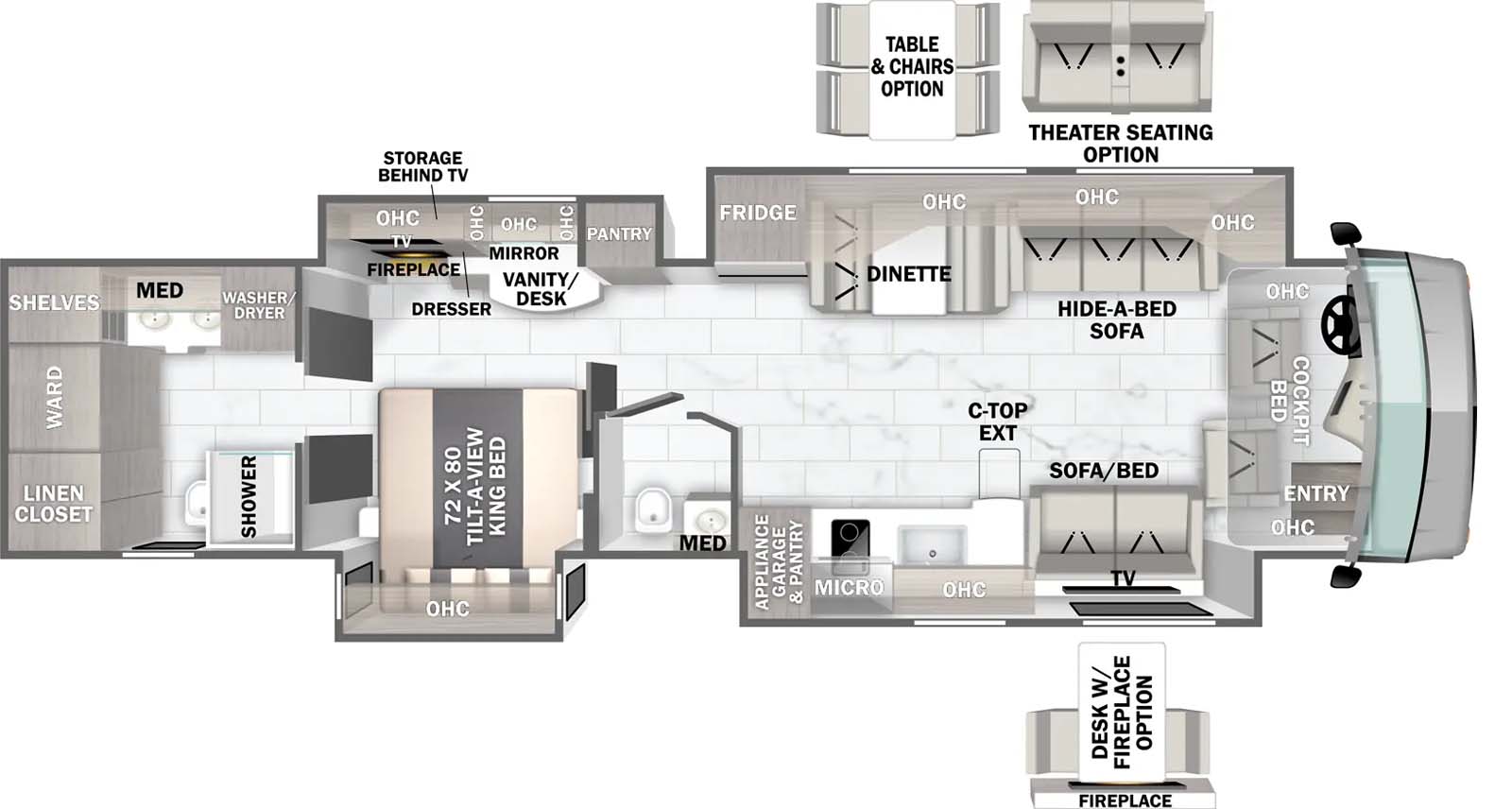

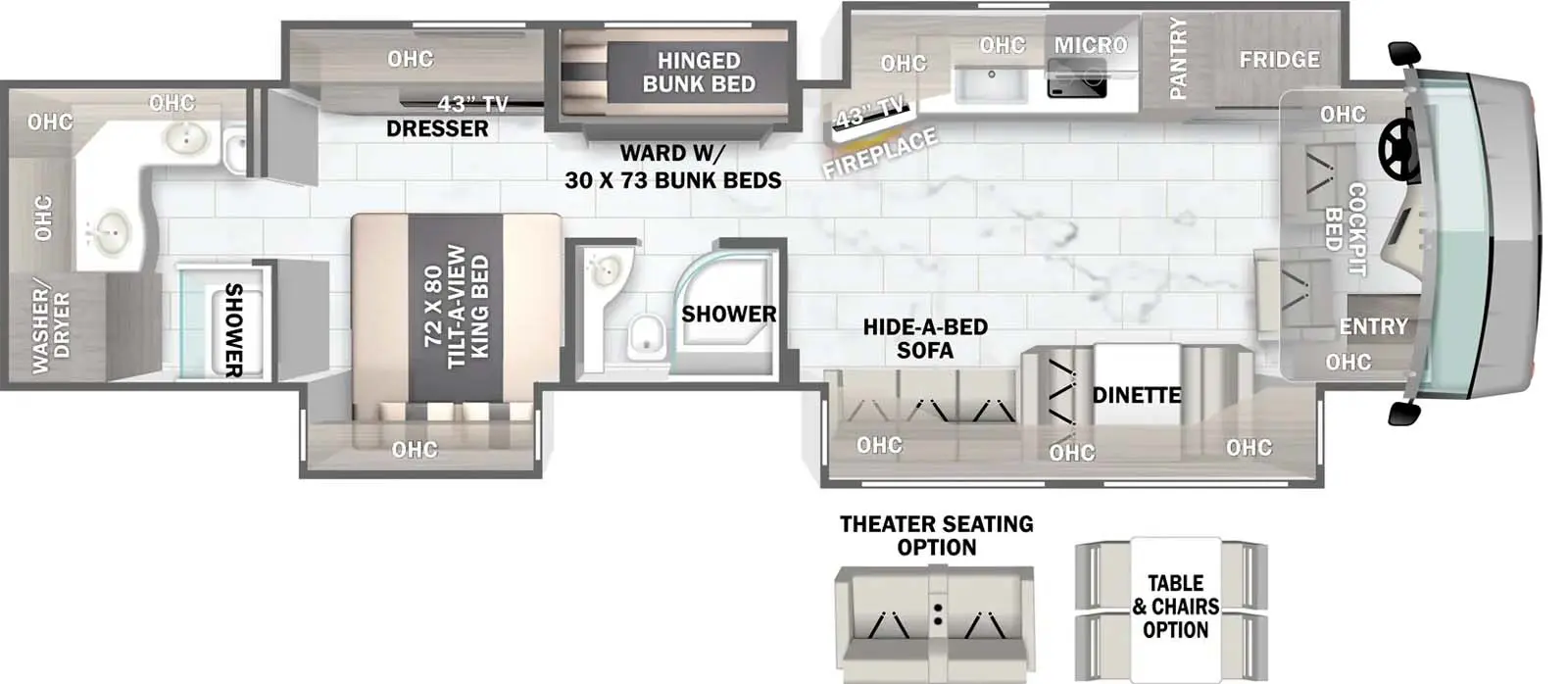

Floorplans

Print

Cummins ISB Turbo Diesel 360HP Engine


Specifications

Print

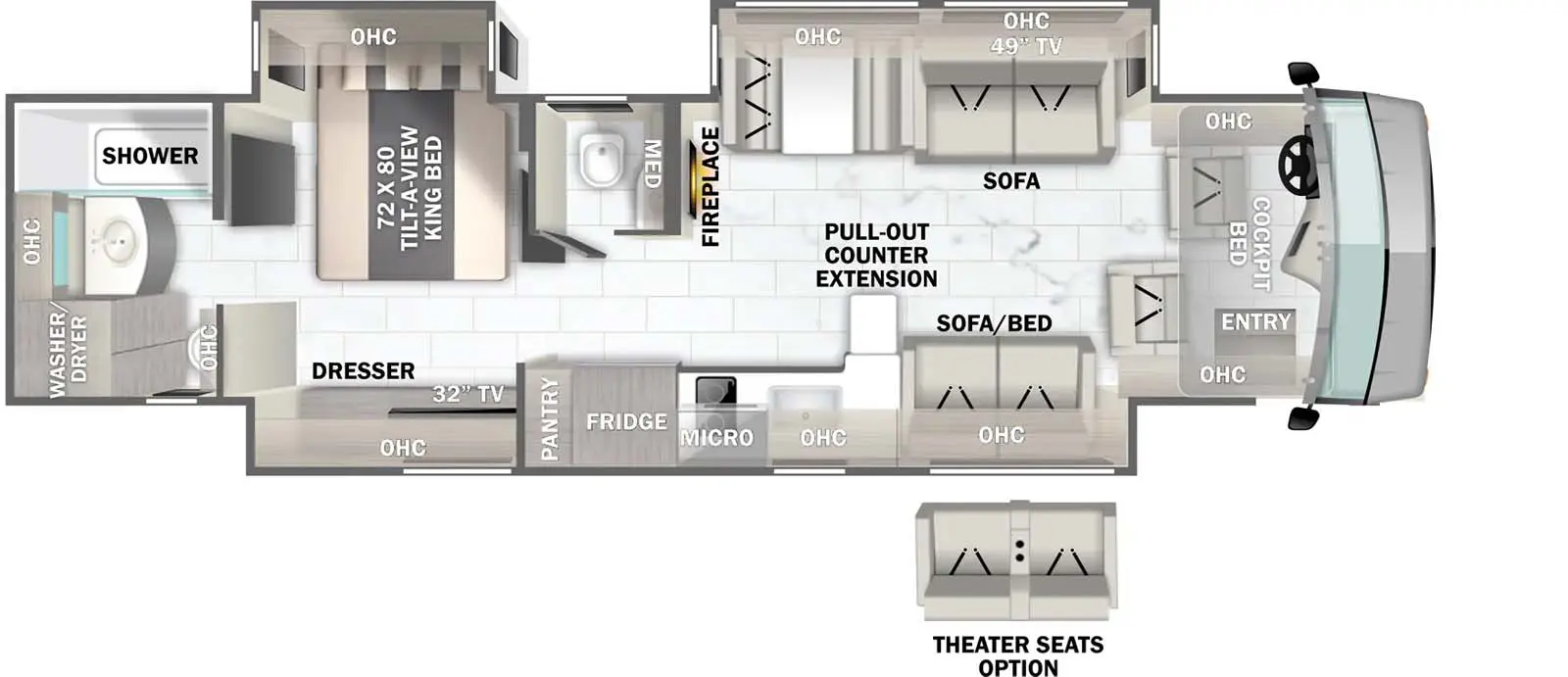

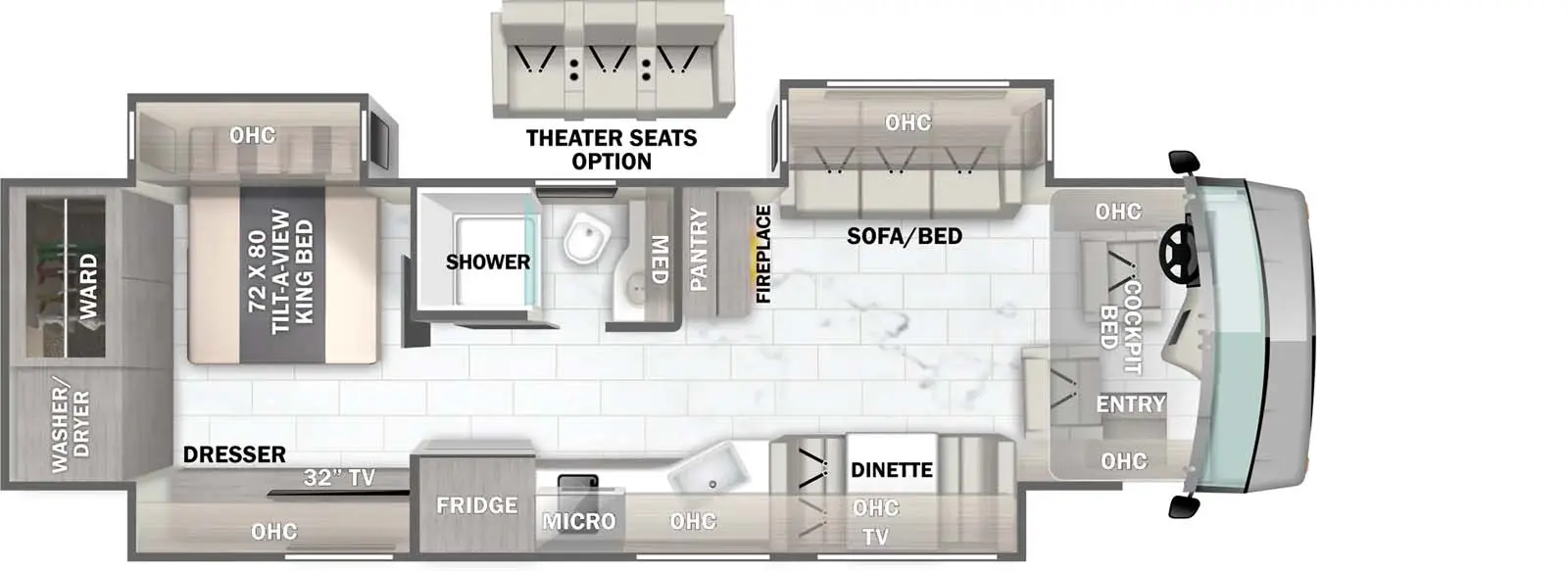

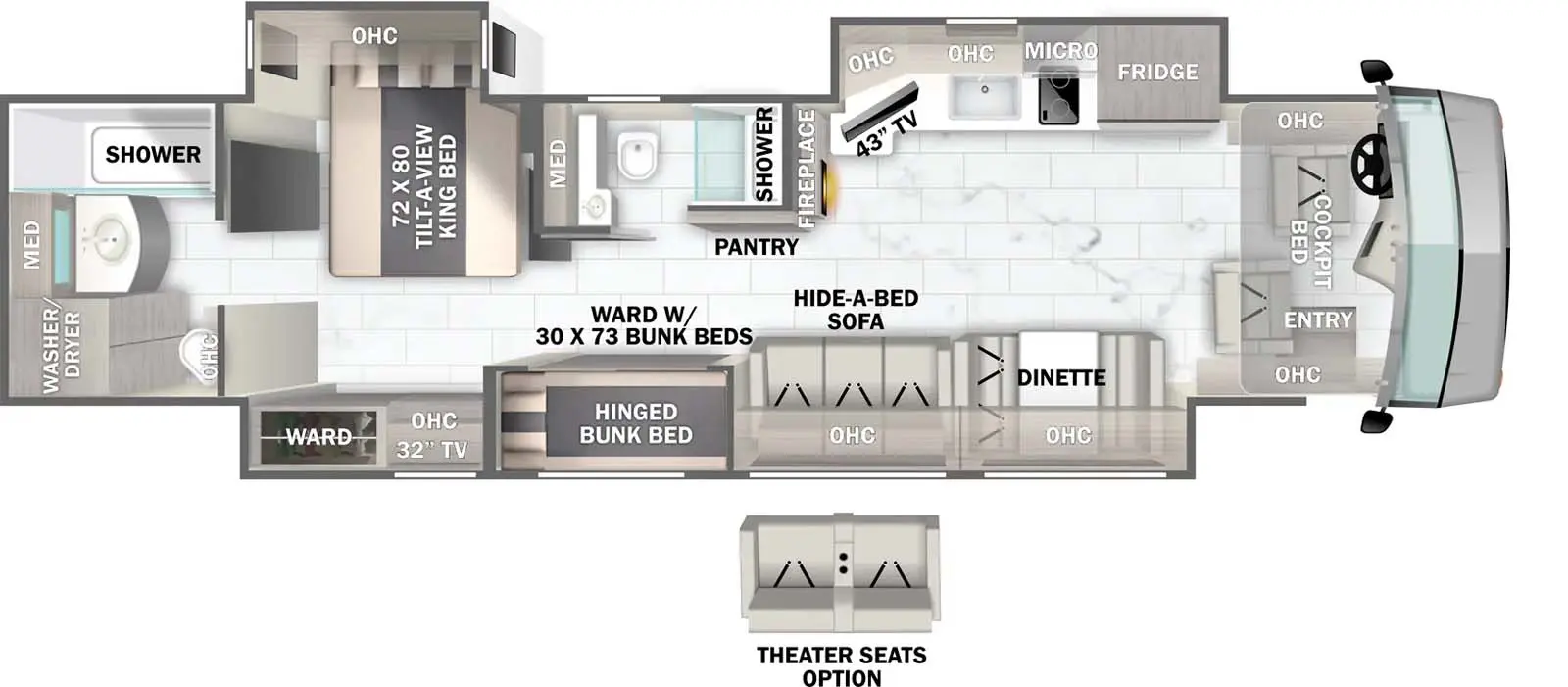

Floorplan: 34B : Cummins ISB Turbo Diesel 360HP Engine 39A : Cummins ISB Turbo Diesel 360HP Engine 40F : Cummins ISB Turbo Diesel 360HP Engine
Wheelbase:206"252"266"
GVWR:32,400 lb.33,400 lb.37,320 lb.
GCWR:42,400 lb.43,400 lb.47,320 lb.
GAWR Front:12,400 lb.12,400 lb.14,320 lb.
GAWR Rear:20,000 lb.21,000 lb.23,000 lb.
Fuel Capacity:100 gal.100 gal.100 gal.
LP Tank Capacity:TBDTBDTBD
Exterior Length:35' 5"39' 8"40' 10"
Exterior Height:12' 8"12' 8"12' 8"
Exterior Width:100"100"100"
Fresh Water:103.00 gal.103.00 gal.103.00 gal.
Gray Water:66.00 gal.66.00 gal.66.00 gal.
Black Water:42.00 gal.42.00 gal.42.00 gal.
Awning Size:18'18' 0"18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Freightliner XCR Raised Rail Chassis
  • Cummins ISB turbo diesel 6.7 liter 360 HP, 2600 RPM, 800 LB/FT @1800 RPM
  • Allison 3000MH 6-speed transmission
  • 120v Engine Heater 750W
  • 22.5" Polished Aluminum Wheels
  • Michelin X line energy Z 275/80R22.5 tires
  • Trailer Hitch, 10,000 # Capacity
  • 100 gallon, locking dual fill fuel tank
  • Driver side mounted 13 Gallon DEF Tank
  • Day time running lights
  • 7-Pin tow power connector
  • 18.7 CFM air compressor
  • Farr Eco-air cleaner
  • Air filter restriction indicator
  • Fuel/water separator
  • Brake line Air Dryer w/Heater
  • Automatic, heated moisture ejectors
  • Heavy duty-windshield wipers w/intermittent function
  • 160 amp alternator
  • Full air ABS brakes w/ auto slack adjuster
  • Two (2) 1900 CCA at 0 degree Fahrenheit, maint. free
  • Variable exhaust brake
  • Suspension Neway front and V- Ride rear
  • Sachs custom tuned shock absorbers
  • 55 degree wheel cut
  • Auto air suspension deflation system

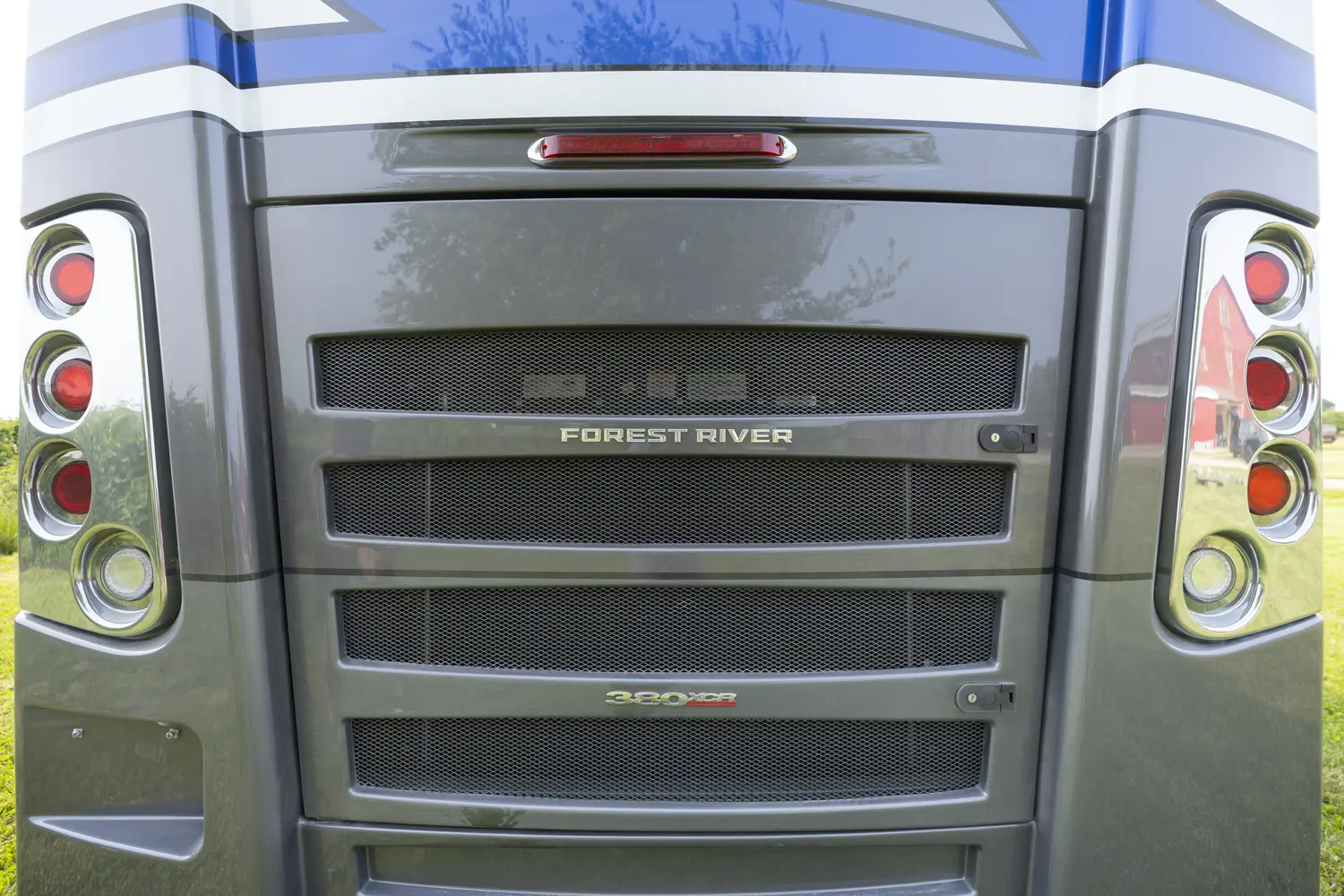

  • Rear mounted radiator
  • Transmission oil cooler
  • 5 year / 100,000 mile coolant (some maintenance required)
  • Suspended Pedals
  • Electronic cruise control w/ high idle
  • Fiberglass front and rear caps

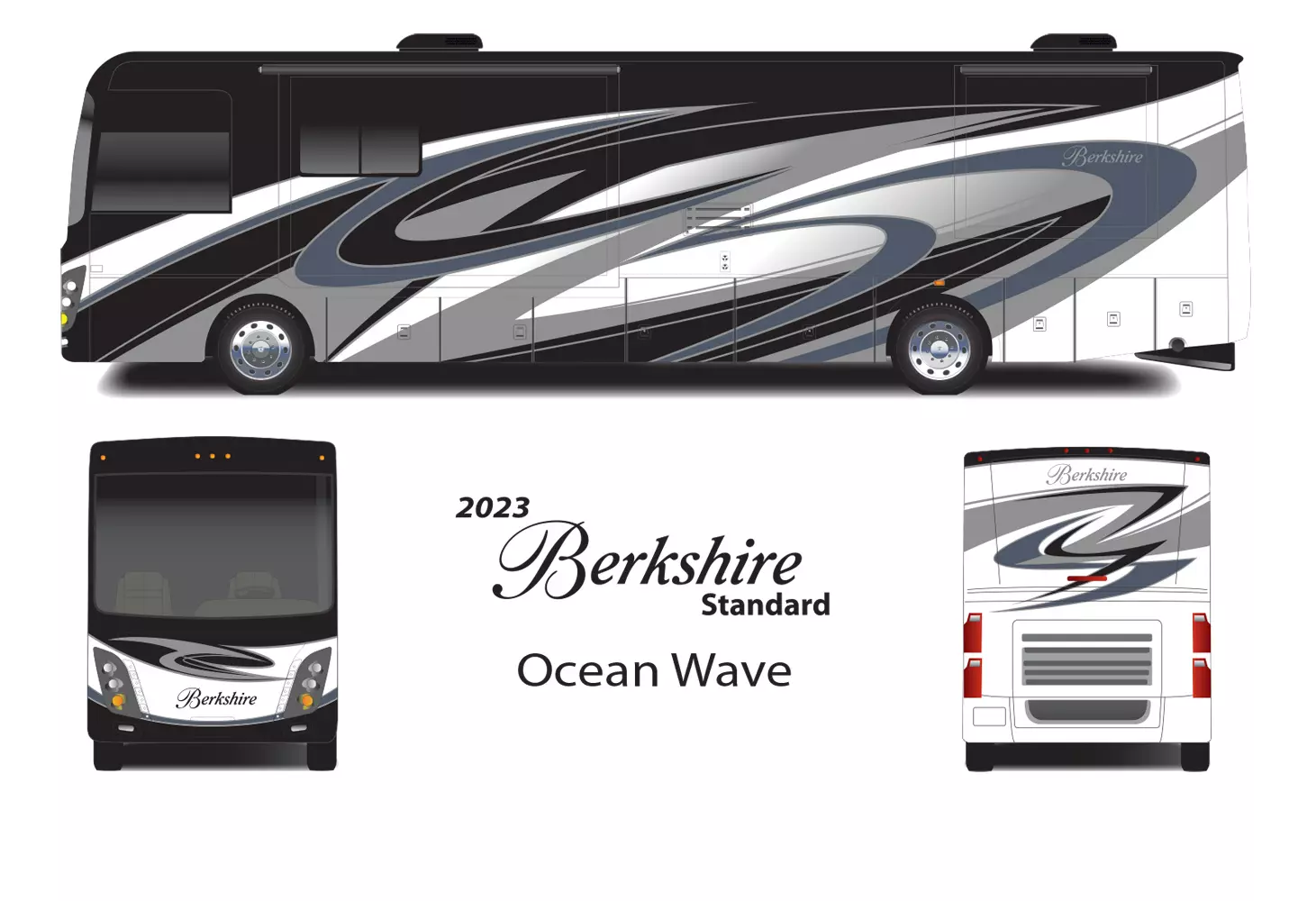

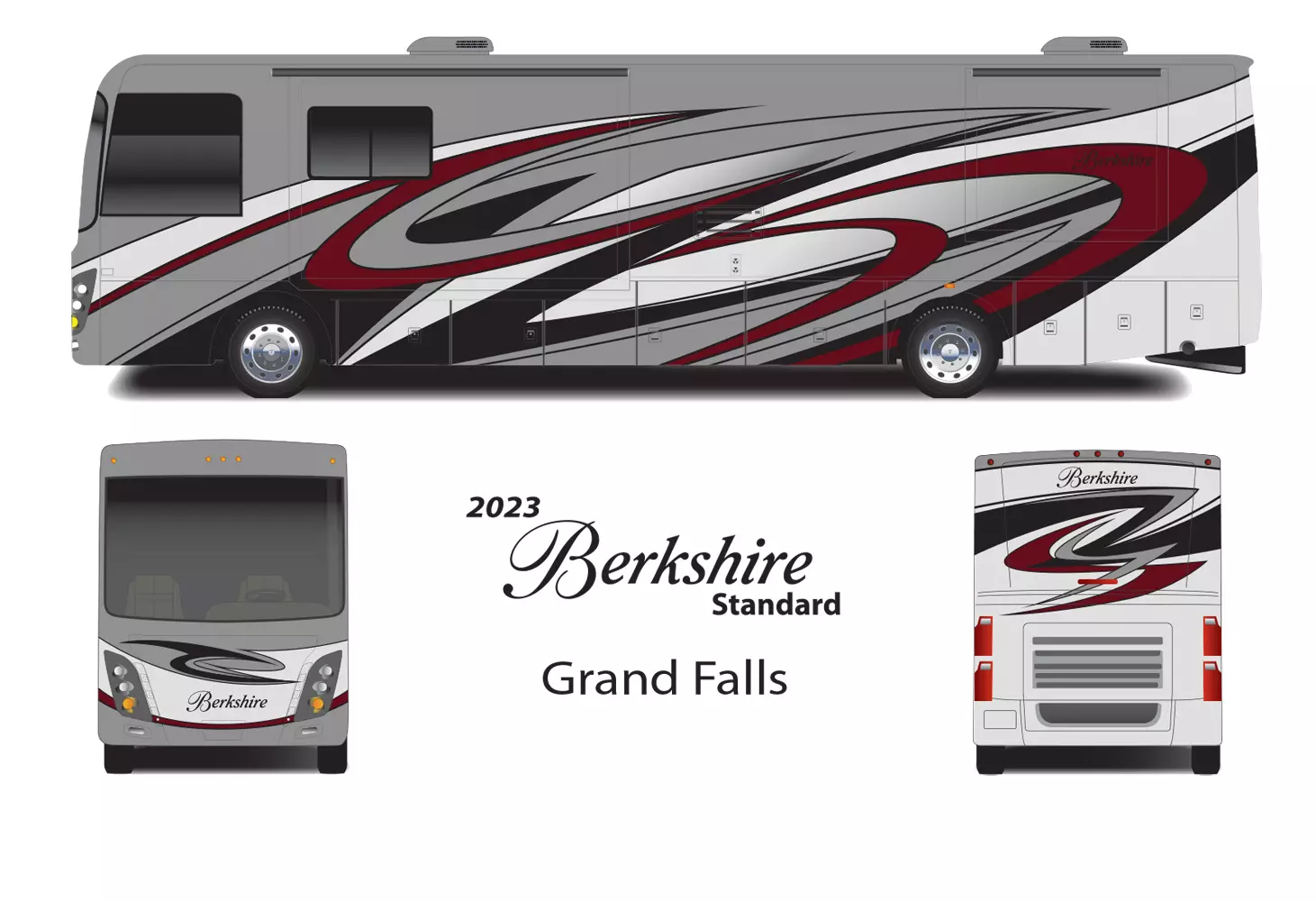

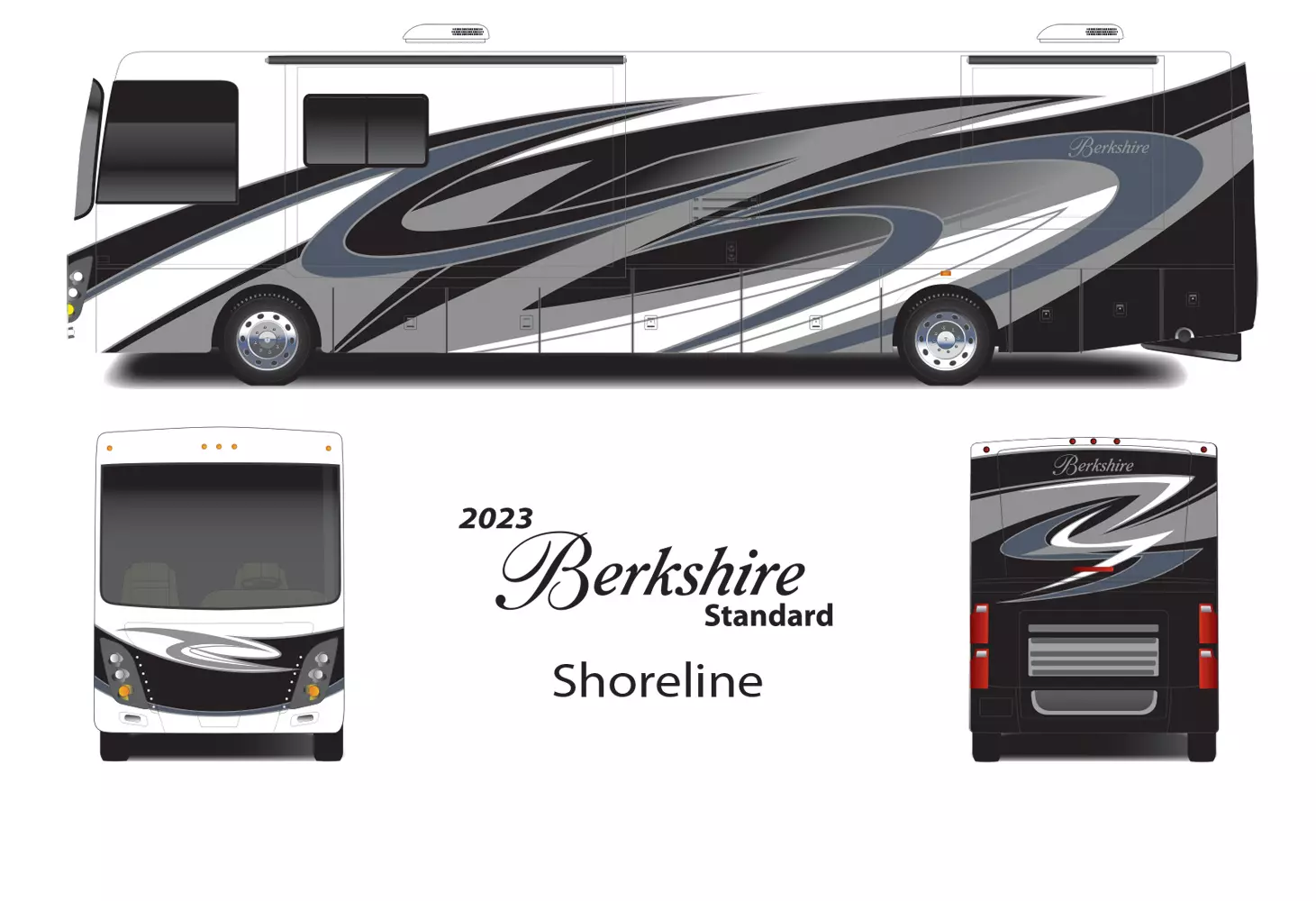

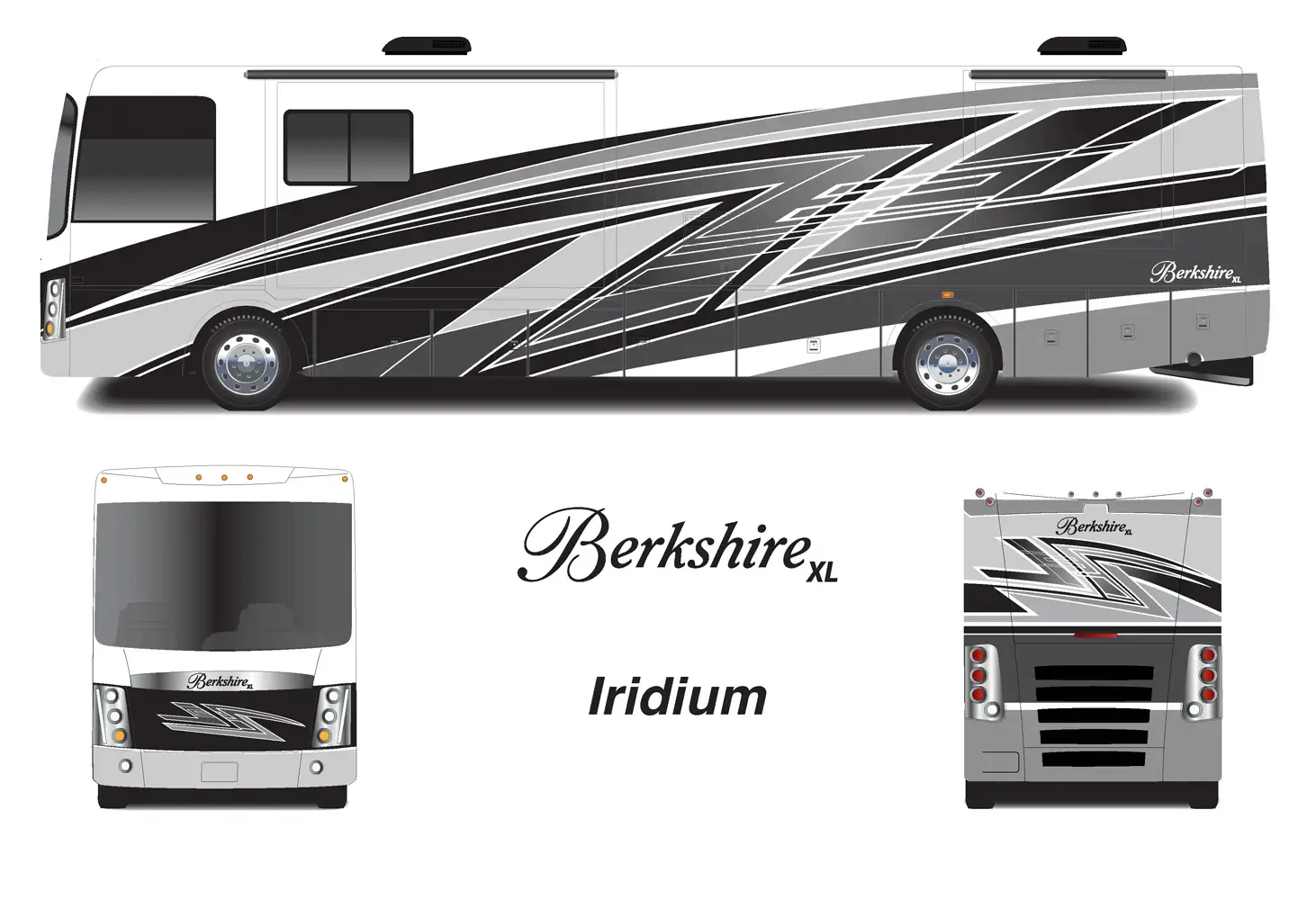

  • Full body painted exterior

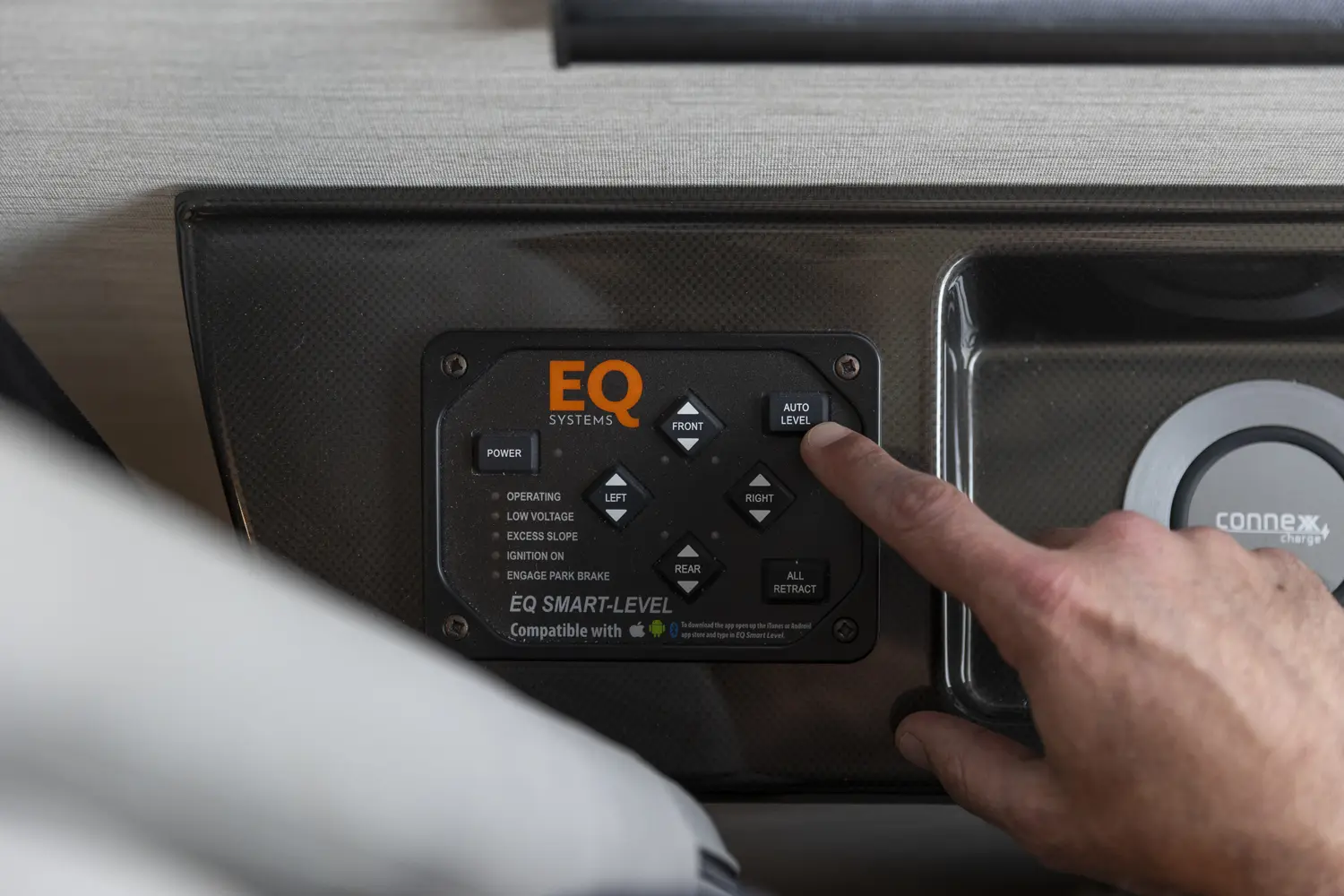

  • Four (4) point fully auto hydraulic leveling system w/ auto air dump
  • Steel basement structure
  • Tru-Brace Anti Camber chassis support system
  • Rust resistant aluminized steel chassis skirts
  • Diamond shield front mask protective film
  • 1 Piece Fiberglass Roof
  • Top-mount remote mirros w/heat, & sideview cameras
  • Frameless dual pane, dark tint windows
  • Automotive foam and Ziebart seal undercoating
  • Carefree power door awning
  • Carefree Latitude dual pitch patio awning w/led lt & Wind Sensor
  • Carefree s/o topper w/covers
  • Full height strut assisted compt doors w/full pass through storage
  • One Key" system, ext-compartment, entry door & fuel fill doors
  • Quiet integrated A/C intake/ducting roof system
  • Crowned and layered vacuum bonded fiberglass roof
  • Vacuum bonded 3" Main floor w/tubular aluminum frame
  • Vacuum bonded gel coated fiberglass with Azdel backing Sidewalls
  • Vacuum bonded s/o floor w/fiberglass bottom
  • Block foam polystyrene insulation in walls, roof and floors
  • 30" Entryway
  • Channeled drains for A/Cs
  • Tube steel firewall w/polystyrene insulation
  • Lighted exterior assist handle
  • 84" interior ceiling height

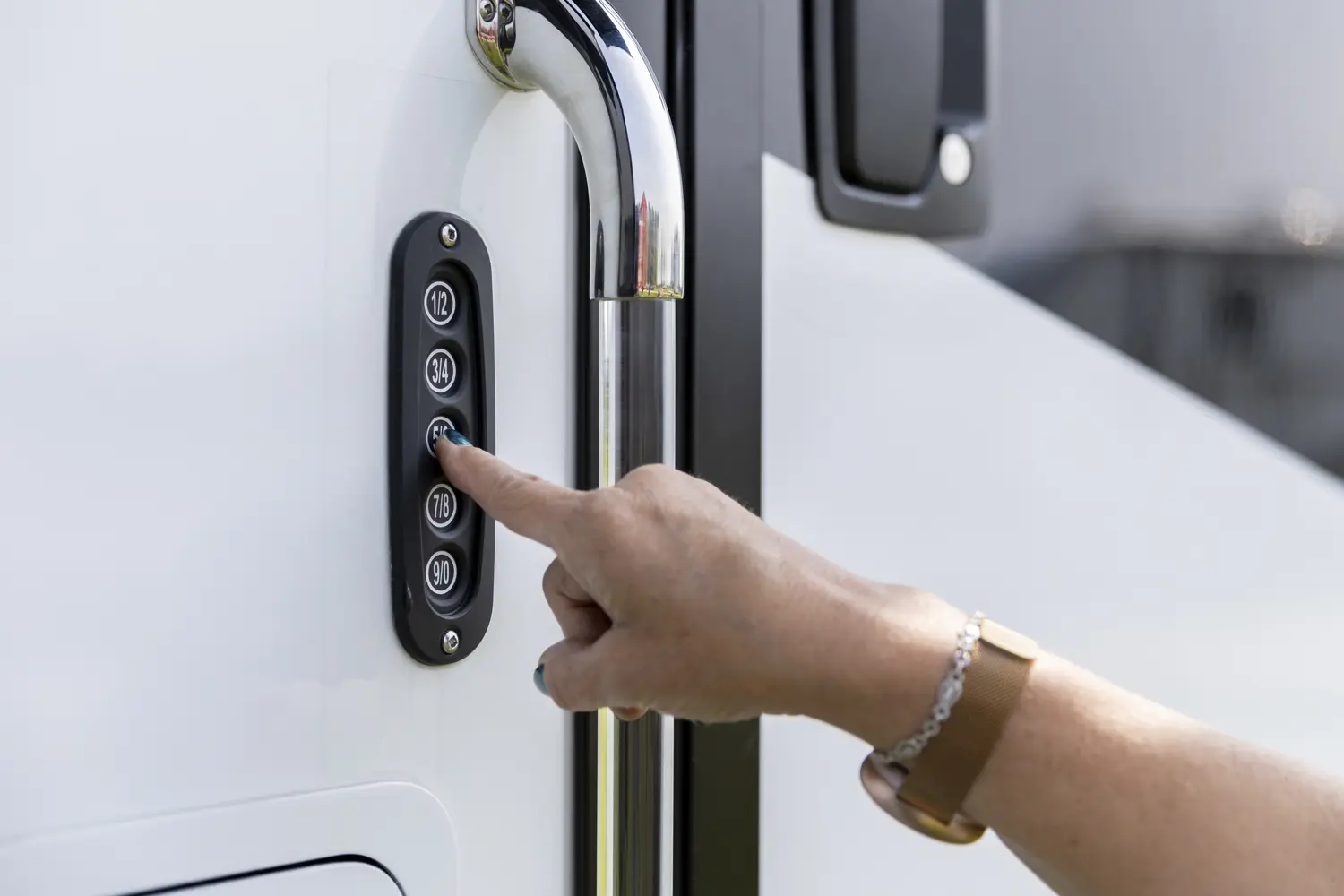

  • PTL steel entrance door with deadbolt & Keyless entry
  • Auxiliary air chuck (front driverside compartment)
  • Auxiliary LP supply, quick connect (passenger side)
  • LED Marker Lights
  • Full length mud flap w/ chrome Berkshirename
  • Slide tray in basement compartment
  • Electrical
  • 50A service w/auto transfer switch & 30' power cord
  • EZ power cord entry
  • 8kW Onan diesel generator w/manual slide tray (34B)
  • 10kW Onan diesel generator w/manual slide tray (40F)
  • Energy management system
  • Electronic house power disconnect switch
  • Generator start/stop switch (On dash/bedroom)

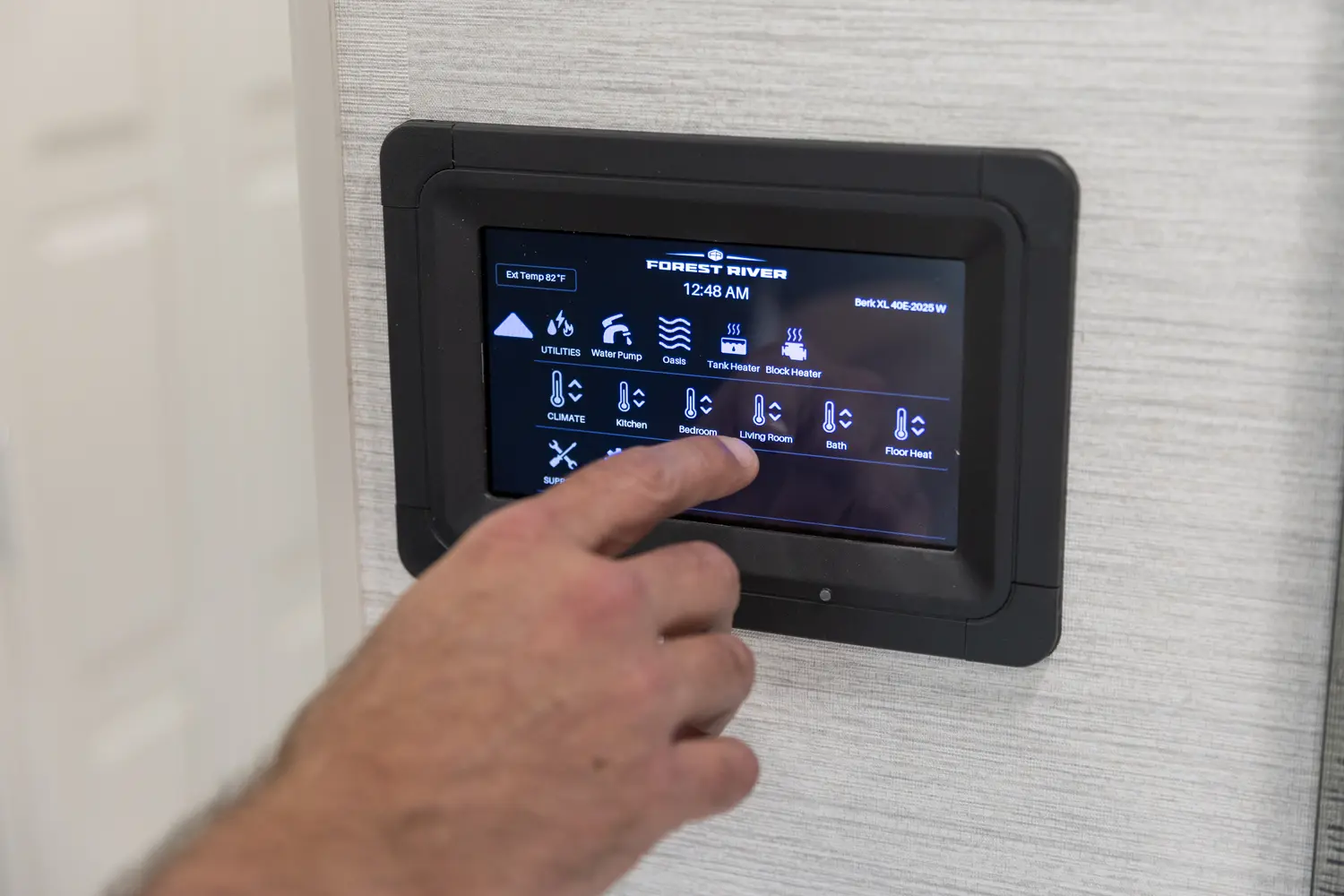

  • Multi-plex w/Precision plex app control
  • Dimmer control lighting throughout
  • LED lighting package
  • Decorative bath, dinette & wall lights w/applicable
  • Individual bed led reading lights in overhead
  • 2000kW pure sine wave inverter/charger
  • Auto generator start control
  • (4) Six volt deep cycle house batteries
  • House Battery Distribution Center (HBC)
  • Chassis & house battery bank master shut off switches
  • Led porch & patio lights
  • Easy read 12v house/Chassis load centers
  • Solar prep w/mppt controller and roof prep
  • Automotive chassis fuse panel (front driverside compt)
  • Ceiling fan in bedroom
  • 100w Solar Panel w/mppt controller
  • Variable speed 4GPM water pump
  • Individual zoned hot/cold manifold water supply system

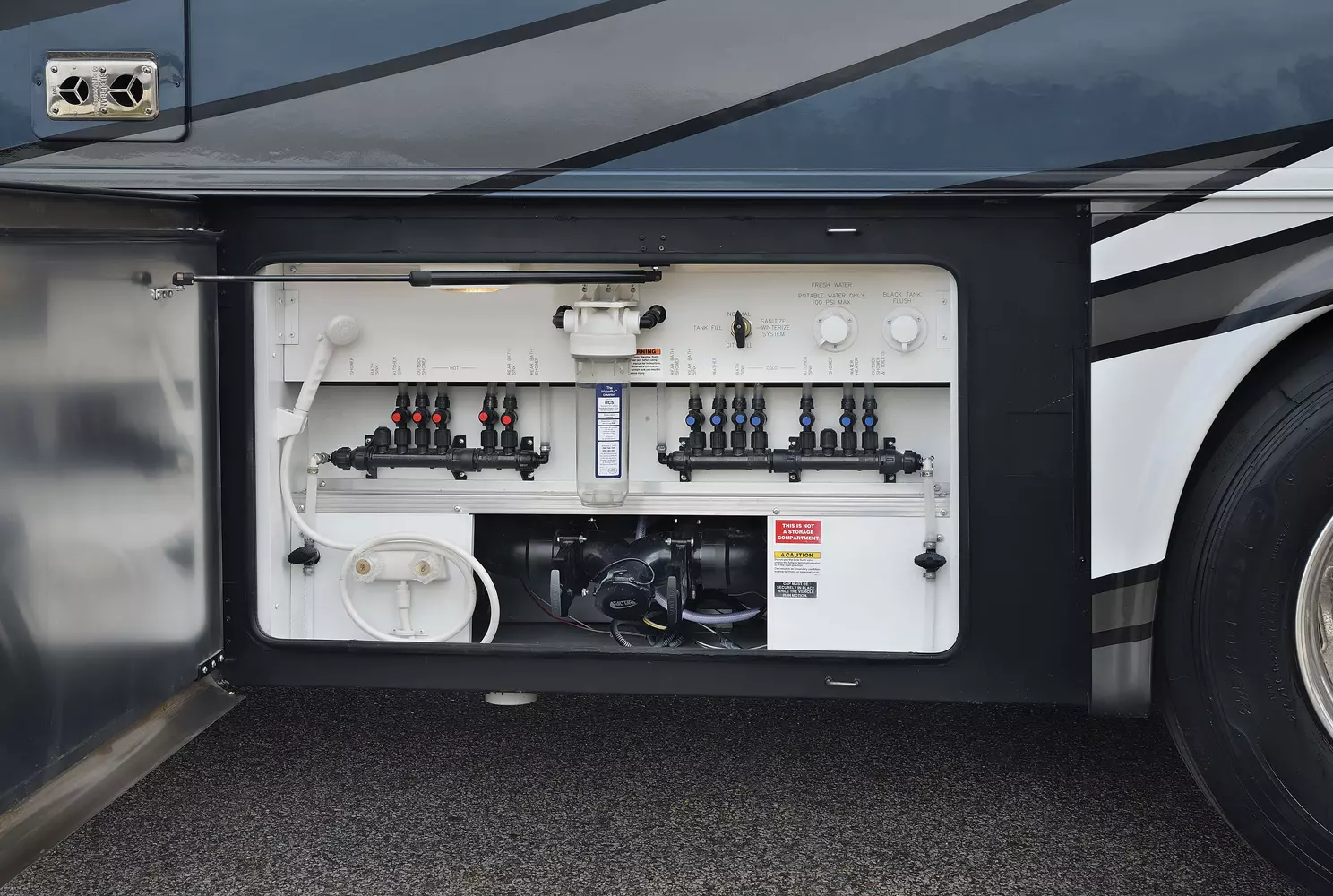

  • 4-way water management valve in water bay compartment

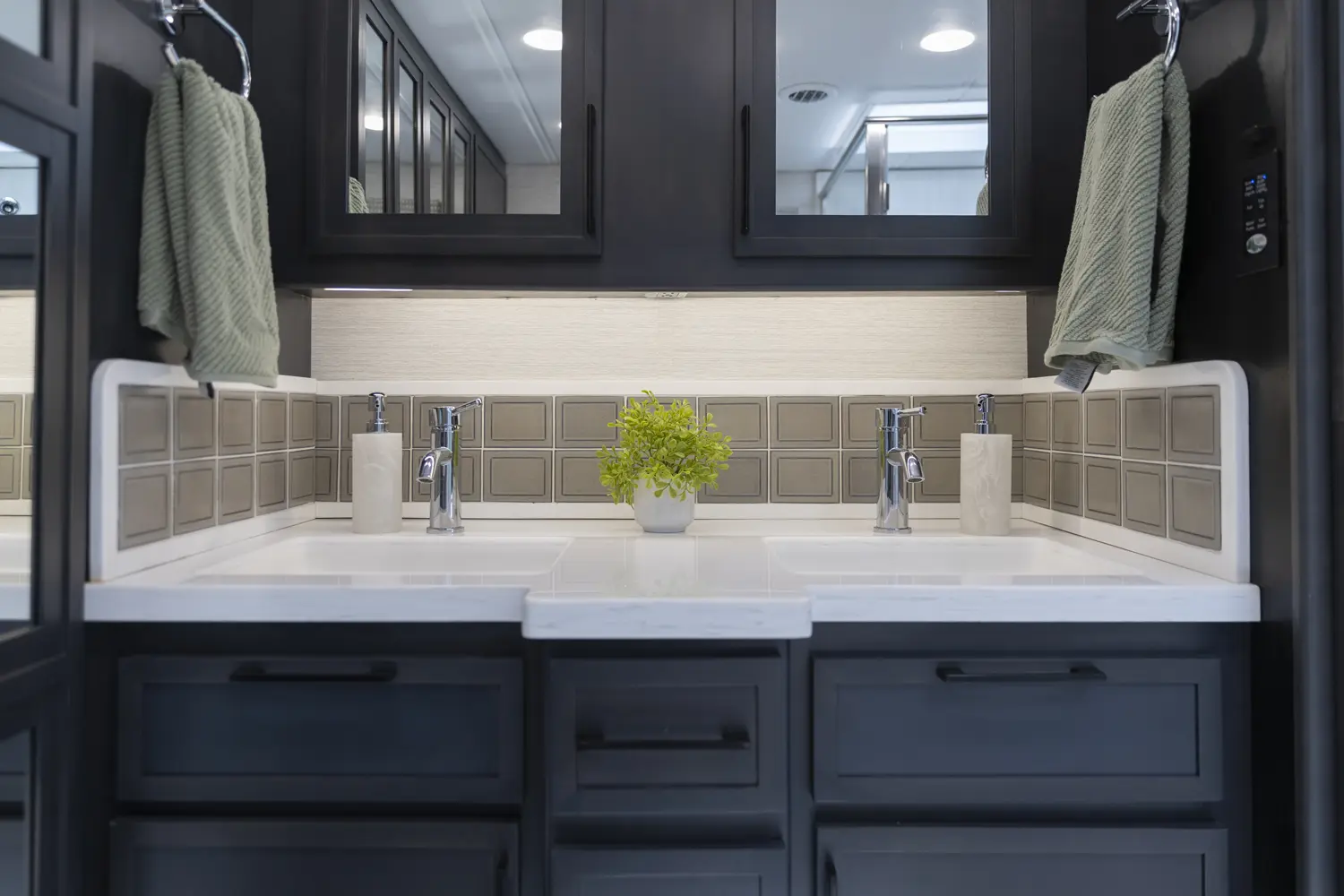

  • Bath - Solid surface under mount sink

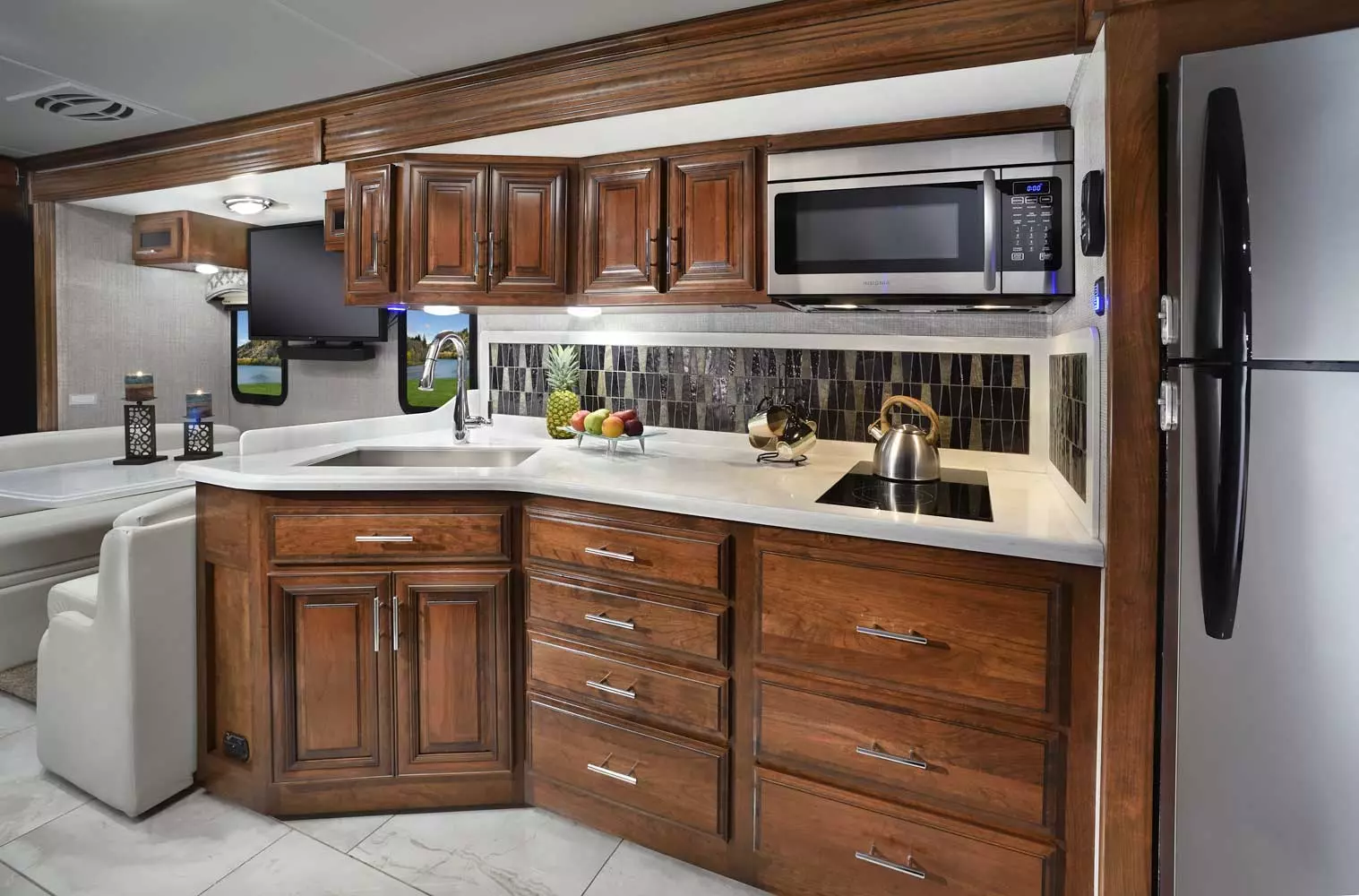

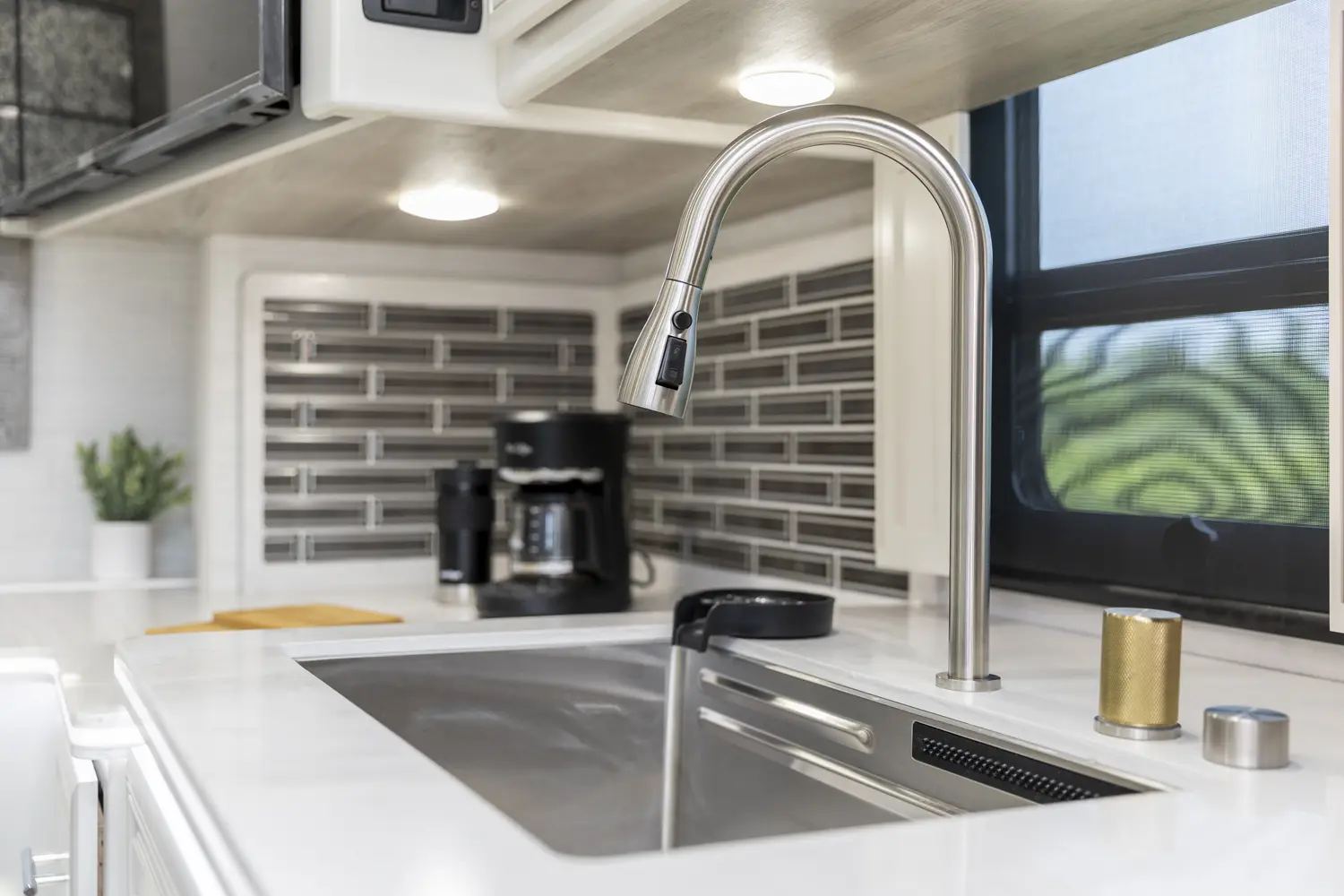

  • Kitchen - Stainless steel under mount sink

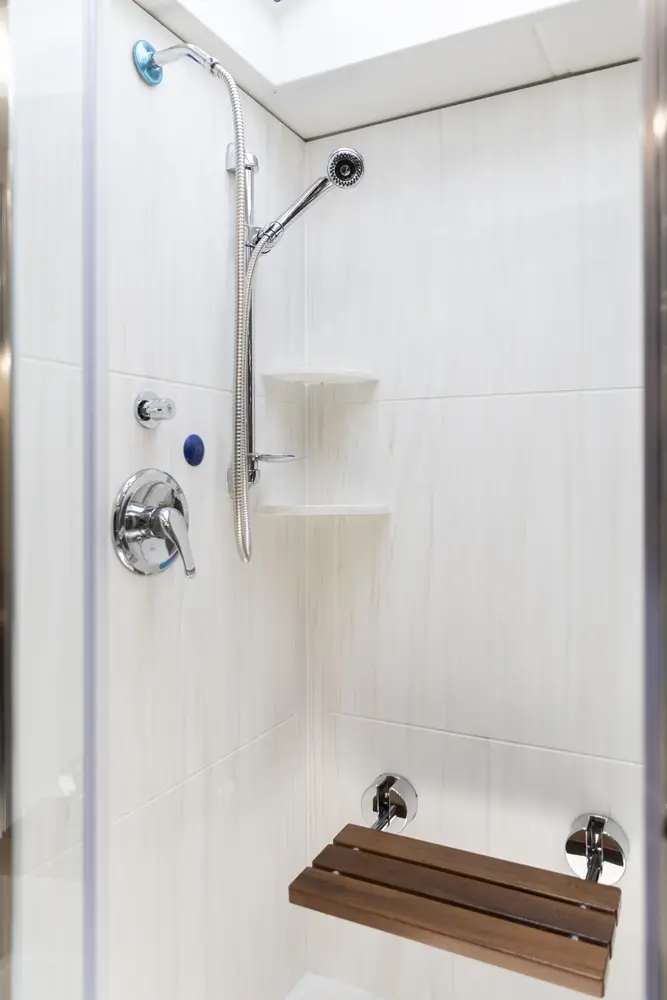

  • One piece fiberglass shower w/tempered glass door & skylight
  • Whole house water filter
  • Black water tank flush system
  • Kitchen single lever faucet w/ pull-out sprayer
  • Porcelain china bowl toilet w/foot flush
  • Shurflo macerator toilet (rear bath) (39A, 40F)
  • Clean-easy exterior shower hose
  • Convenience monitor panel in water bay door
  • 360 Roof vent caps
  • One piece windshield
  • Power front day/night shades
  • Passenger & driver window night shades
  • 3D Carbon fiber dash panels

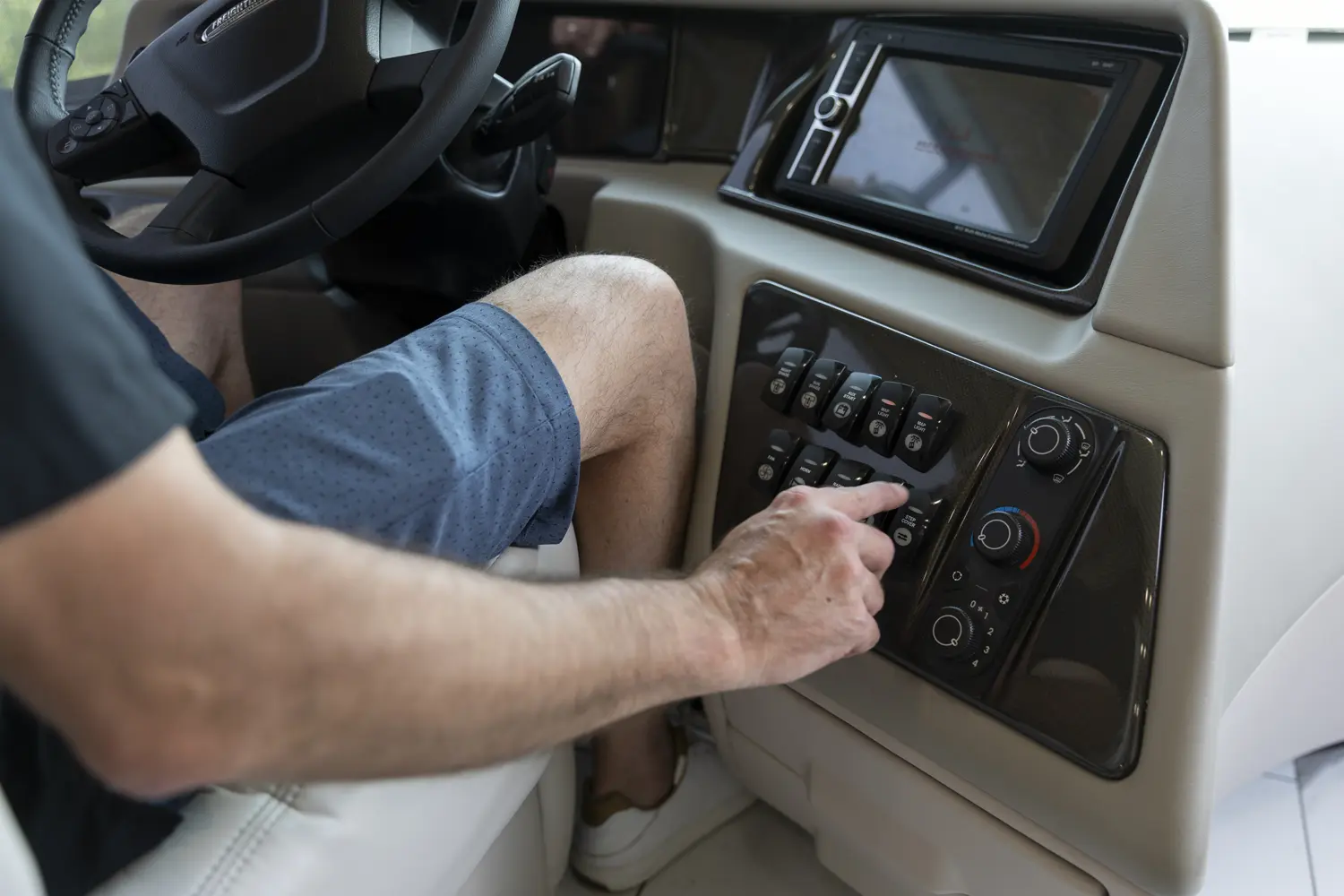

  • Optiview glass instrument panel
  • Steering wheel - w/radio audio, wipers, engine brake, cruise & transmission mode control
  • Auxiliary Fog lights
  • 10" Dash radio w/ color back-up and side view camera pkg w/Nav.
  • Tuned amplifier Dash Radio system
  • Sirius/XM satellite roof mounted antennae
  • Leatherette driver seat, swivel & recline w/6-way power adjustments
  • Leatherette passenger seat, swivel, recline & manual footrest
  • Driver/Passenger side consoles w/cupholders

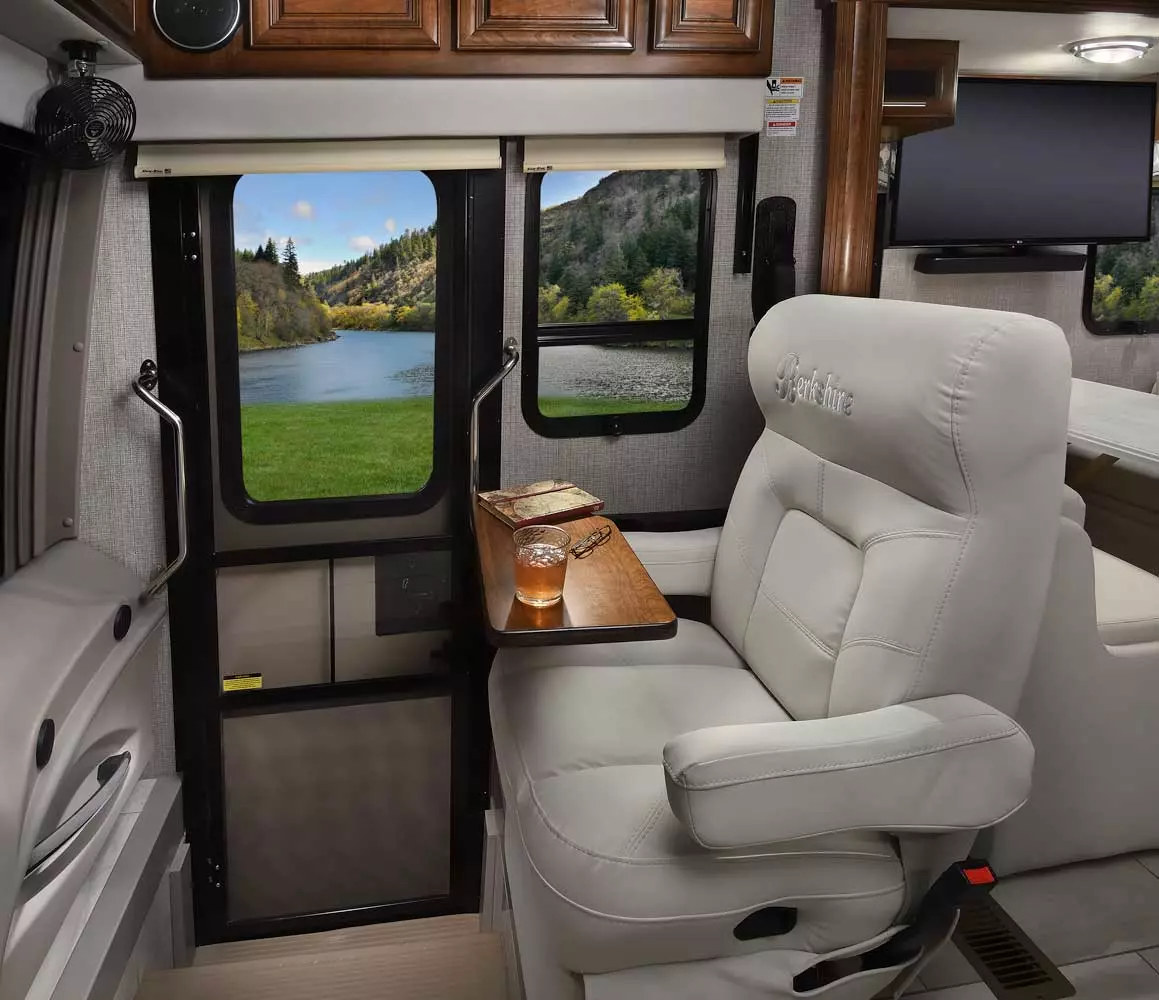

  • Passenger seat workstation
  • Driver console wireless cellphone charger
  • Lighted step well
  • Two (2) Defroster fans w/ high and low settings
  • Automotive dash AC/heater w/deluxe controls
  • Multiple auxiliary/USB & 12V charging ports at dash
  • Power flushfloor stepwell cover
  • Multiple entry assist handles
  • Driver & Passenger LED ceiling map lights
  • Emergency/aux engine start switch at dash
  • Fitted Cockpit floormat w/"Berkshire" logo
  • Fitted entryway step carpet mats
  • 50" LED TV, living room (39A)
  • 43" LED TV, living room
  • 32" LED TV, bedroom
  • 32" LED TV, exterior TV w/bluetooth radio & Speakers
  • 32" LED TV in cockpit overhead (34B, 40F)

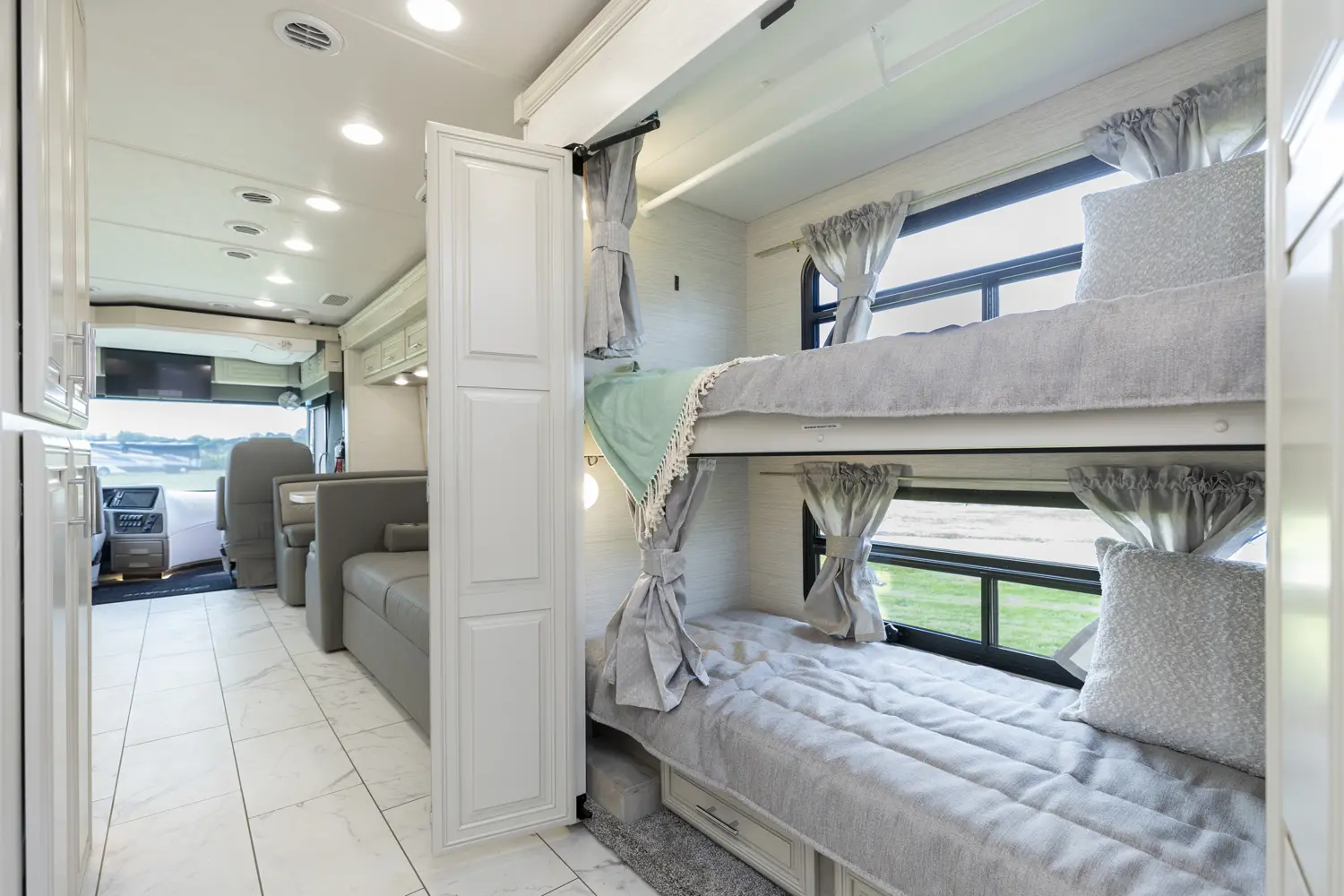

  • 22" LED TV, (2)each bunk w/ easy access HDMI jack (40F)
  • JBL Soundbar w/integrated sub & bluetooth
  • Roof mount Winegard Trav'ler satellite prep
  • Park/cable prep
  • Auto WiFi extended range antennae & router
  • High Definition Cat6 matrix signal distribution
  • Hi-Definition digital TV antennae
  • Blu-ray DVD Player
  • Polished porcelain tile throughout
  • Semi gloss hardwood cabinetry w/glazingy, interior doors & slideout fascia (Glazing N/A with executive dark cherry option)
  • Hardwood raised panel cabinet doors w/glazing
  • Front bed lift in cockpit
  • Hidden hinges and bar pull style cabinet hardware
  • Living room ceilling crown Trim
  • Carpeted slide-outs w/applicable
  • Decorative Window valances
  • Hardwood valance legs w/applicable
  • Soft Touch" Dream booth dinette w/ storage underneath
  • jack knife sofa (40F)
  • Visionary Hide A Bed sofa (34B, 39A)
  • Love seat sofa (39A)

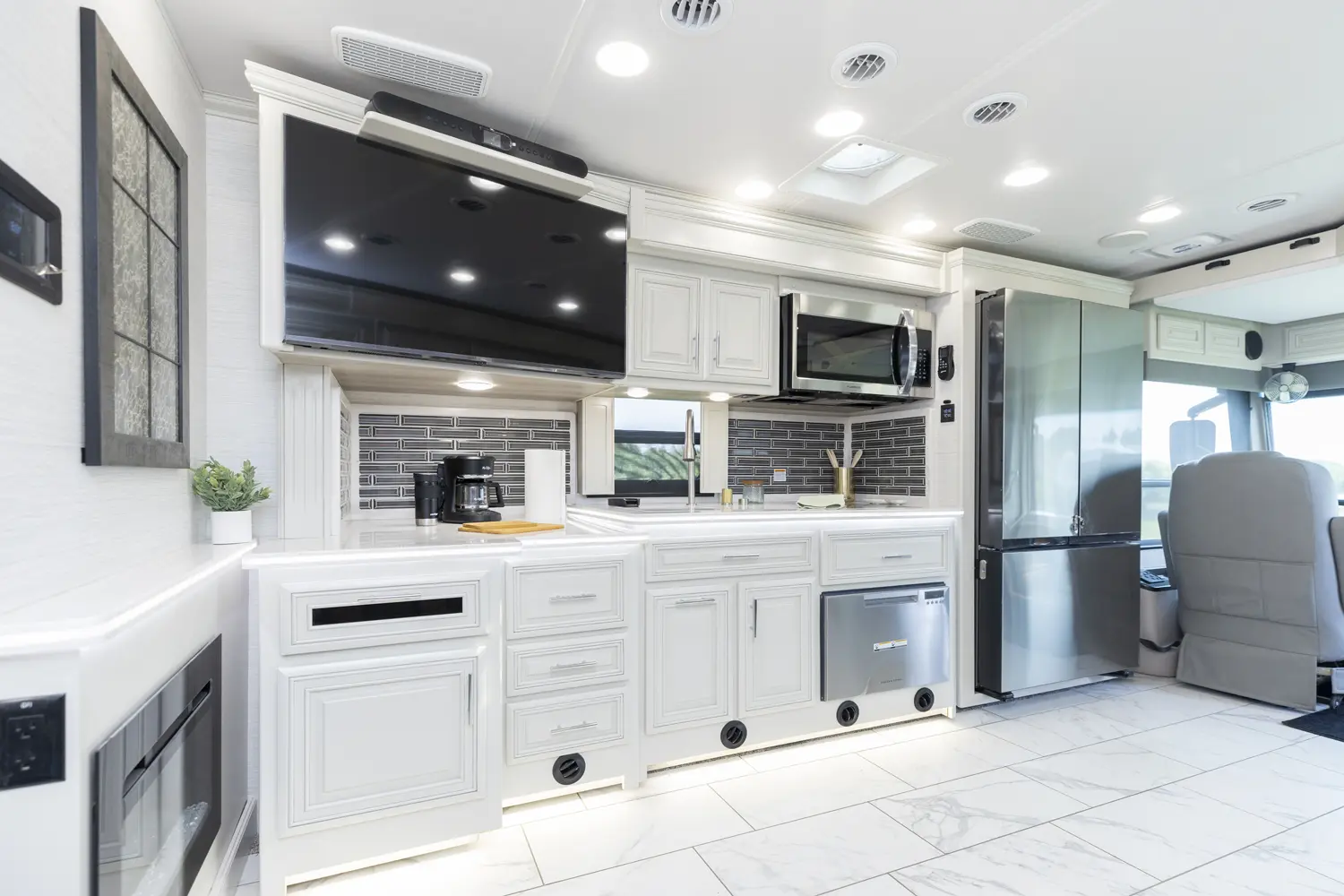

  • Polished solid surface countertops & backsplash (Kit/backsplash includes mosaic tile)
  • Full extension ball bearing metal drawer guides
  • Galley storage compartment for range and sink covers
  • Kitchen Pantry
  • Pull out kitchen drawer base (39A)
  • “Soft Touch” padded ceiling
  • Roller style day/night shades
  • Dresser drawers and wardrobe bedroom cabinetry
  • 72"x 80" Serta king bed w/bedspread and decorative pillows
  • Overhead cabinets in slide rooms
  • Bed night stands, w/dual USB jack & overhead cabinetry
  • Mirrored vanity overhead cabinet doors
  • Towel bar, toilet paper holder & towel ring
  • LP gas, carbon monoxide & smoke detectors
  • Fire extinguisher
  • 15,000 btu w/heat pump(front), 15,000 btu(rear) & middle(40F ONLY) low profile A/C's
  • Holding tank heat pads
  • Truma continous flow hot water
  • LP forced air furnace
  • 30" OTR convection microwave oven
  • 2 Door residential refrigerator
  • Electric induction glass cook top
  • Power fan in bathroom w/rain cover
  • Maxxair in galley w/wireless remote control w/rain cover
  • Washer/dryer prep
  • Electric fireplace
  • Central vacuum system
  • Theater seating ilo of sofa
  • Ceramic matte finish tile
  • Trav'ler (Winegard) satellite antennae- Dish Network (US)
  • Trav'ler (Winegard) satellite antennae- Shaw (Canada)
  • Stackable washer & dryer
  • Delete front bunk lIft
