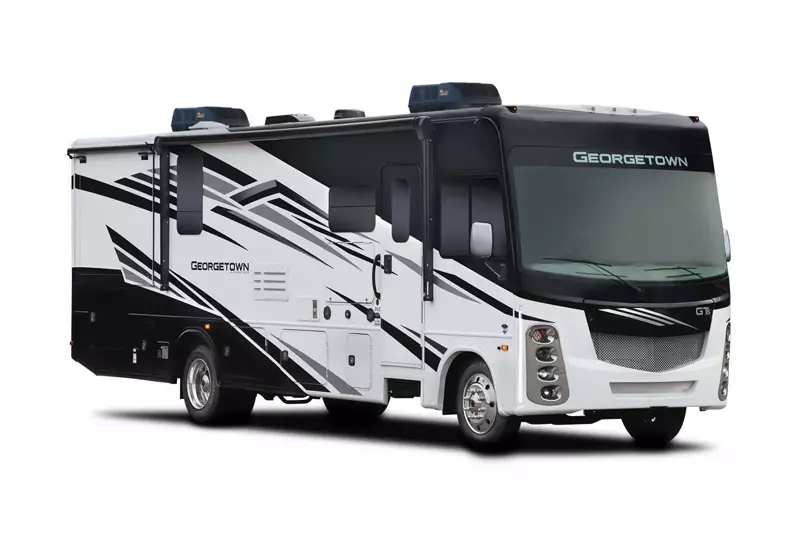

Georgetown 5 Series GT5 Gas Class A Motorhome

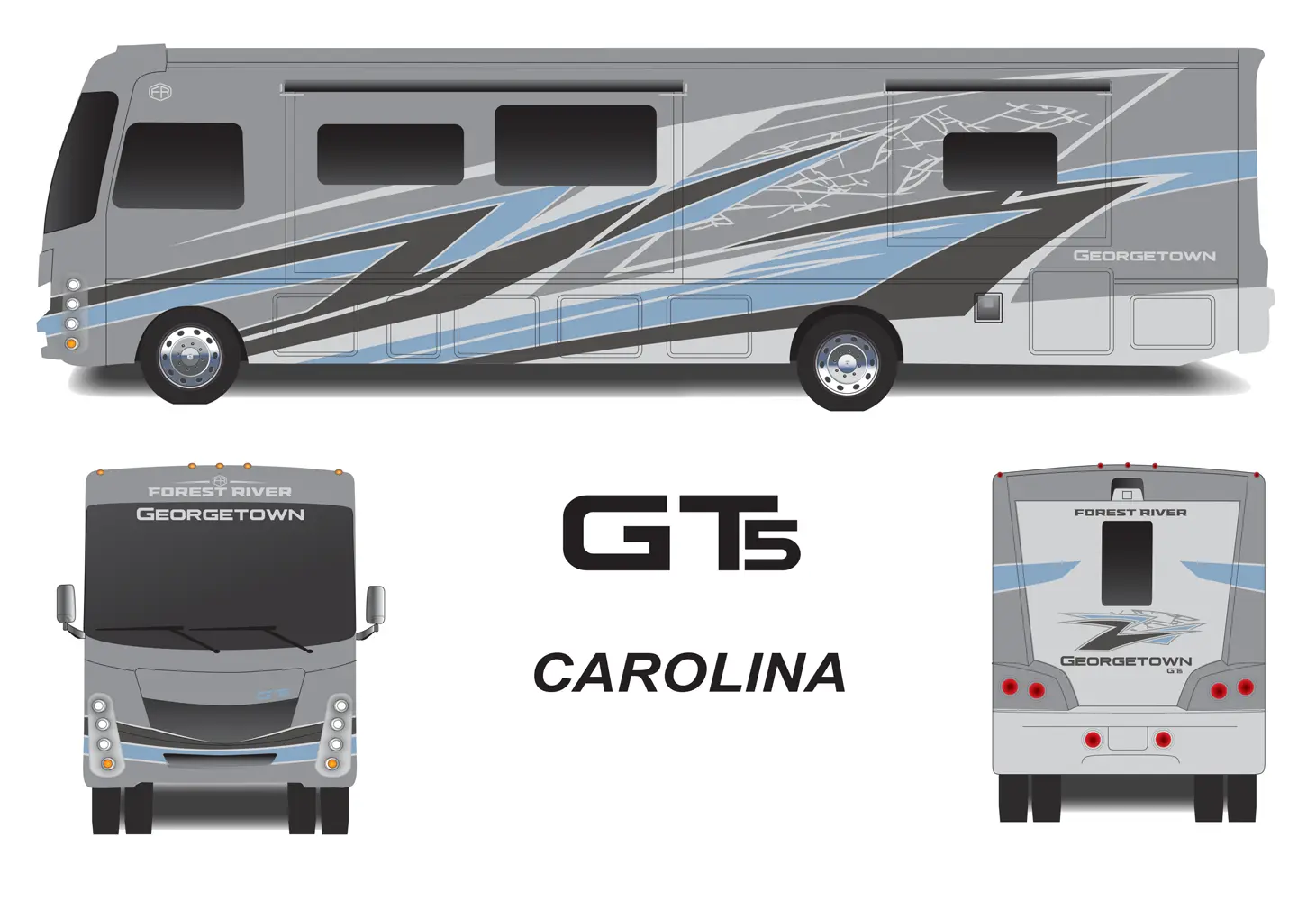

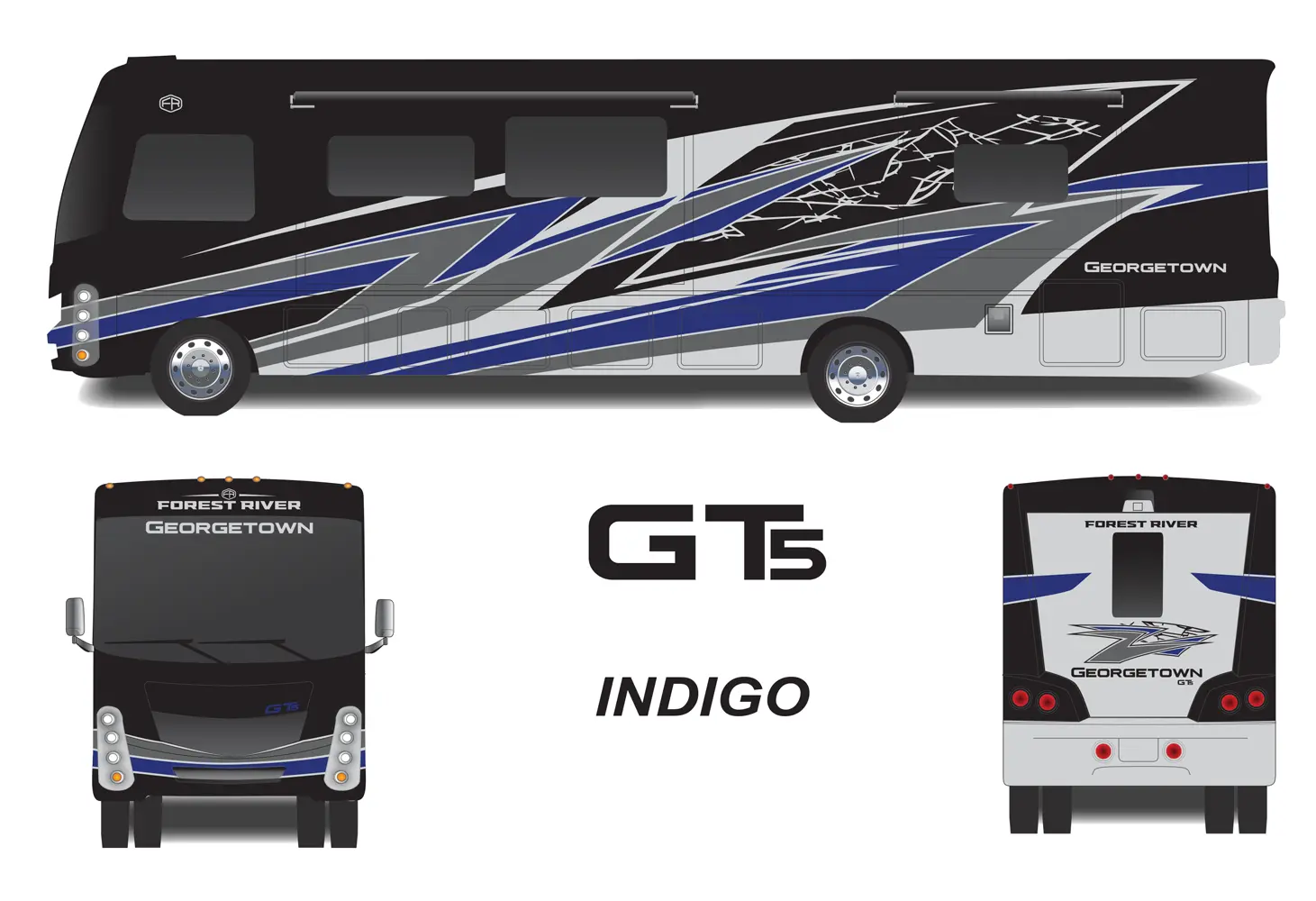

The 5 Series Georgetown offers more of the luxuries you would expect in a gas Class A, including custom solid surface kitchen countertops and Precision Circuits Multiplex w/ wireless technology. Three great floorplans to choose from with plenty of storage and three decor options.

Standard appointments include a chrome package, automatic hydraulic leveling jacks, color side and rear cameras, bedroom and main living LED TVs and XRV10 10.1" dash entertainment system with AM/FM/DVD/Bluetooth and USB. Spacious galleys include dream or super size dinettes that seat friends and family in total comfort.

Visit your local dealer today and put yourself in a 5 Series Georgetown, where spacious design and true luxury come together.

Care Camps, fighting cancer and making memories

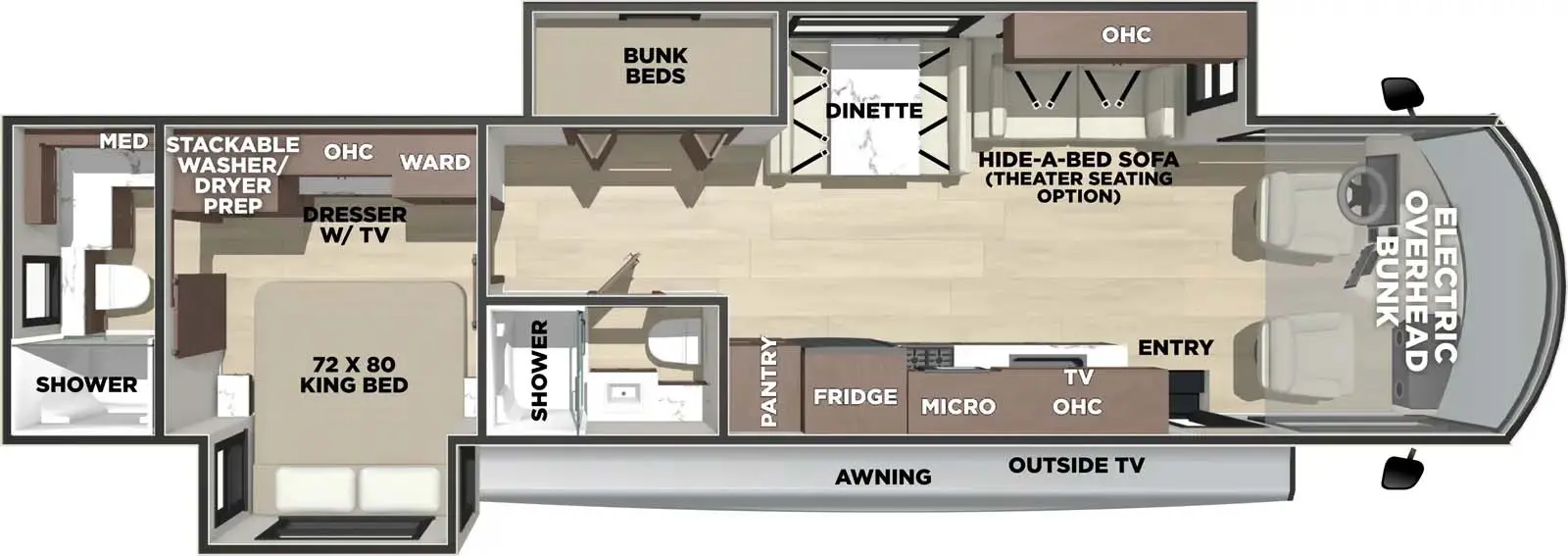

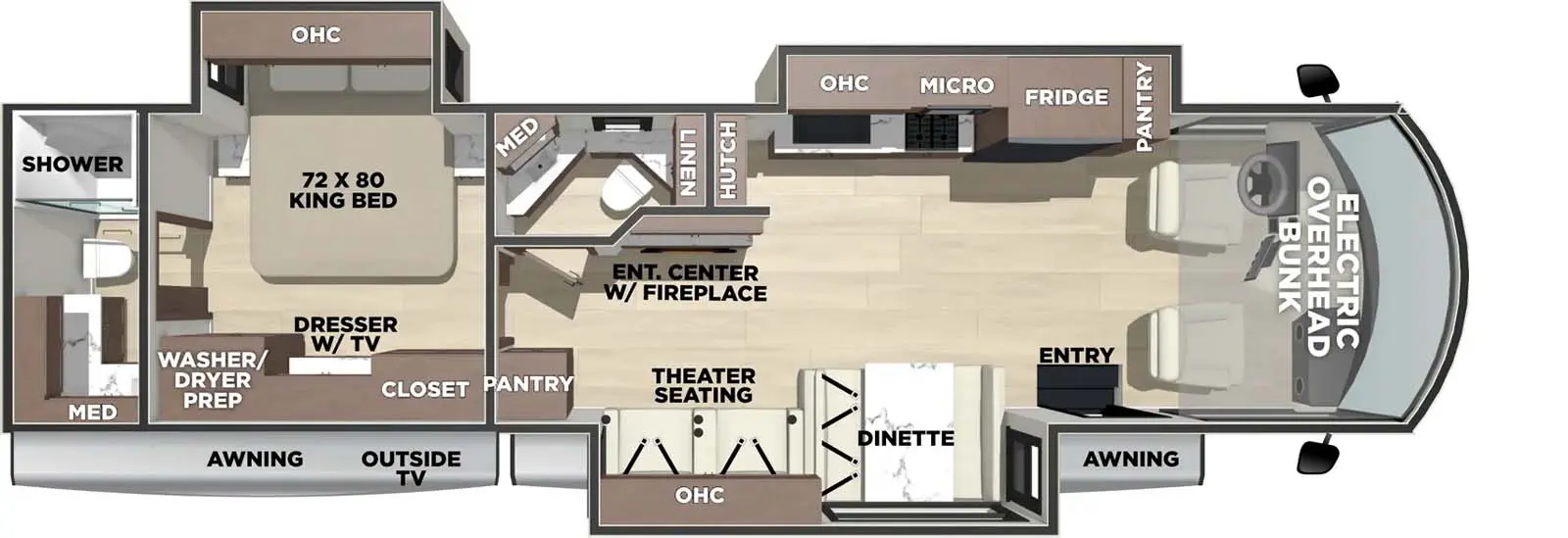

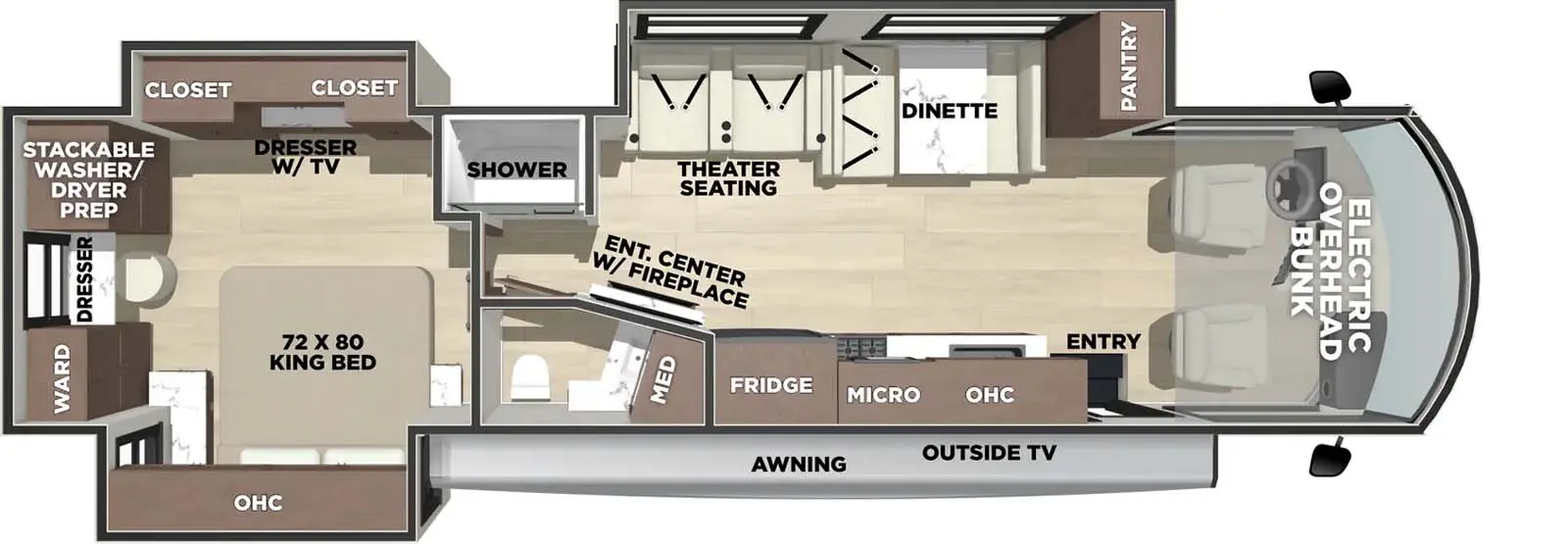

Floorplans

Print

Georgetown 5 Series


Specifications

Print

Floorplan: 31L5 : Georgetown 5 Series 34H5 : Georgetown 5 Series 34M5 : Georgetown 5 Series 36B5 : Georgetown 5 Series
Wheelbase:228"242"242"242"
GVWR:22,000 lb.22,000 lb.22,000 lb.22,000 lb.
GCWR:26,000 lb.26,000 lb.26,000 lb.26,000 lb.
GAWR Front:8,000 lb.8,000 lb.8,000 lb.8,000 lb.
GAWR Rear:15,000 lb.15,000 lb.15,000 lb.15,000 lb.
Fuel Capacity:80 gal.80 gal.80 gal.80 gal.
LP Tank Capacity:TBDTBDTBDTBD
Exterior Length:34' 11"37' 10"37' 11"37' 11"
Exterior Height:12' 9"12' 9"12' 9"12' 9"
Exterior Width:100"100"100"100"
Fresh Water:82.00 gal.82.00 gal.82.00 gal.82.00 gal.
Gray Water:42.00 gal.52.00 gal.52.00 gal.84.00 gal.
Black Water:42.00 gal.52.00 gal.52.00 gal.84.00 gal.
Awning Size:19'17' & 12'18'12' 6"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Chrome Package: Chrome Headlight Bezels, Chrome Fog light Bezels, Chrome Mirrors
  • Remote/Heated Exterior Mirrors
  • Frameless Windows
  • One Piece Fiberglass Rear Cap
  • Rear Roof Ladder
  • 82" Interior Ceiling Height
  • Ducted A/C Vents
  • Ducted Furnace Vents
  • 30" Wide Entry Door
  • 3 Tread Electric Step
  • Rubber Entry Grab Handle
  • Rotocast Storage Compartments w/ Drains
  • LED Lights in External Storage Bays
  • Pass Thru Storage
  • Flush Floor Construction Throughout
  • Residential One Piece Vinyl Flooring Throughout
  • Outside Entertainment Center w/ 40" LED TV w/ Radio and External Speakers
  • 2" Fiberglass Side Slam Latch Baggage Doors
  • Encased Power Patio Awning w/LED Light
  • Slide out Room Awning(s)
  • Smoke Alarm
  • Carbon Monoxide & LP Detector
  • Egress Window
  • Fire Extinguisher
  • Winegard 360 Plus
  • Satellite Prep
  • 115 Watt Solar Panel w/ Controller
  • WIFI / 4G LTE Prep
  • Slim Rack Slide System on Slides
  • Locking Fuel Fill Door
  • Hydraulic 4-point Leveling System
  • 5,000lb Tow Hitch w/7-way Plug
  • Color Side and Rear Camera Package

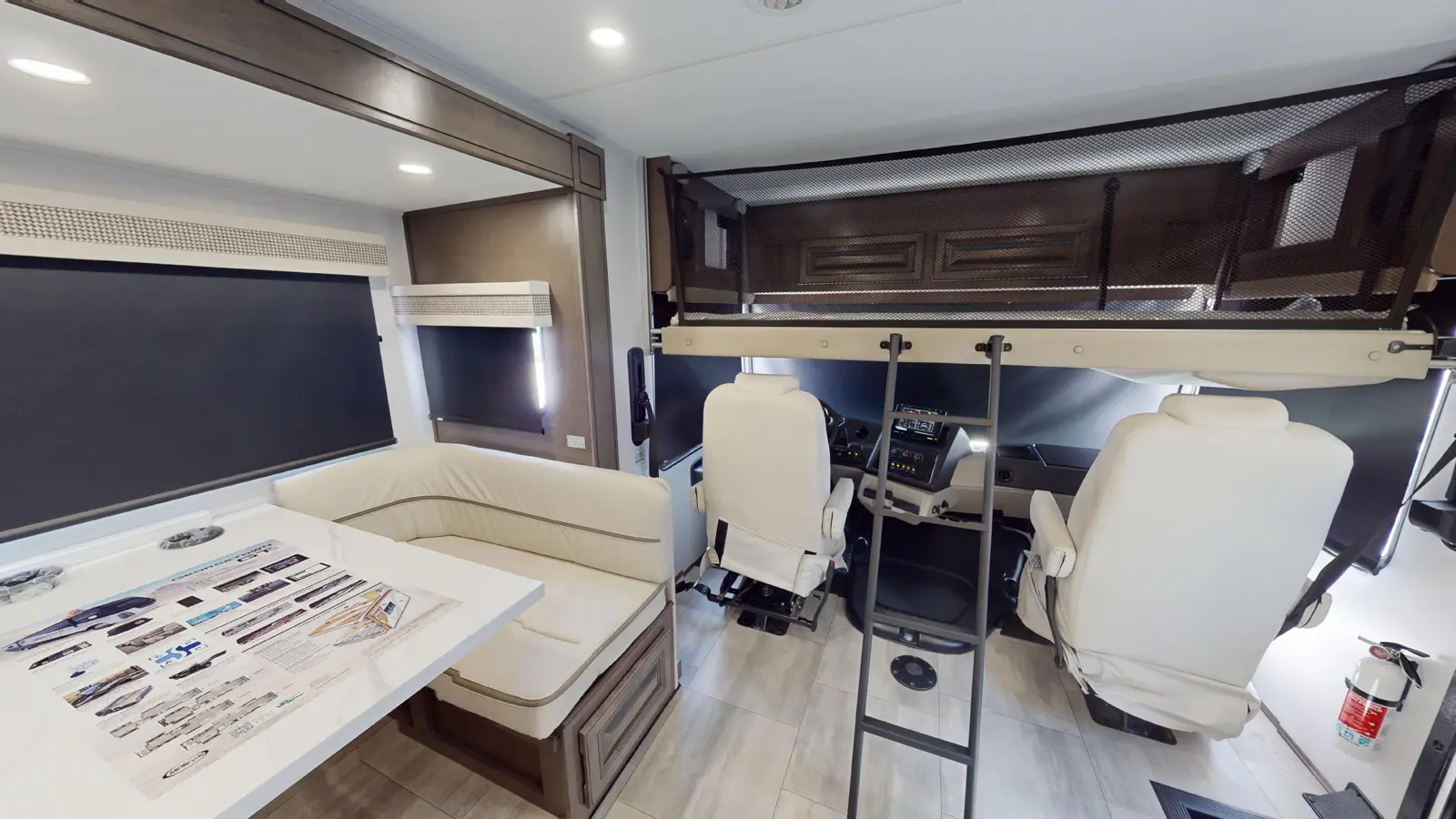

  • 39"X81" P2K Euro Loft Power Overhead Bunk
  • Partial Paint
  • Optional Full Body Paint
  • Optional Dual Pane Windows
  • MORryde 1 1/2" Steel Truss Package
  • One Piece Fiberglass Roof
  • Crowned Roof
  • One Piece Fiberglass Front Cap
  • Automotive Bonded Panoramic Windshield
  • Front Cockpit Steel Structure System
  • Flush Floor Construction Throughout
  • Rotocast Storage Compartments w/ Drains

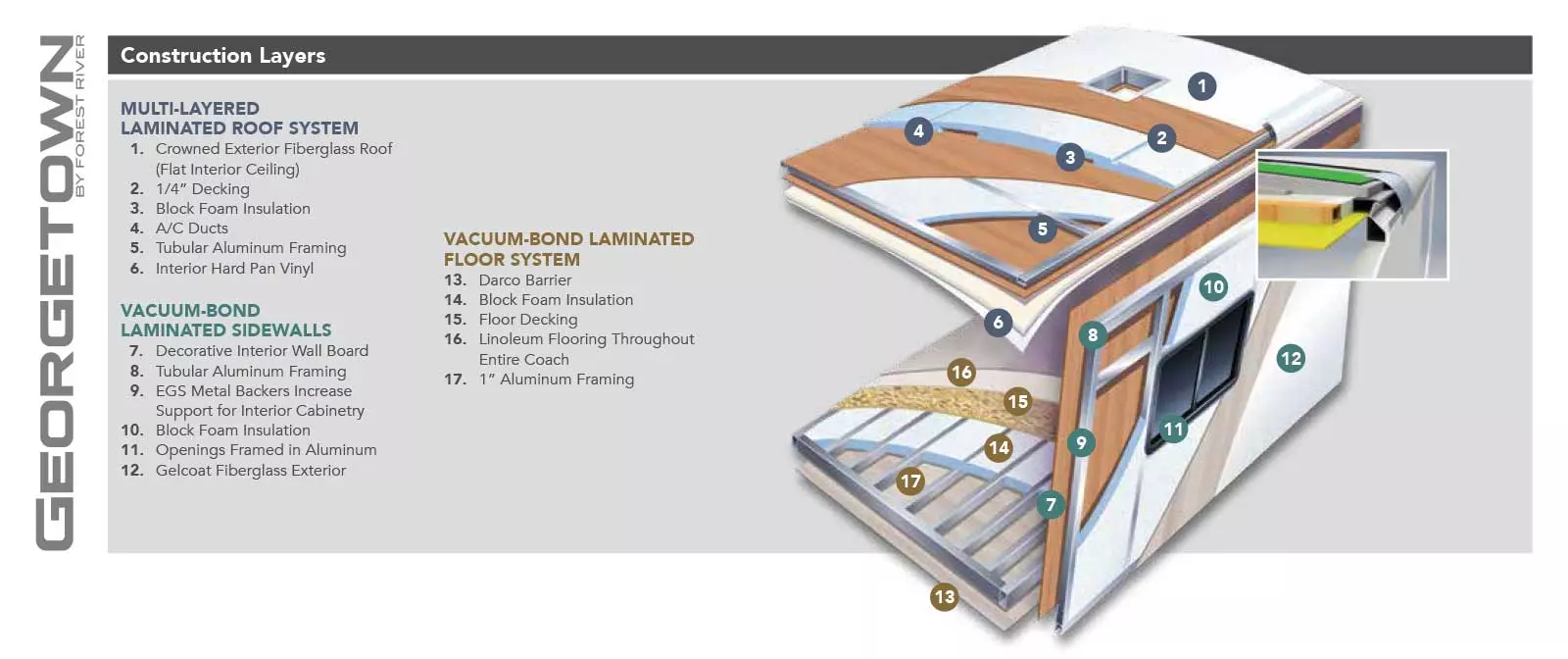

  • 2" Aluminum Framed Vacuum Bonded Gel Coated Sidewalls
  • Aluminum Framed Vacuum Bonded Floors
  • Vacuum Bonded Ceilings w Aluminum Trusses
  • Steel Firewall
  • Aluminum Wrapped Openings
  • EGS Steel Backers - Select Locations
  • High Density Block Foam Insulation
  • Custom Cockpit ABS Dash w/USB's and 12Volt
  • Low Profile Engine Cover w/Drink Holders
  • Power Driver’s Seat

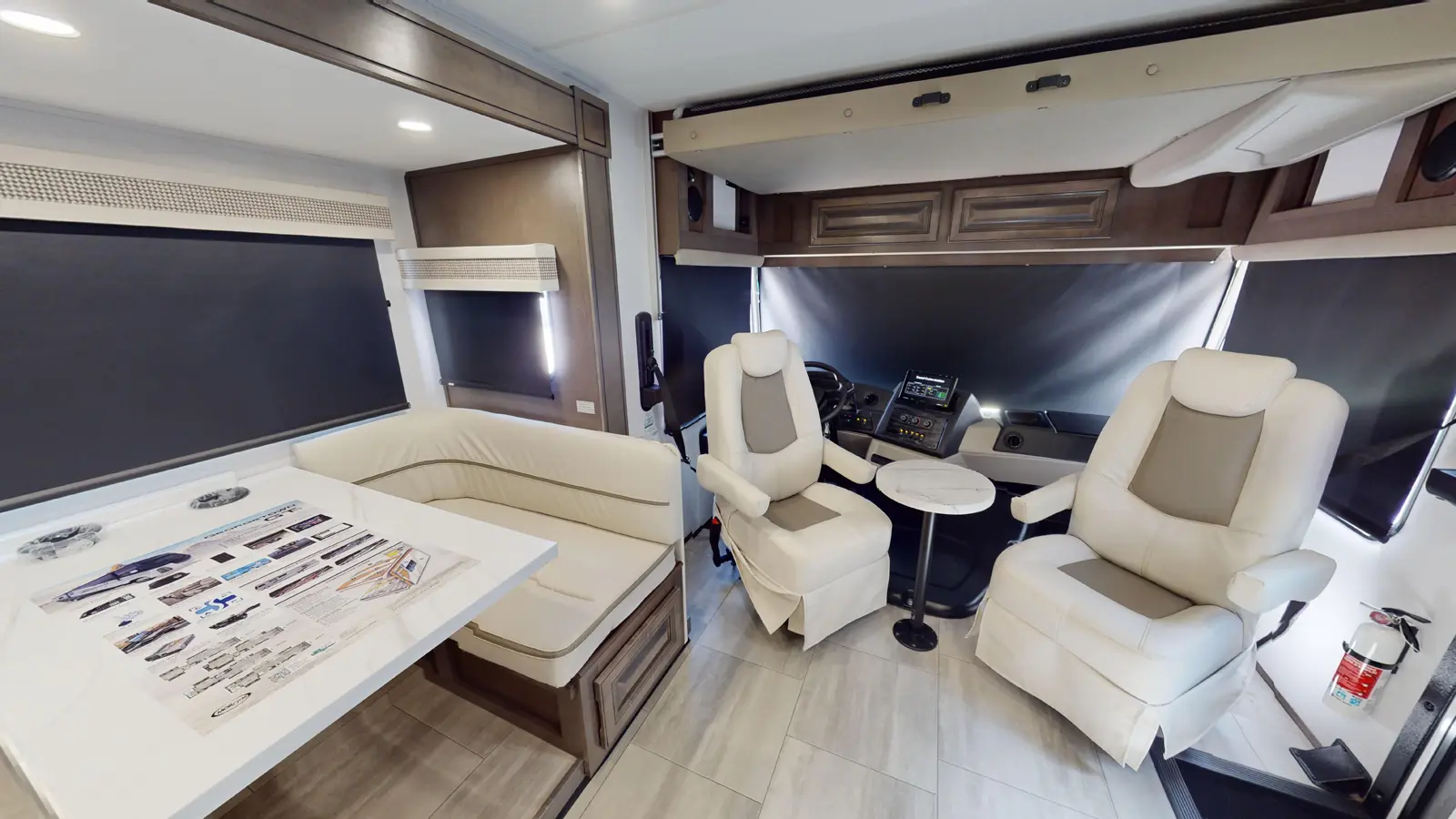

  • Swivel Driver's and Passenger Chairs
  • Thermal Foil Cockpit Conversation Table
  • Adjustable 3 Point Seat Belts
  • Power Front Sun Shade
  • Manual Cockpit Side Sun Shades
  • Deluxe Driver and Passenger Seating w built in headrests
  • Armrests with Cup Holders
  • Angled Center Council
  • Sony 9" Entertainment System w/AM/FM/Bluetooth/USB/ Apple Car Play / Android Auto
  • Passenger Side Workstation
  • Cell Phone / Tablet Holder
  • Diamond Plate Rubber Floor Covering (driver area)
  • 110 Volt Outlet Passenger Side off of Inverter
  • Tilt and Telescoping Steering Wheel
  • Cruise Control
  • Emergency Start Switch
  • Wood Grain Dash Inlay
  • Hydraulic Jack Control
  • Solid Surface Kitchen Countertops
  • Brush Nickel Designer Faucet w/ Pull out Spray Wond
  • Under Mount Stainless Steel Double Bowl Kitchen Sink
  • Kitchen Sink Covers
  • Recessed 3 Burner LP Cooktop with Glass Cover
  • Stainless Steel Convection Microwave
  • Decorative Tile Backsplash
  • Stainless Steel 12 Cubic Foot 4 Door LP / Electric Refrigerator (34H5 Only)

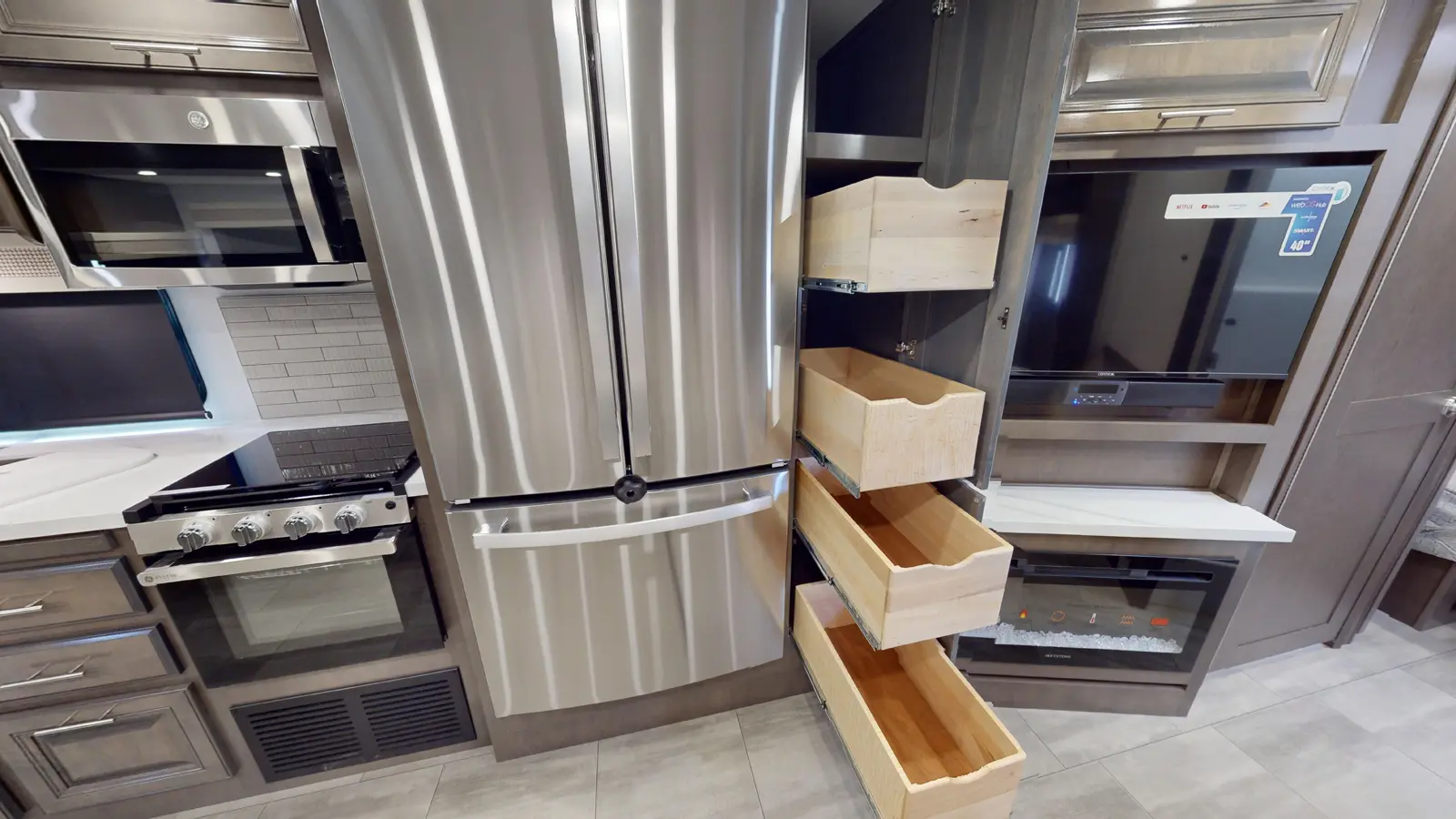

  • Stainless Steel 18 Cubic Foot 4 Door LP / Electric Refrigerator
  • Stainless Steel 18 Cubic Inches LP Oven
  • Full Extension Ball Bearing Drawer Guides
  • Shaker Style Solid Wood Cabinet Doors
  • 110 GFCI Outlet
  • Manual Night Shade over Kitchen Window
  • Decorative Kitchen Window Valance
  • Kitchen Pantry w/ Pull Out Drawers
  • Kitchen Pantry Pull Out Drawers w/Soft Close Guides
  • Fantastic Fan
  • Solid Surface Dream Dinette Table Top
  • Storage Under Dinette Booth
  • Wrap Around Dinette Seat Cushion's
  • 2 Seat Belts in Dinette/ Couch/ Theater Seats
  • Hide-A-Bed Sofa (36B5 Only)

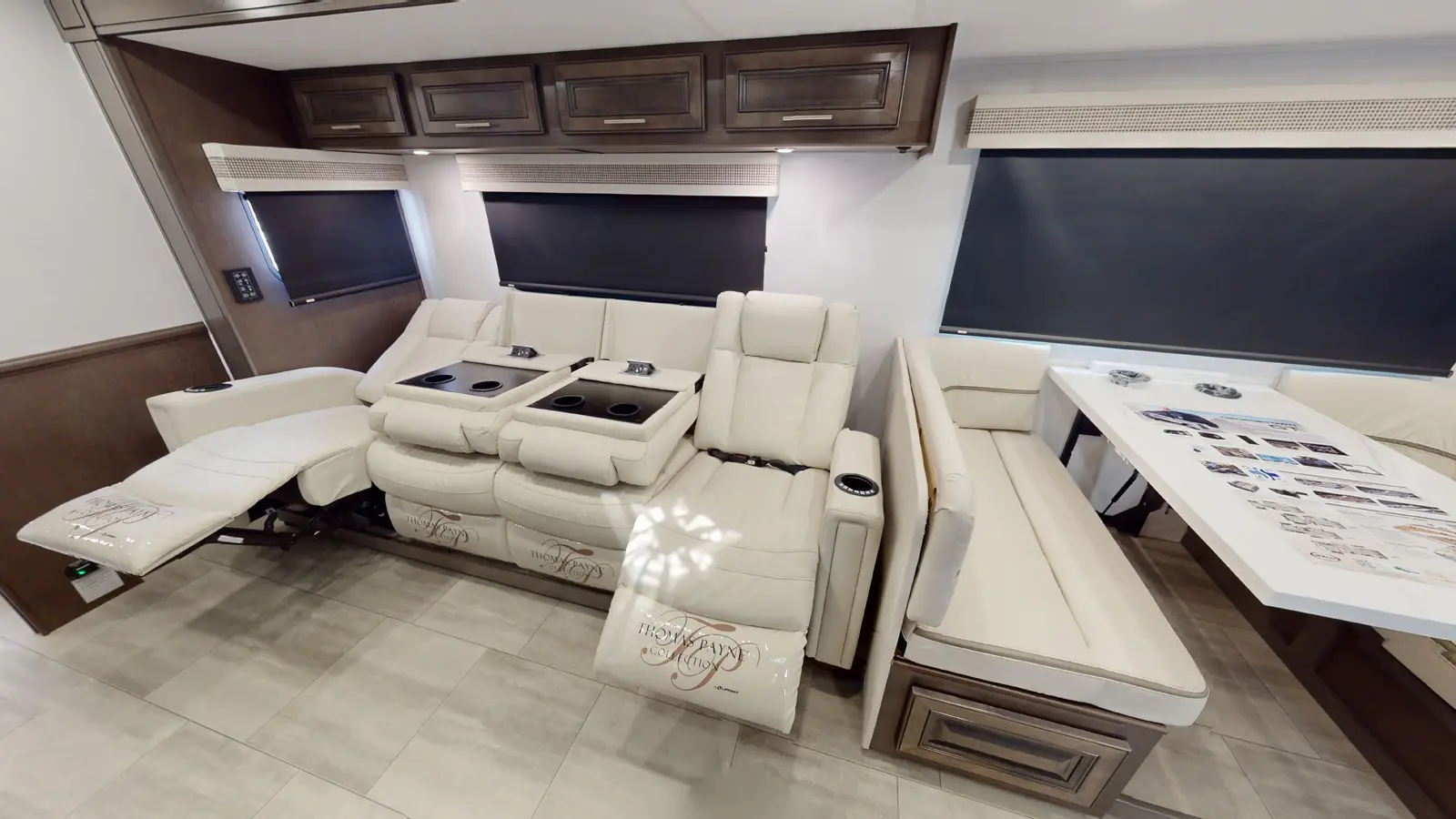

  • Thomas Payne Power Theater Seats w/Pop-up 110v Outlets & USBs, Recline, Adjustable Head Rests, Heat, and Massage (Standard 34H5, 34M5; Optional 36B5)
  • Thomas Payne 4 Person Couch w/Pop-up 110v Outlets & USBs, Recline, Adjustable Head Rests, Heat, and Massage (31L5 Only)
  • Decorative Window Valance
  • Night Shades Throughout
  • Day Shades Throughout
  • 40" LED Main TV

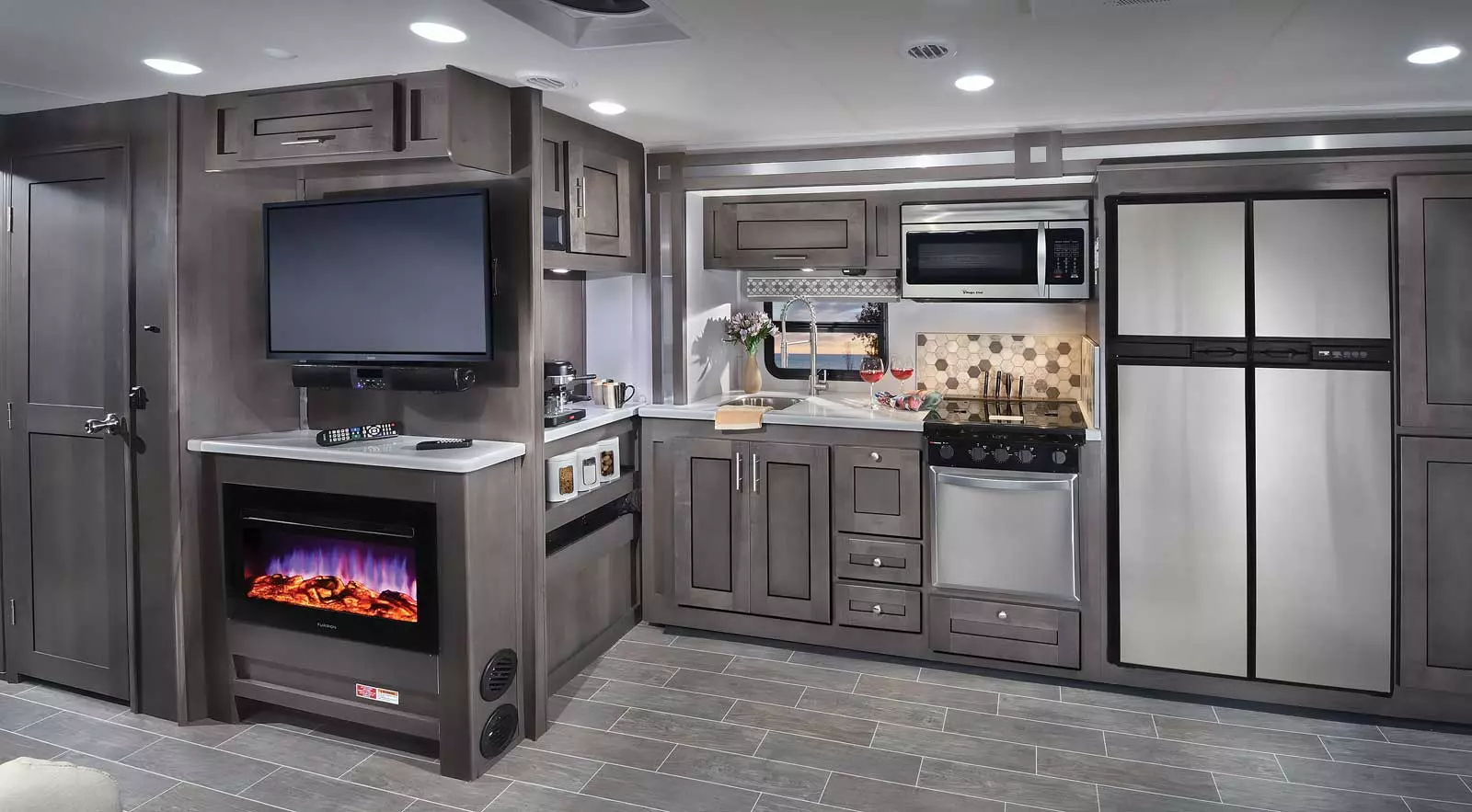

  • 5K BTU Fireplace (31L5, 34H5, 34M5 Only)
  • Over Head Cabinets above Theater Seats / Couch/ Sofa w/ USB's and LED Puck Lighting
  • Thermal Foil Surface Counter Tops
  • Procelian Toilet w/ foot flush
  • Procelian Macerating Toilet Mid-Ship Half / Full Bath (34H5 Only)
  • Exhaust Fan
  • One Piece Fiberglass Shower w/ Seat
  • Frosted Glass Shower Door
  • Under Mount Stainless Steel Sink
  • Medicine Cabinet
  • 32" LED Bedroom TV w/Flip Up
  • Washer Dryer / Prep
  • Combo Washer / Dryer (Optional 31L5, 34H5, 36B5 Only)

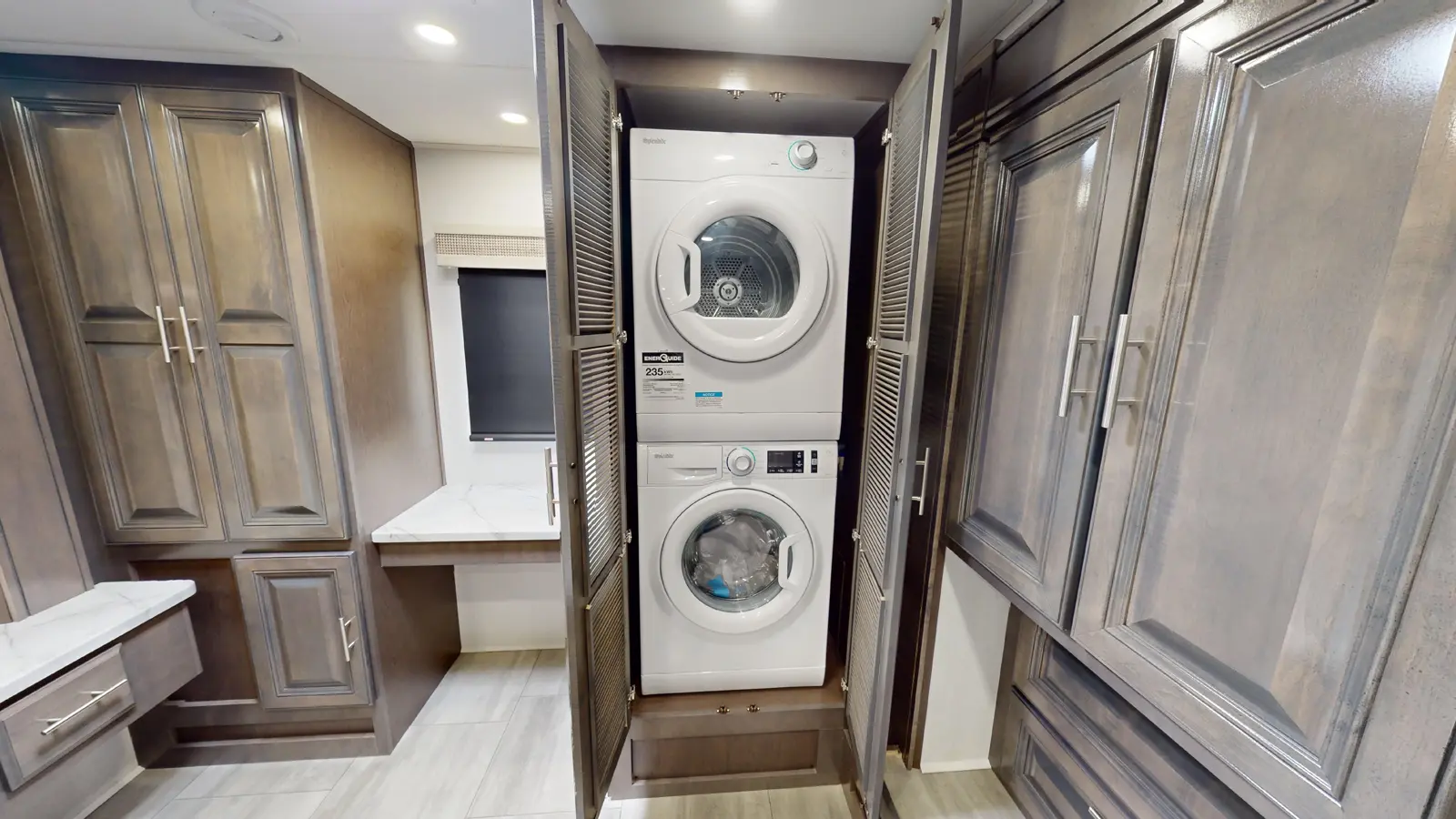

  • Stackable Washer Dryer (Optional 34M5 Only)

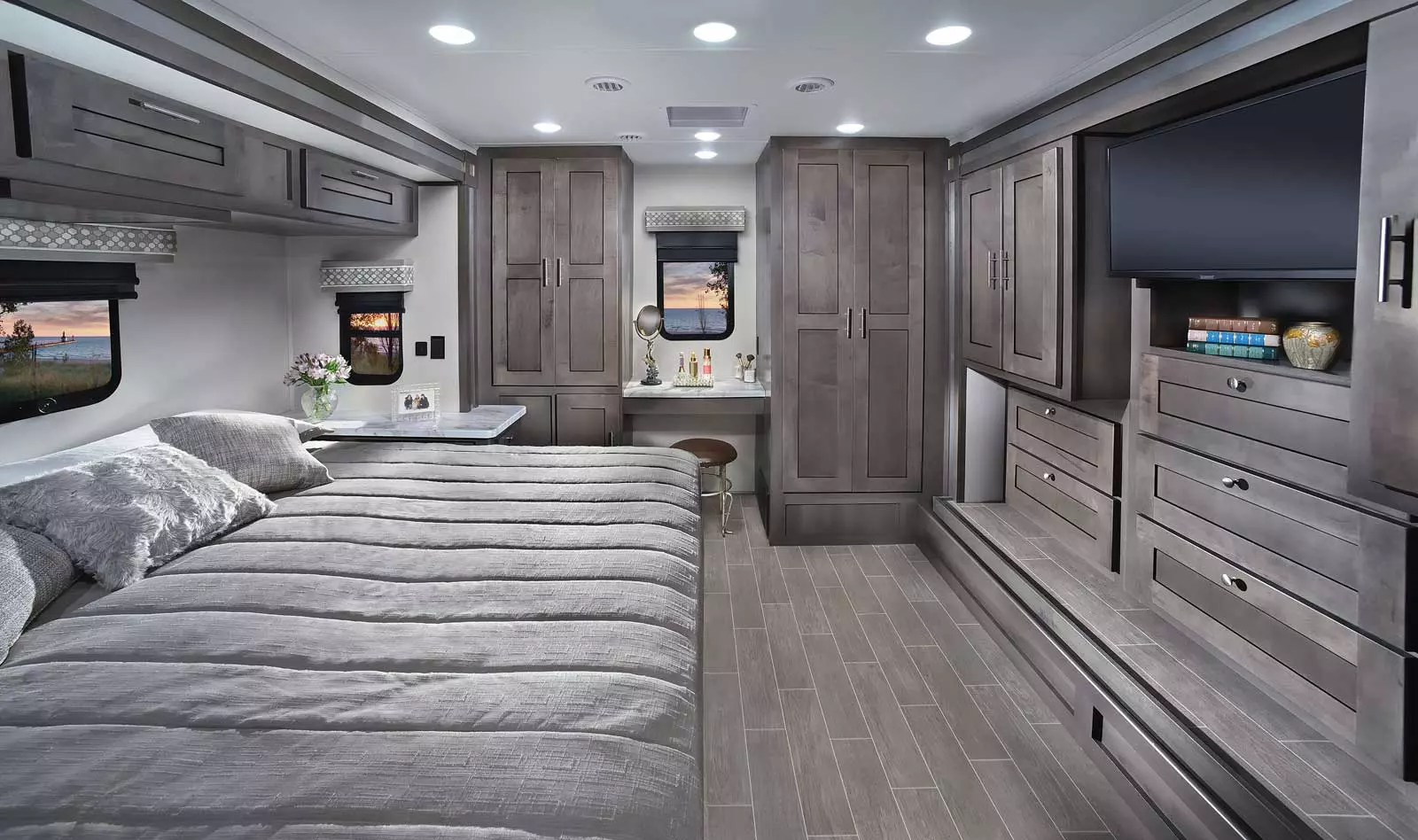

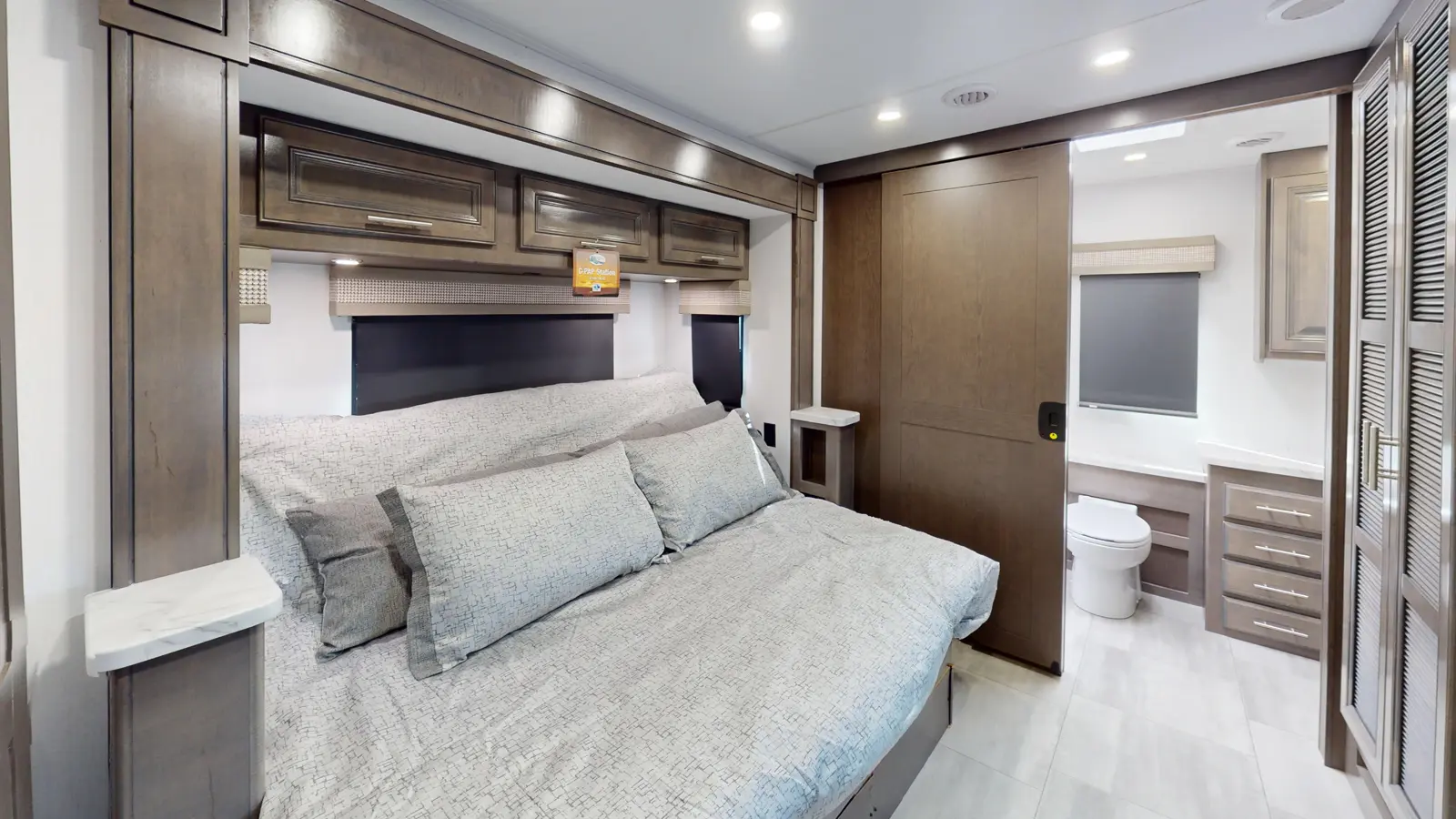

  • King Bed (72" x 80")
  • Designer Headboard (31L5 Only)

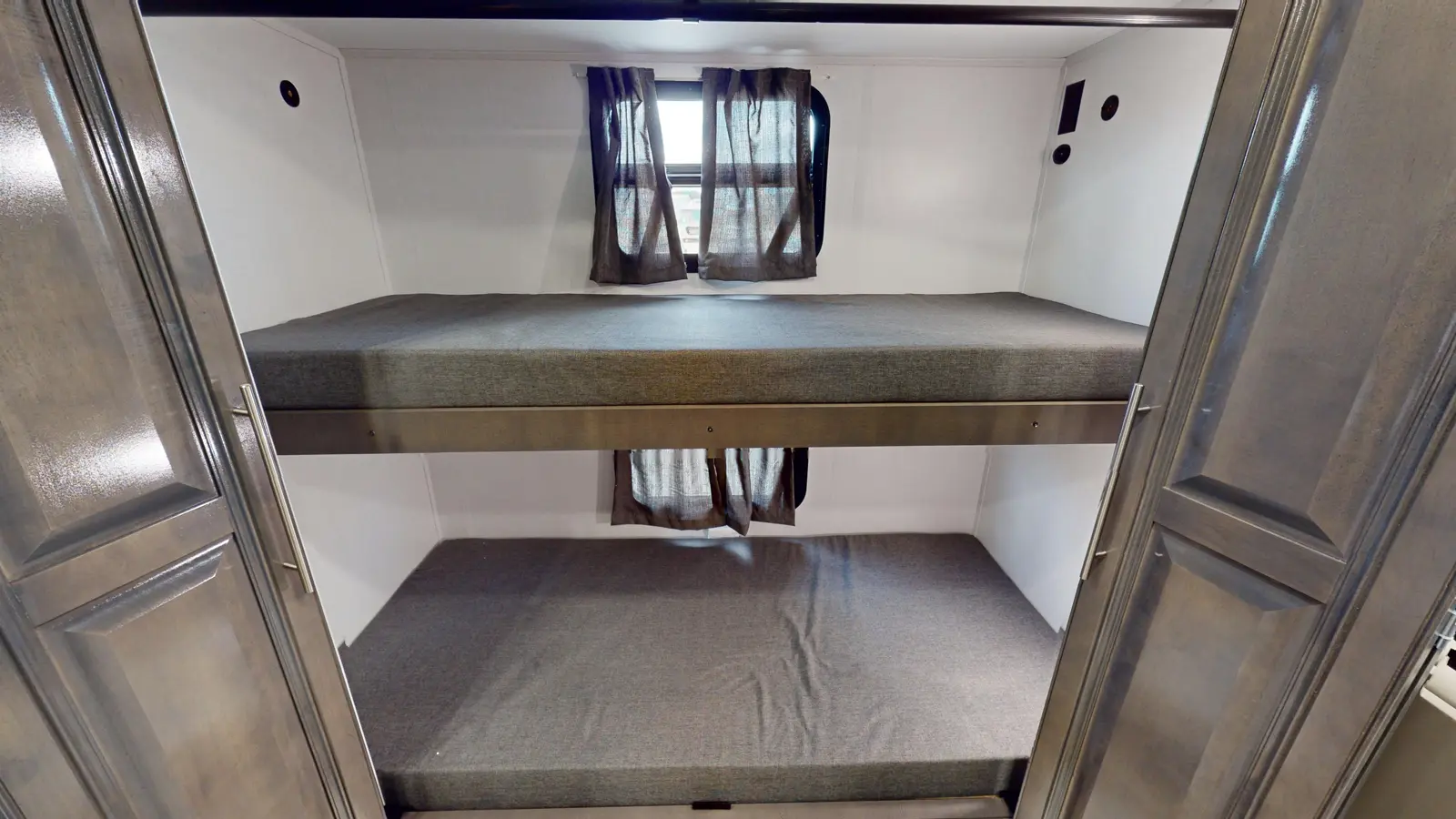

  • 32" x 72" Bunk Room Mattress (36B5 Only)
  • Designer Bedspread w/ Accent Pillows
  • 7" Coil Mattress
  • Thermal Foil Night Stands w/USB's and 110 Outlets
  • CPAP Prep
  • 50 AMP Service
  • Auto Transfer Switch
  • 5500 Watt Yamaha Generator
  • 7000 Watt Onan Generator (Optional)
  • 2 House Batteries

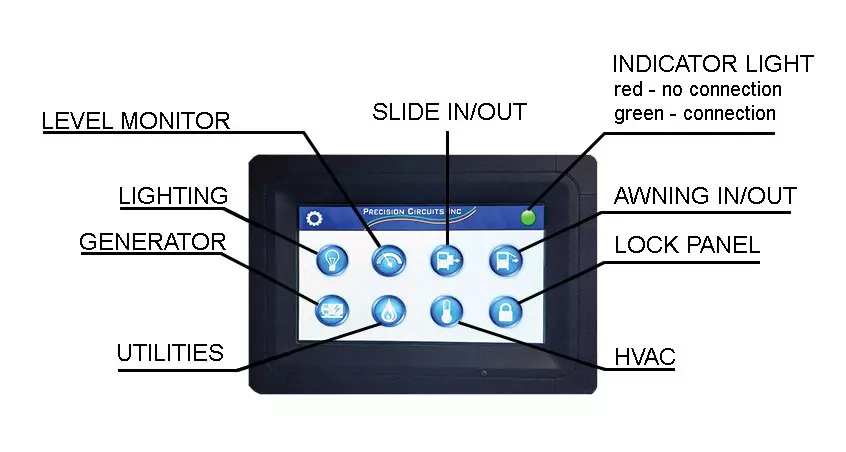

  • Precision Plex Operation System w/ Mobile App
  • Auto Generator Start Voltage / HVAC
  • 2,000 Watt Inverter
  • Progressive Dynamics Converter
  • LED Lighting Throughout
  • 18,000 Equivalent BTU Front A/C w/ Heat Pump
  • 16,000 Equivalent BTU Rear A/C (31L5 Only)
  • 18,000 Equivalent BTU Rear A/C w Heat Pump (34H5, 34M5, 36B5 Only)
  • 35,000 BTU Furnace
  • 20,000 BTU Furnace (36B5 Only)
  • Artic Package w/ Heat Tape in Wet Bay
  • Forced Air Heat for Holding Tanks
  • 6 Gallon Hot Water Heater (2 on 36B5)
  • House Battery Disconnect Switch
  • 24.5 Gallon LP Tank
  • External LP Quick Connect
  • BlackTank Flush
  • Water Filtration System
  • Outside Shower


Virtual Tours

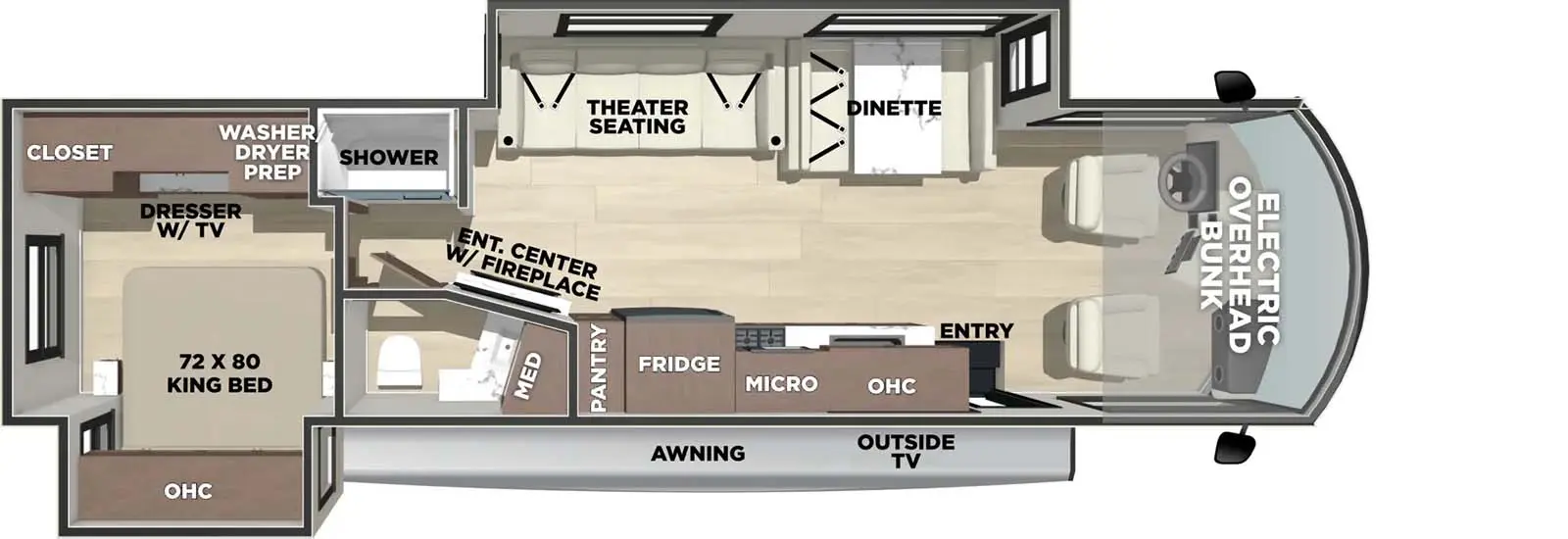

  • 31L5
    31L5 Main Room
  • 34H5

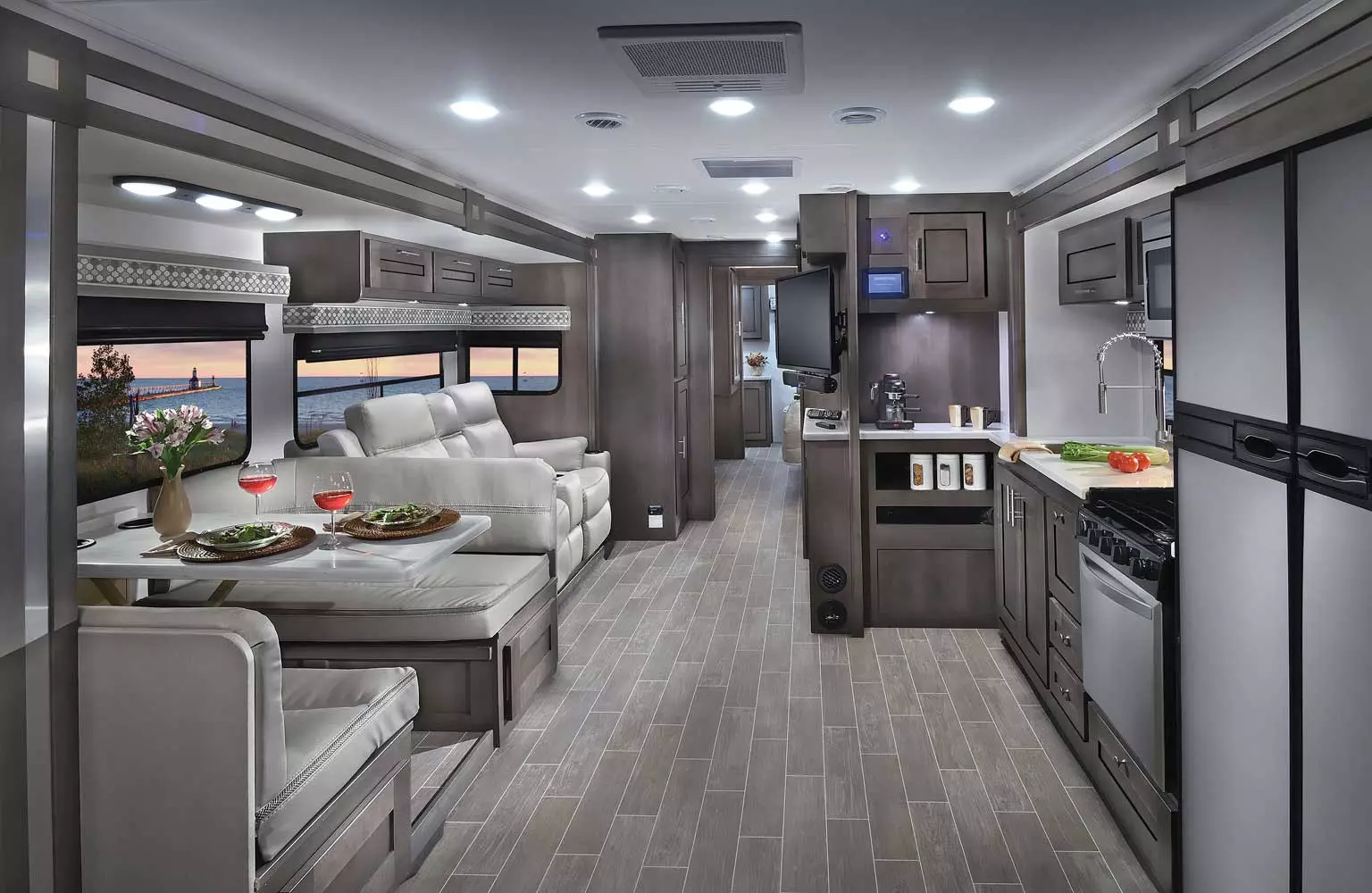

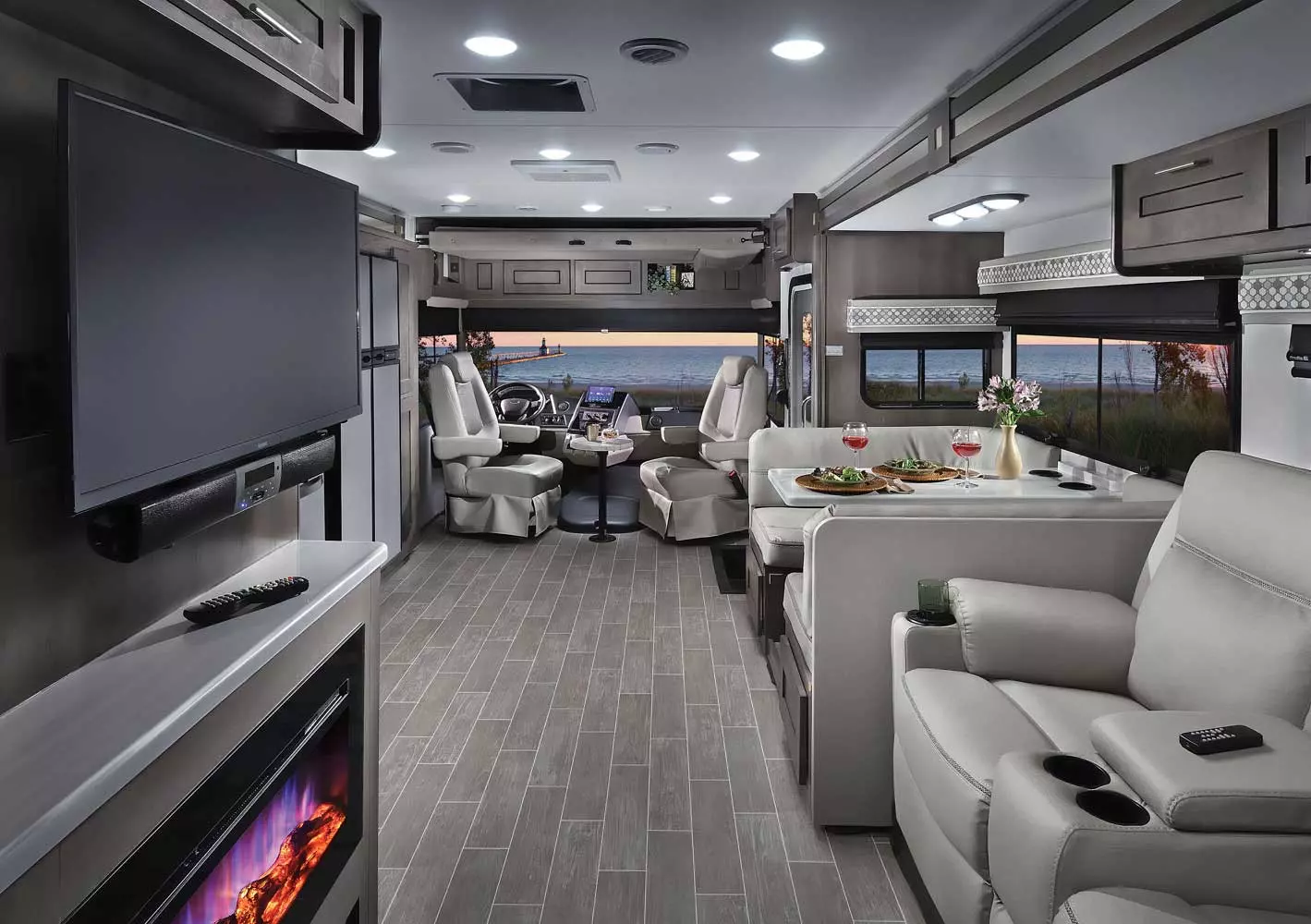

    34H5 Main Room
  • 34M5
    34M5 Main Room

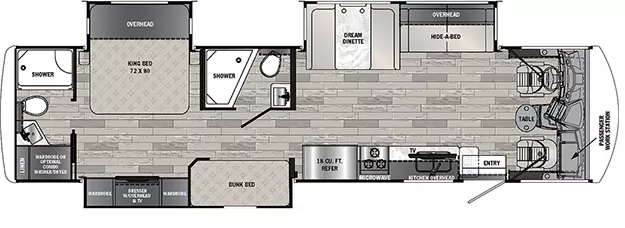

  • 36B5

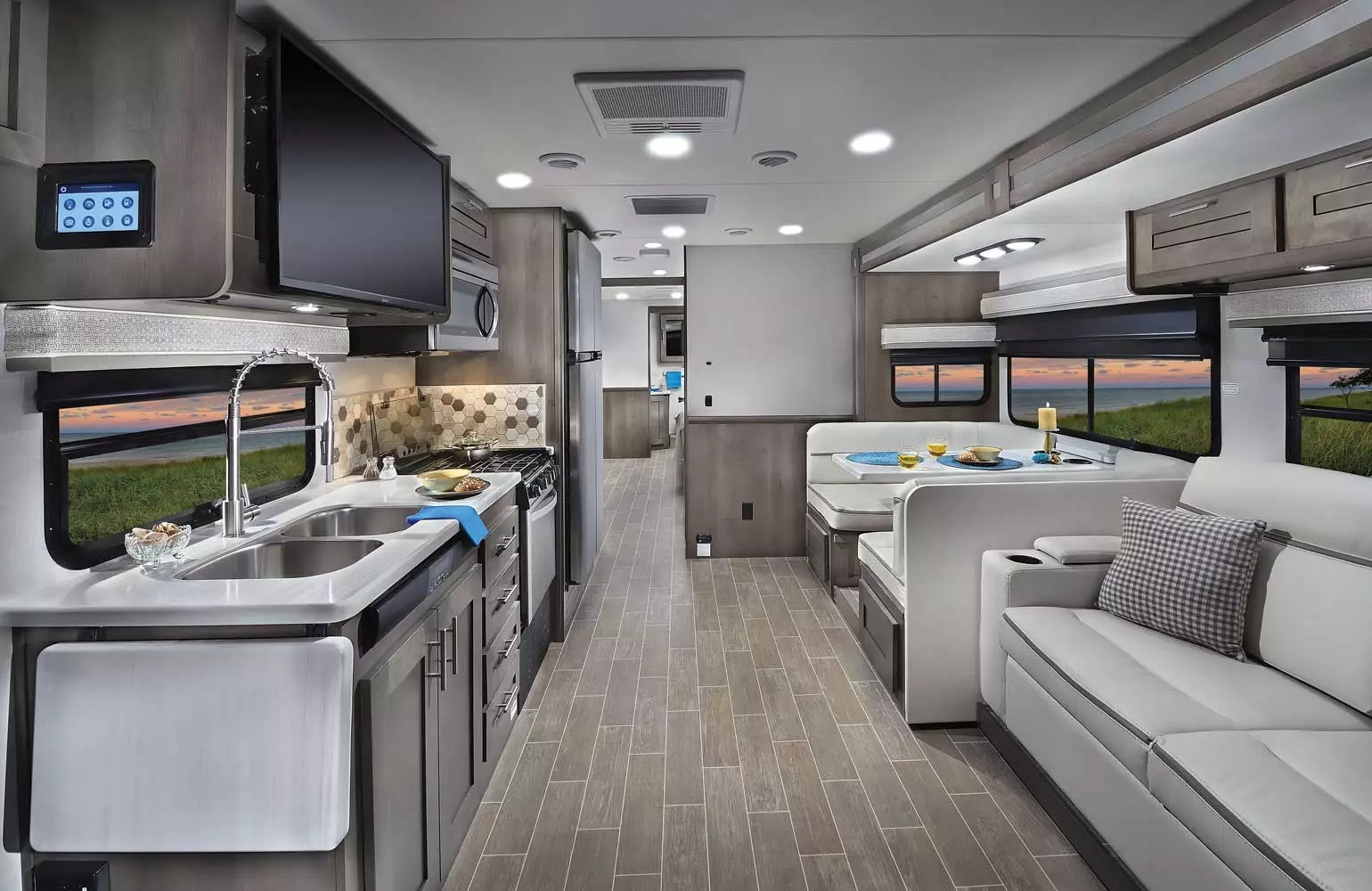

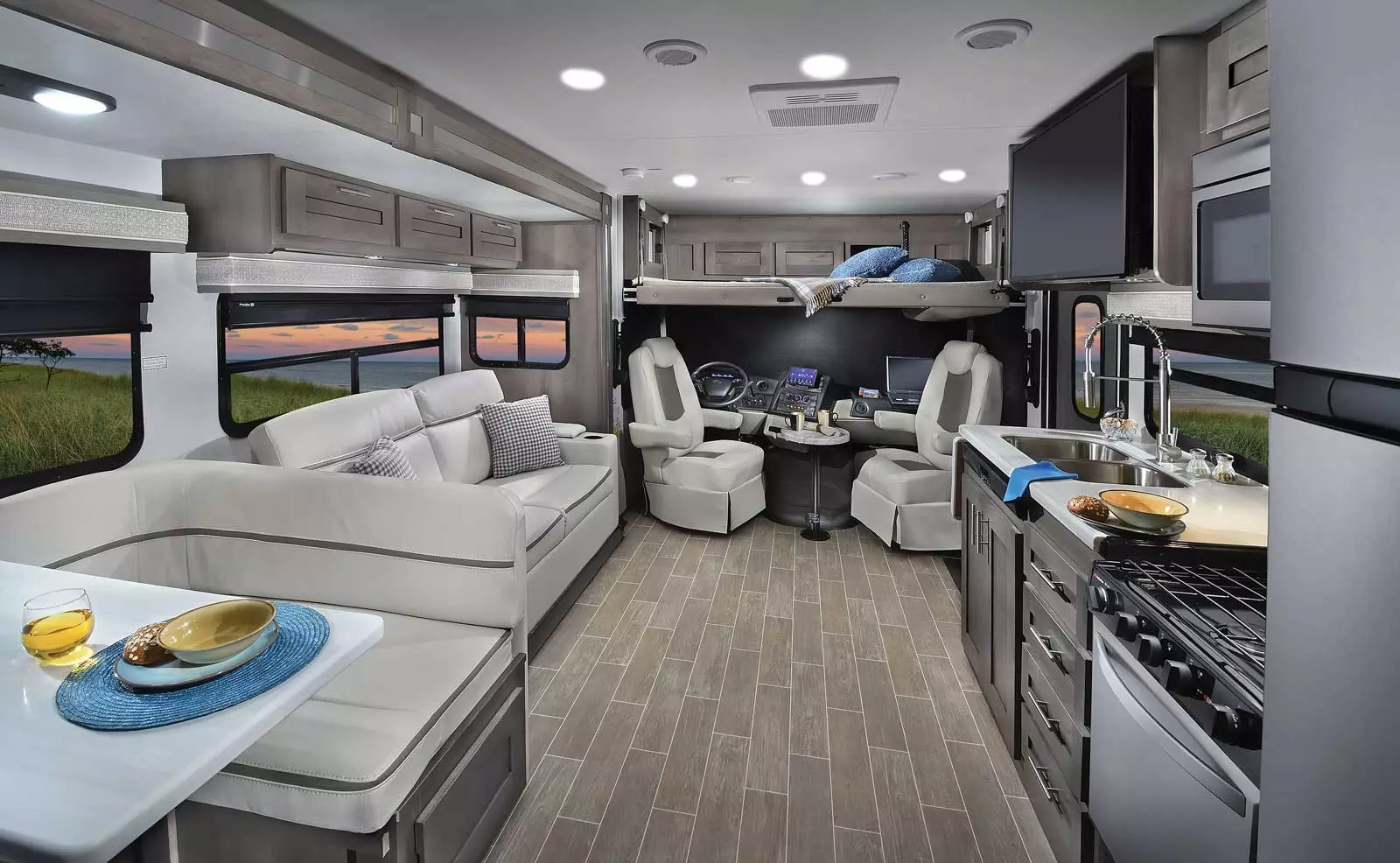

    36B5 Main Room
