Solera Class C Motorhomes

Solera’s contemporary style and residential luxury is offered in a value package designed to get you into the Class C RV lifestyle. Popular standard amenities include an 8” Sony Carplay/Android radio, 12V LED TV, 10.7 cu. ft. 12V Refrigerator, convection microwave, back-up and side view cameras, a 12V Solar charging system, Bilstein shocks with a lifetime warranty, and a choice of five proven floorplans.

Care Camps, fighting cancer and making memories

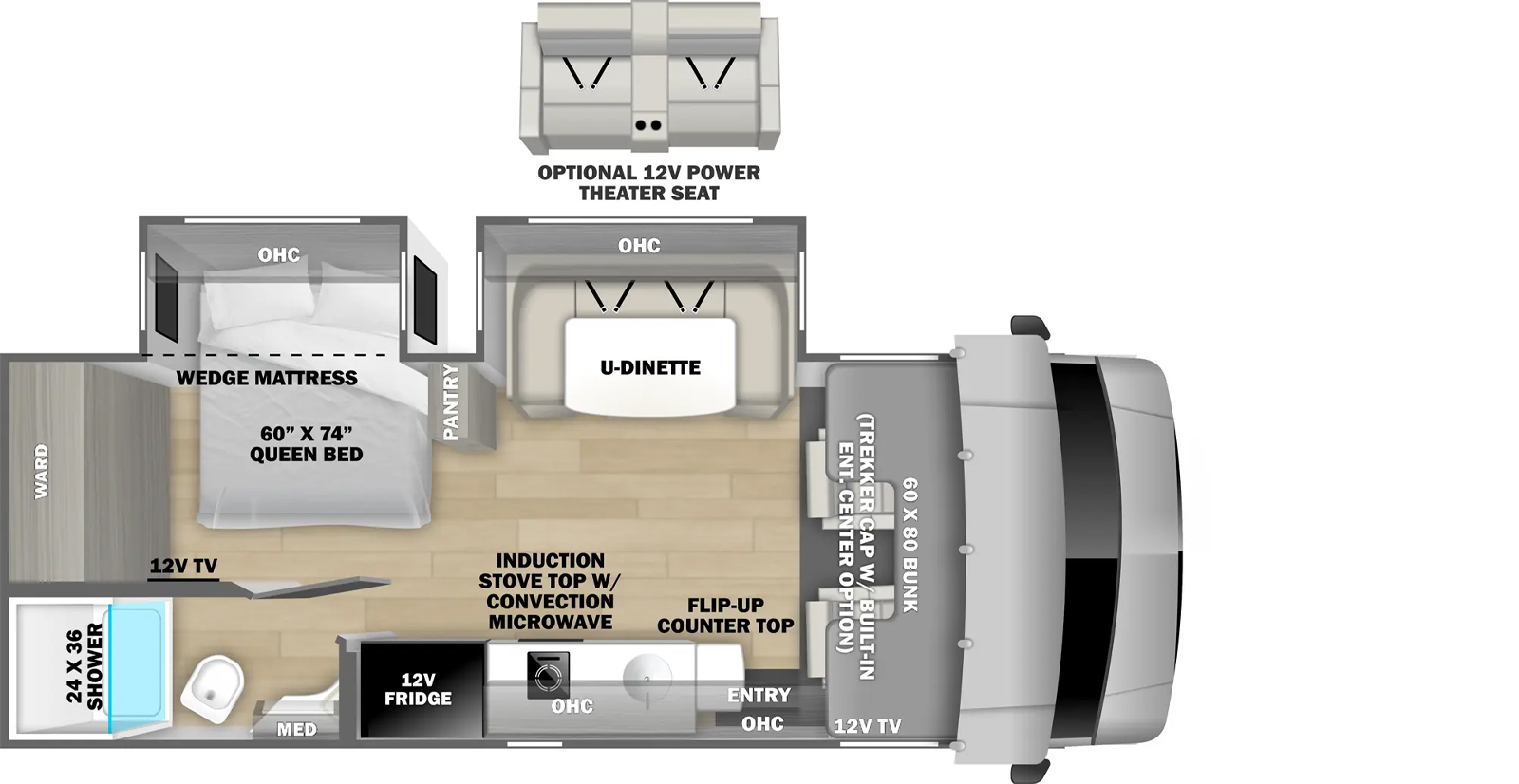

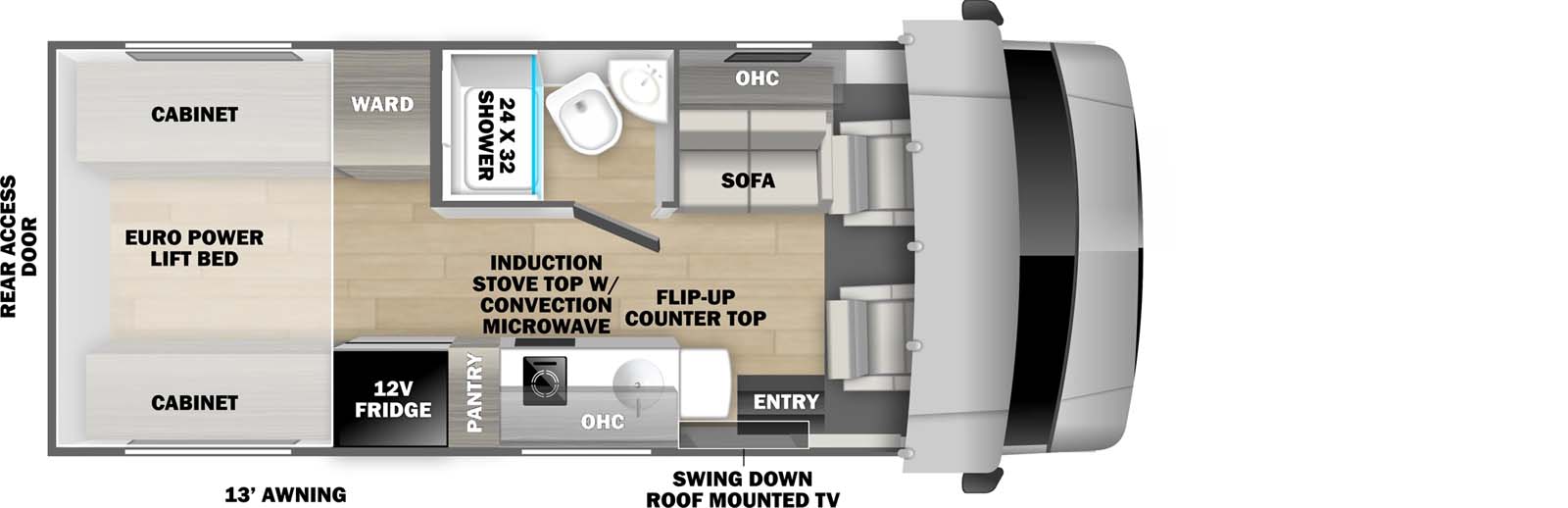

Floorplans

Print

Ford E350 Chassis
Ford E450 Chassis


Specifications

Print

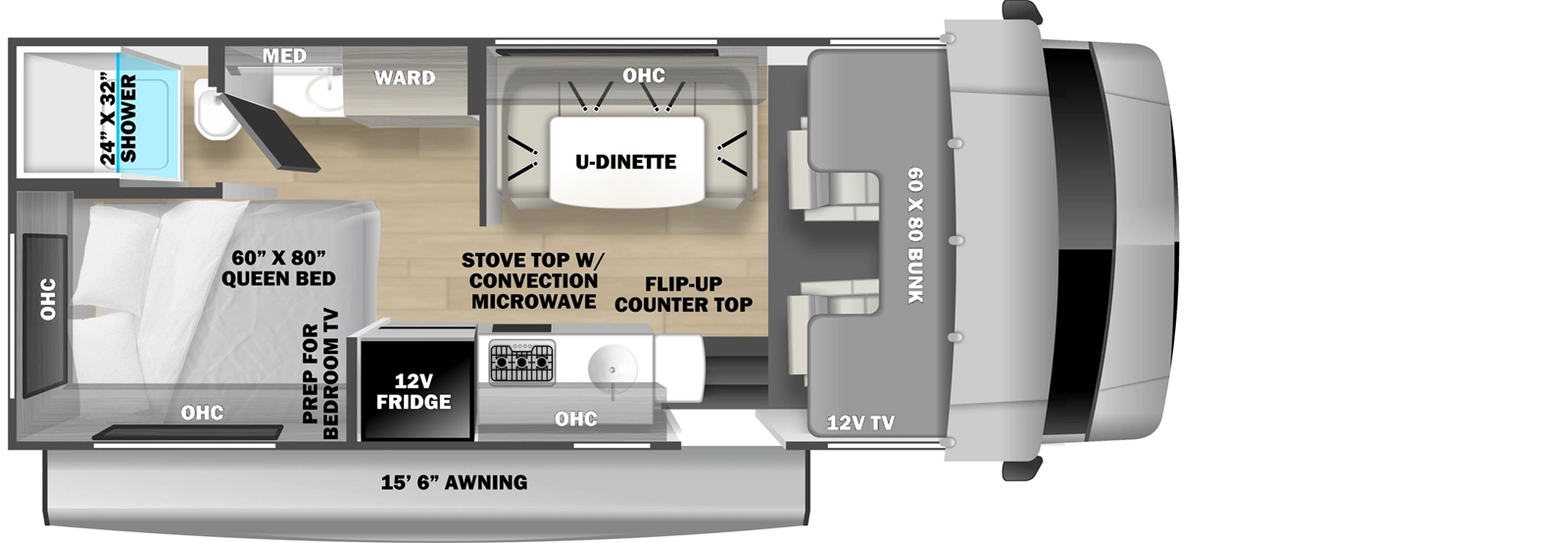

Floorplan: 22N : Ford E350 Chassis 23S : Ford E350 Chassis 27DSE : Ford E450 Chassis 32DSB : Ford E450 Chassis 32DSK : Ford E450 Chassis
Wheelbase:158"158"190"220"220"
GVWR:12,500 lb.12,500 lb.14,500 lb.14,500 lb.14,500 lb.
GCWR:18,500 lb.18,500 lb.22,000 lb.22,000 lb.22,000 lb.
GAWR Front:5,000 lb.5,000 lb.5,000 lb.5,000 lb.5,000 lb.
GAWR Rear:9,600 lb.9,600 lb.9,600 lb.9,600 lb.9,600 lb.
Fuel Capacity:40 gal.40 gal.55 gal.55 gal.55 gal.
LP Tank Capacity:TBDTBDTBDTBDTBD
Exterior Length:24' 6"23' 10"29' 4"32' 3"32' 3"
Exterior Height:11' 3"11' 3"11' 3"11' 3"11' 3"
Exterior Width:101"101"101"101"101"
Fresh Water:44.00 gal.35.00 gal.44.00 gal.44.00 gal.44.00 gal.
Gray Water:39.00 gal.32.00 gal.39.00 gal.39.00 gal.39.00 gal.
Black Water:39.00 gal.27.00 gal.39.00 gal.39.00 gal.39.00 gal.
Awning Size:15' 6"14'12' 6"11'15' 6"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • 12 Months/12,000 mile basic limited warranty
  • Chassis warranty (see owners manual)
  • Battery disconnect
  • Bilstein shock absorbers
  • Water heater bypass
  • (2) Deep cycle coach batteries
  • “Easy Access” battery in step-well
  • 30 Amp service w/ power cord
  • 60 Amp Progressive Dynamics converter
  • 6 Gallon DSI gas/electric water heater
  • 30,000 BTU furnace
  • Emergency start switch
  • Satellite/cable connection
  • 15K BTU Whisper Quiet AC system w/ heat pump
  • Optional Dual A/C with power shedding system (32DSB, 32DSK)
  • 4.0 KW Onan Microquiet generator
  • 12V Heated tank pads
  • CO, LP and smoke detector
  • Winegard digital antenna
  • 190 Watt roof mounted solar 12V charging system
  • 2” Aluminum framed laminated sidewalls
  • Superlite composite substrate
  • Gel coat exterior fiberglass
  • Block foam insulation
  • Lighted power awning w/ built-in exterior speakers
  • Slide room toppers
  • Fiberglass roof
  • Heated power exterior mirrors
  • One-piece fiberglass front cap
  • LED exterior lights
  • Roto-cast storage compartments
  • Aluminum running boards
  • 110V, GFI protected exterior receptacle
  • Tinted sliding windows
  • 7,500 Lbs. hitch, 7-pin connector (E450)
  • 5,000 Lbs. hitch, 7-pin connector (E350)
  • Roof ladder
  • Integrated entry step
  • Optional Automatic leveling system (4-point)
  • Black tank flush
  • Cab area privacy curtain
  • Hidden entry safe
  • Passenger swivel seat (N/A 32DSB)
  • Power windows and door locks
  • Keyless entry
  • Back-up and side view camera system
  • 8” Touch screen Carplay/Android radio w/ USB and Bluetooth
  • Side view cameras
  • Recessed 3-burner range w/ flush glass cover
  • Convection microwave
  • 10.7 Cu. ft. 12V refrigerator
  • 1.3 Cu. ft. convection microwave oven
  • Wireless 12V charging pad in kitchen
  • Full extension ball bearing drawer guides
  • Flip-up countertop extension
  • Cordless 12V charging plate
  • Lightweight composite toilet
  • Lightweight Arcadia shower door
  • Electric roof fan
  • Shower head w/ flexible extension
  • Motion sensor light
  • Shower skylight
  • Upgraded memory foam mattress
  • Bedspread
  • MCD roller shades
  • MCD roller shades
  • Residential style furniture w/ fortress stain resistant fabrics
  • 12V LED flat panel adjustable side TV
  • Child seat head tethers in dinette
  • Maxx Air multi-speed power fan w/ cover
  • Optional Power theater seating (32DSK)
