2022 Cardinal Luxury 390FBX Floorplan

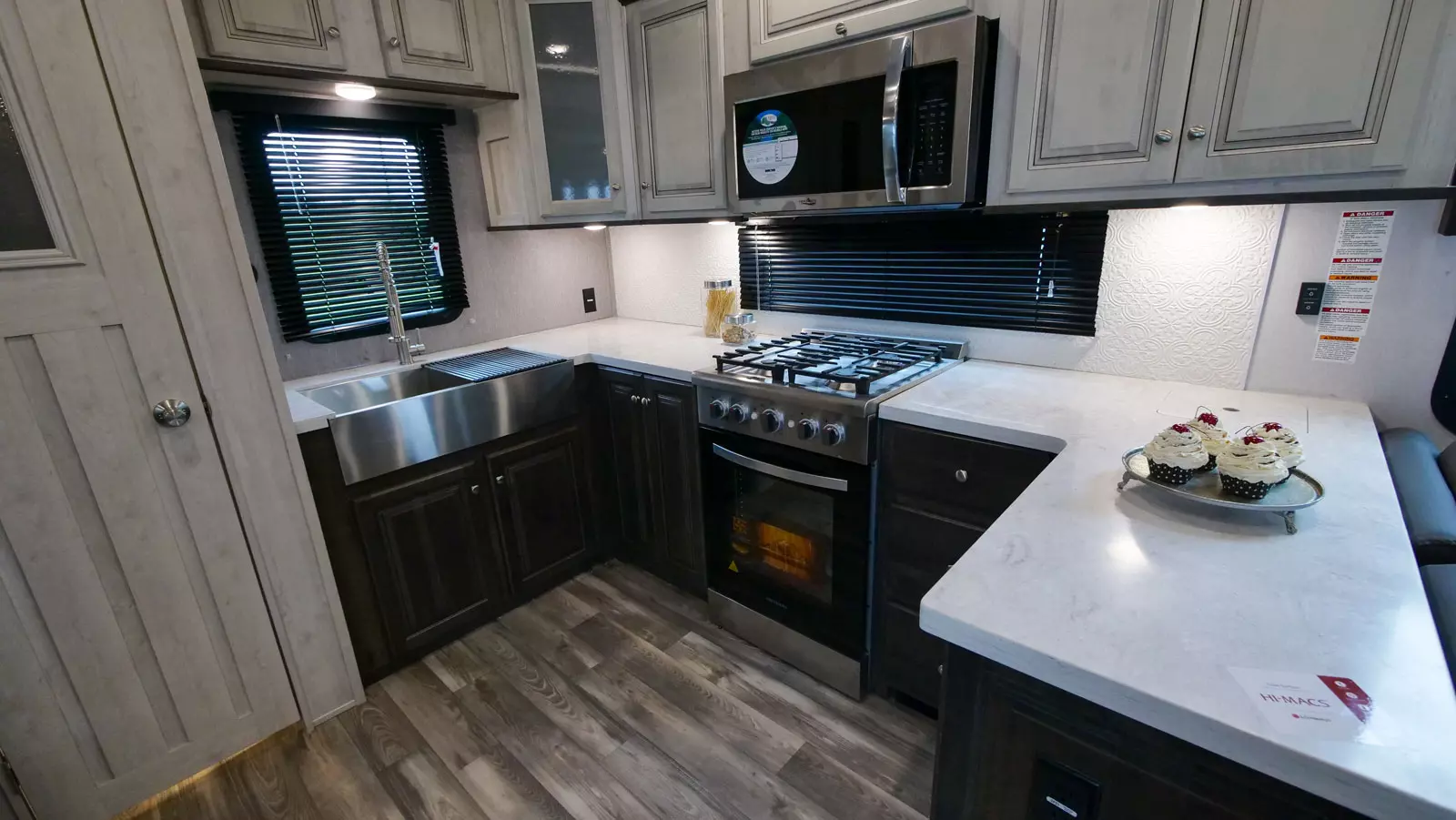

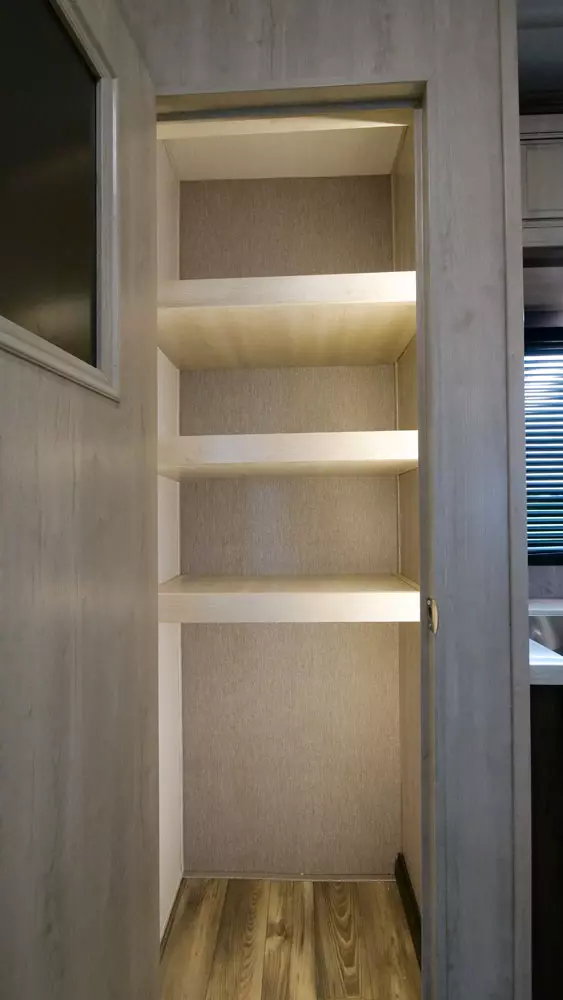

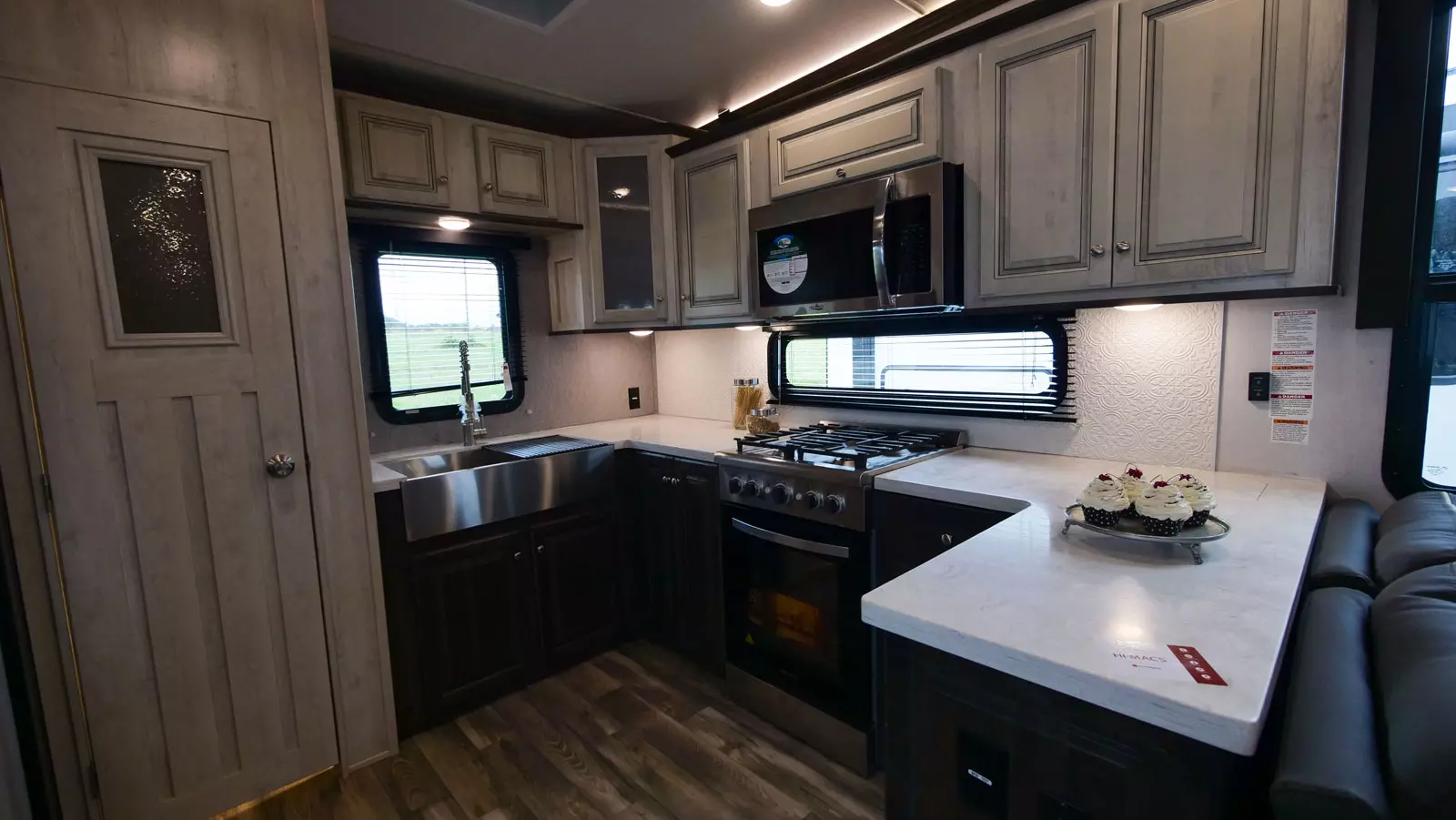

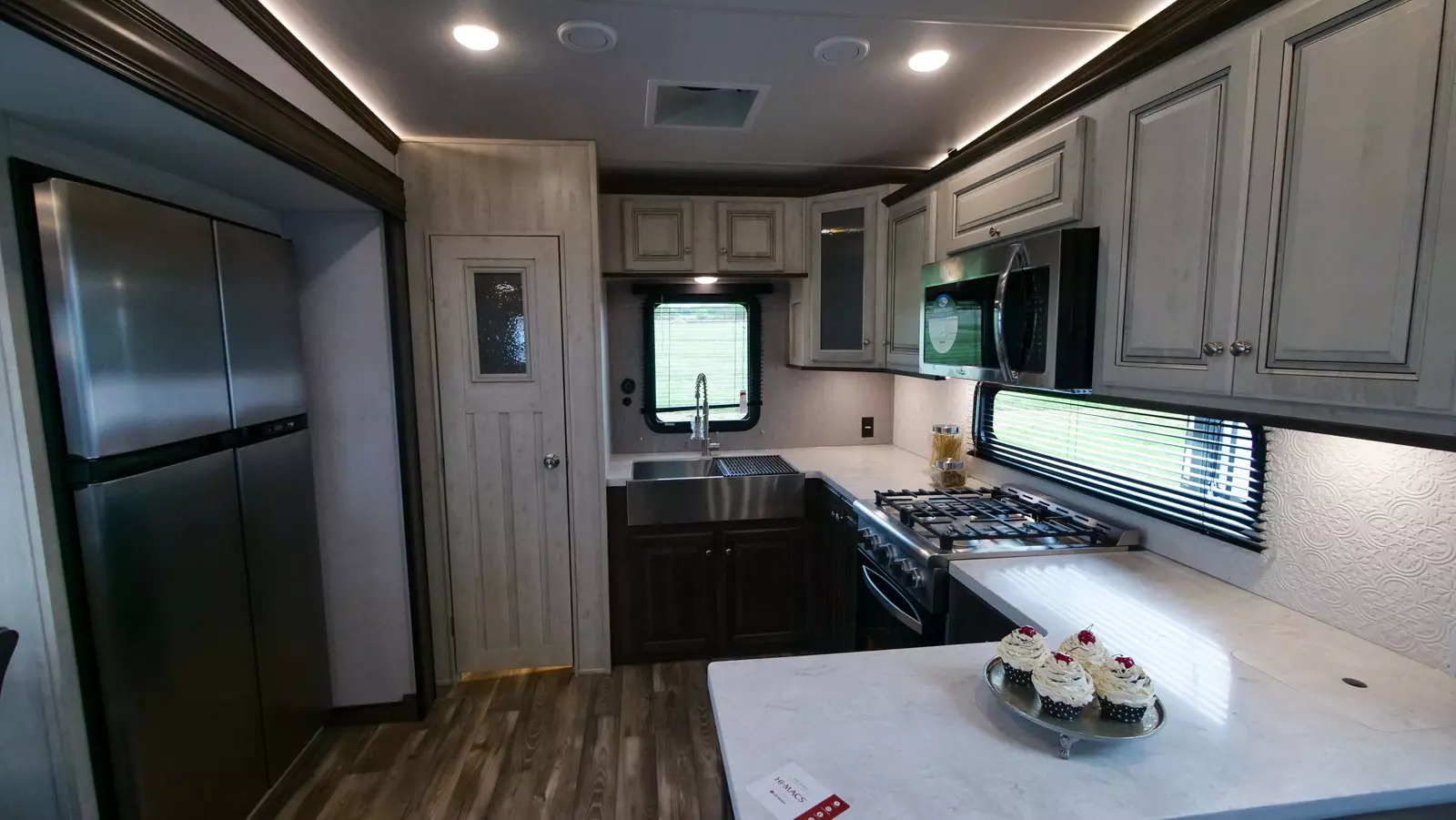

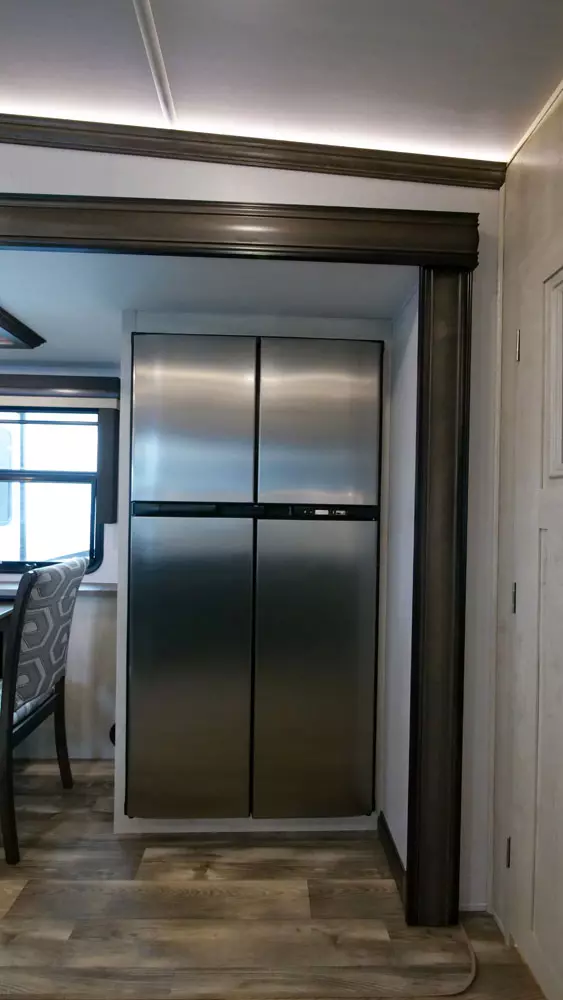

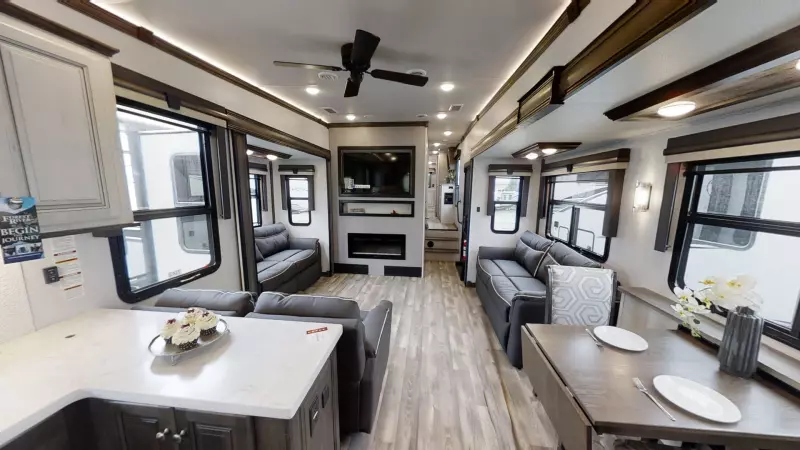

The 390FBX has three slide outs, two on the off-door side and one on the door side, along with one door side entry door. Exterior door side features include an 11 foot awning over the exterior TV and a 17 foot awning over the pass through storage. Interior layout from front to back: front bathroom with two vanities, bedroom with king bed in a off-door side slide out; side aisle half bathroom with washer and dryer; living area with off-door side slide out containing tri-fold sofa; forward facing theater seating across from entertainment center; rear kitchen with walk in pantry and wrap around countertop; and door side slide out containing residential refrigerator table with two chairs and tri-fold sofa.

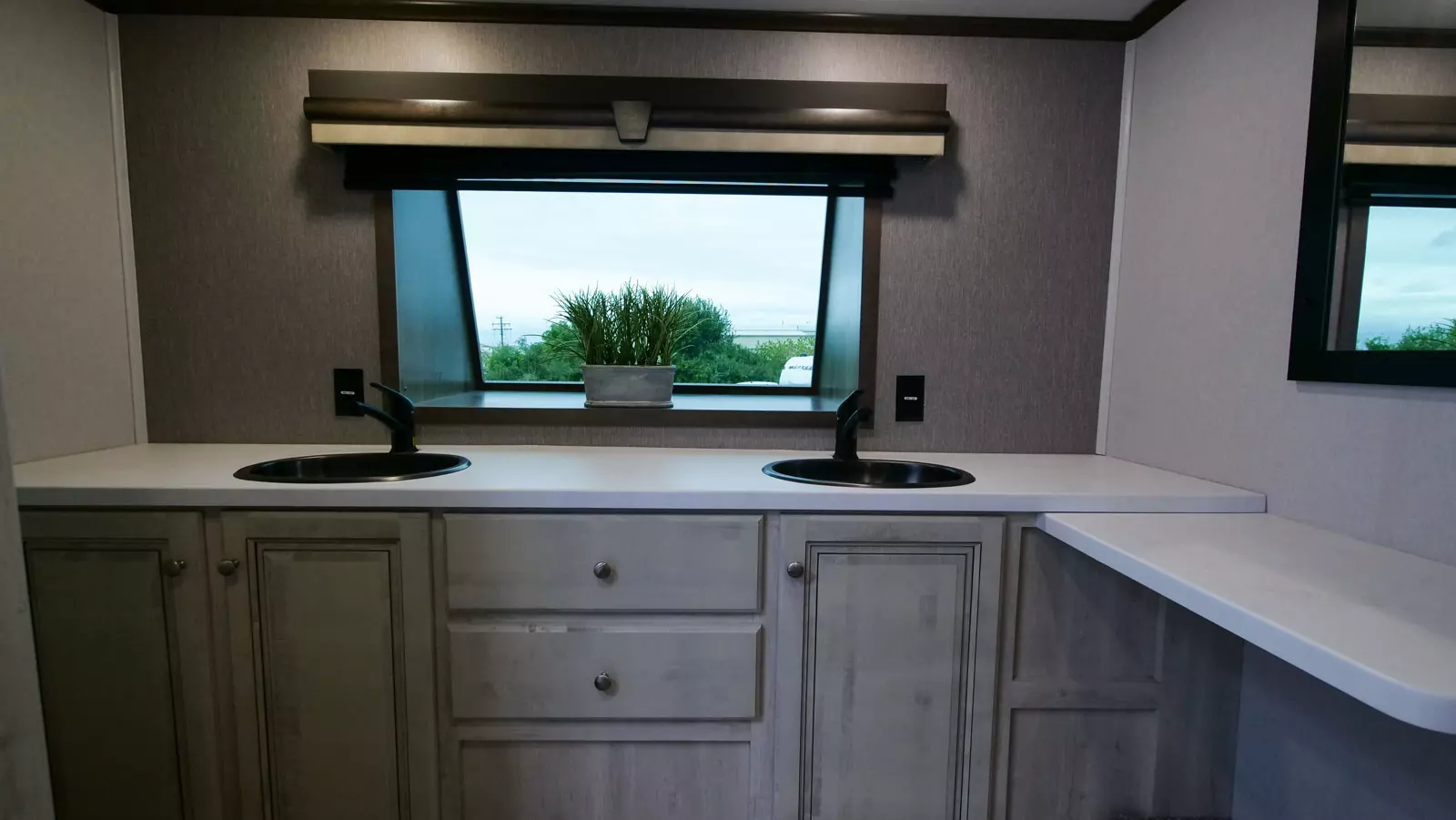

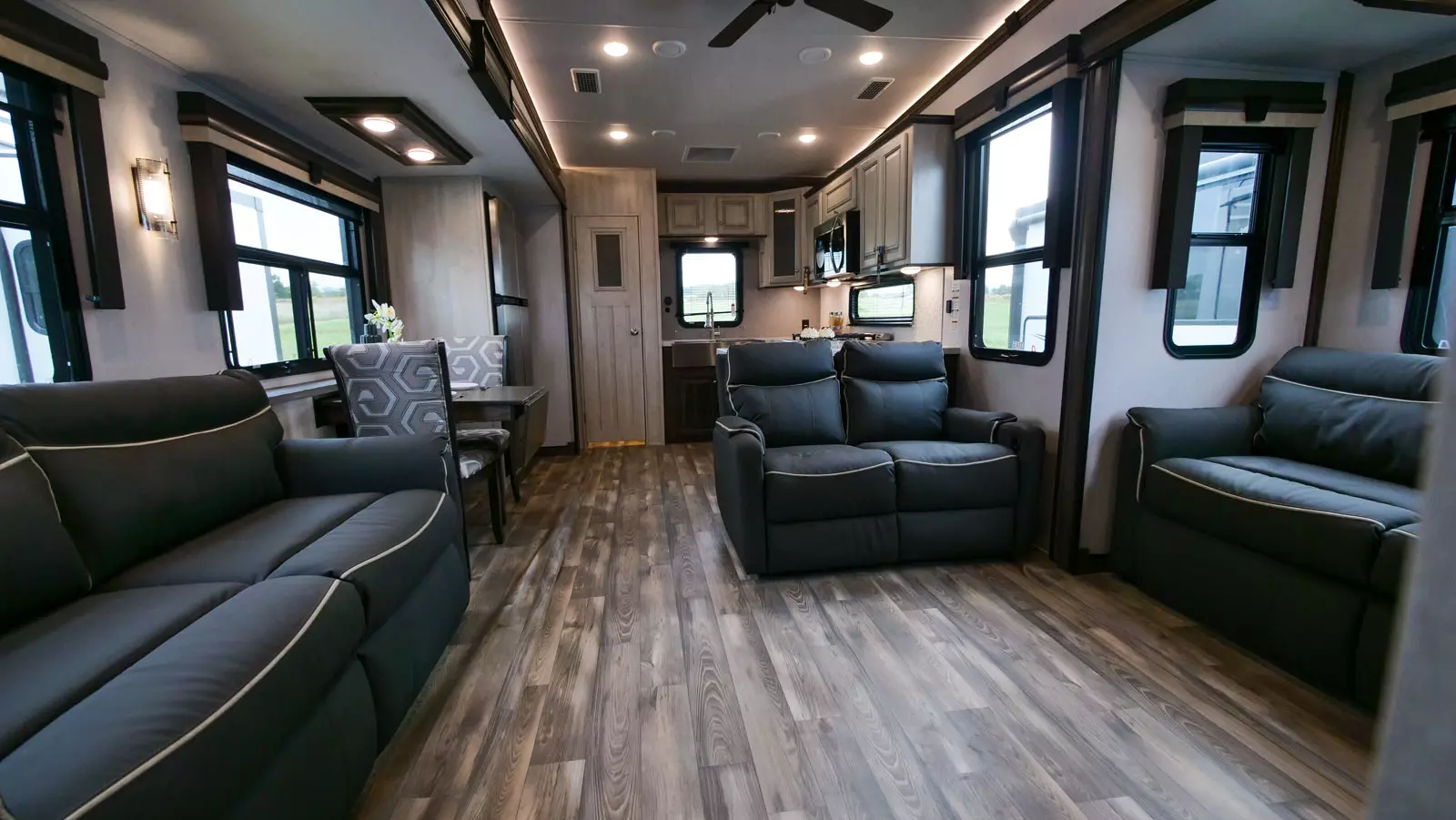

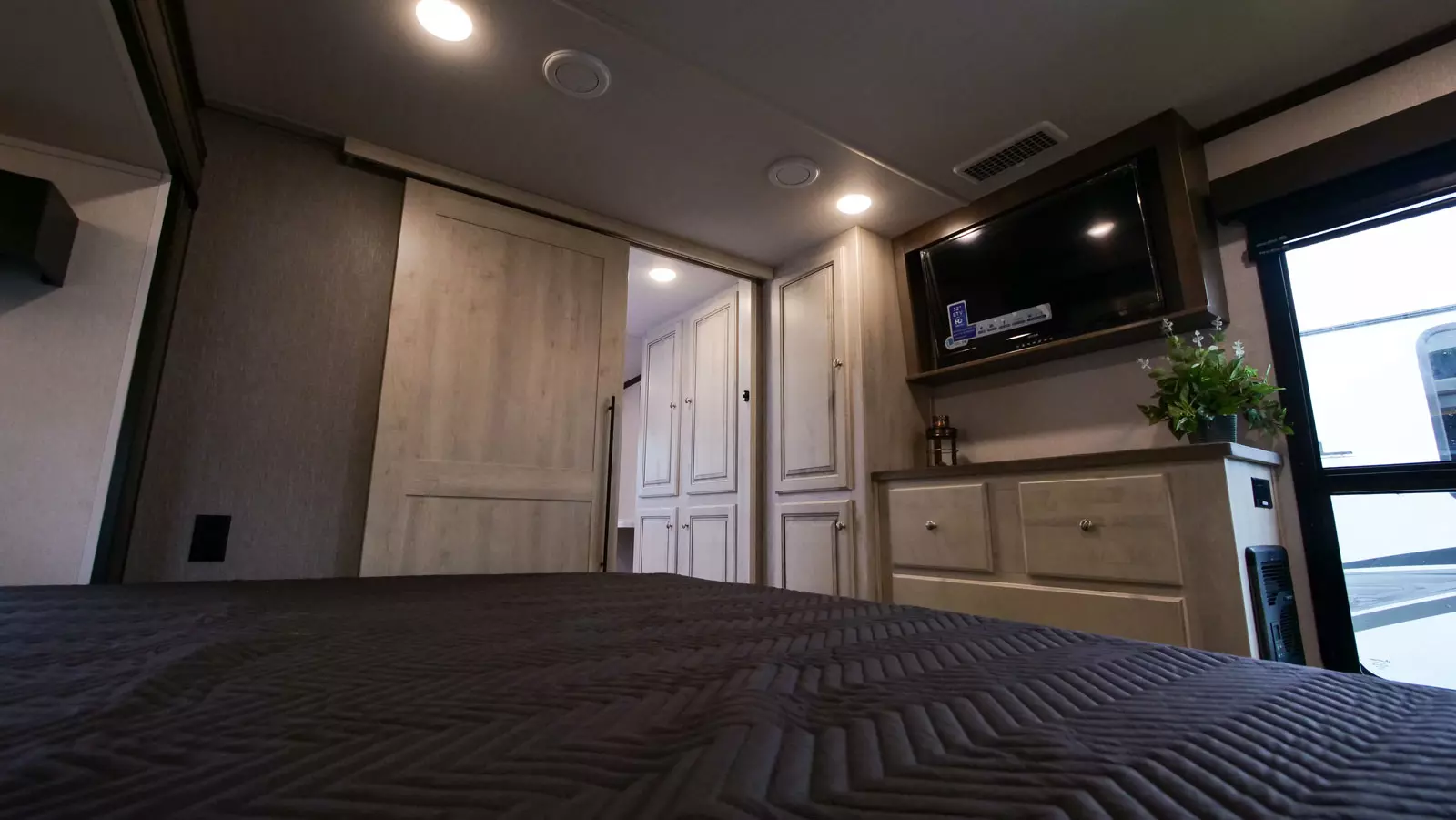

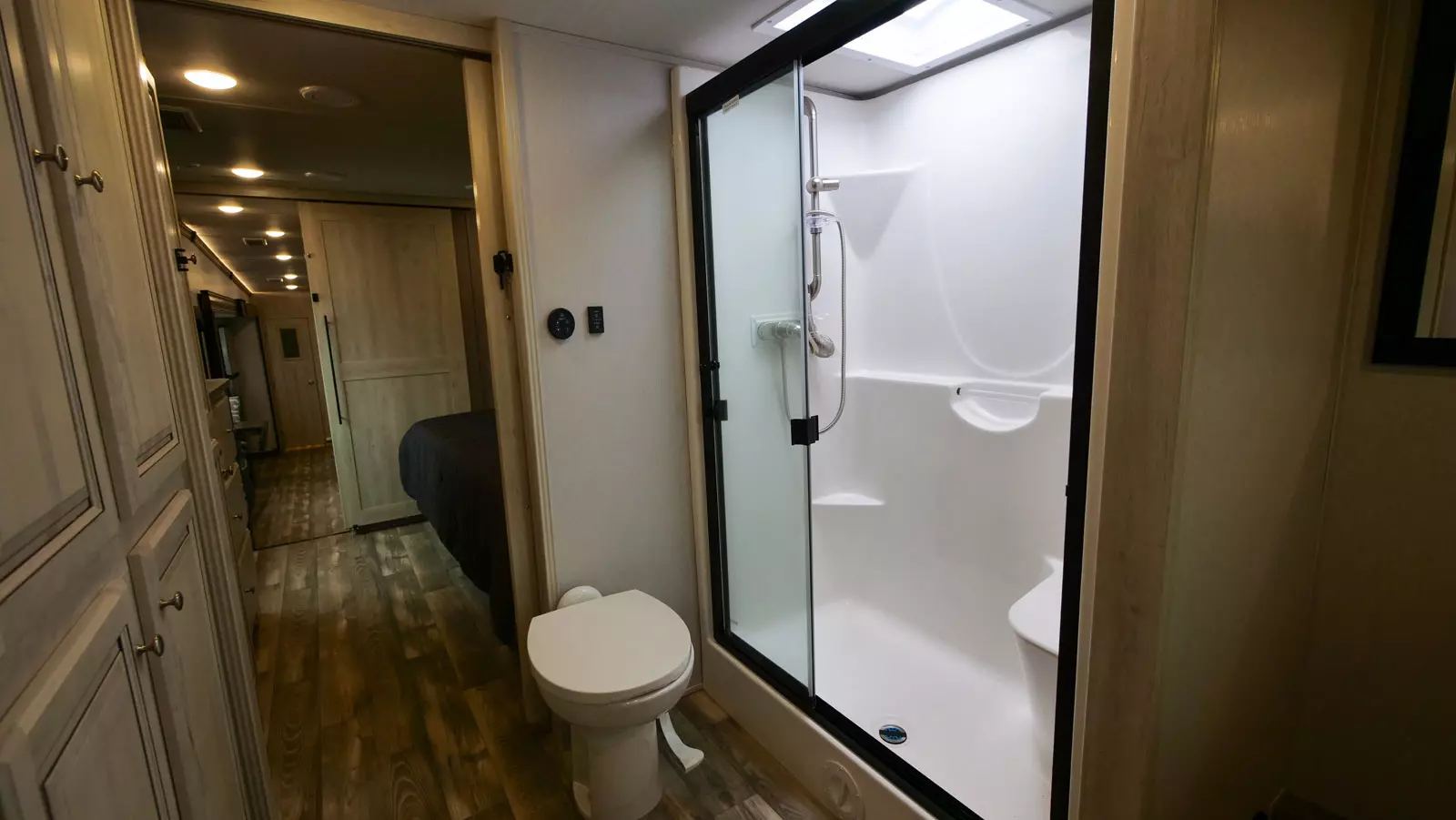

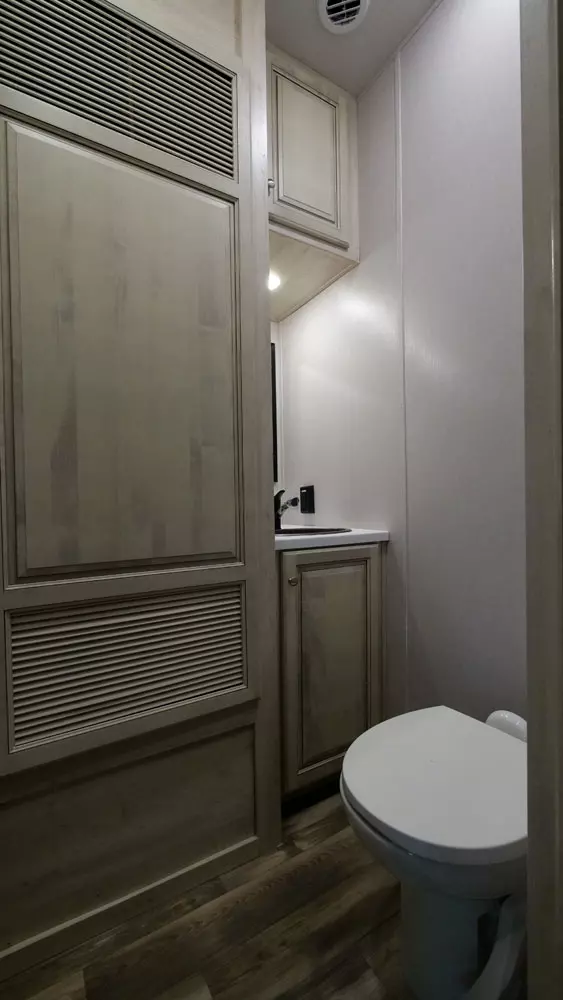

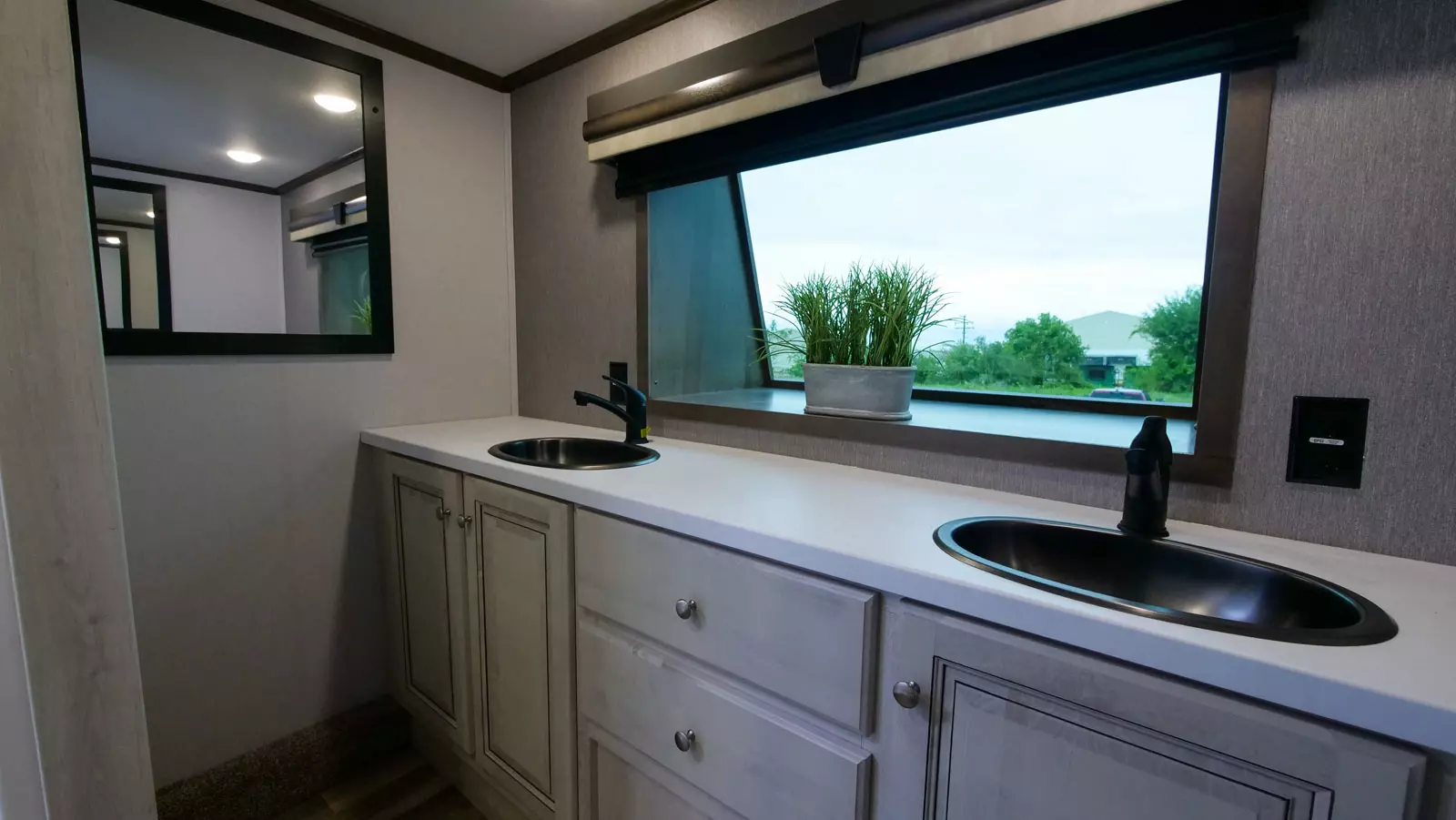

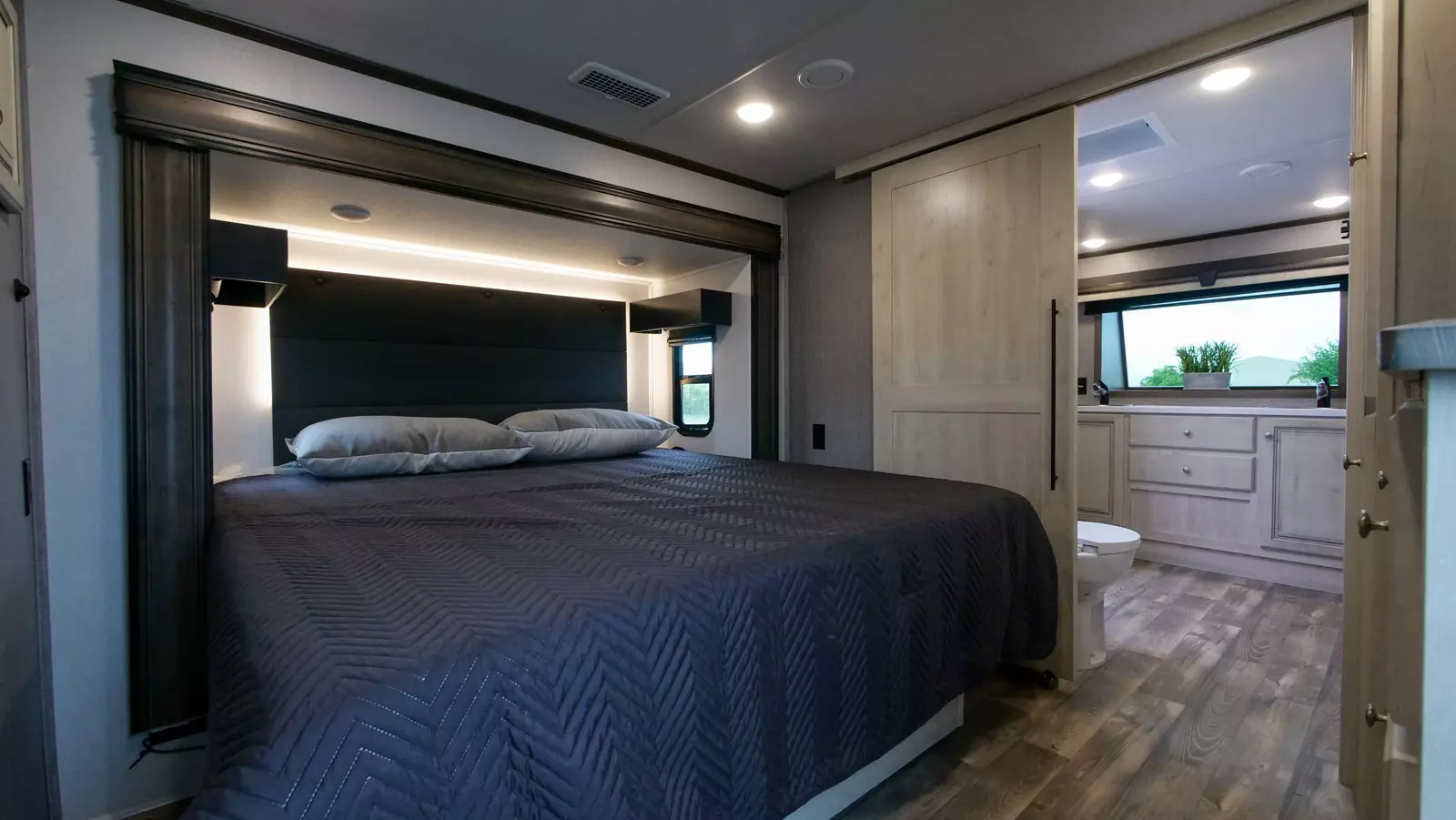

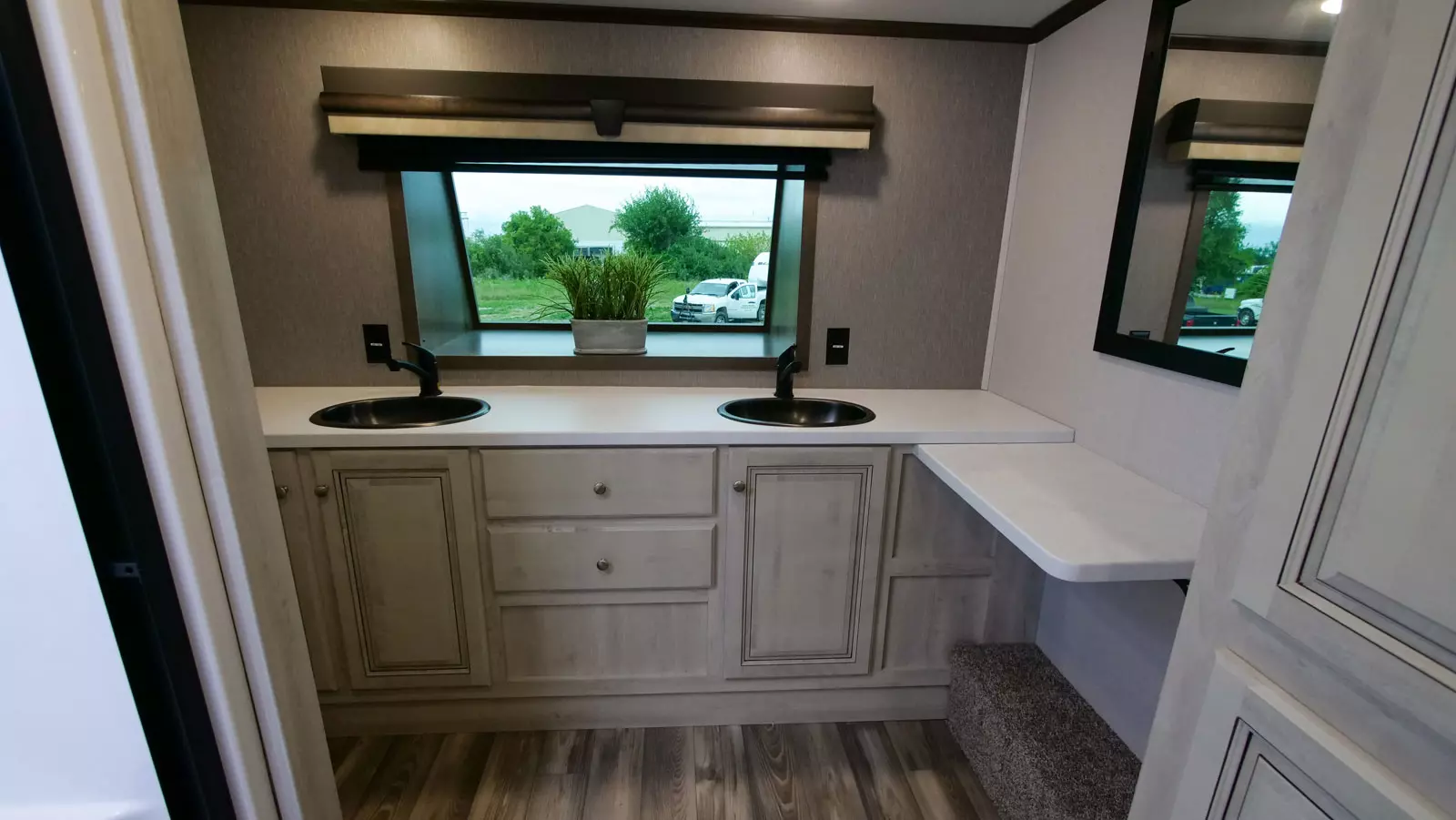

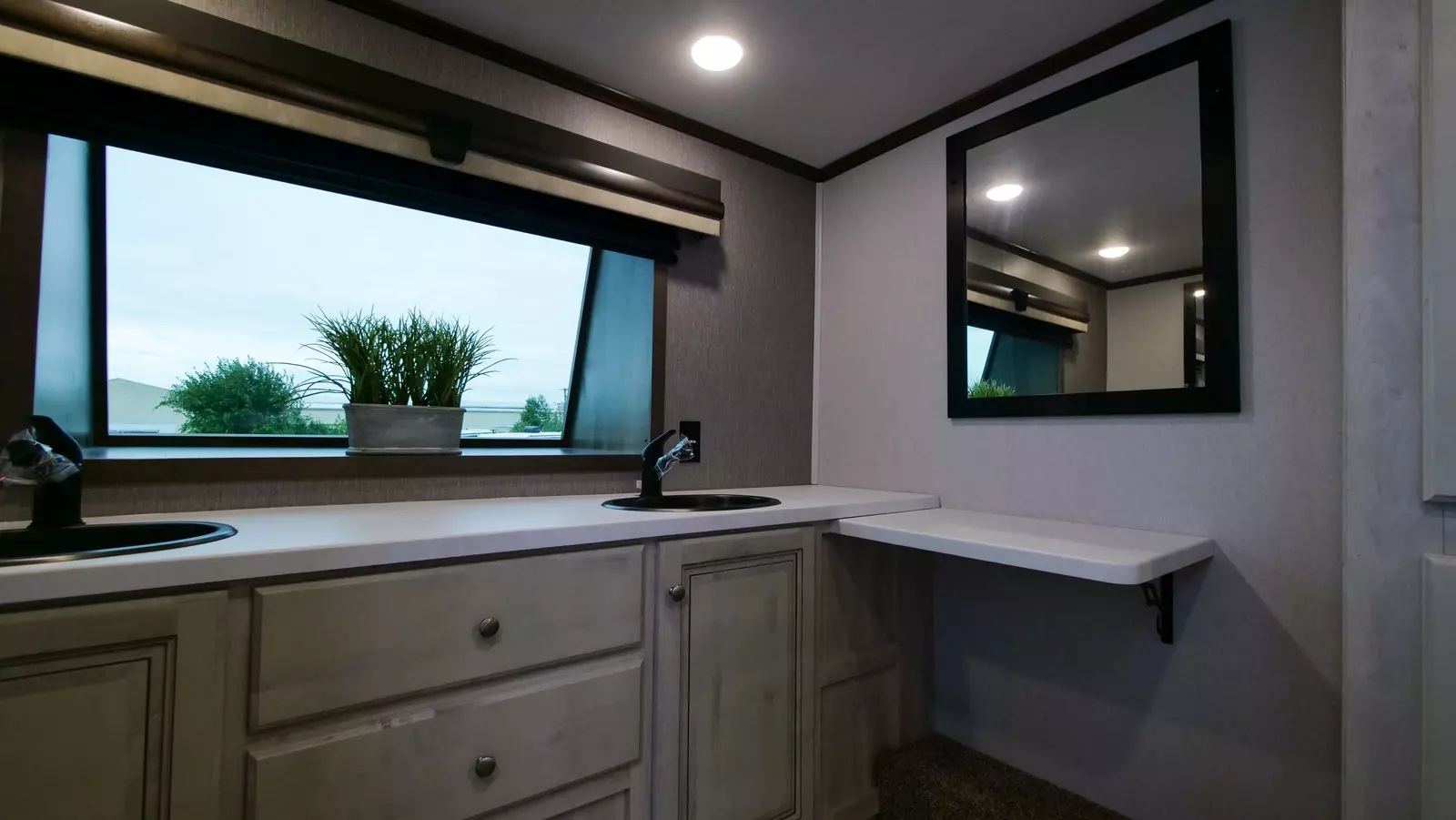

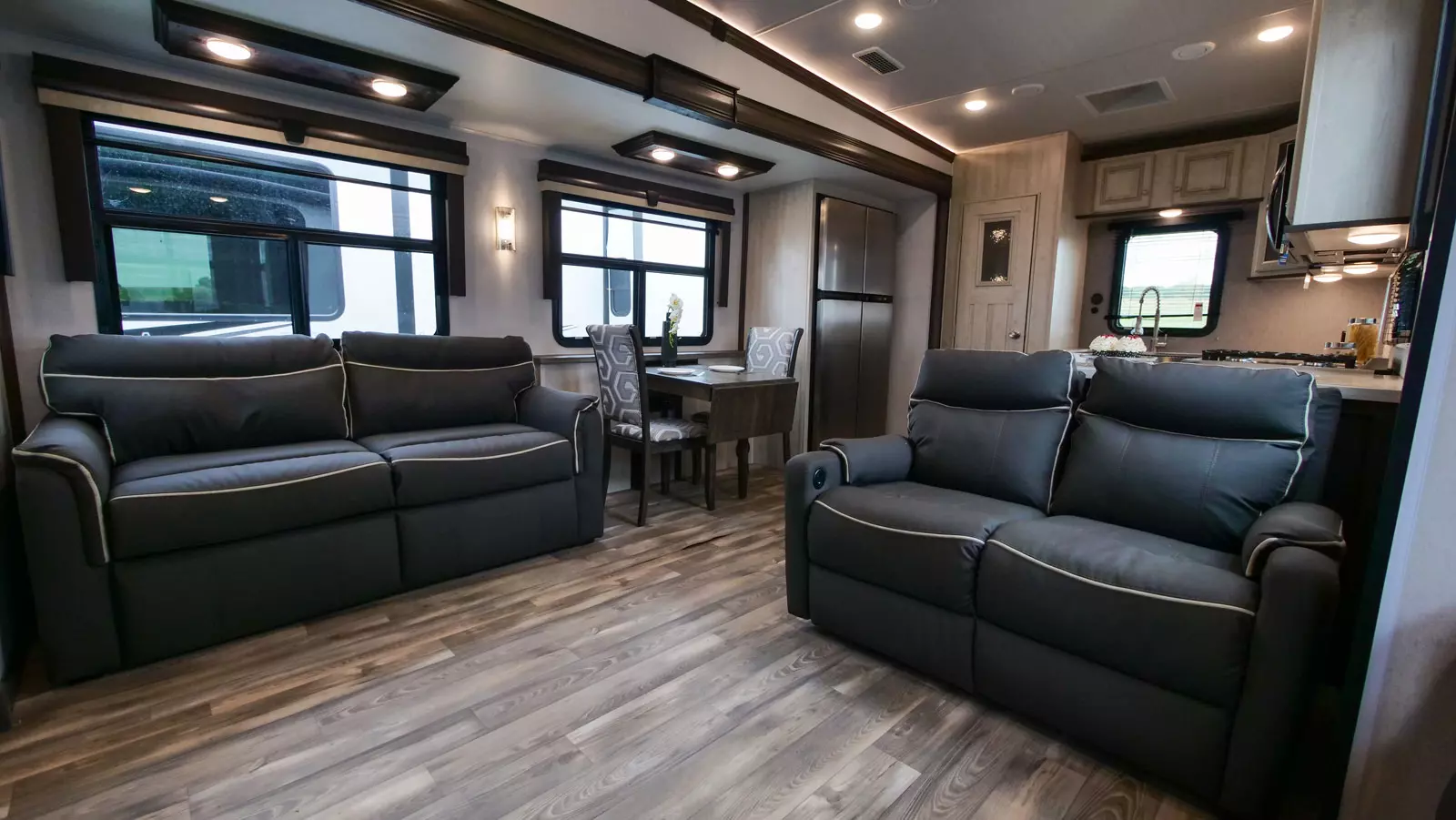

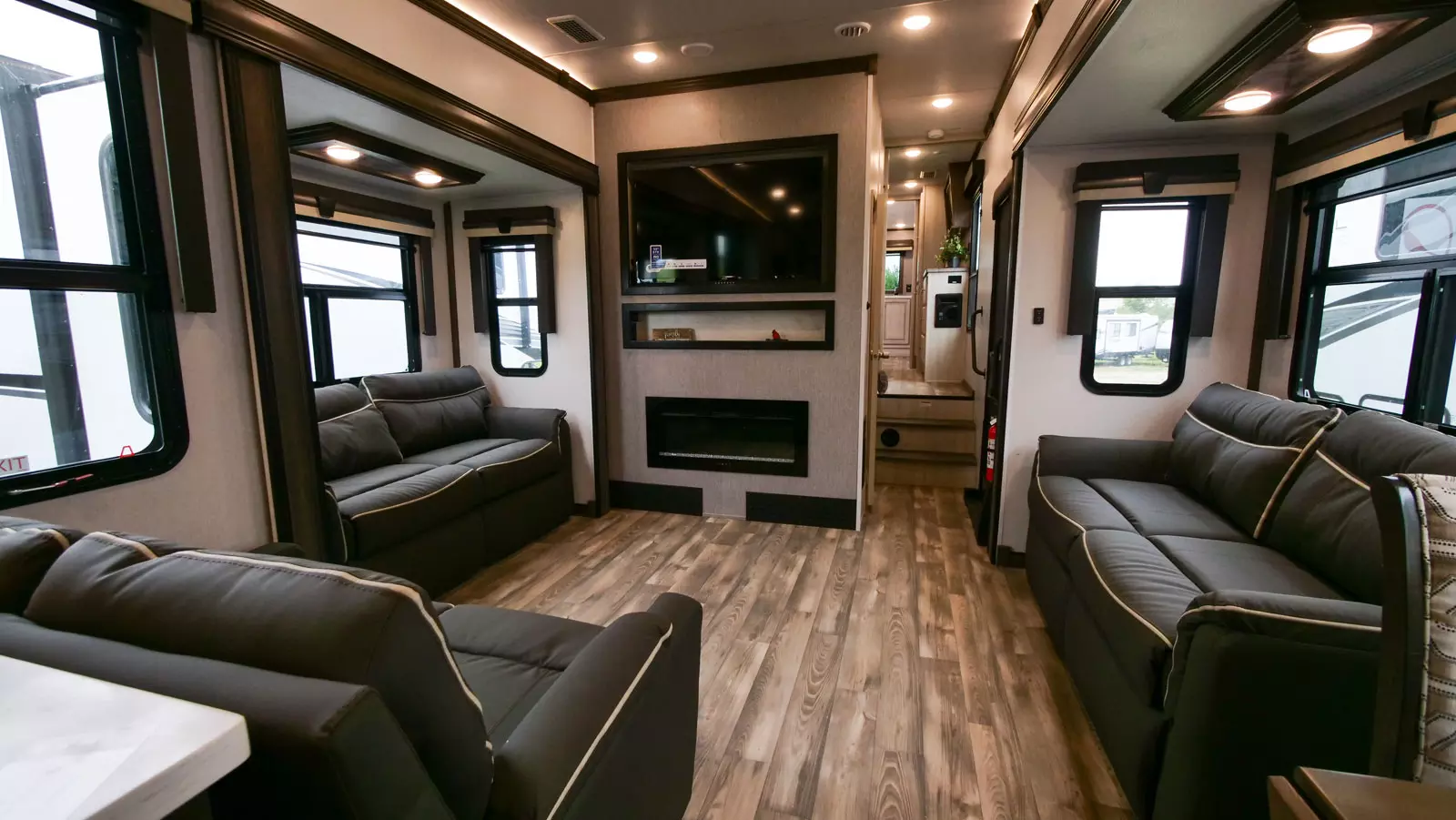

The 390FBX is a unique floorplan that features a large master suite in the front of the unit. The a king bedroom has a slideout for extra space, and opens into a roomy front bath with residential shower, wardrobe, and dual-sink vanity with extra-large countertop. A second, smaller half bath is located on the main level, just off the central living room. The living room includes a slideout and two tri-fold sofas, plus theater seating and entertainment center with TV, fireplace, and sound system.

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
