38EFK - DSO Floorplan

Dealer Stock Only

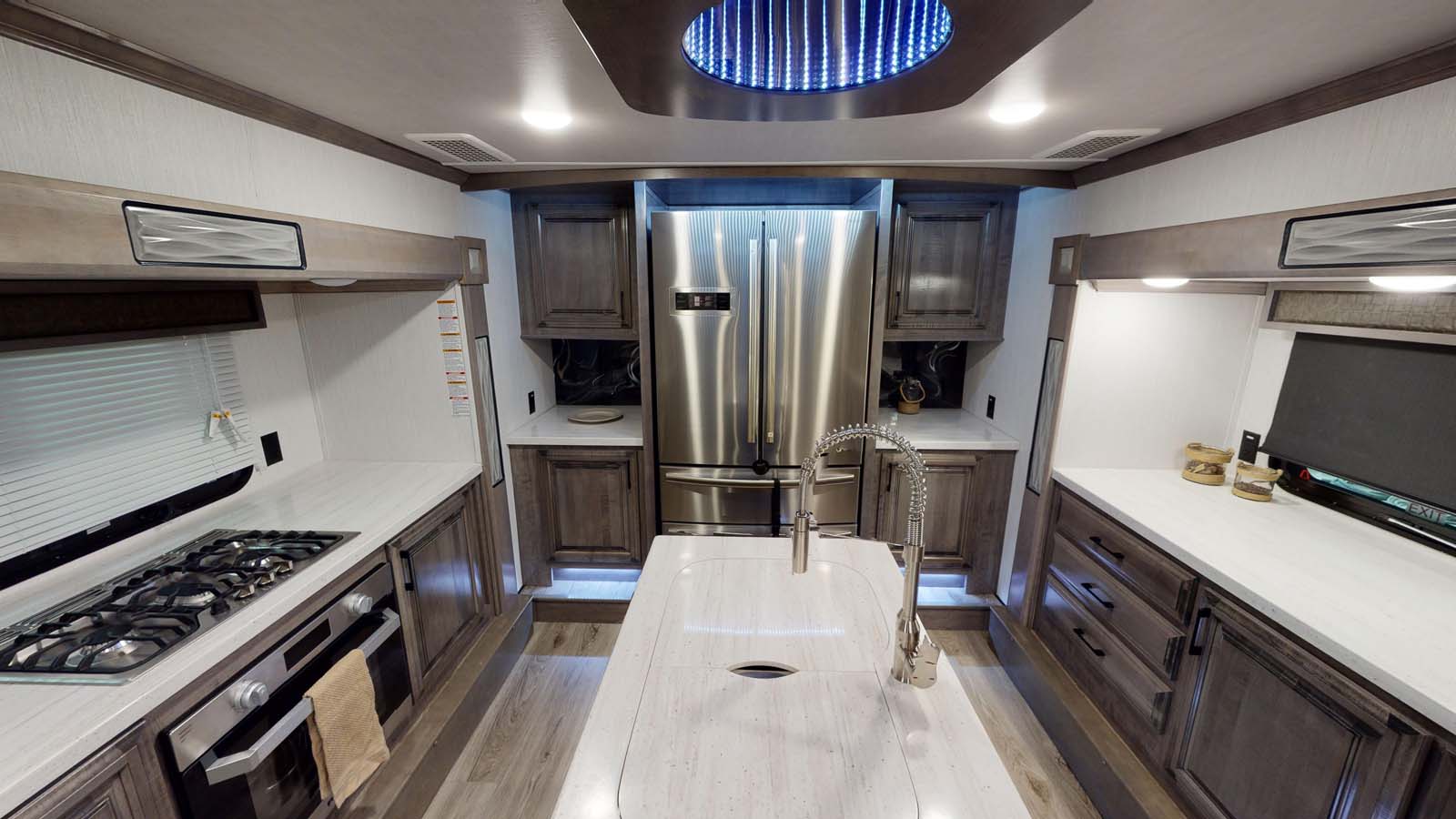

Our 38EFK front kitchen features a gourmet cook's dream kitchen and a beautiful bedroom retreat in the rear. Features: Raised Level Furrion Chief Kitchen, 20 Cu. Ft. Electric Refrigerator w/icemaker, 30" Microwave, Couple's Dining Table, (2) Hide-A-Bed Sofas, Theater Seating w/USB ports, 55" Smart TV, Remote Fireplace, One-Piece Fiberglass Shower, Porcelain Toilet, Washer/Dryer Prep, Bedroom TV, King Bed, Outside TV

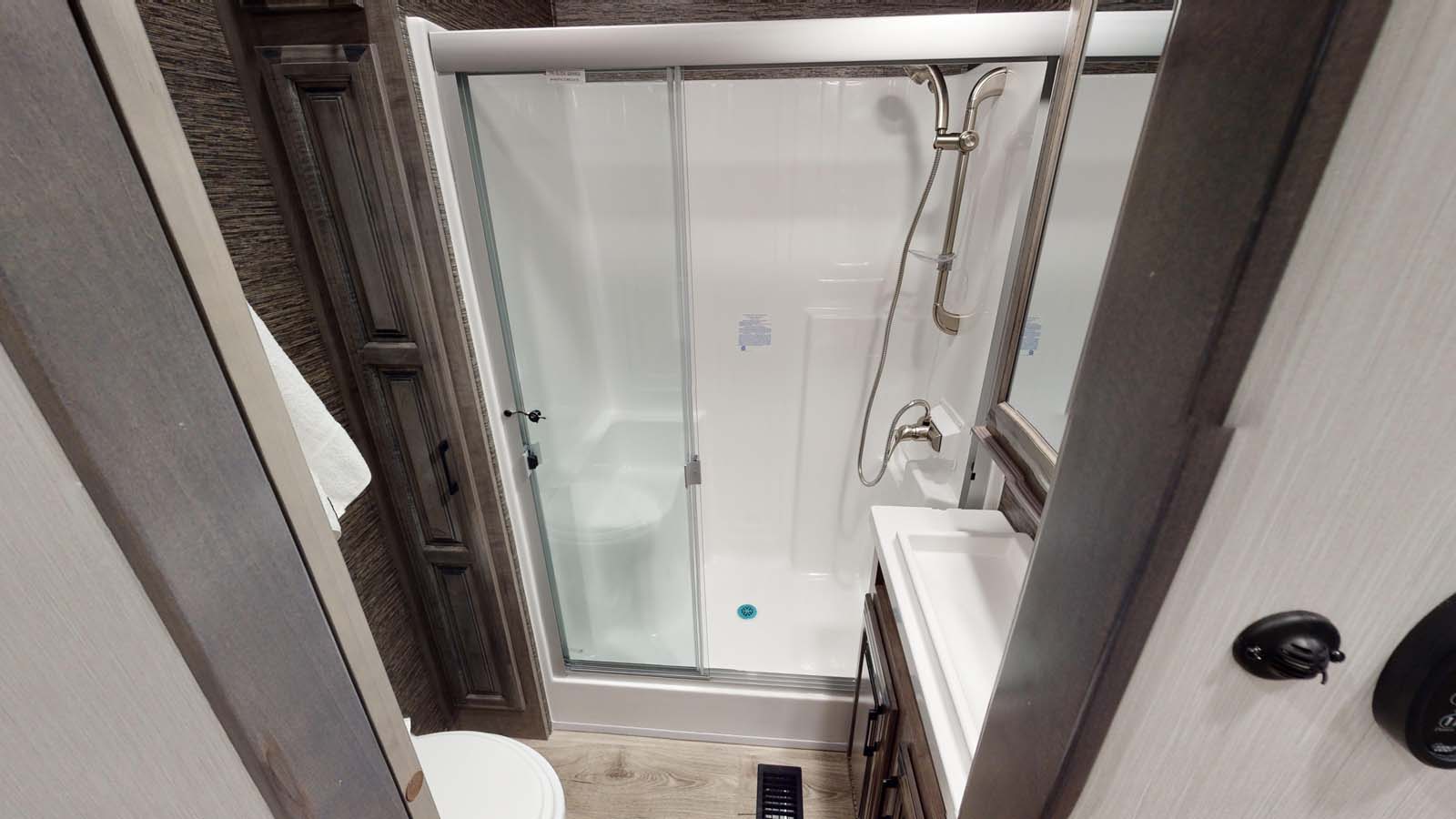

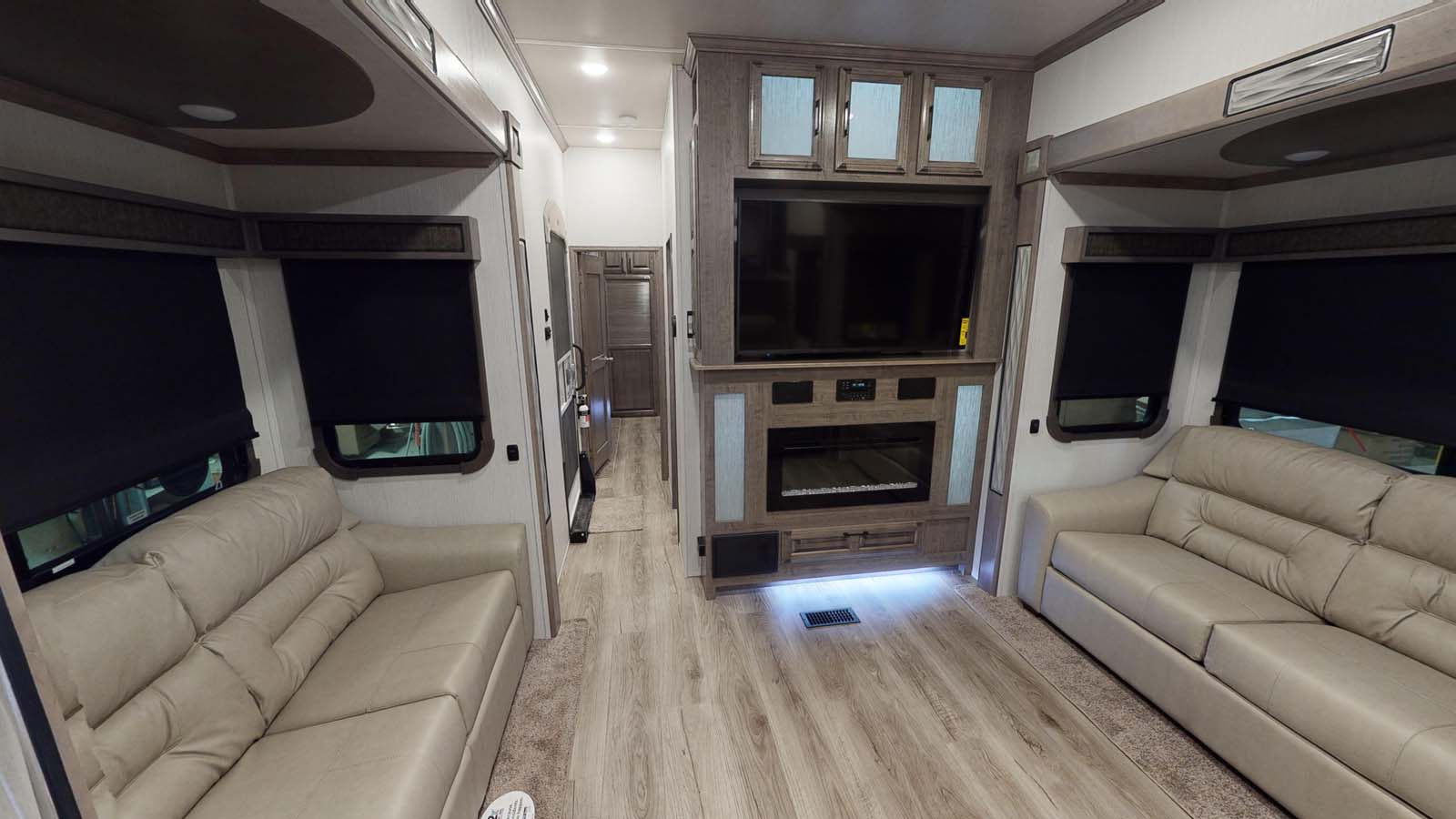

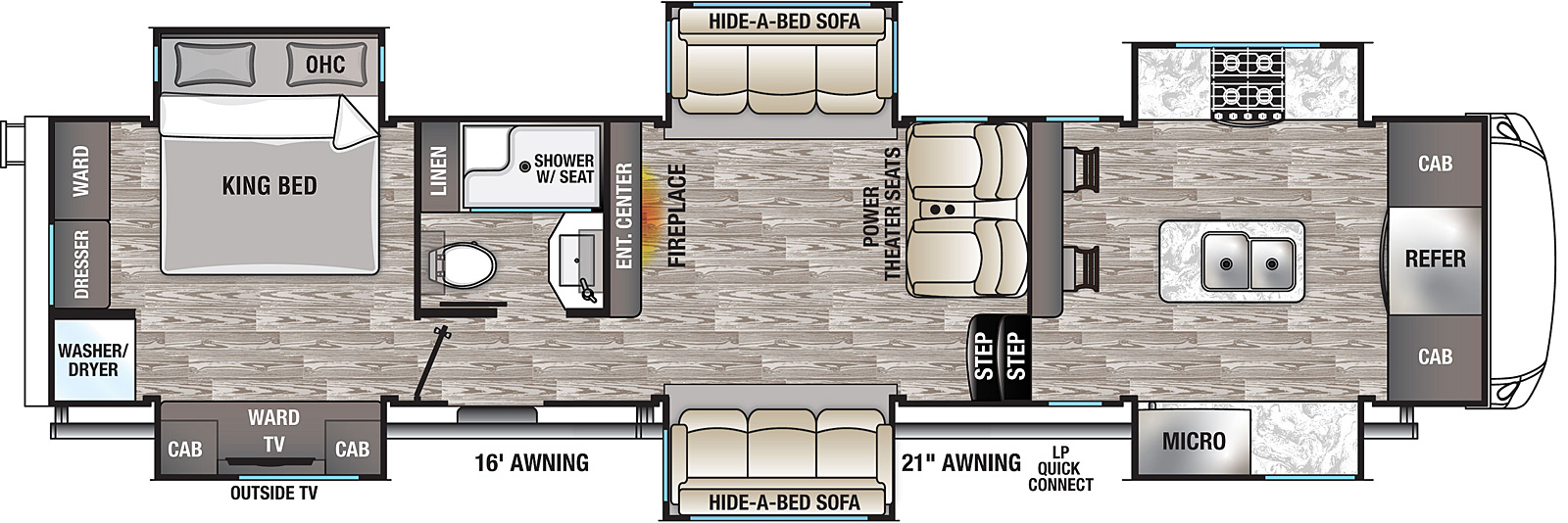

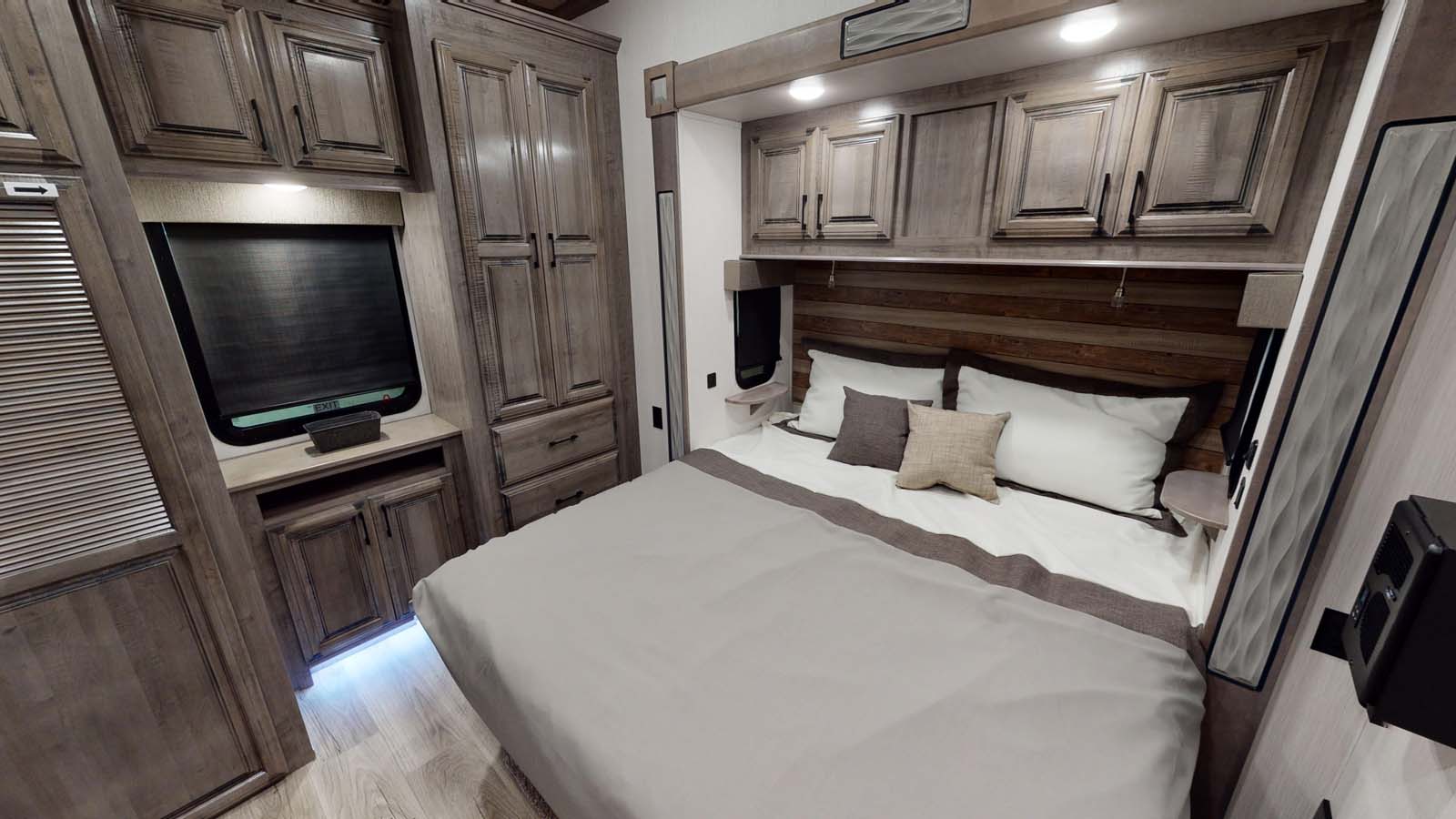

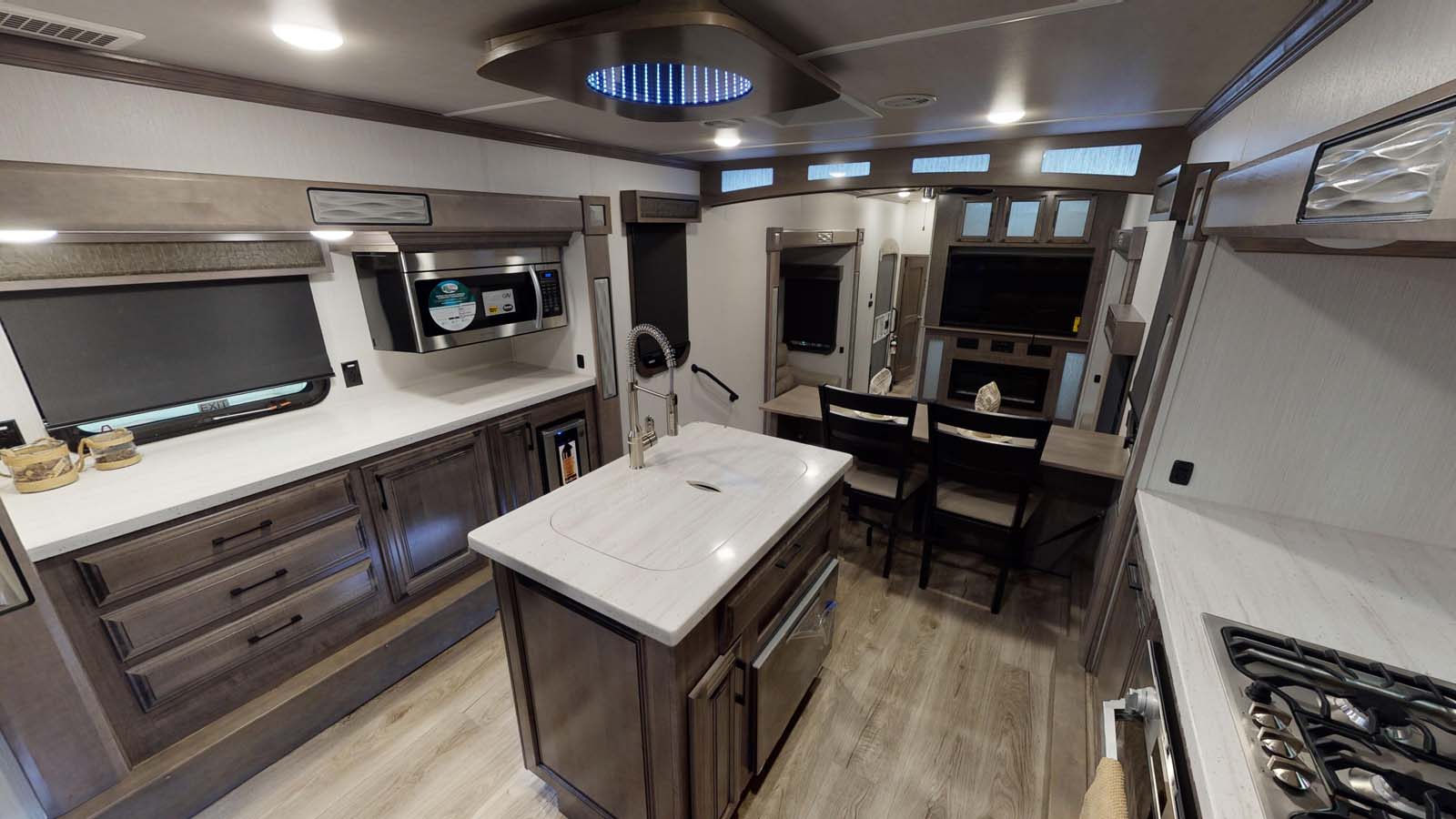

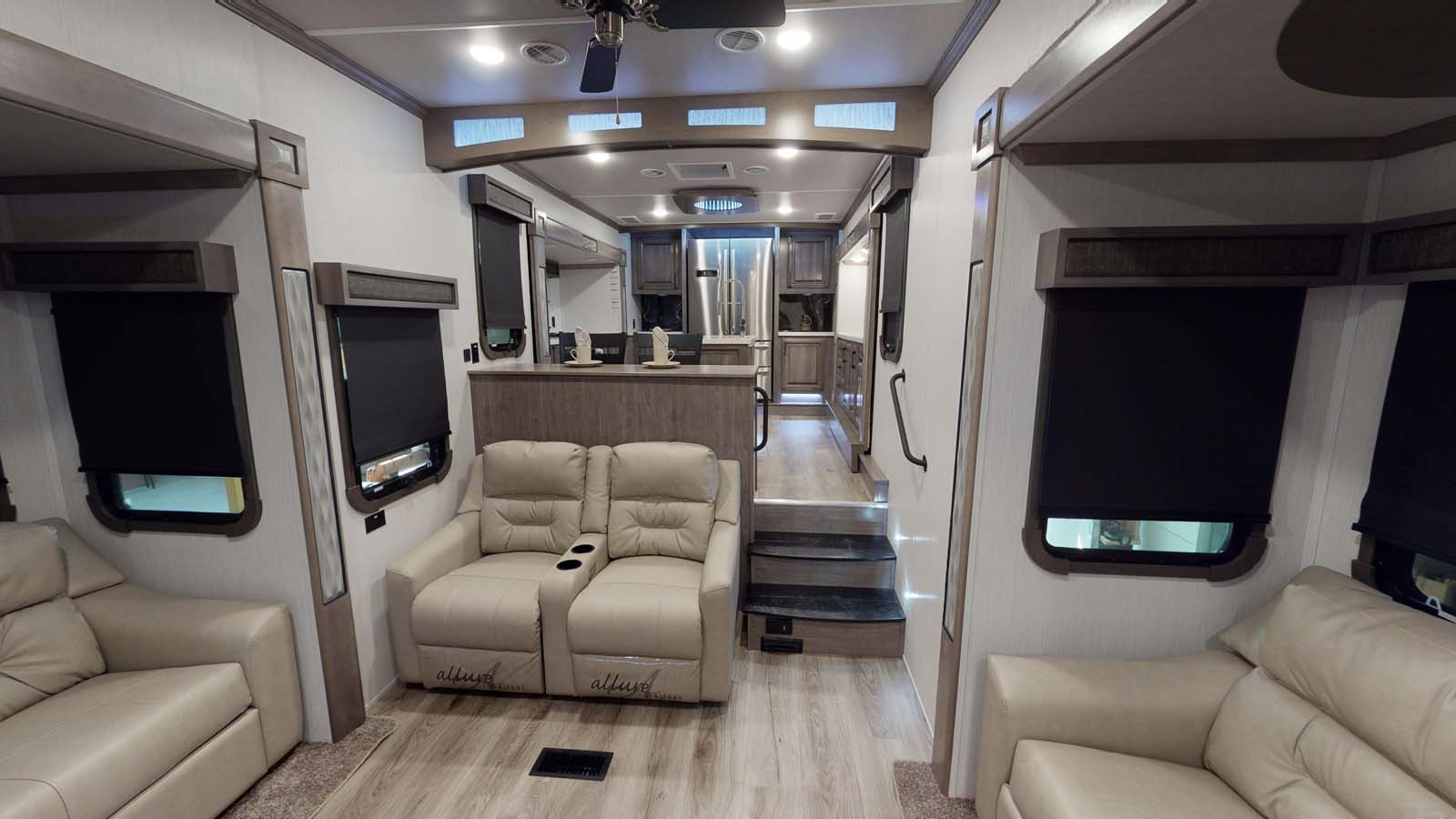

The 38EFK-DSO has 6 slide outs with 3 on each side and 2 entry door. Exterior features include an outside TV, two awnings with one being 16 foot and the other 21 foot, and an LP quick connect. Interior layout from front to back includes: front kitchen in the upper deck with refrigerator and cabinets along the front wall, off-door side slide out holding stovetop and counter space, off-door side slide out holding microwave and counter space, kitchen island with double basin sink, and rear facing bar with barstools; living area with opposing side slide outs each holding a hide-a bed sofa; rear facing entertainment center with fireplace; off-door side side aisle bathroom with shower w/seat, toilet, linen storage, sink and overhead cabinets; rear bedroom with king bed in off-door side slide out; door side slide out across from bed with cabinets, TV and wardrobes; rear wall includes washer/dryer, dresser and wardrobe.
Enlarge

Specifications

Hitch Weight:
2,700 lb.
GVWR:
18,000 lb.
UVW
14,354 lb.
CCC
3,646 lb.
Exterior Length:
41' 8"
Exterior Height:
13' 5"
Exterior Width:
96"
Fresh Water:
57.00 gal.
Gray Water:
80.00 gal.
Black Water:
40.00 gal.
Awning Size:
16' & 21'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
