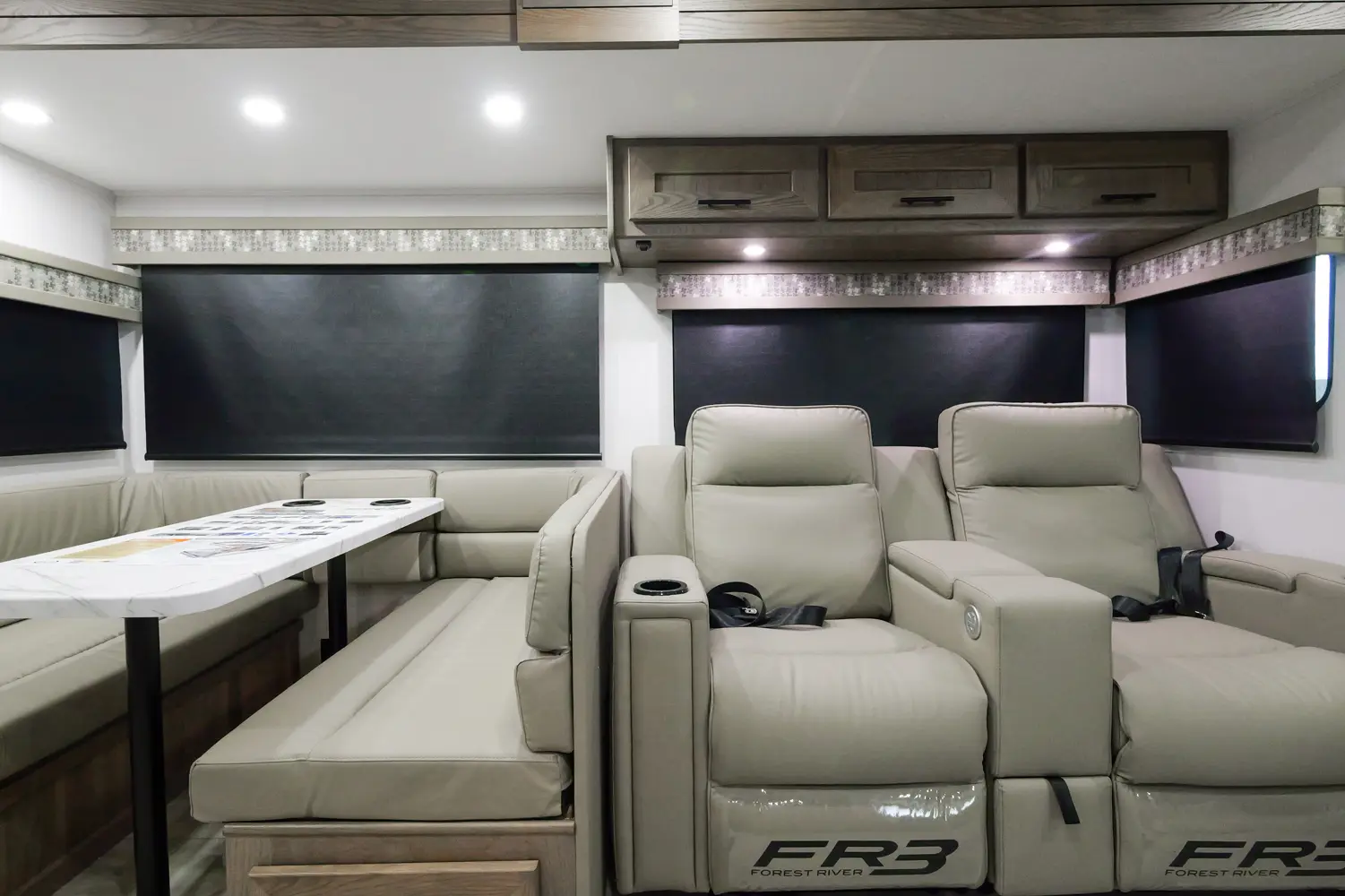

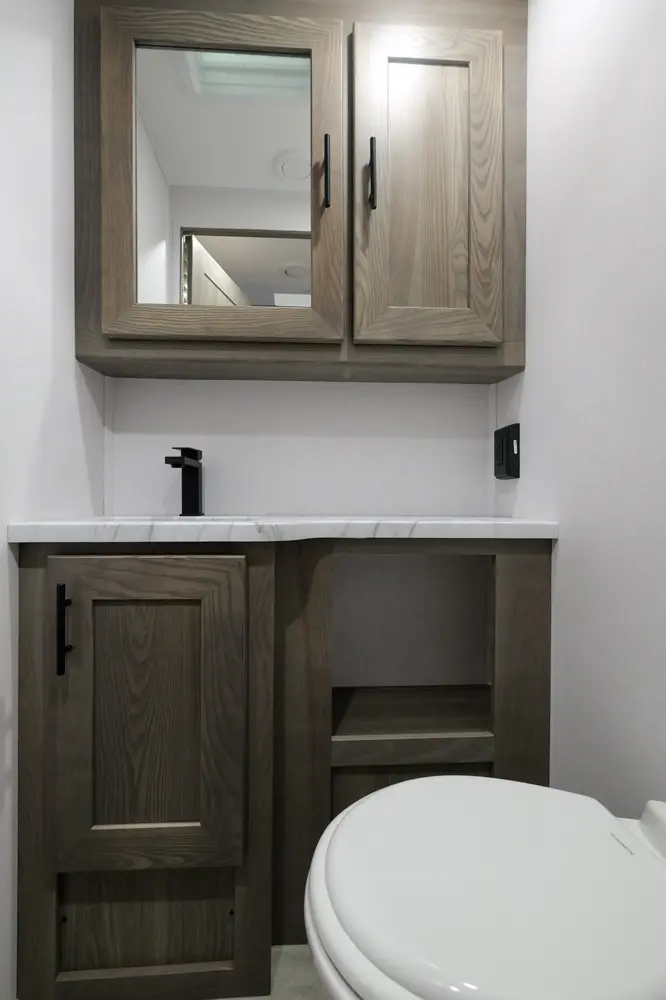

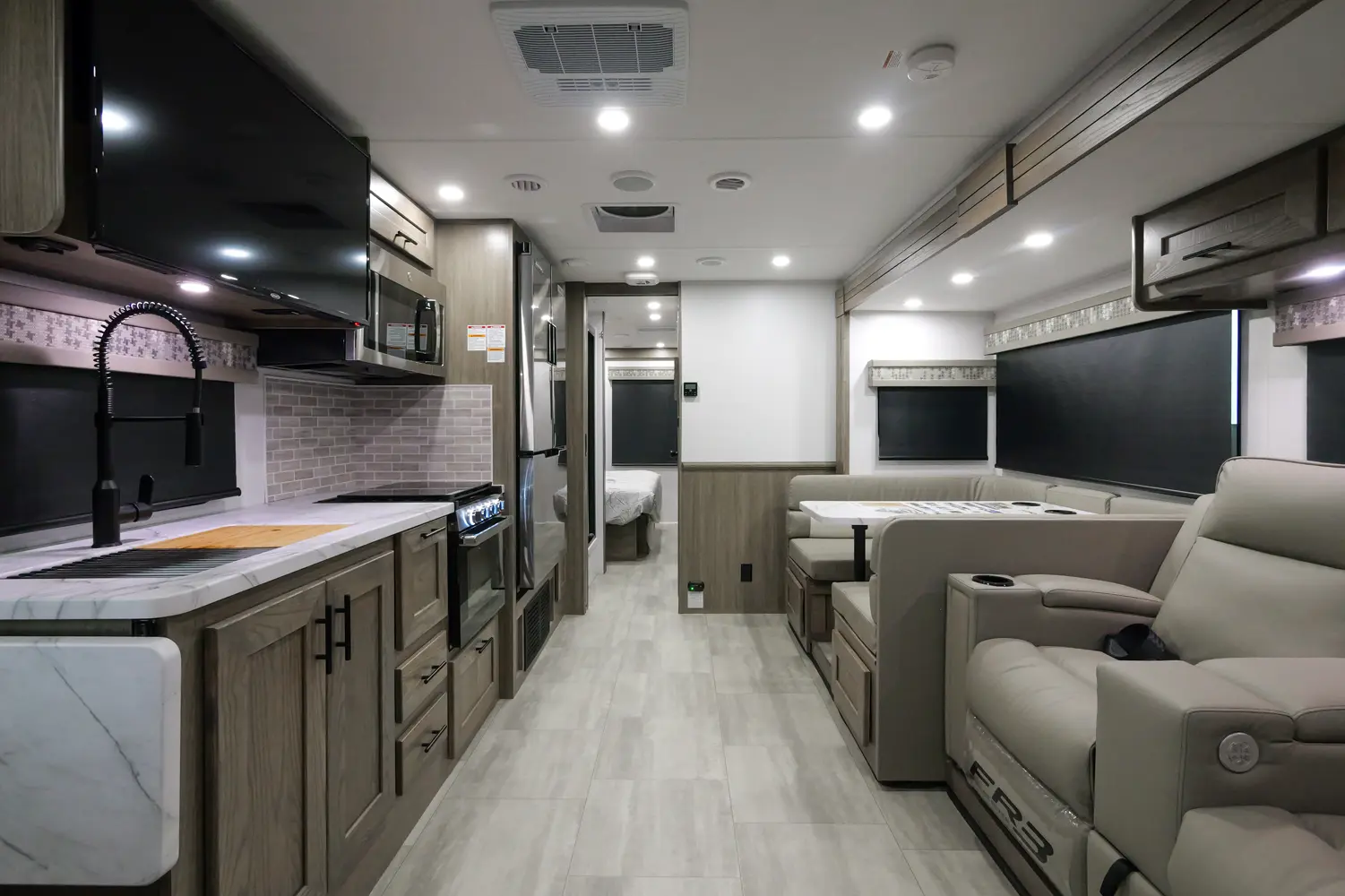

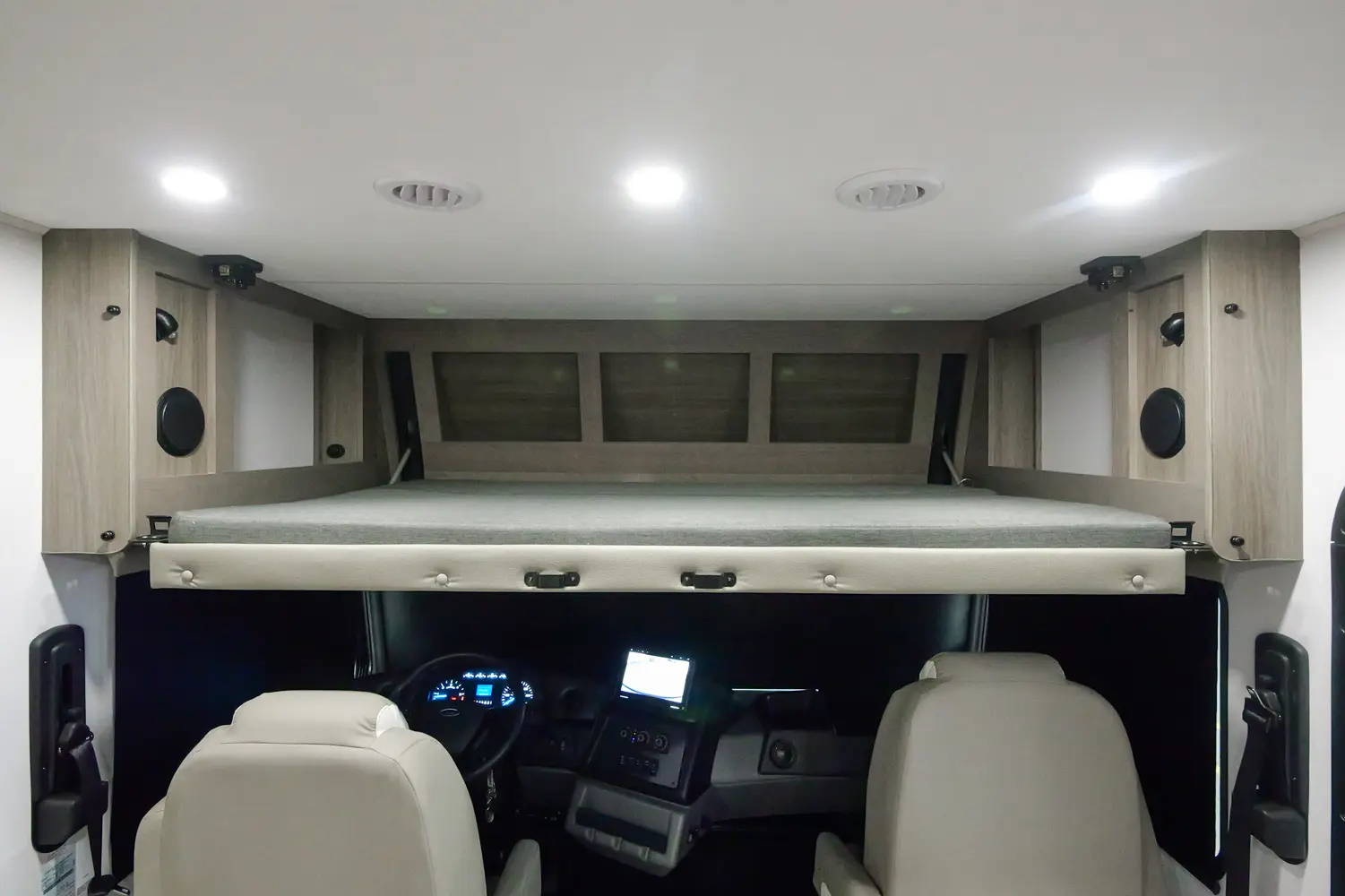

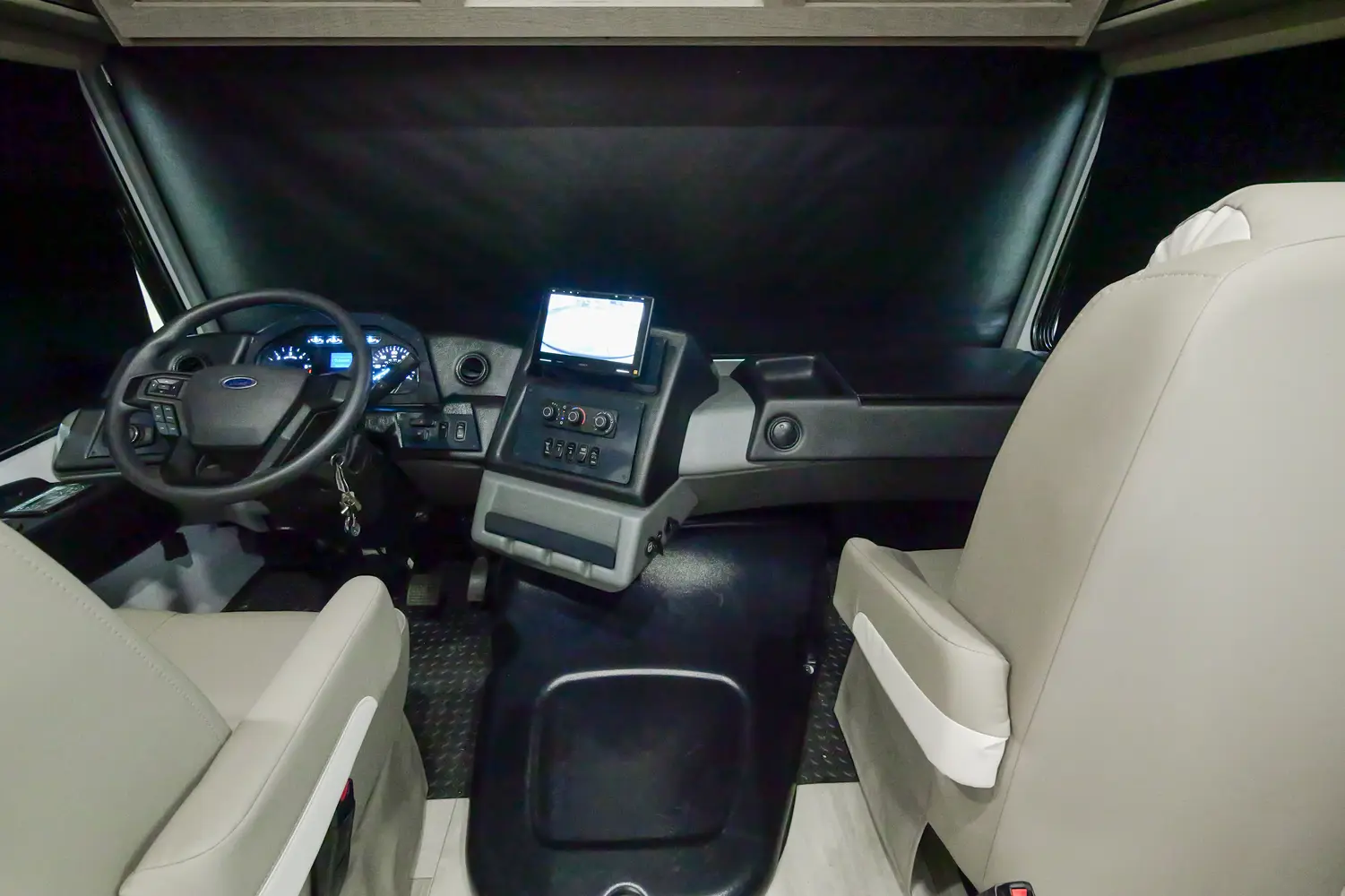

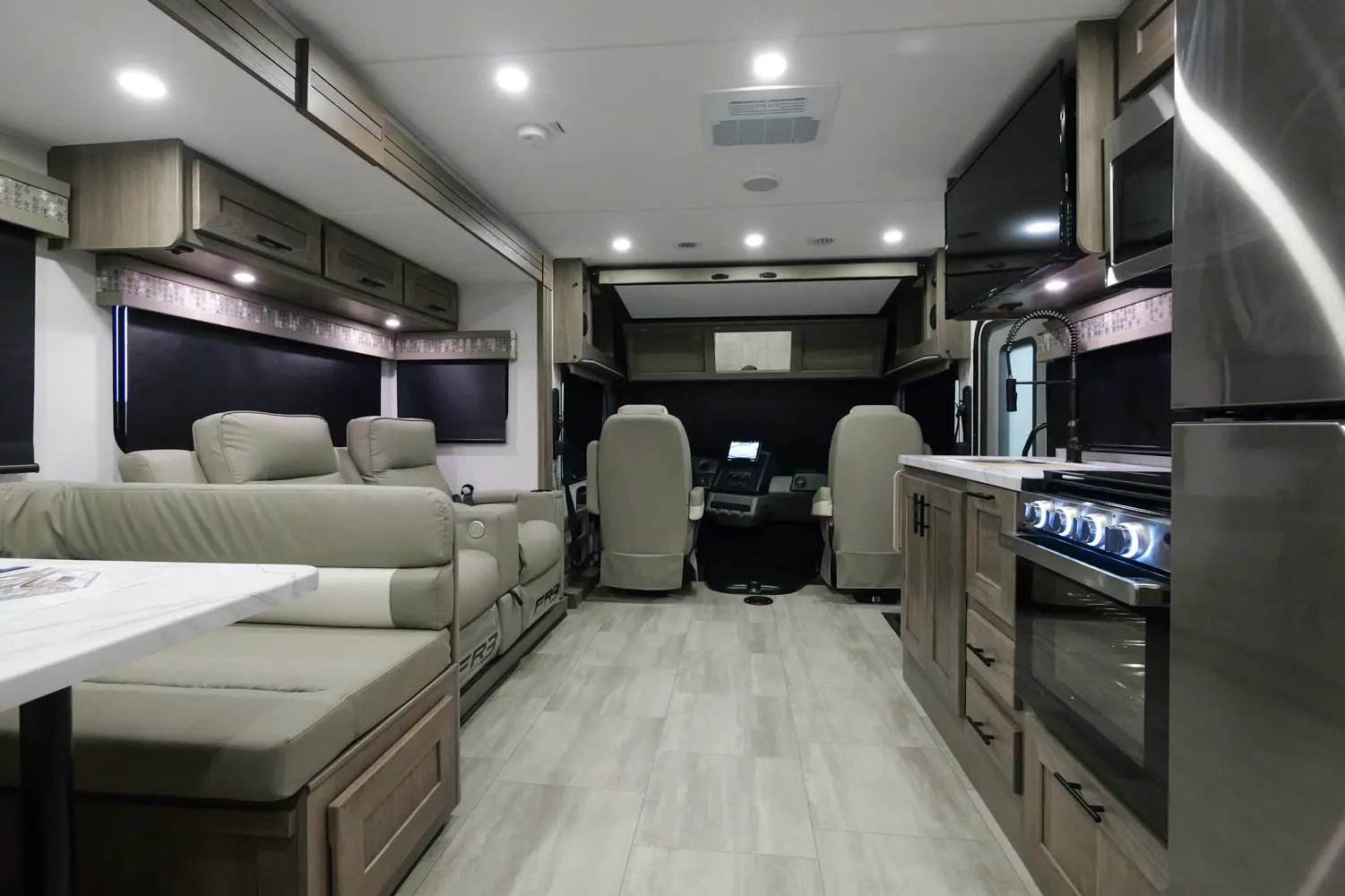

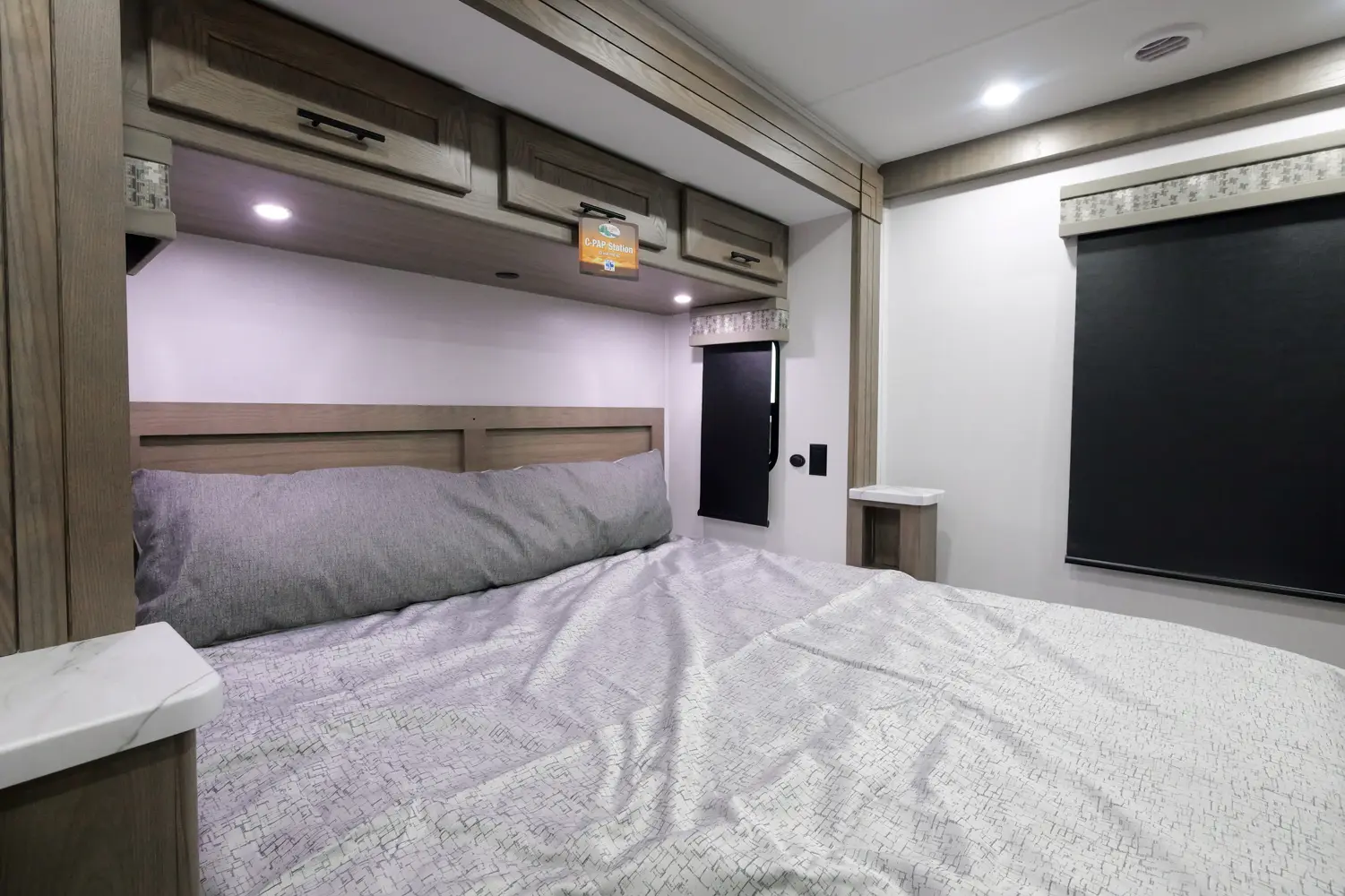

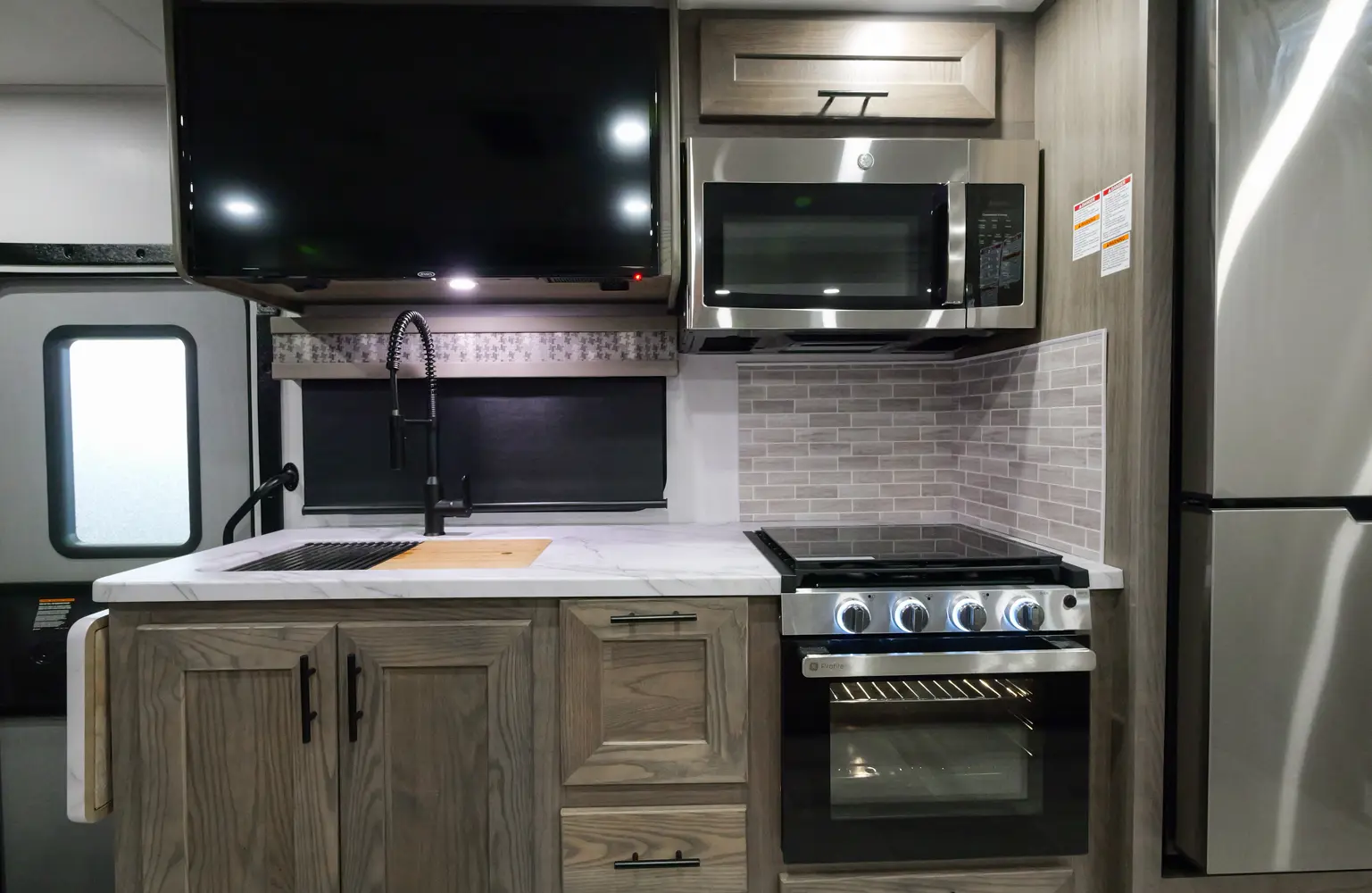

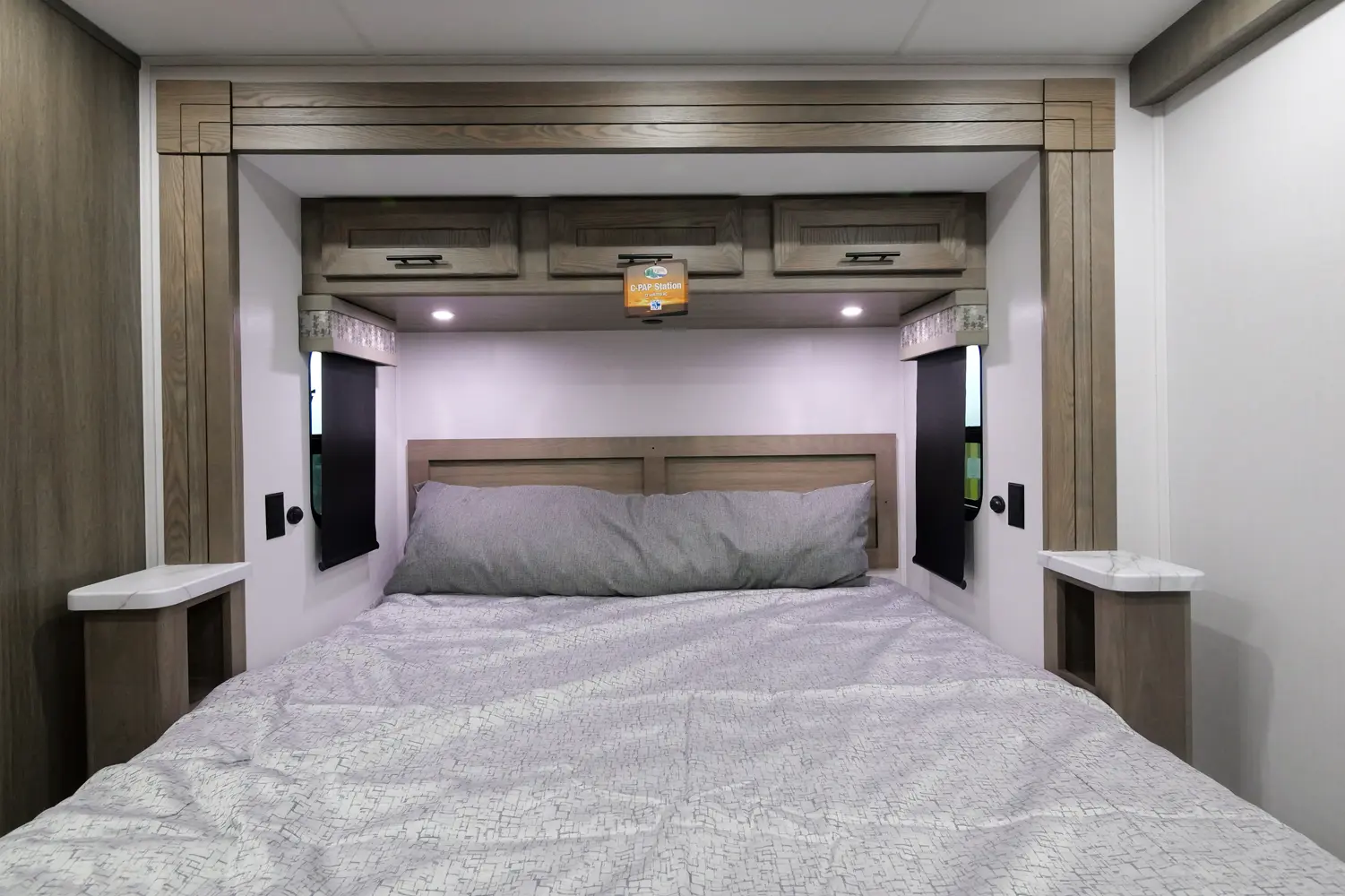

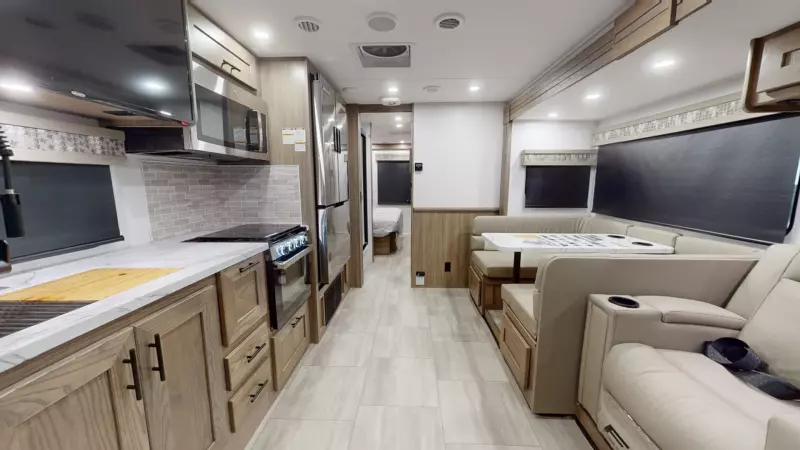

The 30DS has two slideouts and one entry. Exterior features a 16 foot awning, and outside entertainment center. Interior layout front to back: cockpit with secure overhead storage, bunk above, and table between the seats; 84" ceiling height; off-door side slideout with hide-a-bed sofa (optional theater seat), and wrap around booth dinette; door side entry, kitchen counter with extension, sink, overhead cabinet with 12V TV, residential microwave, cooktop, 12V 3-door refrigerator, and pantry; split full bathroom with off-door side toilet and sink, and door side shower; rear bedroom with door side king bed slideout with overhead cabinet, and nightstands with 110V outlet and USB port on each side, and off-door side wardrobe with 12V TV, and combo washer/dryer prep.

The FR3 30DS has everything you need to hit the road in comfort and style. Play a board game at the wrap-around booth dinette or relax on the hide-a-bed sofa. The kitchen comes equipped with a 12V 15 cu. ft. refrigerator, pantry, residential-style microwave, and two countertop extensions. Sleep like a king in the rear bedroom, which includes a king bed, TV, wardrobe, and washer/dryer prep. The split bathroom allows someone to take a shower while another freshens up in the sink and toilet room.

Wheelbase: 228"
GVWR: 20,500 lb.
GCWR: 26,000 lb.
GAWR Front: 7,000 lb.
GAWR Rear: 13,500 lb.
Fuel Capacity: 80 gal.
LP Tank Capacity: 103 lb.
Exterior Length: 31' 11"
Exterior Height: 12' 5"
Exterior Width: 101"
Interior Height: 82"
Fresh Water: 52 gal.
Gray Water: 42 gal.
Black Water: 42 gal.
Awning Size: 16'

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.
