2024 Cherokee Grey Wolf 27RR Floorplan

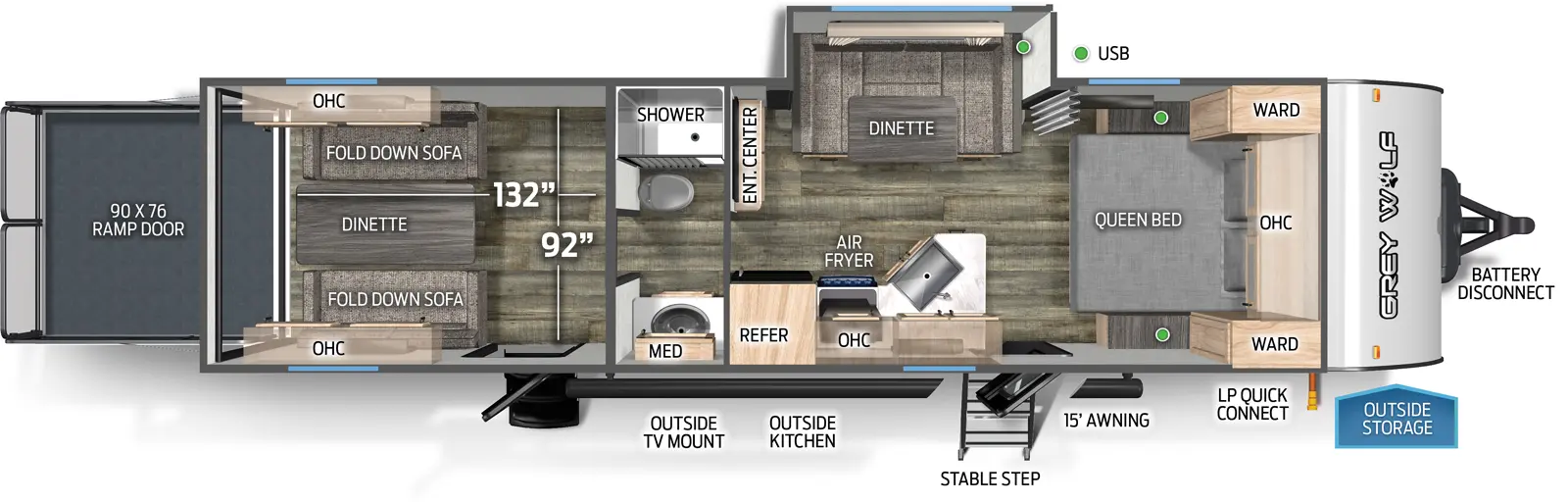

The 27RR has one slide out, a rear ramp door, and two entry doors. Exterior features include an outside TV mount, outside kitchen, front stable step entry, 15 foot awning, LP quick connect, outside storage, and battery disconnect. Interior layout front to back: queen bed with overhead cabinet and wardrobes on each side; off-door side dinette slideout; door side entry, peninsula kitchen countertop with sink wraps to door side with overhead cabinet, air fryer, and refrigerator; entertainment center along inner wall; split full bathroom with shower and toilet on off-door side, and sink with medicine cabinet on door side; rear cargo area with second entry door, and opposing wall fold down sofas with overhead cabinets, and dinette table. Cargo area measurements: 132 inches from the rear of the trailer to the bathroom wall; 92 inches from the off-door side wall to the door side wall; 90 inch by 76 inch rear ramp door.

The private 11’ garage includes a dinette that converts into 2 twin beds. Outside amenities include a full outside kitchen plus shower, speakers, TV hook up and rear ramp converting into a patio for entertaining. Inside features a dinette slide out and includes a large skylight and chef’s kitchen with black stainless steel farm sink and sink cover for additional counter space. The bedroom has a queen bed and nearby bathroom includes a full size sink, medicine cabinet and shower/tub combination.

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
