2024 Ibex 19MBH Floorplan - Forest River RV

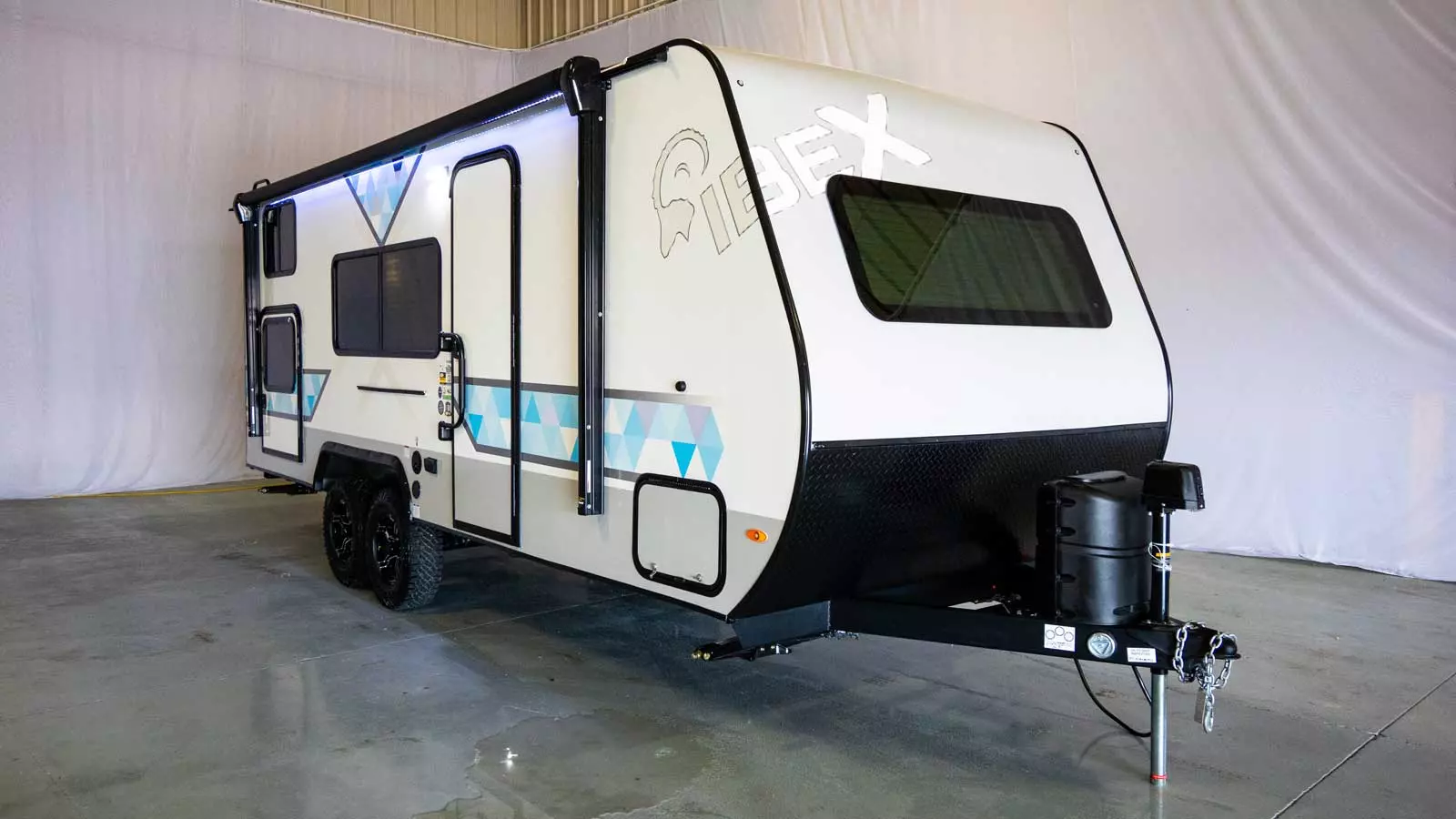

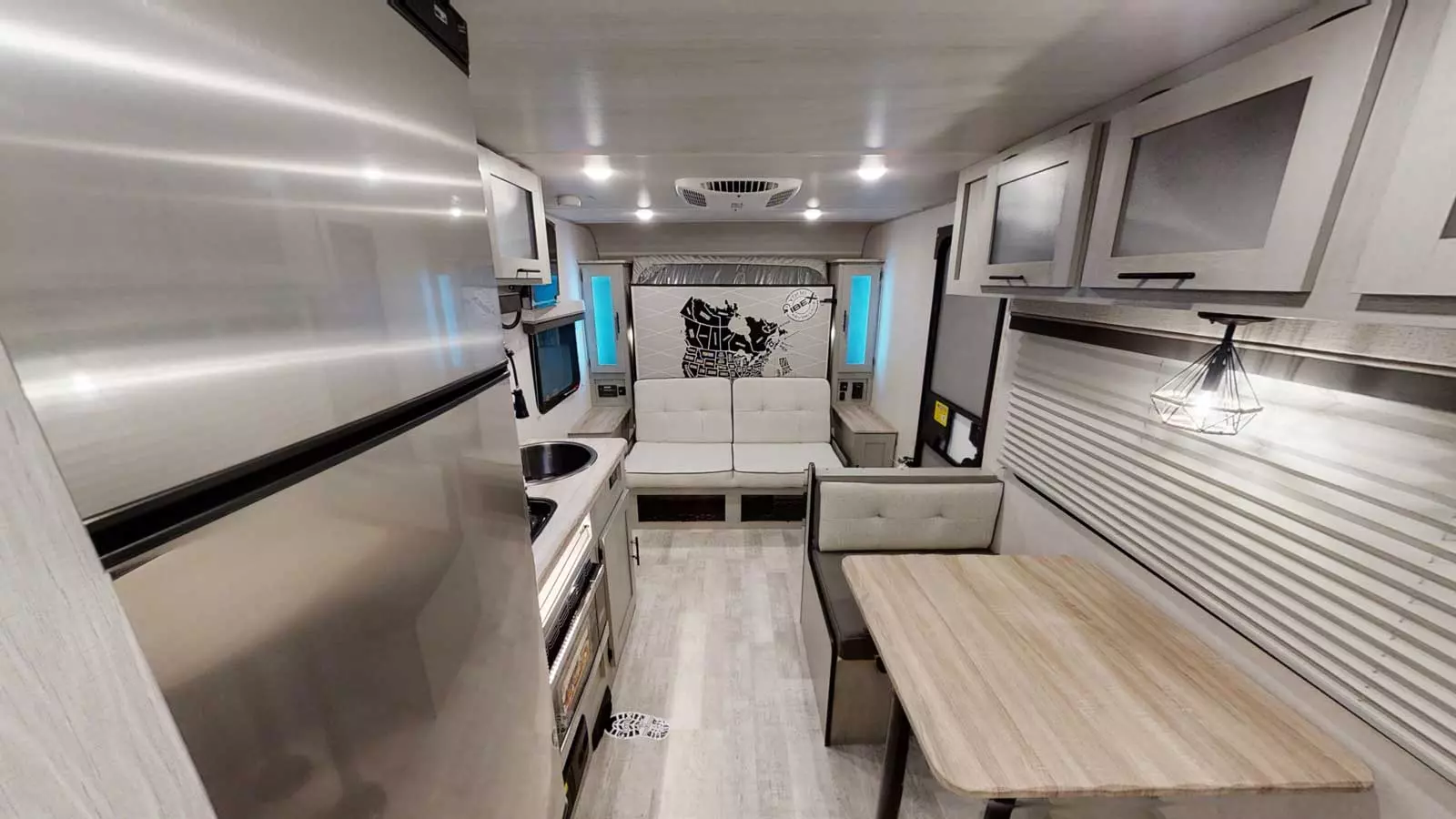

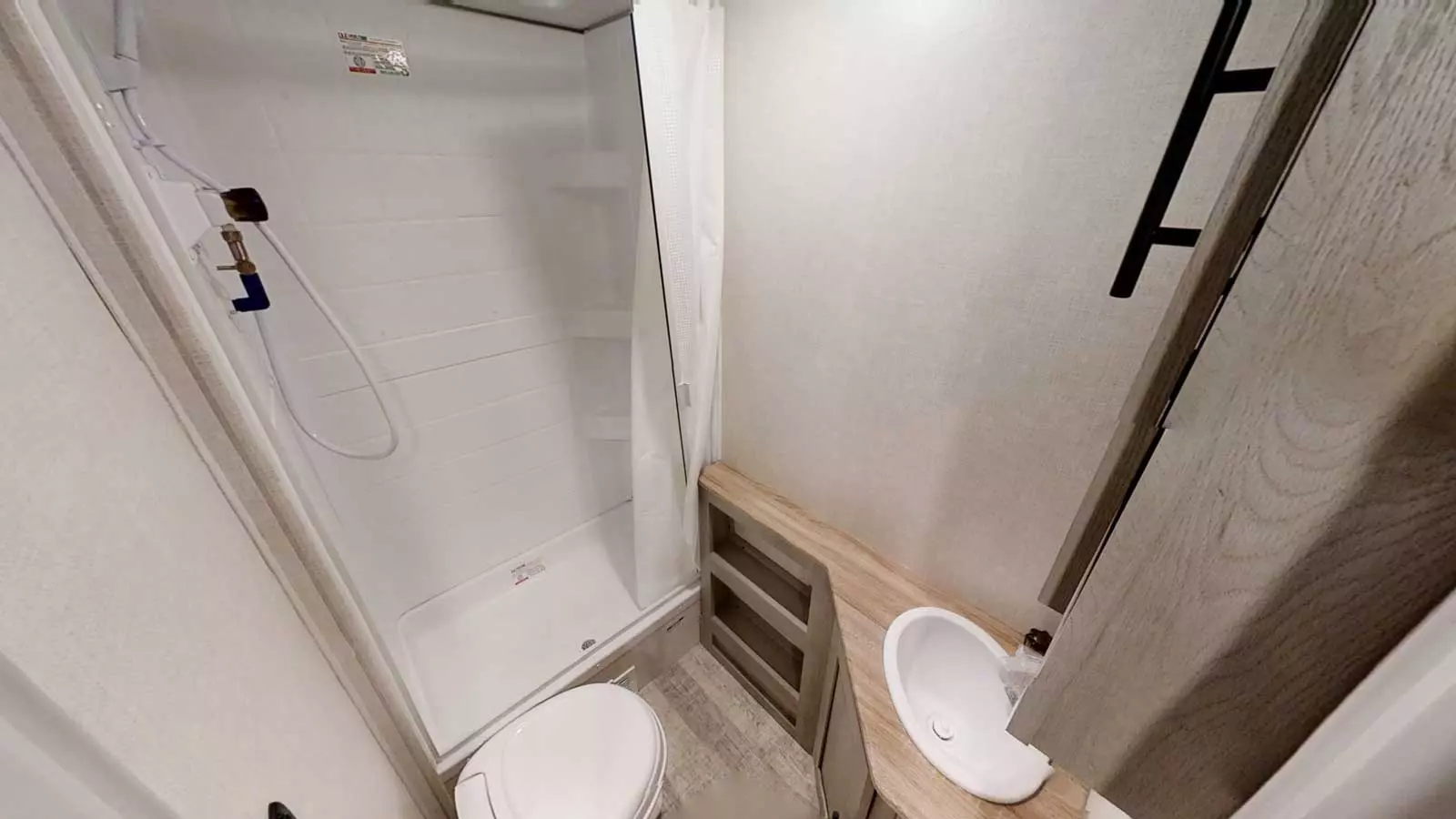

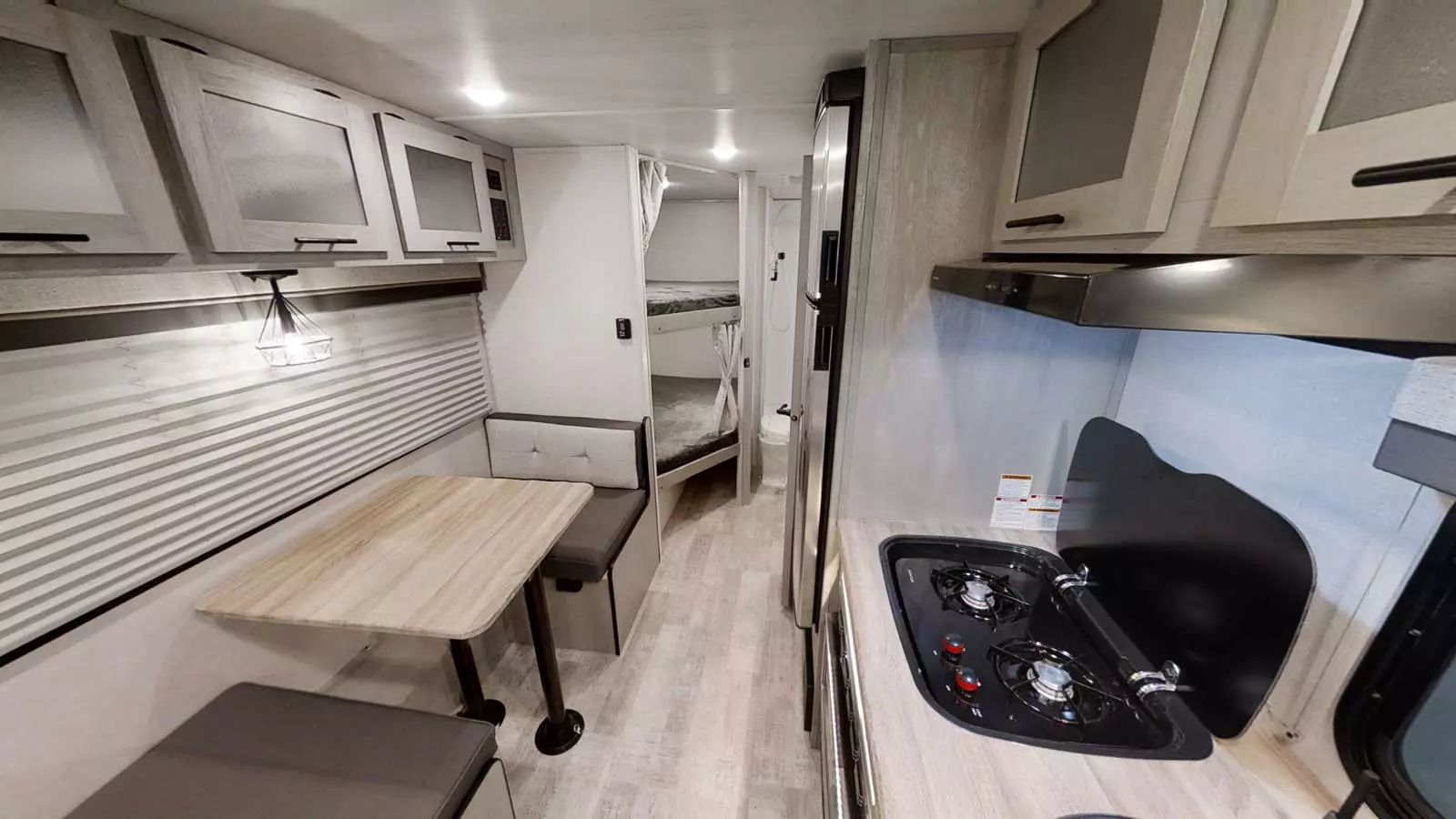

The 19MBH is a dual axle floorplan that is 24 feet 4 inches in total length and has no slide outs. On the outside, the camp side will feature an optional outside cooking area with a prep table, griddle cooktop, and spray hose and nozzle, which are all neatly covered by a 16 foot long power awning. You will also find a full pass through storage that is accessible from both sides, a rear ladder, and a black tank flush. On the inside, a full queen sized murphy bed is large and comfortable for sleeping at night, and easily folds up to expose a couch for extra seating during the day. A 2 person dinette sits across from the kitchen area that features a convection microwave, deep stainless steel sink, a large refrigerator, and a 2 burner stove top. In the rear of the inside, 2 large double bunks allow for additional sleeping areas, as well as a full bathroom.

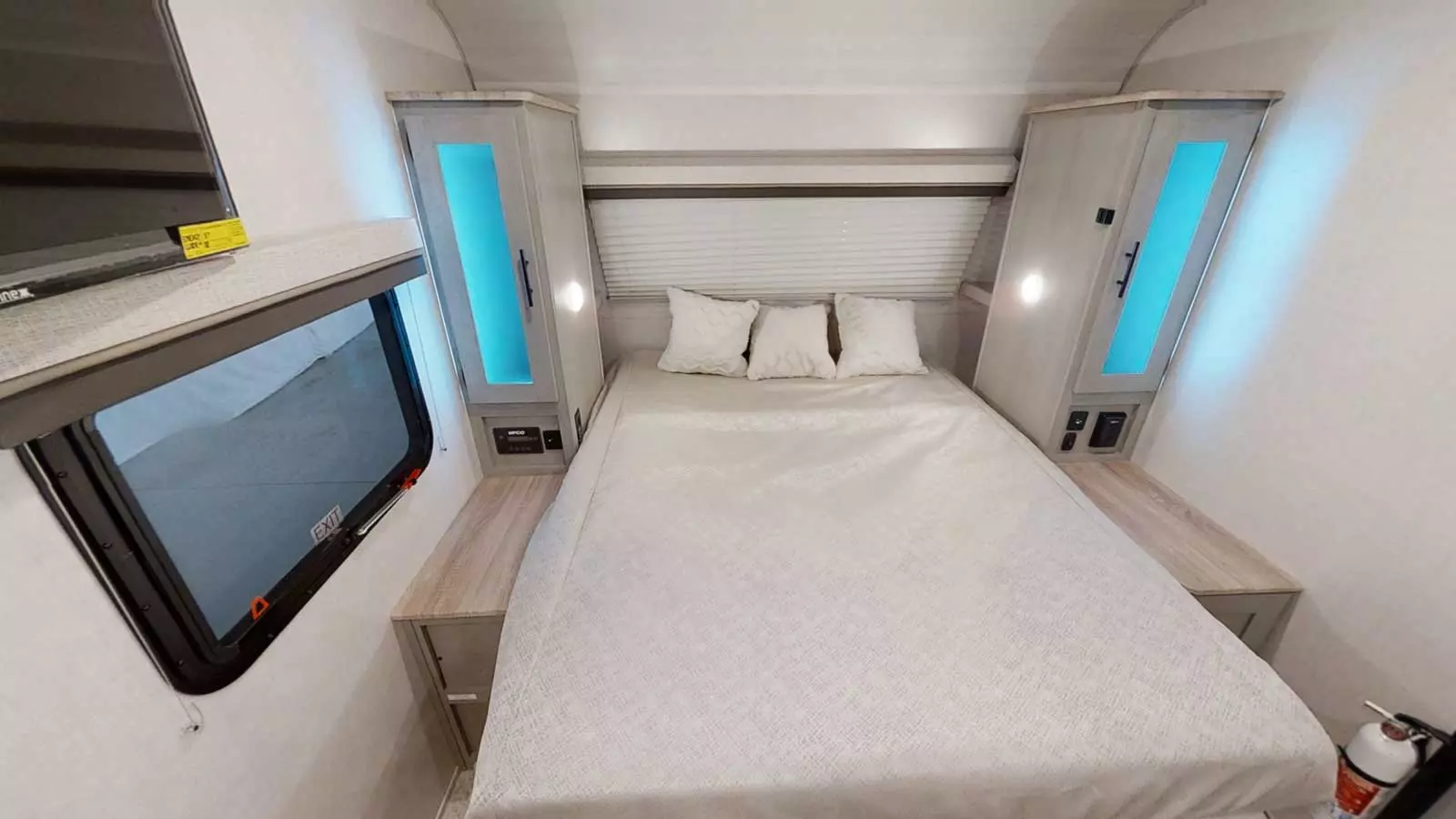

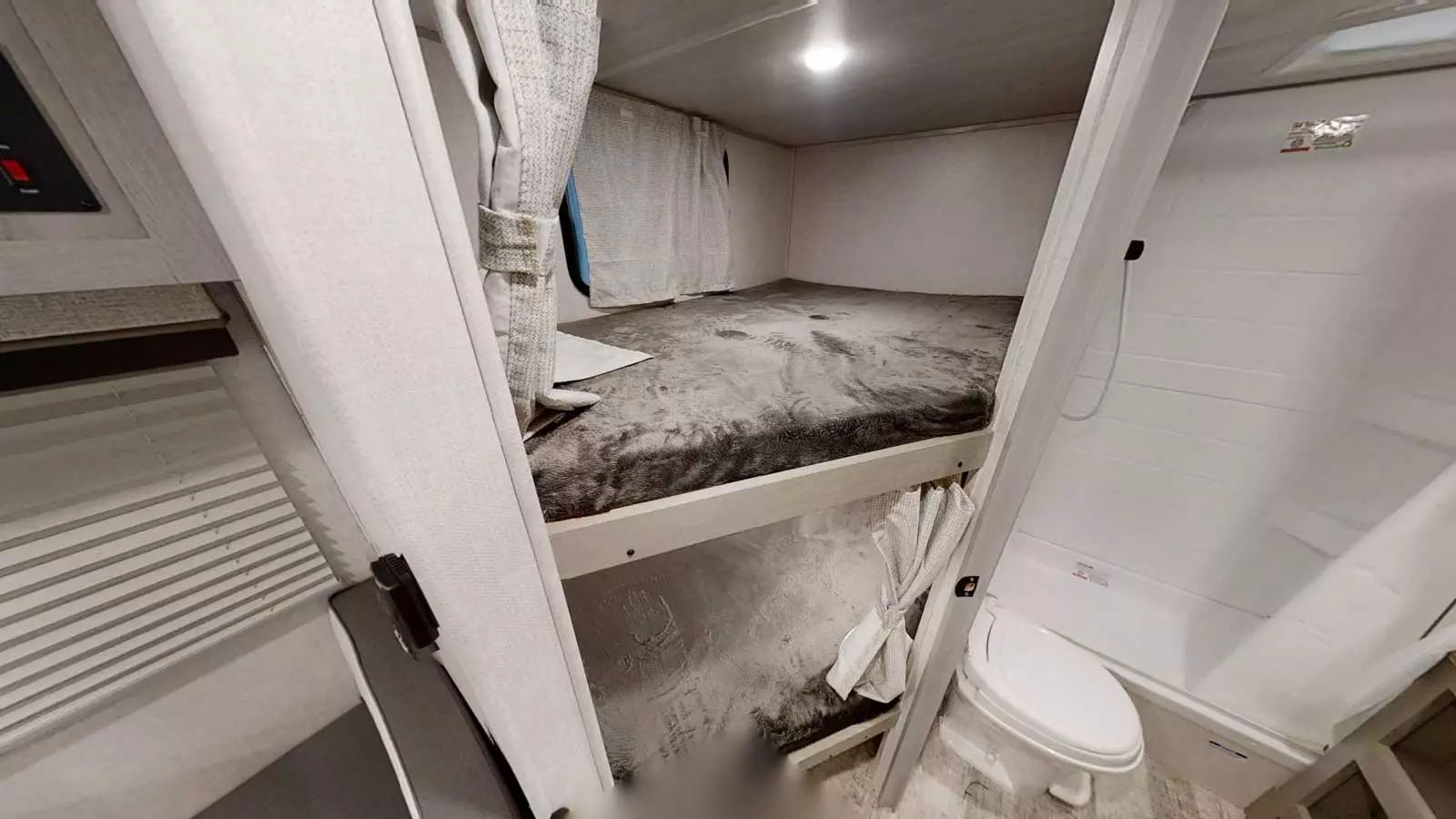

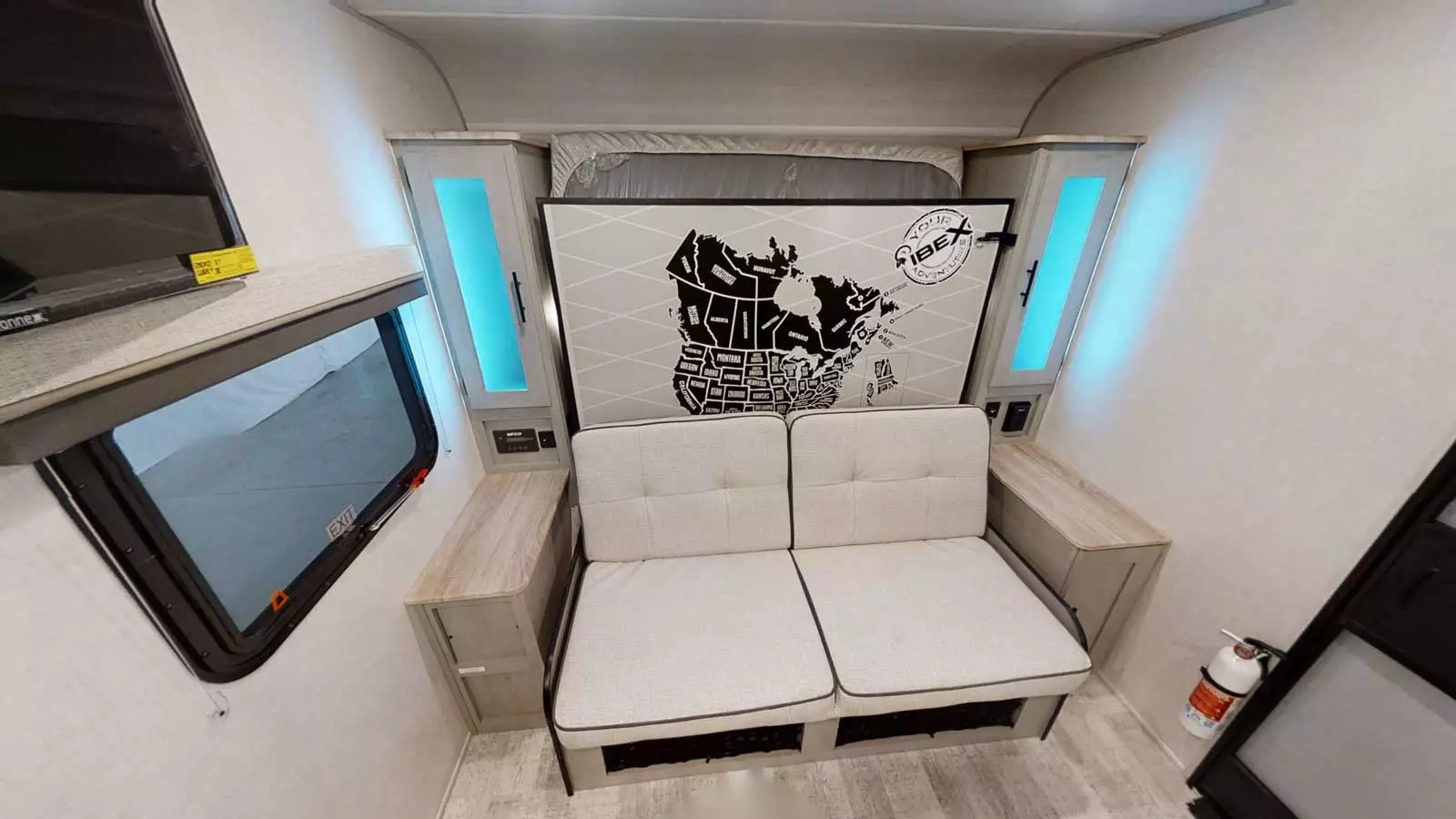

With sleeping for up to 5, the 19MBH is equipped to take the whole family. This simple-to-use, no-slide model is equipped with a full residential queen bed up front, and full size 44”x74” bunks in the back. The bottom bunk also folds up, and from the outside compartment door, larger items can be stored and accessed easily. After waking up, the murphy queen bed up front folds up easily to expose a couch, which coupled with the dinette gives ample seating area for both eating and entertaining.

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
