2024 Ibex 23RLDS Floorplan - Forest River RV

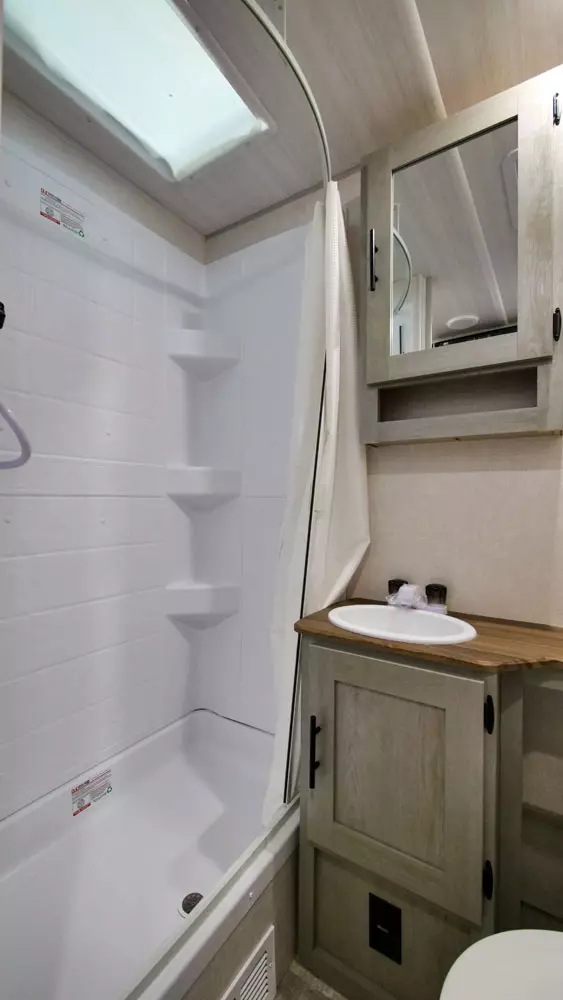

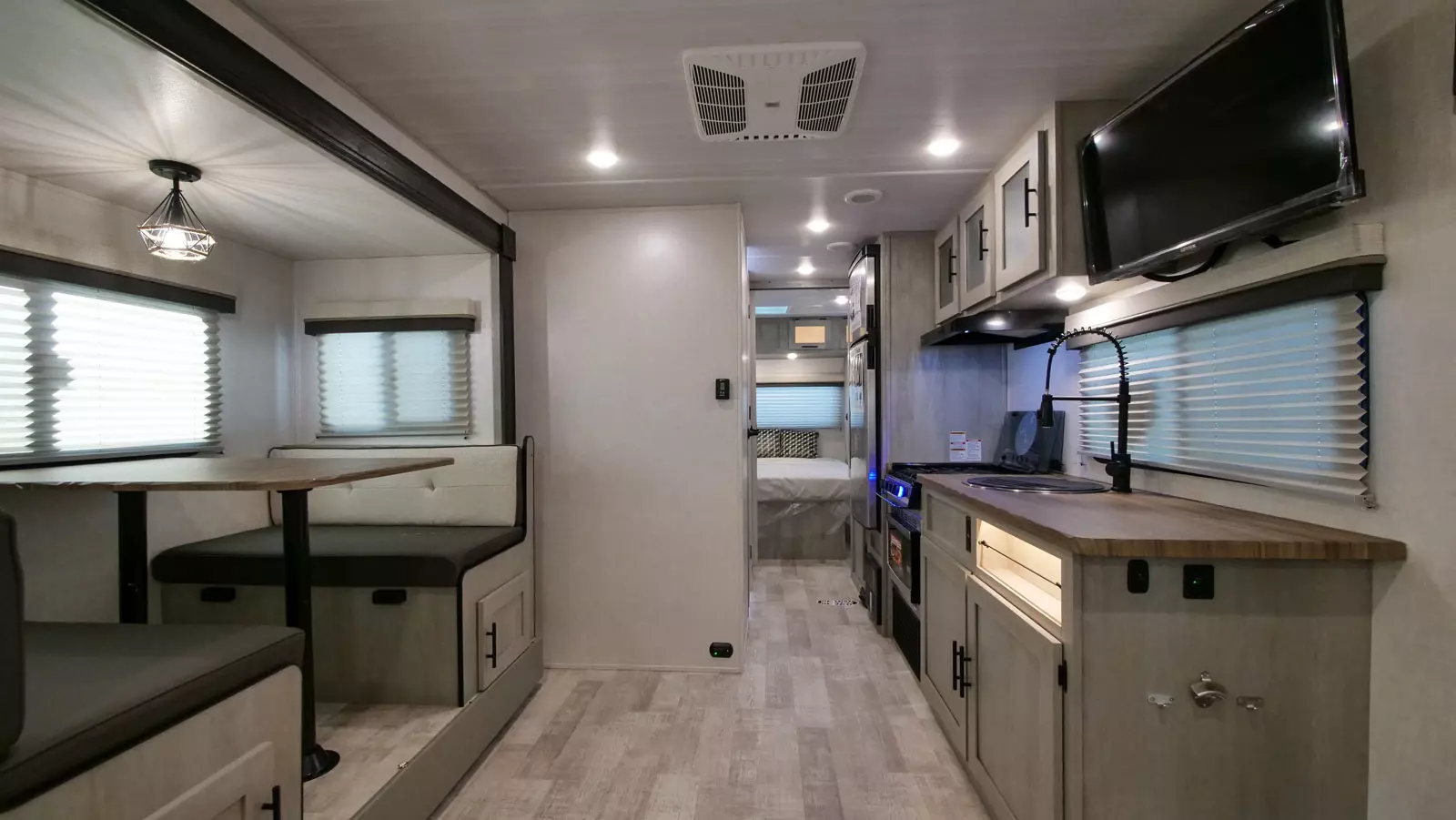

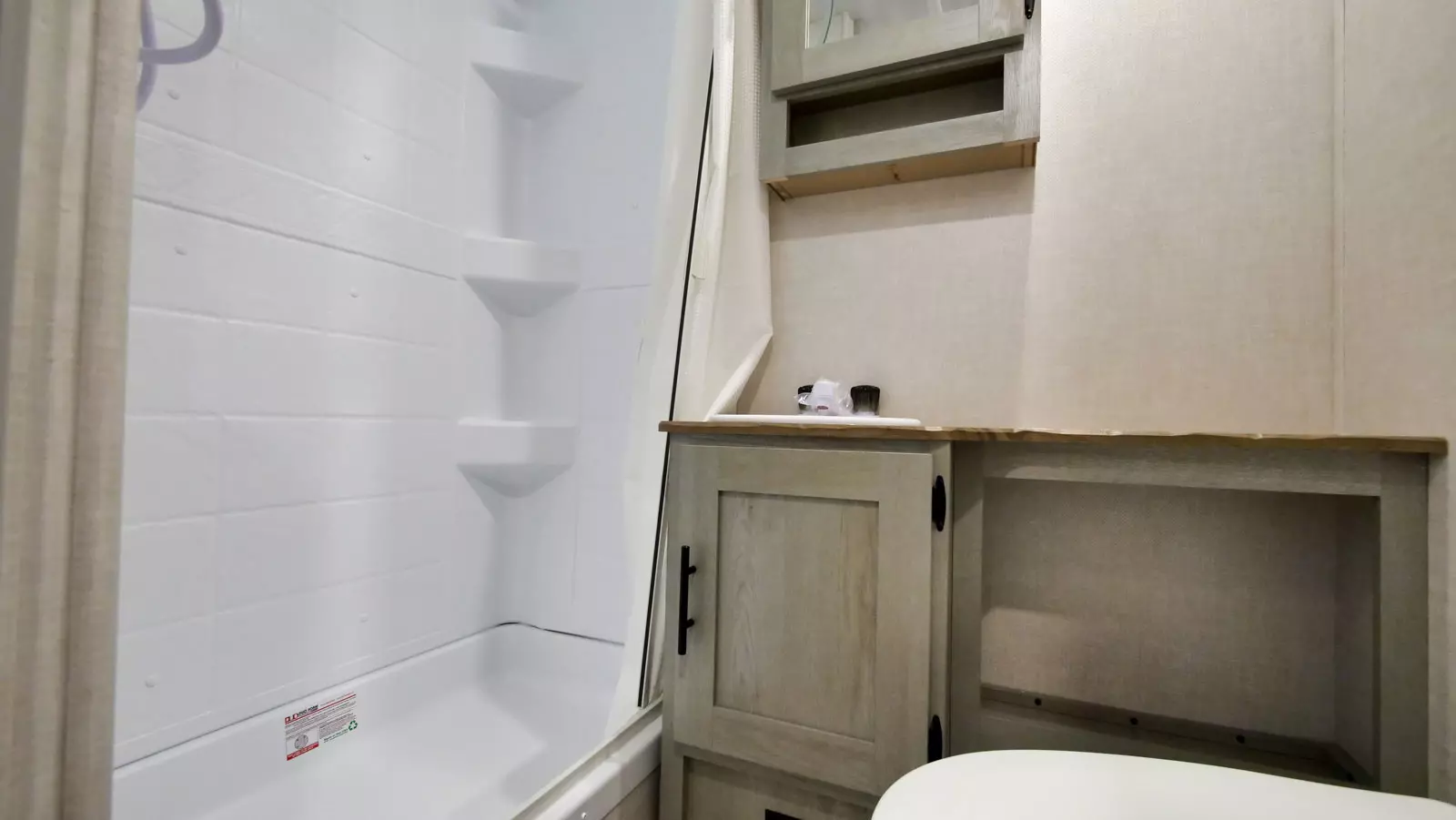

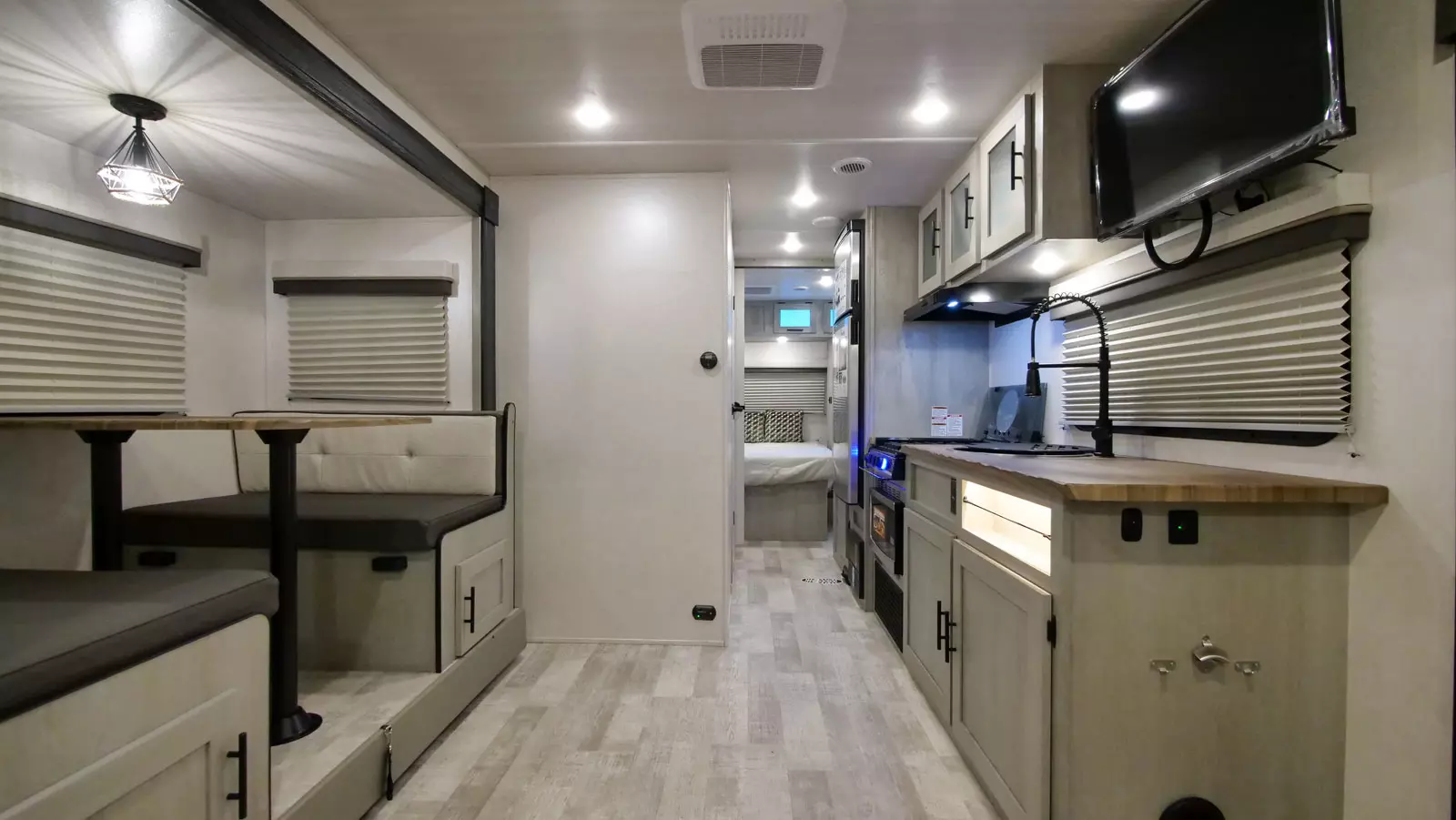

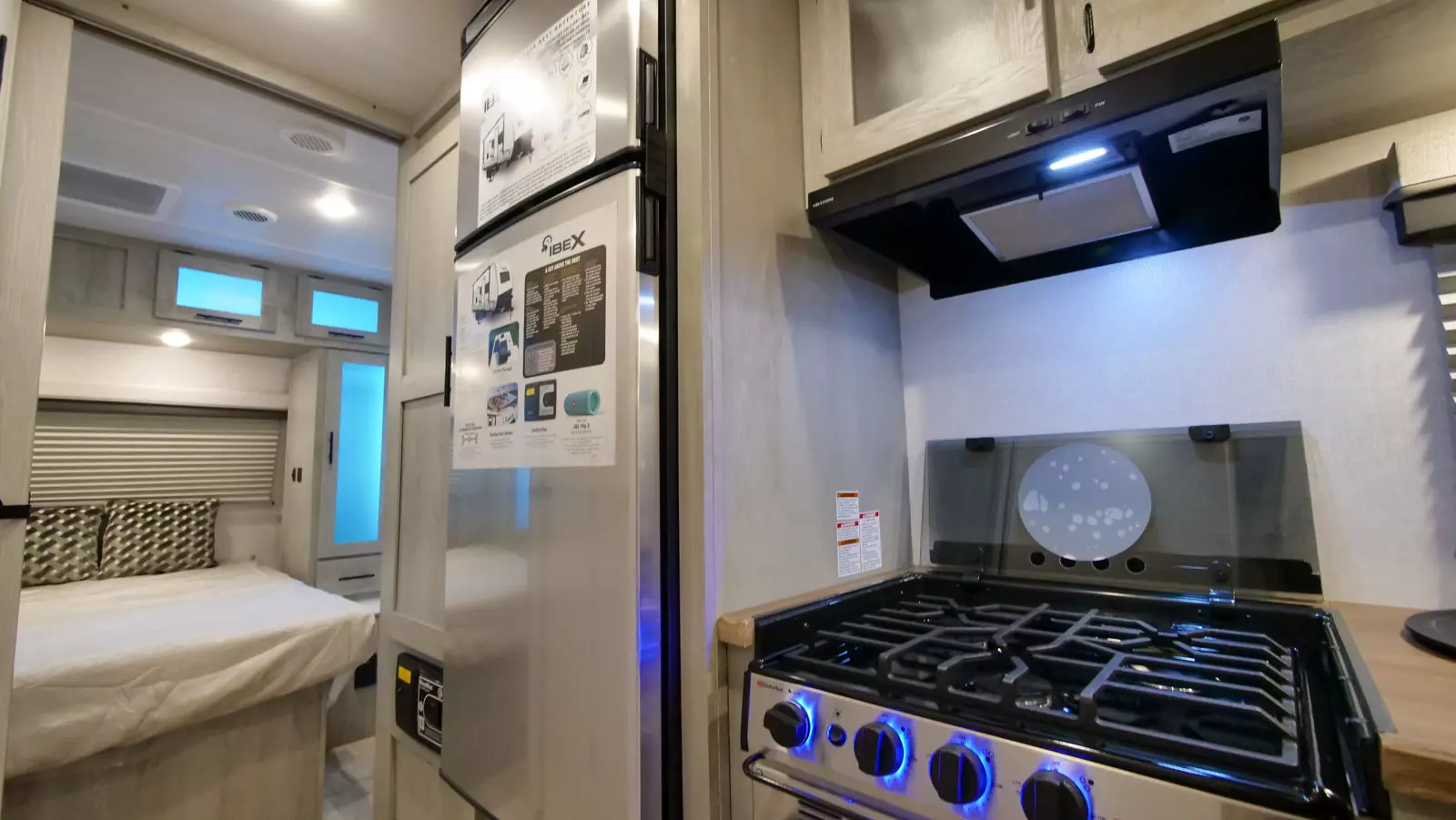

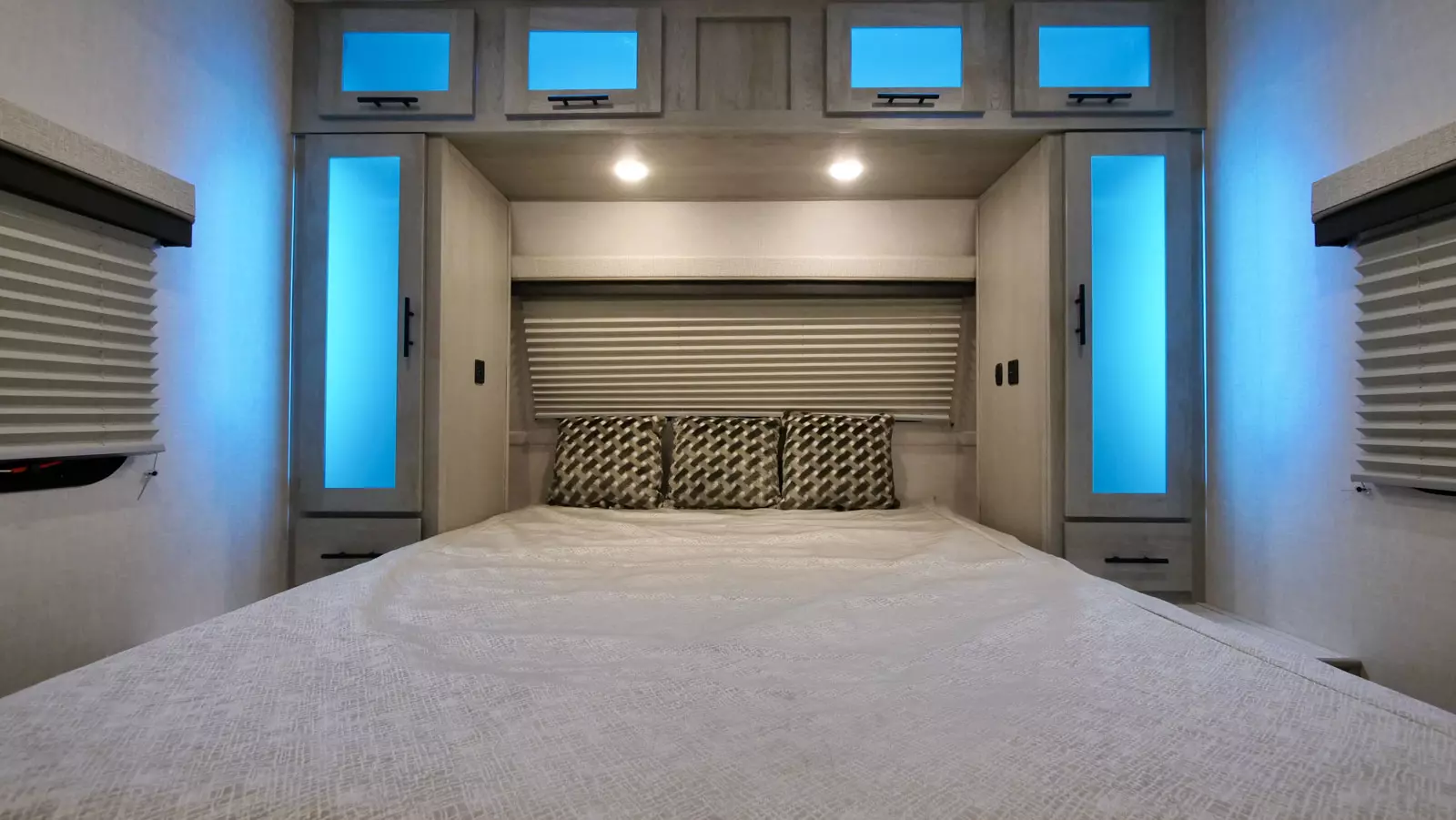

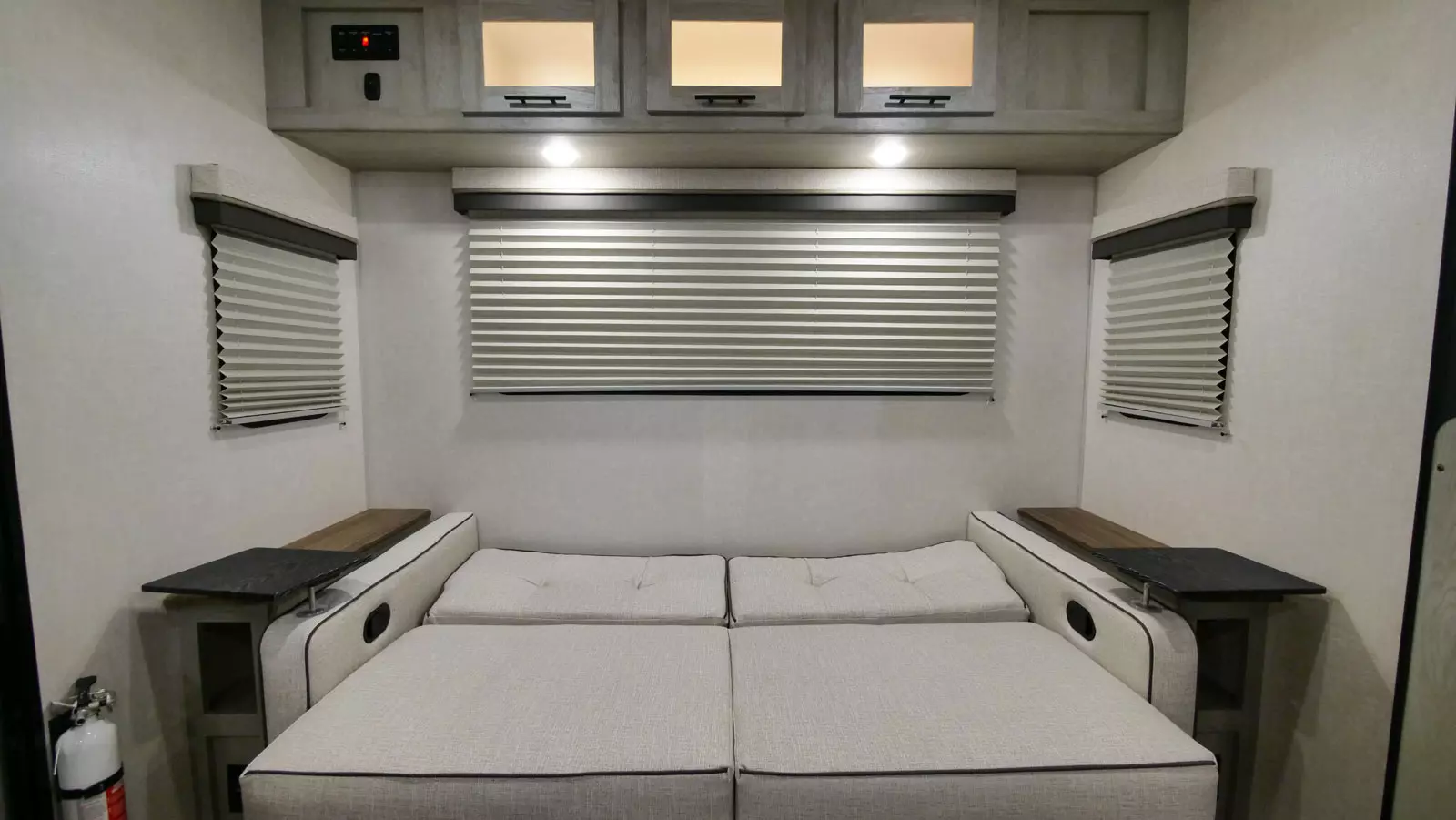

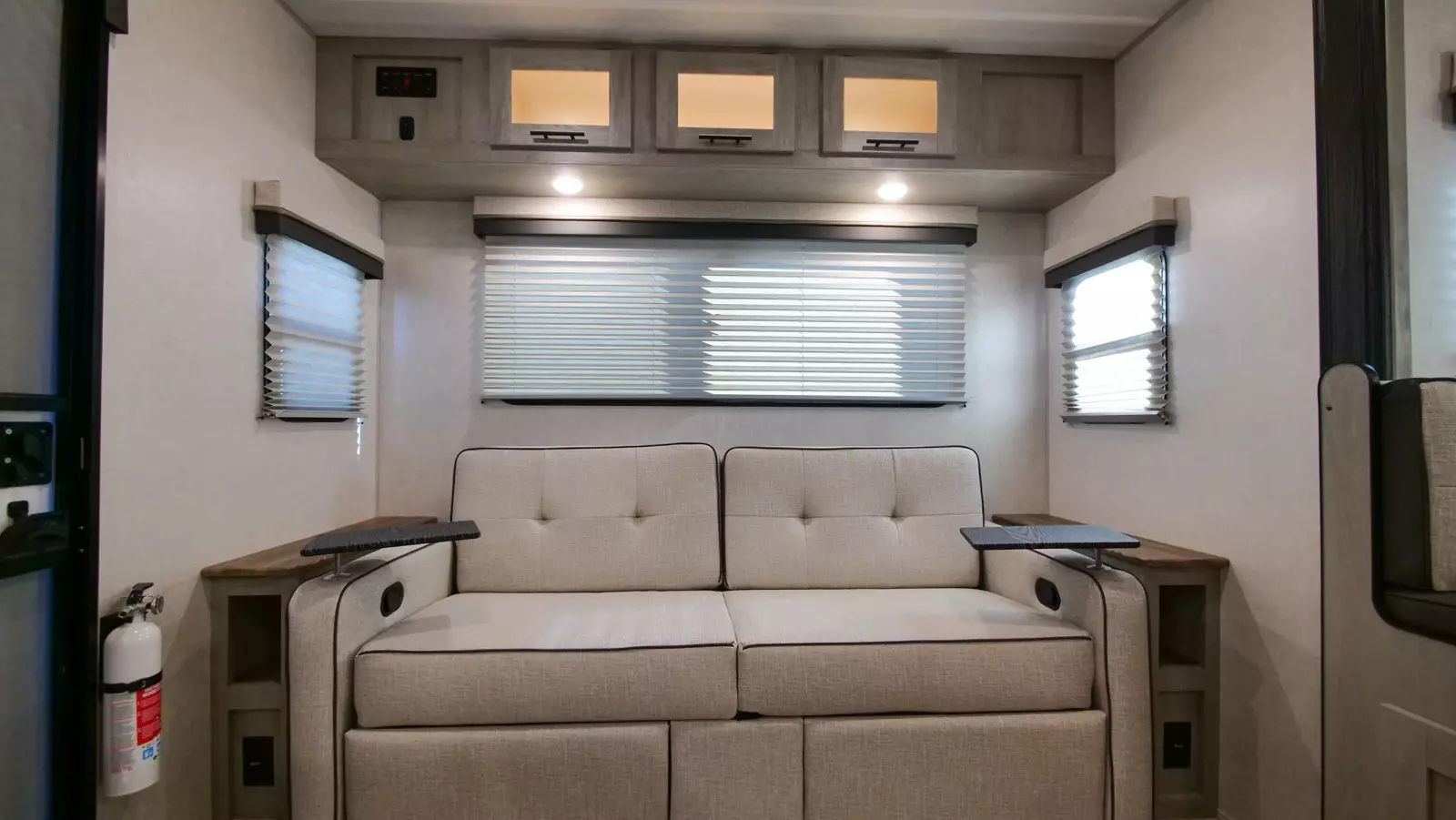

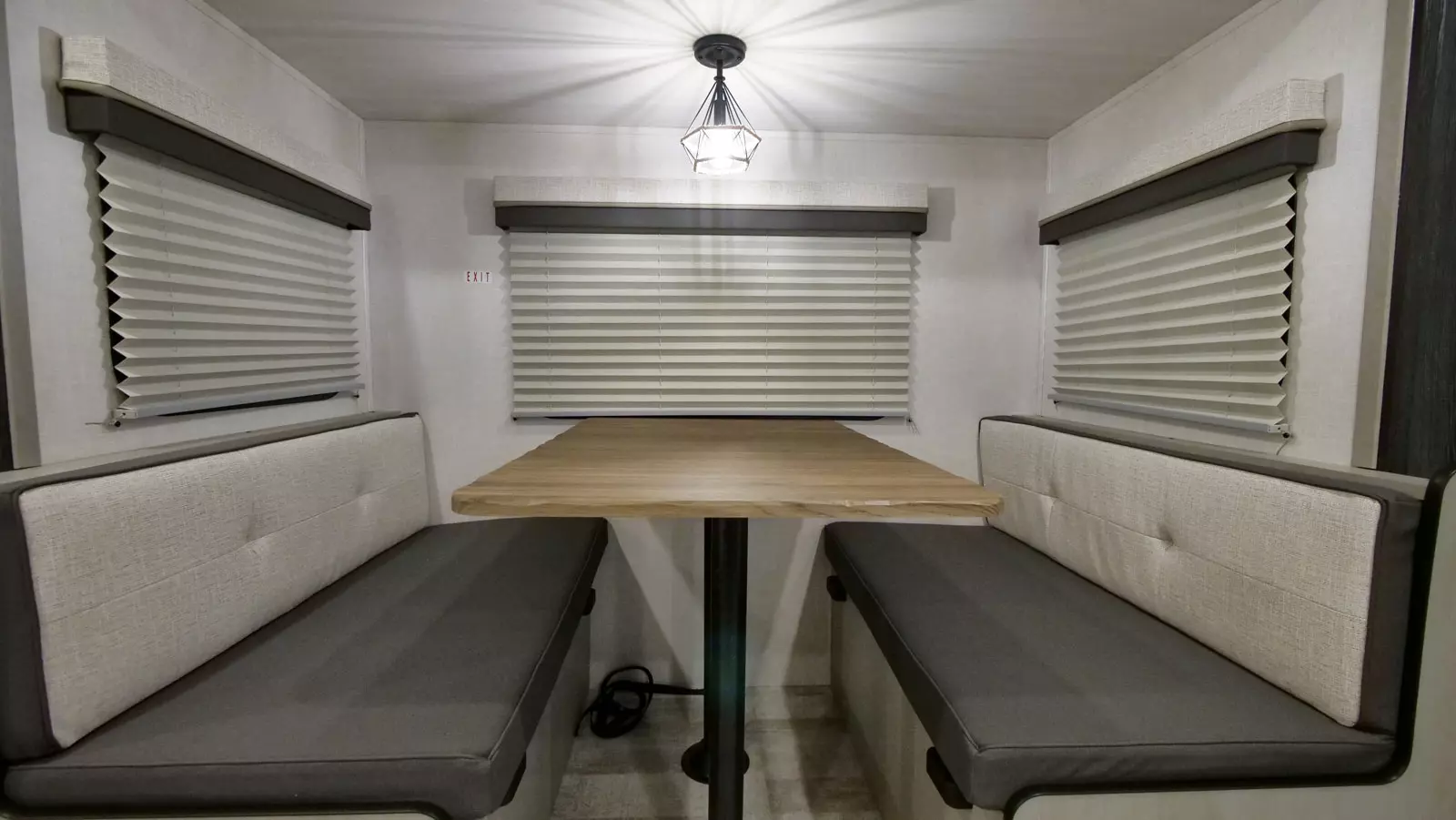

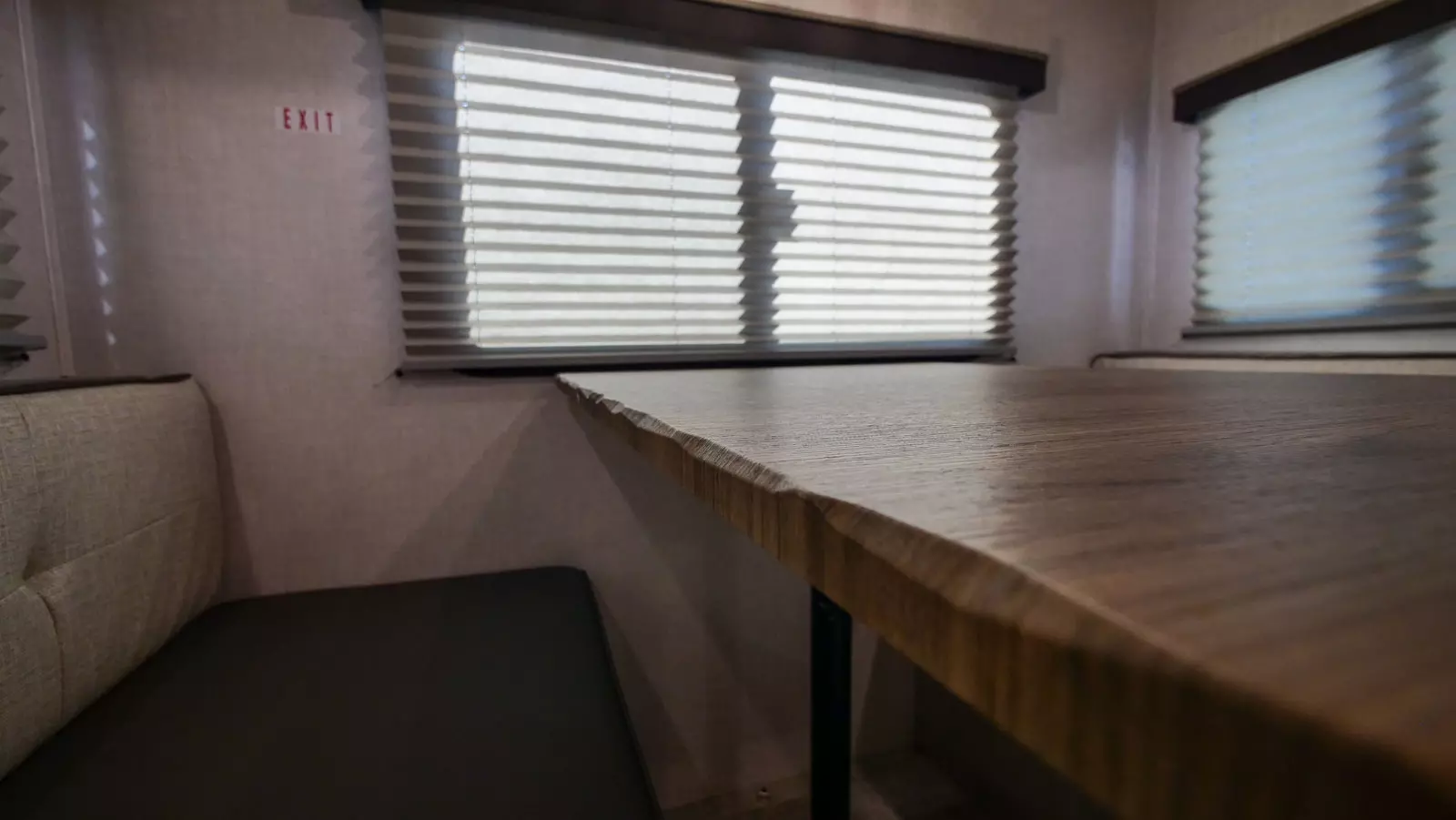

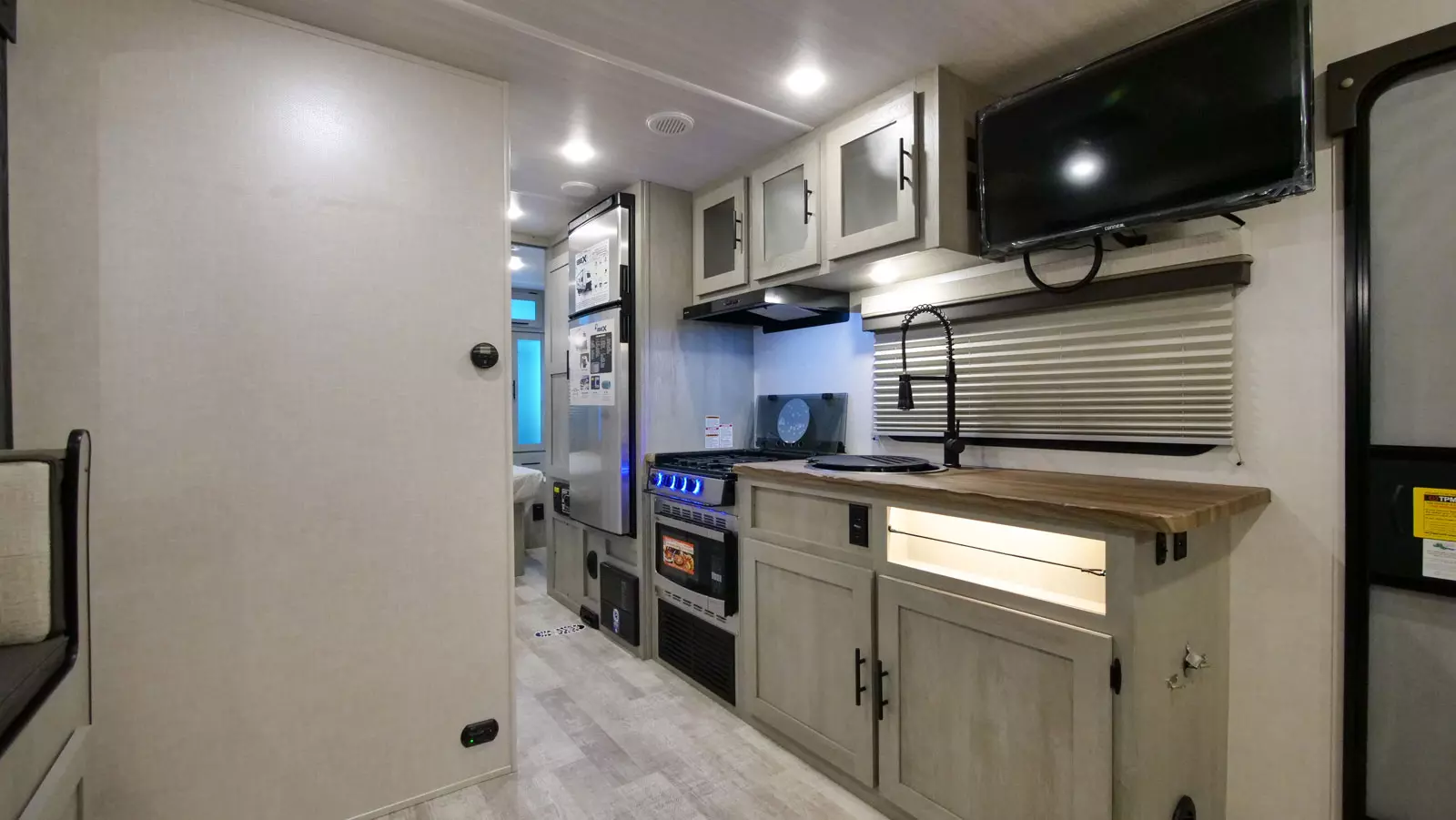

The 23RLDS floorplan is a 27 foot 6 inch total length floorplan that is highlighted by a spacious rear living area. The very rear of the floorplan has a sofa that folds down for more sleeping. On the off-camp side a 4 person dinette is in a slide out that opens up to reveal a very open and spacious floorplan. The camp-side offers a full kitchen with a convection microwave, deep stainless steel sink, and 3 burner cook top, to go along with a large refrigerator and pantry for food storage. A large side aisle bathroom if on the off camp side and offers a comfortable space for a travel trailer of its size. The front bedroom area is closed off from the rear with a convenient pocket door. The bed is a walk around residential sized queen with clothing storage on both sides. The outside is highlighted by a 16 foot power awning that covers the optional bush kitchen outside cooking package.

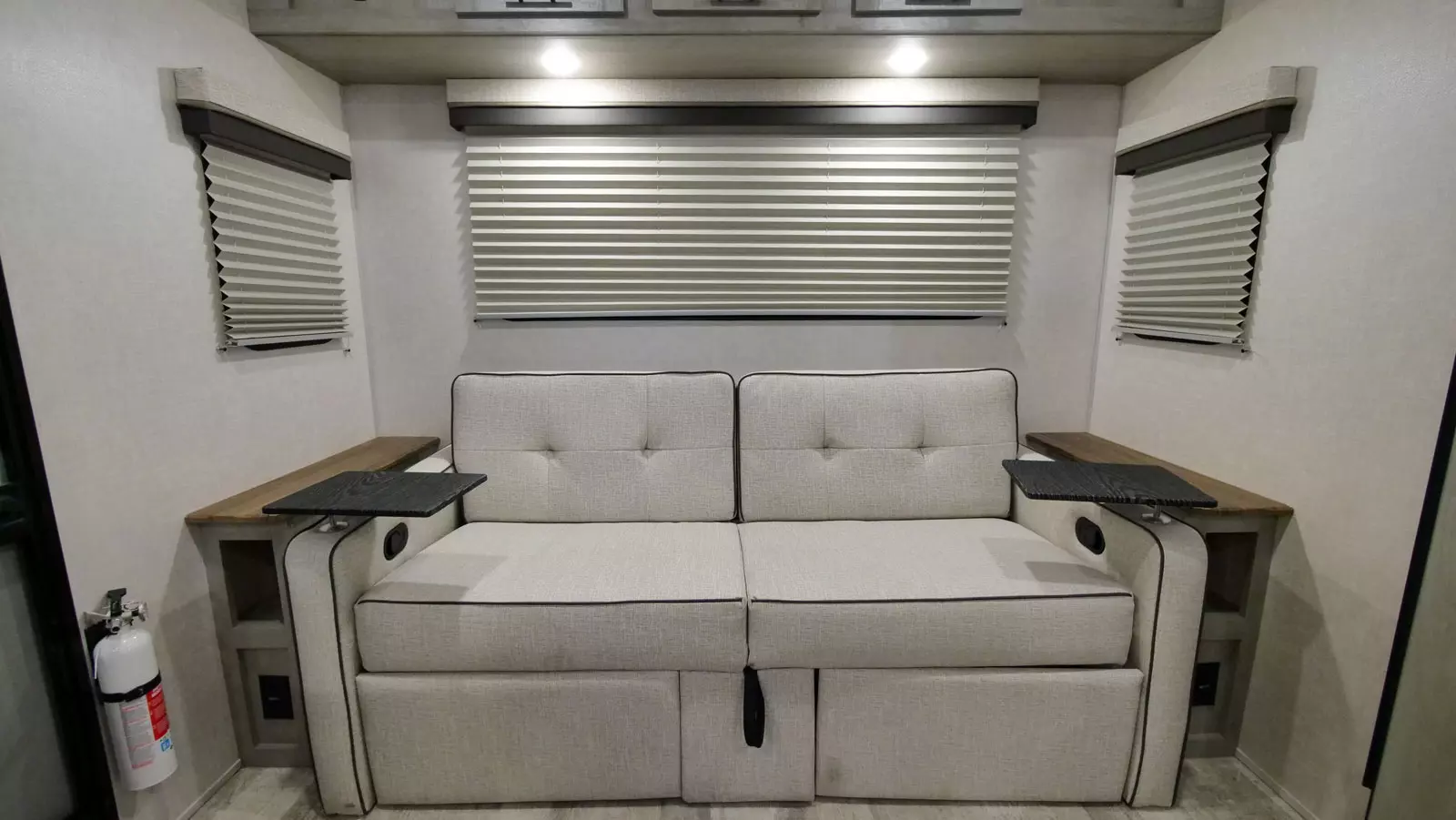

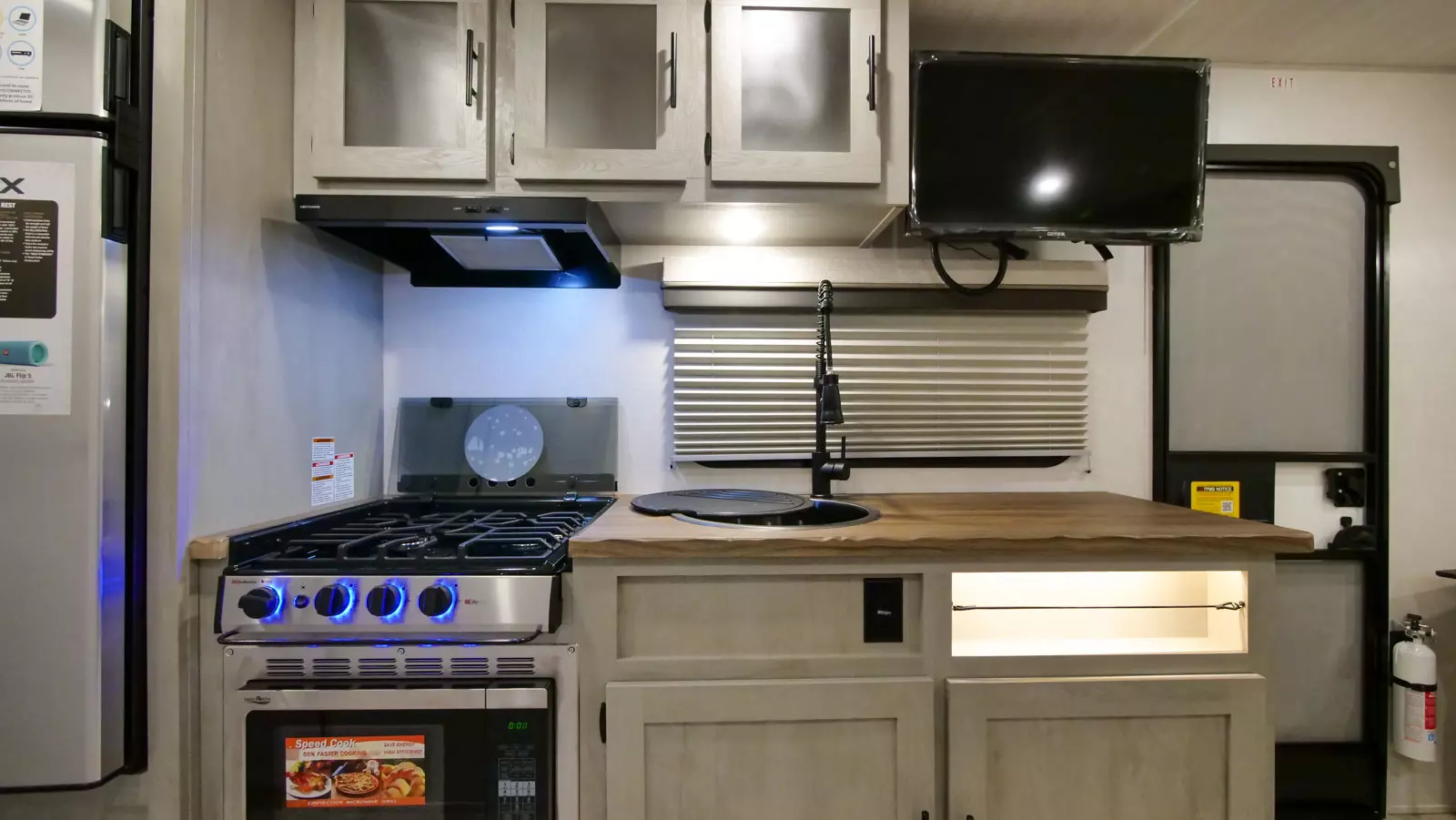

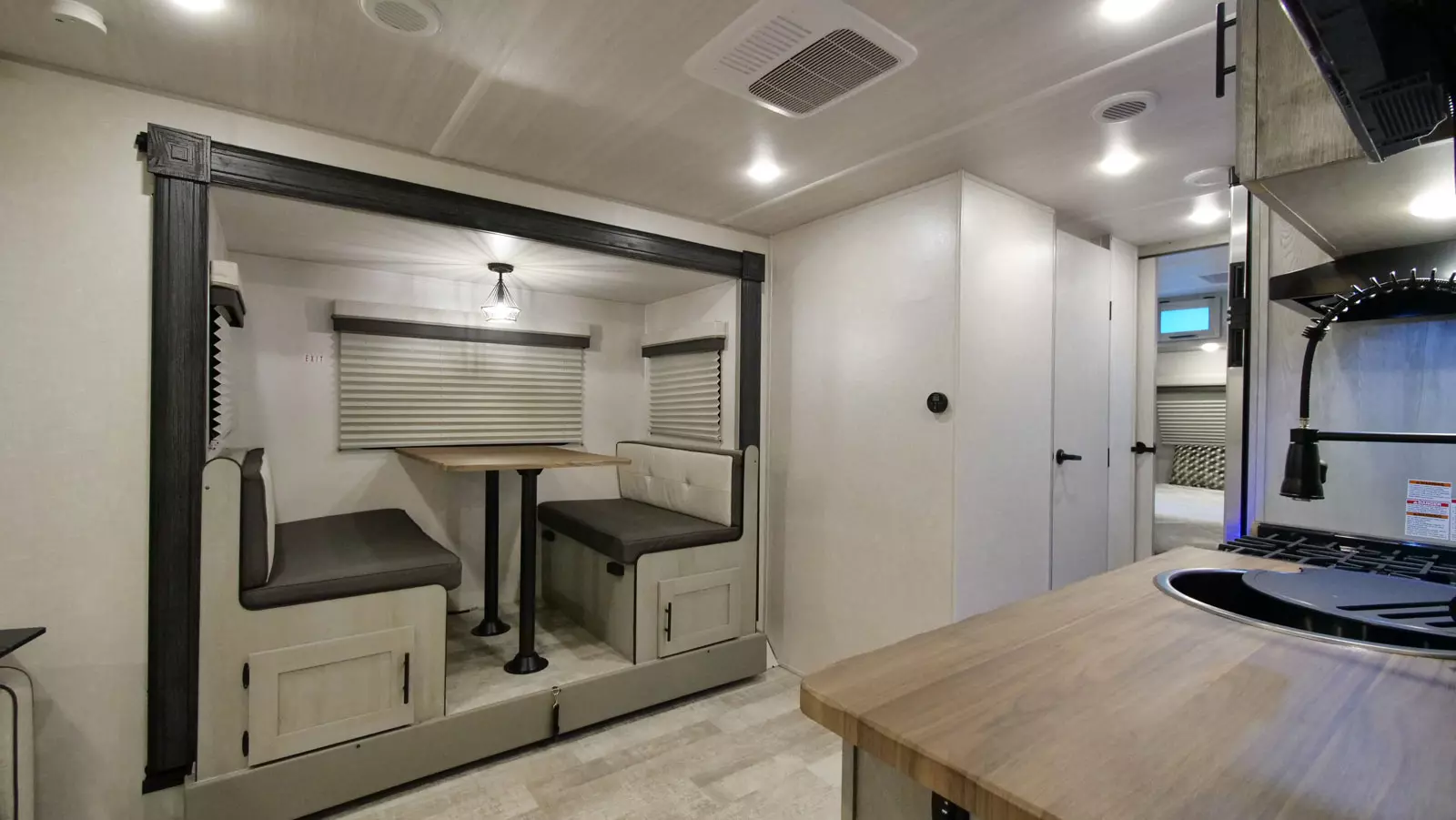

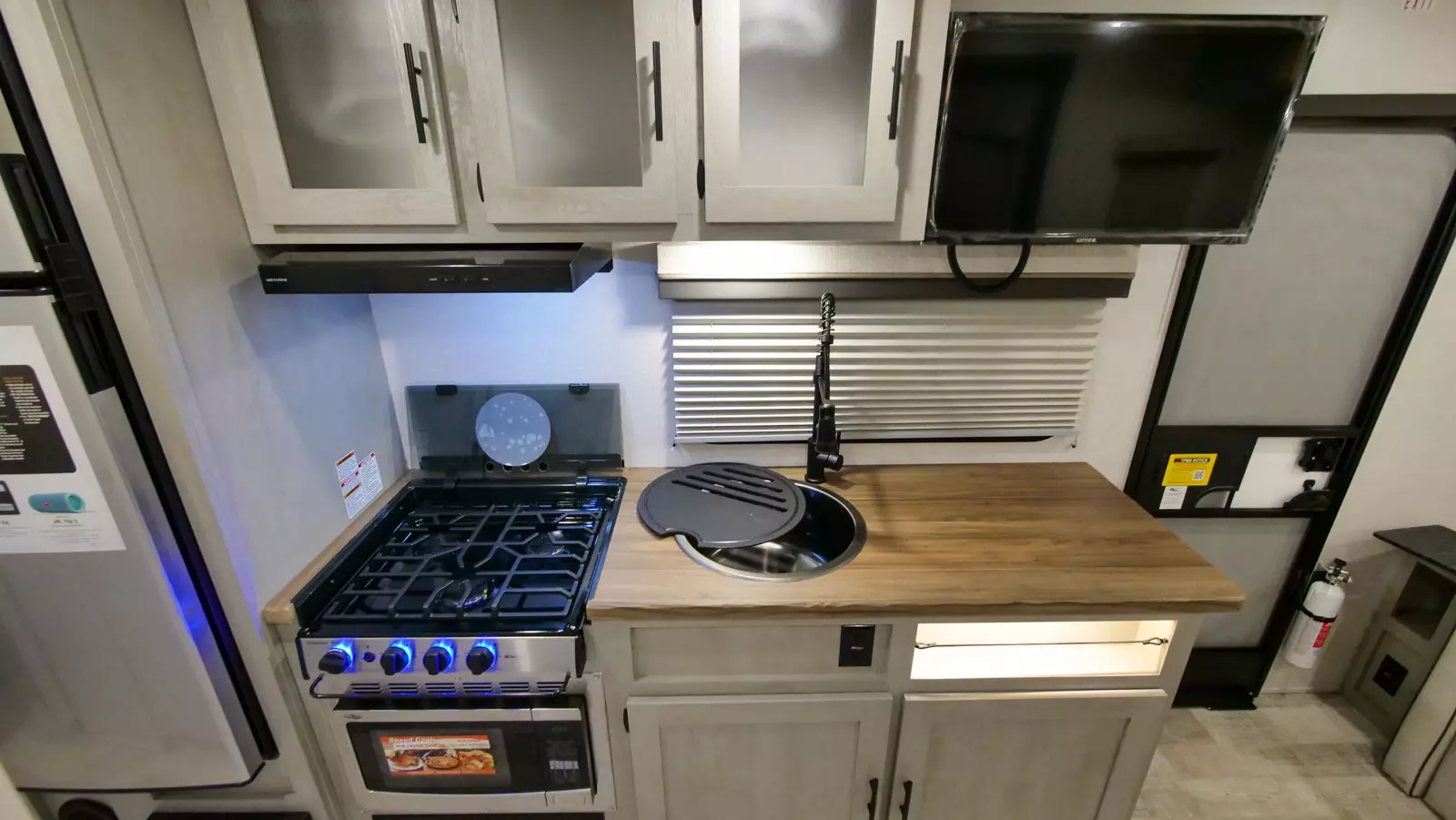

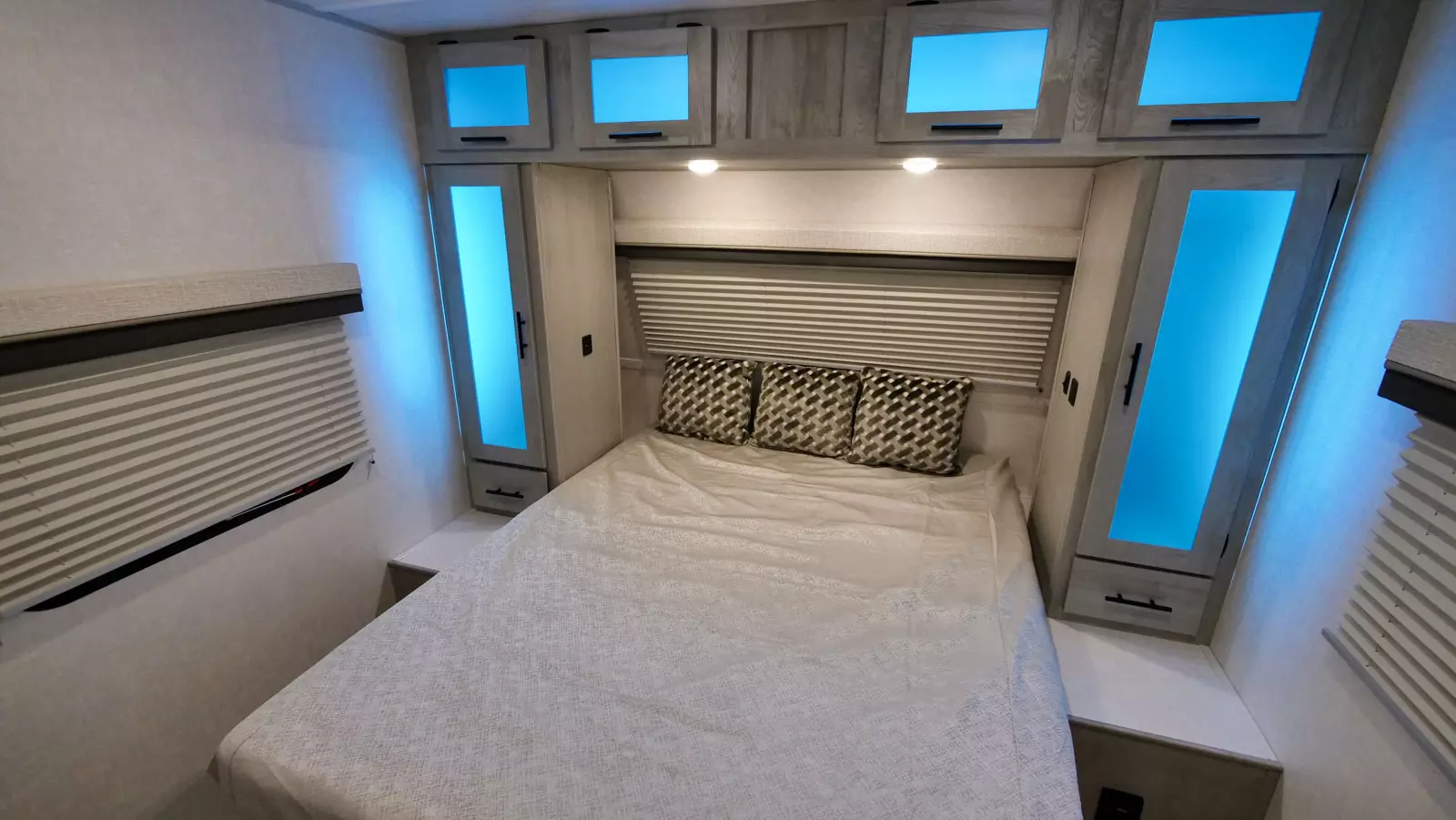

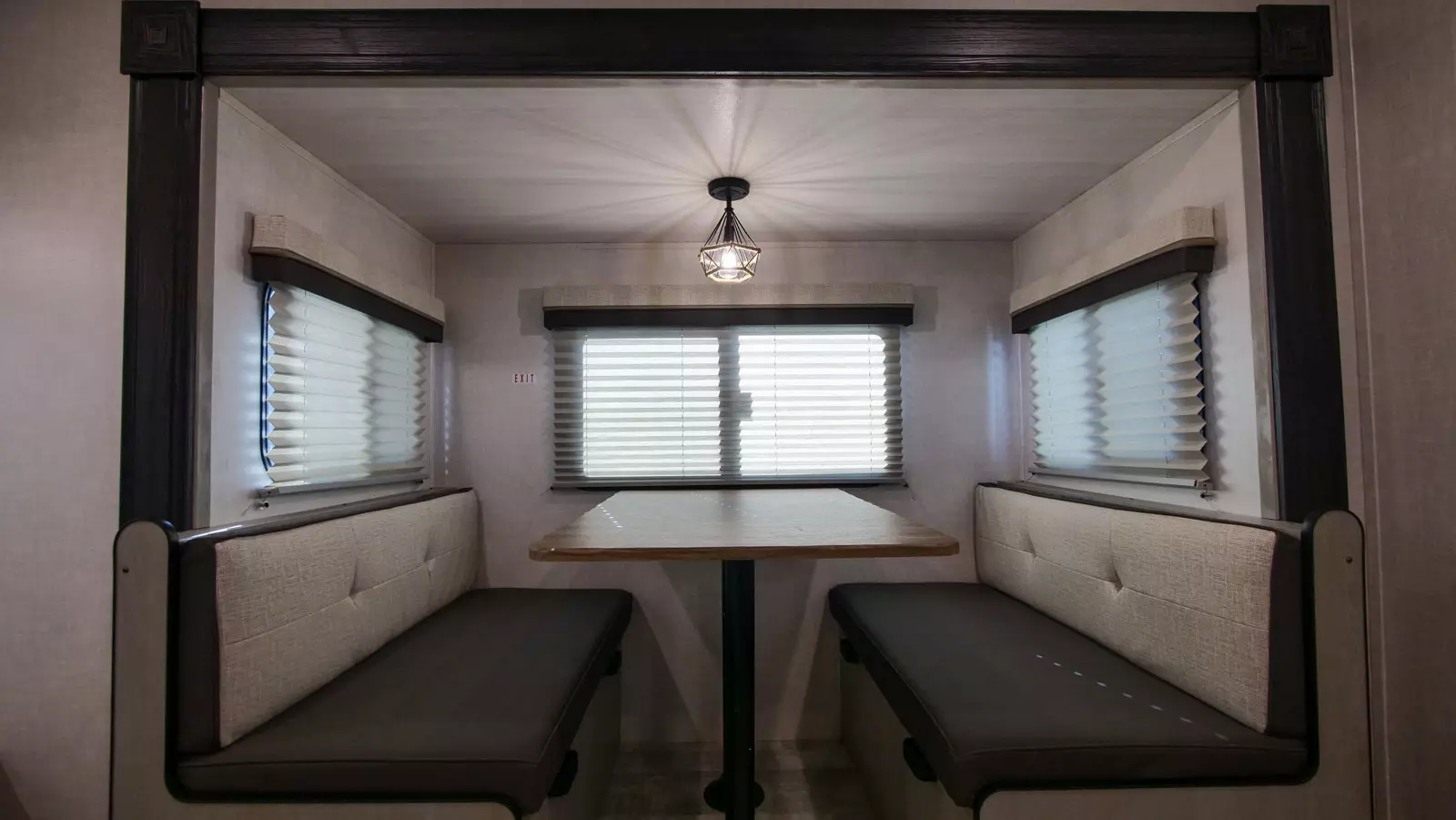

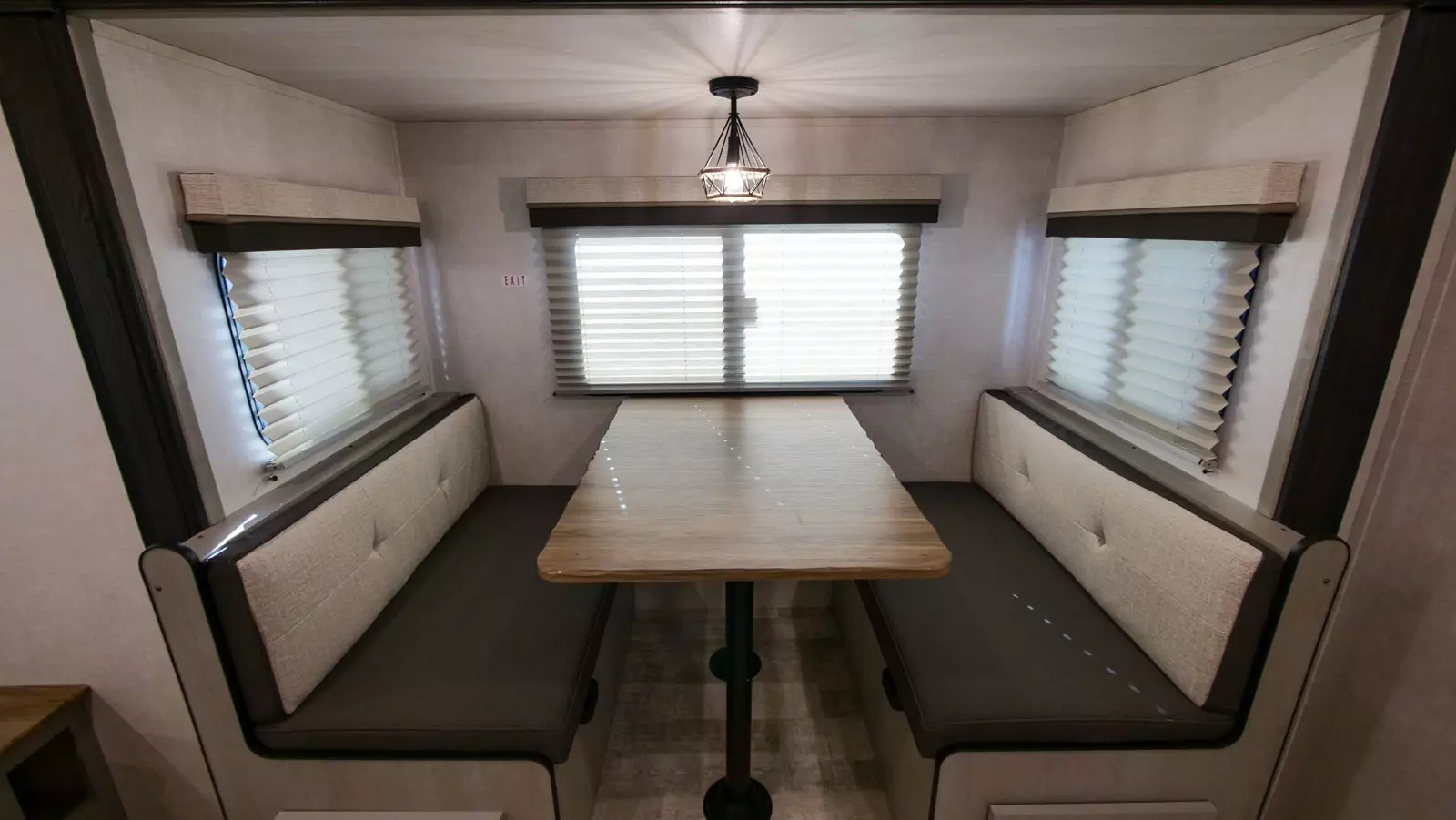

A full sized dinette slide and rear sofa placed directly across from the 32” TV make up the back end of this rear living floorplan. A deep 18” stainless steel sink, Largest-In-Class Refrigerator, full pantry, and ample countertop space make this a chef’s dream RV. Up front you find a residential 60” x 80” queen bed with wardrobe storage on both sides. The optional outside griddle and standard outside shower make entertaining and clean up simple and fun.

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
