- Hitch Weight
- 1,150 lb.
- UVW
- 7,593 lb.
- CCC
- 2,357 lb.
- Exterior Length
- 32' 5"
- Exterior Height
- 11' 6"
- Exterior Width
- 96"
- Fresh Water
- 54 gal.
- Gray Water
- 43 gal.
- Black Water
- 43 gal.
- Awning Size
- TBD
- Hitch Weight
- 1,235 lb.
- UVW
- 7,838 lb.
- CCC
- 2,197 lb.
- Exterior Length
- 32' 6"
- Exterior Height
- 11' 6"
- Exterior Width
- 96"
- Fresh Water
- 54 gal.
- Gray Water
- 43 gal.
- Black Water
- 43 gal.
- Awning Size
- TBD

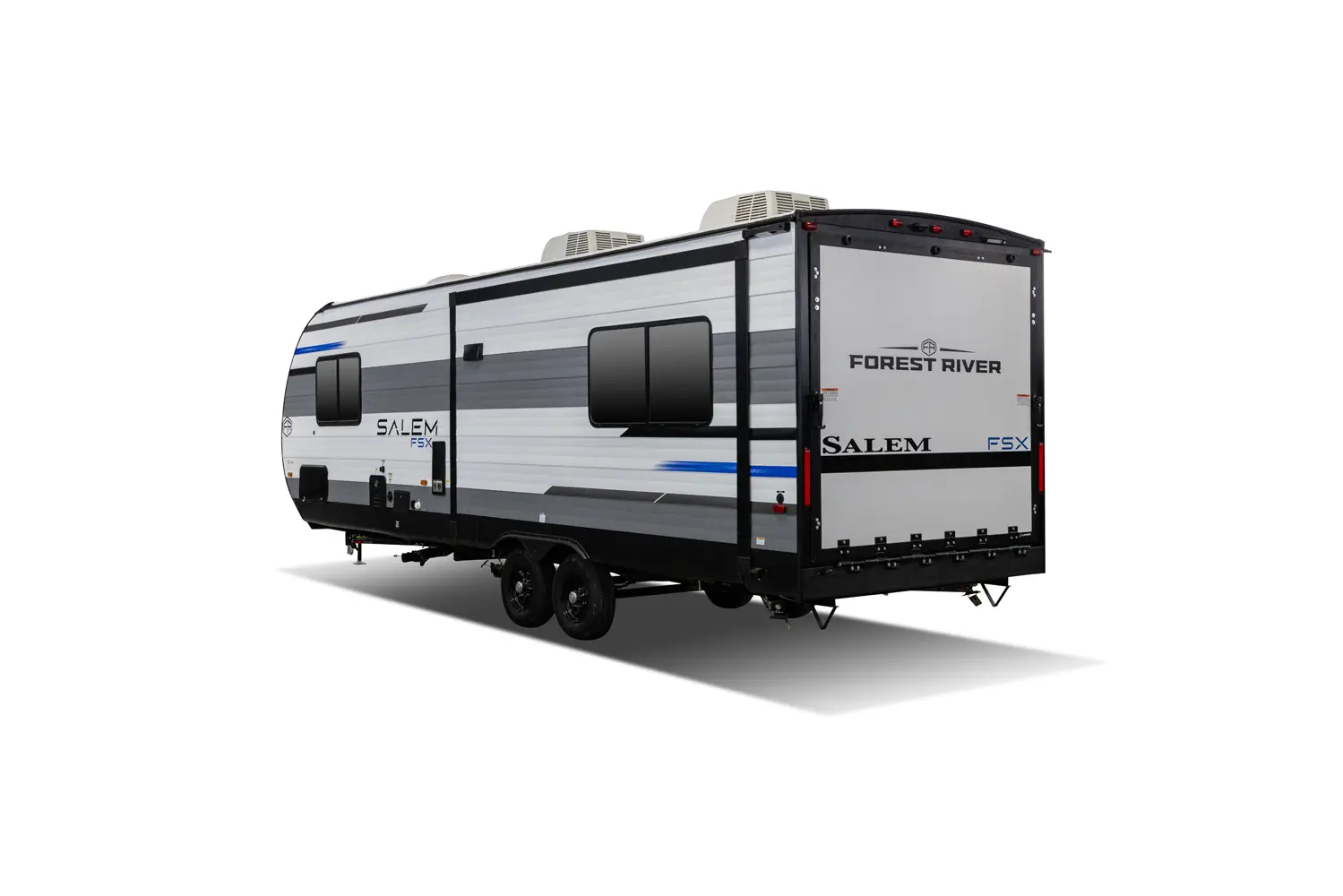

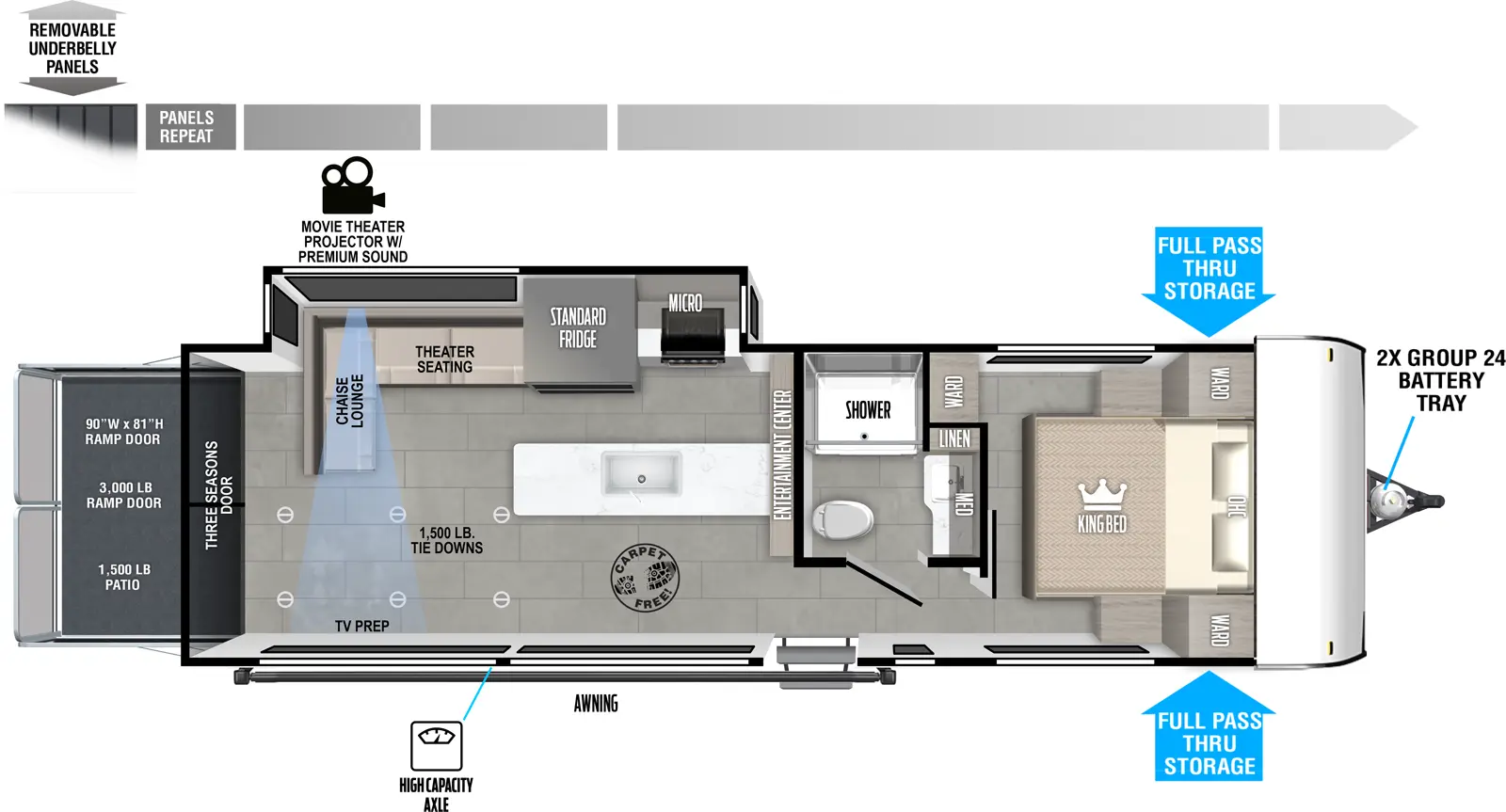

Salem FSX 28VC Floorplan
28VC Floorplan MAX Series: Toy Haulers and Versatile Cargo Travel Trailers Features & Options
-
-
Construction Advantages:
- 5/8" Tongue & Groove Plywood Floor Decking
- 2x3" Floor Structure Construction
- Full Walk on Roof with SuperFlex Roof Membrane for Longevity w/ 5" Bowed Truss Roof Rafters
- Powder Coated I-Beam Frame w/ Camber for Stiffer Structural Support
- Nitrogen Filled Tires
- Garage Chassis w/ Full Height Steel Floor Supports Every 24”
- 2" Wall Construction, 16" (or less) on Center
- Fiberglass Insulation Throughout
- 13 Ply Cross Micro-Laminated Header Beam Above Slide-Outs
- Triple Seal Slide-Out System for Moisture Barrier
- Aerodynamic Front Profile for Easy Towing
- .040 Smooth Aluminum Front Profile for Added Rigidity
- Diamond Plate Rock Guard on Front for Protection
- Color Coded Water Lines
- Seamless Holding Tanks
- (2) 20lb Propane Tanks for Extended Camping Garage Standard Features
- MAX 84" Interior Height for Toys of All Sizes - Especially Newer Golf Carts and Side by Sides
- MAX Width (Varies by Model) - Specifically Designed to Get You Every Inch of Space for Larger Toys
- MAX Ramp Loading Convenience: Easy Open Patio Kit for Full Ramp Usage when Loading Toys
- E-Z Ramp Approach Angle (Average 16°) for Lowriding Toys
- 1,500LB Tie Downs for Securing Gear, Strategically Placed Throughout Each Floorplan
- 50% Thicker Floor Structure That Normal Travel Trailers to Accept Heavier Loads
- 2x Chassis Support Throughout Garage Area for Gear
- Carpet Free and Floor Ductwork Free in All Garage and Gear Areas for Easy Cleanup
- Upgraded Full Blackout Window Coverings to Keep Prying Eyes at Bay When Storing Precious Cargo (Varies by Model)
- Removable Entrance Step to Get Every Last Inch Of Storage (Varies by Model) Interior Standard Features
- 4 - 6 USB Ports w/ USB A and USB C Compatibility for Phone and Tablet Charging
- Fully Independent Air Conditioning Ductwork for Focused Cooling When Needed

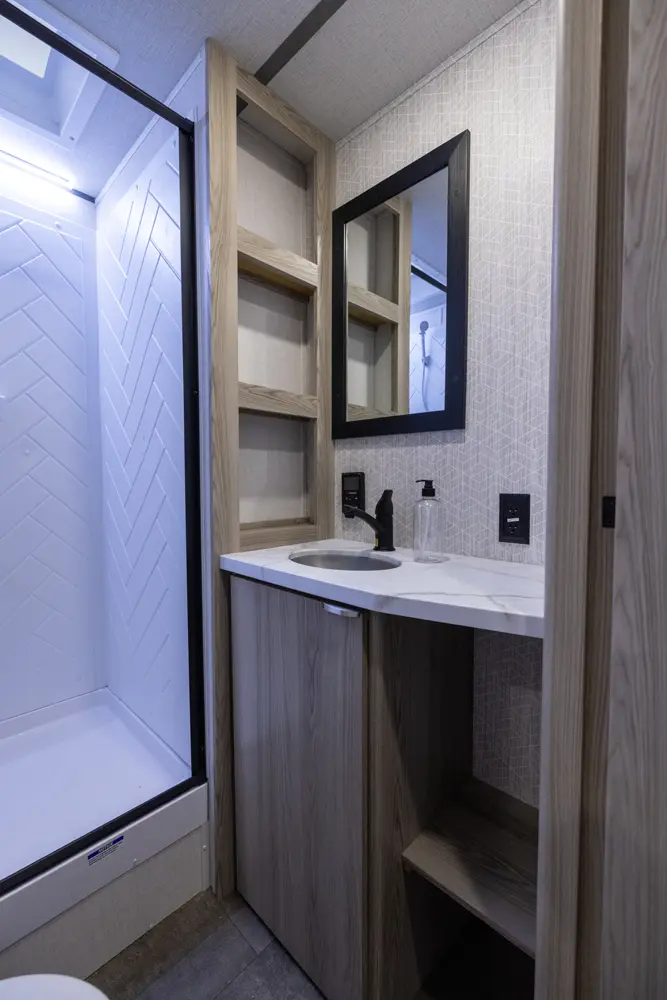

- Large Shower Pans for Adults (No Bathtubs)
- 30-50 Amp Service w/ Auto Detect Converter (Works with Multiple Battery Types). Amperage varies by model size.
- TV Mounting Areas w/ Mount Installed (Varies by Model)
- Water Heater By-Pass
- 20K BTU Furnace Ducted Through Walls and Cabinets, No Floor Ducting Kitchen Standard Features
- MAX Kitchen Storage - Nearly 50% More Cabinetry Than Others Thanks to Space Saving Appliances and Clever Designs

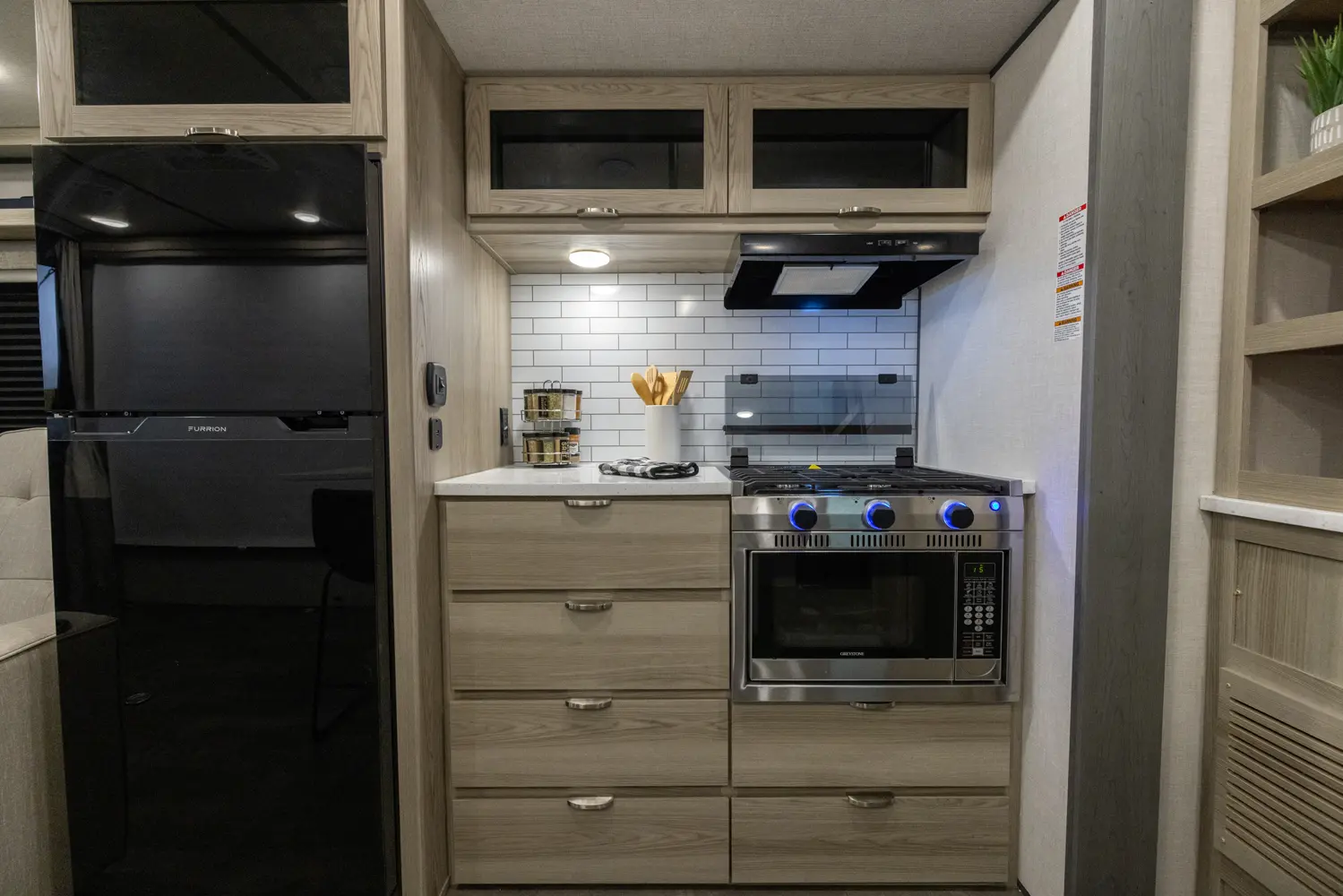

- 3-in-1 Cooker w/ Convection Oven, Microwave, 3 Burner Gas Cooktop
- 10CuFt 12V Refrigerator for Extended Camping
- Residential High Rise Kitchen Faucet and Deep Kitchen Sink
- Slim Range Vent Hood over Cooktop (Varies by Model)
- Seamless Countertops with Waterproof Membrane for Longevity Exterior Standard Features
- Oversized Entrance Doors - 30" Wide Instead of 26" - 15% Larger Than Normal
- Detachable Power Cord
- Oversized F/G/B Holding Tanks for Extended Camping
- Dual Group 27 Battery Trays for Extended Camping Power
- Battery Disconnect to Turn Entire Unit Off When Done Camping
- Extra Large Baggage Doors for More Gear Storage
- Backup Camera Ready - Just Plug and Play
- Largest in Class Opening Panoramic Windows

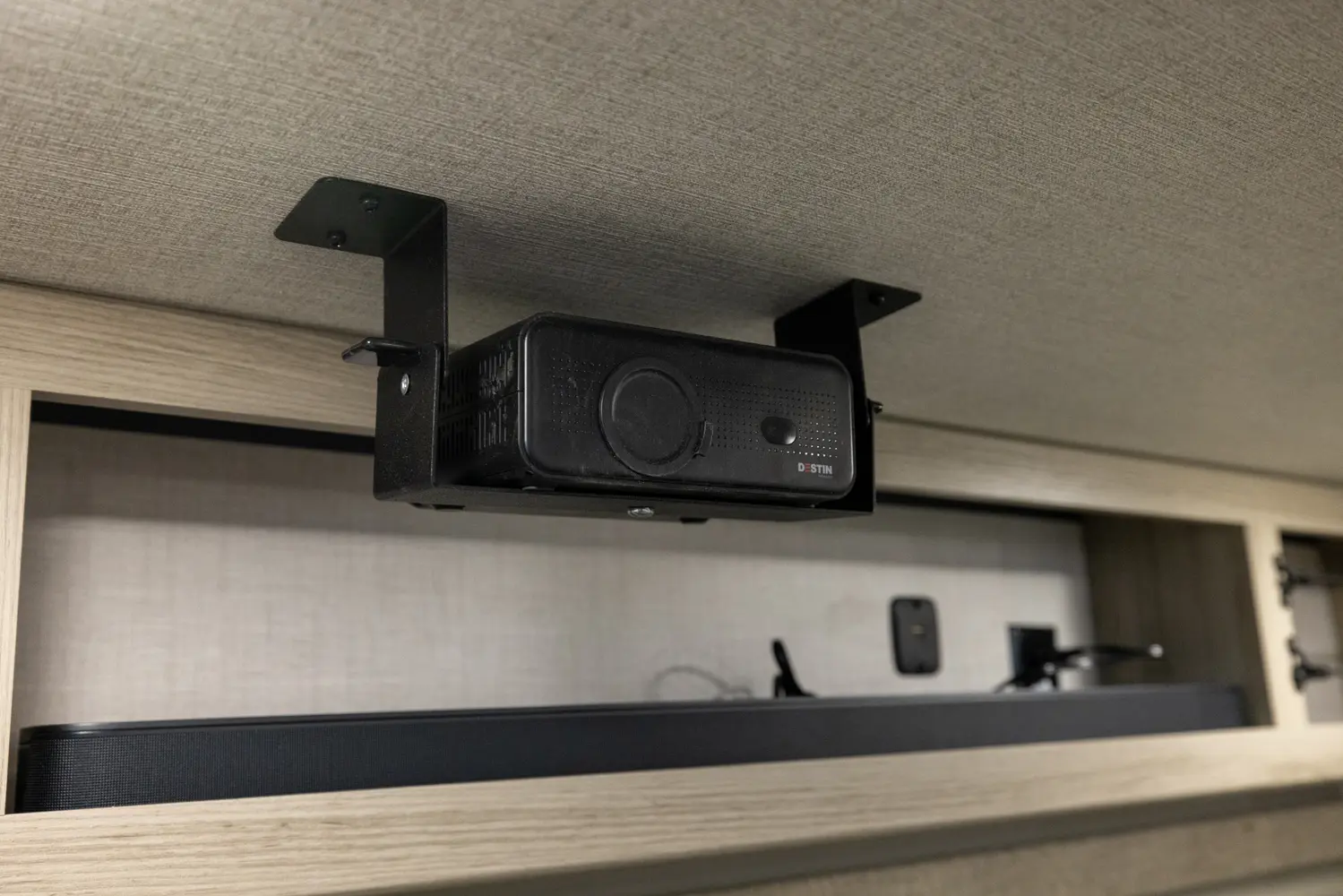

- JBL Interior/Exterior Sound System
- 7-Way Plug and Chain Holder
- Dedicated Cable TV Hookup on Exterior of Coach
- 60,000BTU Extra Large On Demand Hot Water Heater
- Omni Directional Digital TV Antenna
- Side Mounted Solar Inlet on Camp Side Best-In-Class Package:
- MAX COLD WEATHER Package: 12V Heated Tank Pads on all Holding Tanks (Fresh, Grey, and Black) w/ AutoStart below 48°F + Fully Enclosed Underbelly Using Industry Leading AccessiBelly Panels + Insulated Flooring for Heat Capture and Deflection
- AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements

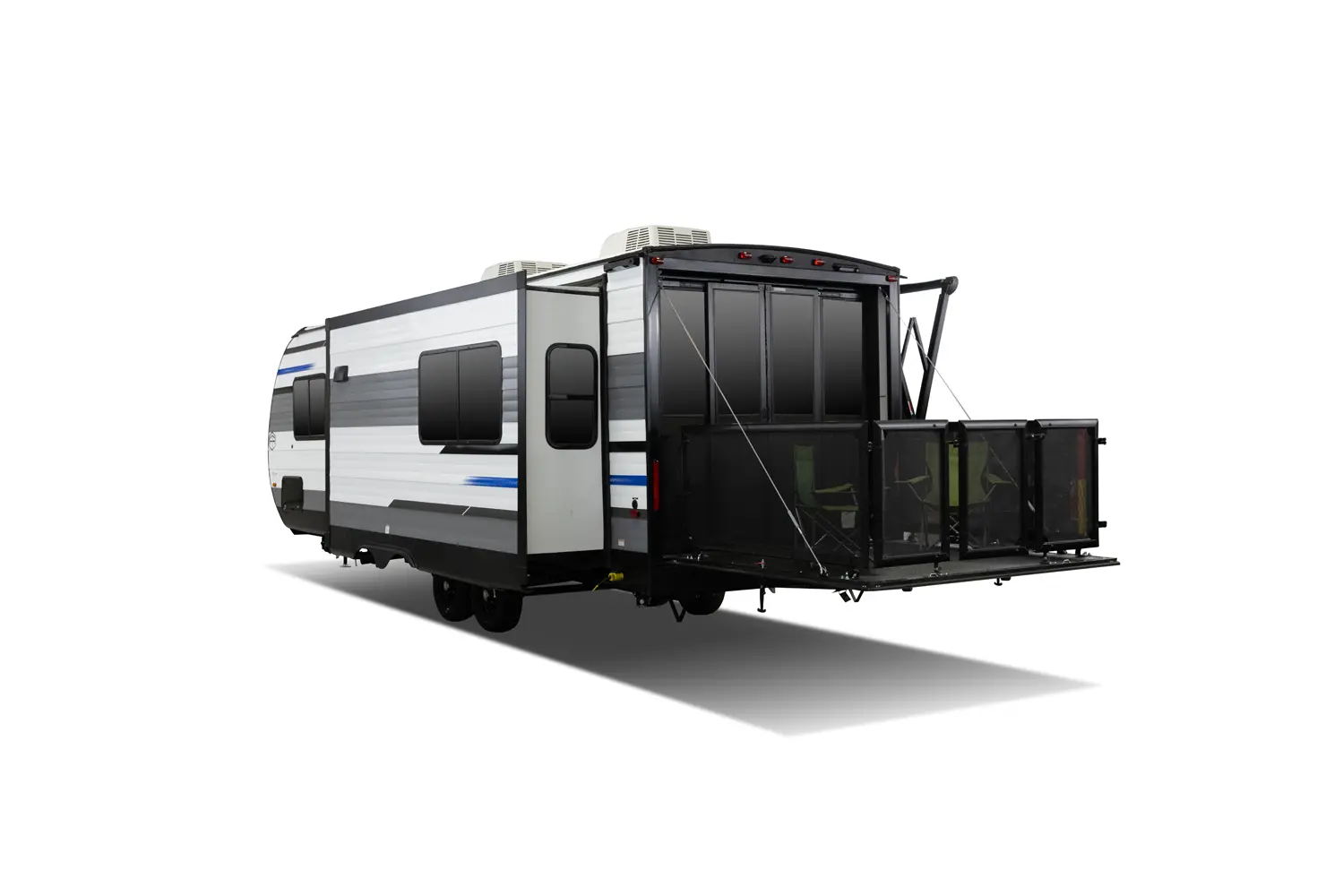

- Patio Kit for Ramp Door with 1,500lb Capacity as a Patio
- Magnetic Screen Door with Blackout Vinyl for Patio Entrance
- Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
- Seamless Countertops (No T-Mold)

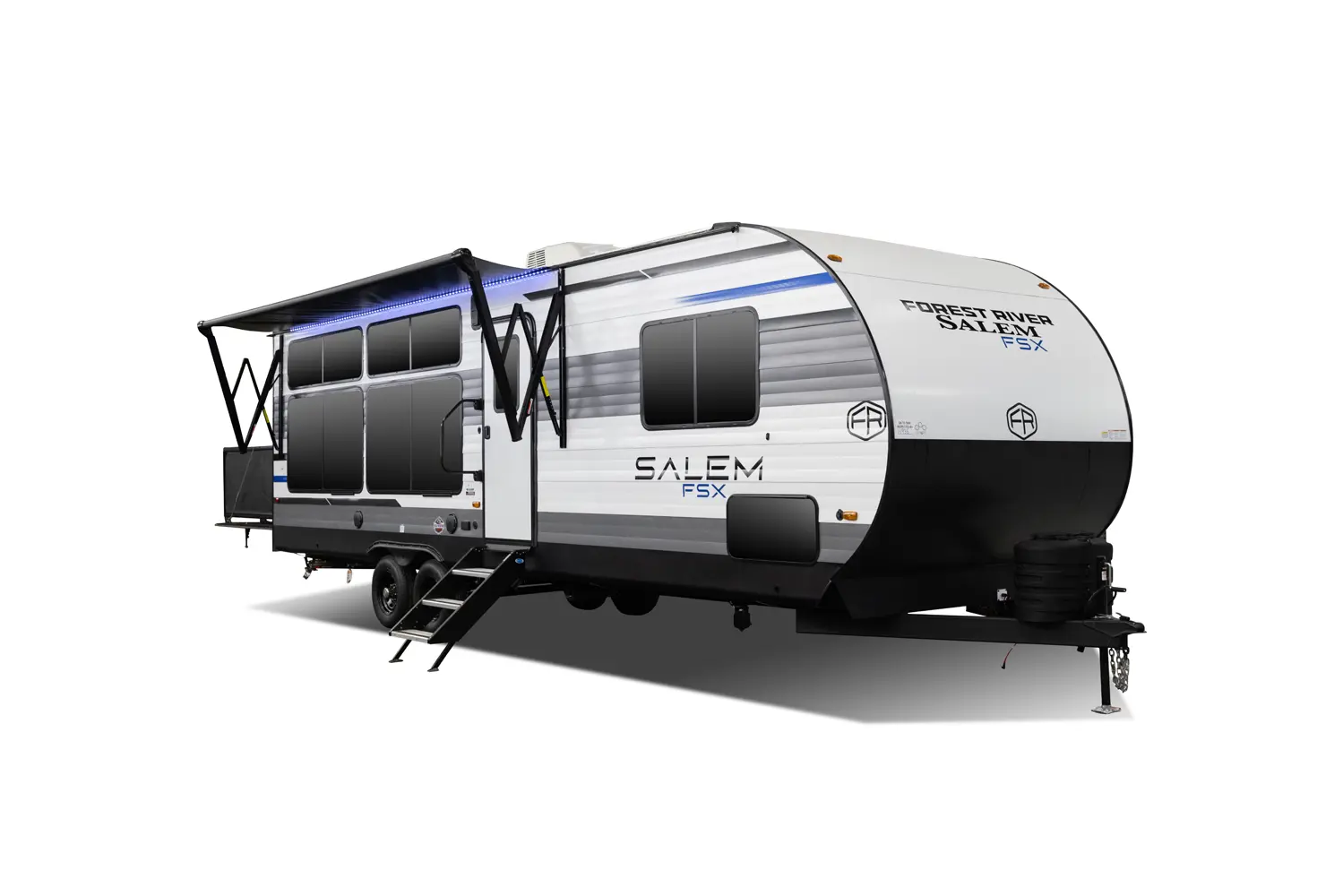

- Power Awning with Adjustable Legs and LED Light Strip
- Black Tank Flush for Easy Cleanup After Camping
- EZ Entrance - Friction Hinge Entrance Door, Triple Step + XL Folding Grab Assist Handle
- Slide Topper Prepared for Easy Install (Select Models Only)
- 30" Built-In Electric Fireplace and 5,000BTU Heater (Select Models Only)
- 15 Gallon Stow N Go Storage Containers Under Sofas (Varies By Model)
- Solid Entry Step with Stairs All Supported Directly to the Ground Camp Comfort Package
- Outside Hot/Cold Shower
- Outside Spray Port w/ Extension Hose and Sprayer for Cleaning Gear
- Slim Range Vent Hood over Cooktop
- Residue Resistant Linoleum (Added Durability Against Oil, Grease, Gas)
- Foot Flush Toilet
- Power Vent Fans to Exhaust Heat, Smells, and Humidity
- LED Interior Lighting for Low Power Draw and Brighter Camping
- LP Quick Connect on Exterior of Unit - Perfect for Griddles, Grills, and More Options:
- Stow N Load Seating and Sleeping System for MAX Sleeping Capacity in Garage (Select Models Only)
- Extended Power Package: Roof Mounted 200W Solar Panel, and 30 Amp Controller (Optional on Metal Exterior Units Only)
- Power Tongue Jacks (Optional on Metal Exterior Units Only) 2025 Platinum Package (Option):
- Smooth Fiberglass Exterior Walls
- Fiberglass Front Cap
- Large Front Windshield
- Extended Power Package: Roof Mounted 200W Solar Panel, and 30 Amp Controller
- Power Tongue Jack
- Solid Entry Step with Stairs All Supported Directly to the Ground
