– is the maximum permissible weight of the unit when fully loaded.
It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories.
For safety and product performance do NOT exceed the GVWR.
GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.
UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory.
It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas.
The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories.
CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon).
Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.
The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

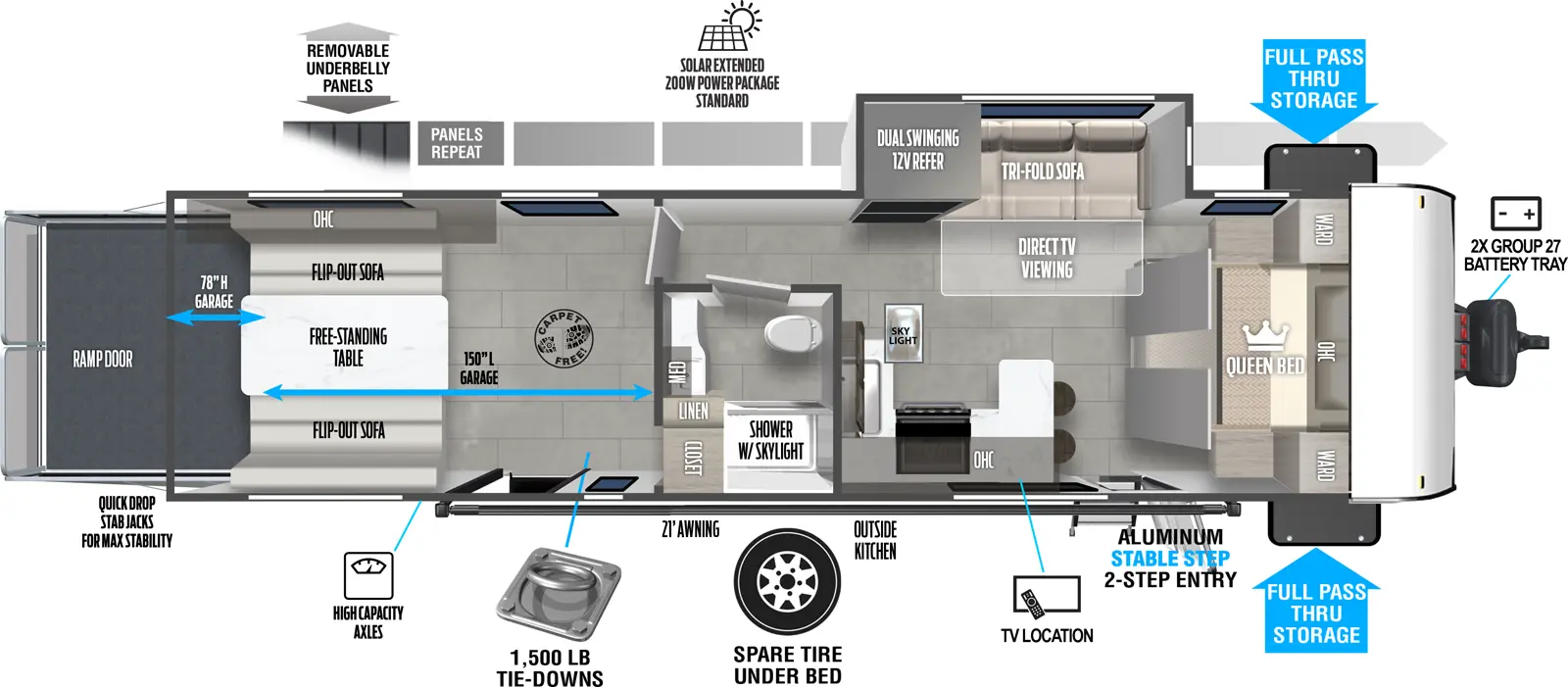

290RTKMAX Series: Toy Haulers and Versatile Cargo Travel TrailersFeatures & Options
5/8” Tongue & Groove Plywood Floor Decking
Full Walk on Roof with SuperFlex Roof Membrane for Longevity w/ 5” Bowed Truss Roof Rafters
Powder Coated I-Beam Frame w/ Camber for Stiffer Structural Support
.040 Smooth Aluminum Front Profile for Added Rigidity
Diamond Plate Rock Guard on Front for Protection
Color Coded Water Lines
Seamless Holding Tanks
(2) 20lb Propane Tanks for Extended Camping
Garage Standard Features
MAX 84" Interior Height for Toys of All Sizes - Especially Newer Golf Carts and Side by Sides
MAX Width (Varies by Model) - Specifically Designed to Get You Every Inch of Space for Larger Toys
MAX Ramp Loading Convenience: Easy open patio kit for full ramp usage when loading toys
E-Z Ramp Approach Angle (Average 16°)
1,500LB Tie Downs for Securing Gear, Strategically Placed Throughout Each Floorplan
50% Thicker Floor Structure That Normal Travel Trailers to Accept Heavier Loads
2x Chassis Support Throughout Garage Area for Gear
Carpet Free and Floor Ductwork Free in All Garage and Gear Areas for Easy Cleanup
Upgraded Full Blackout Window Coverings to Keep Prying Eyes at Bay When Storing Precious Cargo
Removable Entrance Step to Get Every Last Inch Of Storage
Interior Standard Features
4 - 6 Tablet Compatible USB Ports in Bedroom, Bunks, Living Areas
MAX 15,000 BTU Air Conditioner for Cool Comfort - 11% Larger Than Normal - Replaces Standard 13,500 BTU Air Conditioner
Fully Independent Air Conditioning Ductwork for Focused Cooling When Needed
Large Shower Pans for Adults (No Bathtubs)
50 Amp Service w/ Auto Detect Converter (Works with Multiple Battery Types)
3 - TV Mounting Areas (Varies by Model)
Water Heater By-Pass
20K BTU Furnace Ducted Through Walls and Cabinets, No Floor Ducting
Kitchen Standard Features
MAX Kitchen Storage - Nearly 50% More Cabinetry Than Others Thanks to Space Saving Appliances and Clever Designs
3-in-1 Cooker w/ Convection Oven, Microwave, 3 Burner Gas Cooktop
Dual Swinging 12V Refrigerator for Easy Access on Either Side ((Varies by Model and Date of Build)
Residential High Rise Kitchen Faucet and Deep Stainless Steel Kitchen Sink with Sink Cover/Cutting Board
Slim Range Vent Hood over Cooktop
Seamless Countertops with Waterproof Membrane for Longevity
Exterior Standard Features
MAX Extended Power Package: Roof Mounted 200W Solar Panel, 30 Amp Controller, and Single Battery
Oversized Entrance Doors - 30” Wide Instead of 26” - 15% Larger Than Normal
Detachable Power Cord
Oversized 54/40/40 F/G/B Holding Tanks for Extended Camping
MAX COLD WEATHER Package: 12V Heated Tank Pads on all Holding Tanks (Fresh, Grey, and Black) w/ AutoStart below 48°F + Fully Enclosed Underbelly Using Industry Leading AccessiBelly Panels + Thermofoil Insulative Lining for Heat Capture and Deflection
AccessiBelly Enclosed Underbelly Panels for Added Protection from Cold and Elements
Patio Kit for Ramp Door with 1,500lb Capacity as a Patio
Magnetic Screen Door for Patio Entrance
Large Capacity 11 CU FT Frost-Free Refrigerator (12-Volt)
Seamless Countertops (No T-Mold)
Power Awning with Adjustable Legs and LED Light Strip
Black Tank Flush for Easy Cleanup After Camping
EZ Entrance - Friction Hinge Entrance Door, Triple Step + XL Folding Grab Assist Handle
Slide Topper Prepared for Easy Install (Select Models Only)
30” Built-In Electric Fireplace and 5,000BTU Heater (Select Models Only)
15 Gallon Stow N Go Storage Containers Under Sofas (Varies By Model)
Solid Entry Step with Triple Stairs All Supported Directly to the Ground
Camp Comfort Package
Power Tongue Jack for Faster Setup
LCI Quick Drop Stabilizer Jacks for More Solid Camping Experience (Varies by Model and Date of Build)
Outside Hot/Cold Shower
Outside Spray Port w/ Extension Hose and Sprayer for Cleaning Gear
Slim Range Vent Hood over Cooktop
Platinum Package - Fiberglass Exterior with Upgraded Graphics Package, Chrome Wheel Caps and Lug Nuts
Stow N Load Seating and Sleeping System for MAX Sleeping Capacity in Garage (Select Models Only)
