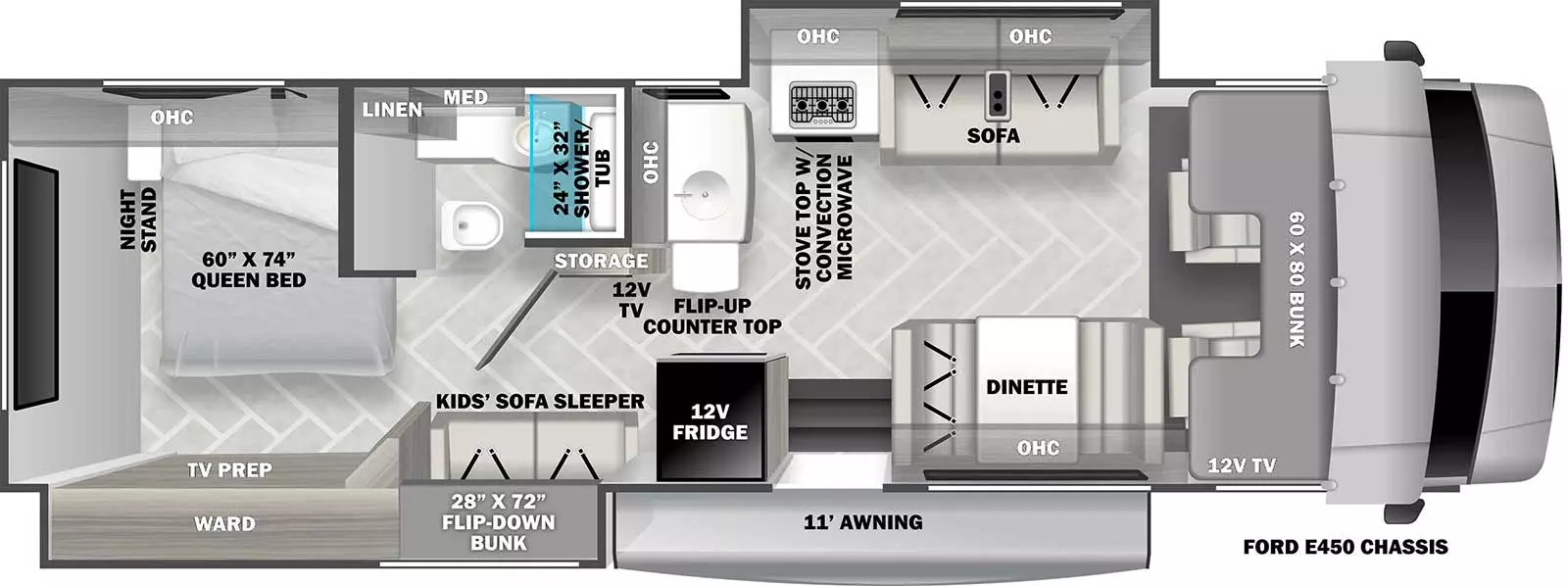

The 3250DSLE is a bunkhouse model that provides a designated sleeping area for kids—conveniently located across from the bathroom! There's a 28" x 72" flip-down bunk that folds flat against the wall up above, with a kids' sofa sleeper that folds out to a bed below. The adults can enjoy their own separate sleeping area in the rear, where the main bedroom is located. The bathroom is compact, but offers a 24" x 32" shower with tub, along with linen storage. In the main living area, the kitchen is set up to maximize space, while a booth dinette and sofa provide additional seating and sleeping areas. In front, a 60" x 80" cab over bunk gives you even more space! Built on the Ford E450 Chassis.
- Wheelbase
- 220"
- GVWR
- 14,500 lb.
- GCWR
- 22,000 lb.
- GAWR Front
- 5,000 lb.
- GAWR Rear
- 9,600 lb.
- Fuel Capacity
- 55 gal.
- LP Tank Capacity
- 41 lb.
- Exterior Length
- 32' 3"
- Exterior Height
- 11' 3"
- Exterior Width
- 101"
- Fresh Water
- 44 gal.
- Gray Water
- 39 gal.
- Black Water
- 39 gal.
- Awning Size
- 11'
3250DSLE
The 3250DSLE is a bunkhouse model that provides a designated sleeping area for kids—conveniently located across from the bathroom! There's a 28" x 72" flip-down bunk that folds flat against the wall up above, with a kids' sofa sleeper that folds out to a bed below. The adults can enjoy their own separate sleeping area in the rear, where the main bedroom is located. The bathroom is compact, but offers a 24" x 32" shower with tub, along with linen storage. In the main living area, the kitchen is set up to maximize space, while a booth dinette and sofa provide additional seating and sleeping areas. In front, a 60" x 80" cab over bunk gives you even more space! Built on the Ford E450 Chassis.
3250DSLE LE Series Ford Chassis Features & Options
-
- 12 Months/12,000 mile basic limited warranty
- Chassis warranty (see owners manual)
-
- Battery disconnect
- Water heater bypass
- (1) Deep cycle coach battery
- Optional (2) Deep cycle coach batteries
- LED lighting
- Easy Access battery in step-well
- 30 Amp service with power cord
- 60 Amp Progressive Dynamics converter
- 6 Gallon DSI gas/electric water heater
- 30,000 BTU furnace
- Emergency start switch
- Satellite/cable connection
- 15,000 BTU ceiling ducted, ultra quiet roof air with heat pump (N/A w/dual AC option)
- 4.5 KW Gas generator (Ford/Chevy only)
- Heated, enclosed holding tanks and valves (N/A 2250SLE, 2550DSLE)
- Arctic Package (12V tank heaters)
- CO, LP and smoke detector
- Winegard Air 360+ digital antenna
- Side-mounted solar prep connection (N/A with roof-mounted solar)
- Optional 190 Watt roof-mounted solar powered 12V charging system (IPO side-mounted charger prep)
-
- 2” Aluminum framed laminated sidewalls
- Superlite composite substrate
- Gel Coat exterior fiberglass
- Block foam insulation
- Power patio awning with LED light strip
- Slide-out awnings
- Fiberglass roof
- One-piece fiberglass front cap
- Roto-cast storage compartments
- Aluminum running boards
- Tinted sliding windows
- 7,500 Lbs. hitch, 7-pin connector (E450)
- 5,000 Lbs. hitch, 7-pin connector (Chevy/E350)
- Integrated entry step
- Optional Automatic leveling system (4-point) (N/A on Chevy)
- LP quick connect
- Black tank flush
- On-The-Go™ Ladder Bracket (most models)
-
- Power windows and door locks
- Keyless entry (N/A Chevy)
- Backup camera/side view cameras with 3-way monitor
-
- Recessed 3-burner range with flush glass cover
- 1.3 Cu. ft. convection microwave
- 10.7 Cu. ft. 12V refrigerator
- Soft touch self-closing drawer guides
- Cordless 12V charging plate
-
- Electric roof fan
- Oxygen-infused shower head with flexible extension
- Shower skylight
-
- Black-out roller shades
-
- Convertible dinette for additional sleeping capacity
- Black out roller shades
- 12V LED flat panel adjustable side TV
- Child seat head tethers in dinette
- Maxx Air multi-speed power fan with cover
