Explore 2025 Sunseeker Classic (Ford) 3010DS Floorplan

Home > Sunseeker > 3010DS

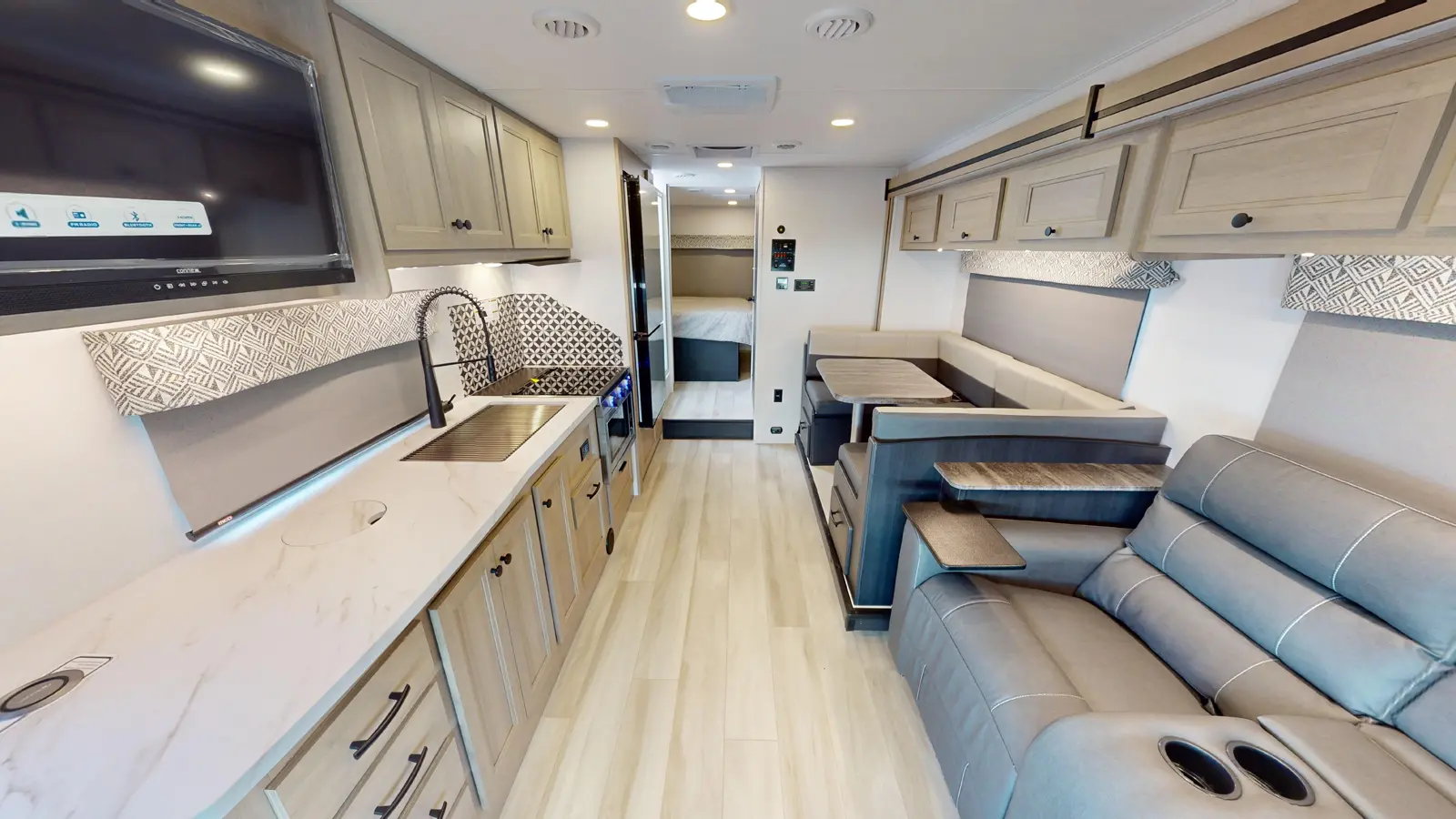

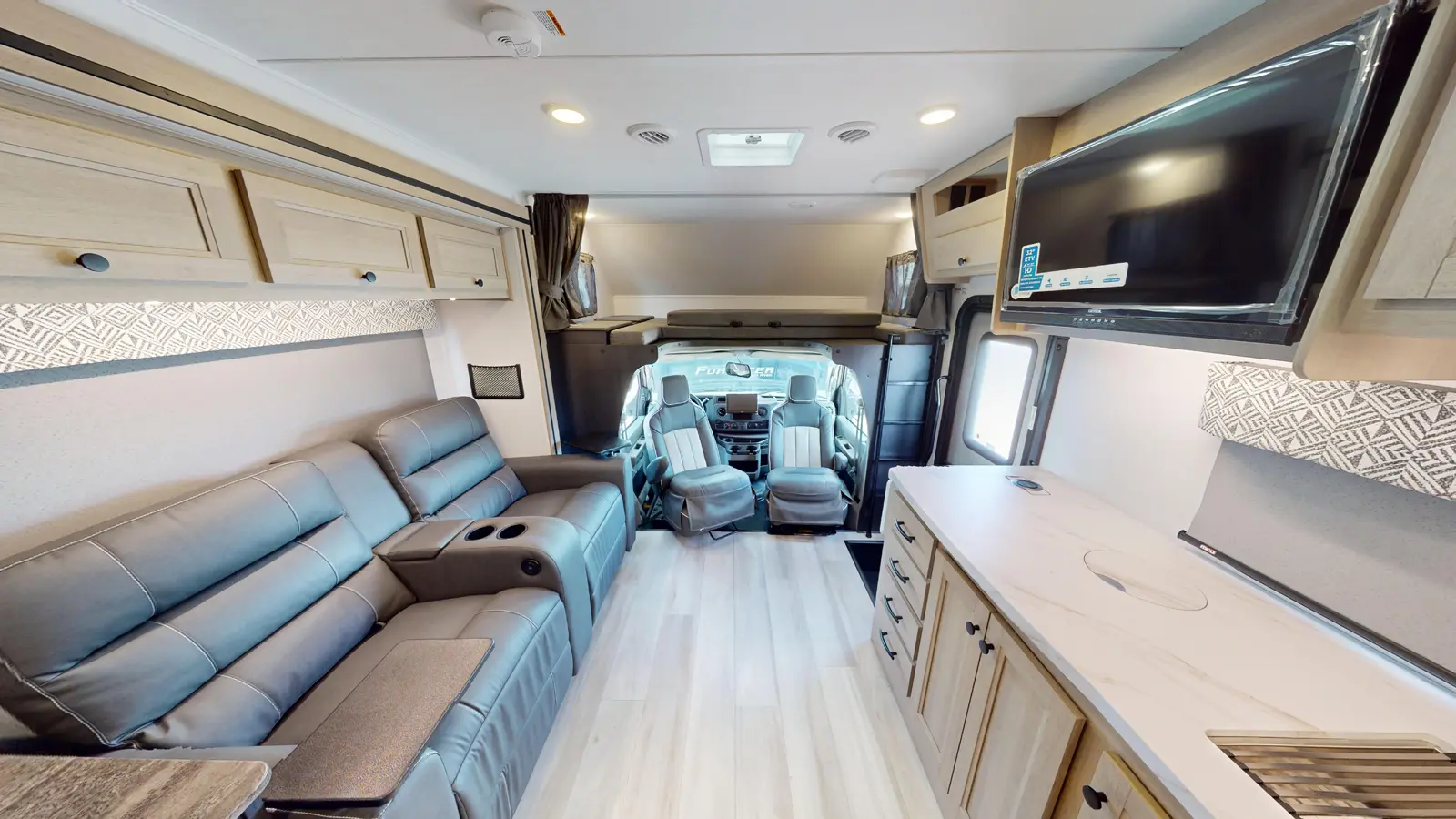

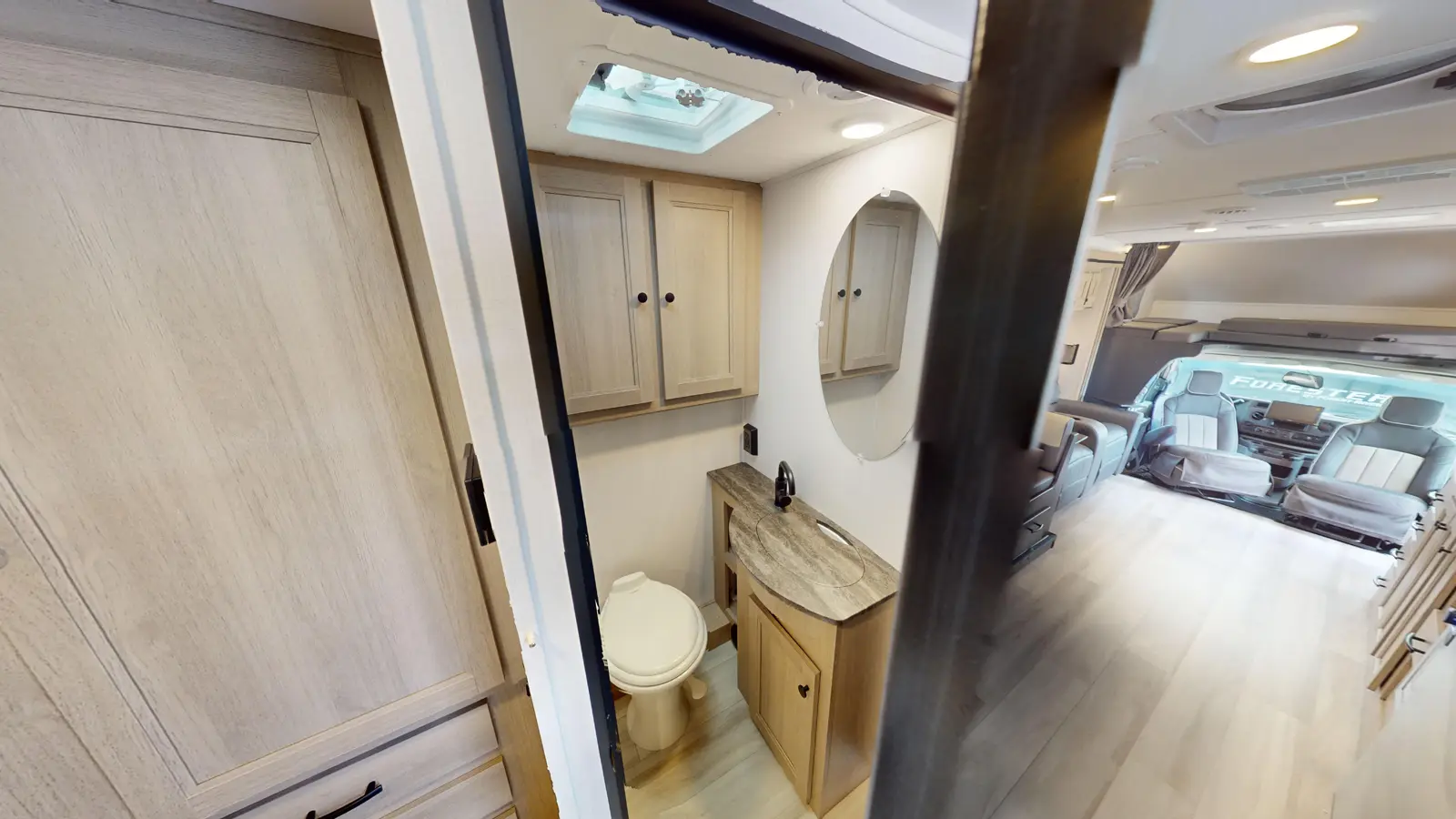

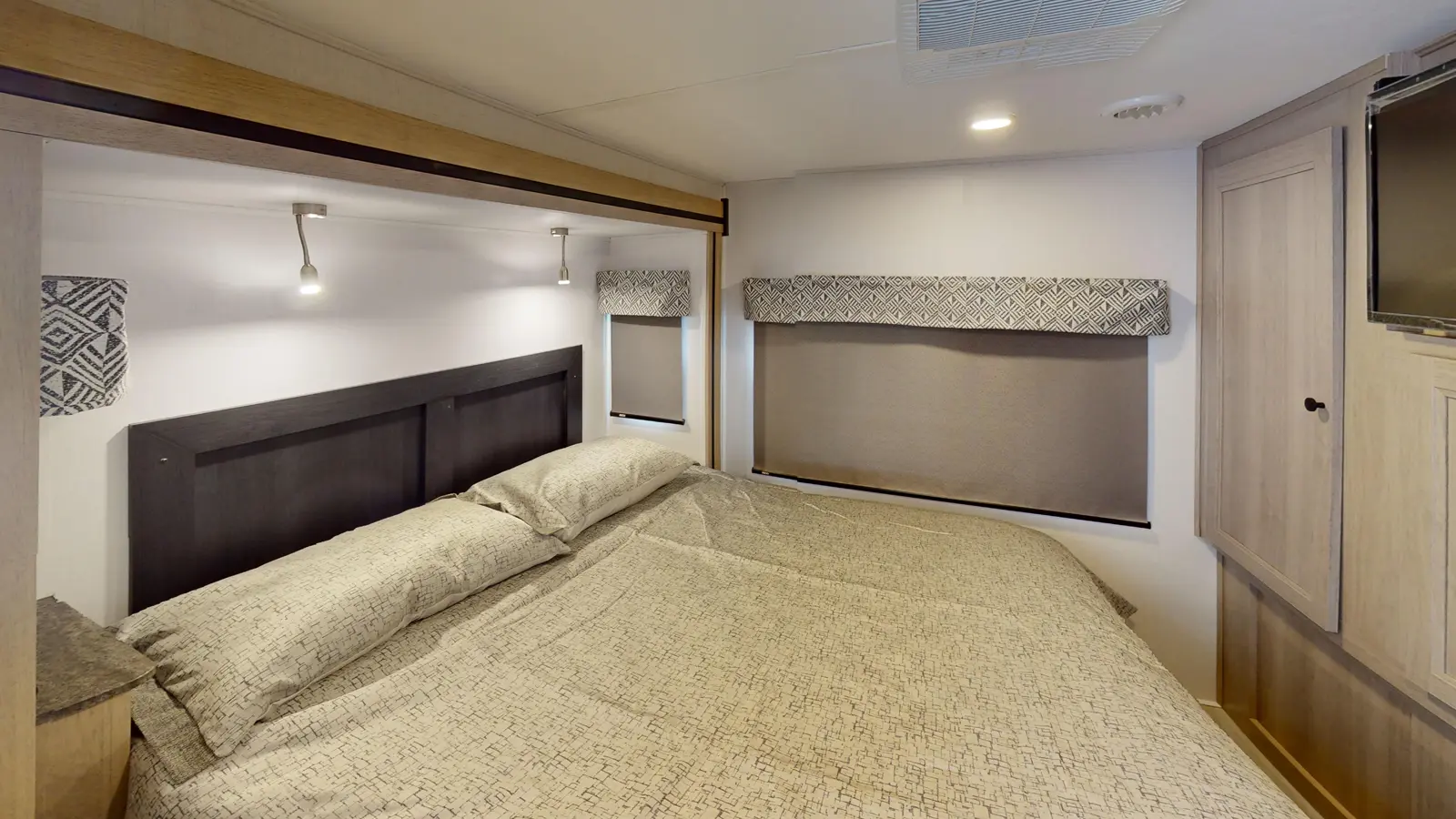

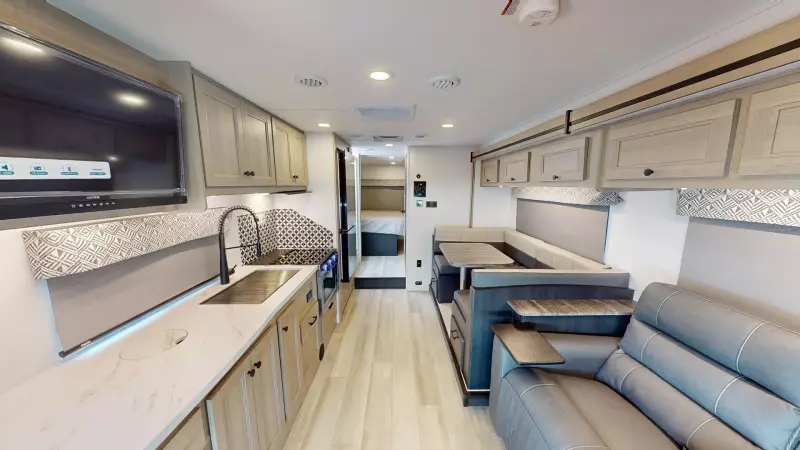

The 3010DS has a queen bedroom with slideout that includes a 60" x 74" bed, storage wall with two wardrobes, large drawers, and 12V TV. The split bathroom maximizes space without sacrificing amenities. There is a slideout that with a U-dinette and sofa (or optional theater seating). There's a pantry, 12V refrigerator, cooktop, convection microwave, plus a flip-up countertop extension for an extra surface. A 60" x 80" cab over bunk gives you an extra sleeping area and/or extra storage

Wheelbase: 220"
GVWR: 14,500 lb.
GCWR: 22,000 lb.
GAWR Front: 5,000 lb.
GAWR Rear: 9,600 lb.
Fuel Capacity: 55 gal.
LP Tank Capacity: 41 lb.
Exterior Length: 32' 3"
Exterior Height: 11' 3"
Exterior Width: 101"
Fresh Water: 44 gal.
Gray Water: 39 gal.
Black Water: 39 gal.
Awning Size: 15' 6"

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Explore 3D Space

3010DS Floorplan Sunseeker Classic (Ford) Features & Options

- 12 Months/12,000 mile basic limited warranty
- Chassis warranty (see owners manual)
- Battery disconnect
- Water heater bypass
- (2) Deep cycle coach batteries
- LED lighting
- Easy Access battery in step-well
- 30 Amp service with power cord
- 60 Amp Progressive Dynamics converter
- 6 Gallon DSI gas/electric water heater
- 30,000 BTU furnace
- Emergency start switch
- Satellite/cable connection
- 15,000 BTU ceiling ducted, ultra quiet roof air with heat pump (N/A w/dual AC option)
- 4.5 KW Gas generator
- EZ Ryde upgraded suspension system
- Heated, enclosed holding tanks and valves
- Arctic Package (12V tank heaters)
- Optional dual A/C with heat pump with power shedding system (Most models)
- CO, LP and smoke detector
- Winegard Air 360+ digital antenna
- Gateway 4G WiFi capability
- Side-mounted solar prep connection (N/A with roof-mounted solar)
- Optional 190 Watt roof-mounted solar powered 12V charging system (IPO side-mounted charger prep)
- 2” Aluminum framed laminated sidewalls
- Superlite composite substrate
- Gel Coat exterior fiberglass
- Block foam insulation
- Power patio awning with LED light strip
- Slide-out awnings
- Fiberglass roof
- One-piece fiberglass front cap
- Roto-cast storage compartments
- Driver side security light
- Optional Fiberglass running boards (Standard on Full Paint Classics)
- Aluminum running boards
- Tinted sliding windows
- Heated, remote exterior mirrors
- 7,500 Lbs. hitch, 7-pin connector (E450)
- 5,000 Lbs. hitch, 7-pin connector (E350)
- Spare tire
- Integrated entry step
- Optional Automatic leveling system (4-point)
- LP quick connect
- Optional Full body paint
- Outside shower
- Optional Outside 12V LED TV (See floorplans)
- Black tank flush
- On-The-Go™ Ladder Bracket (most models)
- 10” Touch screen CarPlay/Android radio with USB and Bluetooth
- Power windows and door locks
- Keyless entry
- Backup camera/side view cameras with 3-way monitor
- Optional Swivel driver seat
- Optional Swivel passenger seat
- Ultra leather driver and passenger seats
- Recessed 3-burner range with flush glass cover
- 1.3 Cu. ft. convection microwave
- 10.7 Cu. ft. 12V refrigerator
- Soft touch self-closing drawer guides
- Cordless 12V charging plate
- Electric roof fan
- Oxygen-infused shower head with flexible extension
- Motion sensor light
- Shower skylight
- Black-out roller shades
- 12V Bedroom TV
- Convertible dinette for additional sleeping capacity
- Optional Theater seats
- Black out roller shades
- 12V LED flat panel adjustable side TV
- Child seat head tethers in dinette
- Maxx Air multi-speed power fan with cover
