Explore 2025 Sunseeker TS (Ford) TS2370 Floorplan

Home > Sunseeker > TS2370

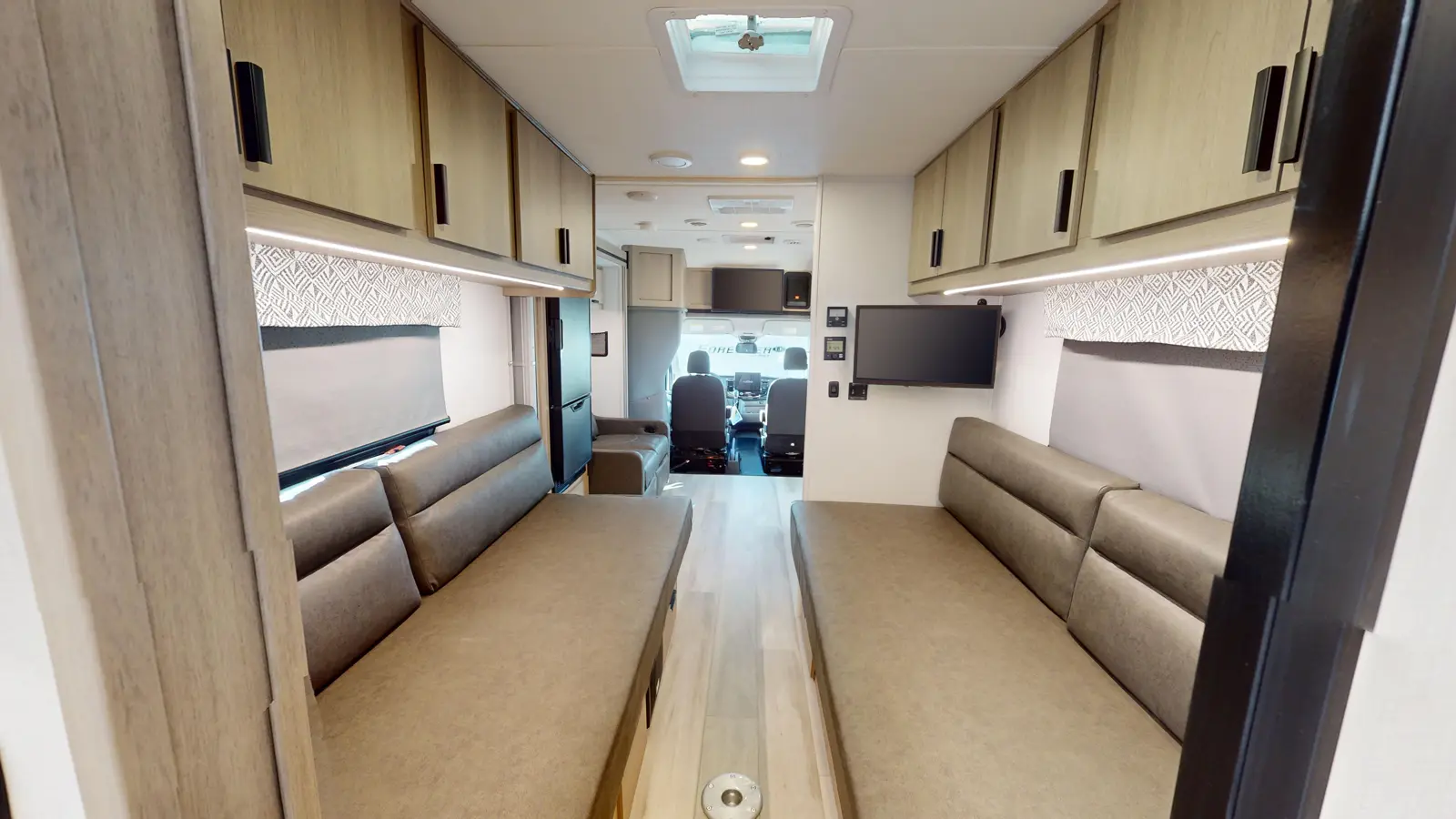

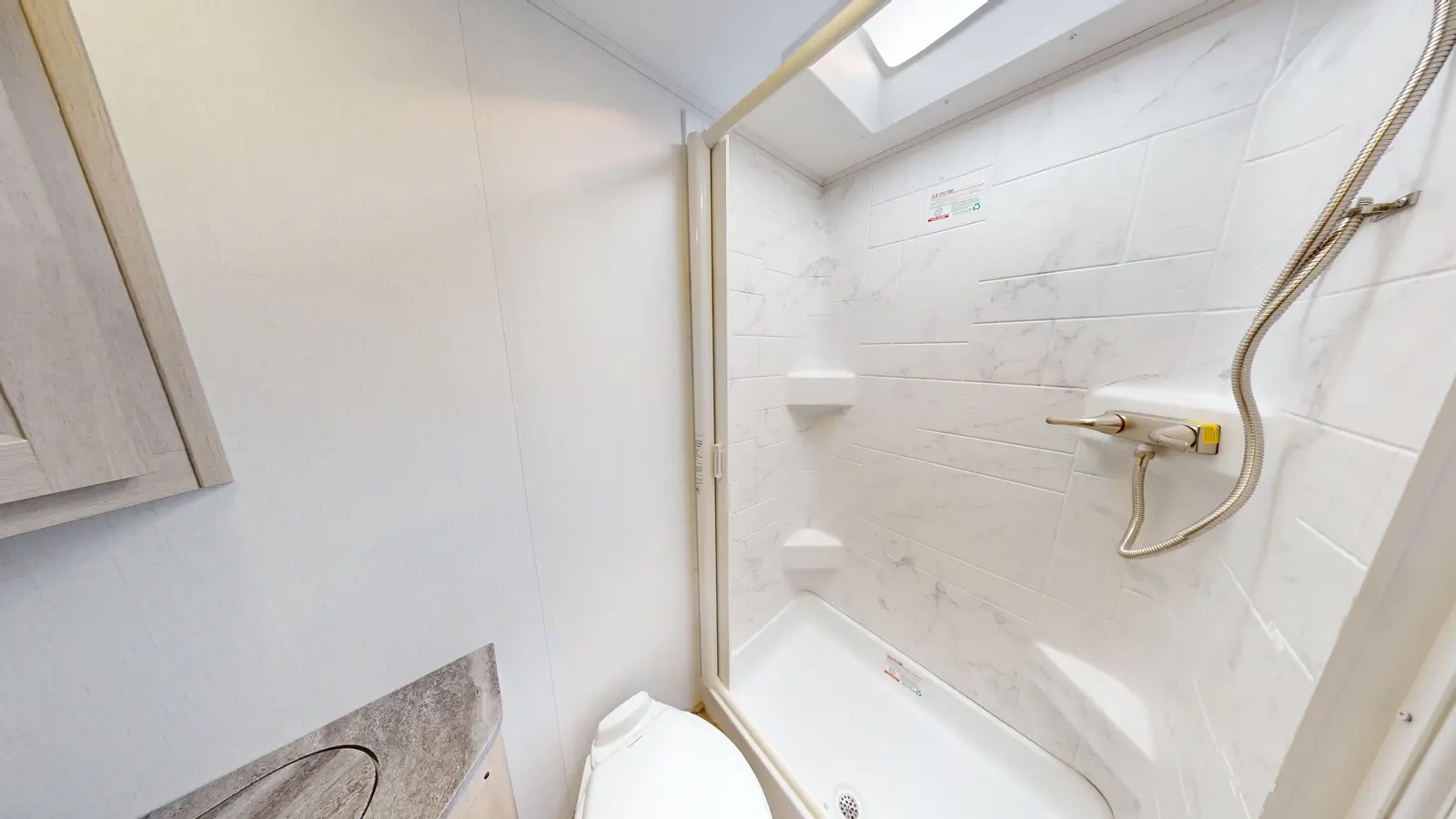

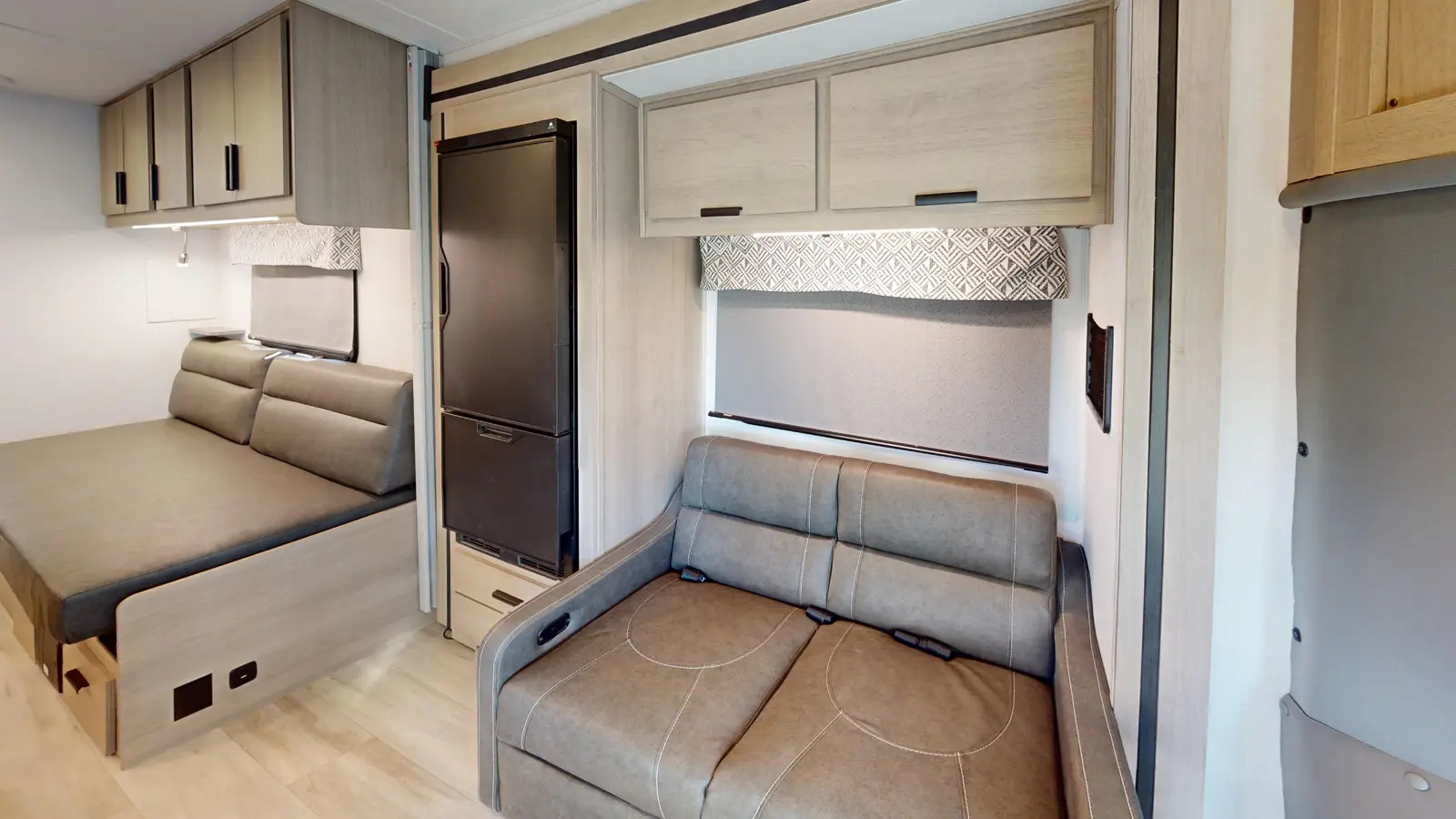

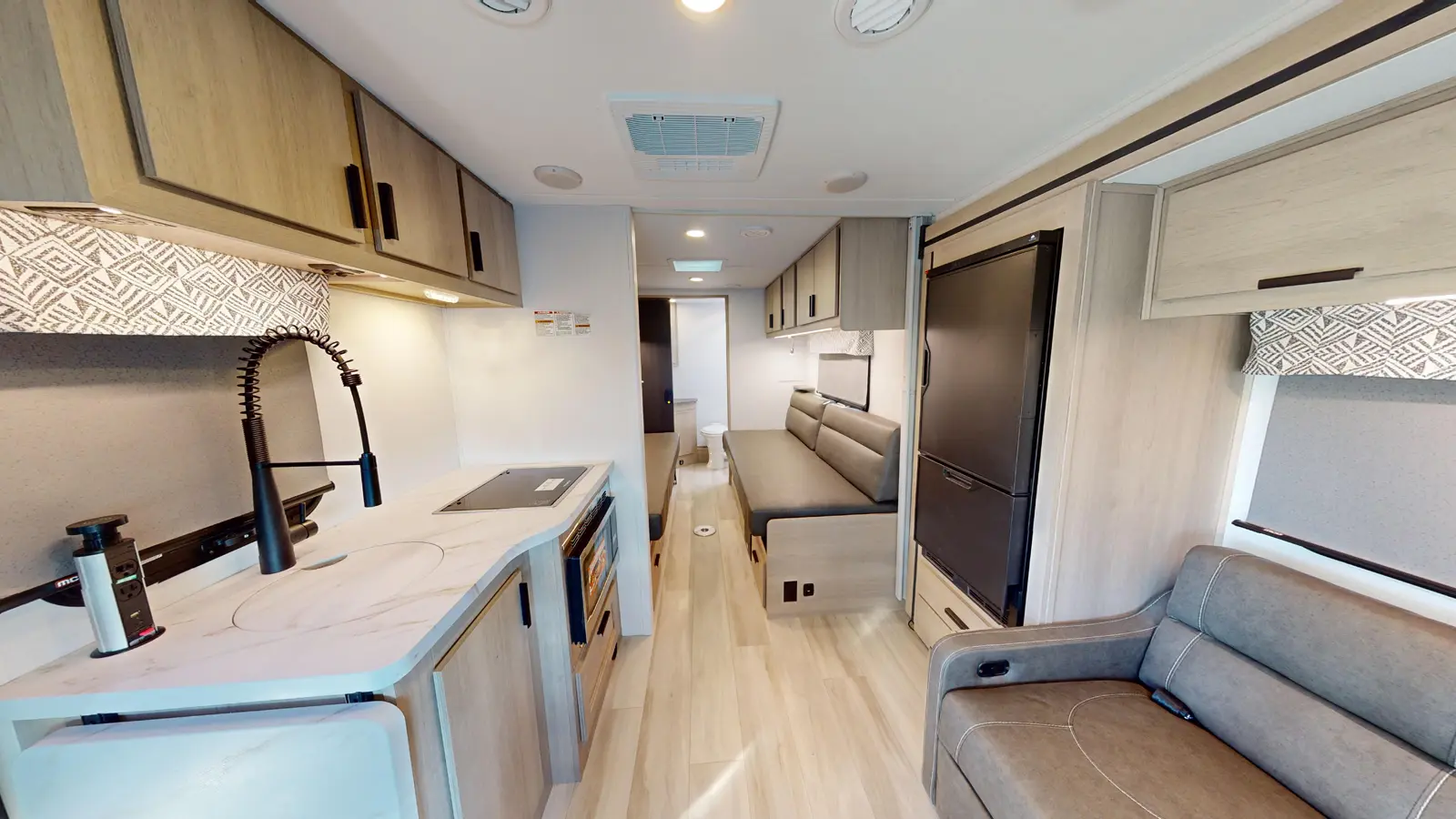

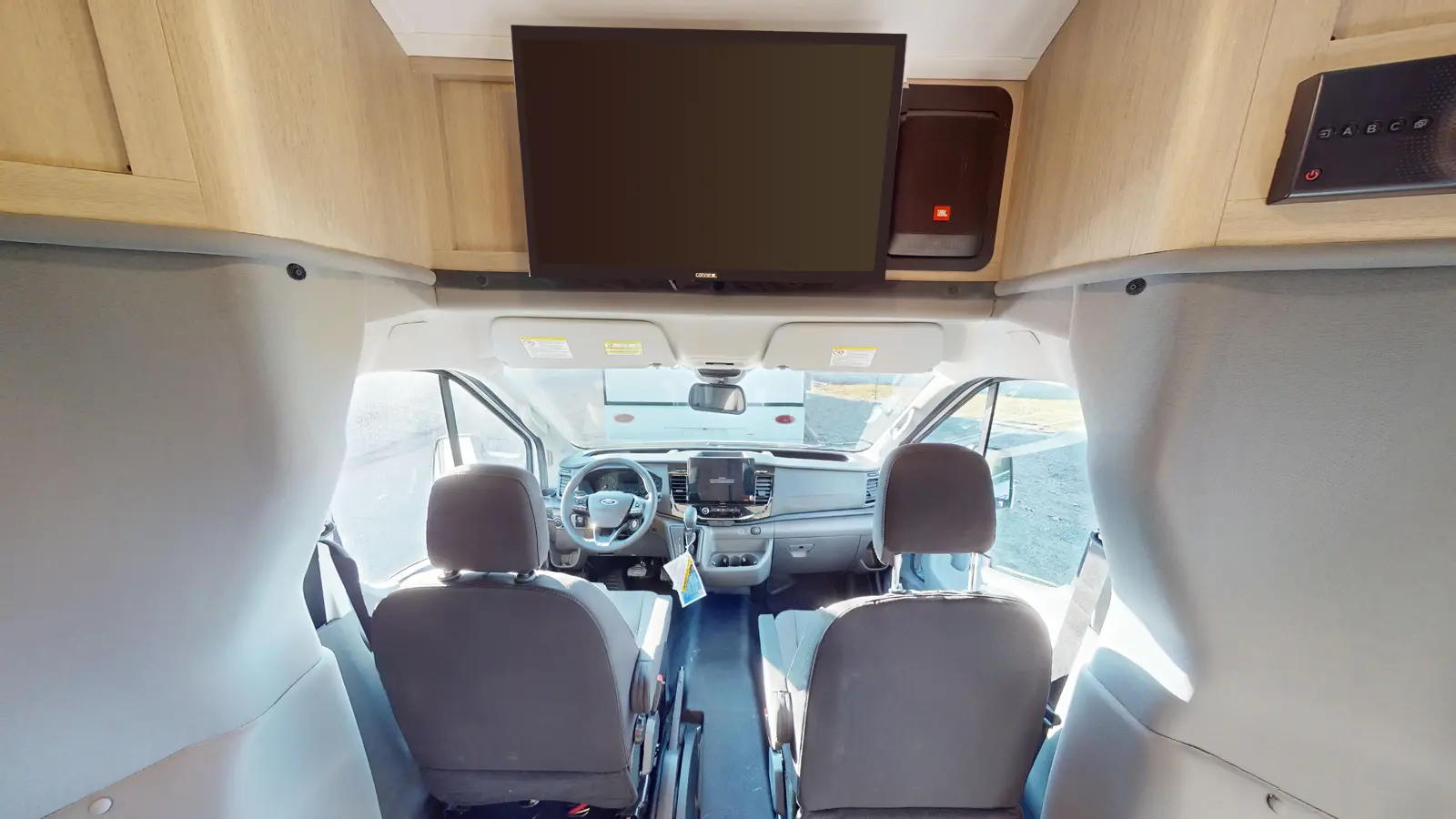

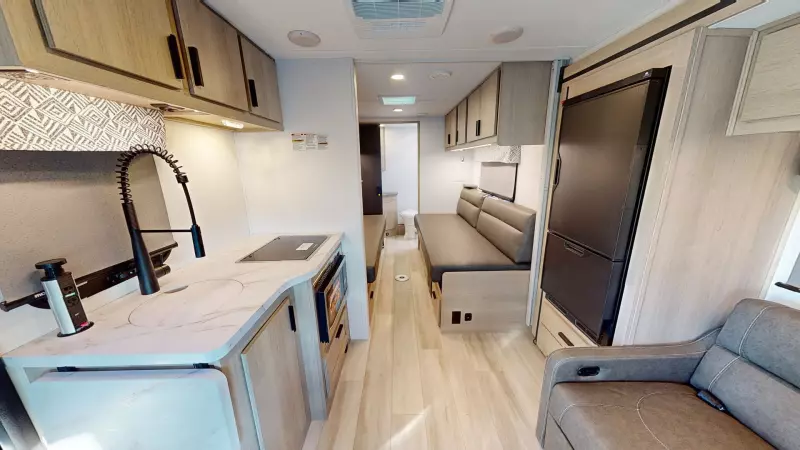

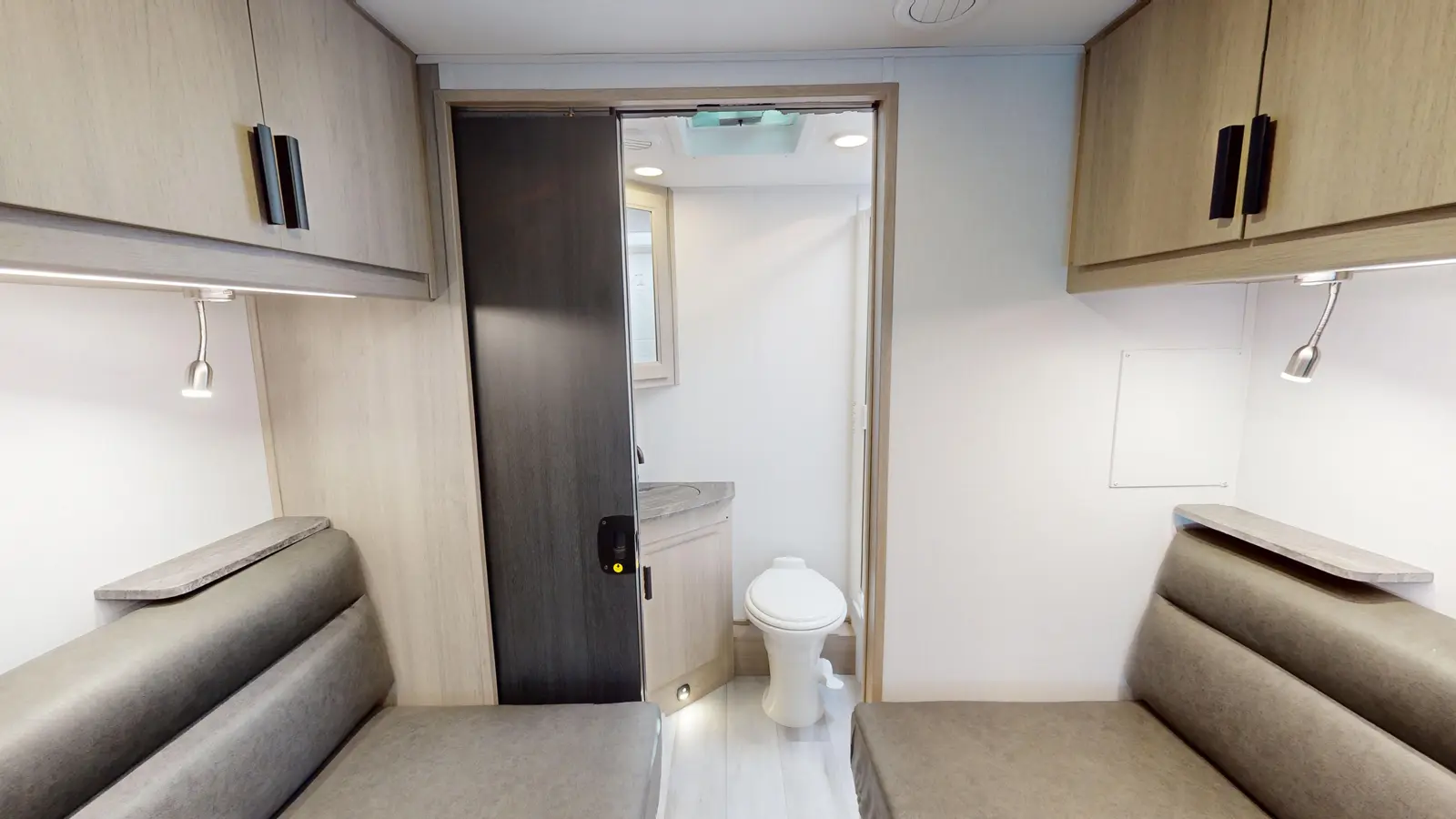

The TS2370 has 1 slide out on the off-door side. Exterior features include a 14' awning and it is built on the 3.5L Eco-Boost V6 Gas Transit chassis (2WD & AWD available). Interior layout from front to back includes a cab over entertainment center, off-door side slide out holding a 12V refrigerator, overhead cabinet and love seat with table; door side kitchen with induction stovetop with convection microwave, overhead cabinet, sink and flip-up countertop extension; bedroom with opposing side 33 x 78 twin beds with overhead cabinets and a 12V TV; rear bathroom with wardrobe, medicine cabinet, sink, toilet and 24 x 36 shower.

Trips across country or state are made comfortable in this motorhome for two. This unique floorplan features a pair of twin beds that can convert to a queen if you'd rather have one large sleeping area. The full rear bath includes a 24" x 36" shower and a wardrobe to store clean towels, and you'll find plenty of overhead compartments for all your belongings. Each morning you can prepare breakfast on the two burner range, or use the convenient convection microwave.

Wheelbase: 178"
GVWR: 10,360 lb.
GCWR: 13,500 lb.
GAWR Front: 4,130 lb.
GAWR Rear: 7,275 lb.
Fuel Capacity: 25 gal.
LP Tank Capacity: 41 lb.
Exterior Length: 26' 1"
Exterior Height: 10' 5"
Exterior Width: 87"
Fresh Water: 35 gal.
Gray Water: 30 gal.
Black Water: 28 gal.
Awning Size: 15'

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Explore 3D Space

TS2370 Floorplan Sunseeker TS (Ford) Features & Options

- 12 Months/12,000 mile basic limited warranty
- Chassis warranty (see owners manual)
- Battery disconnect
- Water heater bypass
- (1) Deep cycle coach battery
- LED lighting
- Easy Access battery in step-well
- 30 Amp service with power cord
- 60 Amp Progressive Dynamics converter
- Truma Combi water heater/furnace
- Emergency start switch
- Satellite/cable connection
- 13,500 BTU ceiling ducted high efficiency roof air with heat pump
- 2.8 KW Gas generator (Only available on gasoline model)
- Arctic Package (12V tank heaters)
- CO, LP and smoke detector
- Winegard Air 360+ digital antenna
- Gateway 4G WiFi capability
- Side-mounted solar prep connection (N/A with roof-mounted solar)
- Optional 190 Watt roof-mounted solar powered 12V charging system (IPO side-mounted charger prep)
- 1.5” Aluminum framed laminated sidewalls
- Superlite composite substrate
- Gel Coat exterior fiberglass
- Block foam insulation
- Power patio awning with LED light strip
- Slide-out awnings
- Fiberglass roof
- One-piece fiberglass front cap
- Roto-cast storage compartments
- Fiberglass running boards
- Tinted frameless windows
- Heated, remote exterior mirrors
- Spare tire
- Integrated entry step
- LP quick connect
- Optional Full body paint
- Outside shower
- Black tank flush
- On-The-Go™ Ladder Bracket (most models)
- 10” Touch screen CarPlay/Android radio with USB and Bluetooth
- Power windows and door locks
- Keyless entry
- Backup camera/side view cameras with 3-way monitor
- Swivel driver seat
- Swivel passenger seat
- Recessed 2-burner range with flush glass cover
- .9 cu. ft. convection microwave
- 5.3 Cu. ft. lightweight LP/Electric 110V refrigerator
- Soft touch self-closing drawer guides
- Cordless 12V charging plate
- Electric roof fan
- Oxygen-infused shower head with flexible extension
- Motion sensor light
- Shower skylight
- Black-out roller shades
- 12V Bedroom TV
- Black out roller shades
- 12V LED flat panel adjustable side TV
- Maxx Air multi-speed power fan with cover
- 12V USB charging station
