2024 Surveyor Legend 19BHLE Floorplan

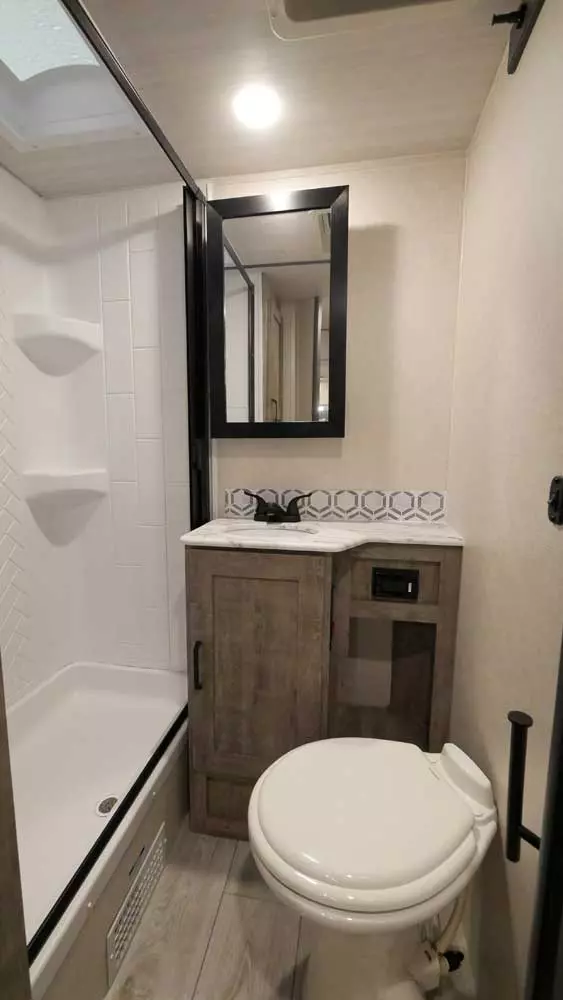

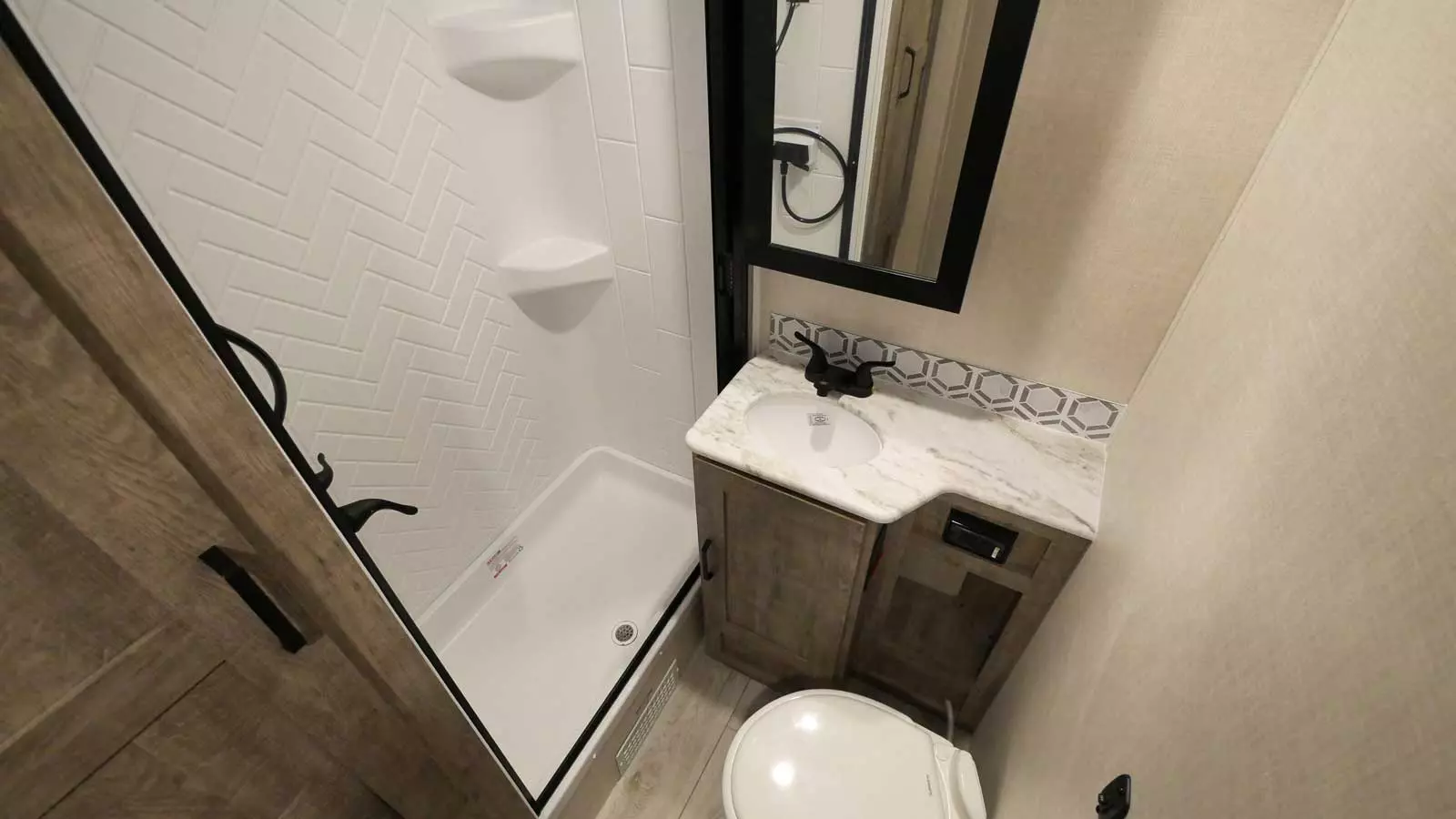

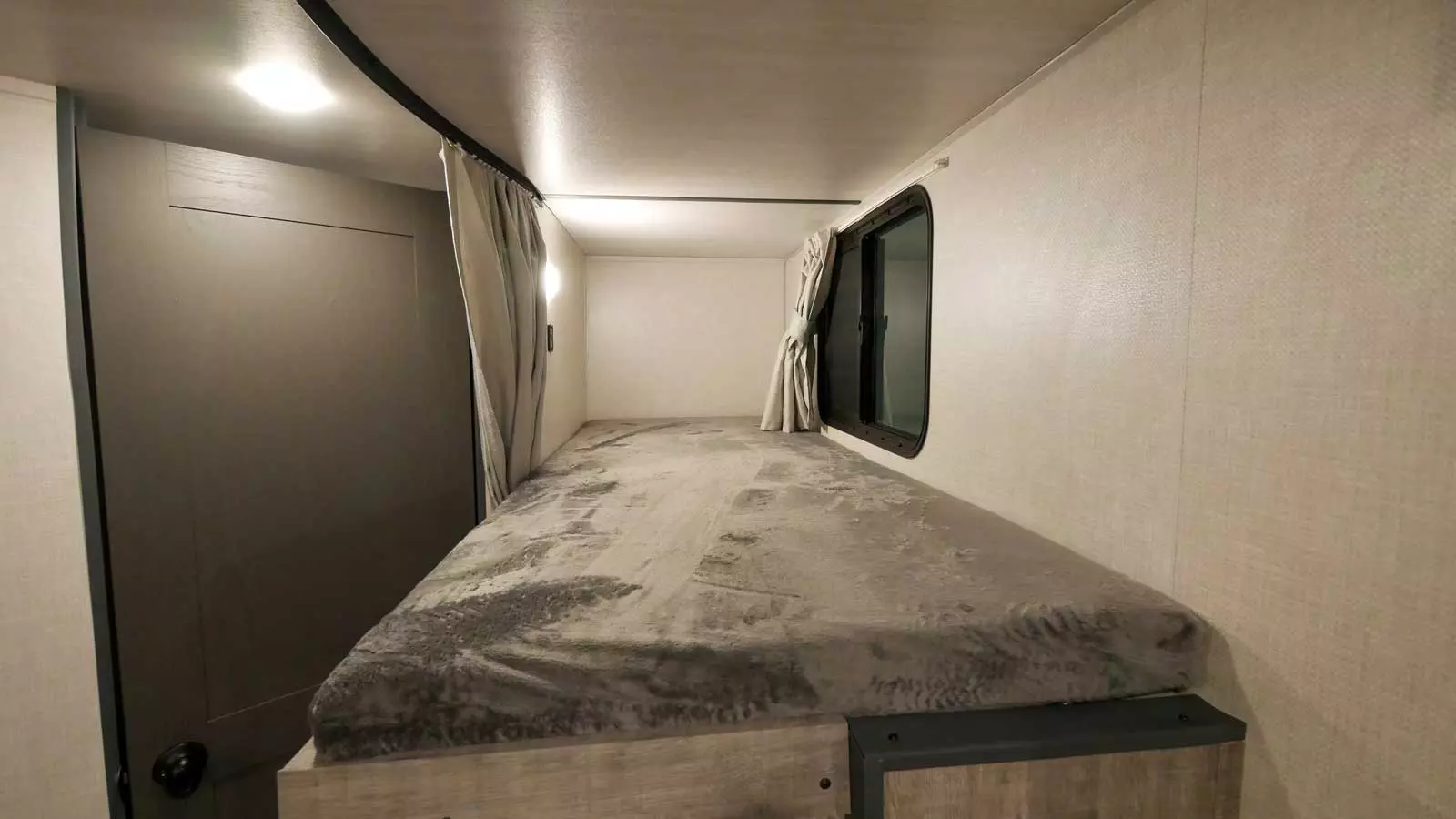

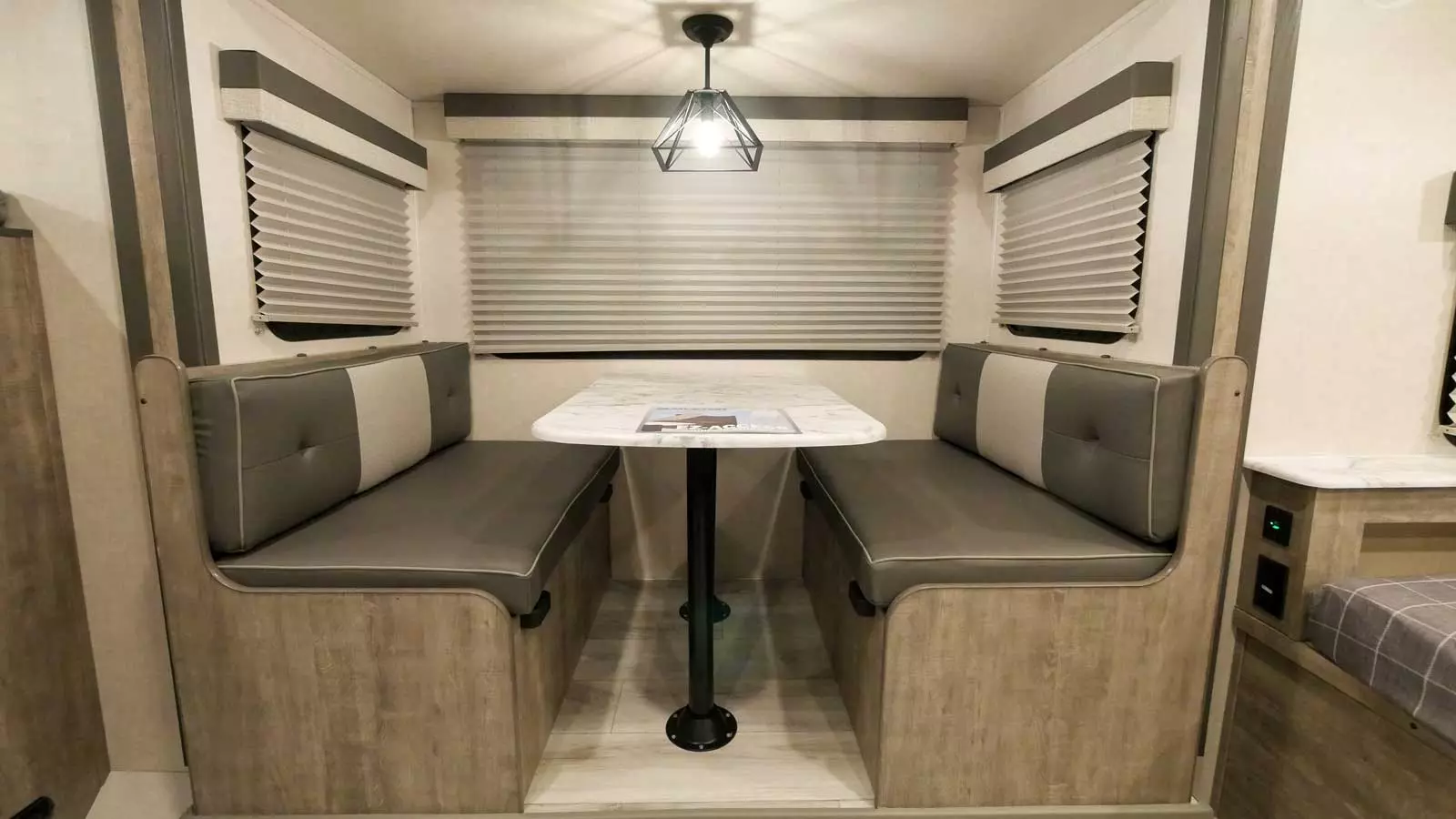

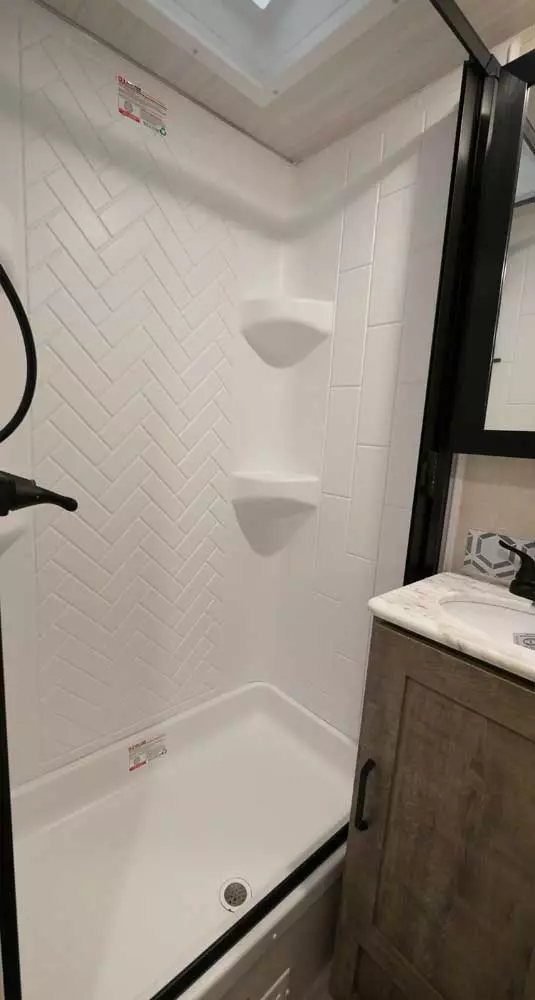

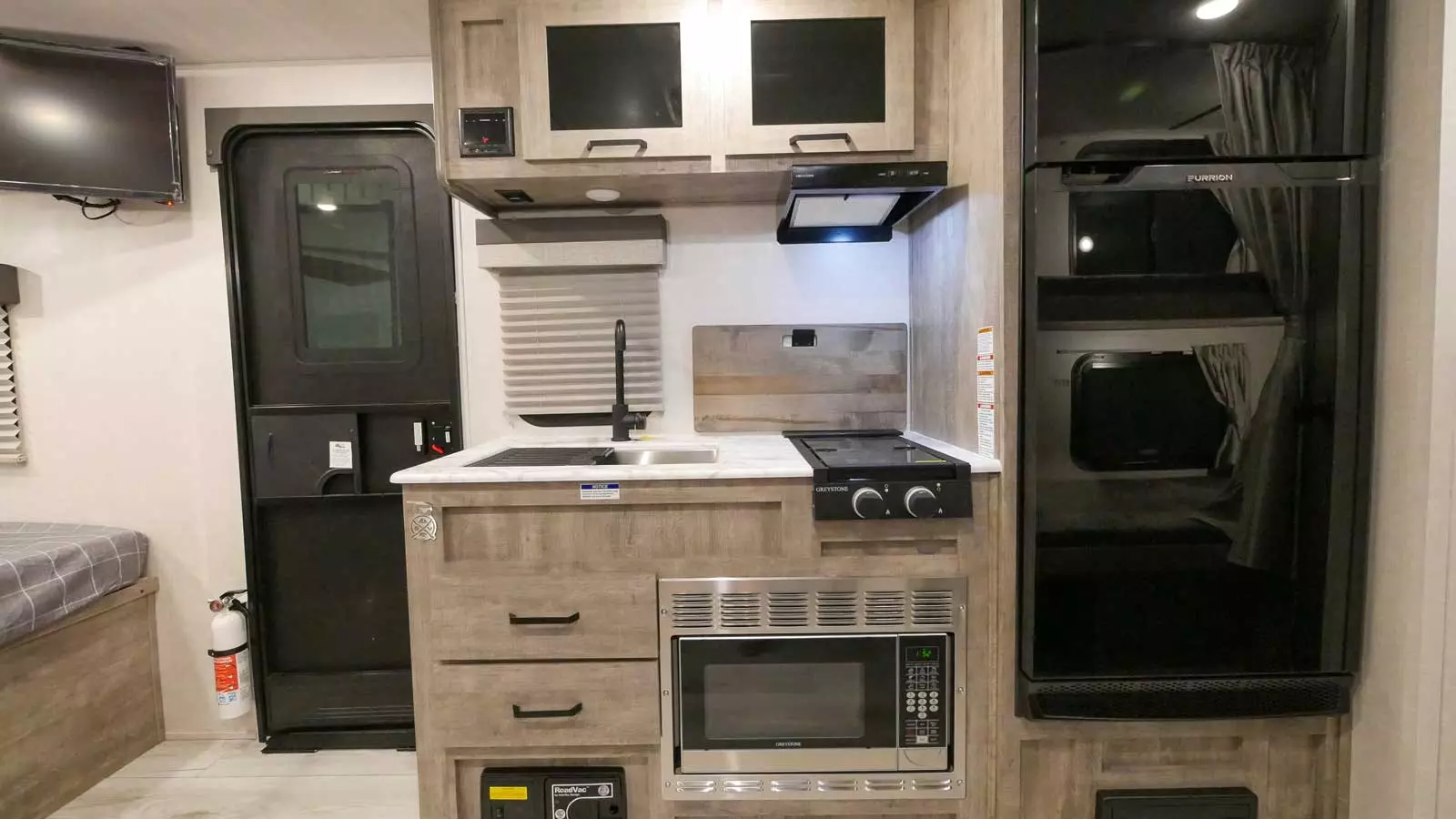

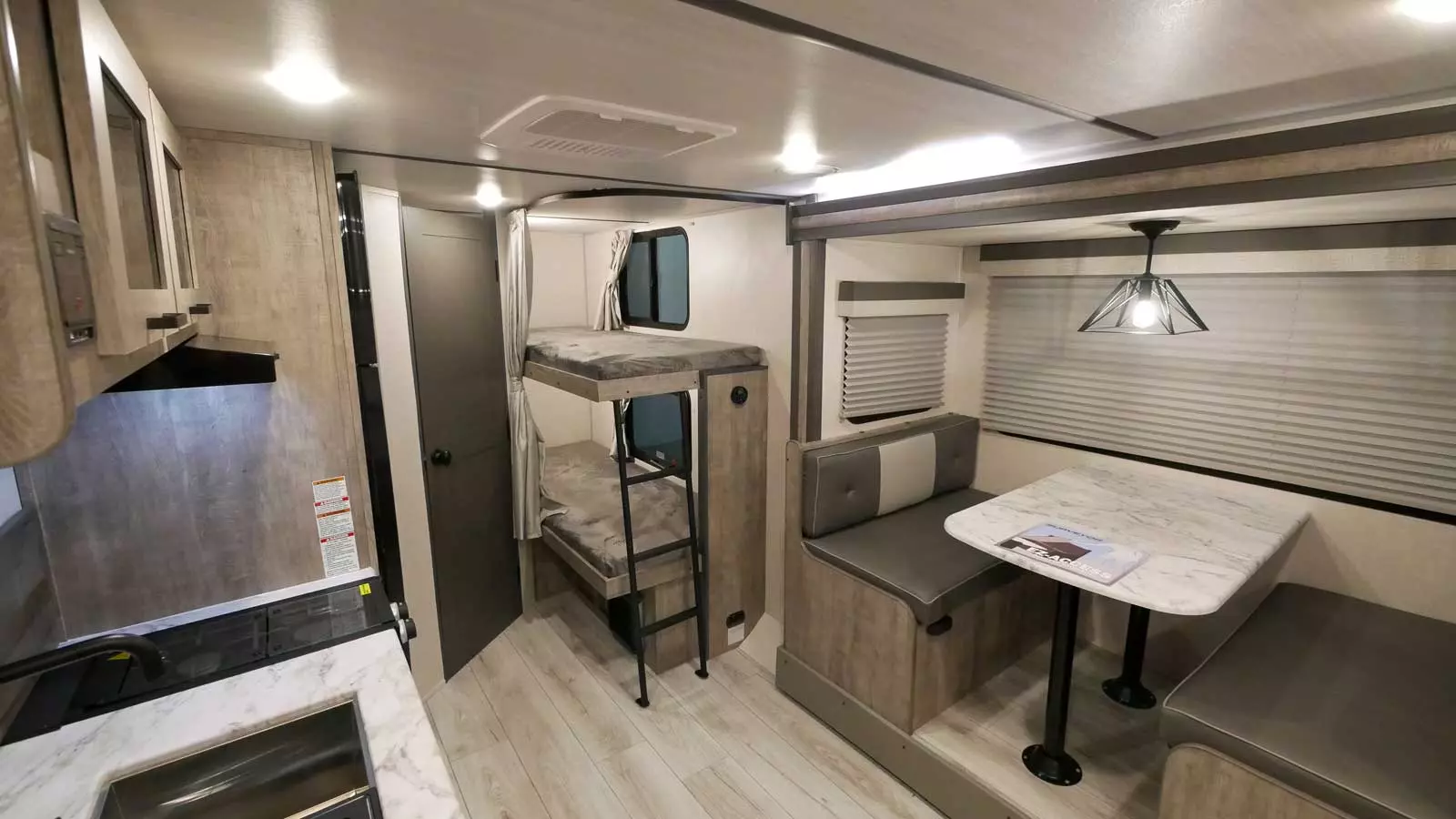

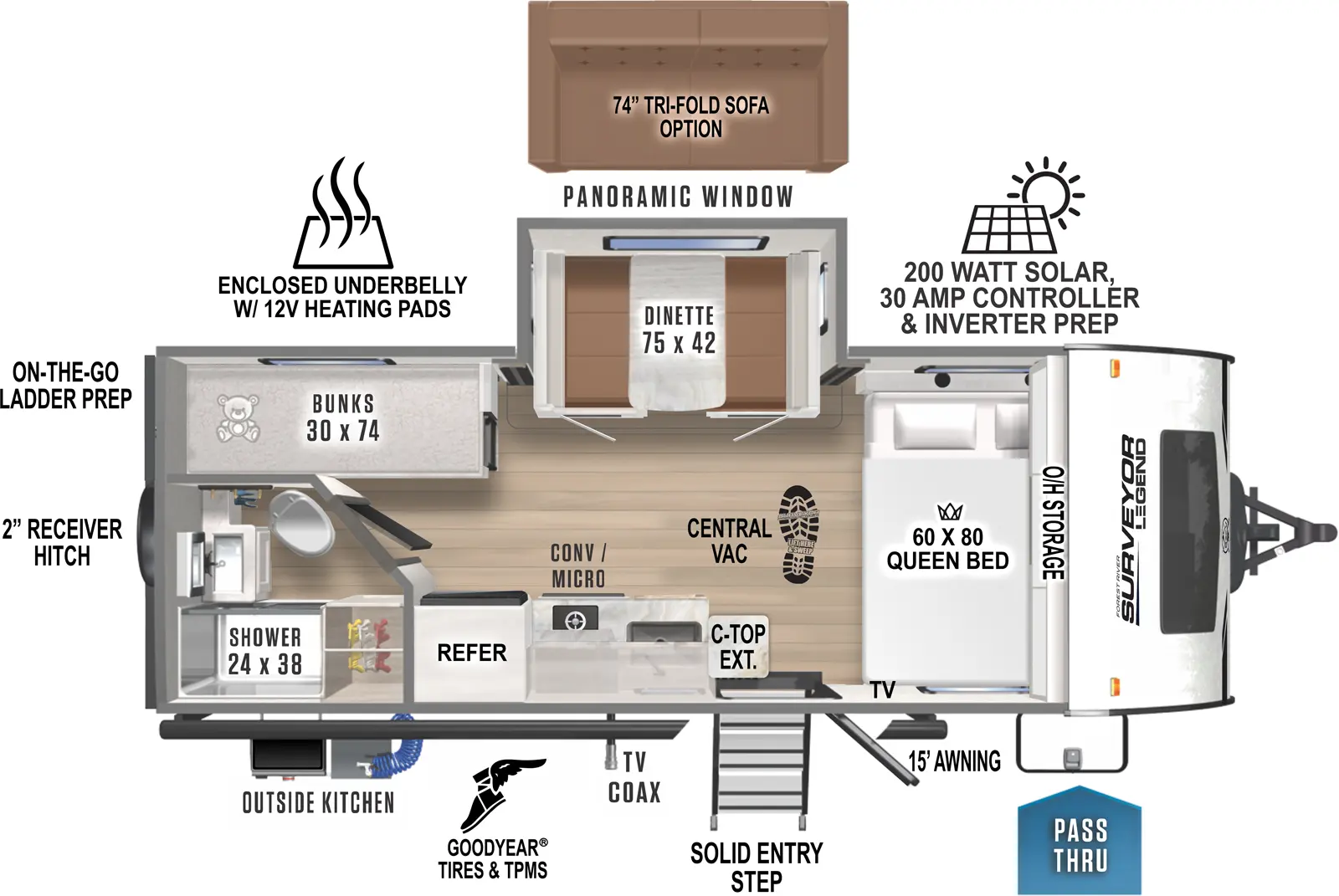

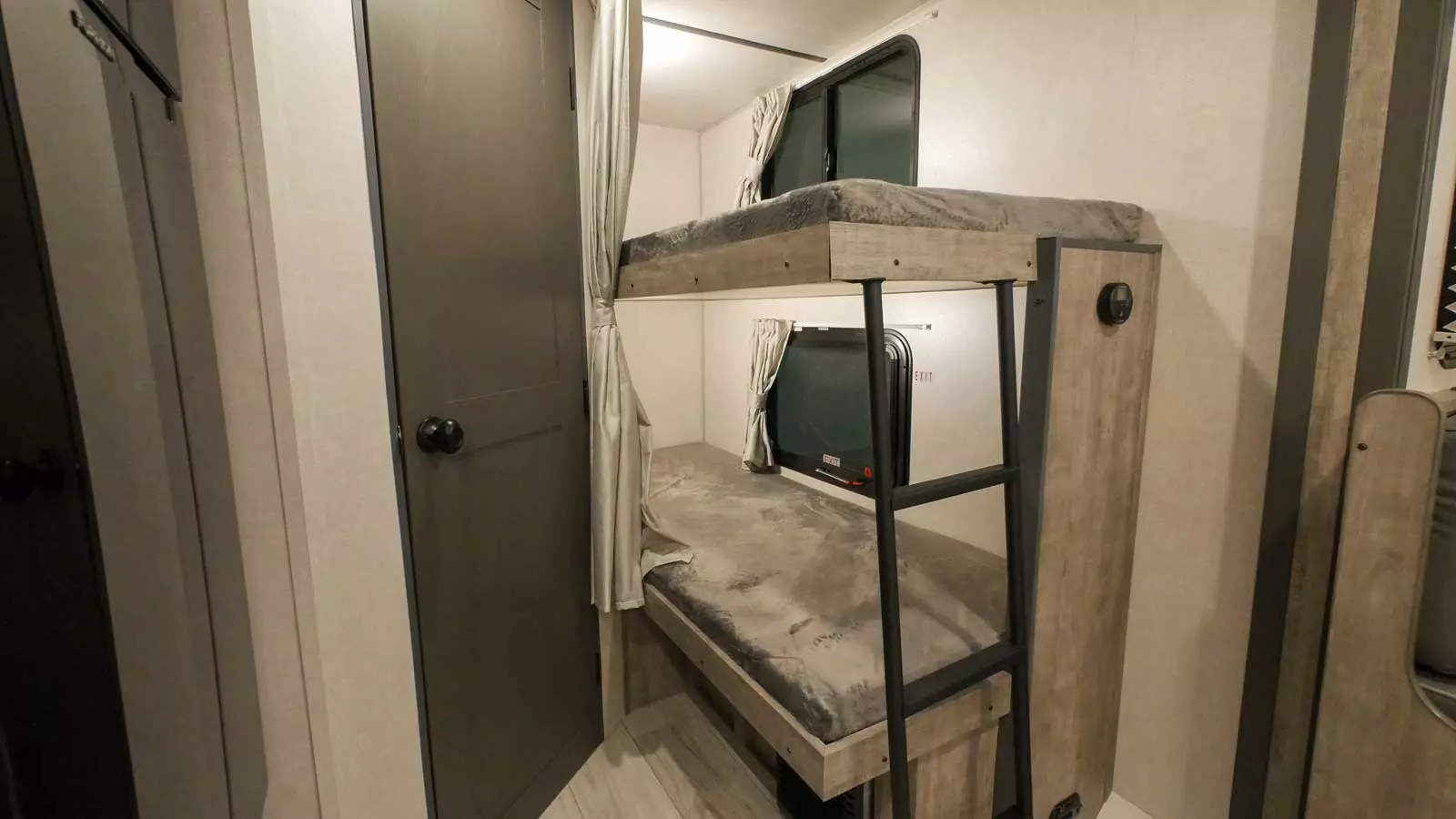

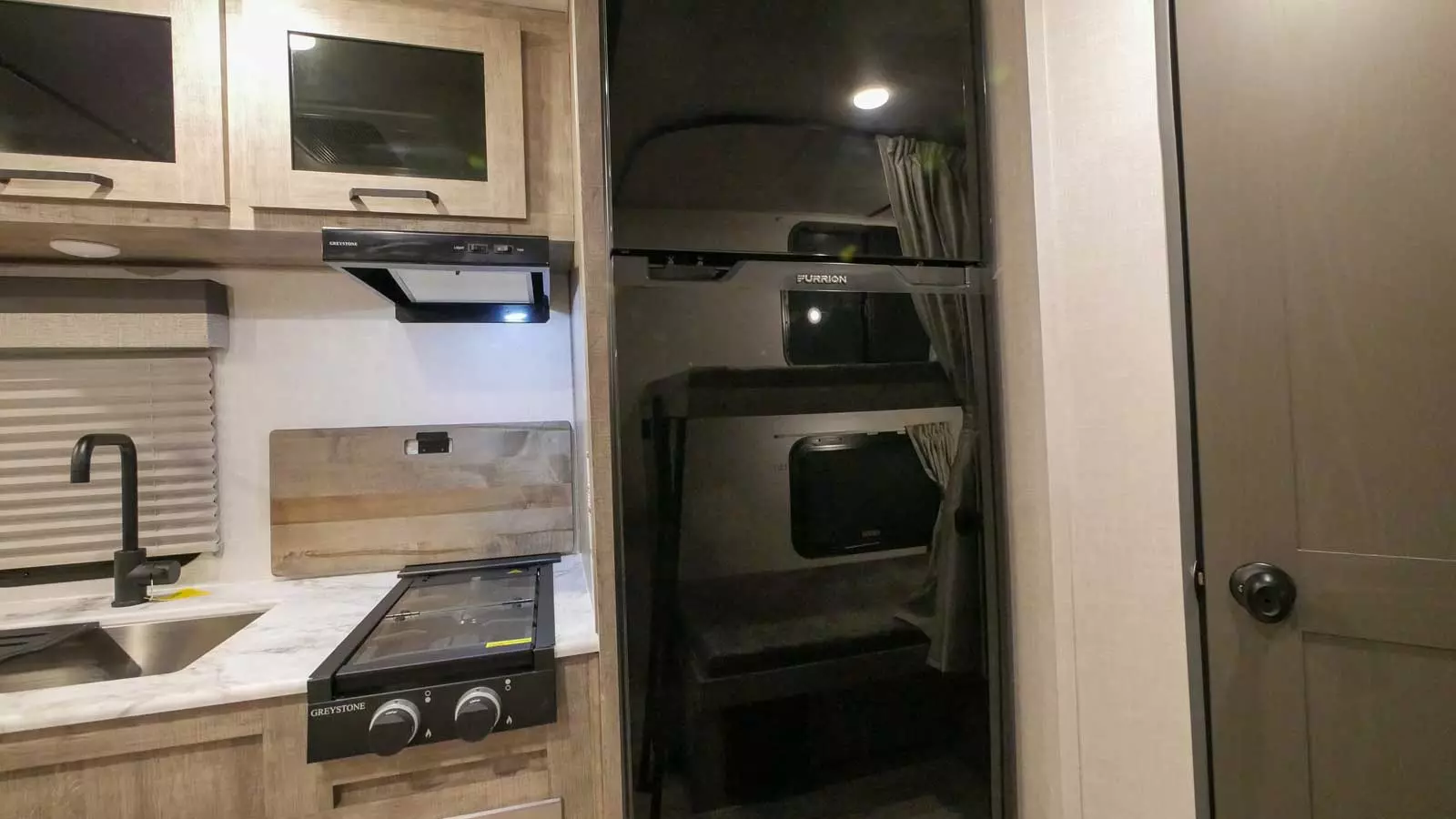

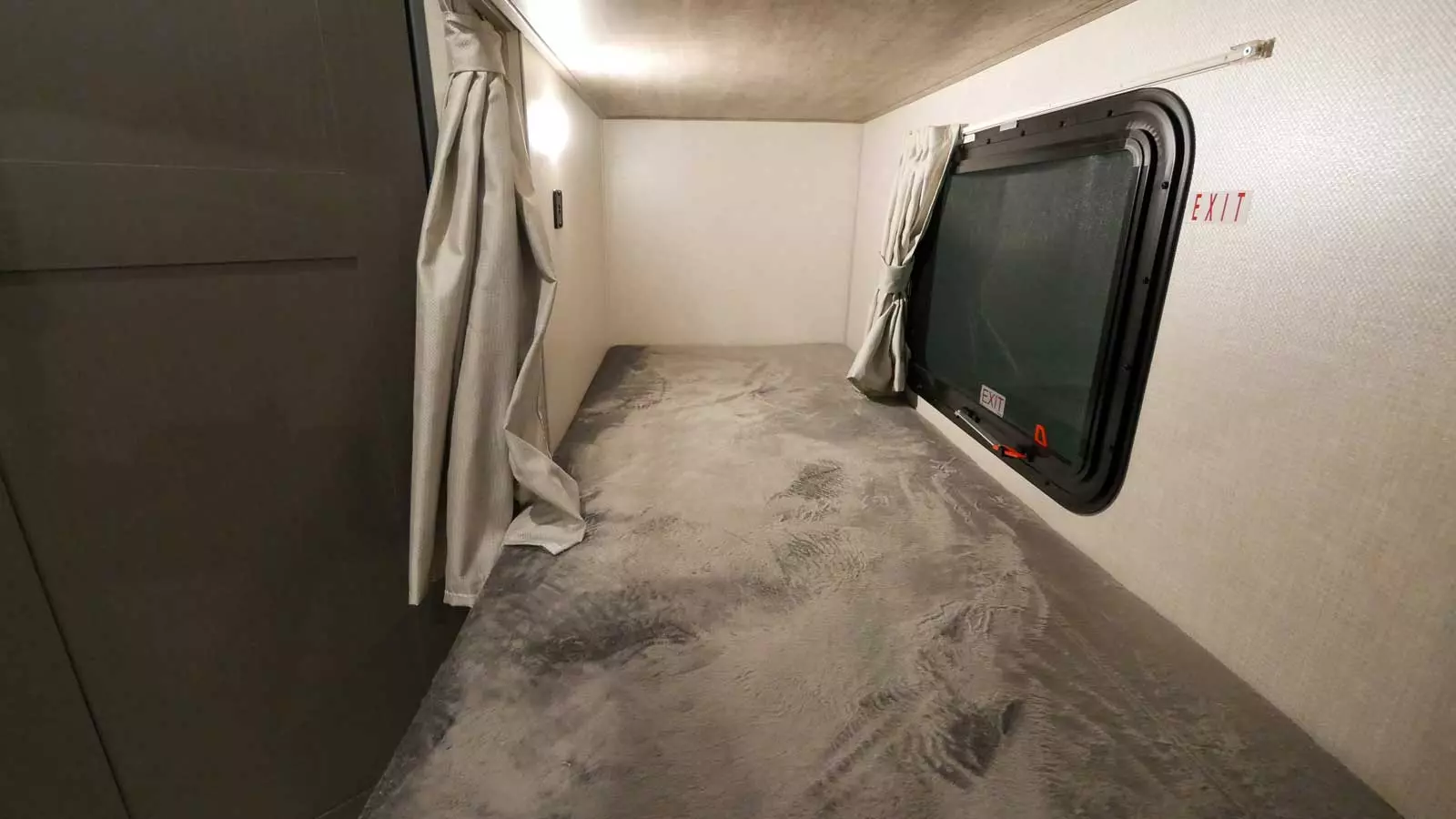

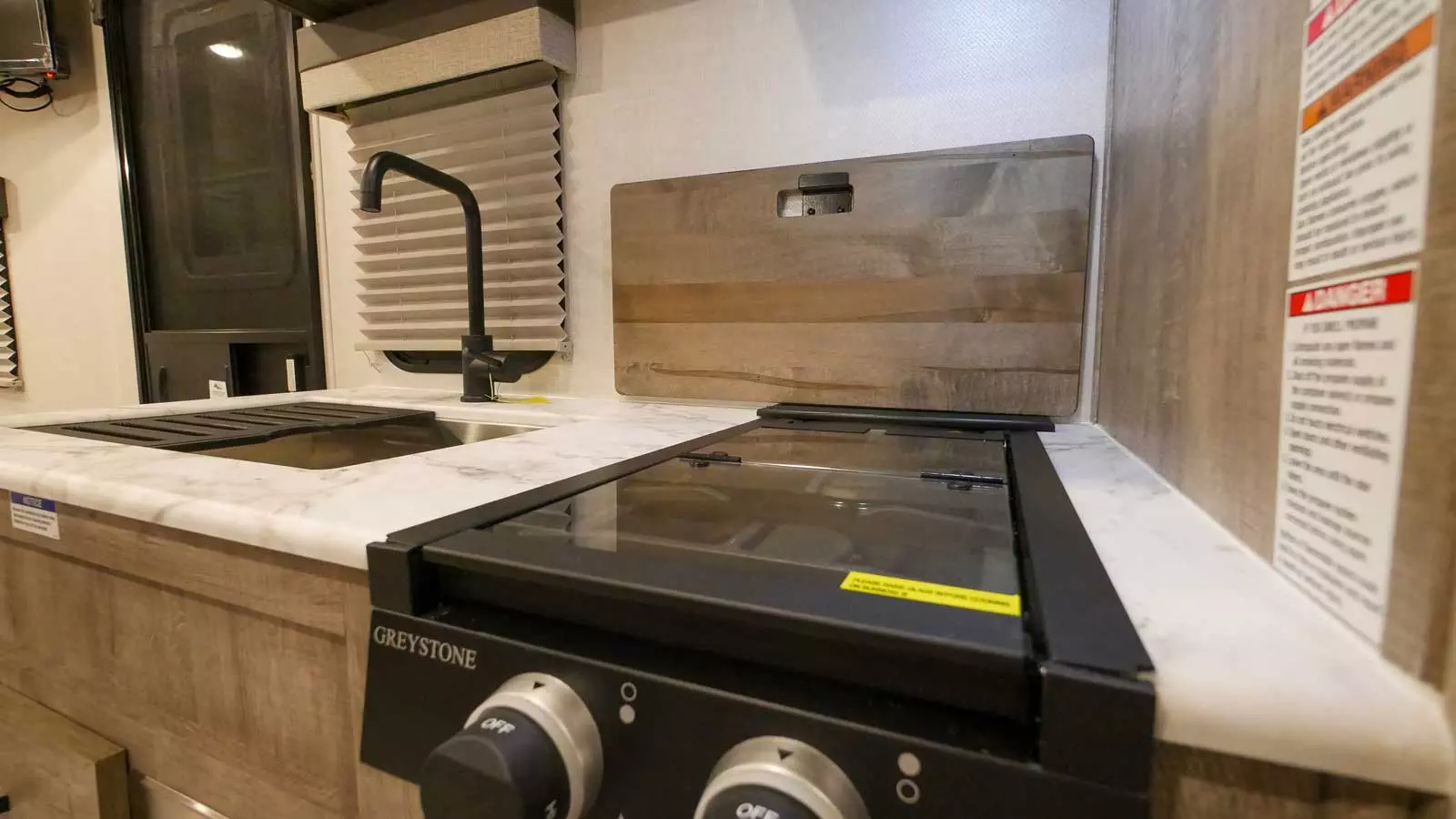

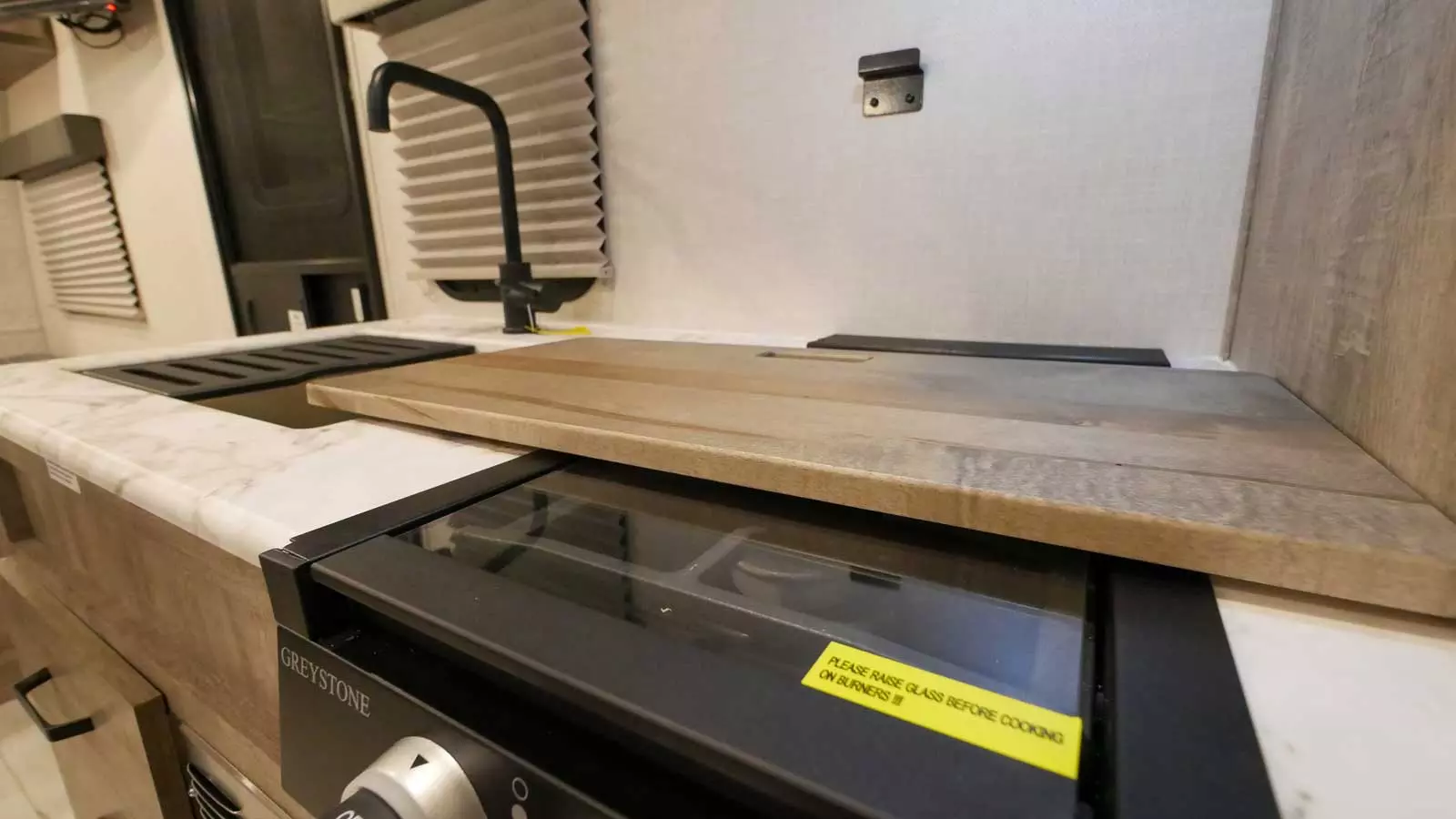

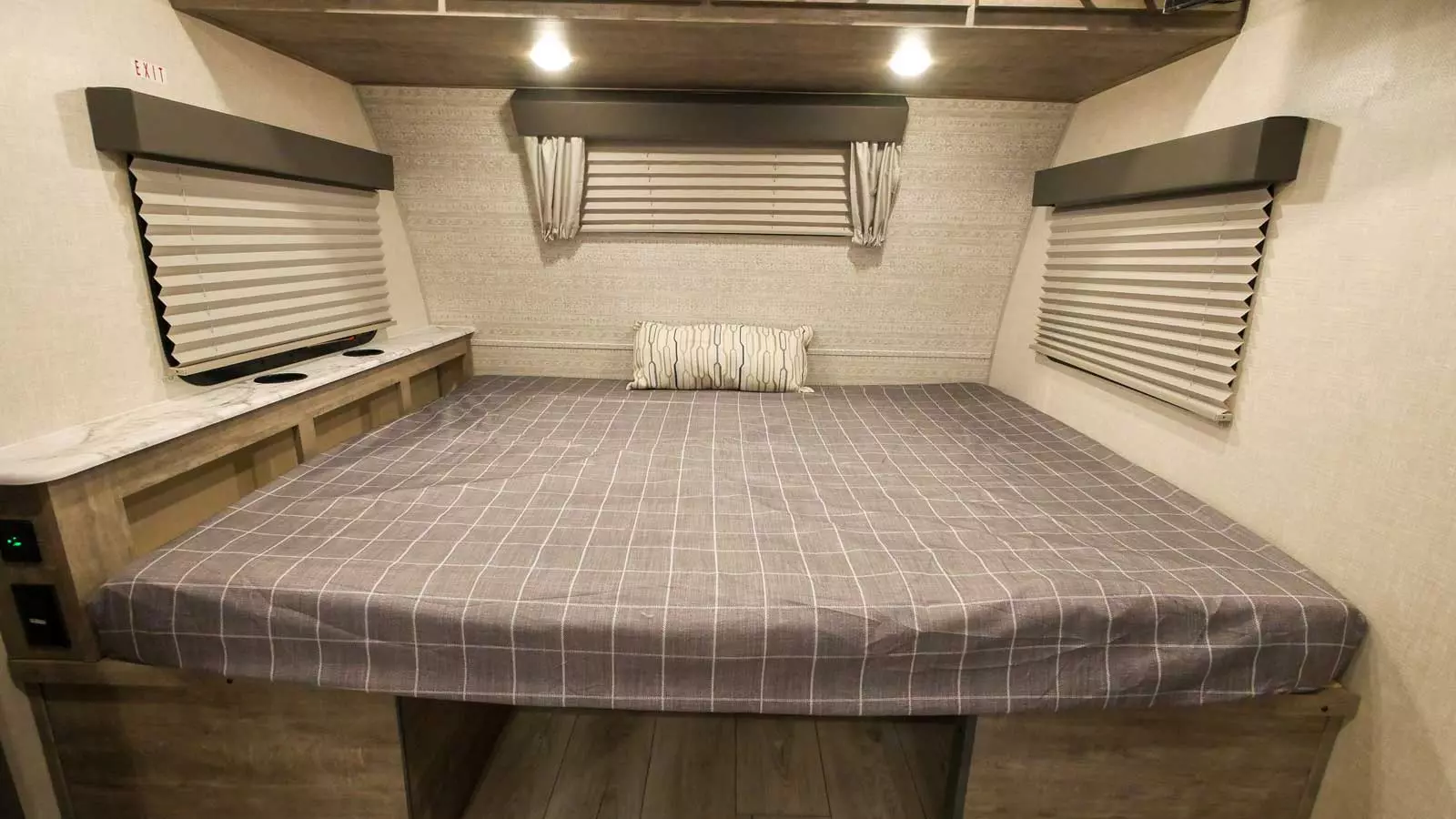

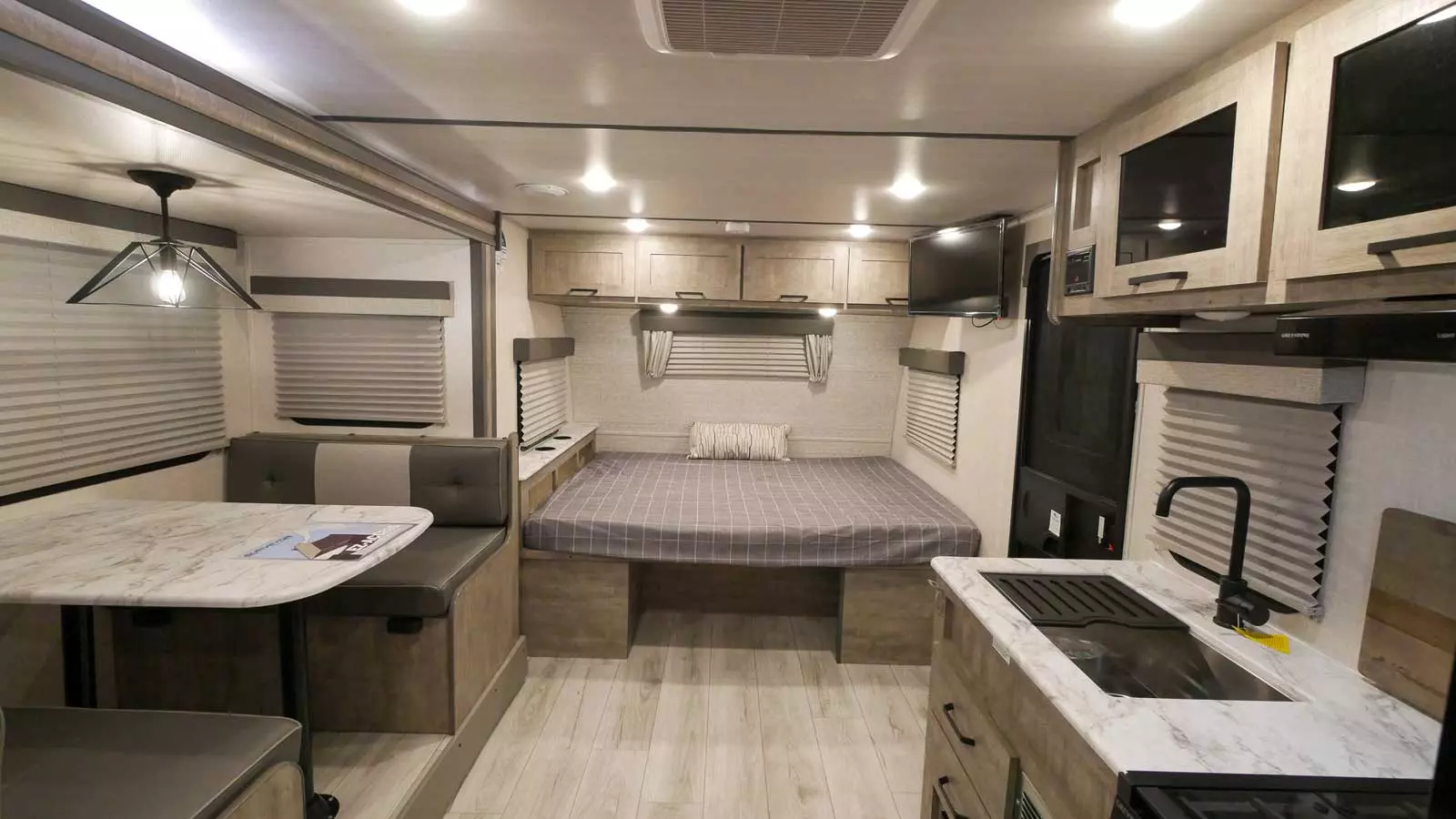

The 19BHLE has one entry and one slideout. Exterior features pass thru storage, solid entry step, TV coax, an outside kitchen, 15 foot awning, Goodyear tires and TPMS, on-the-go-ladder prep, 2 inch receiver hitch, enclosed underbelly with 12 volt heating pads, and 200 watt solar with 30 amp controller and inverter prep. Interior layout front to back: side facing queen bed with overhead storage, and TV on door side; off-door side dinette slideout with panoramic window; door side entry, kitchen counter with extension, convection microwave, and refrigerator; rear off-door side bunks; rear door side full bathroom. This RV has central vacuum. Optional trifold sofa available in place of dinette.

Sleeps up to 6. Need tow vehicle rated at 4300 lbs. or more. Our smallest bunkhouse model built rugged enough to handle the haul and capably ready to make memories, features; Teddy Bear adult size bunks, deep dinette slide-out with storage doors, large washroom with extra storage, versatile convection microwave oven, and residential 60x80 queen bed nestled under our “Stargazer” front window. Newly Added our Sub 4s Outside Kitchen; griddle, prep shelf, & spray port!

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
