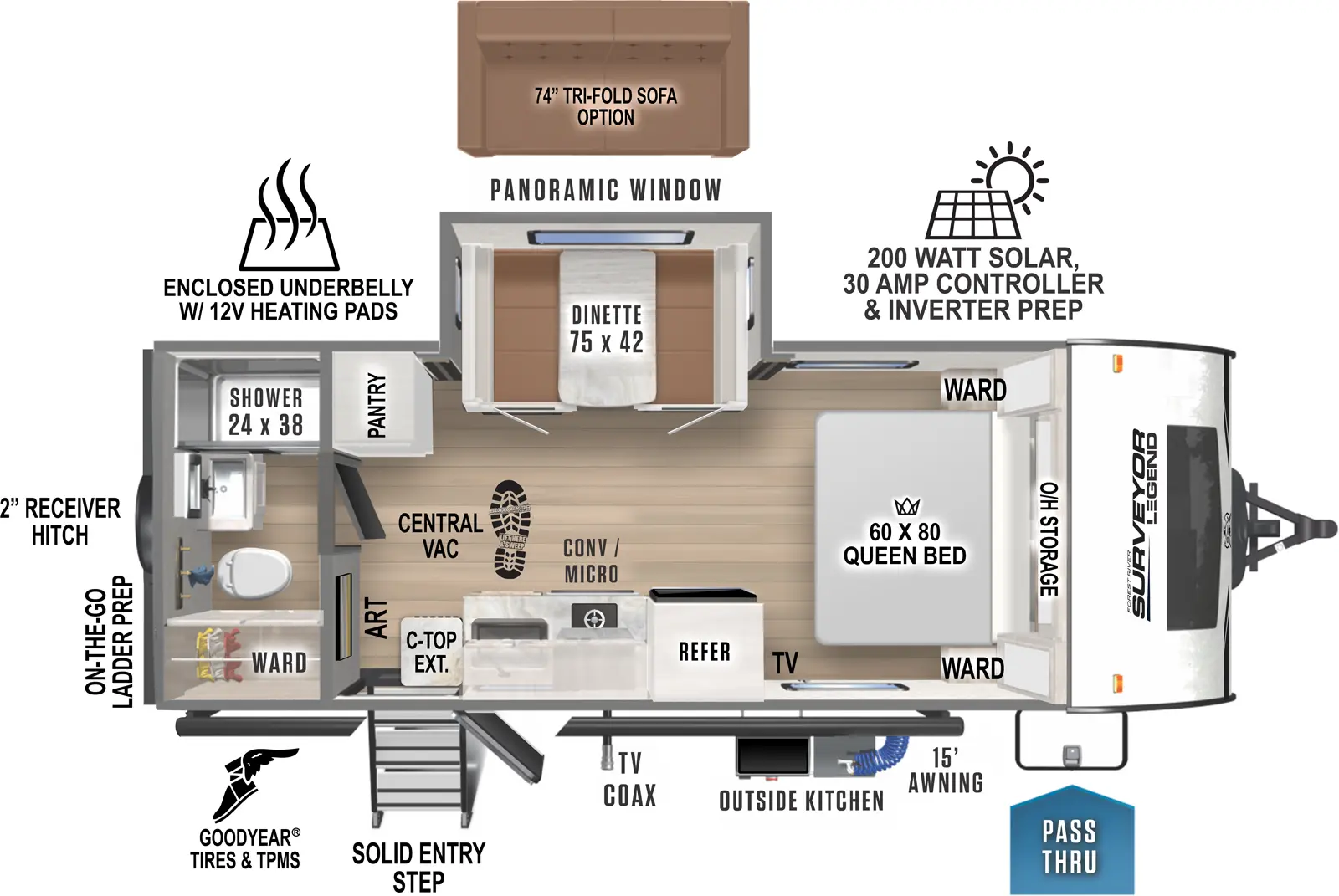

2024 Surveyor Legend 19RBLE Floorplan

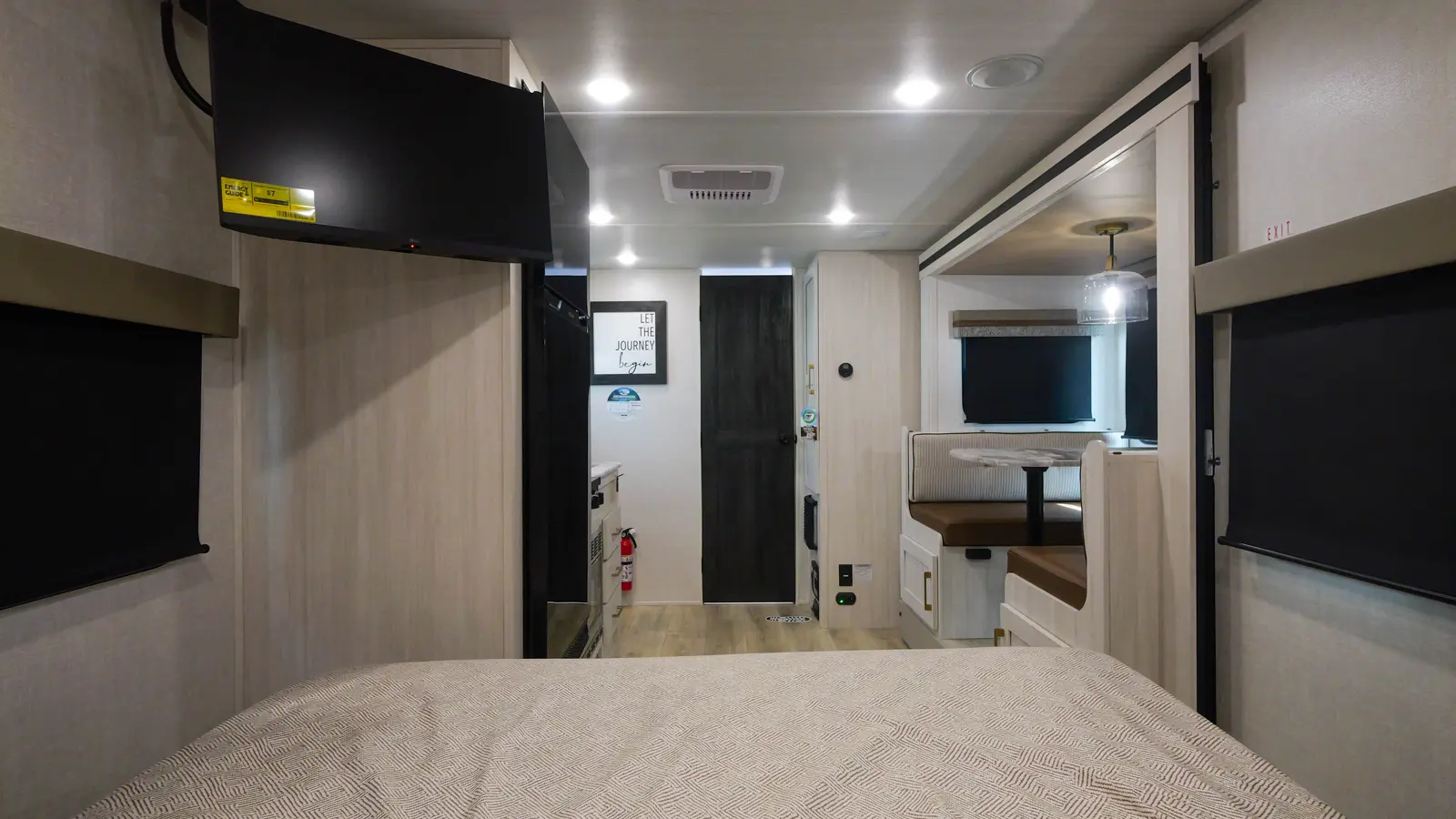

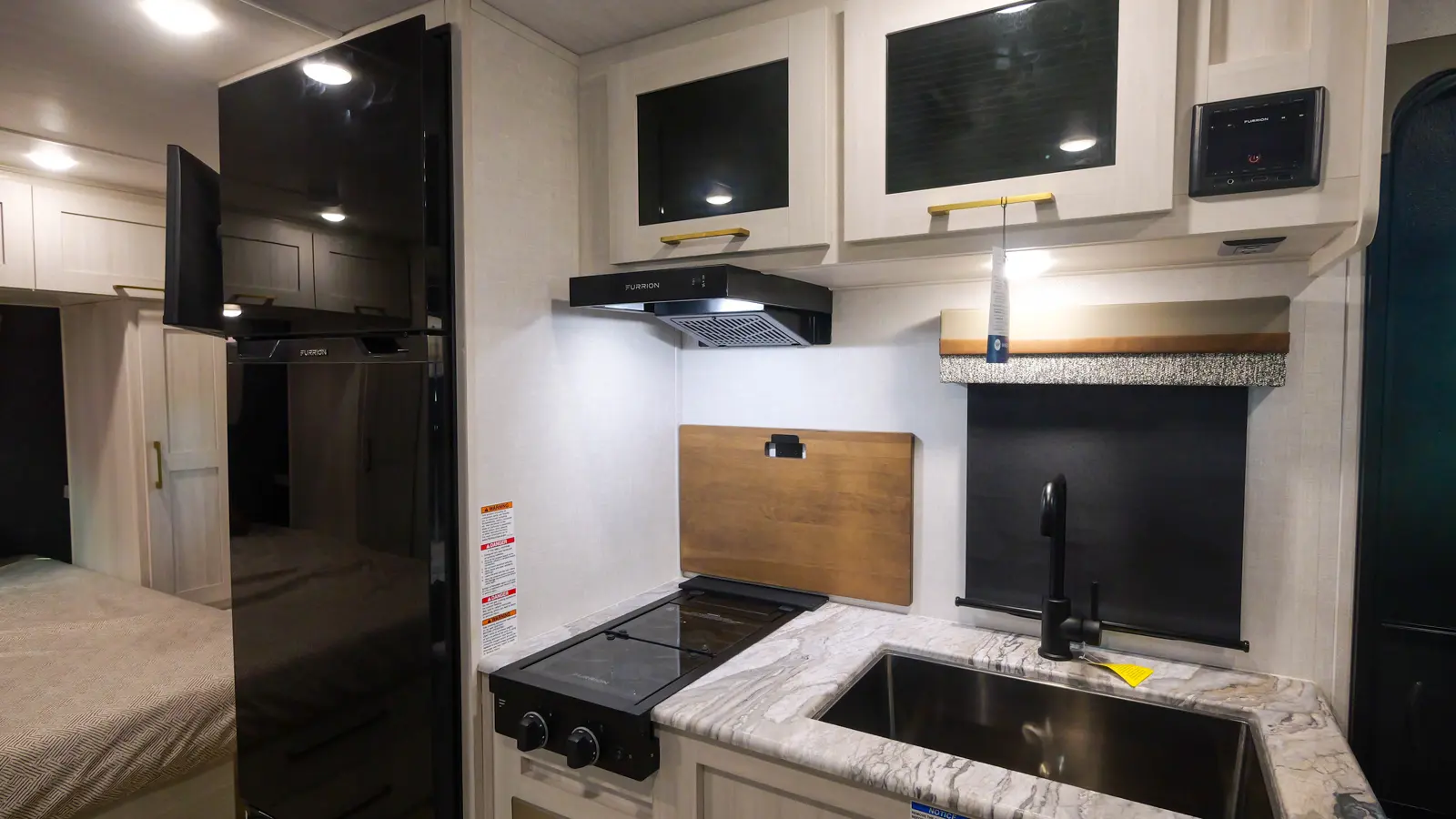

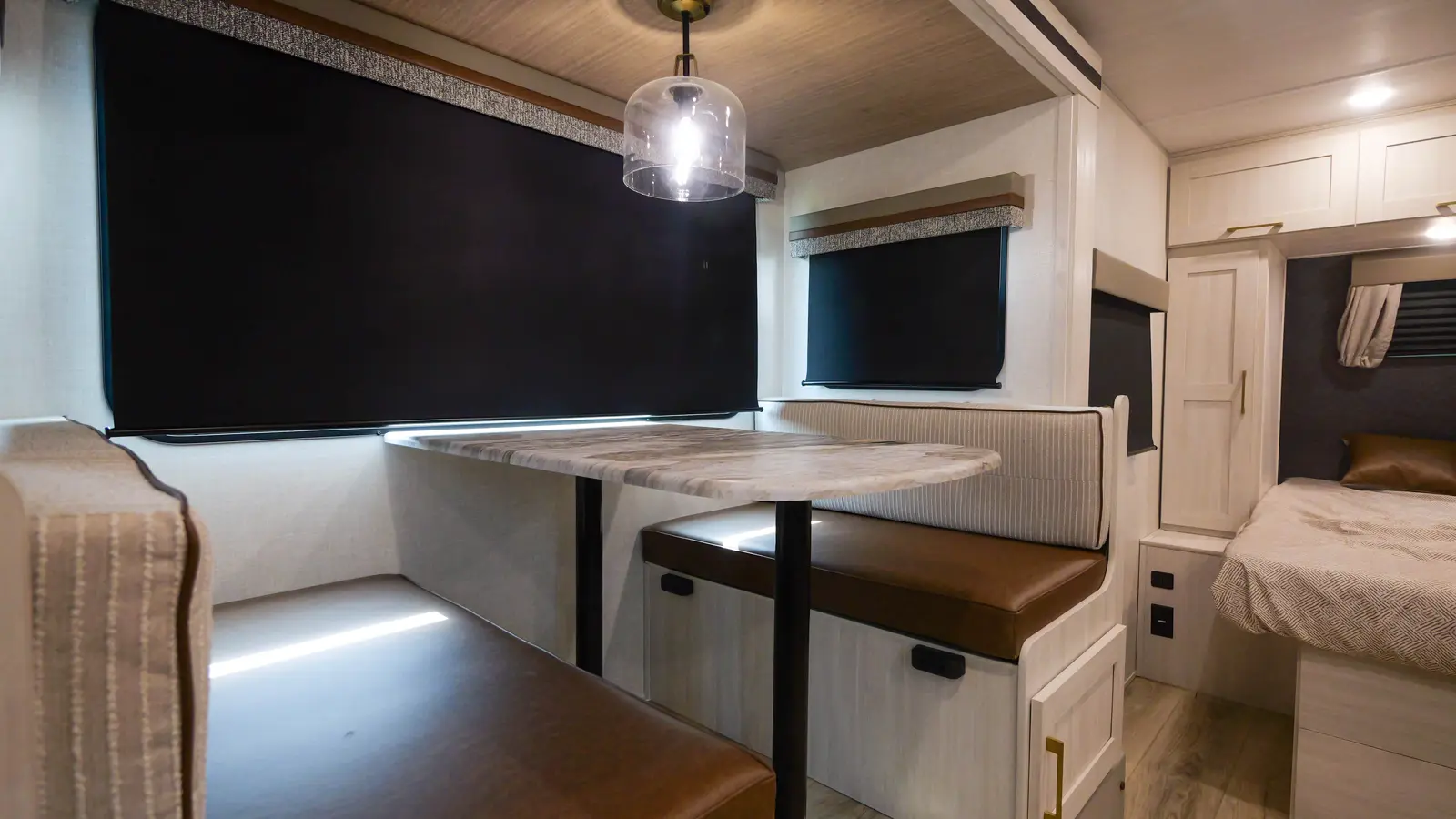

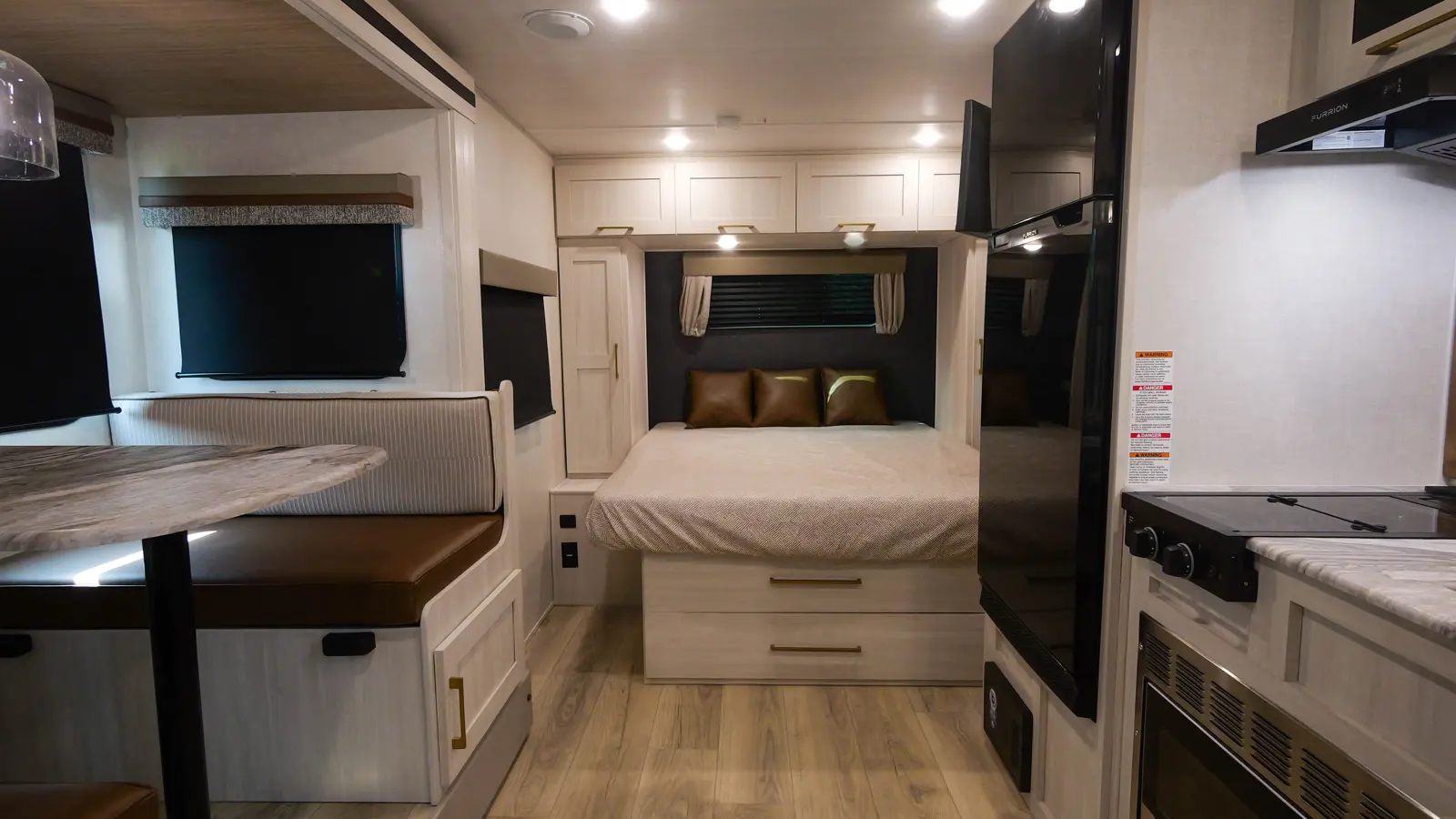

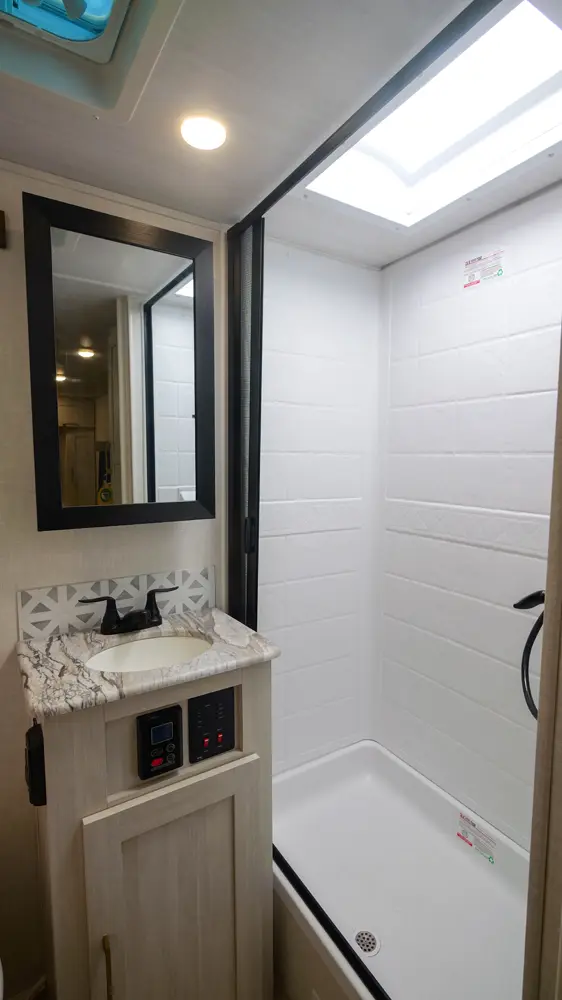

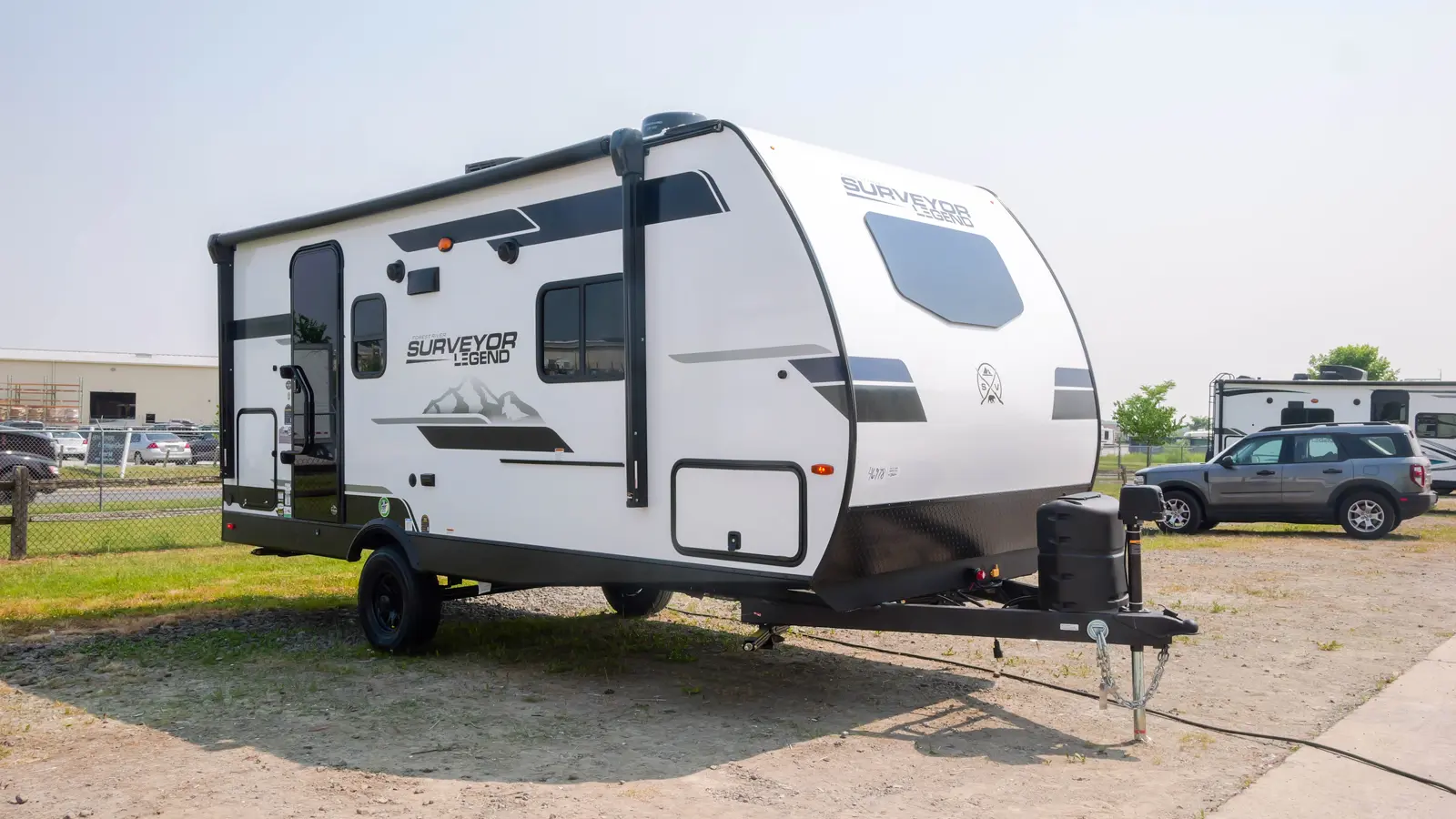

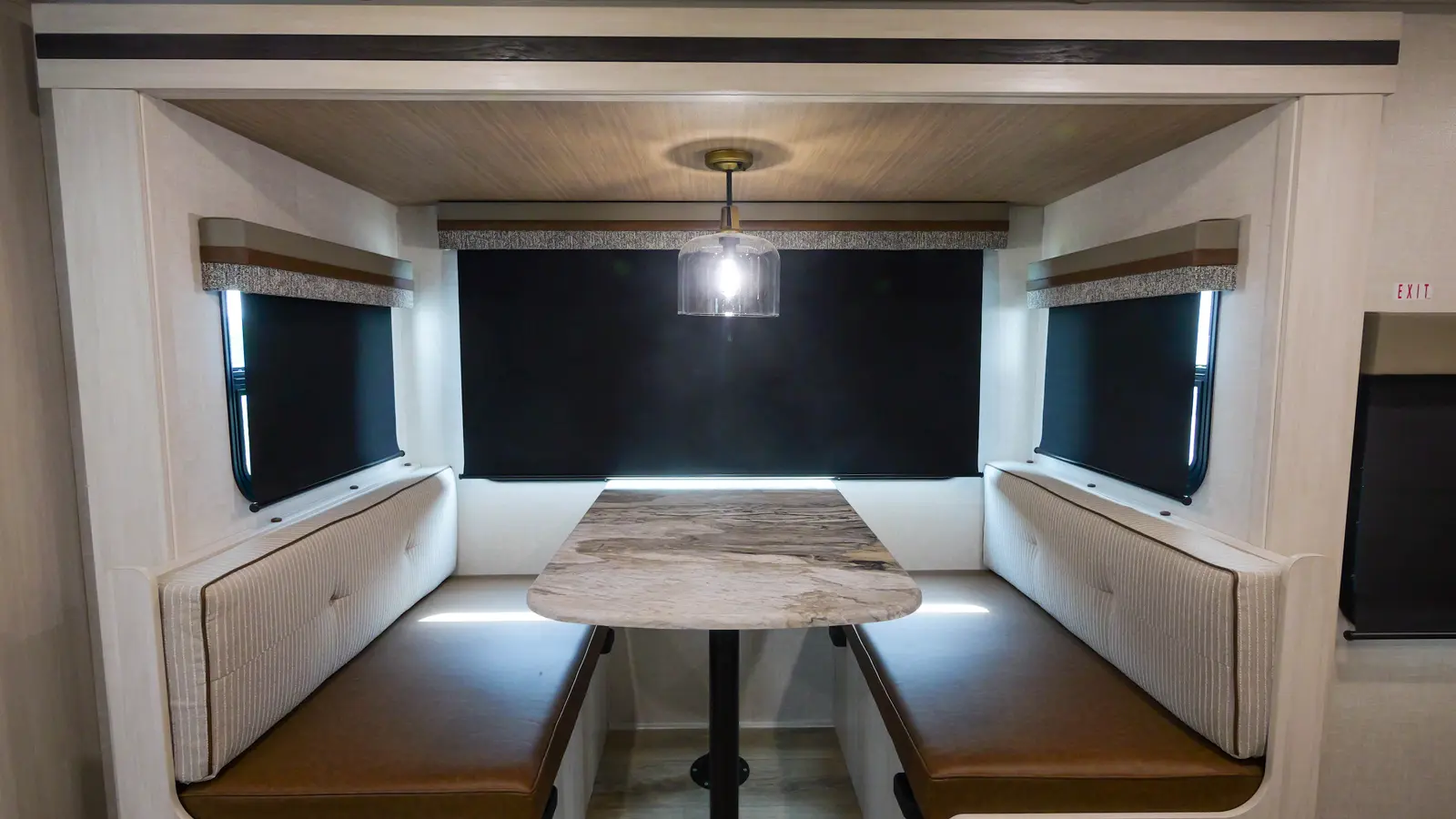

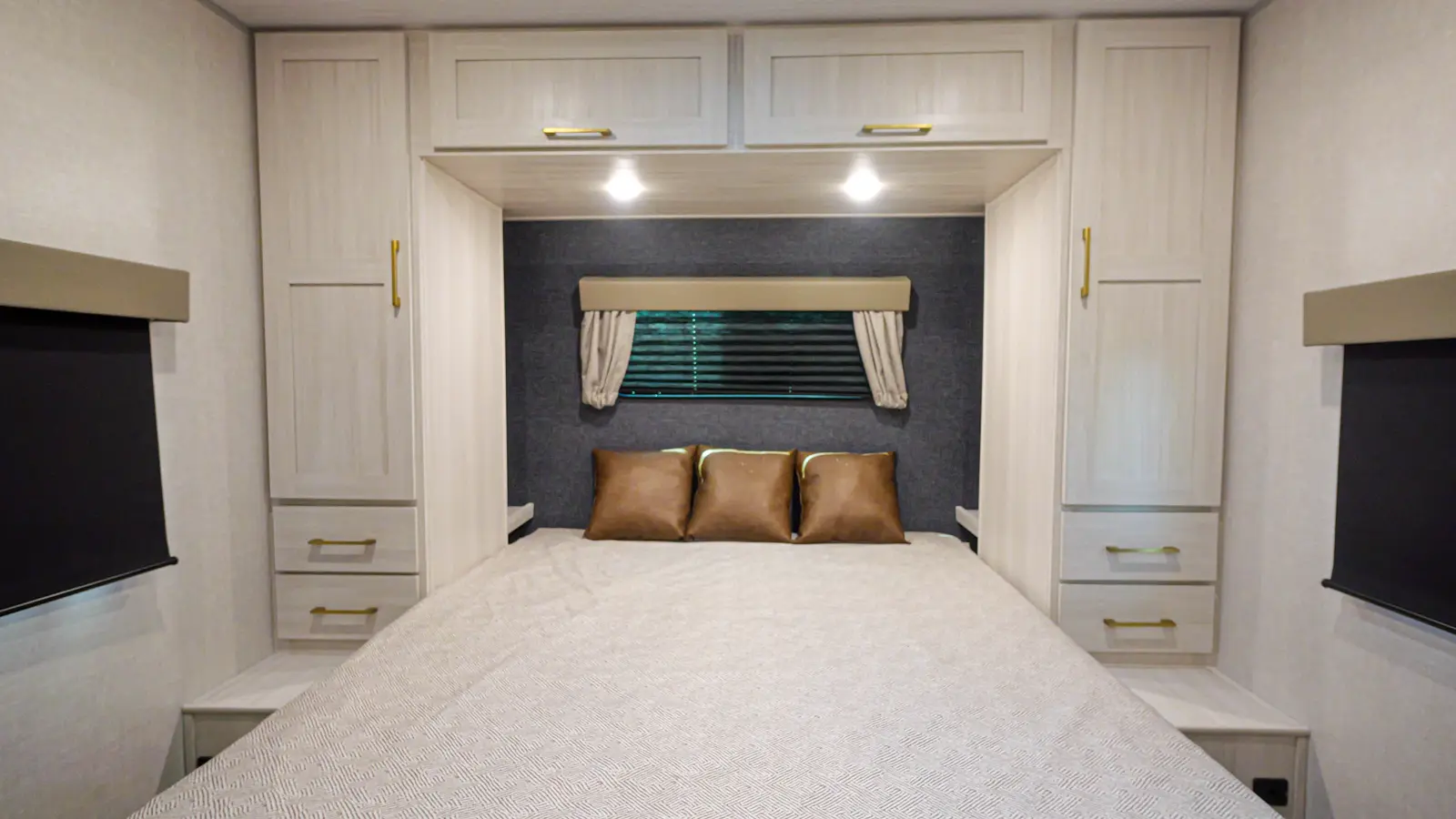

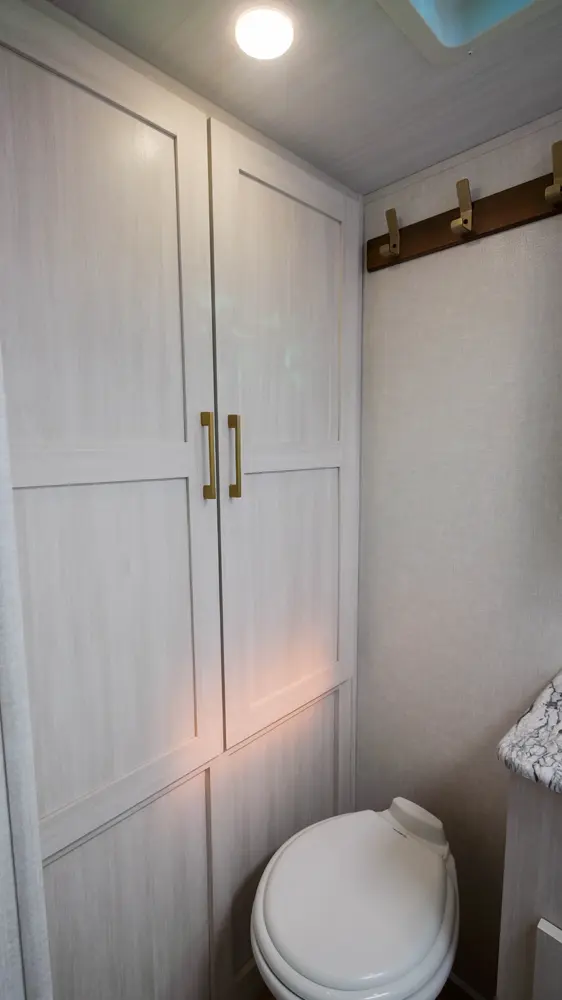

The 19RBLE has one entry and one slideout. Exterior features pass thru storage, solid entry step, TV coax, an outside kitchen, 15 foot awning, Goodyear tires and TPMS, on-the-go-ladder prep, 2 inch receiver hitch, enclosed underbelly with 12 volt heating pads, and 200 watt solar with 30 amp controller and inverter prep. Interior layout front to back: foot facing queen bed with overhead storage and wardrobes on each side; off-door side dinette slideout with panoramic window; foor side TV, refrigerator, convection microwave, kitchen counter with extension, and entry; off-door side pantry; rear full bathroom with wardrobe. This RV has central vacuum. Optional tri-fold sofa available in place of dinette.

Sleeps up to 4. Need tow vehicle rated at 4300 lbs. or more. The 19RBLE is Adventure Ready! - Our most nimble couple’s model made for new and seasoned RVers alike features; a big rear washroom with extra wardrobe, large kitchen pantry, deep dinette slide-out with storage doors, versatile convection microwave oven, sizable 15’ hang outside all day awning, and our renowned queen bedroom suite configuration! Newly Added our Sub 4s Outside Kitchen; griddle, prep shelf, & spray port!

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
