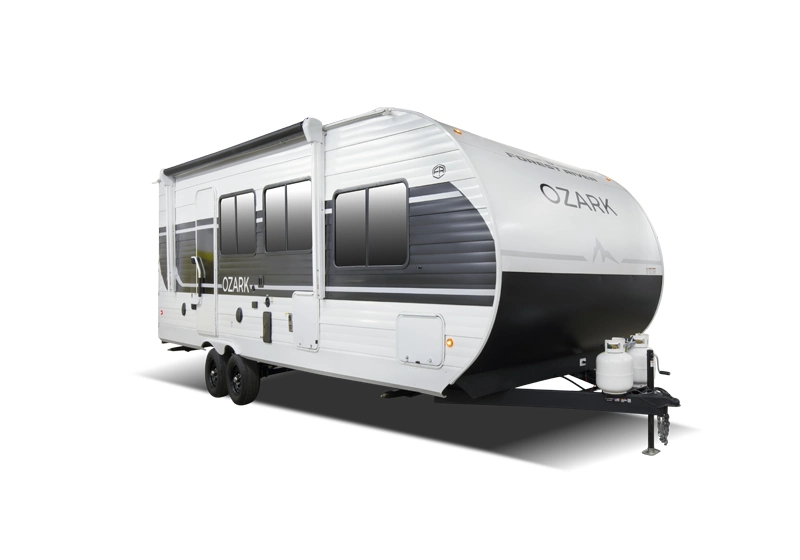

Ozark Travel Trailers and Toy Haulers

Ozark travel trailers and toy haulers are lightweight, easy to tow, and loaded with standard amenities such as oversized windows, high capacity tanks, and stainless-steel appliances. The unique and spacious floorplans pack in all the features you need and none that you don’t, all while maintaining smooth styling, capability and value. Built with the weekender in mind, all you need to worry about is where adventure will take you next!

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications












to

to

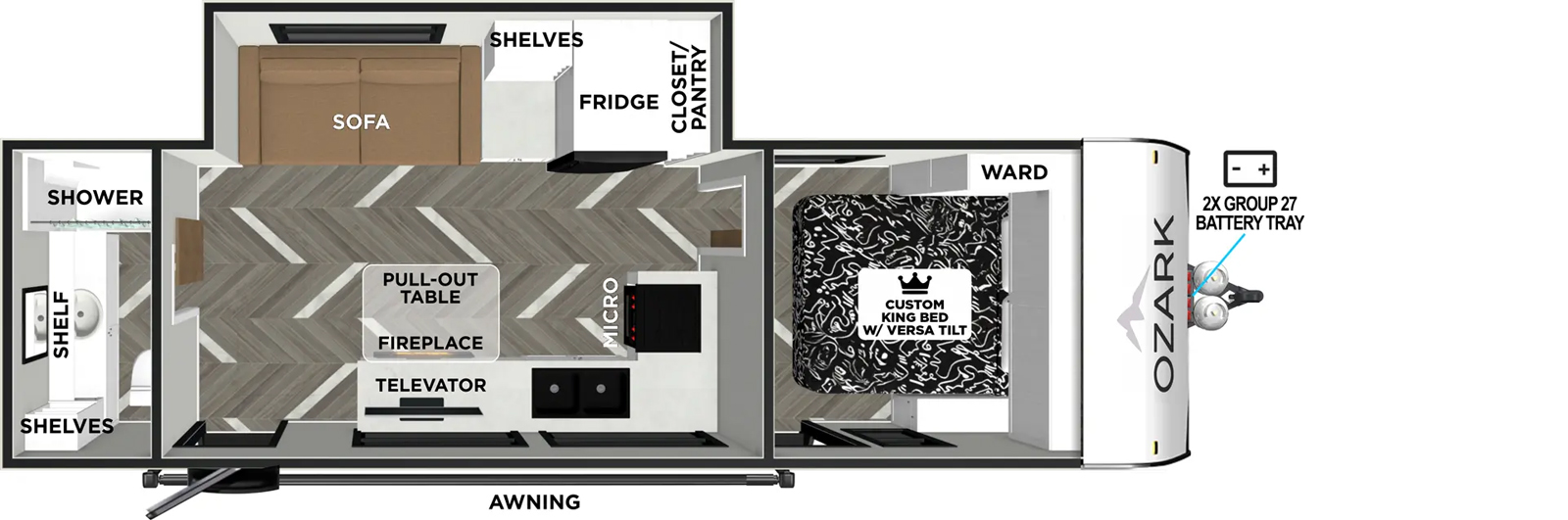

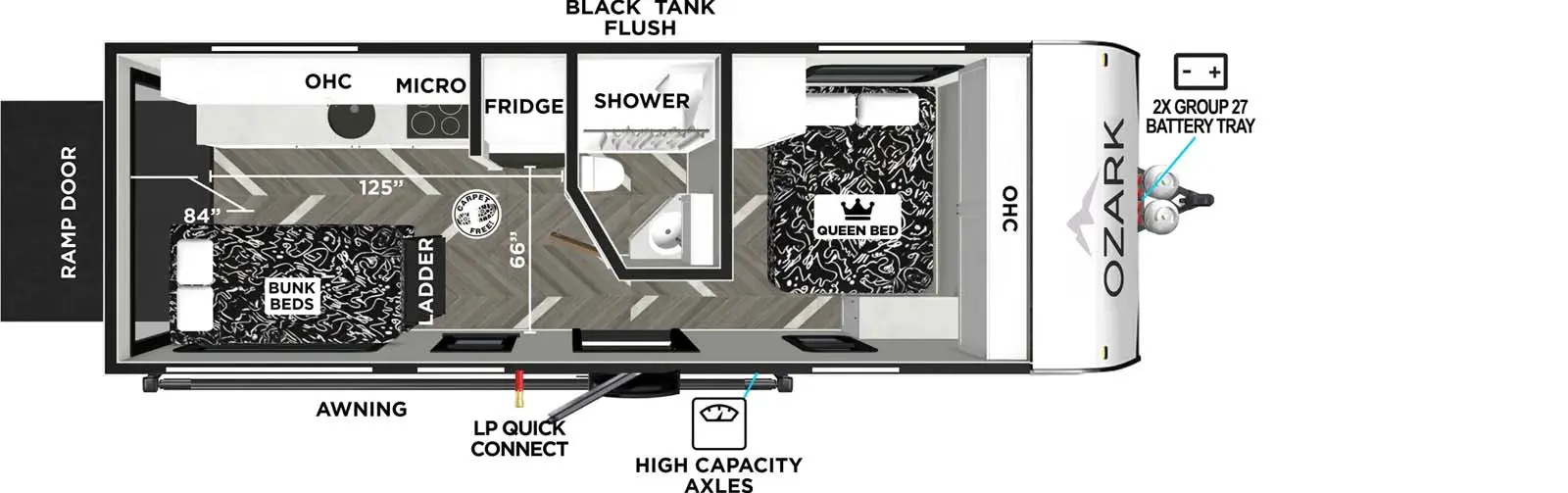

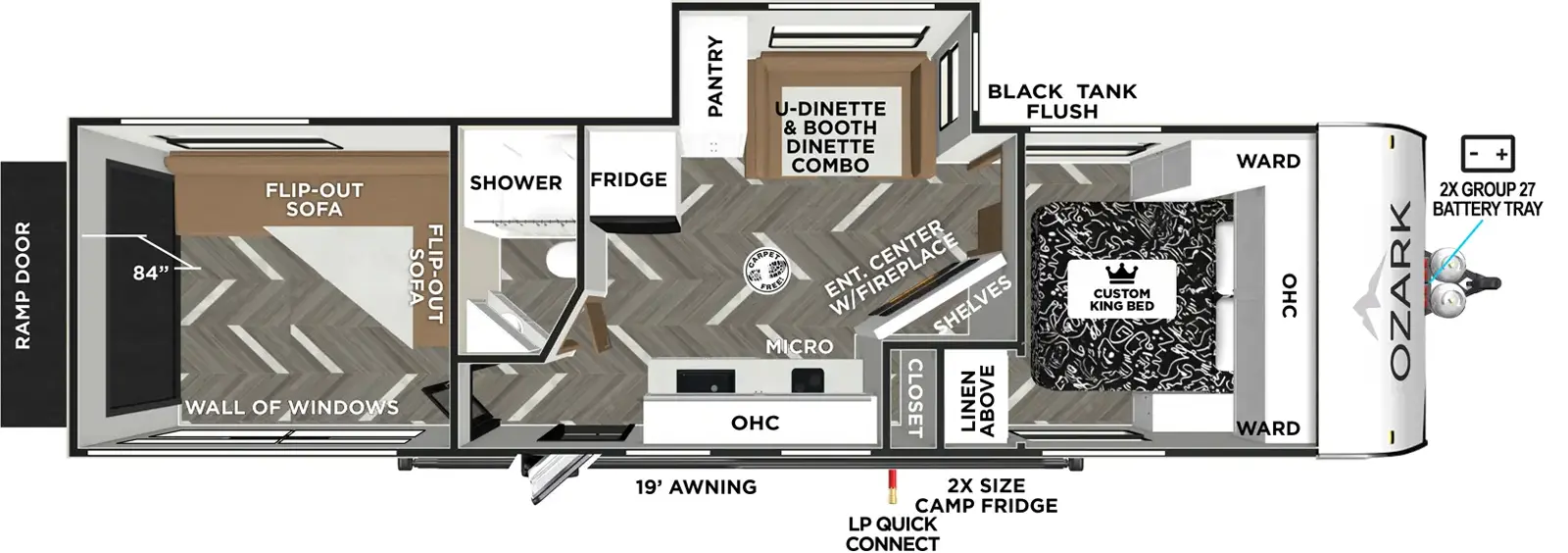

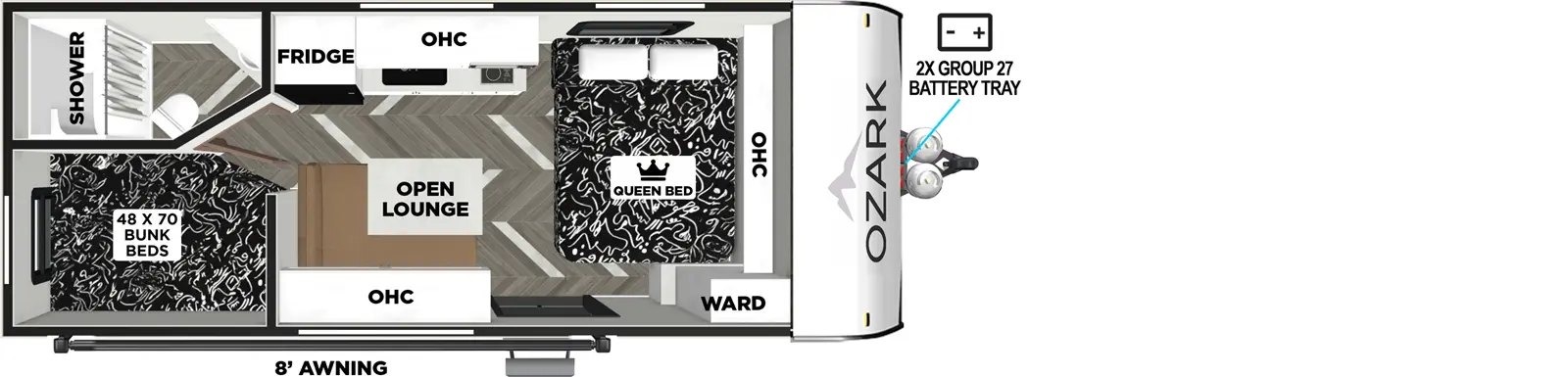

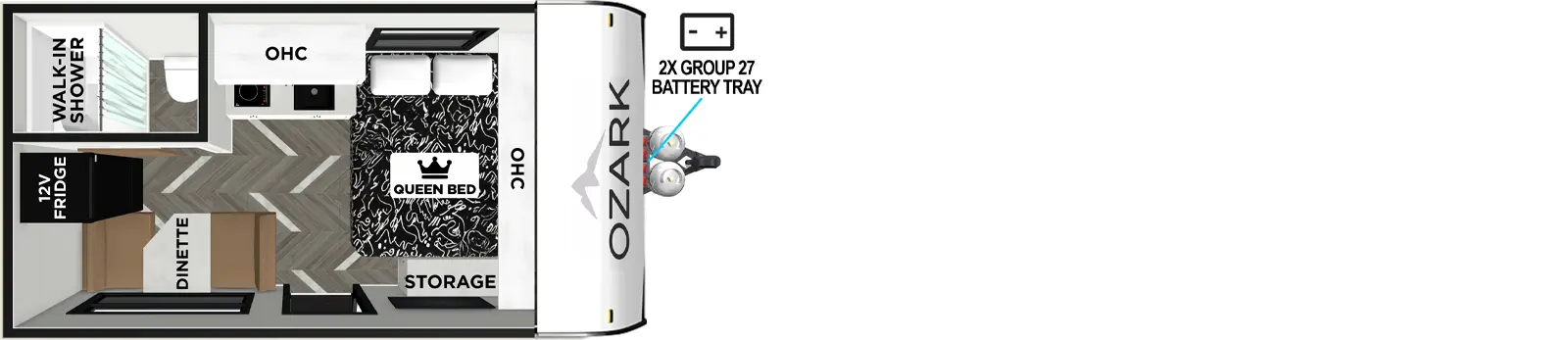

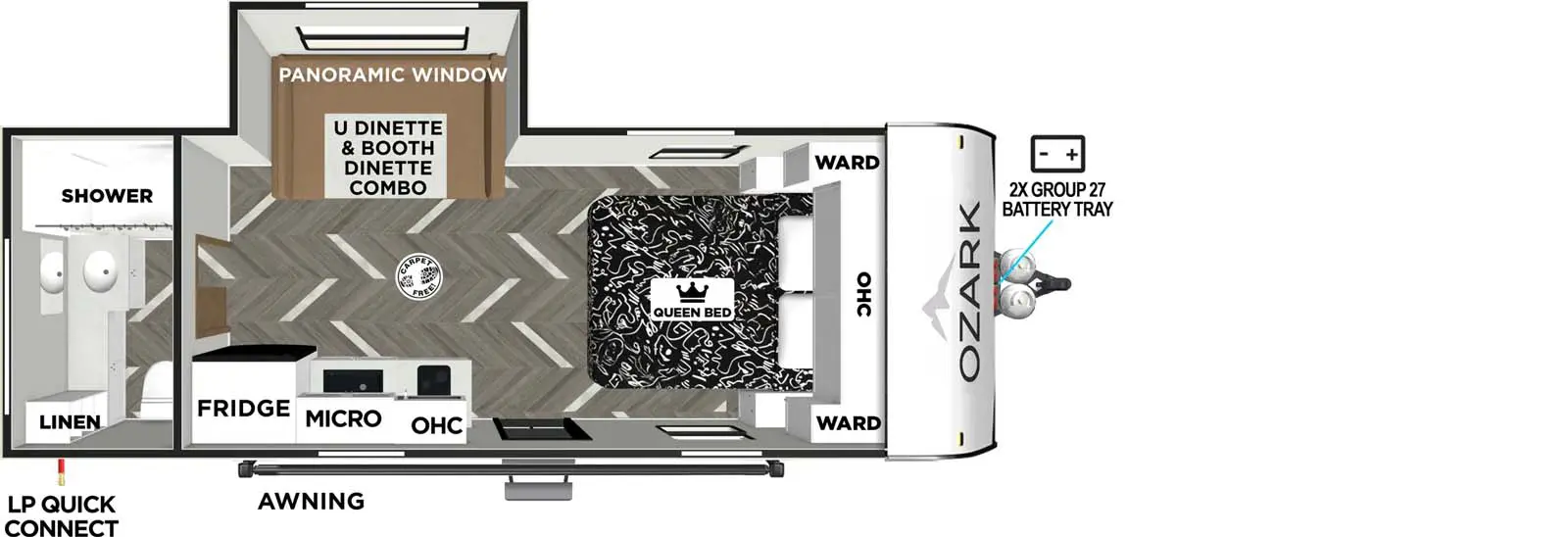

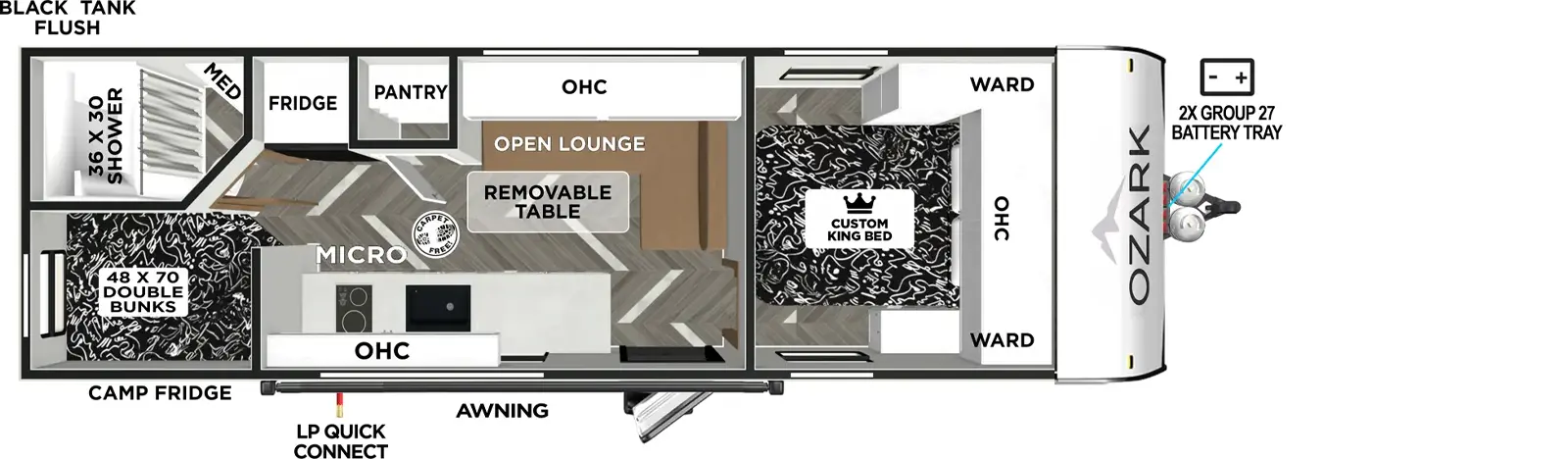

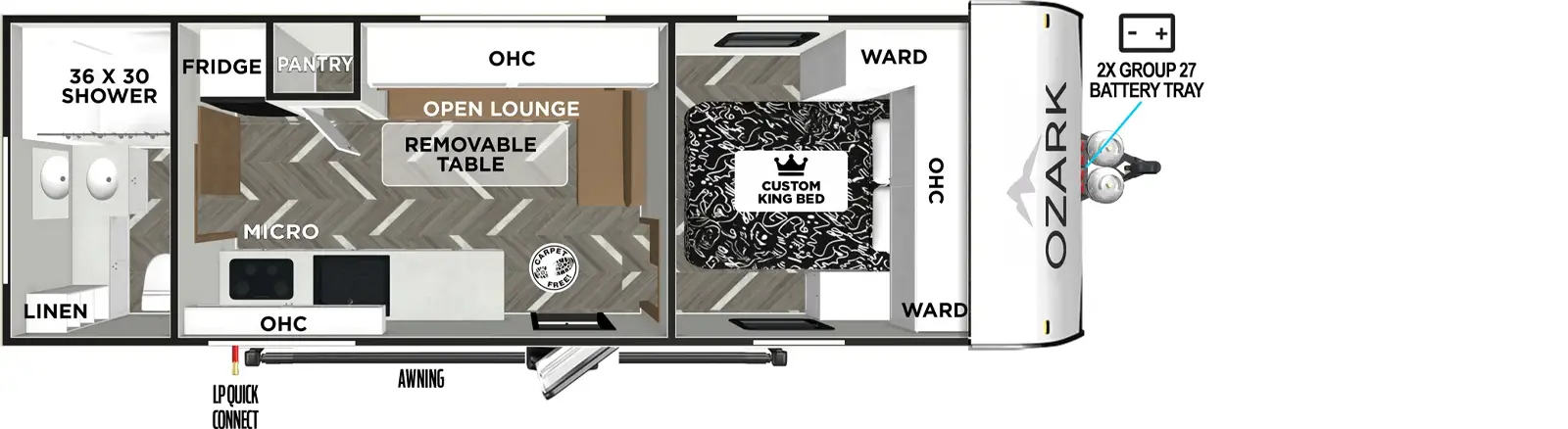

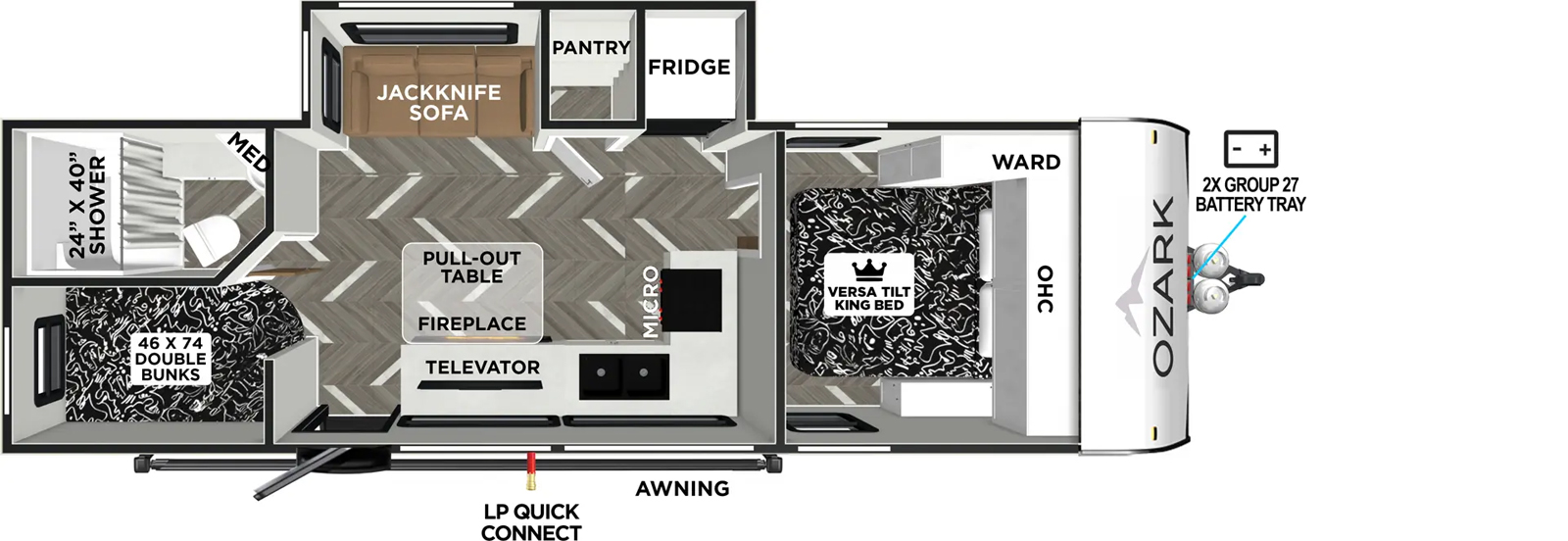

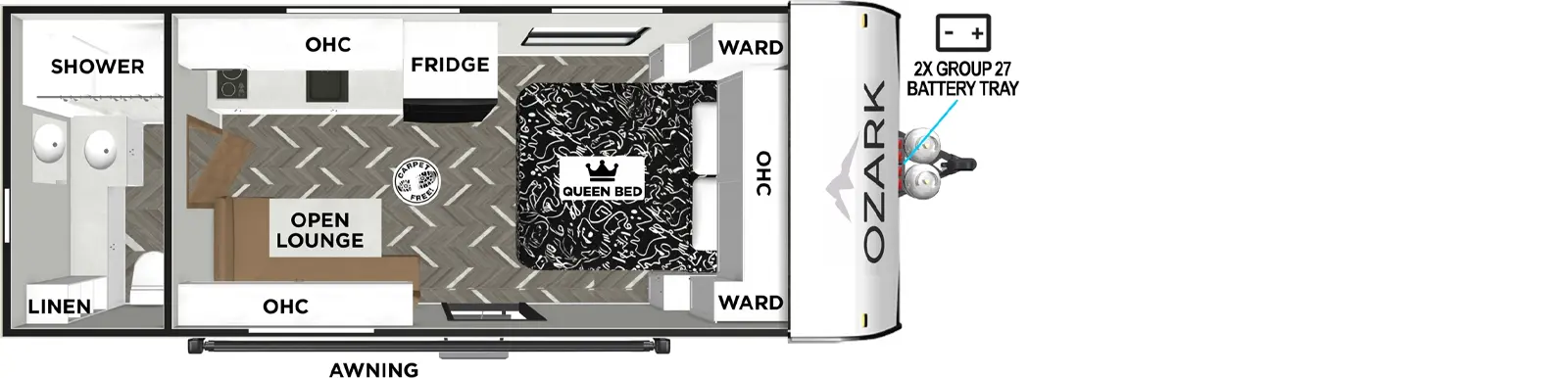

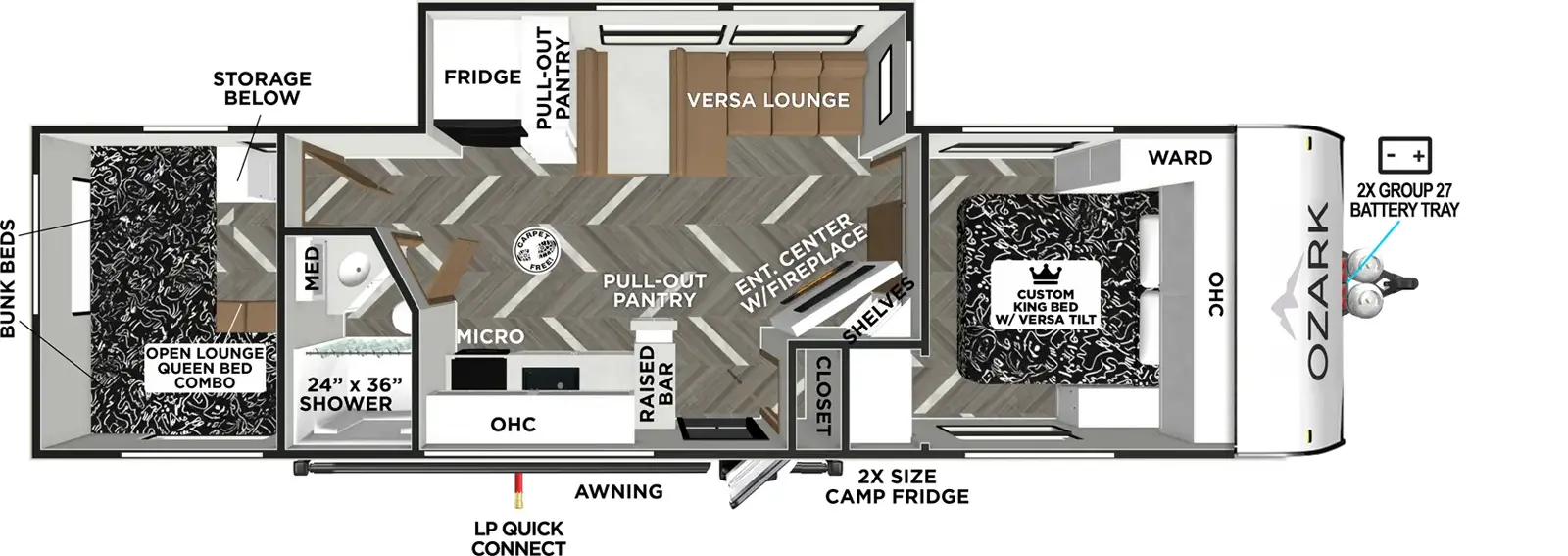

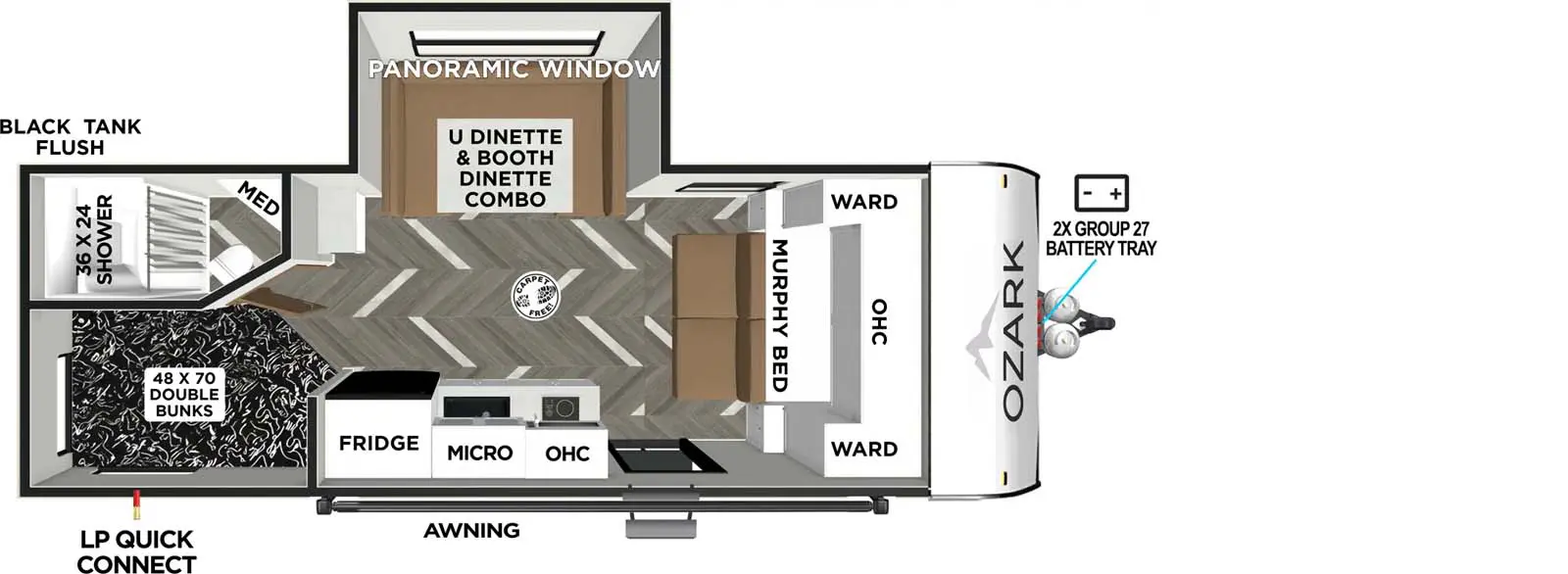

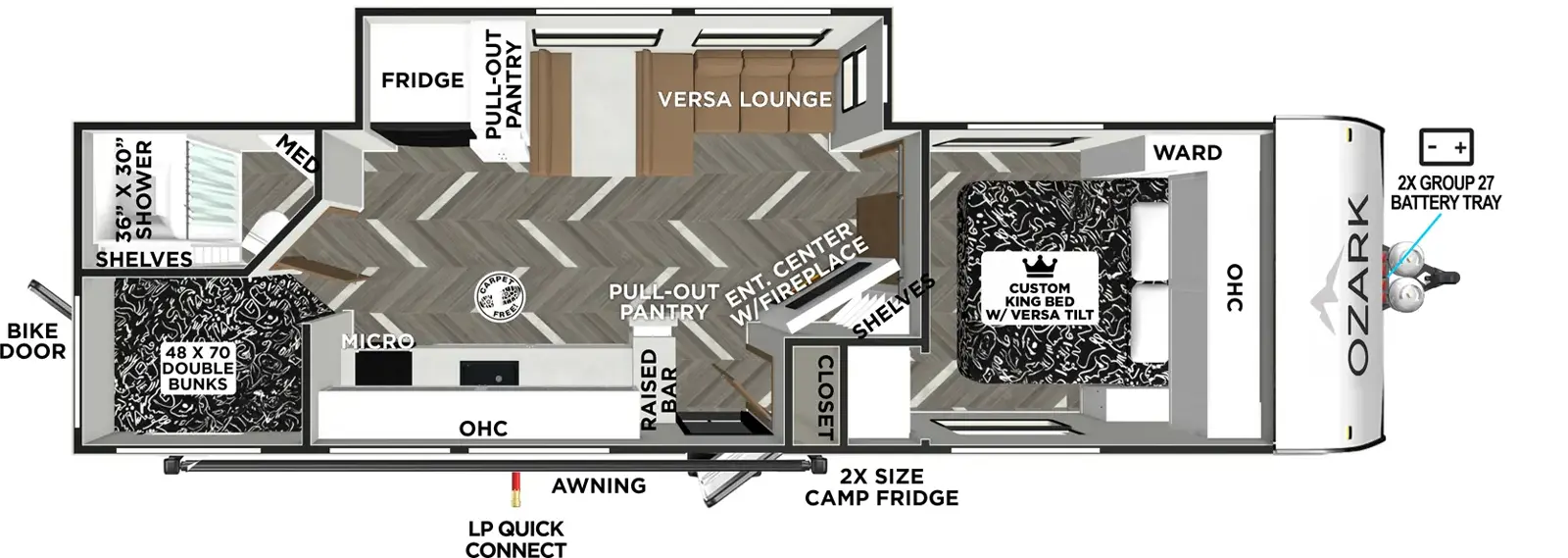

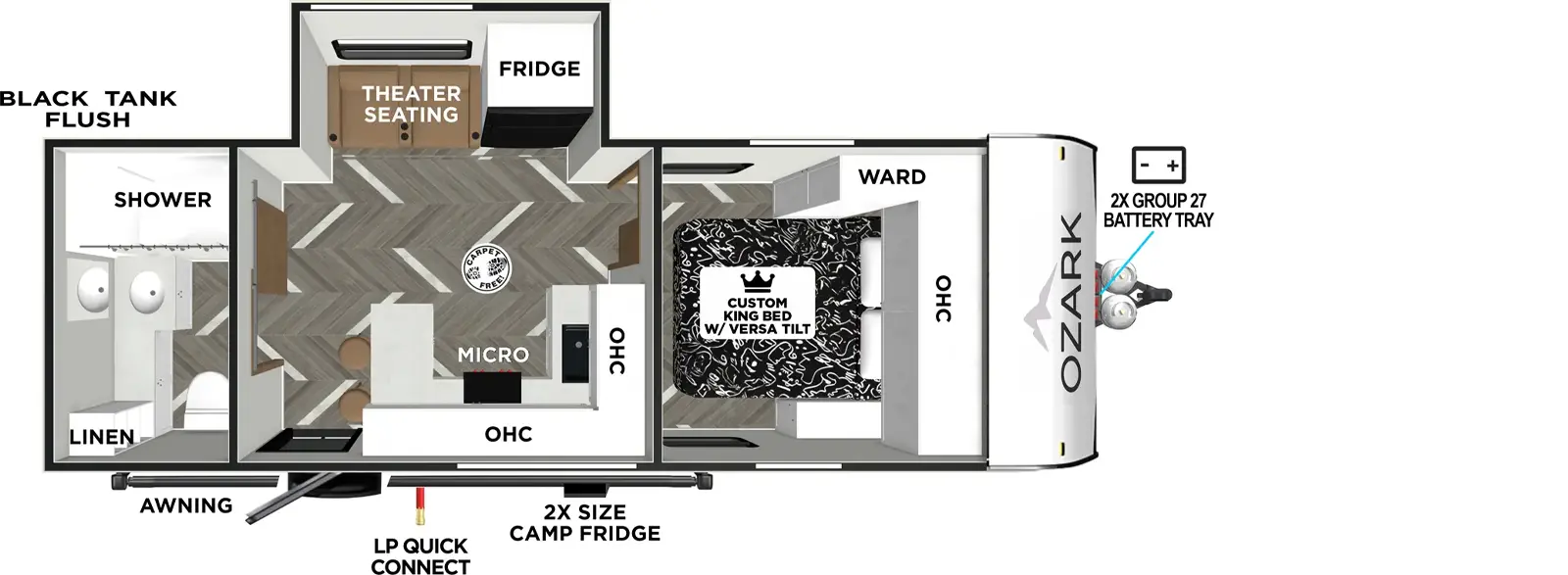

Floorplans

Print


Single Axle Travel Trailers

Single Axle Toy Haulers

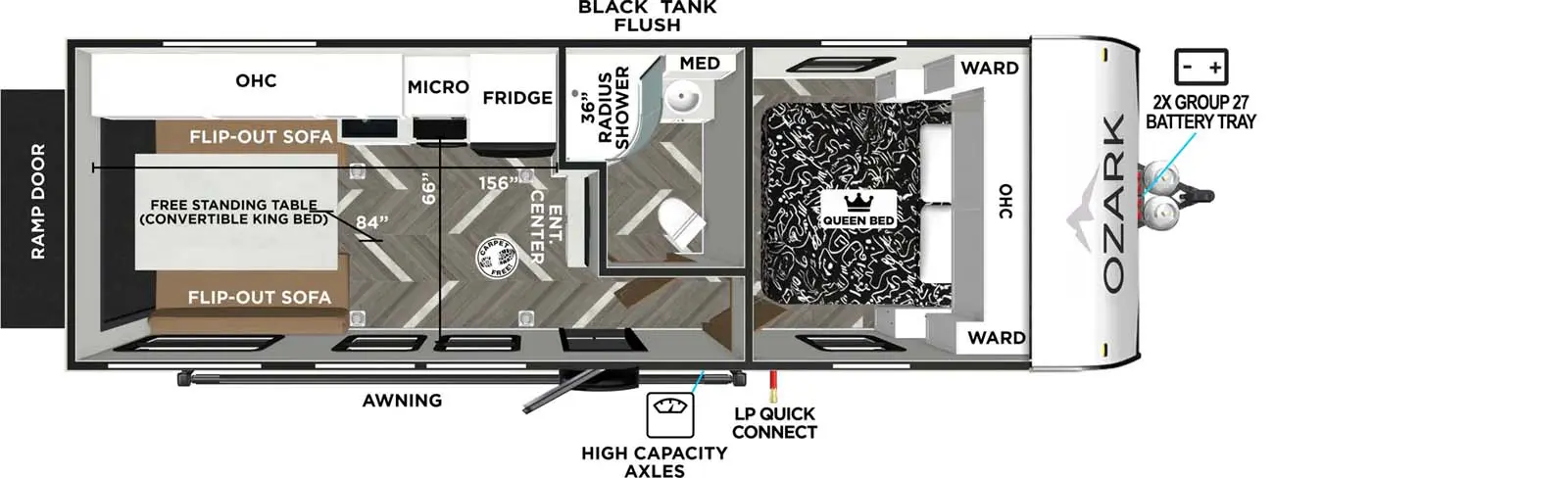

Tandem Axle Toy Haulers



Specifications

Print


Hitch Weight:
GVWR:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
400 lb.
3900 lb.
3284 lb.
616 lb.
22' 6"
10' 2"
90"
38.00 gal.
30.00 gal.
30.00 gal.
12'
405 lb.
3905 lb.
3009 lb.
896 lb.
22' 0"
10' 2"
90"
38.00 gal.
30.00 gal.
30.00 gal.
12'
410 lb.
4810 lb.
3789 lb.
1021 lb.
23' 0"
10' 2"
90"
38.00 gal.
30.00 gal.
30.00 gal.
14'
480 lb.
4880 lb.
3369 lb.
1511 lb.
21' 8"
10' 2"
90"
38.00 gal.
30.00 gal.
30.00 gal.
12'
635 lb.
7635 lb.
4913 lb.
2722 lb.
28' 8"
10' 6"
96"
38.00 gal.
30.00 gal.
30.00 gal.
15'
830 lb.
7830 lb.
5683 lb.
2147 lb.
32' 4"
10' 6"
96"
38.00 gal.
30.00 gal.
30.00 gal.
15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Full-Length Power Awning w/Adjustable Legs
  • Exterior LED Light Strip Under Awning
  • Backup Camera Prep
  • Furrion Solar Prep & LED Mushroom Lights
  • USB Charging Outlets
  • Portable FM/Bluetooth Stereo (Indoor / Outdoor)
  • Upgraded Appliance Package
  • Friction Hinge Entrance Door
  • EZ Entrance: Double Step + XL Folding Grab Assist Handle
  • Class-Leading Window Package
  • Deep Single Basin Kitchen Sink
  • Upgraded Hypoallergenic Mattress
  • Dual-Burner Cooktop
  • Radius-Profile Front End for Ease of Towing
  • Pressed Seamless Countertops
  • Outside Hot/Cold Shower
  • Black Tank Flush
  • Tub Surround
  • 6 cu. ft. Double-Door Refer (Gas & 110V)
  • 60x74 Queen Bed
  • 6 Gal. DSI Gas Water Heater
  • Foot Flush Toilet
  • TV Backer with Hookups
  • TV Antenna with Booster
  • High Rise Kitchen Faucet
  • 20K BTU Furnace
  • Microwave
  • 13.5K BTU Roof-Mounted AC
  • Spare Tire with Carrier
  • 78” Interior Height
  • Upgraded TUFFCOAT Aluminum Exterior
  • Diamond Plated Rock Guard on Front
  • Baggage Door Catches
  • 26” Entrance Doors (IPO 22” Standard)
  • Upgraded Large 32x16 Baggage Doors
  • Pleated Black Privacy Night Shades
  • Durable, One-piece Linoleum Flooring (Ease of cleaning)
  • Solid Wood Drawer Sides w/ Ball Bearing Guides
  • 30 AMP Service
  • Stabilizer Jacks
  • Nitrogen-Filled Radial Tires
  • Cable Satellite TV Ready
  • 4” Sloped One-Piece Roof
  • Exterior Recept
  • 5/8” Tongue-n-Groove Plywood Flooring
  • Family-Sized Dinette
  • Retractable Power Cord with Storage
  • Monitor / Control Panel
  • High-Pressure Water Pump
  • Electric Self-Adjusting Brake System
  • Emergency Exit Windows
  • Safety Glass Windows
  • Fire Extinguisher
  • Carbon Monoxide Detector
  • LP Detector
  • Smoke Detector
  • GFI Protective Outlet
  • Patio Deck with Railing System on Ramp Door
  • Exterior LED Light Strip Under Awning
  • Backup Camera Prep
  • Furrion Solar Prep & LED Mushroom Lights
  • Full-Length Power Awning w/ Adjustable Legs
  • USB Charging Outlets
  • AM/FM/Bluetooth Stereo
  • Upgraded Appliance Package w/ Oven
  • Friction Hinge Entrance Door
  • EZ Entrance: Double Step + XL Folding Grab Assist Handle
  • Window Valance Package
  • Black Tank Flush
  • Deep Single Basin Kitchen Sink w/ High Rise Kitchen Faucet
  • Upgraded Hypoallergenic Mattress
  • Upgraded 5,000# Stab Jacks
  • Pressed Seamless Countertops
  • 6 cu. ft. Double-Door Refer (Gas & 110V)
  • Largest-in-Class Single Basin Kitchen Sink
  • 36x24 Large Shower Pan
  • 60x74 Queen Bed
  • 6 Gal. DSI Gas Water Heater
  • Foot Flush Toilet
  • TV Backer with Hookups
  • TV Antenna with Booster
  • High Rise Kitchen Faucet
  • 20K BTU Furnace
  • Microwave
  • 13.5K BTU Roof-Mounted AC
  • Spare Tire with Carrier
  • Class Leading Window Package
  • 78” Interior Height
  • Upgraded TUFFCOAT Aluminum Exterior
  • Diamond Plated Rock Guard on Front
  • Baggage Door Catches
  • 26” Entrance Doors (IPO 22” Standard)
  • Upgraded Large 32x16 Baggage Doors
  • Pleated Black Privacy Night Shades
  • Durable, One-piece Linoleum Flooring (Ease of cleaning)
  • Solid Wood Drawer Sides w/ Ball Bearing Guides
  • 30 AMP Service
  • Stabilizer Jacks
  • Nitrogen-Filled Radial Tires
  • Cable Satellite TV Ready
  • 4” Sloped One-Piece Roof
  • Exterior Recept
  • 5/8” Tongue-n-Groove Plywood Flooring
  • Family-Sized Dinette
  • Retractable Power Cord with Storage
  • Monitor / Control Panel
  • High-Pressure Water Pump
  • Electric Self-Adjusting Brake System
  • Emergency Exit Windows
  • Safety Glass Windows
  • Fire Extinguisher
  • Carbon Monoxide Detector
  • LP Detector
  • Smoke Detector
  • GFI Protective Outlet
  • Smooth Fiberglass Exterior Walls
  • .040 Smooth Front Metal
  • Ascent Graphics Package
  • Upgraded Steel Wheels
  • Ascent package adds approximately 150lbs (Single axles) / 300lbs (Toy Haulers) UVW
