Cherokee Travel Trailers and Fifth Wheels

When open roads beckon and wanderlust stirs, Cherokee by Forest River helps you answer the call. Every Cherokee is built to give you better comfort, style and value, so you can enjoy your travels to the fullest.

Care Camps, fighting cancer and making memories

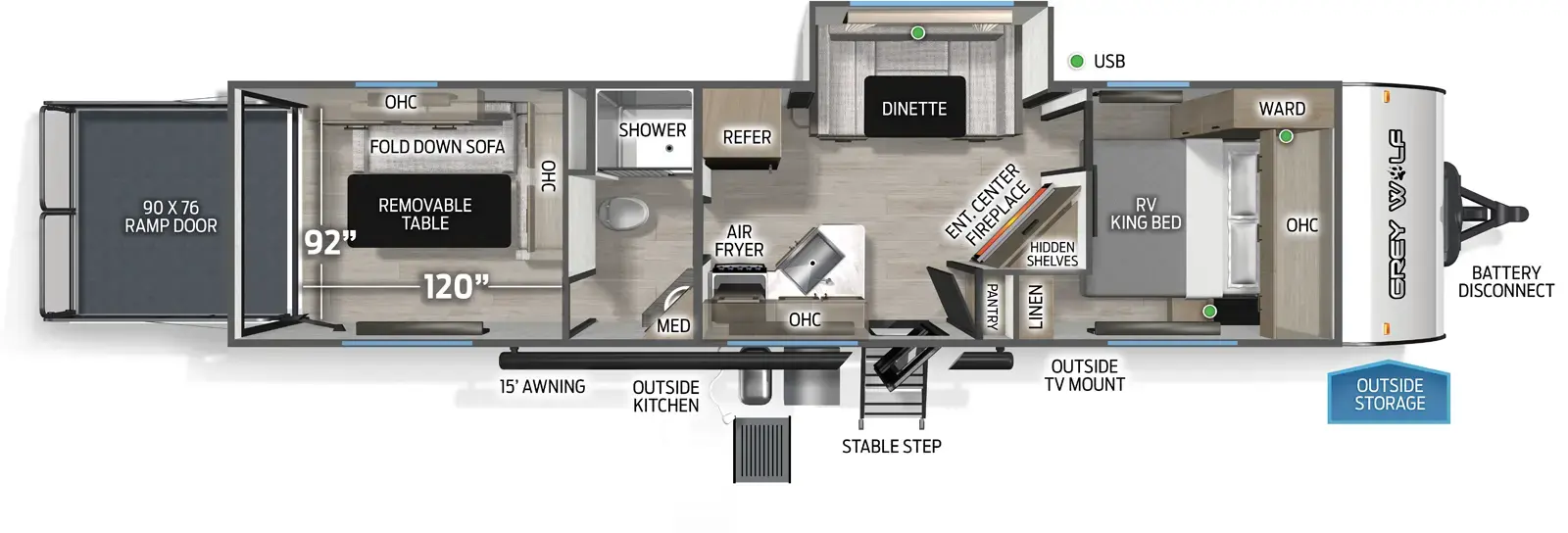

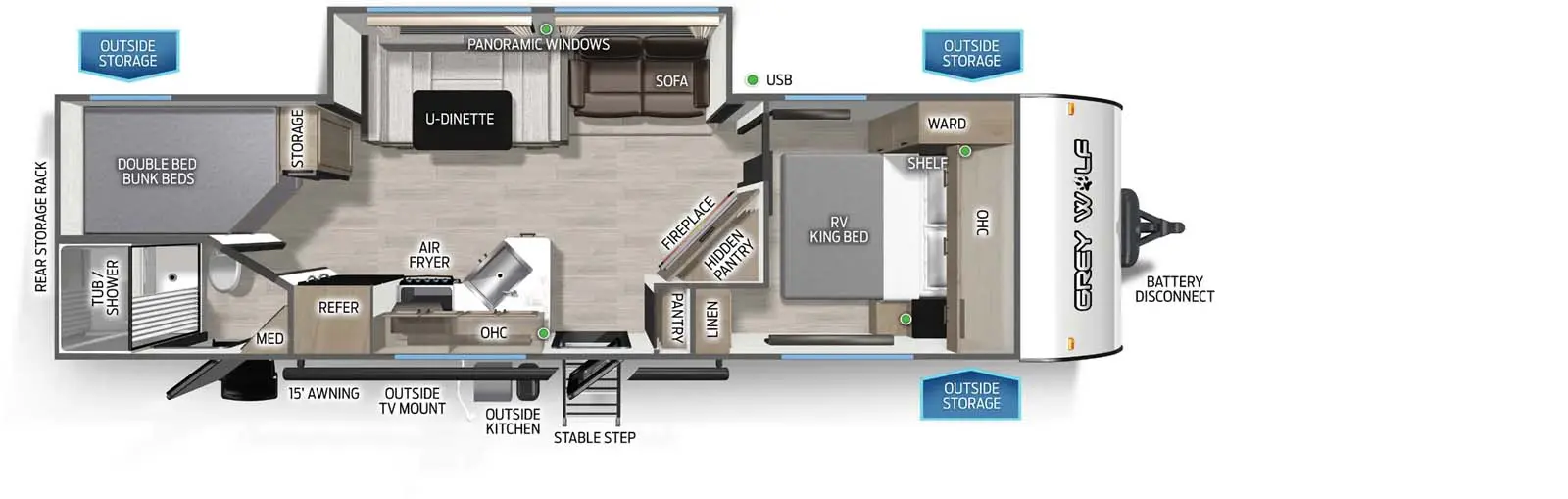

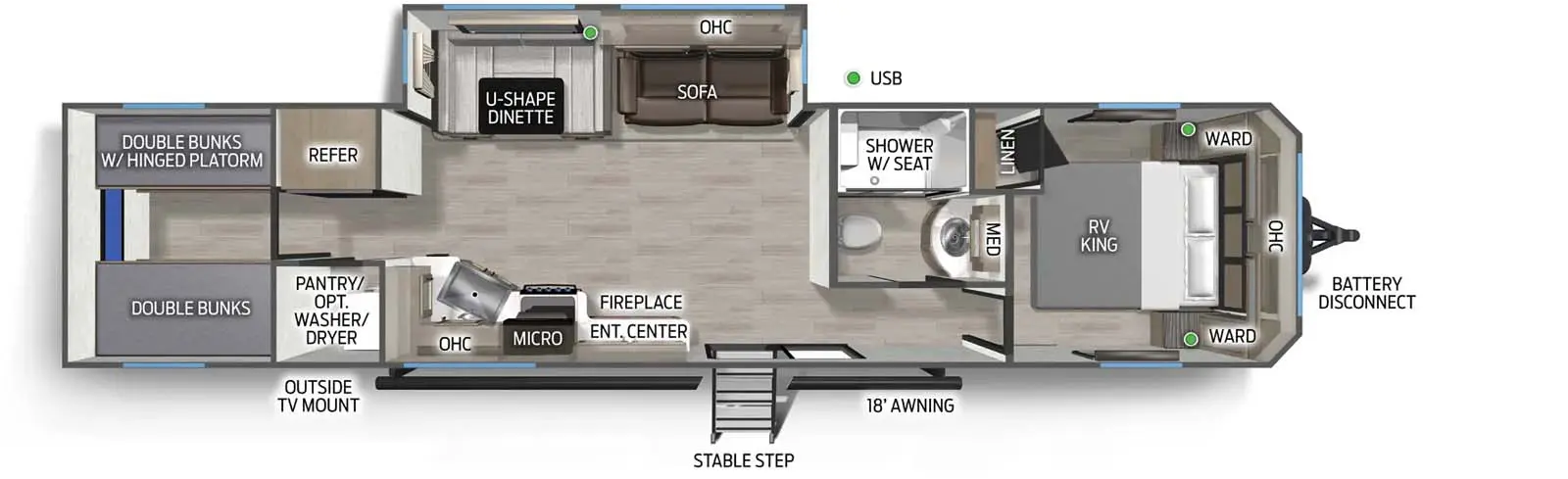

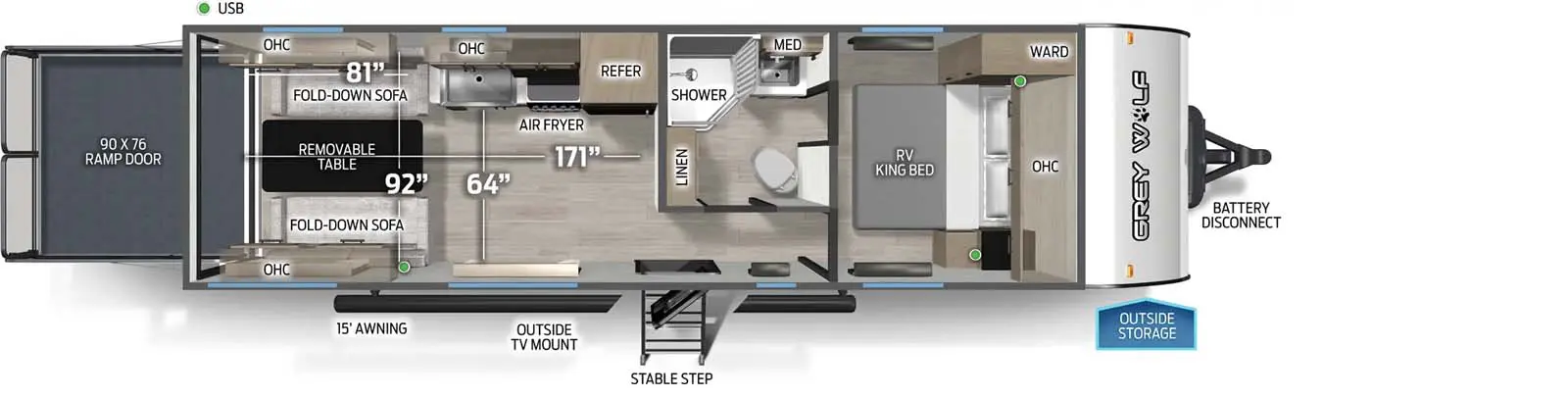

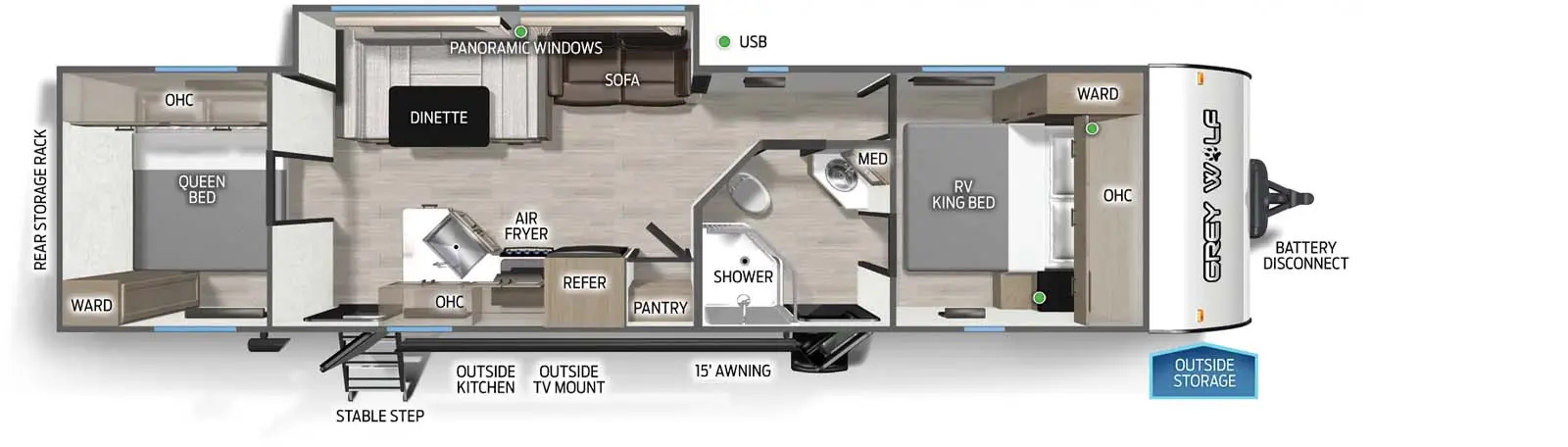

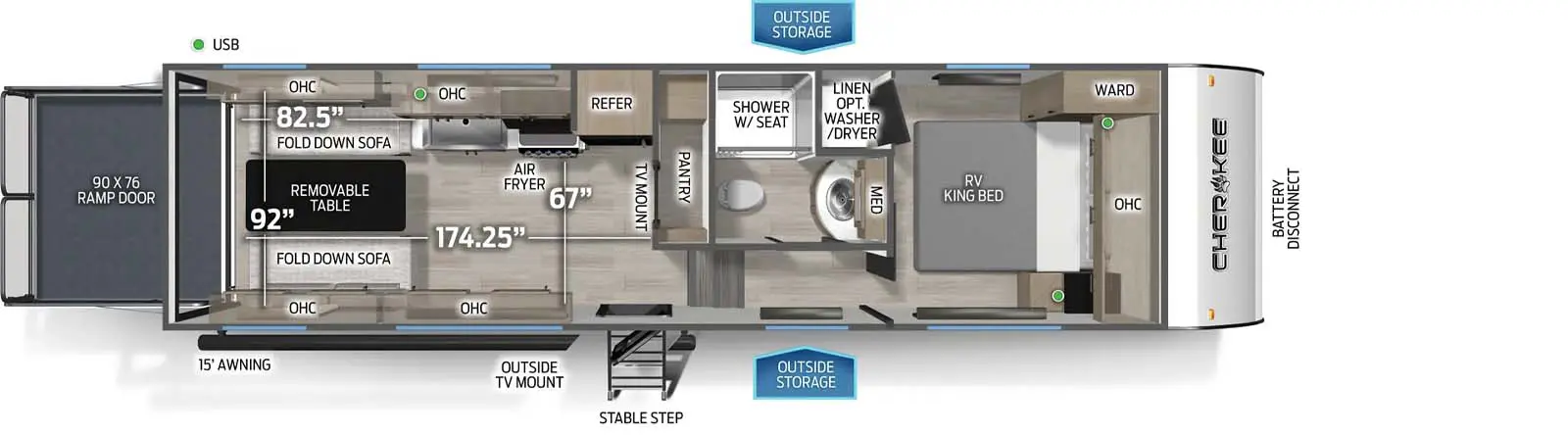

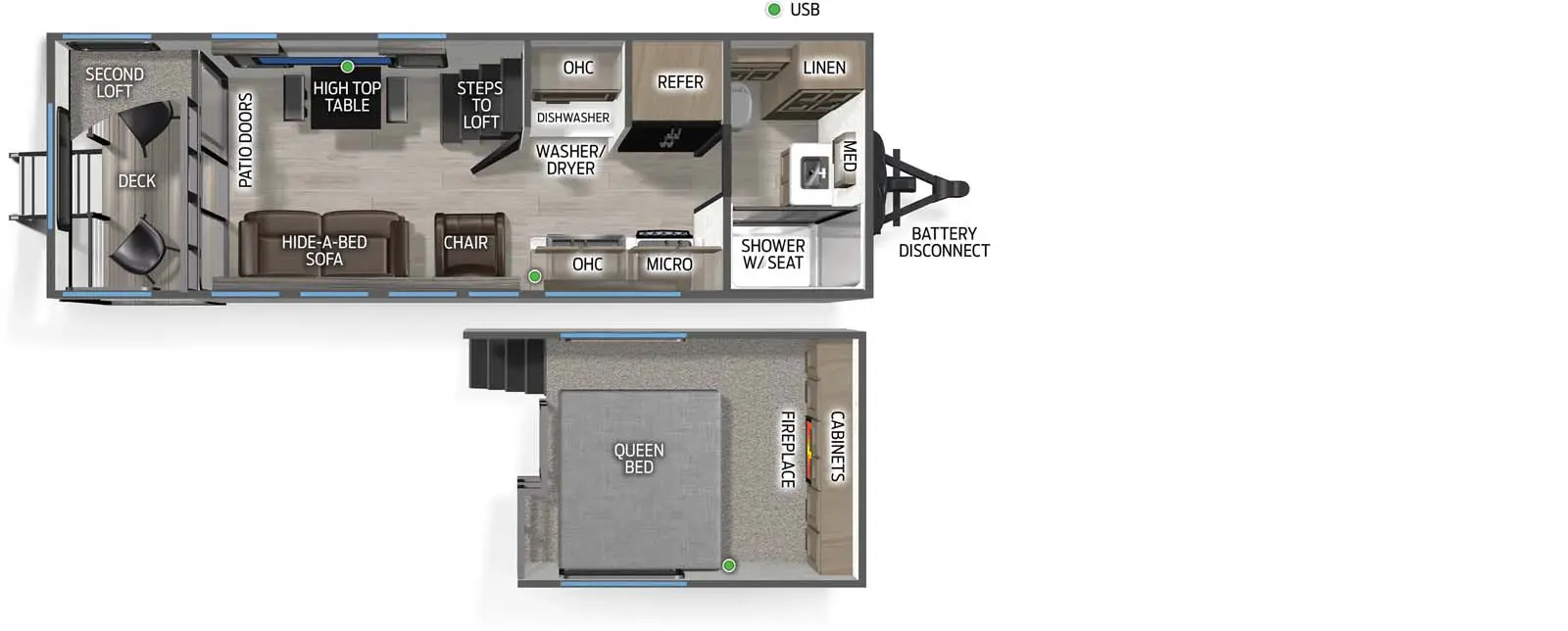

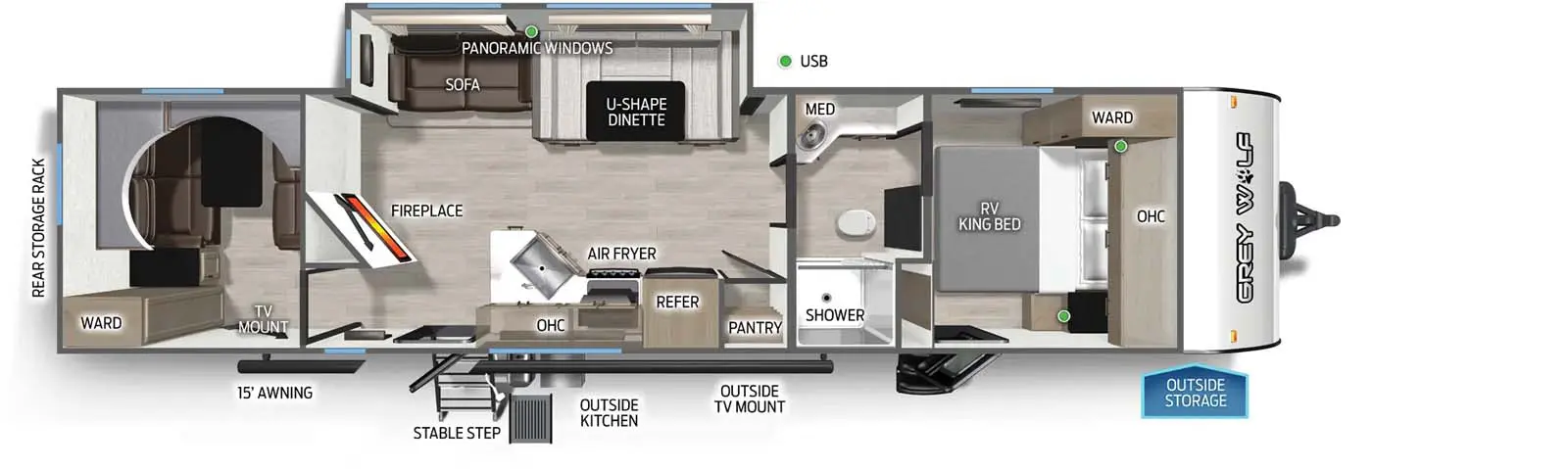

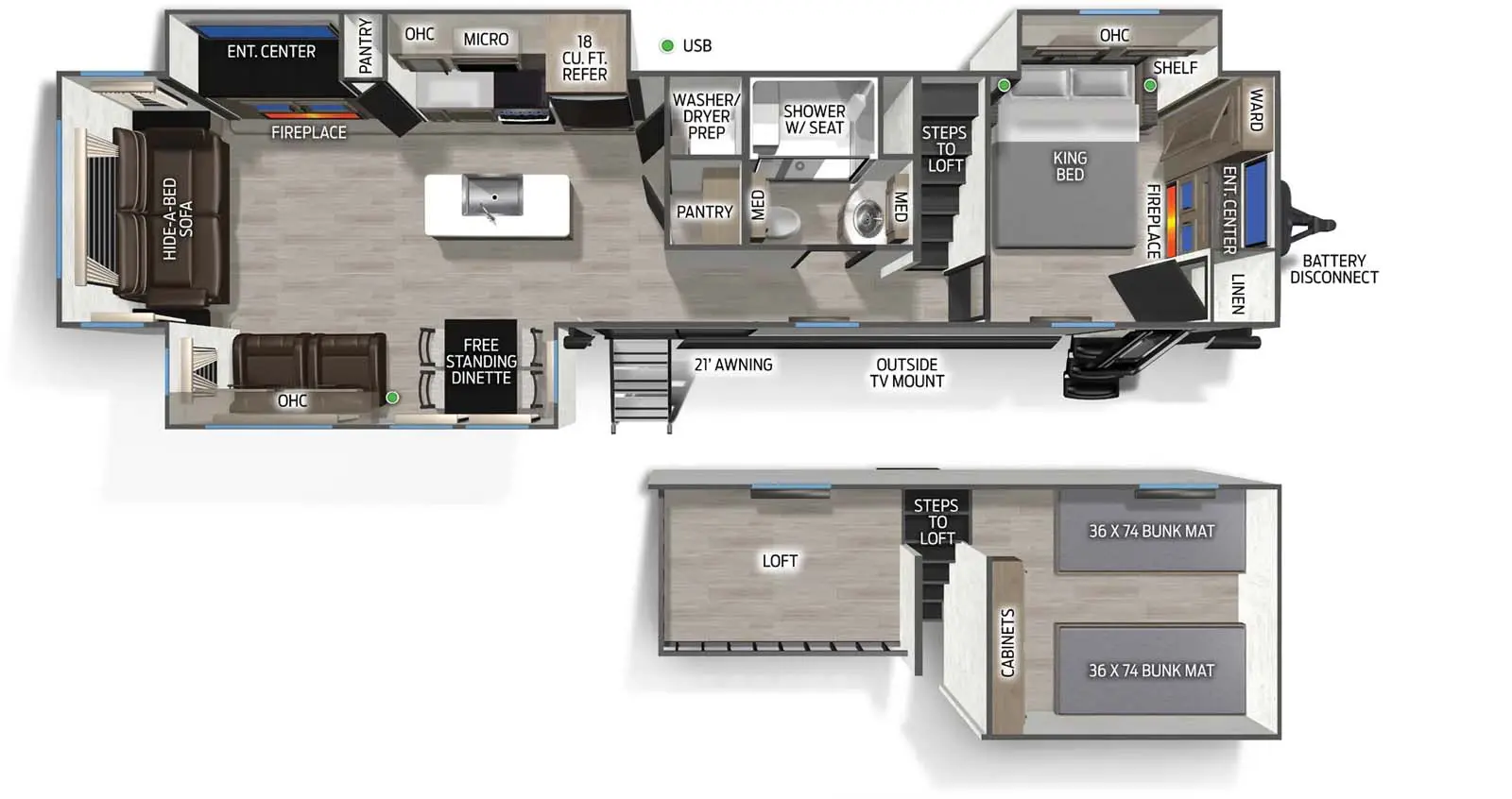

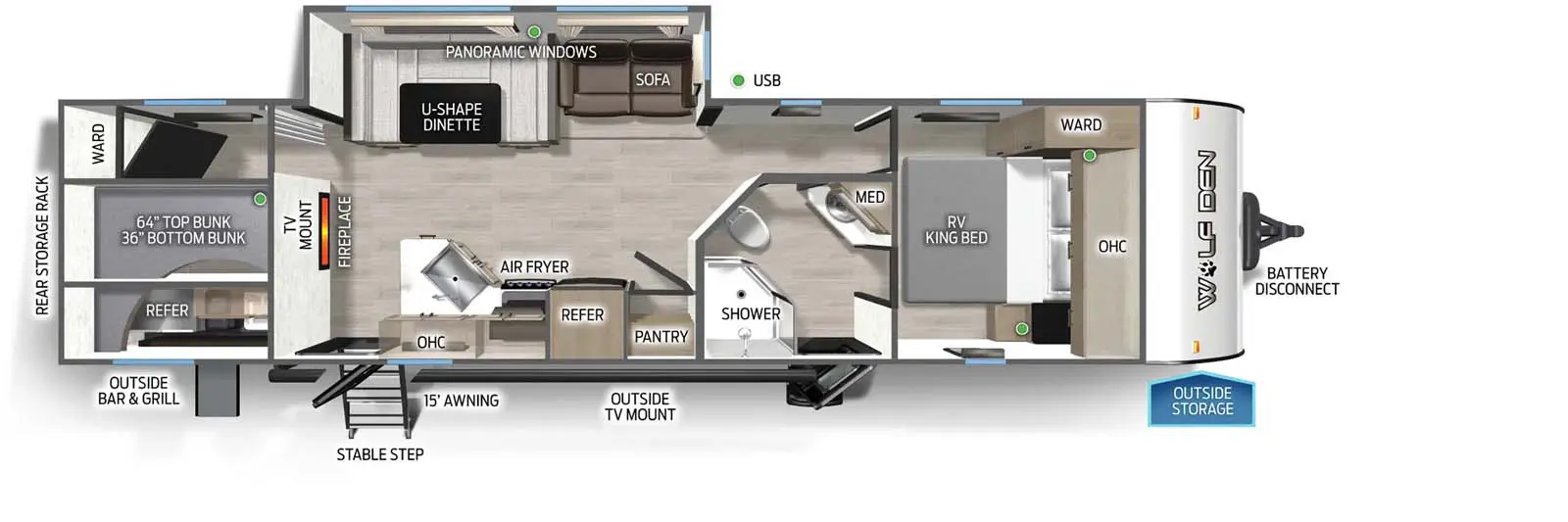

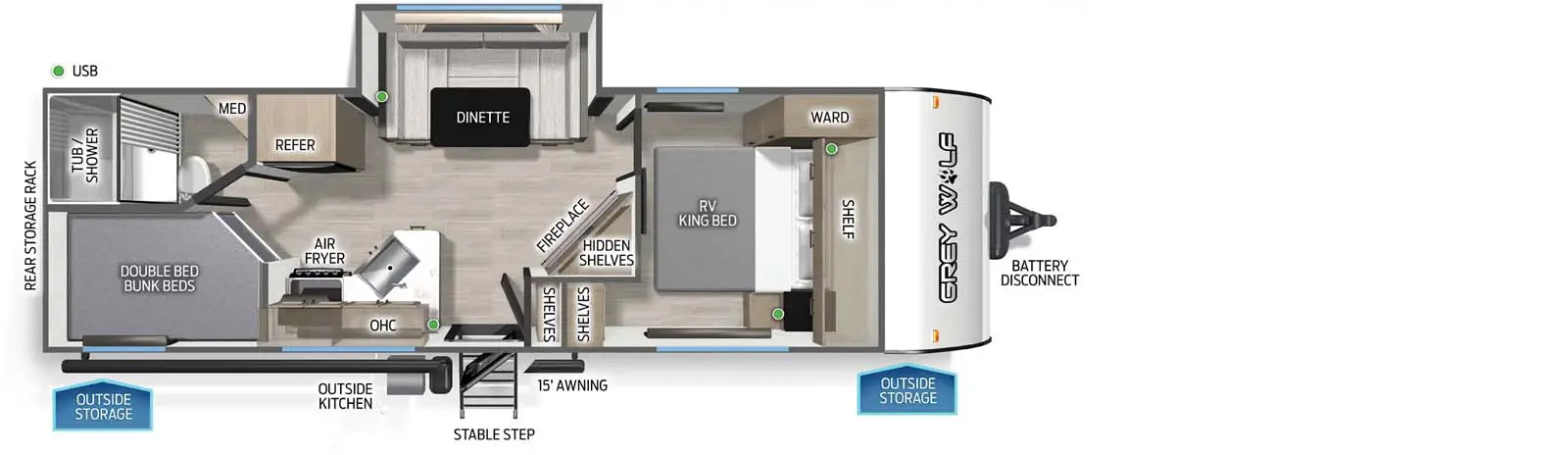

Floorplans

Print

Cherokee Toy Haulers
Cherokee Travel Trailers


Specifications

Print

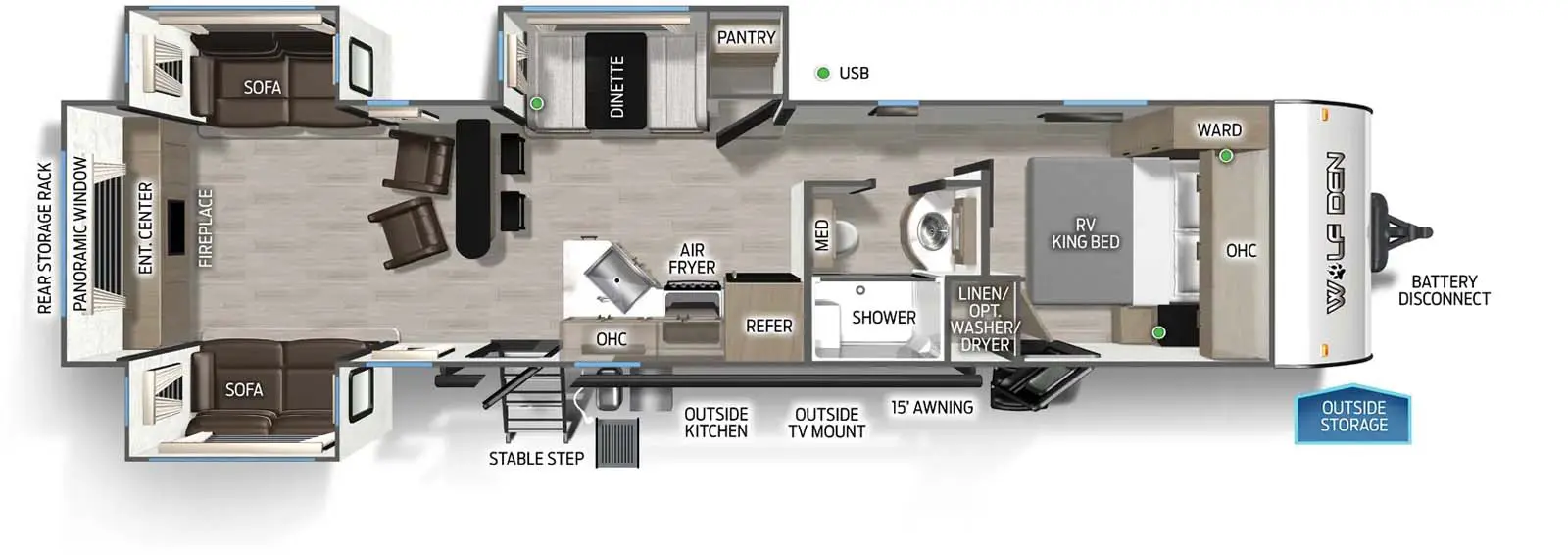

Floorplan: 255RR : Cherokee Toy Haulers 294RR : Cherokee Toy Haulers 234DC : Cherokee Travel Trailers 251RK - West Coast Only : Cherokee Travel Trailers 264DBH : Cherokee Travel Trailers 264RL : Cherokee Travel Trailers 274BRB : Cherokee Travel Trailers 274RK : Cherokee Travel Trailers 274VFK : Cherokee Travel Trailers 274WK : Cherokee Travel Trailers 284DBH : Cherokee Travel Trailers 294BH : Cherokee Travel Trailers 294GEBG : Cherokee Travel Trailers 304BH : Cherokee Travel Trailers 304RK : Cherokee Travel Trailers 306MM : Cherokee Travel Trailers 324TS : Cherokee Travel Trailers
Hitch Weight:1,415 lb.1,180 lb.645 lb.761 lb.884 lb.800 lb.720 lb.860 lb.985 lb.895 lb.997 lb.953 lb.785 lb.1,015 lb.1,105 lb.900 lb.1,165 lb.
GVWR:11,615 lb.11,380 lb.7,645 lb.7,761 lb.8,485 lb.9,985 lb.9,985 lb.9,980 lb.9,985 lb.9,985 lb.9,985 lb.9,985 lb.10,985 lb.11,215 lb.11,305 lb.11,100 lb.11,365 lb.
UVW:6,844 lb.6,879 lb.5,788 lb.6,217 lb.6,760 lb.6,308 lb.6,383 lb.6,742 lb.7,047 lb.7,143 lb.7,123 lb.7,929 lb.6,978 lb.8,688 lb.7,998 lb.8,578 lb.8,603 lb.
CCC:4,771 lb.4,501 lb.1,857 lb.1,544 lb.1,725 lb.3,677 lb.3,602 lb.3,238 lb.2,938 lb.2,842 lb.2,862 lb.2,056 lb.4,007 lb.2,527 lb.3,307 lb.2,522 lb.2,762 lb.
Exterior Length:32' 7"35' 9"28' 9"29' 6"33' 2"35' 7"32' 7"33' 9"33' 9"33' 2"34' 10"36' 1"36' 8"37' 3"38' 6"40' 1"40' 5"
Exterior Height:13' 5"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"11' 1"
Exterior Width:96"96"96"96"96"97"96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.44.00 gal.44.00 gal.40.00 gal.40.00 gal.44.00 gal.40.00 gal.44.00 gal.40.00 gal.40.00 gal.40.00 gal.
Gray Water:38.00 gal.66.00 gal.38.00 gal.74.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.
Black Water:38.00 gal.38.00 gal.28.00 gal.32.00 gal.38.00 gal.38.00 gal.28.00 gal.28.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.38.00 gal.28.00 gal.38.00 gal.38.00 gal.38.00 gal.
Awning Size:15'15'15'15'15'15'15'15'15'21'15'15'15'15'TBD15'15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • 8” Ceiling Mounted, Subwoofer with Accent Lighting
  • Cannon™ 12V, High Efficiency, 11 Cubic Foot Residential Refrigerator with Travel Lock
  • Chef Select Black Stainless Steel Kitchen Suite Package
  • Cherokee Back up Camera System
  • Cherokee Exclusive Stable Step with Oversized Landing
  • Cherokee Sanitizer
  • Cherokee Total Control App & Remote Control System
  • External LED Strip Lighting
  • External Porch Scare Light
  • Fireplace (not available on all models)
  • Full Hybrid Tub with Shower Surround
  • Kitchen Skylight W/ Shade (N/A on FW)
  • LED Interior Lights
  • LED Strip Lighting (not available on all models)
  • Light Filtering Sheer Shading Premium Blackout Zebra Blinds
  • Matte Black Heavy Duty Spring Assisted Kitchen Faucet Sprayer
  • Power Gear™ Frame Technology and Space Saver Rail Design
  • Premium Bedding Ensemble and Comforter
  • Premium Wheel Package
  • Ramp Door Patio System (available on Toyhauler Models Only)
  • Real Blackout Glass, Safety Slam, Friction Hinge Entry Door with Window and Shade Prep
  • Residential Farm Style Black Stainless Steel Sink
  • Seamless Roofing Membrane with Heat Reflectivity
  • Super Kitchen
  • Supersized, Central Air Conditioning Unit (15,000 BTU) with Quick Cool Air Dump Feature
  • Tire Pressure Monitors
  • Upgraded Sofa with Bolster Arm Rests
  • USB Charging Stations
  • Black Waste Tank Flush out Kit
  • Armored Underbelly Tank Enclosure
  • Flip Down Travel Rack (not available on Toyhauler Models)
  • Large Exterior Folding Assist Grab Handle
  • Outside Shower with Hot and Cold Water
  • Outside TV Bracket and Hook Ups
  • Power Awning
  • RV Grill Quick Connect
  • 40” Dinette Drawers x 2 on models with slideouts
  • 6 Gallon Gas/Electric DSI Water Heater
  • Cabinets in Bedroom
  • Entertainment System
  • High Output Attic Fan in Bathroom
  • Oven with Light
  • Roof Mounted Ducted Air Conditioner (not available on units under 26’)
  • Sink Cover
  • Skylight over Shower
  • Solid Bedroom Doors (not available on all models)


Virtual Tours

  • 234DC
    234DC Main Room
  • 255RR
    255RR Main Room
  • 274BRB
    274BRB Main Room
  • 274RK
    274RK Main Room
  • 274VFK
    274VFK Main Room
  • 274WK
    274WK Main Room
  • 284DBH
    284DBH Main Room
  • 294BH
    294BH Main Room
  • 294GEBG
    294GEBG Main Room
  • 294RR
    294RR Main Room
  • 304BH
    304BH Main Room
  • 304RK
    304RK Main Room
  • 306MM
    306MM Main Room
  • 324TS
    324TS Main Room


Literature
