Flagstaff Classic Fifth Wheels

PROVIDING THE COMFORTS OF HOME WHILE ON THE ROAD. Flagstaff takes pride in ensuring that each floor plan is able to suit the needs of your active family. Quality craftsmanship and attention to detail have been put into our Classic fifth wheels which gives you the flexibility you won’t find in comparable products. Our fully equipped kitchens with modern conveniences and spacious bedrooms featuring residential king bed slideouts will make you feel like you never left home.

We RV - Rockwood Link TreeCare Camps, fighting cancer and making memories

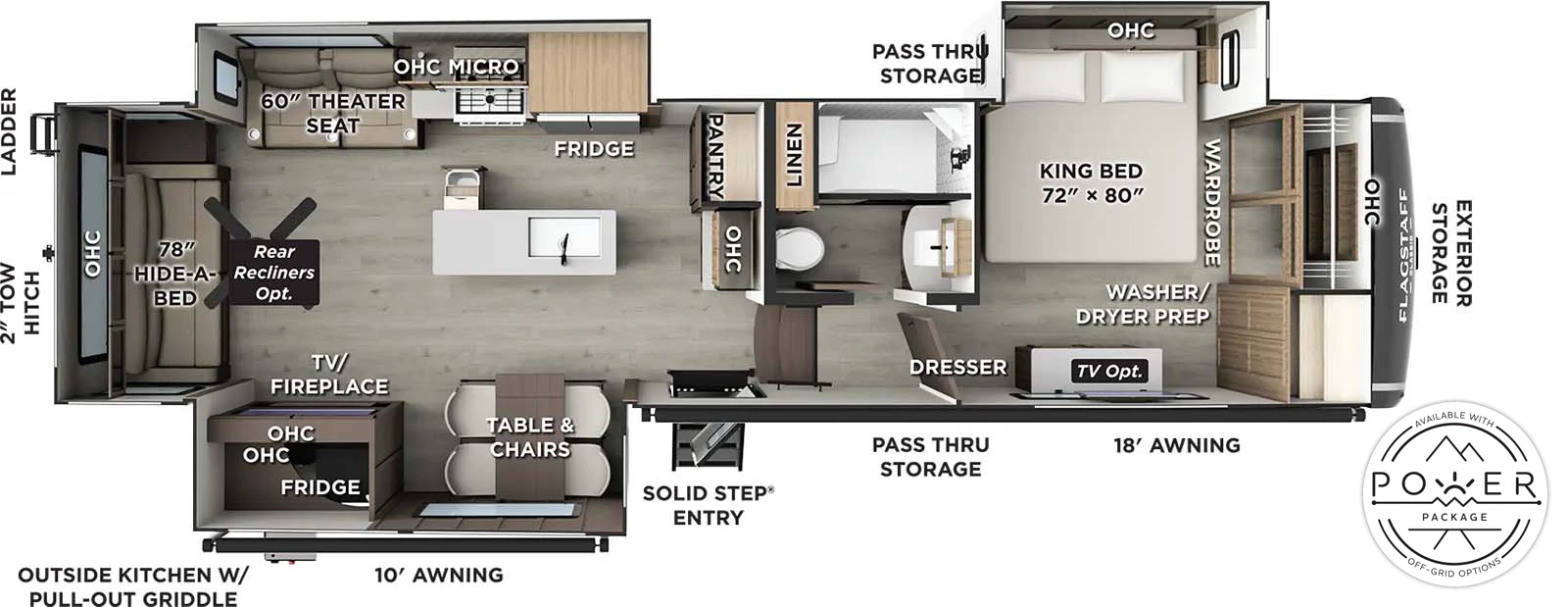

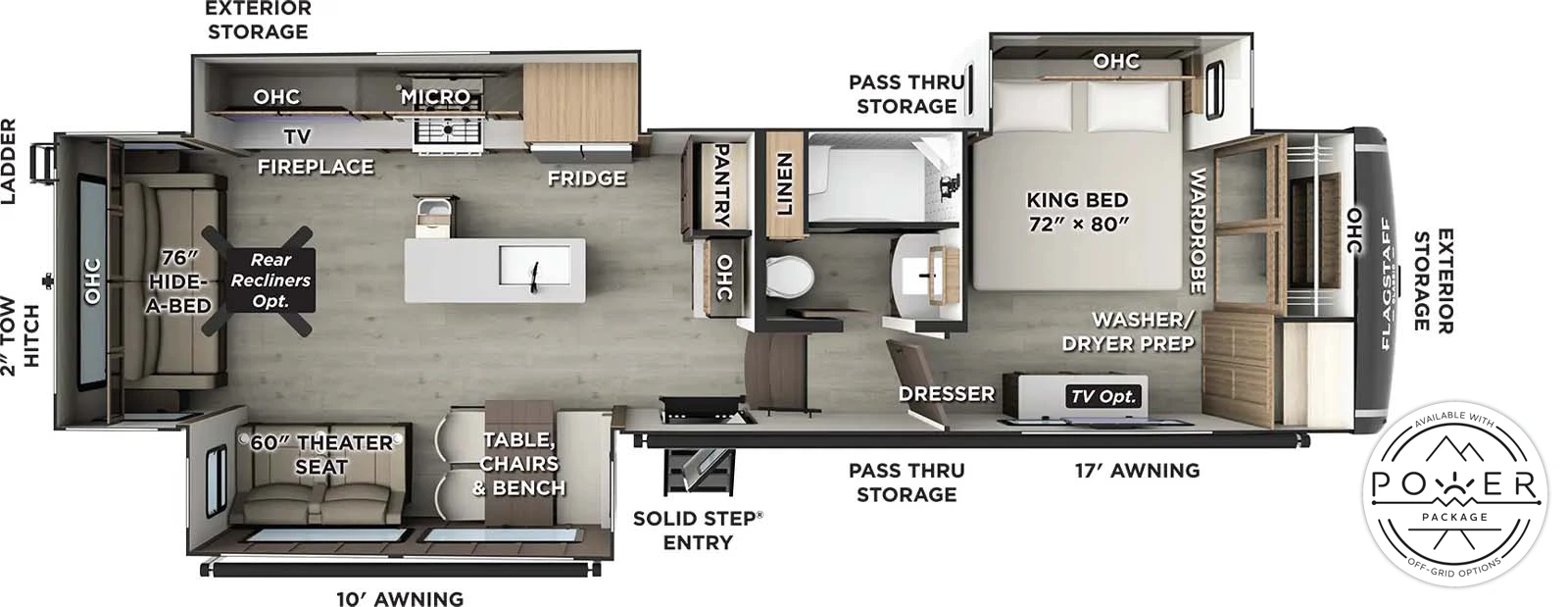

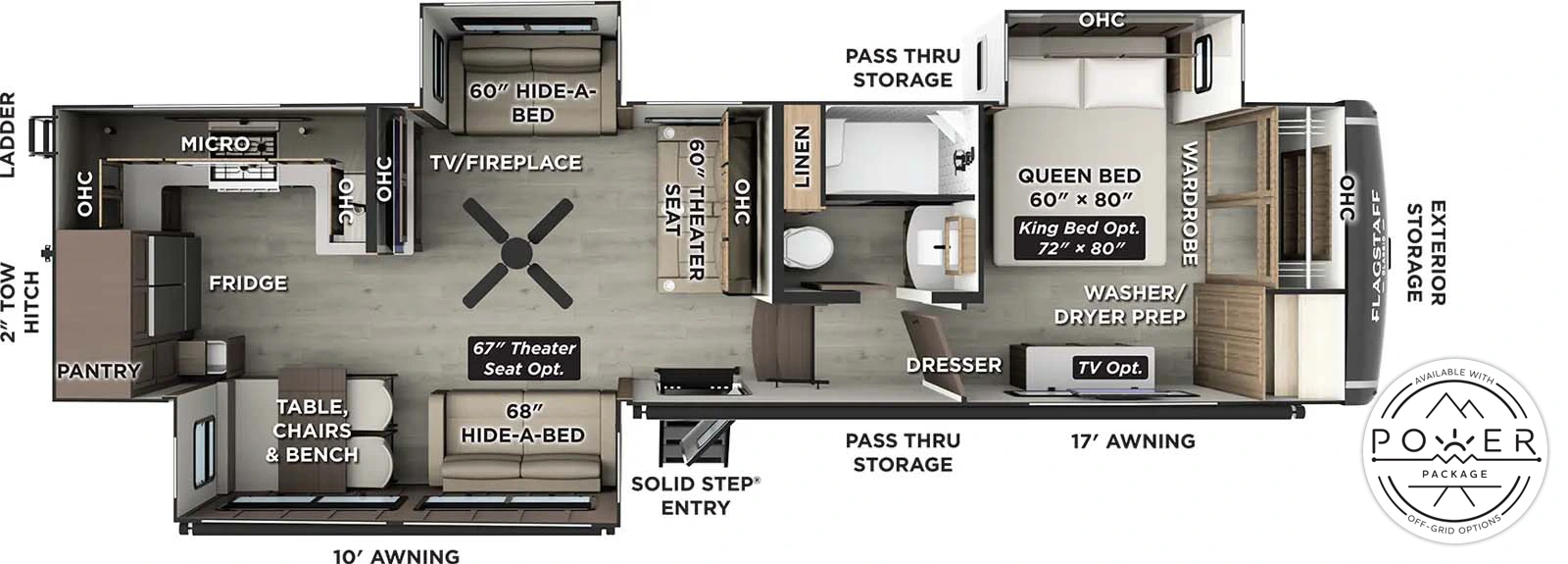

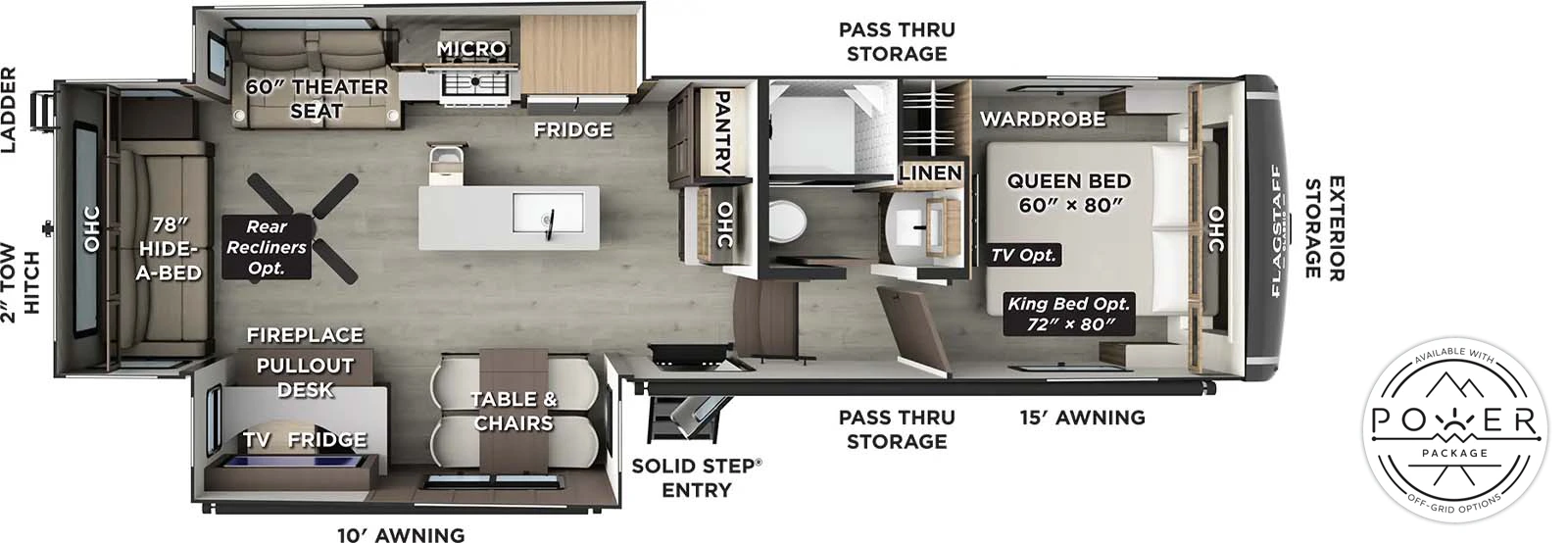

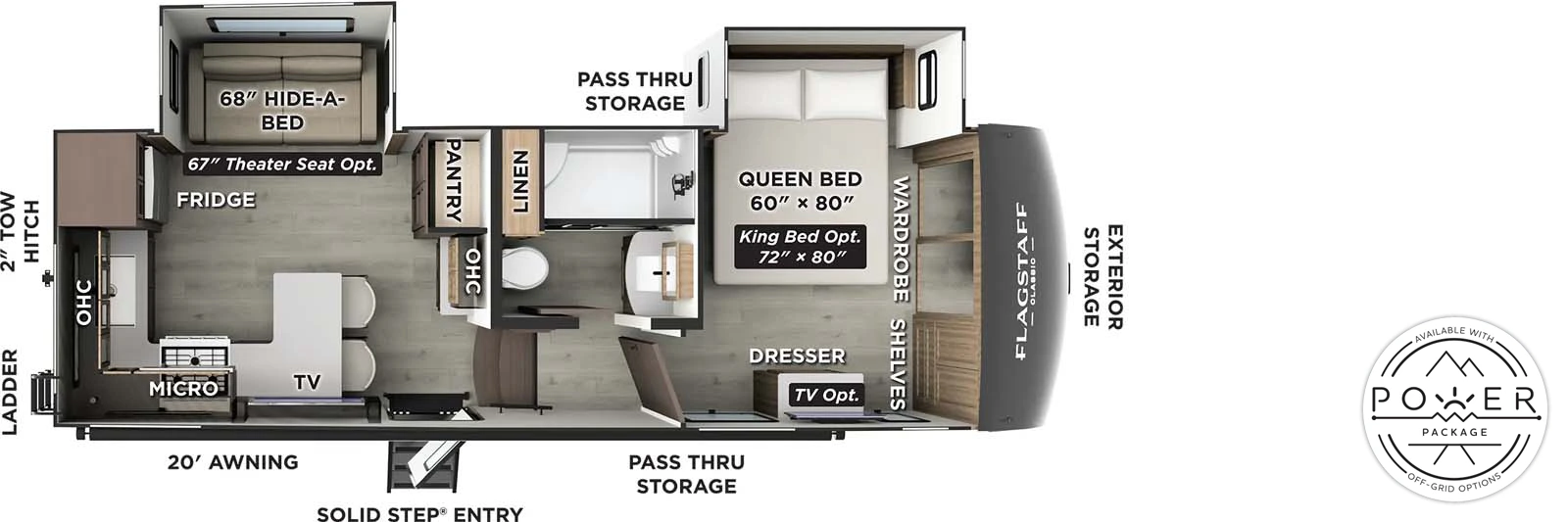

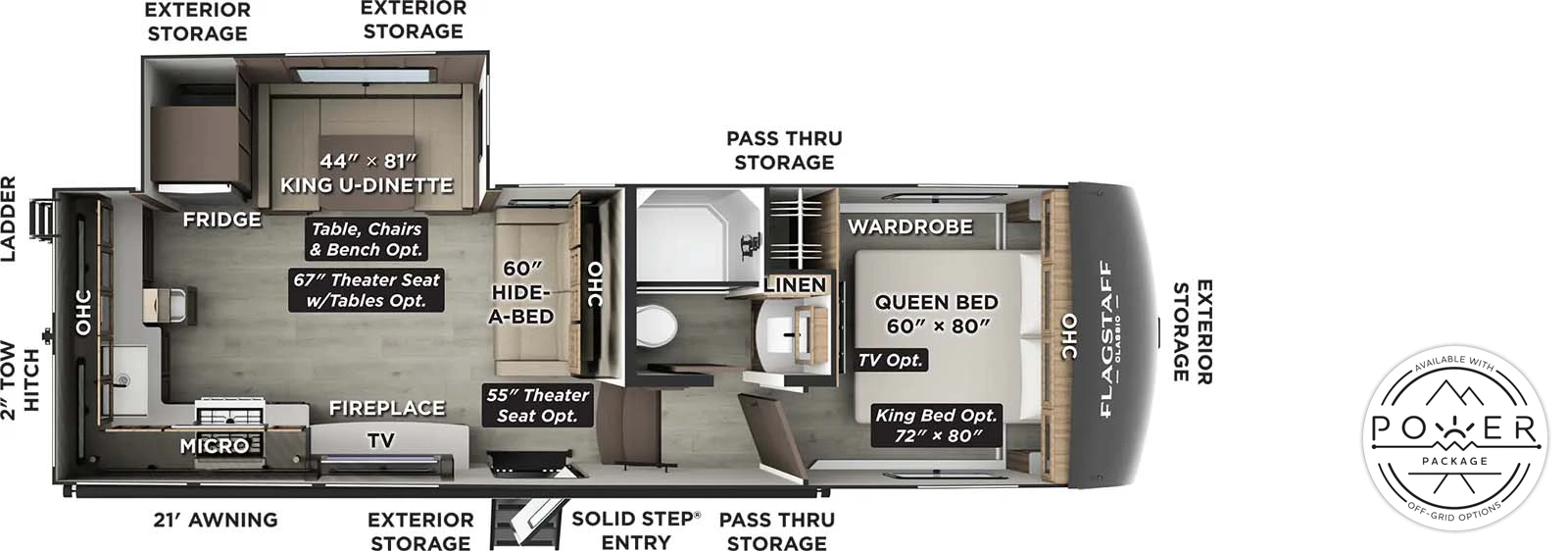

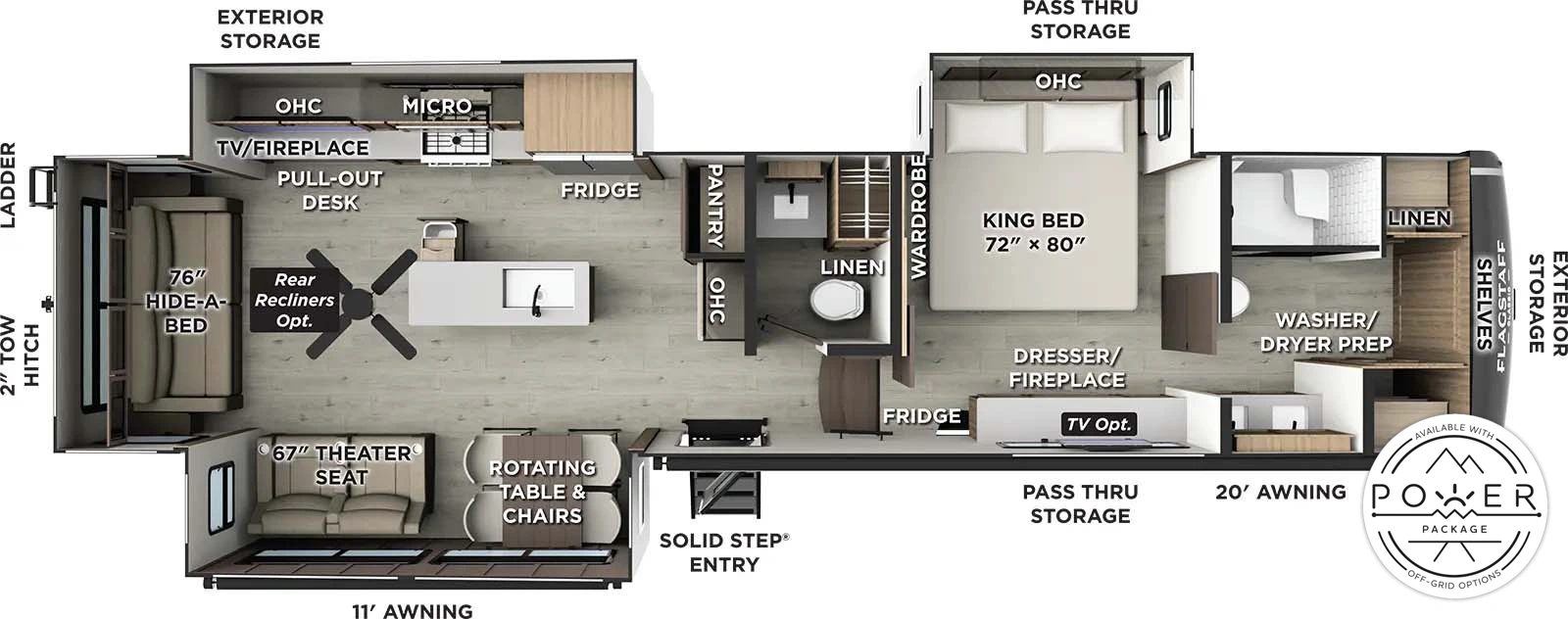

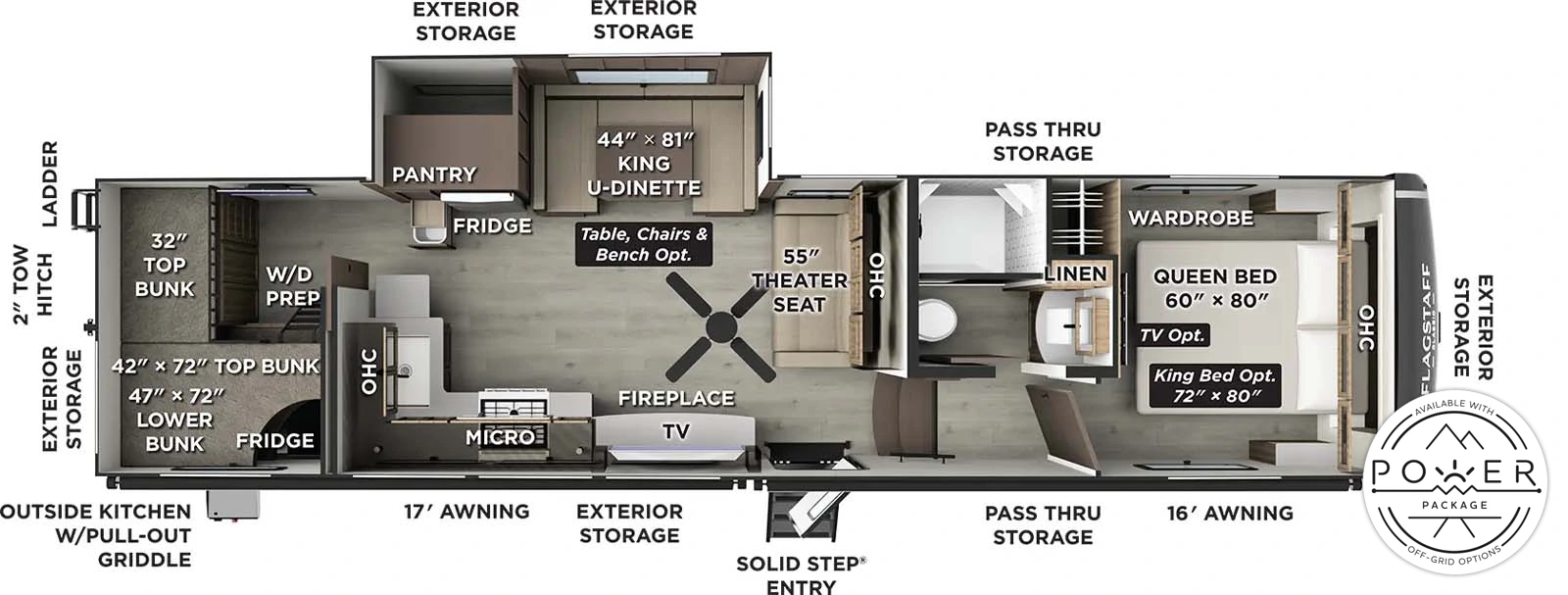

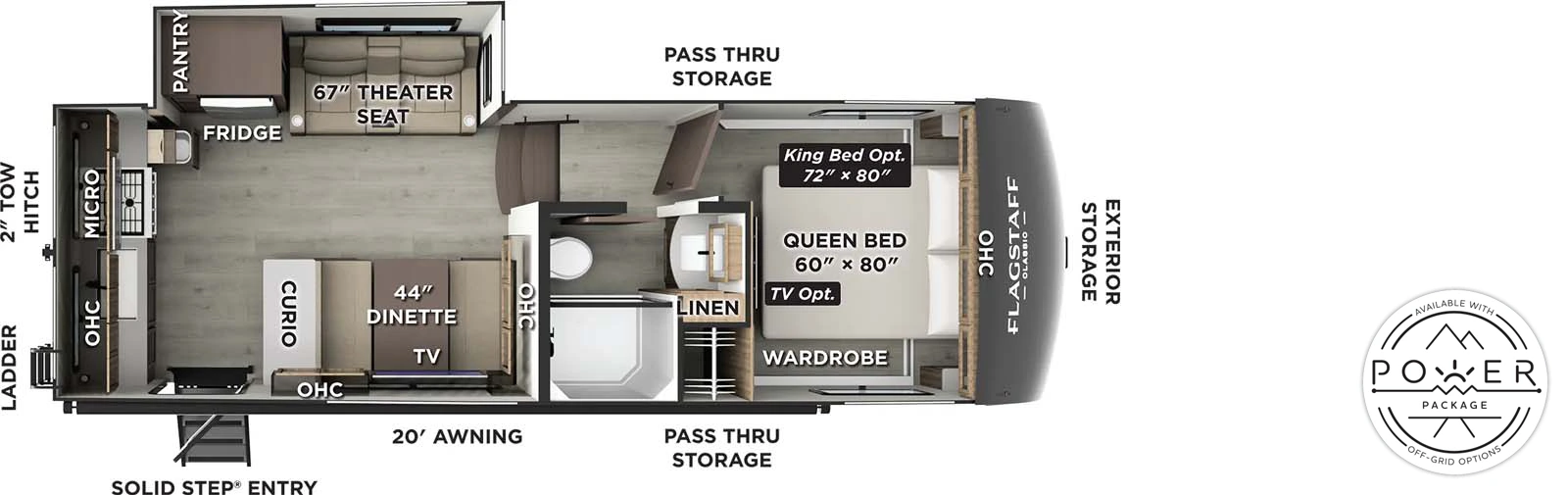

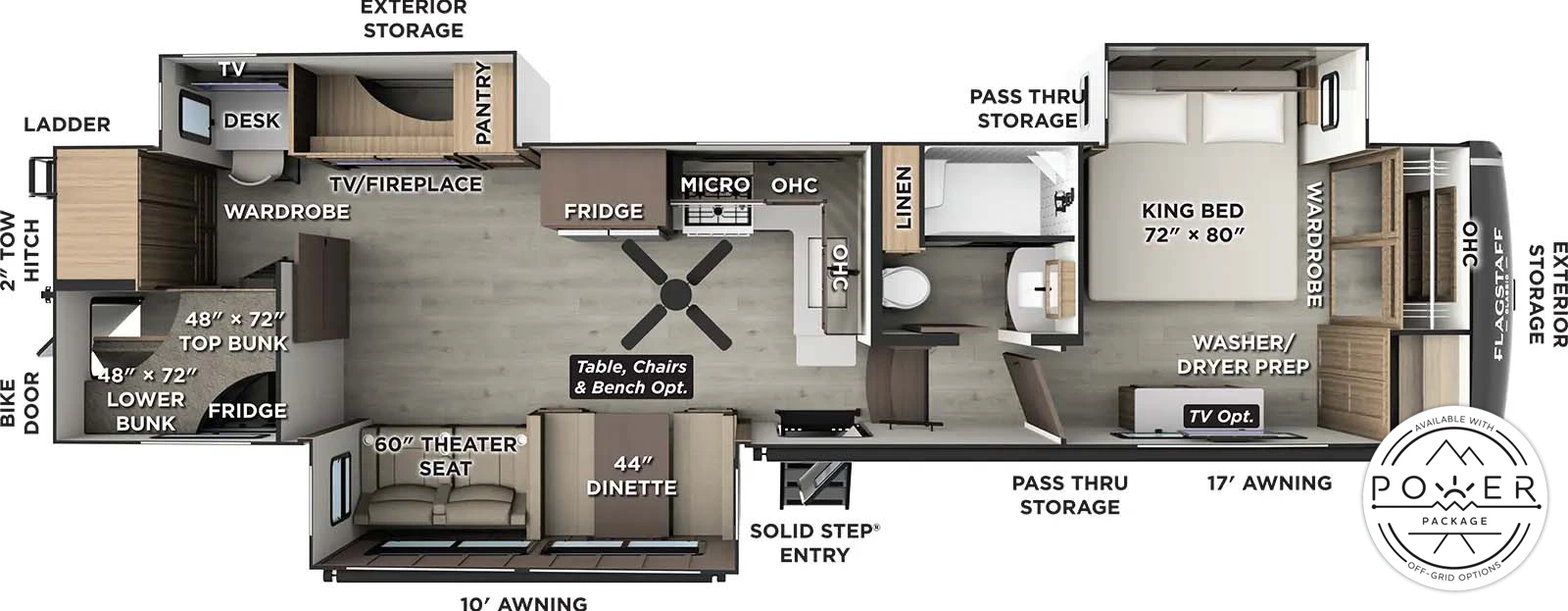

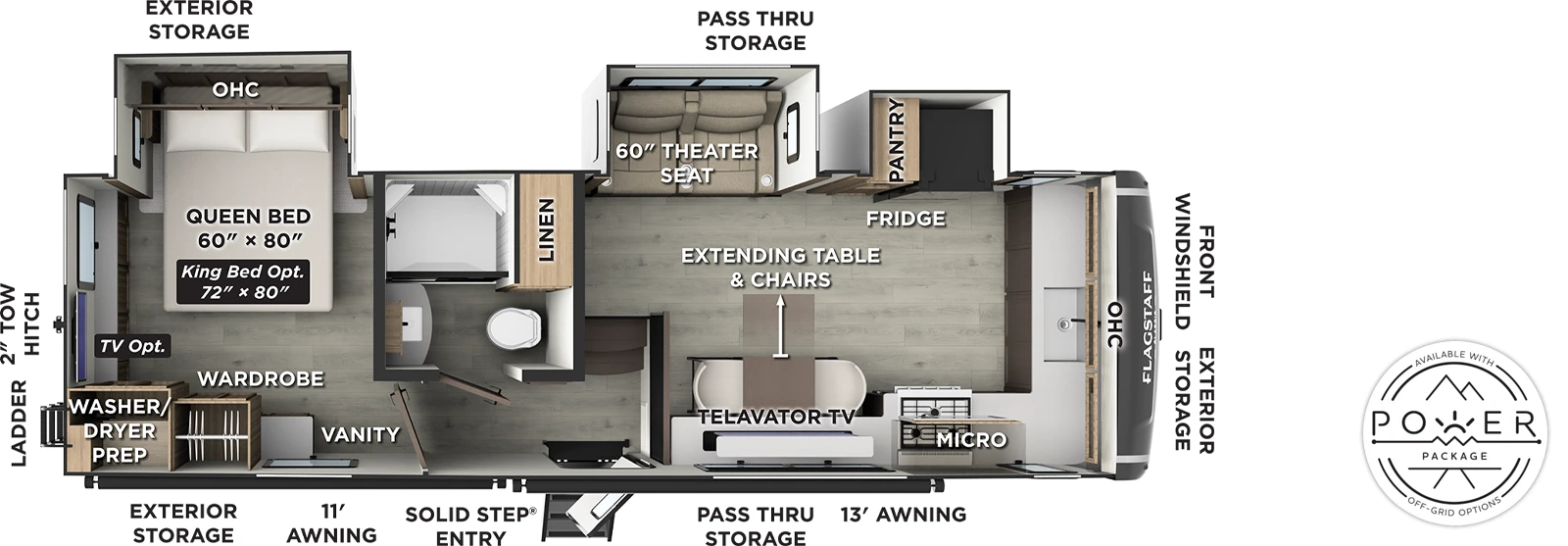

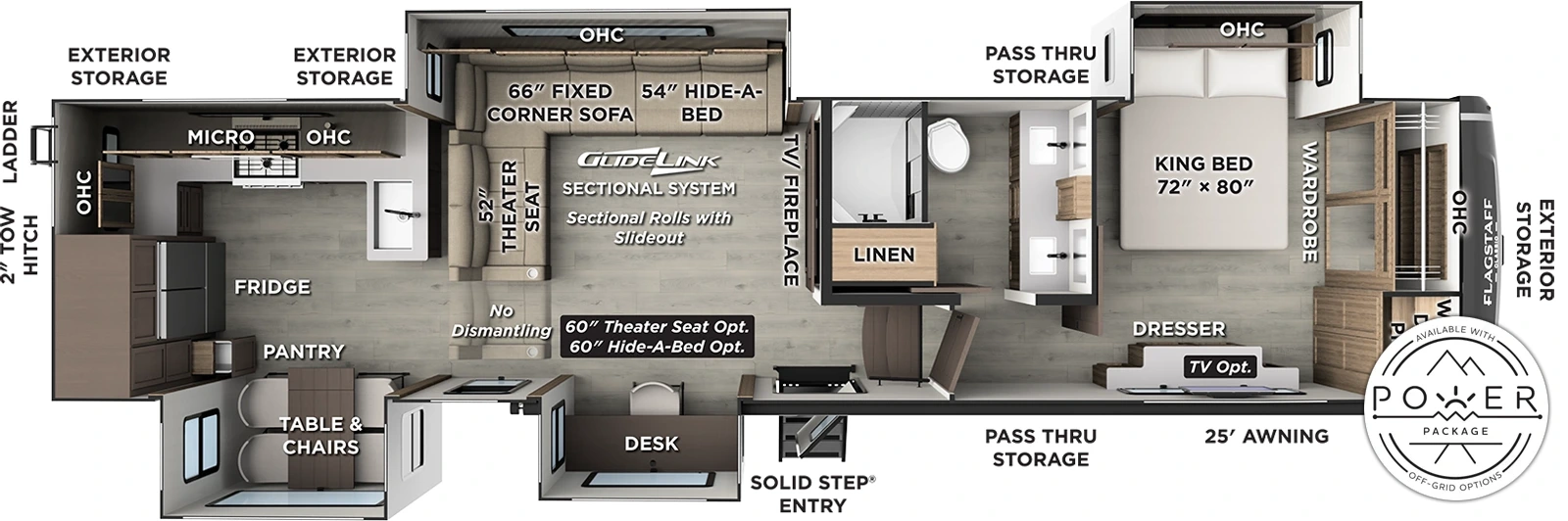

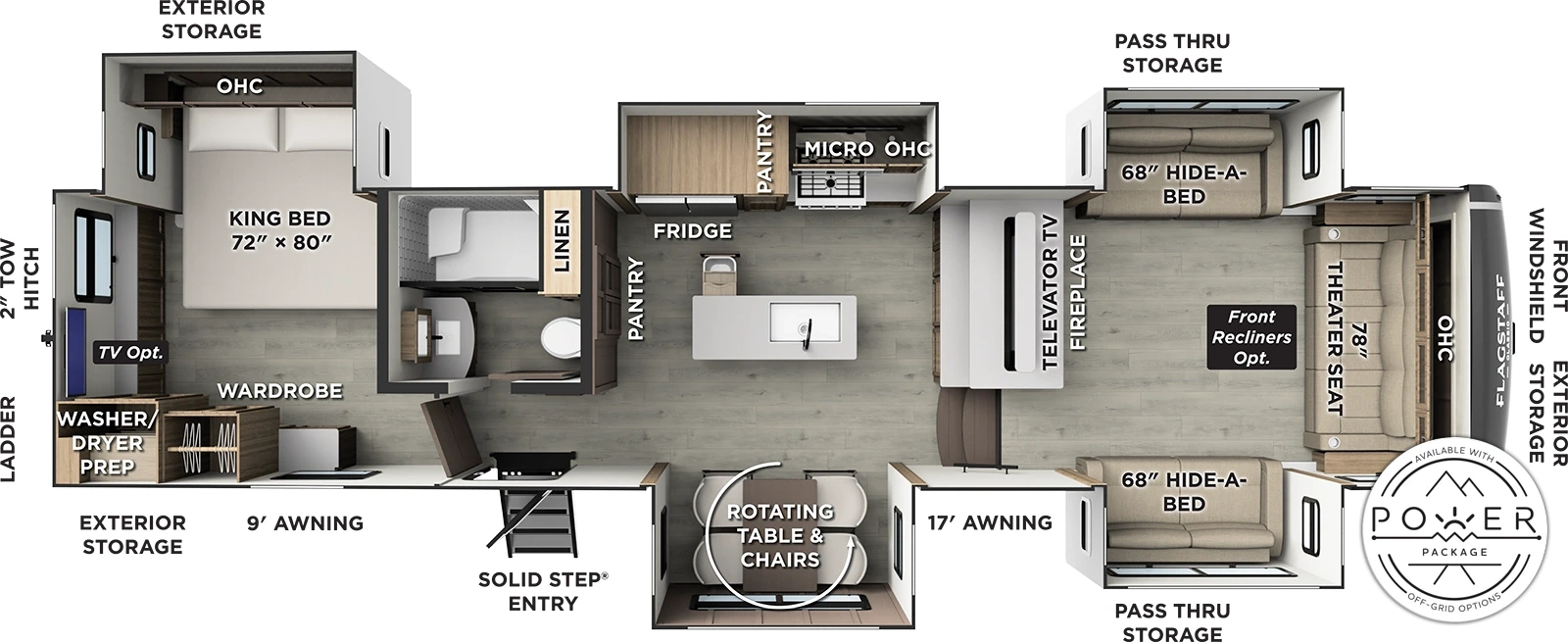

Floorplans

Print

Classic Fifth Wheels
Dealer Stock Only


Specifications

Print

Floorplan: 524BBS : Classic Fifth Wheels 524EWS : Classic Fifth Wheels 526RK : Classic Fifth Wheels 528IKRL : Classic Fifth Wheels 529BH : Classic Fifth Wheels 529IKRL : Classic Fifth Wheels 529RLBS : Classic Fifth Wheels 529RWS : Classic Fifth Wheels 8529CLSB : Classic Fifth Wheels 8529CSB : Classic Fifth Wheels 8529RLBS : Classic Fifth Wheels 528MBS - DSO : Dealer Stock Only 528RKS - DSO : Dealer Stock Only 529RKB - DSO : Dealer Stock Only 8529RKSB - DSO : Dealer Stock Only
Hitch Weight:1,252 lb.1,215 lb.1,410 lb.1,680 lb.1,700 lb.1,761 lb.1,740 lb.1,730 lb.1,740 lb.1,831 lb.1,843 lb.1,620 lb.1,308 lb.1,699 lb.1,820 lb.
UVW:7,950 lb.7,764 lb.8,469 lb.9,511 lb.9,476 lb.10,165 lb.10,379 lb.10,164 lb.10,264 lb.10,519 lb.10,226 lb.10,229 lb.8,758 lb.10,255 lb.10,519 lb.
CCC:1,902 lb.2,051 lb.1,527 lb.2,169 lb.2,224 lb.1,996 lb.1,761 lb.1,966 lb.1,876 lb.1,712 lb.2,017 lb.1,791 lb.2,550 lb.1,844 lb.1,701 lb.
Exterior Length:28' 11"28' 11"30' 8"33' 10"37' 0"36' 6"37' 0"37' 0"37' 0"37' 0"36' 2"36' 6"33' 0"36' 6"37' 0"
Exterior Height:13' 1"13' 1"13' 1"13' 2"13' 2"13' 2"13' 2"13' 2"13' 2"13' 2"13' 2"13' 2"13' 2"13' 2"13' 2"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.
Gray Water:80.00 gal.80.00 gal.80.00 gal.90.00 gal.90.00 gal.90.00 gal.90.00 gal.90.00 gal.90.00 gal.80.00 gal.80.00 gal.90.00 gal.80.00 gal.80.00 gal.90.00 gal.
Black Water:40.00 gal.40.00 gal.40.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.90.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.40.00 gal.50.00 gal.50.00 gal.
Awning Size:20'18'20'10' & 8'20'10' & 13'21'21'11' & 13'10' & 11'10' & 12'6"11' & 13'21'11' & 13'10' & 13'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

* Due to the current environment, our features and options are subject to change due to material availability.

  • Shielded Awning Cover
  • Laminated White Fiberglass Sidewalls
  • High Gloss Front Cap
  • Larger 76” Entry Doors
  • Tinted Frameless Windows
  • 360 Siphon Black Water Venting
  • Outside Speakers
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Ground Solar Panel Prep
  • Rear Ladder
  • Black Tank Flush
  • Strut Assist Fold-Out Steps
  • Friction Hinge 30” Primary Entrance Door
  • Large Folding Grab Handles
  • Outside Griddle w/ LP Hookup and Work Table
  • Front Outside Storage
  • Outside Antifreeze Inlet for Convenient Winterizing
  • Slam Latches on Most Exterior Storage Doors & Magnetic Storage Door Latches
  • Two Enclosed 30 lb. LP Gas Bottles w/ Storage Door Access
  • Nautilus Water Management System w/Spray Hose
  • 2” Accessory Hitch Receiver
  • Keyed Alike Locks
  • 200W Roof Solar Panel with 1,000W Inverter (1,800W Inverter on 529IKRL, 528IKRL, 8529CSB,8529RLBS, 529RLBS)
  • Newport Ash Cabinetry
  • Autumn Wood Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges & Upgraded Hardware with Soft Closing Drawer Slides
  • 35,000 BTU Floor Ducted Furnace
  • 50 Amp Service with Second A/C prep
  • Carbon Monoxide Detector
  • Battery Disconnect Switch
  • 55 Amp Converter With Charger
  • Flush Mount Ceiling LED 12 Volt Interior Lighting w/ Multiple Switches
  • Water-Pur Filtration System
  • Water Heater By-Pass Kit
  • Maxxair® Ventilation Fan and Vent Cover
  • 15,000 BTU Ducted A/C
  • 6 Gallon Quick Recovery Auto Ignition Gas/Electric Water Heater
  • One Control We RV App Control for Lights/Awnings/Slides/Water Heater/Water Pump/WIFI Pwr
  • Fireplace (N/A 524EWS, 524BBS)

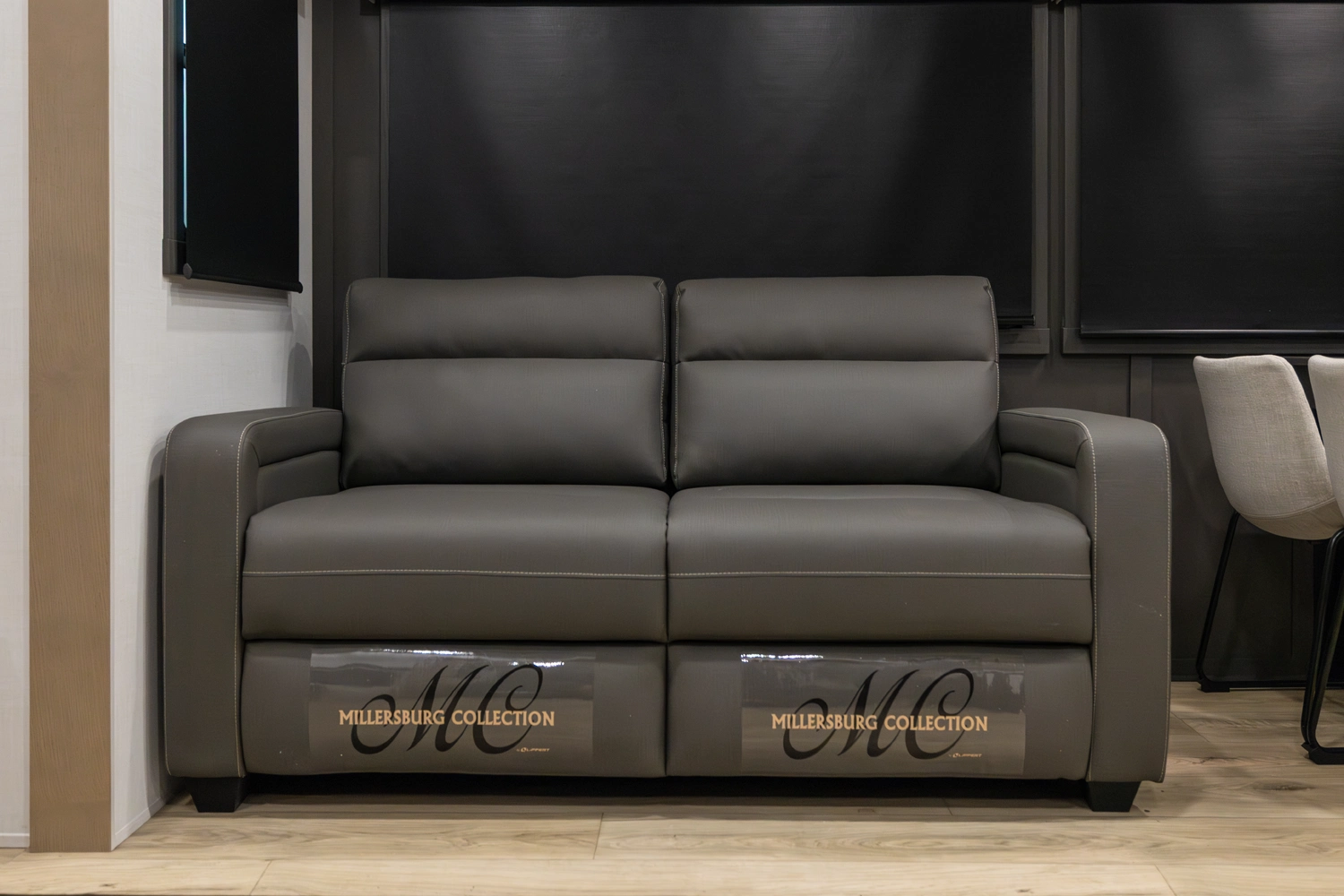

  • Deluxe Tri-Fold Sofa

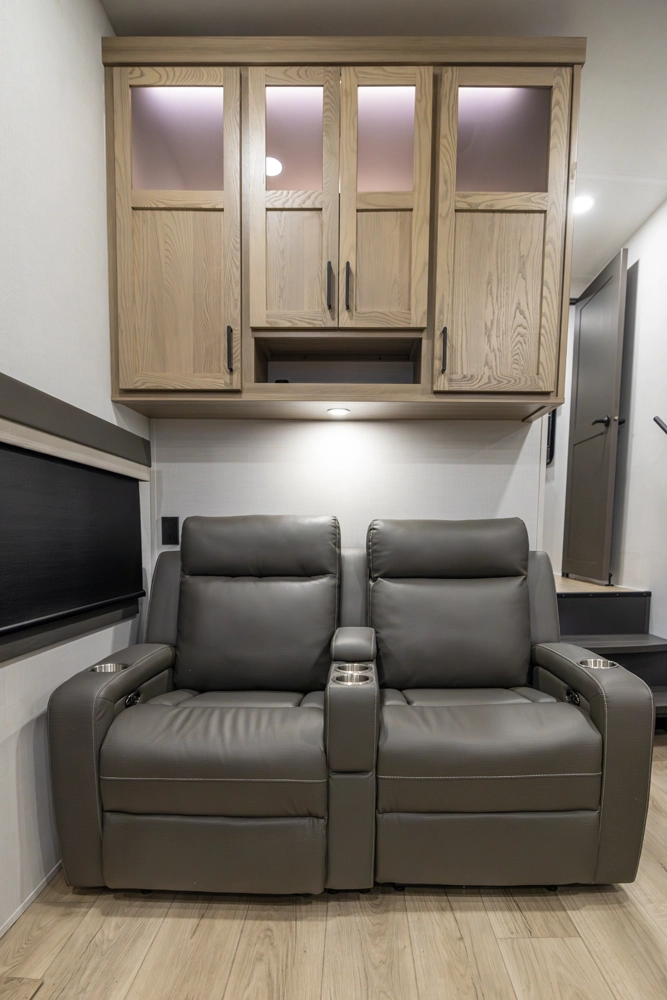

  • Theatre Seating w/ Adjustable Lumbar Support & USB Ports (8529CSB, 8529CLSB, 8529RLBS, 529IKRL, 529RLBS, 528IKRL)
  • Ceiling fan
  • 76" Slide Out Height in Living/Kitchen
  • LED TV With Upgraded Speaker System and Subwoofer
  • Multi Zone Soundbar/Stereo Combo w/AM/FM & Bluetooth
  • Marine Grade Carpet In Slides
  • Day Night Roller Shades
  • Optional TV

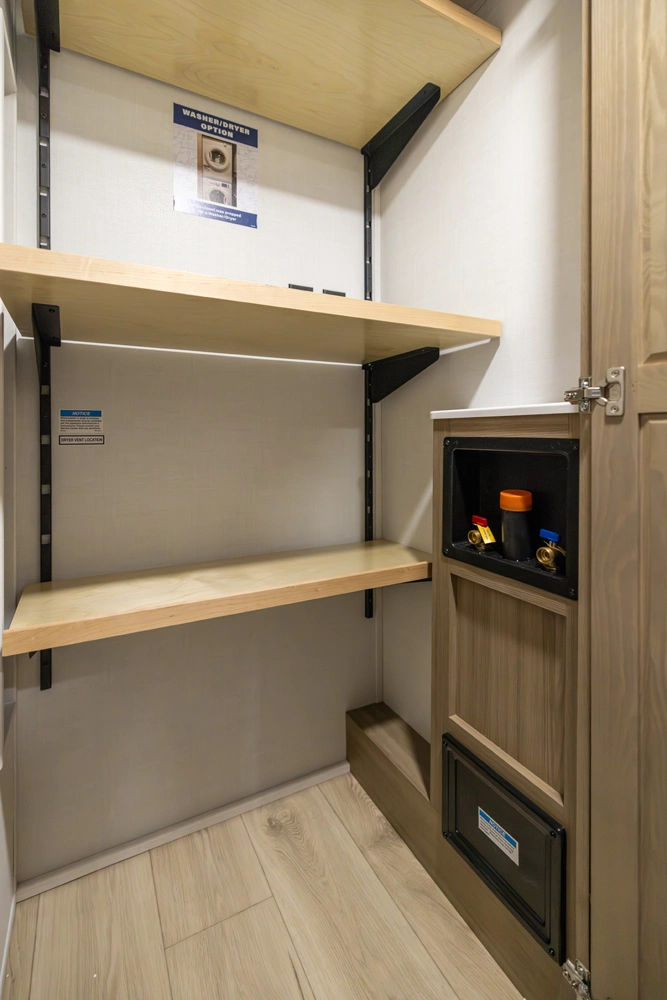

  • Washer/Dryer Prep (N/A 524BBS, 524EWS, 528IKRL, 529BH, 529RWS, 529RLBS)
  • Carpetless Main Bedroom Floor
  • Under Bed Storage
  • Designer Headboard & Bedding
  • Individual Reading Lights
  • Two Bed Side Power Outlets
  • 72 x 80 King Beds (8529CSB)
  • 5/8” Plywood Tongue and Groove Subfloor
  • Aluminum Bed and Dinette Bases
  • Enclosed Underbelly
  • Thermostatically Controlled Heated Holding Tanks
  • Radiant Foil Insulated Underbelly, Front Cap & Slide-out Floors
  • 6 Sided Fully Aluminum Framed (Floor, Walls, & Roof)
  • Insulation Factors R-7 Side Wall, R-12 Floor and R-14 Roof
  • Radius Roof With Vaulted Interior Ceilings
  • One Piece Seamless Roofing Membrane
  • Surface Coated Steel I-Beam Frame
  • Interior & Exterior Azdel Sidewall Construction
  • LCI *CURT TURNING POINT Pin Box Hitch
  • Torsion Axle, Rubber-Ryde Suspension w/ Easy Lube Axles & Never Adjust Brakes
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Undermounted Spare Tire
  • Polished Alloy Wheels
  • Tire Pressure Monitoring System with Monitor
  • Three Burner High Output Gas Range with Flush Mount Glass Top Cover
  • Trash Can in Kitchen (Select floor plans)
  • Microwave Oven
  • Recessed Cooktop and 21" Oven w/ Flush Mount Cover
  • Hidden Hinge Cabinet Doors
  • Residential Full Extension Metal Drawer Guides with Soft Close
  • Solid Surface Kitchen Countertops
  • Designer Kitchen Backsplash
  • Flush Mount Stainless Steel Sinks With “High Rise” Pull-Down Faucet
  • 20 Cubic Foot Residential Refrigerator w/ Inverter (8529CSB, 8529RLBS, 528IKRL, 529IKRL, 529RLBS)
  • 11 cubic foot 12V Refrigerator (524EWS, 524BBS, 526RK, 529BH, 529RWS, 8529CLSB)
  • Bathroom Skylight
  • Porcelain Residential Style Bowl Foot Flush Toilet
  • Maxxair® Ventilation Fan and Vent Cover
  • ShowerMiser Water Saver System
  • Upgraded Residential Faucet
  • Second Roof 15,000 BTU A/C with Chill Chaser Heat Strip & Digital Dual Control Thermostat
  • Bedroom TV
  • King Bed Mattress (8529RLBS, 529IKRL, 529RLBS, 524BBS, 8529CLSB)
  • 19 Cubic Foot 12V Refrigerator (8529CSB, 528IKRL, 529IKRL, 529RLBS, 8529RLBS)
  • Extra Maxxair® Ventilation and Vent Cover
  • Flip Down Rear Storage Deck (250 lb. Max Load)
  • Slide Toppers
  • ThermoPane Window Upgrade
  • Washer & Dryer (N/A 529BH, 529RWS, 524EWS, 524BBS, 529RLBS, 528IKRL)
  • Free Standing Table and Chairs (N/A 8529CSB, 524BBS)
  • Shielded Power Awning w/ Adjustable Rain Dump and LED Light Strip
  • 8 Cubic Gas/Electric Refrigerator (524EWS, 524BBS, 526RK, 529BH, 529RWS, 8529CLSB)
  • Electric Auto Leveling System (524EWS, 524BBS, 526RK)
  • LED Bedroom TV
  • Shielded Power Awning w/ Adjustable Rain Dump and LED Light Strip


Virtual Tours

  • 524BBS
    524BBS Main Room
  • 526RK
    526RK Main Room
  • 528IKRL
    528IKRL Main Room
  • 529BH
    529BH Main Room
  • 529IKRL
    529IKRL Main Room
  • 529RLBS
    529RLBS Main Room
  • 529RWS
    529RWS Main Room
  • 8529CLSB
    8529CLSB Main Room
  • 8529CSB
    8529CSB Main Room
  • 8529RKSB - DSO
    8529RKSB - DSO Main Room
  • 8529RLBS
    8529RLBS Main Room
