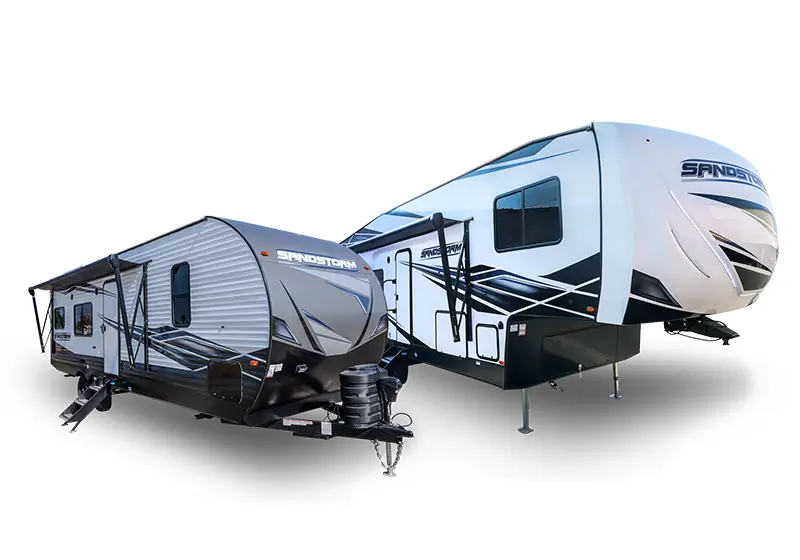

Sandstorm Travel Trailer and Fifth Wheel Toy Haulers

Sandstorm provides a toy hauler with the flexibility of riding in the dunes or camping with the family in the mountains, all at a cost you can afford. So what are you waiting for? Get Dirty in a Sandstorm, Today!

Care Camps, fighting cancer and making memories

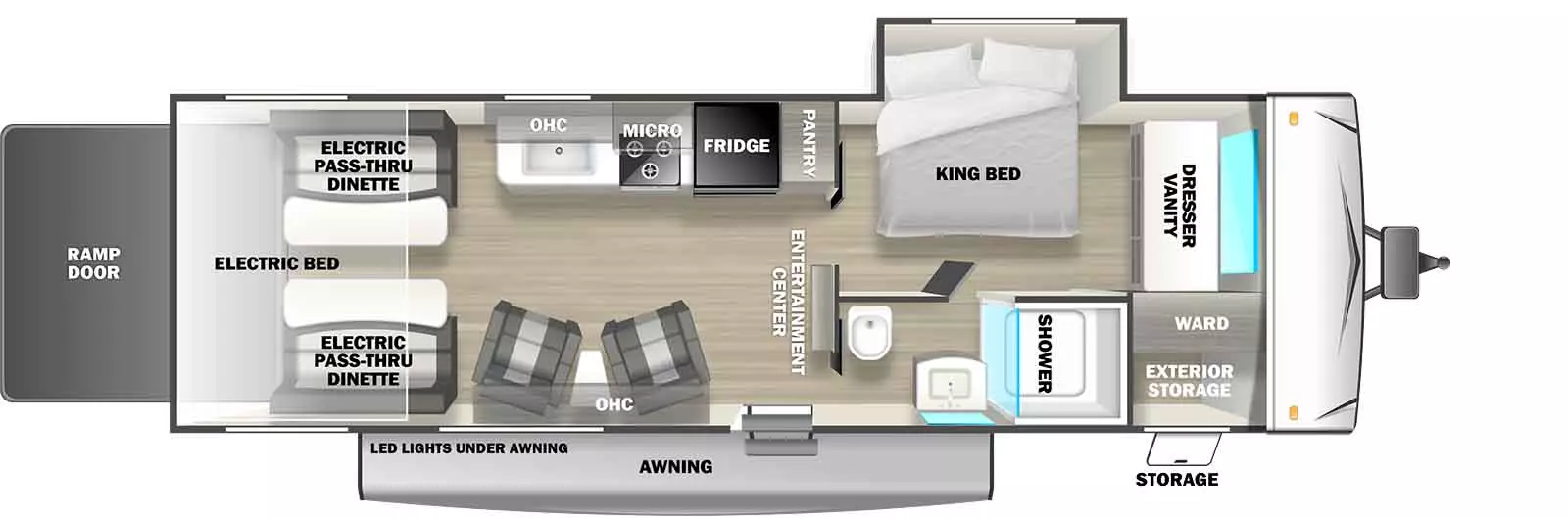

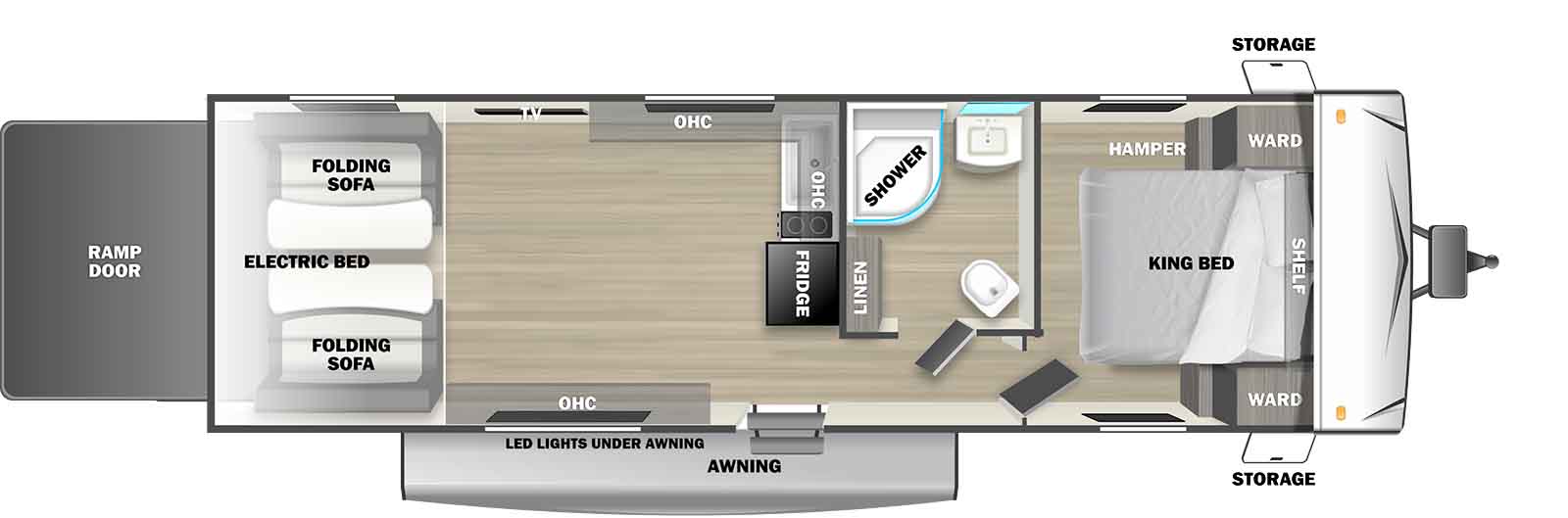

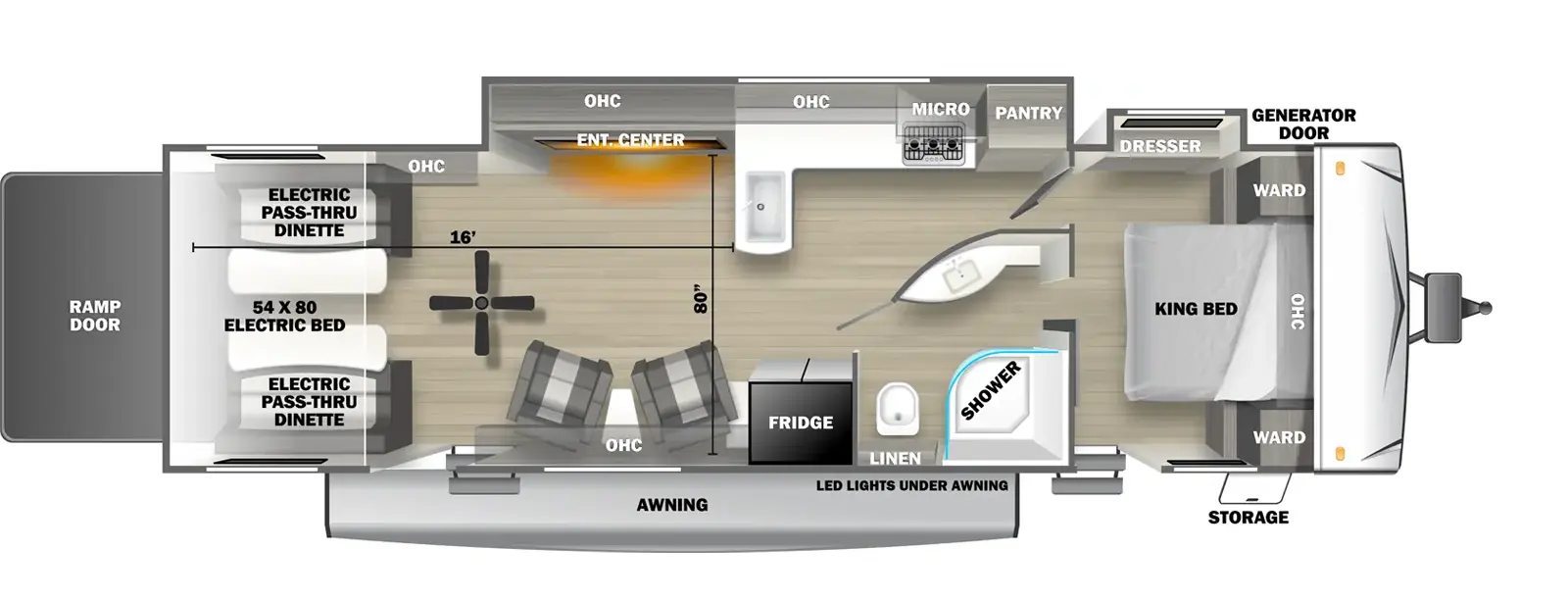

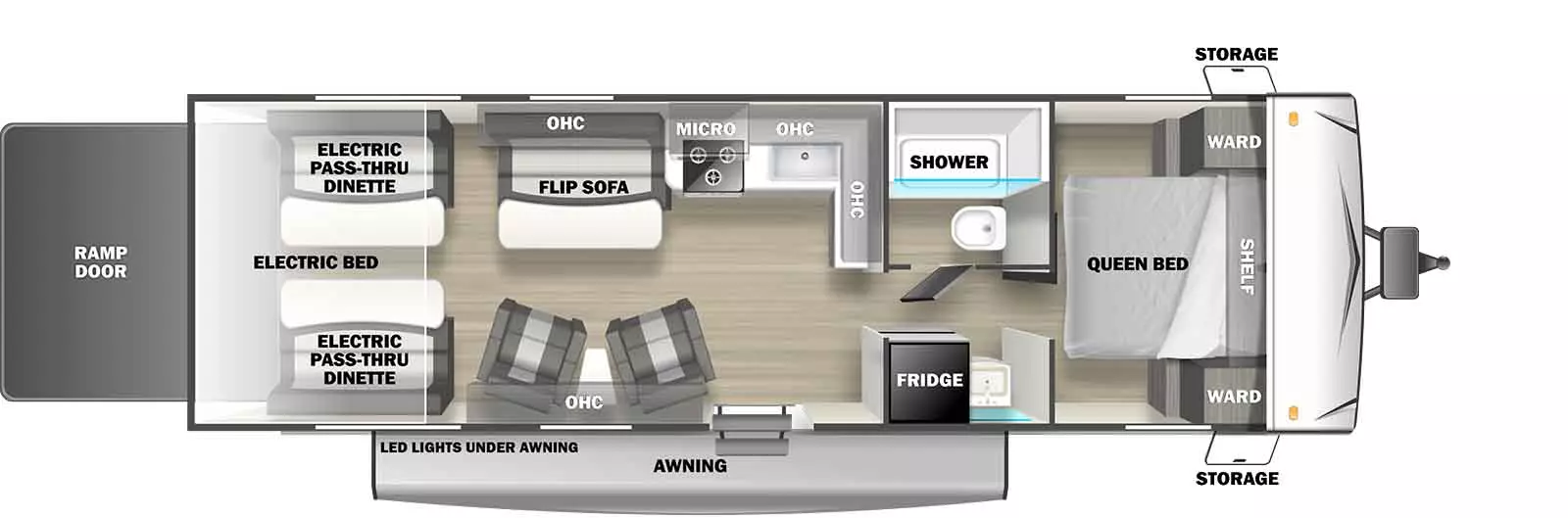

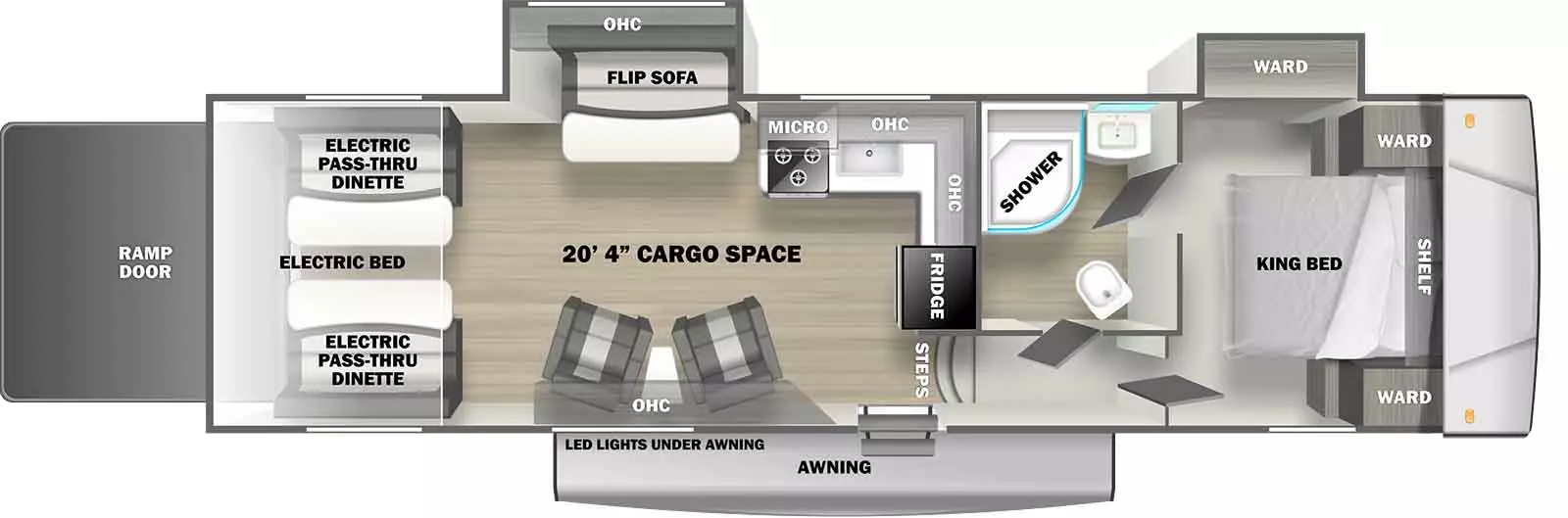

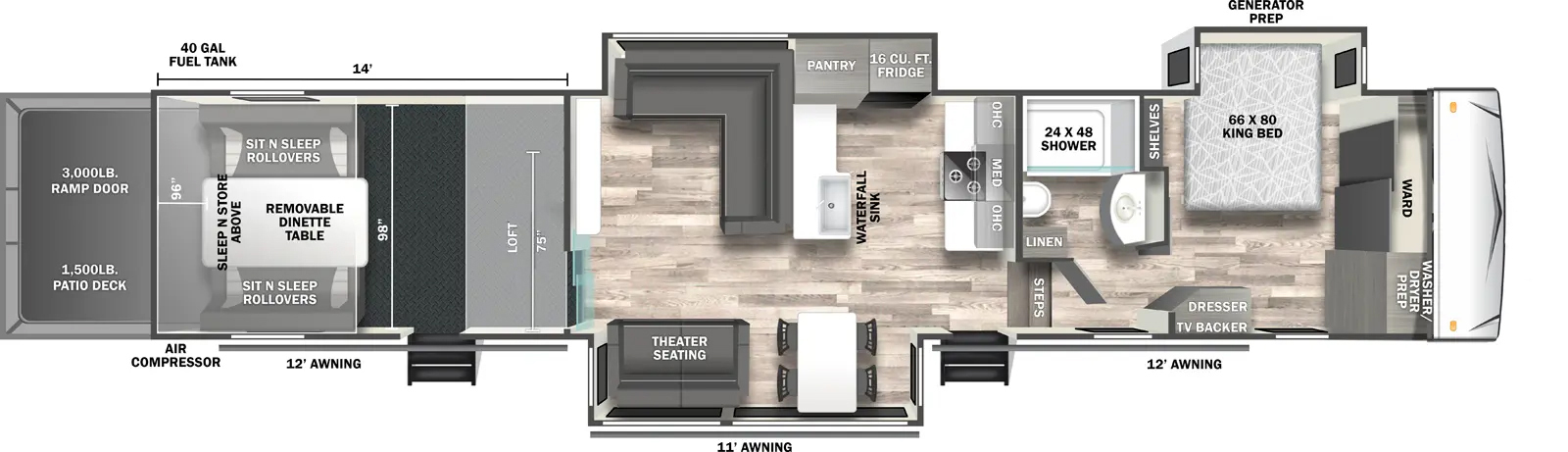

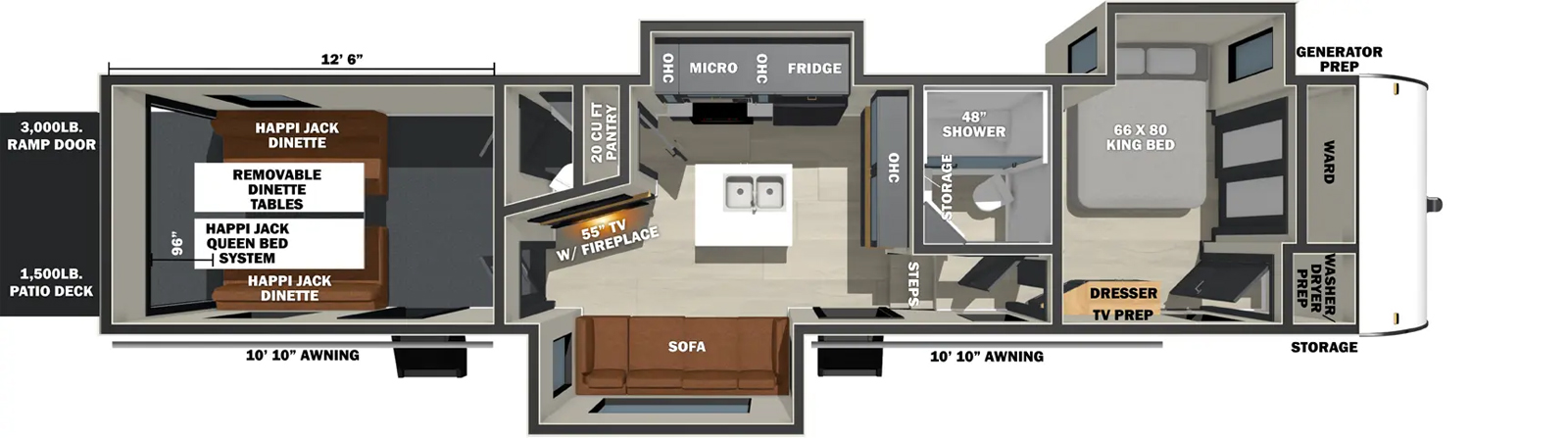

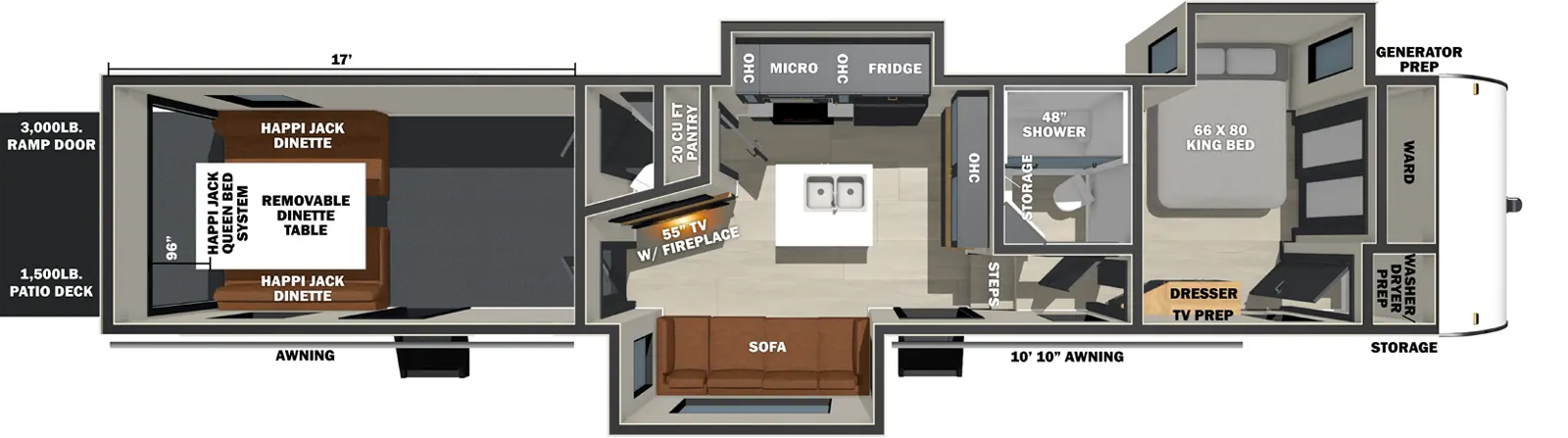

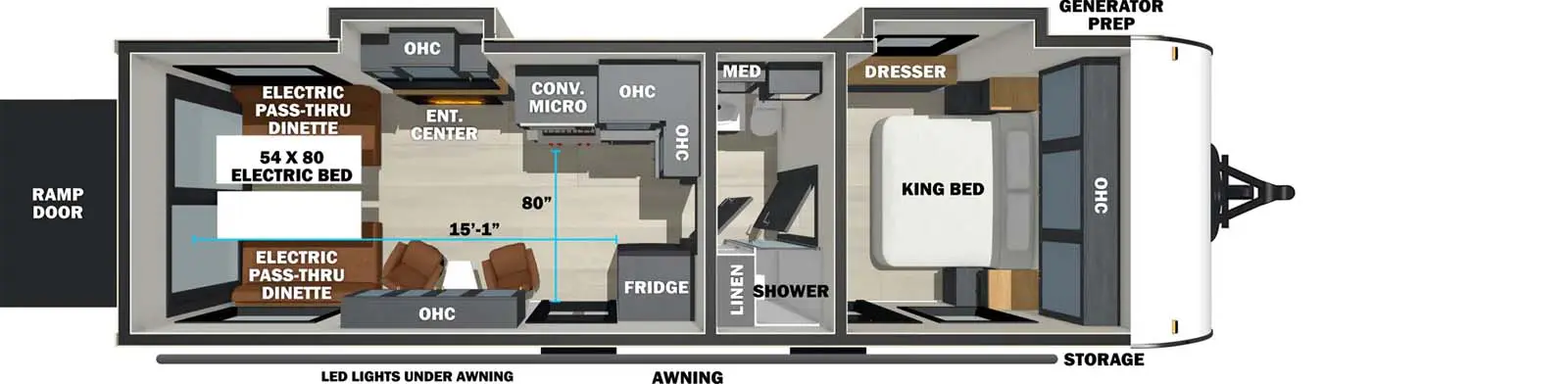

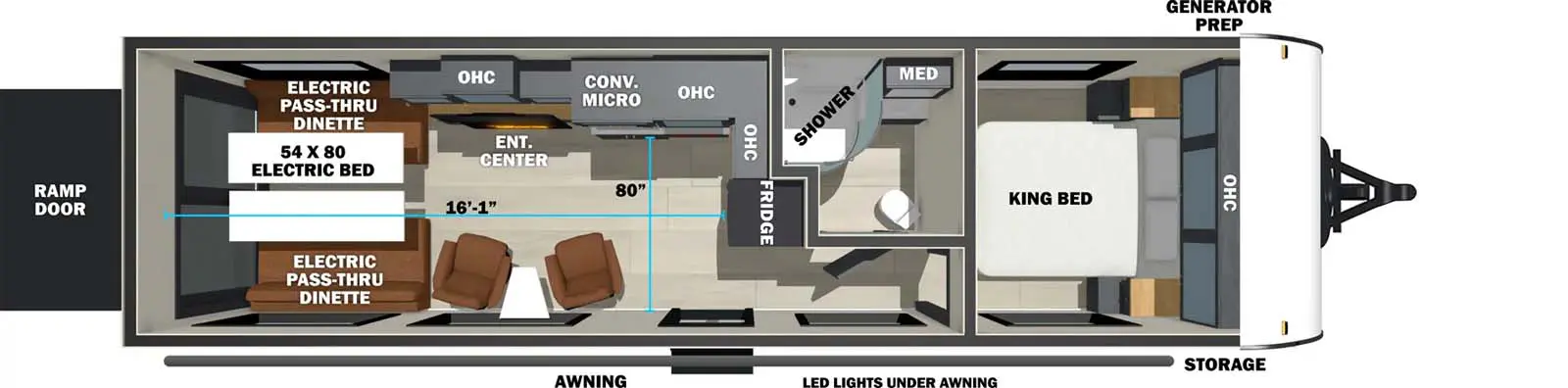

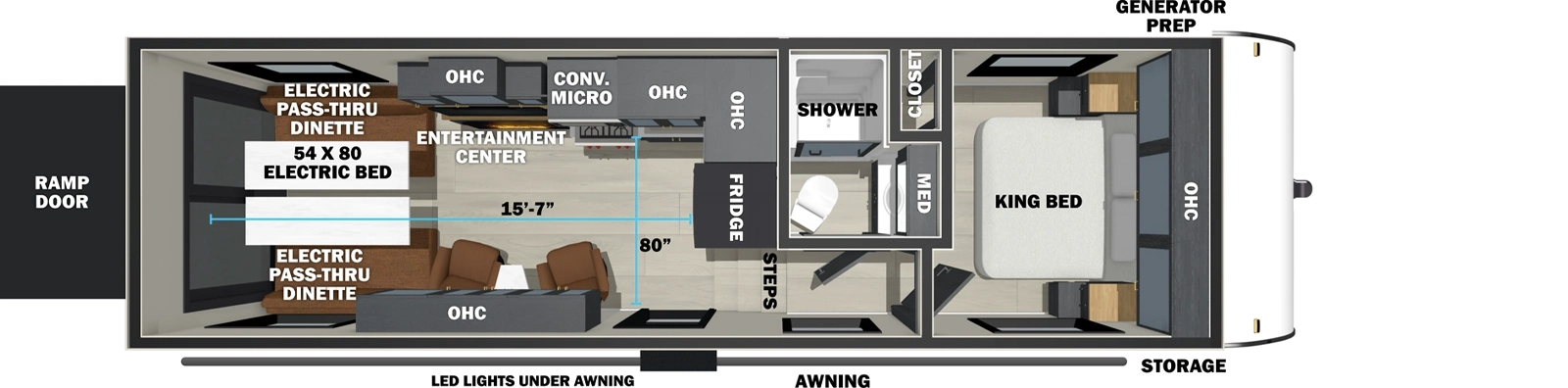

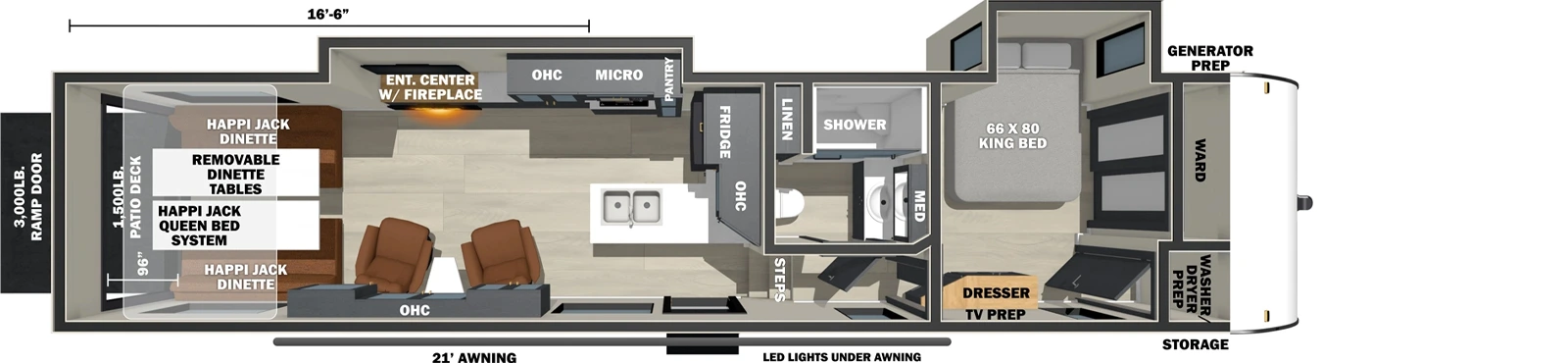

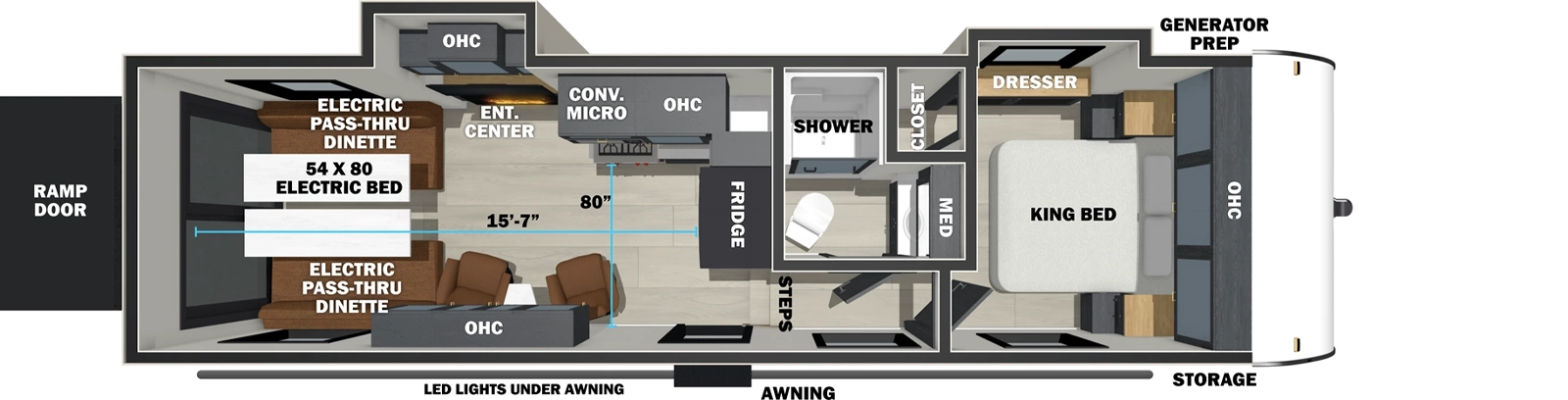

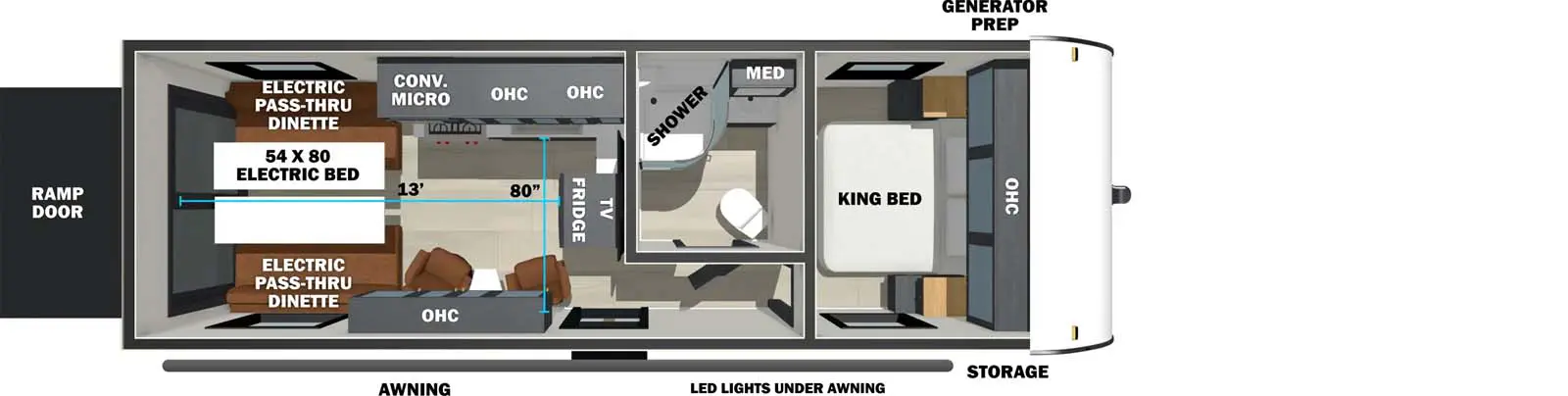

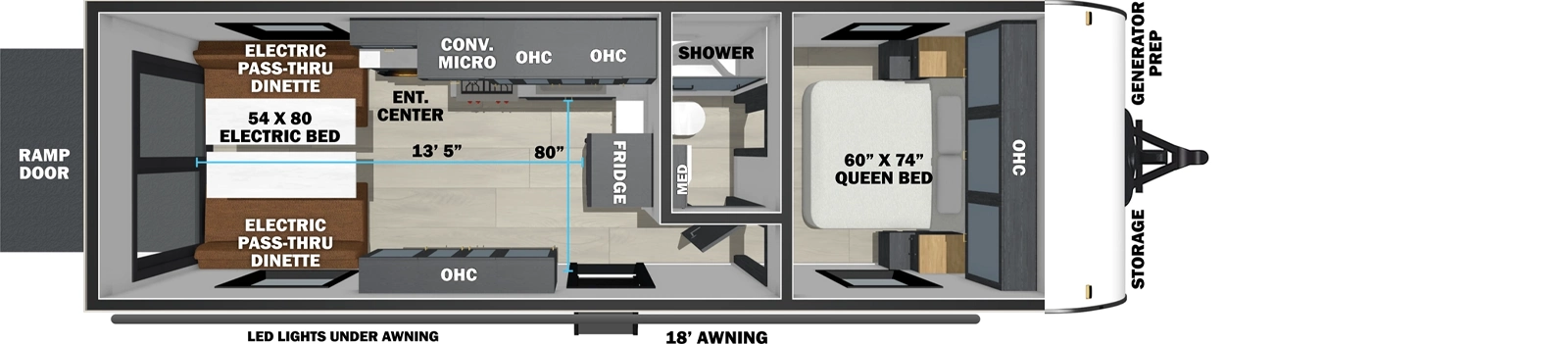

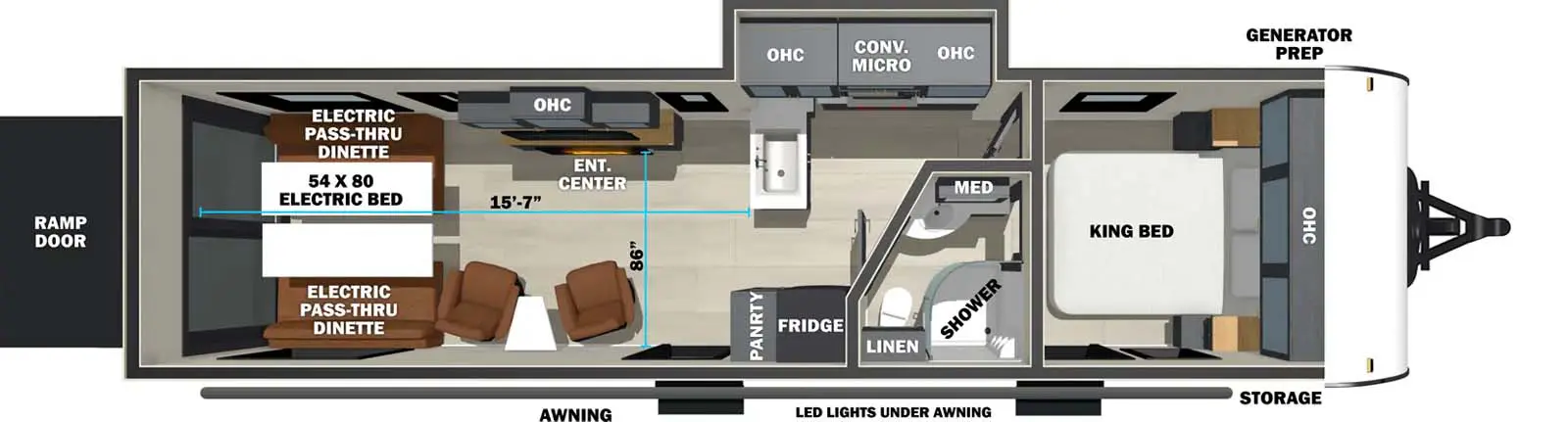

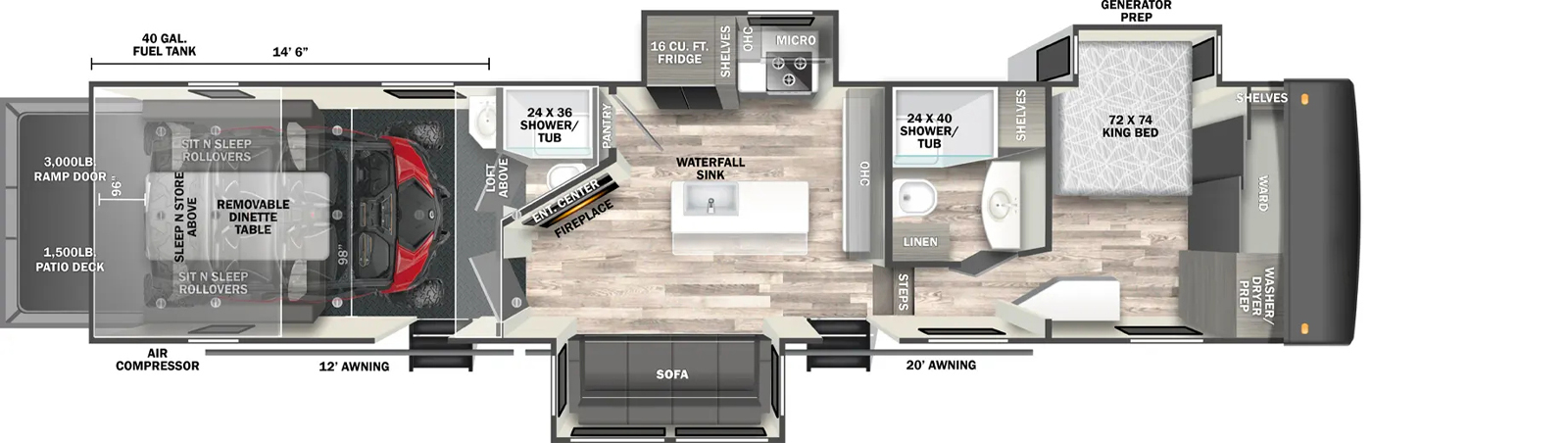

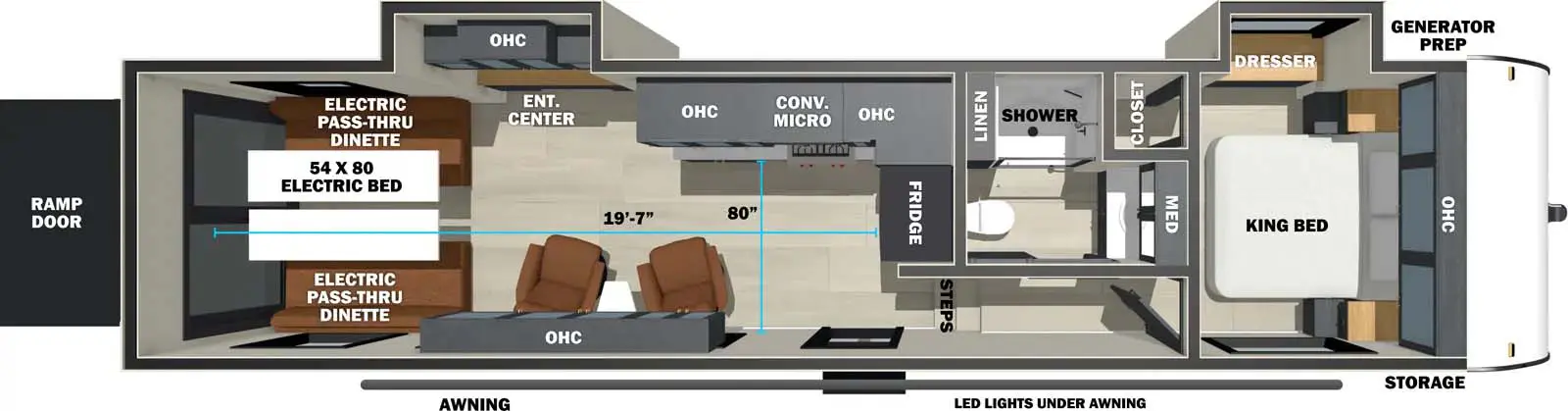

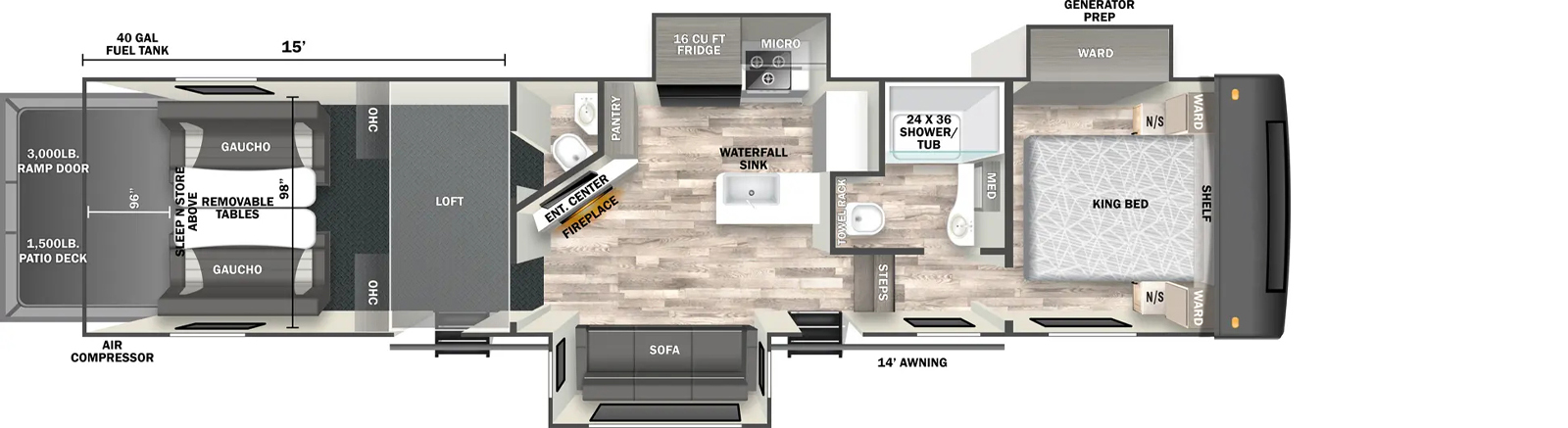

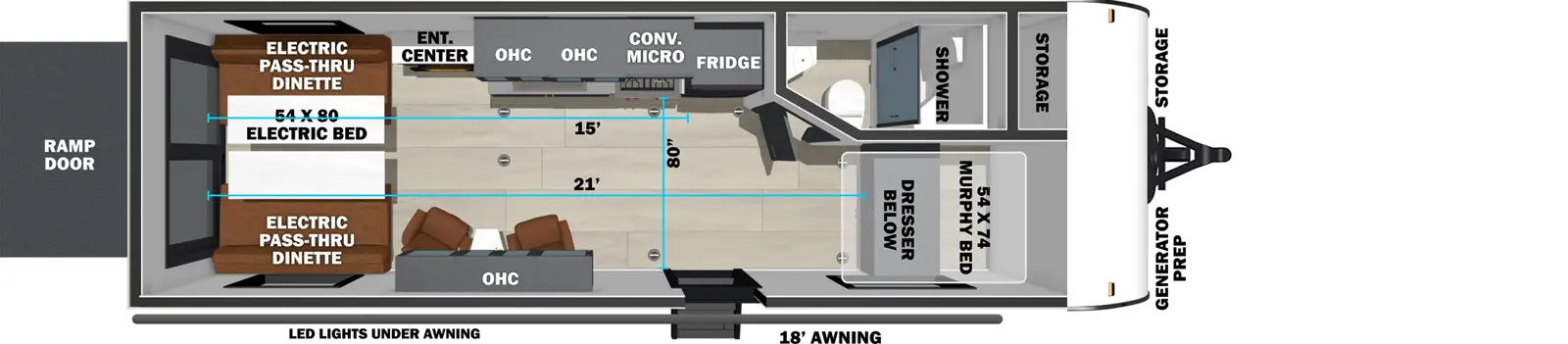

Floorplans

Print

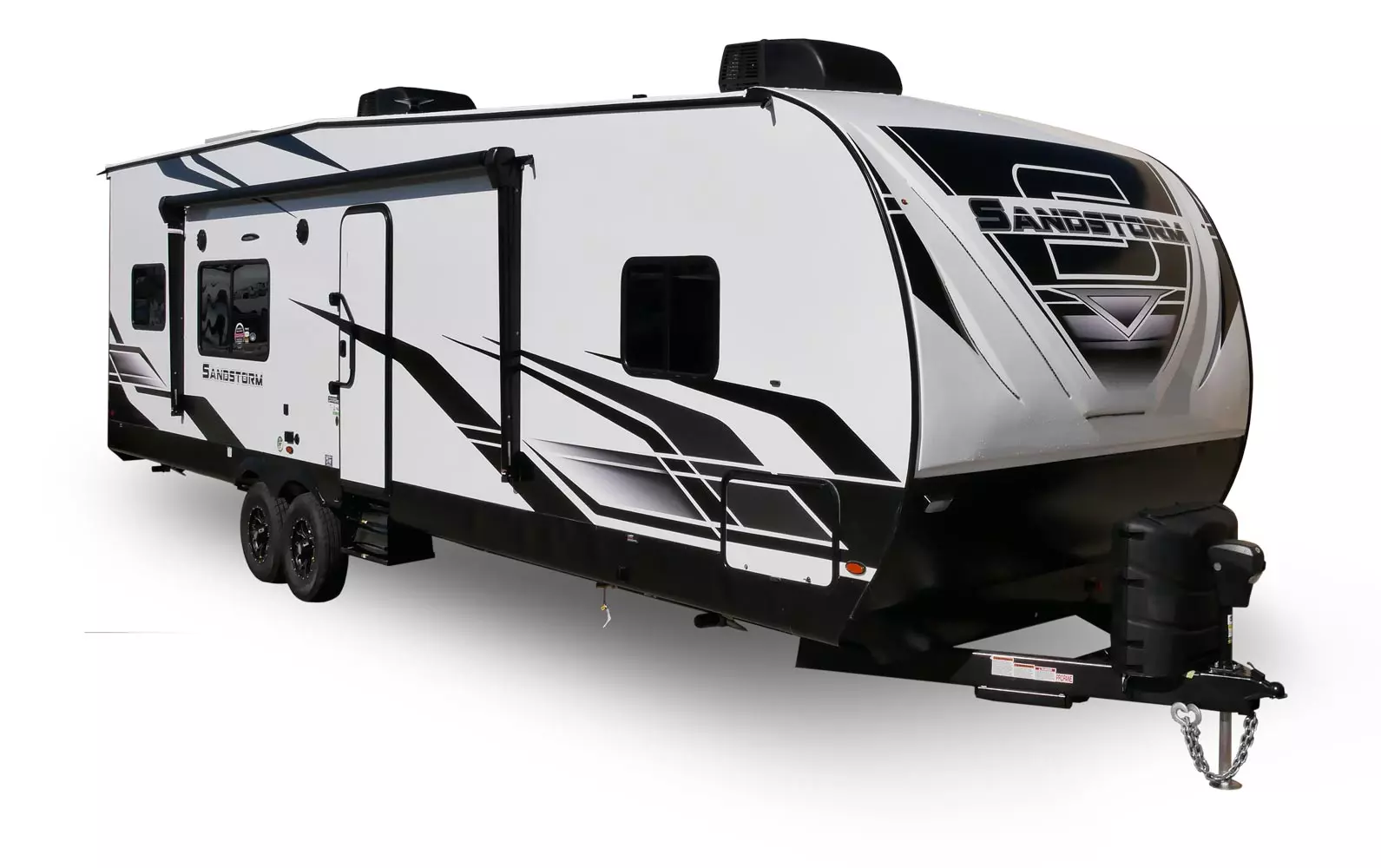

Sandstorm Travel Trailers
Sandstorm Sport Series

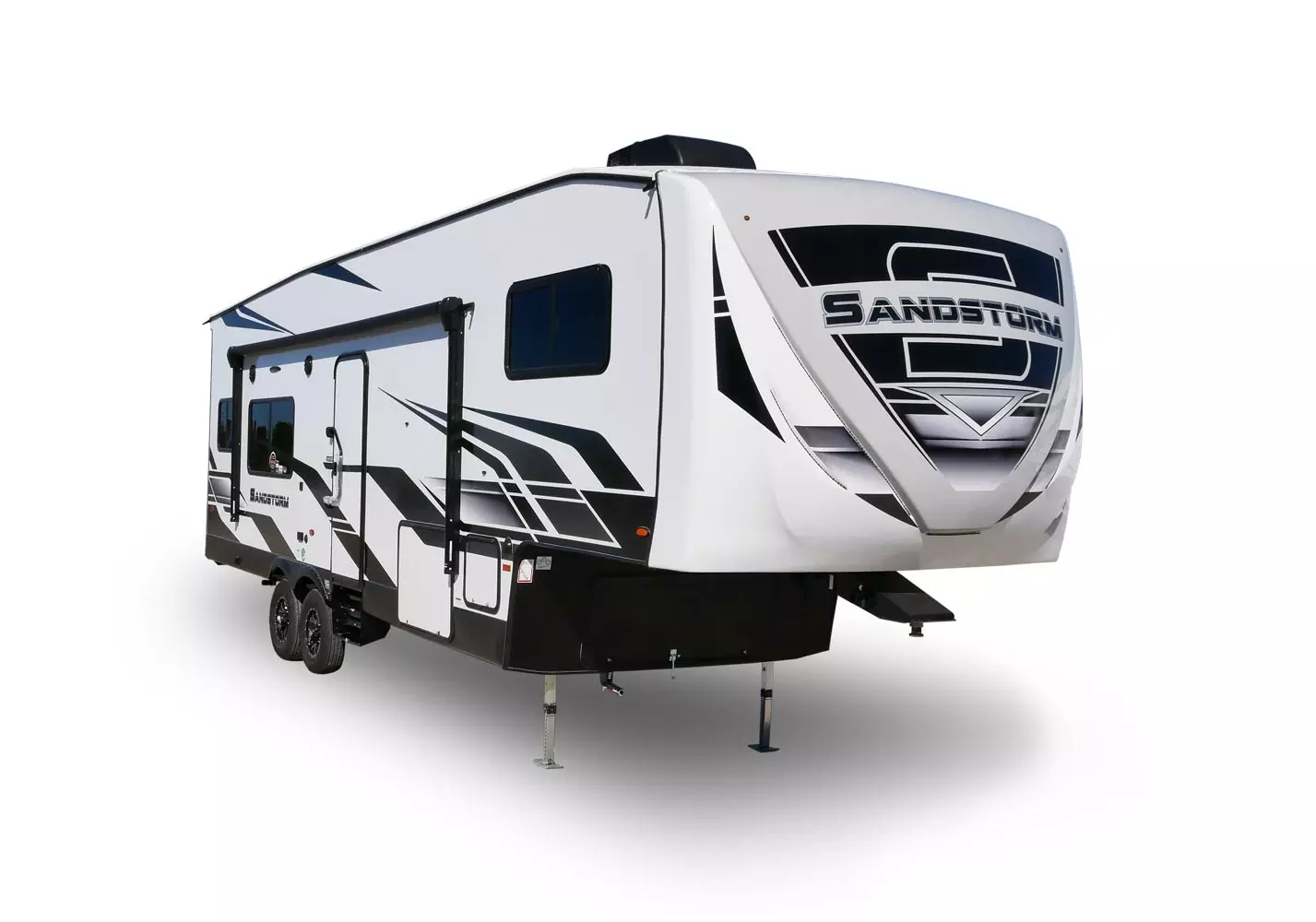

Sandstorm Fifth Wheels
Dealer Stock Only


Specifications

Print

Floorplan: 211SLC : Sandstorm Travel Trailers 242SLC : Sandstorm Travel Trailers 242GSLC : Sandstorm Travel Trailers 245GSLC : Sandstorm Travel Trailers 251SLC : Sandstorm Travel Trailers 251GSLC : Sandstorm Travel Trailers 265GSLR : Sandstorm Travel Trailers 272SLC : Sandstorm Travel Trailers 272GSLC : Sandstorm Travel Trailers 293GSLR : Sandstorm Travel Trailers 291SLC : Sandstorm Travel Trailers 302GSLR : Sandstorm Travel Trailers 304GSLR : Sandstorm Travel Trailers 313GSLR : Sandstorm Travel Trailers 186 : Sandstorm Sport Series 241 : Sandstorm Sport Series 270 : Sandstorm Sport Series 286GSLR : Sandstorm Fifth Wheels 306GSLR : Sandstorm Fifth Wheels 326GSLR : Sandstorm Fifth Wheels 336GSLR : Sandstorm Fifth Wheels 346GSLR : Sandstorm Fifth Wheels 181SLC - DSO : Dealer Stock Only
Hitch Weight:913 lb.1,018 lb.1,025 lb.1,080 lb.1,055 lb.1,215 lb.1,270 lb.1,154 lb.1,135 lb.1,360 lb.1,341 lb.1,385 lb.1,555 lb.1,655 lb.760 lb.871 lb.TBD2,210 lb.2,416 lb.2,616 lb.2,383 lb.2,604 lb.853 lb.
GVWR:9,999 lb.9,999 lb.9,999 lb.9,999 lb.9,999 lb.9,999 lb.10,995 lb.10,999 lb.10,999 lb.13,000 lb.13,000 lb.13,385 lb.13,000 lb.13,630 lb.9,999 lb.9,999 lb.TBD14,210 lb.14,999 lb.14,999 lb.14,999 lb.14,999 lb.9,999 lb.
UVW:6,611 lb.7,242 lb.7,353 lb.7,374 lb.7,499 lb.7,863 lb.8,318 lb.8,100 lb.8,083 lb.9,108 lb.8,957 lb.9,819 lb.9,905 lb.9,883 lb.5,850 lb.6,251 lb.TBD9,640 lb.10,894 lb.11,032 lb.10,545 lb.11,016 lb.6,399 lb.
CCC:3,388 lb.2,757 lb.2,646 lb.2,625 lb.2,500 lb.2,136 lb.2,677 lb.2,899 lb.2,916 lb.3,892 lb.4,043 lb.3,566 lb.3,095 lb.3,747 lb.4,149 lb.3,748 lb.TBD4,570 lb.4,105 lb.3,967 lb.4,454 lb.3,983 lb.3,600 lb.
Exterior Length:28' 1"30' 10"31' 3"27' 6"30' 9"31' 2"31' 3"33' 8"34' 1"36' 5"36' 0"38' 1"37' 3"37' 5"26' 0"30' 3"TBD33' 5"37' 9"38' 7"37' 5"39' 11"25' 10"
Exterior Height:12' 1"12' 1"TBD12' 0"12' 1"TBD12' 0"12' 7"TBD12' 9"12' 9"13' 1"13' 1"13' 1"12' 1"12' 1"TBD13' 4"13' 4"13' 4"13' 4"13' 4"12' 1"
Exterior Width:102"102"102"102"102"102"102"102"102"102"102"102"102"102"102"102"TBD102"102"102"102"102"102"
Fresh Water:86.00 gal.140.00 gal.140.00 gal.80.00 gal.140.00 gal.140.00 gal.80.00 gal.140.00 gal.140.00 gal.140.00 gal.140.00 gal.140.00 gal.140.00 gal.140.00 gal.80.00 gal.80.00 gal.TBD140.00 gal.140.00 gal.140.00 gal.140.00 gal.140.00 gal.86.00 gal.
Gray Water:65.00 gal.65.00 gal.65.00 gal.67.00 gal.65.00 gal.65.00 gal.67.00 gal.65.00 gal.65.00 gal.80.00 gal.80.00 gal.65.00 gal.80.00 gal.65.00 gal.40.00 gal.40.00 gal.TBD65.00 gal.65.00 gal.65.00 gal.65.00 gal.65.00 gal.65.00 gal.
Black Water:40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.35.00 gal.40.00 gal.TBD40.00 gal.40.00 gal.40.00 gal.40.00 gal.40.00 gal.35.00 gal.
Awning Size:16'14'TBD16'16'TBD18'TBDTBD18'TBDTBD18'18'16'14'TBD18'TBD18'18'TBD16'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
Standard Features
  • Heated & Enclosed Tanks
  • Water Heater Bypass
  • RV Queen Mattress (241 Main Bed)
  • 80 Gallon Fresh Water Tank
  • Ducted 13.5 BTU Air Conditioner
  • 3 Burner Cook Top w/Glass Front 17” Oven
  • 2 Chairs w/1 Sofa & Table
  • 6 Gallon Gas/Electric DSI Water Heater
  • Power Awning w/LED Light Strip
  • One Piece Seamless PVC Roof
  • Drive On Wheel Well (Doorside)
  • 102” Wide Body Contruction w/8” I-Beam
  • 3,000 lb. Grey Radius Ramp Door
  • 1,200 lb. Tie Downs Mounted to Steel
  • 5,100 lb. Axles w/Self Adjusting Brakes
  • 2- 20 lb. LP Bottles w/Cover
  • Black Steel Wheels
  • Colored Metal Front Wrap
  • LED Interior Lights
  • Black Chef’s High-Rise Spring Faucet
  • 30,000 BTU Ducted Furnace
  • Foot Flush Toilet
  • Safety Glass Windows
  • Control Panel
  • Radius Glass Shower w/Surround (241)
  • Battery Disconnect
  • Storage Shelf Over Primary Bed
  • Rear Spoiler
  • Mirrored Medicine Cabinet
  • Designer Sport Series Furniture
  • Radius Edge Thermo Foil Countertops
  • 8 cu. Ft. Double Door Refrigerator
Options
  • Ramp Door Patio Cable Kit
  • Dual 30 lb. LP Bottles (In Place of 20 lb.)
  • A/C 15,000 BTU Upgrade
  • Retractable Roof Ladder
  • Arctic Package - Radiant Foil Insulation Floor & Roof
  • 170 Watt Solar Panel w/Regulator
Entertainment Package
  • Bluetooth Stereo w/Interior & Exterior Speakers
  • TV Antenna w/Booster
  • Electric Charging Stations
Standard Features
  • 4.0 Onan Gen w/Fuel Station (35 Gallon)
  • Heated & Enclosed Tanks
  • Fuel Station (35 Gallon)
  • Wide Body Construction (102”)
  • 140 Gallon Fresh Water (80 Gallon on 181, 211, 245)
  • Gray 3,000 lb. Ramp Door w/Black Spoiler
  • Friction Hinge Entry Door
  • 1,200 lb. Black Tie Downs Mounted to Steel
  • Magnetic Bag Door Latches
  • 220 Watt Solar Power & Regulator w/Power Boost
  • 22” Chef’s Oven w/Recessed Glass Top
  • Stainless Steel Appearance Appliances
  • Ramp Door Patio Cable Kit
  • Large Solid Surface Kitchen Countertop
  • 2 – 20 lb. LP Bottles w/Cover
  • 3 Burner Cook Top w/Cover
  • Battery Disconnect
  • USB Charging Ports
  • Bluetooth AM/FM w/Speakers & MP3
  • Bathroom Skylight
  • Sewer Hose Carrier
  • Beaver Tail Floor
  • Black Frame Tinted Safety Glass Windows
  • Undermount Single Bowl Chef’s Sink w/Lids
  • Black Chef’s High-Rise Spring Faucet
  • 13.5K BTU Ducted Air Conditioner
  • LED Clearance & Brake Lights
  • Drive on Wheel Well (Doorside)
  • 30,000 BTU Ducted Heat Throughout
  • Marine Grade Exterior Speakers (2)
  • 15” Radial Tires w/Aluminum Rims (4)
  • 2 Chairs & Fold Down Sofa w/Table (251SLC)
  • Front Gravel Guard
  • 6 Gallon Quick Recovery Gas/Electric DSI Water Heater
  • Fully Insulated 2” Floor w/5/8” Tongue & Groove Plywood
  • 8 cu. ft. Gas/Electric Double Door Refrigerator
  • Wainescoting w/Trim in Cargo
  • Black Night Shades Throughout
  • Dump Station LED Light
  • Kitchen Backsplash
  • Double Row LED Ceiling Lights
  • LED Interior & Accent Lighting
  • Therma Foil Table & Lavatory Tops
  • Power Awning w/LED Light & Adjustable Legs
  • 1.0 cu. Ft. Microwave
  • One-Piece Seamless PVC Roof
  • Outside Shower
  • Ramp Door Bar Light
  • Residential 80” Queen Bed Pillow Top Mattress (N/A 181)
  • Bar Style Scare Light & Porch Light
  • New WiFi Prep
  • 7 Way Power Cord Holster
  • Electric Bed w/Pass Through Dinette
  • 5,100 lb. Super Lube Axles & Self Adjusting Brakes
  • Stabilizer Jacks
  • Omni Directional TV Antenna
  • Trash Can Storage
  • Standard Glass Shower
  • Magnetic Bag Door Latches
Comfort and Convenience Package
  • Add-A-Wall
  • Black Tank Flush
  • Entry Swing Away Handle
  • Matching Aluminum Spare Tire
  • Retractable Roof Ladder
  • BBQ Hook Up Connection
  • Water Heater Bypass
Options
  • 2 Chairs w/Table (242 & 245 Only)
  • Torklift Glow Entry Steps (Primary Entry)
  • 30 lb. LP Bottles (In Place of 20 lb.)
  • 1,500 Watt “Go Power” Inverter
  • 39” LED TV in Living Room (N/A 245) & Exterior Mount
  • Extra Large 28” LED TV (Bedroom per Floorplan)
  • A/C 15,000 BTU Upgrade
  • Carpet Kit
  • Additional 220 Watt Solar Panel
  • Painted Two Tone Front Cap (G Series)
  • Ramp Door Playpen
  • Toylok Door Side
  • Power Stabilizer Jacks
  • Tough Ply Flooring in Cargo
  • Extra Large 28” LED TV Living Area
  • Kenwood Audio Sound System
  • Arctic Package - Radiant Foil Insulation Floor & Roof
  • Maxx Air Fan (Kitchen)
Standard Features
  • 5.5K Onan Gen w/Second A/C Prep (4.0K On 265 & 271)
  • Fuel Station (35 Gallon)
  • Heated & Enclosed Tanks
  • Wide Body Construction (102”)
  • Grey Aluma-Wall Fiberglass Exterior
  • Sofa Slide w/Flip Floor
  • Large Bay Window w/Chairs
  • 140 Gallon Fresh Water (90 Gallon 265GSLC)
  • Gray 3,000 lb. Ramp Door w/Black Spoiler
  • Power Tongue Jack
  • Friction Hinge Entry Door
  • 1,200 lb. Black Tie Downs Mounted to Steel
  • Magnetic Bag Door Latches
  • 220 Watt Solar Power & Regulator w/Power Boost
  • 22” Chef’s Oven w/Recessed Glass Top
  • Stainless Steel Appearance Appliances
  • Ramp Door Patio Cable Kit
  • LED Lighted Large Solid Surface Kitchen Countertop
  • 2 – 30 lb. LP Bottles w/Cover
  • 3 Burner Cook Top w/Cover
  • Battery Disconnect
  • USB Charging Ports Throughout
  • Kenwood Audio w/DVD, Amp, & 4 Speakers
  • Bathroom Skylight
  • Sewer Hose Carrier
  • Beaver Tail Floor
  • Black Frame Tinted Safety Glass Windows
  • Undermount Single Bowl Chef’s Sink w/Lids
  • Black Chef’s High-Rise Spring Faucet
  • 13.5K BTU Ducted Air Conditioner
  • LED Clearance & Brake Lights
  • Drive on Wheel Well (Doorside)
  • 30,000 BTU Ducted Heat Throughout
  • Kenwood Exterior Speakers (2)
  • 15” or 16” Radial Tires w/Aluminum Rims (4)
  • Front Gravel Guard
  • 10 Gallon Quick Recovery Gas/Electric DSI Water Heater
  • Fully Insulated 2” Floor w/5/8” Tongue & Groove Plywood
  • 8 cu. ft. Gas/Electric Double Door Refrigerator (271, 282, 293, 302)
  • 12.3 cu. ft. Gas/Electric Double Door Refrigerator (265, 302, 304, 313)
  • Wainescoting w/Trim in Cargo
  • Black Night Shades Throughout
  • Porcelain Foot Flush Toilet
  • Dump Station LED Light
  • Kitchen Backsplash
  • Double Row LED Ceiling Lights
  • LED Interior & Accent Lighting
  • Therma Foil Table & Lavatory Tops
  • Power Awning w/LED Light & Adjustable Legs
  • 1.6 cu. Ft. Microwave
  • One-Piece Seamless PVC Roof
  • Outside Shower
  • Ramp Door Bar Light
  • Rear Radius Cargo Door w/3,000 lb. Rating
  • Residential 80” Queen Bed Pillow Top Mattress (271, 282, 293)
  • Residential 72” X 80” King Bed Pillow Top Mattress (265, 302, 304, 313)
  • Bar Style Scare Light & Porch Light
  • Glass Cabinet Inserts In Kitchen Overhead Cabinets
  • Ceiling Fan w/Accent Medallion
  • WiFi Prep
  • 7 Way Power Cord Holster
  • Electric Bed w/Pass Through Dinette (N/A 211SLC)
  • 6,000 lb. Super Lube Axles & Self Adjusting Brakes (5,100 lb. on 265/271)
  • Stabilizer Jacks
  • Omni Directional TV Antenna
  • Trash Can Storage
  • Standard Glass Shower
Comfort And Convenience Package
  • Add-A-Wall
  • Black Tank Flush
  • Entry Swing Away Handle
  • Matching Aluminum Spare Tire
  • Retractable Roof Ladder
  • BBQ Hook Up Connection
  • Water Heater Bypass
  • 15,000 BTU Air Conditioner
Options
  • 13.5K Bedroom A/C (N/A 265, 271)
  • 1,500 Watt “Go Power” Inverter
  • Carpet Kit
  • Torklift Glow Entry Steps (Primary Entry)
  • Extra Large 28” LED TV (in Bedroom)
  • 39” LED TV in Living Area (N/A 265)
  • Extra Large 28” LED TV Living Area
  • Additional 220 Watt Solar Panel
  • 3 Season Glass Patio Door
  • Ramp Door Playpen
  • Tough Ply Flooring
  • Toylok Door Side
  • Arctic Package - Radiant Foil Insulation Floor & Roof
  • Power Stabilizer Jacks
  • Maxx Air Fan (Kitchen)
Standard Features
  • 5.5K Onan Gen w/Second A/C Prep
  • Fuel Station (35 Gallon)
  • Heated & Enclosed Tanks
  • Wide Body Construction (102”)
  • Grey Aluma-Wall Fiberglass Exterior
  • Sofa Slide w/Flip Floor
  • Large Bay Window w/Chairs
  • 140 Gallon Fresh Water Tank
  • Grey 3,000 lb. Ramp Door w/Black Spoiler
  • Power Tongue Jack
  • Friction Hinge Entry Door
  • 1,200 lb. Black Tie Downs Mounted to Steel
  • Magnetic Bag Door Latches
  • 220 Watt Solar Power & Regulator w/Power Boost
  • 22” Chef’s Oven w/Recessed Glass Top
  • Stainless Steel Appearance Appliances
  • Ramp Door Patio Cable Kit
  • Large Solid Surface Kitchen Countertop w/LED Light
  • 2 – 30 lb. LP Bottles w/Cover
  • 3 Burner Cook Top w/Cover
  • Battery Disconnect
  • USB Charging Ports Throughout
  • Kenwood Audio w/DVD, Amp, & 4 Speakers
  • Bathroom Skylight
  • Sewer Hose Carrier
  • Beaver Tail Floor (Per Floorplan)
  • Black Frame Tinted Safety Glass Windows
  • Undermount Single Bowl Chef’s Sink w/Lids
  • Black Chef’s High-Rise Spring Faucet
  • 13.5K BTU Ducted Air Conditioner
  • LED Clearance & Brake Lights
  • 30,000 BTUDucted Heat Throughout
  • Kenwood Exterior Speakers (2)
  • 16” Radial Tires w/Aluminum Rims (4)
  • Front Gravel Guard
  • 10 Gallon Quick Recovery Gas/Electric DSI Water Heater (Dual Fuel)
  • Fully Insulated 2” Floor w/5/8” Tongue & Groove Plywood
  • 8 cu. ft. Gas/Electric Double Door Refrigerator (286 & 336)
  • 12.3 cu. ft. Gas/Electric Double Door Refrigerator (306, 326, 346)
  • Wainescoting w/Trim in Cargo
  • Kitchen & Bath Crown Molding
  • Black Night Shades Throughout
  • Lighted Storage Compartment
  • Porcelain Foot Flush Toilet
  • Dump Station LED Light
  • Kitchen Backsplash
  • Double Row LED Ceiling Lights
  • LED Interior & Accent Lighting
  • Therma Foil Table & Lavatory Tops
  • Power Awning w/LED Light & Adjustable Legs
  • 1.6 cu. ft. Microwave
  • One-Piece Seamless PVC Roof
  • Outside Shower
  • Ramp Door Bar Light
  • Rear Radius Cargo Door w/3,000 lb. Rating
  • Residential 72” X 80” King Bed Pillow Top Mattress
  • Bar Style Scare Light & Porch Light
  • Glass Cabinet Inserts in Kitchen and Bedroom
  • Ceiling Fan w/Accent Medallion
  • WiFi Prep
  • 7 Way Power Cord Holster
  • Electric Bed w/Pass Through Dinette
  • Flipped 6,000 or 7,000 lb. Super Lube Axles & Self Adjusting Brakes
  • Stabilizer Jacks
  • Omni Directional TV Antenna
  • Trash Can Storage
  • Standard Glass Shower
  • Power Stabilizer Jack
Comfort and Convenience Package
  • Add-A-Wall
  • Entry Swing Away Handle
  • Matching Aluminum Spare Tire
  • Retractable Roof Ladder
  • Water Heater Bypass
Options
  • Bedroom A/C
  • 1,500 Watt “Go Power” Inverter
  • Extra Large 28” LED TV (In Bedroom)
  • 39” LED TV in Living Area w/Exterior Mount
  • Carpet Kit
  • Torklift Glow Entry Steps (Primary Entry)
  • 3 Season Glass Patio Door (306, 326, 346)
  • Ramp Door Playpen
  • Tough Ply Flooring
  • Toylok Door Side
  • Additional 220 Watt Solar Panel
  • Arctic Package - Radiant Foil Insulation Floor & Roof
  • Maxx Air Fan (Kitchen)


Virtual Tours

  • 186
    186 Main Room
  • 241
    241 Main Room
  • 242SLC
    242SLC Main Room
  • 245GSLC
    245GSLC Main Room
  • 251SLC
    251SLC Main Room
  • 265GSLR
    265GSLR Main Room
  • 272GSLC
    272GSLC Main Room
  • 293GSLR
    293GSLR Main Room
  • 302GSLR
    302GSLR Main Room
  • 304GSLR
    304GSLR Main Room
  • 306GSLR
    306GSLR Main Room
  • 326GSLR
    326GSLR Main Room
  • 346GSLR
    346GSLR Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature
