21DS Floorplan

Micro Lite Travel Trailers

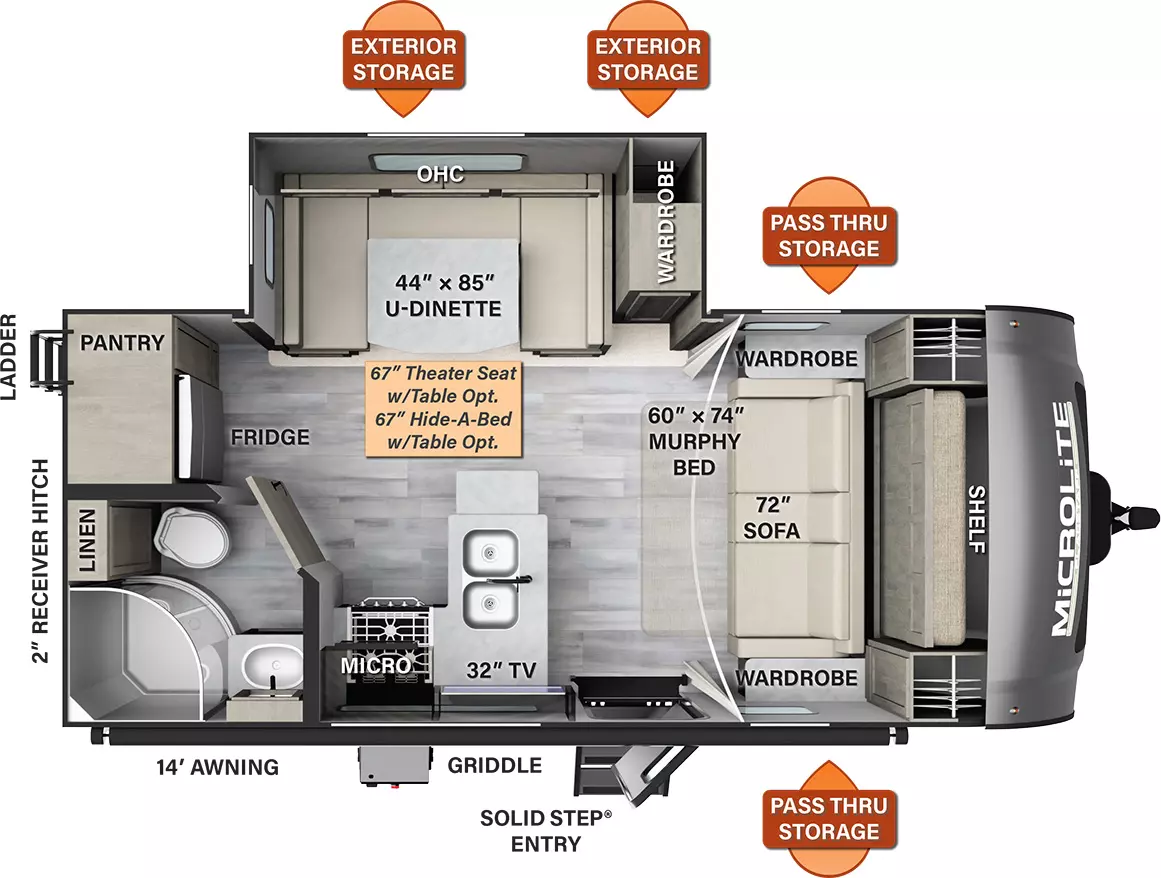

The 21DS has one slide out on the off-door side, along with one entry door. Exterior features include a 14 foot awning, front pass thru storage, griddle, rear ladder, 2" receiver hitch, and off-door side exterior storage. Interior layout from front to back: front bedroom with 60 x 74 inch murphy bed, 72 inch sofa, wardrobes on either side, and overhead shelf; off-door side slide out containing a u-dinette, overhead cabinets, and a wardrobe (theater seat or hide-a-bed sofa optional); kitchen living area with countertops with TV above, double sink, a stove, and a microwave; refrigerator, pantry, and bathroom in the rear.
Enlarge
This trailer has all the amenities needed in a smaller, manageable trailer. A 60" x 74" murphy bed doubles as a 72" sofa during the day to accommodate more seating. This unit is equipped with a huge 44" X 85" U shaped dinette for all your entertaining needs. You can sleep 4 in this 22'4" trailer while seating 5/6 guests during the day. Also in this trailer is a full bathroom, wardrobe closet, full kitchen with a 12v fridge, and plenty of storage for all of your things.

Specifications

Hitch Weight:
681 lb.
UVW
4,977 lb.
CCC
1,864 lb.
Exterior Length:
22' 4"
Exterior Height:
10' 11"
Exterior Width:
96"
Fresh Water:
54.00 gal.
Gray Water:
30.00 gal.
Black Water:
30.00 gal.
Awning Size:
15'

GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.



360 Tour



Video Tour



Features & Options

  • Laminated White OR Champagne Color Fiberglass Sidewalls
  • Power Awning w/ Adjustable Rain Dump & LED Lighting
  • Tinted Frameless Windows
  • Magnetic Compartment Door Catches
  • Exterior Battery Disconnect Switch
  • Cable & Satellite Hookup
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Side Solar Prep
  • Outside Griddle w/ LP Hook Up
  • Friction Hinge Entrance Door with Window Shade & ScreenShot Screen Door
  • Large, Foldable Grab Handles (All Entrance Doors)
  • Outside Shower w/ Hot & Cold Water
  • Outside Antifreeze Station
  • Black Tank Flush
  • 360 Siphon Vent Cap On All Black Tanks
  • Solid Entry, Strut Assist Fold Out Entry Steps (N/A 21FBRS)
  • Power Tongue Jack
  • Outside Speakers
  • Keyed Alike Locks
  • Rear Ladder
  • Two 30lb Gas Bottles w/ Molded Bottle Cover
  • Molded Fiberglass Front Cap w/ Automotive Windshield
  • 4 Frame Mounted Manual Stabilizer Jacks
  • 2" Accessory Hitch
  • 200W Roof Solar Panel w/ 1000W Inverter
  • 15,000 BTU A/C
  • Newport Ash Cabinetry
  • Autumn Wood Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges, Metal Drawer Glides & Residential Hardware
  • Carbon Monoxide Detector
  • Interior 12V Outlet
  • Monitor Panel Switch Station with OneControl App
  • 55 AMP Converter with Charger
  • Ceiling LED 12V Interior Lighting
  • Showermiser Water Saving System
  • Bathroom Skylight
  • Water Heater By-Pass Kit
  • Foot Flush Toilets
  • Maxxair Ventilation Fan & Cover
  • Quick Recovery Water Heater w/ Interior Gas/Electric Switches
  • 20K BTU Furnace on 21DS/21FBRS & 35K BTU on all others
  • Murphy Bed w/ Under Sofa Storage System w/ Outside Access (21DS, 25BDS, 25BRDS)
  • Night Roller Shades
  • 12V Entertainment TV w/stereo
  • 15,000 BTU Ducted Air Conditioner
  • Marine Grade Carpet in slides
  • Hybrid Woven Flooring In Slide Outs
  • Aluminum Cage Dinette & Bed Base
  • 6 Sided Aluminum Framed (Side Walls, End Wall, Front, Floor & Roof)
  • 5/8" Plywood Tongue & Groove Subfloor
  • Insulation Factors R-7 Side Wall, R-12 Floor & R-14 Ceiling
  • Radiant Foil Insulated Underbelly & Slide Out Floors
  • Enclosed Underbelly
  • Electronically Controlled Heated Holding Tanks
  • Radius Roof w/ Interior Vaulted Ceilings
  • Vinyl/Rubber Composite Roofing Membrane
  • Vacuum Laminated One Piece Roof & Walls
  • Interior & Exterior Azdel Sidewall Construction
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Easy Lube Axles & Nev-R Adjust Brakes
  • Torsion Axle, Rubber-Ryde Suspension
  • TST Tire Pressure Monitor System w/ Monitor
  • Spare Tire w/ Carrier & Cover
  • Three Burner High Output Gas Range with Flush Mount Glass Top Cover
  • 21" Gas Oven
  • Under Mount Double Bowl Kitchen Sink w/ Residential Style Faucet
  • Microwave Oven
  • Water Filtration System
  • 12V Refridgerator
  • Sink Covers
  • Solid Surface Kitchen Countertops
  • Showermiser Water Saving System
  • Bathroom Skylight
  • Water Heater By-Pass Kit
  • Foot Flush Toilets
  • Maxxair Ventilation Fan & Cover
  • Deluxe Tri-Fold Sleeper Sofa (N/A 21FBRS)
  • Extra Maxxair® Ventilation Fan and Vent Cover
  • Tongue Mount Bike Rack
  • Slide Topper
  • ThermoPane Windows
  • Power Stabilizer Jacks
  • Gas Electric Fridge
