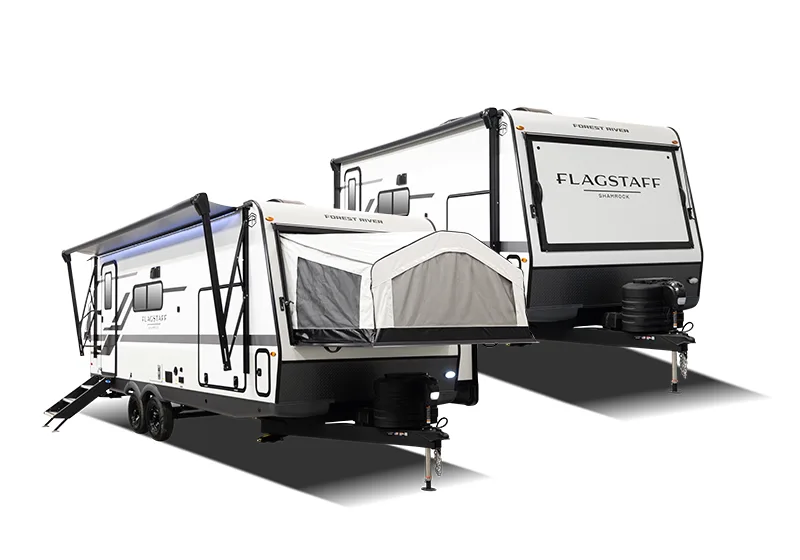

Flagstaff Shamrock Expandable Hybrid Travel Trailers

A VALUE THAT’LL MAKE YOU JUMP! We have a trailer just for you. Whether you are interested in the expanded interior space provided by the spacious drop down bunks, heated mattresses and the feel of a traditional trailer, the Flagstaff Shamrock will deliver the quality and amenities you expect. Flagstaff brings the necessities of residential living on the campsite

Azdel Onboard™ RV Composite Panels We RV - Rockwood Link TreeCare Camps, fighting cancer and making memories

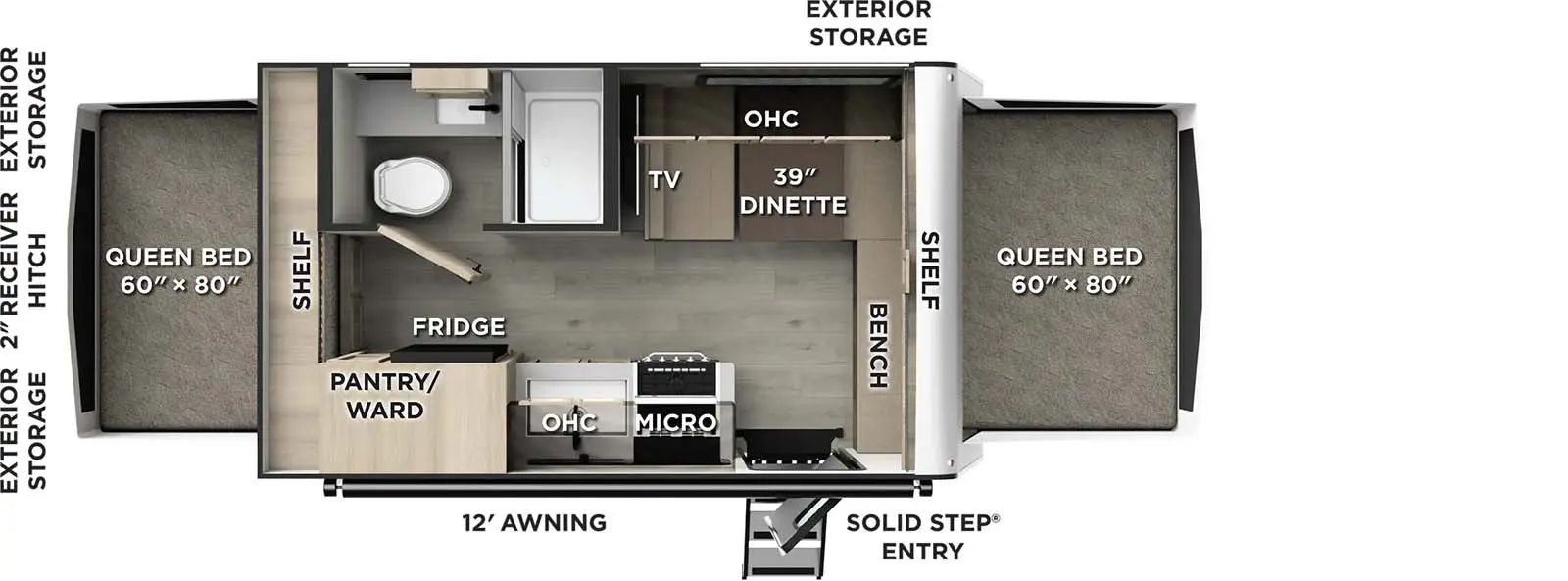

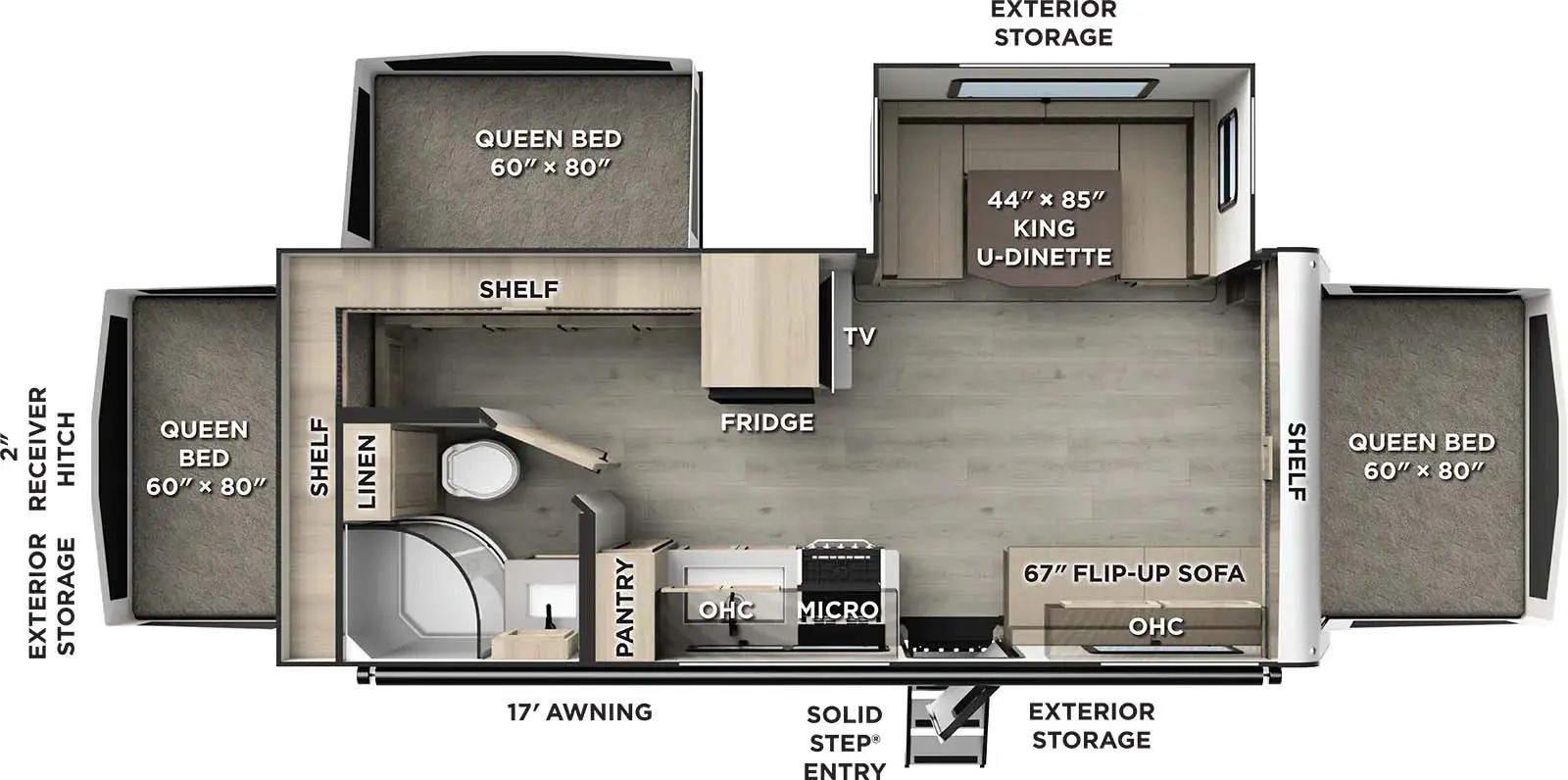

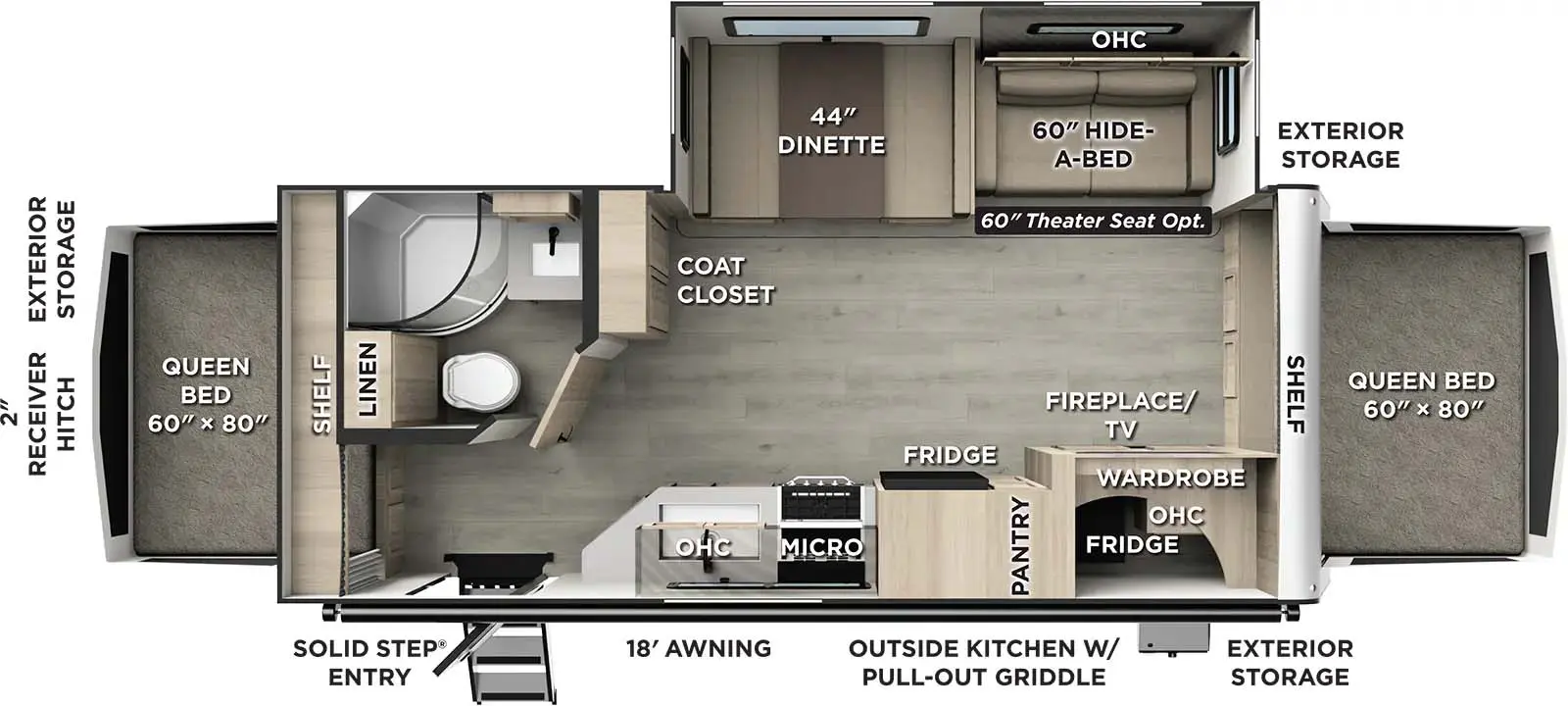

Floorplans

Print

Shamrock Expandable Travel Trailers
Dealer Stock Only


Specifications

Print

Floorplan: 183 : Shamrock Expandable Travel Trailers 19 : Shamrock Expandable Travel Trailers 21SS : Shamrock Expandable Travel Trailers 233S : Shamrock Expandable Travel Trailers 235S : Shamrock Expandable Travel Trailers 23FK - DSO : Dealer Stock Only
Hitch Weight:450 lb.434 lb.548 lb.652 lb.738 lb.720 lb.
UVW:4,259 lb.4,298 lb.5,047 lb.5,111 lb.5,639 lb.5,528 lb.
CCC:1,471 lb.1,416 lb.1,501 lb.1,541 lb.1,259 lb.1,352 lb.
Exterior Length:21' 2"22' 0"22' 10"24' 10"24' 10"24' 10"
Exterior Height:10' 6"10' 6"10' 11"10' 6"10' 11"10' 11"
Exterior Width:96"96"96"96"96"96"
Fresh Water:54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.
Gray Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Black Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Awning Size:15'15'15'17'18'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

* Due to the current environment, our features and options are subject to change due to material availability.

  • Laminated White Fiberglass Sidewalls
  • Easy to Reach Lockable Bed Latch System
  • Solid Entry, Strut Assist Fold Out Entry Steps (N/A 183, 19)
  • Exterior Battery Disconnect Switch
  • Power Awning w/ Adjustable Rain Dump & LED Lighting
  • Tinted Frameless Windows
  • Magnetic Compartment Door Catches
  • Cable & Satellite Hookup
  • Teton All In One WiFi Booster/LTE Prep & Antenna
  • Roof & Side Solar Prep
  • Outside Griddle w/ LP Hook Up
  • Friction Hinge Entrance Door w/ Window Shade & ScreenShot Screen Door
  • Large, Foldable Grab Handles (All Entrance Doors)
  • Outside Shower w/ Hot & Cold Water
  • Outside Antifreeze Station
  • Black Tank Flush
  • 360 Siphon Vent Cap on All Black Tanks
  • Power Tongue Jack
  • Outside Speakers
  • Keyed Alike Locks
  • Electronically Controlled Heated Holding Tanks
  • 2" Accessory Hitch
  • Factory Installed 190W Roof Solar Panel with 1000W Inverter
  • Aluminum Cage Dinette & Bed Base
  • 6 Sided Aluminum Framed (Side Walls, End Wall, Front, Floor & Roof)
  • 5/8" Plywood Tongue & Groove Subfloor
  • Insulation Factors R-7 Side Wall, R-12 Floor & R-14 Ceiling
  • Radiant Foil Insulated Underbelly & Slide Out Floors
  • Enclosed Underbelly
  • Radius Roof w/ Interior Vaulted Ceilings
  • Vinyl/Rubber Composite Roofing Membrane
  • Vacuum Laminated One Piece Roof & Walls
  • Azdel Composite Panels
  • Square Bunk Ends w/ Permanently Attached Tents
  • Aircraft Grade Cable Supports For Bed Ends
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Easy Lube Axles & Nev-R Adjust Brakes
  • Torsion Axle, Rubber-Ryde Suspension
  • Nitrogen Filled, Goodyear Endurance Tires w/ Polished Alloy Wheels
  • TST Tire Pressure Monitor System w/ Monitor
  • Spare Tire w/ Carrier & Cover
  • Power Tongue Jack
  • Newport Ash Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers w/ Hidden Hinges, Metal Drawer Glides & Residential Hardware
  • 13,500 BTU Ducted Air Conditioner
  • Carbon Monoxide Detector
  • Interior 12V USB Outlet
  • Monitor Panel Switch Station w/ OneControl App
  • 55 AMP Converter with Charger
  • Ceiling LED 12V Interior Lighting
  • LED TVs
  • Fireplace (235S Only)
  • Quick Recovery Water Heater w/ Interior Gas/Electric Switches
  • Multi Zone Stereo w/ DVD, CD, AM/FM & Bluetooth Control
  • Bunk Fan/Light Combo w/ Each Bed
  • Two Maxxair Ventilation Fans & Covers
  • Heated Mattress
  • Pleated Night Shades
  • 35K BTU Ducted Furnace
  • Three Burner High Output Gas Range w/ Flush Mount Glass Top Cover
  • 21" Gas Oven
  • Under Mount Double Bowl Kitchen Sink w/ Residential Style Faucet
  • Microwave Oven
  • Water-Pur Filtration System
  • Double Door Auto Gas/Electric Large Refrigerator
  • Seamless Kitchen Countertops
  • Showermiser Water Saving System
  • Bathroom Skylight
  • Water Heater By-Pass Kit
  • Foot Flush Toilets
  • Maxxair Ventilation Fan & Cover
  • 15K BTU A/C
  • Deluxe Tri-Fold Sleeper Sofa (Opt. 21SS, 235S)
  • Slide Toppers
  • 190W Roof Mount Solar Panel w/ 1000W Inverter
  • 12V Refrigerator w/ Inverter and Roof Solar Panel
  • Night Roller Shades
  • Theater seat IPO Sofa (only 21SS, 235S)
  • Gas/Electric Refrigerator
  • 2nd Roof Mount Solar Panel


Virtual Tours

  • 183
    183 Main Room
  • 19
    19 Main Room
  • 21SS
    21SS Main Room
  • 233S
    233S Main Room
  • 235S

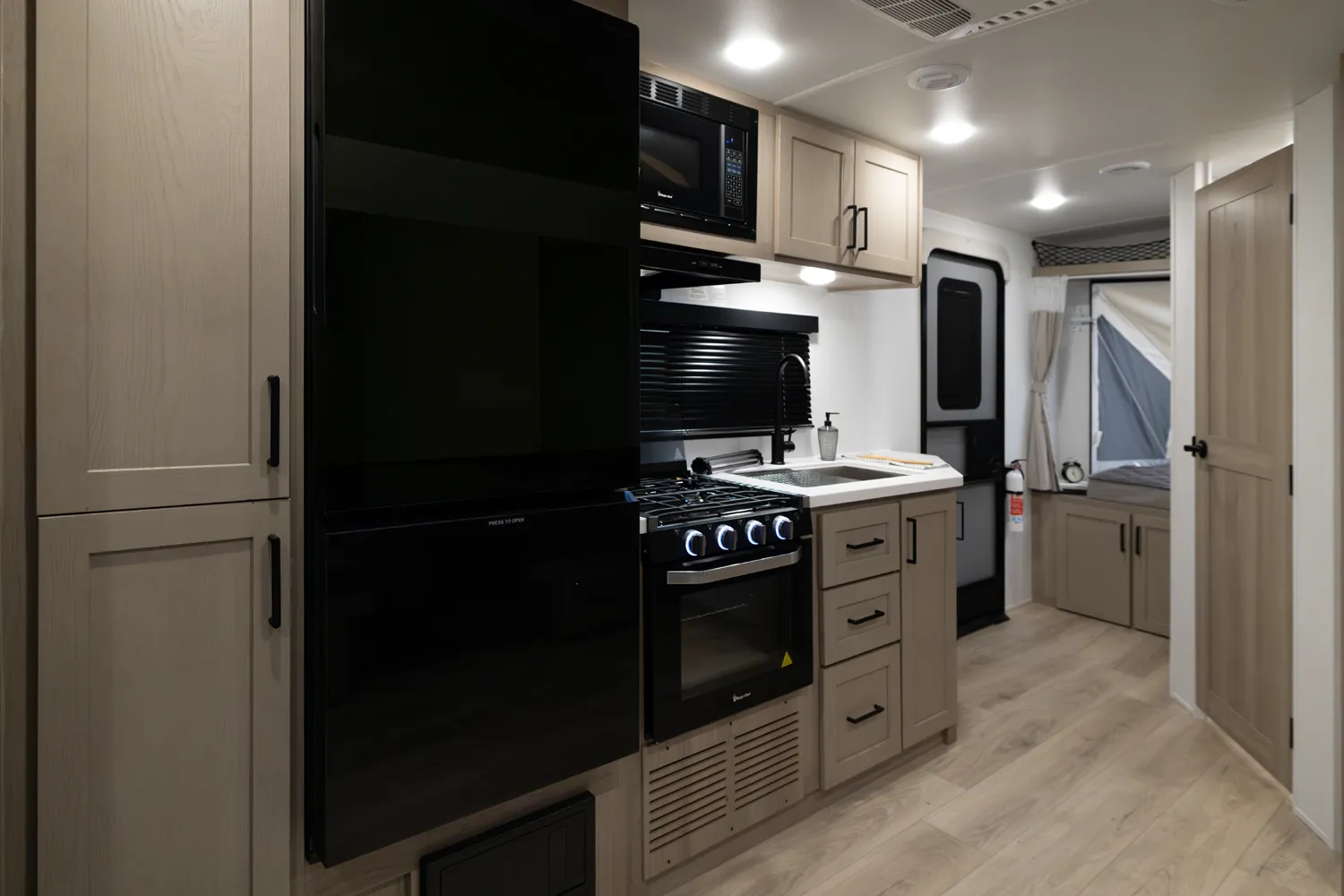

    235S Main Room
