Flagstaff Super Lite Travel Trailers

YOU’LL LOVE WHAT YOU FIND IN OUR FLOOR PLANS. Our trailers are packed full of quality features in order to bring to you one of the best values in the light weight market. There are spacious flush floor slides, comfortable stylish sofas and wide dinettes with easily adjustable legs. Our Super Lite series offers lots of room and amenities while still being a 1/2 ton towable Travel Trailer.


We RV - Rockwood Link TreeCare Camps, fighting cancer and making memories

Floorplans

Print

Super Lite Travel Trailers
Dealer Stock Only


Specifications

Print

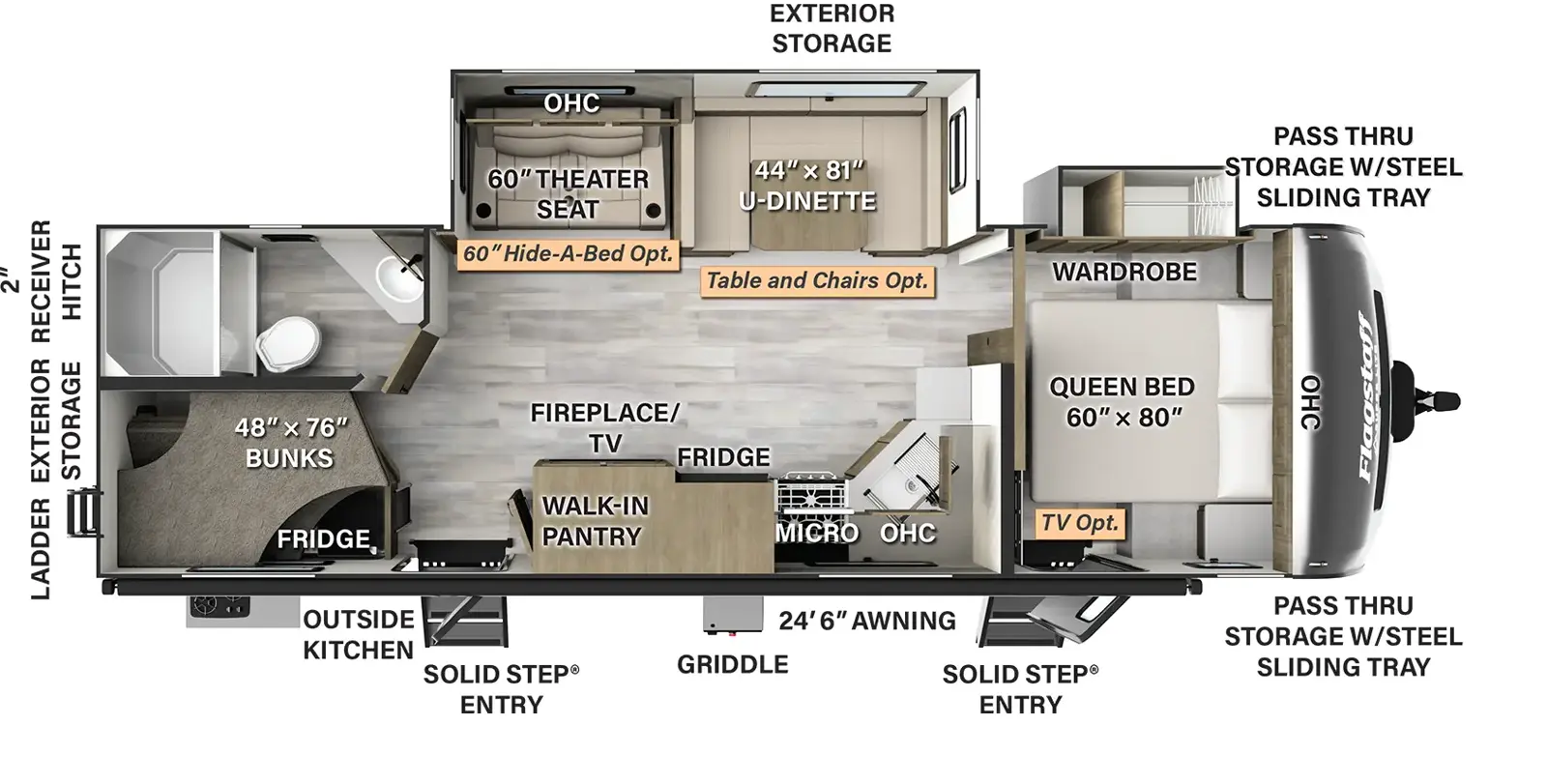

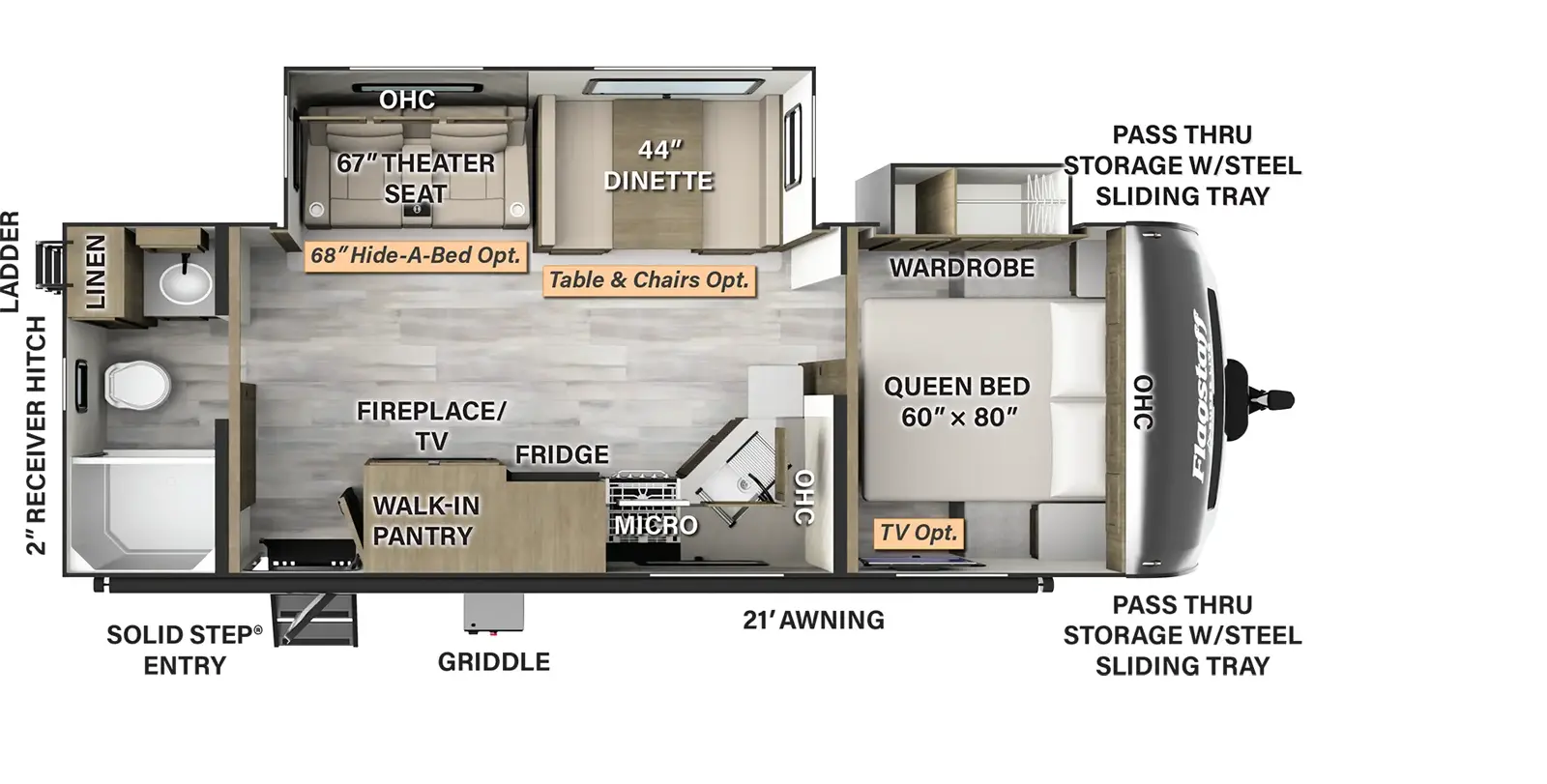

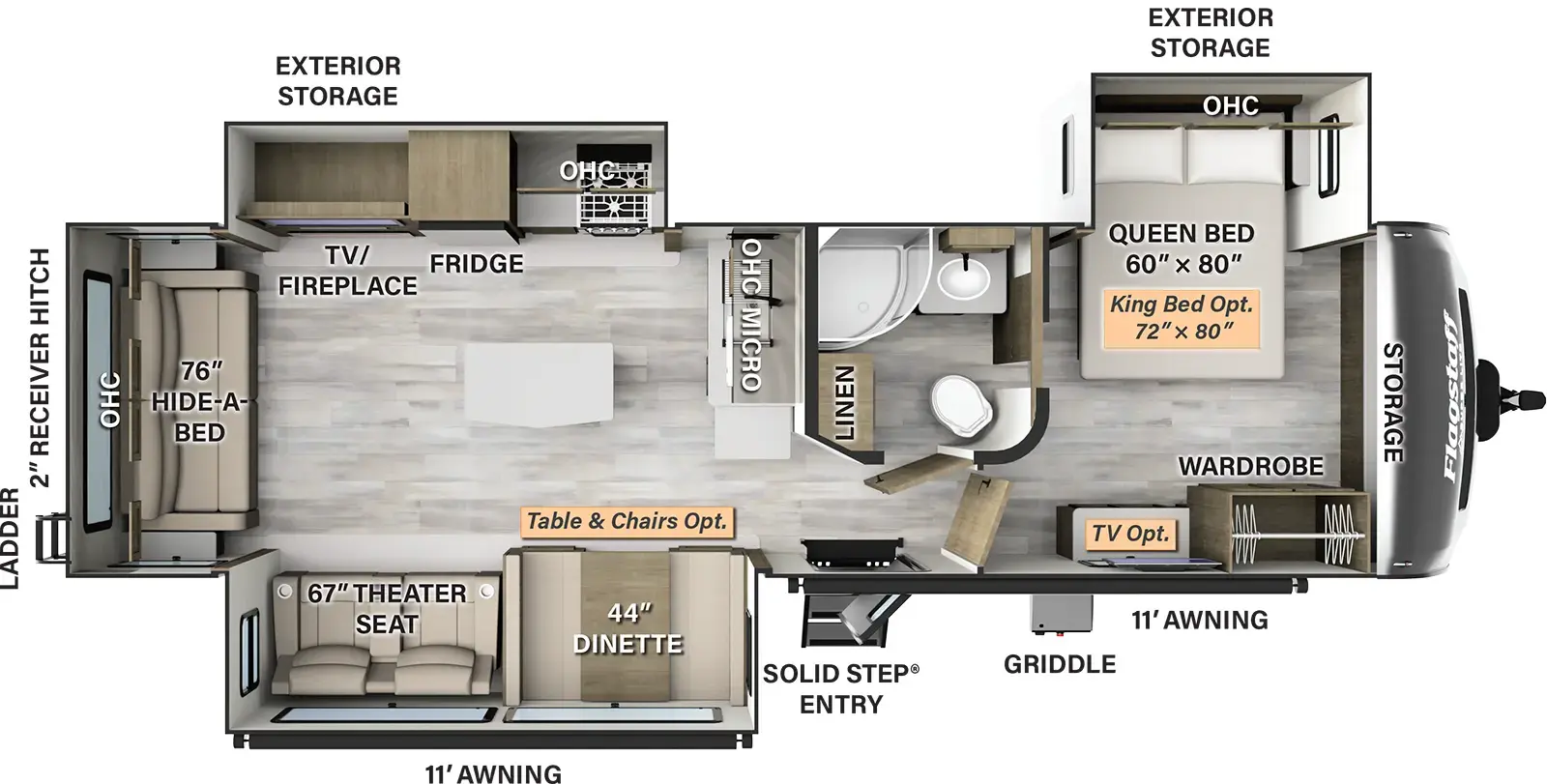

Floorplan: 26FKBS : Super Lite Travel Trailers 26RBWS : Super Lite Travel Trailers 26RKBS : Super Lite Travel Trailers 26RLBS : Super Lite Travel Trailers 27BHWS : Super Lite Travel Trailers 27FBIK : Super Lite Travel Trailers 29BHS : Super Lite Travel Trailers 29RBS : Super Lite Travel Trailers 29RLBS : Super Lite Travel Trailers 29RKSW - DSO : Dealer Stock Only
Hitch Weight:946 lb.908 lb.796 lb.915 lb.921 lb.1,035 lb.1,038 lb.952 lb.1,100 lb.920 lb.
UVW:6,836 lb.6,158 lb.6,988 lb.6,614 lb.7,310 lb.8,324 lb.7,605 lb.7,854 lb.8,559 lb.7,610 lb.
CCC:1,910 lb.2,550 lb.1,608 lb.2,101 lb.1,411 lb.1,511 lb.2,233 lb.1,898 lb.1,341 lb.2,110 lb.
Exterior Length:29' 8"29' 9"29' 9"29' 9"32' 10"33' 1"35' 5"35' 2"35' 5"35' 3"
Exterior Height:11' 2"11' 2"11' 2"11' 2"11' 2"11' 3"11' 2"11' 2"11' 3"11' 2"
Exterior Width:96"96"96"96"96"96"96"96"96"96"
Fresh Water:54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.
Gray Water:90.00 gal.90.00 gal.90.00 gal.90.00 gal.90.00 gal.90.00 gal.45.00 gal.90.00 gal.45.00 gal.90.00 gal.
Black Water:45.00 gal.45.00 gal.45.00 gal.45.00 gal.45.00 gal.45.00 gal.45.00 gal.45.00 gal.45.00 gal.45.00 gal.
Awning Size:21'21'21'21'21'11' & 12'21'21'11' & 11'9' & 17'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Laminated White OR Champagne Color Fiberglass Sidewalls
  • High Gloss Front Cap
  • Power Awning w/ Adjustable Rain Dump & LED Lighting
  • Tinted Frameless Windows
  • Slam Latches & Magnetic Compartment Door Catches
  • Cable & Satellite Hookup
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Exterior Battery Disconnect Switch
  • Roof & Side Solar Prep
  • Outside Griddle w/ LP Hook Up
  • Friction Hinge Entrance Door with Window Shade & ScreenShot Screen Door
  • Large, Foldable Grab Handles (All Entrance Doors)
  • Outside Shower w/ Hot & Cold Water
  • Outside Antifreeze Station
  • Black Tank Flush
  • 360 Siphon Vent Cap On All Black Tanks
  • Solid Entry, Strut Assist Fold Out Entry Steps
  • Outside Speakers
  • Keyed Alike Locks
  • Power Stabilizer Jacks
  • Automotive Windshield
  • Rear Ladder
  • 2" Accessory Hitch
  • 190W Roof Solar Panel with 1000W Inverter
  • 6 Sided Aluminum Framed (Side Walls, End Wall, Front, Floor & Roof)
  • 5/8" Plywood Tongue & Groove Subfloor
  • Insulation Factors R-7 Side Wall, R-12 Floor & R-14 Ceiling
  • Radiant Foil Insulated Underbelly & Slide Out Floors
  • Enclosed Underbelly
  • Electronically Controlled Heated Holding Tanks
  • Radius Roof w/ Interior Vaulted Ceilings
  • Vinyl/Rubber Composite Roofing Membrane
  • Vacuum Laminated One Piece Roof & Walls
  • Aluminum Cage Dinette & Bed Base
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Easy Lube Axles & Nev-R Adjust Brakes
  • Torsion Axle, Rubber-Ryde Suspension
  • Spare Tire w/ Carrier & Cover
  • Power Tongue Jack
  • Nitrogen Filled, Goodyear Endurance Tires w/ Polished Alloy Wheels
  • TST Tire Pressure Monitor System w/ Monitor
  • Newport Ash Cabinetry
  • Autumn Wood Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges, Metal Drawer Glides & Residential Hardware
  • 35K BTU Furnace
  • 13,500 BTU Ducted Air Conditioner
  • Carbon Monoxide Detector
  • Interior 12V USB Outlet
  • OneControl Panel with WeRV App Control
  • 55 AMP Converter with Charger
  • Ceiling LED 12V Interior Lighting
  • Quick Recovery Water Heater w/ Interior Gas/Electric Switches
  • Night Roller Shades
  • 50 Amp Service and Digital Dual Thermostat Control
  • LED TVs
  • Fireplace (N/A 26RLBS, 29BHS)
  • Multi Zone Stereo w/ DVD, CD, AM/FM & Bluetooth Control
  • Deluxe Theater Seating with Adjustable Lumbar Support and USB Outlets
  • King Bed Optional (27FBIK, 29RLBS, 29RBS)
  • Large Wardrobe or Wardrobe Slide
  • Optional Bedroom Carpet
  • Optional Bedroom TV
  • Designer Bedding
  • Three Burner High Output Gas Range with Flush Mount Glass Top Cover
  • 21" Gas Oven
  • Under mount Double Bowl Kitchen Sink w/ Residential Style Faucet
  • Microwave Oven
  • Water-Pur Filtration System
  • Solid Surface Kitchen Countertops
  • Designer Kitchen Backsplash
  • 12V Refrigerator
  • Showermiser Water Saving System
  • Bathroom Skylight
  • Foot Flush Toilets
  • Maxxair Ventilation Fan & Cover
  • Water Heater By-Pass Kit
  • 15,000 BTU A/C
  • 2nd Roof 13,500 BTU A/C with Chill Chaser Heat Strip
  • Bedroom TV
  • Free Standing Table and Chairs IPO Theater Seat (N/A 26RLBS)
  • Tongue Mount Bike Rack
  • Slide Toppers
  • Thermopane Windows
  • Day/Night Roller Shade
  • King Bed (Only on 27FBIK, 29RLBS, 29RBS)
  • Bedroom Carpet
  • Deluxe Tri-Fold Sleeper Sofa (IPO Theater Seating N/A 26RLBS 29RLBS)
  • Bunkroom TV (29BHS)
  • Gas/Electric Refrigerator
  • 2nd roof mount solar panel

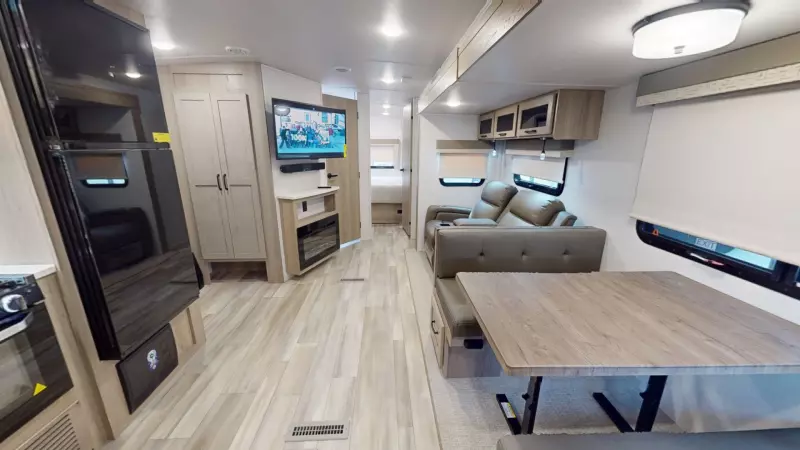

Virtual Tours

  • 26FKBS
    26FKBS Main Room
  • 26RBWS
    26RBWS Main Room
  • 26RKBS
    26RKBS Main Room
  • 26RLBS
    26RLBS Main Room
  • 27BHWS
    27BHWS Main Room
  • 27FBIK
    27FBIK Main Room
  • 29BHS
    29BHS Main Room
  • 29RBS
    29RBS Main Room
  • 29RKSW - DSO
    29RKSW - DSO Main Room
  • 29RLBS
    29RLBS Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
