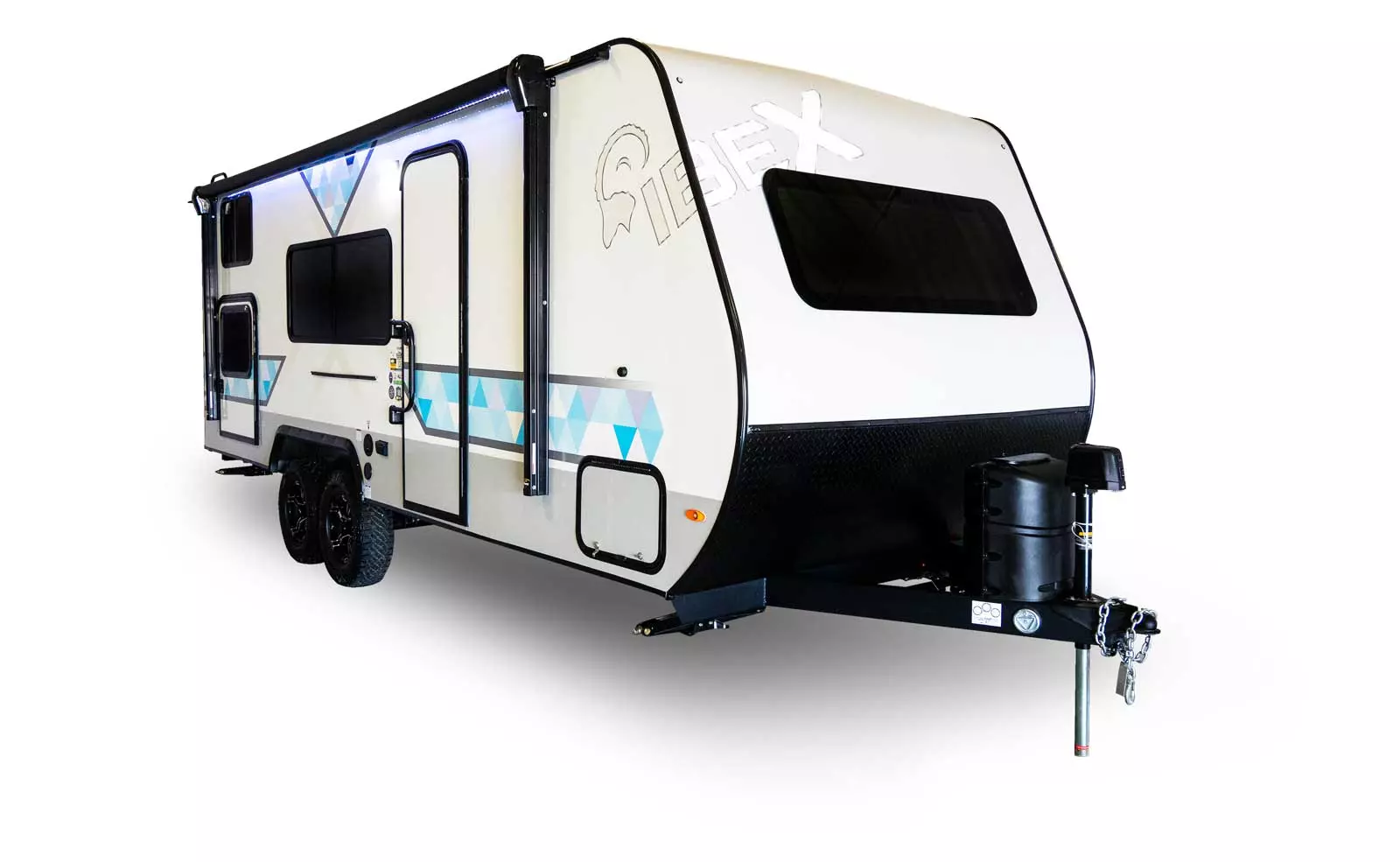

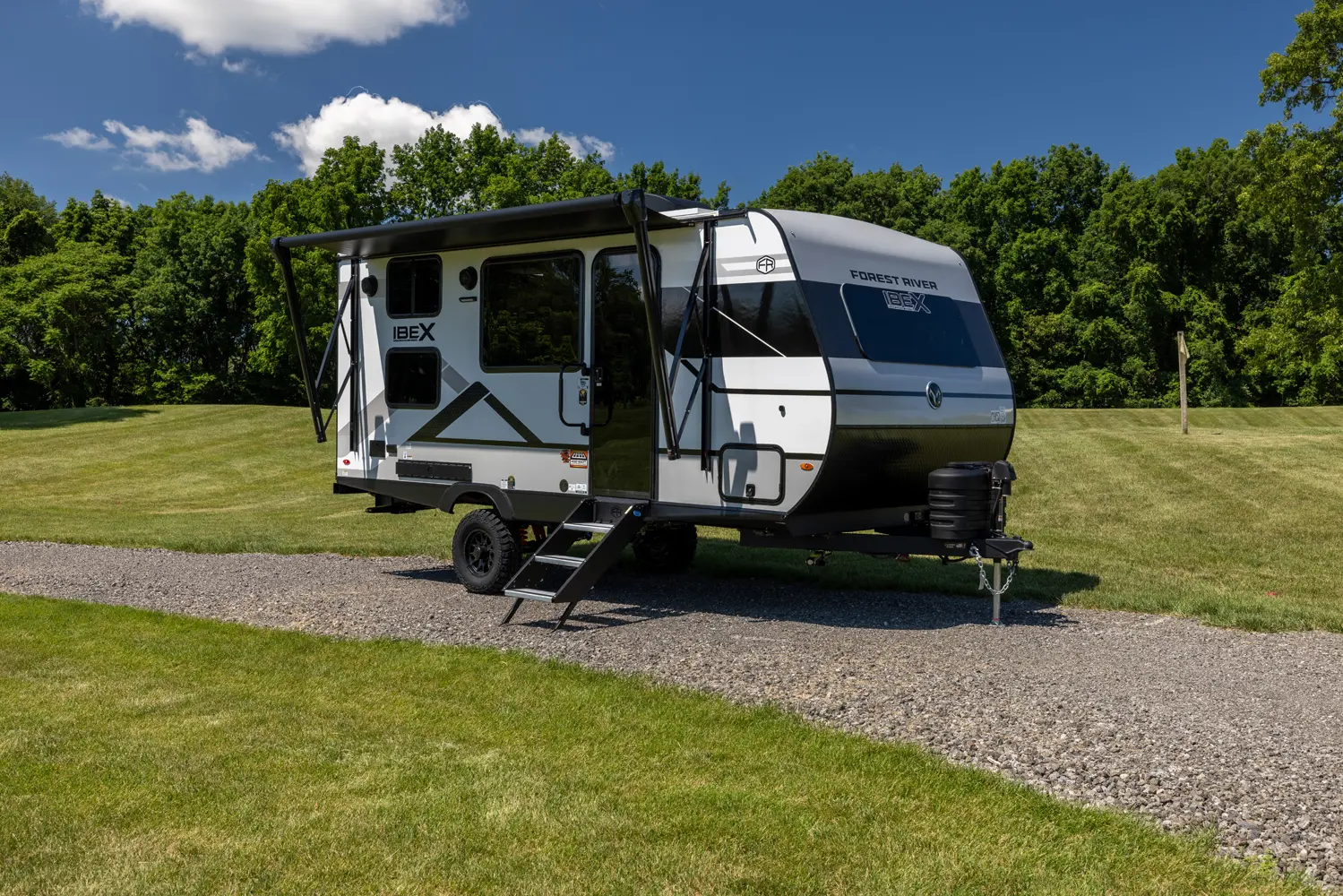

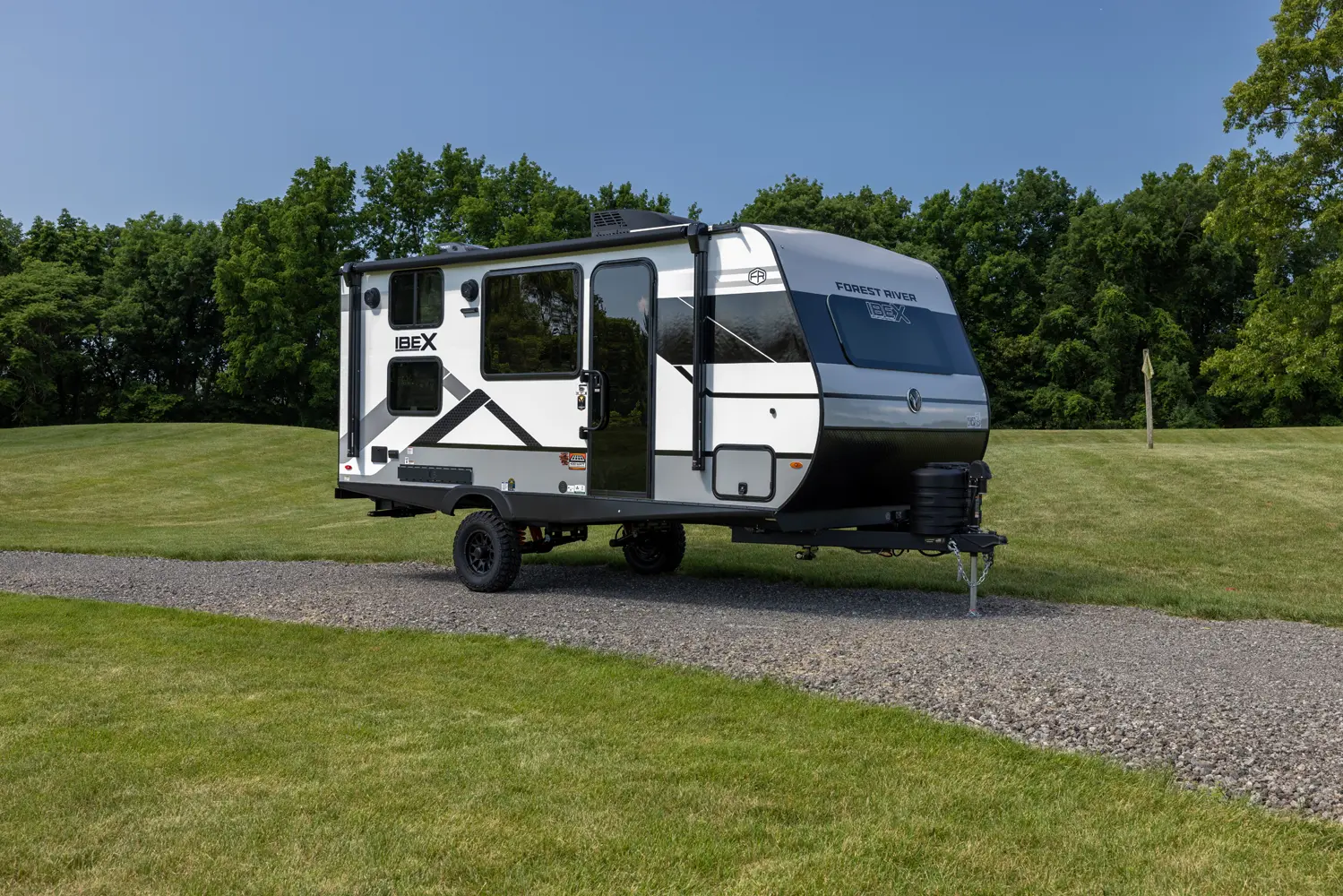

IBEX Travel Trailers

The IBEX lineup will feature eight floorplans: four are 7’ wide and weigh in at under 5,000 lbs., while four are 8’ wide and under 7,000 lbs. This focus on lighter-weight models makes the IBEX perfect for towing by SUVs and smaller trucks.

All IBEX models feature the following standard equipment and options: Azdel construction, Largest-In-Class Refrigerator on all floorplans, Solar system with large panel, controller, and 1000W inverter, Cold Weather Package: heated and enclosed underbelly, tank pad heaters, and enclosed termination system, 15K A/C, PVC roof with 15-year warranty, All terrain tires and increased ground clearance, JBL wireless Bluetooth audio system, Central vacuum system, 12V, 32” television, Rhino-Rack RTV tracks, Panoramic front window, Seamless countertops, Stainless steel appliances, and an Outside cooktop.


RV Business Top 10 2021 RV RV Pro Best New Model 2021 Azdel Onboard™ RV Composite PanelsCare Camps, fighting cancer and making memories

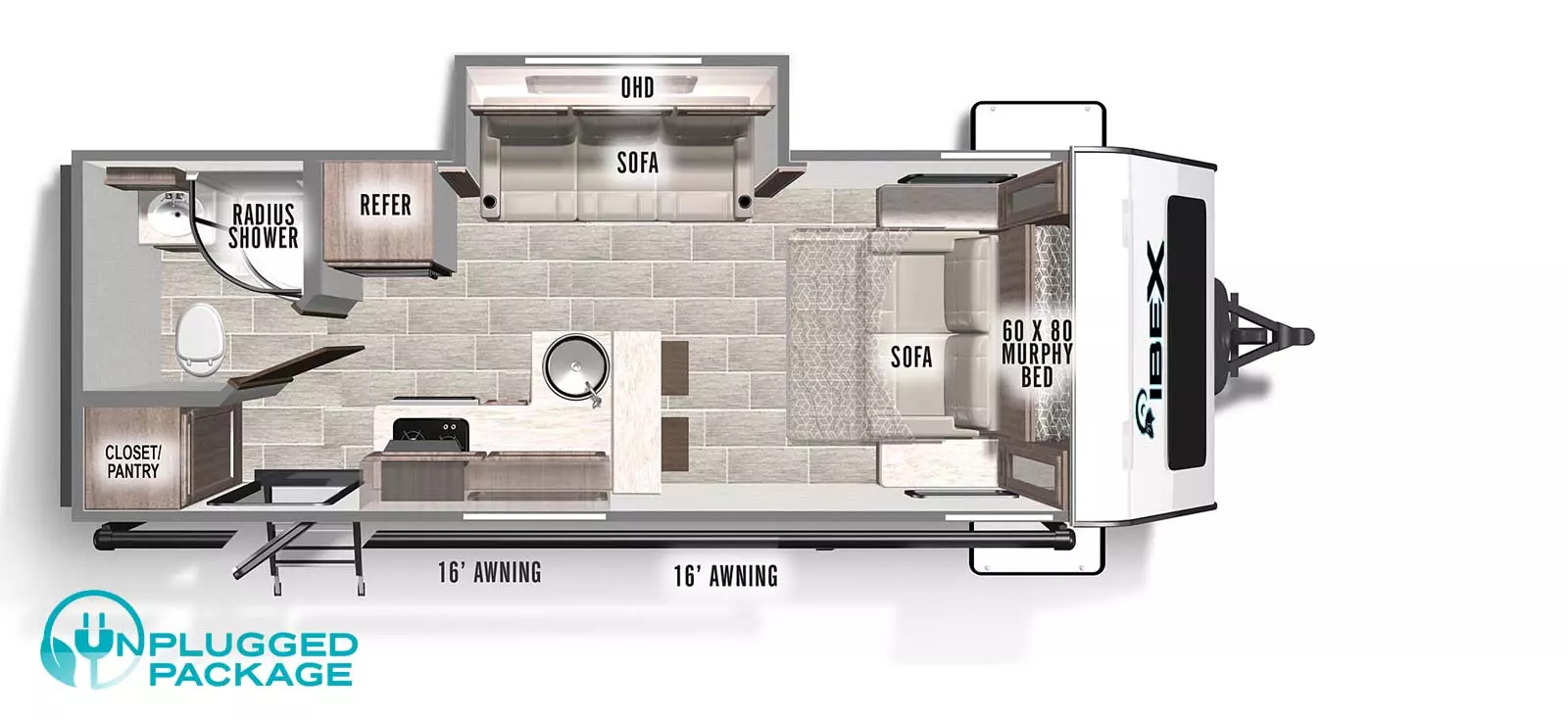

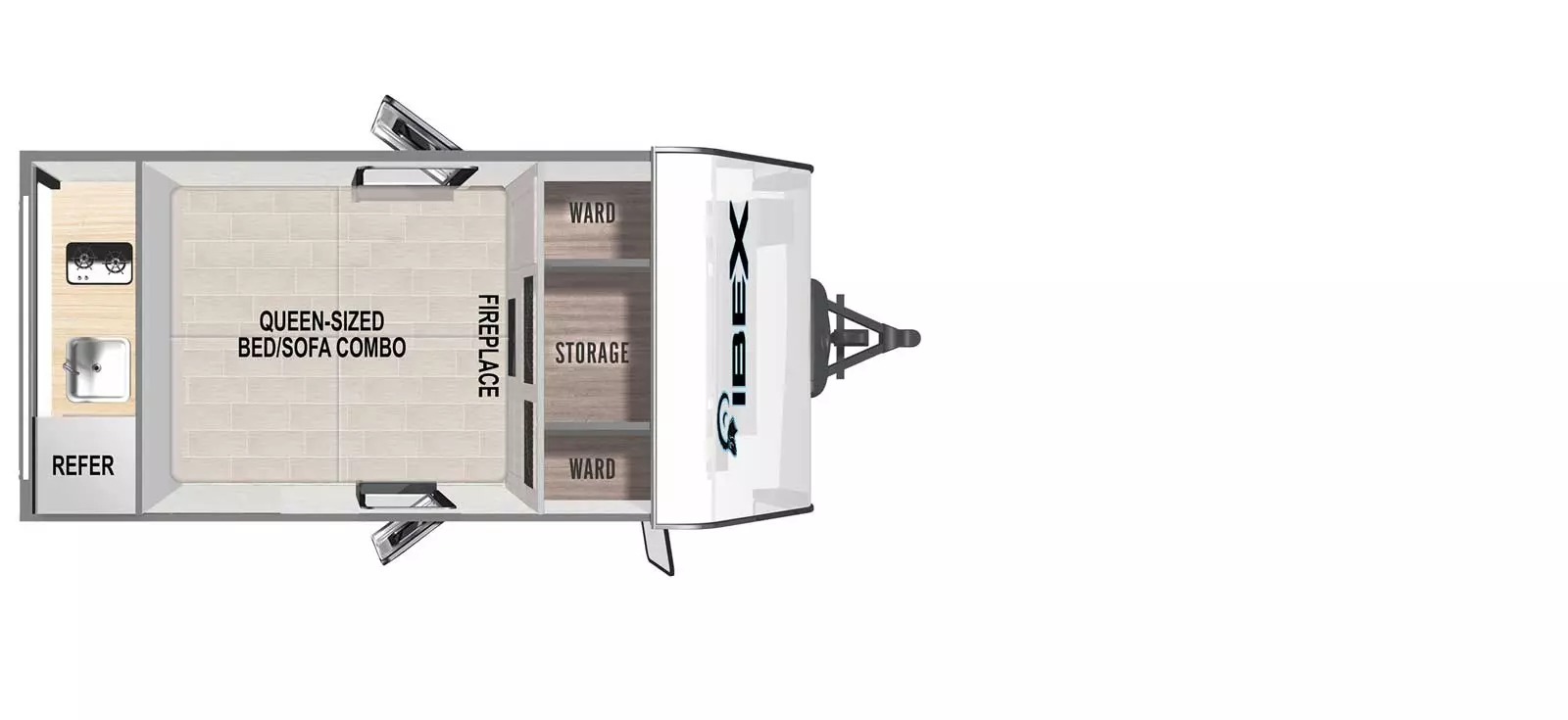

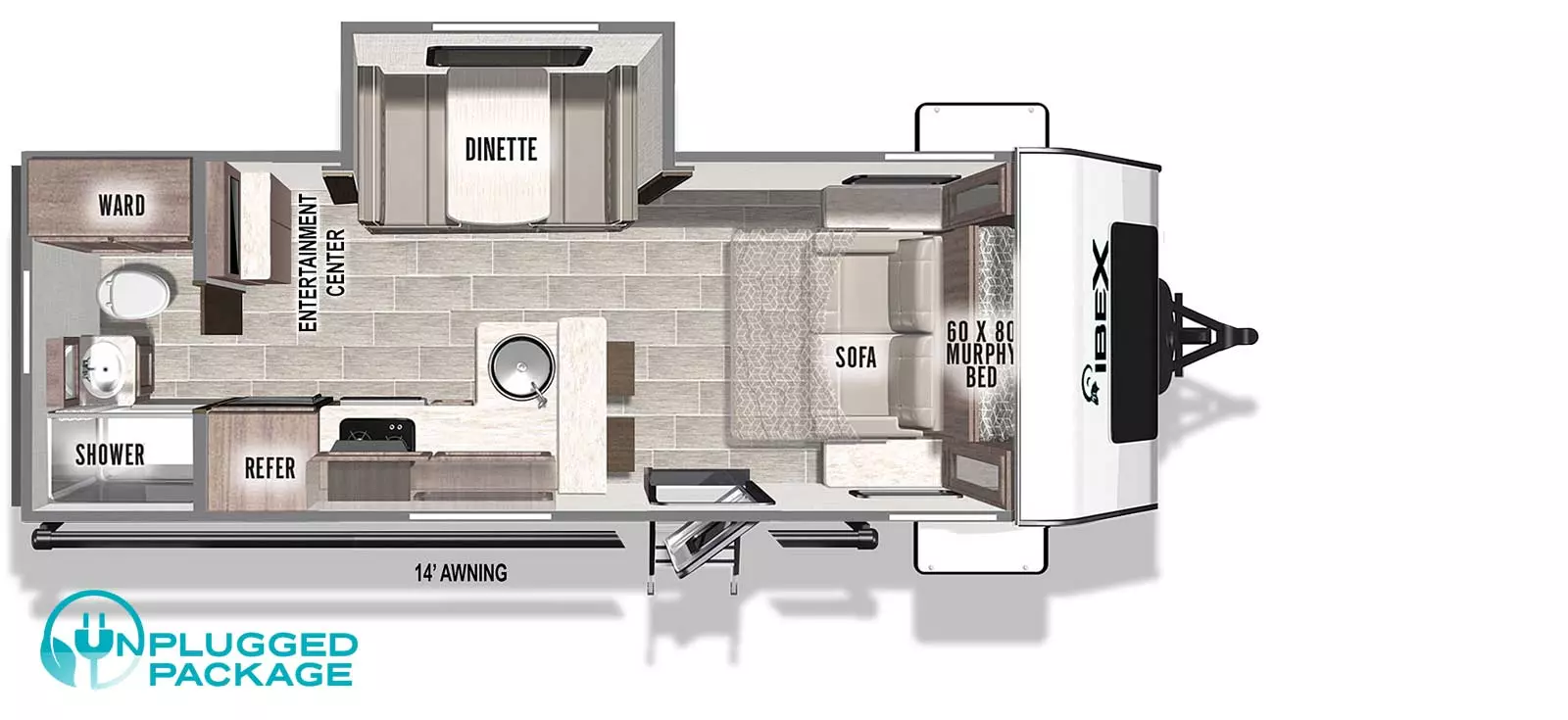

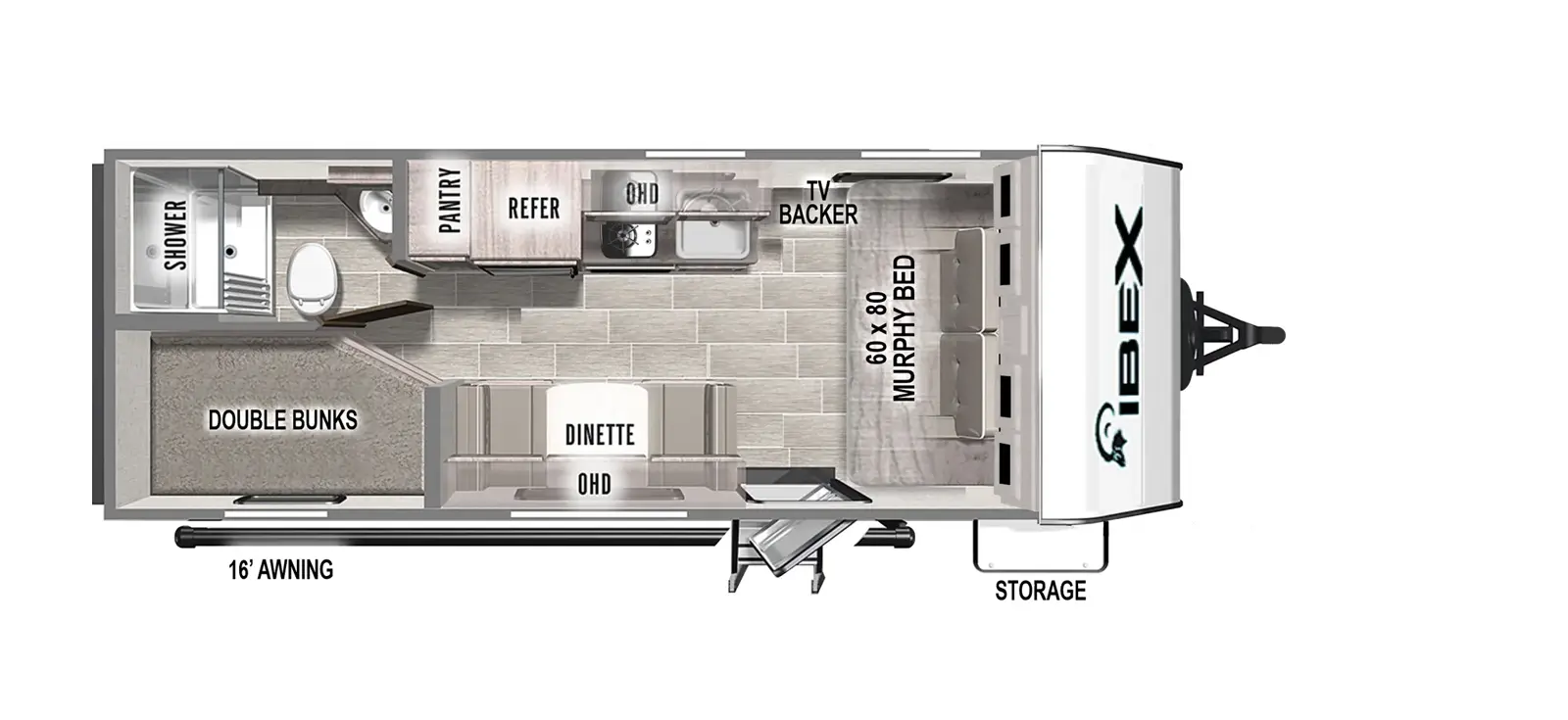

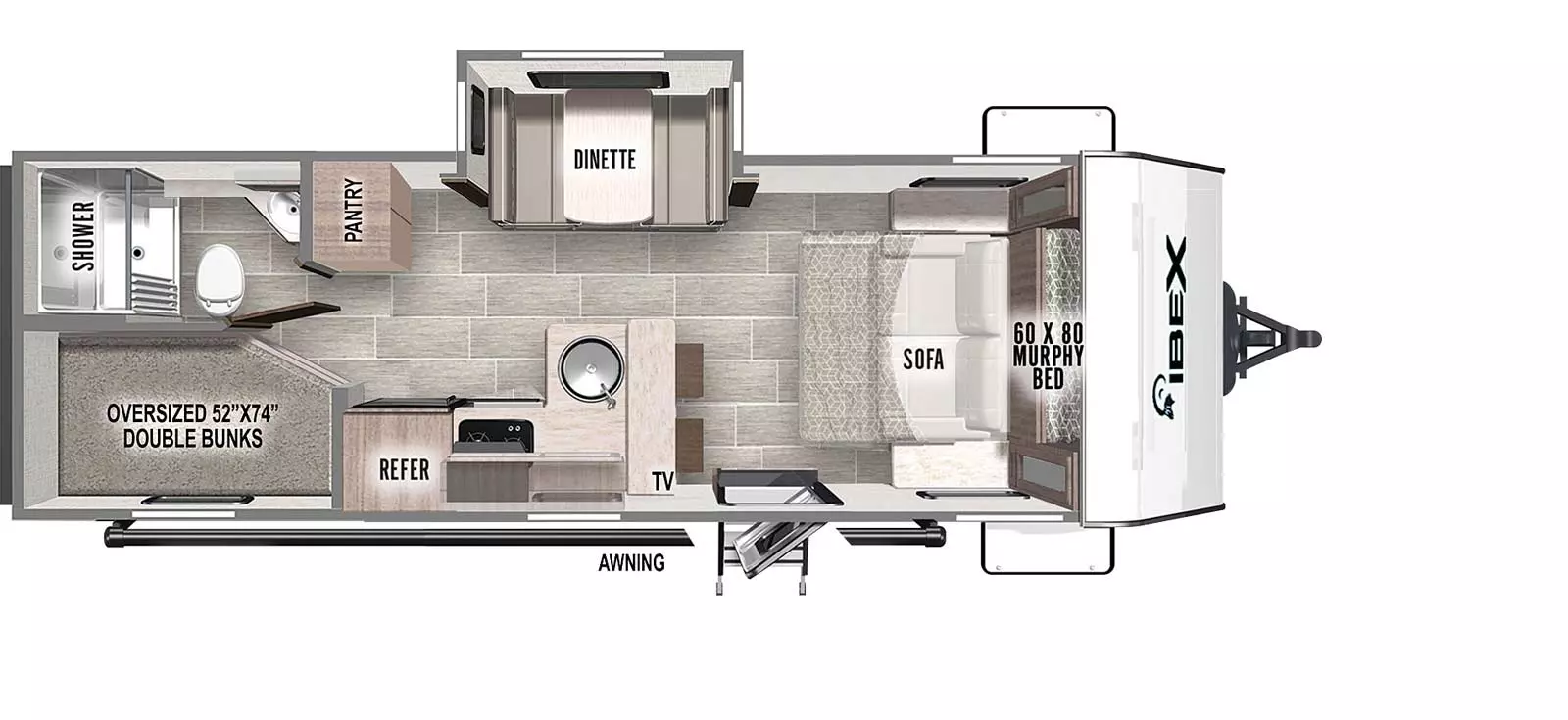

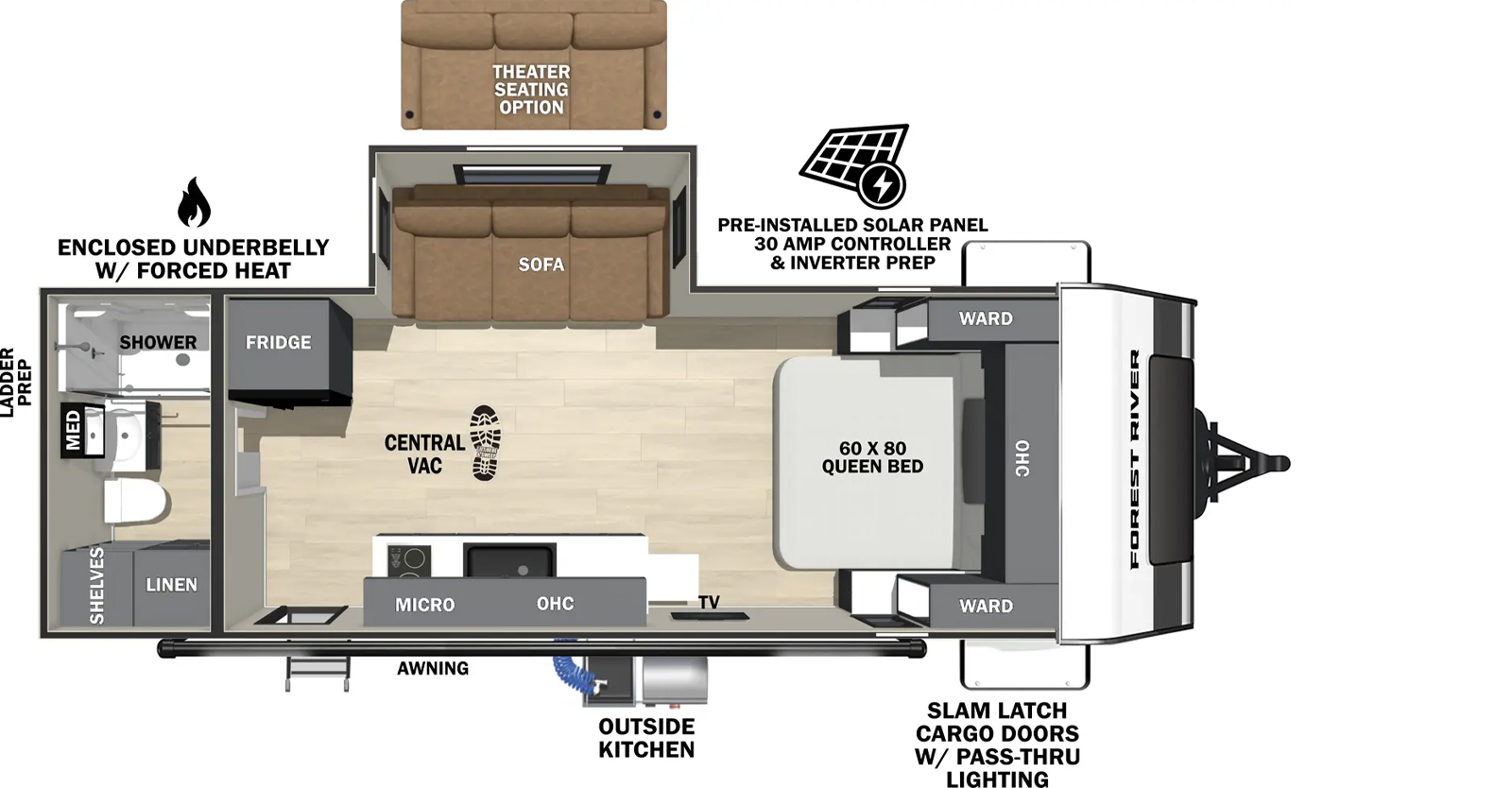

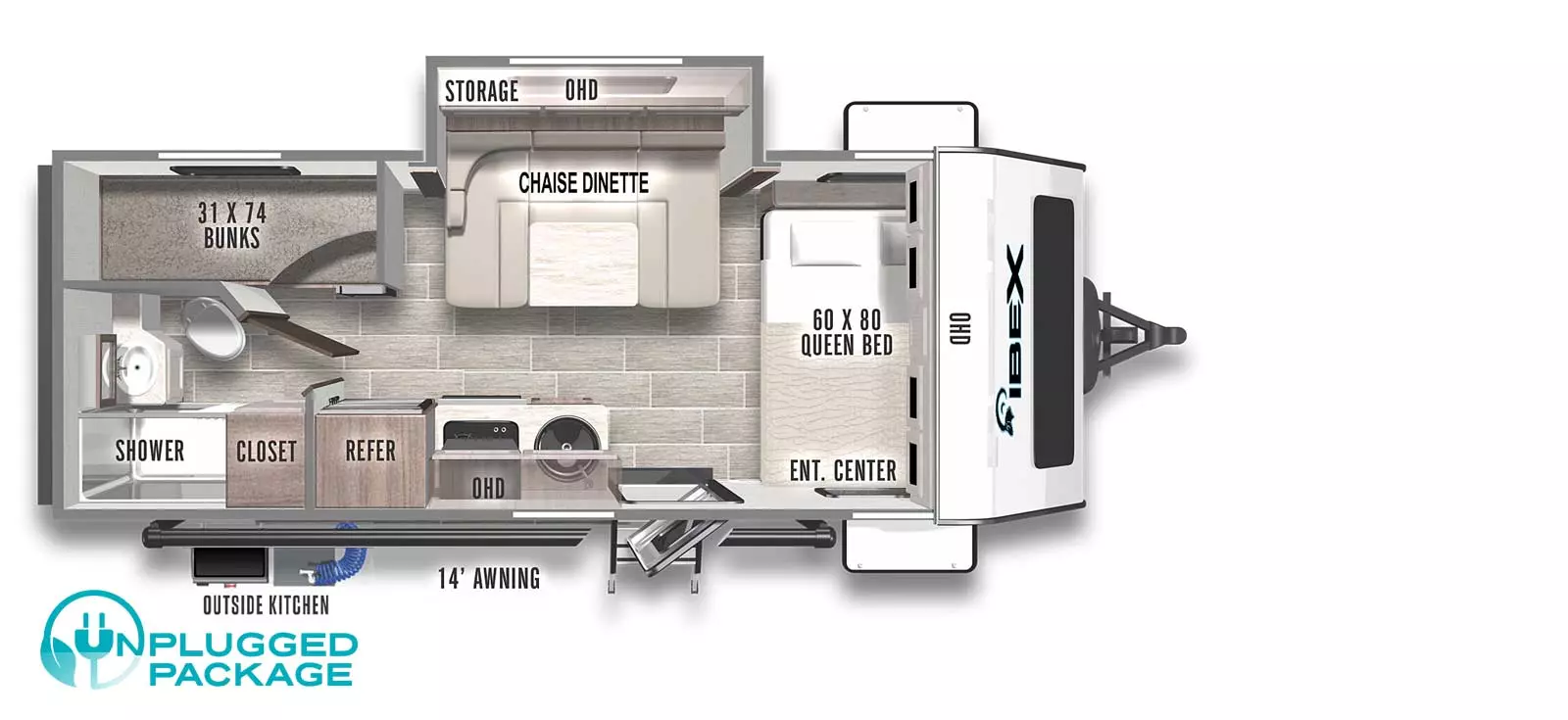

Floorplans

Print

Travel Trailers


Specifications

Print

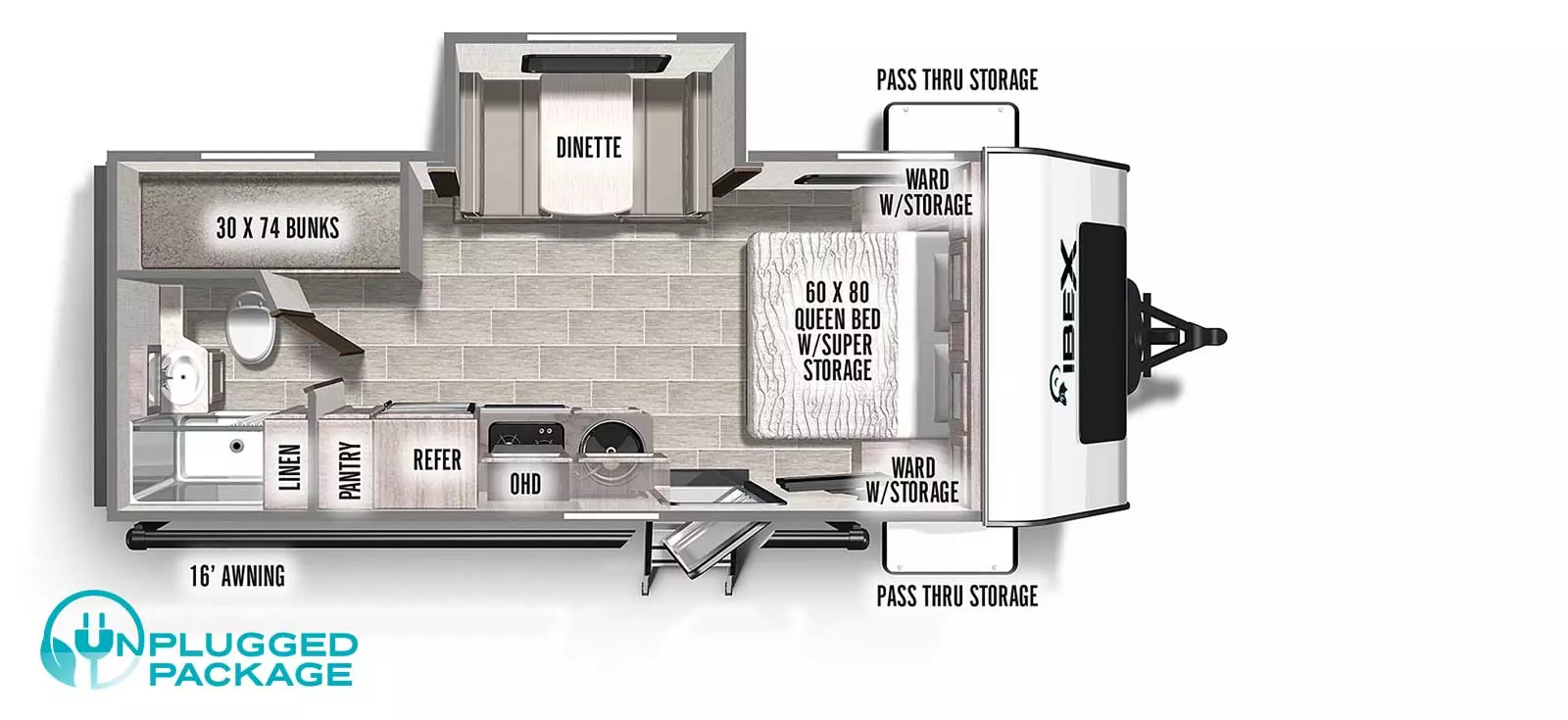

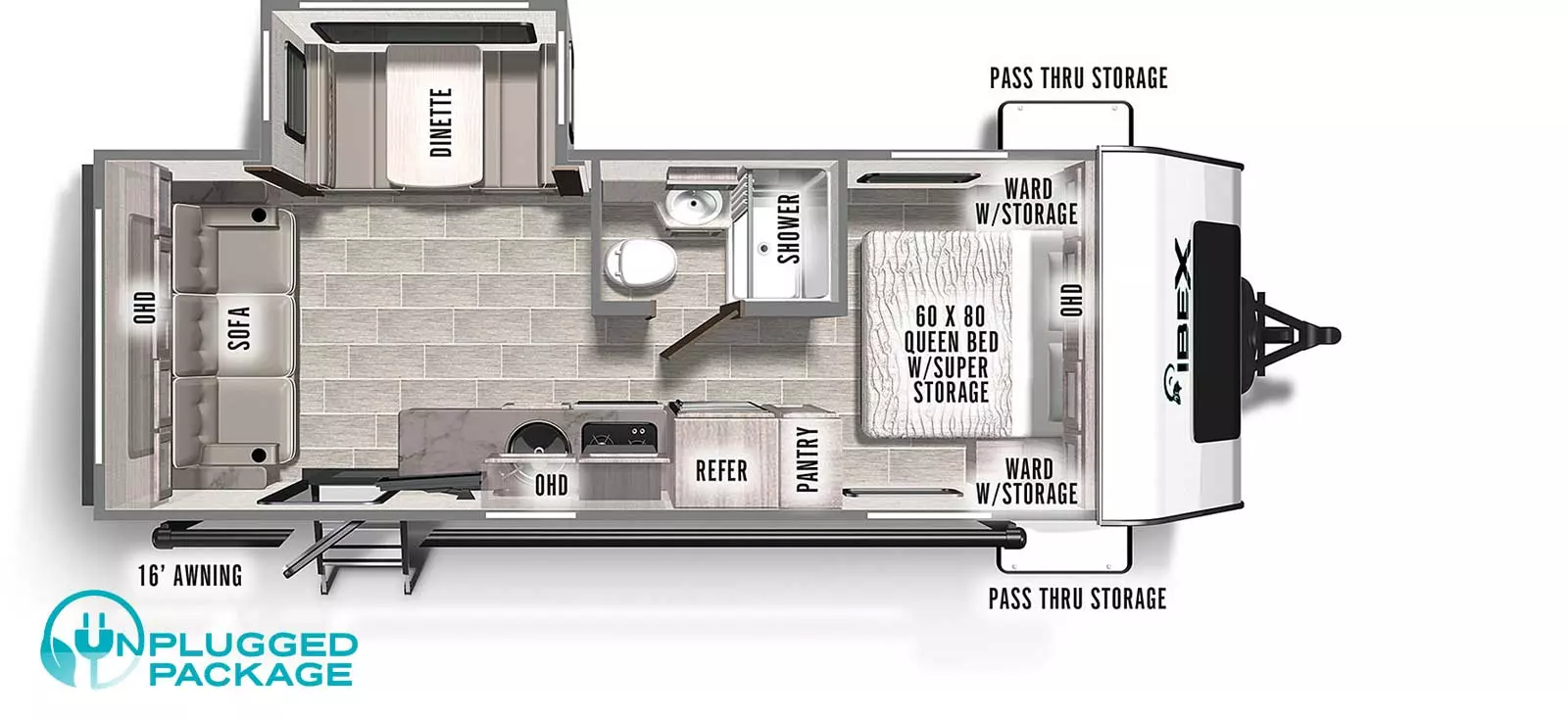

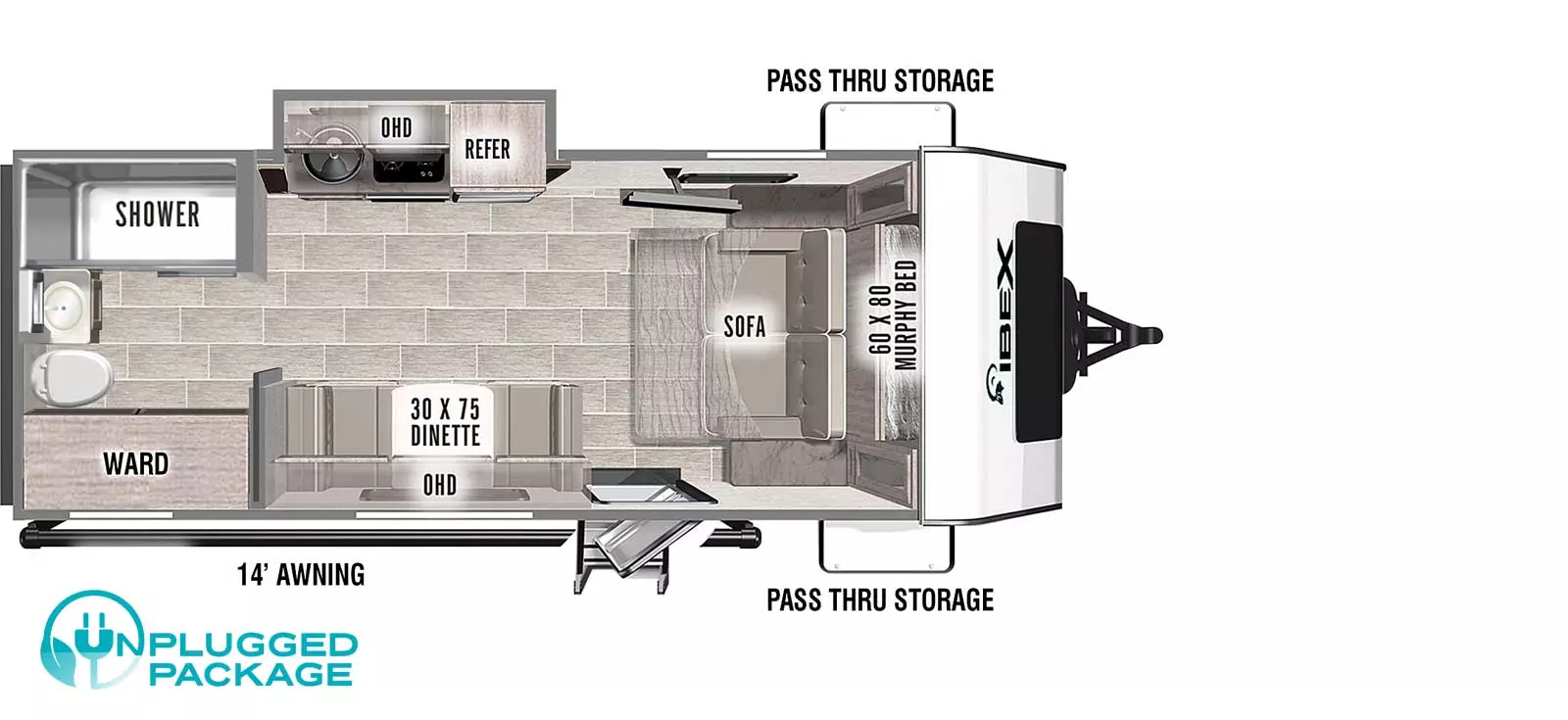

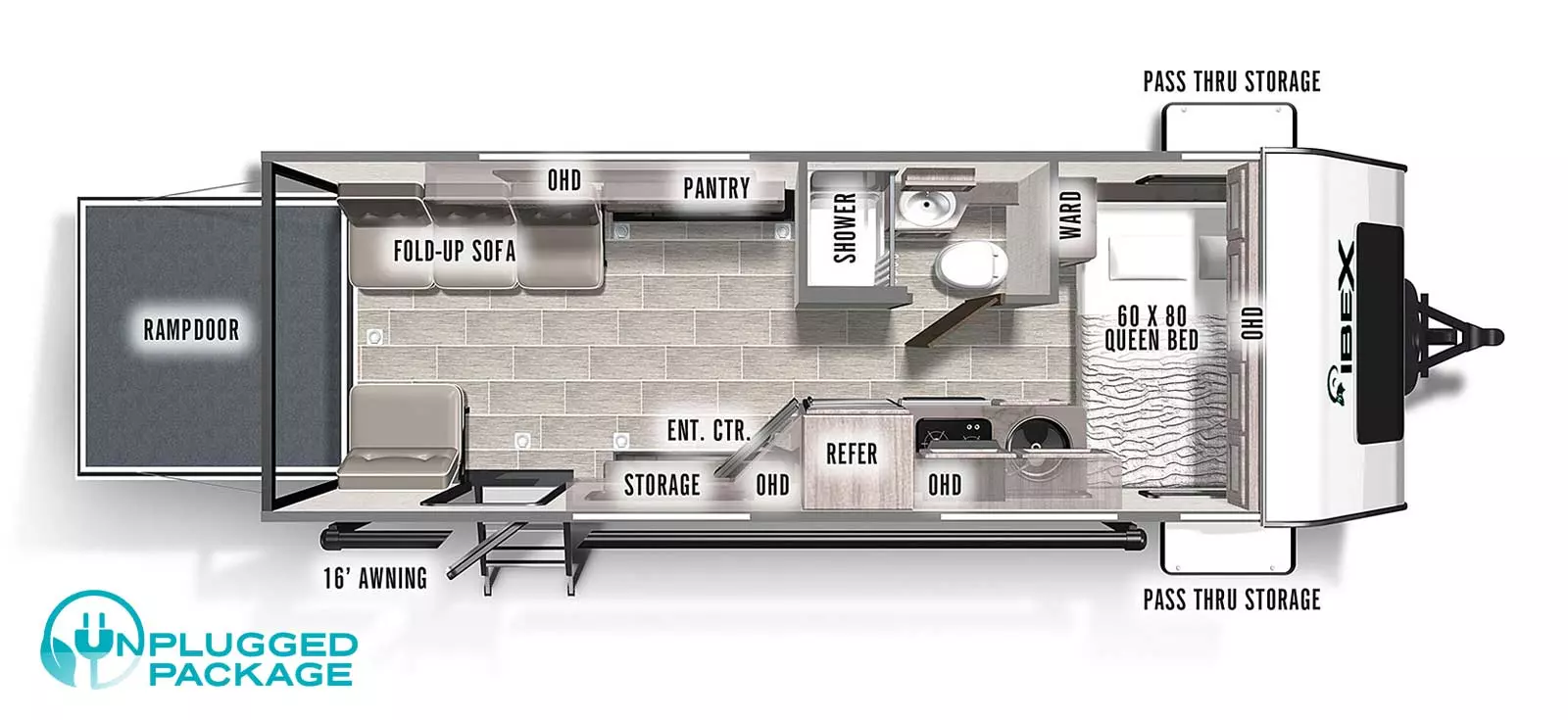

Floorplan: 19MBH : Travel Trailers 19QBS : Travel Trailers 19QTH : Travel Trailers 19RBM : Travel Trailers 20BHS : Travel Trailers 23RLDS : Travel Trailers 24MTH : Travel Trailers
Hitch Weight:465 lb.395 lb.790 lb.TBD510 lb.660 lb.TBD
GVWR:7,465 lb.4,795 lb.7,790 lb.TBD7,510 lb.7,660 lb.TBD
UVW:4,134 lb.3,774 lb.4,489 lb.TBD4,613 lb.5,098 lb.TBD
CCC:3,331 lb.1,021 lb.3,301 lb.TBD2,897 lb.2,562 lb.TBD
Exterior Length:24' 8"23' 0"24' 11"TBD25' 0"27' 6"TBD
Exterior Height:9' 11"9' 11"9' 11"TBD11' 3"11' 3"TBD
Exterior Width:88"88"88"TBD96"96"TBD
Fresh Water:30.00 gal.30.00 gal.30.00 gal.TBD40.00 gal.40.00 gal.TBD
Gray Water:30.00 gal.30.00 gal.30.00 gal.TBD40.00 gal.40.00 gal.TBD
Black Water:30.00 gal.30.00 gal.30.00 gal.TBD30.00 gal.30.00 gal.TBD
Awning Size:16'14'16'14'16'18'TBD

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Azdel construction
  • Largest-In-Class Refrigerator on all floorplans

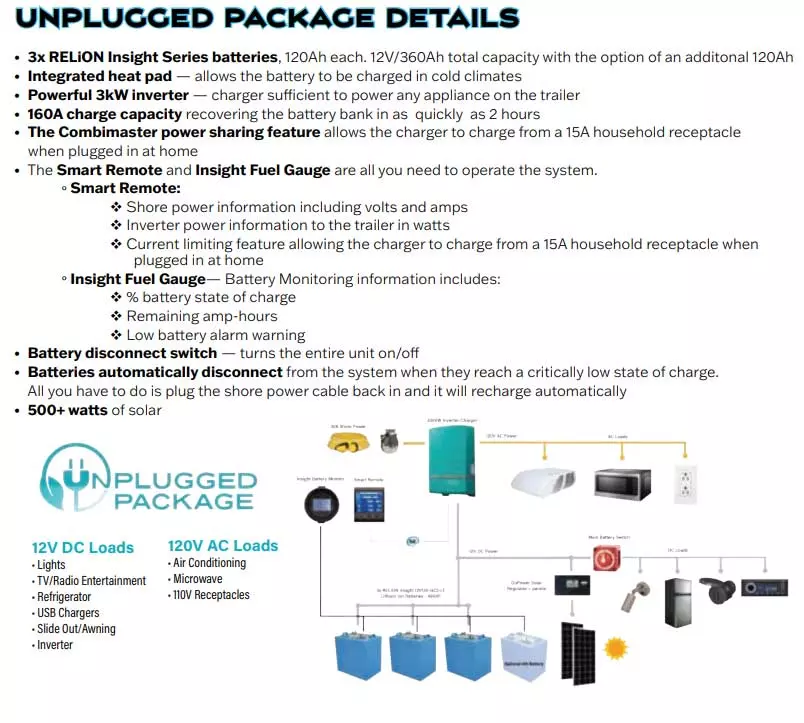

  • Solar system with large panel, controller, and 1000W inverter
  • Cold Weather Package: heated and enclosed underbelly, tank pad heaters, and enclosed termination system
  • 15K A/C
  • PVC roof with 15-year warranty
  • All terrain tires and increased ground clearance
  • JBL wireless Bluetooth audio system
  • Central vacuum system
  • 12V, 32” television
  • Rhino-Rack RTV tracks
  • Panoramic front window
  • Seamless countertops
  • Stainless steel appliances

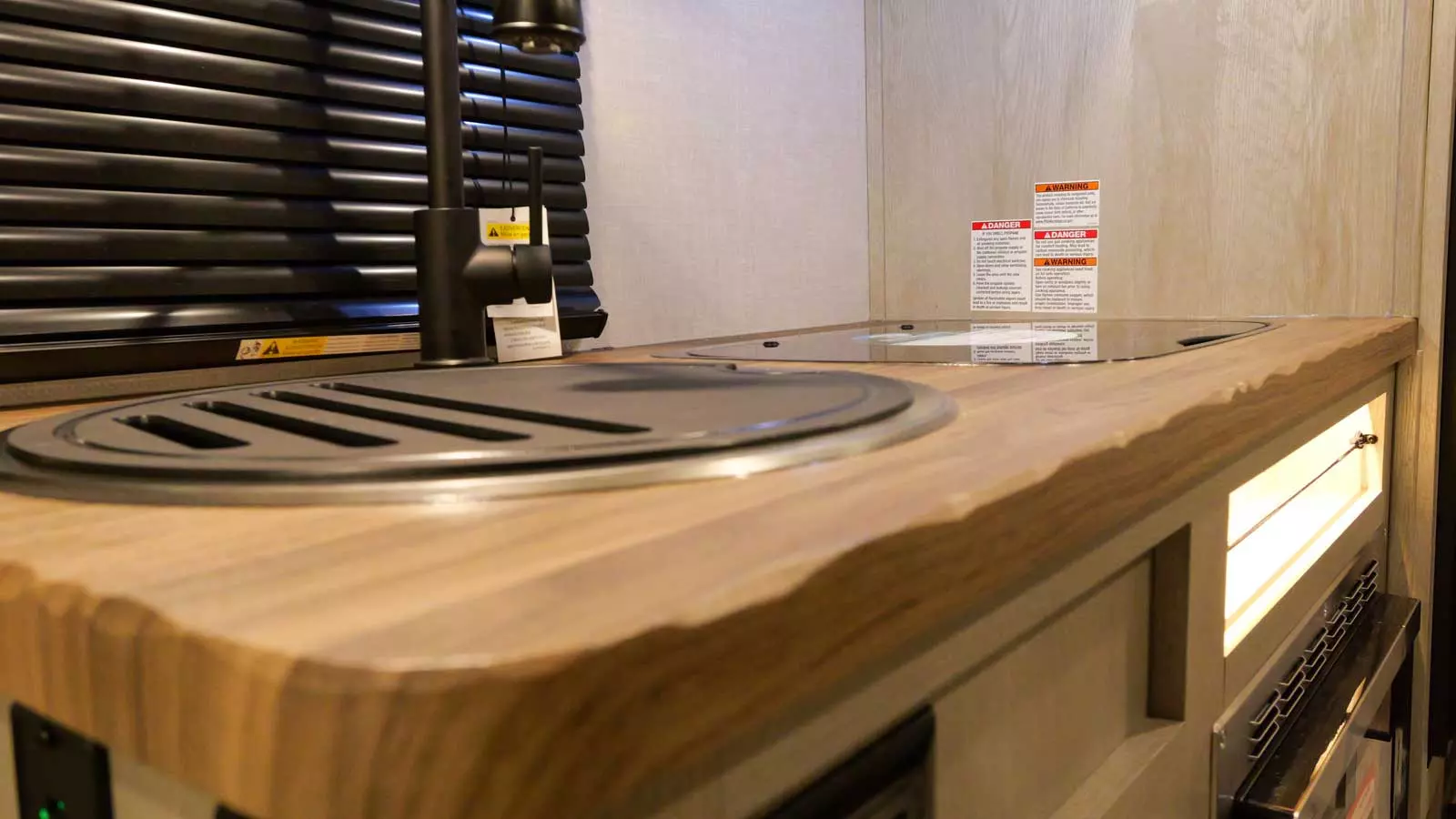

  • Outside cooktop
  • Suburban Cooktop Griddle


Virtual Tours

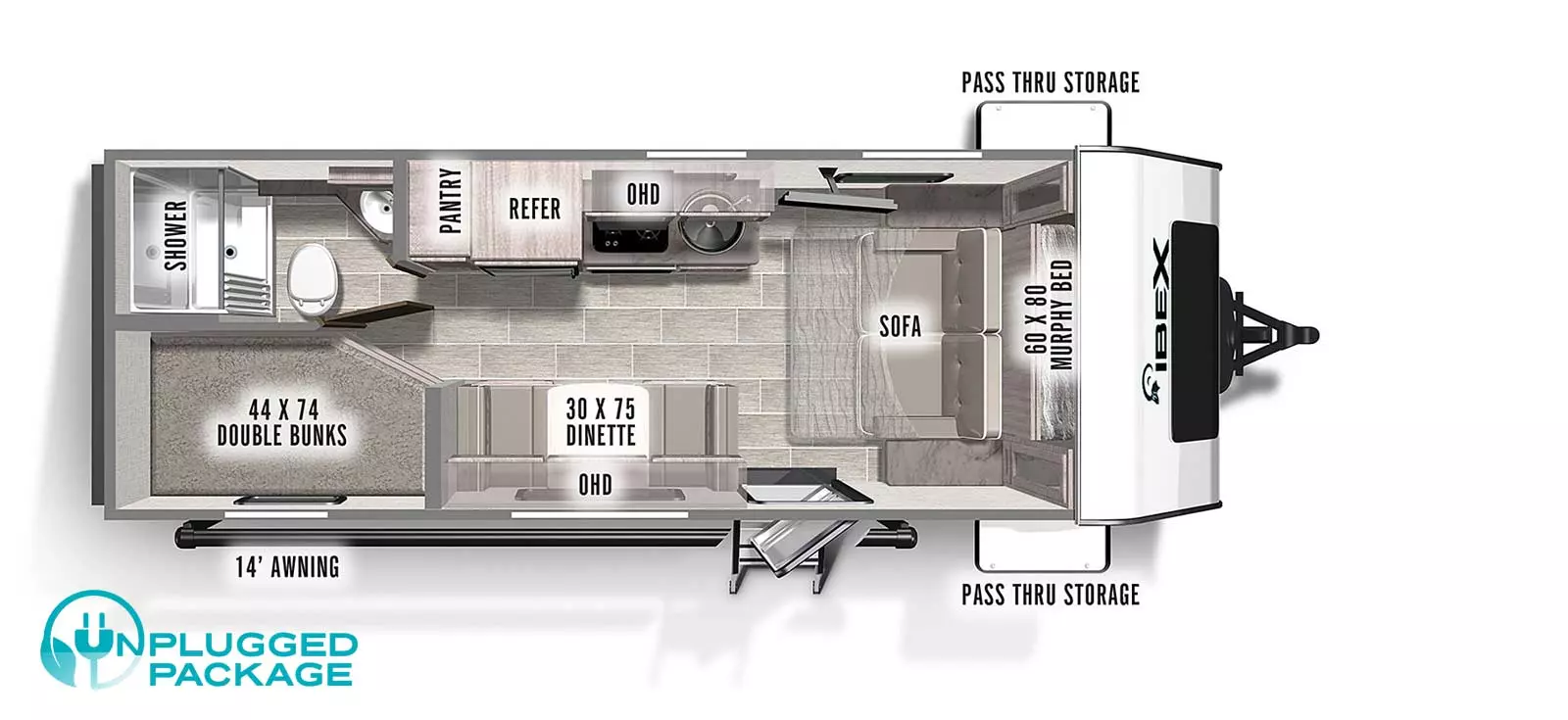

  • 19MBH

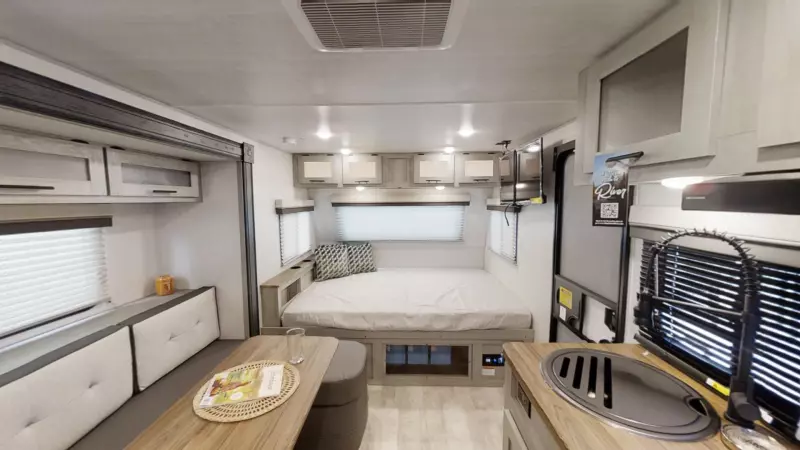

    19MBH Main Room
  • 19QBS
    19QBS Main Room
  • 19QTH
    19QTH Main Room
  • 20BHS
    20BHS Main Room
  • 23RLDS
    23RLDS Main Room

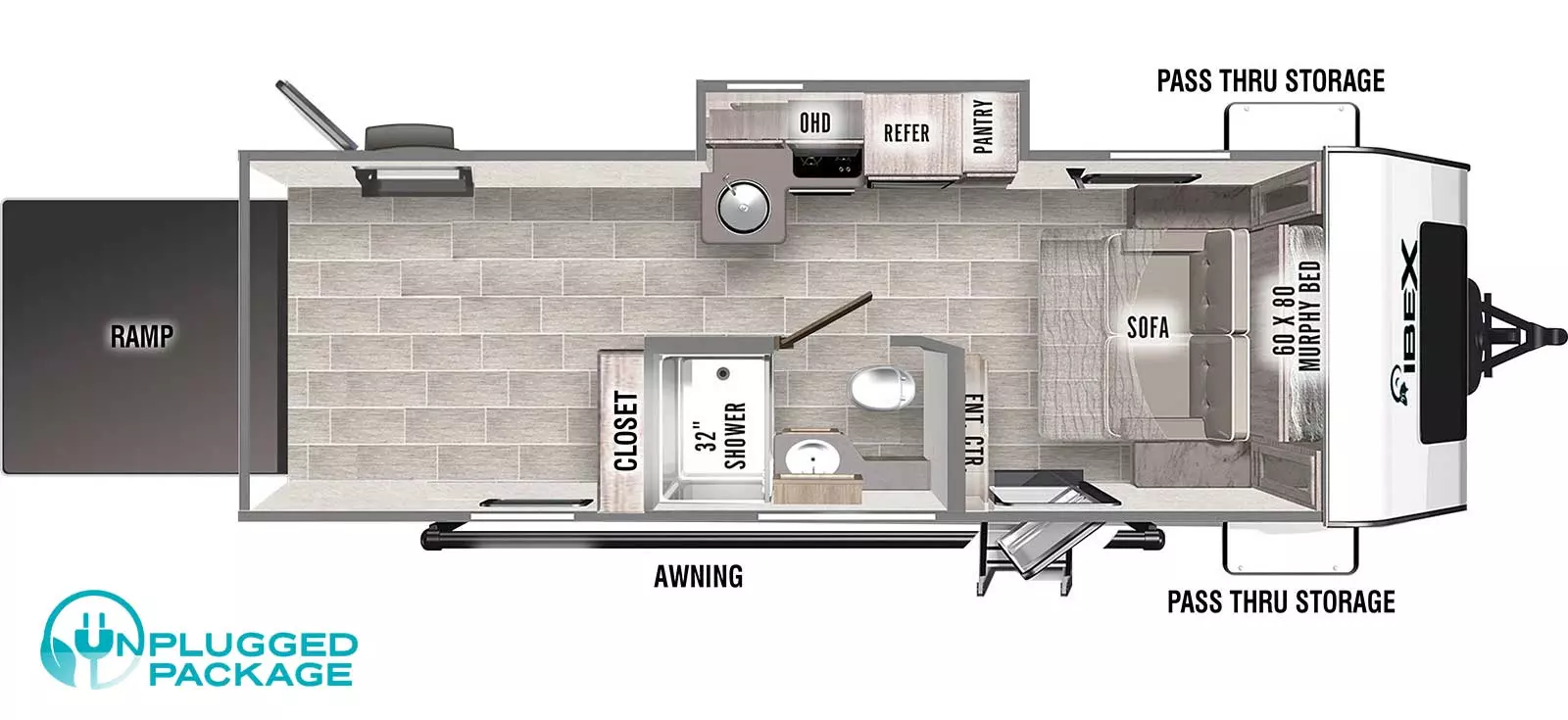

  • 24MTH

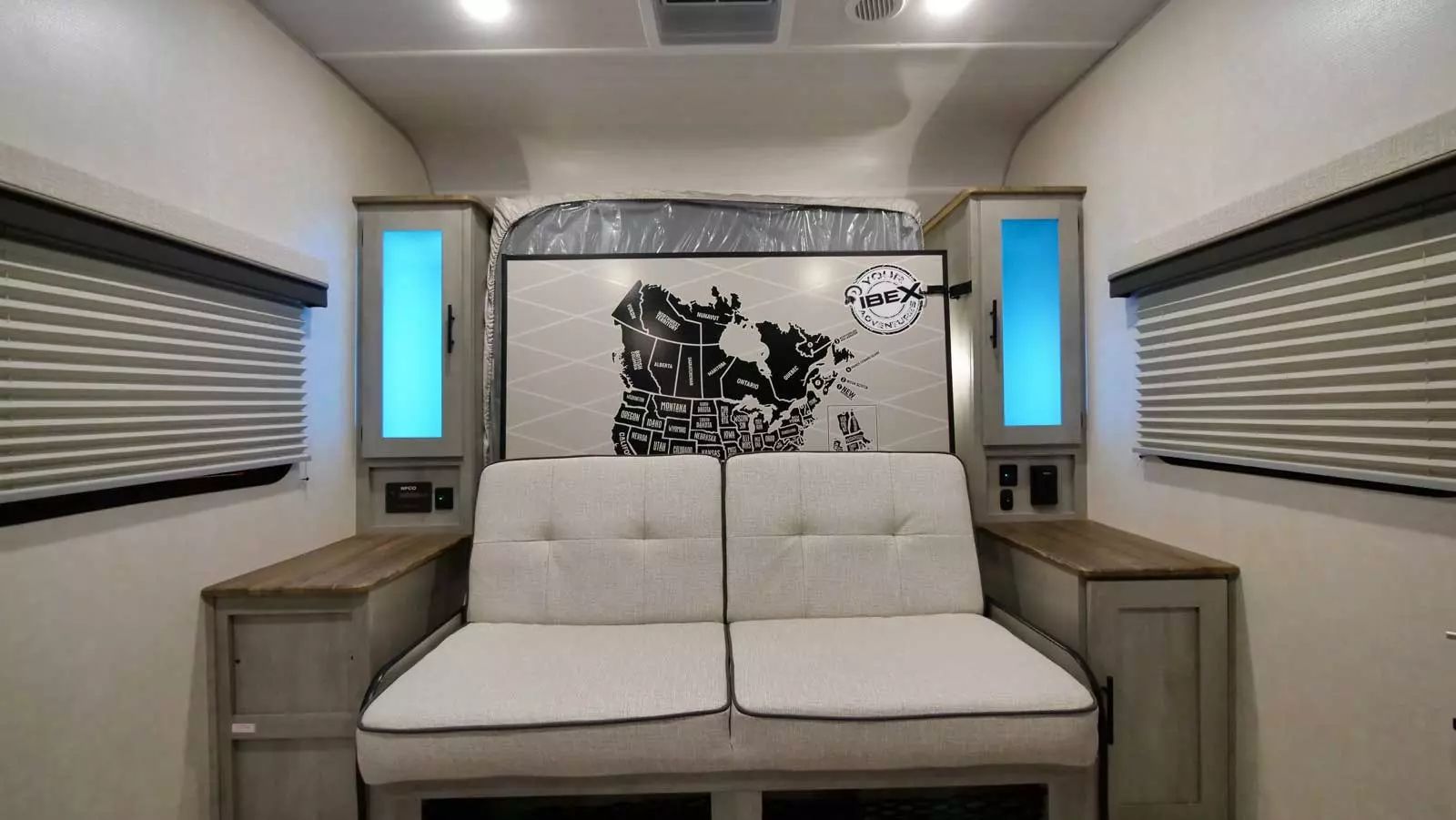

    24MTH Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
