Ozark Travel Trailers and Toy Haulers

Ozark travel trailers and toy haulers are lightweight, easy to tow, and loaded with standard amenities such as oversized windows, high capacity tanks, and stainless-steel appliances. The unique and spacious floorplans pack in all the features you need and none that you don’t, all while maintaining smooth styling, capability and value. Built with the weekender in mind, all you need to worry about is where adventure will take you next!

RV Pro Best New Model 2023 - 1800TH Care Camps, fighting cancer and making memories

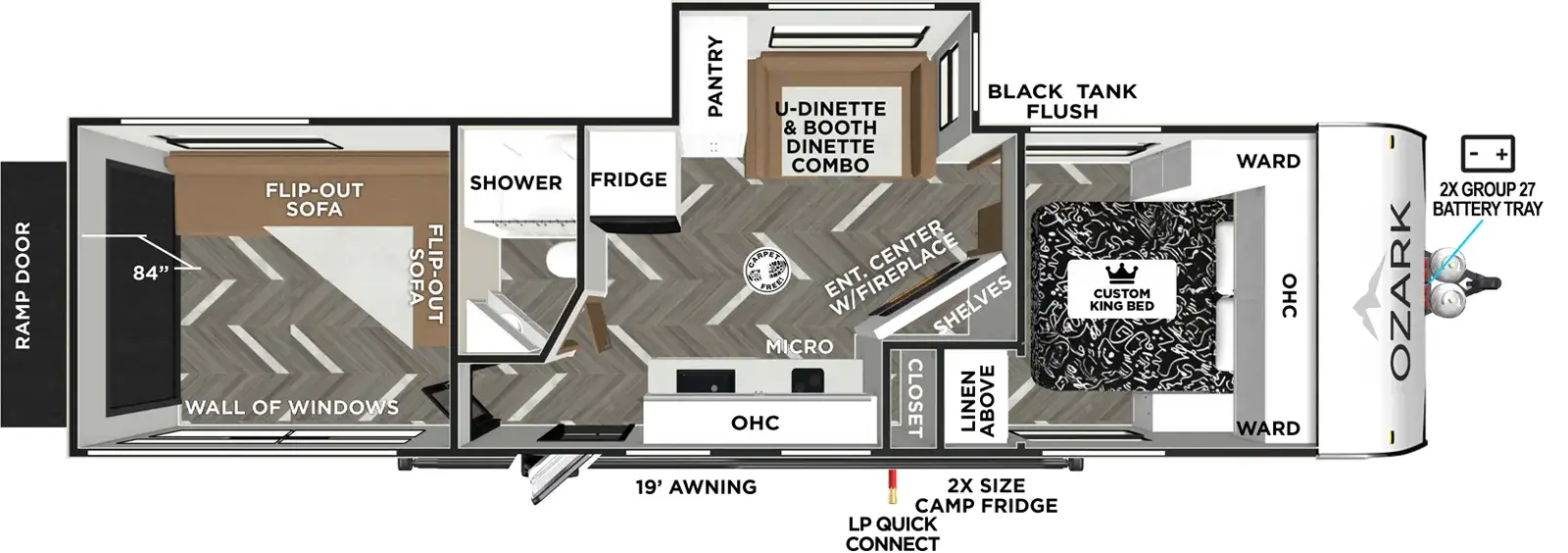

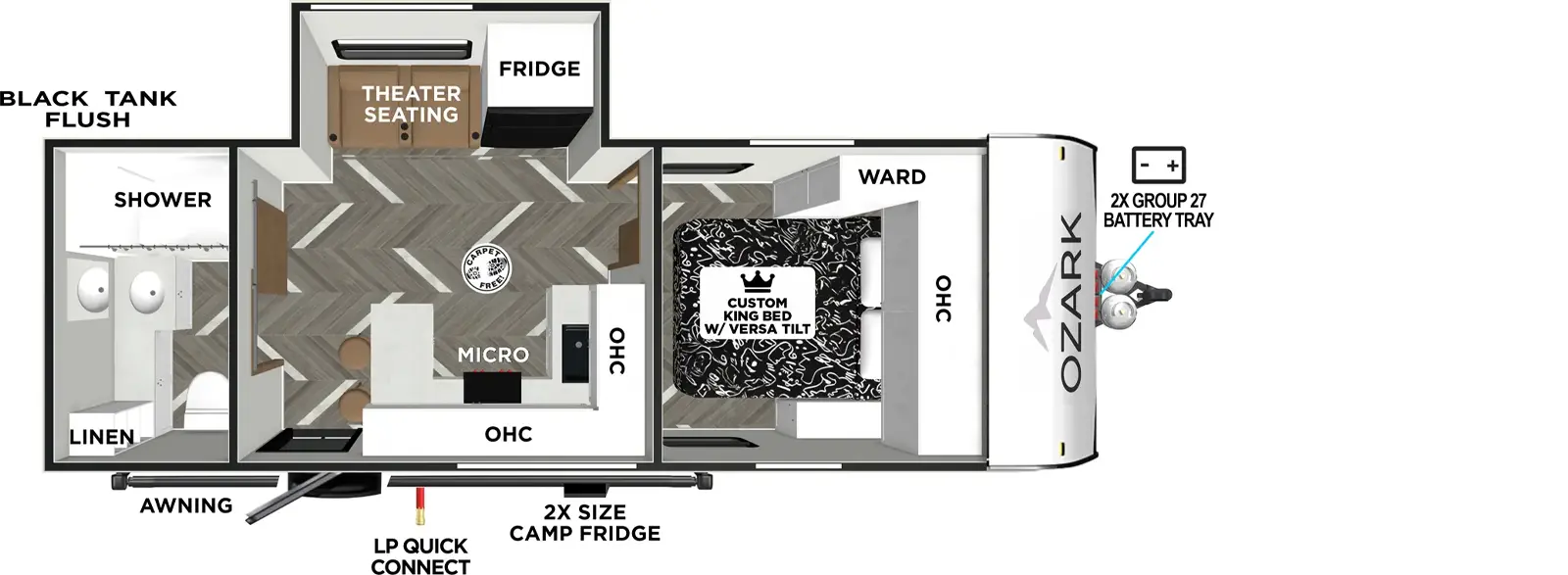

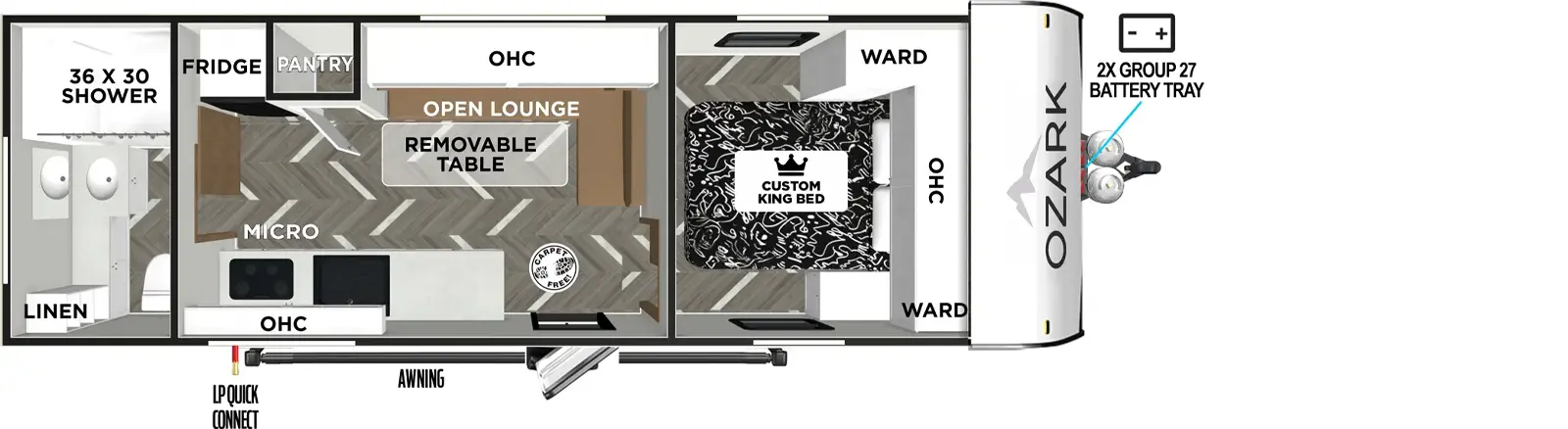

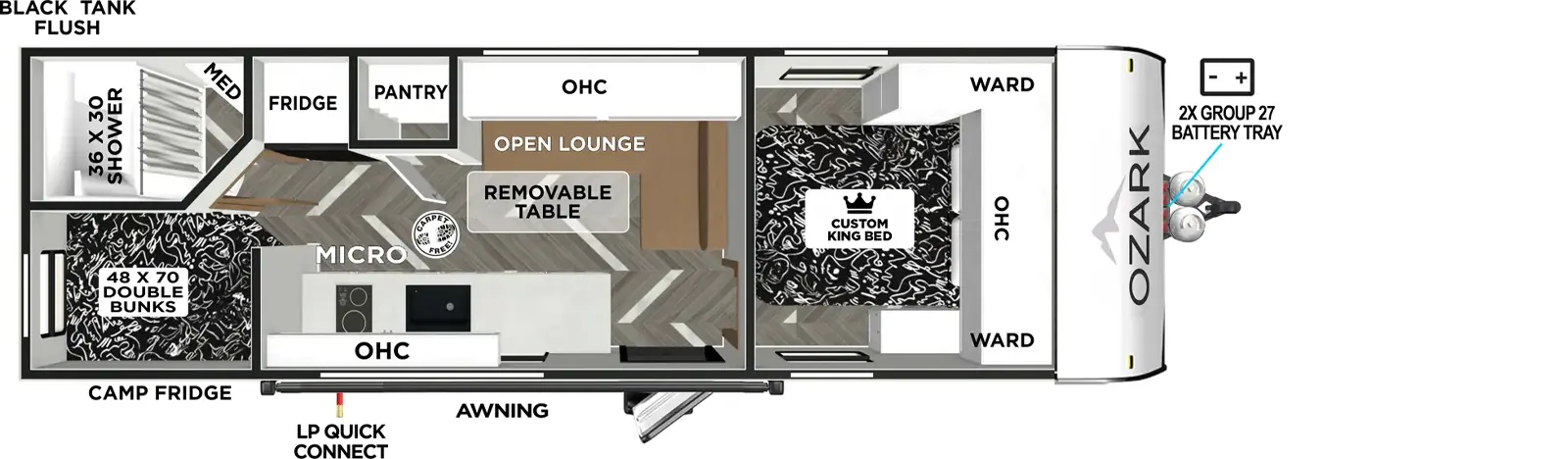

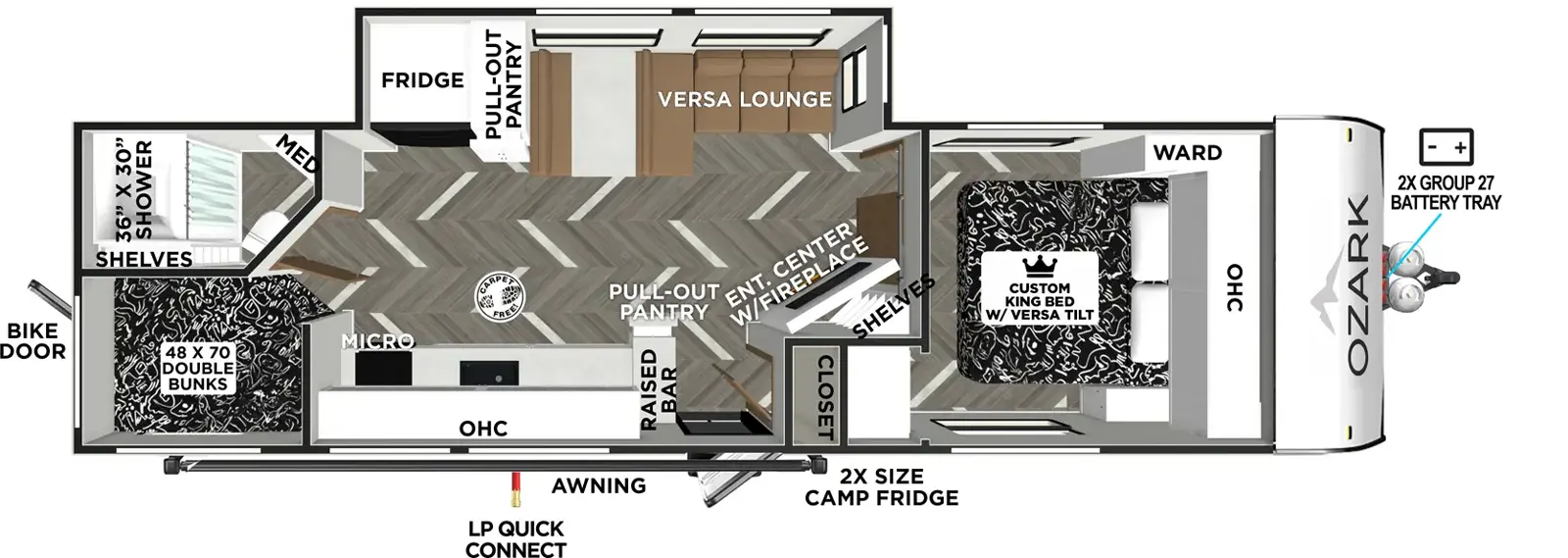

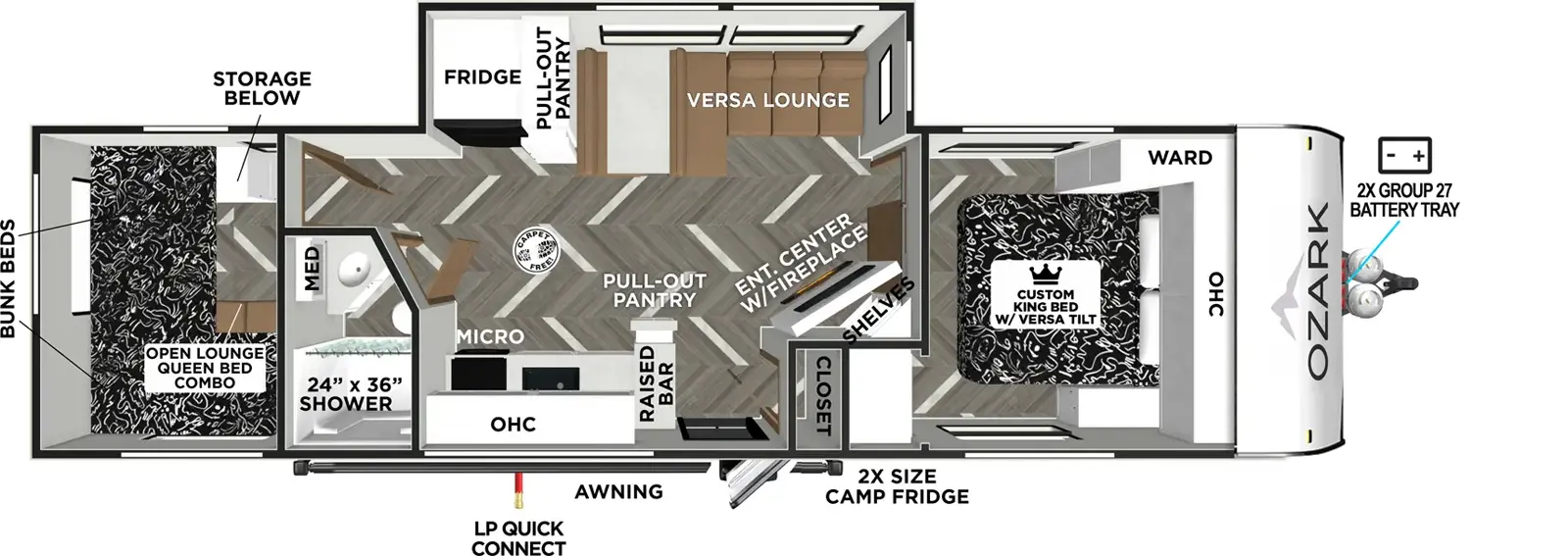

Floorplans

Print

Single Axle Travel Trailers
Tandem Axle Travel Trailers
Toy Haulers


Specifications

Print

Floorplan: 1530VBK : Single Axle Travel Trailers 1650BHK : Single Axle Travel Trailers 1660FQ : Single Axle Travel Trailers 1680BSK : Single Axle Travel Trailers 1800QSX : Single Axle Travel Trailers 2630RBKX : Tandem Axle Travel Trailers 2670RKX : Tandem Axle Travel Trailers 1900TH : Toy Haulers 2500TH : Toy Haulers 2800THX : Toy Haulers
Hitch Weight:370 lb.410 lb.405 lb.505 lb.410 lb.839 lb.TBD775 lb.635 lb.TBD
GVWR:3,870 lb.4,810 lb.3,905 lb.4,905 lb.4,810 lb.9,639 lb.TBD7,775 lb.7,635 lb.TBD
UVW:2,989 lb.3,579 lb.3,009 lb.4,049 lb.3,789 lb.6,543 lb.TBD4,359 lb.4,913 lb.TBD
CCC:881 lb.1,231 lb.896 lb.856 lb.1,021 lb.3,096 lb.TBD3,416 lb.2,722 lb.TBD
Exterior Length:18' 1"22' 5"22' 0"23' 1"23' 0"30' 1"TBD23' 5"28' 8"TBD
Exterior Height:TBD10' 2"10' 2"10' 2"10' 2"11' 2"TBD10' 6"10' 6"TBD
Exterior Width:90"90"90"90"90"96"TBD96"96"TBD
Fresh Water:39.00 gal.43.00 gal.39.00 gal.39.00 gal.38.00 gal.54.00 gal.TBD54.00 gal.38.00 gal.TBD
Gray Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.80.00 gal.TBD40.00 gal.30.00 gal.TBD
Black Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.40.00 gal.TBD40.00 gal.30.00 gal.TBD
Awning Size:10'14'12'14'14'19'TBD14'15'TBD

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Full-Length Power Awning w/Adjustable Legs
  • Exterior LED Light Strip Under Awning
  • Backup Camera Prep
  • Furrion Solar Prep & LED Mushroom Lights
  • USB Charging Outlets
  • Portable FM/Bluetooth Stereo (Indoor / Outdoor)
  • Upgraded Appliance Package
  • Friction Hinge Entrance Door
  • EZ Entrance: Double Step + XL Folding Grab Assist Handle
  • Class-Leading Window Package
  • Deep Single Basin Kitchen Sink
  • Upgraded Hypoallergenic Mattress
  • Dual-Burner Cooktop
  • Radius-Profile Front End for Ease of Towing
  • Pressed Seamless Countertops
  • Outside Hot/Cold Shower
  • Black Tank Flush
  • Tub Surround
  • 11 Cu. Ft Double-Door 12V Refrigeator
  • 60x74 Queen Bed
  • 6 Gal. DSI Gas Water Heater
  • Foot Flush Toilet
  • TV Backer with Hookups
  • TV Antenna with Booster
  • High Rise Kitchen Faucet
  • 20K BTU Furnace
  • Microwave
  • 13.5K BTU Roof-Mounted AC
  • Spare Tire with Carrier
  • 78” Interior Height
  • Upgraded TUFFCOAT Aluminum Exterior
  • Diamond Plated Rock Guard on Front
  • Baggage Door Catches
  • 26” Entrance Doors (IPO 22” Standard)
  • Upgraded Large 32x16 Baggage Doors
  • Pleated Black Privacy Night Shades
  • Durable, One-piece Linoleum Flooring (Ease of cleaning)
  • Solid Wood Drawer Sides w/ Ball Bearing Guides
  • 30 AMP Service
  • Stabilizer Jacks
  • Nitrogen-Filled Radial Tires
  • Dedicated Cable TV Hookup on Exterior of Coach
  • 4” Sloped One-Piece Roof
  • Exterior Recept
  • 5/8” Tongue-n-Groove Plywood Flooring
  • Family-Sized Dinette
  • Upgraded Detachable Power Cord
  • Monitor / Control Panel
  • High-Pressure Water Pump
  • Electric Self-Adjusting Brake System
  • Emergency Exit Windows
  • Safety Glass Windows
  • Fire Extinguisher
  • Carbon Monoxide Detector
  • LP Detector
  • Smoke Detector
  • GFI Protective Outlet
  • Patio Deck with Railing System on Ramp Door
  • Exterior LED Light Strip Under Awning
  • Backup Camera Prep
  • Furrion Solar Prep & LED Mushroom Lights
  • Full-Length Power Awning w/ Adjustable Legs
  • USB Charging Outlets
  • AM/FM/Bluetooth Stereo
  • Upgraded Appliance Package w/ Oven
  • Friction Hinge Entrance Door
  • EZ Entrance: Double Step + XL Folding Grab Assist Handle
  • Window Valance Package
  • Black Tank Flush
  • Deep Single Basin Kitchen Sink w/ High Rise Kitchen Faucet
  • Upgraded Hypoallergenic Mattress
  • Upgraded 5,000 lb. Stab Jacks
  • Pressed Seamless Countertops
  • 11 Cu. Ft Double-Door 12V Refrigeator
  • Largest-in-Class Single Basin Kitchen Sink
  • 36x24 Large Shower Pan
  • 60x74 Queen Bed
  • 6 Gal. DSI Gas Water Heater
  • Foot Flush Toilet
  • TV Backer with Hookups
  • TV Antenna with Booster
  • High Rise Kitchen Faucet
  • 20K BTU Furnace
  • Microwave
  • 13.5K BTU Roof-Mounted AC
  • Spare Tire with Carrier
  • Class Leading Window Package
  • 78” Interior Height
  • Upgraded TUFFCOAT Aluminum Exterior
  • Diamond Plated Rock Guard on Front
  • Baggage Door Catches
  • 26” Entrance Doors (IPO 22” Standard)
  • Upgraded Large 32x16 Baggage Doors
  • Pleated Black Privacy Night Shades
  • Durable, One-piece Linoleum Flooring (Ease of cleaning)
  • Solid Wood Drawer Sides w/ Ball Bearing Guides
  • 30 AMP Service
  • Stabilizer Jacks
  • Nitrogen-Filled Radial Tires
  • Dedicated Cable TV Hookup on Exterior of Coach
  • 4” Sloped One-Piece Roof
  • Exterior Recept
  • 5/8” Tongue-n-Groove Plywood Flooring
  • Family-Sized Dinette
  • Upgraded Detachable Power Cord
  • Monitor / Control Panel
  • High-Pressure Water Pump
  • Electric Self-Adjusting Brake System
  • Emergency Exit Windows
  • Safety Glass Windows
  • Fire Extinguisher
  • Carbon Monoxide Detector
  • LP Detector
  • Smoke Detector
  • GFI Protective Outlet
  • Smooth Fiberglass Exterior Walls
  • .040 Smooth Front Metal
  • Ascent Graphics Package
  • Upgraded Steel Wheels
  • Ascent package adds approximately 150 lb. (Single axles) / 300 lb. (Toy Haulers) UVW

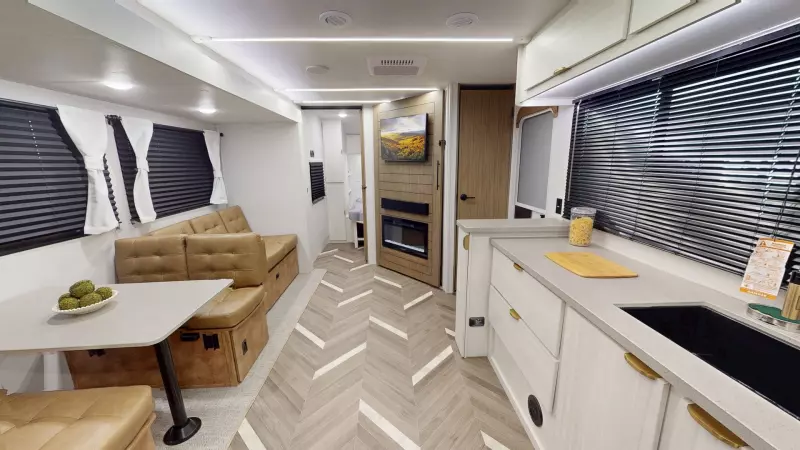

Virtual Tours

  • 1530VBK
    1530VBK Main Room
  • 1650BHK
    1650BHK Main Room
  • 1660FQ
    1660FQ Main Room
  • 1680BSK
    1680BSK Main Room
  • 1800QSX
    1800QSX Main Room
  • 1900TH
    1900TH Main Room
  • 2500TH
    2500TH Main Room
  • 2630RBKX
    2630RBKX Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature
